Altoids tin for MintiBoost workshop
Members of Let Them Tweet Cake, a female-only group in Louisville, KY that meets to discuss tech and geek-related stuff, were invited to LVL1 Hackerspace for a workshop on how to make MintiBoosts, battery-powered USB chargers made with Altoids tins. Check out this gallery to see images of yours truly trying to learn some geek skills and build my own MintiBoost!

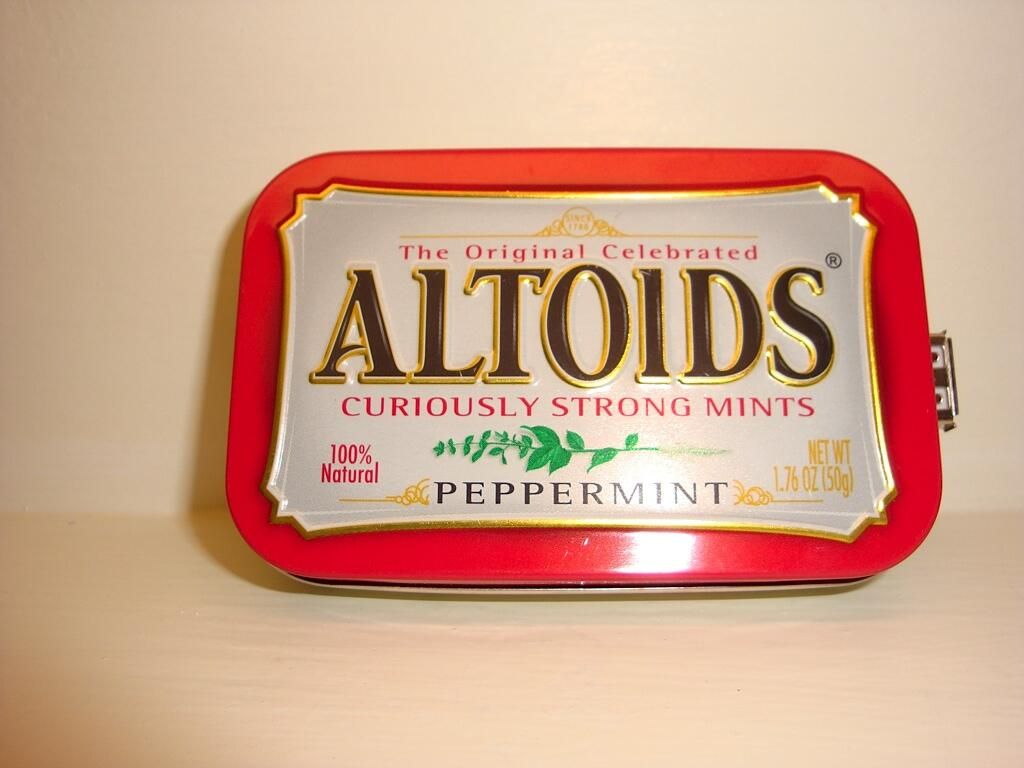

It all starts with an Altoids tin.
Photo courtesy of Grace Simrall (@greendrv)
For more details about the project, read my Geekend post MintiBoost workshop for geek women at LVL1 Hackerspace.
Nicole Bremer Nash is Director of Content and Social Media for HuTerra, where she uses SEO and social media to promote charitable organizations in their community-building and fundraising efforts. She enjoys volunteering, arts and crafts, and conducting science experiments at home. Nicole has a Bachelor of Arts degree in English from Transylvania University, and has experience in copywriting for education, print, business, and the web. You can find her on Facebook and Twitter via @HuTerra.
I'm sorry Nicole, but the previous comments have it right and you should pay attention. When I saw the article title I was intrigued. When I saw that it had been written by a women, I was delighted. As a woman in IT, with a degree in Electronic technology, I still deal frequently with male bias. Even my own husband can't give me any credit. Example: I've moved our Entertainment system to a different location which necessitates that it be entirely disconnected and then reconnected. He can't help but to say something like " I'd better help you get that thing back to gether..." to which I reply " Here's the remote....Can't you hear it playing already?" Even in the face of facts, He will still insist on "checking it out..." What is his expertise? Nada! He is a concrete finisher! Not to dis that....it's extremely hard work...but..so when I see a woman publishing something kinda geeky or technocool I gotta cheer for them, but in this case I am so disappointed! Not only did you misidentify components, your descriptive narrative of the process focused on the inconsequential detracting from the topic. In Fact I found the entire presentation lacking in substance and an embarrassment for all competent women. I dislike being so harsh, but feel it is necessary in light of the damage done to demonstrating intellectual equality of the sexes!
The pictures and descriptions were good and help show that electronic assembly is not that difficult to learn; don't fret about the component names as long as the component is in the correct location and alignment. This kind of project helps people understand how to assemble electronic projects. I built this project a couple of years ago and it was easy to build. The new crop of DIY projects, web sites and magazines is showing people that technology is not for engineers and that amatuers can do complicated projects. Having a local hacker space to learn soldering and troubleshooting techniques is a big help. I am working on the next challenge and learning surface mount technology. The challenge is to solder tiny parts without shorting out the connections. There are a lot of articles online to help people get started and also how to modify tools for reflow soldering.

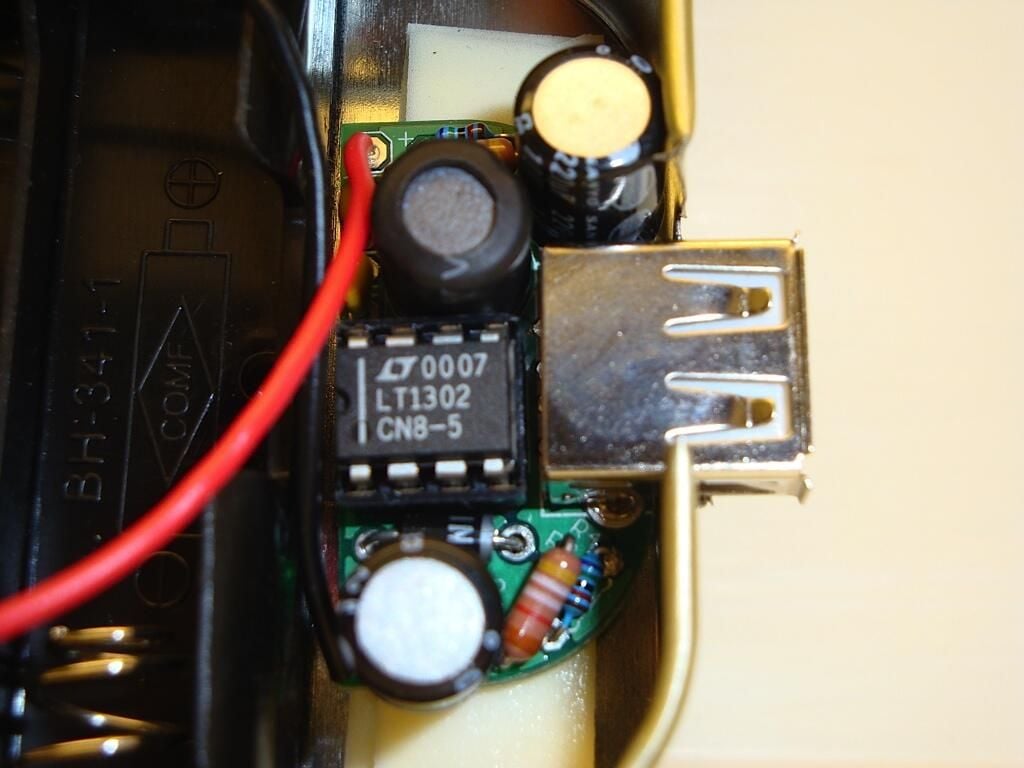

If you're going to publish a technically detailed article or photo sequence, please get the terminology correct. The photo of "The front of the motherboard with four transistors mounted" actually shows the motherboard with NO transistors, just 3 resistors and a capacitor. It's like showing a picture of a field with 3 cows and a bull and describing it as "a field with 4 giraffes".
Here is a link to an Instructables that shows how to make the minty boost solar powered. http://www.instructables.com/id/How-to-make-a-solar-iPodiPhone-charger-aka-Might/ Sparkfun changed their Li-Ion battery charger so that it doesn't use the barrel connector. It should be pretty easy to make an adapter or put a different connector on the solar cell.
You spend so much time and effort producing these really excellent and important slide shows. (- actually Power Point presentations) Sorry, they are totally useless to me in that format. You don't even offer us the ability to download the slide deck. Most valuable to me would be a 'Print' version that I could drop into a 'Word' document / File. If that is too much to ask, maybe a PDF version? Thank you for your consideration. -- Yes, I'm going to continue bugging you about this.
This link came by way of another on line blog, but they have complete kits (I do not work for them) http://www.adafruit.com/index.php?main_page=index&cPath=10&zenid=17be30f7a877635e49d2641063e38c90 Learning to solder takes time...I taught myself as a teenager, working with small, glow in the dark devices called vacuum tubes. Practice on plain copper wires first. PCBs are the hardest thing to work on.
Sorry to be a pedant, but transistors have three legs; the components that I can see look rather more like resistors and a capacitor.
She's trying to learn something here... don't make her afraid to try things without fear of criticism... everyone has to learn.
Yep. I fondly remember taking a bag of tubes to the local 5 & dime store to test on a neat machine with many sockets and dials you had to set for each different tube before pushing the "test" button. I learned to solder making my first Heathkit AM clock radio. LOL
I guess that explains why I couldn't get mine to work ;) ! Obviously, I need to attend more Hacker workshops!

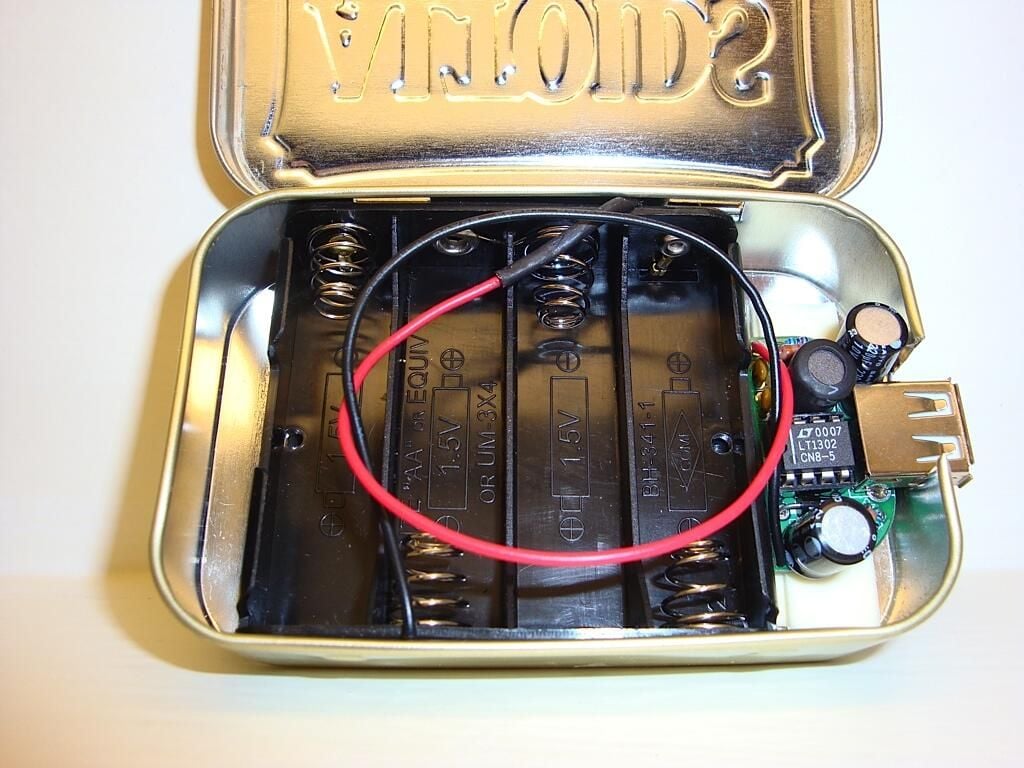

If you Google, LT1302, you'll find this is a DC/DC converter and necesary components show capacitors, resistors, a Zener diode and a coil to build a circuit similar to the one mentioned. And yes, no transistors in there.
