Lightning strikes computer modem leaves burned circuits behind

Lightning strikes computer modem

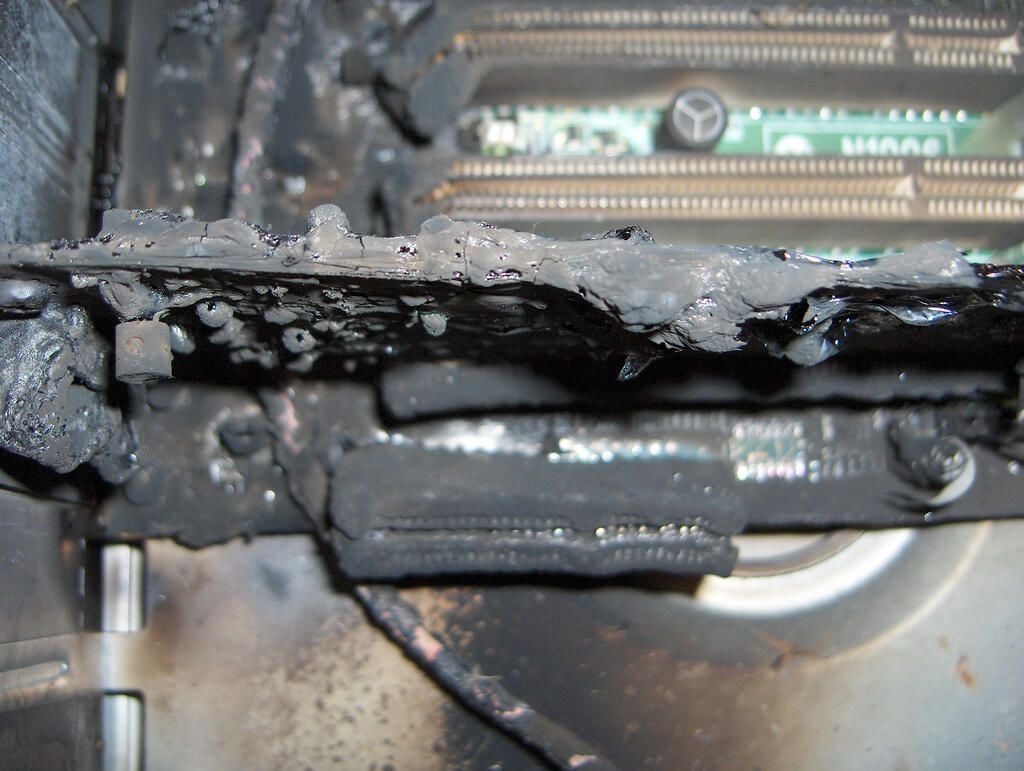

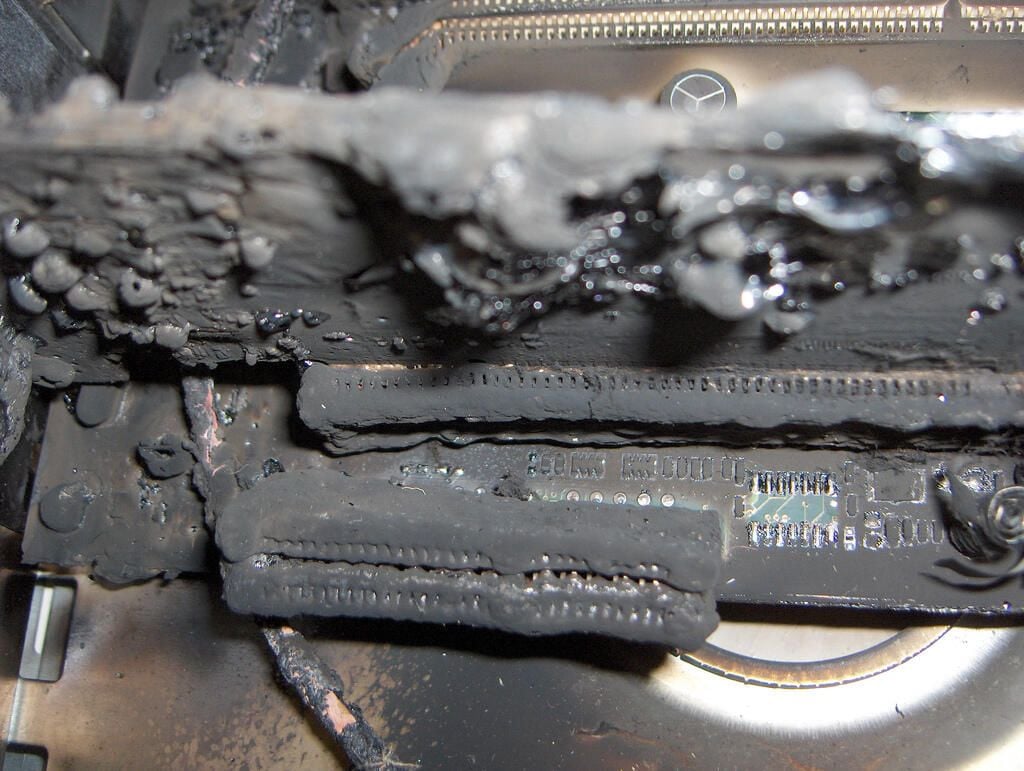

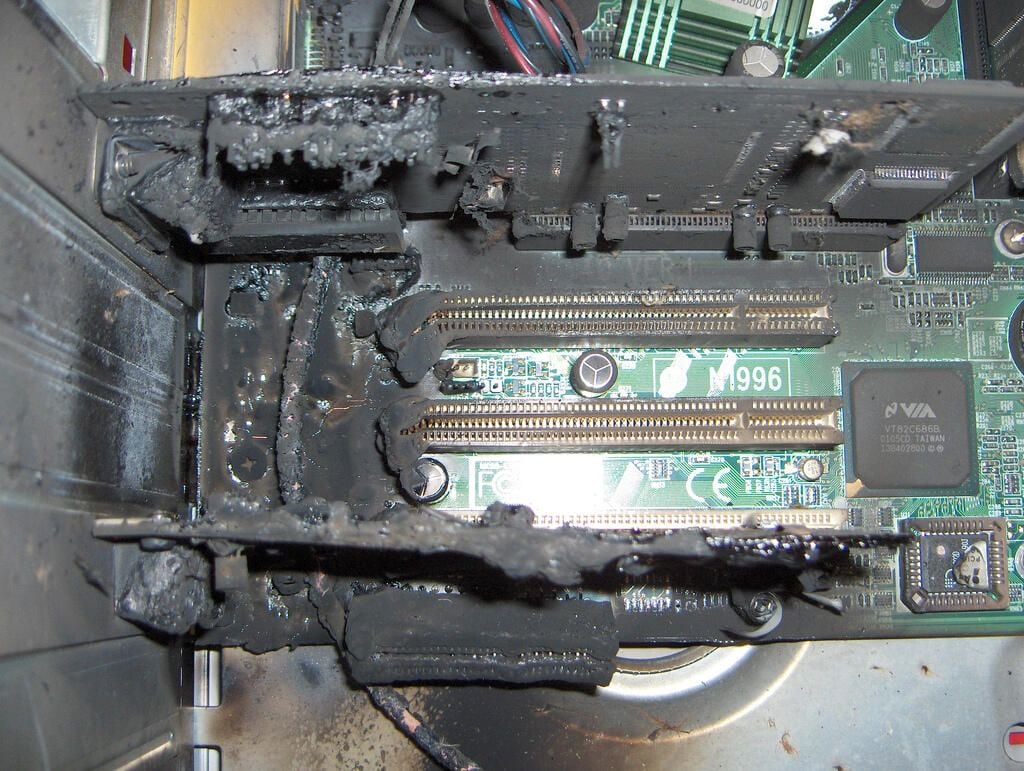

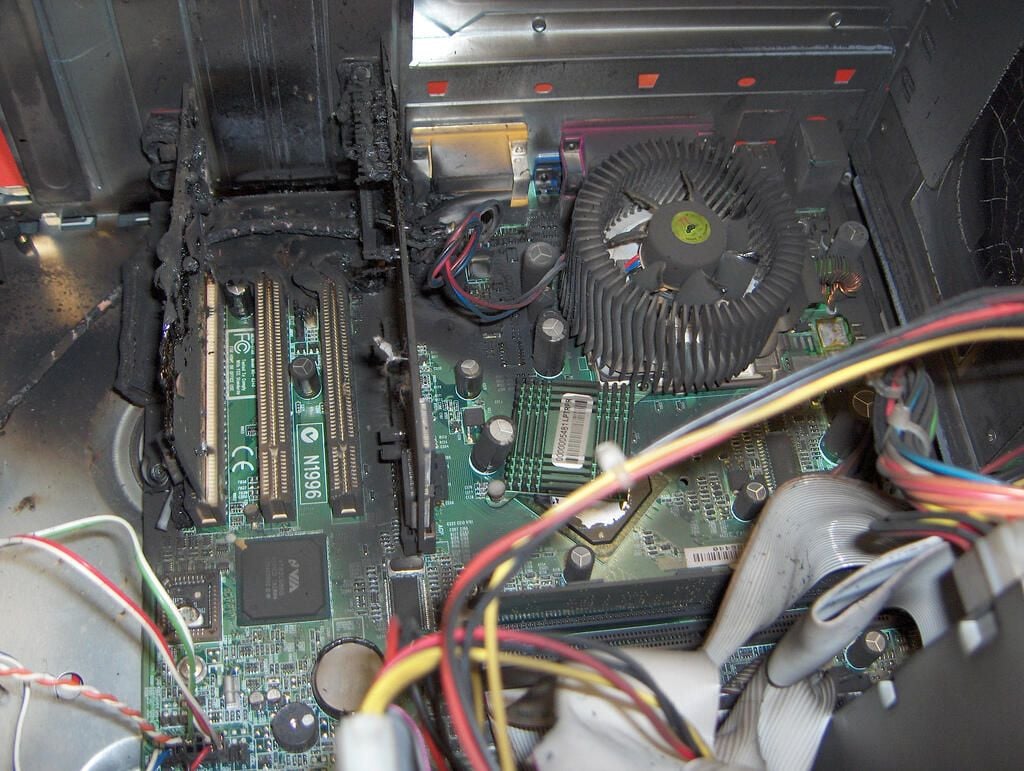

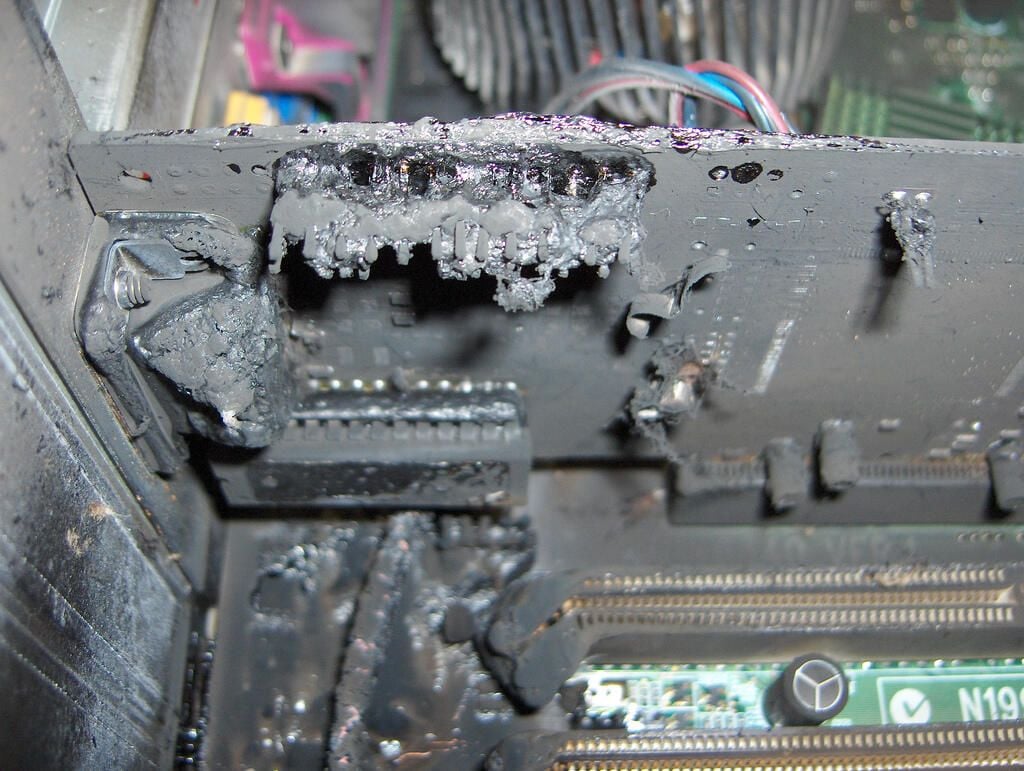

When lightning strikes a computer, charred metal, melted plastic, and burned circuits are the results.

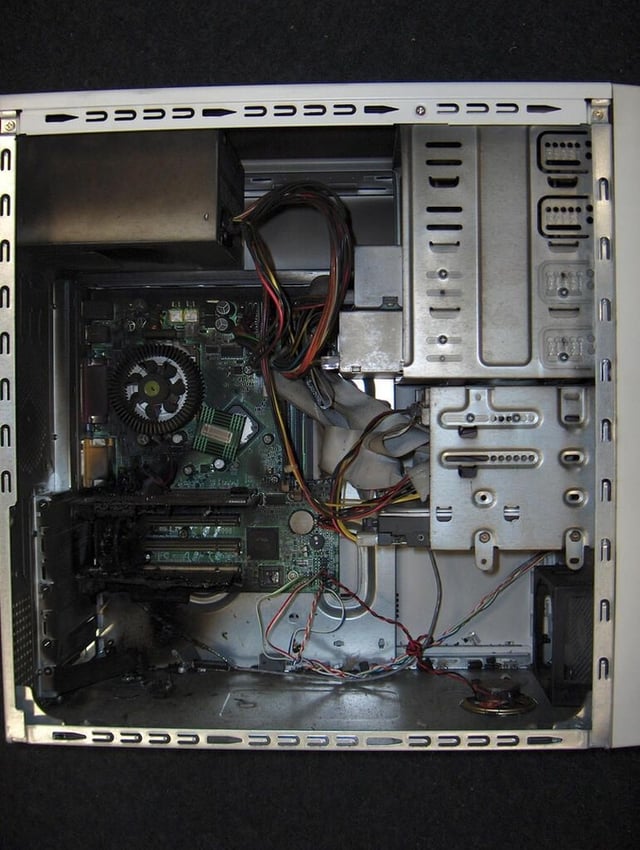

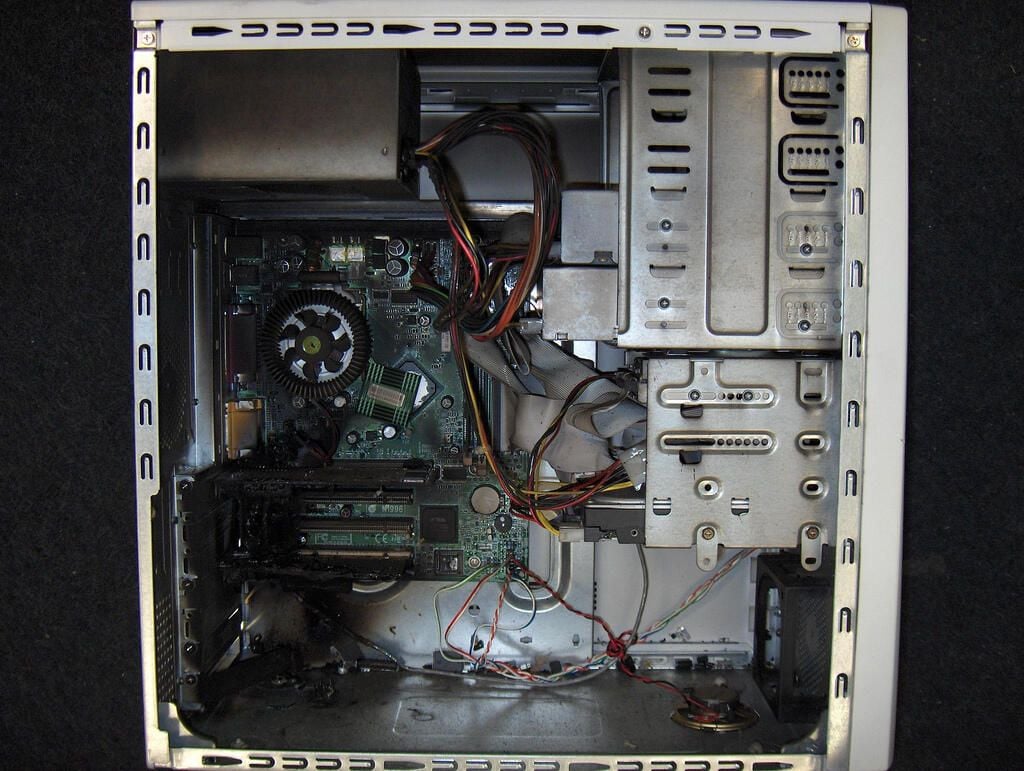

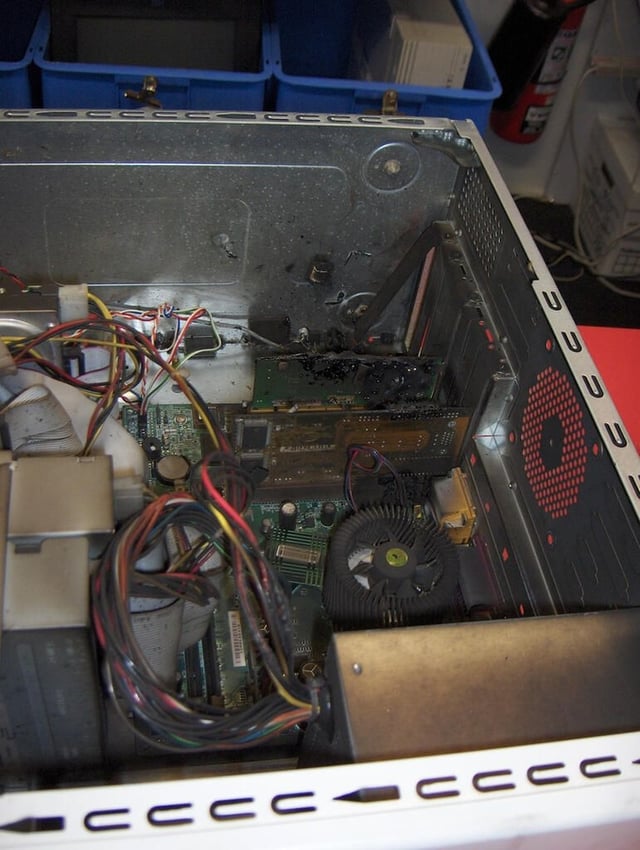

This computer's modem was hit with a power surge during an electrical storm. The computer was protected by a surge protector but not one with modem outlets.

The owner brought the machine to IT Systems Administrator Brad Rowden--who took these pictures.

Photo by Brad Rowden
