Cracking Open the Amazon Echo cloud-connected speaker

  • Amazon Echo teardown

    Part speaker, part microphone, part Star Trek computer in your house, the Amazon Echo is a surprisingly handy “smart” appliance.

    In this Cracking Open gallery, I break out my screwdrivers to uncover how Amazon gave an otherwise ordinary Bluetooth speaker a brain by connecting it to the cloud.

    To watch a complete teardown video and read my full hardware analysis, check out my article, Amazon Echo teardown: A Smart speaker powered by Amazon’s cloud.

    Bill Detwiler\/TechRepublic

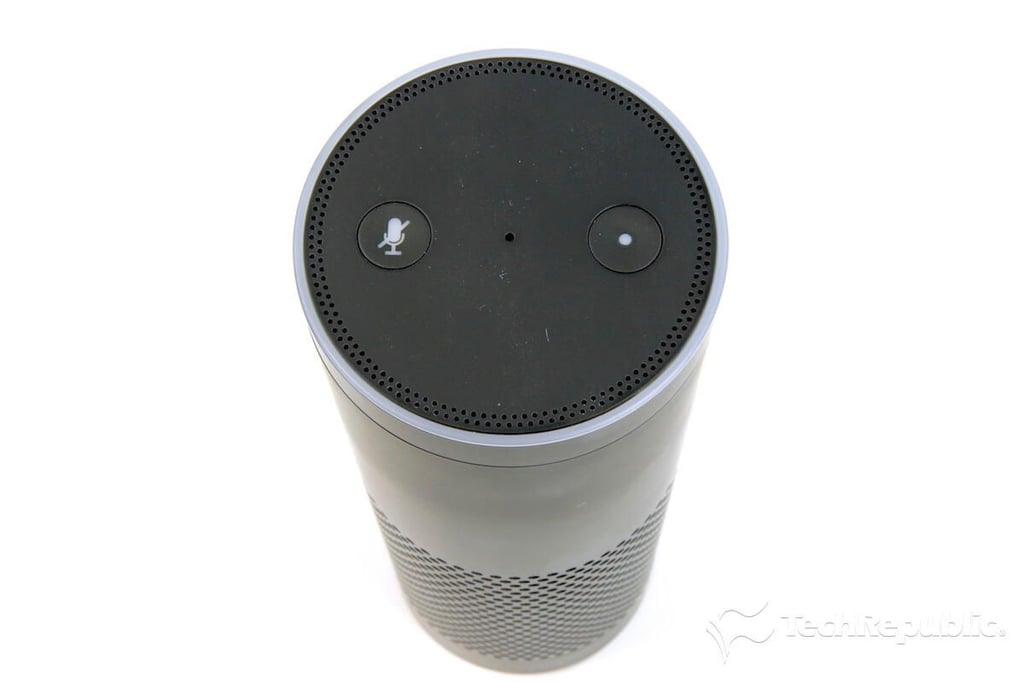

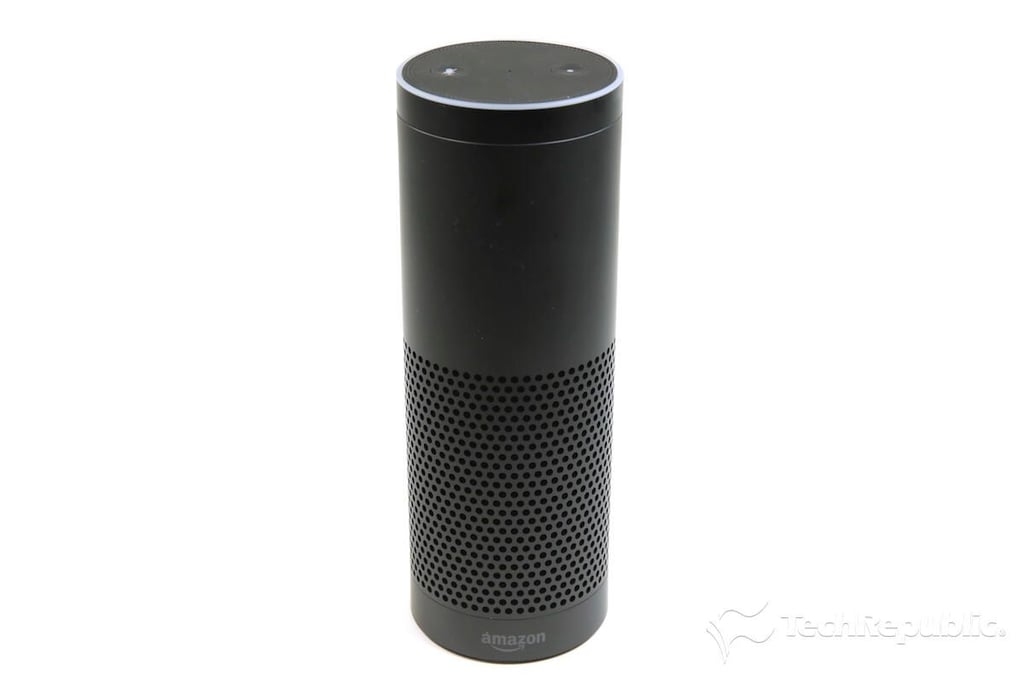

  • Cracking Open the Amazon Echo: Microphone on/off button, Action button and volume control ring

    The Echo is 9.25 inches tall and 3.27 inches wide, or about the size of a one liter drink container. Its controls are minimal. There is a microphone on/off button and action button on the top, as well as a rotating volume ring. LEDs are located around the edge of the volume ring and under the buttons.

    Bill Detwiler\/TechRepublic

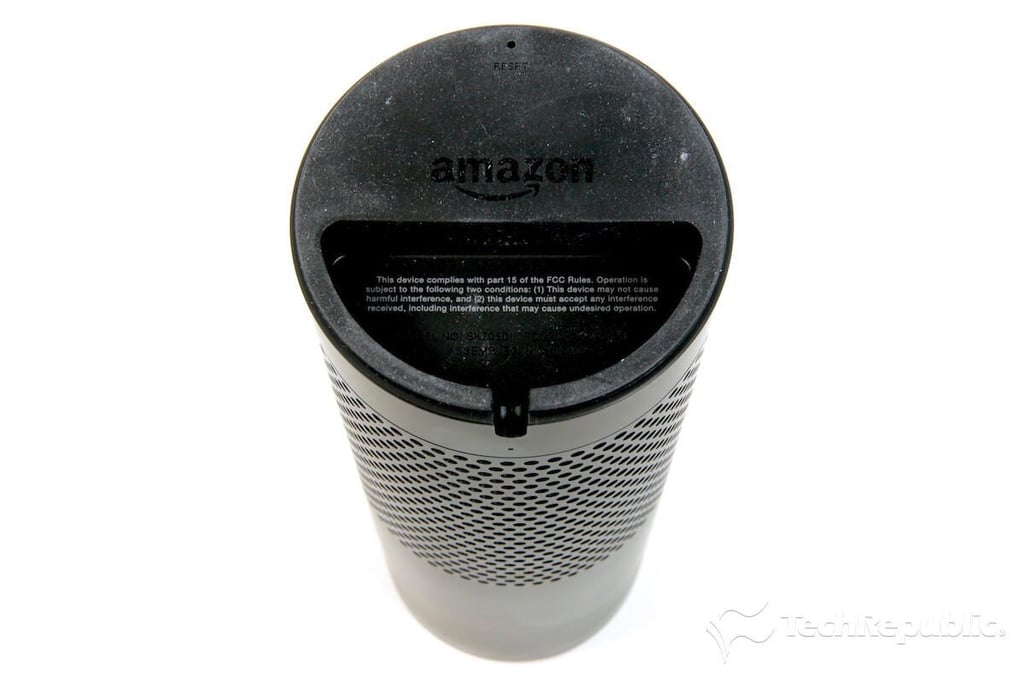

  • Cracking Open the Amazon Echo: Power connector

    A connector for the power cord is located on the bottom.

    Bill Detwiler\/TechRepublic

  • Cracking Open the Amazon Echo: Removing the rubber base

    Bill Detwiler\/TechRepublic

  • Cracking Open the Amazon Echo: Rubber base torn during removal

    Bill Detwiler\/TechRepublic

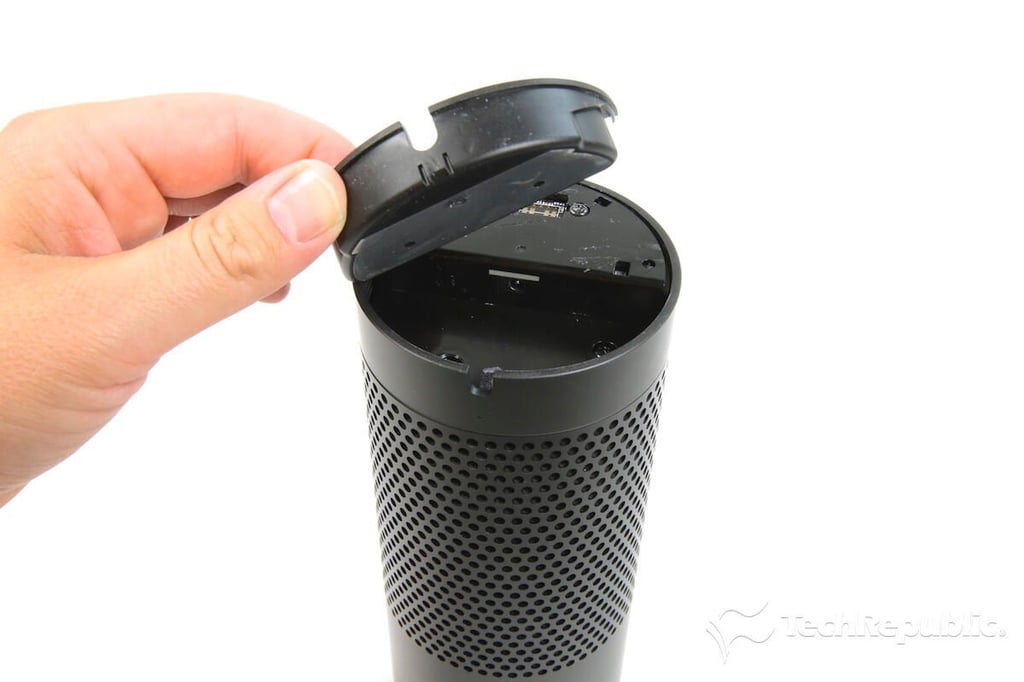

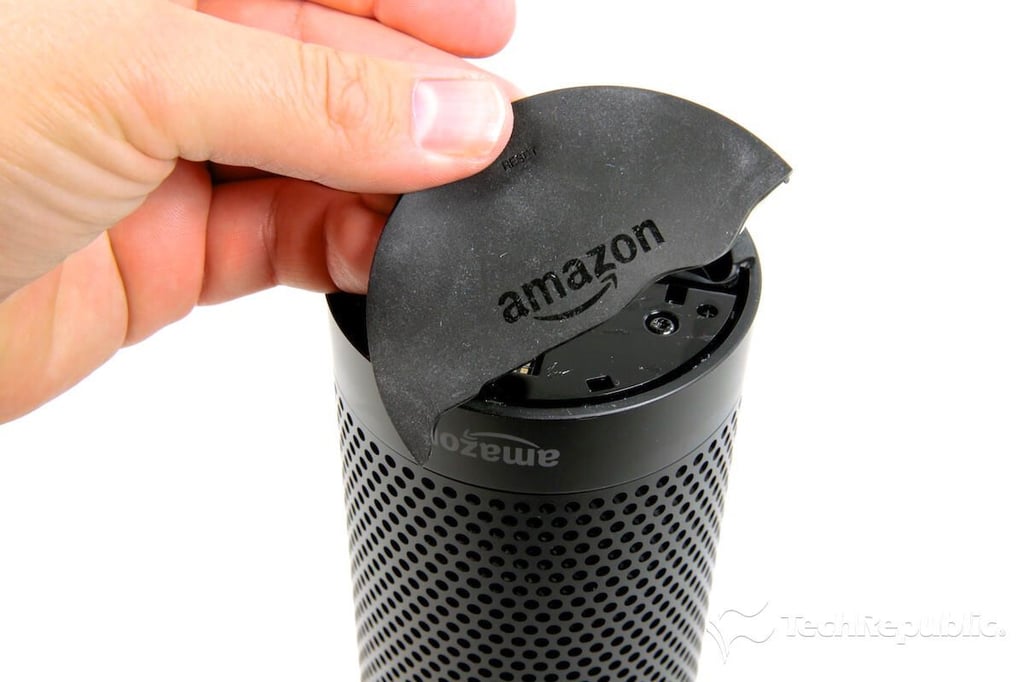

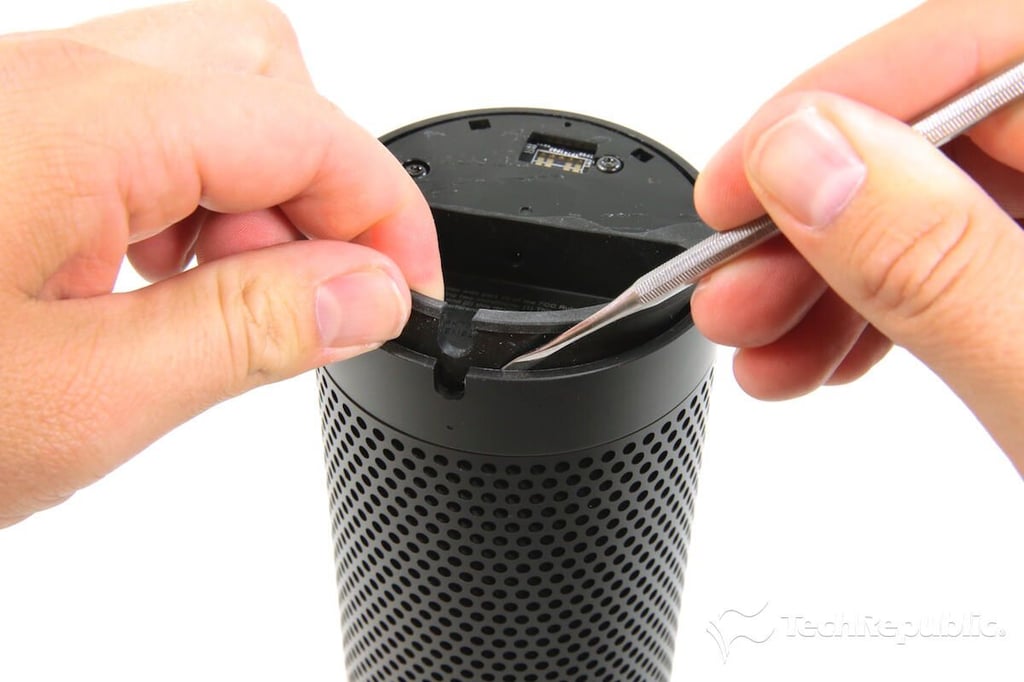

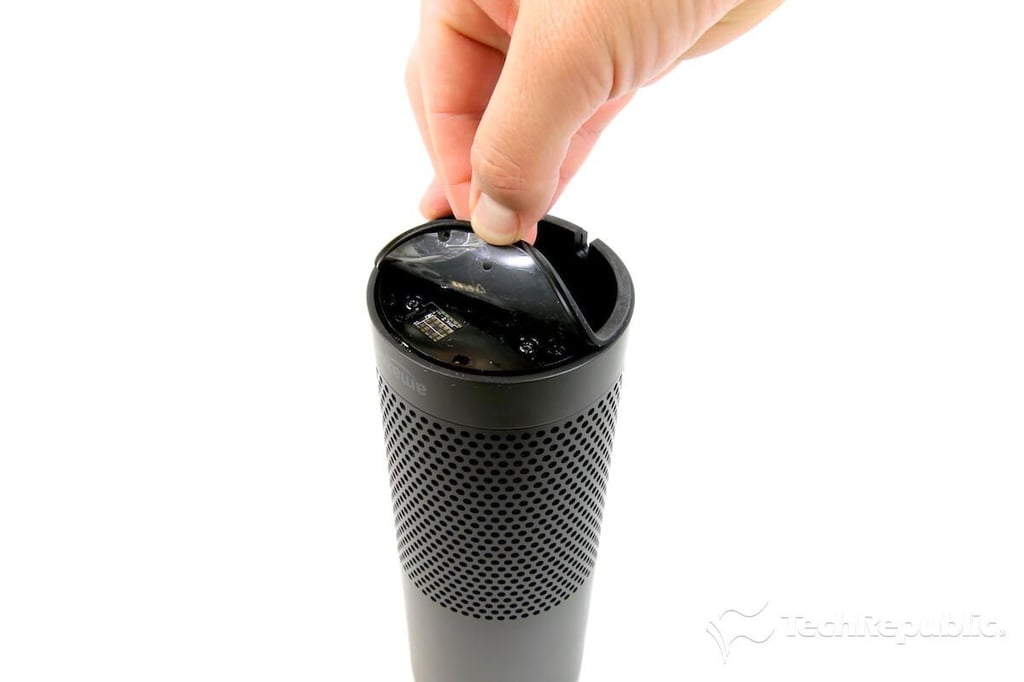

  • Cracking Open the Amazon Echo: Prying off the remaining half of the rubber base

    Bill Detwiler\/TechRepublic

  • Cracking Open the Amazon Echo: Lift off the molded half of the rubber base

    Bill Detwiler\/TechRepublic

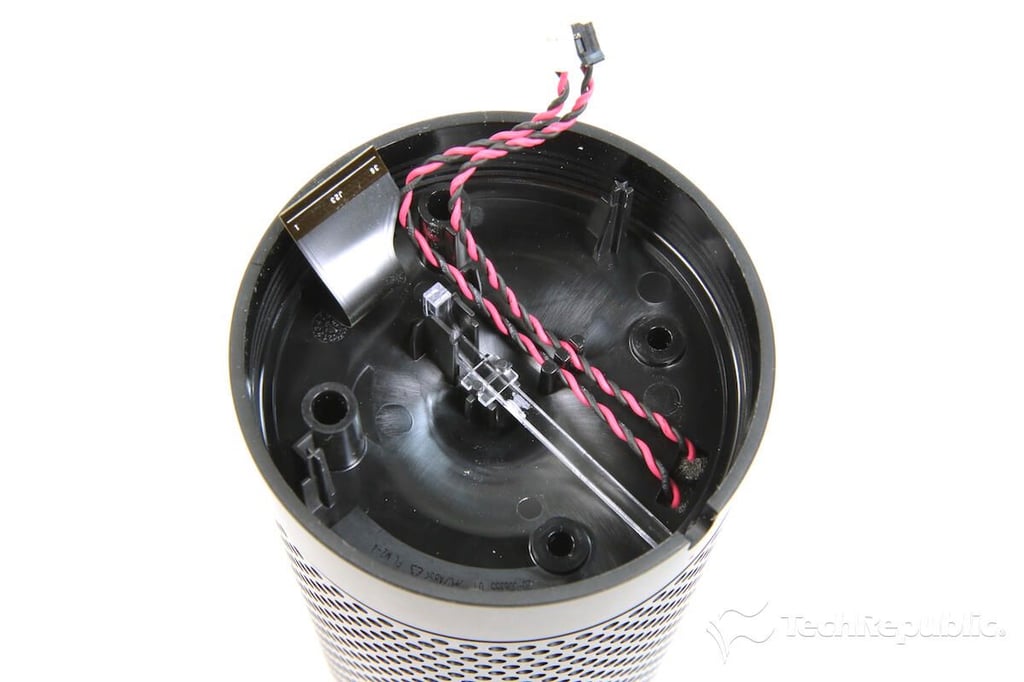

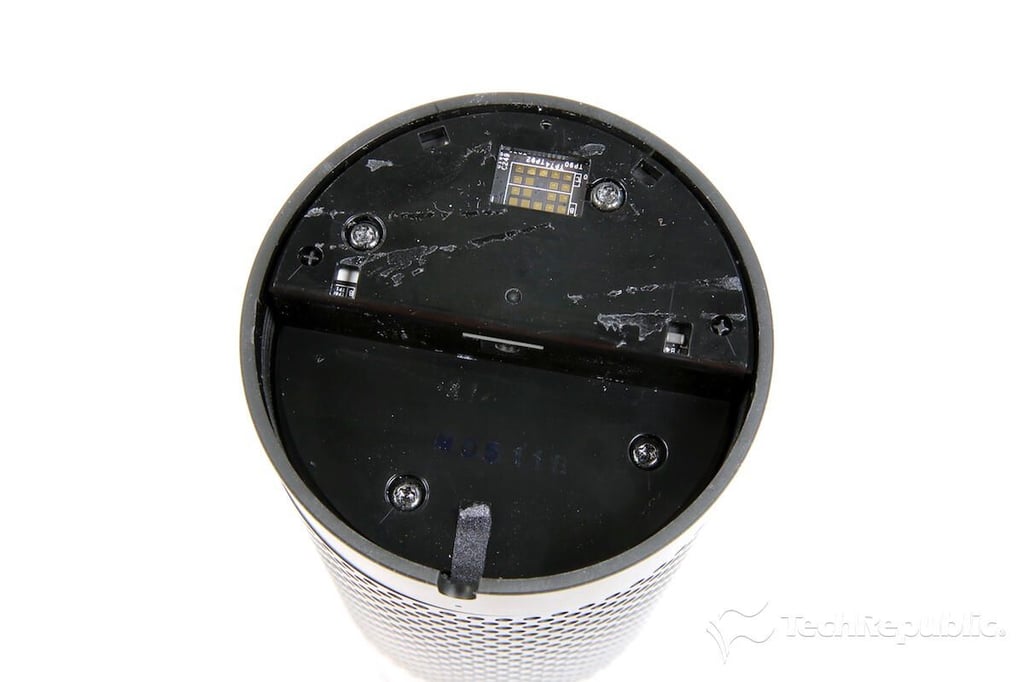

  • Cracking Open the Amazon Echo: Bottom cover exposed

    Bill Detwiler\/TechRepublic

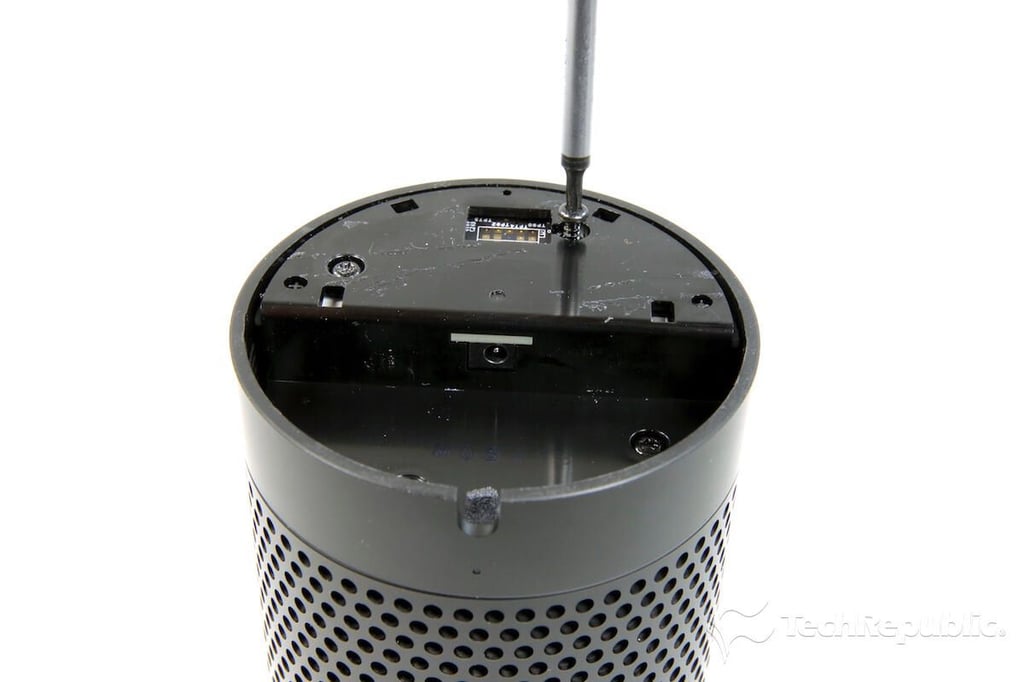

  • Cracking Open the Amazon Echo: Removing the cover screws

    Bill Detwiler\/TechRepublic

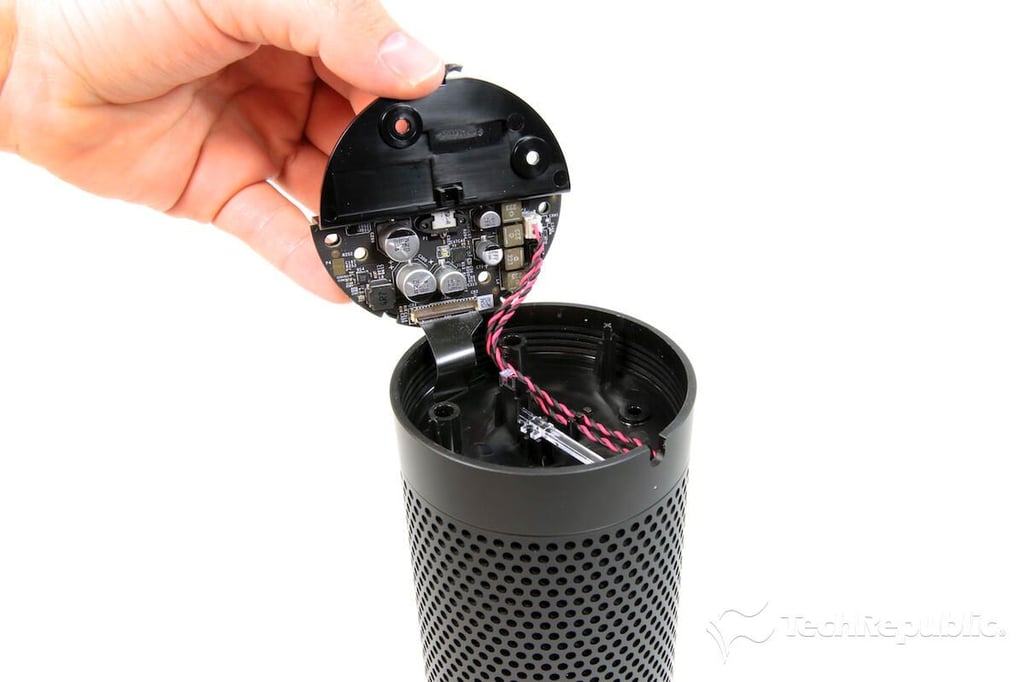

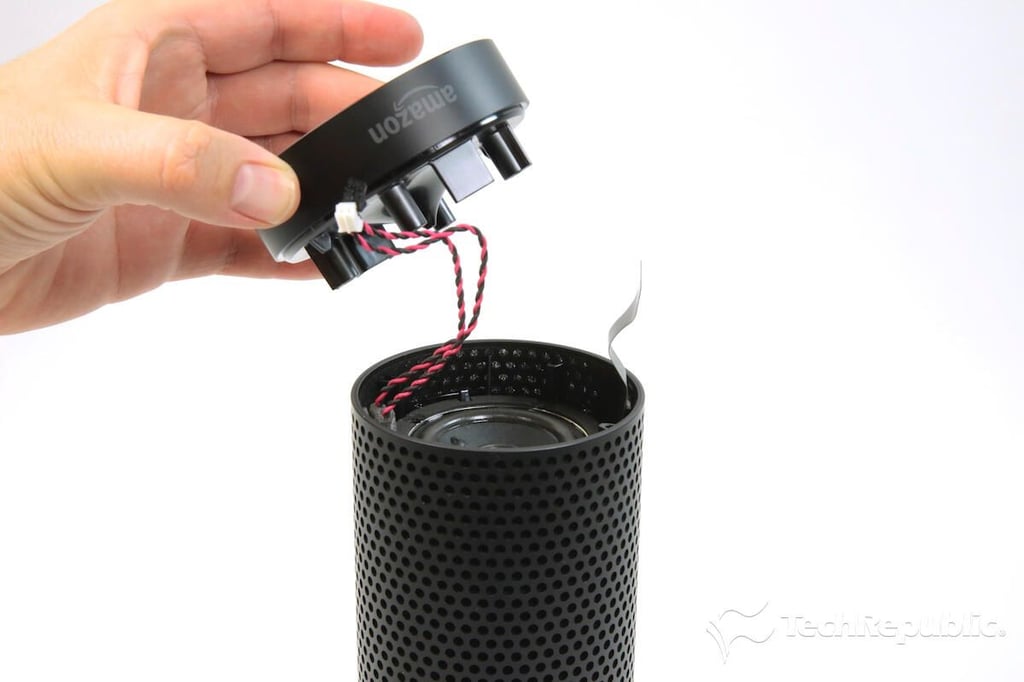

  • Cracking Open the Amazon Echo: Removing the bottom cover and attached power board

    Bill Detwiler\/TechRepublic

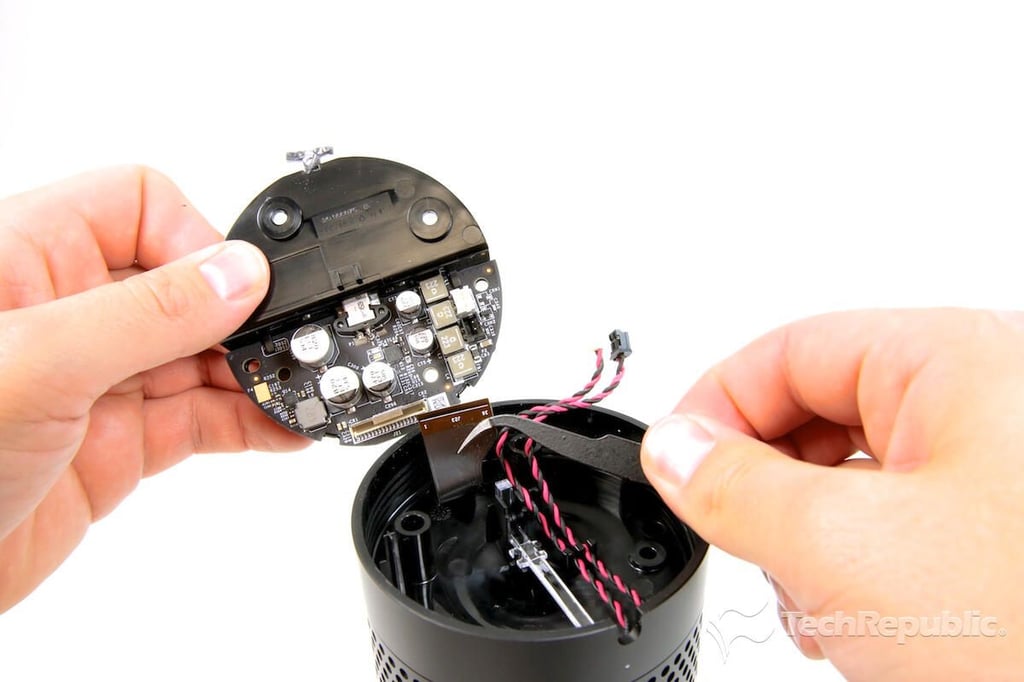

  • Cracking Open the Amazon Echo: Disconnecting the power board wires

    Bill Detwiler\/TechRepublic

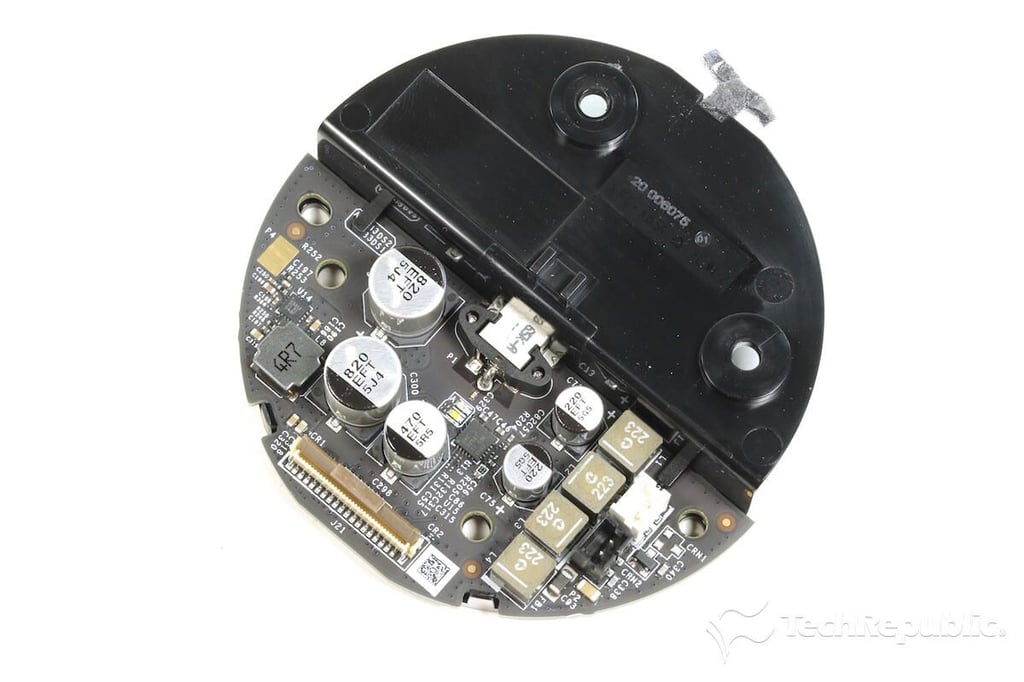

  • Cracking Open the Amazon Echo: Bottom cover and power board

    Bill Detwiler\/TechRepublic

  • Cracking Open the Amazon Echo: Tweeter cover

    Bill Detwiler\/TechRepublic

  • Cracking Open the Amazon Echo: Removing the tweeter cover

    Bill Detwiler\/TechRepublic
  • amazonechoteardown015.jpg

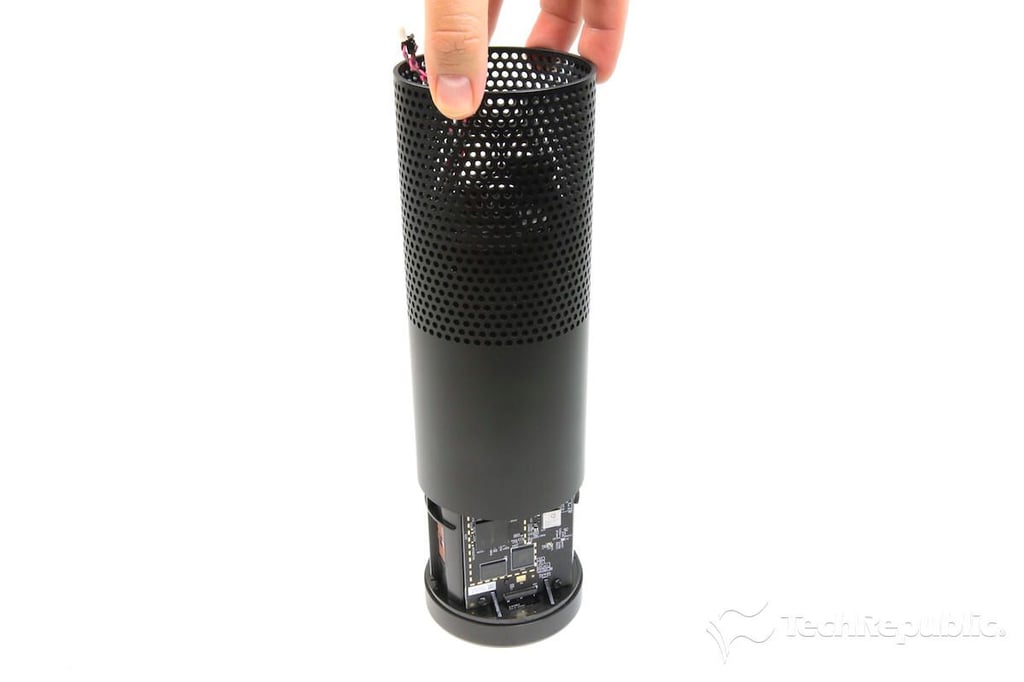

    Cracking Open the Amazon Echo: Removing the outer shell

    Bill Detwiler/TechRepublic

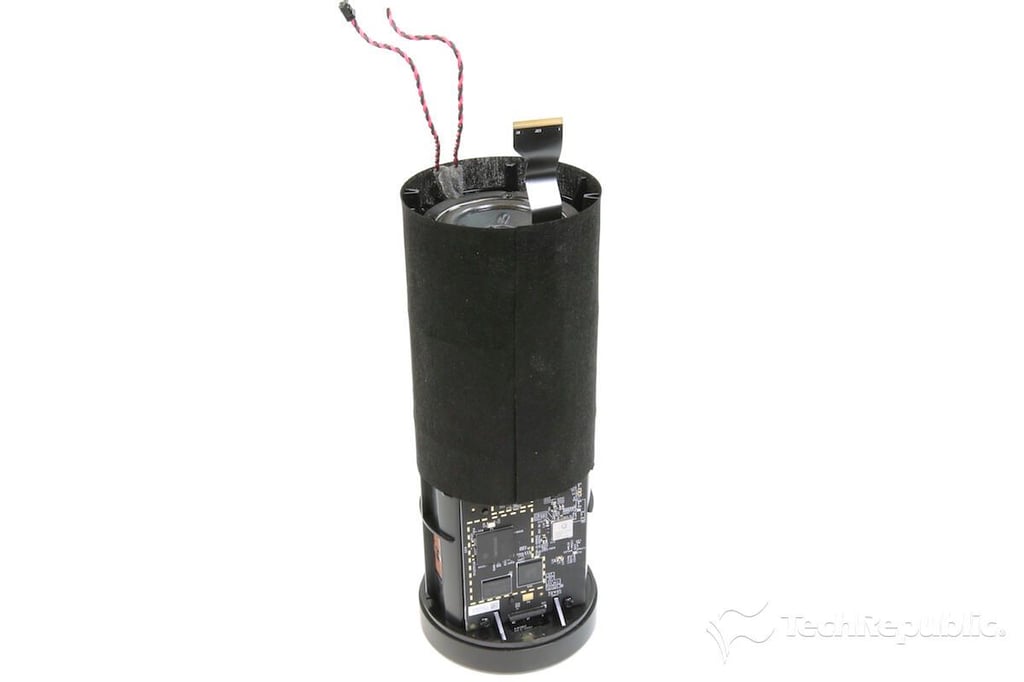

  • Cracking Open the Amazon Echo: Outer shell removed

    Bill Detwiler/TechRepublic

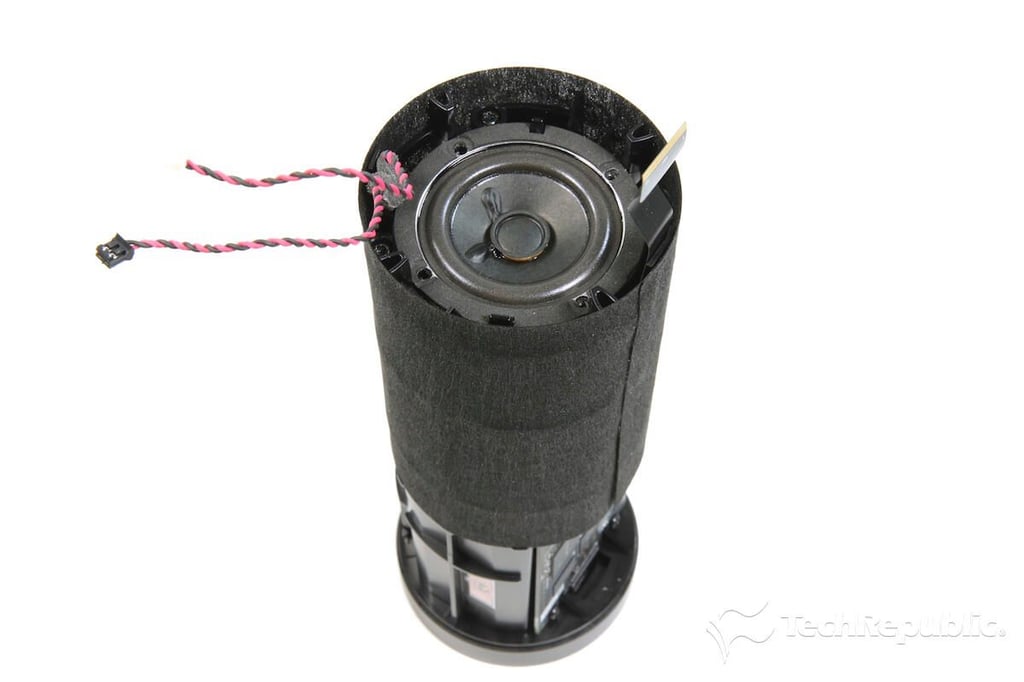

  • Cracking Open the Amazon Echo: Tweeter attached to speaker

    Bill Detwiler\/TechRepublic

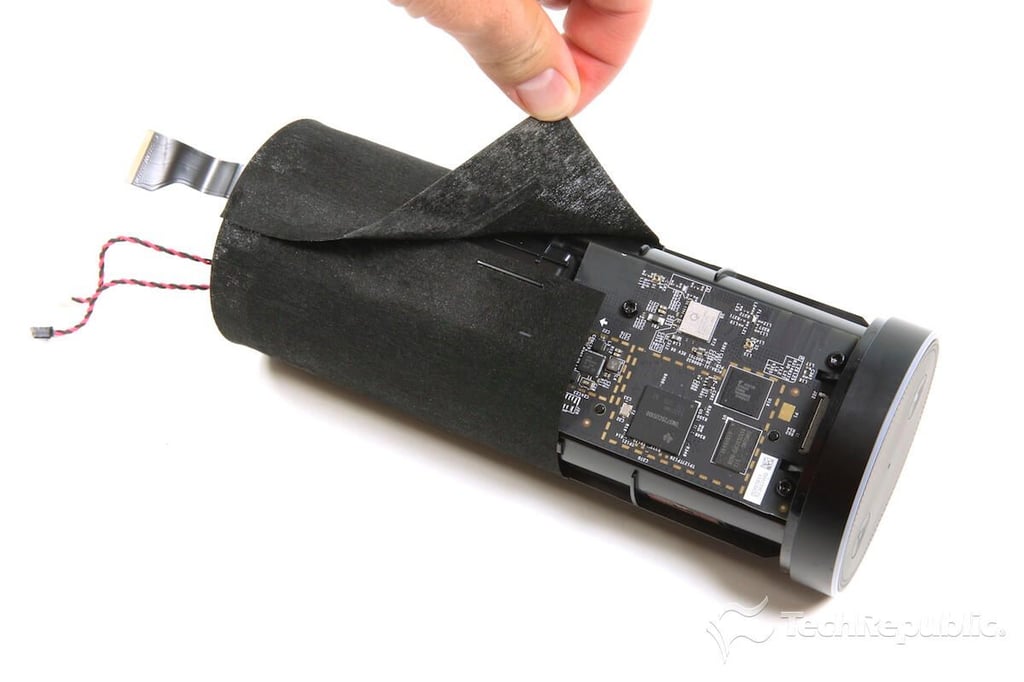

  • Cracking Open the Amazon Echo: Removing the inner cloth wrapping

    Bill Detwiler\/TechRepublic

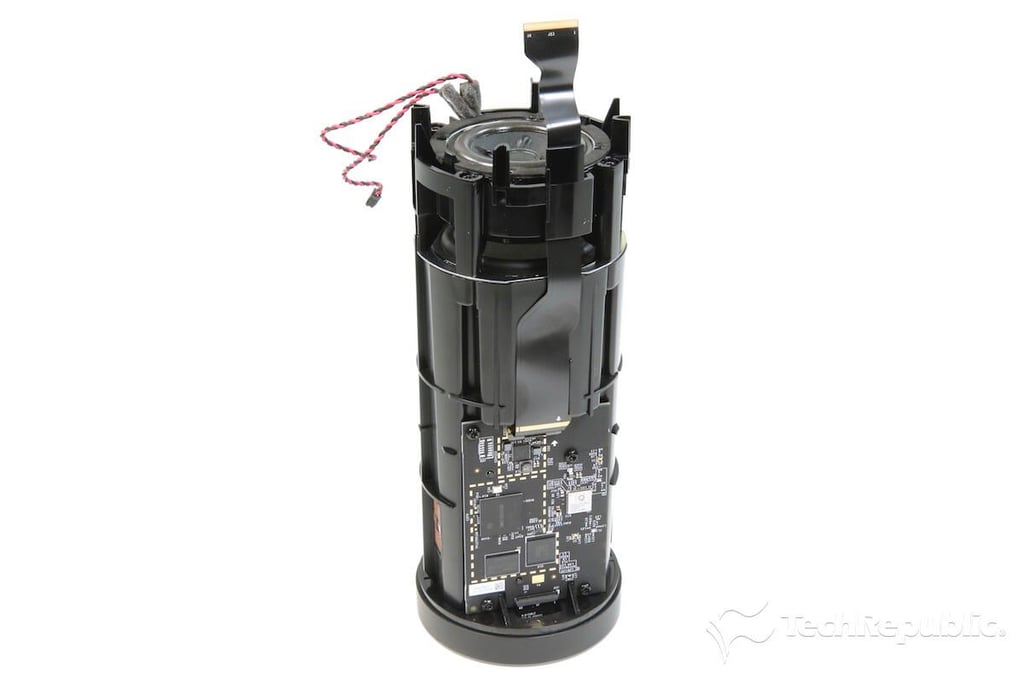

  • Cracking Open the Amazon Echo: Internal hardware

    Bill Detwiler\/TechRepublic

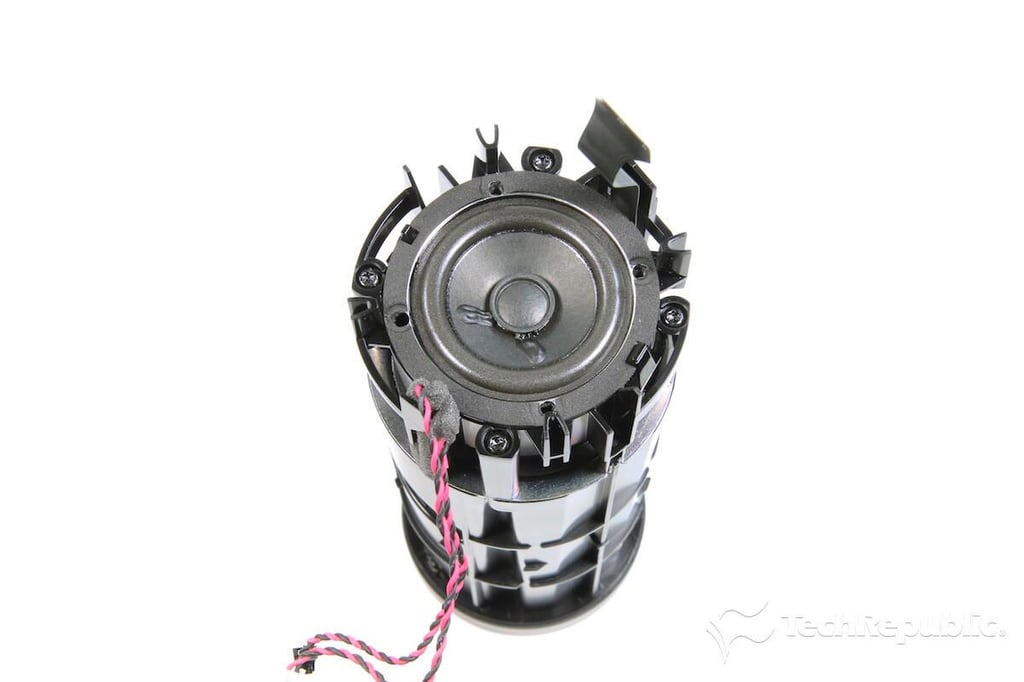

  • Cracking Open the Amazon Echo: Tweeter and internal hardware

    Bill Detwiler\/TechRepublic

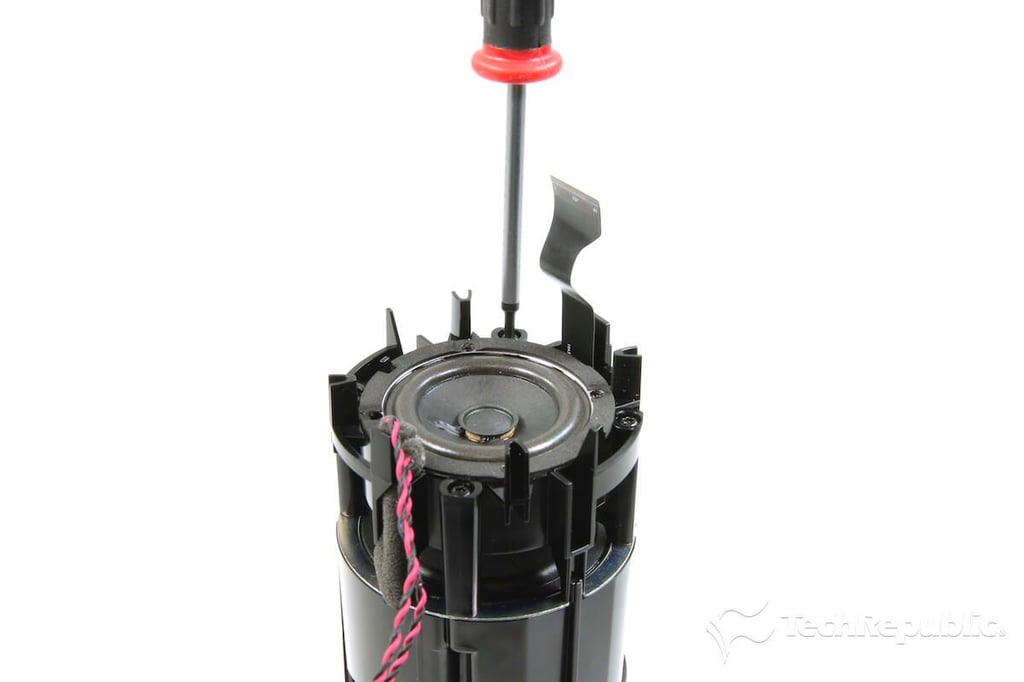

  • Cracking Open the Amazon Echo: Removing the tweeter screws

    Bill Detwiler\/TechRepublic

  • Cracking Open the Amazon Echo: Removing the tweeter

    Bill Detwiler\/TechRepublic

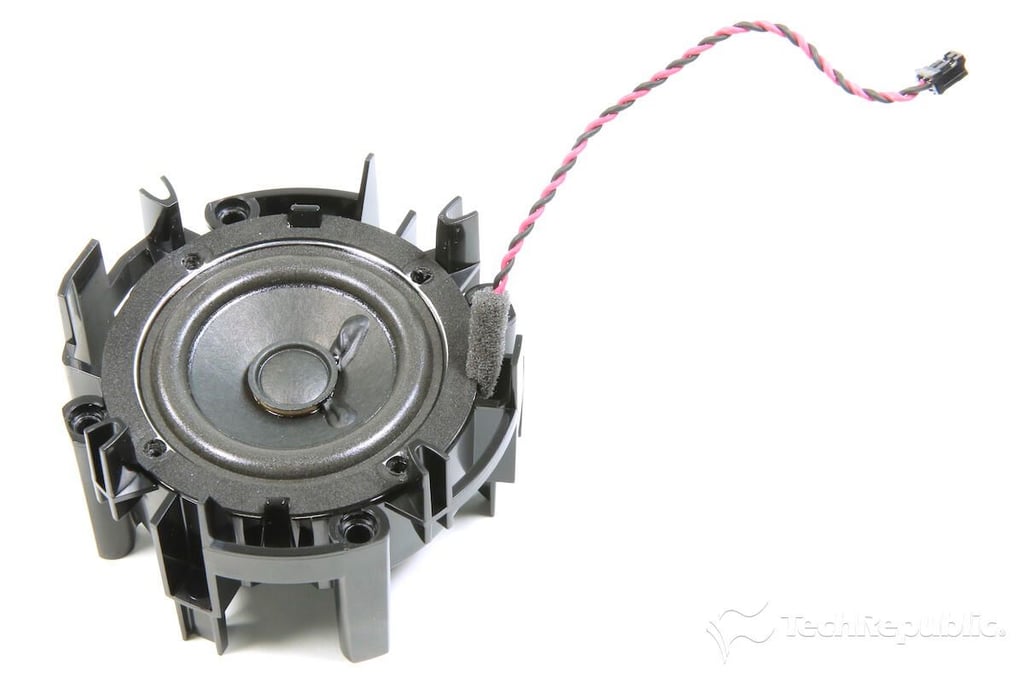

  • Cracking Open the Amazon Echo: 2-inch tweeter

    Bill Detwiler\/TechRepublic

  • Cracking Open the Amazon Echo: Woofer and internal hardware

    Bill Detwiler\/TechRepublic

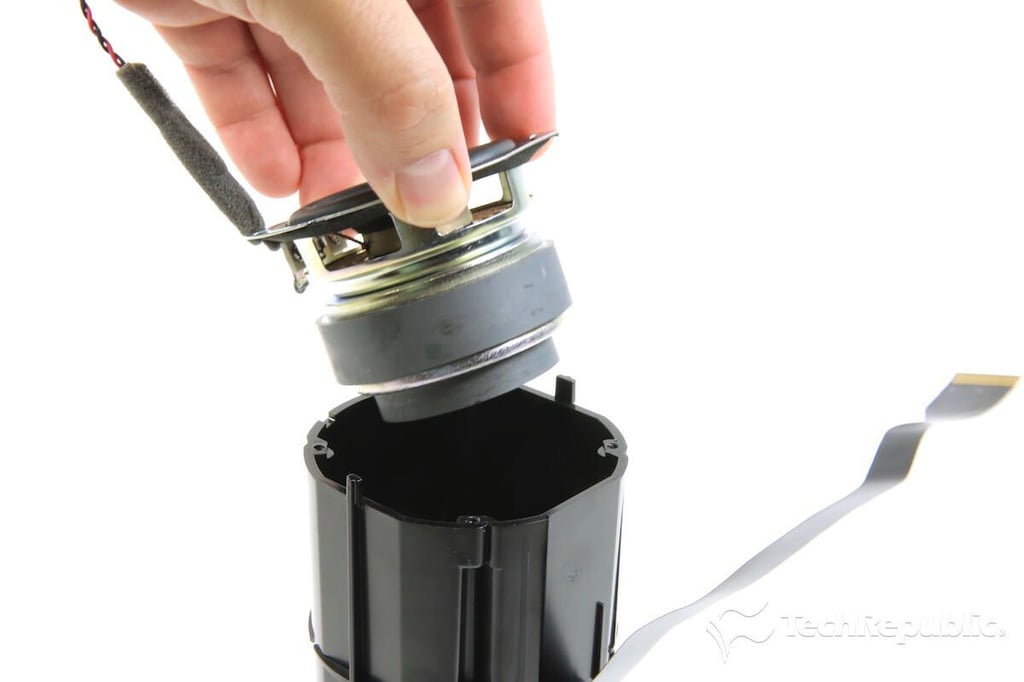

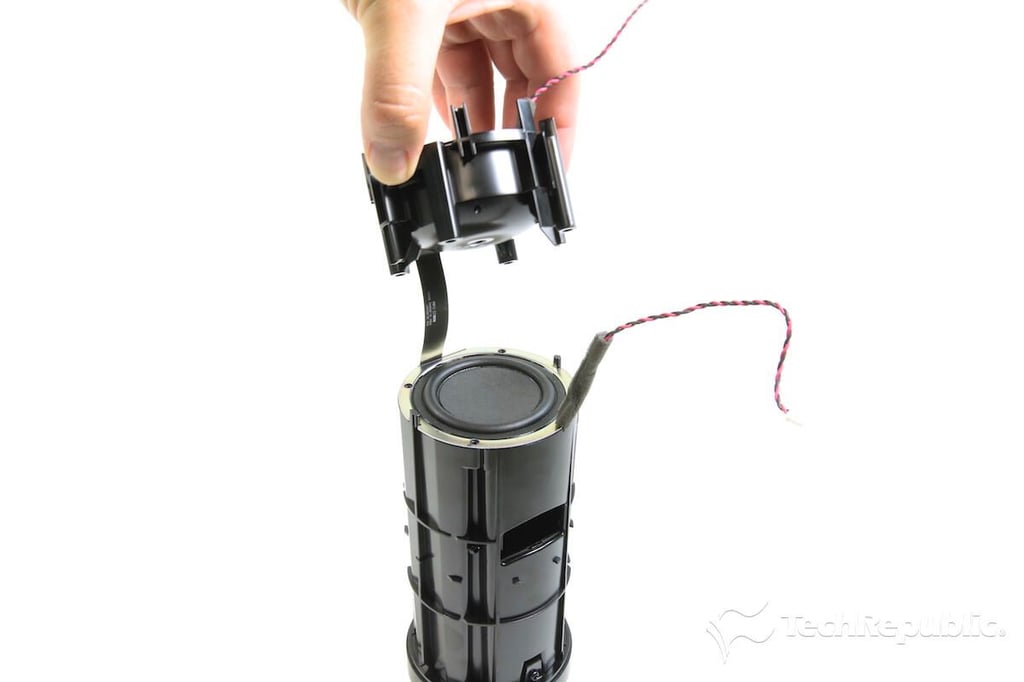

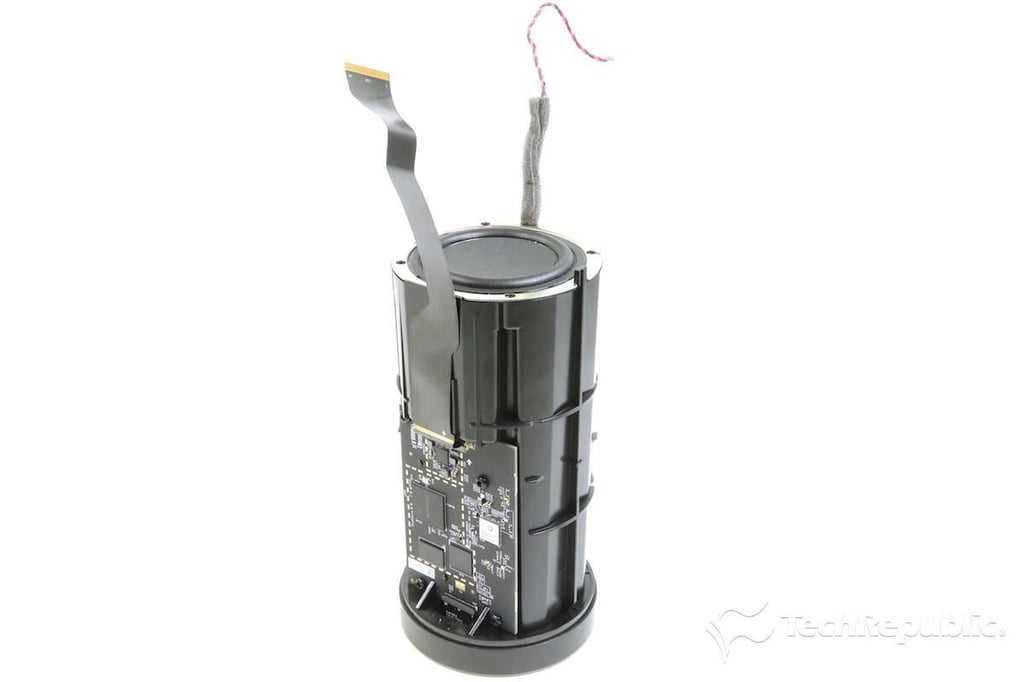

  • Cracking Open the Amazon Echo: Removing the woofer

    Bill Detwiler\/TechRepublic

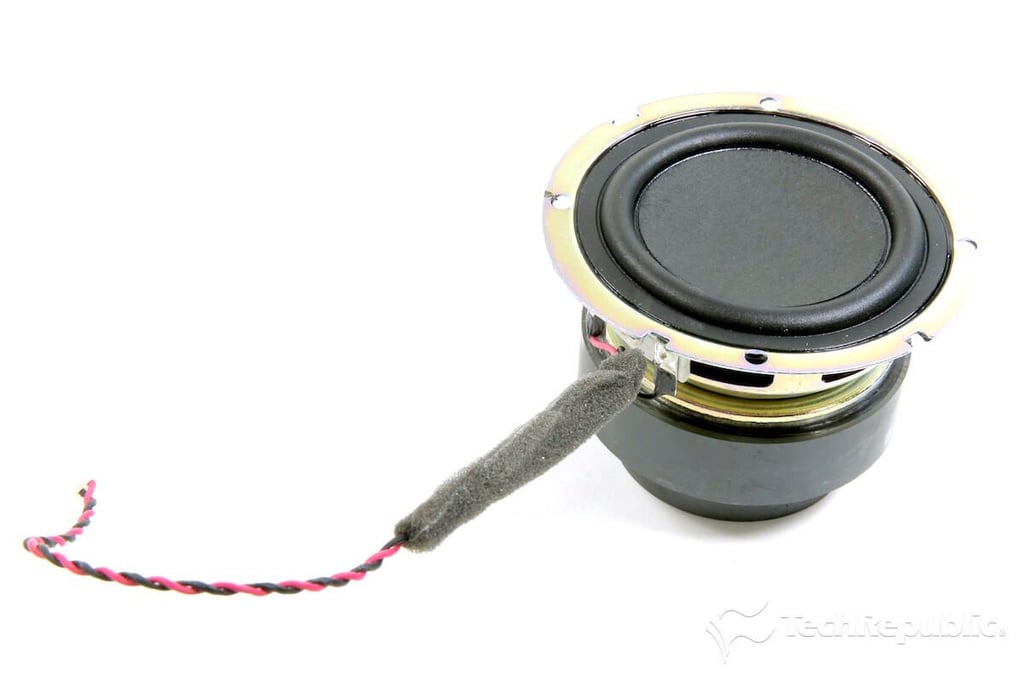

  • Cracking Open the Amazon Echo: 2.5-inch woofer

    Bill Detwiler\/TechRepublic

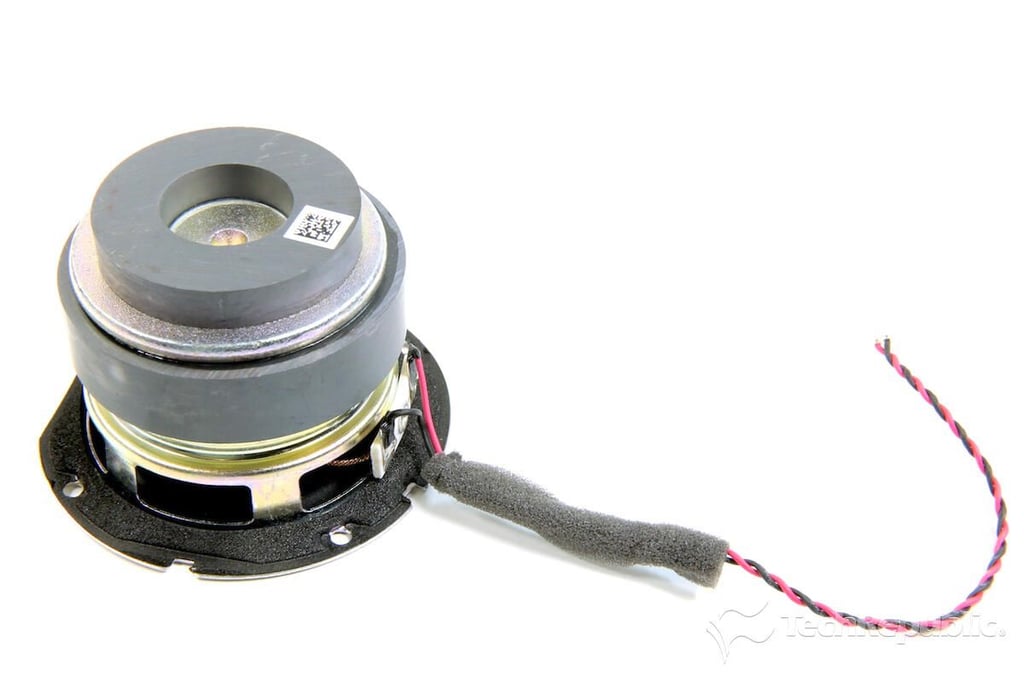

  • Cracking Open the Amazon Echo: 2.5-inch woofer magnet

    Bill Detwiler\/TechRepublic

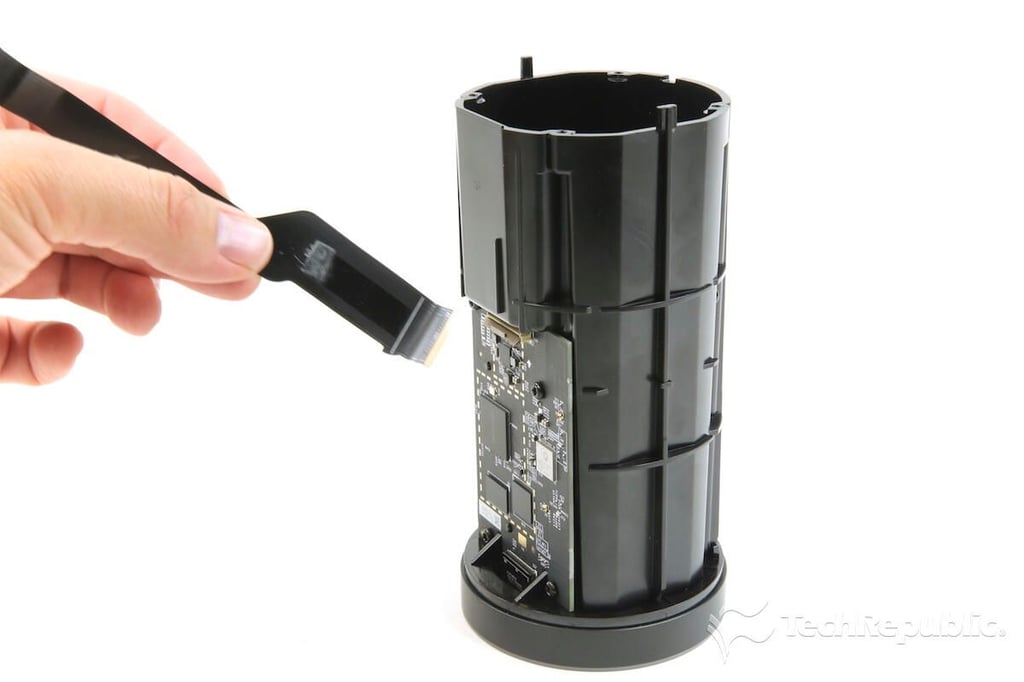

  • Cracking Open the Amazon Echo: Removing the power board flat flexible cable

    Bill Detwiler\/TechRepublic

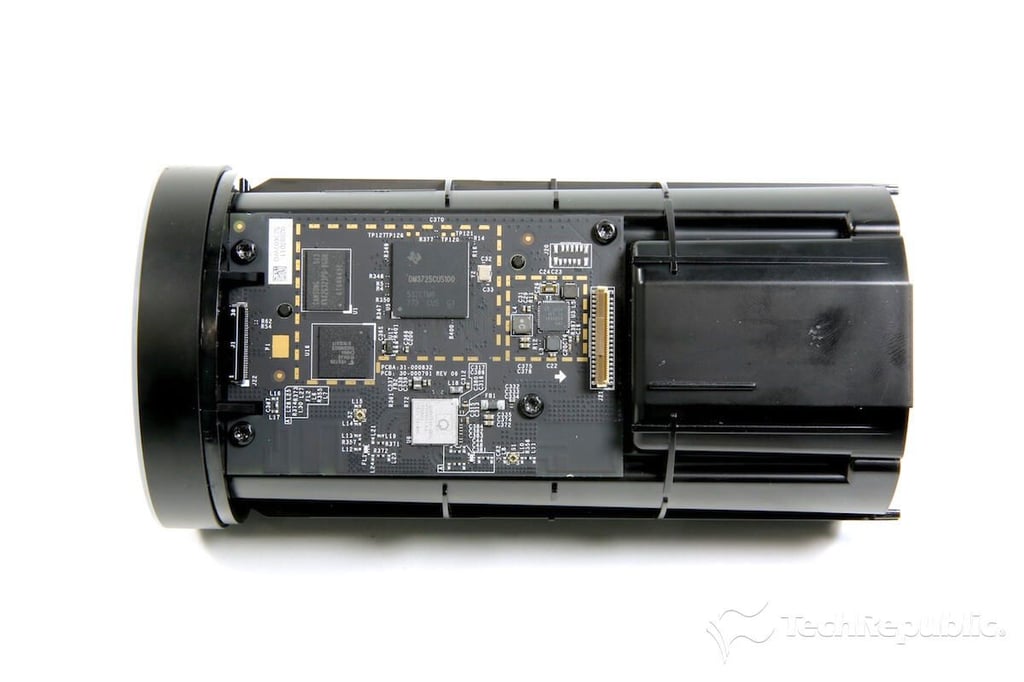

  • Cracking Open the Amazon Echo: Main circuit board attached to the inner shell

    Bill Detwiler\/TechRepublic

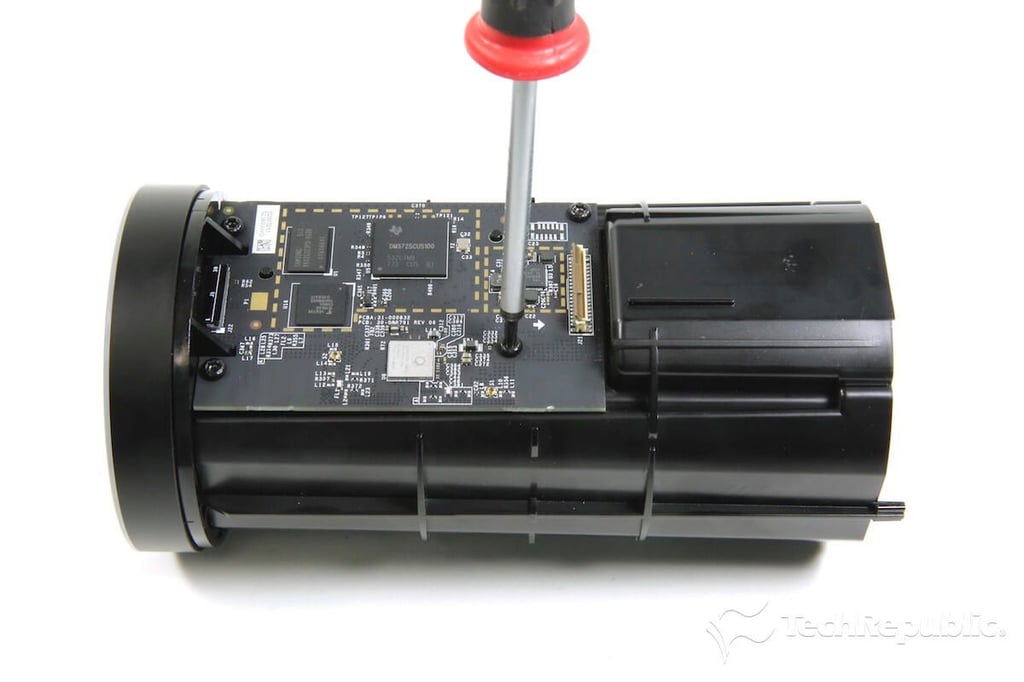

  • Cracking Open the Amazon Echo: Removing the main circuit board screws

    Bill Detwiler\/TechRepublic

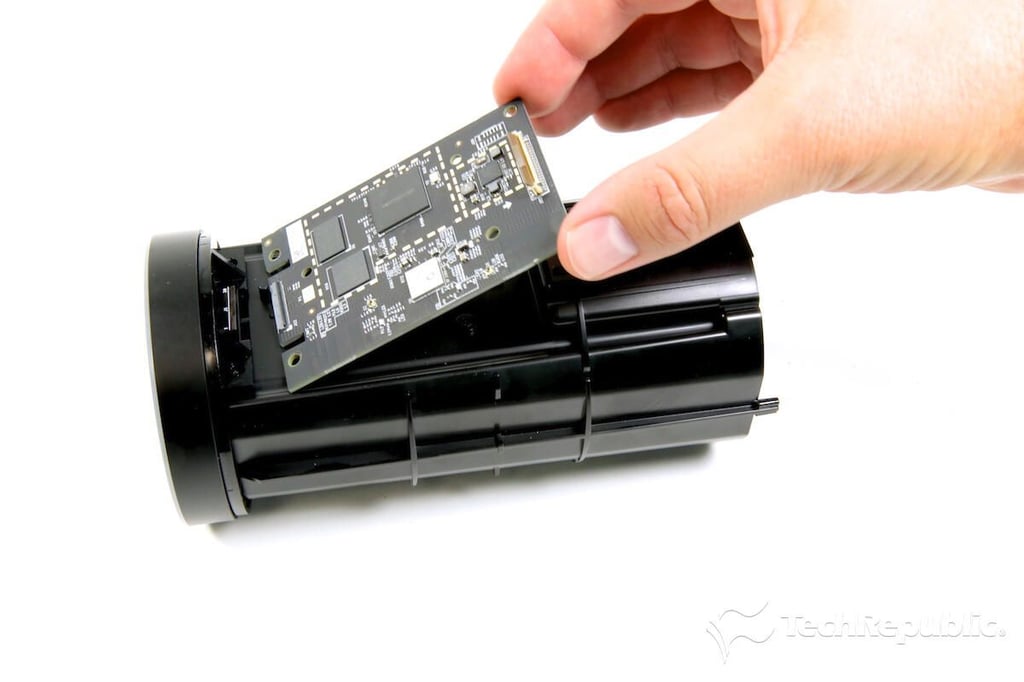

  • Cracking Open the Amazon Echo: Removing the main circuit board

    Bill Detwiler\/TechRepublic

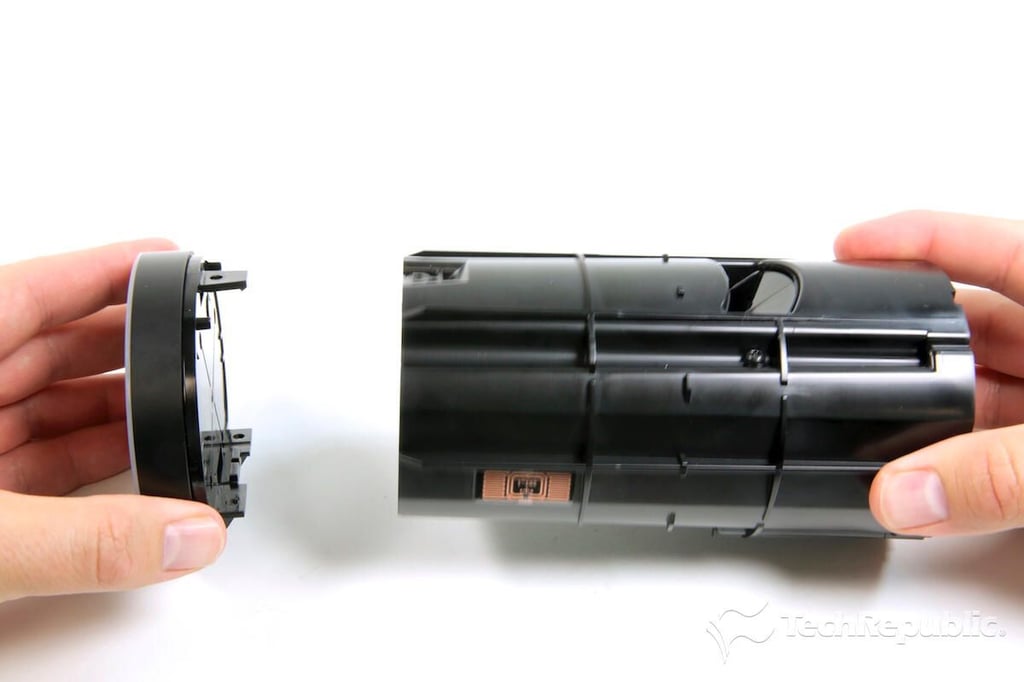

  • Cracking Open the Amazon Echo: Removing the volume wheel assembly

    Bill Detwiler\/TechRepublic

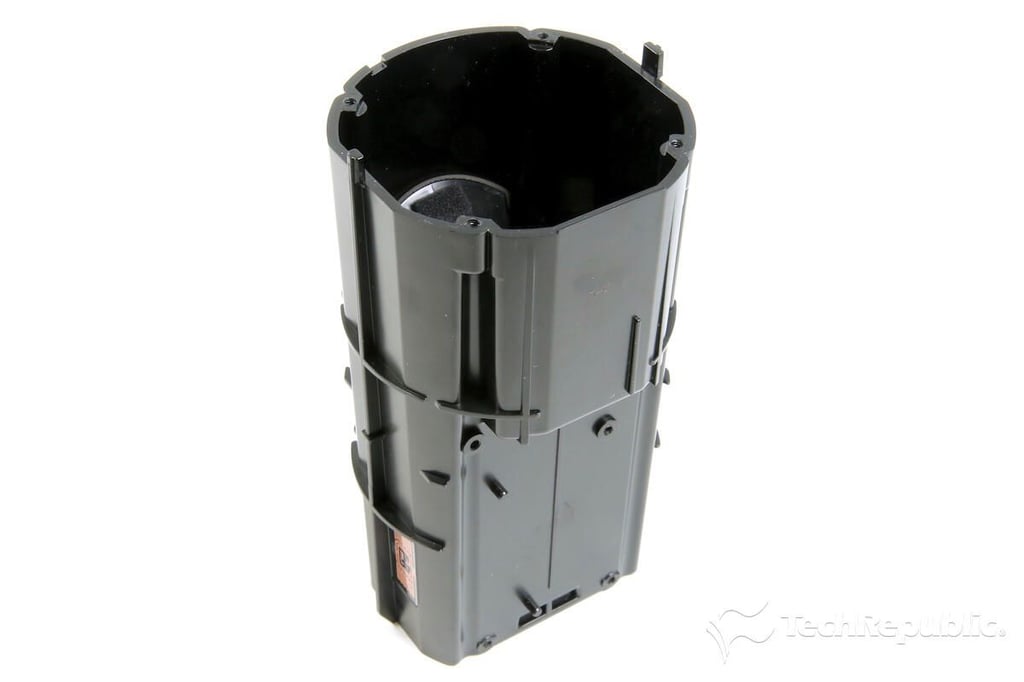

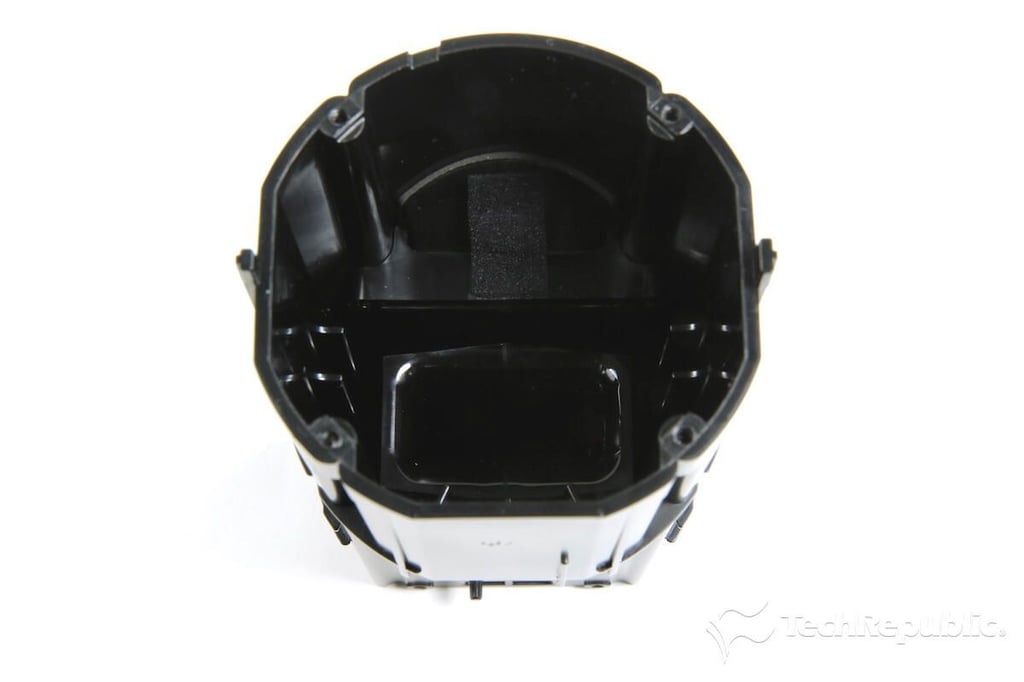

  • Cracking Open the Amazon Echo: Inner shell and air chambers

    Bill Detwiler\/TechRepublic

  • Cracking Open the Amazon Echo: Reflex port

    Bill Detwiler\/TechRepublic

  • Cracking Open the Amazon Echo: Volume wheel assembly - Top

    Bill Detwiler\/TechRepublic

  • Cracking Open the Amazon Echo: Volume wheel assembly - Bottom

    Bill Detwiler\/TechRepublic

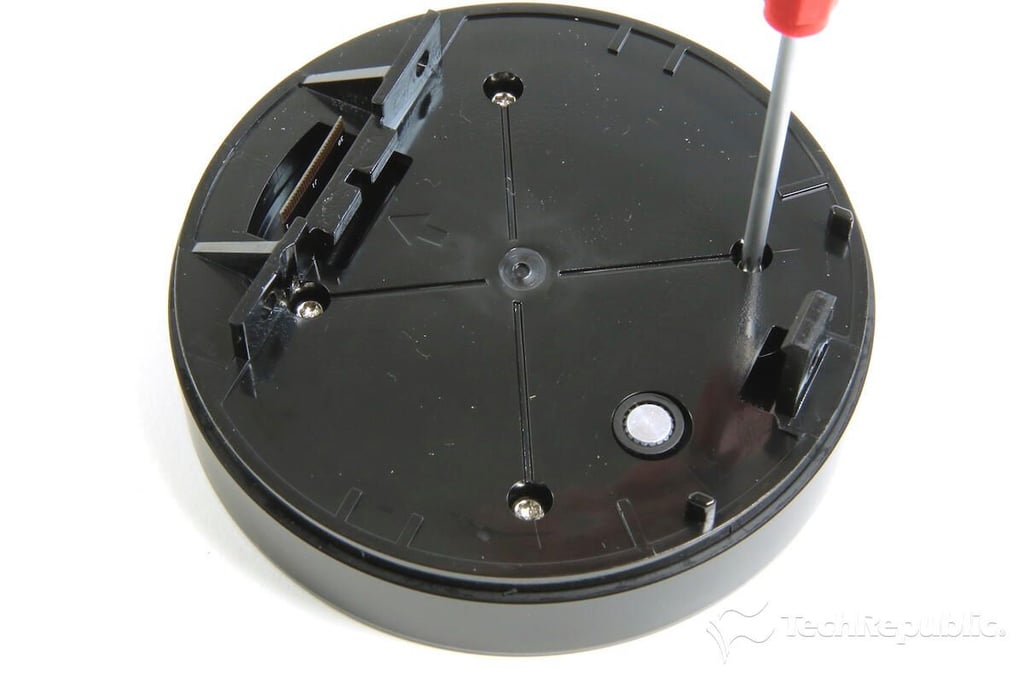

  • Cracking Open the Amazon Echo: Removing the volume wheel assembly screws

    Bill Detwiler\/TechRepublic

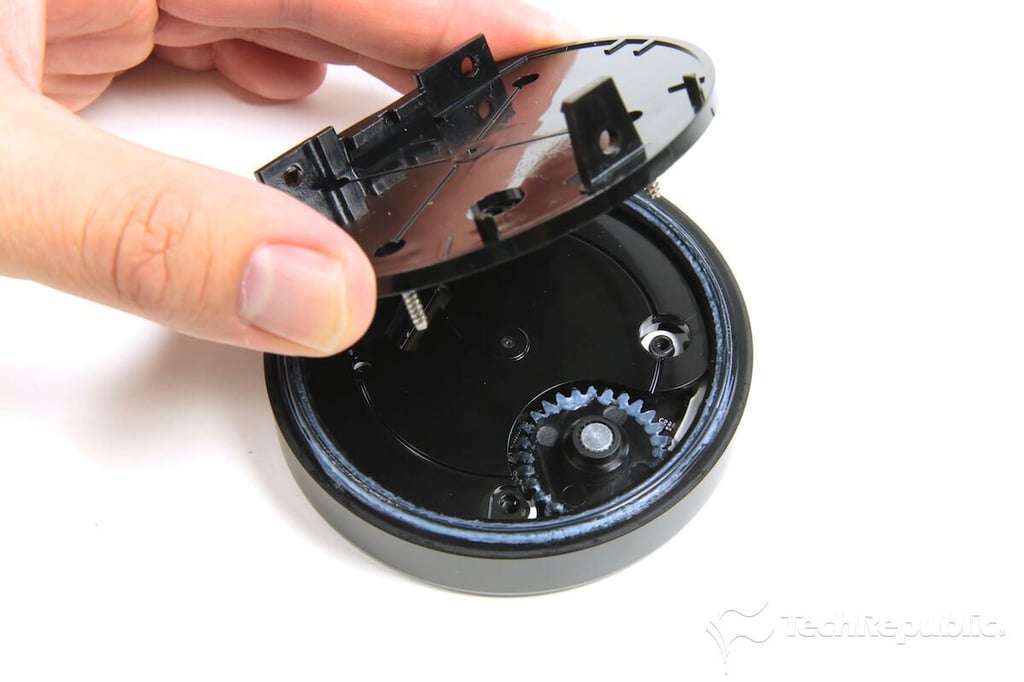

  • Cracking Open the Amazon Echo: Removing the volume wheel assembly bottom cover

    Bill Detwiler\/TechRepublic

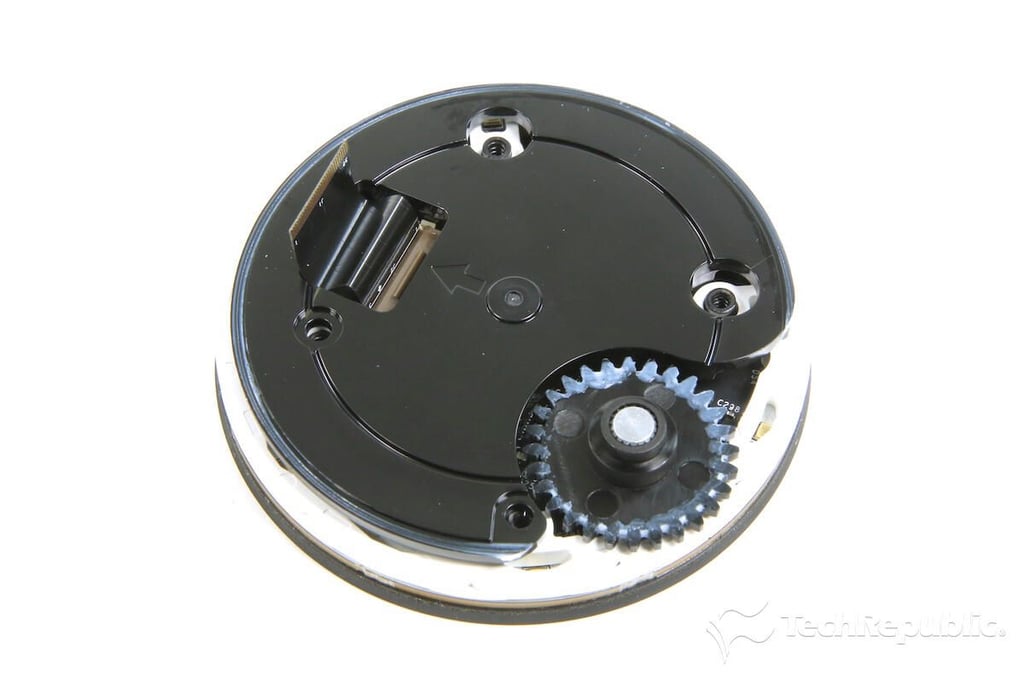

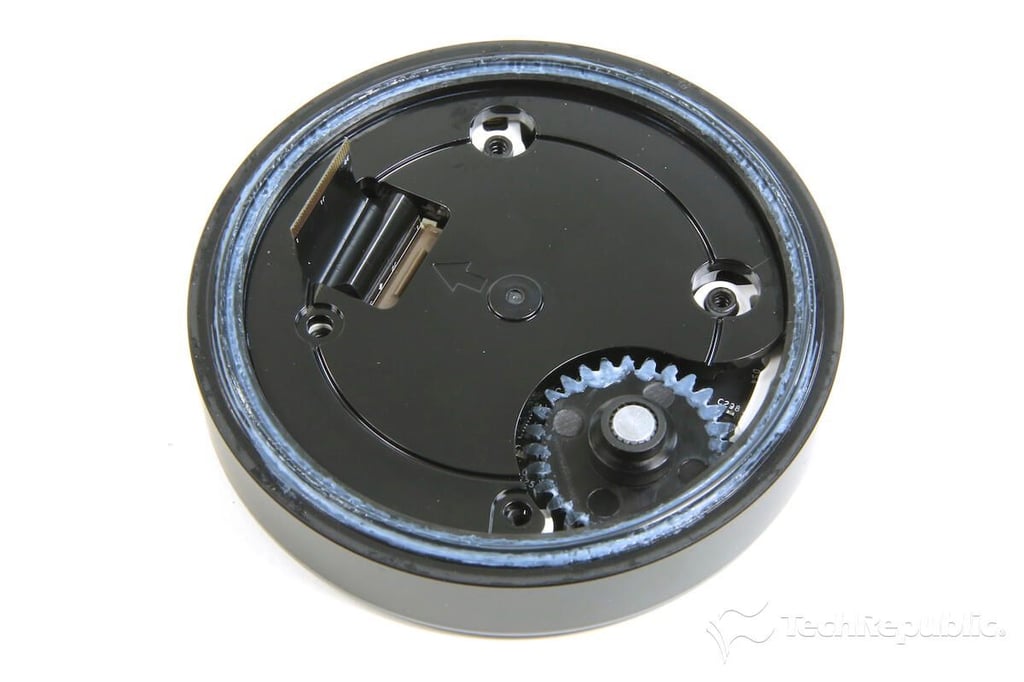

  • Cracking Open the Amazon Echo: Volume wheel assembly with cover removed

    Bill Detwiler\/TechRepublic

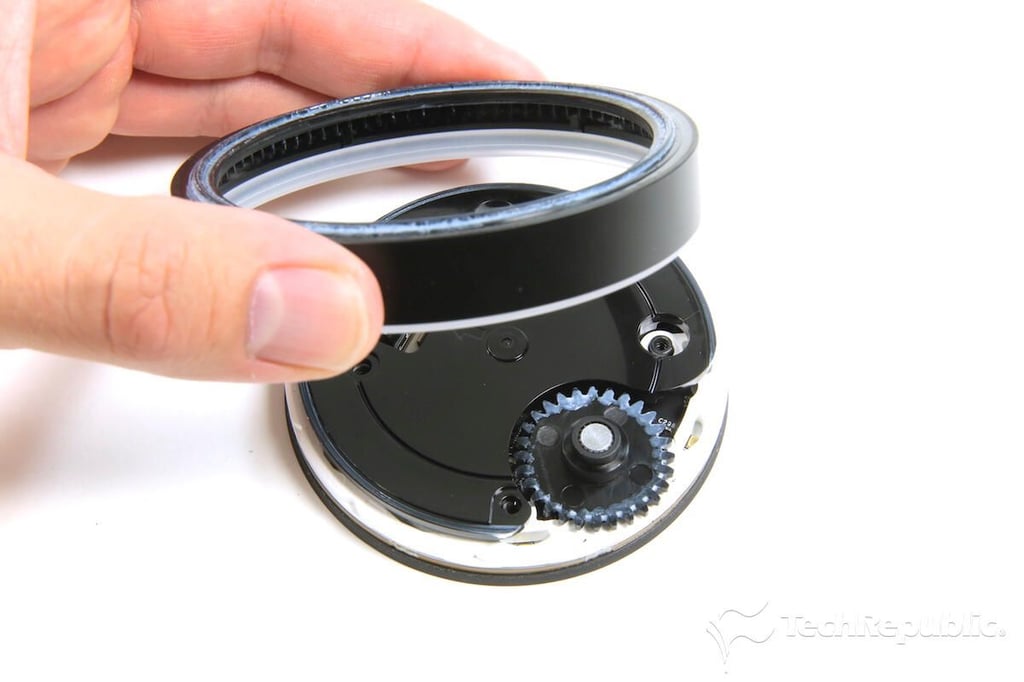

  • Cracking Open the Amazon Echo: Removing the volume ring

    Bill Detwiler\/TechRepublic

  • Cracking Open the Amazon Echo: Volume ring assembly with ring removed

    Bill Detwiler\/TechRepublic

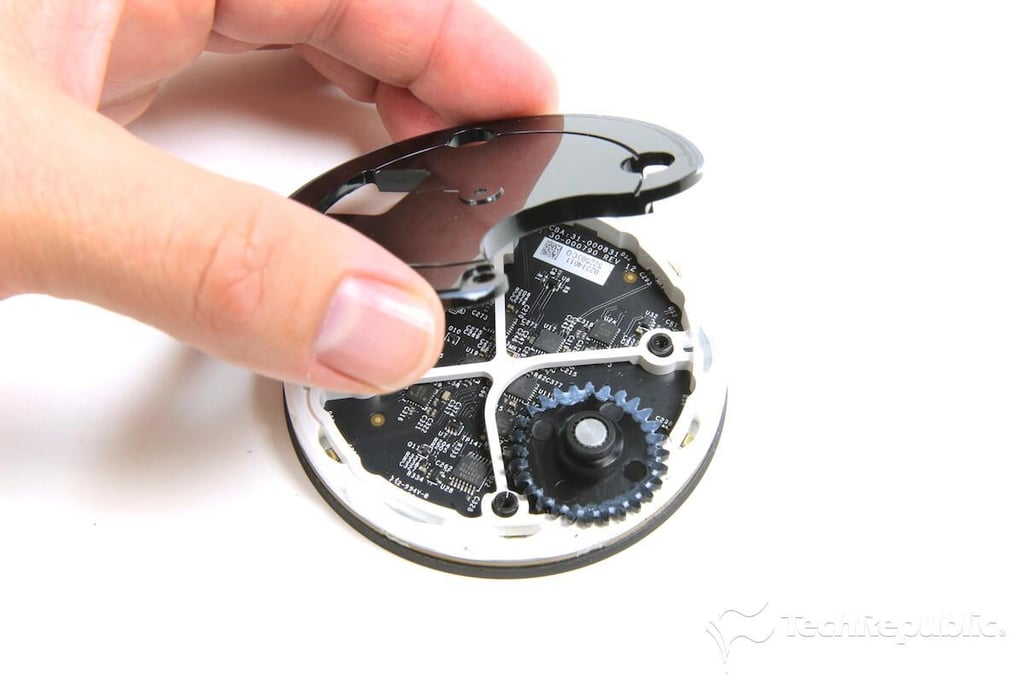

  • Cracking Open the Amazon Echo: Removing the volume ring circuit board cover

    Bill Detwiler\/TechRepublic

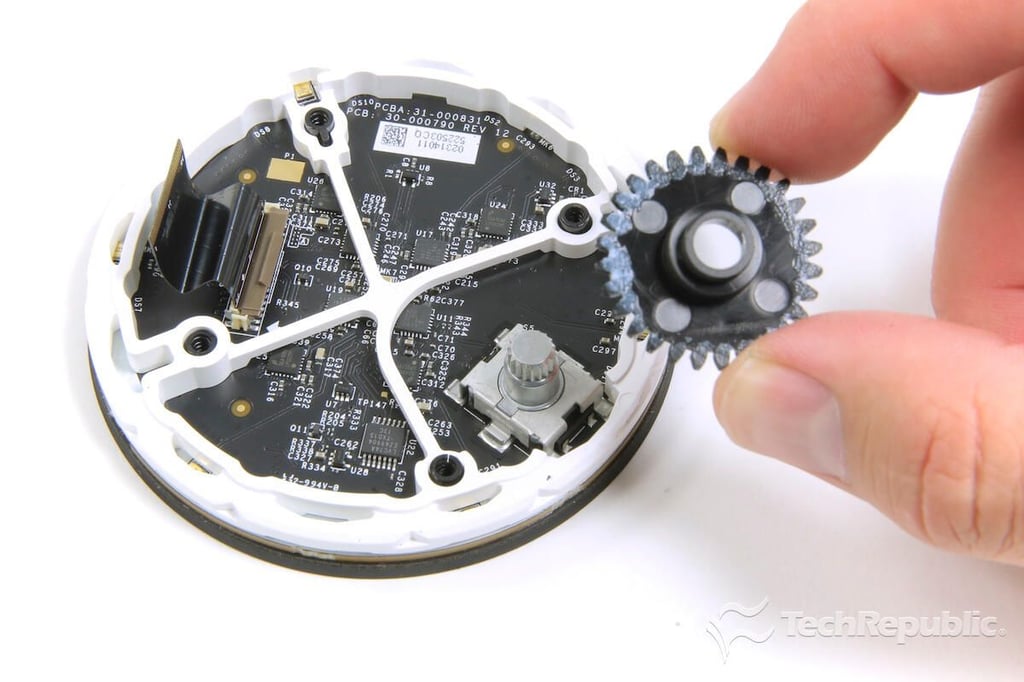

  • Cracking Open the Amazon Echo: Removing the volume mechanism gear

    Bill Detwiler\/TechRepublic

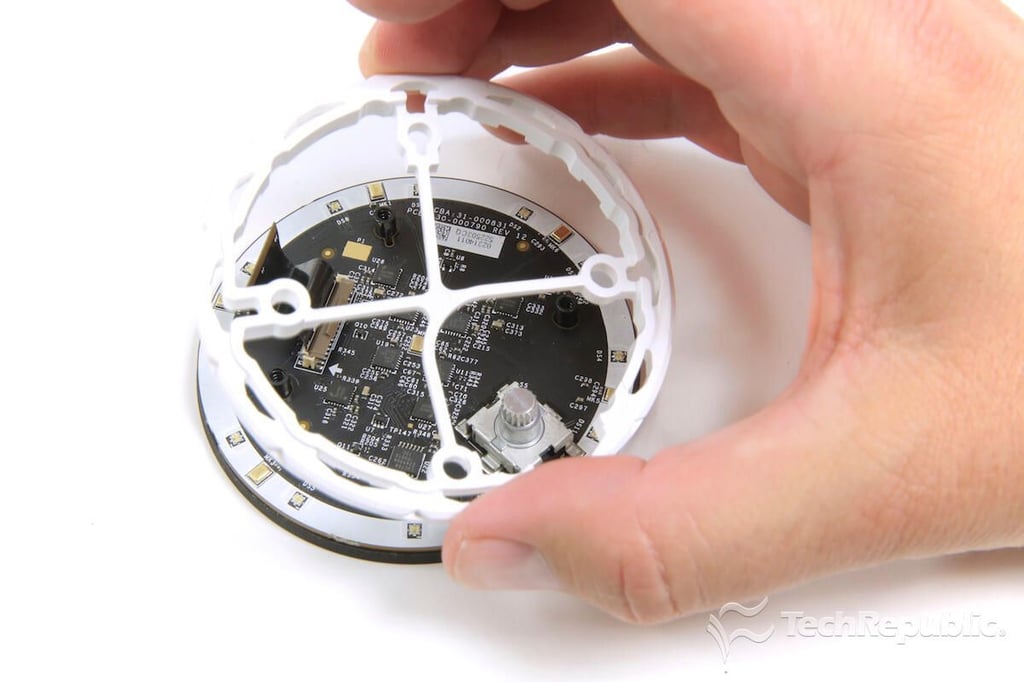

  • Cracking Open the Amazon Echo: Removing the volume ring spacer

    Bill Detwiler\/TechRepublic

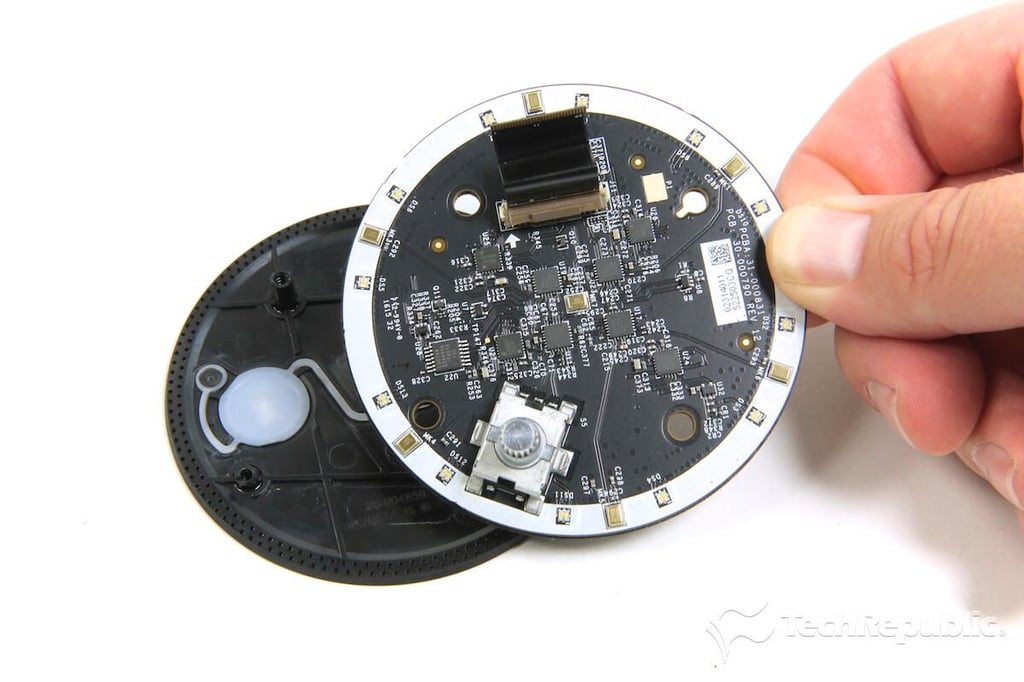

  • Cracking Open the Amazon Echo: Removing the microphone and control circuit board

    Bill Detwiler\/TechRepublic

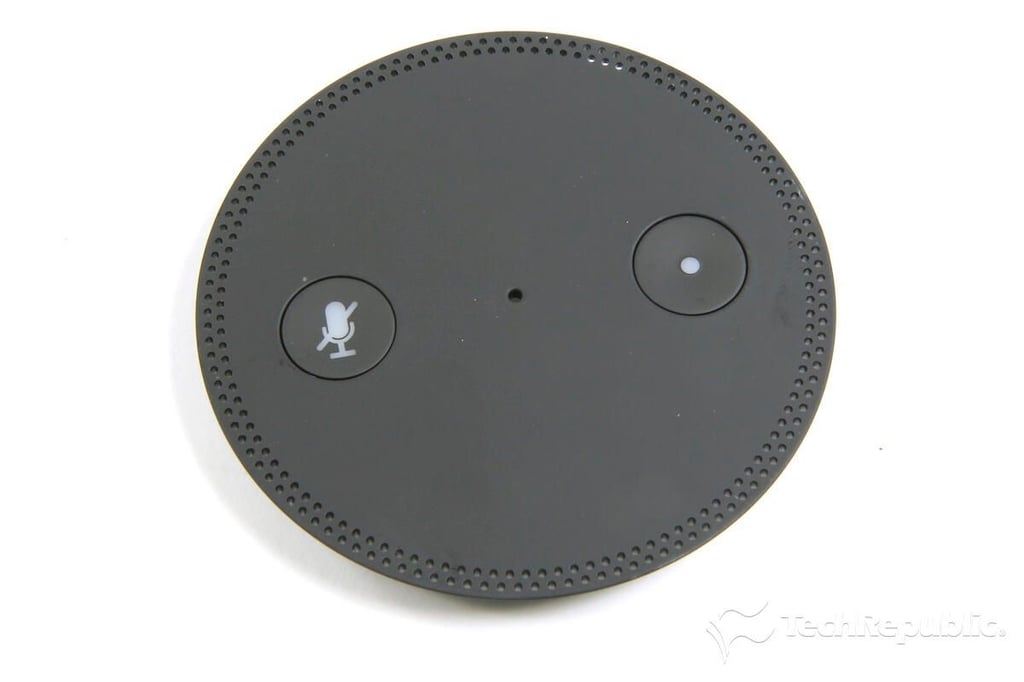

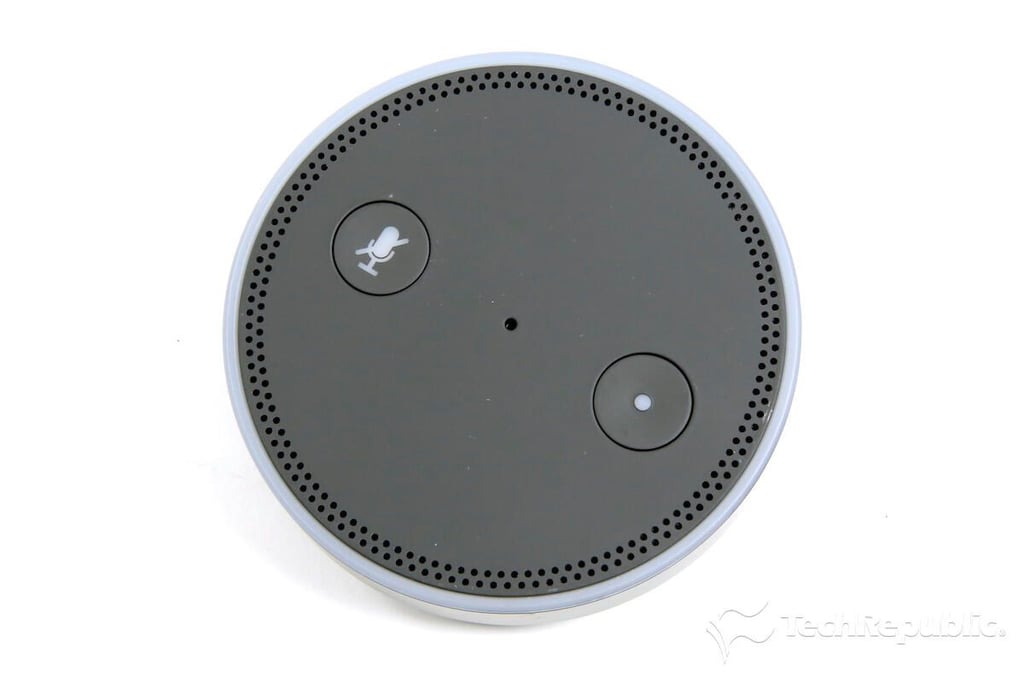

  • Cracking Open the Amazon Echo: Top cover and control buttons

    Bill Detwiler\/TechRepublic

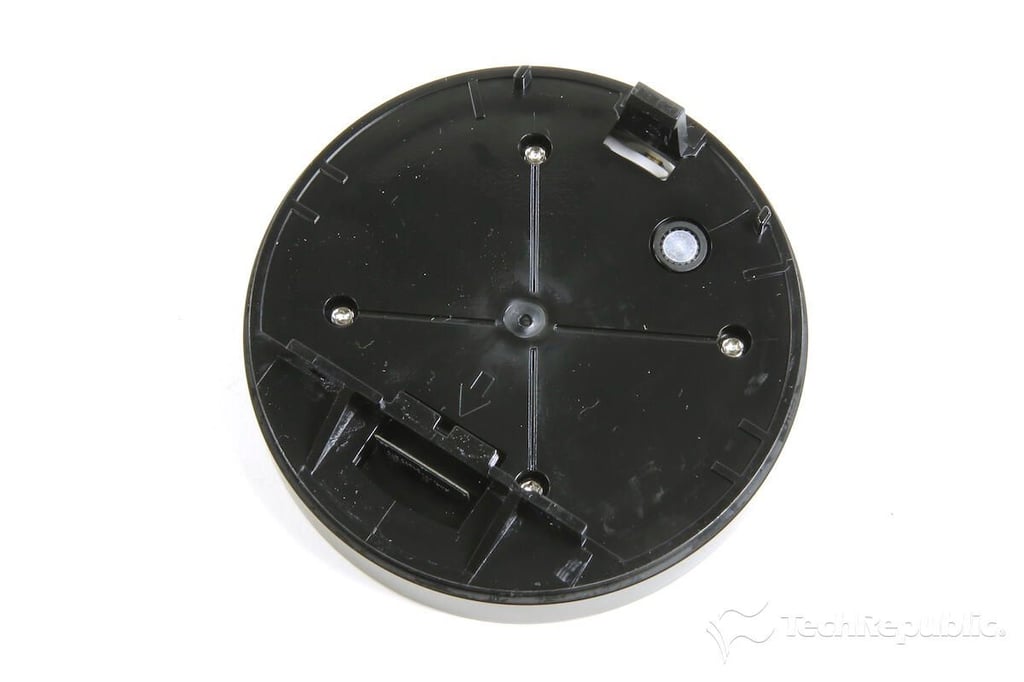

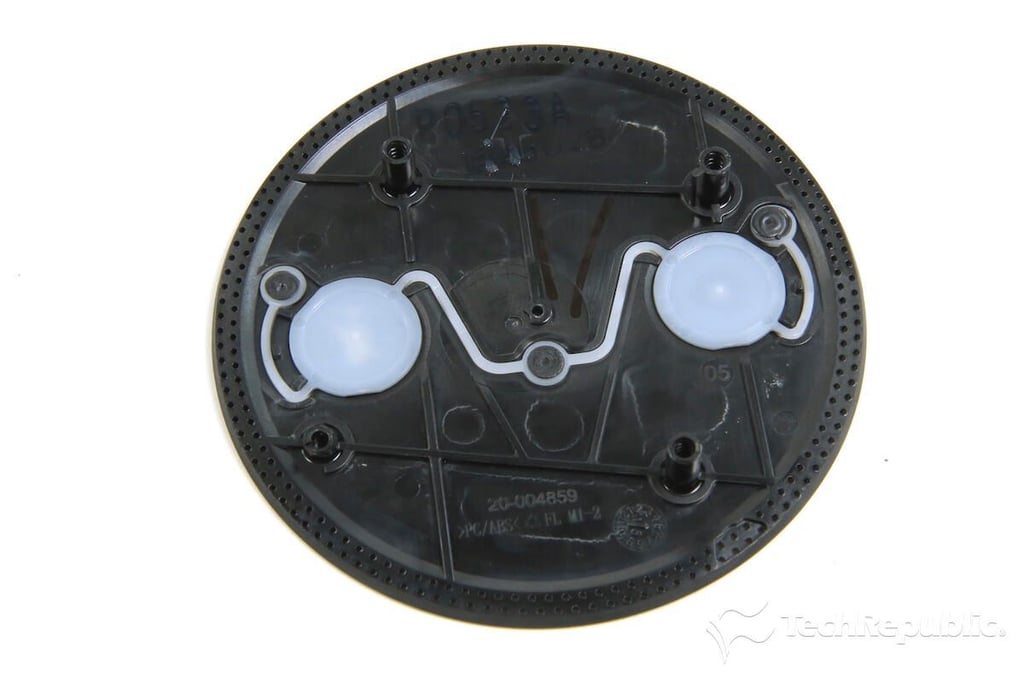

  • Cracking Open the Amazon Echo: Top cover - Inside

    Bill Detwiler\/TechRepublic

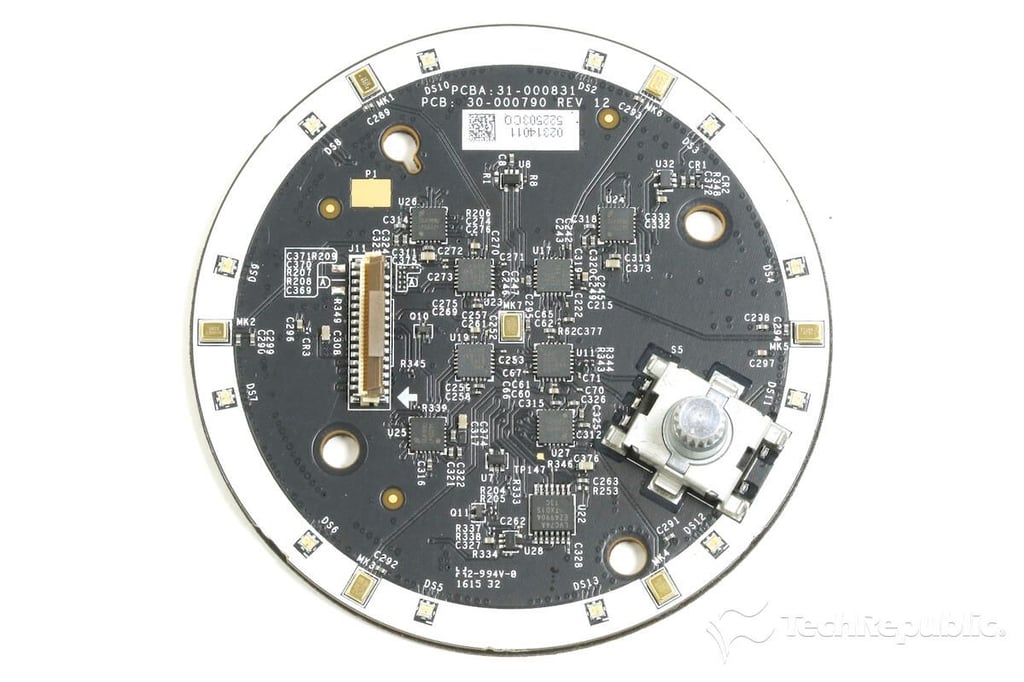

  • Cracking Open the Amazon Echo: Microphone, LED, and volume control circuit board

    Bill Detwiler\/TechRepublic

  • Cracking Open the Amazon Echo: Control button contacts and LEDs

    Bill Detwiler\/TechRepublic

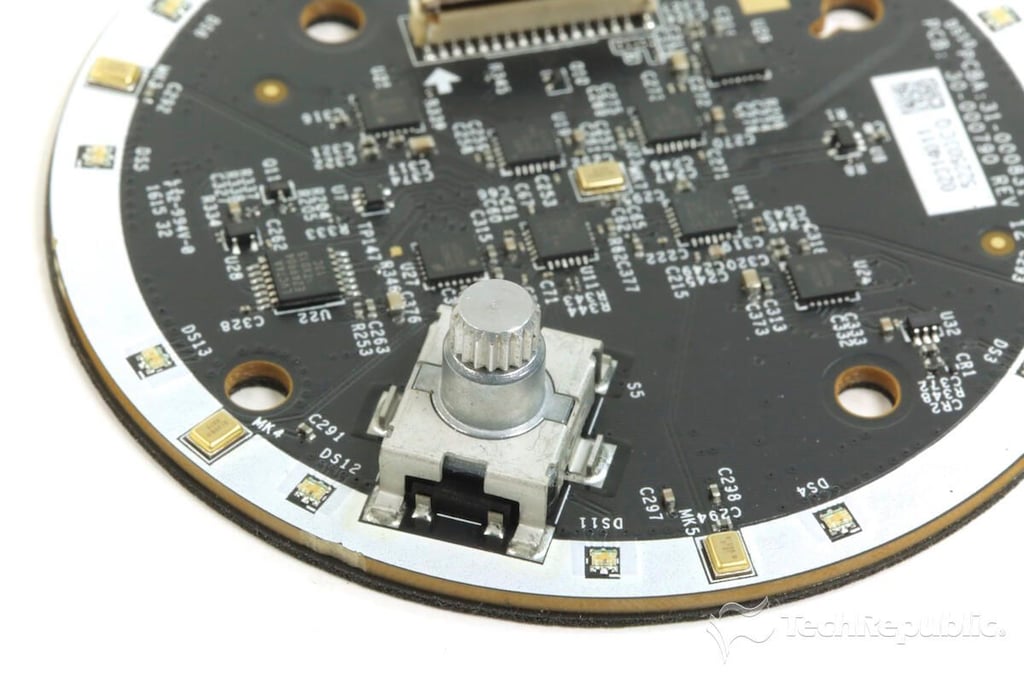

  • Cracking Open the Amazon Echo: Volume control mechanism

    Bill Detwiler\/TechRepublic

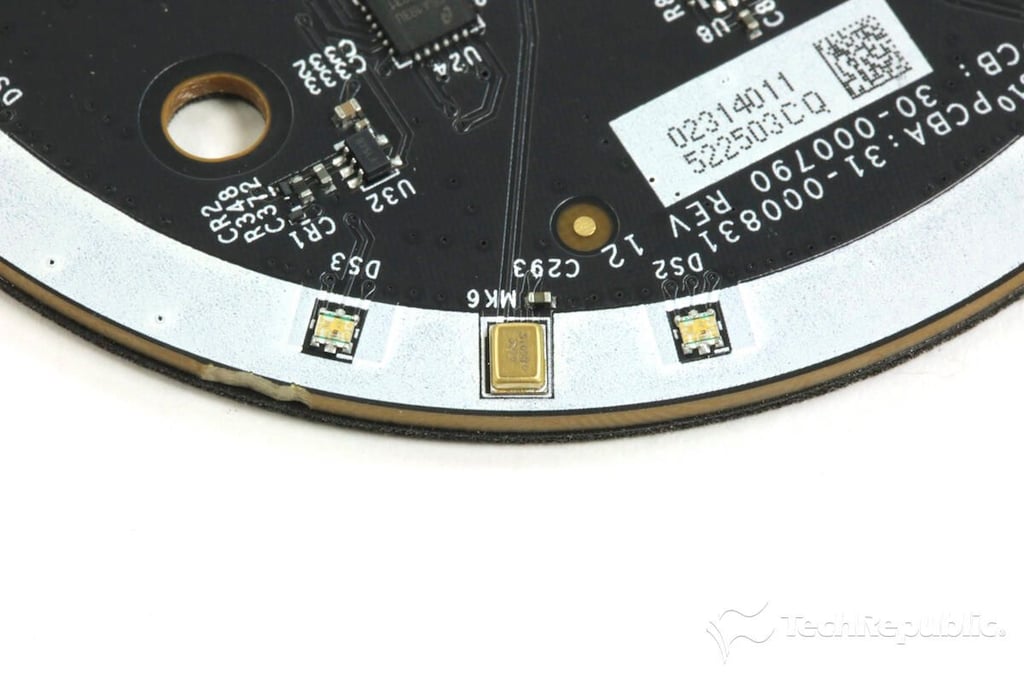

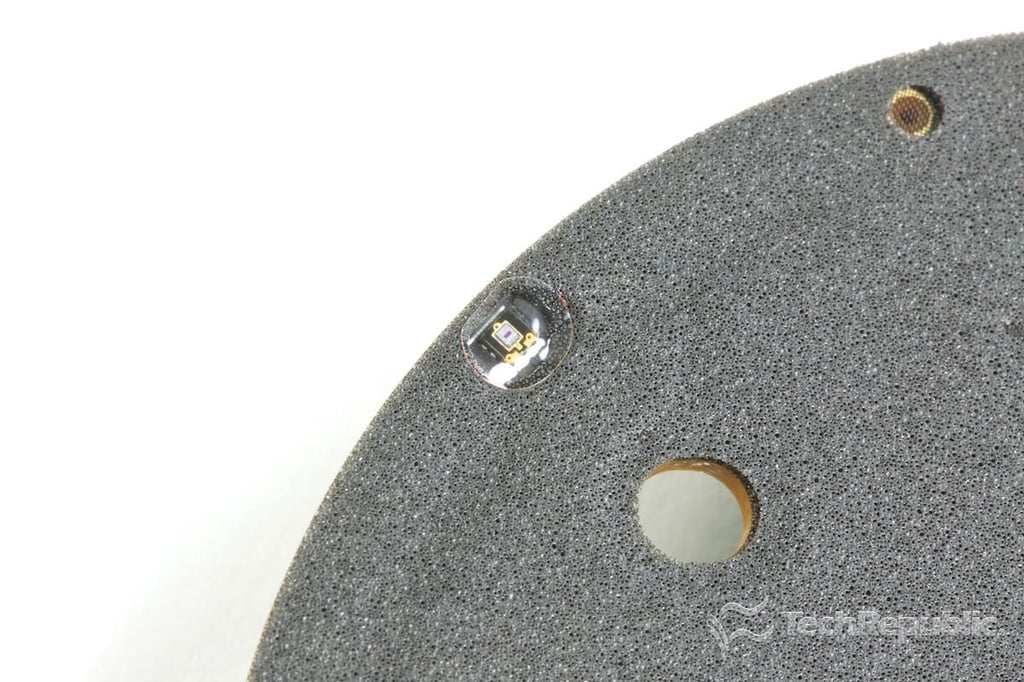

  • Cracking Open the Amazon Echo: Microphone and LEDs

    Bill Detwiler\/TechRepublic

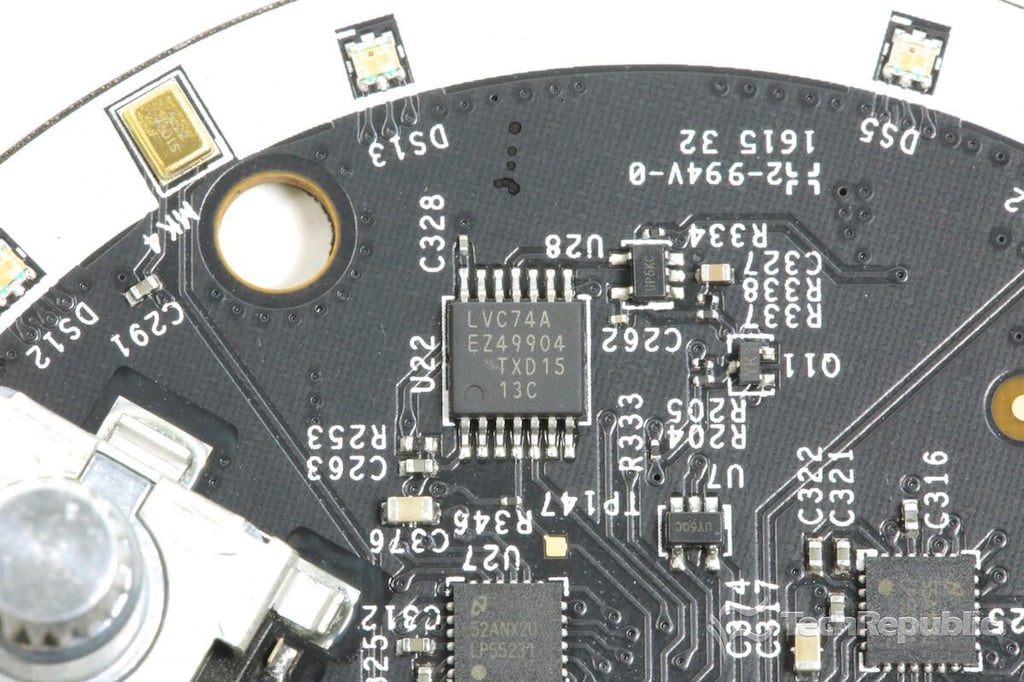

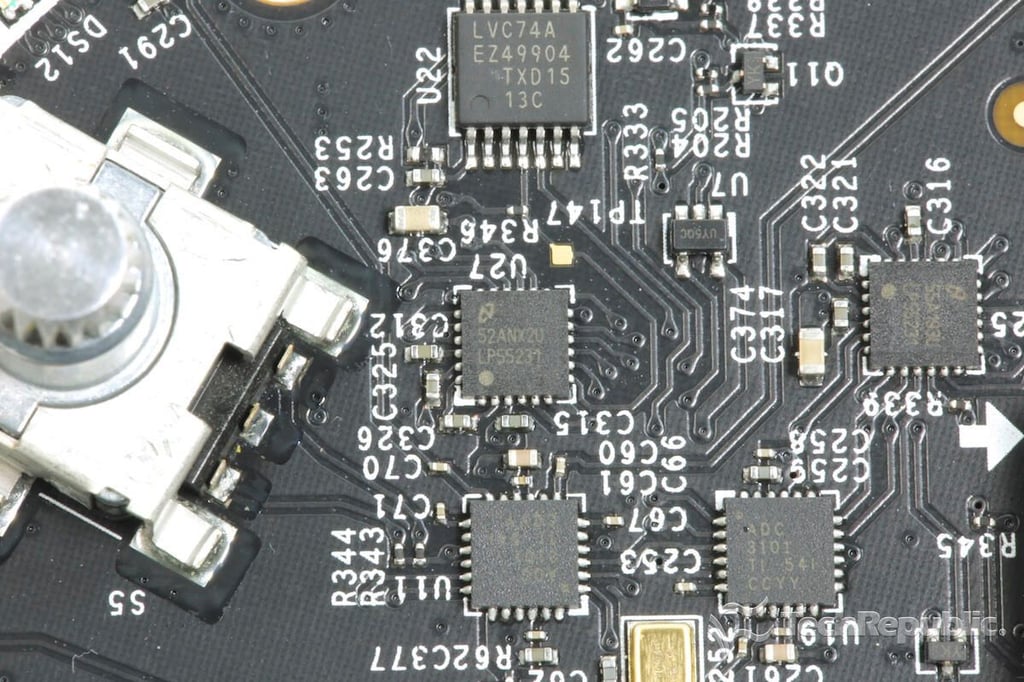

  • Cracking Open the Amazon Echo: LVC74A EZ49904 TXD15 13C

    Bill Detwiler\/TechRepublic

  • Cracking Open the Amazon Echo: National Semiconductor (Texas Instruments) LP5523 Programmable LED Driver

    Bill Detwiler\/TechRepublic

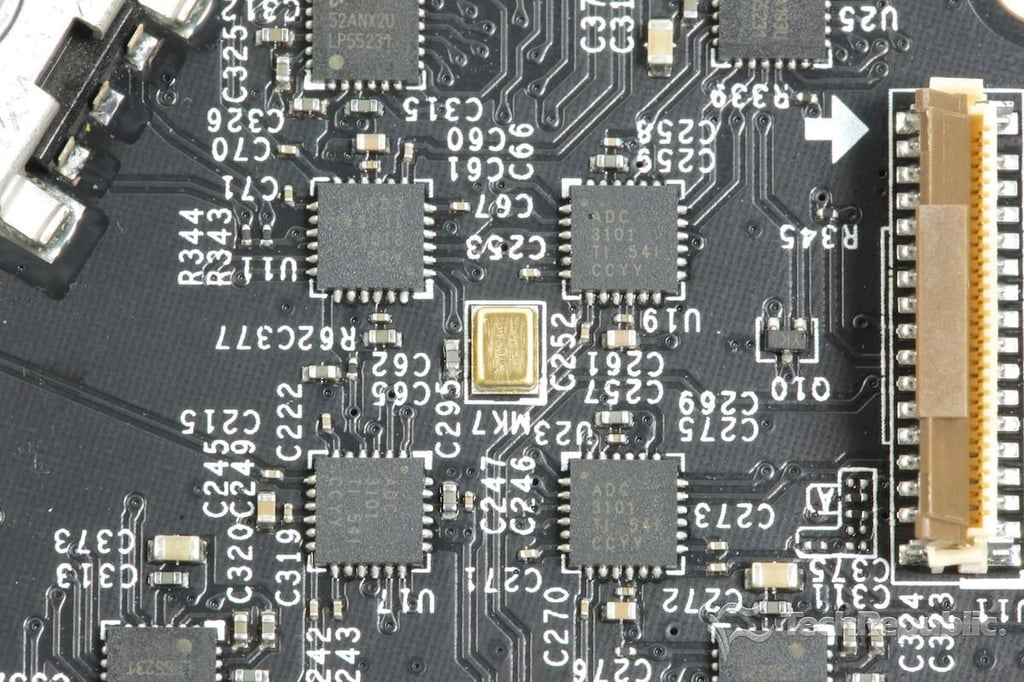

  • Cracking Open the Amazon Echo: Texas Instruments TLV320ADC3101 low-power, stereo audio analog-to-digital converter (ADC)

    Bill Detwiler\/TechRepublic

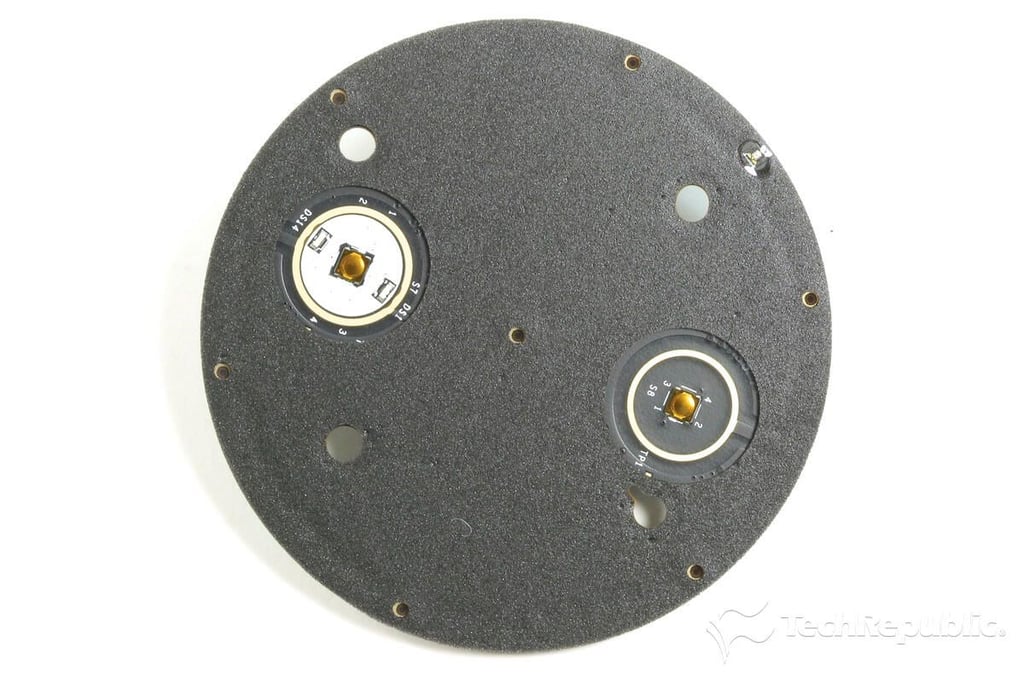

  • Cracking Open the Amazon Echo: Microphone on/off button contact and LEDs

    Bill Detwiler\/TechRepublic

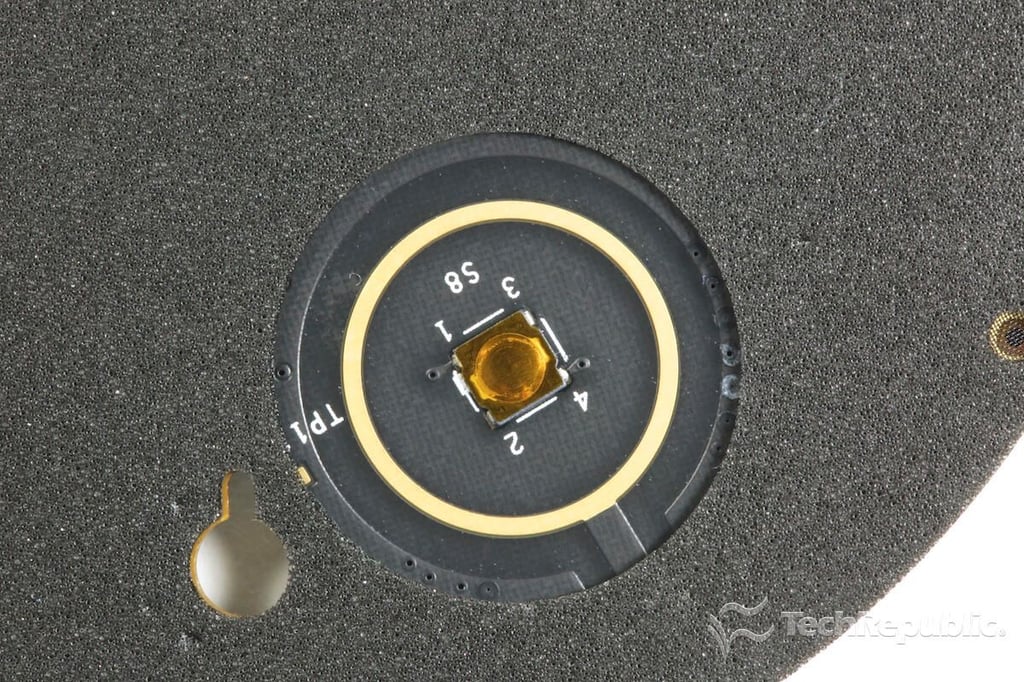

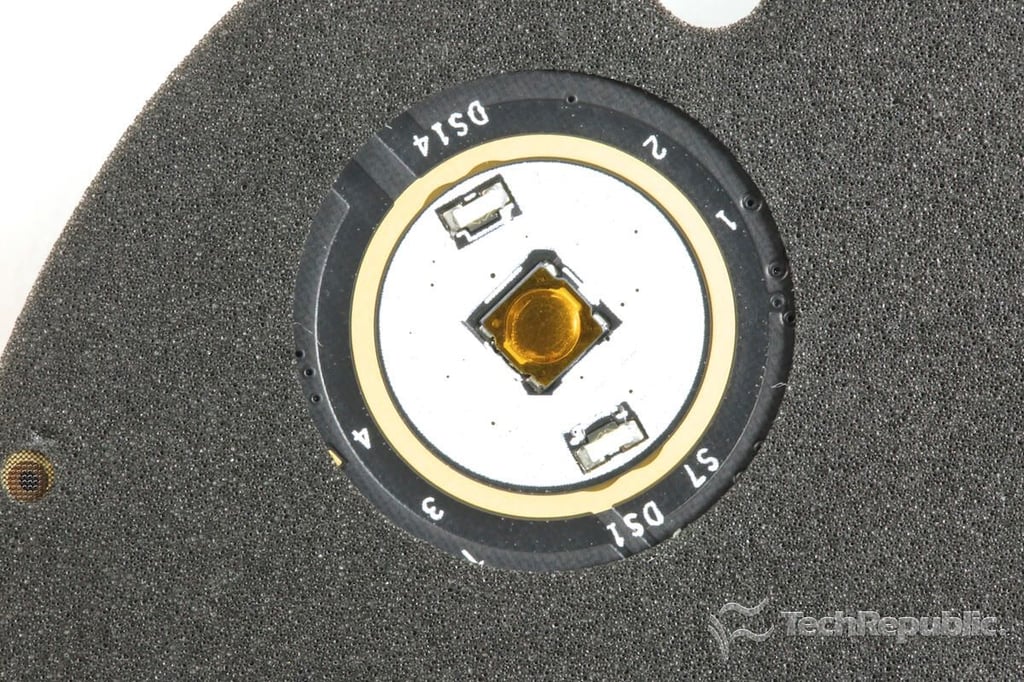

  • Cracking Open the Amazon Echo: Action button contact

    Bill Detwiler\/TechRepublic

  • Cracking Open the Amazon Echo:

    Bill Detwiler\/TechRepublic

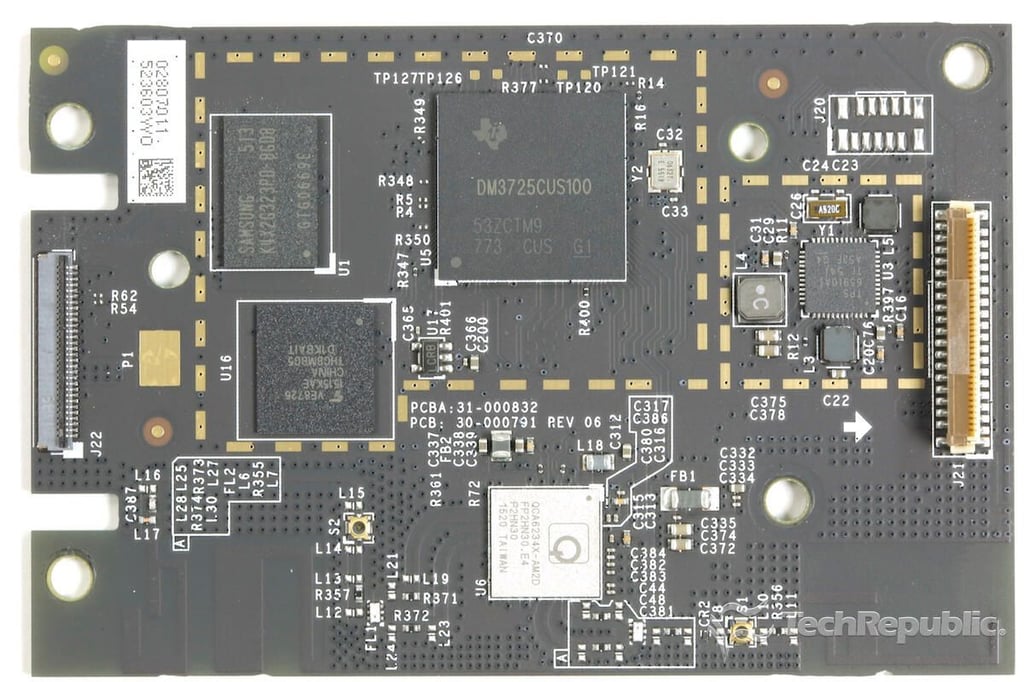

  • Cracking Open the Amazon Echo: Main system board - Front

    Bill Detwiler\/TechRepublic

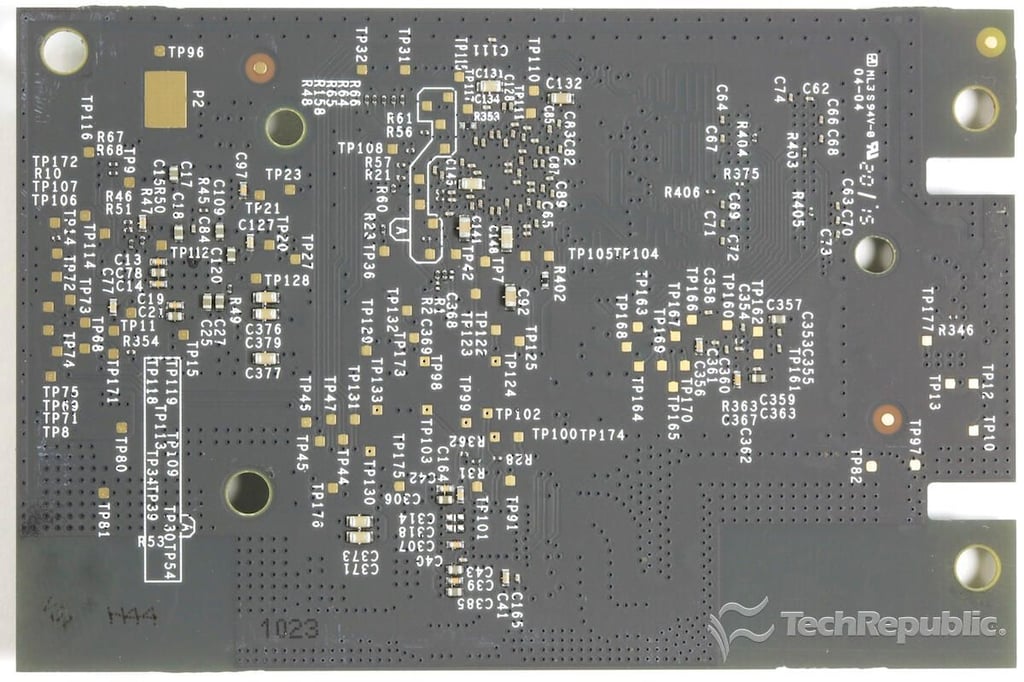

  • Cracking Open the Amazon Echo: Main system board - Back

    Bill Detwiler\/TechRepublic

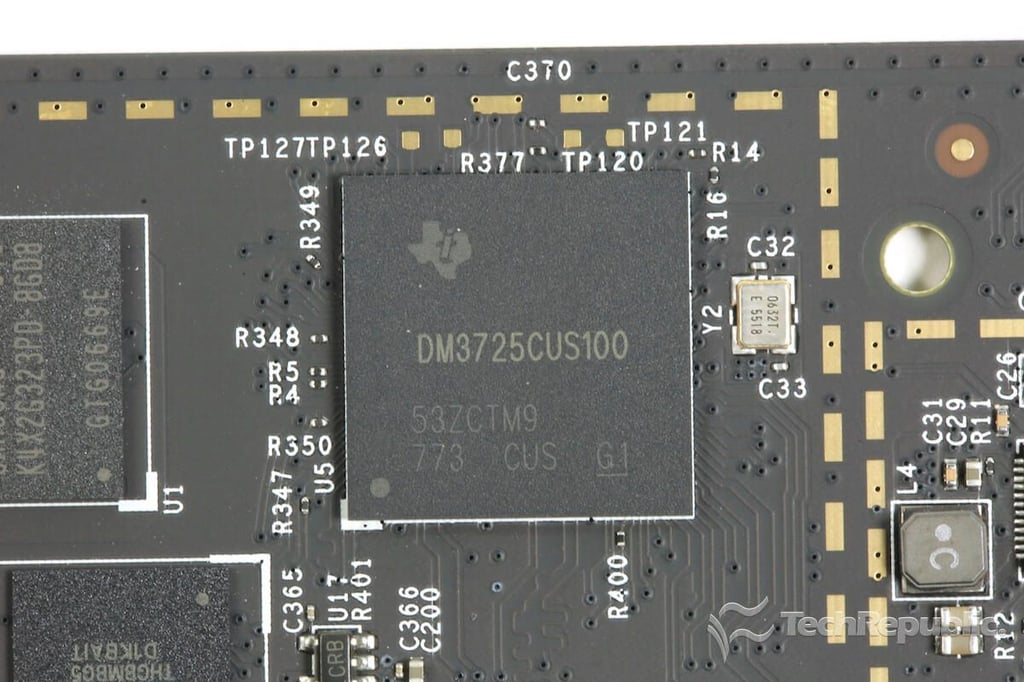

  • Cracking Open the Amazon Echo: Texas Instruments DM3725 Digital Media Processor

    Bill Detwiler\/TechRepublic

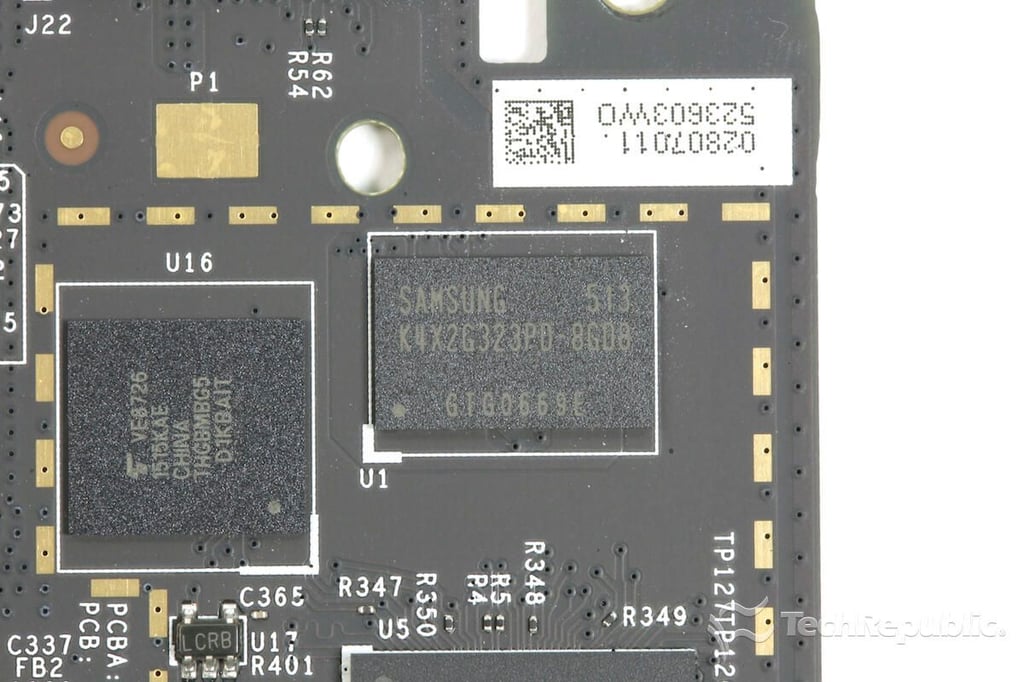

  • Cracking Open the Amazon Echo: 250MB Samsung K4X2G323PD 8GD8 mobile DRAM

    Bill Detwiler\/TechRepublic

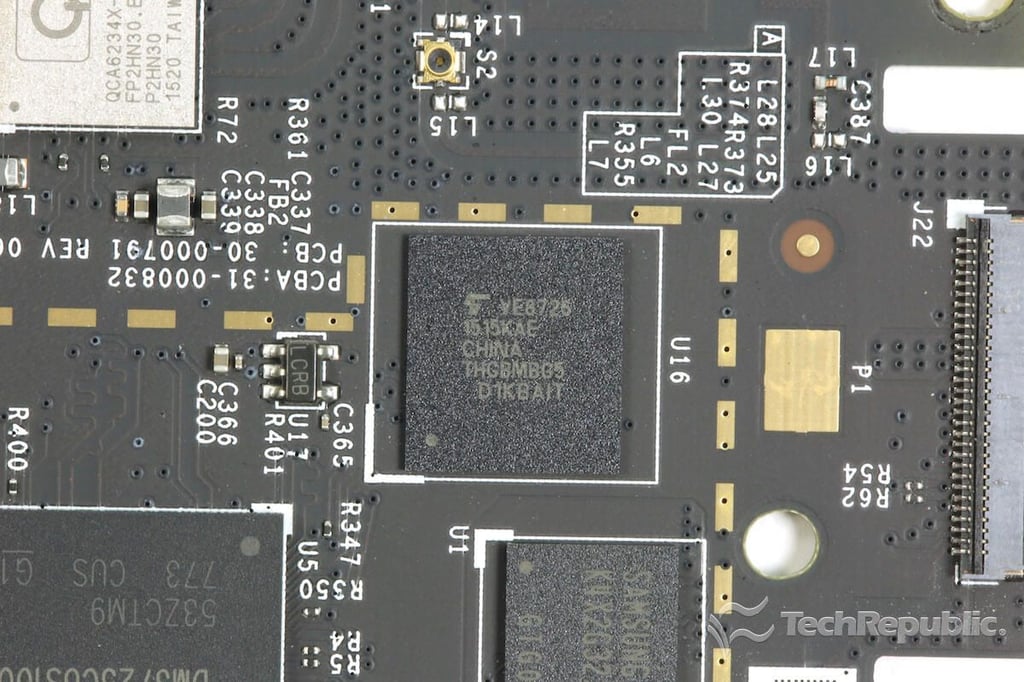

  • Cracking Open the Amazon Echo: 4GB Toshiba THGBMBG5D1KBAIT eMMC NAND flash storage chip

    Bill Detwiler\/TechRepublic

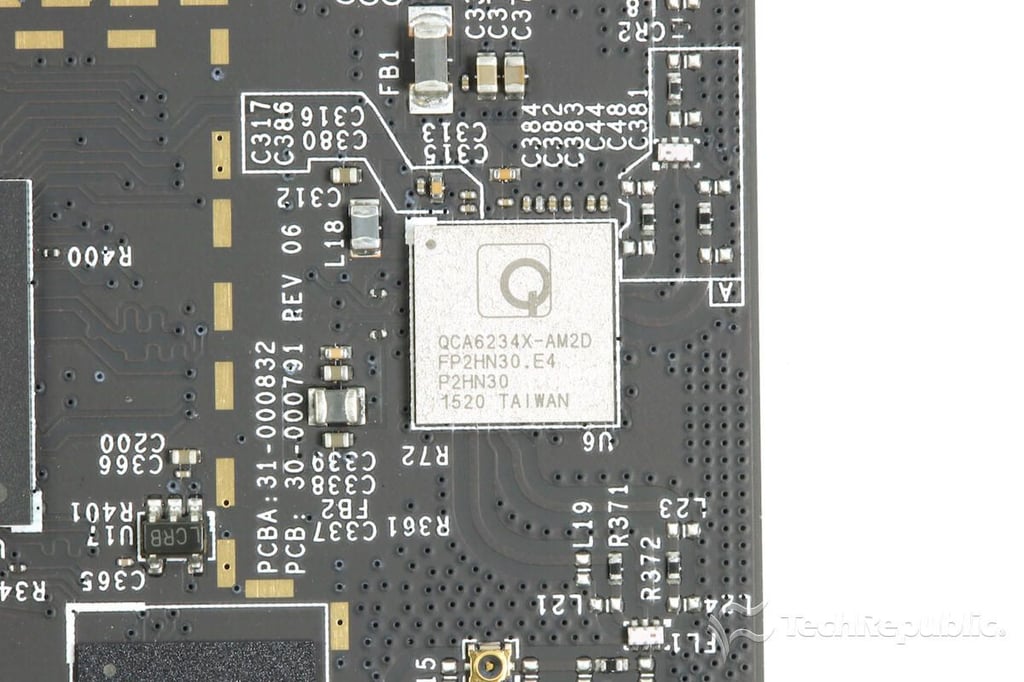

  • Cracking Open the Amazon Echo: Qualcomm QCA6234 Dual-Band 802.11n and Bluetooth 4.0 chip

    Bill Detwiler\/TechRepublic

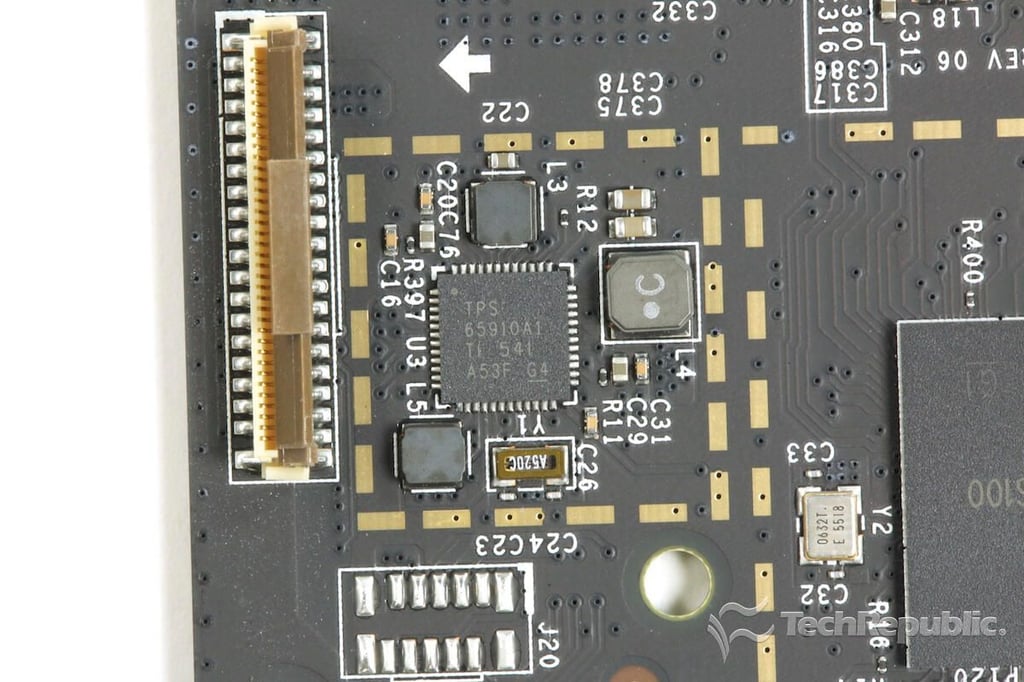

  • Cracking Open the Amazon Echo: Texas Instruments TPS65910 integrated power-management IC

    Bill Detwiler\/TechRepublic
  • amazonechoteardown067.jpg

    Cracking Open the Amazon Echo: Teardown complete

    Bill Detwiler/TechRepublic
