Cracking Open the Microsoft Surface Pro 3

  • surfacepro3teardown072.png

    Microsoft Surface Pro 3 teardown

    The Surface Pro 3 is thinner and lighter than last year’s model. And it has a beautiful 12-inch display, new kickstand, and handy digital pen. It also has a completely redesigned interior. Unfortunately, the Pro 3 is still just as difficult to disassemble if not more so.

    In this Cracking Open gallery, I walk you through the process of disassembling the Surface Pro 3 and give you a tour of the internal hardware. For a detailed analysis of the teardown, check out my article and video, Surface Pro 3 teardown reveals fragile glass, redesigned interior.

  • surfacepro3teardown002.png

    Cracking Open Surface Pro 3: Box contents

    Bill Detwiler\/TechRepublic
  • surfacepro3teardown003.png

    Cracking Open Surface Pro 3: Front

    Bill Detwiler\/TechRepublic
  • surfacepro3teardown004.png

    Cracking Open Surface Pro 3: Kickstand

    Bill Detwiler\/TechRepublic
  • surfacepro3teardown005.png

    Cracking Open Surface Pro 3: Kickstand in canvas mode

    Bill Detwiler\/TechRepublic
  • surfacepro3teardown007.png

    Cracking Open Surface Pro 3: Back

    Bill Detwiler\/TechRepublic
  • surfacepro3teardown008.png

    Cracking Open Surface Pro 3: Right side ports

    Bill Detwiler\/TechRepublic
  • surfacepro3teardown009.png

    Cracking Open Surface Pro 3: Volume buttons

    Bill Detwiler\/TechRepublic
  • surfacepro3teardown012.png

    Cracking Open Surface Pro 3: Power button

    Bill Detwiler\/TechRepublic
  • surfacepro3teardown013.png

    Cracking Open Surface Pro 3: Rear camera and sensors

    Bill Detwiler\/TechRepublic
  • surfacepro3teardown017.png

    Cracking Open Surface Pro 3: Surface Pro and Surface 2

    Bill Detwiler\/TechRepublic
  • surfacepro3teardown016.png

    Cracking Open Surface Pro 3: Type Cover attached

    Bill Detwiler\/TechRepublic
  • surfacepro3teardown015.png

    Cracking Open Surface Pro 3: Type Cover and kickstand

    Bill Detwiler\/TechRepublic
  • surfacepro3teardown014.png

    Cracking Open Surface Pro 3: Type Cover

    Bill Detwiler\/TechRepublic
  • surfacepro3teardown018.png

    Cracking Open Surface Pro 3: Heating the edges of the front panel

    Bill Detwiler/TechRepublic
  • surfacepro3teardown020.png

    Cracking Open Surface Pro 3: Prying loose the front panel

    Bill Detwiler\/TechRepublic
  • surfacepro3teardown019.png

    Cracking Open Surface Pro 3: Front panel loosened

    Bill Detwiler\/TechRepublic
  • surfacepro3teardown091.png

    Cracking Open Surface Pro 3: Broken glass from the front panel

    Bill Detwiler\/TechRepublic
  • surfacepro3teardown090.png

    Cracking Open Surface Pro 3: Front panel glass if very fragile

    Bill Detwiler\/TechRepublic
  • surfacepro3teardown092.png

    Cracking Open Surface Pro 3: Removing the front panel

    Bill Detwiler\/TechRepublic
  • surfacepro3teardown093.png

    Cracking Open Surface Pro 3: Disconnecting the battery and front panel connectors

    Bill Detwiler\/TechRepublic
  • surfacepro3teardown063.png

    Cracking Open Surface Pro 3: Damaged front panel glass

    Bill Detwiler\/TechRepublic
  • surfacepro3teardown061.png

    Cracking Open Surface Pro 3: Front panel/display assembly

    Bill Detwiler\/TechRepublic
  • surfacepro3teardown062.png

    Cracking Open Surface Pro 3: Ntrig NS-P4196 DuoSense Controller Chipset

    Bill Detwiler\/TechRepublic
  • surfacepro3teardown089.png

    Cracking Open Surface Pro 3: Internal hardware

    Bill Detwiler/TechRepublic
  • surfacepro3teardown087.png

    Cracking Open Surface Pro 3: Removing the SSD

    Bill Detwiler\/TechRepublic
  • surfacepro3teardown045.png

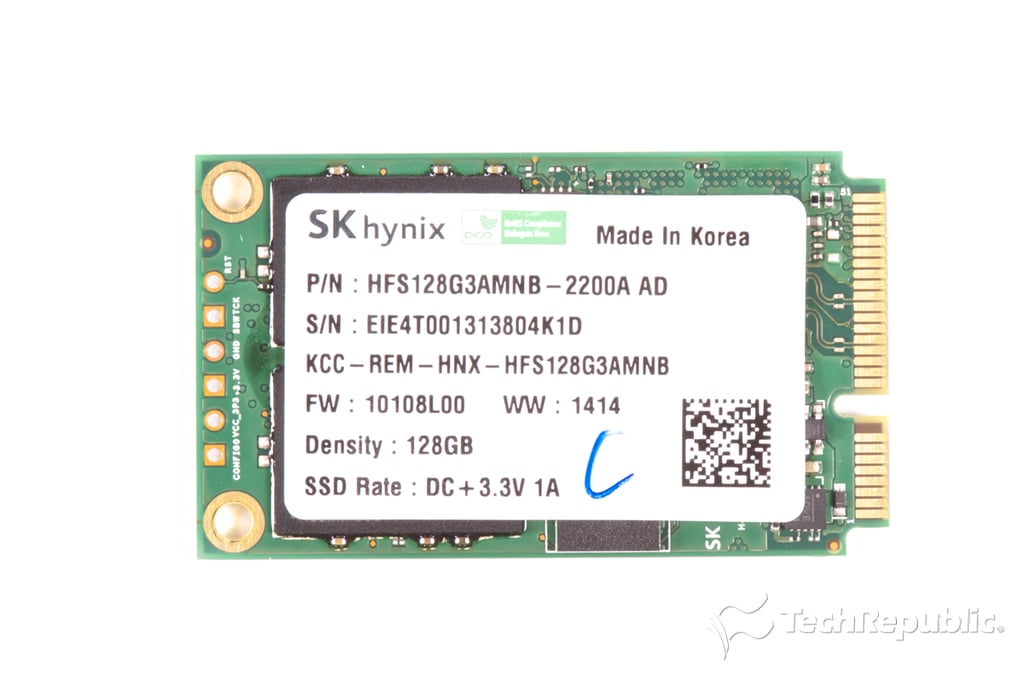

    Cracking Open Surface Pro 3: SK hynix HFS128G3AMNB-2200A AD SSD (128GB)

    Bill Detwiler\/TechRepublic
  • surfacepro3teardown046.png

    Cracking Open Surface Pro 3: SK hynix SSD - Front

    Bill Detwiler\/TechRepublic
  • surfacepro3teardown047.png

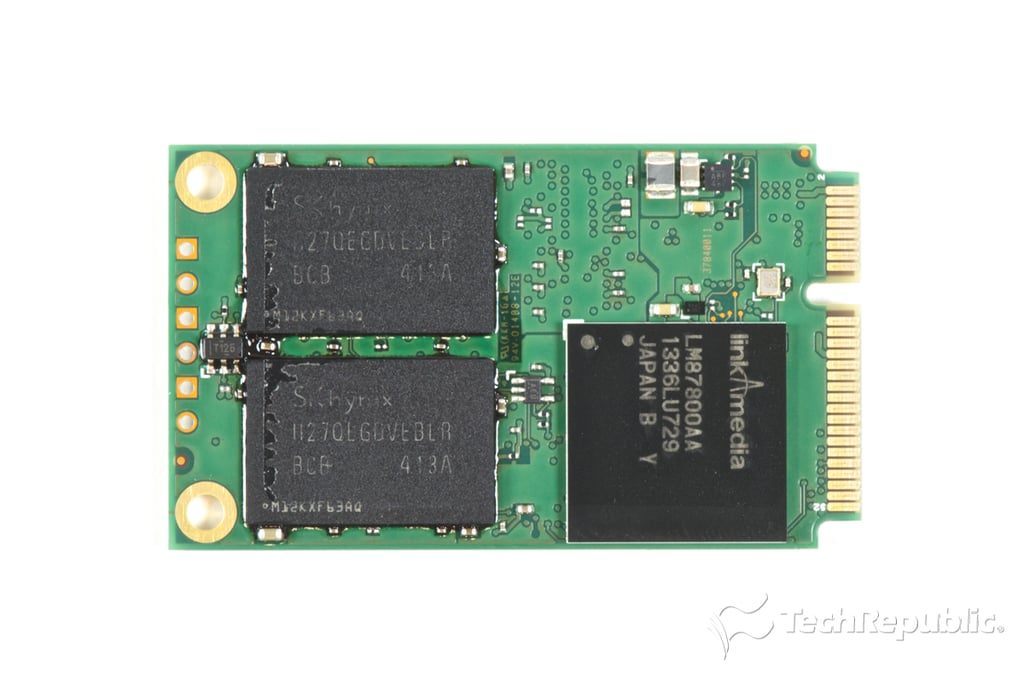

    Cracking Open Surface Pro 3: SK hynix SSD - Back

    Bill Detwiler\/TechRepublic
  • surfacepro3teardown086.png

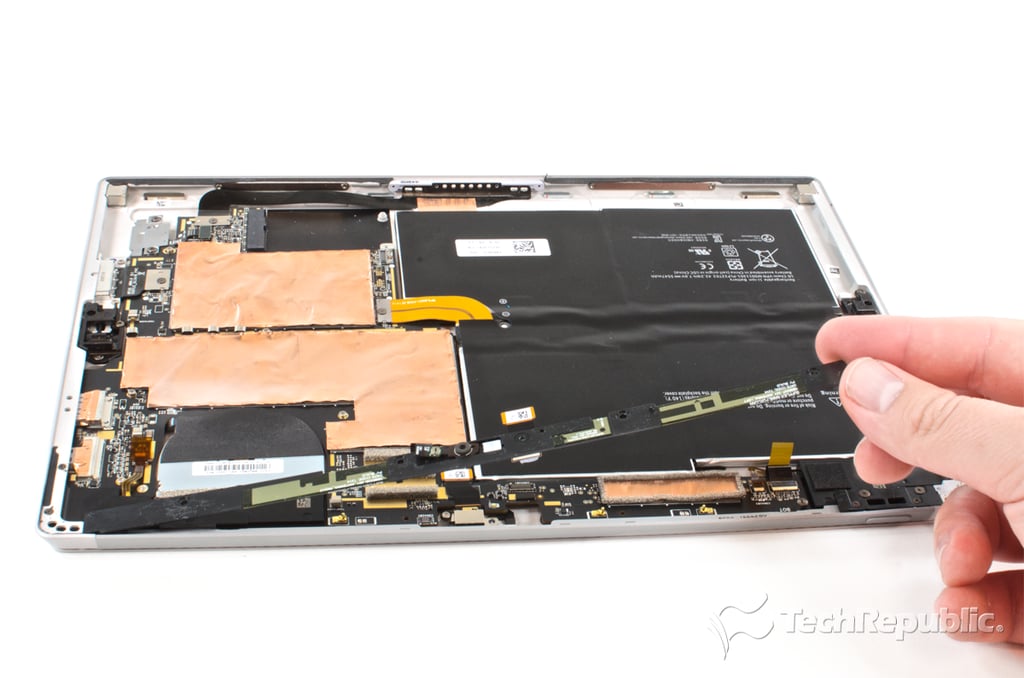

    Cracking Open Surface Pro 3: Removing the upper camera, sensor, and antenna bar

    Bill Detwiler\/TechRepublic
  • surfacepro3teardown058.png

    Cracking Open Surface Pro 3: Camera, sensor, and antenna bar - Front

    Bill Detwiler\/TechRepublic
  • surfacepro3teardown059.png

    Cracking Open Surface Pro 3: Camera, sensor, and antenna bar - Back

    Bill Detwiler\/TechRepublic
  • surfacepro3teardown055.png

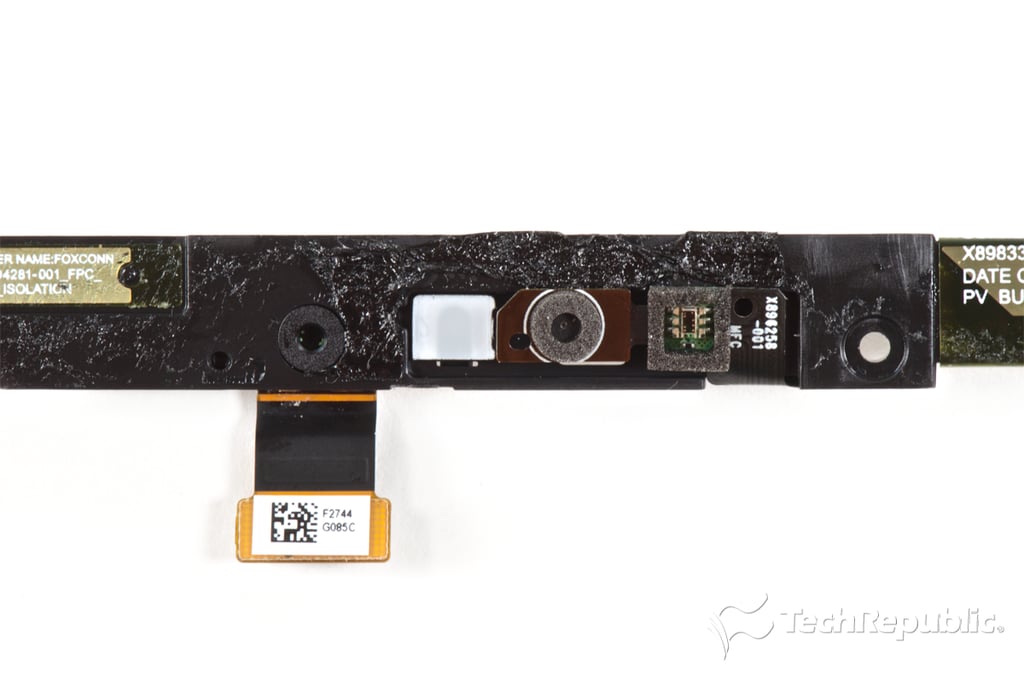

    Cracking Open Surface Pro 3: Front-facing camera and sensors

    Bill Detwiler\/TechRepublic
  • surfacepro3teardown056.png

    Cracking Open Surface Pro 3: Right antenna

    Bill Detwiler\/TechRepublic
  • surfacepro3teardown057.png

    Cracking Open Surface Pro 3: Left antennas

    Bill Detwiler\/TechRepublic
  • surfacepro3teardown084.png

    Cracking Open Surface Pro 3: Detaching the motherboard connectors

    Bill Detwiler\/TechRepublic
  • surfacepro3teardown054.png

    Cracking Open Surface Pro 3: Connector contact board

    Bill Detwiler\/TechRepublic
  • surfacepro3teardown001.png

    Cracking Open Surface Pro 3: Removing the motherboard screws

    Bill Detwiler\/TechRepublic
  • surfacepro3teardown083.png

    Cracking Open Surface Pro 3: Removing the motherboard

    Bill Detwiler/TechRepublic
  • surfacepro3teardown076.png

    Cracking Open Surface Pro 3: Removing the motherboard shielding from the top of the board

    Bill Detwiler\/TechRepublic
  • surfacepro3teardown075.png

    Cracking Open Surface Pro 3: Removing the cooling assembly screws

    Bill Detwiler\/TechRepublic
  • surfacepro3teardown052.png

    Cracking Open Surface Pro 3: Cooling assembly front

    Bill Detwiler\/TechRepublic
  • surfacepro3teardown053.png

    Cracking Open Surface Pro 3: Cooling assembly - Back

    Bill Detwiler\/TechRepublic
  • surfacepro3teardown021.png

    Cracking Open Surface Pro 3: Removing the metal shielding from the bottom of the motherboard

    Bill Detwiler\/TechRepublic
  • surfacepro3teardown023.png

    Cracking Open Surface Pro 3: Motherboard - Top

    Bill Detwiler\/TechRepublic
  • surfacepro3teardown024.png

    Cracking Open Surface Pro 3: Motherboard - Bottom

    Bill Detwiler\/TechRepublic
  • surfacepro3teardown025.png

    Cracking Open Surface Pro 3: 1.9 GHz Intel Core i5 i5-4300U processor

    Bill Detwiler\/TechRepublic
  • surfacepro3teardown026.png

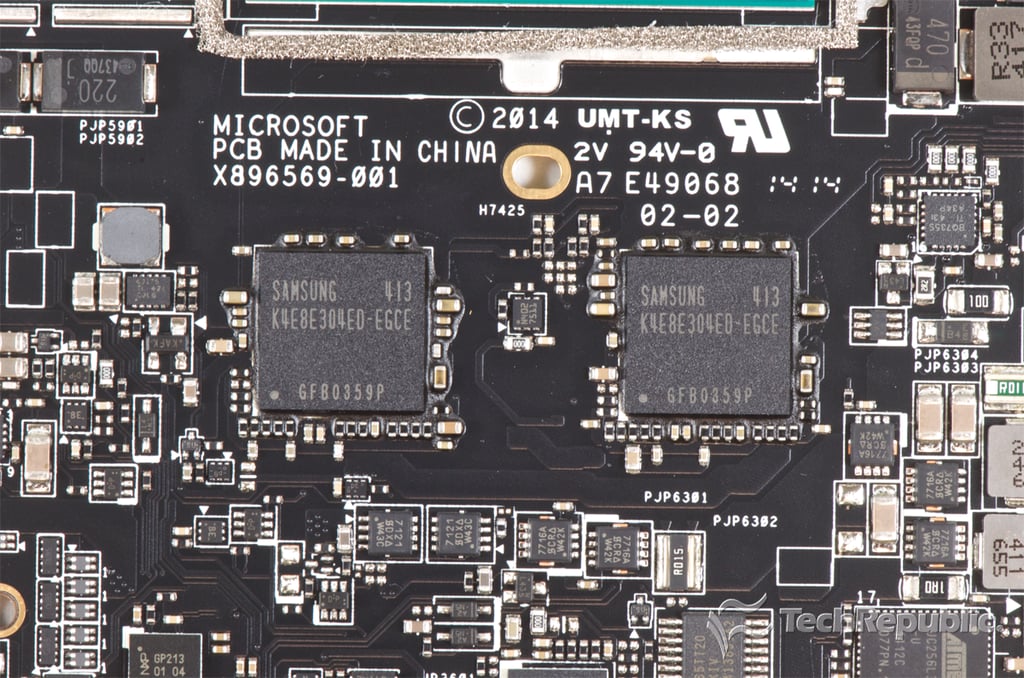

    Cracking Open Surface Pro 3: Samsung K4E8E304ED-EGCE 1GB LPDDR3 RAM (4 x 1GB = 4GB total)

    Bill Detwiler\/TechRepublic
  • surfacepro3teardown027.png

    Cracking Open Surface Pro 3: Winbond 25X20CL1G 2Mb Serial Flash

    Bill Detwiler\/TechRepublic
  • surfacepro3teardown028.png

    Cracking Open Surface Pro 3: QIC1832-B98B P0BH66.00S-7 1412

    Bill Detwiler\/TechRepublic
  • surfacepro3teardown029.png

    Cracking Open Surface Pro 3: Winbond 25Q128FVPQ 128Mb Serial Flash

    Bill Detwiler\/TechRepublic
  • surfacepro3teardown030.png

    Cracking Open Surface Pro 3: Texas Instruments TPS51624 1/2-Phase Step-Down Driverless Controller

    Bill Detwiler\/TechRepublic
  • surfacepro3teardown031.png

    Cracking Open Surface Pro 3: 97374M TI 441 A71T

    Bill Detwiler\/TechRepublic
  • surfacepro3teardown032.png

    Cracking Open Surface Pro 3: Marvell Avastar 88W8897 wireless chip

    Bill Detwiler\/TechRepublic
  • surfacepro3teardown033.png

    Cracking Open Surface Pro 3: Atmel ATMLH412 16CM B 3Y0346C

    Bill Detwiler\/TechRepublic
  • surfacepro3teardown034.png

    Cracking Open Surface Pro 3: Texas Instruments TPS51367 12-A Integrated FET Converter

    Bill Detwiler\/TechRepublic
  • surfacepro3teardown035.png

    Cracking Open Surface Pro 3: Texas Instruments CSD87351Q5D Synchronous Buck NexFET Power Block

    Bill Detwiler\/TechRepublic
  • surfacepro3teardown036.png

    Cracking Open Surface Pro 3: Atmel ATUC256L3U 32-bit AVR UC3 MCU

    Bill Detwiler\/TechRepublic
  • surfacepro3teardown037.png

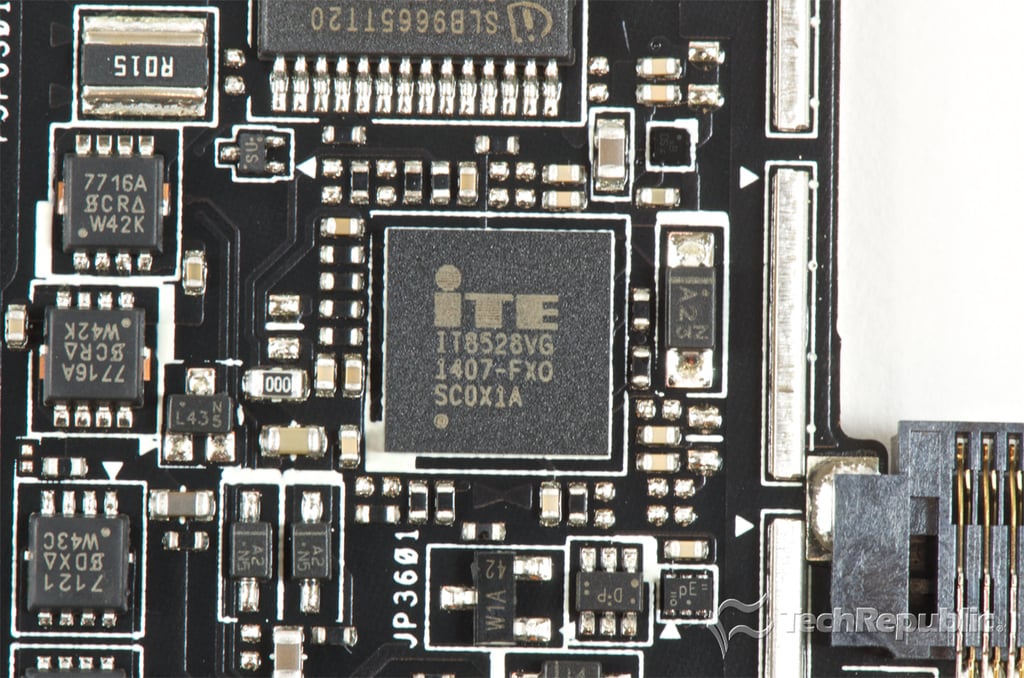

    Cracking Open Surface Pro 3: ITE IT8528VG 1407-FXO SC0X1A

    Bill Detwiler\/TechRepublic
  • surfacepro3teardown038.png

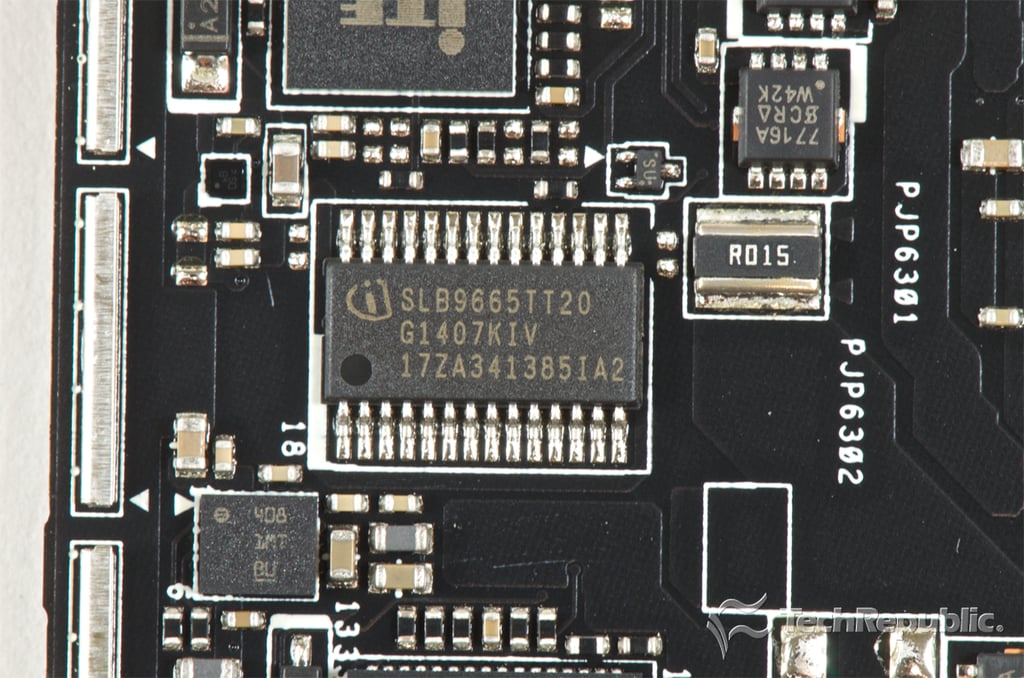

    Cracking Open Surface Pro 3: Infineon SLB 9665 trusted platform module

    Bill Detwiler\/TechRepublic
  • surfacepro3teardown039.png

    Cracking Open Surface Pro 3: NXP CBTL06GP213six-channel multiplexer for DisplayPort, HDMI and PCI Express

    Bill Detwiler\/TechRepublic
  • surfacepro3teardown040.png

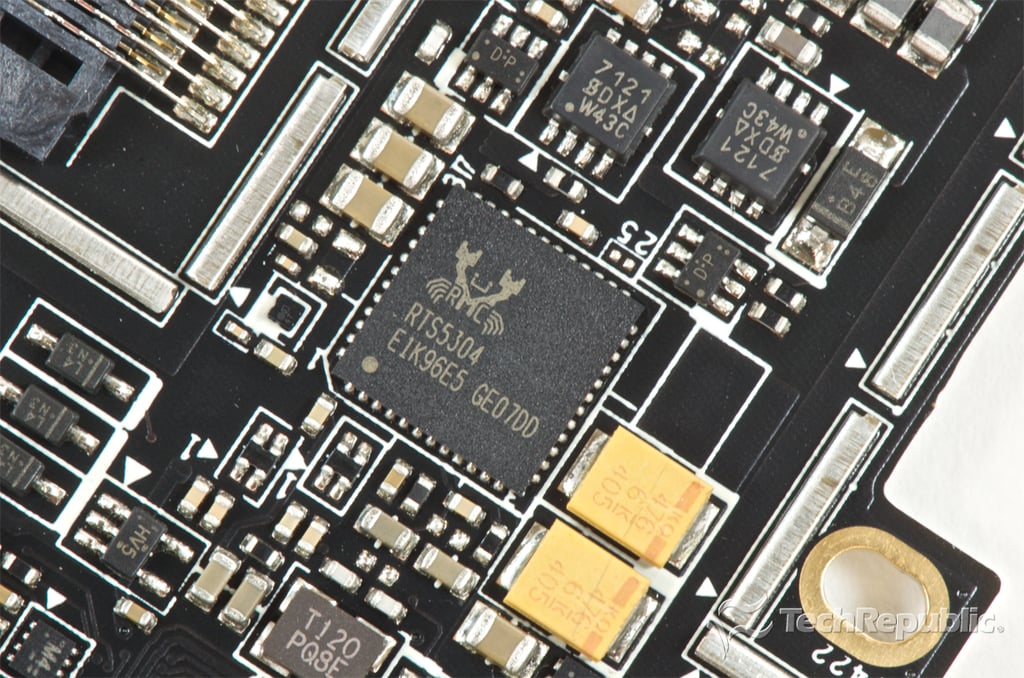

    Cracking Open Surface Pro 3: Realtek RTS5304

    Bill Detwiler\/TechRepublic
  • surfacepro3teardown041.png

    Cracking Open Surface Pro 3: Realtek ALC3264 Audio Codec

    Bill Detwiler\/TechRepublic
  • surfacepro3teardown082.png

    Cracking Open Surface Pro 3: Removing the speaker/power button bracket screws

    Bill Detwiler\/TechRepublic
  • surfacepro3teardown081.png

    Cracking Open Surface Pro 3: Removing the left speaker

    Bill Detwiler\/TechRepublic
  • surfacepro3teardown050.png

    Cracking Open Surface Pro 3: Left speaker

    Bill Detwiler\/TechRepublic
  • surfacepro3teardown080.png

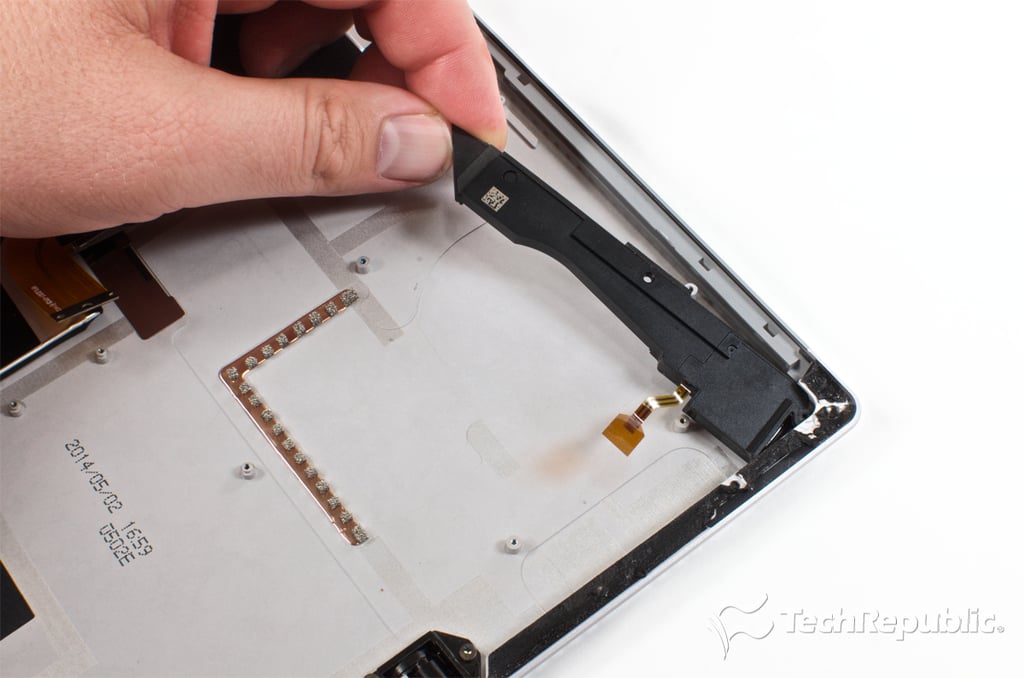

    Cracking Open Surface Pro 3: Removing the right speaker

    Bill Detwiler\/TechRepublic
  • surfacepro3teardown051.png

    Cracking Open Surface Pro 3: right speaker

    Bill Detwiler\/TechRepublic
  • surfacepro3teardown079.png

    Cracking Open Surface Pro 3: Removing the power connector

    Bill Detwiler\/TechRepublic
  • surfacepro3teardown049.png

    Cracking Open Surface Pro 3: Power connector

    Bill Detwiler\/TechRepublic
  • surfacepro3teardown078.png

    Cracking Open Surface Pro 3: Removing the microSD card reader

    Bill Detwiler\/TechRepublic
  • surfacepro3teardown077.png

    Cracking Open Surface Pro 3: Removing the rear-facing camera

    Bill Detwiler\/TechRepublic
  • surfacepro3teardown048.png

    Cracking Open Surface Pro 3: Rear-facing camera

    Bill Detwiler\/TechRepublic
  • surfacepro3teardown060.png

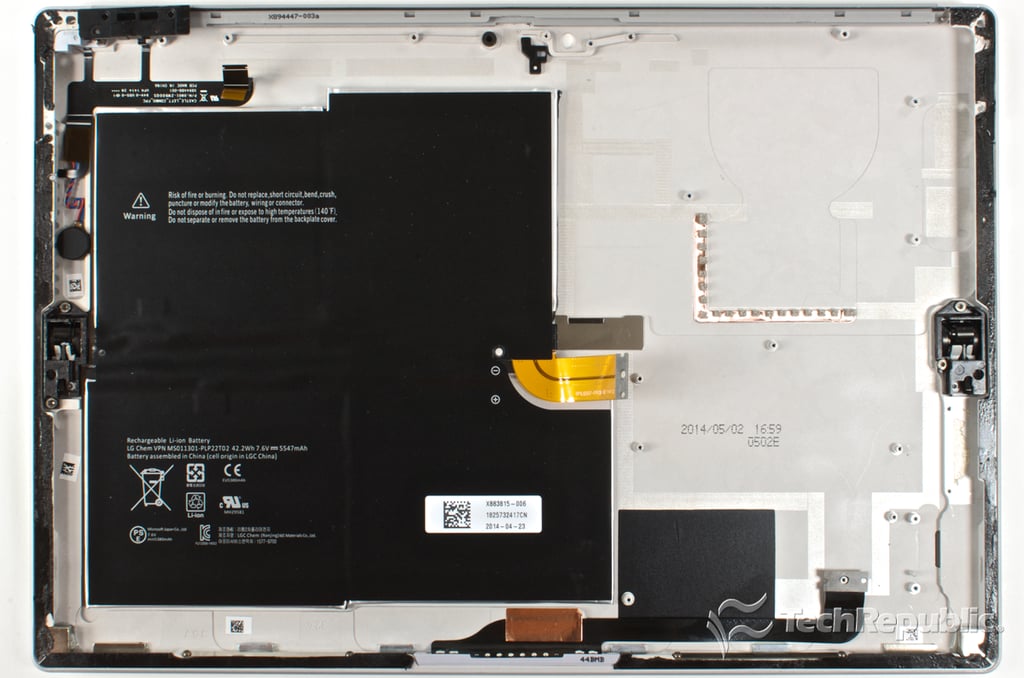

    Cracking Open Surface Pro 3: Case cover with attached components

    Bill Detwiler\/TechRepublic
  • surfacepro3teardown069.png

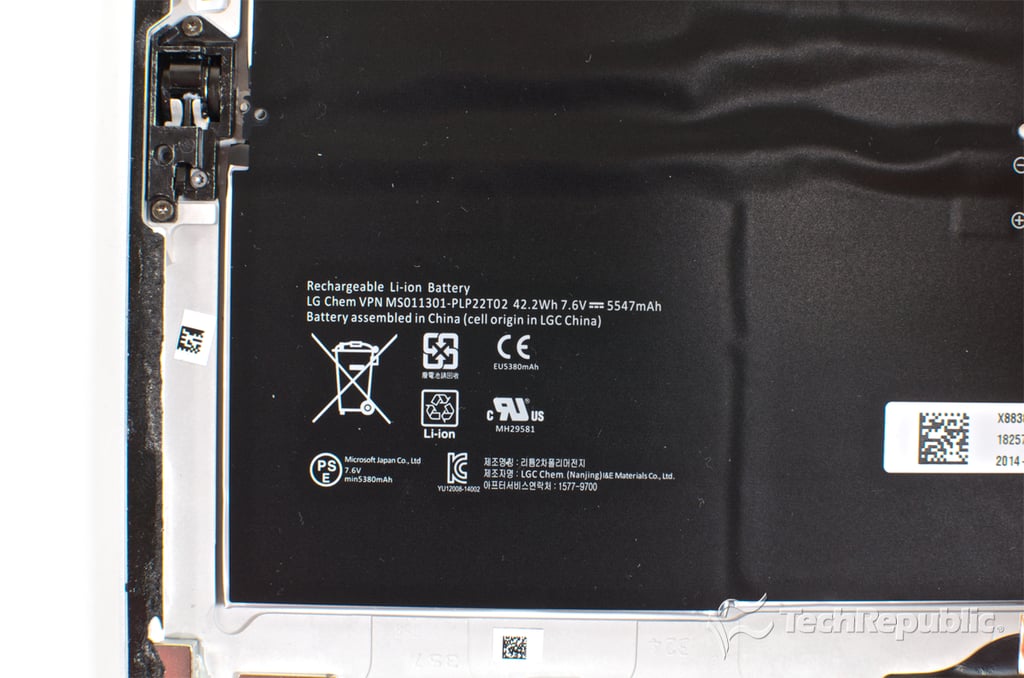

    Cracking Open Surface Pro 3: 42.2 Wh, 7.6V Li-ion battery

    Bill Detwiler\/TechRepublic
  • surfacepro3teardown070.png

    Cracking Open Surface Pro 3: Battery warning message

    Bill Detwiler\/TechRepublic
  • surfacepro3teardown068.png

    Cracking Open Surface Pro 3: Keyboard docking connector

    Bill Detwiler\/TechRepublic
  • surfacepro3teardown064.png

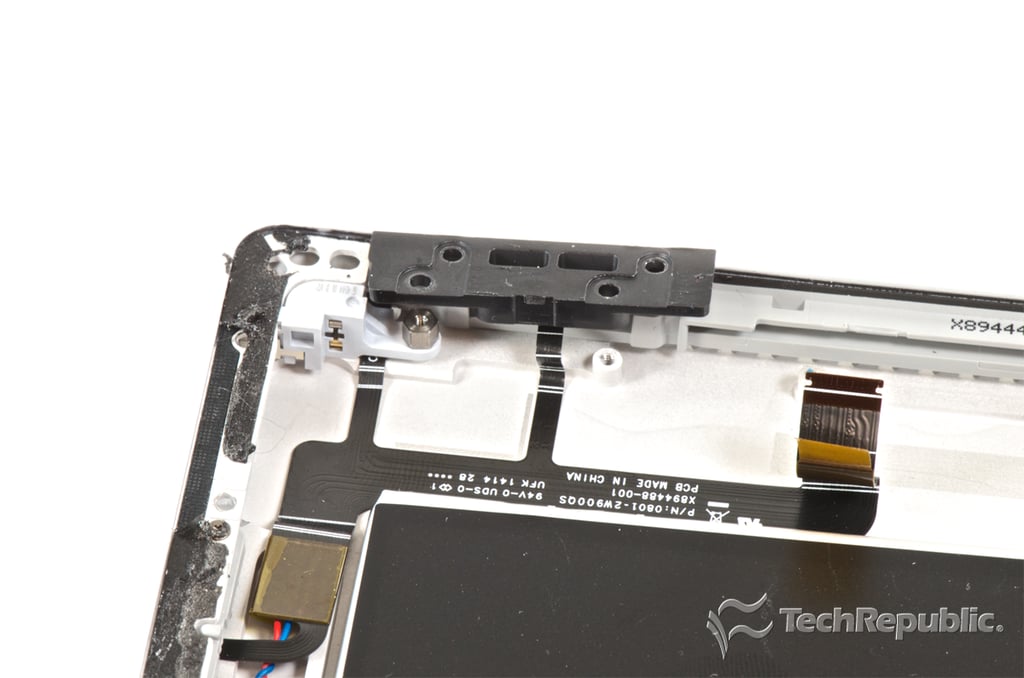

    Cracking Open Surface Pro 3: Power button contact

    Bill Detwiler\/TechRepublic
  • surfacepro3teardown066.png

    Cracking Open Surface Pro 3: Volume button contacts

    Bill Detwiler\/TechRepublic
  • surfacepro3teardown065.png

    Cracking Open Surface Pro 3: Vibration motor

    Bill Detwiler\/TechRepublic
  • surfacepro3teardown067.png

    Cracking Open Surface Pro 3: Kickstand hinge

    Bill Detwiler\/TechRepublic
  • surfacepro3teardown074.png

    Cracking Open Surface Pro 3: Completely disassembled

    Bill Detwiler\/TechRepublic
