Apple Airport Express (March 2009 5Ghz Wireless-N)
Image 1 of 15
Apple Airport Express, Wireless-N edition (March 2009 version) Packaging Exterior
Apple Airport Express, Wireless-N edition (March 2009 version) Packaging Exterior
The Apple Airport Express, a pocket-sized wireless access point and SOHO router was refreshed with 5Ghz Wireless Draft-N capability in March of 2009. rn
Apple Airport Express, Wireless-N edition (March 2009 version) Packaging Interior
Apple Airport Express, Wireless-N edition (March 2009 version) Packaging Interior
Oooooh. Designed in CALIFORNIA! How sheik!
Apple Airport Express, Wireless-N edition (March 2009 version) Device in Packaging
Apple Airport Express, Wireless-N edition (March 2009 version) Device in Packaging
The Airport Express is one of the smallest if not the very smallest high-speed wireless broadband router you can buy for the money. The unit fits in the palm of your hand and has a flip-out power prong, so it plugs directly into an AC power jack. It has a USB port, an audio port (for wireless iTunes broadcasting from your PC or Mac) and a single Ethernet port for Ethernet NAT or Bridging.

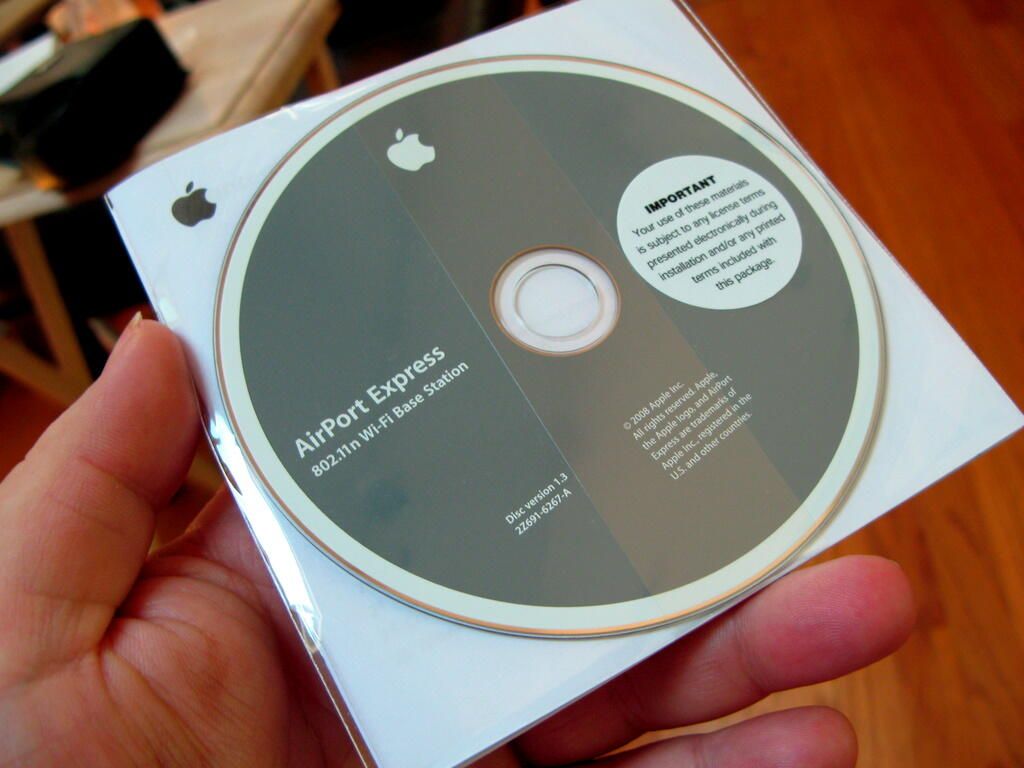

Apple Airport Express, Wireless-N edition (March 2009 version) Setup CD
Apple Airport Express, Wireless-N edition (March 2009 version) Setup CD
The software CD should immediately be discarded for the latest version of the Airport Express software on Apple’s site, as it resolves a number of configuration issues with Windows.
Apple Airport Express, Wireless-N edition (March 2009 version) Setup 1
Apple Airport Express, Wireless-N edition (March 2009 version) Setup 1
The Airport Express utility is a Windows program that you need to use in order to remotely configure the device. Unlike other SOHO wireless routers, the unit does not have a web-based configuration interface.
Apple Airport Express, Wireless-N edition (March 2009 version) Setup 2
Apple Airport Express, Wireless-N edition (March 2009 version) Setup 2
After identifying the base station over your LAN, you can then change the ID of the unit and the administrative password.
Apple Airport Express, Wireless-N edition (March 2009 version) Setup 3
Apple Airport Express, Wireless-N edition (March 2009 version) Setup 3
The Airport Express has three different usage options. It can be used as the sole router off a broadband connection (Cable/DSL) or it can join an existing WLAN as an access point. You can also swap out your existing access point or router with the Airport Express if desired.
Apple Airport Express, Wireless-N edition (March 2009 version) Setup 4
Apple Airport Express, Wireless-N edition (March 2009 version) Setup 4
The Airport Express uses WPA2-AES Private Shared Key (PSK) encryption as its wireless security mechanism. You’ll want to make sure on Windows when making your wireless connection that you choose the AES encryption mode as opposed to TKIP.
Apple Airport Express, Wireless-N edition (March 2009 version) Setup 5
Apple Airport Express, Wireless-N edition (March 2009 version) Setup 5
The default setting is for the device to get its configuration information from an existing DHCP server, such as your Cable Modem/DSL device or your existing SOHO router.
Apple Airport Express, Wireless-N edition (March 2009 version) Setup 6
Apple Airport Express, Wireless-N edition (March 2009 version) Setup 6
This screen is where you confirm your settings.
Apple Airport Express, Wireless-N edition (March 2009 version) Setup 7
Apple Airport Express, Wireless-N edition (March 2009 version) Setup 7
If the setup utility detects configuration issues, the software attempts to resolve them. (1)
Apple Airport Express, Wireless-N edition (March 2009 version) Setup 8
Apple Airport Express, Wireless-N edition (March 2009 version) Setup 8
If the setup utility detects configuration issues, the software attempts to resolve them. (2)
Apple Airport Express, Wireless-N edition (March 2009 version) Setup 9
Apple Airport Express, Wireless-N edition (March 2009 version) Setup 9
I’ve set my Airport to Bridge mode (Layer 2) so that my existing router in my house can act as the master. Additionally, if I am in a hotel room or other location where a master DHCP server or router exists, it’s best to use this option so the unit functions as a simple access point.
Apple Airport Express, Wireless-N edition (March 2009 version) Setup 10
Apple Airport Express, Wireless-N edition (March 2009 version) Setup 10
Conflicts are resolved on this screen.
Apple Airport Express, Wireless-N edition (March 2009 version) Setup 11
Apple Airport Express, Wireless-N edition (March 2009 version) Setup 11
The Airport Express is now ready for use.
