Apple Mac mini 2010 (A1347) Teardown

By Bill Detwiler July 19, 2010, 2:45 AM PDT on Twitter billdetwiler

1
of 72

Apple Mac mini 2010 (A1347) Teardown

Apple Mac mini (A1347)

Apple Mac mini (A1347)

Apple Mac mini 2010 (A1347) Teardown

Mac mini box

Mac mini box

Our base model Mac Mini (A1347) cost $699 (US) and came with a 2.4GHz Intel Core 2 Duo CPU, 2GB RAM, 320GB hard drive, 8x double-layer SuperDrive, NVIDIA GeForce 320M GPU, and Mac OS X Snow Leopard.

Photo credit: Bill Detwiler / TechRepublic

Apple Mac mini 2010 (A1347) Teardown

Mac mini in box

Mac mini in box

Lifting the top off the Mac mini box, we get our fist look at the A1347’s aluminum unibody enclosure.

Photo credit: Bill Detwiler / TechRepublic

Apple Mac mini 2010 (A1347) Teardown

Mac mini cords, documentation, and system disc

Mac mini cords, documentation, and system disc

Under the Mac mini, you’ll find the rest of the box contents.

Photo credit: Bill Detwiler / TechRepublic

Apple Mac mini 2010 (A1347) Teardown

Mac mini box contents

Mac mini box contents

Included with the Mac mini is the power cord, HDMI to DVI adapter, documentation, and OS disc.

Photo credit: Bill Detwiler / TechRepublic

Apple Mac mini 2010 (A1347) Teardown

Mac mini - Top

Mac mini - Top

The new Mac mini is significantly thinner than previous versions, and continues the line’s minimalist design. The front of the computer has only the power/activity light and disc slot.

Photo credit: Bill Detwiler / TechRepublic

Apple Mac mini 2010 (A1347) Teardown

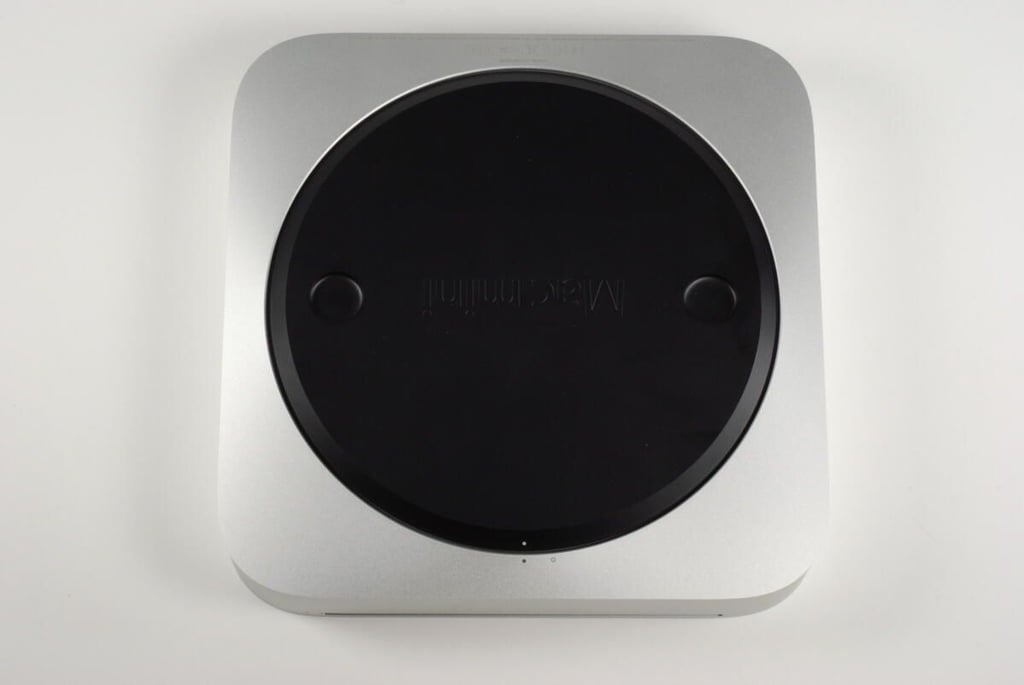

Mac mini - Bottom

Mac mini - Bottom

The bottom of the Mac mini is dominated by a large, circular access plate. This plate can be removed without tools and gives the user easy access to the machine’s RAM chips.

Photo credit: Bill Detwiler / TechRepublic

Apple Mac mini 2010 (A1347) Teardown

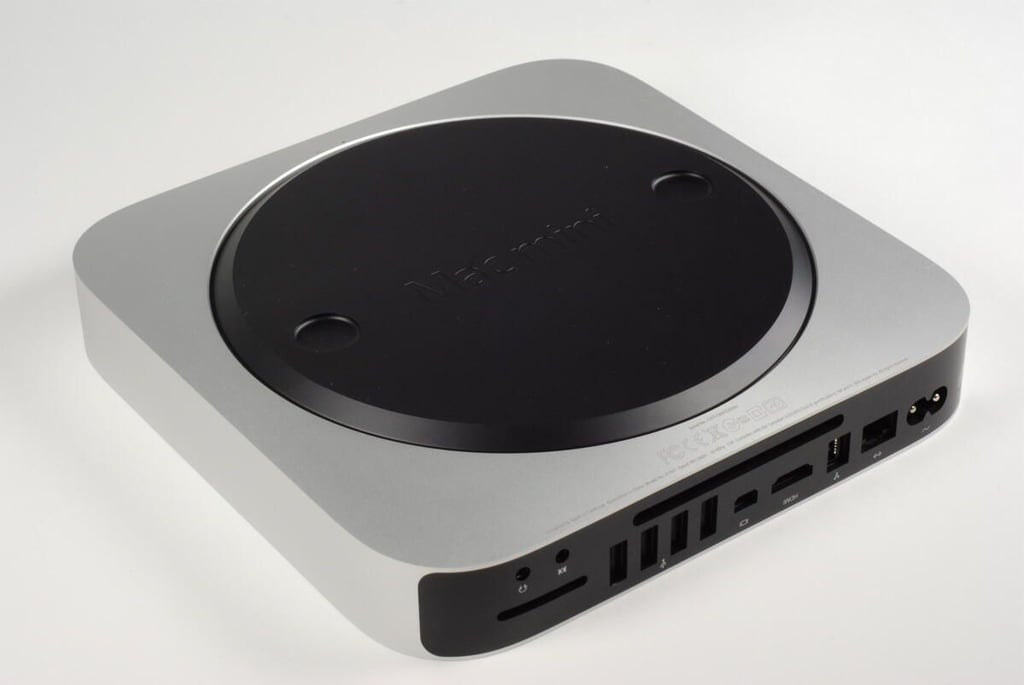

Mac mini - Ports

Mac mini - Ports

Along the back of the Mac mini, are the power button, AC power input, 10/100/1000BASE-T Ethernet port, Firewire 800?port, HDMI out, Mini DisplayPort four USB 2.0 ports, SD card slot, audio line in minijack, and audio line out/headphone minijack.

Photo credit: Bill Detwiler / TechRepublic

Apple Mac mini 2010 (A1347) Teardown

Mac mini - Access plate (locked position)

Mac mini - Access plate (locked position)

The Mac mini’s access plate can be easily removed by rotating it from the locked position (shown here) to the unlocked position (indicated by the open circle on the aluminum enclosure).

Photo credit: Bill Detwiler / TechRepublic

Apple Mac mini 2010 (A1347) Teardown

Mac mini - Access plate (unlocked position)

Mac mini - Access plate (unlocked position)

You unlock the Mac mini’s access plate by turning it so that the white dot on the plate aligns with the hollow black circle on the aluminum enclosure.

Photo credit: Bill Detwiler / TechRepublic

Apple Mac mini 2010 (A1347) Teardown

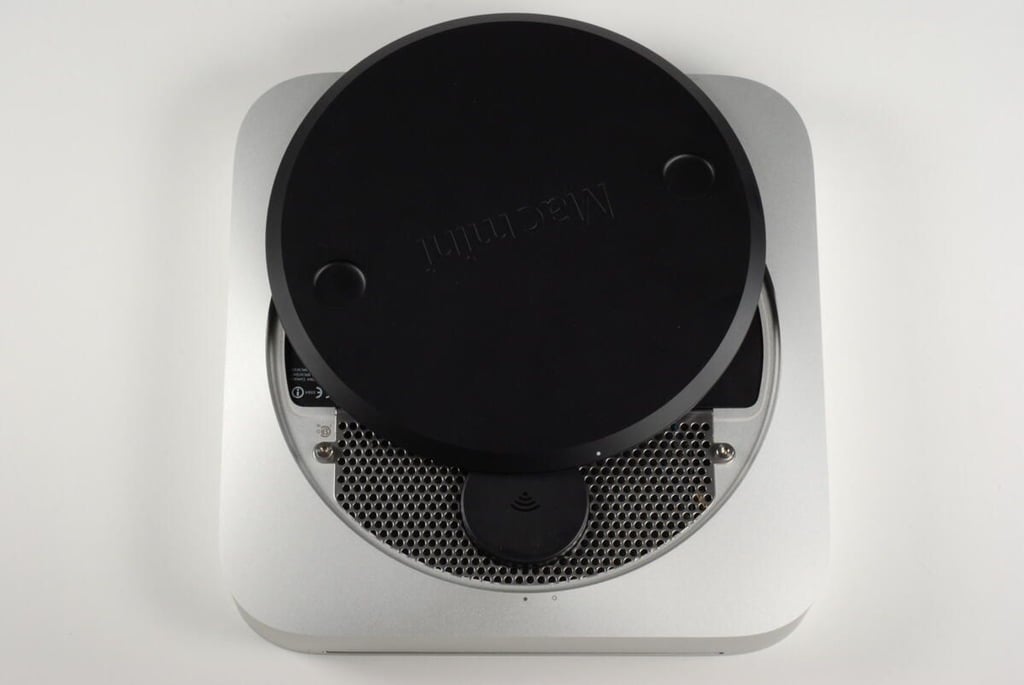

Removing the Mac mini's access plate

Removing the Mac mini's access plate

Photo credit: Bill Detwiler / TechRepublic

Apple Mac mini 2010 (A1347) Teardown

Mac mini access plate - Front

Mac mini access plate - Front

The Mac mini’s access plate not only allows you to open the machine’s case, but serves as a non-slip surface on which to rest the computer.

Photo credit: Bill Detwiler / TechRepublic

Apple Mac mini 2010 (A1347) Teardown

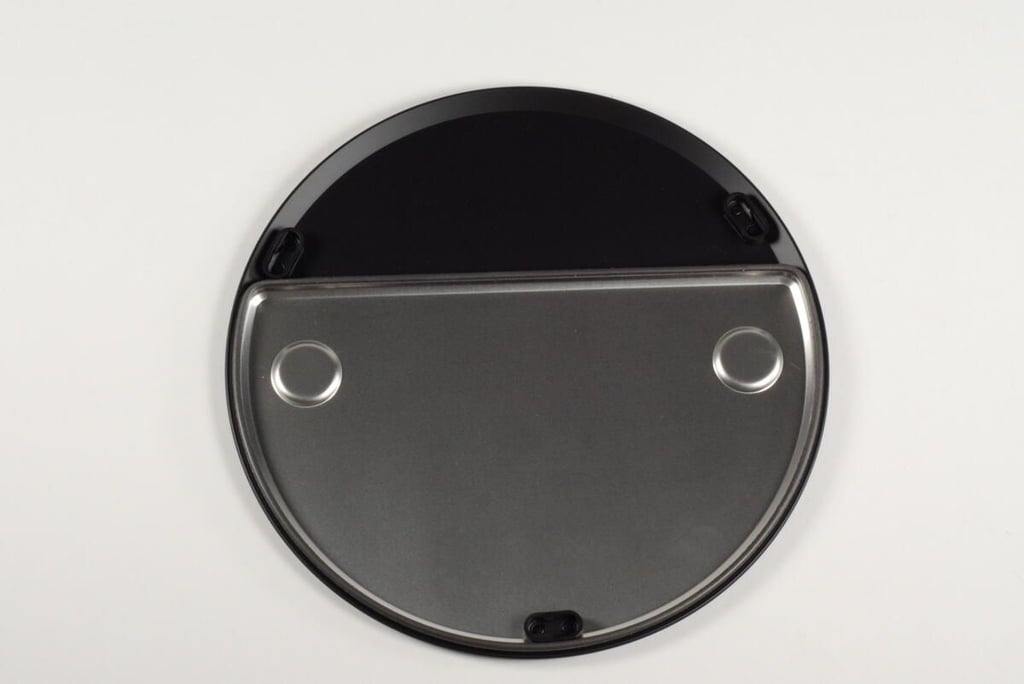

Mac mini access plate - Back

Mac mini access plate - Back

A thin metal shield is attached to the back of the Mac mini’s access plate.

Photo credit: Bill Detwiler / TechRepublic

Apple Mac mini 2010 (A1347) Teardown

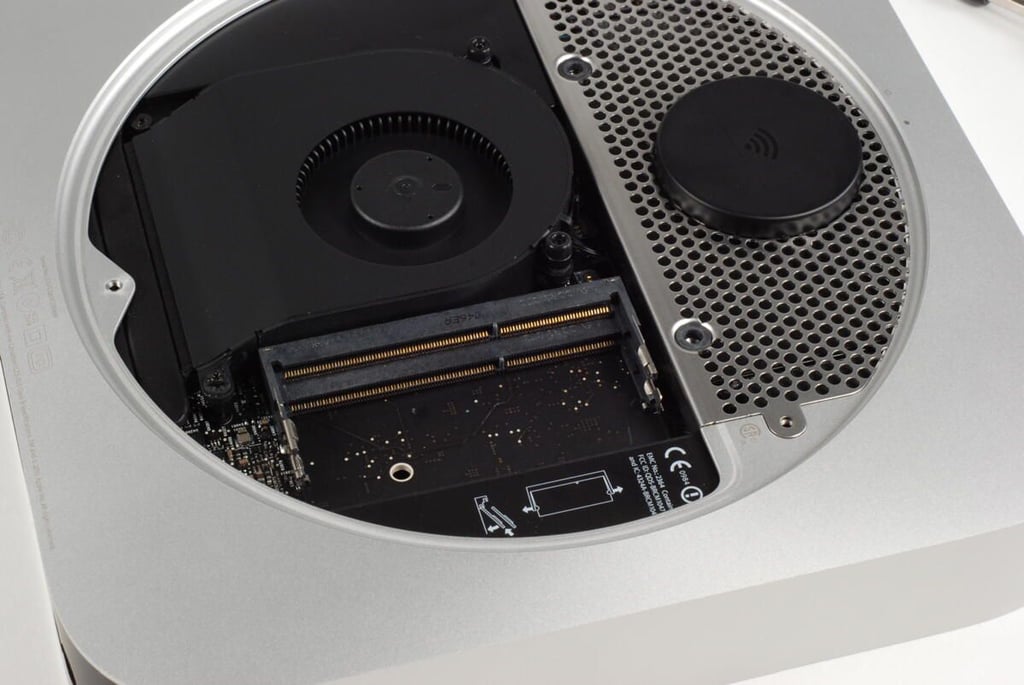

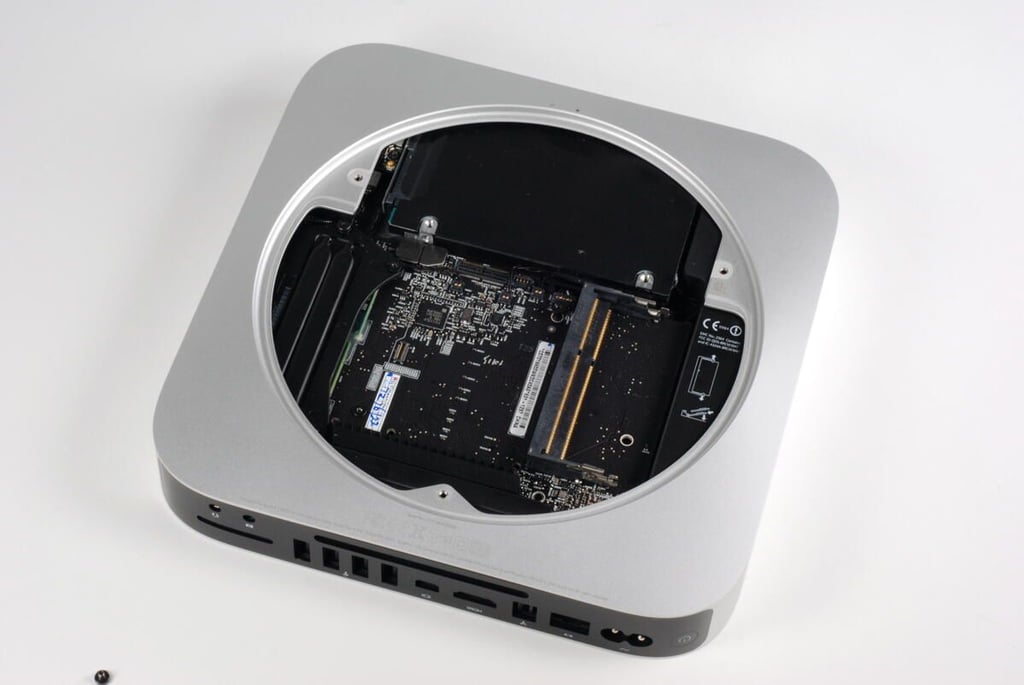

Mac min with access plate removed

Mac min with access plate removed

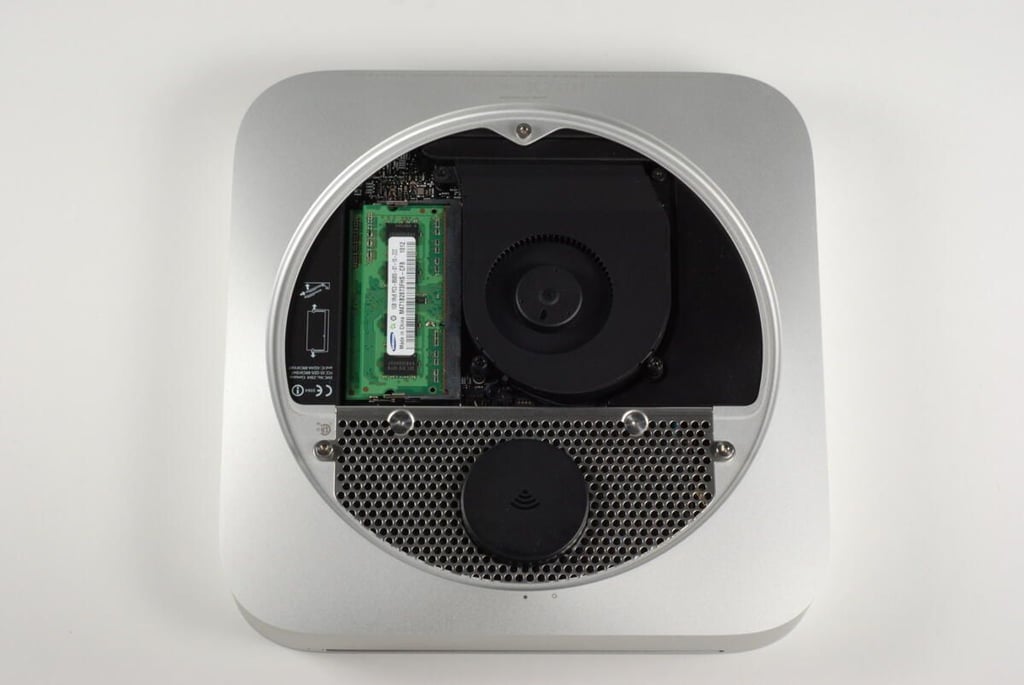

With the access plate removed, we get our fist look inside the Mac mini (A1347). The RAM chips, cooling fan, and Wi-Fi antenna are clearly visible.

The access plate is a huge improvement over previous Mac mini designs as it allows users to upgrade the machine’s RAM without having to “crack open” the case.

Photo credit: Bill Detwiler / TechRepublic

Apple Mac mini 2010 (A1347) Teardown

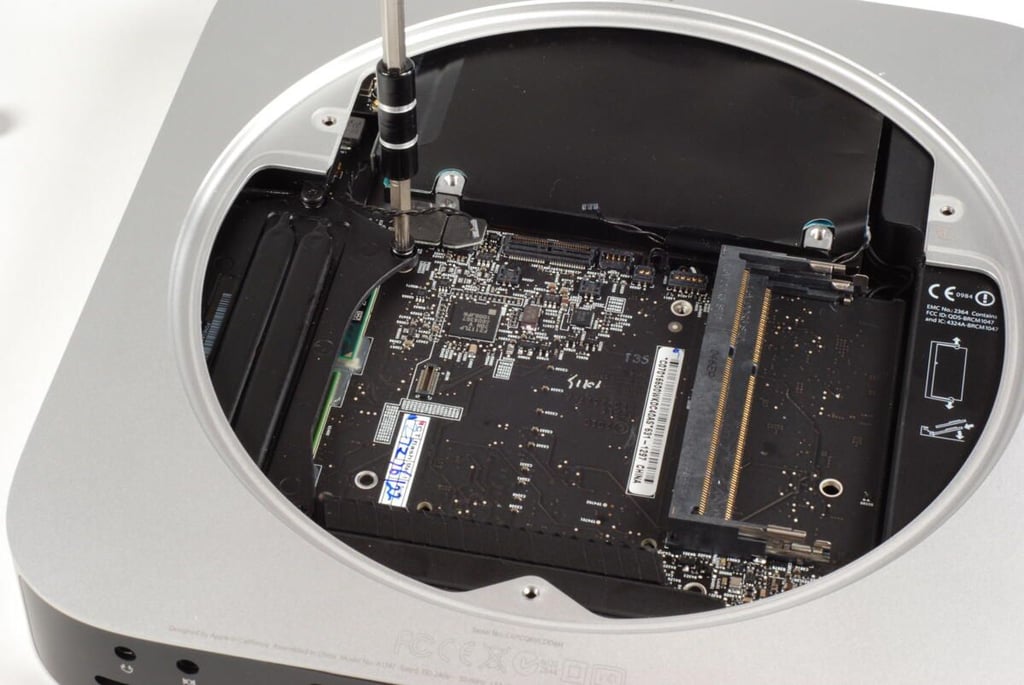

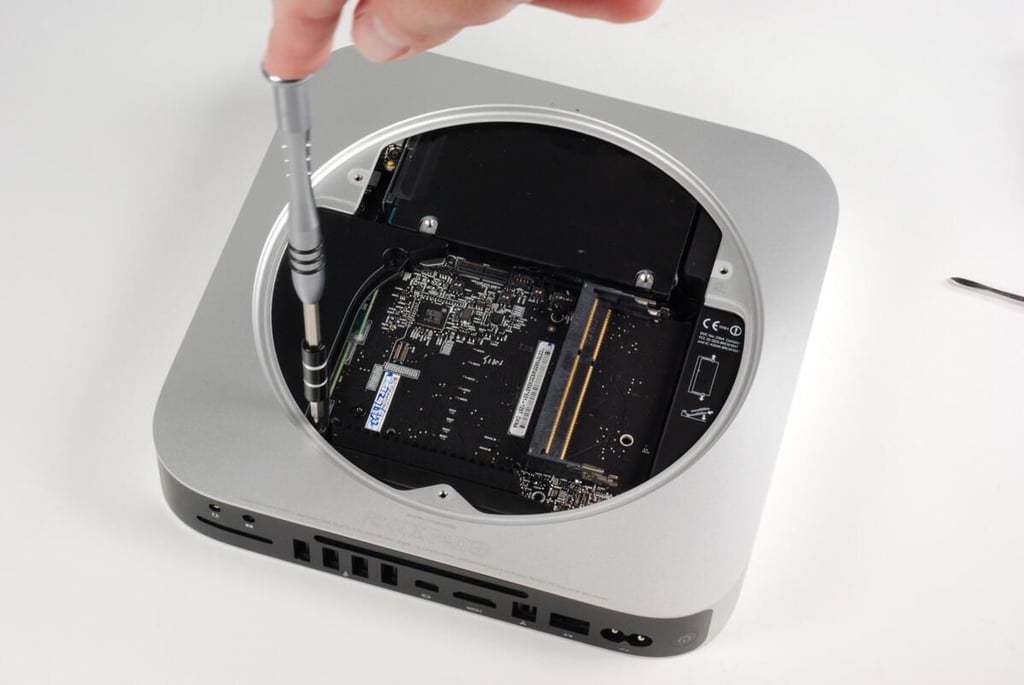

Removing the access plate catch screws

Removing the access plate catch screws

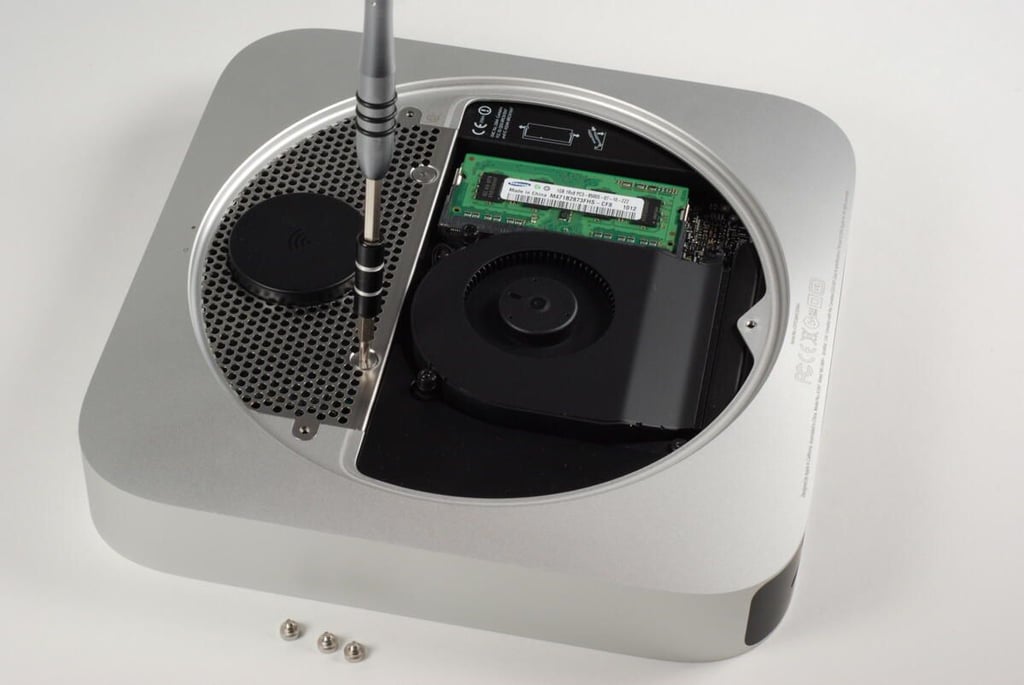

To begin disassembling the Mac mini, I removed the three T8 Torx screws that serve as posts for the catches on the access plate. Two of these screws also hold the Wi-Fi antenna in place.

Photo credit: Bill Detwiler / TechRepublic

Apple Mac mini 2010 (A1347) Teardown

Removing the Mac mini Wi-Fi antenna plate screws

Removing the Mac mini Wi-Fi antenna plate screws

There are two more T8 Torx screws holding the Wi-Fi antenna plate in place.

Photo credit: Bill Detwiler / TechRepublic

Apple Mac mini 2010 (A1347) Teardown

Removing the Mac mini RAM chips

Removing the Mac mini RAM chips

The Mac Mini has two memory slots. Our base model came with 2GB (two 1GB SO-DIMMs) of 1066MHz DDR3 SDRAM. The two slots can support up to 8GB (two 4GB SO-DIMMs).

Photo credit: Bill Detwiler / TechRepublic

Apple Mac mini 2010 (A1347) Teardown

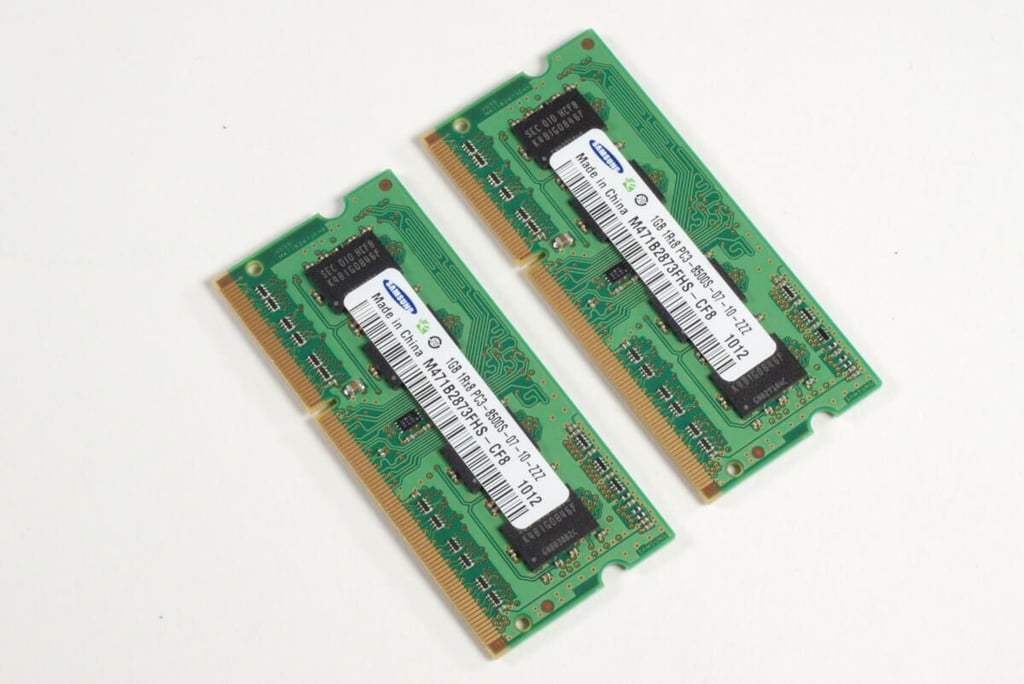

Mac mini 2GB RAM

Mac mini 2GB RAM

Two Samsung 1GB 1Rx8 SO-DIMMs

Photo credit: Bill Detwiler / TechRepublic

Apple Mac mini 2010 (A1347) Teardown

Mac mini RAM chips removed

Mac mini RAM chips removed

Photo credit: Bill Detwiler / TechRepublic

Apple Mac mini 2010 (A1347) Teardown

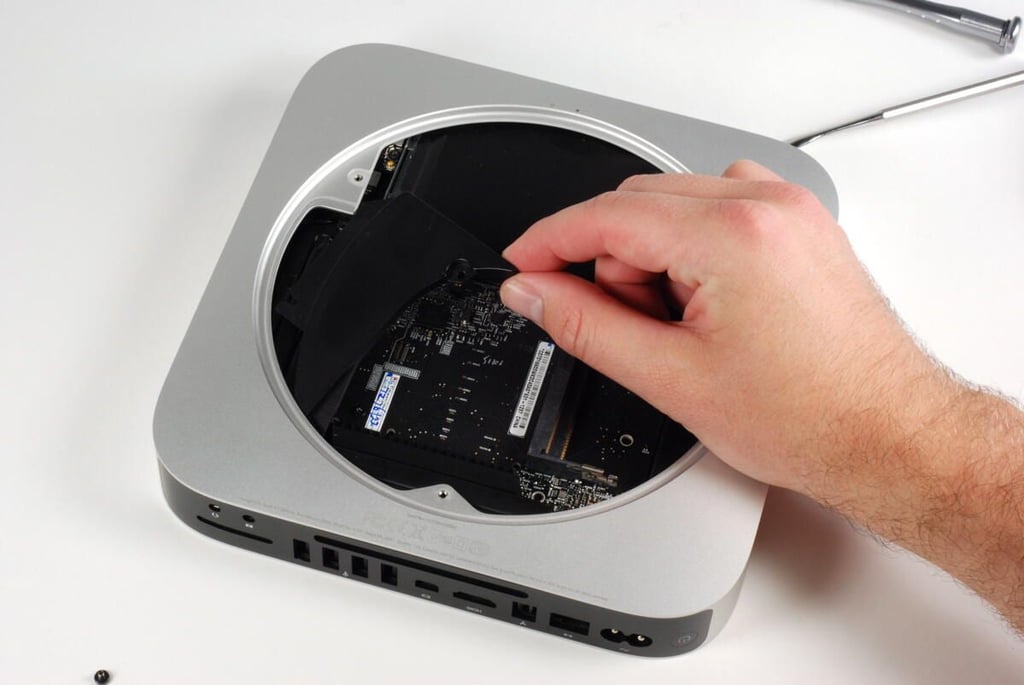

Removing the Mac mini Wi-Fi antenna plate

Removing the Mac mini Wi-Fi antenna plate

With the ram remove, you can let the Wi-Fi antenna plate away from the case.

Note: There is a wire connecting the antenna to the AirPort/Bluetooth board. You’ll need to disconnect this wire before removing the plate.

Also, you may want to remove the cooling fan and black plastic cowling (which I do later), before removing the antenna plate. You can slide the plate past these two components, but it’s a tight fit.

Photo credit: Bill Detwiler / TechRepublic

Apple Mac mini 2010 (A1347) Teardown

Mac mini with RAM chips removed

Mac mini with RAM chips removed

Photo credit: Bill Detwiler / TechRepublic

Apple Mac mini 2010 (A1347) Teardown

Mac mini Wi-Fi antenna plate - Top

Mac mini Wi-Fi antenna plate - Top

Photo credit: Bill Detwiler / TechRepublic

Apple Mac mini 2010 (A1347) Teardown

Mac mini Wi-Fi antenna plate - Bottom

Mac mini Wi-Fi antenna plate - Bottom

Photo credit: Bill Detwiler / TechRepublic

Apple Mac mini 2010 (A1347) Teardown

Mac mini with Wi-Fi antenna plate remove

Mac mini with Wi-Fi antenna plate remove

With the Wi-Fi antenna plate removed, we can see the 320GB Serial ATA hard drive (glad in black plastic).

Photo credit: Bill Detwiler / TechRepublic

Apple Mac mini 2010 (A1347) Teardown

Removing the Mac mini cooling fan

Removing the Mac mini cooling fan

There are two T6 Torx screws that secure the Mac mini’s cooling fan to the logic board.

Photo credit: Bill Detwiler / TechRepublic

Apple Mac mini 2010 (A1347) Teardown

Lifting out the Mac mini cooling fan

Lifting out the Mac mini cooling fan

With the screws removed, you can gently lift the cooling fan away from the Mac mini’s unibody enclosure. Before removing it completely, you’ll need to disconnect the wire that connects the fan to the main logic board.

Photo credit: Bill Detwiler / TechRepublic

Apple Mac mini 2010 (A1347) Teardown

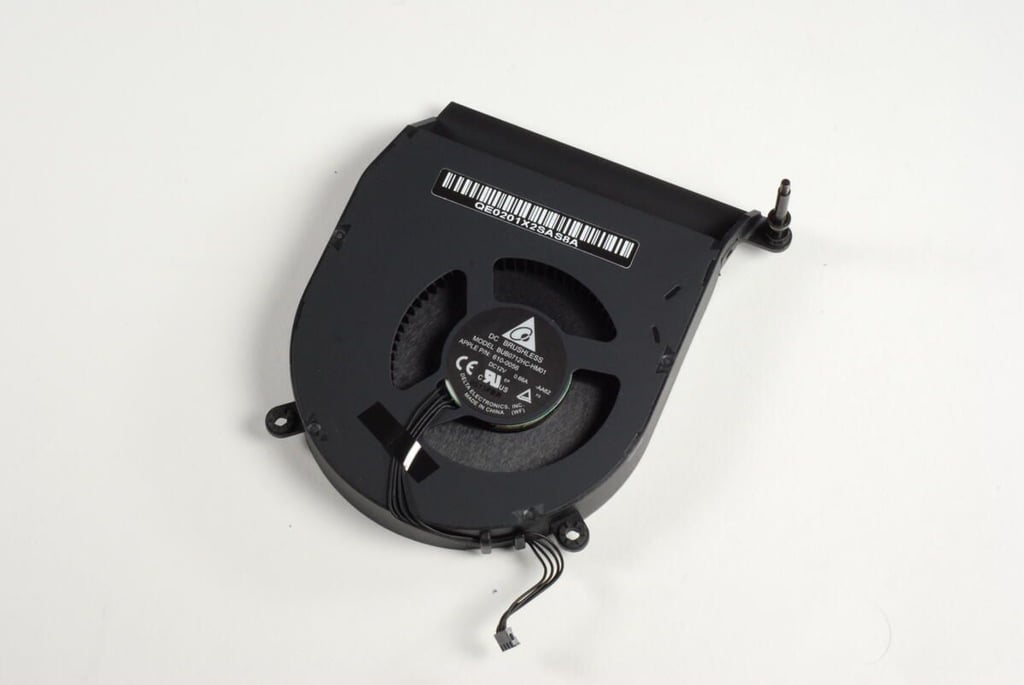

Mac mini cooling fan - Top

Mac mini cooling fan - Top

The cooling fan is a welcome addition to the redesigned Mac mini A1347.

Photo credit: Bill Detwiler / TechRepublic

Apple Mac mini 2010 (A1347) Teardown

Mac mini cooling fan - Bottom

Mac mini cooling fan - Bottom

Photo credit: Bill Detwiler / TechRepublic

Apple Mac mini 2010 (A1347) Teardown

Mac mini with cooling fan removed

Mac mini with cooling fan removed

With the fan removed, we get our first good look at Mac mini’s main logic board.

Photo credit: Bill Detwiler / TechRepublic

Apple Mac mini 2010 (A1347) Teardown

Mac mini heat sink cowling

Mac mini heat sink cowling

With the cooling fan removed, a single T6 Torx screw holds the cowling to the heat sink.

Photo credit: Bill Detwiler / TechRepublic

Apple Mac mini 2010 (A1347) Teardown

Removing the Mac mini heat sink cowling

Removing the Mac mini heat sink cowling

You may have to wiggle the cowling to pull it free from the unibody enclosure.

Photo credit: Bill Detwiler / TechRepublic

Apple Mac mini 2010 (A1347) Teardown

Mac mini with heat sink cowling removed

Mac mini with heat sink cowling removed

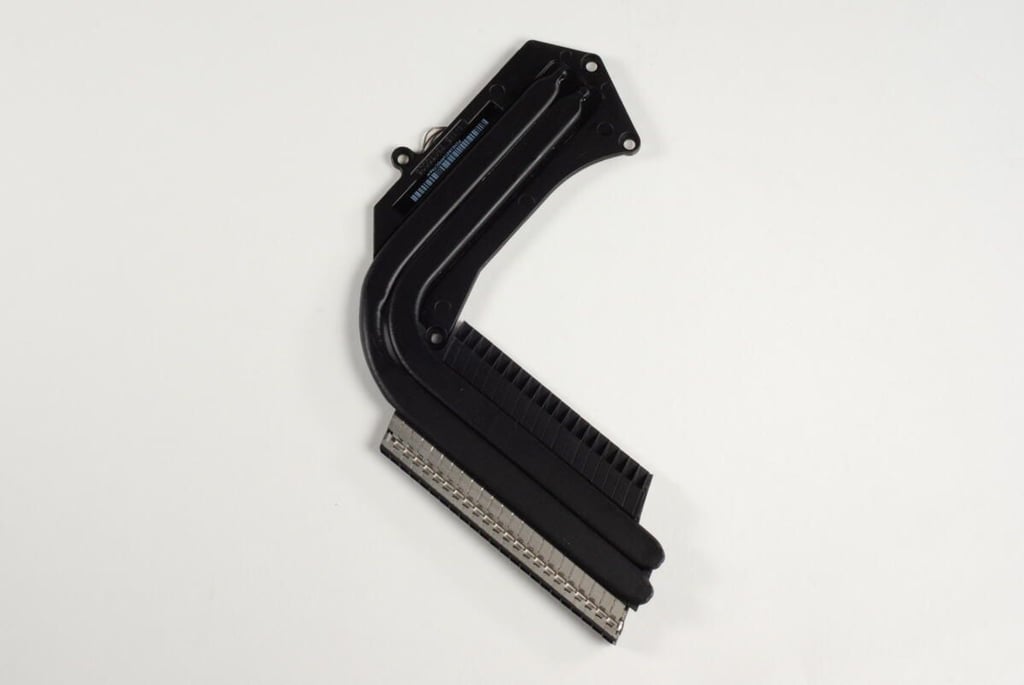

With the cowling removed, you can see the heat sink beneath.

Photo credit: Bill Detwiler / TechRepublic

Apple Mac mini 2010 (A1347) Teardown

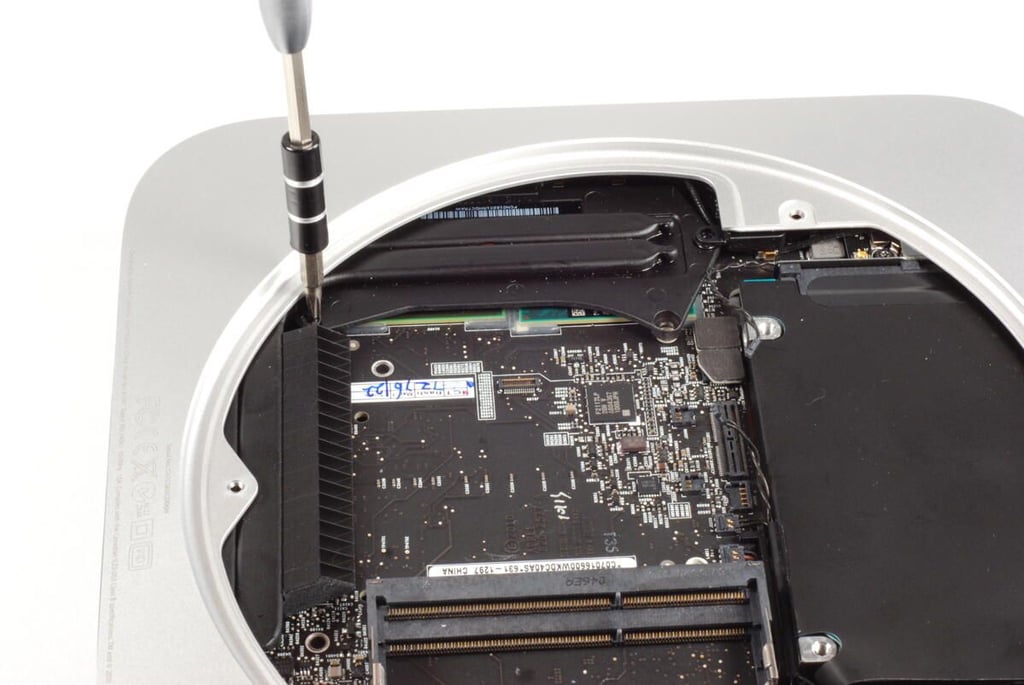

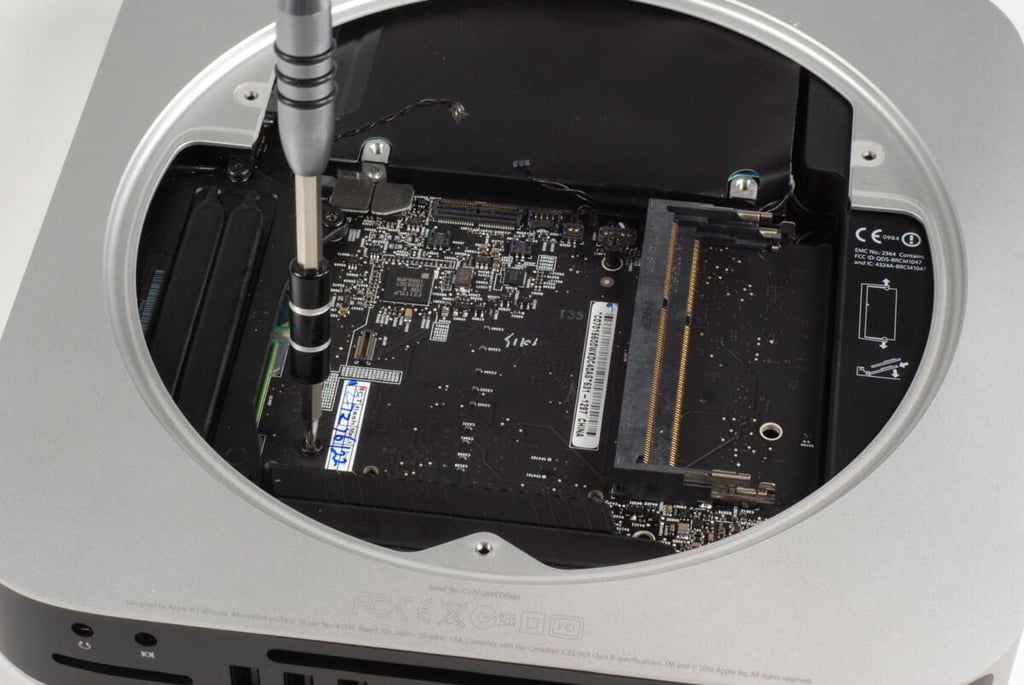

Removing Mac mini logic board screws and standoffs

Removing Mac mini logic board screws and standoffs

There are several screws and standoffs that hold the main logic board and hard drive in place. Before proceeding, I removed all of these. Just make sure you note where each screw/standoff goes and some are not interchangeable.

Photo credit: Bill Detwiler / TechRepublic

Apple Mac mini 2010 (A1347) Teardown

Removing a standoff on the Mac mini logic board

Removing a standoff on the Mac mini logic board

One of the standoffs attached to the Mac Mini’s main logic board.

Photo credit: Bill Detwiler / TechRepublic

Apple Mac mini 2010 (A1347) Teardown

Mac mini heat sink screw

Mac mini heat sink screw

This screw holds the Mac mini’s heat sink in place.

Photo credit: Bill Detwiler / TechRepublic

Apple Mac mini 2010 (A1347) Teardown

Second Mac mini heat sink screw

Second Mac mini heat sink screw

A second screws on the Mac mini’s heat sink.

Photo credit: Bill Detwiler / TechRepublic

Apple Mac mini 2010 (A1347) Teardown

Mac mini hard drive screw

Mac mini hard drive screw

This screw holds the Mac mini’s hard drive in place.

Photo credit: Bill Detwiler / TechRepublic

Apple Mac mini 2010 (A1347) Teardown

Mac mini main logic board connectors

Mac mini main logic board connectors

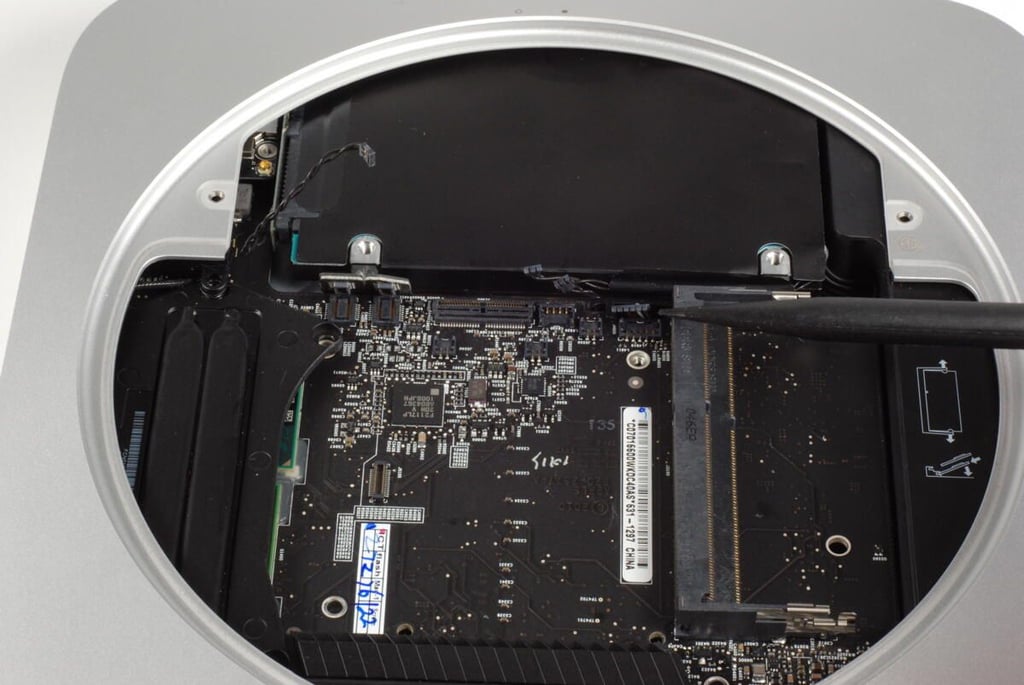

There are a series of connectors on the Mac mini’s main logic board for the optical drive, hard disk, thermal sensor, and IR senor. You will need to gently disconnect all these cables before removing the logic board from the Mac mini’s unibody enclosure.

Photo credit: Bill Detwiler / TechRepublic

Apple Mac mini 2010 (A1347) Teardown

Mac mini hard drive and optical drive connectors

Mac mini hard drive and optical drive connectors

The large connectors belong to the hard drive and optical drive.

Photo credit: Bill Detwiler / TechRepublic

Apple Mac mini 2010 (A1347) Teardown

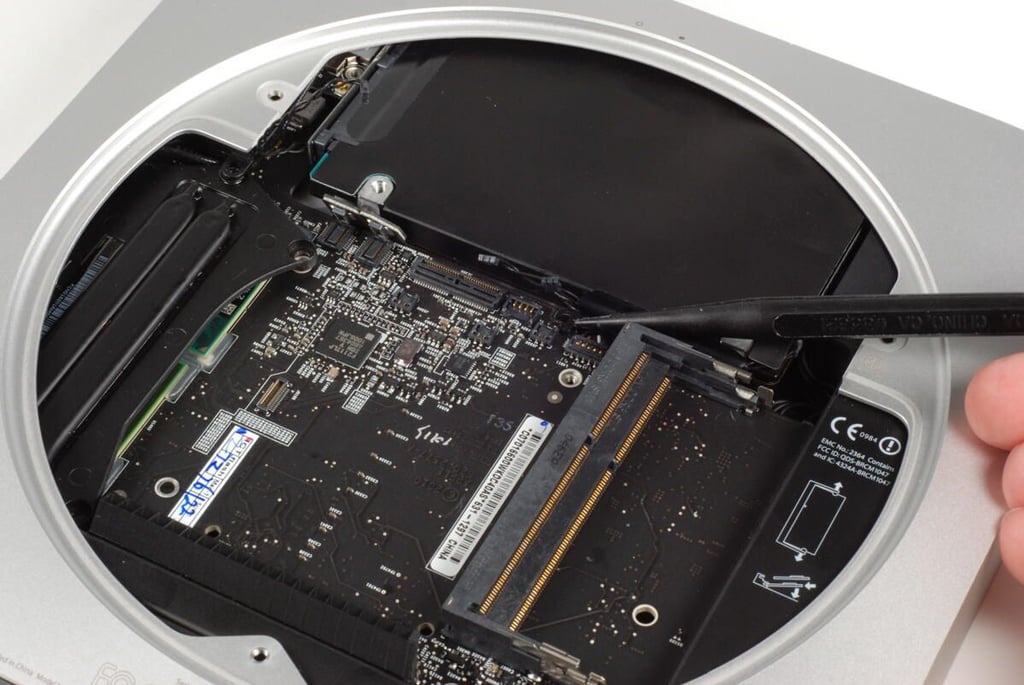

Mac mini drive thermal sensors and IR sensor connectors

Mac mini drive thermal sensors and IR sensor connectors

To the right of the drive connectors are two thermal sensor connectors (one for each drive) and the IR sensor connector.

Photo credit: Bill Detwiler / TechRepublic

Apple Mac mini 2010 (A1347) Teardown

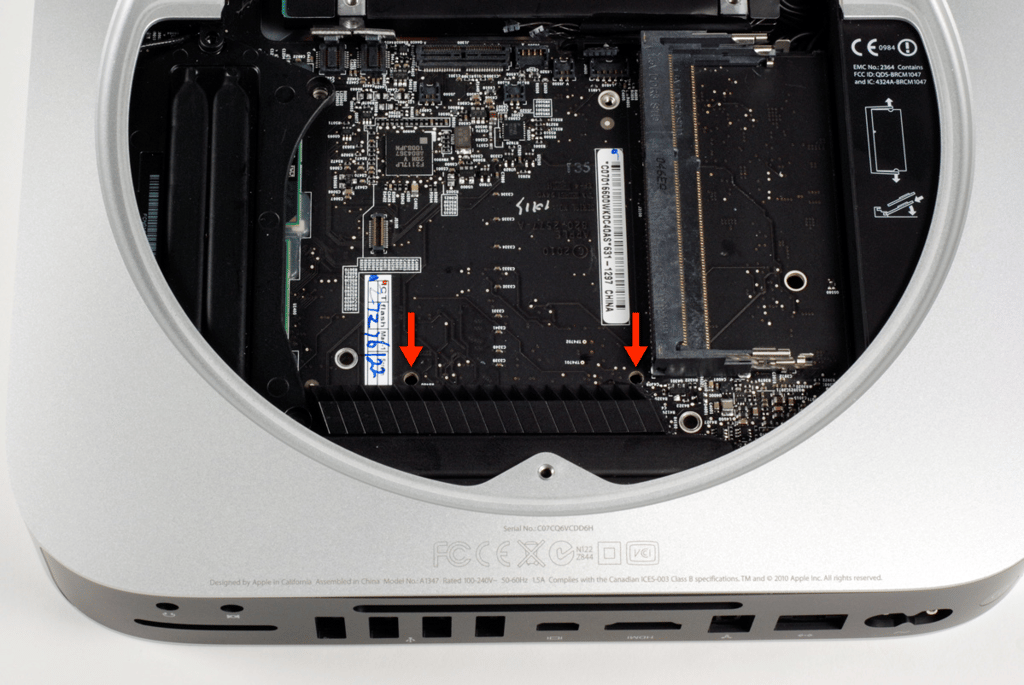

Mac mini logic board remove holes

Mac mini logic board remove holes

To remove the Mac mini’s logic board, you’ll need to insert two thin, cylindrical rods into these two holes and gently pry the board and attached components out the back of the unibody enclosure.

Warning: Using any other holes to pry loose the main logic board, could damage the board.

Photo credit: Bill Detwiler / TechRepublic

Apple Mac mini 2010 (A1347) Teardown

Use screwdrivers to pry loose the Mac mini logic board

Use screwdrivers to pry loose the Mac mini logic board

Two small screwdrivers work well when prying loose the Mac mini’s main logic board.

Photo credit: Bill Detwiler / TechRepublic

Apple Mac mini 2010 (A1347) Teardown

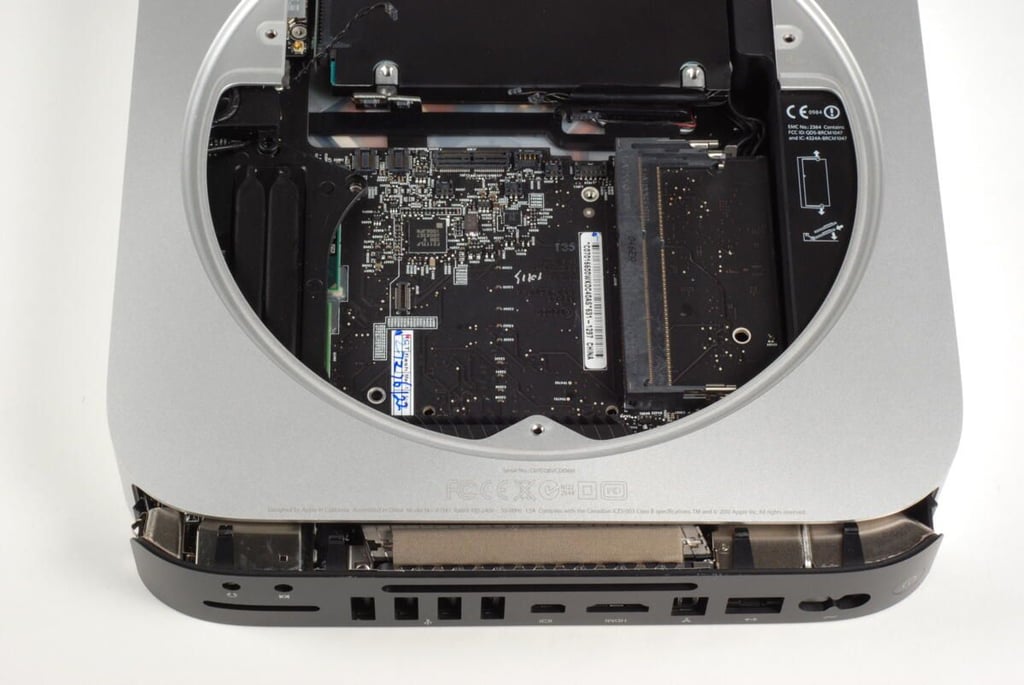

Mac mini main logic board separated from unibody enclosure

Mac mini main logic board separated from unibody enclosure

Once the main logic board as moved just past the end of the enclosure, you can remove the screwdrivers.

Photo credit: Bill Detwiler / TechRepublic

Apple Mac mini 2010 (A1347) Teardown

Removing the Mac mini hard drive

Removing the Mac mini hard drive

With the main logic board shifted, we can remove the hard drive from the Mac mini.

Photo credit: Bill Detwiler / TechRepublic

Apple Mac mini 2010 (A1347) Teardown

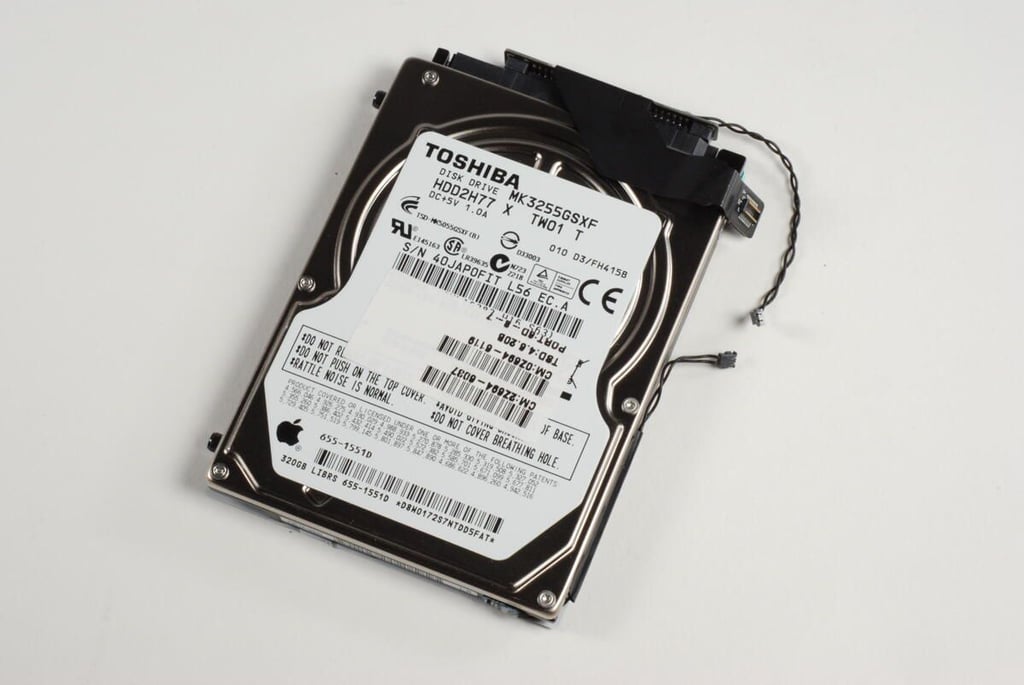

Mac mini 320GB hard drive

Mac mini 320GB hard drive

Our base model Mac mini came with a 320GB Toshiba HDD2H77 hard drive.

Photo credit: Bill Detwiler / TechRepublic

Apple Mac mini 2010 (A1347) Teardown

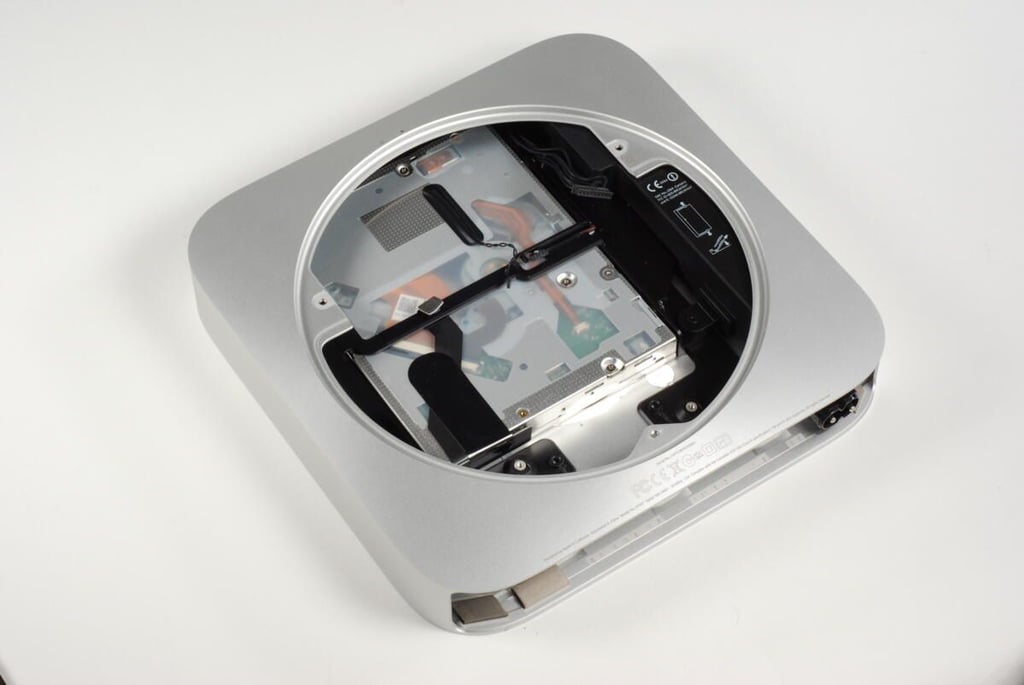

Mac mini with hard drive removed

Mac mini with hard drive removed

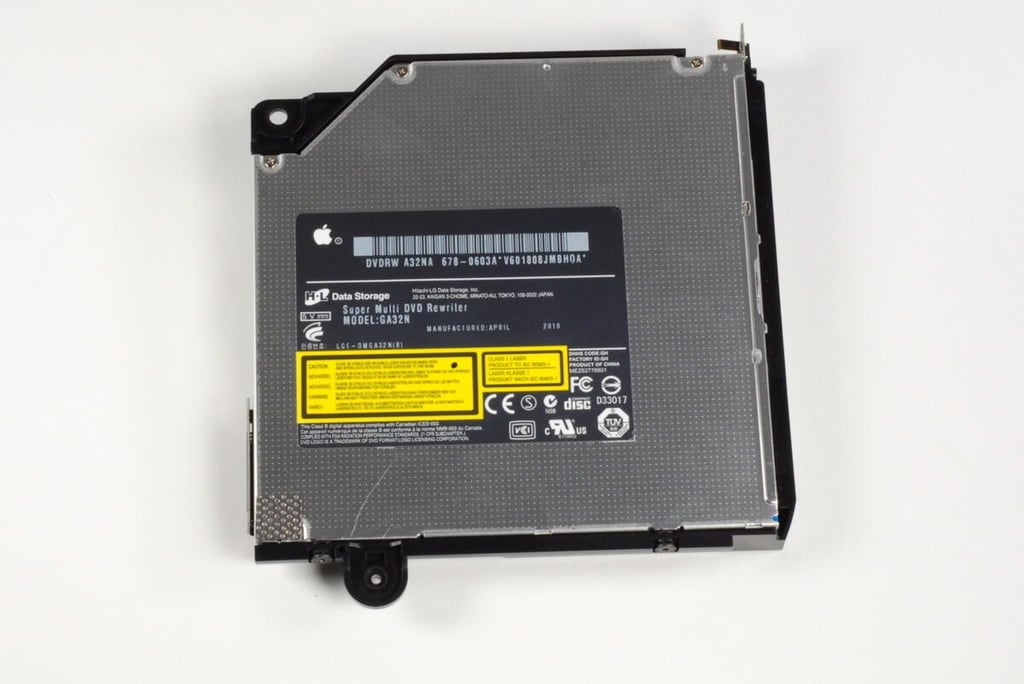

With the hard drive removed, we can the optical drive below.

Photo credit: Bill Detwiler / TechRepublic

Apple Mac mini 2010 (A1347) Teardown

Disconnecting the Mac Mini logic board power connector

Disconnecting the Mac Mini logic board power connector

Before removing the main logic board, I disconnected the connector to the power supply. With the cable disconnected you can pull the logic board free from the unibody enclosure.

Photo credit: Bill Detwiler / TechRepublic

Apple Mac mini 2010 (A1347) Teardown

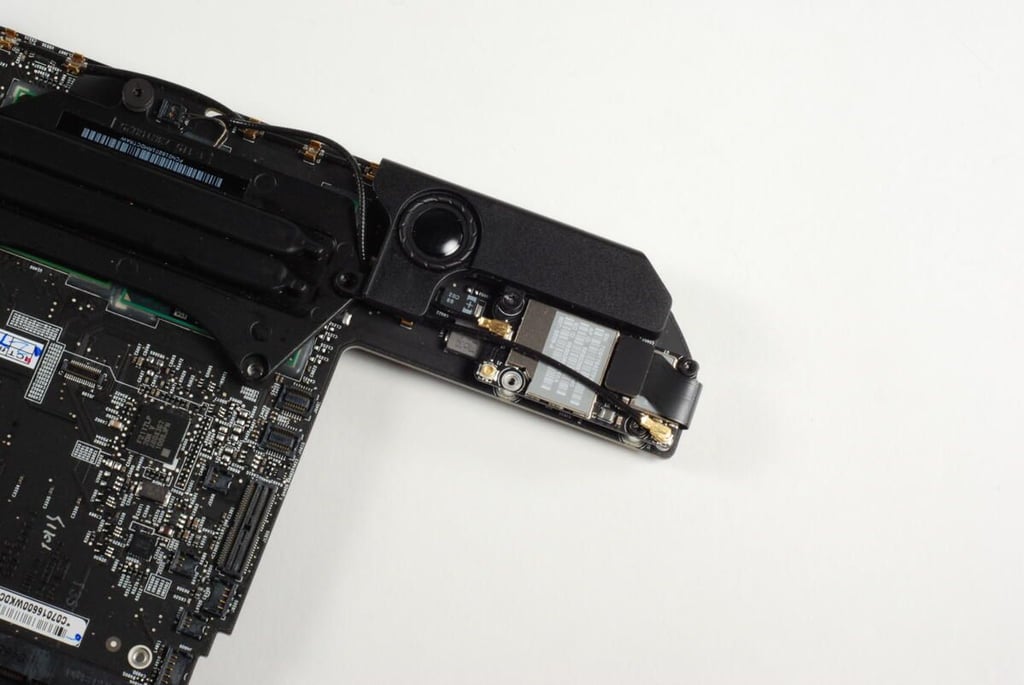

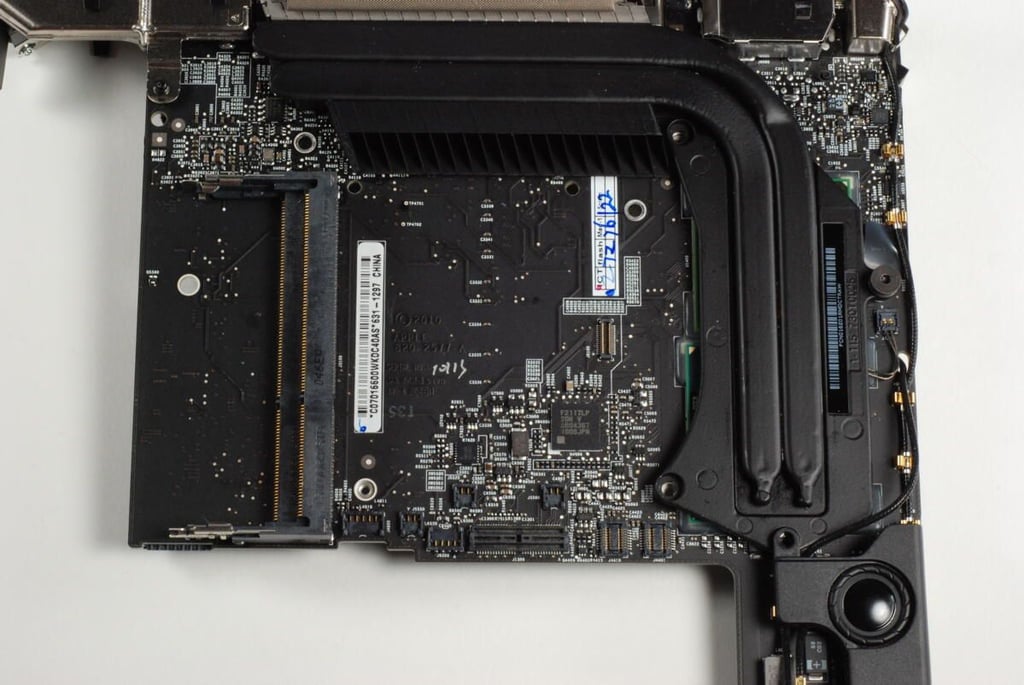

Mac mini main logic board with heat sink, speaker, and wireless card

Mac mini main logic board with heat sink, speaker, and wireless card

The heat sink, speaker and wireless card are still attached to the top of the Mac mini’s main logic board.

Photo credit: Bill Detwiler / TechRepublic

Apple Mac mini 2010 (A1347) Teardown

Mac mini main logic board - Ports

Mac mini main logic board - Ports

Photo credit: Bill Detwiler / TechRepublic

Apple Mac mini 2010 (A1347) Teardown

Mac mini heat sink (attached)

Mac mini heat sink (attached)

The Mac mini’s heat sink is mounted over the Intel CPU and NVIDIA GPU, and curves around to the back of the logic board where the cooling fan can move air across it.

Photo credit: Bill Detwiler / TechRepublic

Apple Mac mini 2010 (A1347) Teardown

Mac mini internal speaker and wireless card

Mac mini internal speaker and wireless card

The Mac mini’s internal speaker and AirPort Extreme card are mounted on this small protrusion on the main logic board.

Photo credit: Bill Detwiler / TechRepublic

Apple Mac mini 2010 (A1347) Teardown

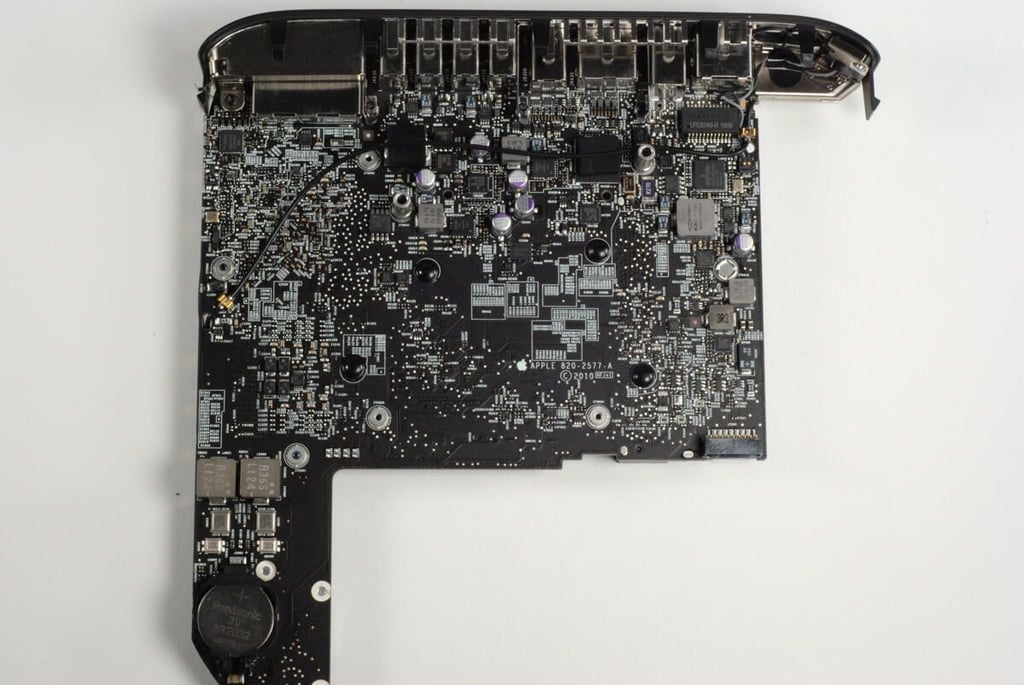

Mac mini logic board - Bottom

Mac mini logic board - Bottom

Photo credit: Bill Detwiler / TechRepublic

Apple Mac mini 2010 (A1347) Teardown

Mac mini logic board system battery

Mac mini logic board system battery

Our Mac mini came with a Panasonic 3V BR2032 system battery.

Photo credit: Bill Detwiler / TechRepublic

Apple Mac mini 2010 (A1347) Teardown

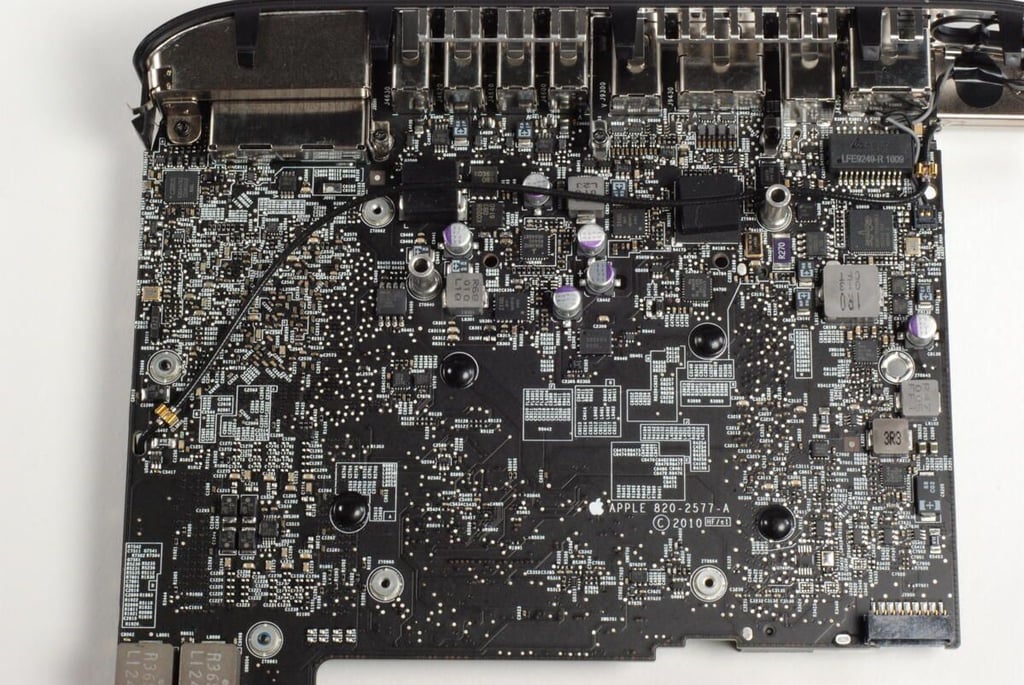

Mac mini logic board - Back closeup

Mac mini logic board - Back closeup

Photo credit: Bill Detwiler / TechRepublic

Apple Mac mini 2010 (A1347) Teardown

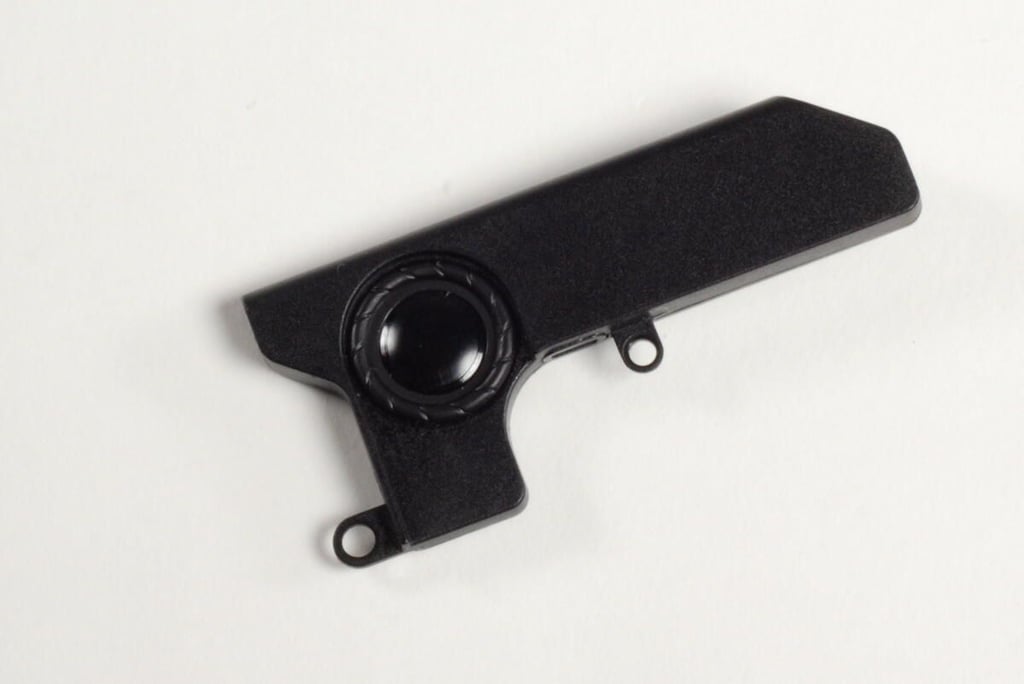

Mac mini speaker

Mac mini speaker

Photo credit: Bill Detwiler / TechRepublic

Apple Mac mini 2010 (A1347) Teardown

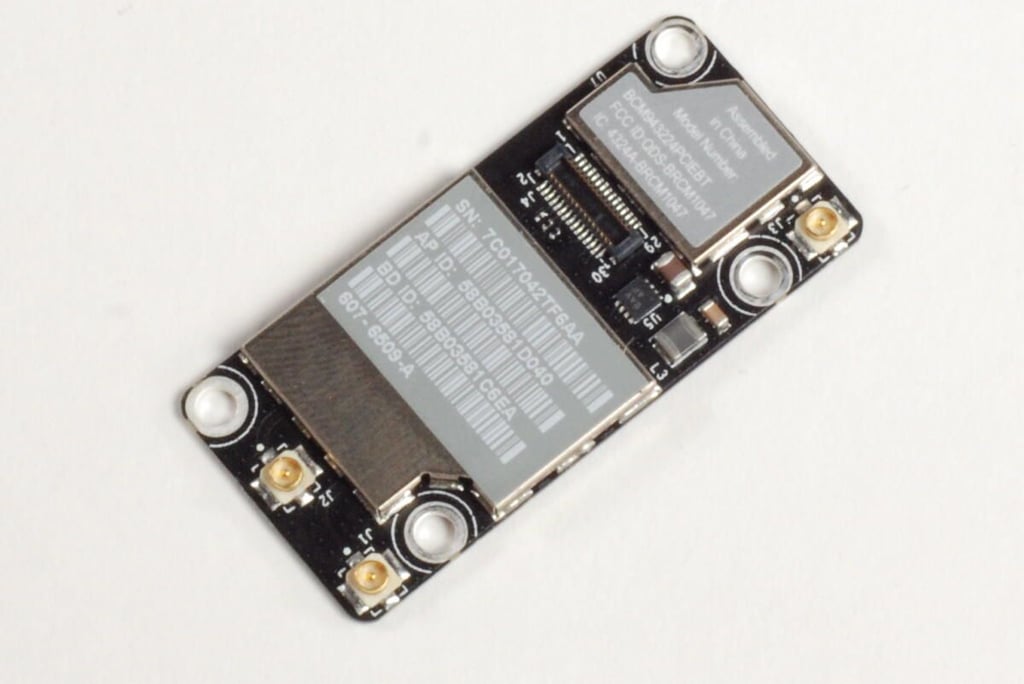

Mac mini Airport Extreme card - Top

Mac mini Airport Extreme card - Top

Photo credit: Bill Detwiler / TechRepublic

Apple Mac mini 2010 (A1347) Teardown

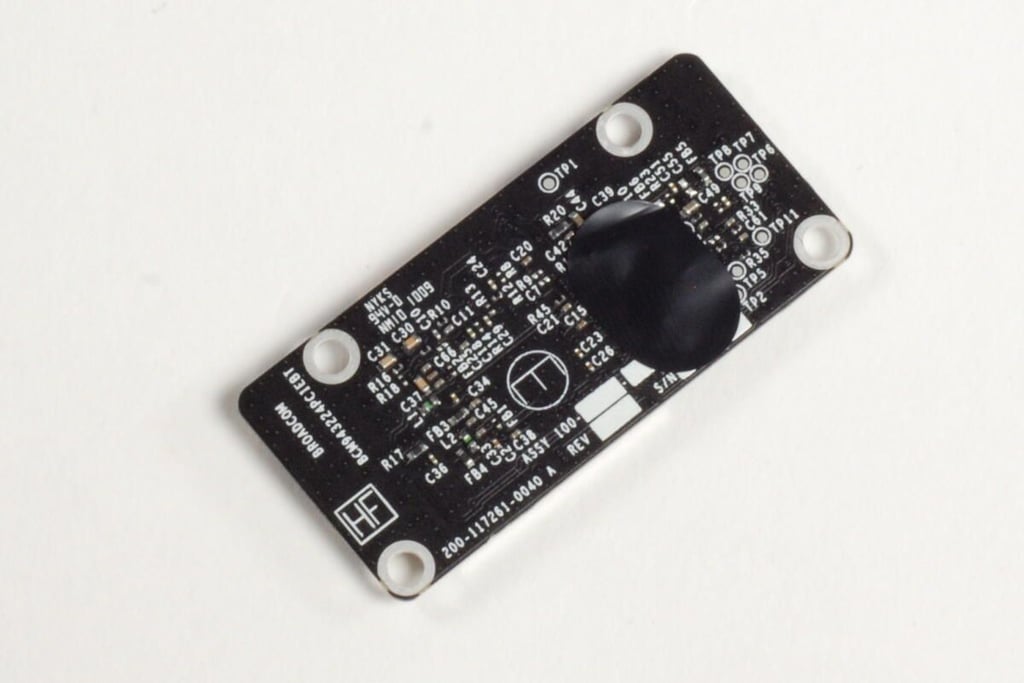

Mac mini Airport Extreme card - Bottom

Mac mini Airport Extreme card - Bottom

The Mac Mini A1347 has 802.11n Wi-Fi and Bluetooth 2.1. Broadcom appears to have manufactured this card or supplied most of the chips for it as “Broadcom” is clearly marked on the underside of the card.

Photo credit: Bill Detwiler / TechRepublic

Apple Mac mini 2010 (A1347) Teardown

Removing the Mac mini heat sink

Removing the Mac mini heat sink

At this point, a a couple of spring-loaded T8 Torx screws hold the heat sink to the main logic board.

Photo credit: Bill Detwiler / TechRepublic

Apple Mac mini 2010 (A1347) Teardown

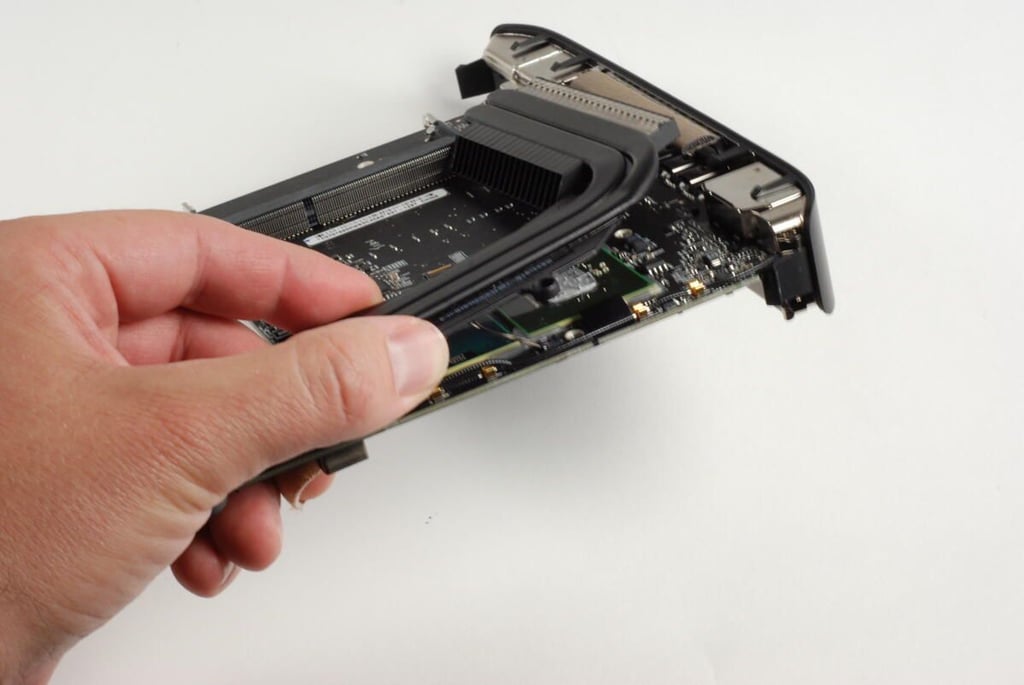

Lifting away the Mac mini's heat sink

Lifting away the Mac mini's heat sink

With all the screws removed, you can lift the heat sink away from the main logic board and the CPU and GPU.

Photo credit: Bill Detwiler / TechRepublic

Apple Mac mini 2010 (A1347) Teardown

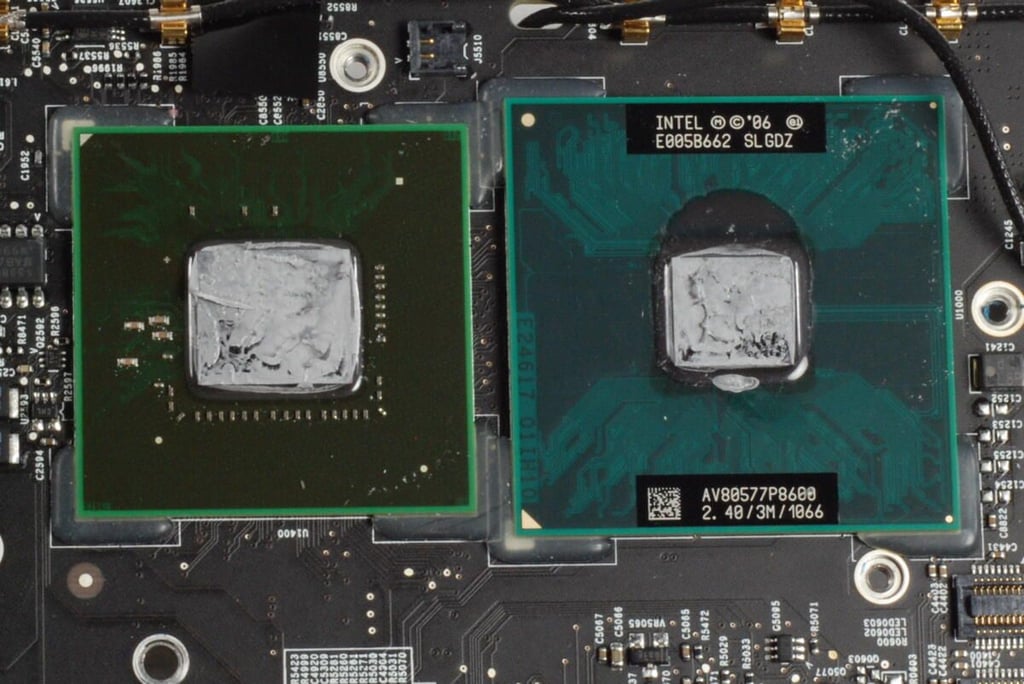

Mac mini A1347 CPU and GPU

Mac mini A1347 CPU and GPU

On the right, is the Intel P8600 2.4 GHz Core 2 Duo processor. A 2.66GHz CPU is also available.

On the left is the NVIDIA GeForce 320M GPU with 256MB of shared DDR3 SDRAM.

Photo credit: Bill Detwiler / TechRepublic

Apple Mac mini 2010 (A1347) Teardown

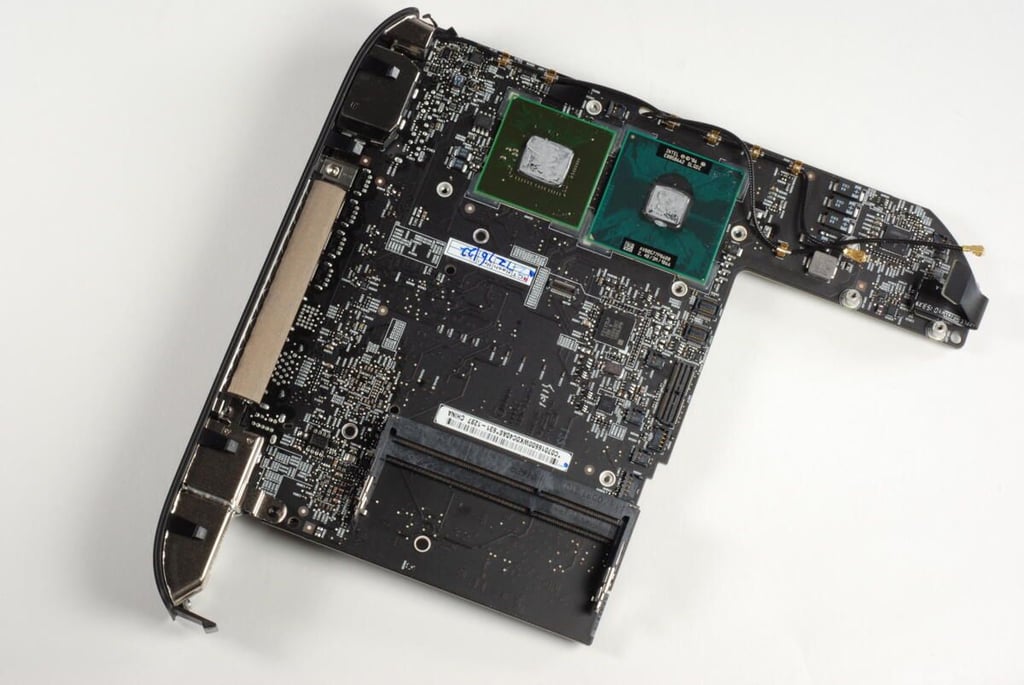

Mac mini main logic board - Top

Mac mini main logic board - Top

With nearly all the internal components removed, we can see the Mac mini’s entire logic board.

Photo credit: Bill Detwiler / TechRepublic

Apple Mac mini 2010 (A1347) Teardown

Mac mini heat sink - Top

Mac mini heat sink - Top

Photo credit: Bill Detwiler / TechRepublic

Apple Mac mini 2010 (A1347) Teardown

Mac mini heat sink - Bottom

Mac mini heat sink - Bottom

On the underside of the Mac mini’s heat sink we find the connector for the thermal sensor, the air channels, and the plates that physically connect the heat sink to the CPU and GPU. A think layer of thermal paste is still on the contact plates.

Photo credit: Bill Detwiler / TechRepublic

Apple Mac mini 2010 (A1347) Teardown

Mac min with main logic board removed

Mac min with main logic board removed

The main logic board removed, all the remains within the Mac mini’s unibody enclosure are the optical drive and the power supply.

Photo credit: Bill Detwiler / TechRepublic

Apple Mac mini 2010 (A1347) Teardown

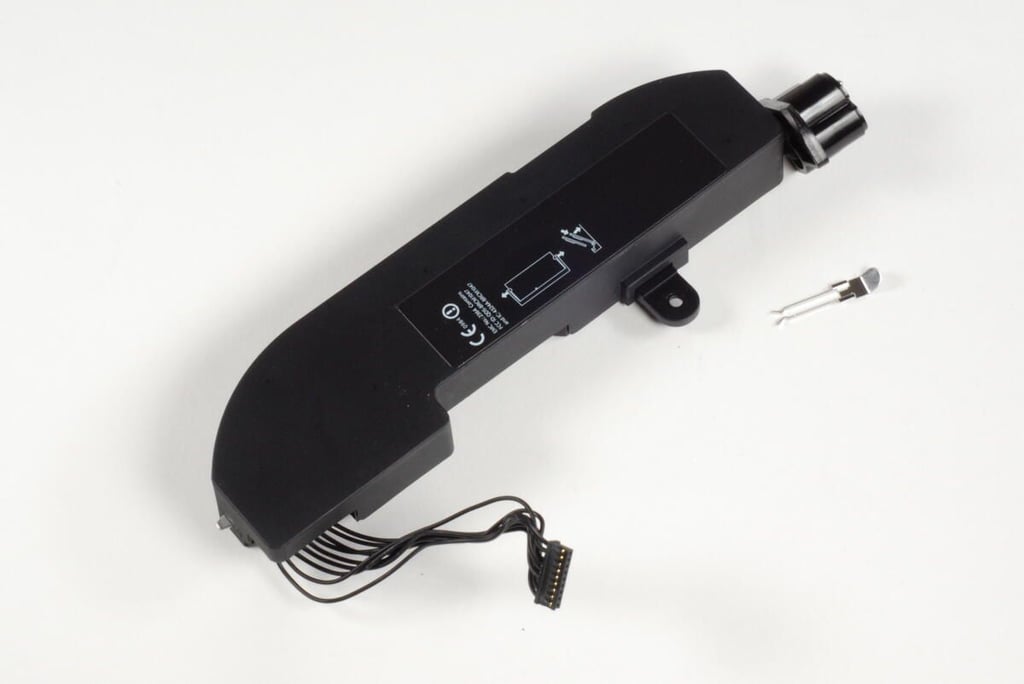

Mac mini power supply - Top

Mac mini power supply - Top

Apple opted for an internal power supply with the Mac mini A1347. this design eliminates the need for an external power block common on laptops and game consoles.

Photo credit: Bill Detwiler / TechRepublic

Apple Mac mini 2010 (A1347) Teardown

Mac mini power supply - Bottom

Mac mini power supply - Bottom

Information on the Mac mini’s power supply are located on the underside labels. This unit is a Delta Electronics Model ADP-85AF S rated for 85W of total power.

Photo credit: Bill Detwiler / TechRepublic

Apple Mac mini 2010 (A1347) Teardown

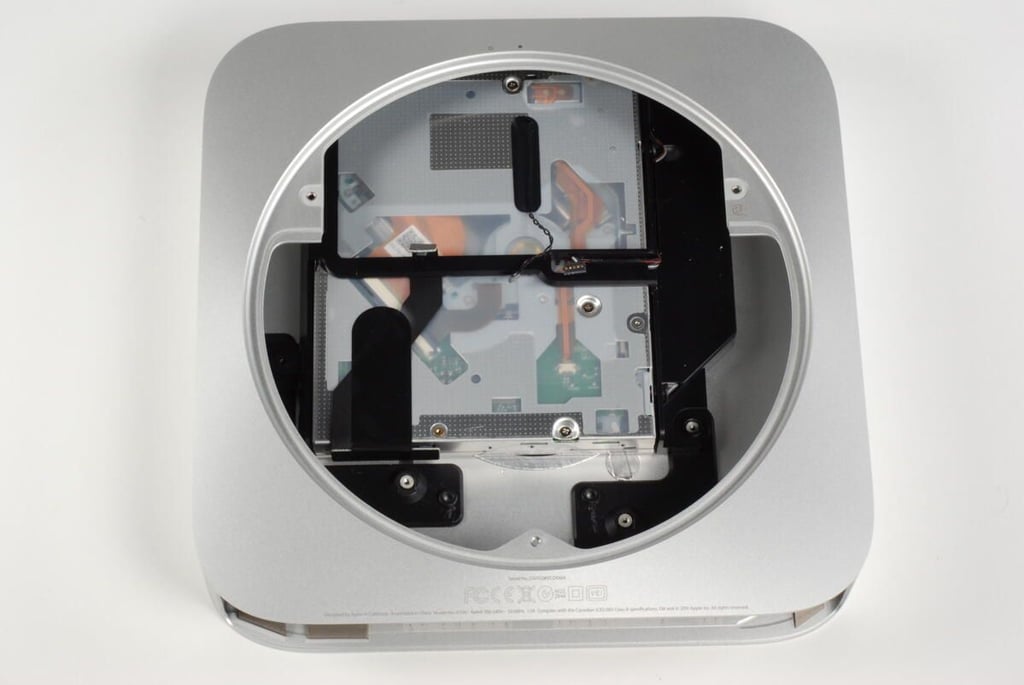

Mac mini with power supply removed

Mac mini with power supply removed

With the power supply removed, only the optical drive remains.

Photo credit: Bill Detwiler / TechRepublic

Apple Mac mini 2010 (A1347) Teardown

Mac mini optical drive - Top

Mac mini optical drive - Top

The Mac mini’s optical drive and plastic frame are removed as a single unit. The Mac mini contains a Hitachi-LG Data Storage Super Multi DVD rewriter — Model: GA32N.

Photo credit: Bill Detwiler / TechRepublic

Apple Mac mini 2010 (A1347) Teardown

Mac mini optical drive - Bottom

Mac mini optical drive - Bottom

Photo credit: Bill Detwiler / TechRepublic

Apple Mac mini 2010 (A1347) Teardown

Mac mini unibody enclosure - Front

Mac mini unibody enclosure - Front

With all the internal components removed, there’s not much left inside the Mac mini unibody enclosure.

Photo credit: Bill Detwiler / TechRepublic

Apple Mac mini 2010 (A1347) Teardown

Mac mini unibody enclosure

Mac mini unibody enclosure

Photo credit: Bill Detwiler / TechRepublic

Apple Mac mini 2010 (A1347) Teardown

Mac Mini complete teardown

Mac Mini complete teardown

The Mac mini A1347 was significantly easier to disassemble than previous versions. The addition of the bottom access plate, and standard screws make the A1347 a very serviceable, machine.

Photo credit: Bill Detwiler / TechRepublic

  • Hardware
  • Account Information

    Share with Your Friends

    Apple Mac mini 2010 (A1347) Teardown

    Your email has been sent

Share: Apple Mac mini 2010 (A1347) Teardown
Image of Bill Detwiler
By Bill Detwiler
Bill Detwiler is the Editor for Technical Content and Ecosystem at Celonis. He is the former Editor in Chief of TechRepublic and previous host of TechRepublic's Dynamic Developer podcast and Cracking Open, CNET and TechRepublic's popular online show.
  • Account Information

    Contact Bill Detwiler

    Your message has been sent

  • |
  • See all of Bill's content

TechRepublic Premium

  • TechRepublic Premium

    Shadow IT policy

    Shadow IT is a concept whereby an organization’s employees use technology, services or systems without the knowledge of or approval from the IT department. It has arisen due to several reasons: Advances in cloud computing, which involve the usage of applications or sharing of data in public environments previously owned by IT. The evolution of ...

    Published:  February 2, 2023, 11:00 AM EST Modified:  February 3, 2023, 2:00 PM EST Read More See more TechRepublic Premium
  • TechRepublic Premium

    Auditing and logging policy

    Auditing and logging are essential measures for protecting mission-critical systems and troubleshooting problems. This policy outlines the appropriate auditing and logging procedures for computer systems, networks and devices that store or transport critical data. From the policy: Many computer systems, network devices and other technological hardware used in the enterprise can audit and log various ...

    Published:  February 2, 2023, 11:00 AM EST Modified:  February 3, 2023, 3:00 PM EST Read More See more TechRepublic Premium
  • TechRepublic Premium

    Vendor contract renewal planner

    Determining how and when to renew support contracts can be tedious and time-consuming. Our vendor contract renewal planner will help you schedule support renewals and budget the related costs. From the planner: Some companies schedule their support contract renewals to take effect all at once, such as on January 1. This provides a convenient renewal ...

    Published:  February 1, 2023, 11:00 AM EST Modified:  February 2, 2023, 12:00 PM EST Read More See more TechRepublic Premium
  • TechRepublic Premium

    Access management policy

    Without appropriate access management controls, businesses are at significant risk from the loss or theft of both physical and digital assets. Access management controls establish who is allowed the appropriate level of access in order to do their jobs, while reducing the potential for damage or harm to the company. The purpose of this policy ...

    Downloads
    Published:  February 1, 2023, 11:00 AM EST Modified:  February 2, 2023, 4:00 PM EST Read More See more TechRepublic Premium

Services

  • About Us
  • Newsletters
  • RSS Feeds
  • Site Map
  • Site Help & Feedback
  • FAQ
  • Advertise
  • Do Not Sell My Information

Explore

  • Downloads
  • TechRepublic Forums
  • Meet the Team
  • TechRepublic Academy
  • TechRepublic Premium
  • Resource Library
  • Photos
  • Videos
  • TechRepublic
  • TechRepublic on Twitter
  • TechRepublic on Facebook
  • TechRepublic on LinkedIn
  • TechRepublic on Flipboard
© 2023 TechnologyAdvice. All rights reserved.
  • Privacy Policy
  • Terms of Use
  • Property of TechnologyAdvice
