Apple MacBook Pro Quad-core i7 teardown

By Bill Detwiler April 4, 2011, 6:30 AM PDT on Twitter billdetwiler

1
of 83

Apple MacBook Pro Quad-core i7 teardown

Apple MacBook Pro (2011 Quad-Core i7): Teardown

Apple MacBook Pro (2011 Quad-Core i7): Teardown

ntIn 2011, Apple updated its MacBook Pro notebook line with Intel Quad-Core i5 and i7 CPUs, more-powerful AMD GPUs, and Intel’s new Thunderbolt connection technology.

n

ntFollow along as we crack open a 15″ MacBook Pro for a look at the impressive hardware inside.

n

ntPhoto by: Bill Detwiler / TechRepublic
ntCaption by: Bill Detwiler

Apple MacBook Pro Quad-core i7 teardown

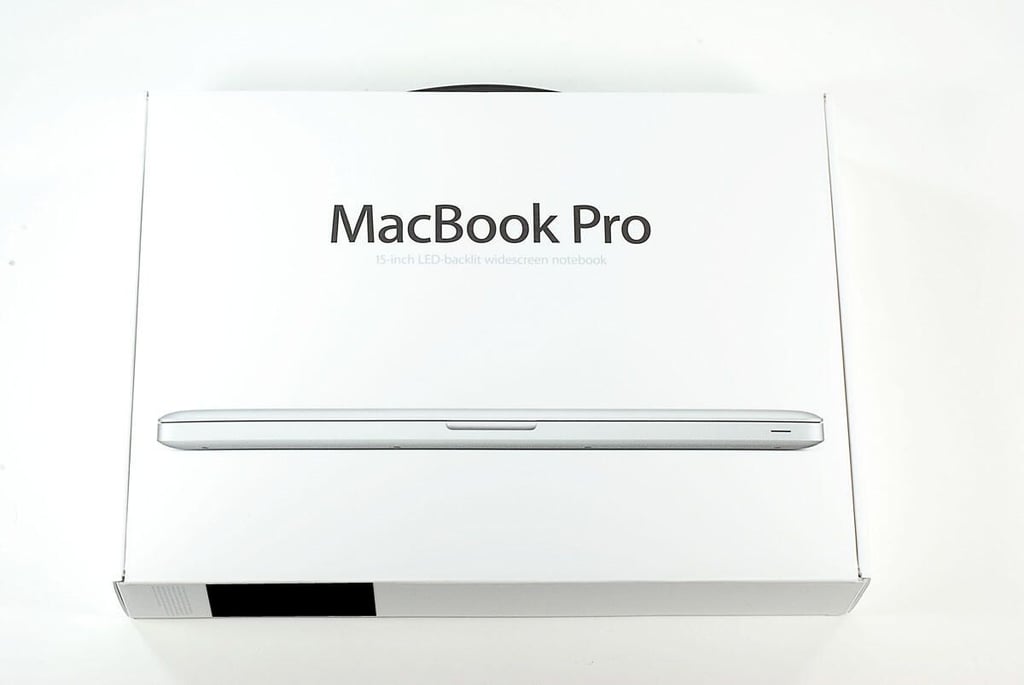

Apple MacBook Pro (2011 Quad-Core i7): Box

Apple MacBook Pro (2011 Quad-Core i7): Box

ntOur 15″ MacBook Pro cost just under $2,600 (US) and has the following technical specs:

n

    nt

  • ntt2.2GHz Quad-core Intel Core i7
  • nt

  • ntt4GB 1333MHz DDR3 SDRAM – 2x2GB
  • nt

  • ntt128GB Solid State Drive
  • nt

  • ntt8x Double-Layer SuperDrive
  • nt

  • ntt15″HR Antiglare WS Display
  • n

n

ntDon’t worry. After cracking this machine open, I’ll put it back together and use it as one of our test machines.

n

ntPhoto by: Bill Detwiler / TechRepublic
ntCaption by: Bill Detwiler

Apple MacBook Pro Quad-core i7 teardown

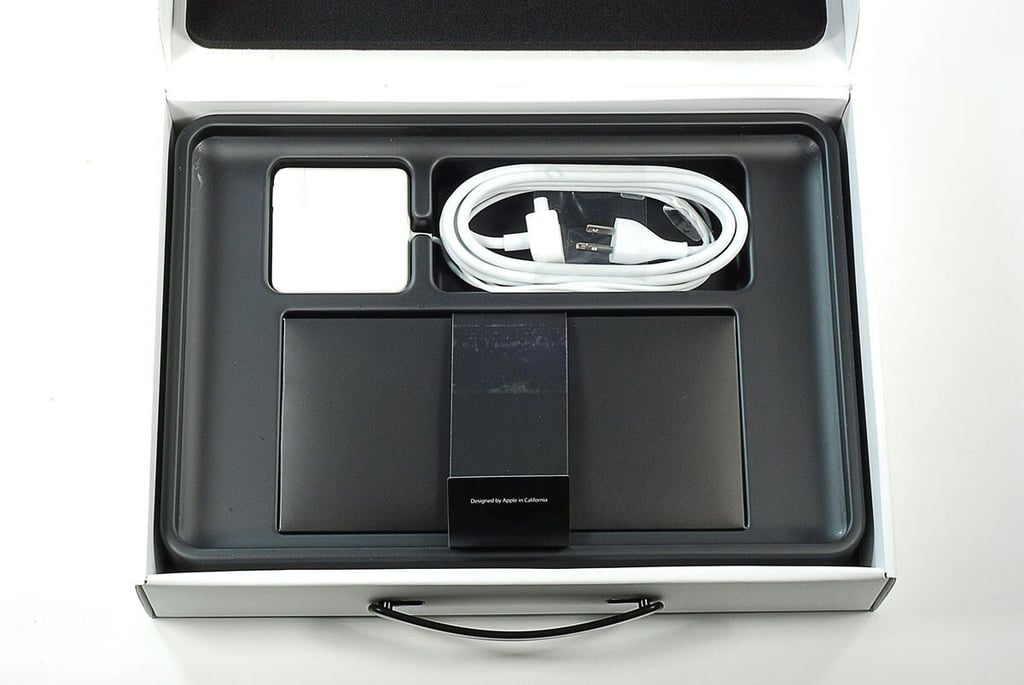

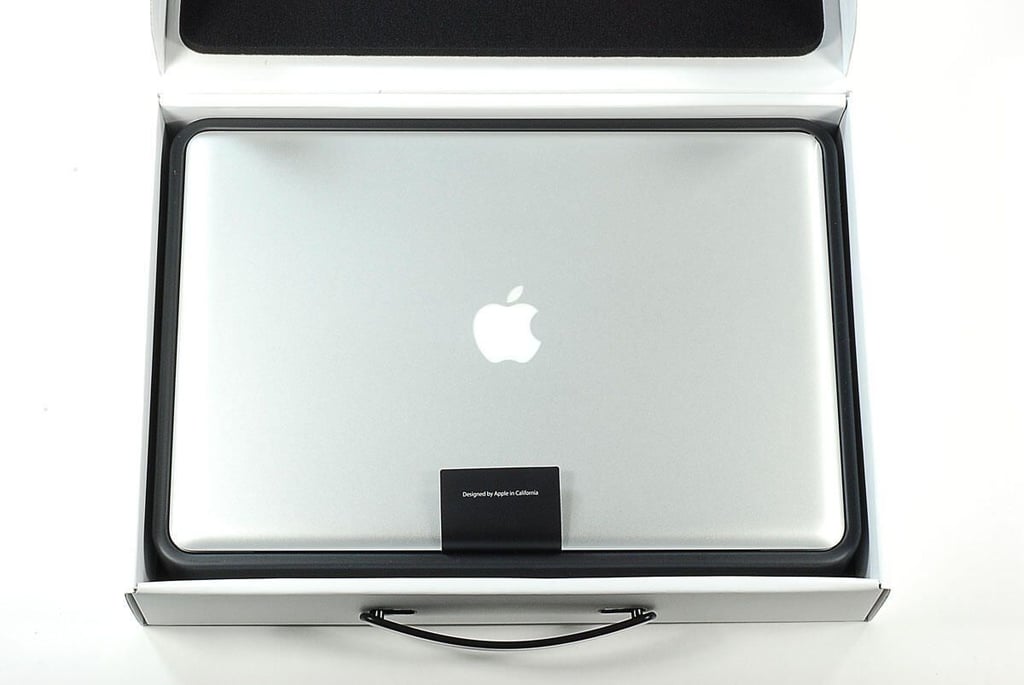

Apple MacBook Pro (2011 Quad-Core i7): Opening the box

Apple MacBook Pro (2011 Quad-Core i7): Opening the box

ntPhoto by: Bill Detwiler / TechRepublic
ntCaption by: Bill Detwiler

Apple MacBook Pro Quad-core i7 teardown

Apple MacBook Pro (2011 Quad-Core i7): Power supply and cable

Apple MacBook Pro (2011 Quad-Core i7): Power supply and cable

ntPhoto by: Bill Detwiler / TechRepublic
ntCaption by: Bill Detwiler

Apple MacBook Pro Quad-core i7 teardown

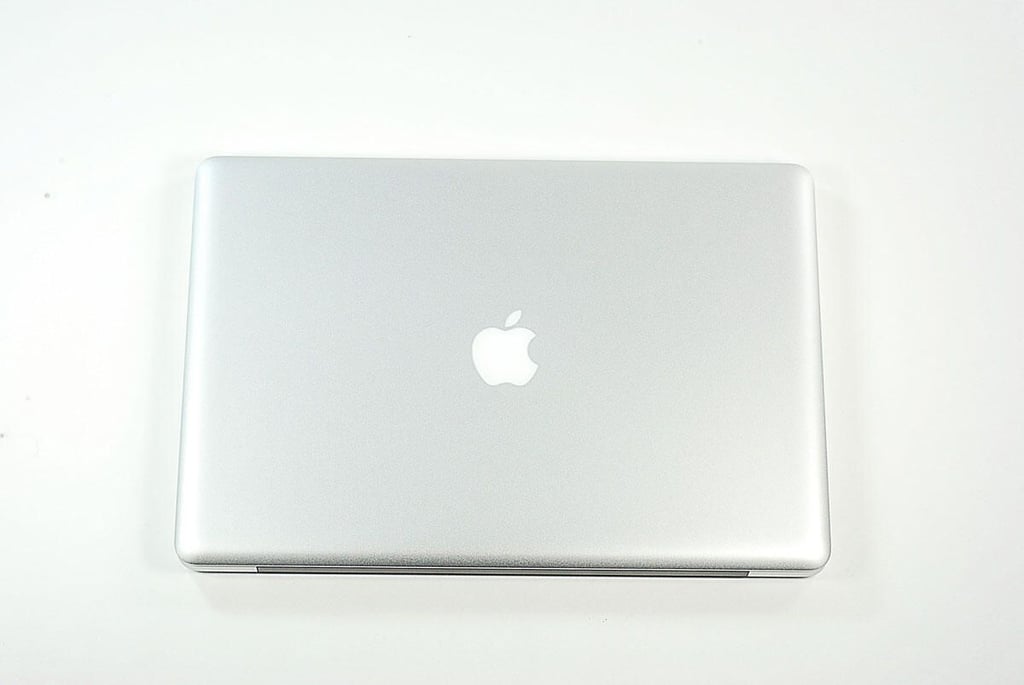

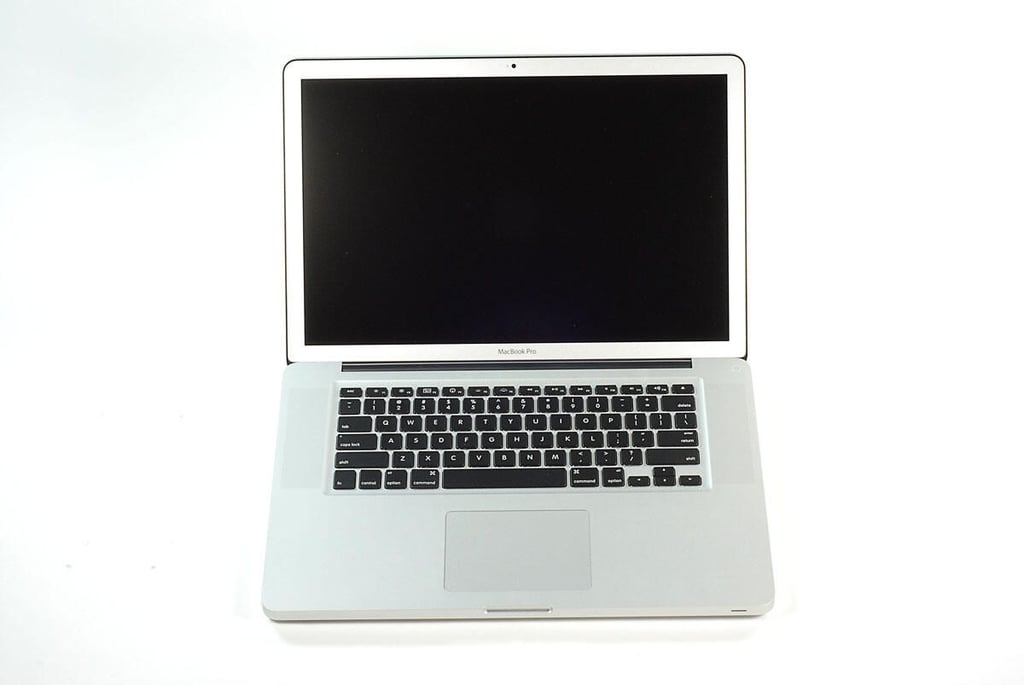

Apple MacBook Pro (2011 Quad-Core i7): Top

Apple MacBook Pro (2011 Quad-Core i7): Top

ntPhoto by: Bill Detwiler / TechRepublic
ntCaption by: Bill Detwiler

Apple MacBook Pro Quad-core i7 teardown

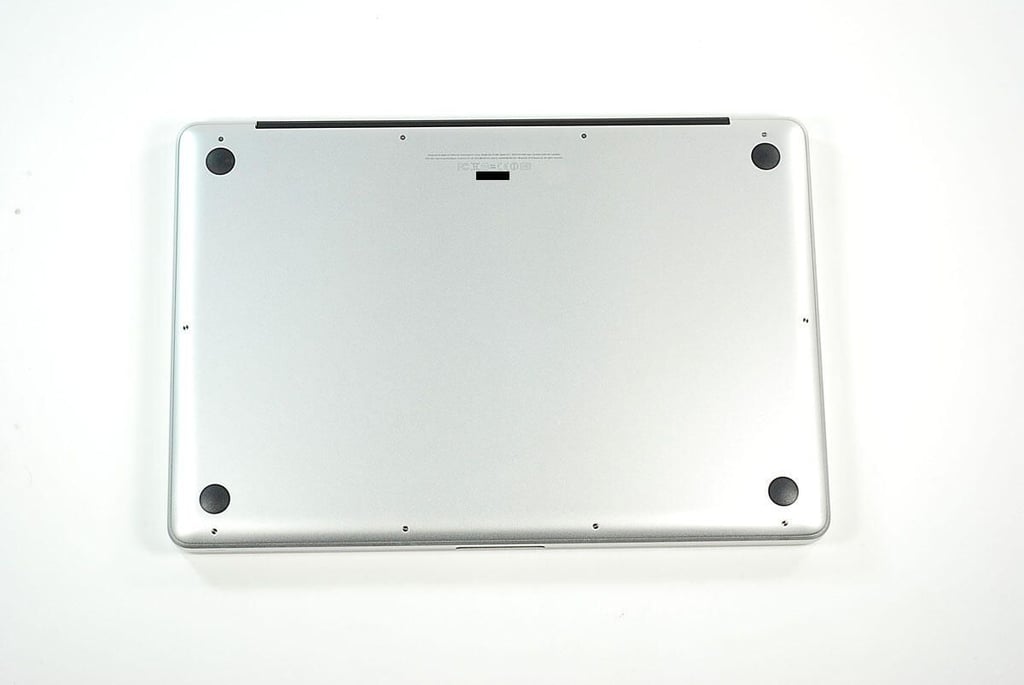

Apple MacBook Pro (2011 Quad-Core i7): Bottom

Apple MacBook Pro (2011 Quad-Core i7): Bottom

ntPhoto by: Bill Detwiler / TechRepublic
ntCaption by: Bill Detwiler

Apple MacBook Pro Quad-core i7 teardown

Apple MacBook Pro (2011 Quad-Core i7): Left side

Apple MacBook Pro (2011 Quad-Core i7): Left side

ntPhoto by: Bill Detwiler / TechRepublic
ntCaption by: Bill Detwiler

Apple MacBook Pro Quad-core i7 teardown

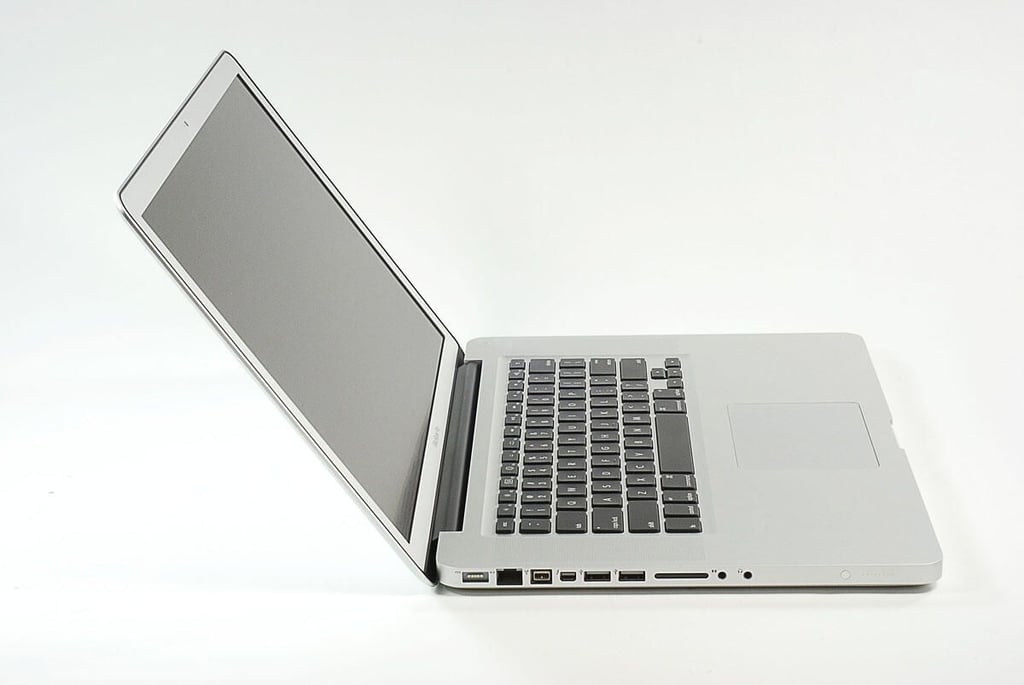

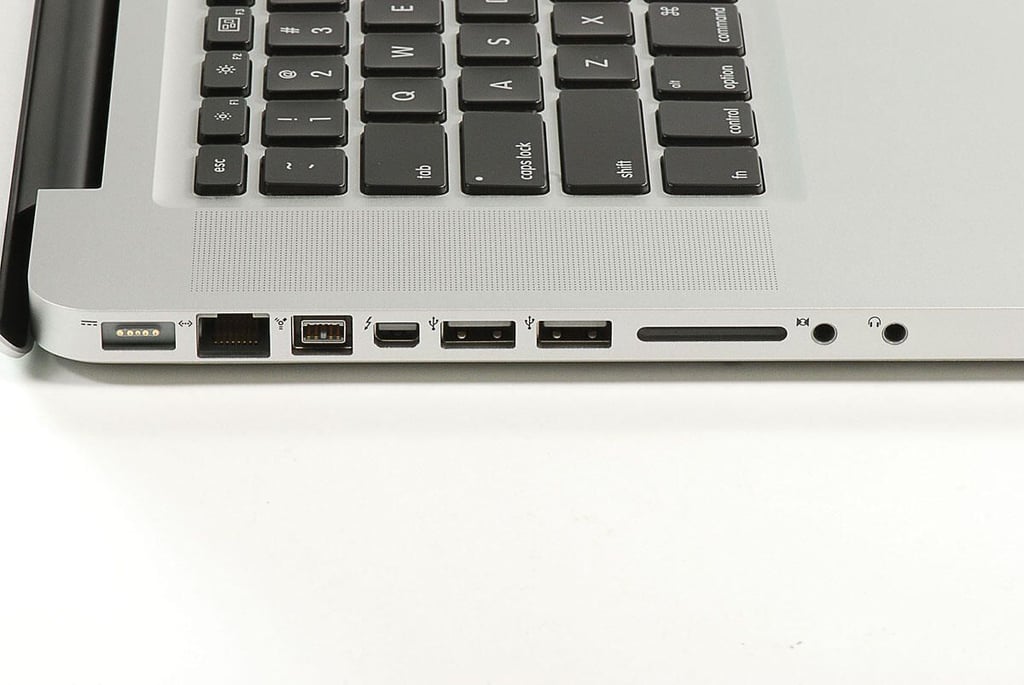

Apple MacBook Pro (2011 Quad-Core i7): Ports

Apple MacBook Pro (2011 Quad-Core i7): Ports

ntPhoto by: Bill Detwiler / TechRepublic
ntCaption by: Bill Detwiler

Apple MacBook Pro Quad-core i7 teardown

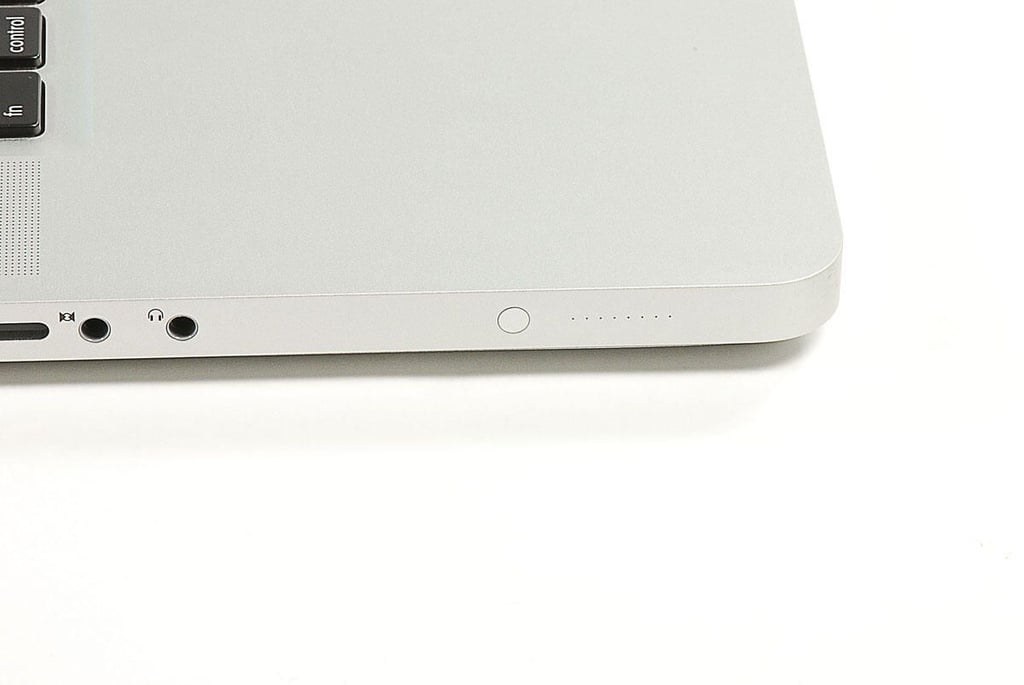

Apple MacBook Pro (2011 Quad-Core i7): Battery indicator

Apple MacBook Pro (2011 Quad-Core i7): Battery indicator

ntPhoto by: Bill Detwiler / TechRepublic
ntCaption by: Bill Detwiler

Apple MacBook Pro Quad-core i7 teardown

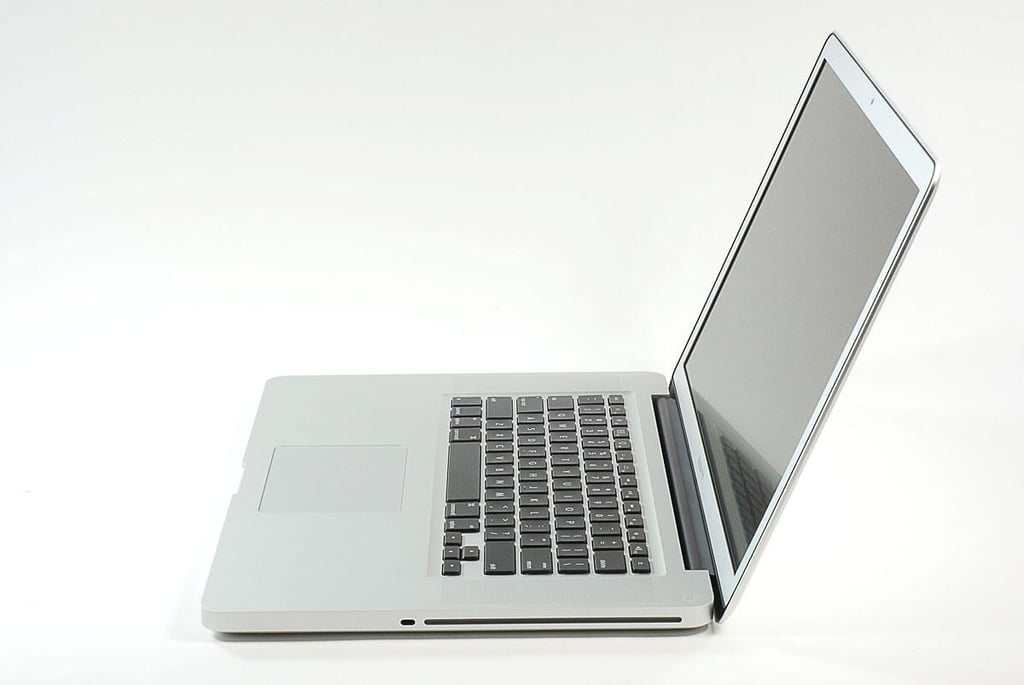

Apple MacBook Pro (2011 Quad-Core i7): Right side

Apple MacBook Pro (2011 Quad-Core i7): Right side

ntPhoto by: Bill Detwiler / TechRepublic
ntCaption by: Bill Detwiler

Apple MacBook Pro Quad-core i7 teardown

Apple MacBook Pro (2011 Quad-Core i7): Keyboard

Apple MacBook Pro (2011 Quad-Core i7): Keyboard

ntPhoto by: Bill Detwiler / TechRepublic
ntCaption by: Bill Detwiler

Apple MacBook Pro Quad-core i7 teardown

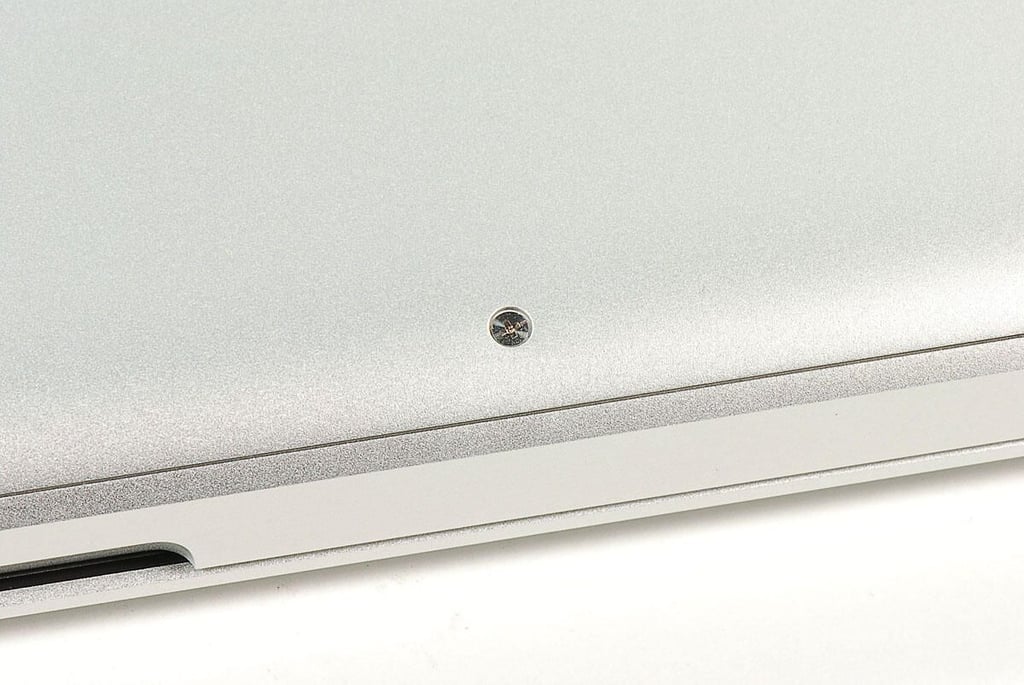

Apple MacBook Pro (2011 Quad-Core i7): Phillips case screw

Apple MacBook Pro (2011 Quad-Core i7): Phillips case screw

ntPhoto by: Bill Detwiler / TechRepublic
ntCaption by: Bill Detwiler

Apple MacBook Pro Quad-core i7 teardown

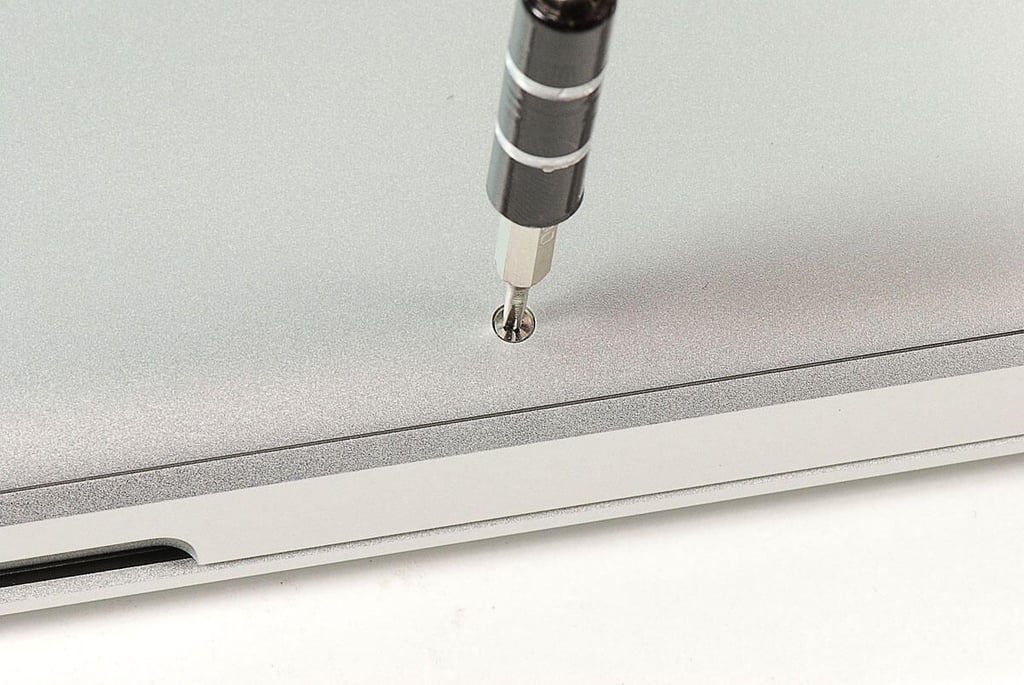

Apple MacBook Pro (2011 Quad-Core i7): Removing the case screws

Apple MacBook Pro (2011 Quad-Core i7): Removing the case screws

ntPhoto by: Bill Detwiler / TechRepublic
ntCaption by: Bill Detwiler

Apple MacBook Pro Quad-core i7 teardown

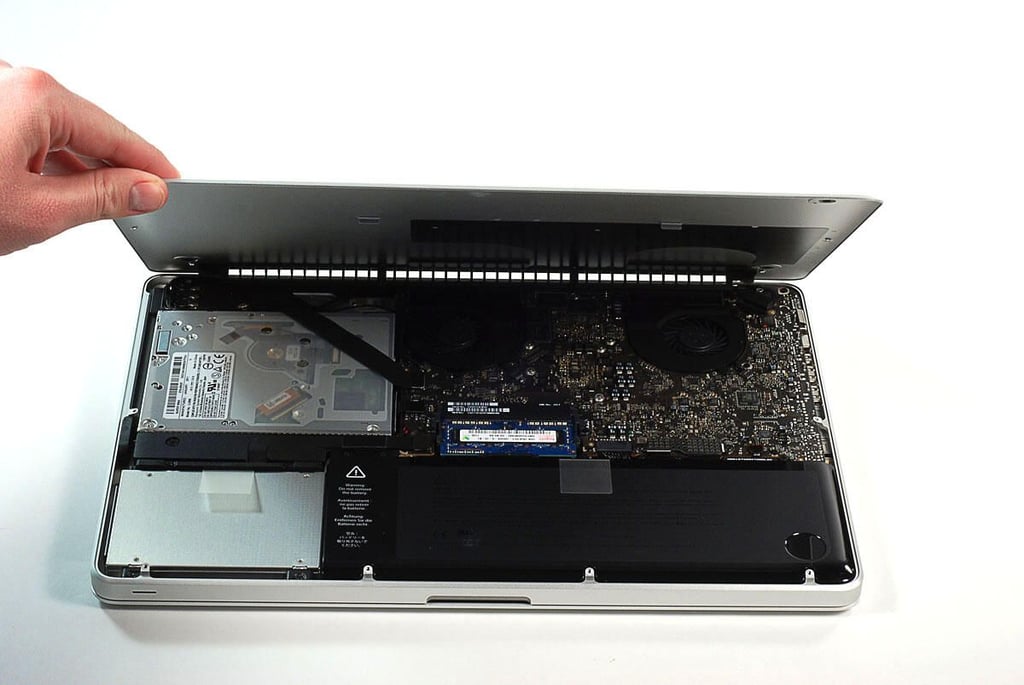

Apple MacBook Pro (2011 Quad-Core i7): Lifting off the bottom panel

Apple MacBook Pro (2011 Quad-Core i7): Lifting off the bottom panel

ntPhoto by: Bill Detwiler / TechRepublic
ntCaption by: Bill Detwiler

Apple MacBook Pro Quad-core i7 teardown

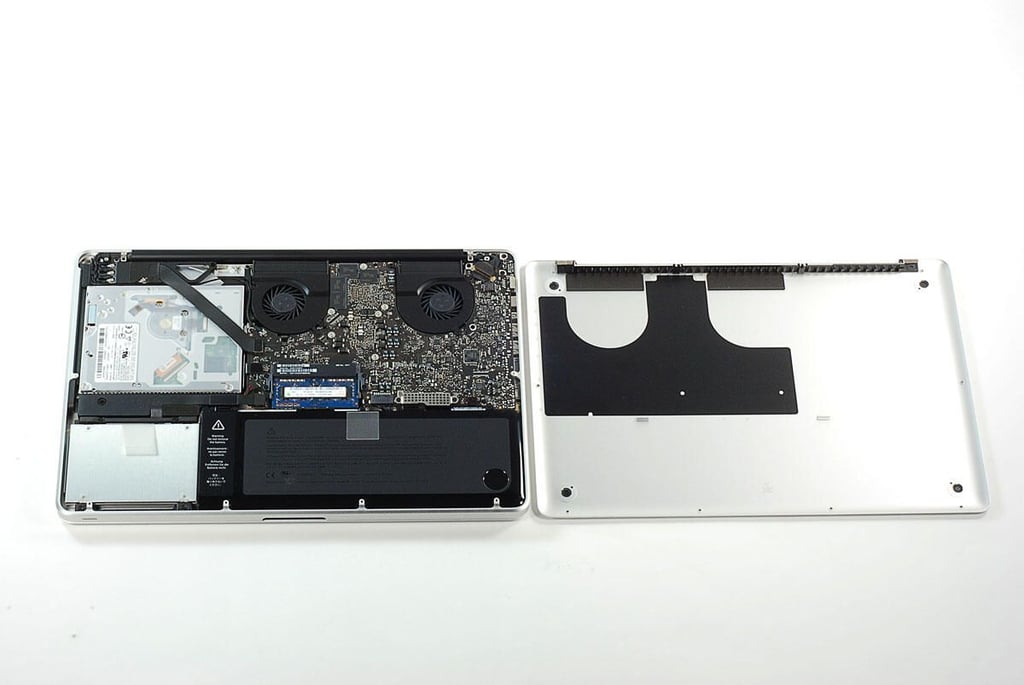

Apple MacBook Pro (2011 Quad-Core i7): Bottom panel removed

Apple MacBook Pro (2011 Quad-Core i7): Bottom panel removed

ntPhoto by: Bill Detwiler / TechRepublic
ntCaption by: Bill Detwiler

Apple MacBook Pro Quad-core i7 teardown

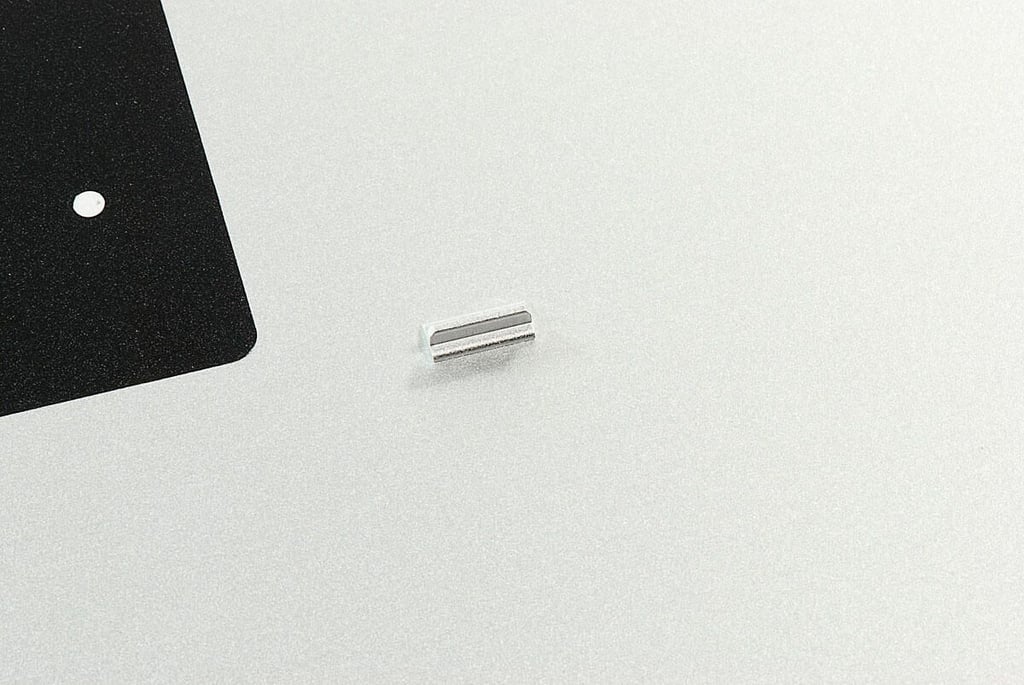

Apple MacBook Pro (2011 Quad-Core i7): Bottom panel tab

Apple MacBook Pro (2011 Quad-Core i7): Bottom panel tab

ntPhoto by: Bill Detwiler / TechRepublic
ntCaption by: Bill Detwiler

Apple MacBook Pro Quad-core i7 teardown

Apple MacBook Pro (2011 Quad-Core i7): Bottom panel tab catch

Apple MacBook Pro (2011 Quad-Core i7): Bottom panel tab catch

ntPhoto by: Bill Detwiler / TechRepublic
ntCaption by: Bill Detwiler

Apple MacBook Pro Quad-core i7 teardown

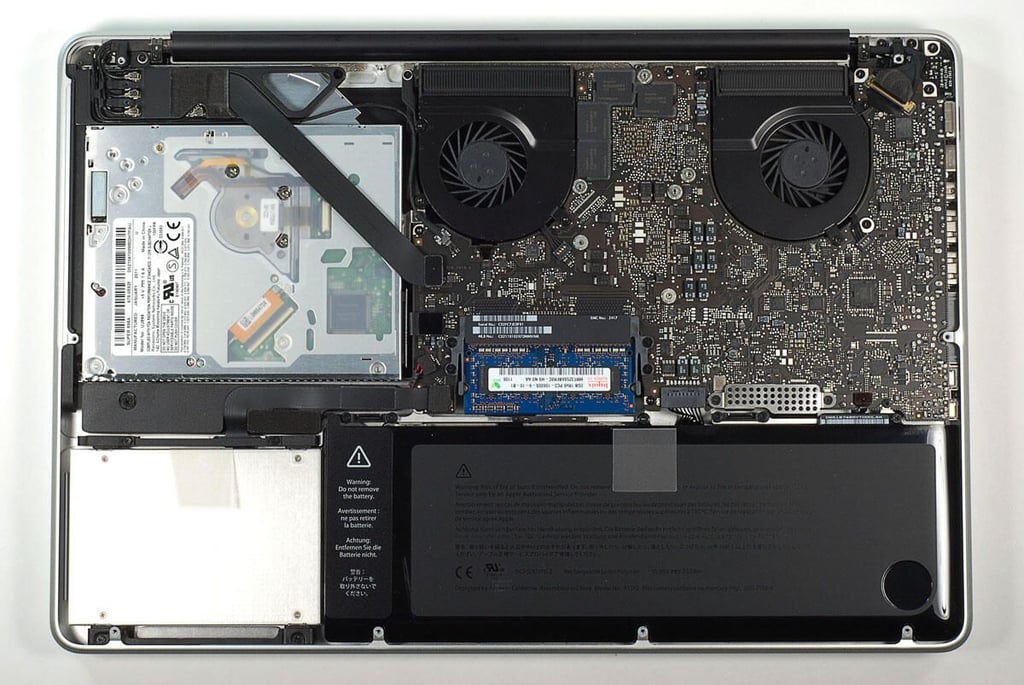

Apple MacBook Pro (2011 Quad-Core i7): First look inside

Apple MacBook Pro (2011 Quad-Core i7): First look inside

ntPhoto by: Bill Detwiler / TechRepublic
ntCaption by: Bill Detwiler

Apple MacBook Pro Quad-core i7 teardown

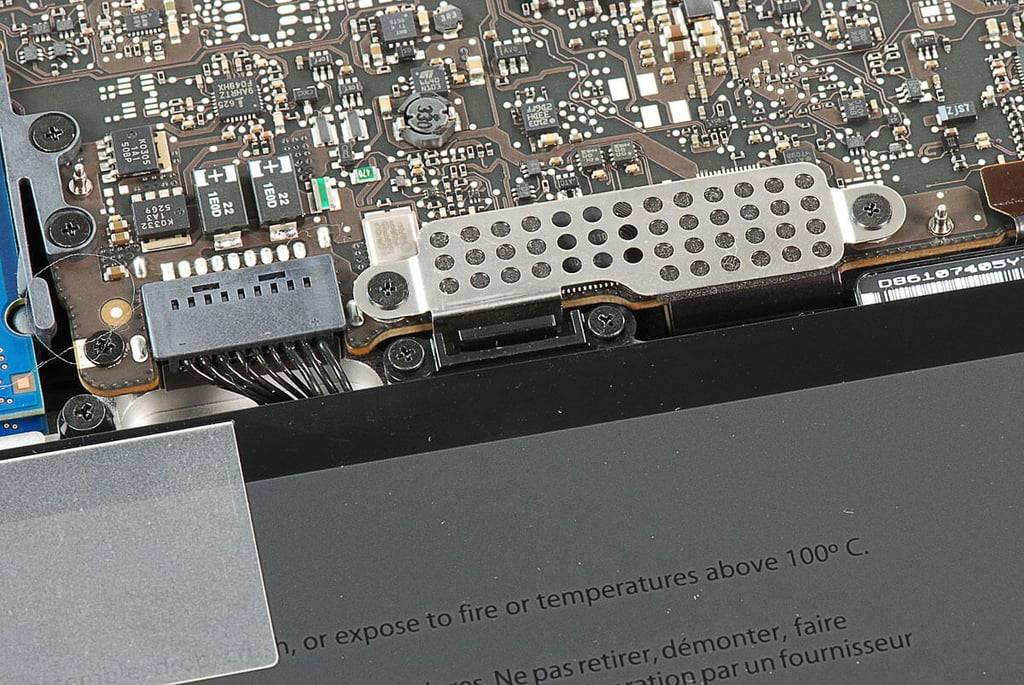

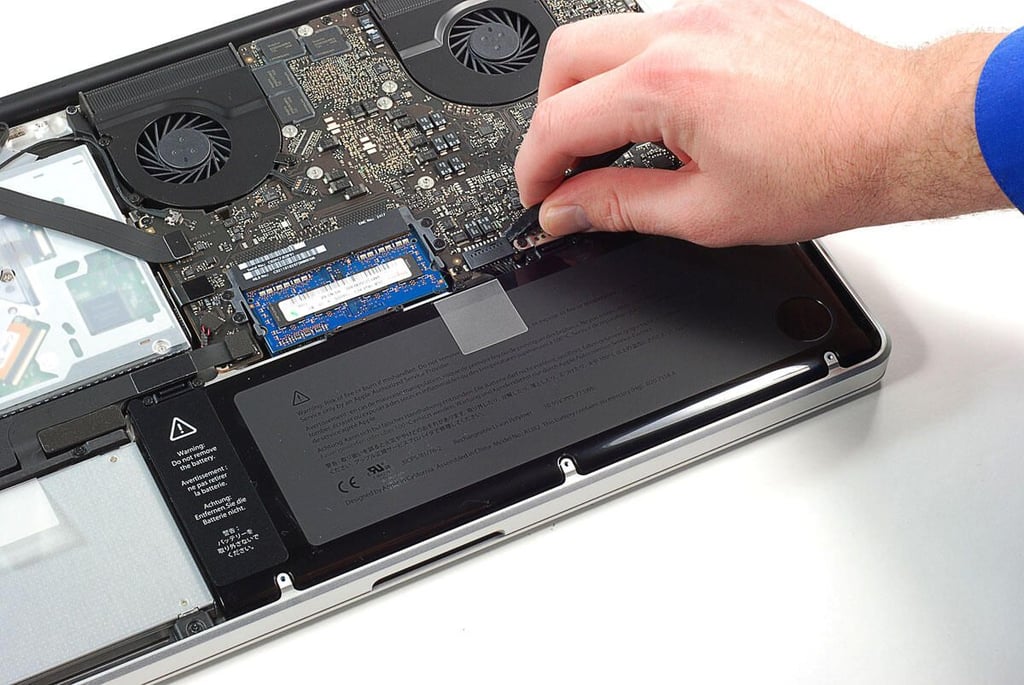

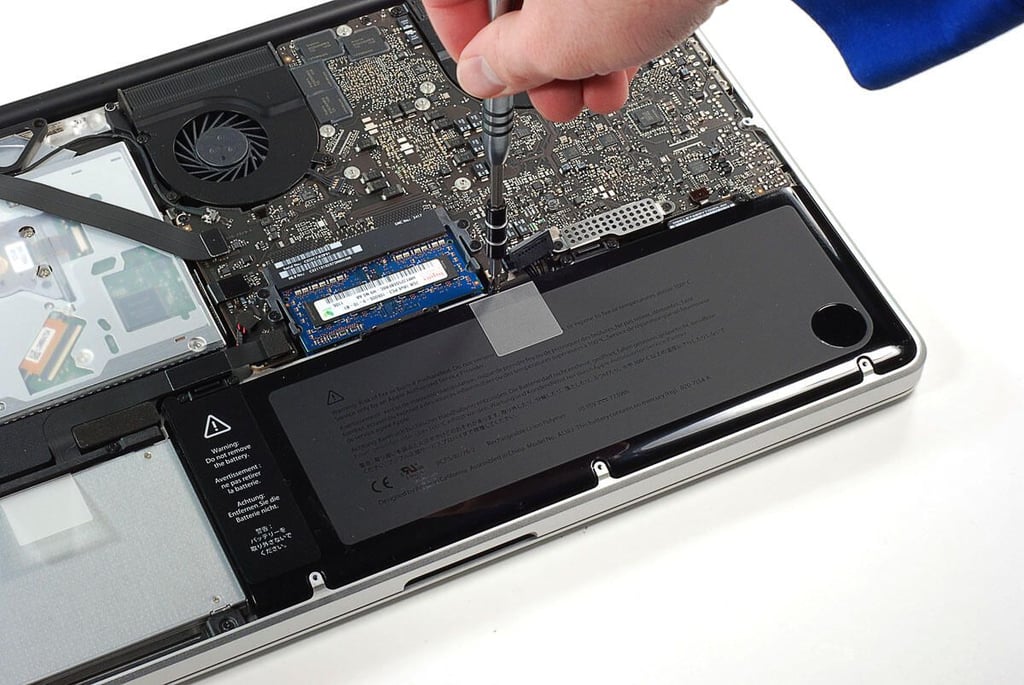

Apple MacBook Pro (2011 Quad-Core i7): Disconnecting the battery

Apple MacBook Pro (2011 Quad-Core i7): Disconnecting the battery

ntPhoto by: Bill Detwiler / TechRepublic
ntCaption by: Bill Detwiler

Apple MacBook Pro Quad-core i7 teardown

Apple MacBook Pro (2011 Quad-Core i7): Removing the battery screw

Apple MacBook Pro (2011 Quad-Core i7): Removing the battery screw

ntPhoto by: Bill Detwiler / TechRepublic
ntCaption by: Bill Detwiler

Apple MacBook Pro Quad-core i7 teardown

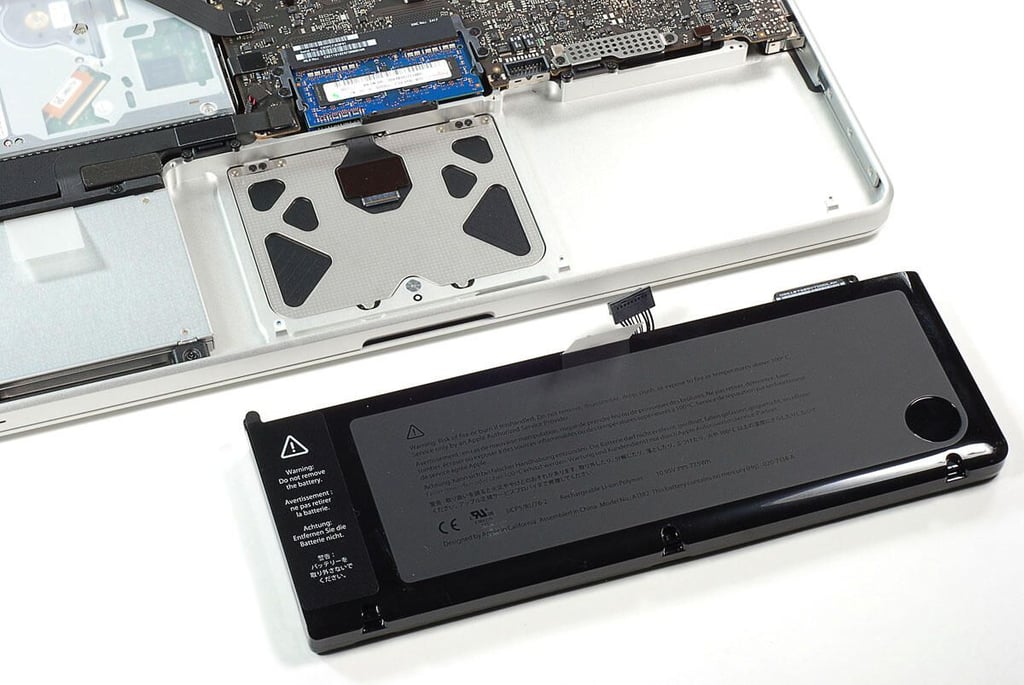

Apple MacBook Pro (2011 Quad-Core i7): Battery removed

Apple MacBook Pro (2011 Quad-Core i7): Battery removed

ntPhoto by: Bill Detwiler / TechRepublic
ntCaption by: Bill Detwiler

Apple MacBook Pro Quad-core i7 teardown

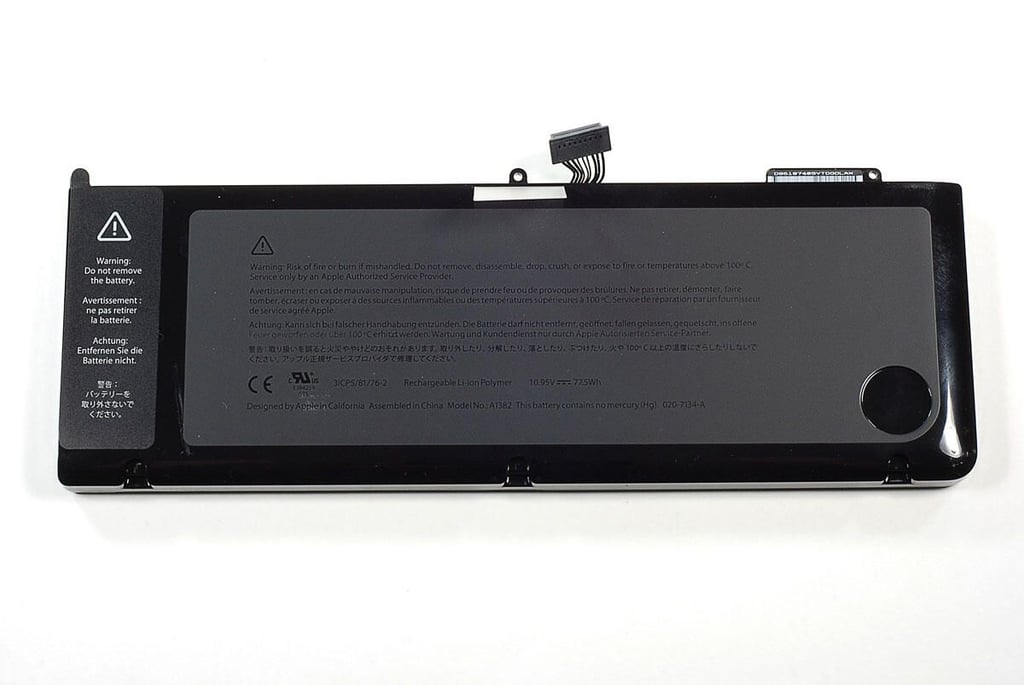

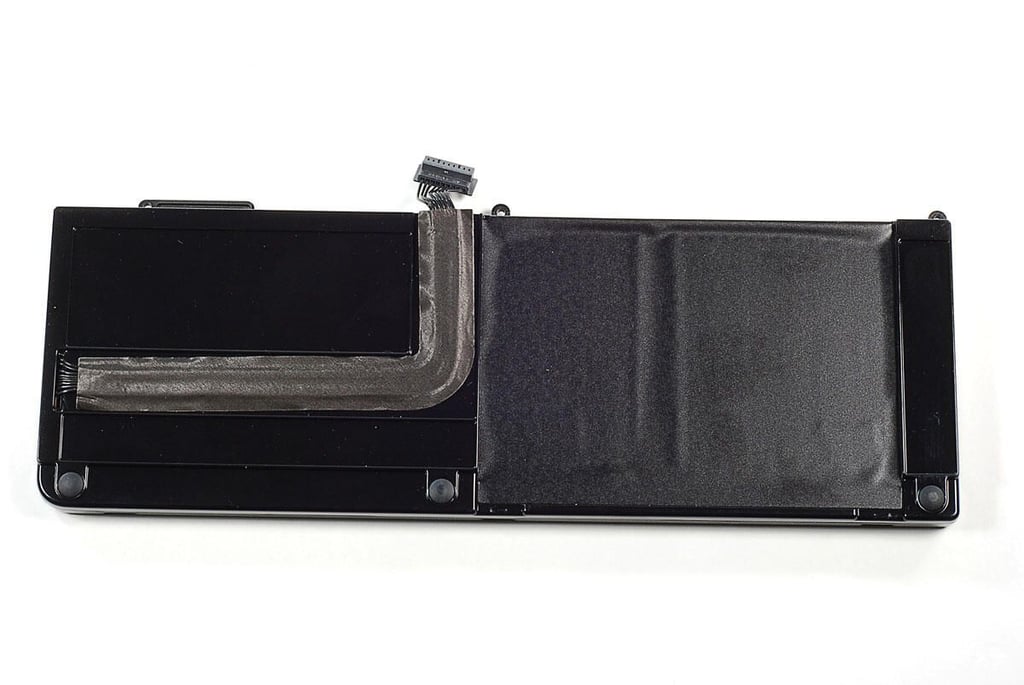

Apple MacBook Pro (2011 Quad-Core i7): Battery

Apple MacBook Pro (2011 Quad-Core i7): Battery

ntPhoto by: Bill Detwiler / TechRepublic
ntCaption by: Bill Detwiler

Apple MacBook Pro Quad-core i7 teardown

Apple MacBook Pro (2011 Quad-Core i7): Battery - Bottom

Apple MacBook Pro (2011 Quad-Core i7): Battery - Bottom

ntPhoto by: Bill Detwiler / TechRepublic
ntCaption by: Bill Detwiler

Apple MacBook Pro Quad-core i7 teardown

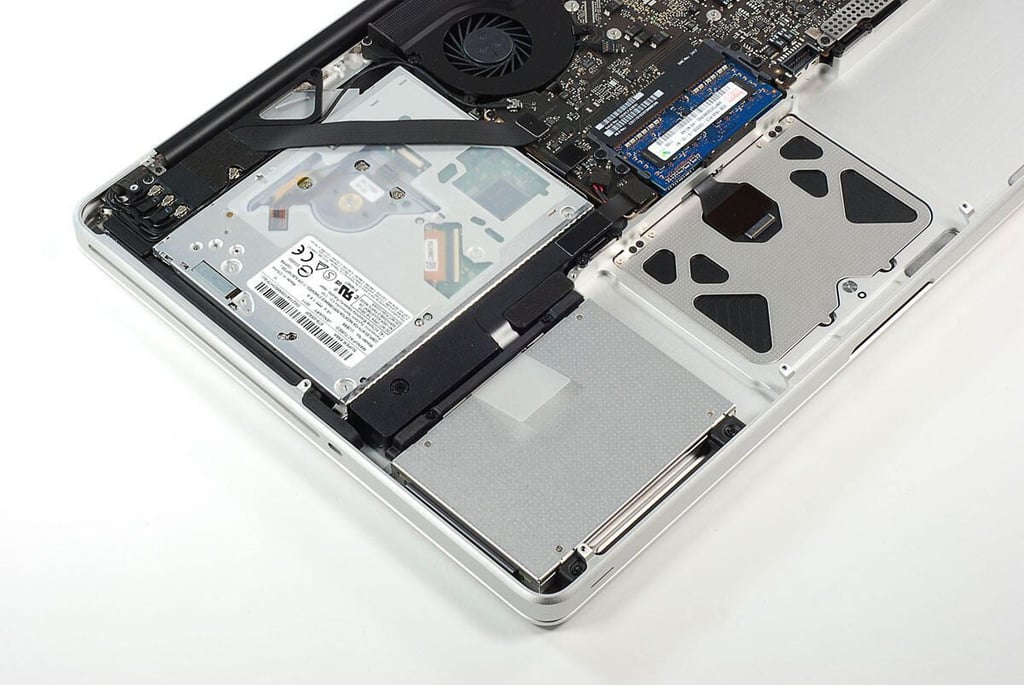

Apple MacBook Pro (2011 Quad-Core i7): SSD

Apple MacBook Pro (2011 Quad-Core i7): SSD

ntPhoto by: Bill Detwiler / TechRepublic
ntCaption by: Bill Detwiler

Apple MacBook Pro Quad-core i7 teardown

Apple MacBook Pro (2011 Quad-Core i7): Removing the SSD bracket screws

Apple MacBook Pro (2011 Quad-Core i7): Removing the SSD bracket screws

ntPhoto by: Bill Detwiler / TechRepublic
ntCaption by: Bill Detwiler

Apple MacBook Pro Quad-core i7 teardown

Apple MacBook Pro (2011 Quad-Core i7): SSD bracket removed

Apple MacBook Pro (2011 Quad-Core i7): SSD bracket removed

ntPhoto by: Bill Detwiler / TechRepublic
ntCaption by: Bill Detwiler

Apple MacBook Pro Quad-core i7 teardown

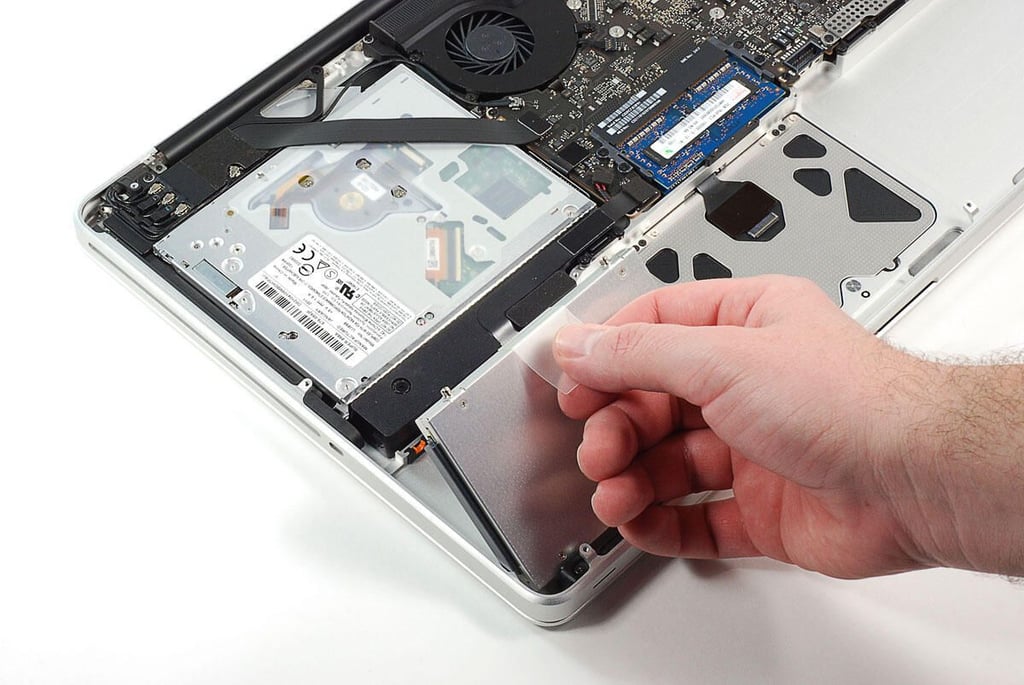

Apple MacBook Pro (2011 Quad-Core i7): Removing the SSD

Apple MacBook Pro (2011 Quad-Core i7): Removing the SSD

ntPhoto by: Bill Detwiler / TechRepublic
ntCaption by: Bill Detwiler

Apple MacBook Pro Quad-core i7 teardown

Apple MacBook Pro (2011 Quad-Core i7): SSD connector

Apple MacBook Pro (2011 Quad-Core i7): SSD connector

ntPhoto by: Bill Detwiler / TechRepublic
ntCaption by: Bill Detwiler

Apple MacBook Pro Quad-core i7 teardown

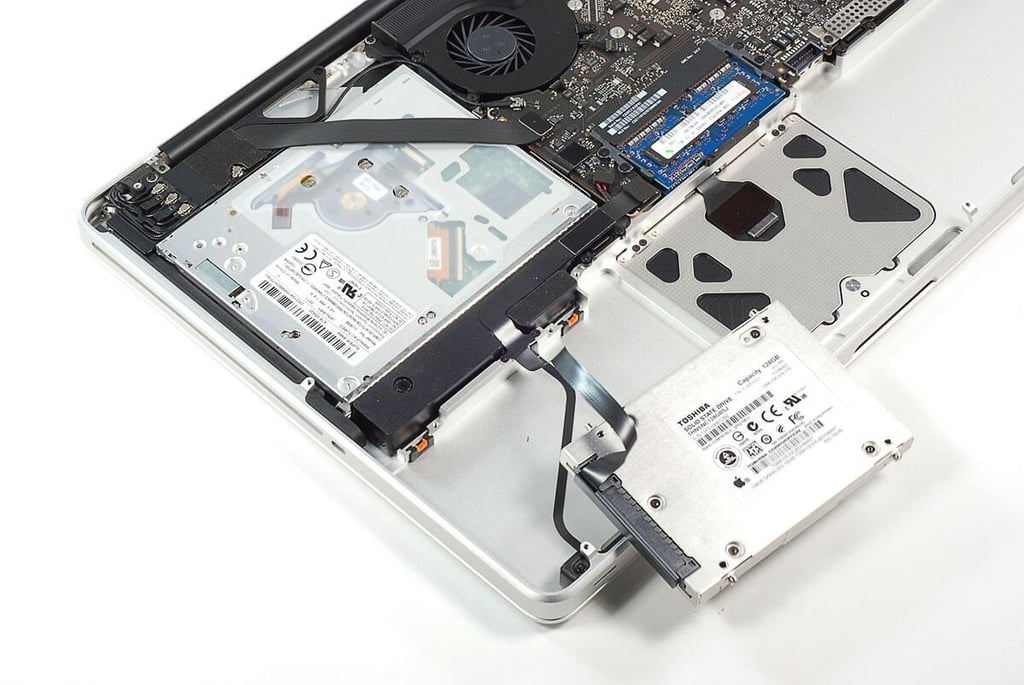

Apple MacBook Pro (2011 Quad-Core i7): Disconnecting the SSD

Apple MacBook Pro (2011 Quad-Core i7): Disconnecting the SSD

ntPhoto by: Bill Detwiler / TechRepublic
ntCaption by: Bill Detwiler

Apple MacBook Pro Quad-core i7 teardown

Apple MacBook Pro (2011 Quad-Core i7): Disconnecting the SSD

Apple MacBook Pro (2011 Quad-Core i7): Disconnecting the SSD

ntPhoto by: Bill Detwiler / TechRepublic
ntCaption by: Bill Detwiler

Apple MacBook Pro Quad-core i7 teardown

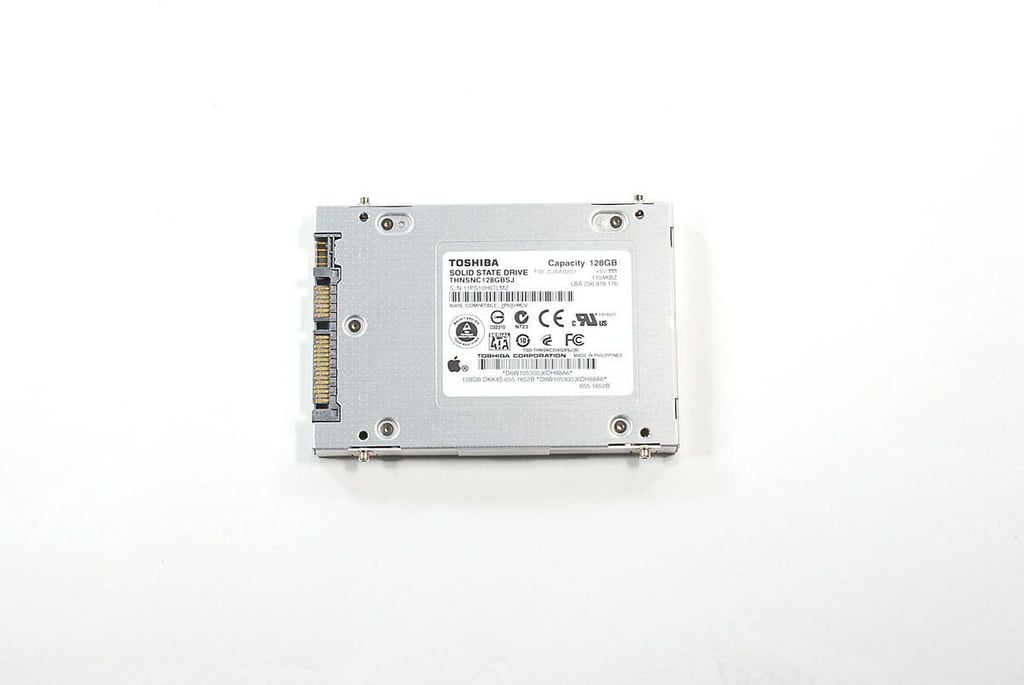

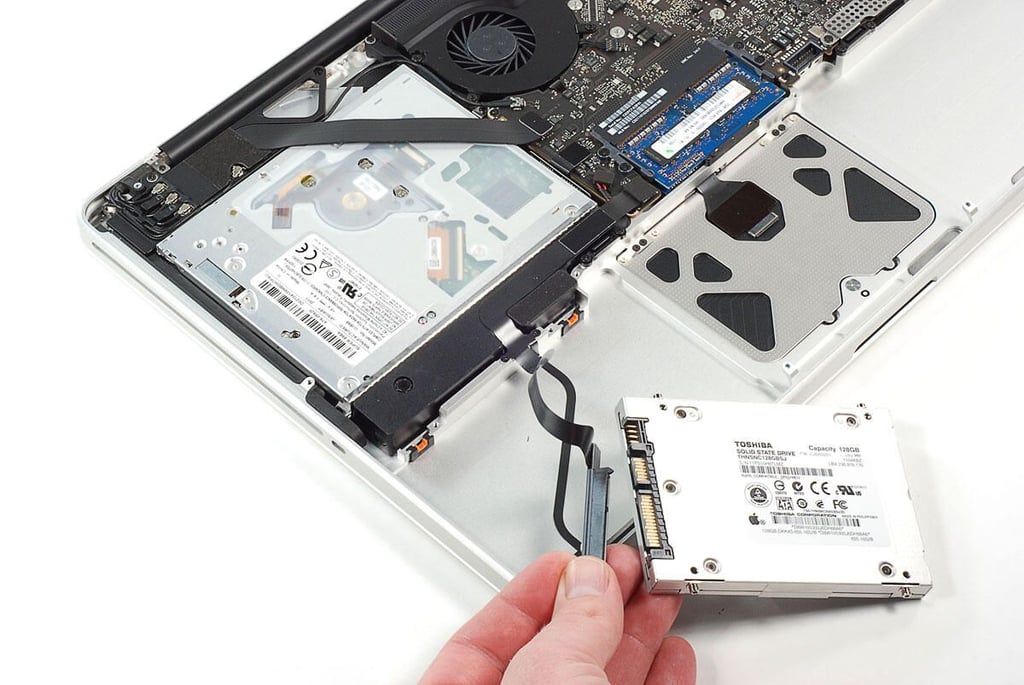

Apple MacBook Pro (2011 Quad-Core i7): Toshiba 128GB SSD

Apple MacBook Pro (2011 Quad-Core i7): Toshiba 128GB SSD

ntPhoto by: Bill Detwiler / TechRepublic
ntCaption by: Bill Detwiler

Apple MacBook Pro Quad-core i7 teardown

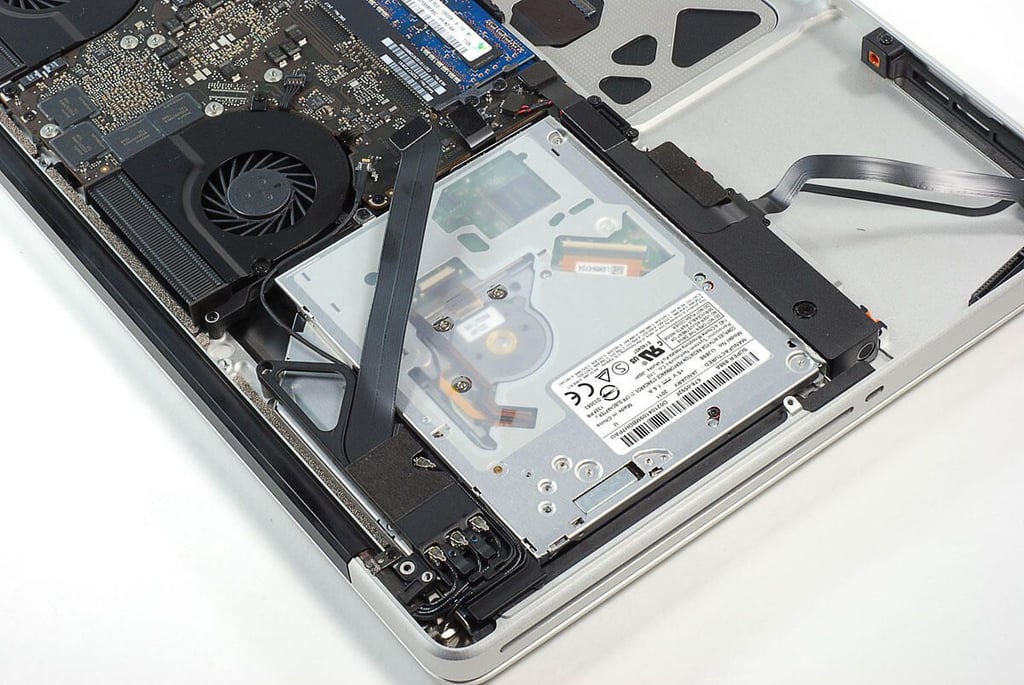

Apple MacBook Pro (2011 Quad-Core i7): 8x SuperDrive

Apple MacBook Pro (2011 Quad-Core i7): 8x SuperDrive

ntPhoto by: Bill Detwiler / TechRepublic
ntCaption by: Bill Detwiler

Apple MacBook Pro Quad-core i7 teardown

Apple MacBook Pro (2011 Quad-Core i7): Removing the wireless card assembly

Apple MacBook Pro (2011 Quad-Core i7): Removing the wireless card assembly

ntPhoto by: Bill Detwiler / TechRepublic
ntCaption by: Bill Detwiler

Apple MacBook Pro Quad-core i7 teardown

Apple MacBook Pro (2011 Quad-Core i7): Disconnecting the wireless assembly cables

Apple MacBook Pro (2011 Quad-Core i7): Disconnecting the wireless assembly cables

ntPhoto by: Bill Detwiler / TechRepublic
ntCaption by: Bill Detwiler

Apple MacBook Pro Quad-core i7 teardown

Apple MacBook Pro (2011 Quad-Core i7): Wireless assembly cables disconnected

Apple MacBook Pro (2011 Quad-Core i7): Wireless assembly cables disconnected

ntPhoto by: Bill Detwiler / TechRepublic
ntCaption by: Bill Detwiler

Apple MacBook Pro Quad-core i7 teardown

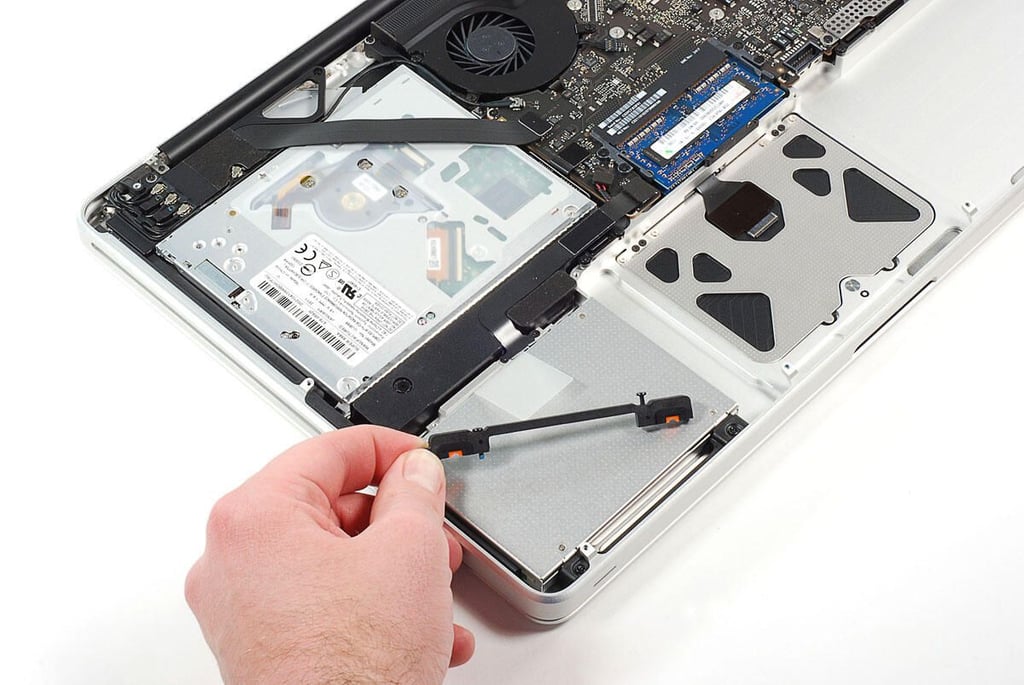

Apple MacBook Pro (2011 Quad-Core i7): Wireless assembly moved to the side

Apple MacBook Pro (2011 Quad-Core i7): Wireless assembly moved to the side

ntPhoto by: Bill Detwiler / TechRepublic
ntCaption by: Bill Detwiler

Apple MacBook Pro Quad-core i7 teardown

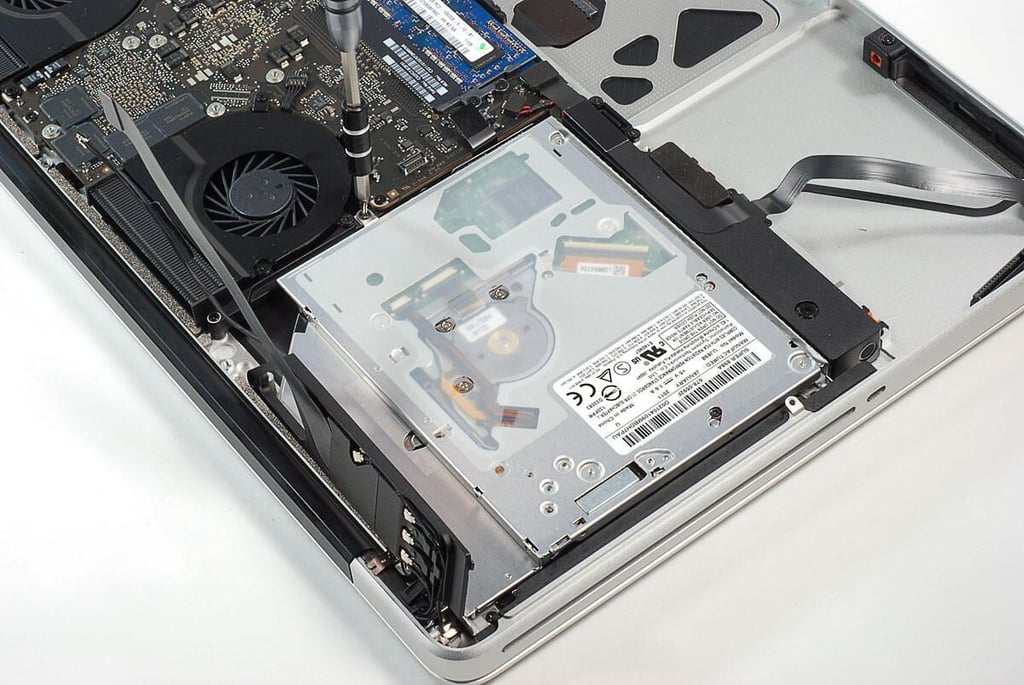

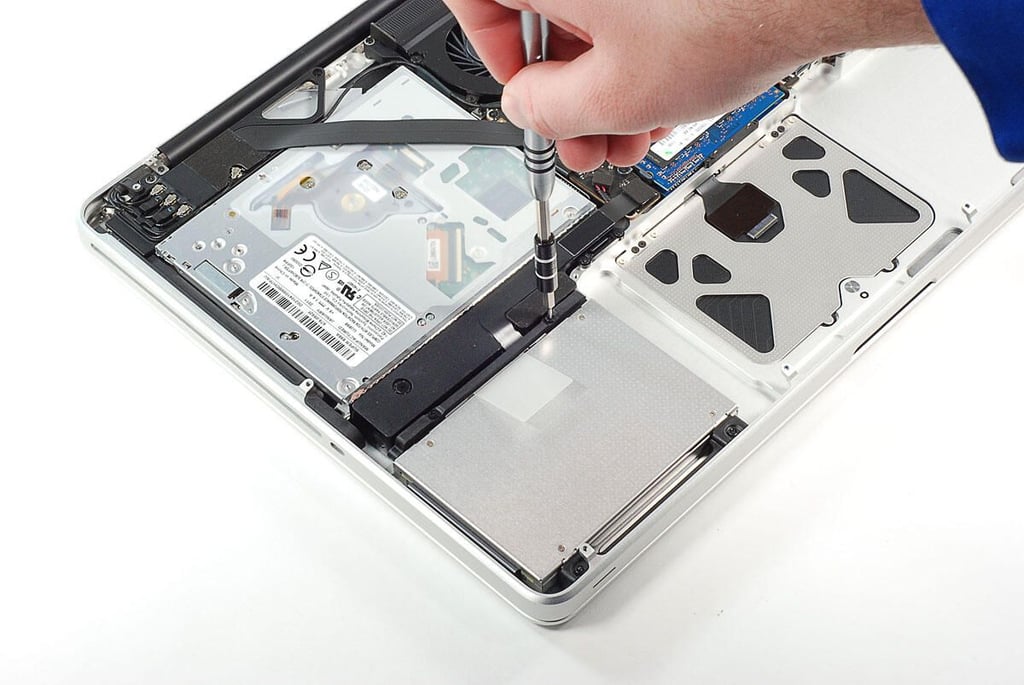

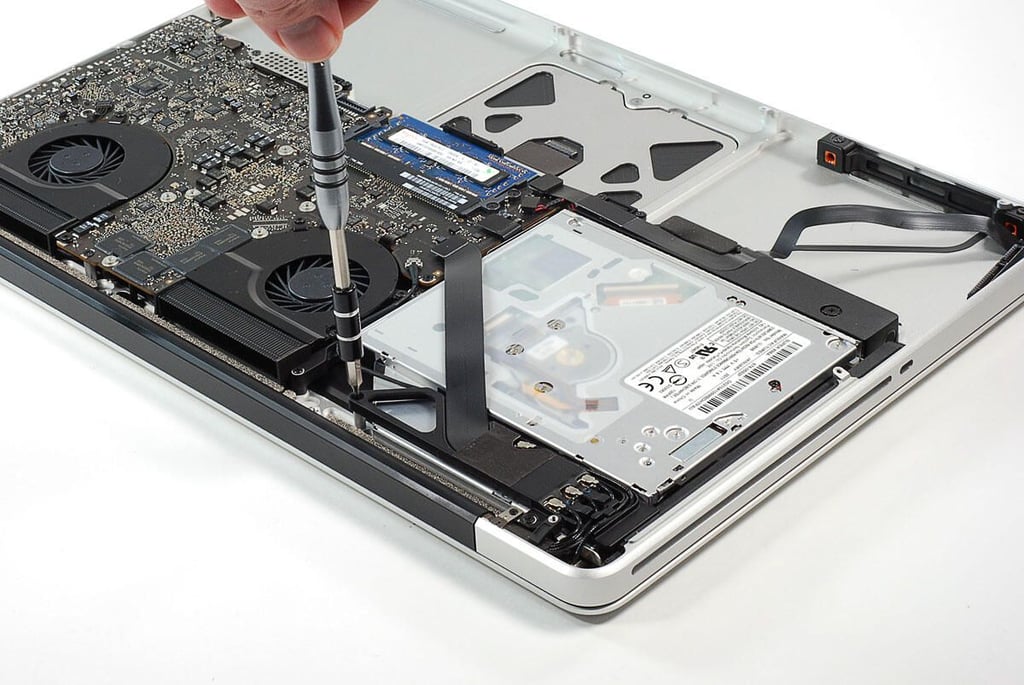

Apple MacBook Pro (2011 Quad-Core i7): Removing the SuperDrive screws

Apple MacBook Pro (2011 Quad-Core i7): Removing the SuperDrive screws

ntPhoto by: Bill Detwiler / TechRepublic
ntCaption by: Bill Detwiler

Apple MacBook Pro Quad-core i7 teardown

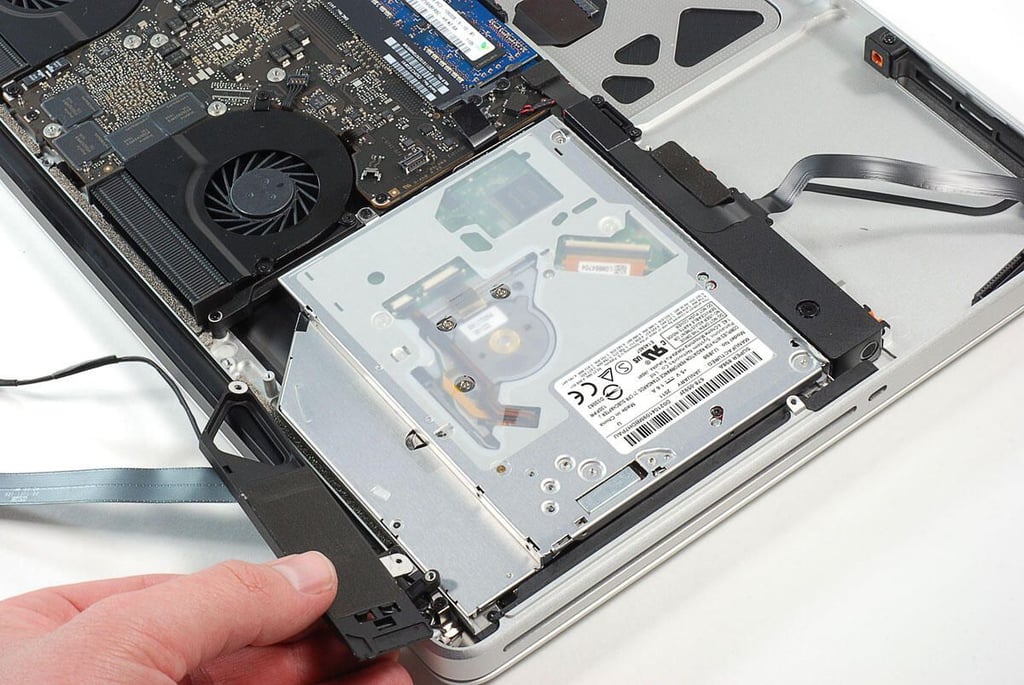

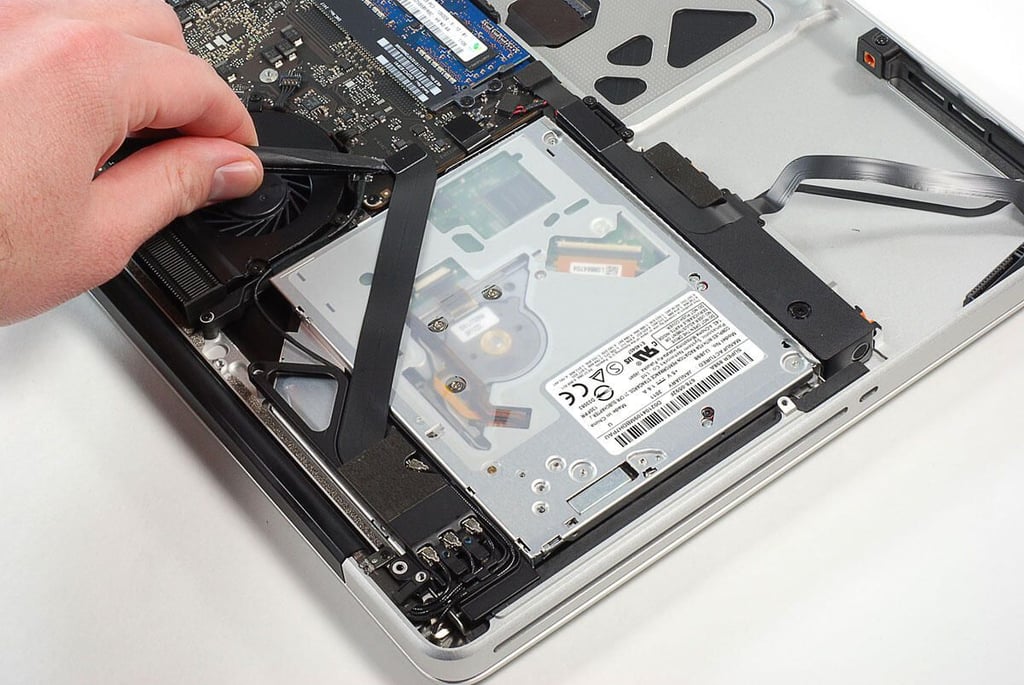

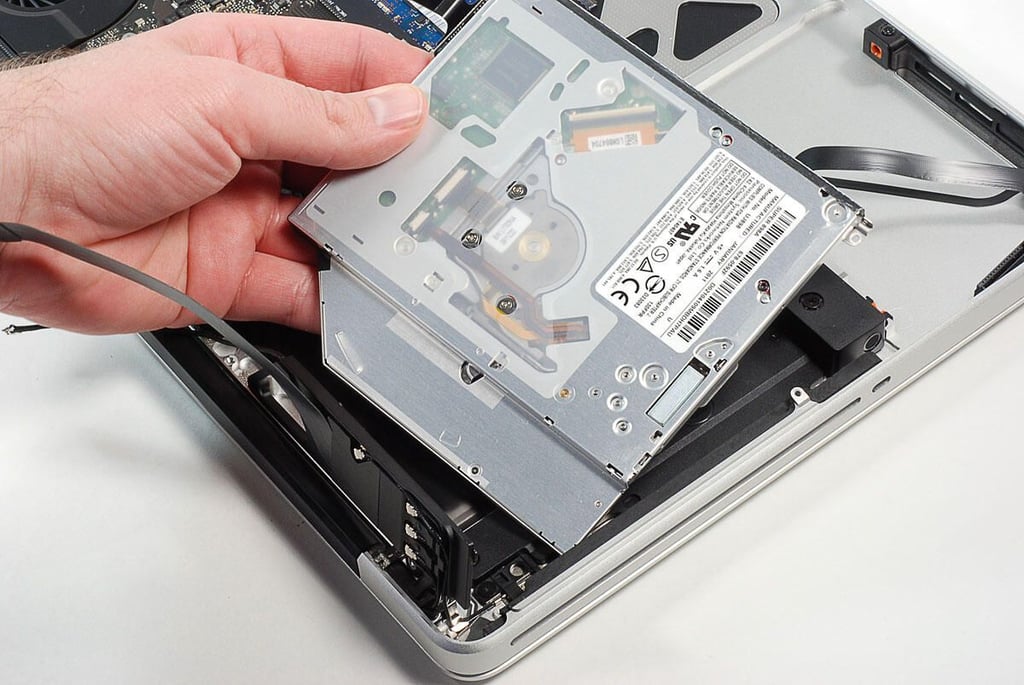

Apple MacBook Pro (2011 Quad-Core i7): Removing the SuperDrive

Apple MacBook Pro (2011 Quad-Core i7): Removing the SuperDrive

ntPhoto by: Bill Detwiler / TechRepublic
ntCaption by: Bill Detwiler

Apple MacBook Pro Quad-core i7 teardown

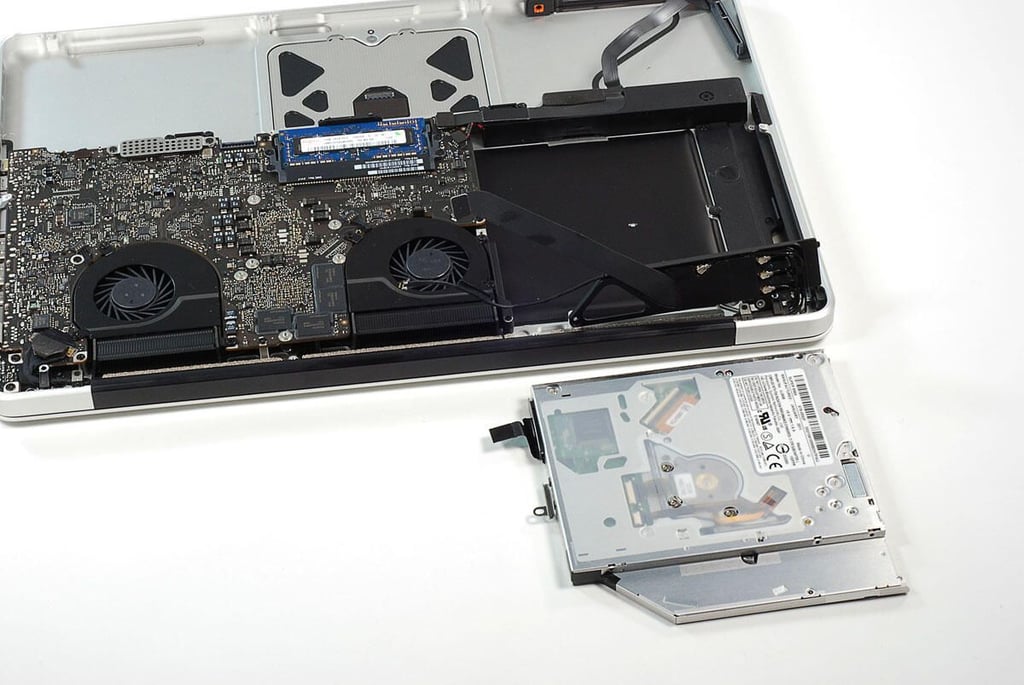

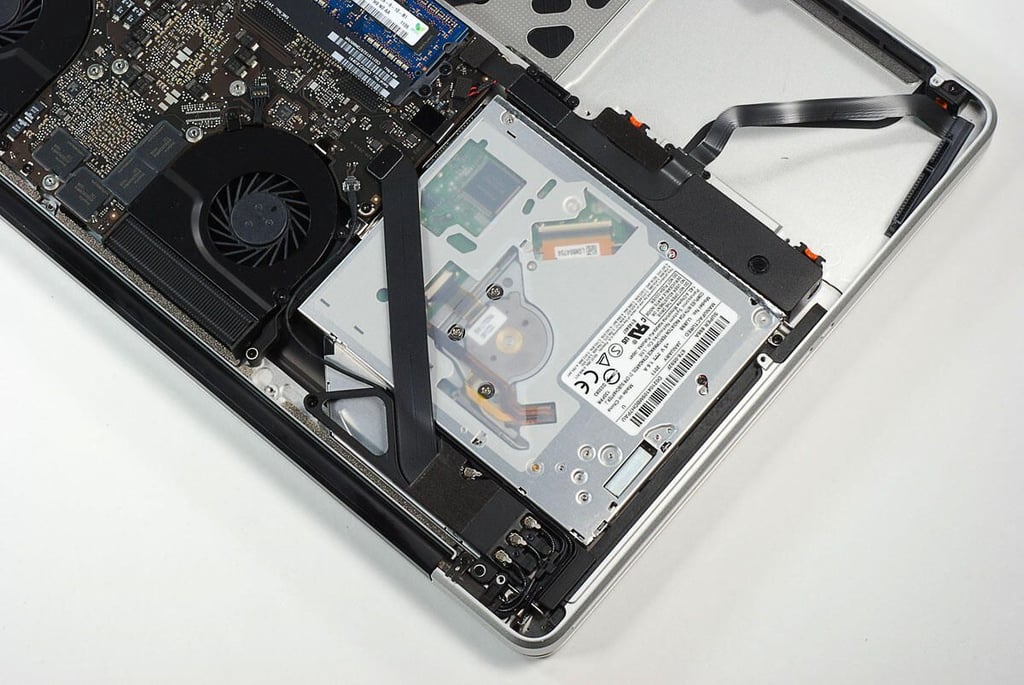

Apple MacBook Pro (2011 Quad-Core i7): SuperDrive removed

Apple MacBook Pro (2011 Quad-Core i7): SuperDrive removed

ntPhoto by: Bill Detwiler / TechRepublic
ntCaption by: Bill Detwiler

Apple MacBook Pro Quad-core i7 teardown

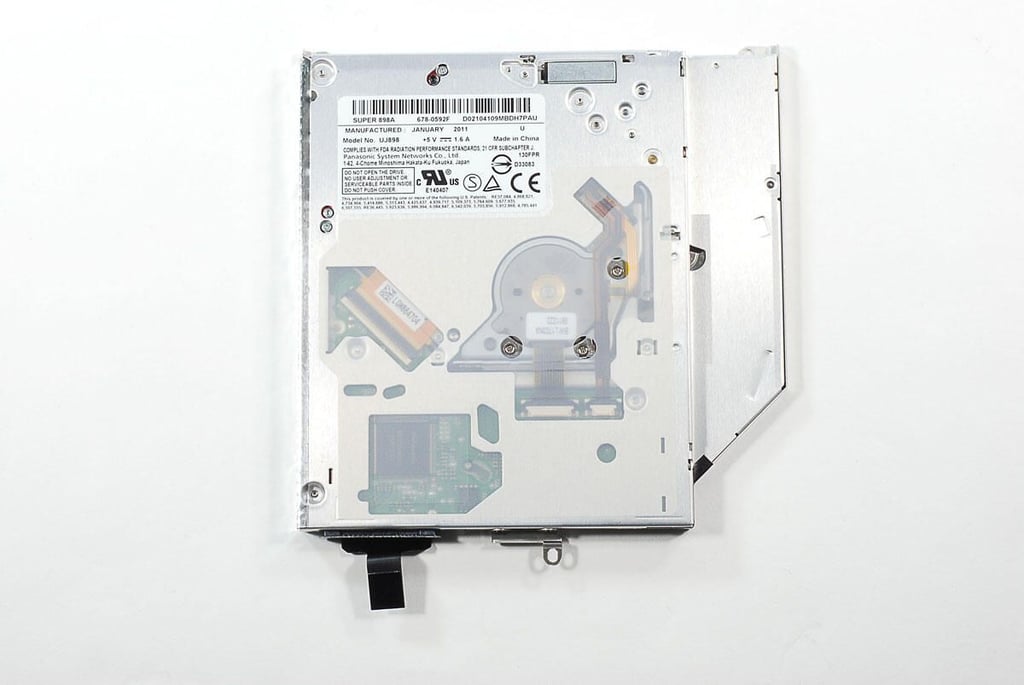

Apple MacBook Pro (2011 Quad-Core i7): 8X SuperDrive

Apple MacBook Pro (2011 Quad-Core i7): 8X SuperDrive

ntPhoto by: Bill Detwiler / TechRepublic
ntCaption by: Bill Detwiler

Apple MacBook Pro Quad-core i7 teardown

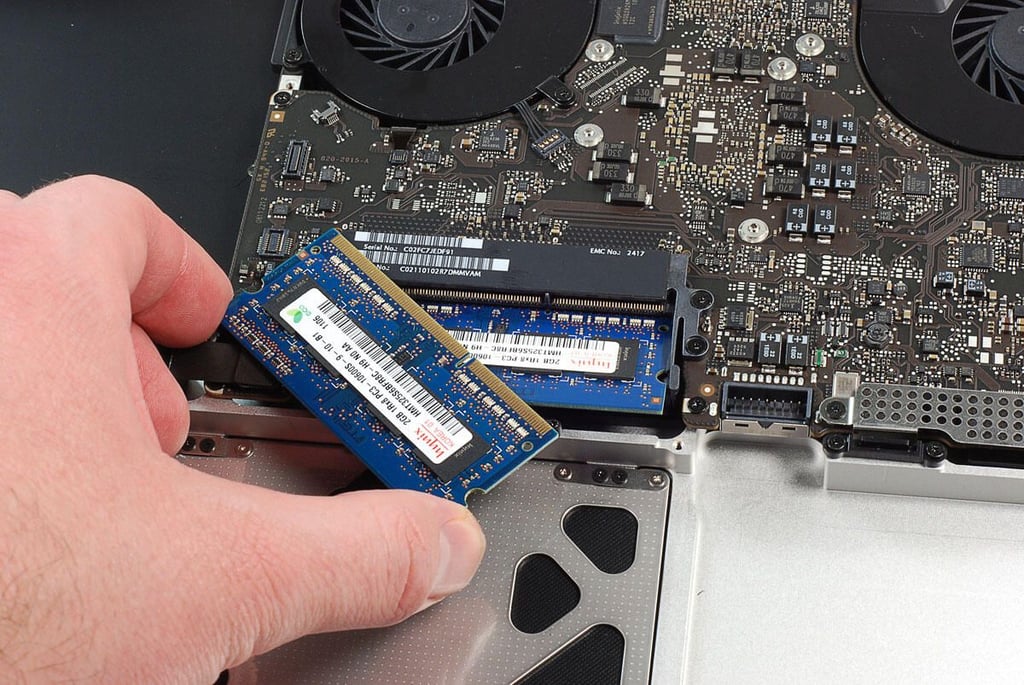

Apple MacBook Pro (2011 Quad-Core i7): Removing the RAM chips

Apple MacBook Pro (2011 Quad-Core i7): Removing the RAM chips

ntPhoto by: Bill Detwiler / TechRepublic
ntCaption by: Bill Detwiler

Apple MacBook Pro Quad-core i7 teardown

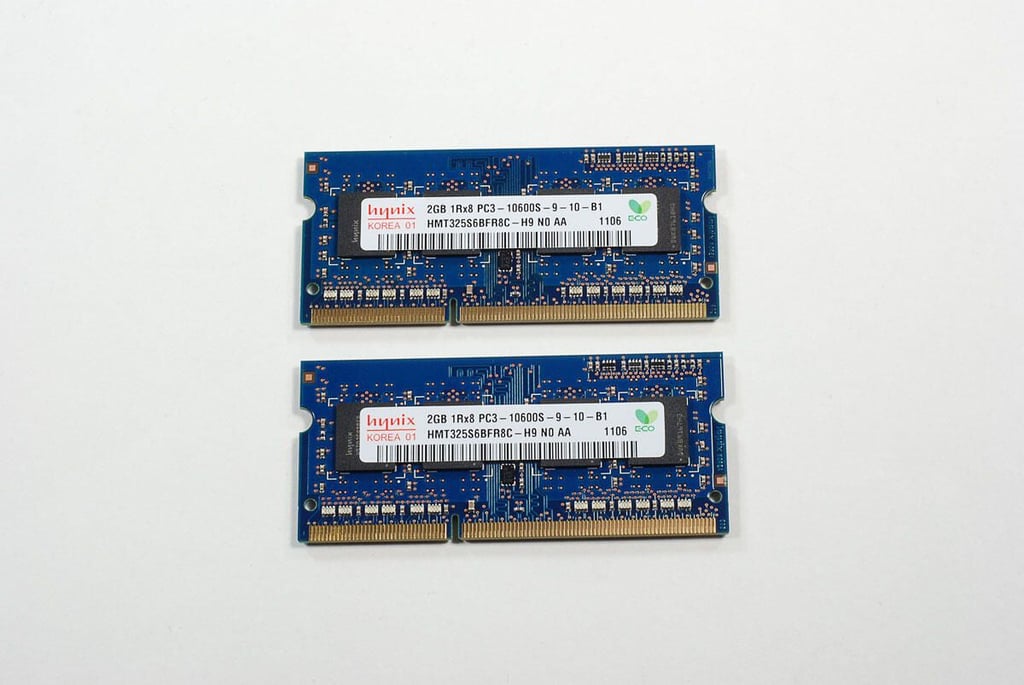

Apple MacBook Pro (2011 Quad-Core i7): 4GB 1333MHz DDR3 SDRAM

Apple MacBook Pro (2011 Quad-Core i7): 4GB 1333MHz DDR3 SDRAM

ntPhoto by: Bill Detwiler / TechRepublic
ntCaption by: Bill Detwiler

Apple MacBook Pro Quad-core i7 teardown

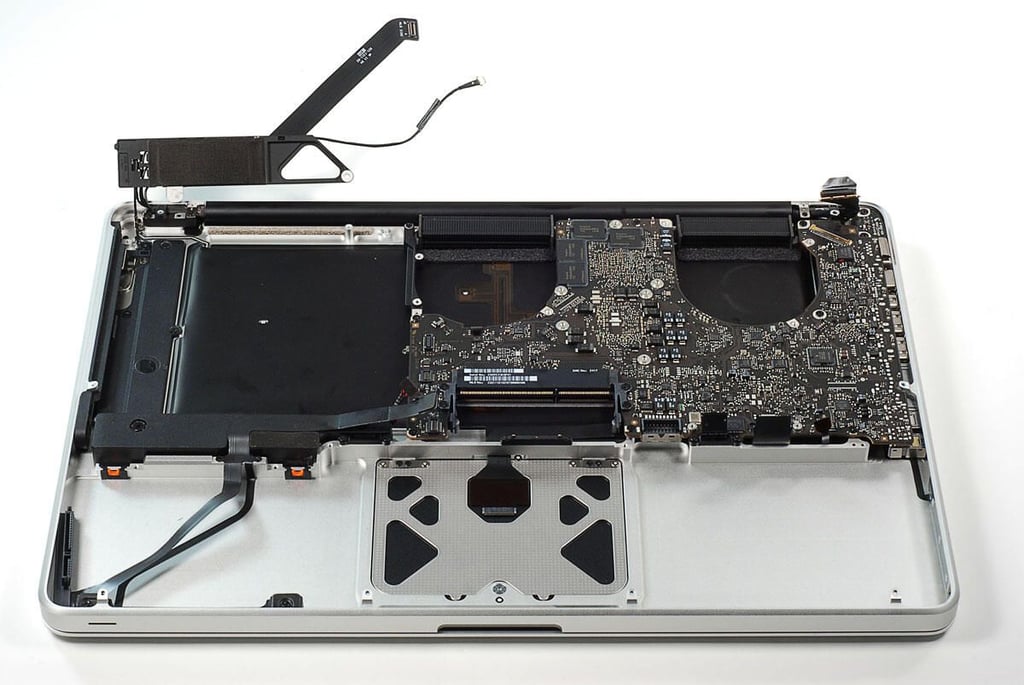

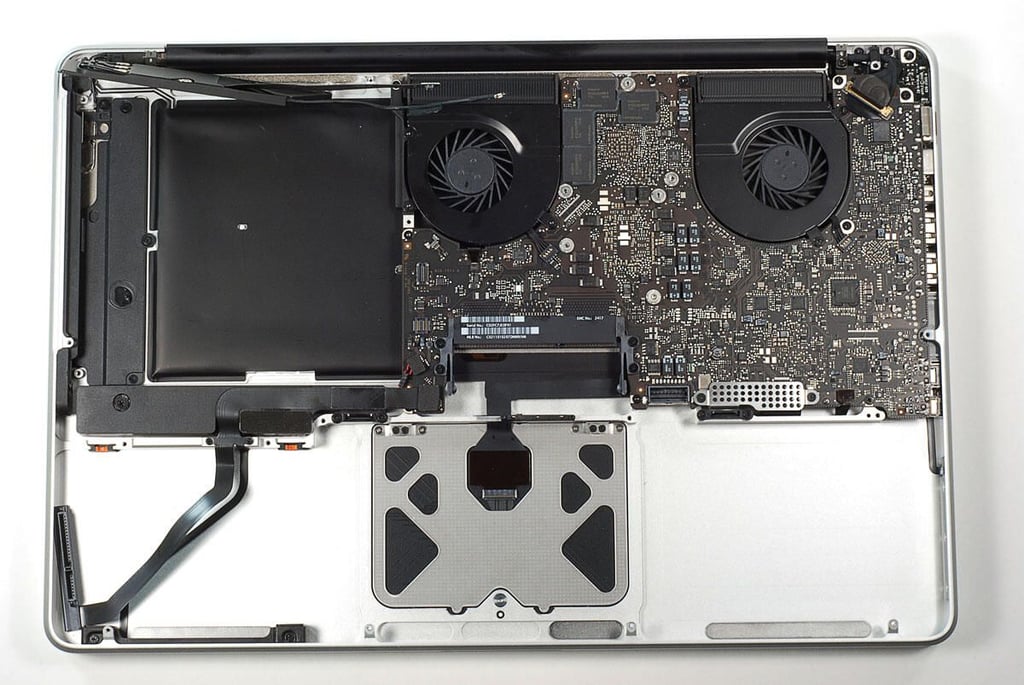

Apple MacBook Pro (2011 Quad-Core i7): Battery, SSD, and SuperDrive removed

Apple MacBook Pro (2011 Quad-Core i7): Battery, SSD, and SuperDrive removed

ntPhoto by: Bill Detwiler / TechRepublic
ntCaption by: Bill Detwiler

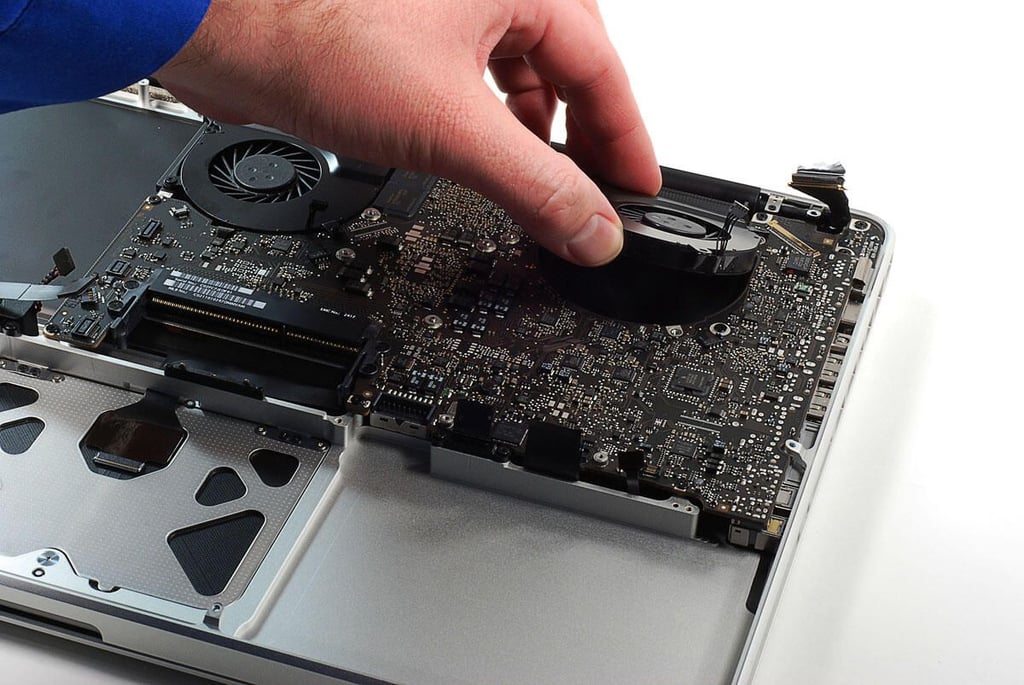

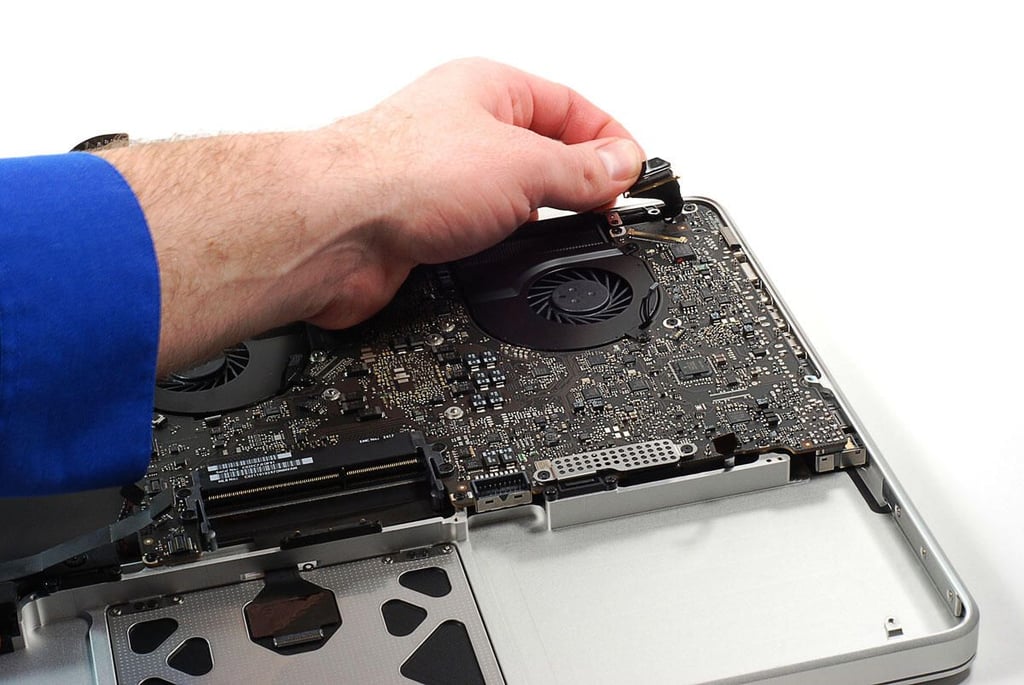

Apple MacBook Pro Quad-core i7 teardown

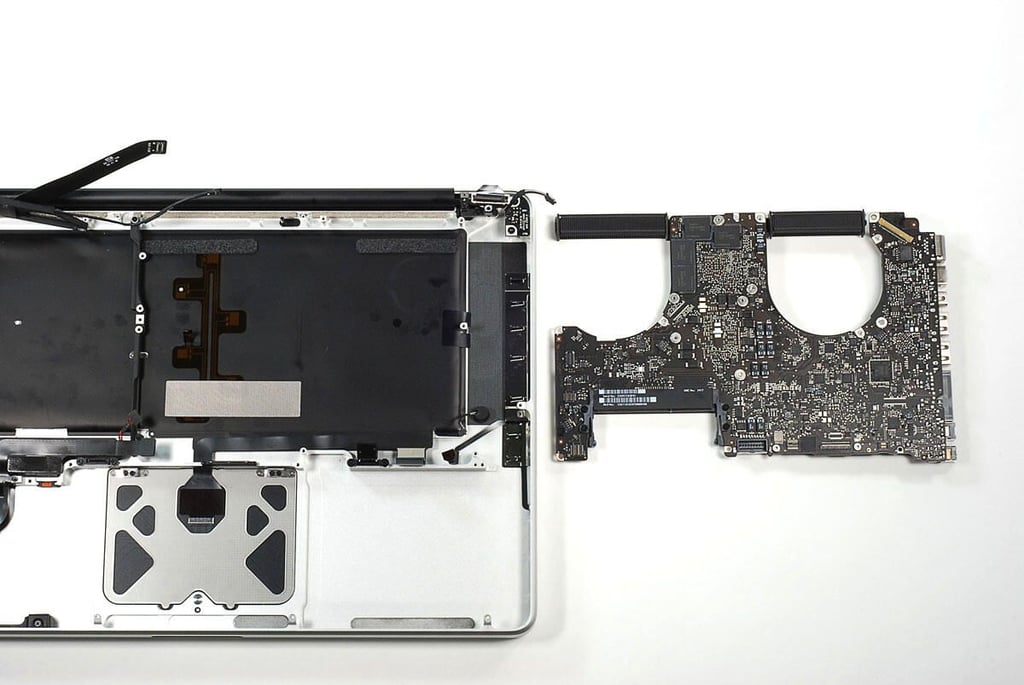

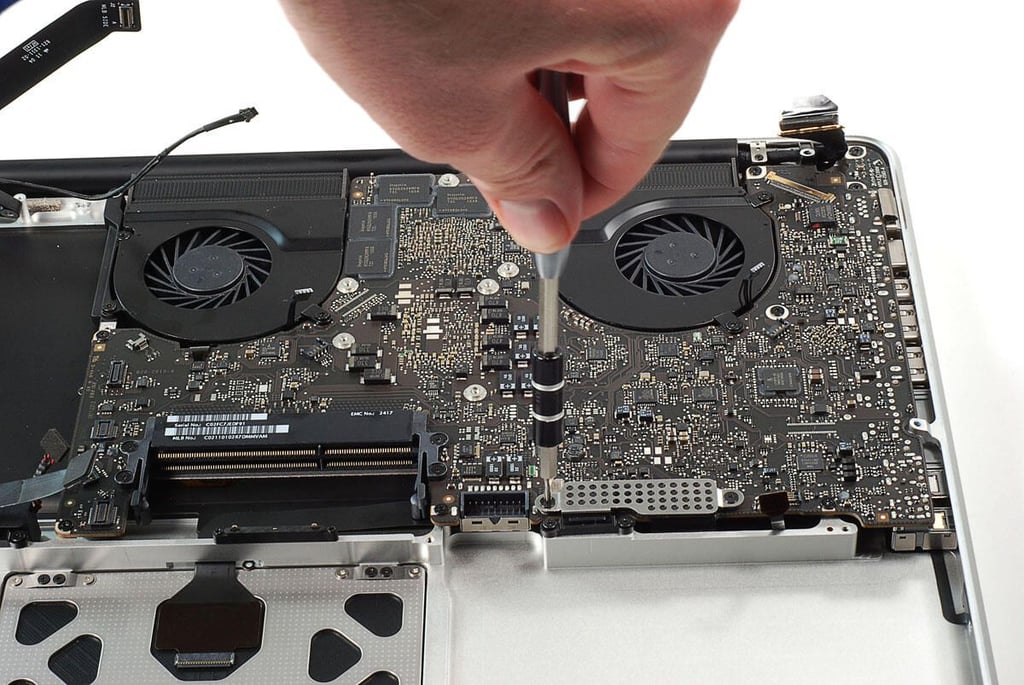

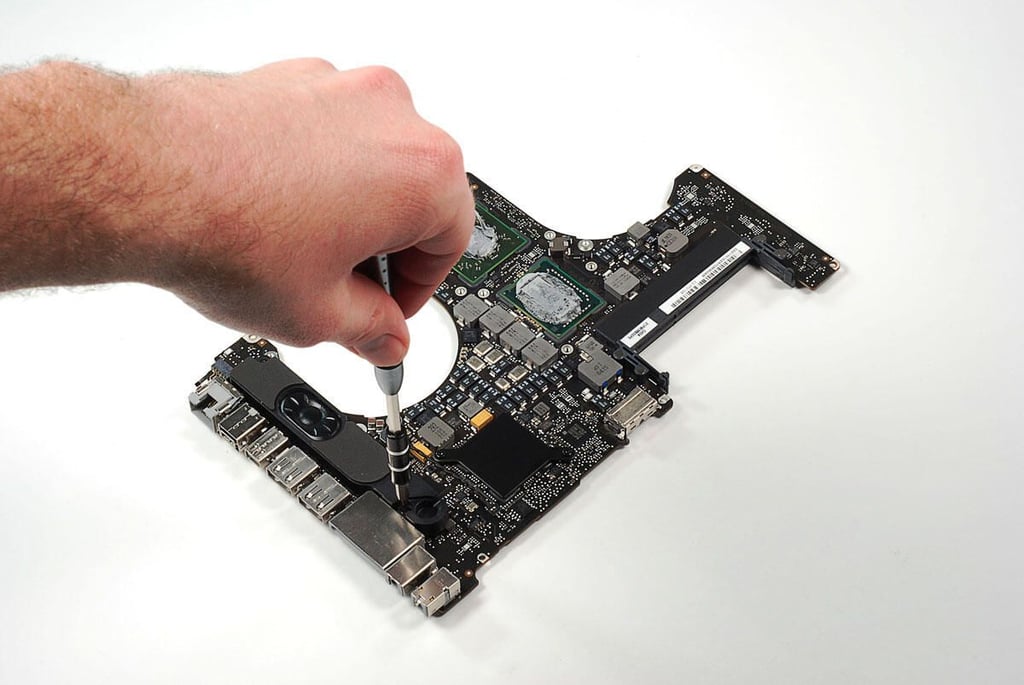

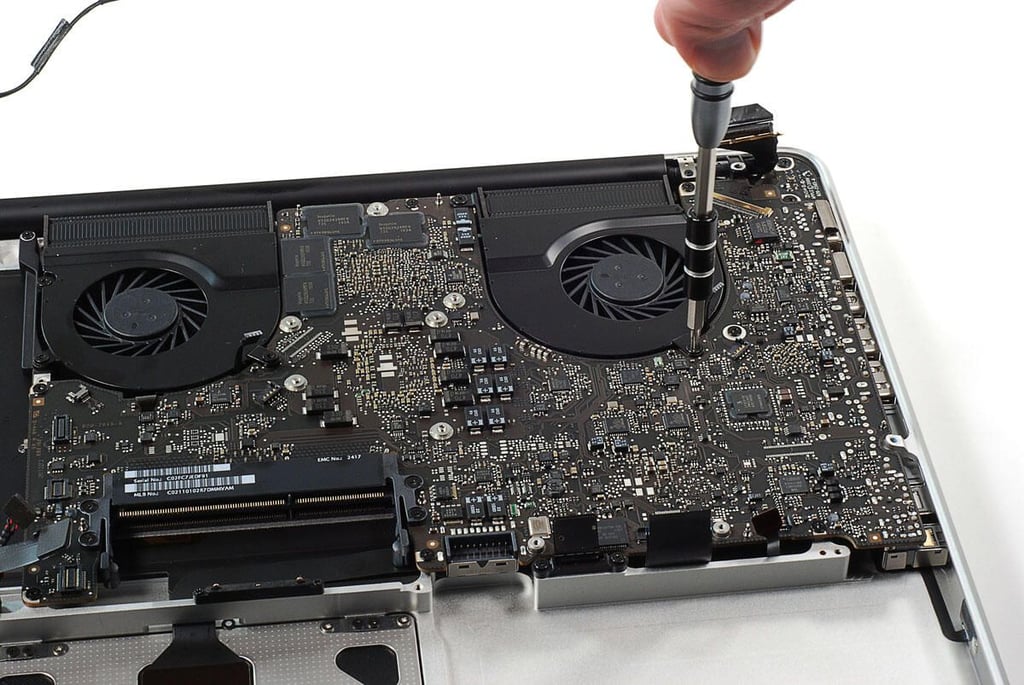

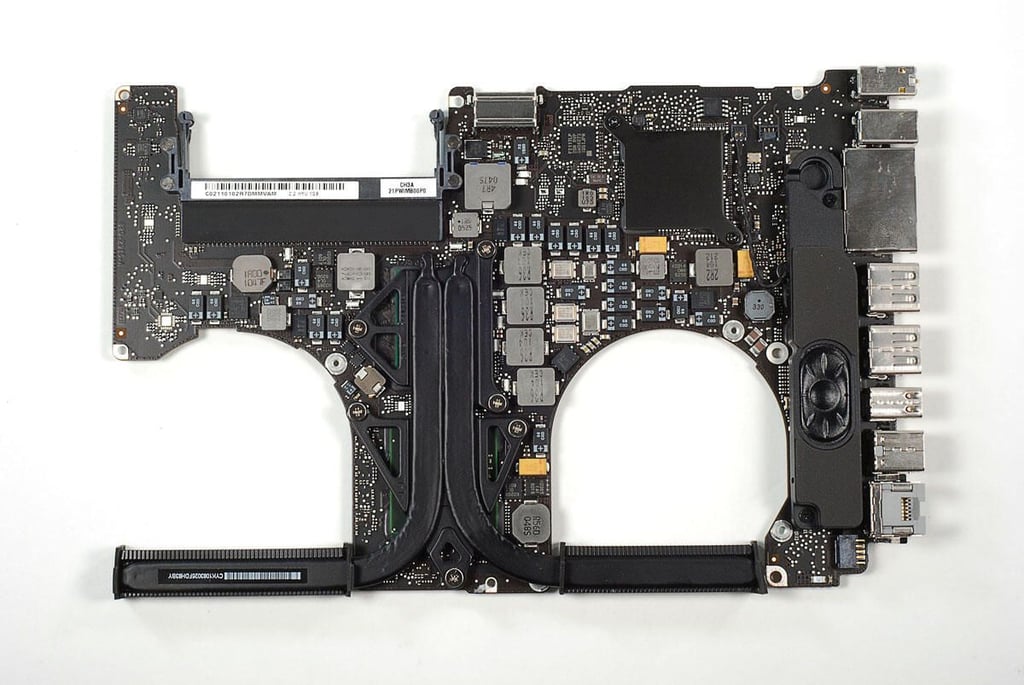

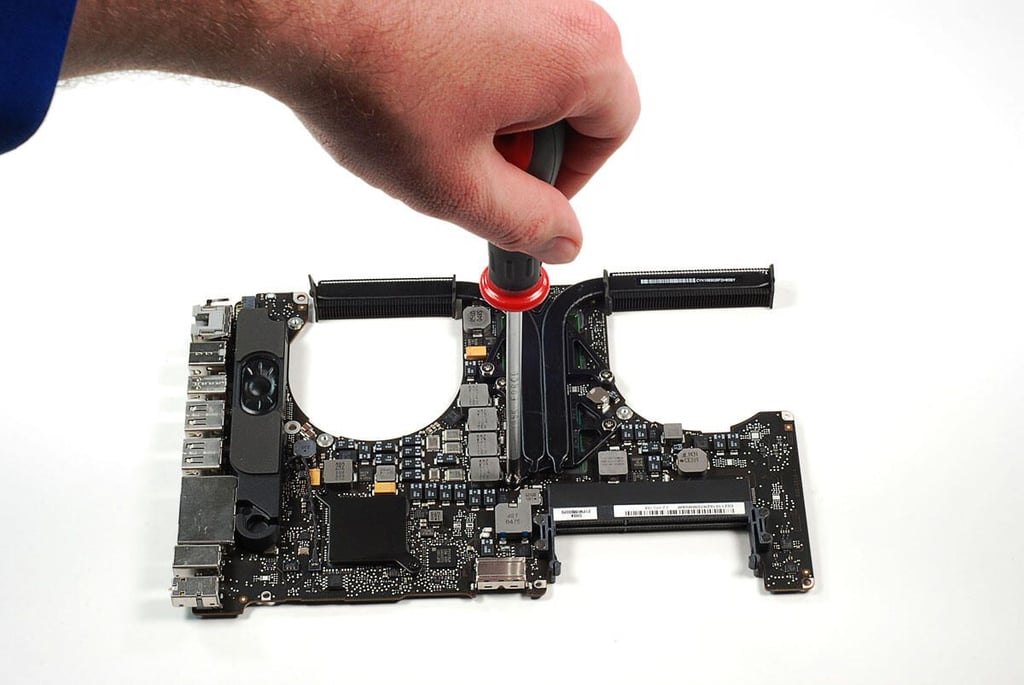

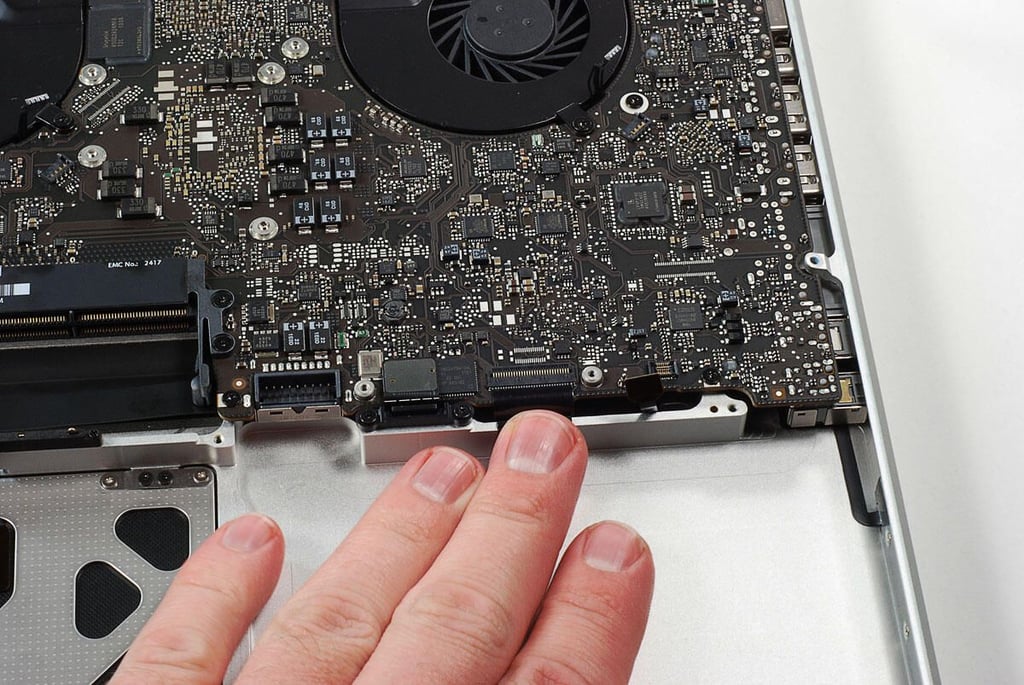

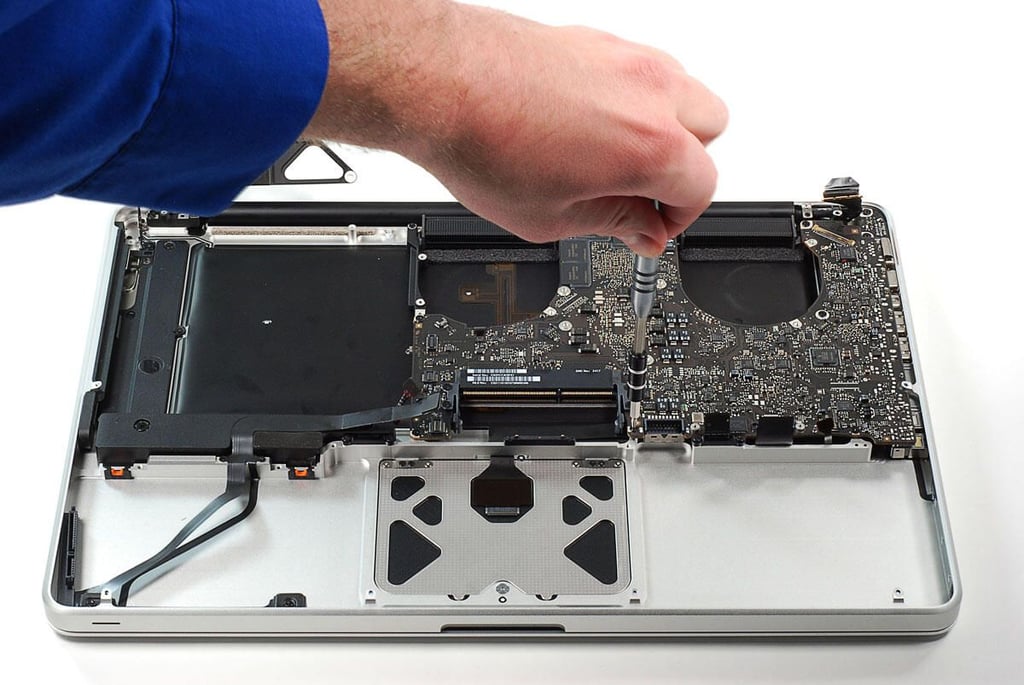

Apple MacBook Pro (2011 Quad-Core i7): Disconnecting motherboard connectors

Apple MacBook Pro (2011 Quad-Core i7): Disconnecting motherboard connectors

ntPhoto by: Bill Detwiler / TechRepublic
ntCaption by: Bill Detwiler

Apple MacBook Pro Quad-core i7 teardown

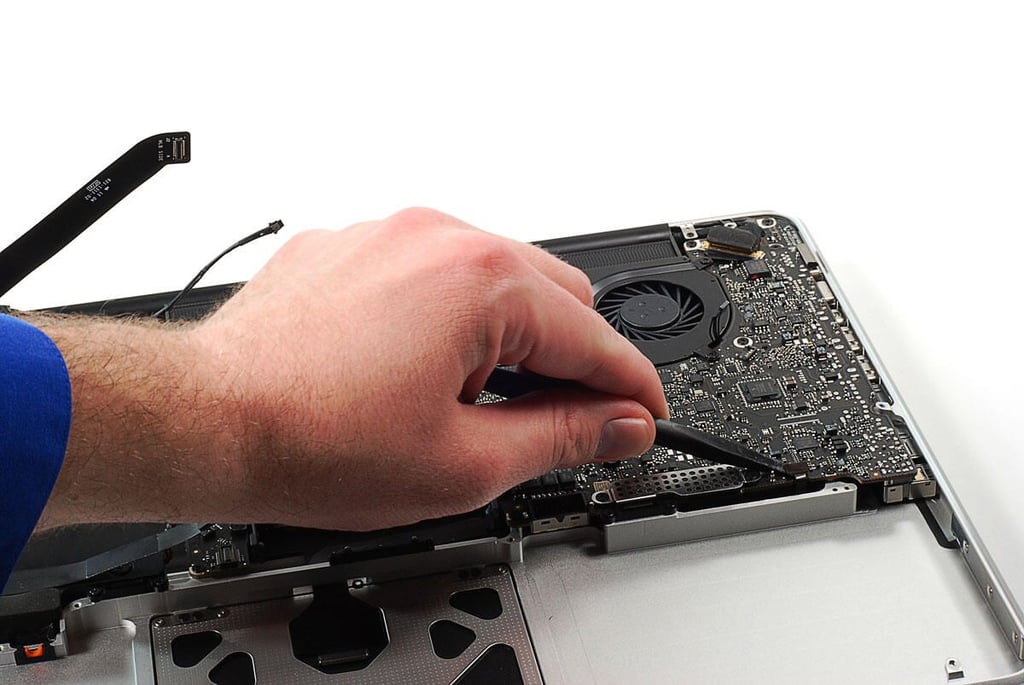

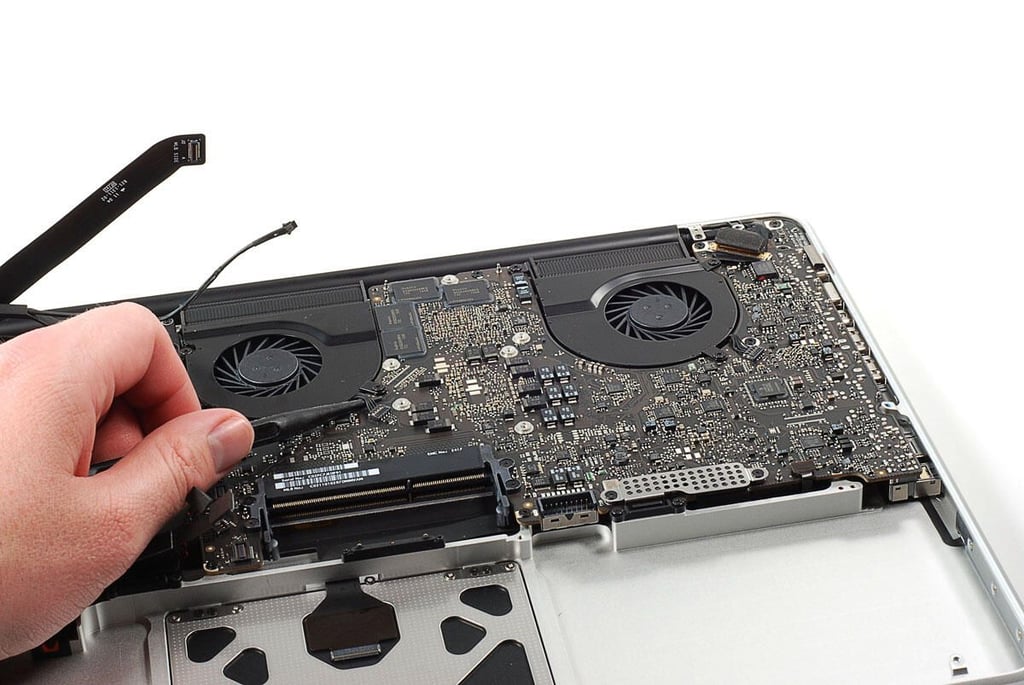

Apple MacBook Pro (2011 Quad-Core i7): Disconnecting the internal fan cable

Apple MacBook Pro (2011 Quad-Core i7): Disconnecting the internal fan cable

ntPhoto by: Bill Detwiler / TechRepublic
ntCaption by: Bill Detwiler

Apple MacBook Pro Quad-core i7 teardown

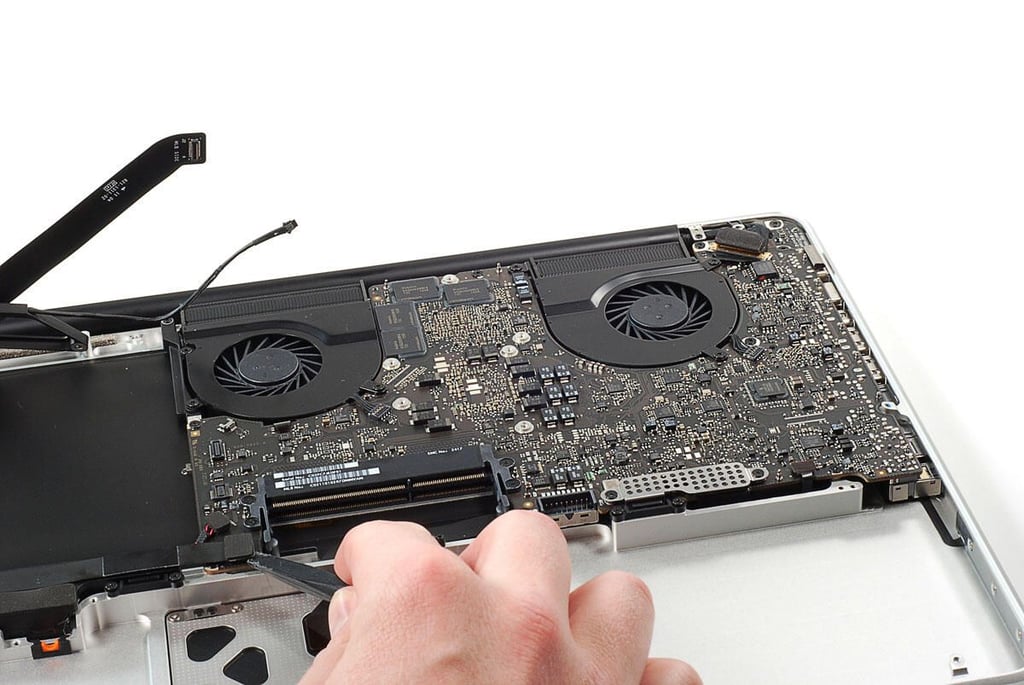

Apple MacBook Pro (2011 Quad-Core i7): Detaching another motherboard connector

Apple MacBook Pro (2011 Quad-Core i7): Detaching another motherboard connector

ntPhoto by: Bill Detwiler / TechRepublic
ntCaption by: Bill Detwiler

Apple MacBook Pro Quad-core i7 teardown

Apple MacBook Pro (2011 Quad-Core i7): Disconnecting the display cable

Apple MacBook Pro (2011 Quad-Core i7): Disconnecting the display cable

ntPhoto by: Bill Detwiler / TechRepublic
ntCaption by: Bill Detwiler

Apple MacBook Pro Quad-core i7 teardown

Apple MacBook Pro (2011 Quad-Core i7): Removing a small metal motherboard connector cover

Apple MacBook Pro (2011 Quad-Core i7): Removing a small metal motherboard connector cover

ntPhoto by: Bill Detwiler / TechRepublic
ntCaption by: Bill Detwiler

Apple MacBook Pro Quad-core i7 teardown

Apple MacBook Pro (2011 Quad-Core i7): Disconnecting a motherboard ribbon cable

Apple MacBook Pro (2011 Quad-Core i7): Disconnecting a motherboard ribbon cable

ntPhoto by: Bill Detwiler / TechRepublic
ntCaption by: Bill Detwiler

Apple MacBook Pro Quad-core i7 teardown

Apple MacBook Pro (2011 Quad-Core i7): Removing the internal fan screws

Apple MacBook Pro (2011 Quad-Core i7): Removing the internal fan screws

ntPhoto by: Bill Detwiler / TechRepublic
ntCaption by: Bill Detwiler

Apple MacBook Pro Quad-core i7 teardown

Apple MacBook Pro (2011 Quad-Core i7): Removing the internal fans

Apple MacBook Pro (2011 Quad-Core i7): Removing the internal fans

ntPhoto by: Bill Detwiler / TechRepublic
ntCaption by: Bill Detwiler

Apple MacBook Pro Quad-core i7 teardown

Apple MacBook Pro (2011 Quad-Core i7): Internal fans removed

Apple MacBook Pro (2011 Quad-Core i7): Internal fans removed

ntPhoto by: Bill Detwiler / TechRepublic
ntCaption by: Bill Detwiler

Apple MacBook Pro Quad-core i7 teardown

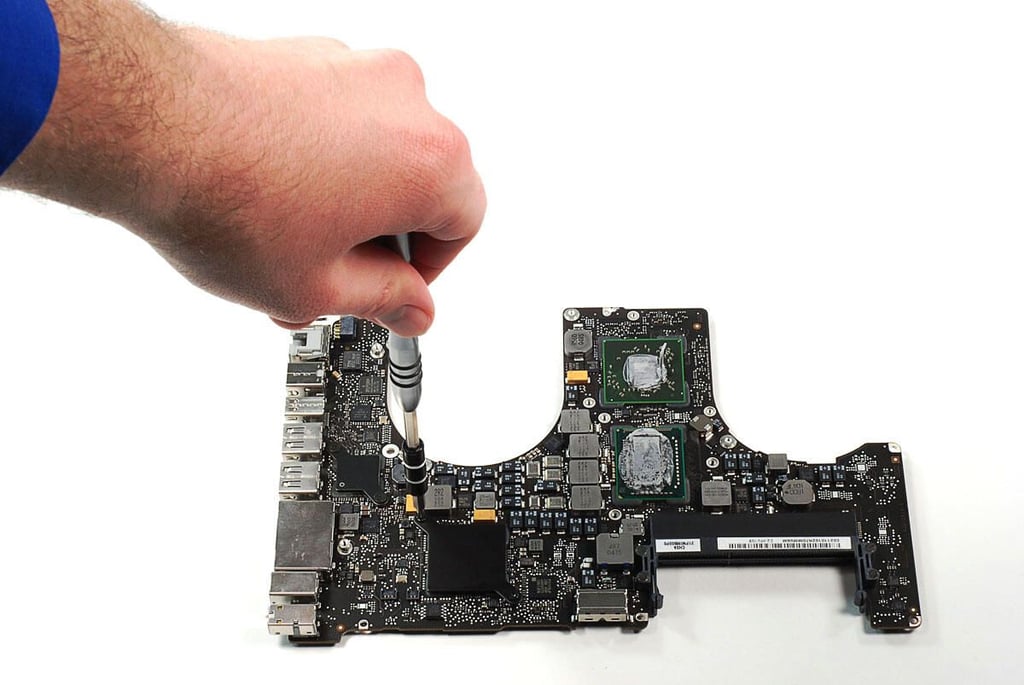

Apple MacBook Pro (2011 Quad-Core i7): Removing the motherboard screws

Apple MacBook Pro (2011 Quad-Core i7): Removing the motherboard screws

ntPhoto by: Bill Detwiler / TechRepublic
ntCaption by: Bill Detwiler

Apple MacBook Pro Quad-core i7 teardown

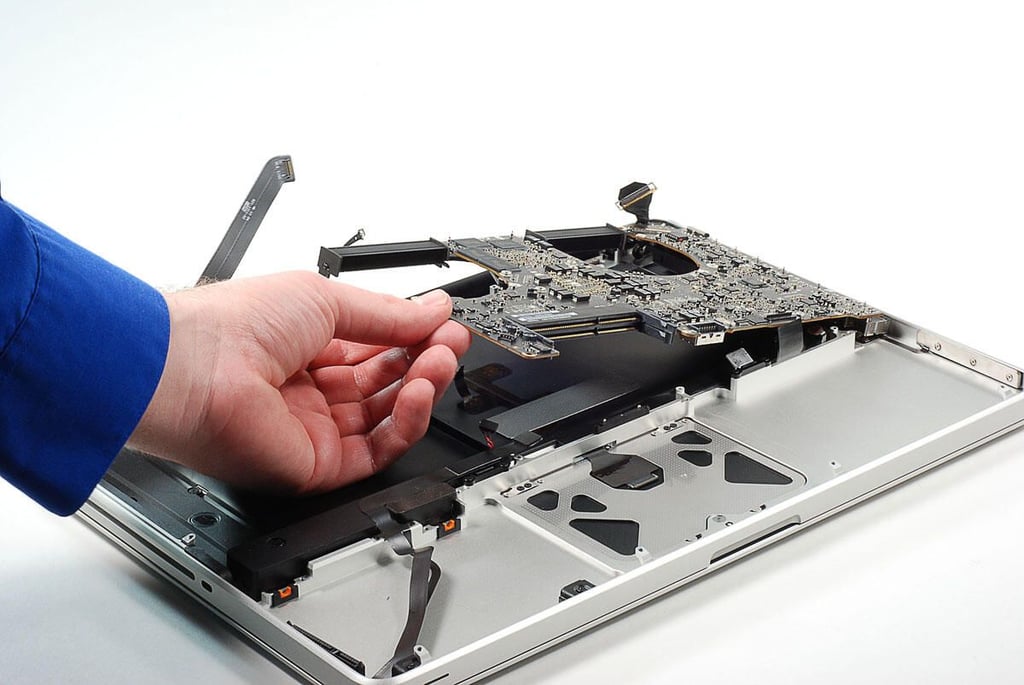

Apple MacBook Pro (2011 Quad-Core i7): Removing the motherboard

Apple MacBook Pro (2011 Quad-Core i7): Removing the motherboard

ntPhoto by: Bill Detwiler / TechRepublic
ntCaption by: Bill Detwiler

Apple MacBook Pro Quad-core i7 teardown

Apple MacBook Pro (2011 Quad-Core i7): Motherboard removed

Apple MacBook Pro (2011 Quad-Core i7): Motherboard removed

ntPhoto by: Bill Detwiler / TechRepublic
ntCaption by: Bill Detwiler

Apple MacBook Pro Quad-core i7 teardown

Apple MacBook Pro (2011 Quad-Core i7): Nearly empty case

Apple MacBook Pro (2011 Quad-Core i7): Nearly empty case

ntAt this point, I’m going to leave the case alone. Many of the MacBook Pro internal ribbon cables are glued to the case. I don’t want to risk damaging the cable by removing them.

n

ntPhoto by: Bill Detwiler / TechRepublic
ntCaption by: Bill Detwiler

Apple MacBook Pro Quad-core i7 teardown

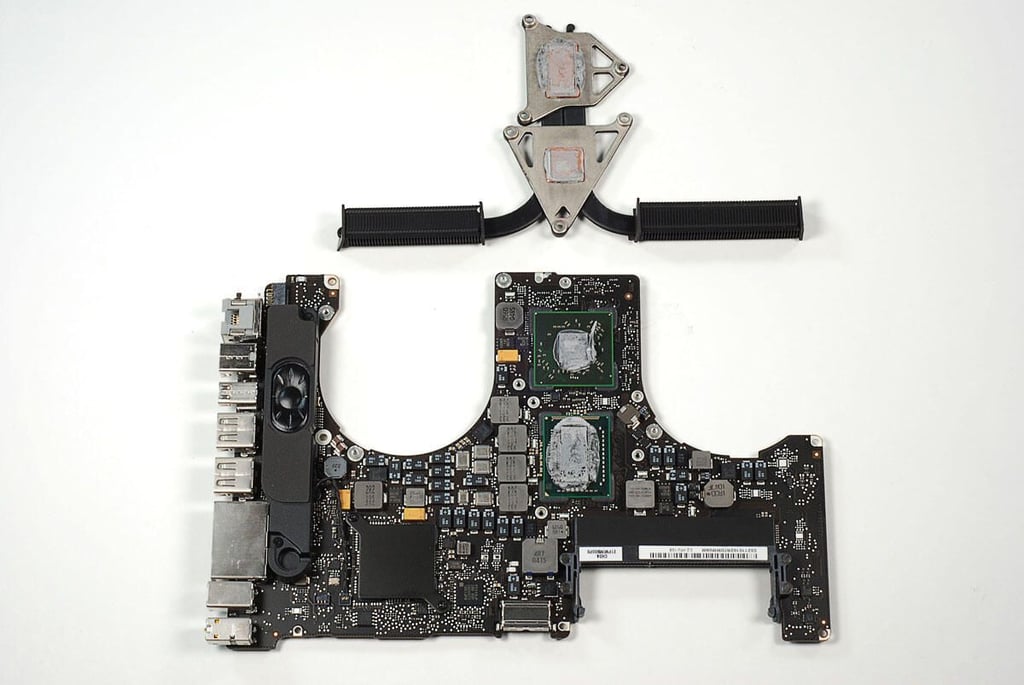

Apple MacBook Pro (2011 Quad-Core i7): Motherboard with cooling assembly

Apple MacBook Pro (2011 Quad-Core i7): Motherboard with cooling assembly

ntPhoto by: Bill Detwiler / TechRepublic
ntCaption by: Bill Detwiler

Apple MacBook Pro Quad-core i7 teardown

Apple MacBook Pro (2011 Quad-Core i7): Motherboard - bottom

Apple MacBook Pro (2011 Quad-Core i7): Motherboard - bottom

ntPhoto by: Bill Detwiler / TechRepublic
ntCaption by: Bill Detwiler

Apple MacBook Pro Quad-core i7 teardown

Apple MacBook Pro (2011 Quad-Core i7): Removing the cooling assembly screws

Apple MacBook Pro (2011 Quad-Core i7): Removing the cooling assembly screws

ntPhoto by: Bill Detwiler / TechRepublic
ntCaption by: Bill Detwiler

Apple MacBook Pro Quad-core i7 teardown

Apple MacBook Pro (2011 Quad-Core i7): Cooling assembly removed

Apple MacBook Pro (2011 Quad-Core i7): Cooling assembly removed

ntPhoto by: Bill Detwiler / TechRepublic
ntCaption by: Bill Detwiler

Apple MacBook Pro Quad-core i7 teardown

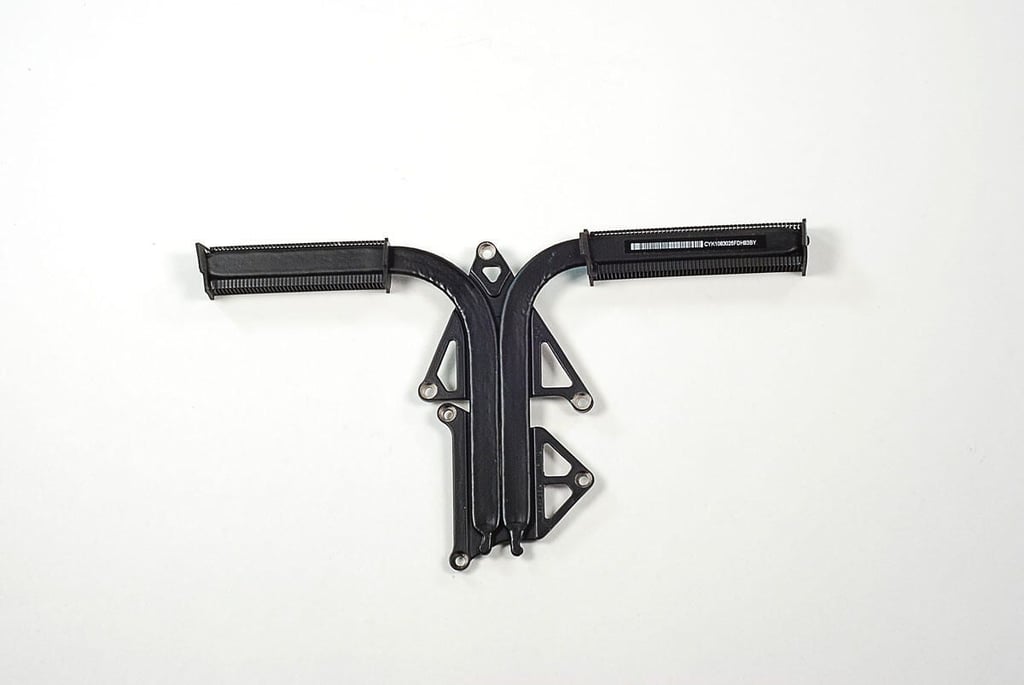

Apple MacBook Pro (2011 Quad-Core i7): Cooling assembly

Apple MacBook Pro (2011 Quad-Core i7): Cooling assembly

ntPhoto by: Bill Detwiler / TechRepublic
ntCaption by: Bill Detwiler

Apple MacBook Pro Quad-core i7 teardown

Apple MacBook Pro (2011 Quad-Core i7): Removing the speaker assembly

Apple MacBook Pro (2011 Quad-Core i7): Removing the speaker assembly

ntPhoto by: Bill Detwiler / TechRepublic
ntCaption by: Bill Detwiler

Apple MacBook Pro Quad-core i7 teardown

Apple MacBook Pro (2011 Quad-Core i7): Removing the smaller cooling plates

Apple MacBook Pro (2011 Quad-Core i7): Removing the smaller cooling plates

ntPhoto by: Bill Detwiler / TechRepublic
ntCaption by: Bill Detwiler

Apple MacBook Pro Quad-core i7 teardown

Apple MacBook Pro (2011 Quad-Core i7): Motherboard with thermal paste

Apple MacBook Pro (2011 Quad-Core i7): Motherboard with thermal paste

ntPhoto by: Bill Detwiler / TechRepublic
ntCaption by: Bill Detwiler

Apple MacBook Pro Quad-core i7 teardown

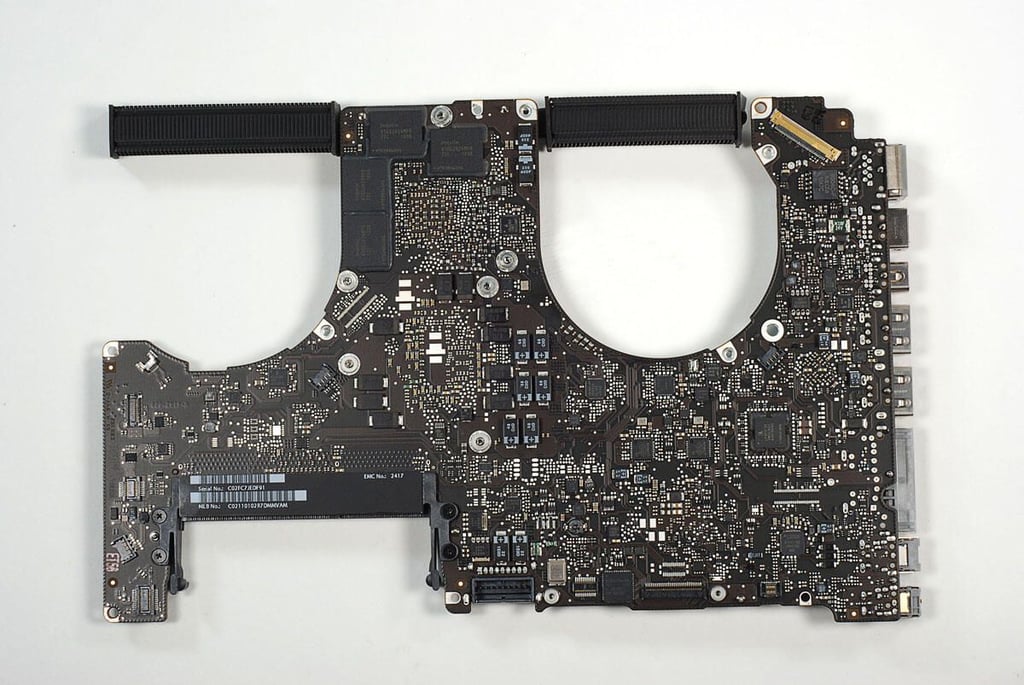

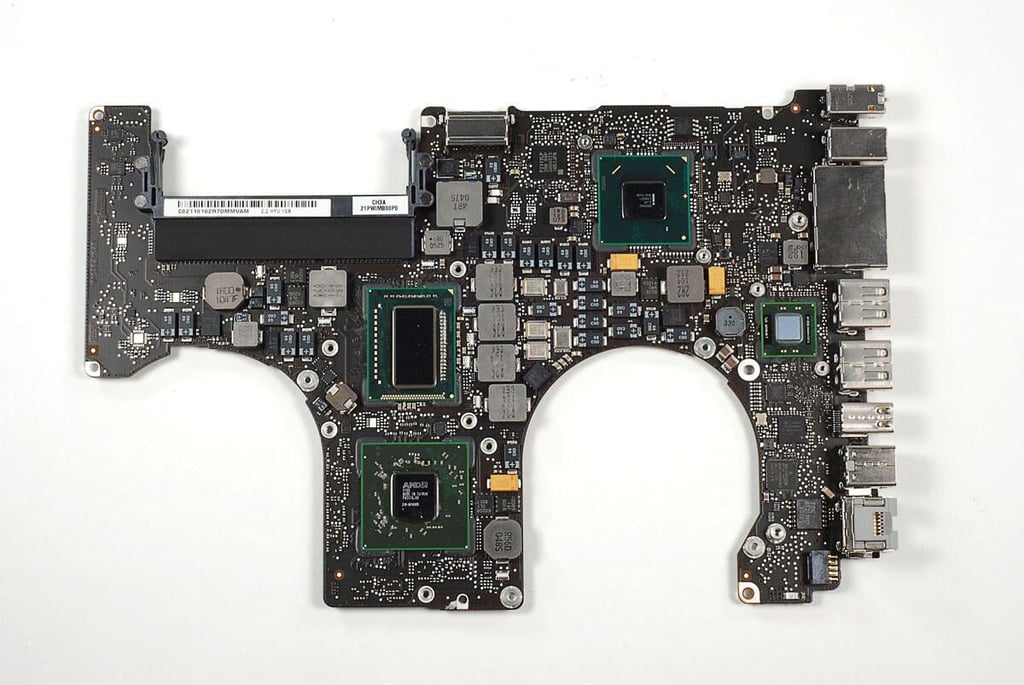

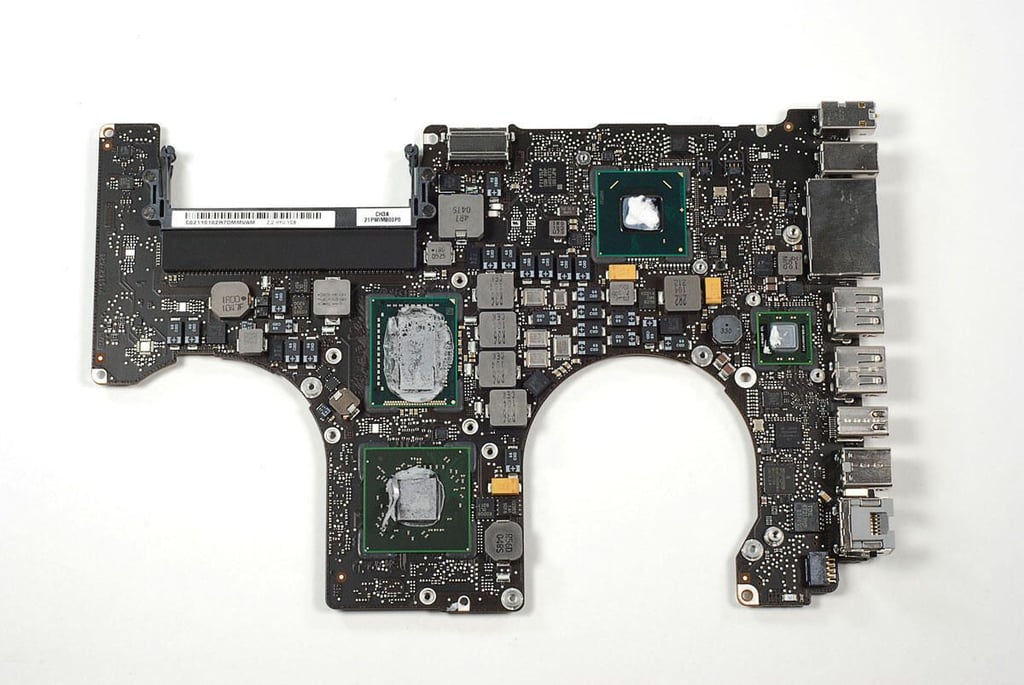

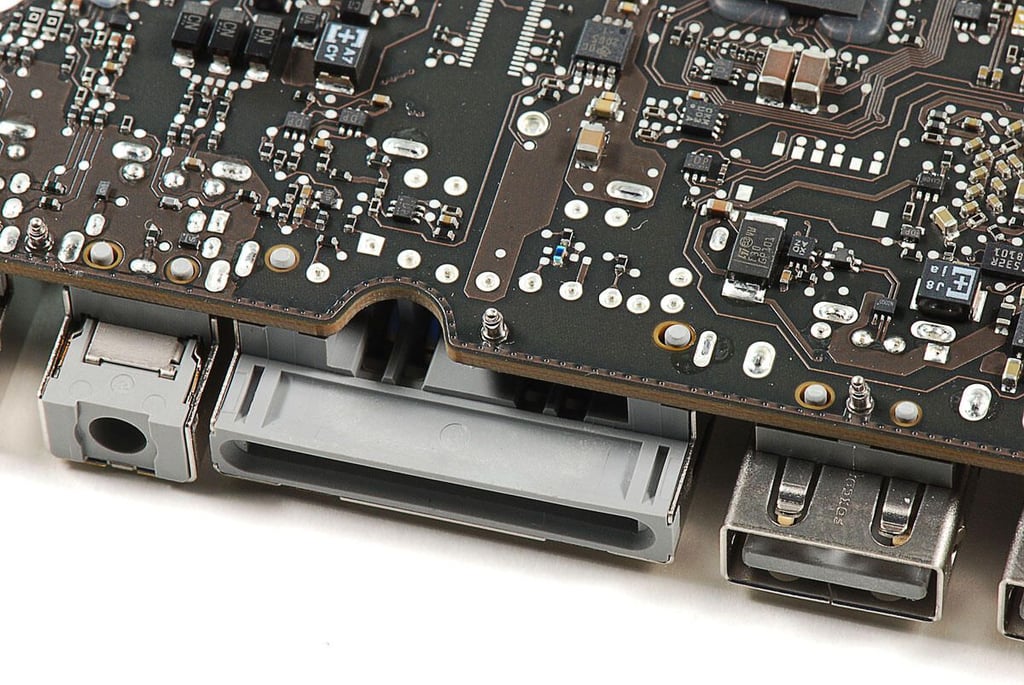

Apple MacBook Pro (2011 Quad-Core i7): Motherboard

Apple MacBook Pro (2011 Quad-Core i7): Motherboard

ntPhoto by: Bill Detwiler / TechRepublic
ntCaption by: Bill Detwiler

Apple MacBook Pro Quad-core i7 teardown

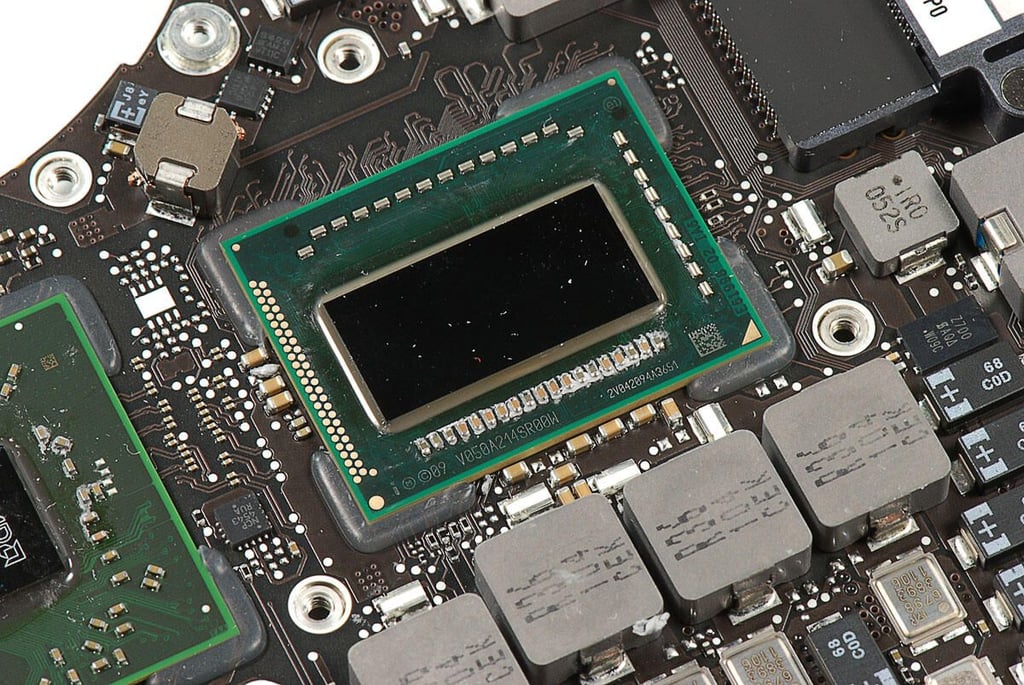

Apple MacBook Pro (2011 Quad-Core i7): 2.2GHz Quad-Core Intel i7 mobile processor

Apple MacBook Pro (2011 Quad-Core i7): 2.2GHz Quad-Core Intel i7 mobile processor

ntPhoto by: Bill Detwiler / TechRepublic
ntCaption by: Bill Detwiler

Apple MacBook Pro Quad-core i7 teardown

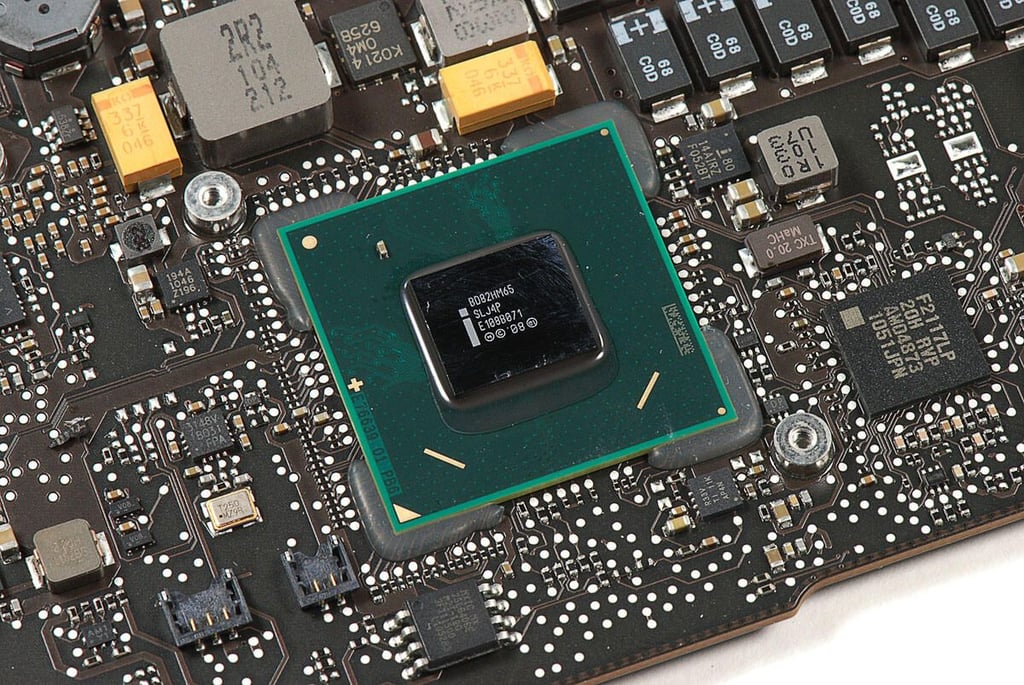

Apple MacBook Pro (2011 Quad-Core i7): Intel BD82HM65 Platform Controller Hub

Apple MacBook Pro (2011 Quad-Core i7): Intel BD82HM65 Platform Controller Hub

ntPhoto by: Bill Detwiler / TechRepublic
ntCaption by: Bill Detwiler

Apple MacBook Pro Quad-core i7 teardown

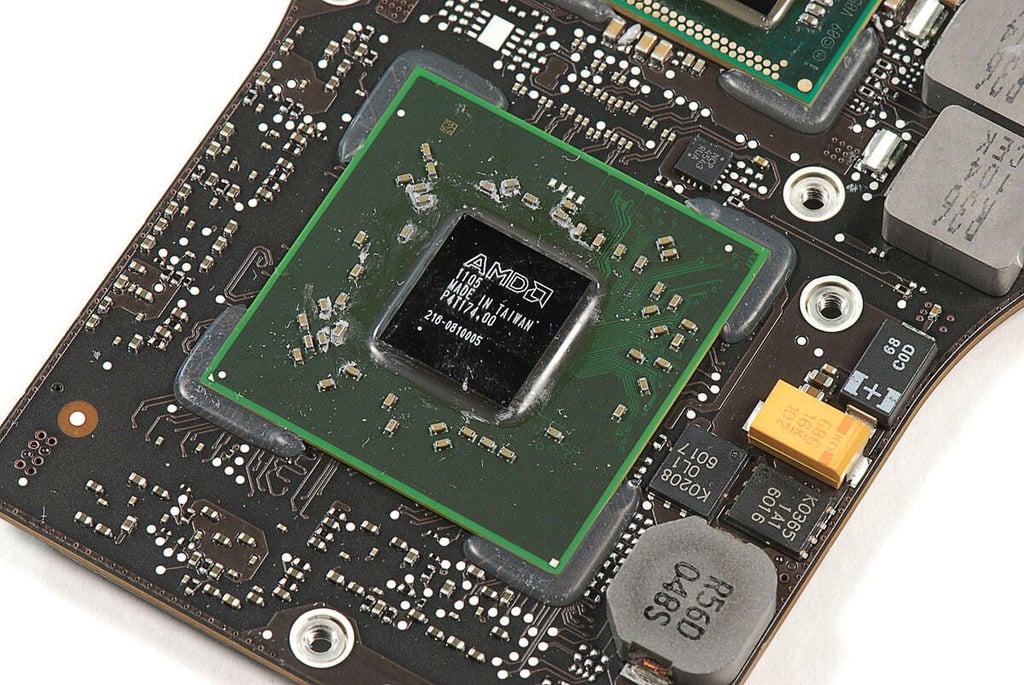

Apple MacBook Pro (2011 Quad-Core i7): AMD Radeon HD 6490M GPU

Apple MacBook Pro (2011 Quad-Core i7): AMD Radeon HD 6490M GPU

ntPhoto by: Bill Detwiler / TechRepublic
ntCaption by: Bill Detwiler

Apple MacBook Pro Quad-core i7 teardown

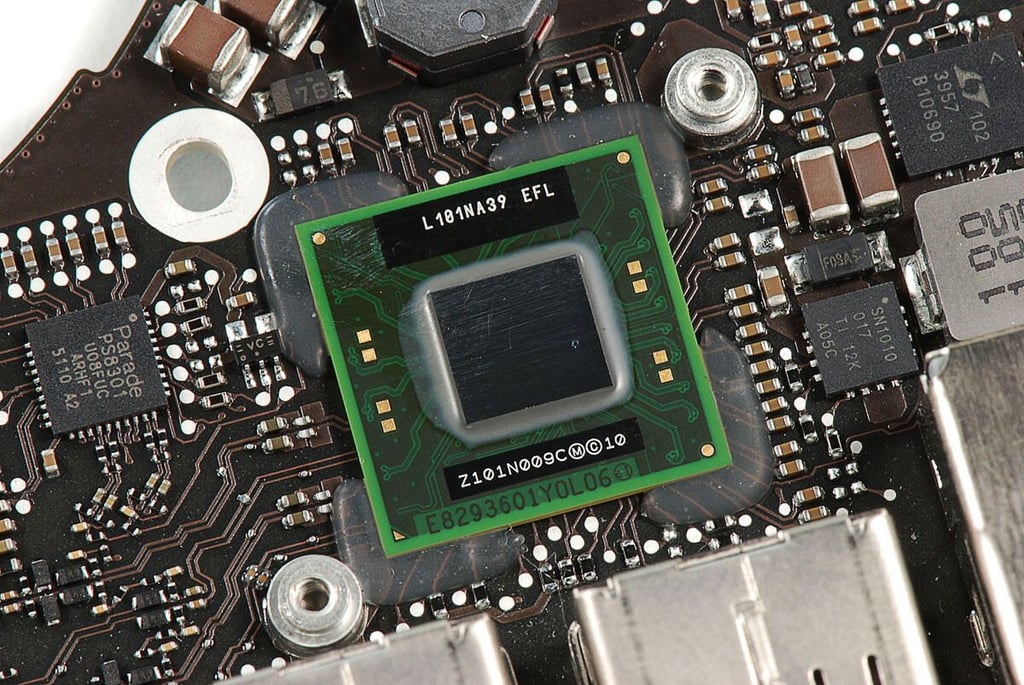

Apple MacBook Pro (2011 Quad-Core i7): Intel L051NA39 EFL

Apple MacBook Pro (2011 Quad-Core i7): Intel L051NA39 EFL

ntPhoto by: Bill Detwiler / TechRepublic
ntCaption by: Bill Detwiler

Apple MacBook Pro Quad-core i7 teardown

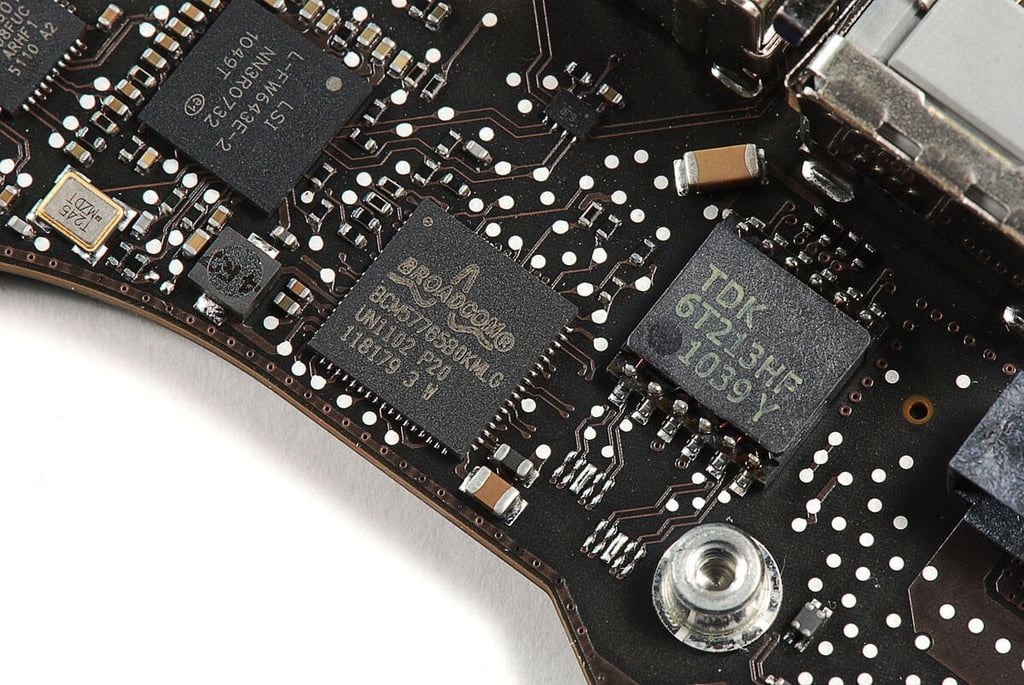

Apple MacBook Pro (2011 Quad-Core i7): Broadcom BCM57765 Integrated Gigabit Ethernet and Memory Card Reader Controller

Apple MacBook Pro (2011 Quad-Core i7): Broadcom BCM57765 Integrated Gigabit Ethernet and Memory Card Reader Controller

ntPhoto by: Bill Detwiler / TechRepublic
ntCaption by: Bill Detwiler

Apple MacBook Pro Quad-core i7 teardown

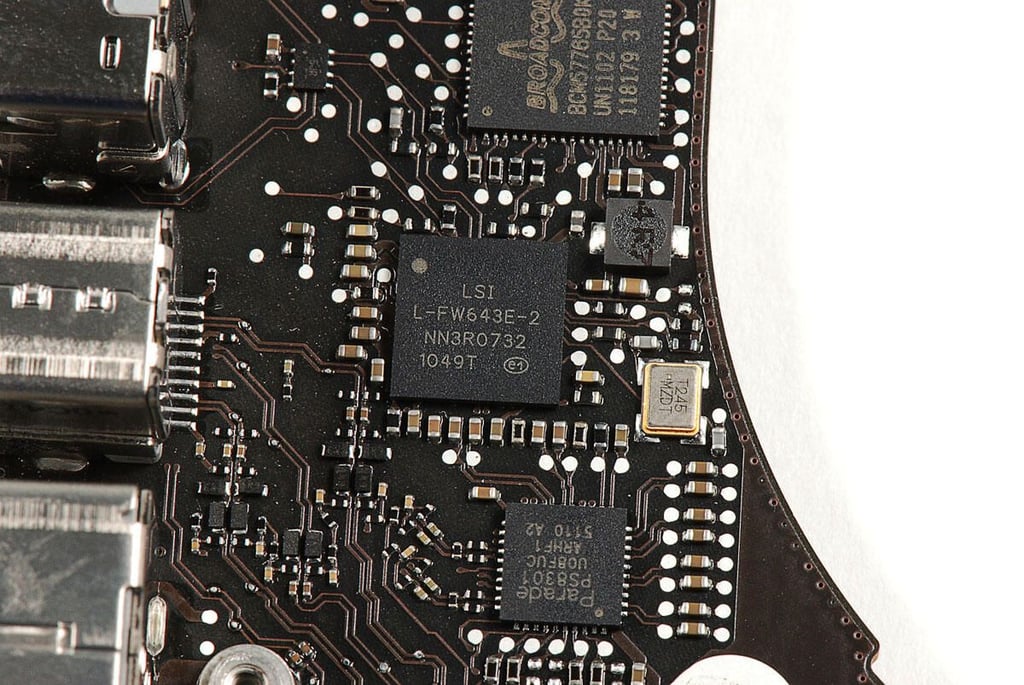

Apple MacBook Pro (2011 Quad-Core i7): LSI L-W643E-2

Apple MacBook Pro (2011 Quad-Core i7): LSI L-W643E-2

ntPhoto by: Bill Detwiler / TechRepublic
ntCaption by: Bill Detwiler

Apple MacBook Pro Quad-core i7 teardown

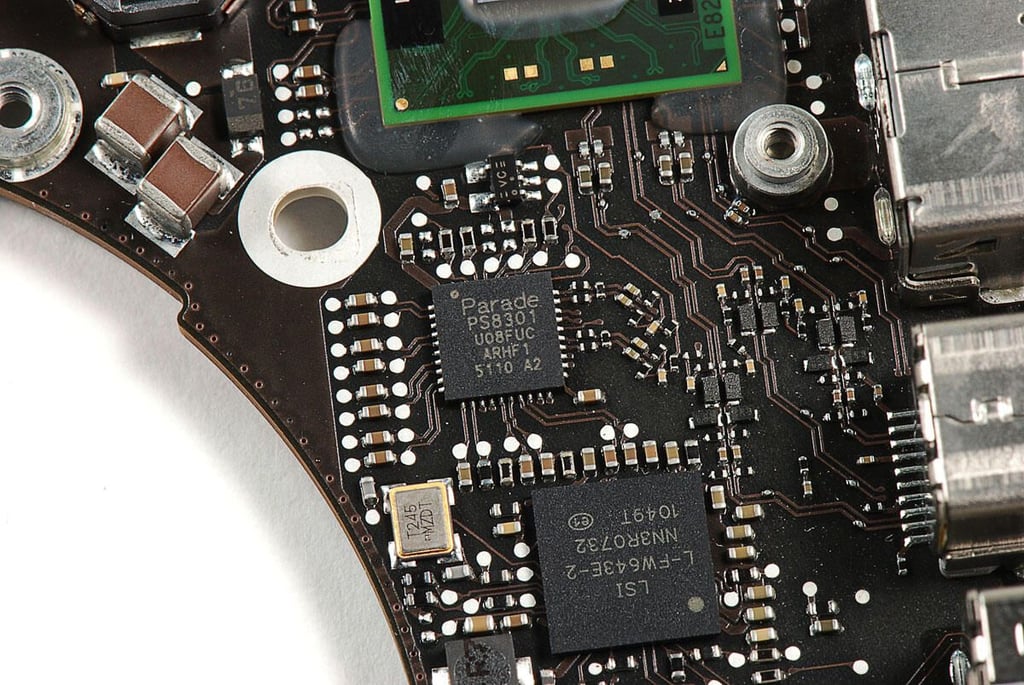

Apple MacBook Pro (2011 Quad-Core i7): Parade PS8301

Apple MacBook Pro (2011 Quad-Core i7): Parade PS8301

ntPhoto by: Bill Detwiler / TechRepublic
ntCaption by: Bill Detwiler

Apple MacBook Pro Quad-core i7 teardown

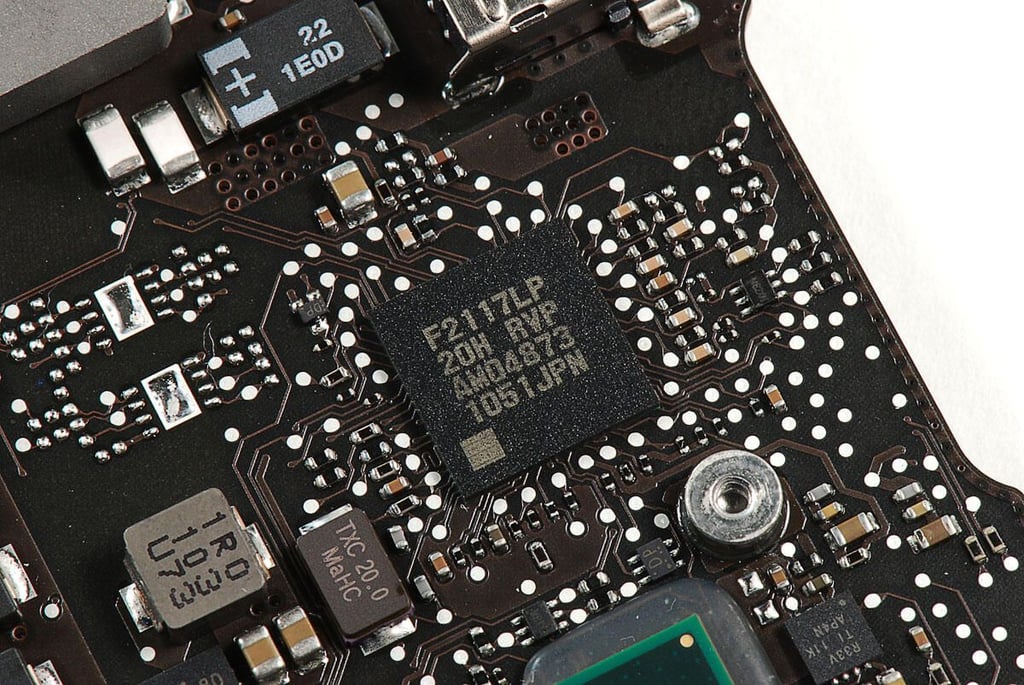

Apple MacBook Pro (2011 Quad-Core i7): F2117LP

Apple MacBook Pro (2011 Quad-Core i7): F2117LP

ntPhoto by: Bill Detwiler / TechRepublic
ntCaption by: Bill Detwiler

Apple MacBook Pro Quad-core i7 teardown

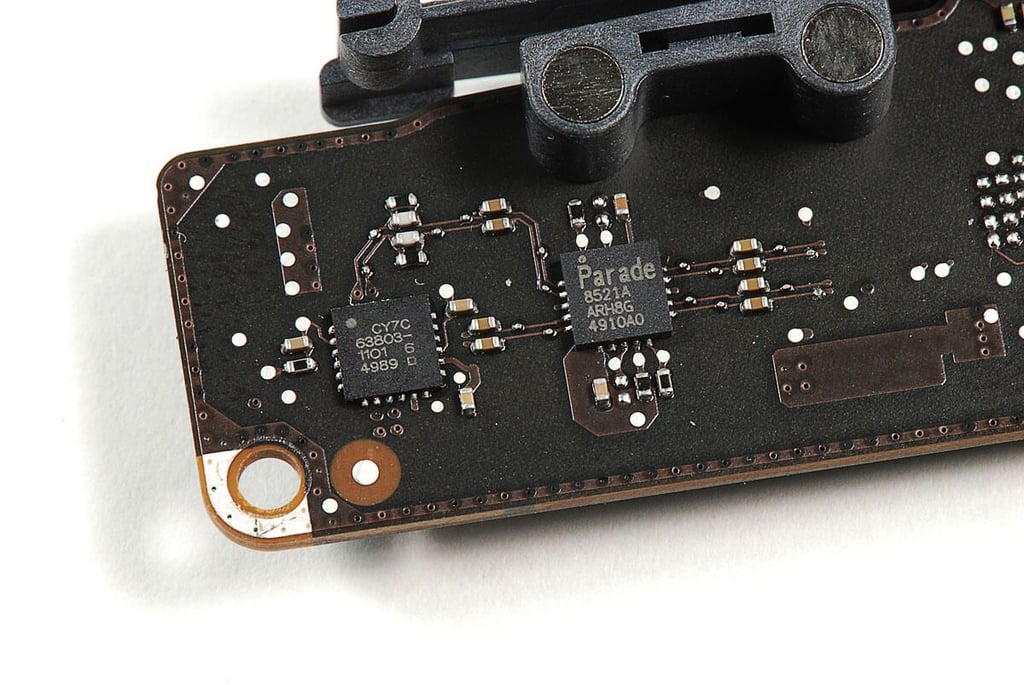

Apple MacBook Pro (2011 Quad-Core i7): Parade 8521A and unknown CY7C 630803-1101

Apple MacBook Pro (2011 Quad-Core i7): Parade 8521A and unknown CY7C 630803-1101

ntPhoto by: Bill Detwiler / TechRepublic
ntCaption by: Bill Detwiler

Apple MacBook Pro Quad-core i7 teardown

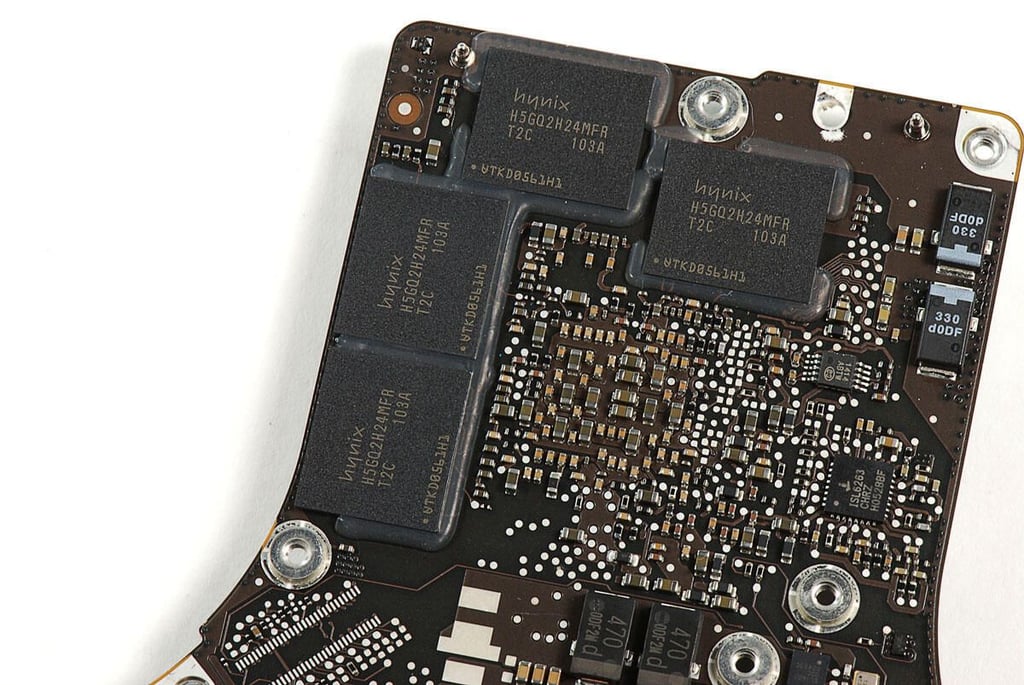

Apple MacBook Pro (2011 Quad-Core i7): Four Hynix H5GQ2H24MFR GDDR5 SGRAM chips for graphics memory

Apple MacBook Pro (2011 Quad-Core i7): Four Hynix H5GQ2H24MFR GDDR5 SGRAM chips for graphics memory

ntPhoto by: Bill Detwiler / TechRepublic
ntCaption by: Bill Detwiler

Apple MacBook Pro Quad-core i7 teardown

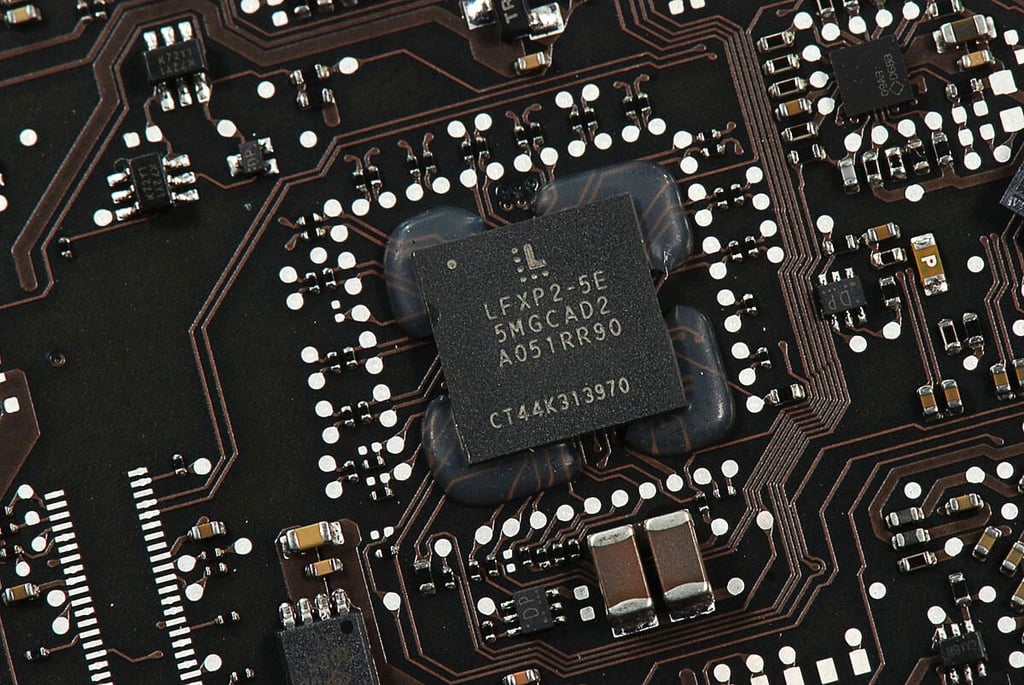

Apple MacBook Pro (2011 Quad-Core i7): Lattice Semiconductor LFXP2-5E

Apple MacBook Pro (2011 Quad-Core i7): Lattice Semiconductor LFXP2-5E

ntPhoto by: Bill Detwiler / TechRepublic
ntCaption by: Bill Detwiler

Apple MacBook Pro Quad-core i7 teardown

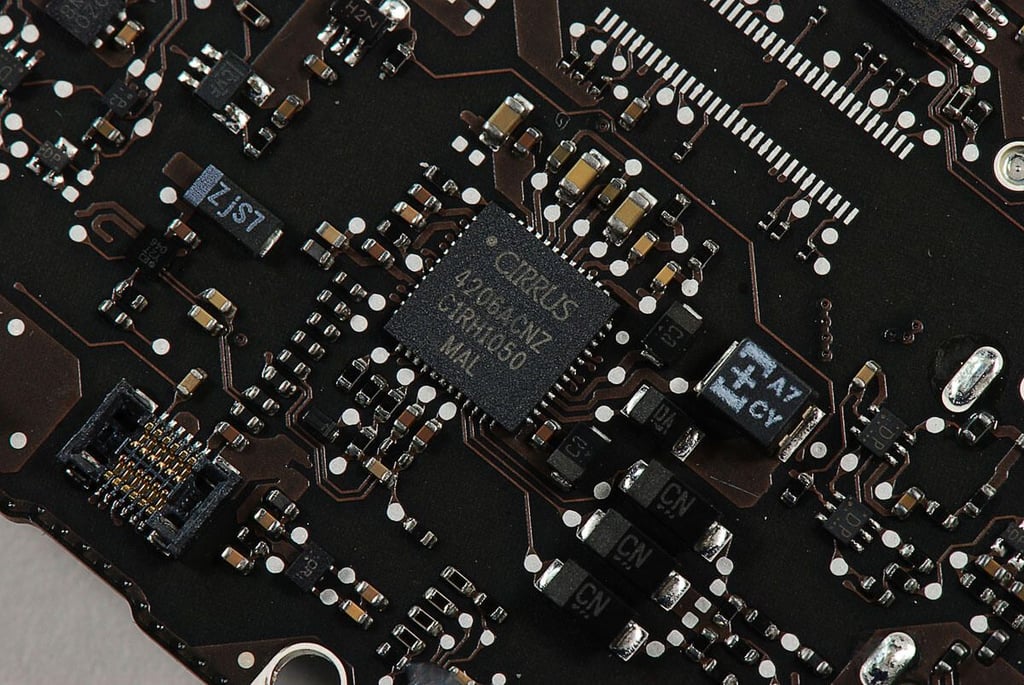

Apple MacBook Pro (2011 Quad-Core i7): Cirrus 4206ACNZ audio controller

Apple MacBook Pro (2011 Quad-Core i7): Cirrus 4206ACNZ audio controller

ntPhoto by: Bill Detwiler / TechRepublic
ntCaption by: Bill Detwiler

Apple MacBook Pro Quad-core i7 teardown

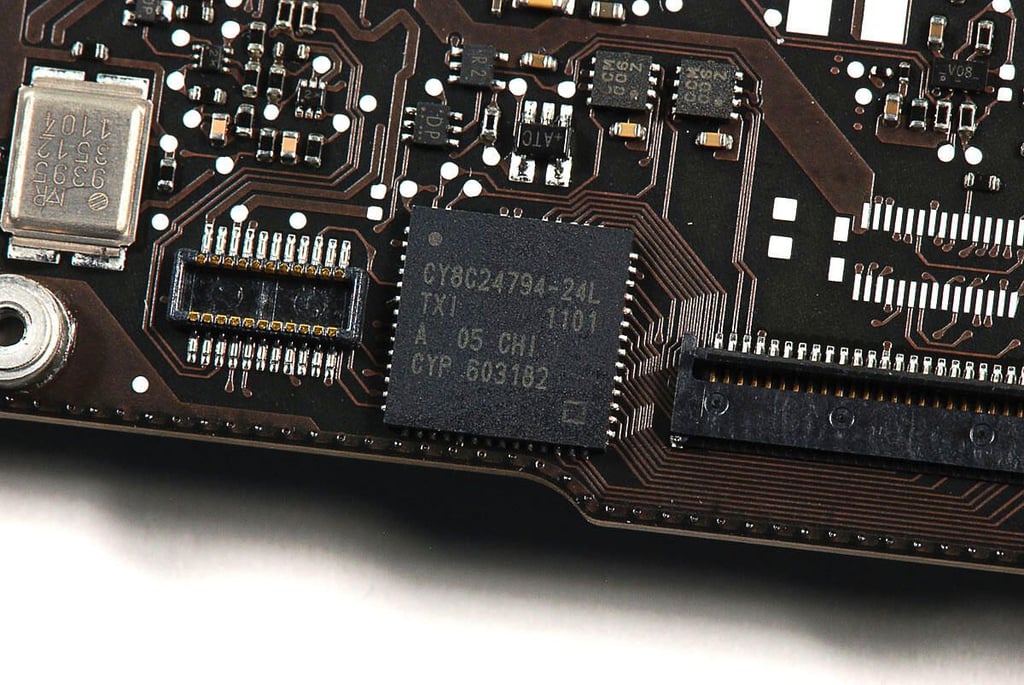

Apple MacBook Pro (2011 Quad-Core i7): Cypress CY8C24794-24L

Apple MacBook Pro (2011 Quad-Core i7): Cypress CY8C24794-24L

ntPhoto by: Bill Detwiler / TechRepublic
ntCaption by: Bill Detwiler

Apple MacBook Pro Quad-core i7 teardown

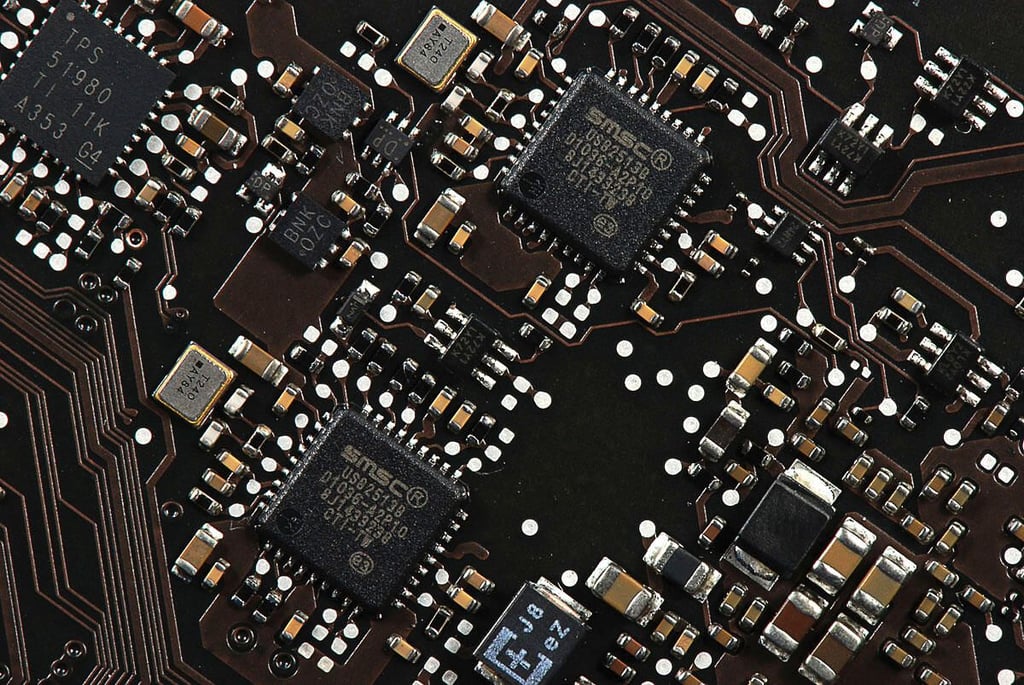

Apple MacBook Pro (2011 Quad-Core i7): SMSC USB25138 USB 2.0 Hub Controllers

Apple MacBook Pro (2011 Quad-Core i7): SMSC USB25138 USB 2.0 Hub Controllers

ntPhoto by: Bill Detwiler / TechRepublic
ntCaption by: Bill Detwiler

Apple MacBook Pro Quad-core i7 teardown

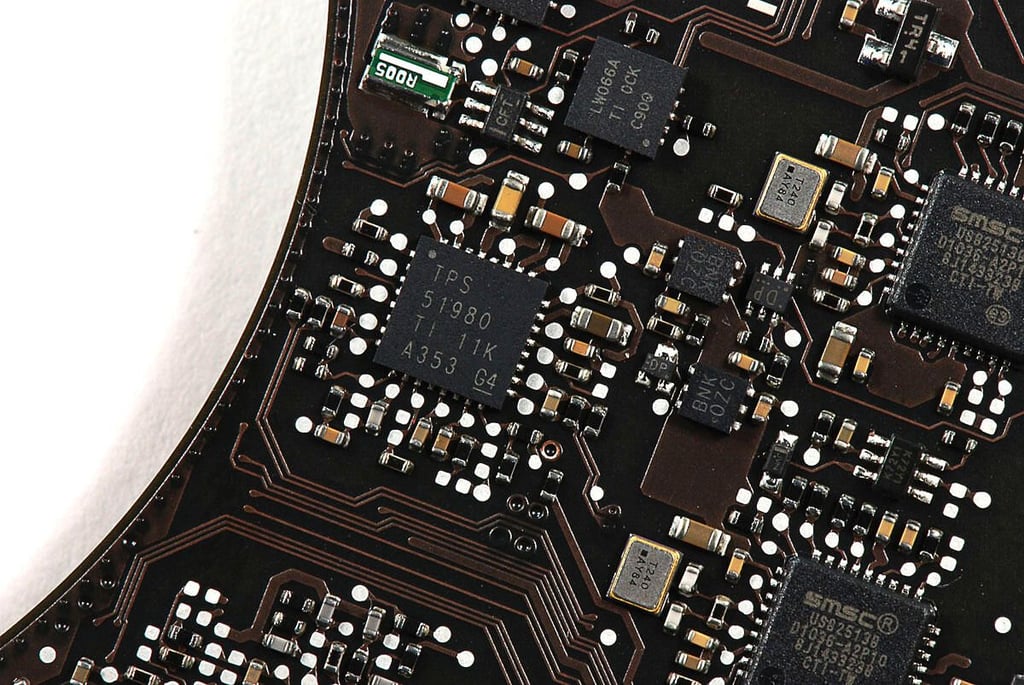

Apple MacBook Pro (2011 Quad-Core i7): Texas Instruments TPS 51980

Apple MacBook Pro (2011 Quad-Core i7): Texas Instruments TPS 51980

ntPhoto by: Bill Detwiler / TechRepublic
ntCaption by: Bill Detwiler

Apple MacBook Pro Quad-core i7 teardown

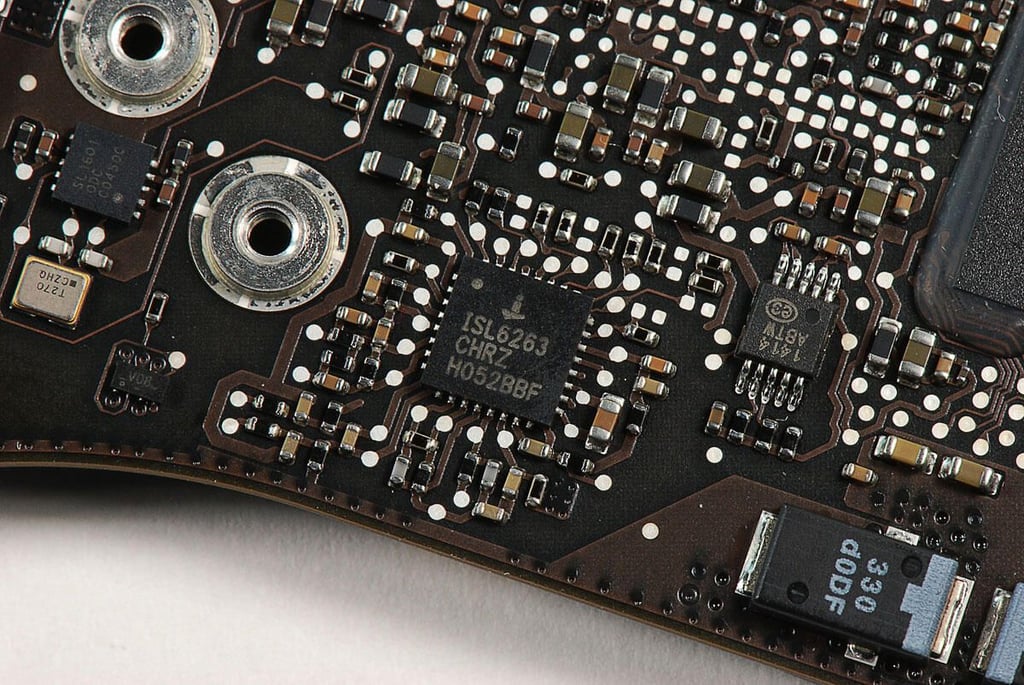

Apple MacBook Pro (2011 Quad-Core i7): ISL6263 CHRZ H052BBF

Apple MacBook Pro (2011 Quad-Core i7): ISL6263 CHRZ H052BBF

ntPhoto by: Bill Detwiler / TechRepublic
ntCaption by: Bill Detwiler

Apple MacBook Pro Quad-core i7 teardown

Apple MacBook Pro (2011 Quad-Core i7): Case opening detector

Apple MacBook Pro (2011 Quad-Core i7): Case opening detector

ntPhoto by: Bill Detwiler / TechRepublic
ntCaption by: Bill Detwiler

Apple MacBook Pro Quad-core i7 teardown

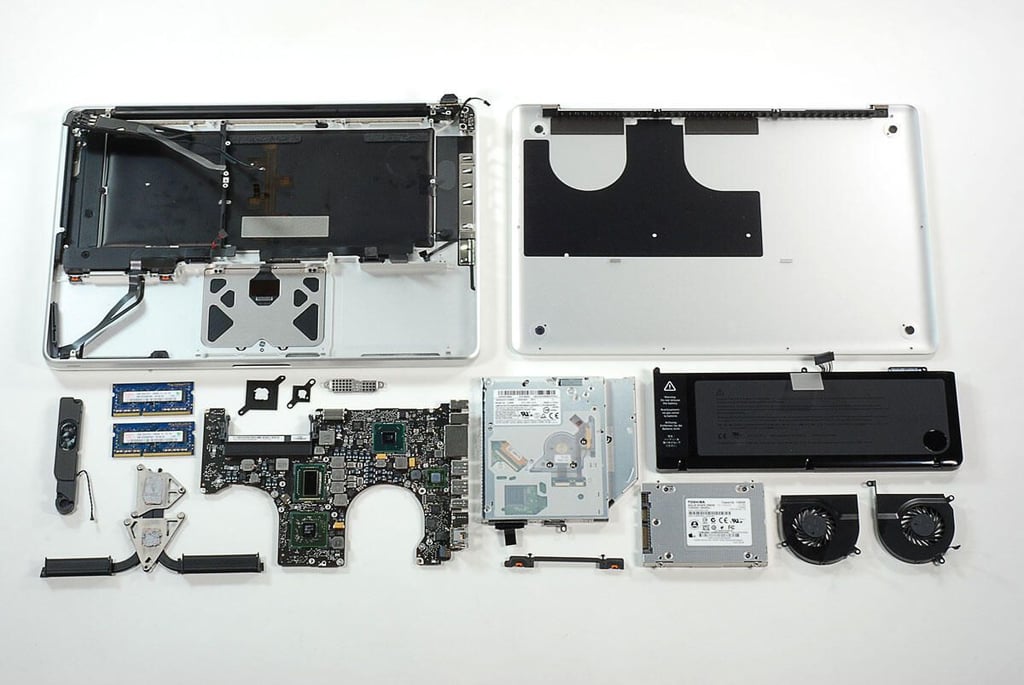

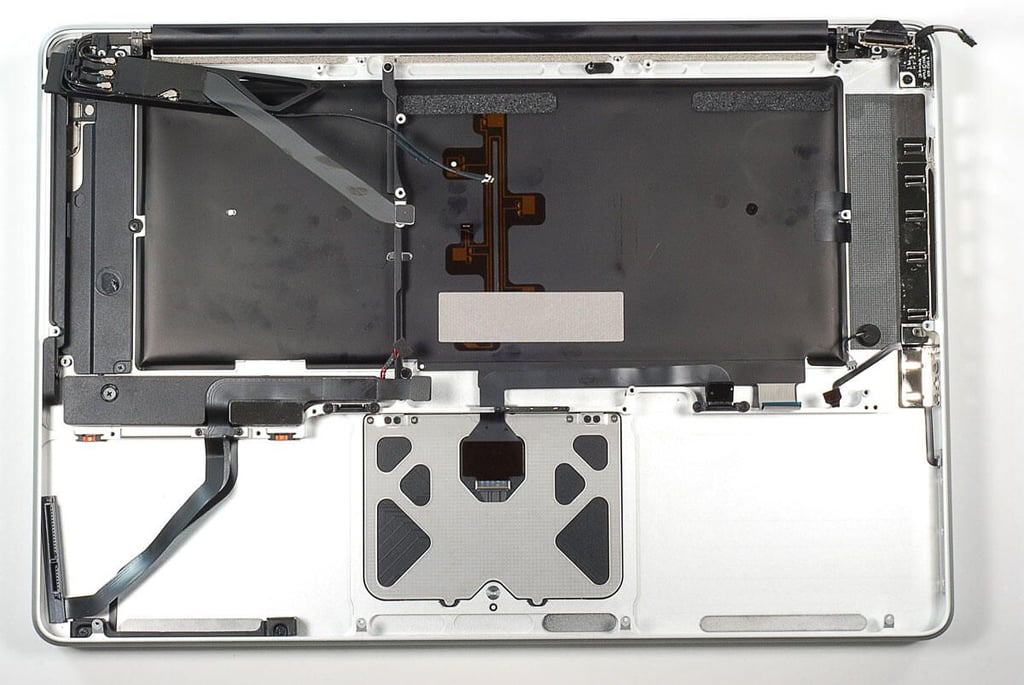

Apple MacBook Pro (2011 Quad-Core i7): Completely disassembled

Apple MacBook Pro (2011 Quad-Core i7): Completely disassembled

ntThe 2011 MacBook Pro has some very noticable improvements over previous model. The new Intel Sandy Bridge Quad-Core i7 processor and AMD Radeon HD 6750M GPU are plenty powerful. The new Thunderbolt I/O port offers significant throughput gains. And, 128GB Toshiba SSD helps the machine boot quickly.

n

ntPhoto by: Bill Detwiler / TechRepublic
ntCaption by: Bill Detwiler

  • Hardware
  • Account Information

    Share with Your Friends

    Apple MacBook Pro Quad-core i7 teardown

    Your email has been sent

Share: Apple MacBook Pro Quad-core i7 teardown
Image of Bill Detwiler
By Bill Detwiler
Bill Detwiler is the Editor for Technical Content and Ecosystem at Celonis. He is the former Editor in Chief of TechRepublic and previous host of TechRepublic's Dynamic Developer podcast and Cracking Open, CNET and TechRepublic's popular online show.
  • Account Information

    Contact Bill Detwiler

    Your message has been sent

  • |
  • See all of Bill's content

TechRepublic Premium

  • TechRepublic Premium

    Shadow IT policy

    Shadow IT is a concept whereby an organization’s employees use technology, services or systems without the knowledge of or approval from the IT department. It has arisen due to several reasons: Advances in cloud computing, which involve the usage of applications or sharing of data in public environments previously owned by IT. The evolution of ...

    Published:  February 2, 2023, 11:00 AM EST Modified:  February 3, 2023, 2:00 PM EST Read More See more TechRepublic Premium
  • TechRepublic Premium

    Auditing and logging policy

    Auditing and logging are essential measures for protecting mission-critical systems and troubleshooting problems. This policy outlines the appropriate auditing and logging procedures for computer systems, networks and devices that store or transport critical data. From the policy: Many computer systems, network devices and other technological hardware used in the enterprise can audit and log various ...

    Published:  February 2, 2023, 11:00 AM EST Modified:  February 3, 2023, 3:00 PM EST Read More See more TechRepublic Premium
  • TechRepublic Premium

    Vendor contract renewal planner

    Determining how and when to renew support contracts can be tedious and time-consuming. Our vendor contract renewal planner will help you schedule support renewals and budget the related costs. From the planner: Some companies schedule their support contract renewals to take effect all at once, such as on January 1. This provides a convenient renewal ...

    Published:  February 1, 2023, 11:00 AM EST Modified:  February 2, 2023, 12:00 PM EST Read More See more TechRepublic Premium
  • TechRepublic Premium

    Access management policy

    Without appropriate access management controls, businesses are at significant risk from the loss or theft of both physical and digital assets. Access management controls establish who is allowed the appropriate level of access in order to do their jobs, while reducing the potential for damage or harm to the company. The purpose of this policy ...

    Downloads
    Published:  February 1, 2023, 11:00 AM EST Modified:  February 2, 2023, 4:00 PM EST Read More See more TechRepublic Premium

Services

  • About Us
  • Newsletters
  • RSS Feeds
  • Site Map
  • Site Help & Feedback
  • FAQ
  • Advertise
  • Do Not Sell My Information

Explore

  • Downloads
  • TechRepublic Forums
  • Meet the Team
  • TechRepublic Academy
  • TechRepublic Premium
  • Resource Library
  • Photos
  • Videos
  • TechRepublic
  • TechRepublic on Twitter
  • TechRepublic on Facebook
  • TechRepublic on LinkedIn
  • TechRepublic on Flipboard
© 2023 TechnologyAdvice. All rights reserved.
  • Privacy Policy
  • Terms of Use
  • Property of TechnologyAdvice
