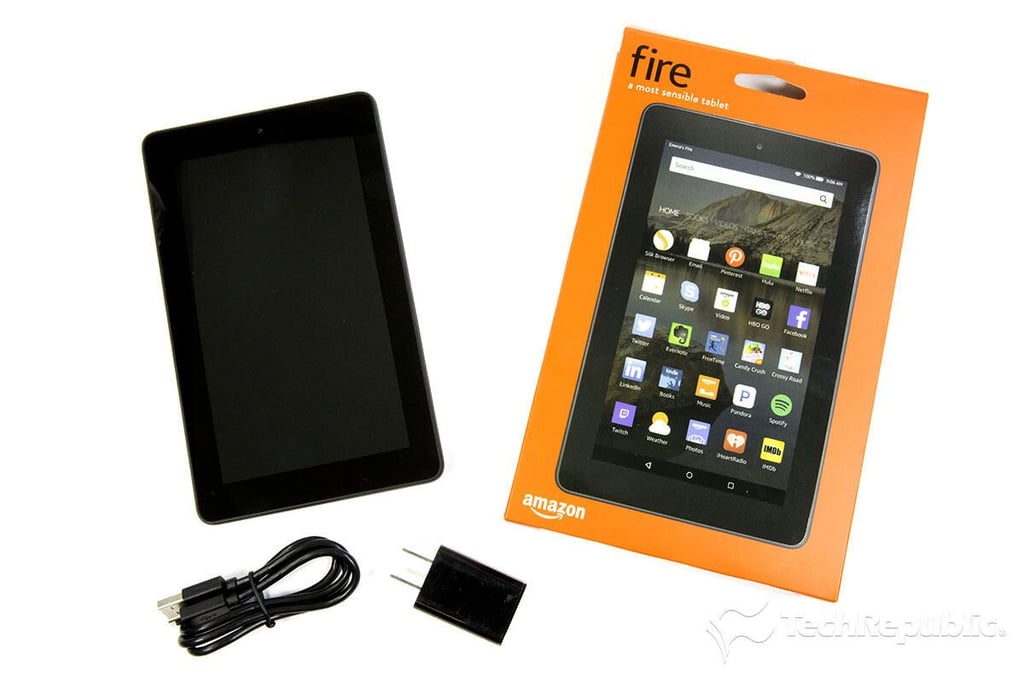

  • Amazon Fire tablet (2015)

    Amazon Fire teardown

    Costing just $50, Amazon’s Fire tablet is definitely a bargain. But it looks so much like the company’s original Kindle Fire and is so cheap, that I got to thinking. Did Amazon just put old Kindle Fire hardware in a new package? In this TechRepublic teardown gallery, I crack open the Fire to find out. More my full hardware analysis and to watch a video of the teardown, check out my article, Cracking Open: Amazon Fire illustrates dramatic drop in cost of tablet tech.

    Bill Detwiler/TechRepublic
  • Amazon Fire teardown

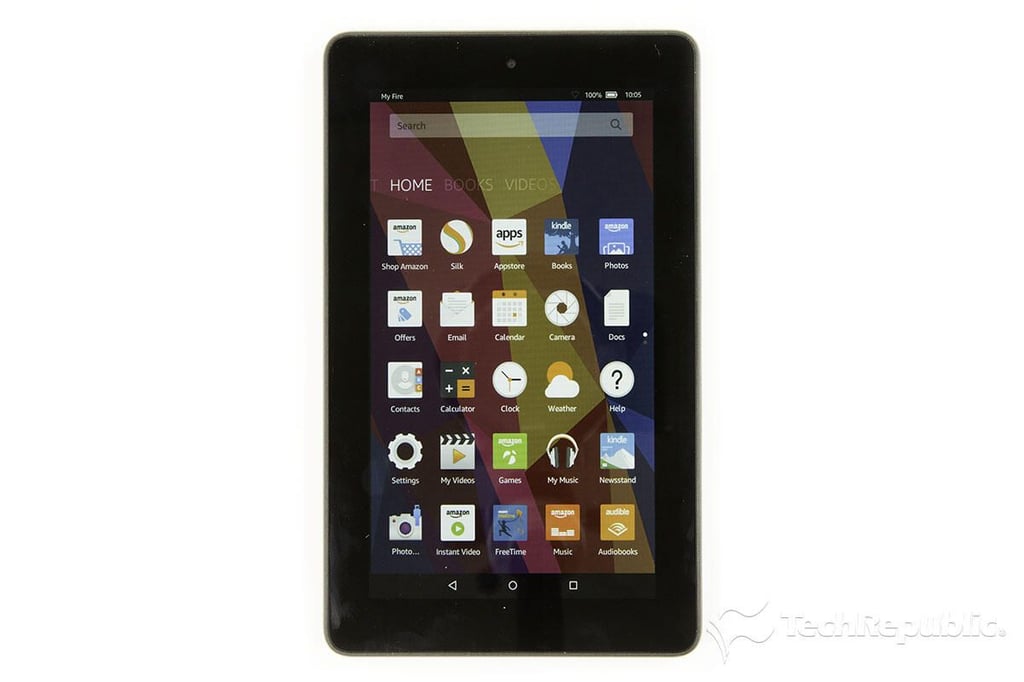

    Cracking Open Amazon Fire

    Released in 2011 for $200, Amazon’s original Kindle Fire was a moderately priced tablet with average specs. It was more an entertainment device and shopping portal than anything else. The new Fire tablet takes this concept to the extreme, but does it at a quarter of the cost.

    Bill Detwiler\/TechRepublic
  • Amazon Fire teardown

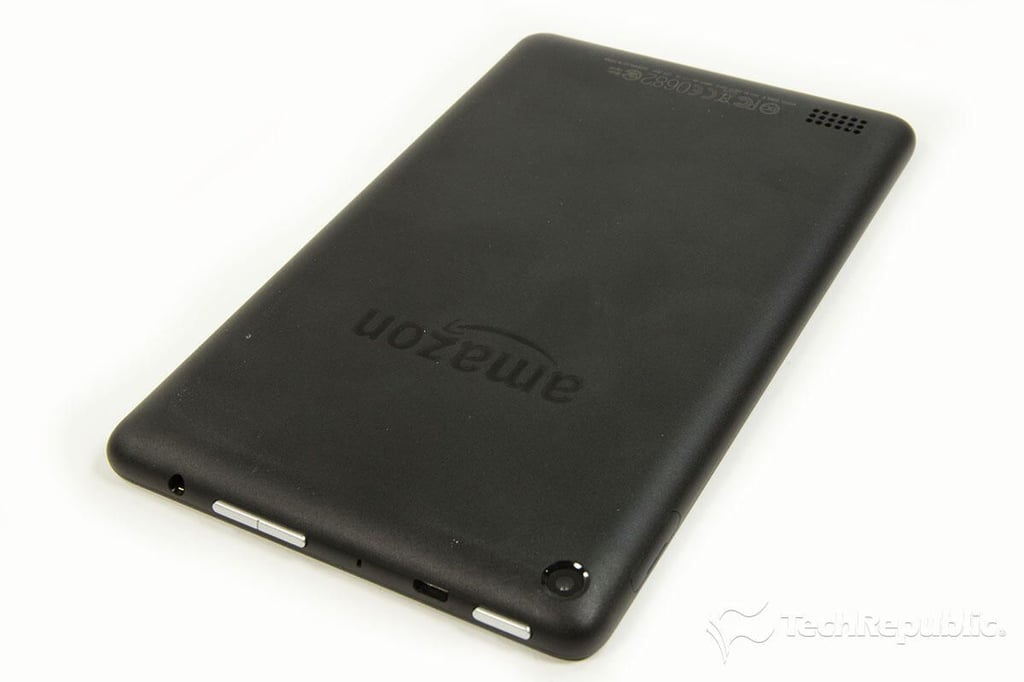

    Cracking Open Amazon Fire: Dimensions

    Its dimensions are nearly identical to the original Kindle Fire, but it weighs slightly less and has a more rounded back cover. It also has a lot of features the older tablet didn’t have, like cameras, a microphone, and a microSD card slot, which is good because like the original Kindle Fire it only has 8GB of internal storage and more than 2 of that is used for the operating system. Also like the original Kindle Fire, the screen has a 1,024×600-pixel resolution, so it’s not high-definition like Amazon’s Fire HD tablets. And the front panel isn’t made with Gorilla Glass, so it’s not are durable as many other tablets on the market.

    Bill Detwiler\/TechRepublic
  • Amazon Fire teardown

    Cracking Open Amazon Fire: Power button, volume button, mic, headphone jack and rear camera

    Bill Detwiler\/TechRepublic
  • Amazon Fire teardown

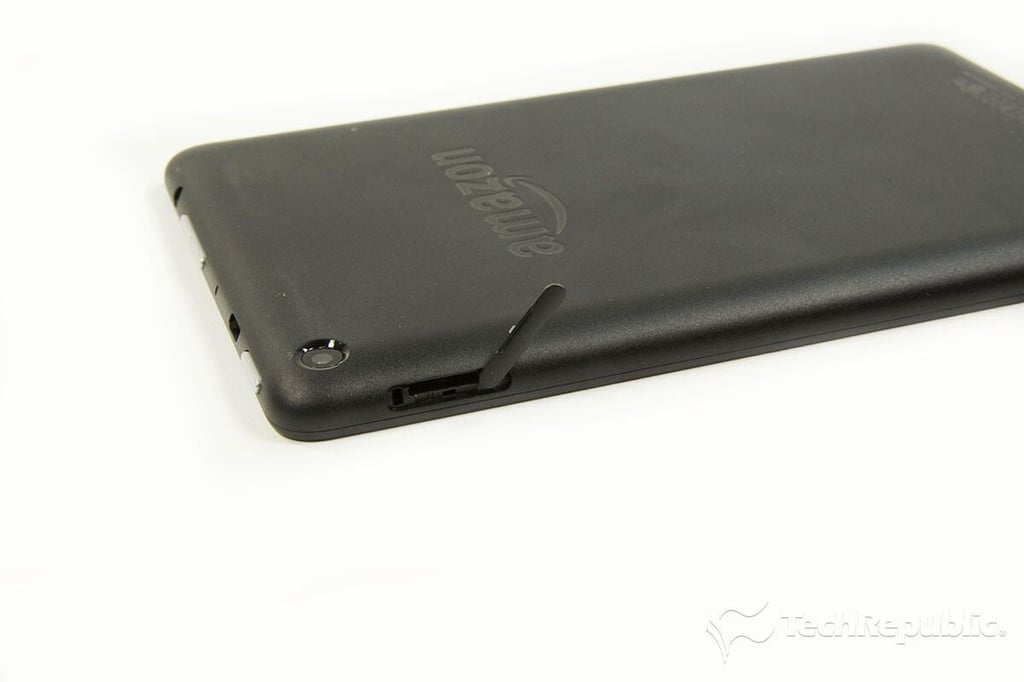

    Cracking Open Amazon Fire: microSD card slot

    Bill Detwiler\/TechRepublic

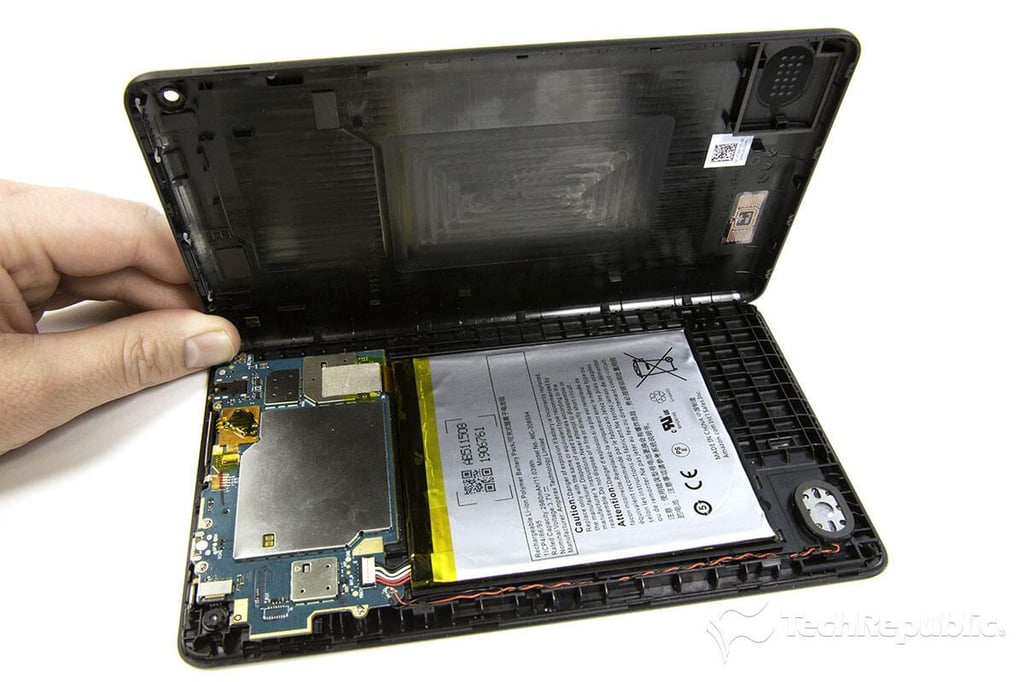

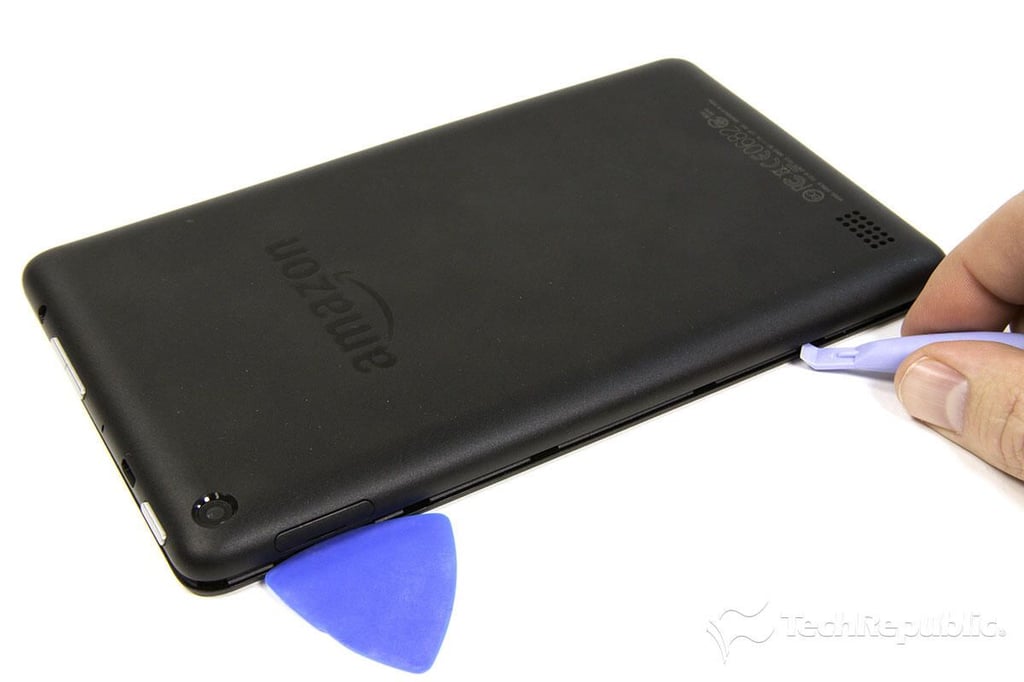

  • Amazon Fire teardown: Removing the back cover

    Cracking Open Amazon Fire: Popping off the back cover

    Bill Detwiler/TechRepublic
  • Amazon Fire teardown

    Cracking Open Amazon Fire: Removing the back cover

    Bill Detwiler\/TechRepublic

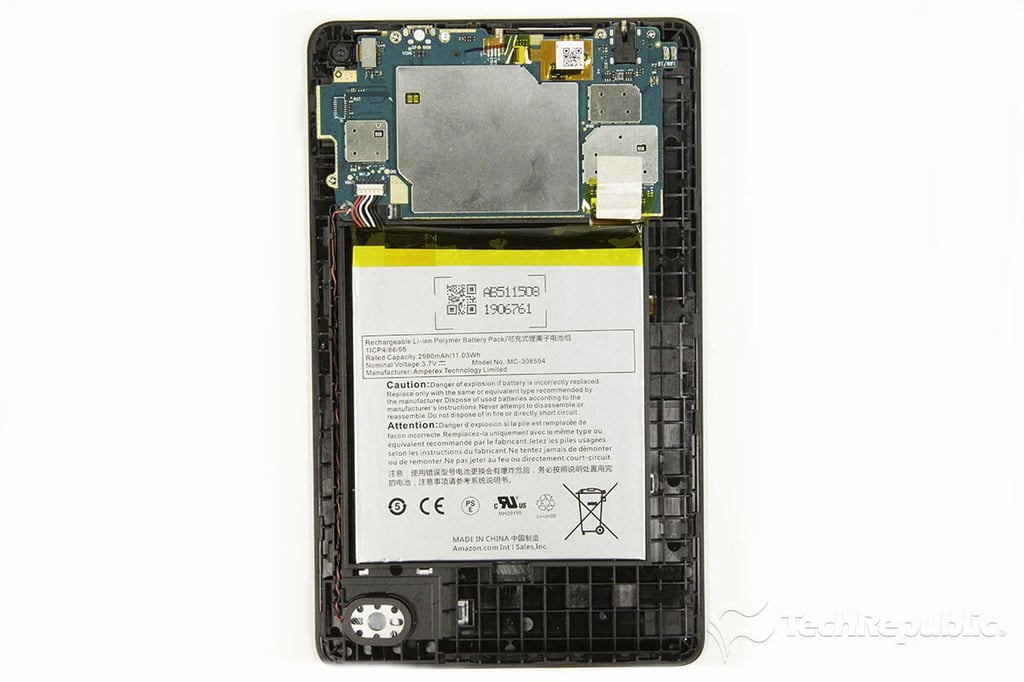

  • Amazon Fire teardown

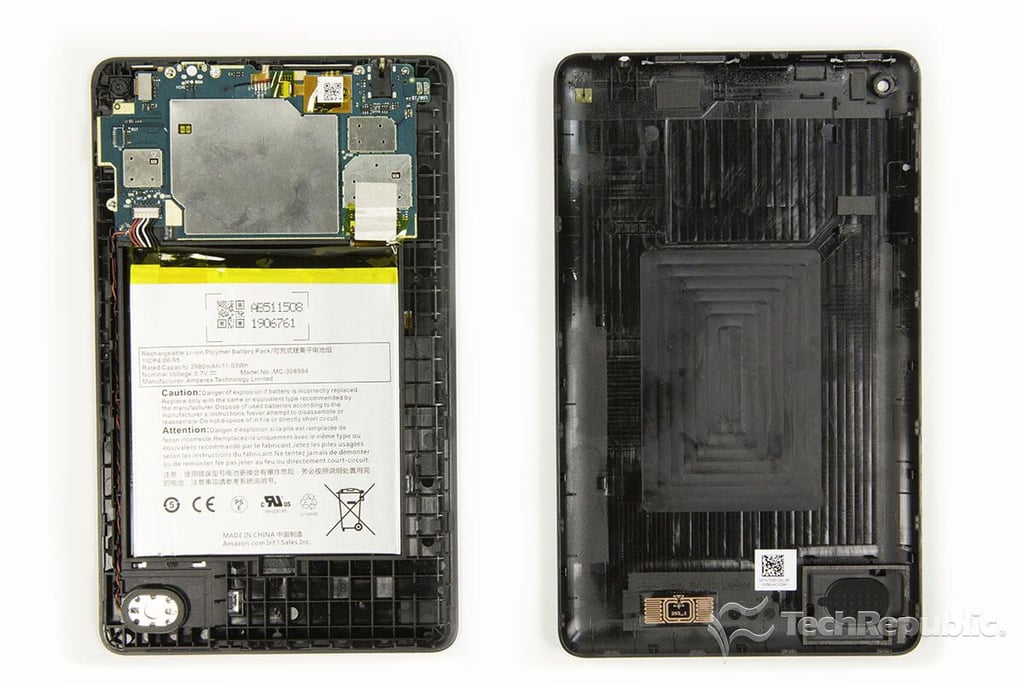

    Cracking Open Amazon Fire: Internal hardware

    Bill Detwiler\/TechRepublic
  • Amazon Fire teardown

    Cracking Open Amazon Fire: System board, battery, speakers, and front panel

    Bill Detwiler\/TechRepublic

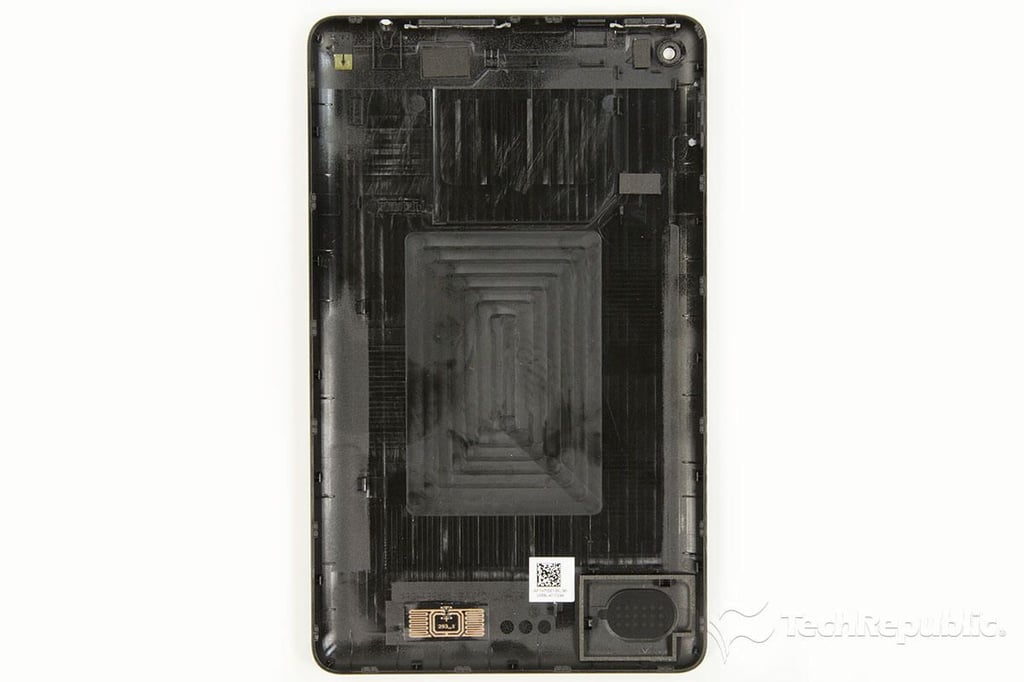

  • Amazon Fire teardown

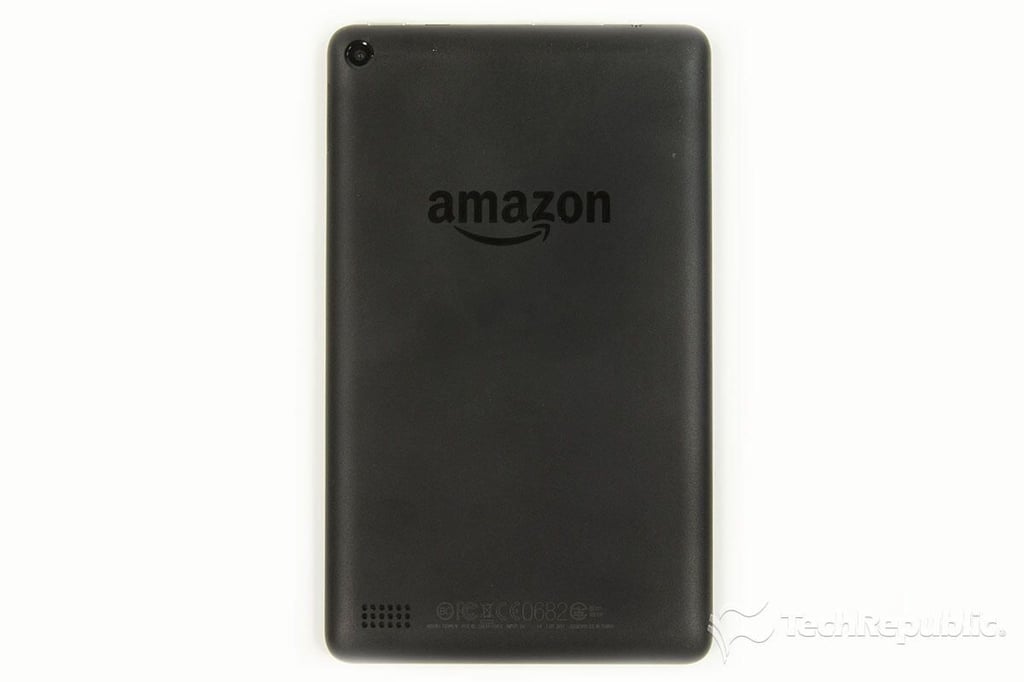

    Cracking Open Amazon Fire: Back cover

    Bill Detwiler\/TechRepublic
  • Amazon Fire teardown

    Cracking Open Amazon Fire: Disconnecting the battery

    Bill Detwiler\/TechRepublic

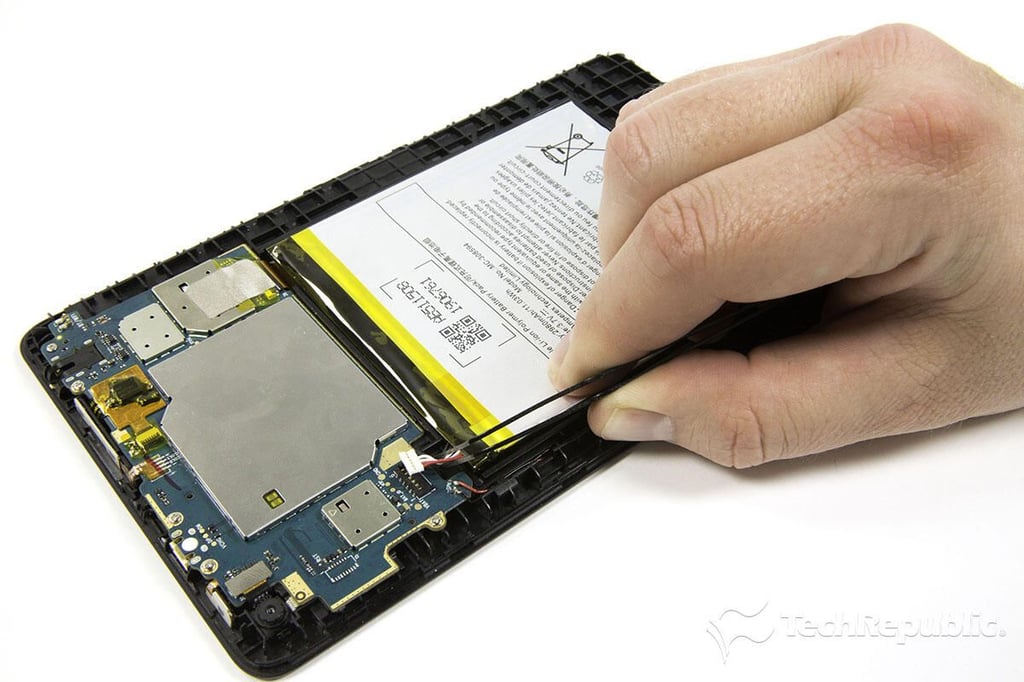

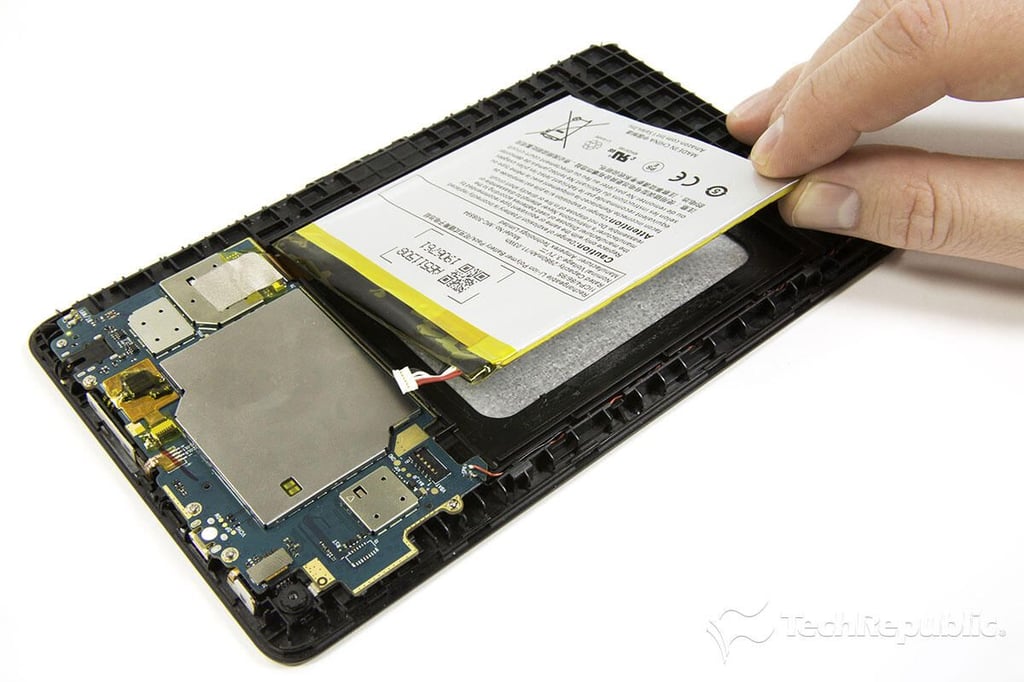

  • Amazon Fire teardown

    Cracking Open Amazon Fire: Removing the battery

    Bill Detwiler\/TechRepublic

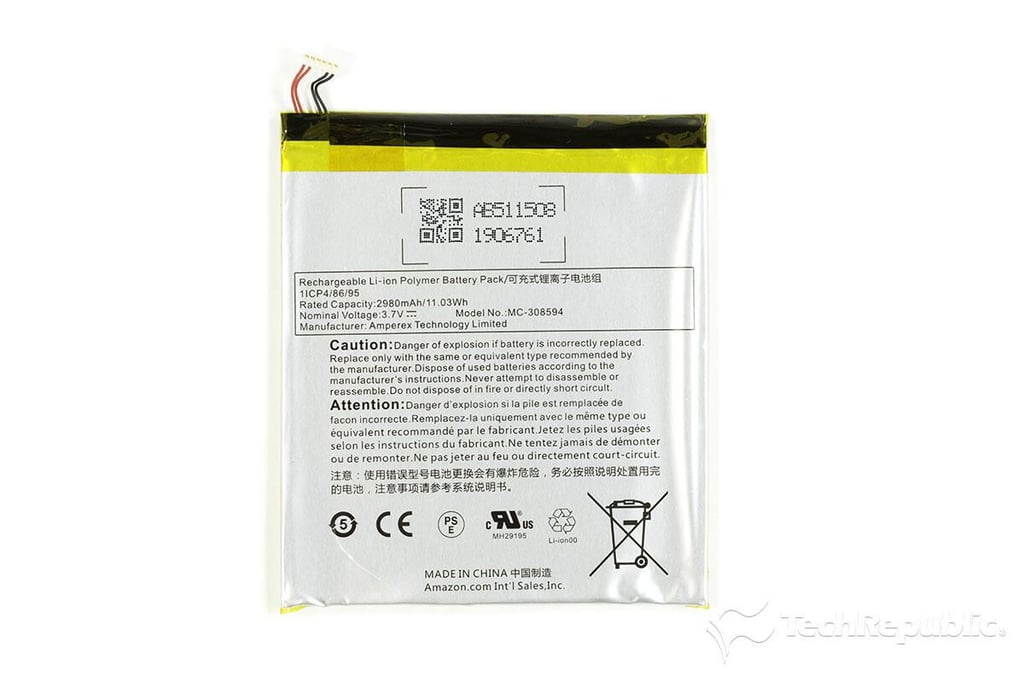

  • Amazon Fire teardown

    Cracking Open Amazon Fire: 2980 mAh Li-ion battery

    Bill Detwiler\/TechRepublic
  • Amazon Fire teardown

    Cracking Open Amazon Fire: Removing the rear-facing camera

    Bill Detwiler\/TechRepublic

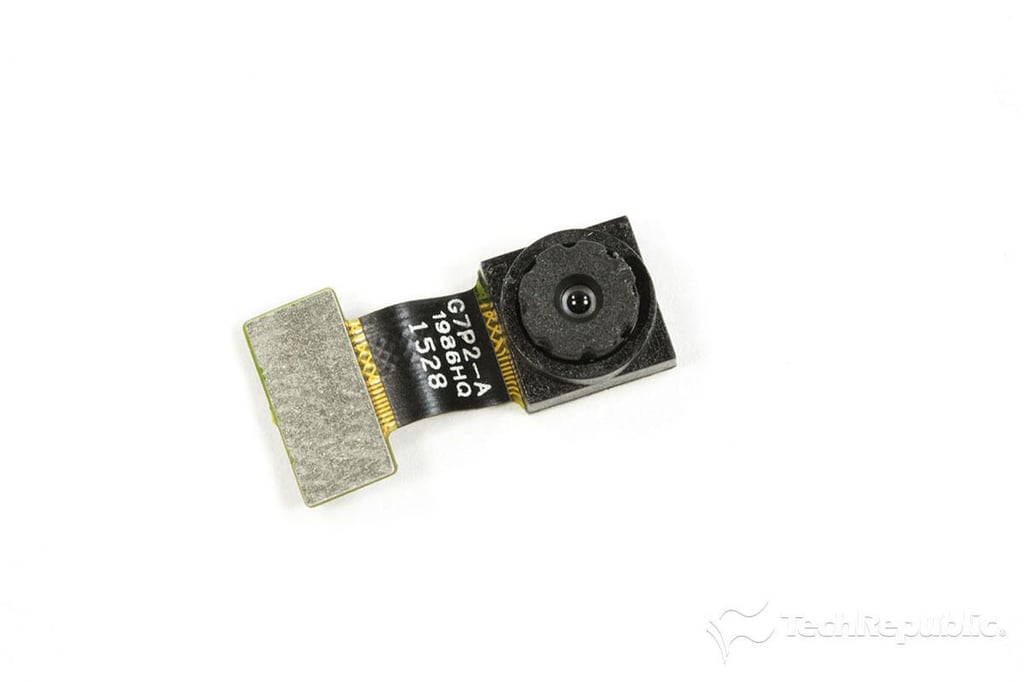

  • Amazon Fire teardown

    Cracking Open Amazon Fire: 2MP rear-facing camera

    Bill Detwiler\/TechRepublic

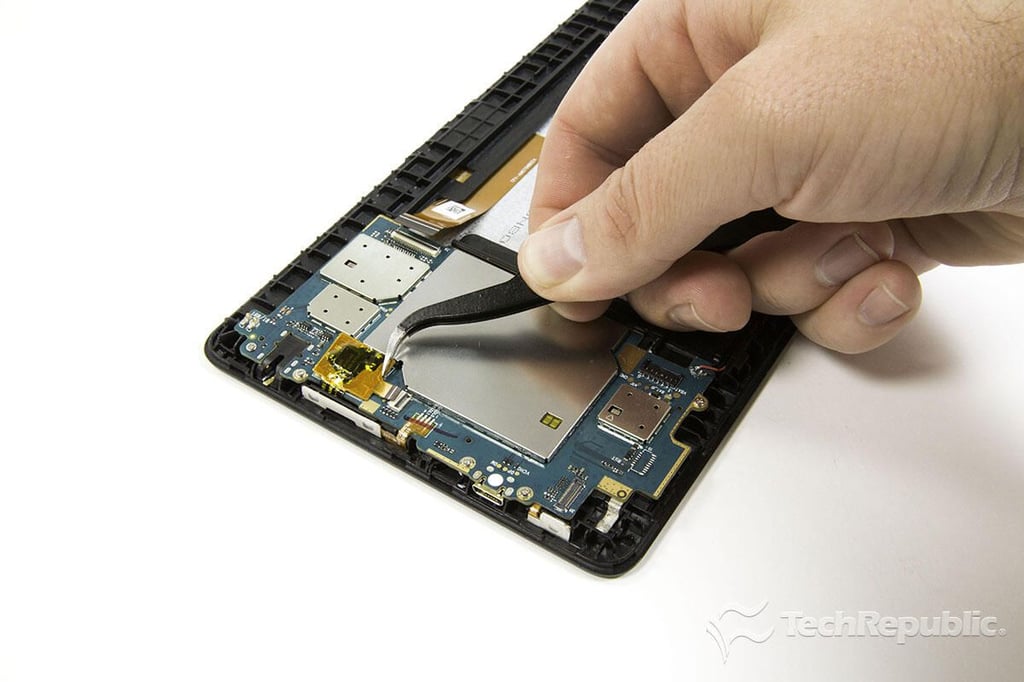

  • Amazon Fire teardown

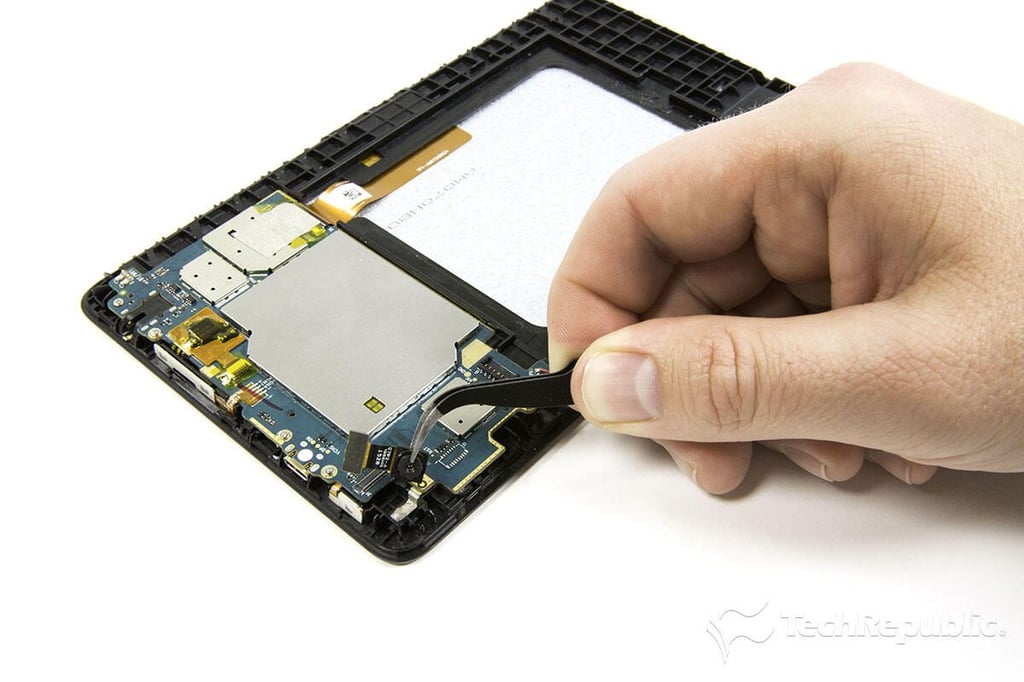

    Cracking Open Amazon Fire: Detaching the system board connectors

    Bill Detwiler\/TechRepublic
  • Amazon Fire teardown

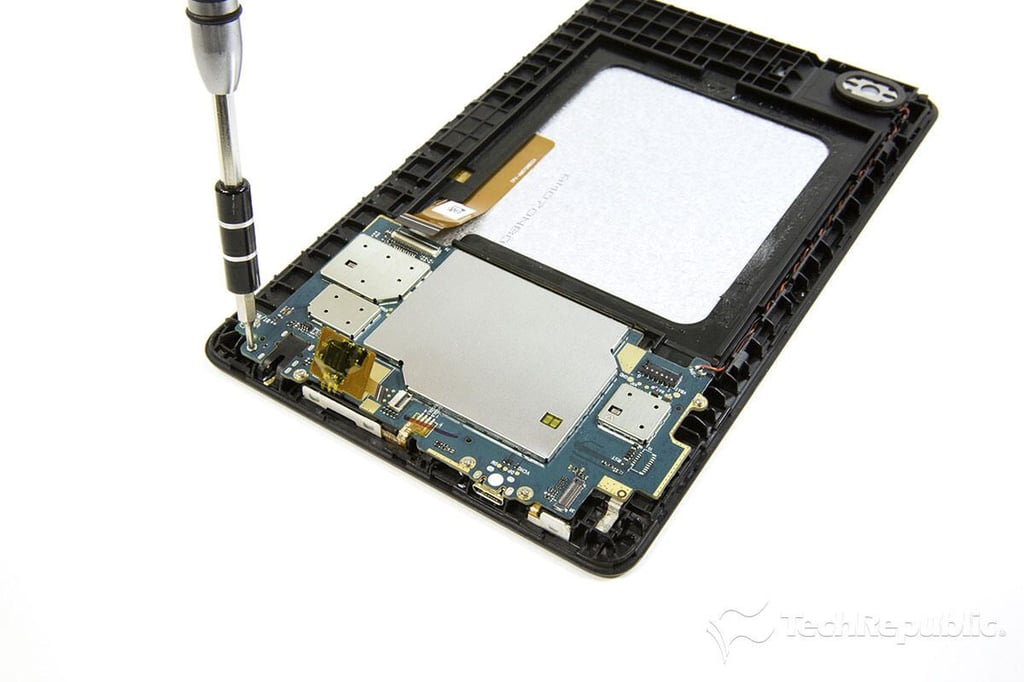

    Cracking Open Amazon Fire: Removing the system board screws

    Bill Detwiler\/TechRepublic
  • Amazon Fire teardown

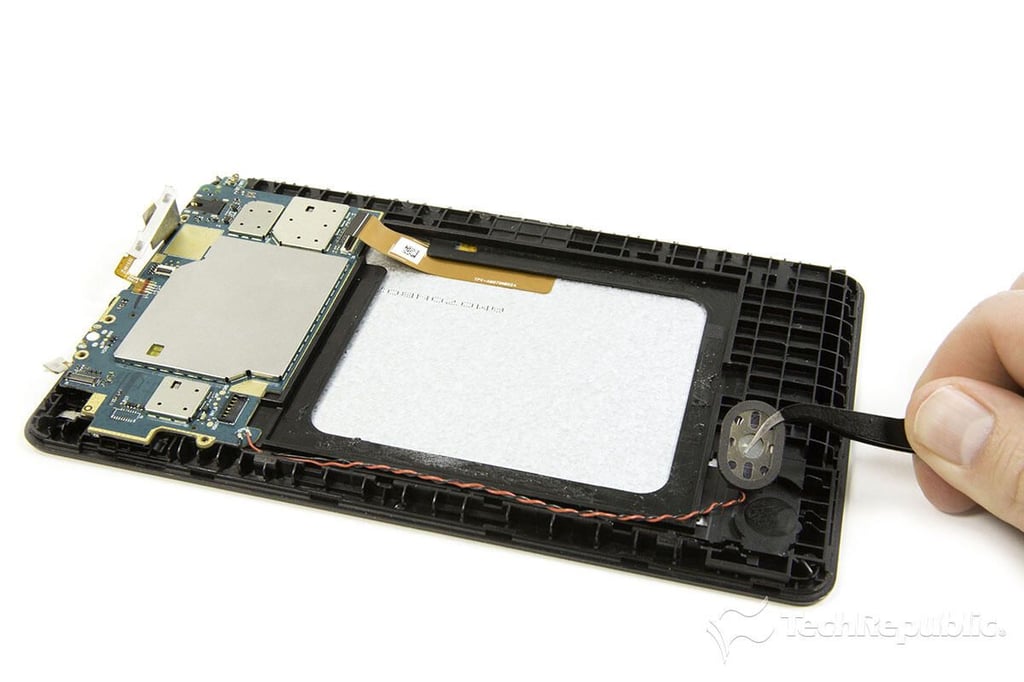

    Cracking Open Amazon Fire: Removing the speaker

    Bill Detwiler\/TechRepublic
  • Amazon Fire teardown

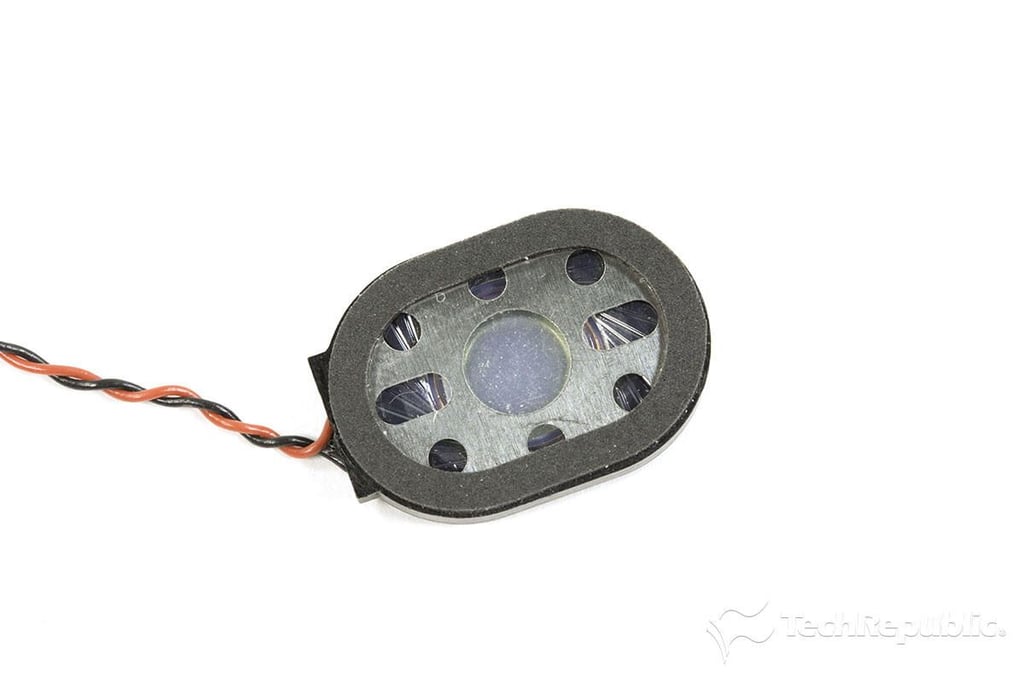

    Cracking Open Amazon Fire: Mono speaker

    Bill Detwiler\/TechRepublic
  • Amazon Fire teardown

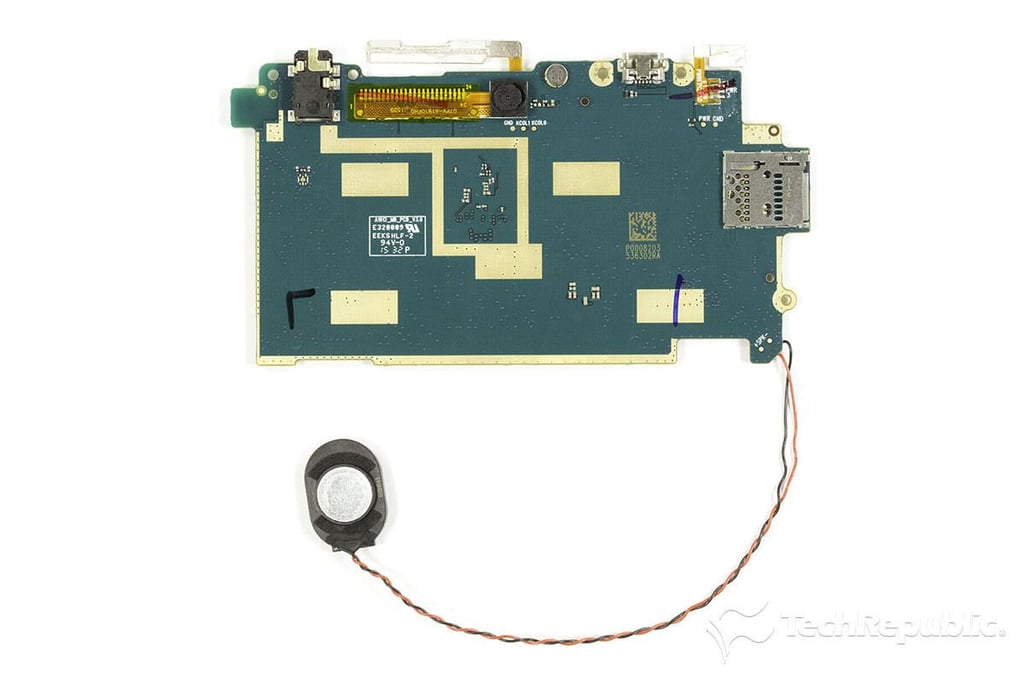

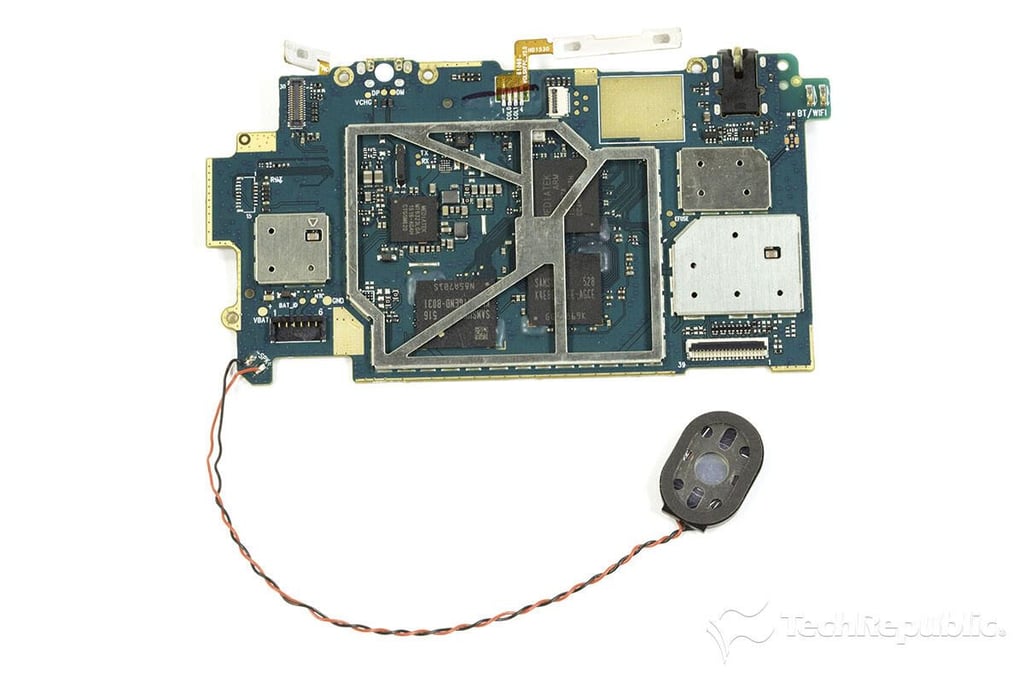

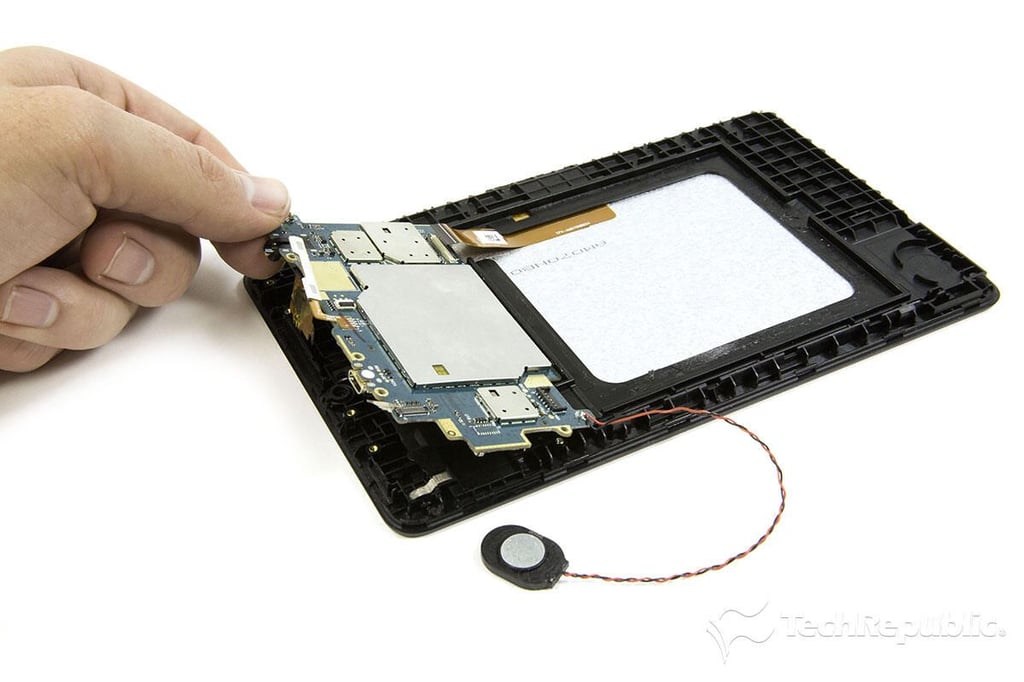

    Cracking Open Amazon Fire: Removing the system board

    Bill Detwiler\/TechRepublic

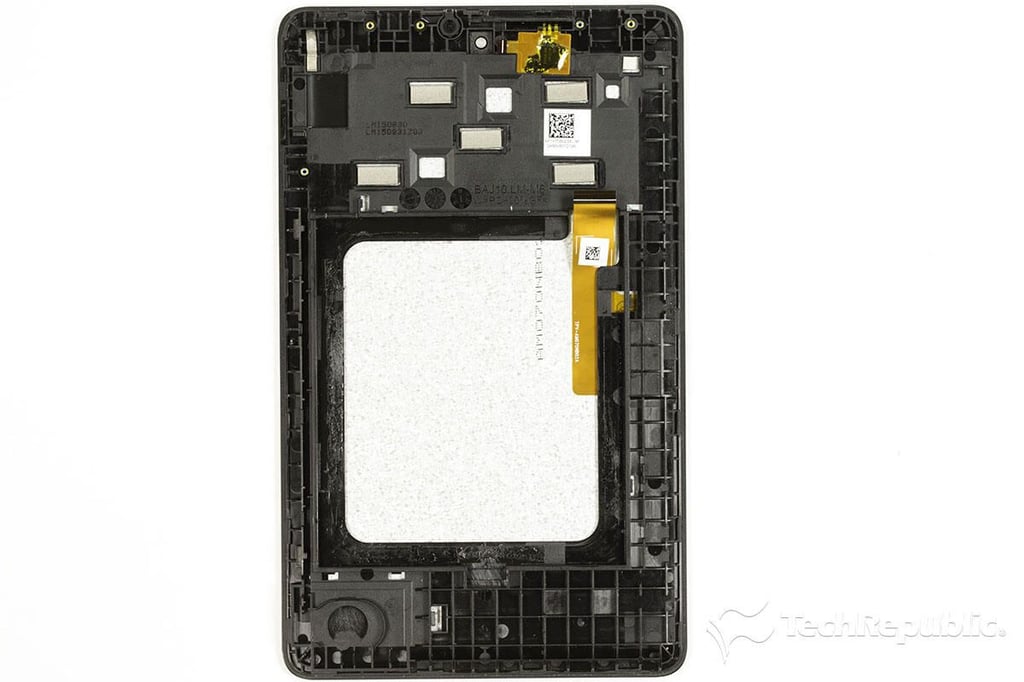

  • Amazon Fire teardown

    Cracking Open Amazon Fire: Front panel and display attached to frame

    Bill Detwiler\/TechRepublic
  • Amazon Fire teardown

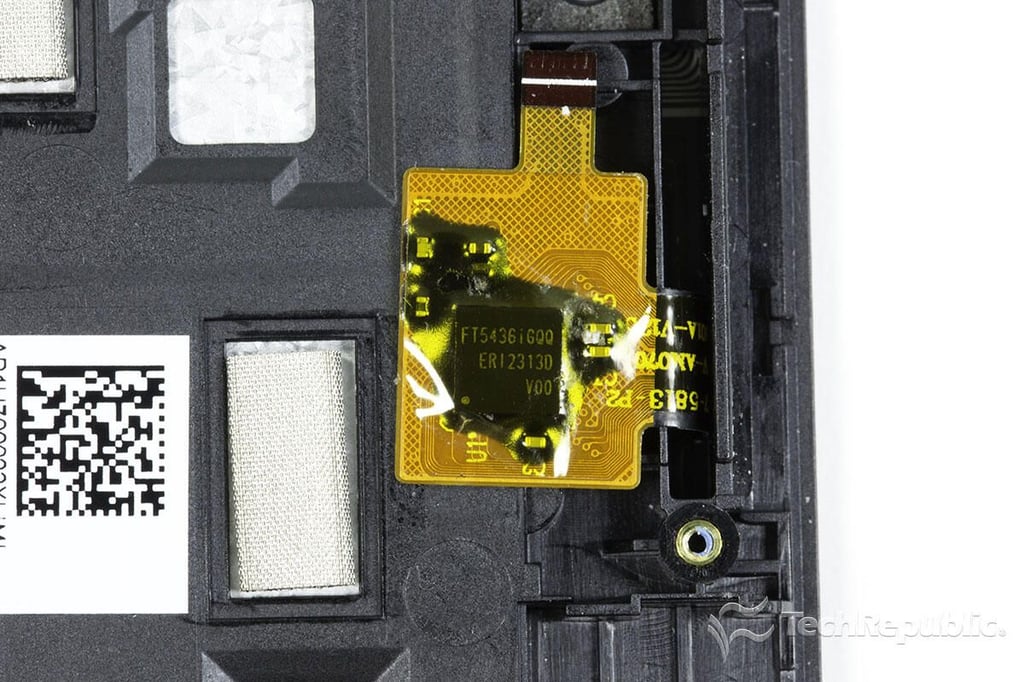

    Cracking Open Amazon Fire: FocalTech FT5436i touch controller

    Bill Detwiler\/TechRepublic

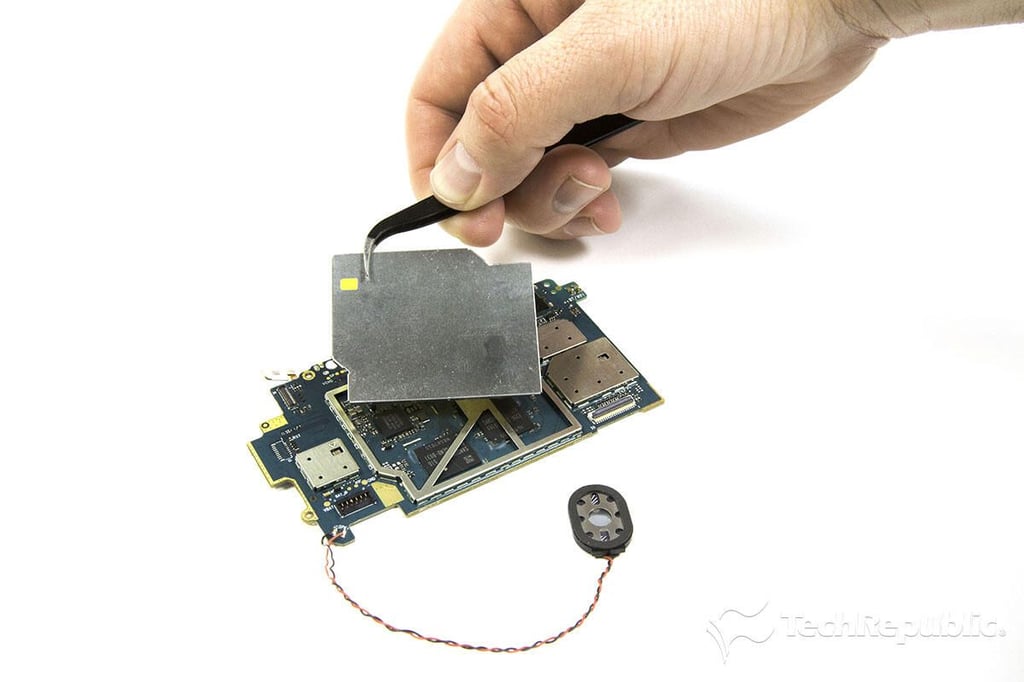

  • Amazon Fire teardown

    Cracking Open Amazon Fire: Removing the shield from the system board

    Bill Detwiler\/TechRepublic
  • Amazon Fire teardown

    Cracking Open Amazon Fire: System board - Front

    Bill Detwiler\/TechRepublic
  • Amazon Fire teardown

    Cracking Open Amazon Fire: System board - Bacl

    Bill Detwiler\/TechRepublic

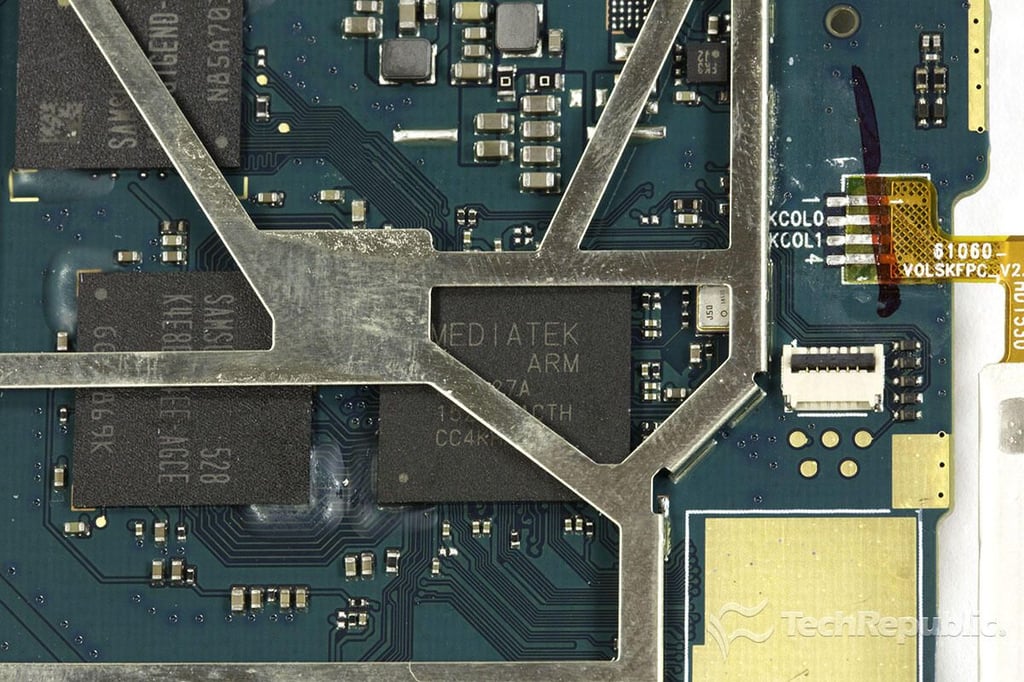

  • Amazon Fire teardown

    Cracking Open Amazon Fire: 1.3 GHz Mediatek MT8127 ARM Cortex A7 quad-core processor

    Bill Detwiler\/TechRepublic

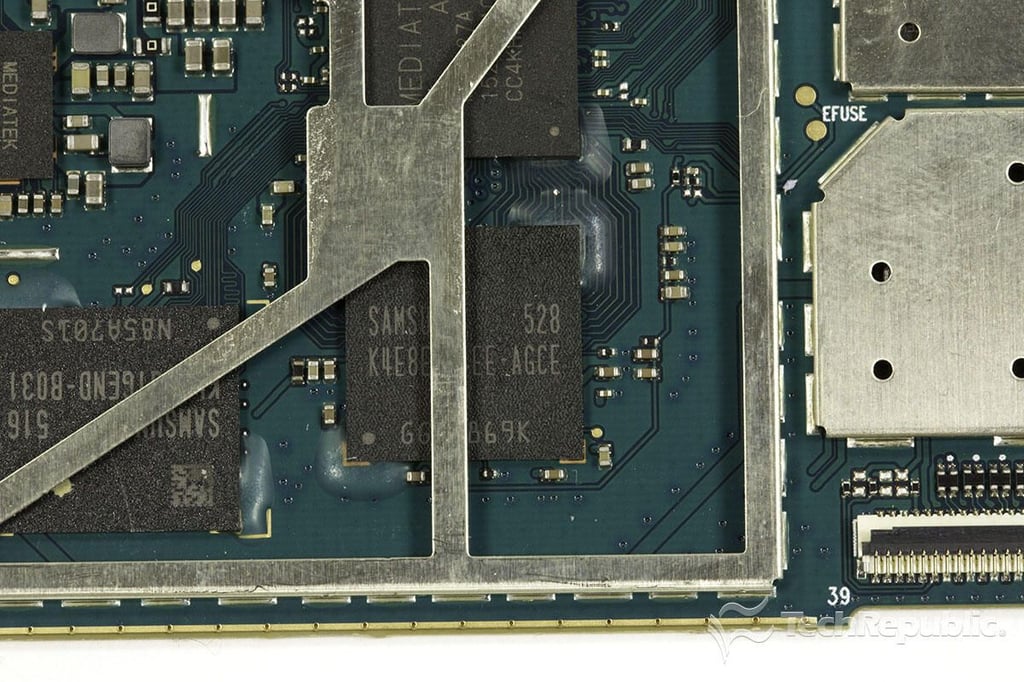

  • Amazon Fire teardown

    Cracking Open Amazon Fire: 1GB Samsung DRAM chip K4E8E304EE-AGCE

    Bill Detwiler\/TechRepublic
  • Amazon Fire teardown

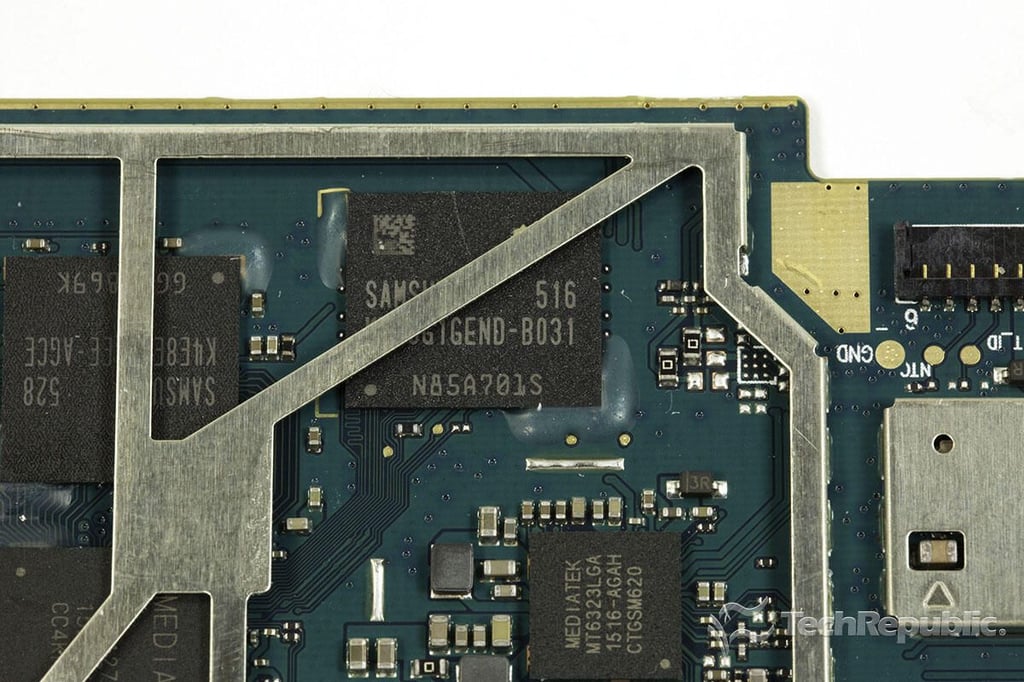

    Cracking Open Amazon Fire: 8GB Samsung eMMC storage module KLM8G1GEND-B0310

    Bill Detwiler\/TechRepublic
  • Amazon Fire teardown

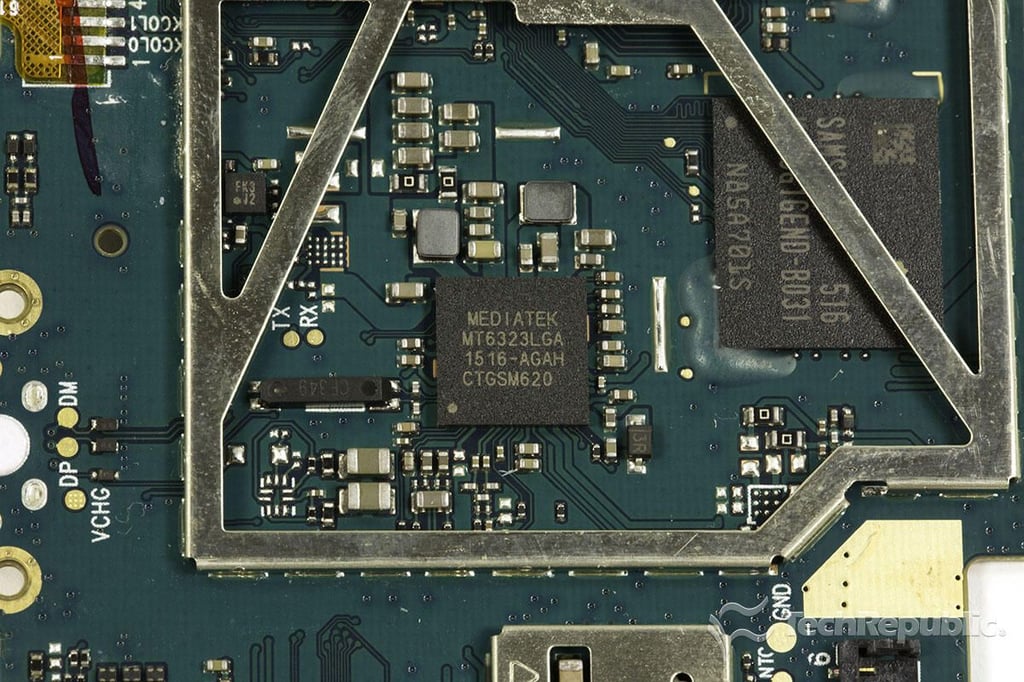

    Cracking Open Amazon Fire: MediaTek MT6323 power management IC

    Bill Detwiler\/TechRepublic
  • Amazon Fire teardown

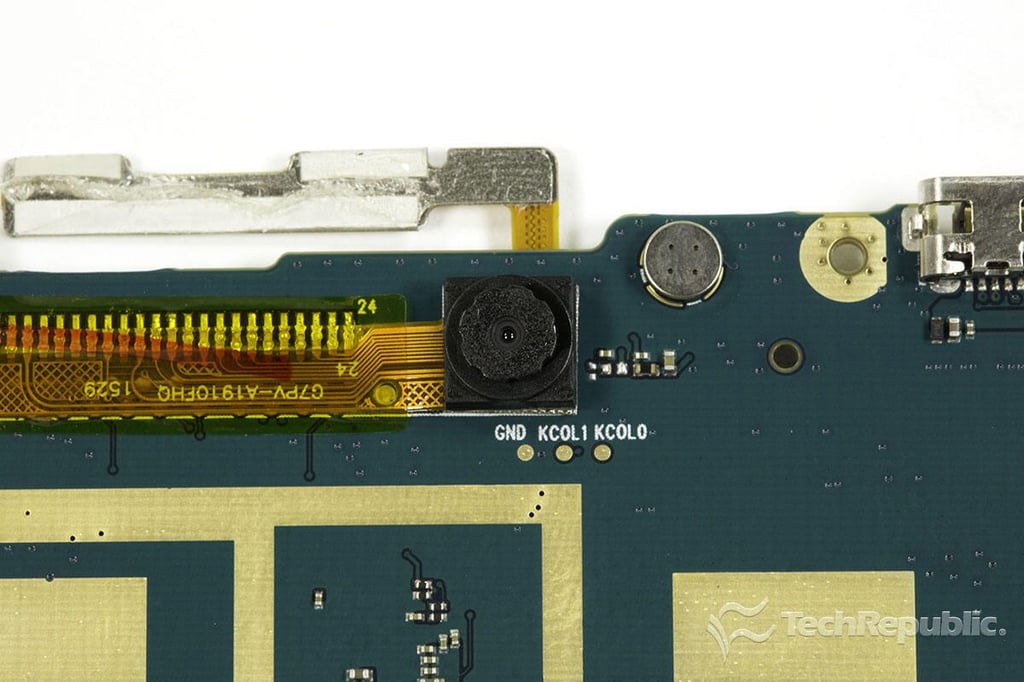

    Cracking Open Amazon Fire: VGA front-facing camera

    Bill Detwiler\/TechRepublic
  • Amazon Fire teardown

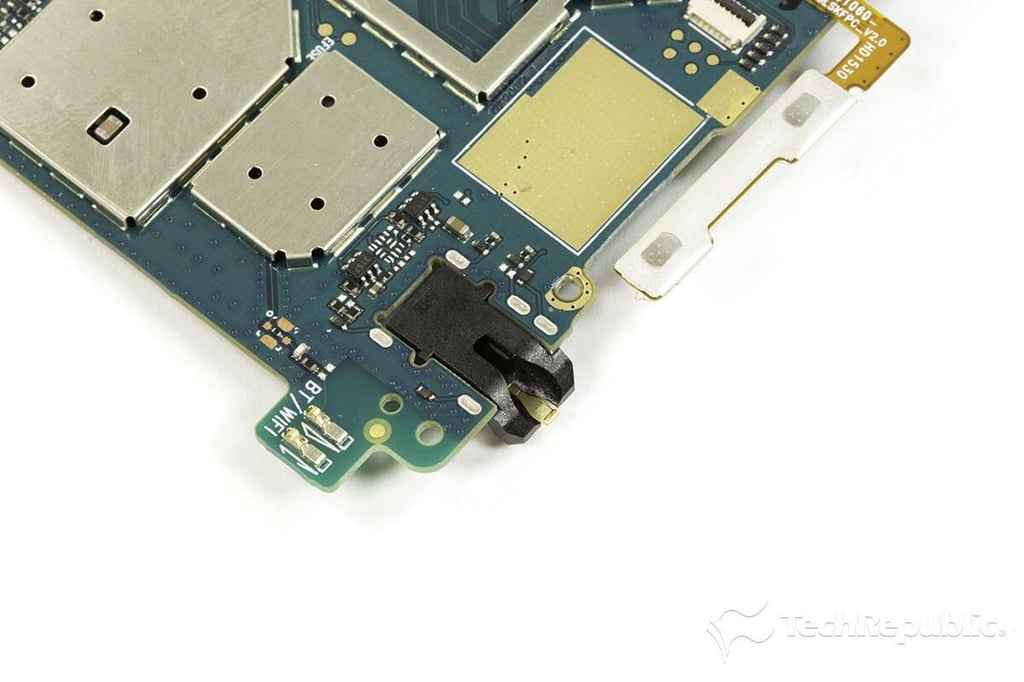

    Cracking Open Amazon Fire: 3.5mm headphone jack

    Bill Detwiler\/TechRepublic
  • Amazon Fire teardown

    Cracking Open Amazon Fire: micro-USB port

    Bill Detwiler\/TechRepublic

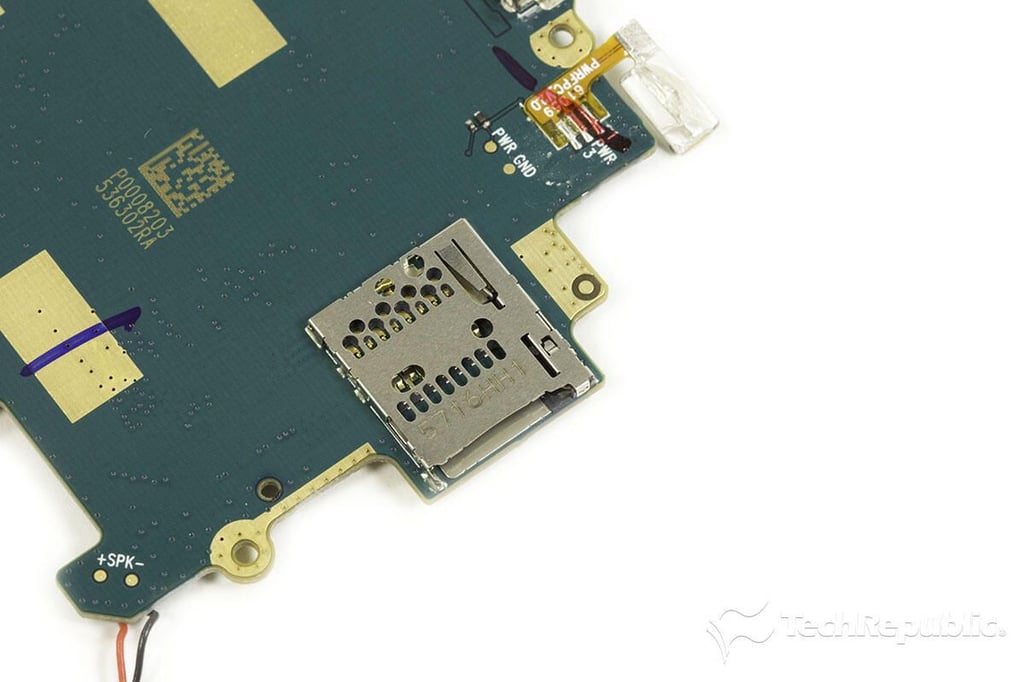

  • Amazon Fire teardown

    Cracking Open Amazon Fire: microSD slot

    Bill Detwiler\/TechRepublic
  • Amazon Fire teardown

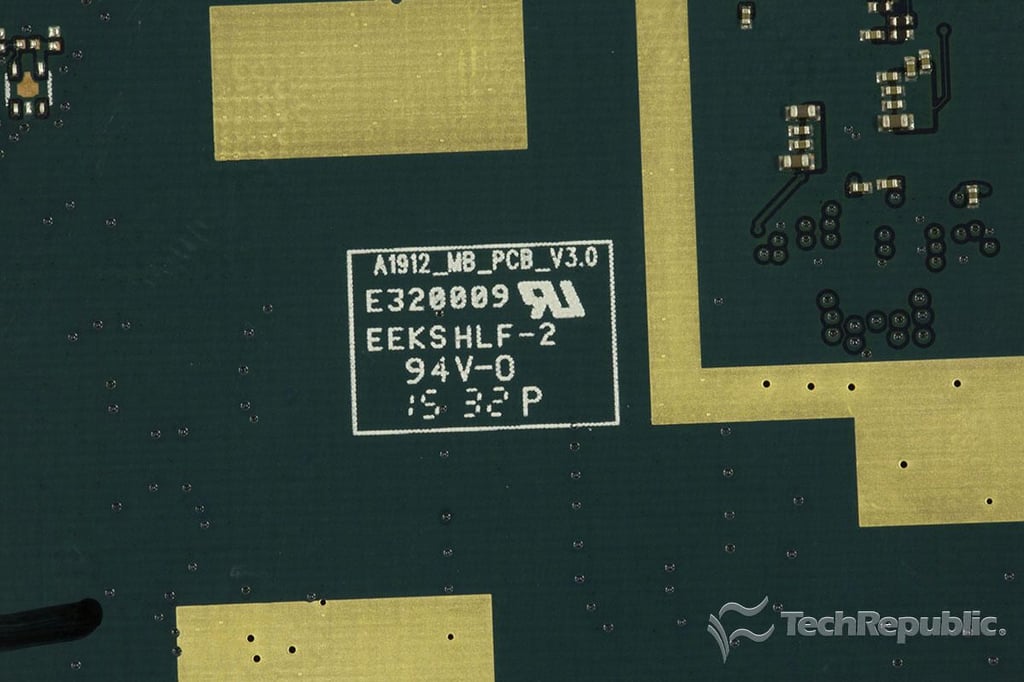

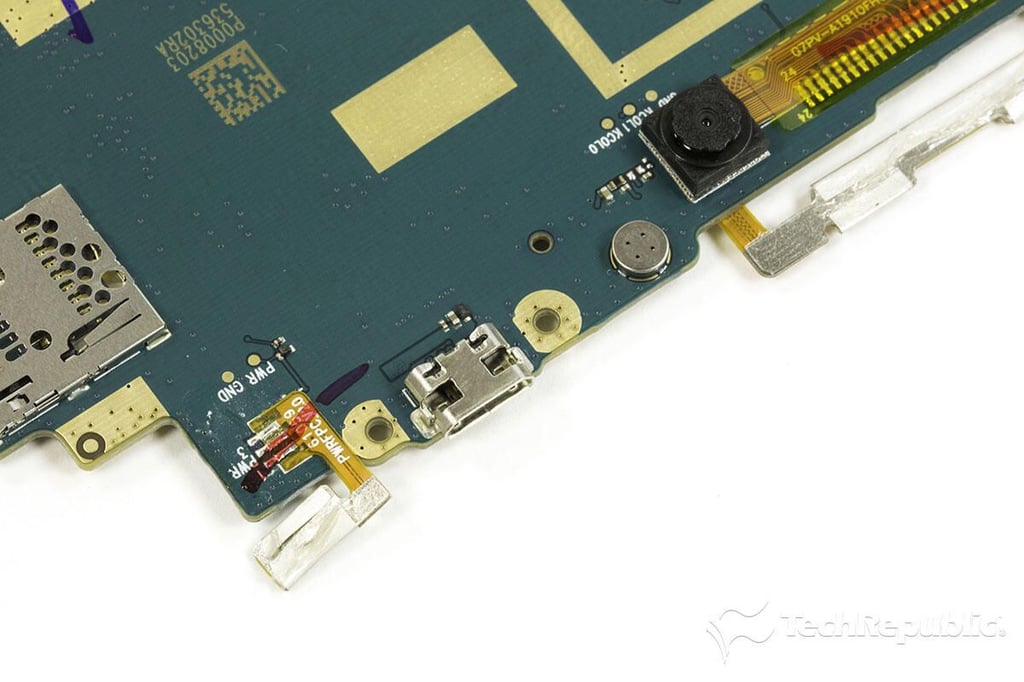

    Cracking Open Amazon Fire: System board markings

    Bill Detwiler\/TechRepublic

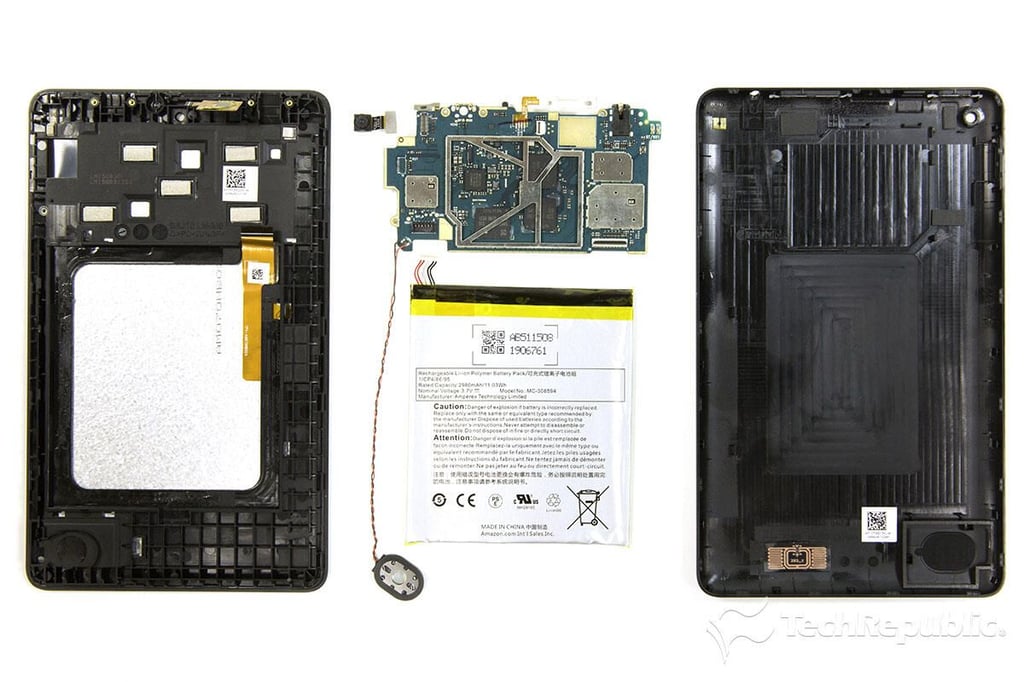

  • Amazon Fire teardown finished

    Cracking Open Amazon Fire: Completed teardown

    Bill Detwiler/TechRepublic
