Cracking Open the Amazon Kindle Fire HD

By // September 20, 2012, 5:42 AM PST // billdetwiler

Image 1 of 48

  • Amazon Kindle Fire HD teardown

    Like the original Kindle Fire, Amazon's Kindle Fire HD is designed for heavy Amazon users and Amazon Prime subscribers. And I show you in this gallery, the 7-inch model is easy to disassemble and has a completely new internal hardware layout.

    The 7-inch Kindle Fire HD sells for $199 (16GB) and $249 (32GB). You'll pay an additional $15 to remove the advertisements shown on the lock screen.

    For a detailed analysis of the teardown, check out my article and video, Kindle Fire HD teardown reveals repair-ready tablet with minor annoyances.

    Photo by: Bill Detwiler / TechRepublic
    Caption by: Bill Detwiler

  • Cracking Open Kindle Fire HD: Box contents

  • Cracking Open Kindle Fire HD: Hardware specifications, dimensions, and weight

    The 7-inch Kindle Fire HD has a 1.2GHz dual-core TI OMAP 4460 system on a chips (SoC), 1GB of DDR2 SDRAM, a 7-inch IPS LCD (1280x800), and Wi-Fi 802.11 a/b/g/n (MIMO) support. The base model has 16GB of storage, but a 32GB version is also available. The Fire HD measures 5.4" (W) x 7.6 (T) x 0.4" (D) and weighs 13.9 ounces.

    Photo by: Bill Detwiler / TechRepublic
    Caption by: Bill Detwiler

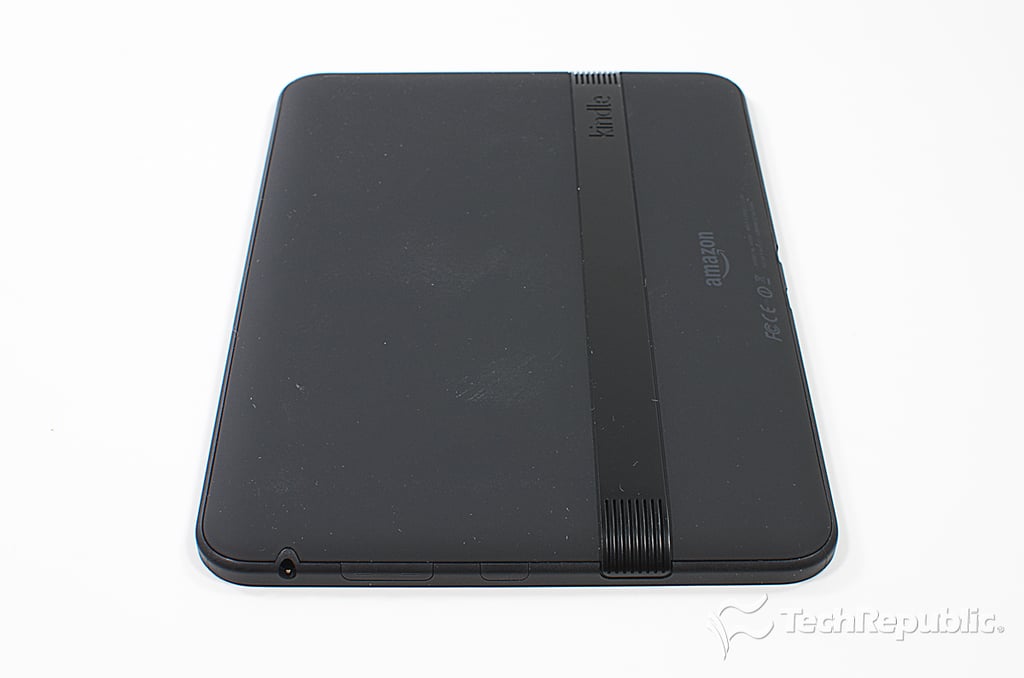

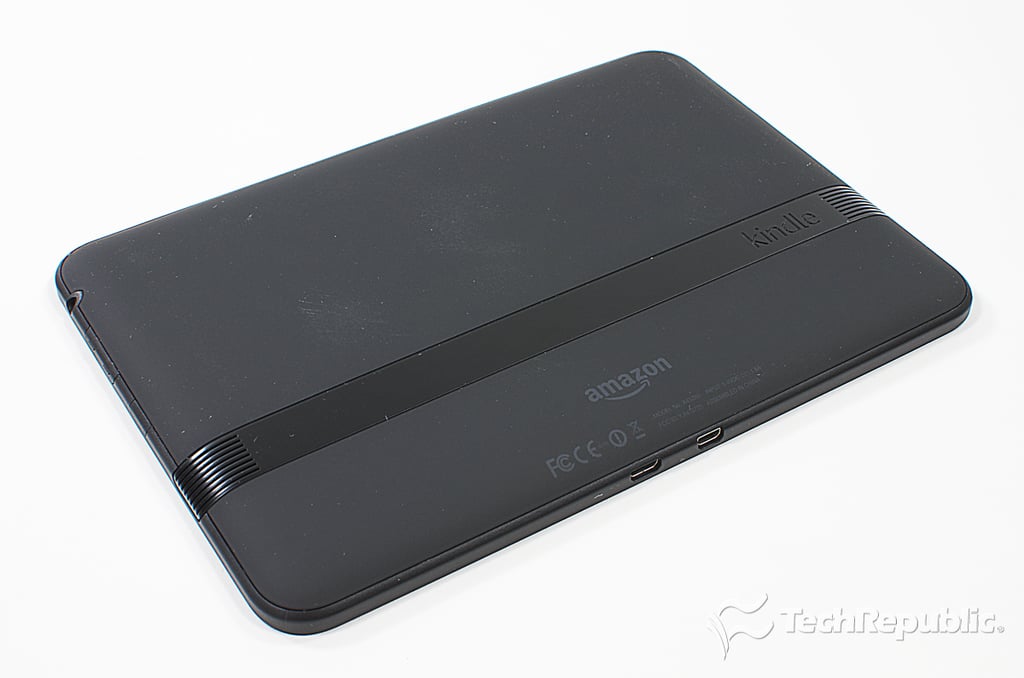

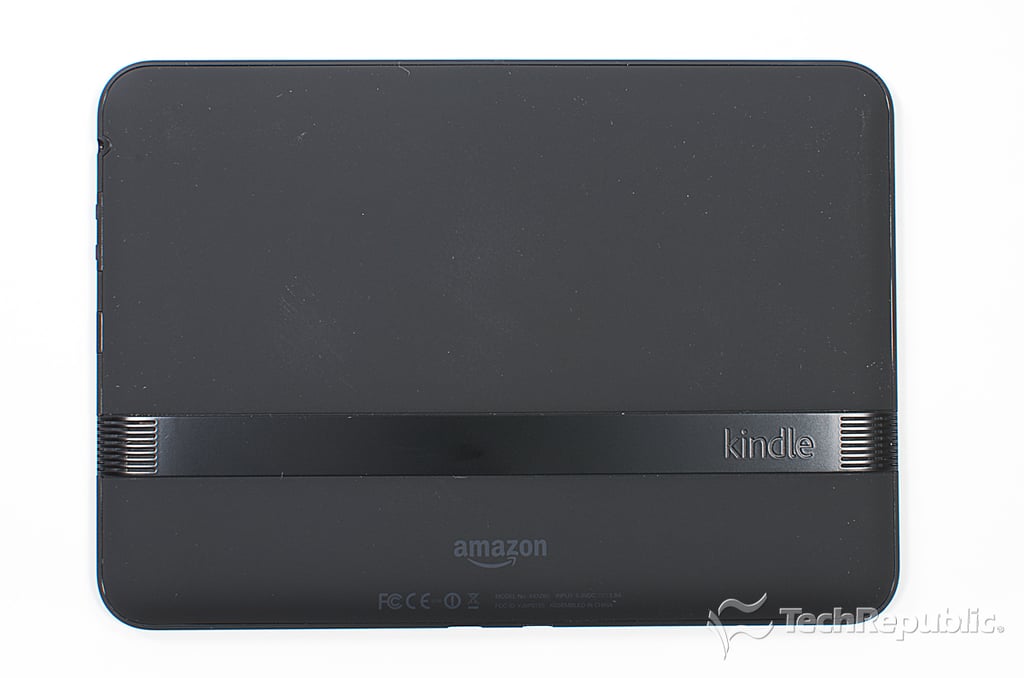

  • Cracking Open Kindle Fire HD: Back

  • Cracking Open Kindle Fire HD: HDMI (mini) and USB (micro-B) ports

  • Cracking Open Kindle Fire HD: Headphone jack, volume button, and power button

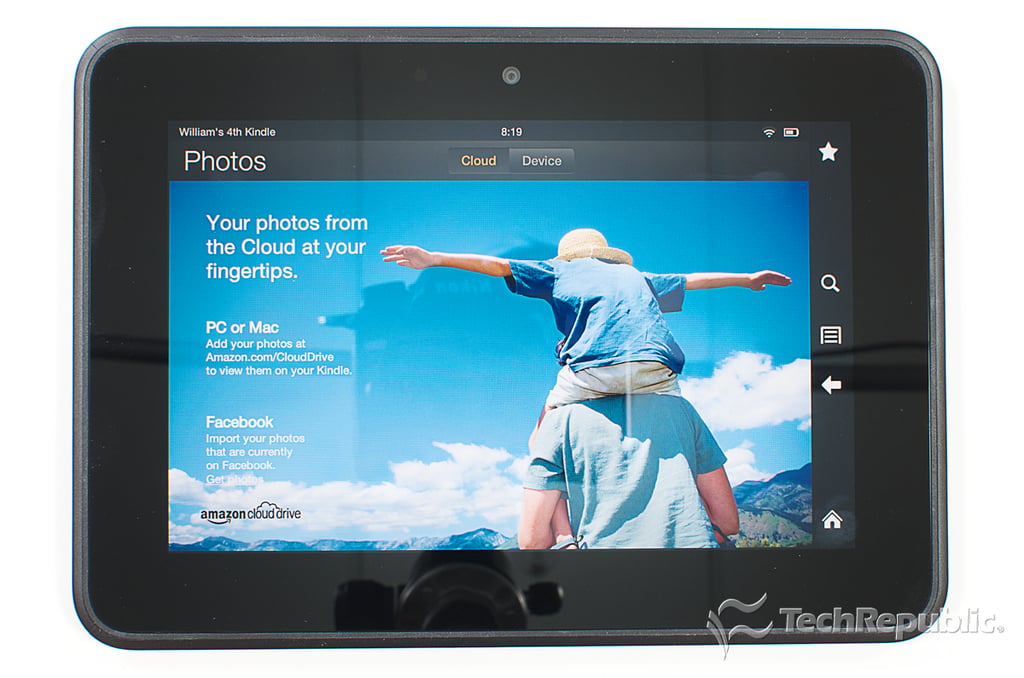

  • Cracking Open Kindle Fire HD: 7-inch IPS LCD screen (1280x800)

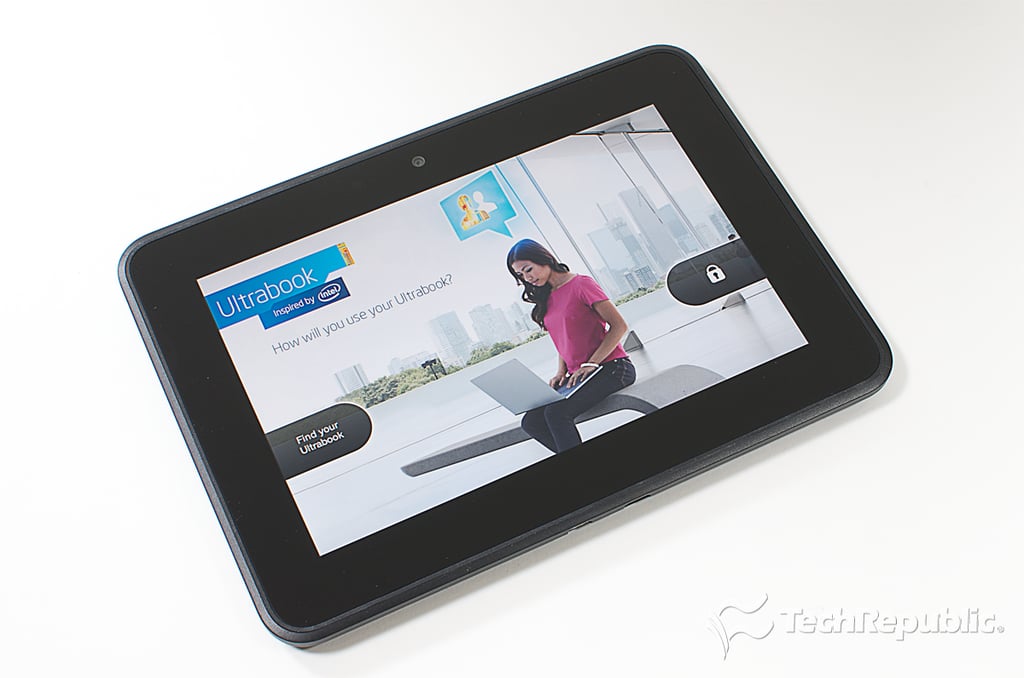

  • Cracking Open Kindle Fire HD: Lock screen advertisements

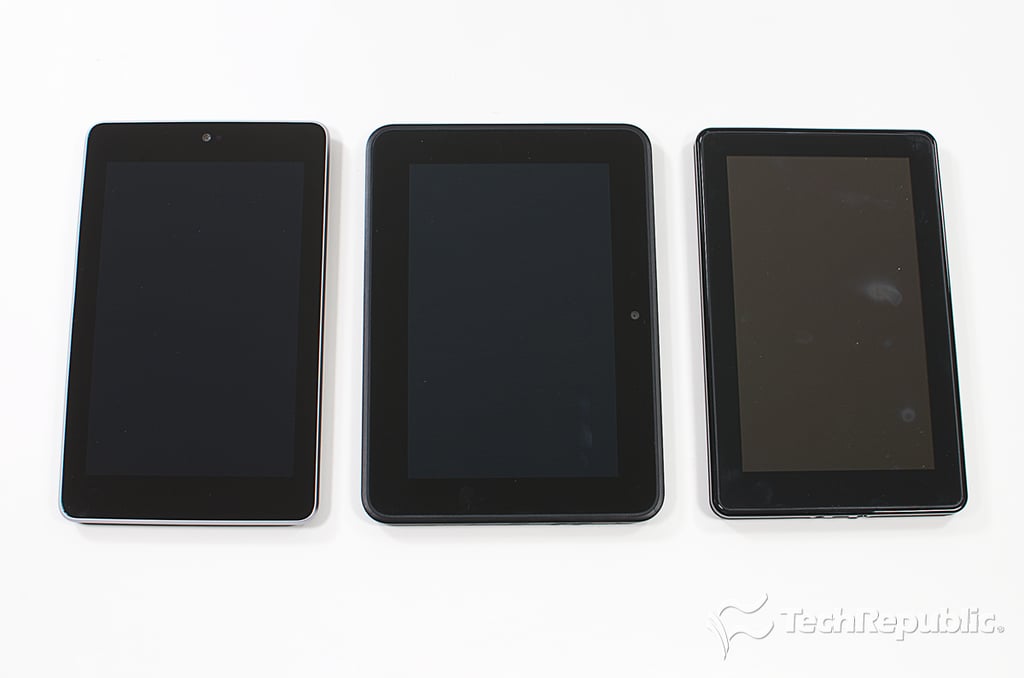

  • Cracking Open Kindle Fire HD: Nexus 7, Kindle Fire HD, and original Kindle Fire

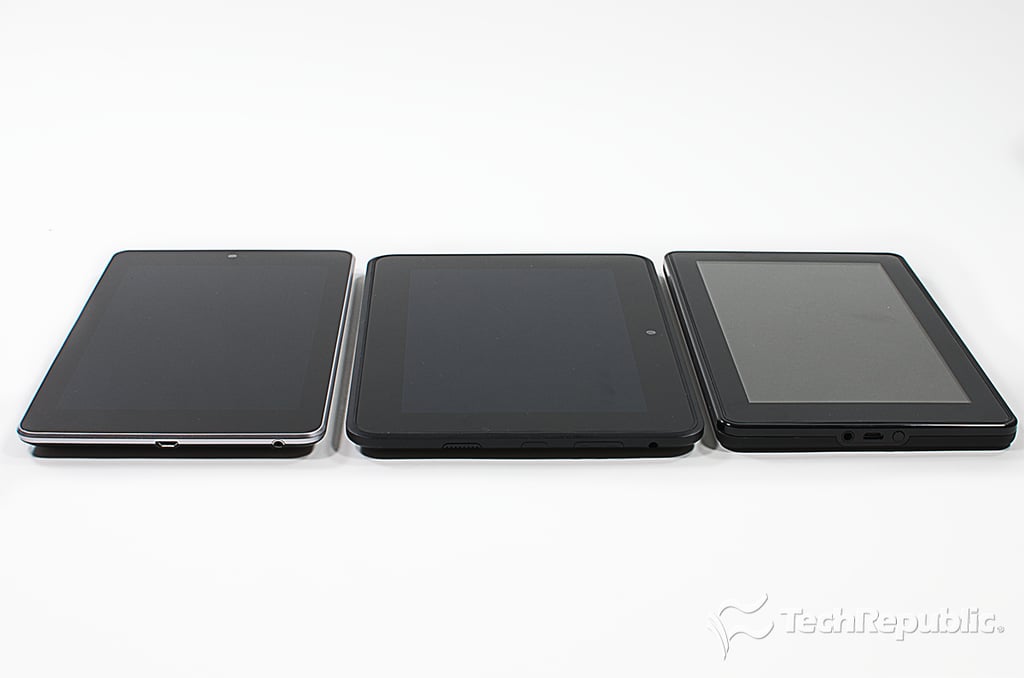

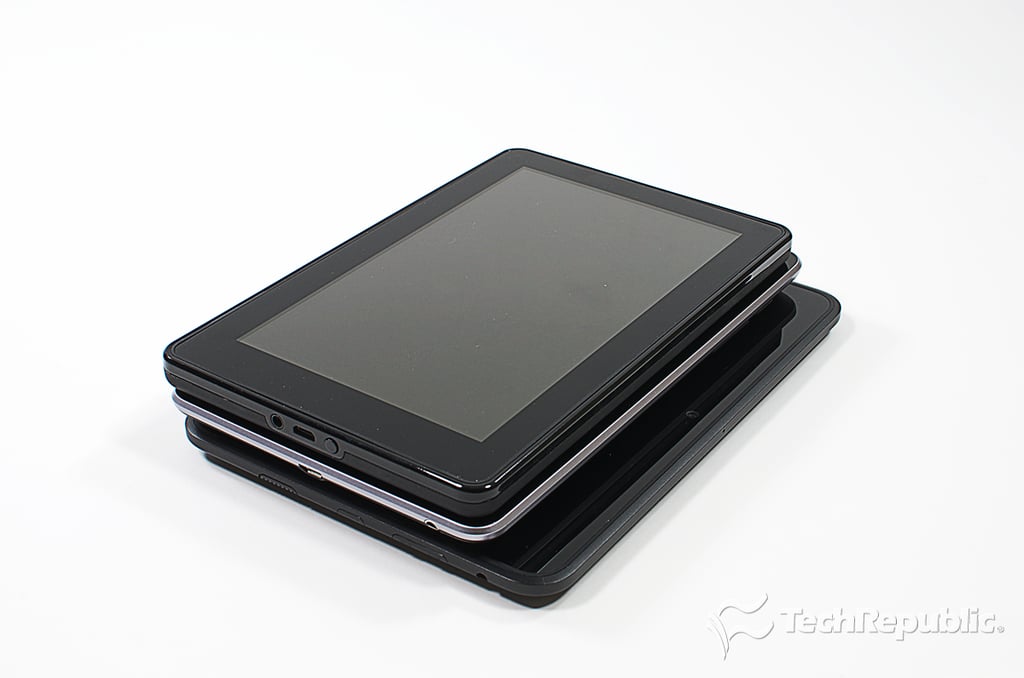

  • Cracking Open Kindle Fire HD: Thinner than Nexus 7 and original Kindle Fire

  • Cracking Open Kindle Fire HD: Wider than original Fire and Nexus 7

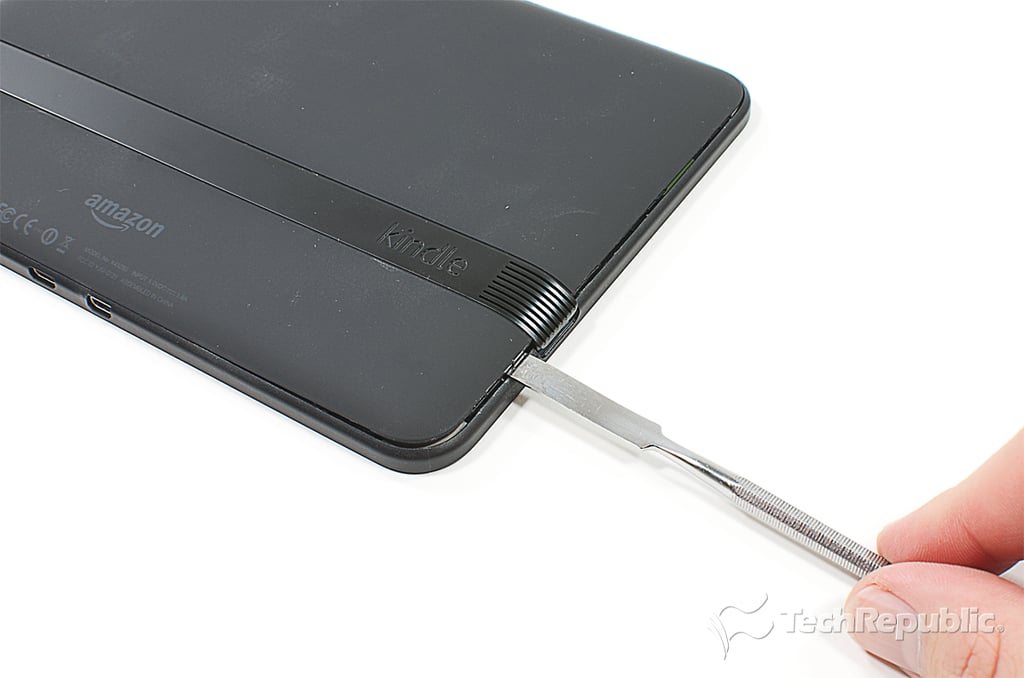

  • Cracking Open Kindle Fire HD: Popping off the back cover

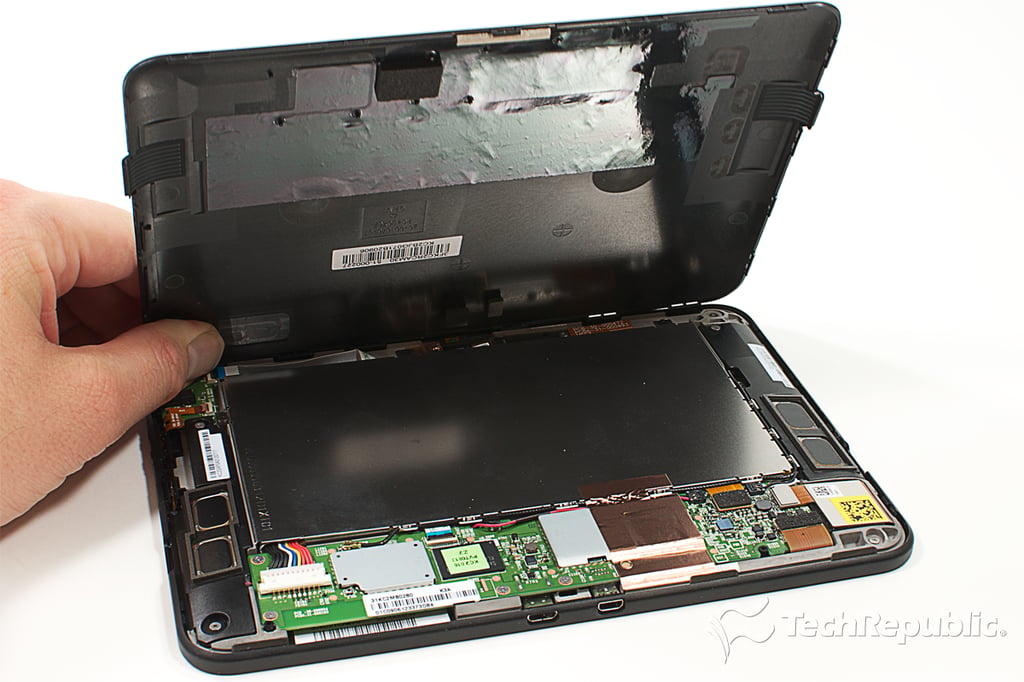

  • Cracking Open Kindle Fire HD: Removing the back cover

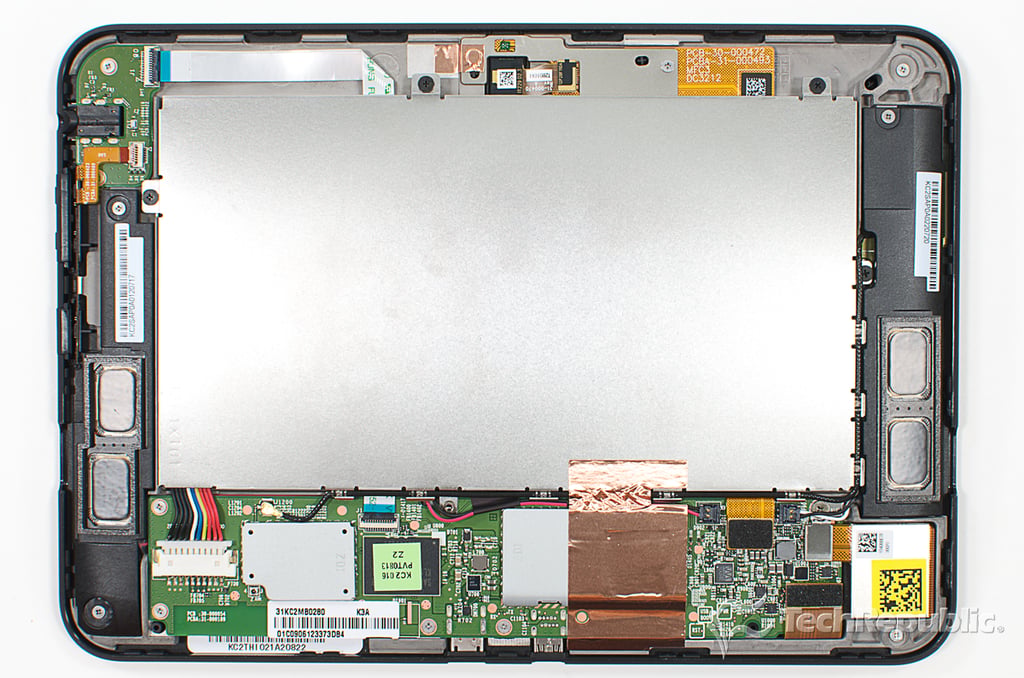

  • Cracking Open Kindle Fire HD: Internal hardware

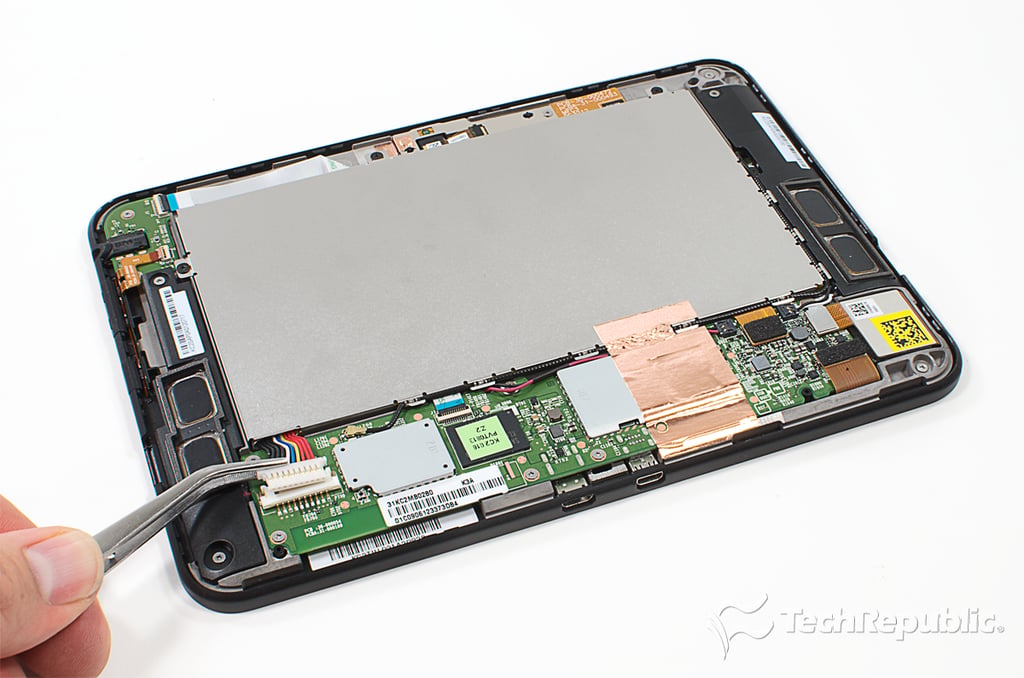

  • Cracking Open Kindle Fire HD: Disconnecting the battery

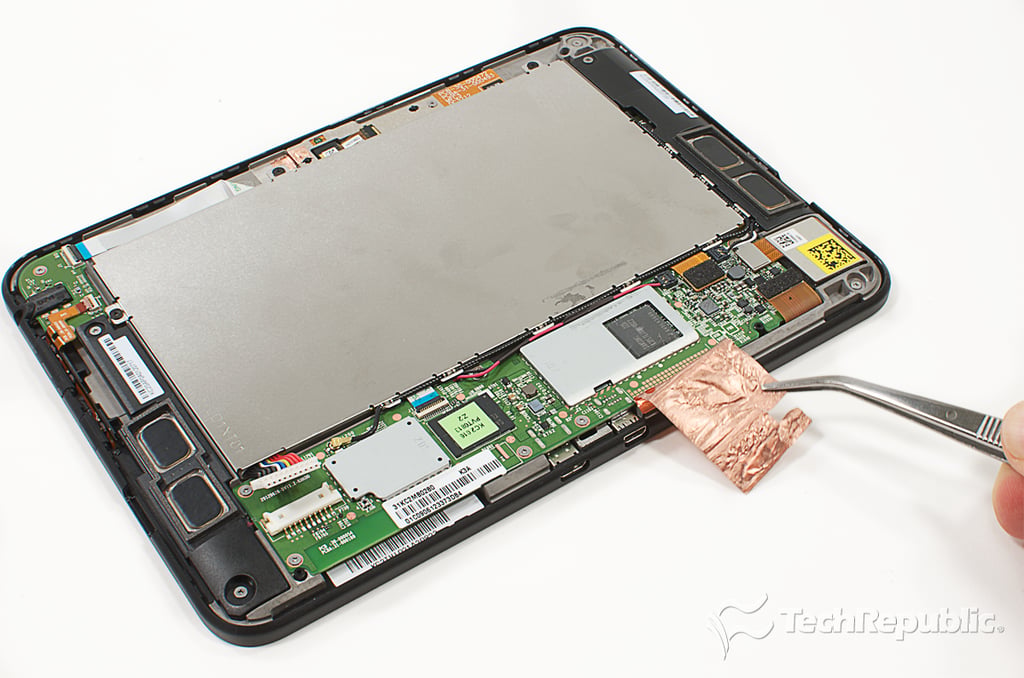

  • Cracking Open Kindle Fire HD: Removing the copper tape from the battery and motherboard

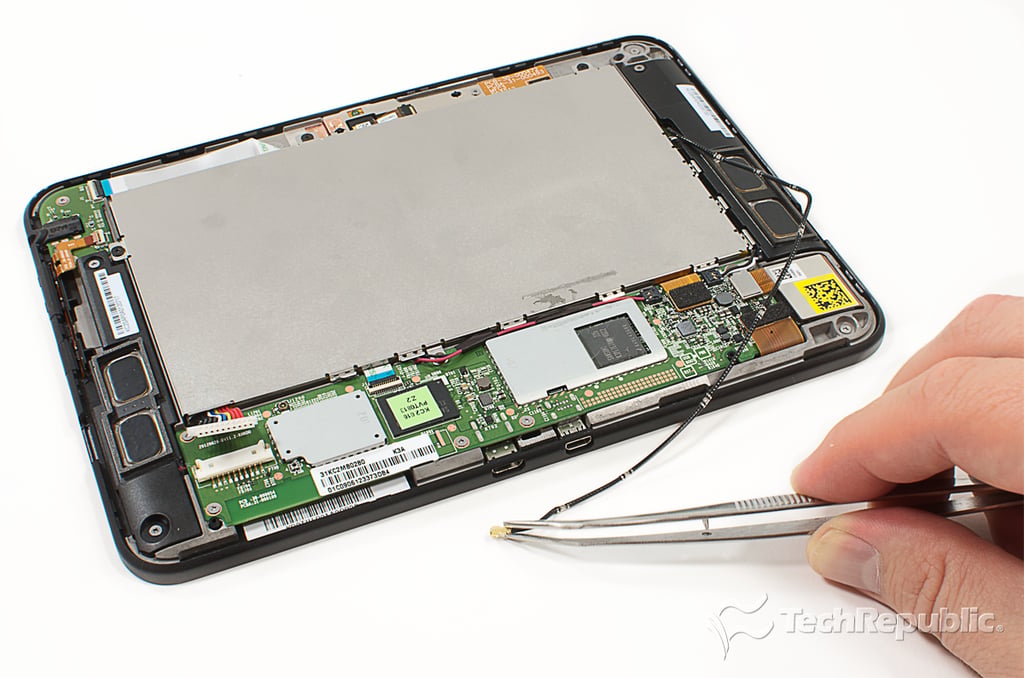

  • Cracking Open Kindle Fire HD: Disconnecting the Wi-Fi antenna wire

  • Cracking Open Kindle Fire HD: Removing the battery screws

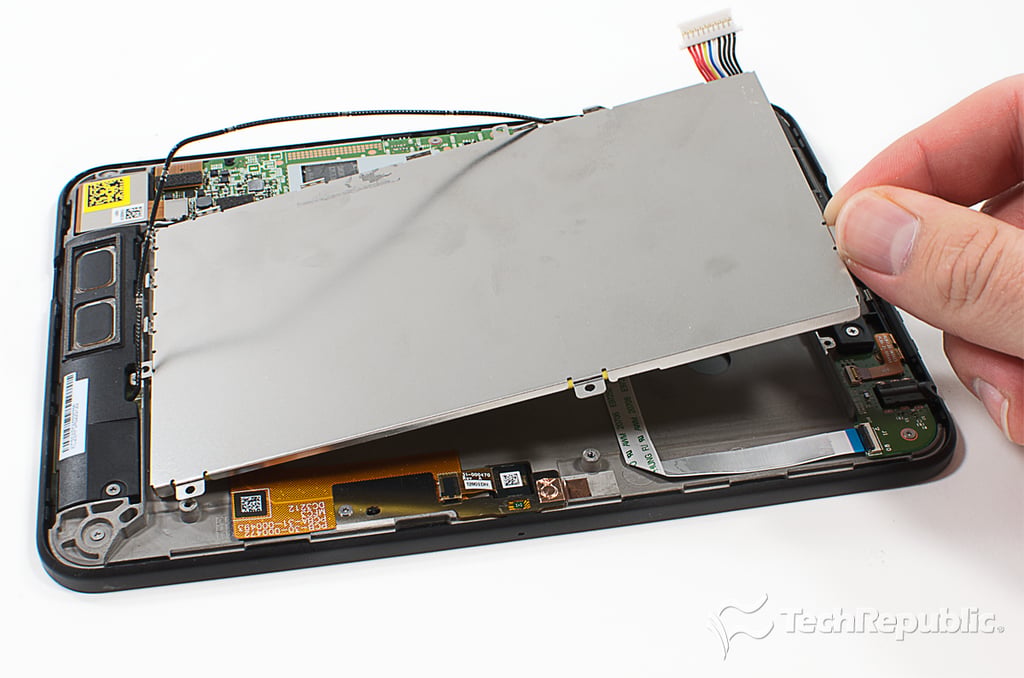

  • Cracking Open Kindle Fire HD: Removing the battery

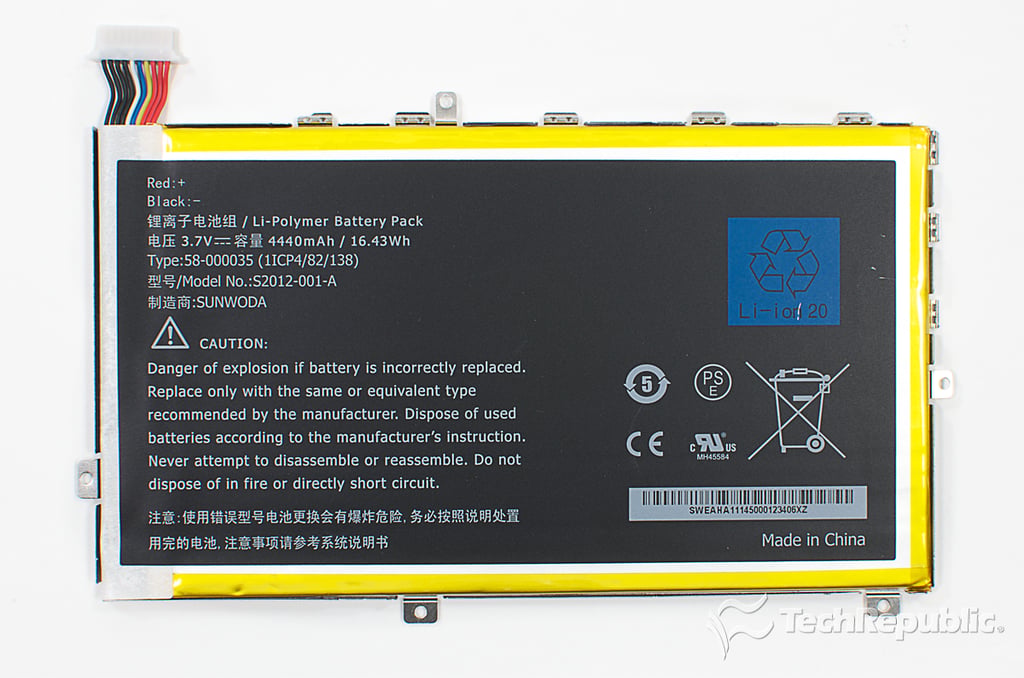

  • Cracking Open Kindle Fire HD: 3.7 V, 4,400 mAh, 16.43 Wh Li-ion battery

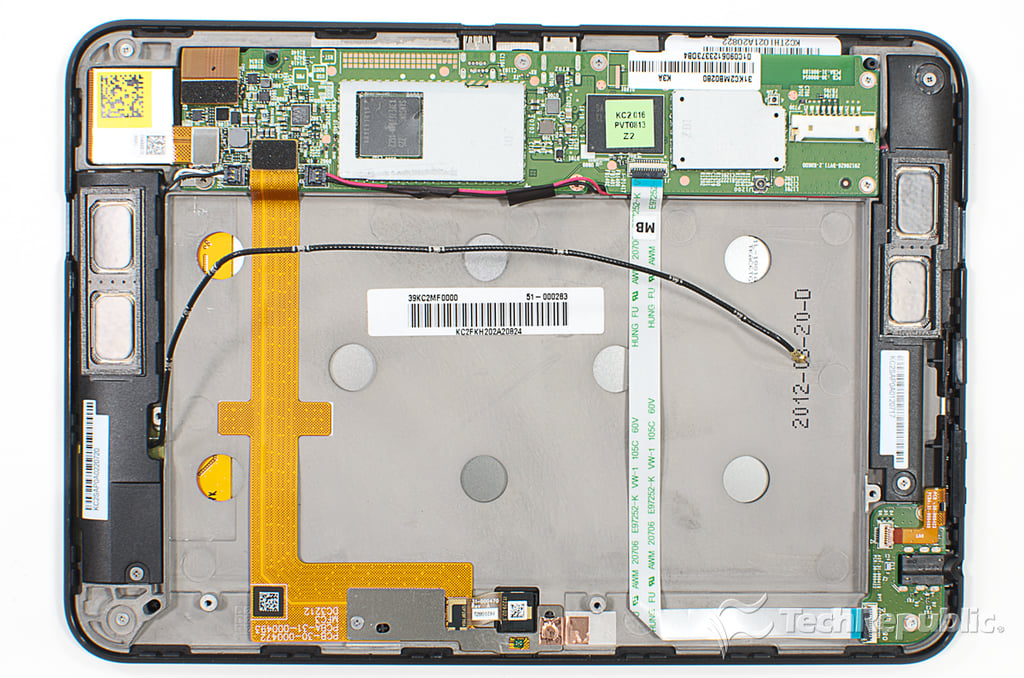

  • Cracking Open Kindle Fire HD: With battery removed

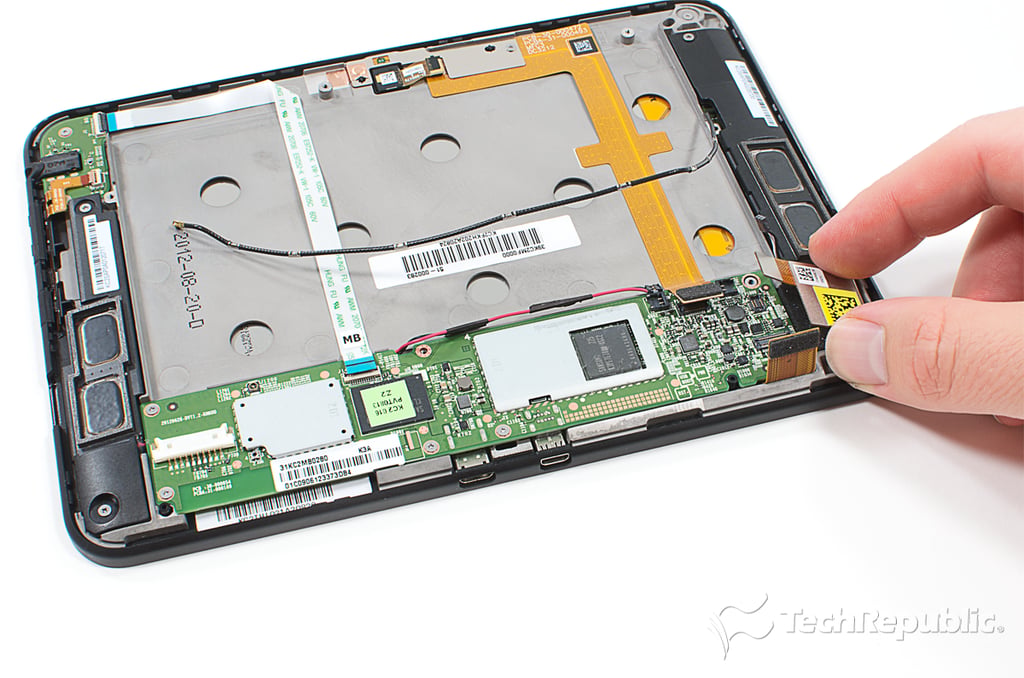

  • Cracking Open Kindle Fire HD: Detaching the motherboard connectors

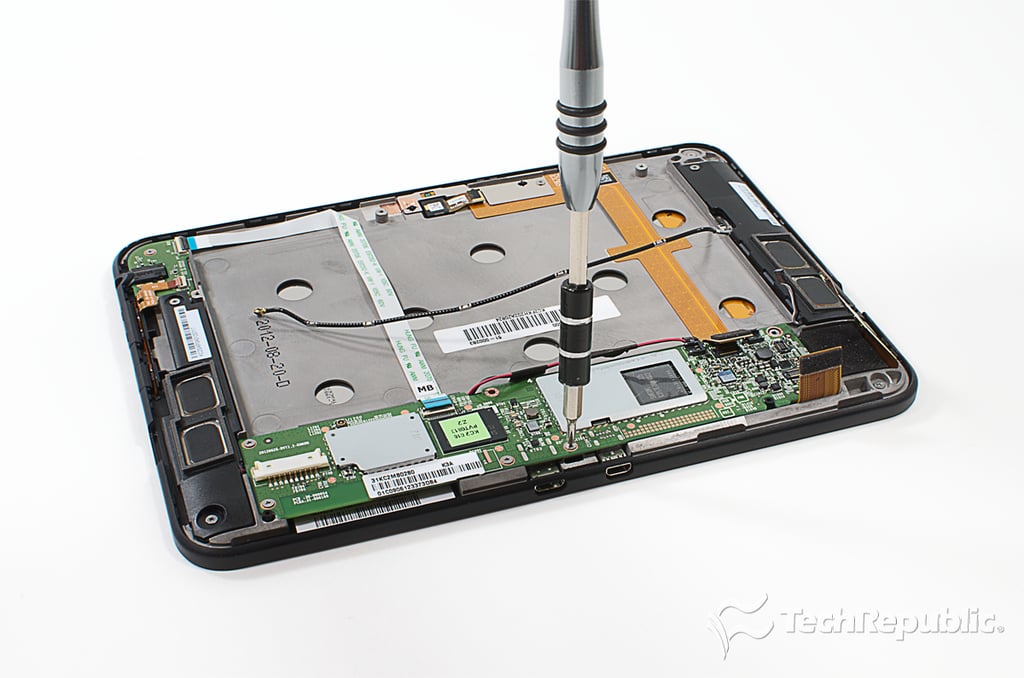

  • Cracking Open Kindle Fire HD: Removing the motherboard screws

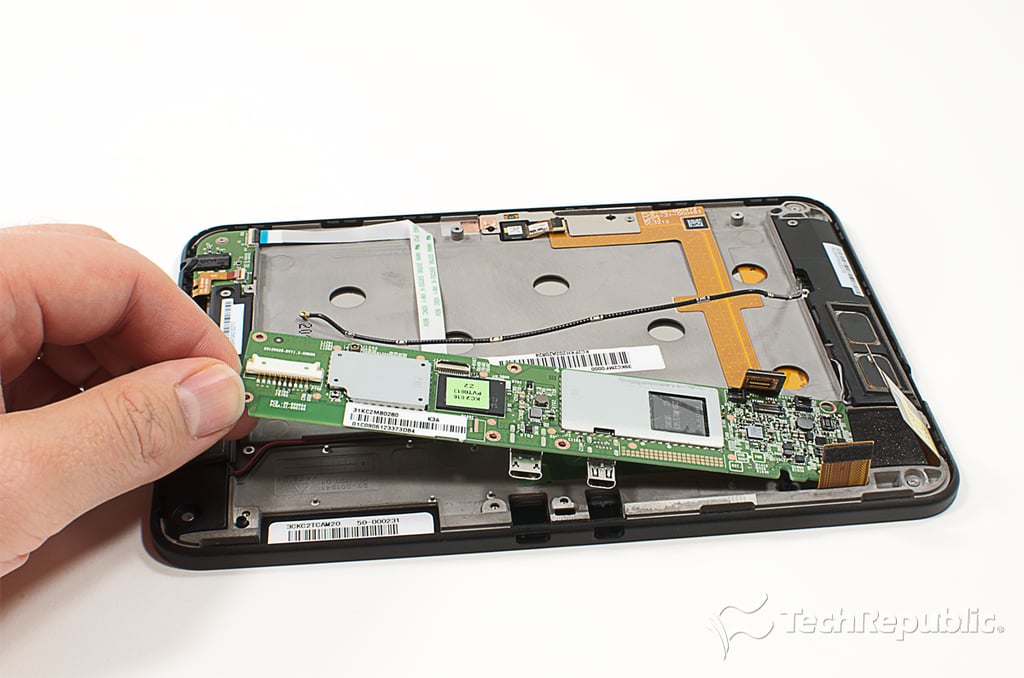

  • Cracking Open Kindle Fire HD: Removing the motherboard

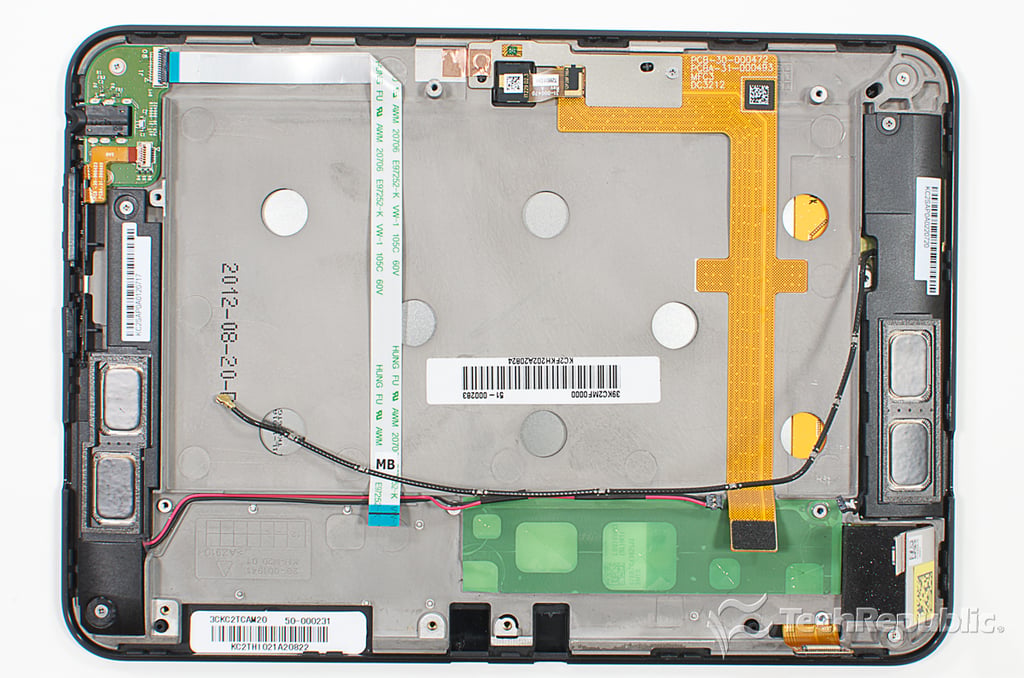

  • Cracking Open Kindle Fire HD: Display assembly and internal frame without motherboard

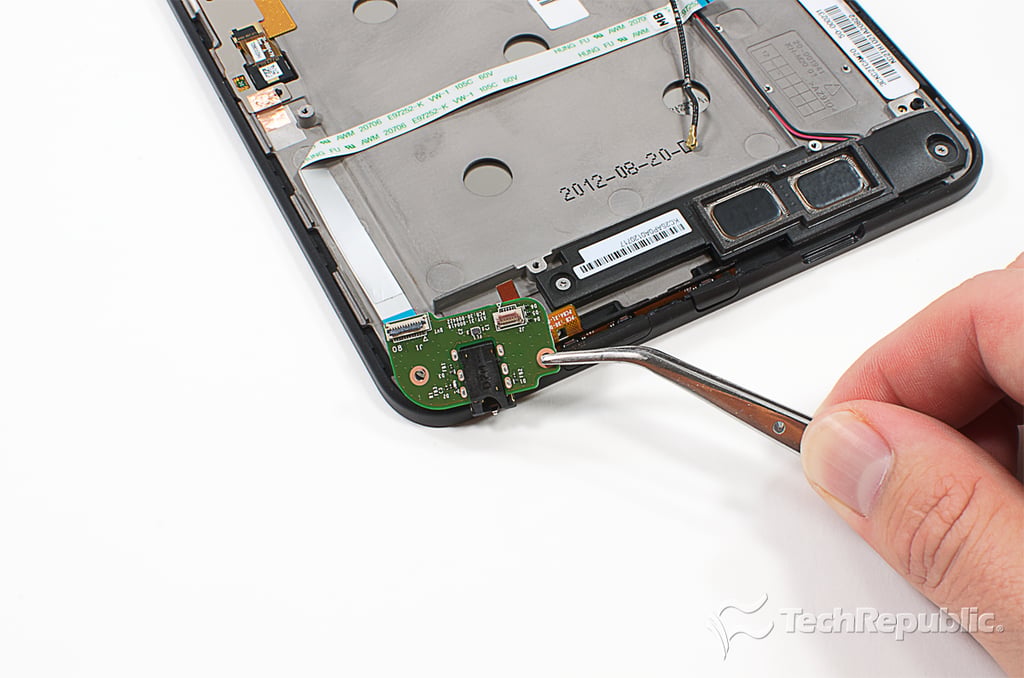

  • Cracking Open Kindle Fire HD: Removing the headphone jack PCB

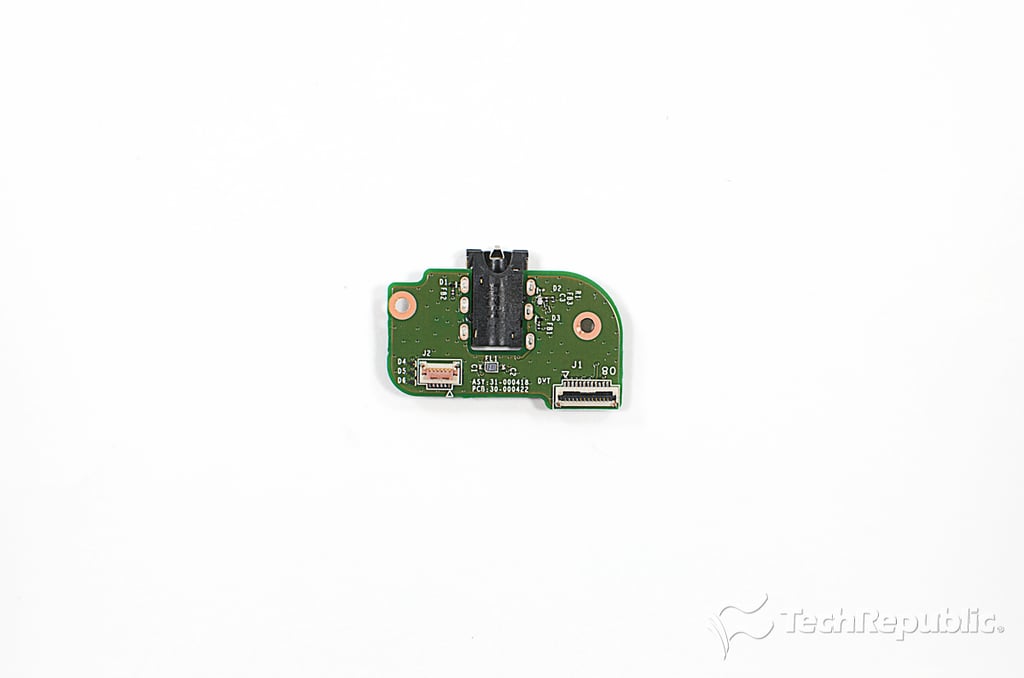

  • Cracking Open Kindle Fire HD: Headphone jack PCB

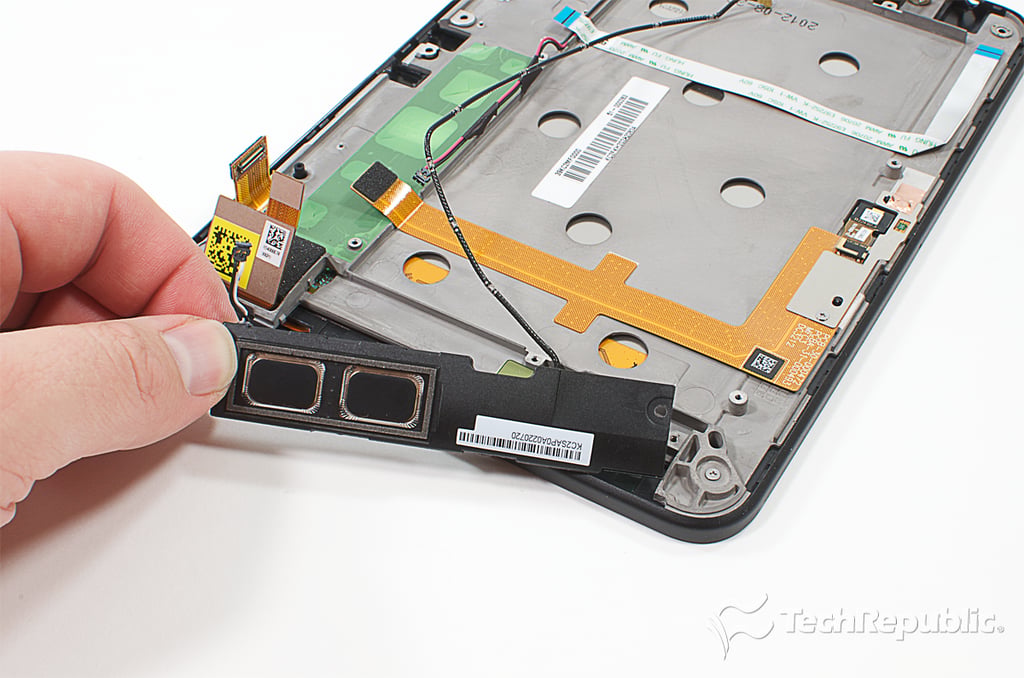

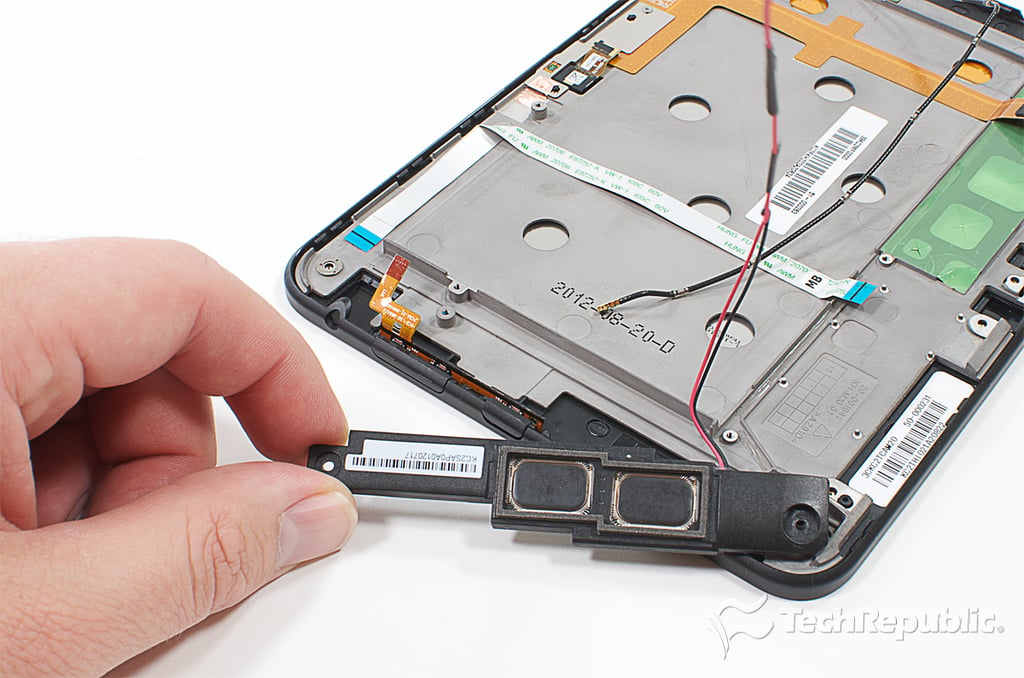

  • Cracking Open Kindle Fire HD: Removing the left speaker

  • Cracking Open Kindle Fire HD: Removing the right speaker

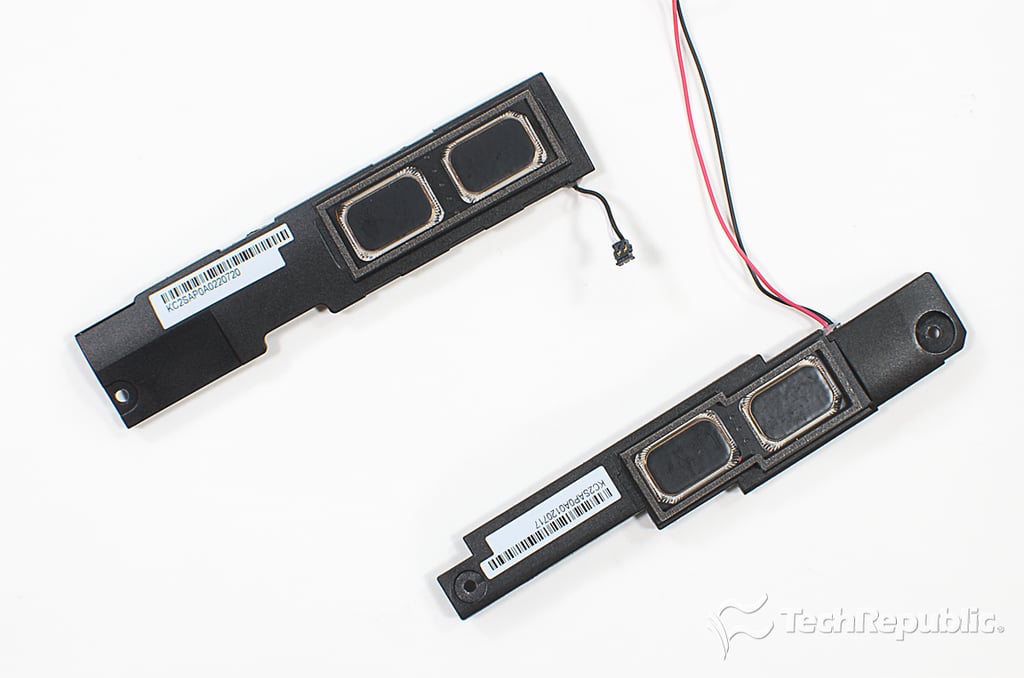

  • Cracking Open Kindle Fire HD: Speakers

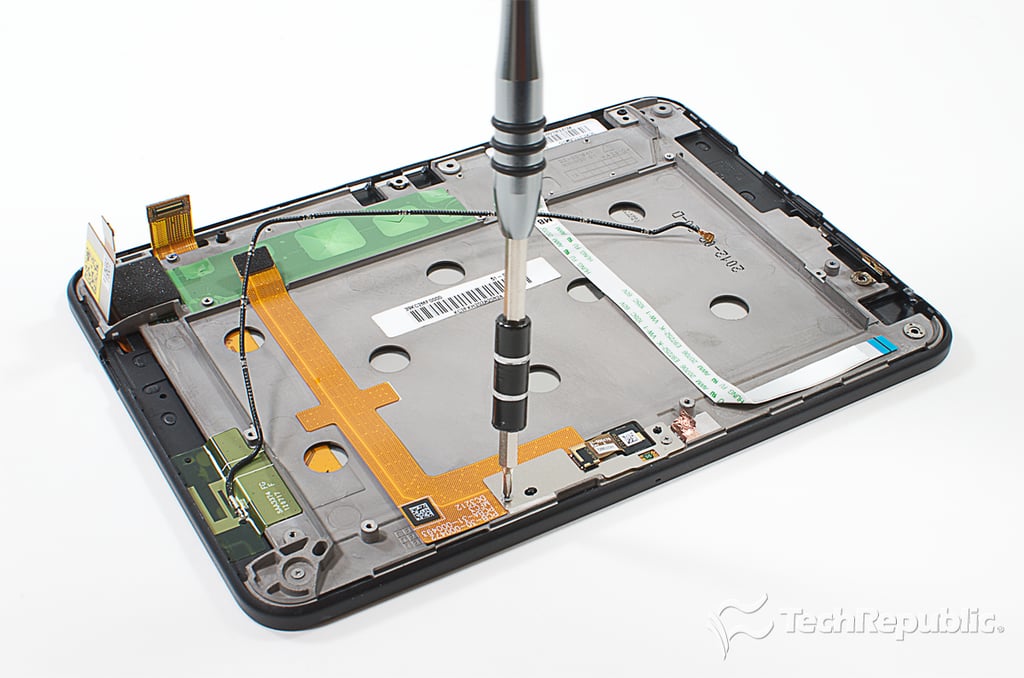

  • Cracking Open Kindle Fire HD: Removing the internal frame screws

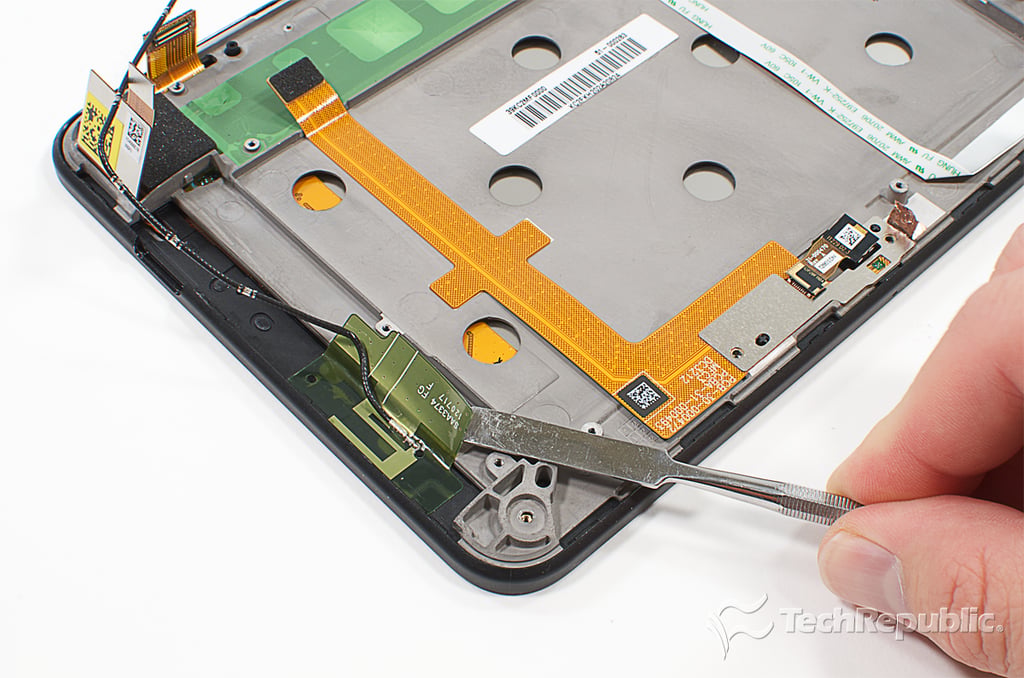

  • Cracking Open Kindle Fire HD: Detaching the W-Fi antenna from the internal frame

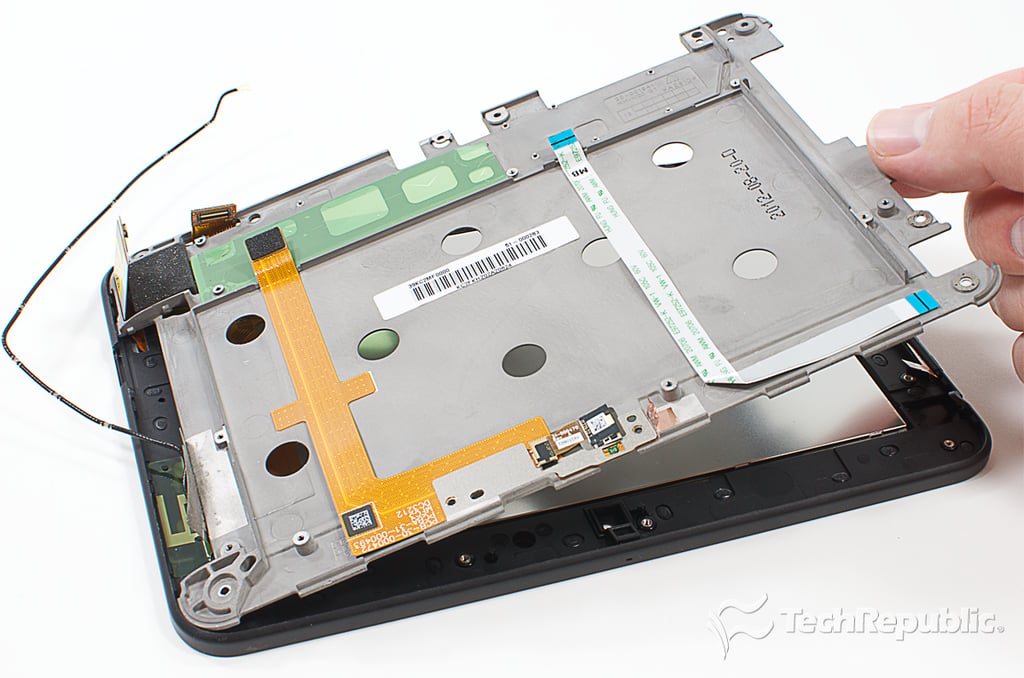

  • Cracking Open Kindle Fire HD: Removing the internal frame

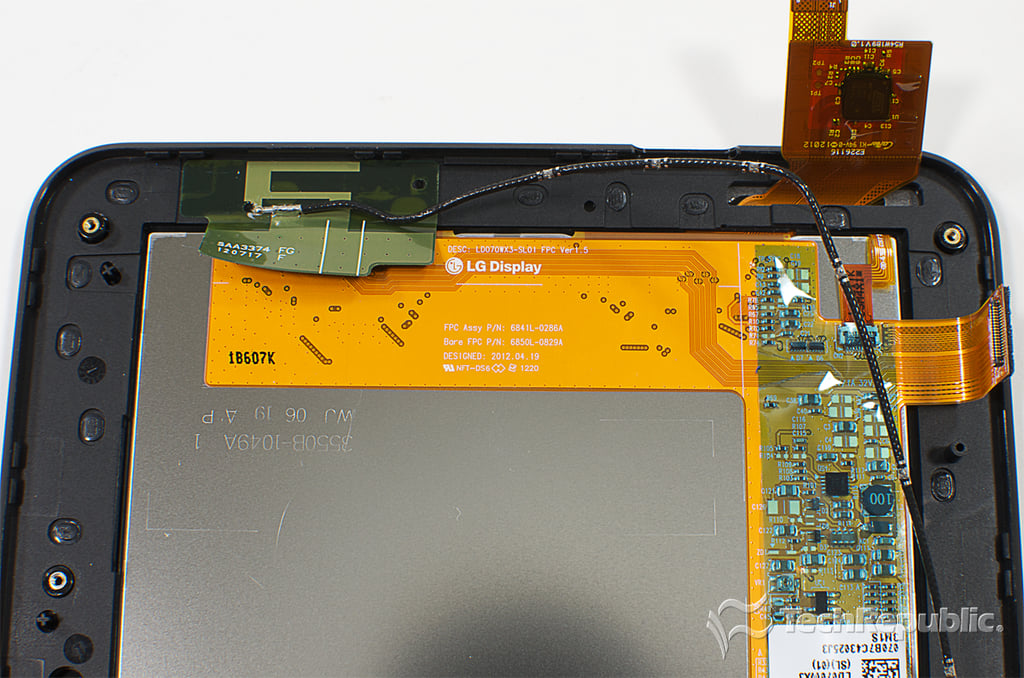

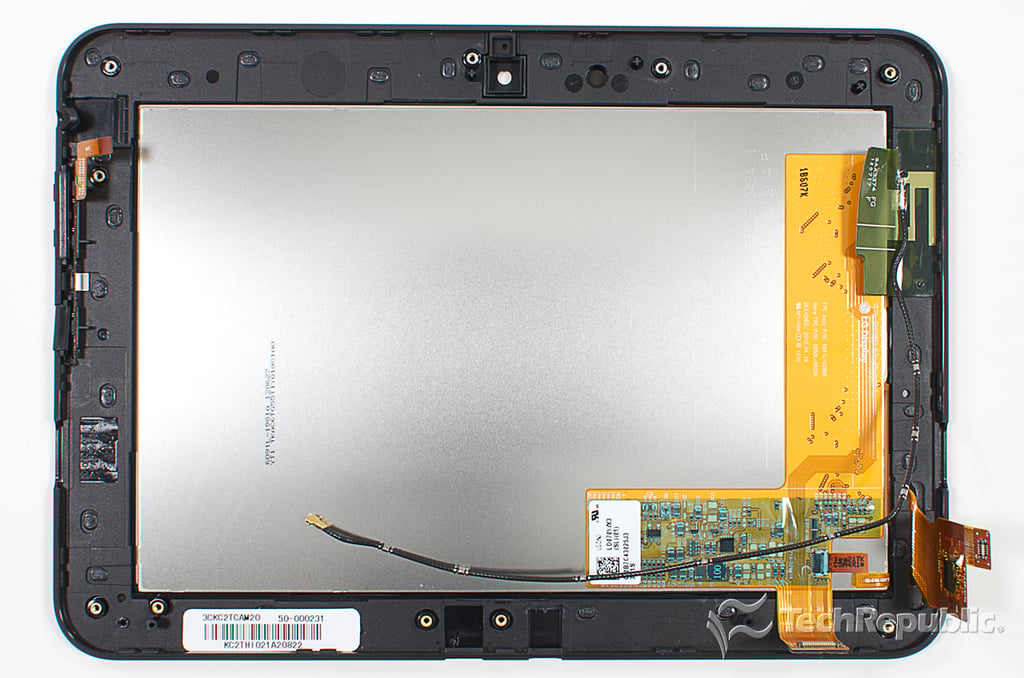

  • Cracking Open Kindle Fire HD: Display/front panel assembly

  • Cracking Open Kindle Fire HD: LG Electronics LD070WX3-SL01 display

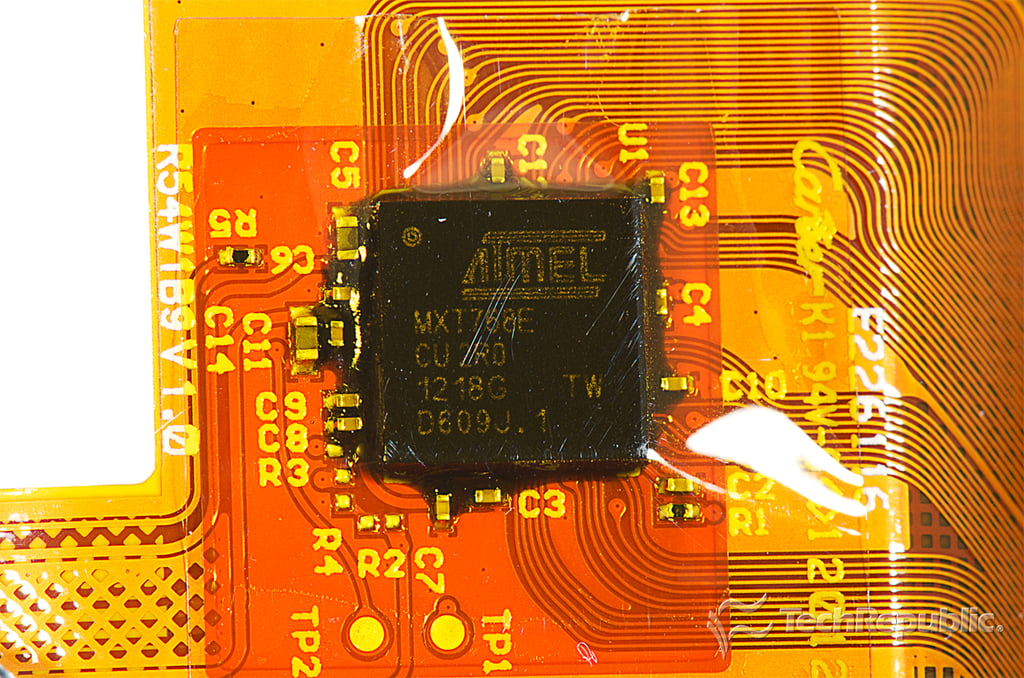

  • Cracking Open Kindle Fire HD: Atmel mXT768E touchscreen controller

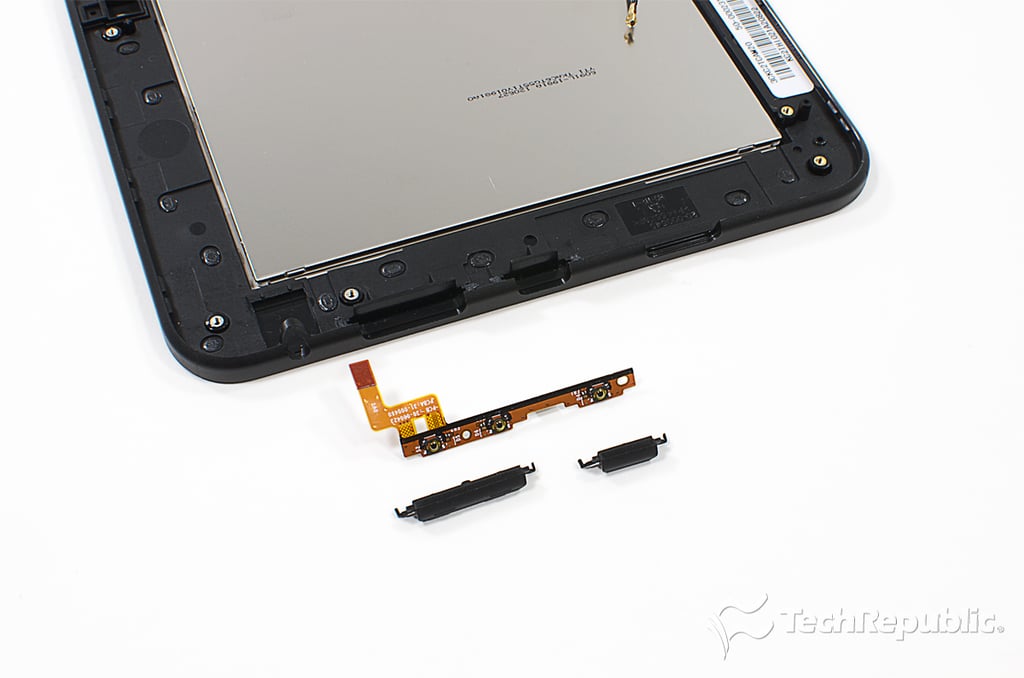

  • Cracking Open Kindle Fire HD: Power and volume buttons removed

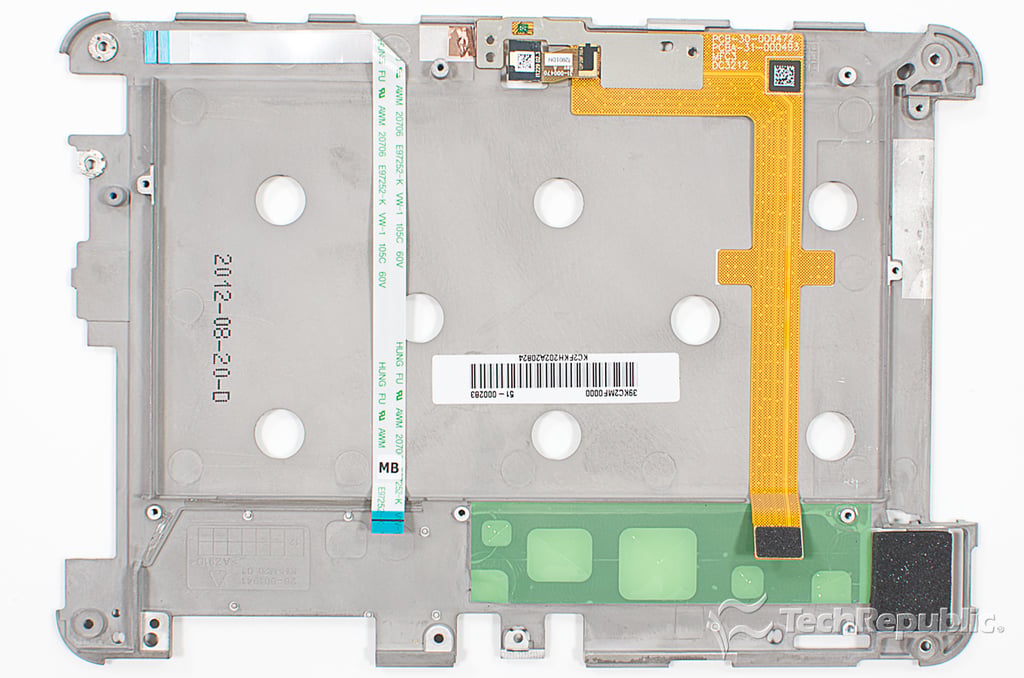

  • Cracking Open Kindle Fire HD: Magnesium (AZ91D) internal frame

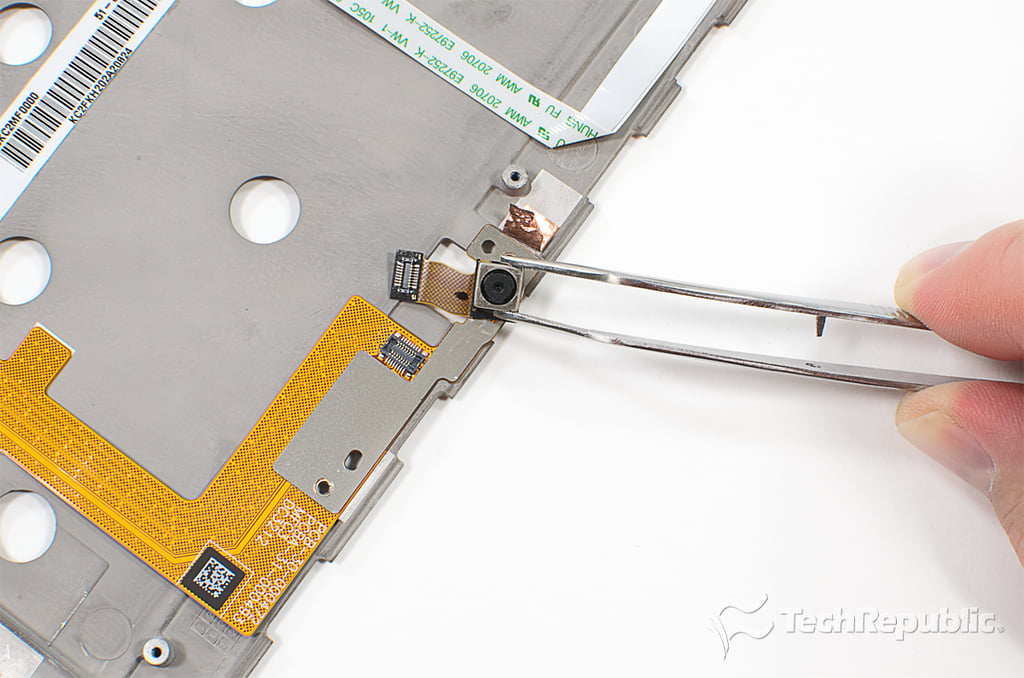

  • Cracking Open Kindle Fire HD: Removing the camera

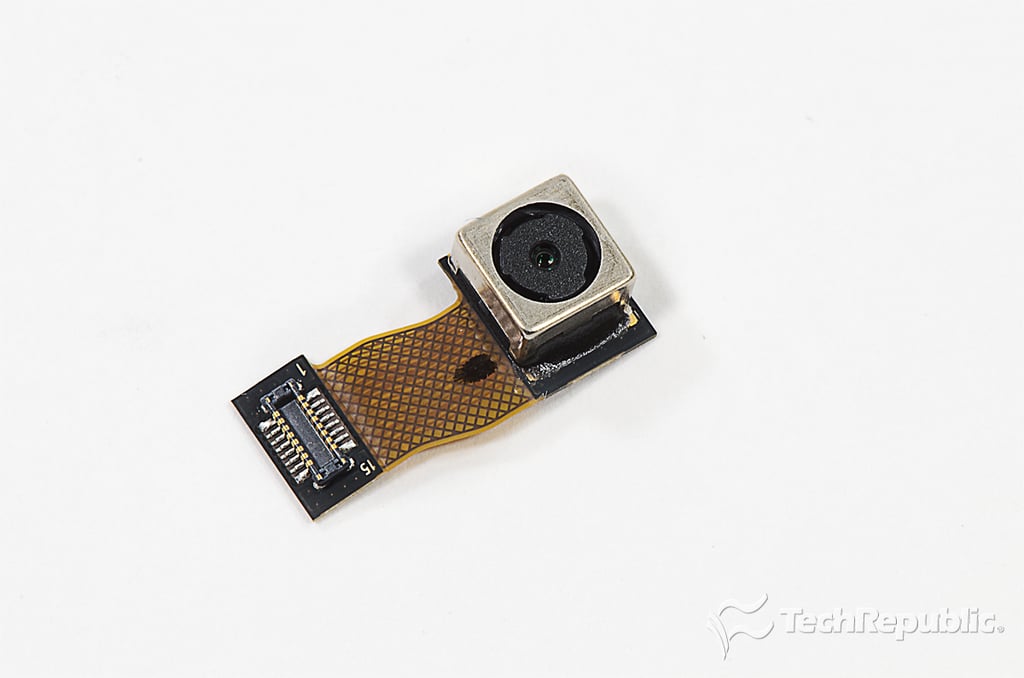

  • Cracking Open Kindle Fire HD: 720p front-facing camera

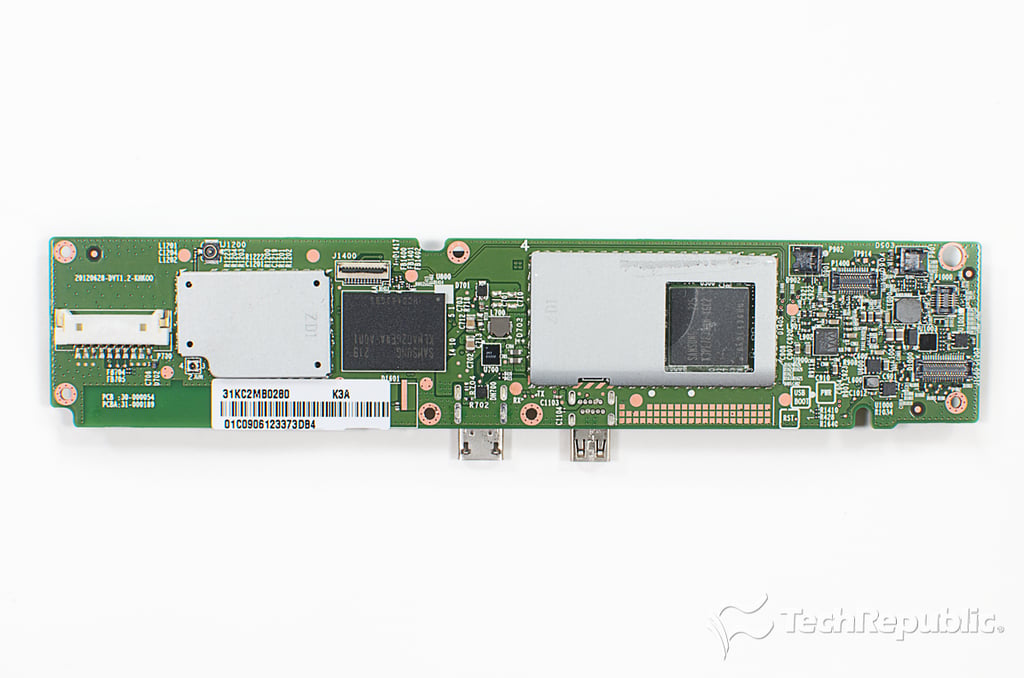

  • Cracking Open Kindle Fire HD: Motherboard - Top

    Unfortunately, many of the Kindle Fire HD's ICs are covered by EMI/RFI shields, which are soldered to the motherboard. I want to reassemble this tablet in working order, so I'm not going to remove the shields.

    Photo by: Bill Detwiler / TechRepublic
    Caption by: Bill Detwiler

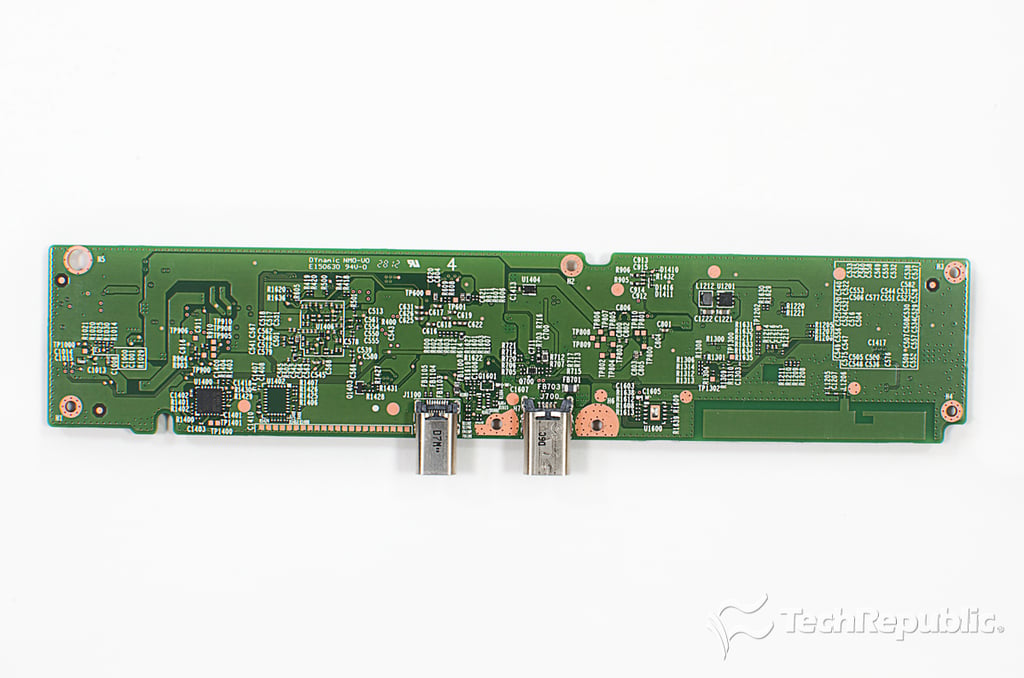

  • Cracking Open Kindle Fire HD: Motherboard - Bottom

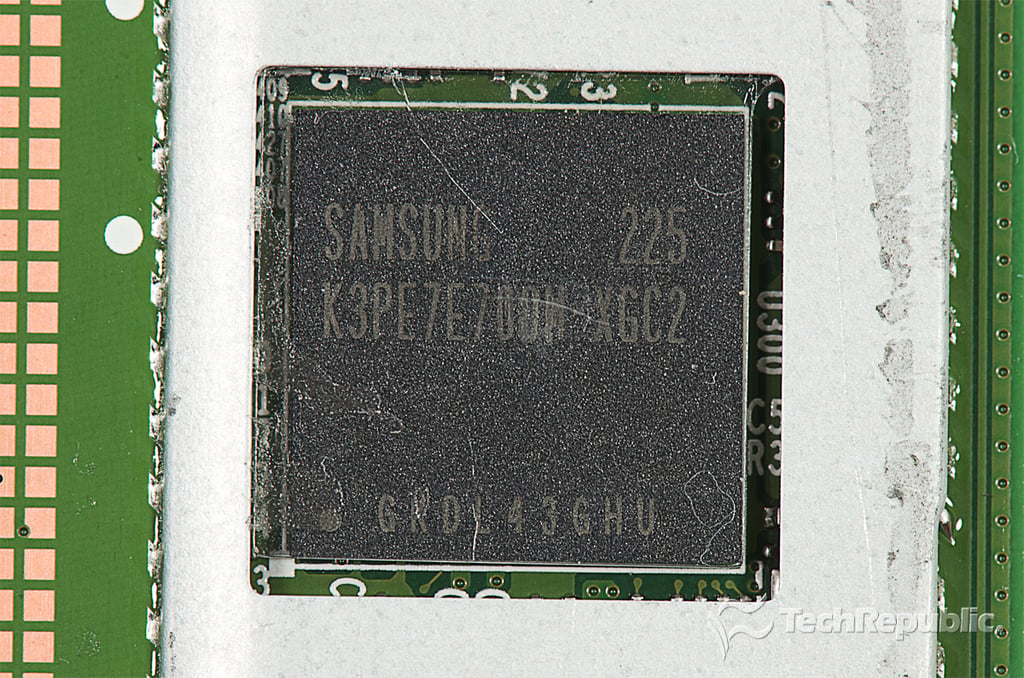

  • Cracking Open Kindle Fire HD: 1GB Samsung K3PE7E700M-XGC(2) LPDDR2 SDRAM and 1.2GHz dual-core TI OMAP 4460 SoC (includes Power VRSGX 540 GPU)

    The 1.2GHz dual-core TI OMAP 4460 SoC is mounted under the 1GB Samsung K3PE7E700M-XGC(2) LPDDR2 SDRAM chip in what's called a package-on-package configuration.

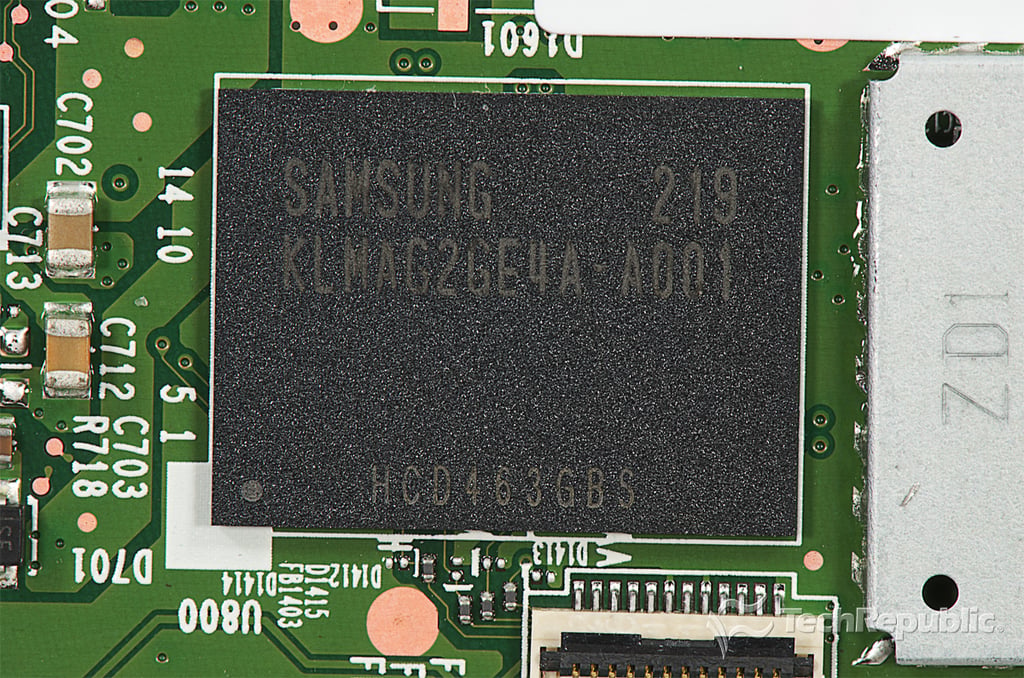

  • Cracking Open Kindle Fire HD: 16GB Samsung KLMAG2Ge4A-A001 moviNAND (eMMC)

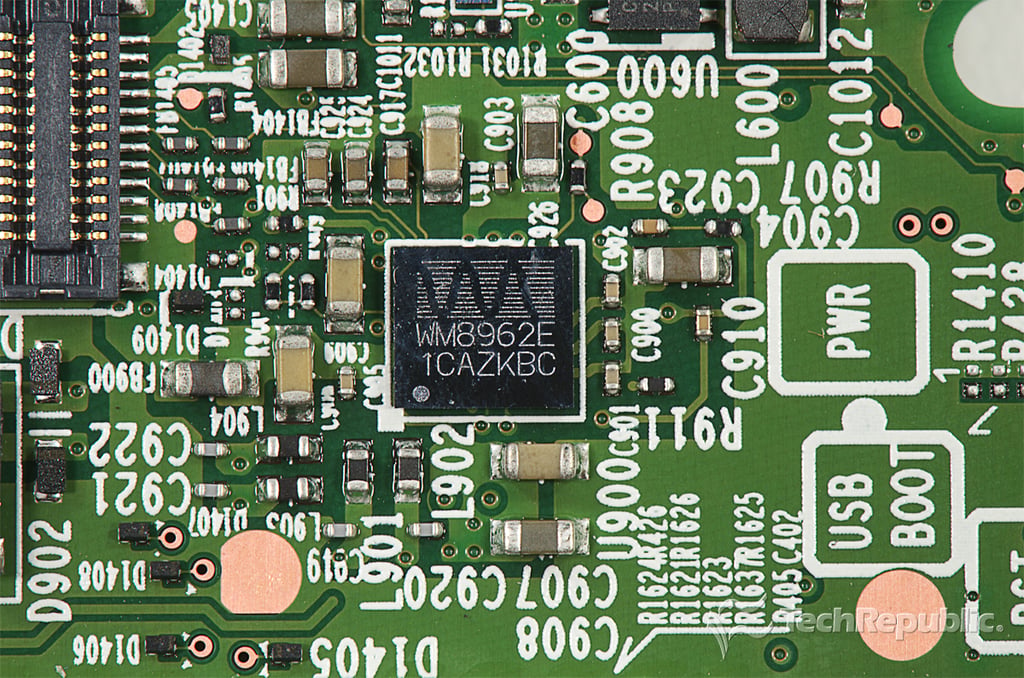

  • Cracking Open Kindle Fire HD: Wolfson WM8962E ultra-low power audio CODEC

  • Cracking Open Kindle Fire HD: Invensense MPU-6050 Six-Axis (Gyro + Accelerometer) MEMS MotionTracking Device

  • Cracking Open Kindle Fire HD: Motherboard markings show DYnamic Electronics Co.

    According to the motherboard markings, DYnamic Electronics Co. manufactured the Kindle Fire HD's PCBs.

  • Kindle Fire HD completely disassembled
