Cracking Open the Apple iPad

By Bill Detwiler April 6, 2010, 6:01 AM PDT Bill Detwiler on Twitter billdetwiler

1
of 27

Cracking Open the Apple iPad

Apple iPad disassembled

Photo by RapidRepair.com, used with permission

Apple iPad disassembled

TechRepublic’s Bill Detwiler cracked open the Apple iPad for a look at the hardware inside the Apple tablet. You can also watch a video of the process in the TR Dojo blog.

In addition to photos from Bill’s experience, we’ve included a few photos from iFixit and Rapid Repair.

I strongly encourage you to check out the iPad teardown galleries on their sites for more photos.

Click to enlarge the image.

(Photo Credit: Rapid Repair)

Photo by RapidRepair.com, used with permission
Cracking Open the Apple iPad

Apple iPad box

Apple iPad box

The Apple iPad’s box is surprisingly think for such a thin device.

Cracking Open the Apple iPad

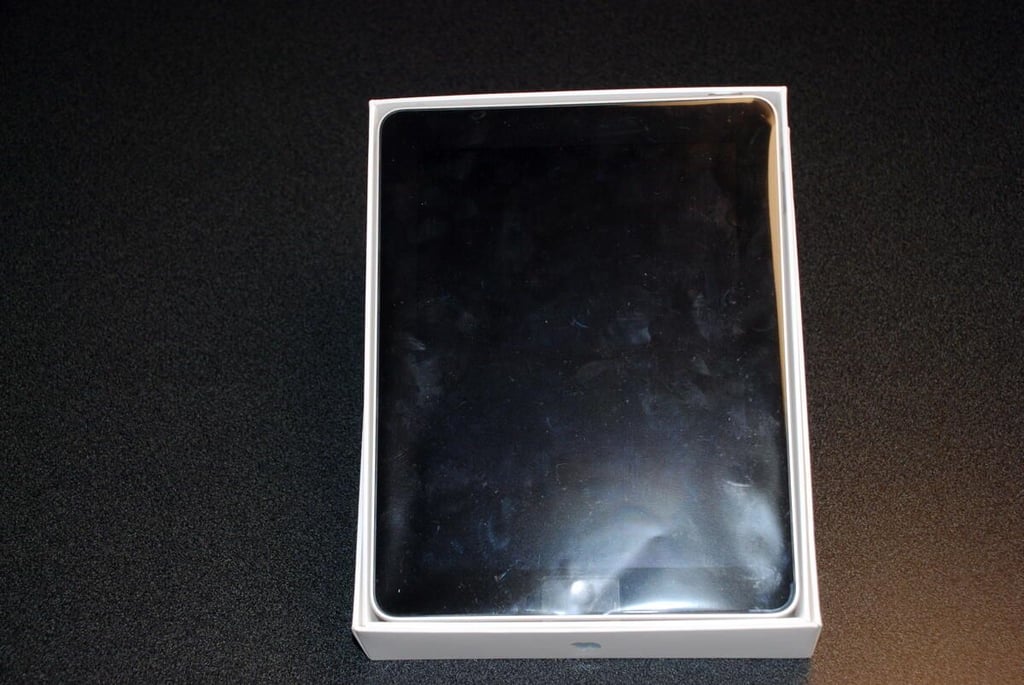

Apple iPad in the box

Apple iPad in the box

Removing the box top, give us our first look at the Apple iPad.

Cracking Open the Apple iPad

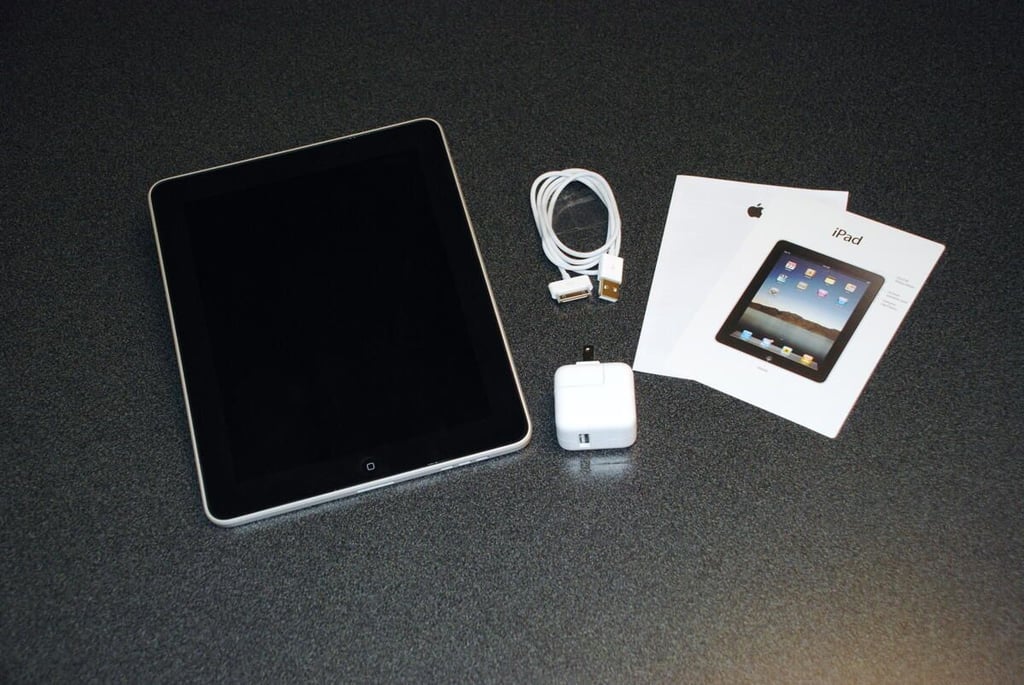

Apple iPad box components

Apple iPad box components

Within the box, we found the Apple iPad itself, a USB wall power adapter, standard Apple docking cable, a bit of documentation, and a few Apple logo stickers.

Cracking Open the Apple iPad

Removing the Apple iPad's front panel

Removing the Apple iPad's front panel

As with the iPod Touch and iPhone, cracking open the Apple iPad began with me sliding a thin metal blade between the glass front panel and the metal case. The front panel is secured with small metal clips that are screwed to the underside of the front panel. You’ll find these clips along the top, bottom, and left side of the front panel. The right side has hard plastic tabs that fit into slots on the metal case.

Yes. That is a spatula you see on the table. Its extremely thin, flexible metal blade was perfect for slipping between the iPad’s metal case and front panel.

Cracking Open the Apple iPad

Lifting off the Apple iPad front panel

Lifting off the Apple iPad front panel

With the tabs popped loose, we can gently separate the front panel from the case, but not completely.

There are three cables that connect the front panel to components within the metal case.

One short ribbon cable, connects the ambient light sensor to the main logic board. A second, thinner ribbon cable connects the digitizer to the main board. And a third thicker cable connects the display and LED back light to the main board.

Cracking Open the Apple iPad

Looking inside the Apple iPad

Looking inside the Apple iPad

With the two ribbon cables removed, we get our first look inside the Apple iPad. Wow! Look at those batteries.

Cracking Open the Apple iPad

Separating the Apple iPad halves

Separating the Apple iPad halves

Separating the two halves of the Apple iPad.

Cracking Open the Apple iPad

Bill Detwiler cracking open the Apple iPad

Bill Detwiler cracking open the Apple iPad

Bill Detwiler taking apart the Apple iPad in the TechRepublic video studio.

Cracking Open the Apple iPad

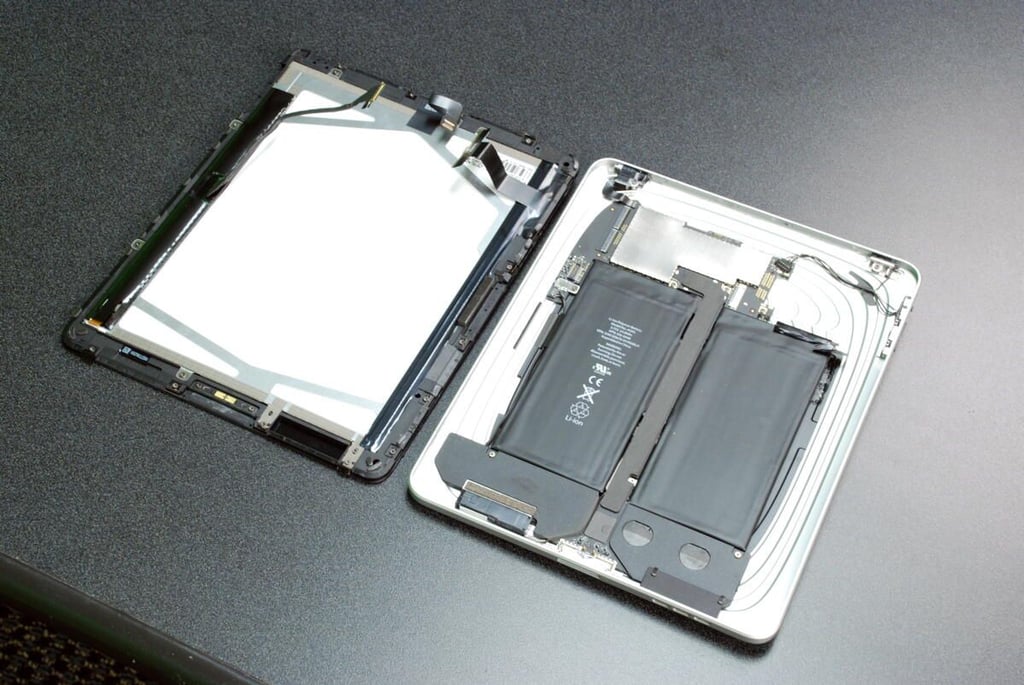

Two halves of the Apple iPad

Two halves of the Apple iPad

Cracking Open the Apple iPad

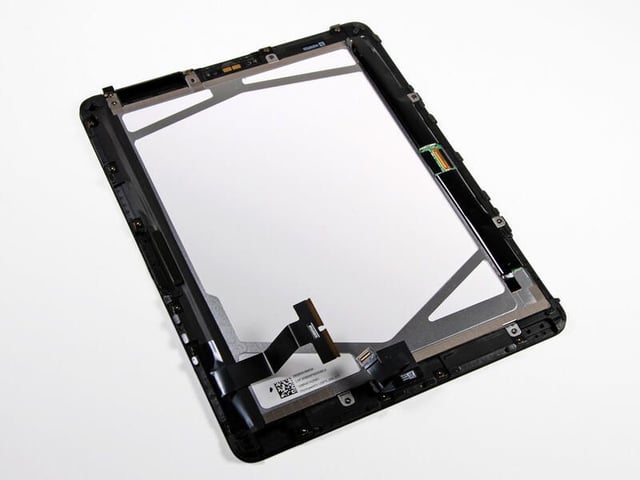

Apple iPad digitizer and display

Apple iPad digitizer and display

The front panel contains the 9.7-inch (diagonal) display, LED back light, digitizer, ambient light sensor, and Home button.

Photo by iFixit, used by permission

Cracking Open the Apple iPad

Apple iPad LCD display markings

Apple iPad LCD display markings

Here you can see the markings on the Apple iPad’s (1024×786) LCD display.

Cracking Open the Apple iPad

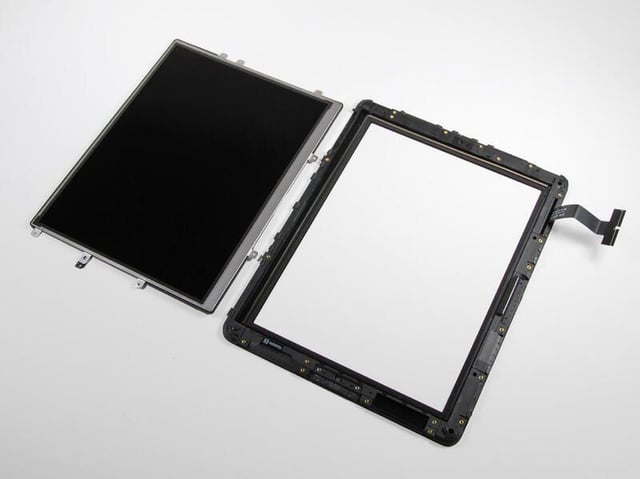

Apple iPad LCD display and digitizer

Apple iPad LCD display and digitizer

On the left is the LCD display and the right is the digitizer, which records your finger strokes and taps.

Photo by iFixit, used by permission

Cracking Open the Apple iPad

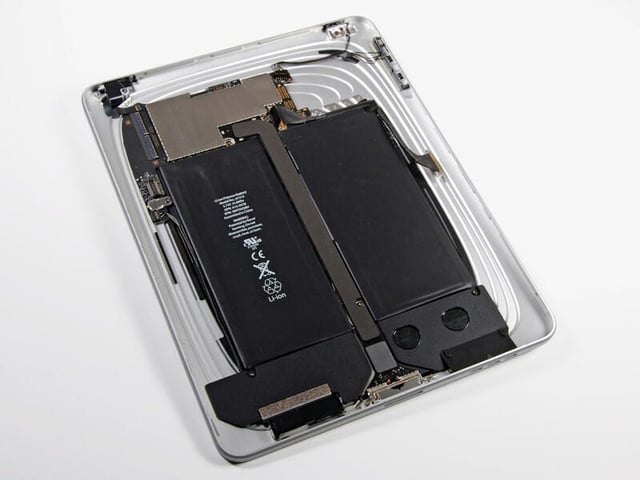

Apple iPad metal case components

Apple iPad metal case components

Within the Apple iPad’s metal shell, are the main logic board (mostly covered by a metal EMI shield), the batteries, Wi-Fi and Bluetooh card, antennas, headphone jack, microphone, speakers, On/Off button, volume up/down button, and screen rotation lock switch. On 3G model (to be released in late April), you’ll undoubtedly find additional cellular components.

Photo by iFixit, used by permission

Cracking Open the Apple iPad

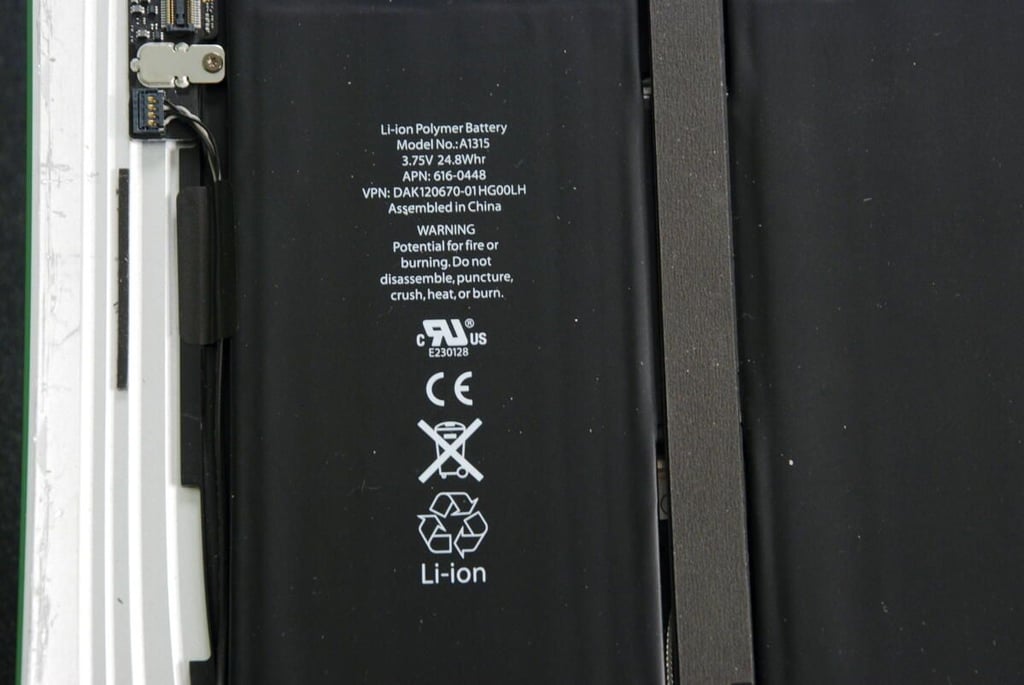

Apple iPad batteries

Apple iPad batteries

The Apple iPad’s 3.75V, 24.8 watt-hour battery provides the power for an advertised 10 hours of average use.

Cracking Open the Apple iPad

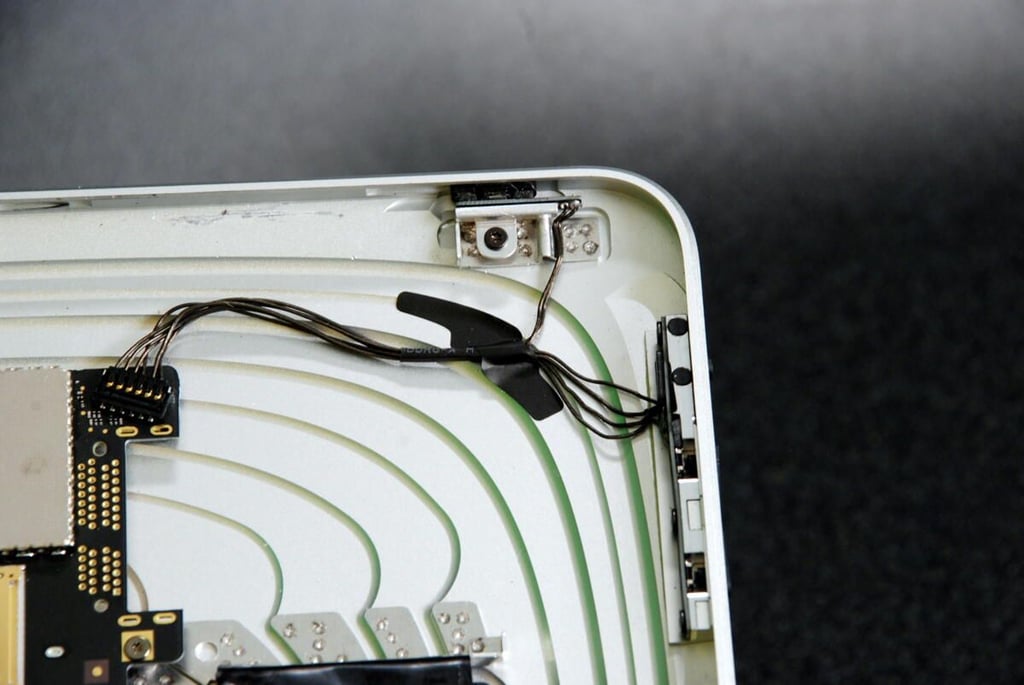

Apple iPad buttons

Apple iPad buttons

In the top, right-hand corner of the metal case you’ll find the on/off or sleep/wake button, the screen rotation lock switch, and the volume up/down button.

Cracking Open the Apple iPad

Apple iPad speaker assembly

Apple iPad speaker assembly

At the bottom of the metal case, you’ll find the speaker assembly, two speakers, data port, connector pins for the Home button, and one of the antennas.

Cracking Open the Apple iPad

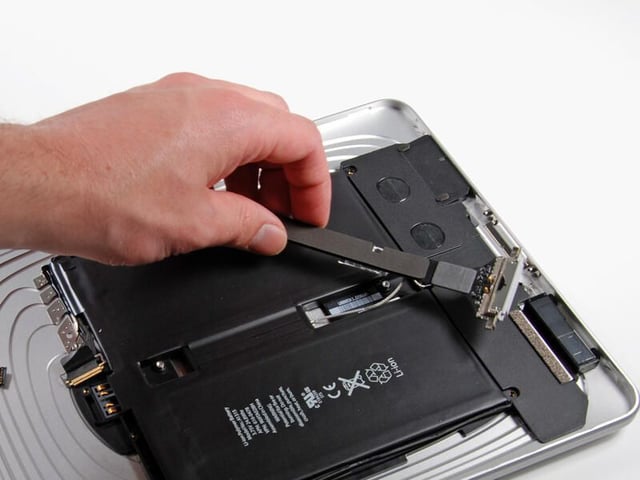

Apple iPad connector cable

Apple iPad connector cable

The large connector that runs down the center of the battery assembly, attaches the components at the bottom of the iPad to the main logic board at the top.

Photo by iFixit, used by permission

Cracking Open the Apple iPad

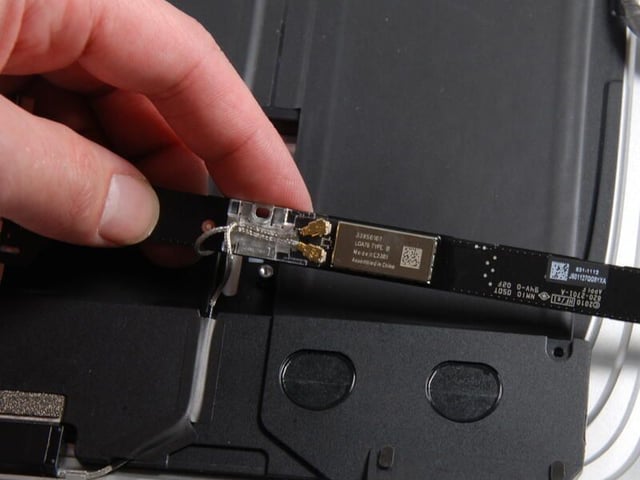

Apple iPad Wi-Fi and Bluetooth card

Apple iPad Wi-Fi and Bluetooth card

Under the center connector, you find the Broadcom Wi-Fi and Bluetooth card.

Photo by iFixit, used by permission

Cracking Open the Apple iPad

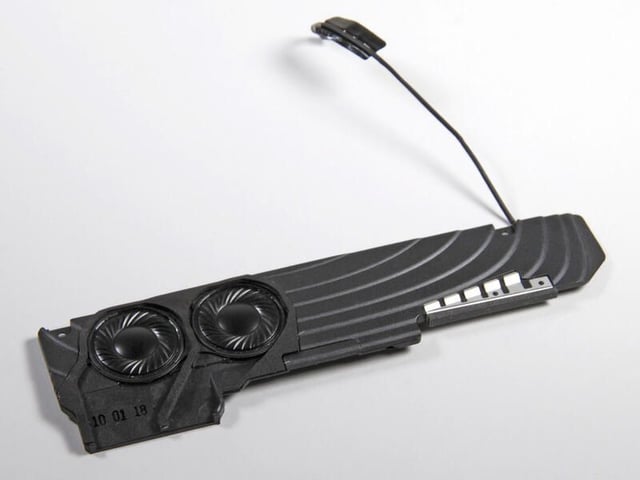

Apple iPad speakers

Apple iPad speakers

With the iPad’s speaker assembly removed, you can see the two speakers, which face toward the metal case.

Photo by iFixit, used by permission

Cracking Open the Apple iPad

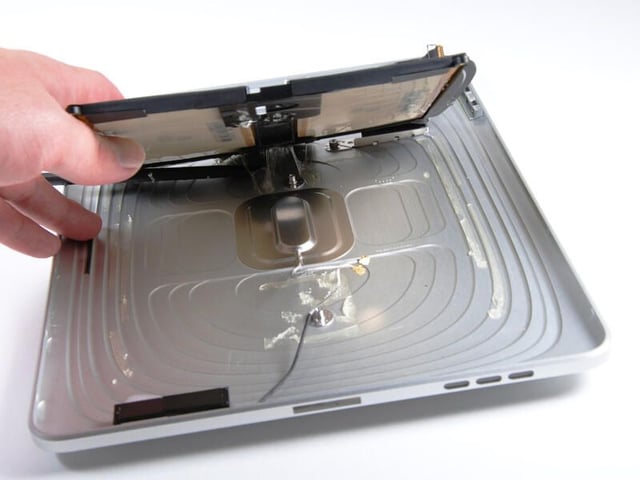

Apple iPad Wi-Fi antenna

Apple iPad Wi-Fi antenna

The battery assembly is glued to the metal case. Underneath, you’ll find a second wireless antenna.

Photo by iFixit, used by permission

Cracking Open the Apple iPad

Removing the main logic board's shield

Removing the main logic board's shield

You must remove the thin metal shield from the main logic board to see the Apple iPad’s processor and memory chips.

Cracking Open the Apple iPad

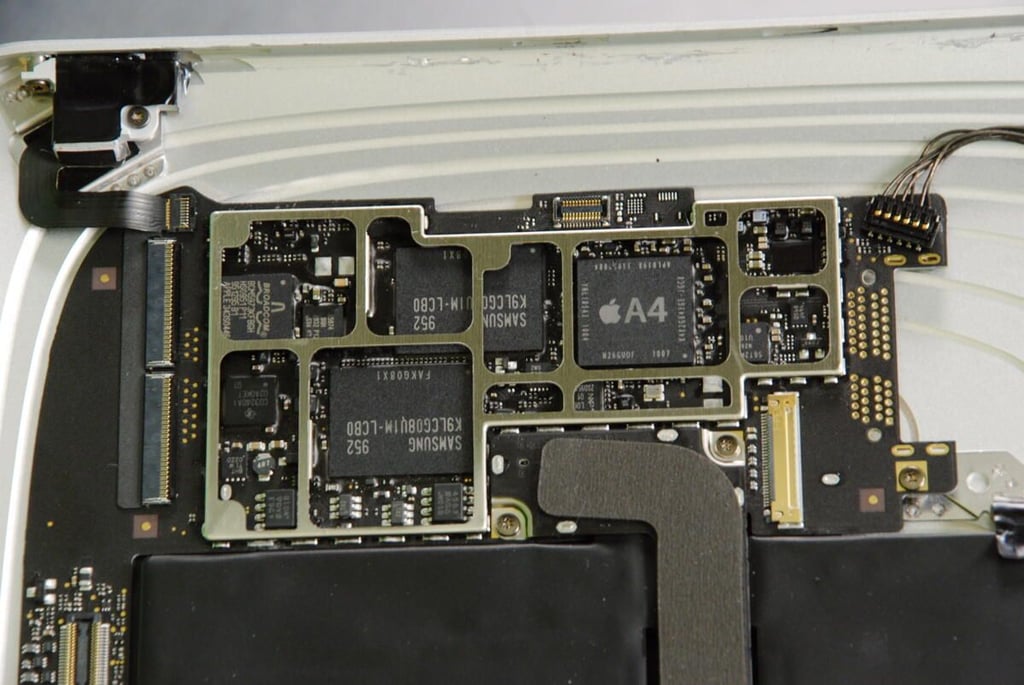

Apple iPad A4 processor and other chips

Apple iPad A4 processor and other chips

With the metal shield removed, you can see the Apple iPad’s A4 processor, two large Samsung NAND Flash memory chips, a Broadcom I/O controller, and chips from Texas Instruments and NXP.

The markings on the A4 processor are:
N26GUOF 1007
K4X2G643GE JGC8
APL0398 33950084
YNL185A3 1004

The markings on the Samsung chips are:
952 K9LCG08U1M-LCB0
FAKG08X1

The markings on the Texas Instruments chip is:
CD3240A1
02A0KET?C1

The markings on the Broadcom I/O controller are:
BCM5973KFBGH
HS0951 P11
951295 B1
APPLE 343S0446

The markings (at least those I can see) on the NXP chip are:
L06
01
ZSD951

Cracking Open the Apple iPad

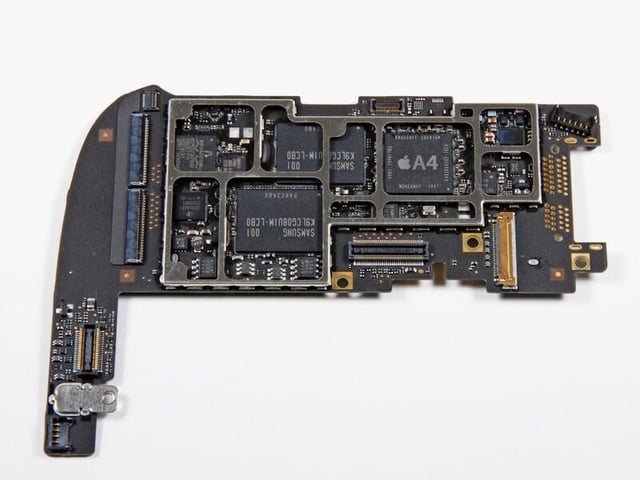

Apple iPad main logic board (front)

Apple iPad main logic board (front)

Here the main logic board has been removed from the metal case.

Photo by iFixit, used by permission

Cracking Open the Apple iPad

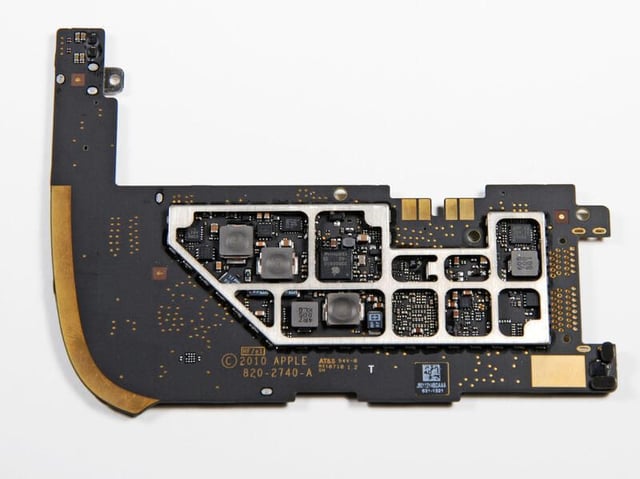

Apple iPad main logic board (back)

Apple iPad main logic board (back)

The back of the main logic board.

Photo by iFixit, used by permission

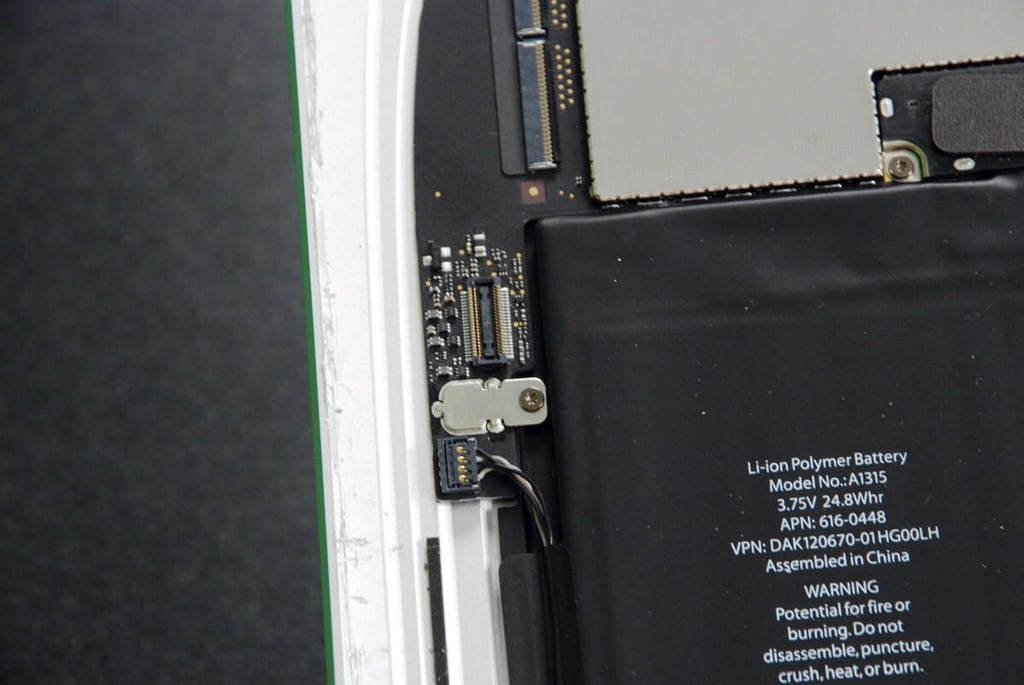

Cracking Open the Apple iPad

Connector without a connection

Connector without a connection

This connector did not have a cable attached to it on our iPad. Perhaps it will in the 3G version released in late April.

Cracking Open the Apple iPad

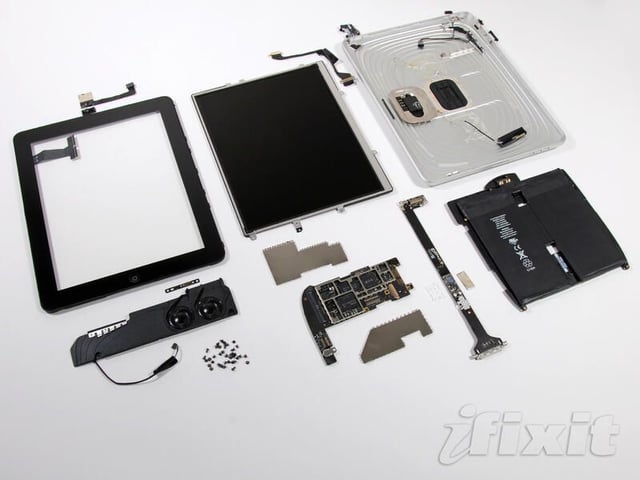

Apple iPad complete teardown

Apple iPad complete teardown

The Apple iPad completely disassembled

Photo by iFixit, used by permission
