Cracking Open the Apple iPhone 6 Plus

By Bill Detwiler November 20, 2014, 5:02 AM PST on Twitter billdetwiler

1
of 44

Cracking Open the Apple iPhone 6 Plus

Apple iPhone 6 Plus teardown

Bill Detwiler/TechRepublic

Apple iPhone 6 Plus teardown

On the outside, the iPhone 6 Plus looks like just a scaled up iPhone 6, but the internal hardware tells a slightly different story. The phones are very similar but far from identical.

In this Cracking Open gallery, I walk you through the process of disassembling the iPhone 6 Plus and give you a tour of the internal hardware. For a detailed analysis of the teardown, check out my article and video, Apple iPhone 6 Plus teardown reveals subtle differences from iPhone 6.

Bill Detwiler/TechRepublic
Cracking Open the Apple iPhone 6 Plus

Cracking Open iPhone 6 Plus: Box contents

Bill Detwiler/TechRepublic

Cracking Open iPhone 6 Plus: Box contents

The iPhone 6 Plus has a brand new A8 processor, M8 motion coprocessor, improved iSight camera with optical image stabilization, and a higher-capacity battery. There are also several significant design changes inside the case. The iPhone 6 Plus is available with 16GB ($299), 64GB ($399), or 128GB ($499) of storage–prices include carrier subsidy usually based on a activating a new 2-year plan. The 6 Plus comes in three finishes–Space Gray (black), Silver (white), and Gold.

Bill Detwiler/TechRepublic
Cracking Open the Apple iPhone 6 Plus

Cracking Open iPhone 6 Plus: Dimensions and weight

Image: TechRepublic

Cracking Open iPhone 6 Plus: Dimensions and weight

At 3.06 inches wide, 6.22 inches tall, 0.28 inches thick, and weighing 6.07 ounces, the iPhone 6 Plus borders on phablet territory.

Image: TechRepublic
Cracking Open the Apple iPhone 6 Plus

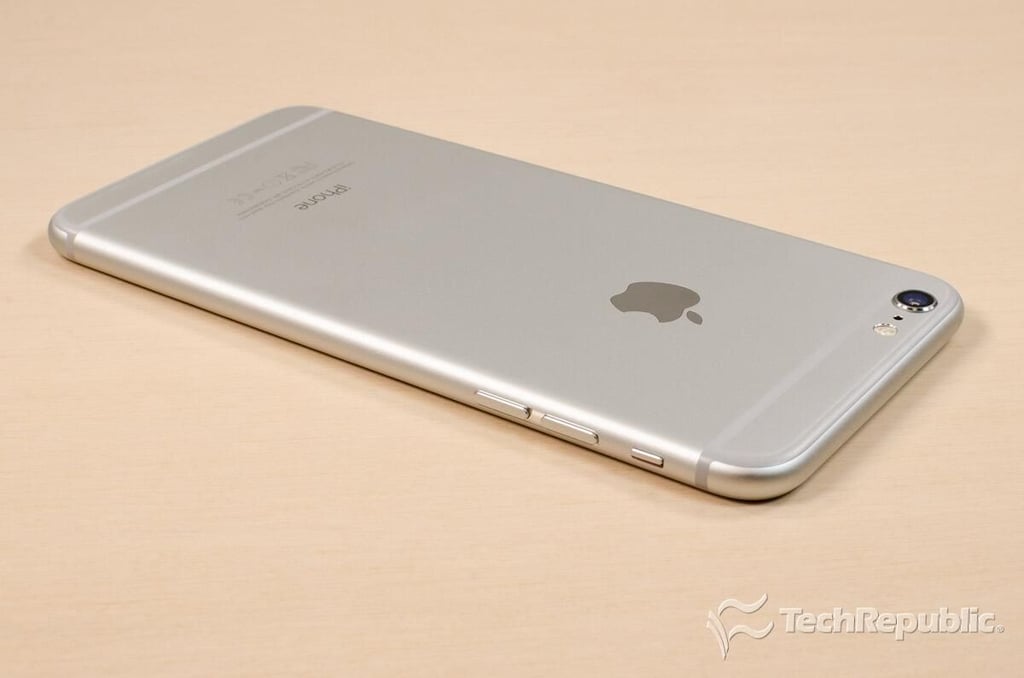

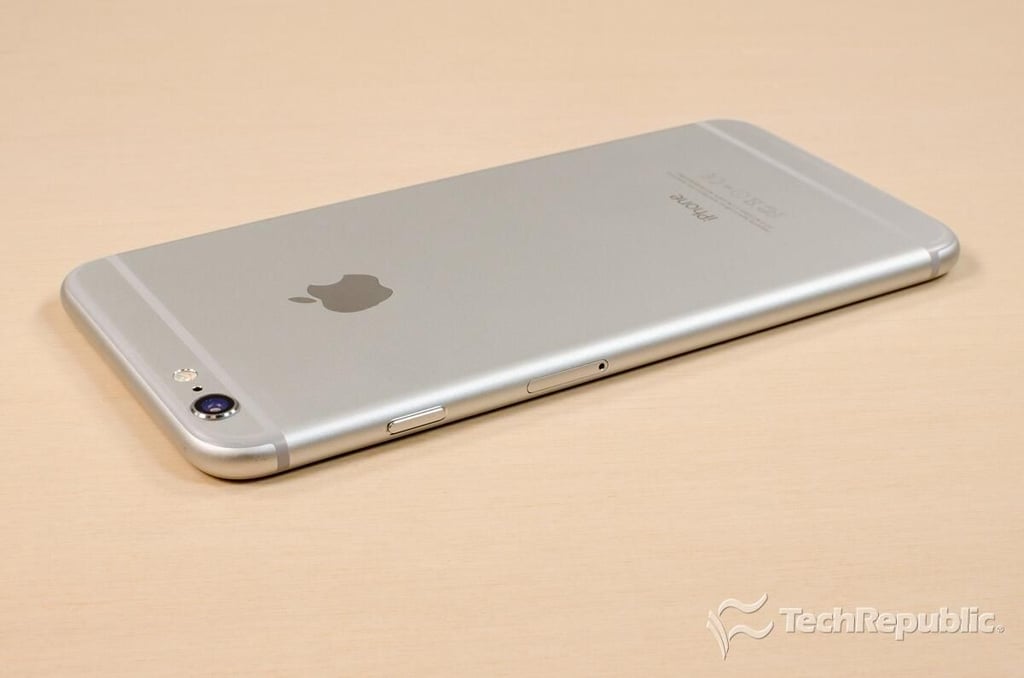

Cracking Open iPhone 6 Plus: Back

Bill Detwiler/TechRepublic

Cracking Open iPhone 6 Plus: Back

Bill Detwiler/TechRepublic
Cracking Open the Apple iPhone 6 Plus

Cracking Open iPhone 6 Plus: Volume buttons and ringer switch

Bill Detwiler/TechRepublic

Cracking Open iPhone 6 Plus: Volume buttons and ringer switch

Bill Detwiler/TechRepublic
Cracking Open the Apple iPhone 6 Plus

Cracking Open iPhone 6 Plus: Sleep/wake button and SIM card holder

Bill Detwiler/TechRepublic

Cracking Open iPhone 6 Plus: Sleep/wake button and SIM card holder

Bill Detwiler/TechRepublic
Cracking Open the Apple iPhone 6 Plus

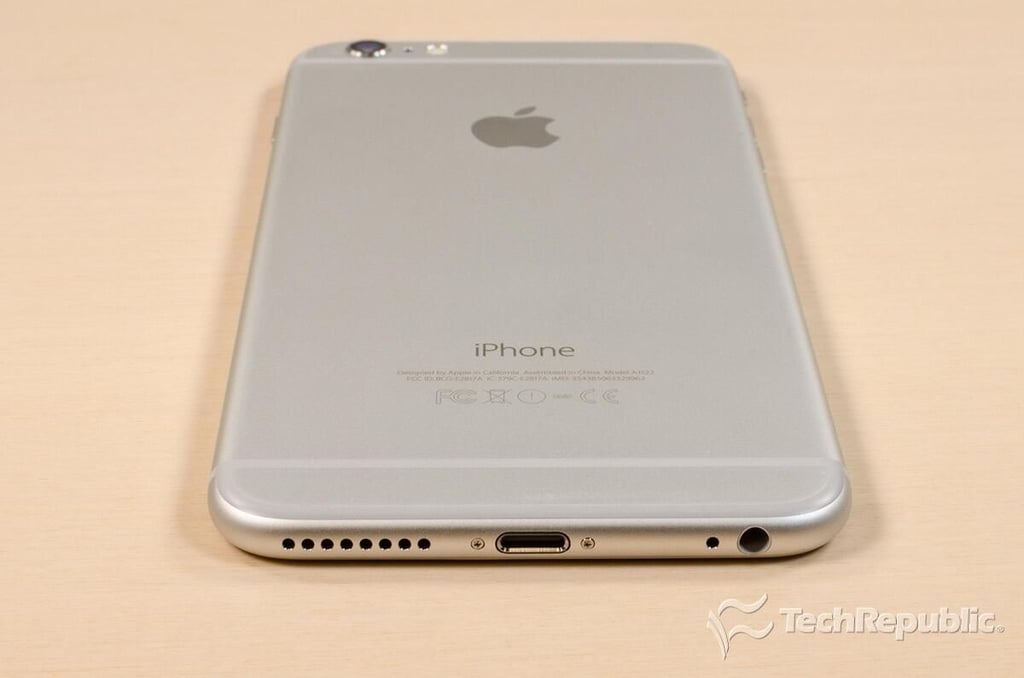

Cracking Open iPhone 6 Plus: External speaker, Lightning connector, and headphone jack

Bill Detwiler/TechRepublic

Cracking Open iPhone 6 Plus: External speaker, Lightning connector, and headphone jack

Bill Detwiler/TechRepublic
Cracking Open the Apple iPhone 6 Plus

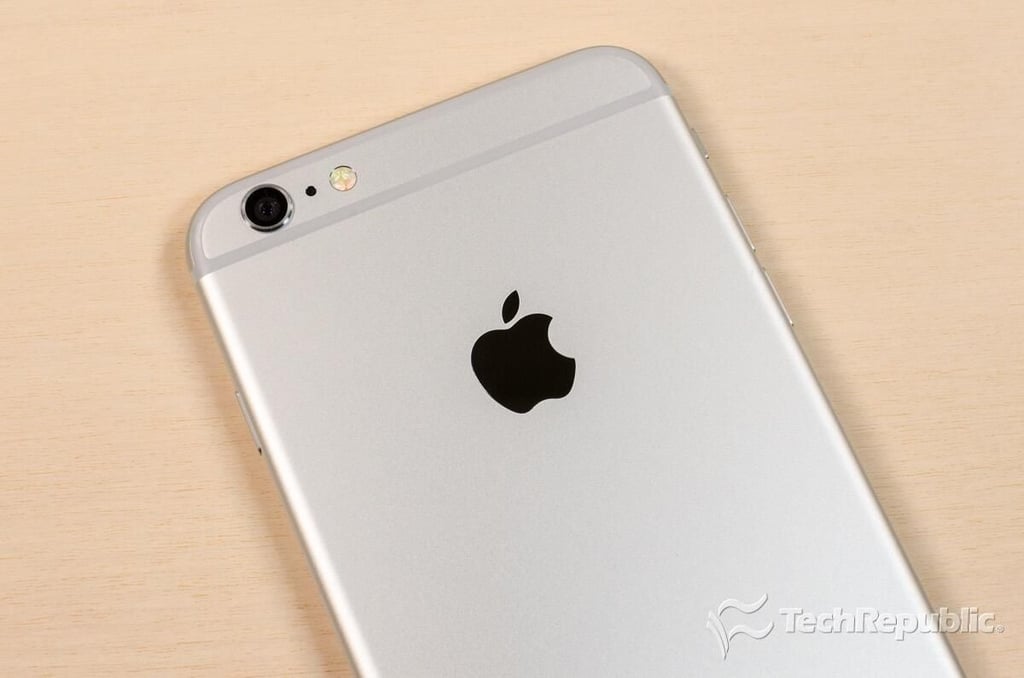

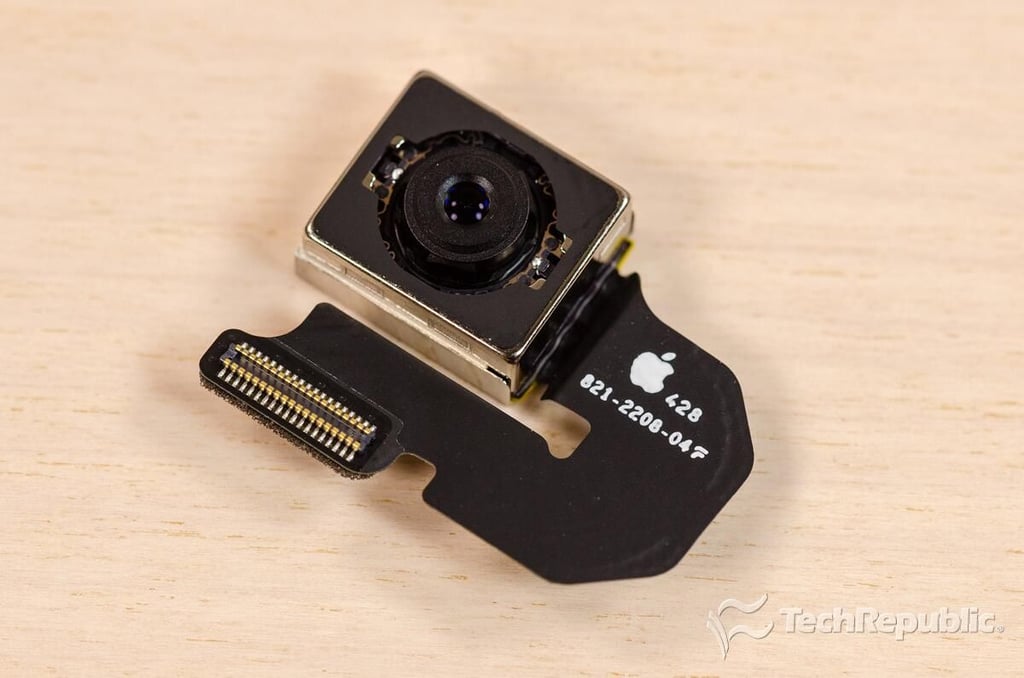

Cracking Open iPhone 6 Plus: iSight camera, flash and rear-facing sensor

Bill Detwiler/TechRepublic

Cracking Open iPhone 6 Plus: iSight camera, flash and rear-facing sensor

Bill Detwiler/TechRepublic
Cracking Open the Apple iPhone 6 Plus

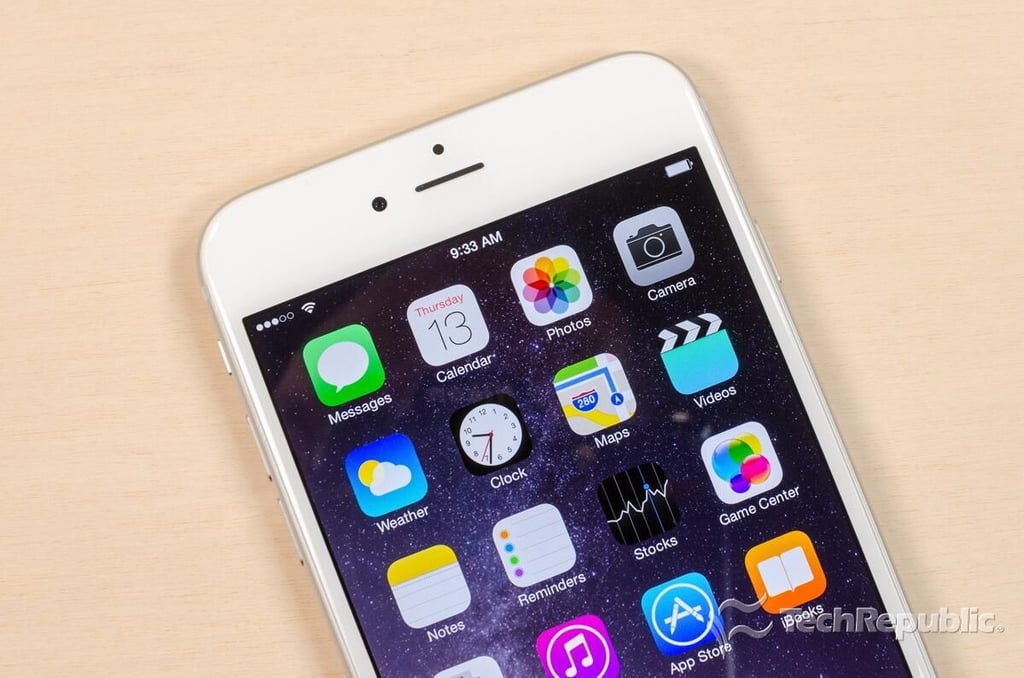

Cracking Open iPhone 6 Plus: FaceTime camera, earpiece speaker, and front facing sensors

Bill Detwiler/TechRepublic

Cracking Open iPhone 6 Plus: FaceTime camera, earpiece speaker, and front facing sensors

Bill Detwiler/TechRepublic
Cracking Open the Apple iPhone 6 Plus

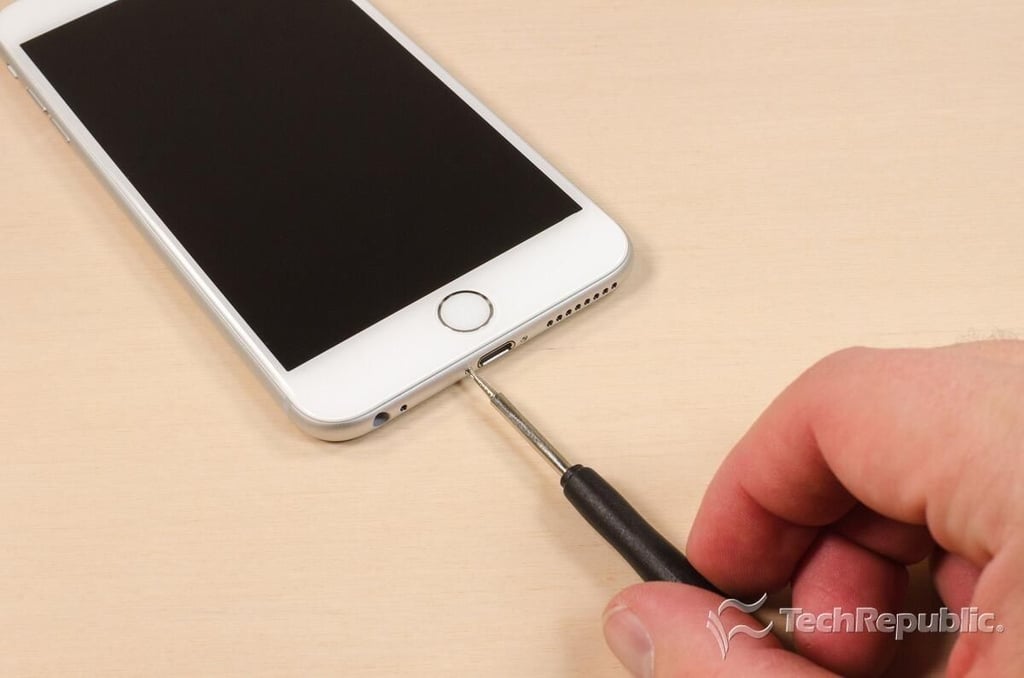

Cracking Open iPhone 6 Plus: Removing the case screws

Bill Detwiler/TechRepublic

Cracking Open iPhone 6 Plus: Removing the case screws

Bill Detwiler/TechRepublic
Cracking Open the Apple iPhone 6 Plus

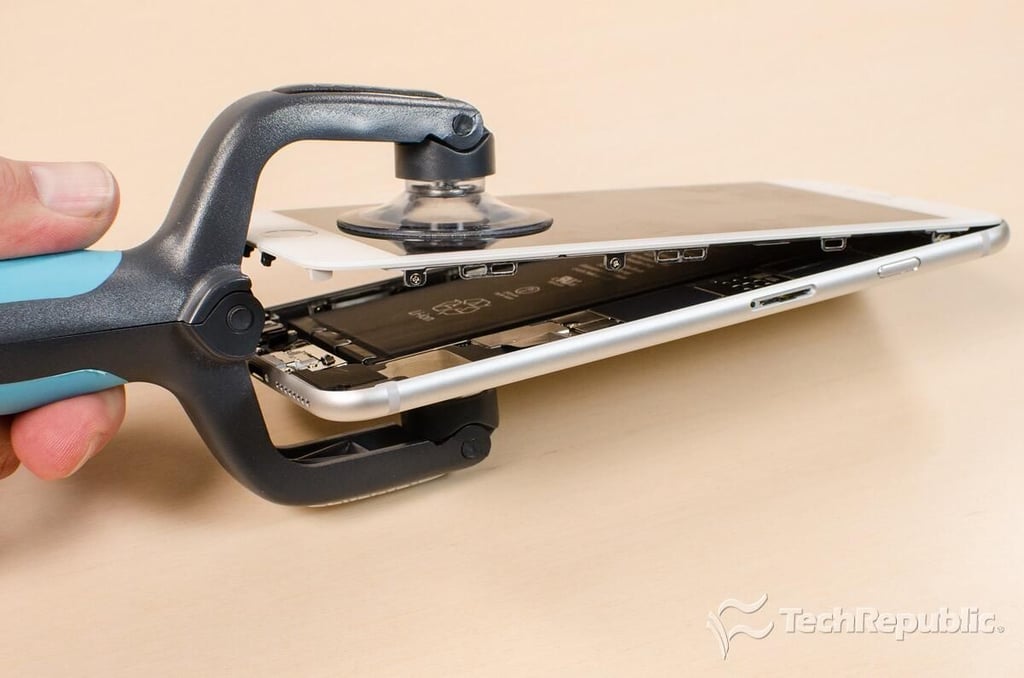

Cracking Open iPhone 6 Plus: Opening the case

Bill Detwiler/TechRepublic

Cracking Open iPhone 6 Plus: Opening the case

Bill Detwiler/TechRepublic
Cracking Open the Apple iPhone 6 Plus

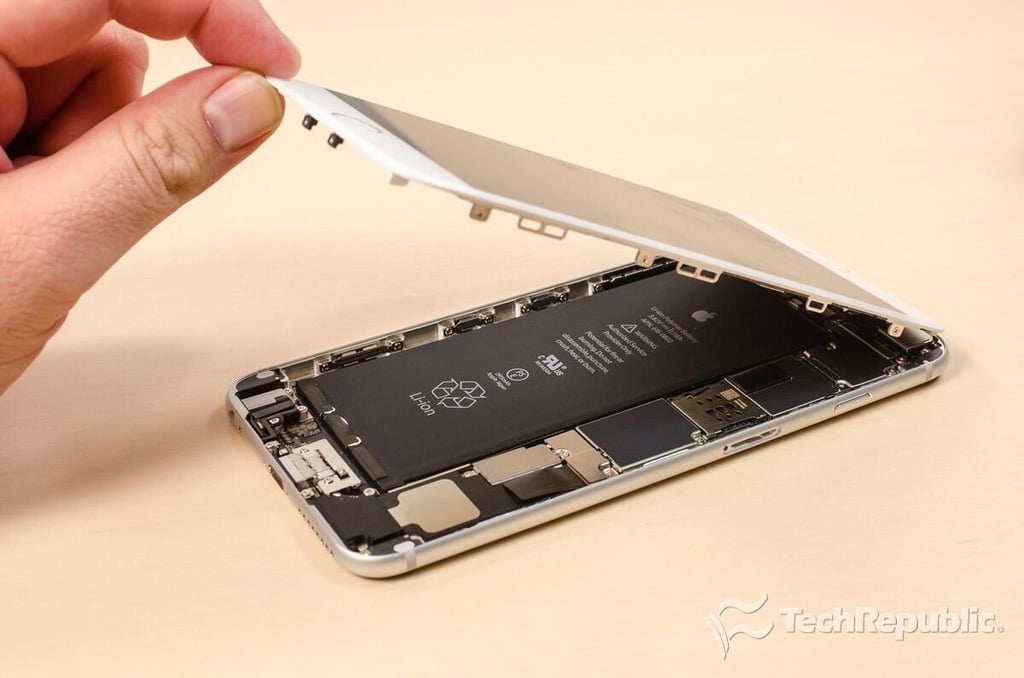

Cracking Open iPhone 6 Plus: Lifting up on the display assembly

Bill Detwiler/TechRepublic

Cracking Open iPhone 6 Plus: Lifting up on the display assembly

Bill Detwiler/TechRepublic
Cracking Open the Apple iPhone 6 Plus

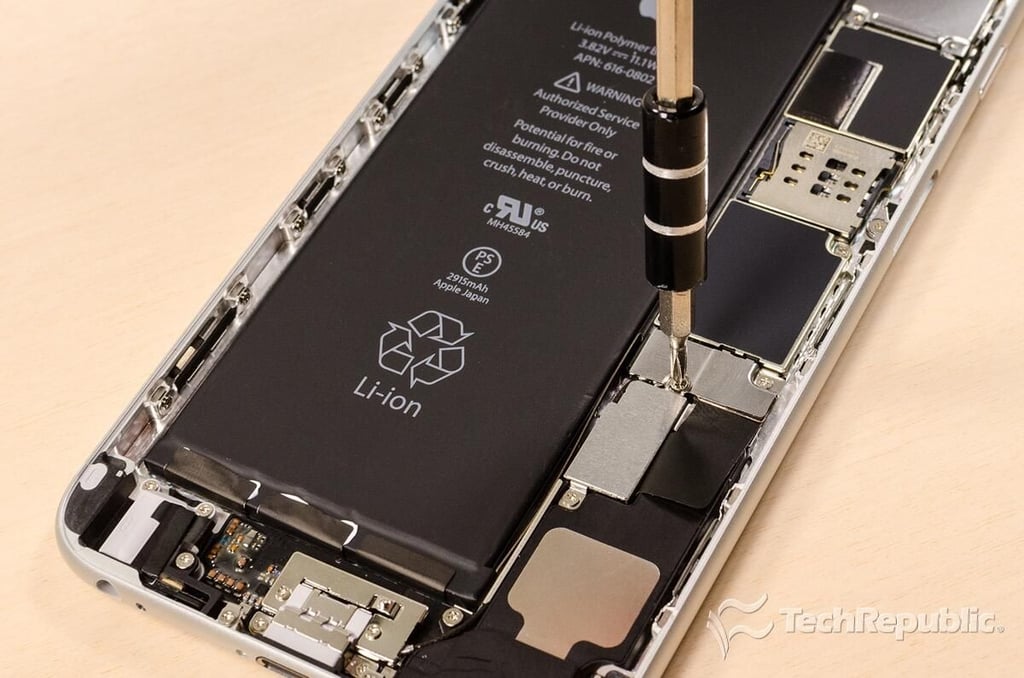

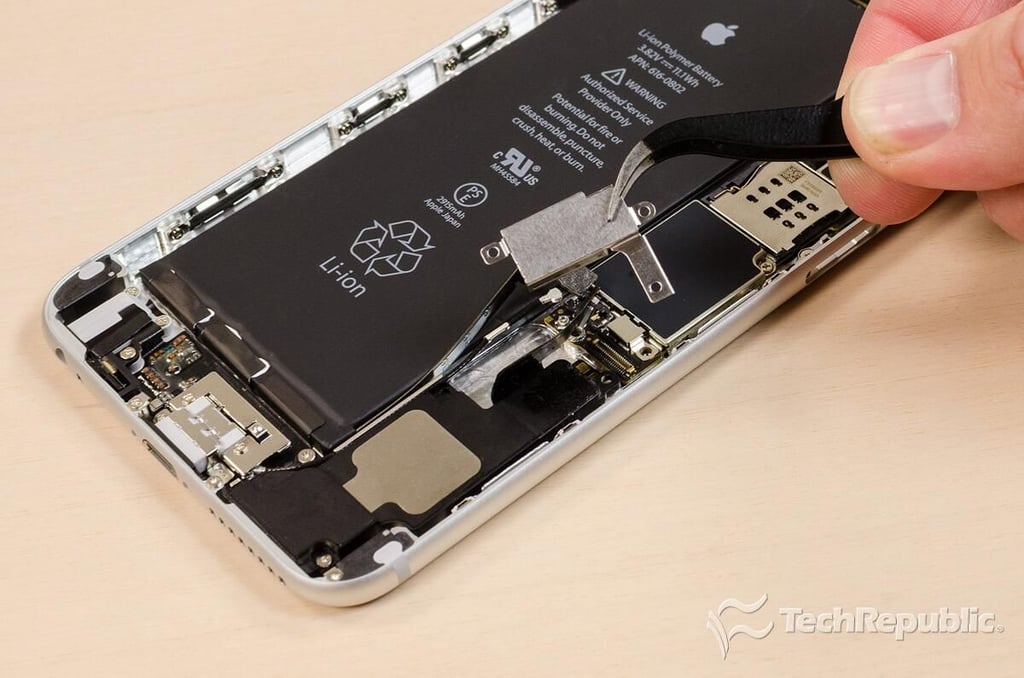

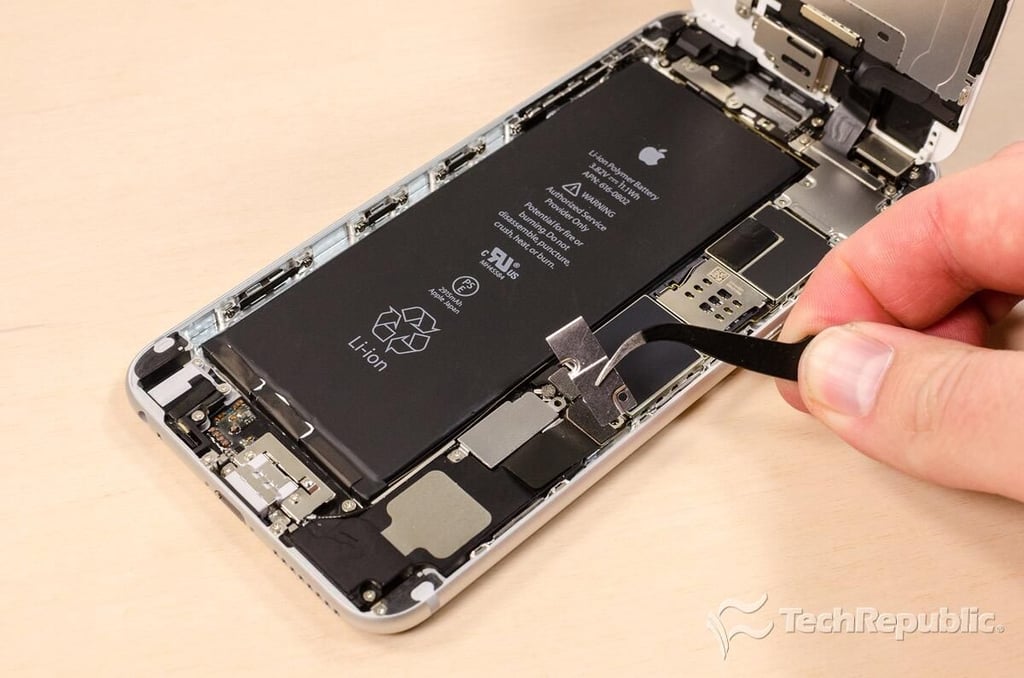

Cracking Open iPhone 6 Plus: Removing the battery connector shield

Bill Detwiler/TechRepublic

Cracking Open iPhone 6 Plus: Removing the battery connector shield

Bill Detwiler/TechRepublic
Cracking Open the Apple iPhone 6 Plus

Cracking Open iPhone 6 Plus: Disconnecting the battery

Bill Detwiler/TechRepublic

Cracking Open iPhone 6 Plus: Disconnecting the battery

Bill Detwiler/TechRepublic
Cracking Open the Apple iPhone 6 Plus

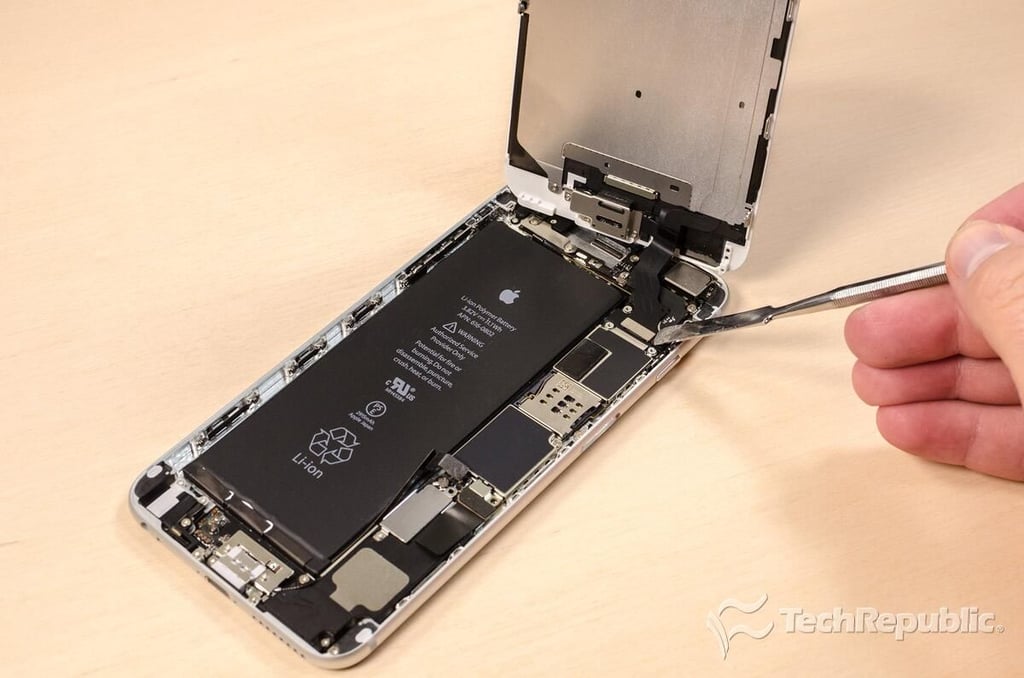

Cracking Open iPhone 6 Plus: Detaching the display assembly connectors

Bill Detwiler/TechRepublic

Cracking Open iPhone 6 Plus: Detaching the display assembly connectors

Bill Detwiler/TechRepublic
Cracking Open the Apple iPhone 6 Plus

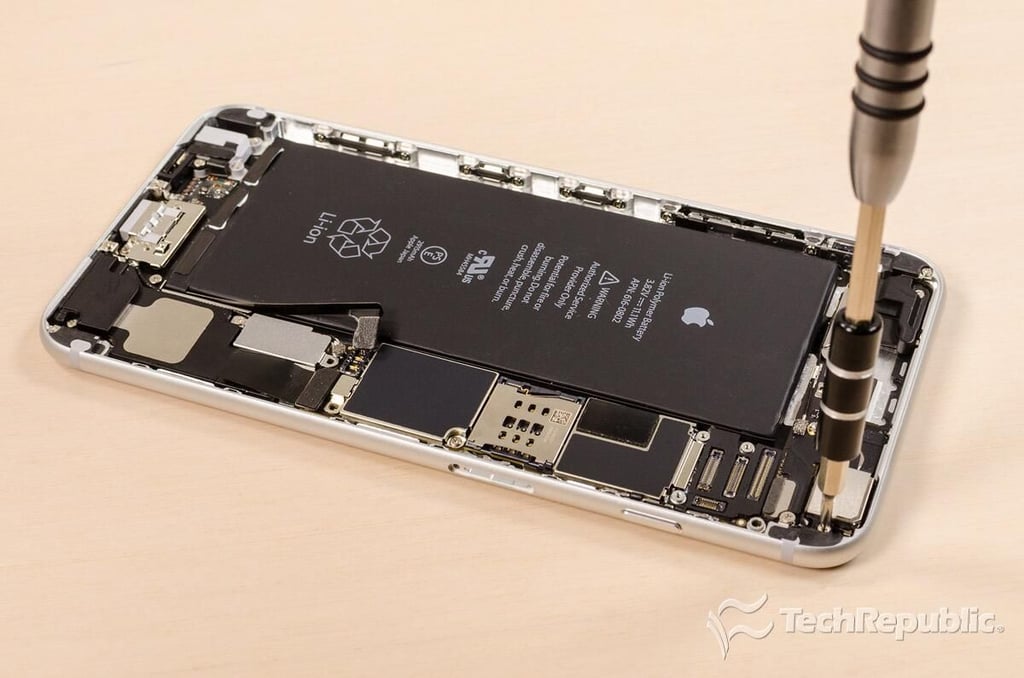

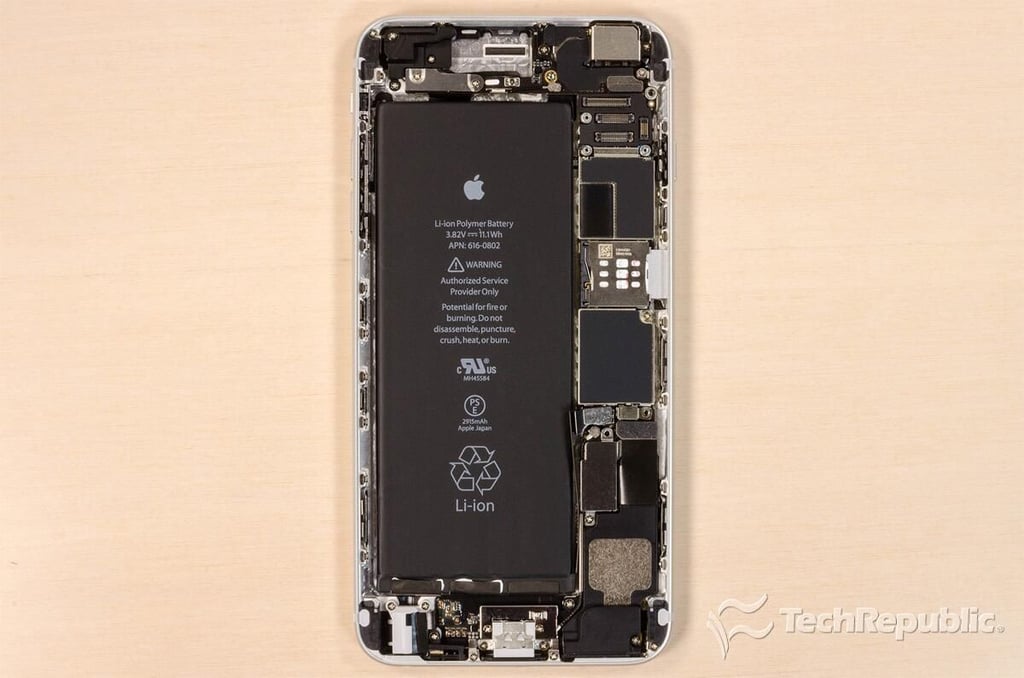

Cracking Open iPhone 6 Plus: Internal hardware

Bill Detwiler/TechRepublic

Cracking Open iPhone 6 Plus: Internal hardware

Bill Detwiler/TechRepublic
Cracking Open the Apple iPhone 6 Plus

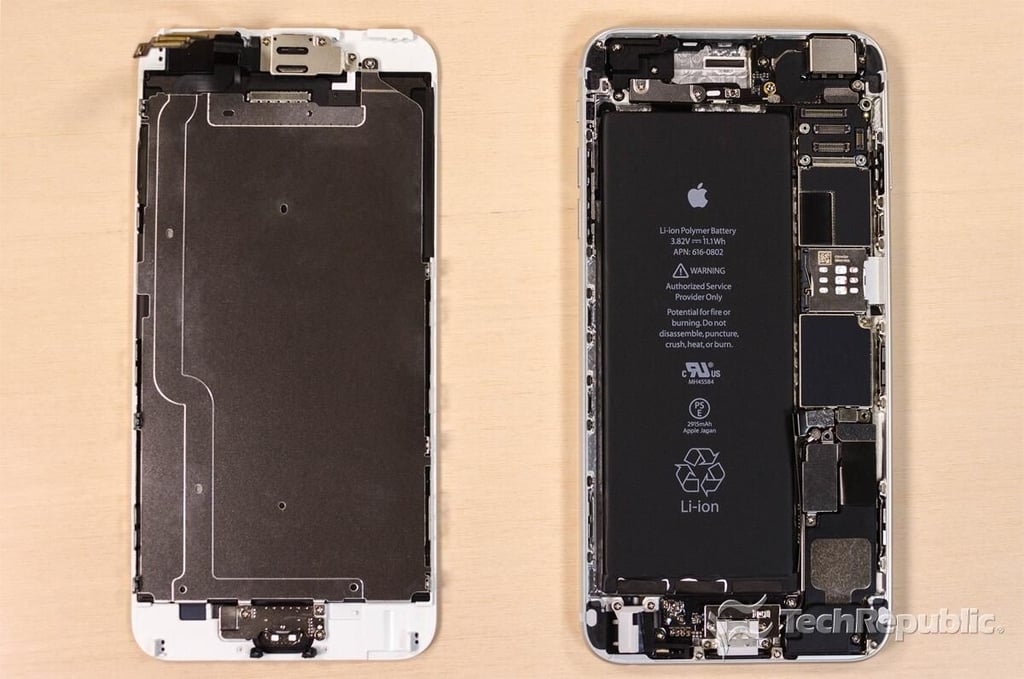

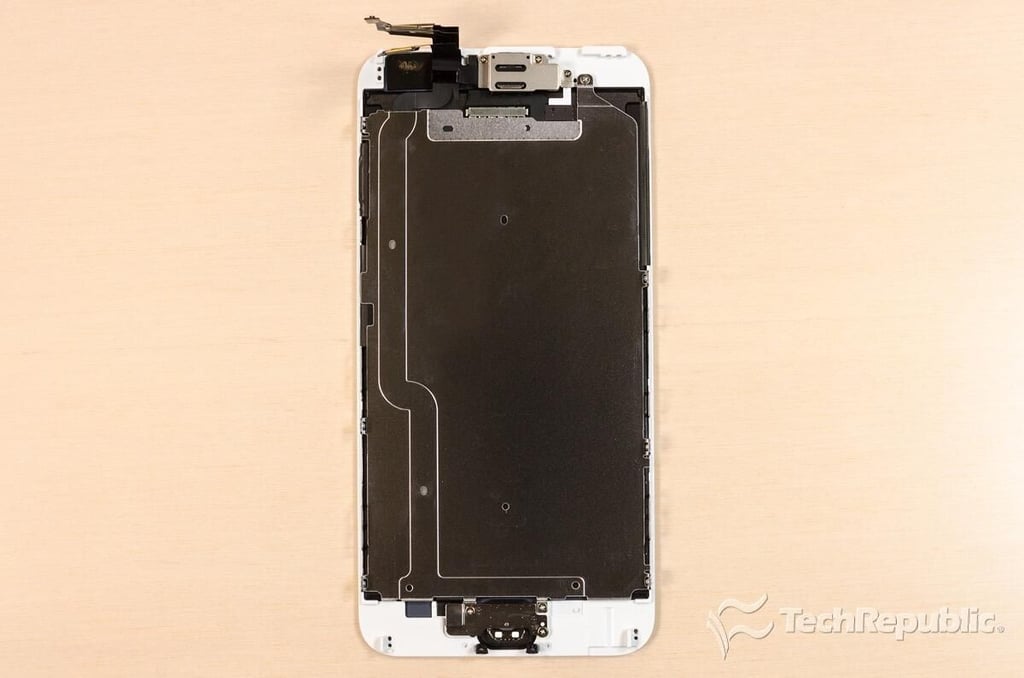

Cracking Open iPhone 6 Plus: Front panel and display assembly

Bill Detwiler/TechRepublic

Cracking Open iPhone 6 Plus: Front panel and display assembly

Bill Detwiler/TechRepublic
Cracking Open the Apple iPhone 6 Plus

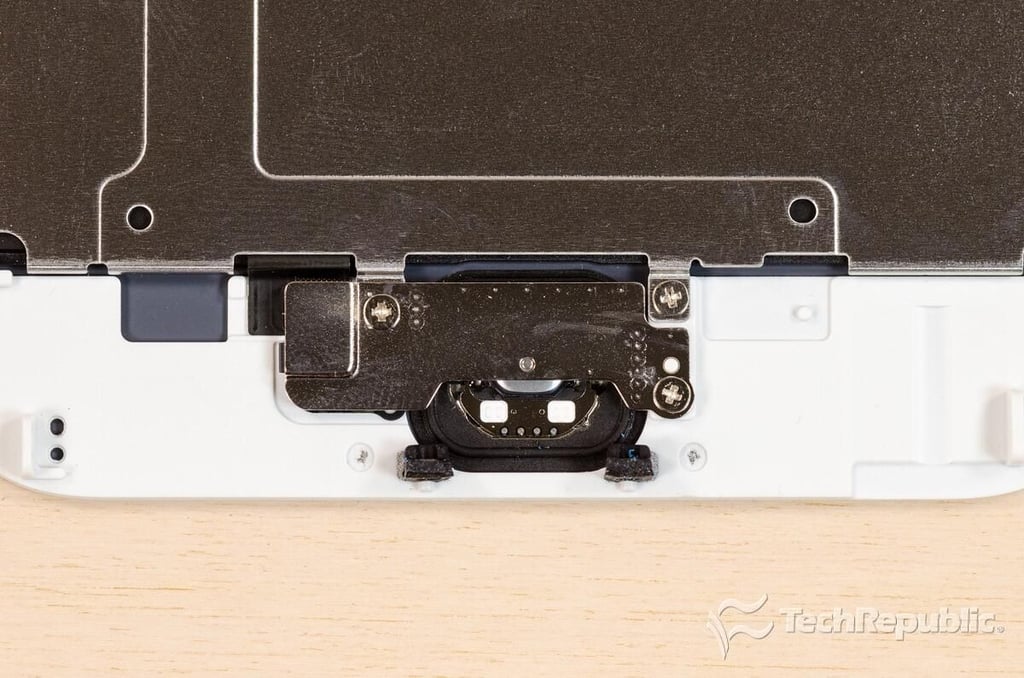

Cracking Open iPhone 6 Plus: Home button

Bill Detwiler/TechRepublic

Cracking Open iPhone 6 Plus: Home button

Bill Detwiler/TechRepublic
Cracking Open the Apple iPhone 6 Plus

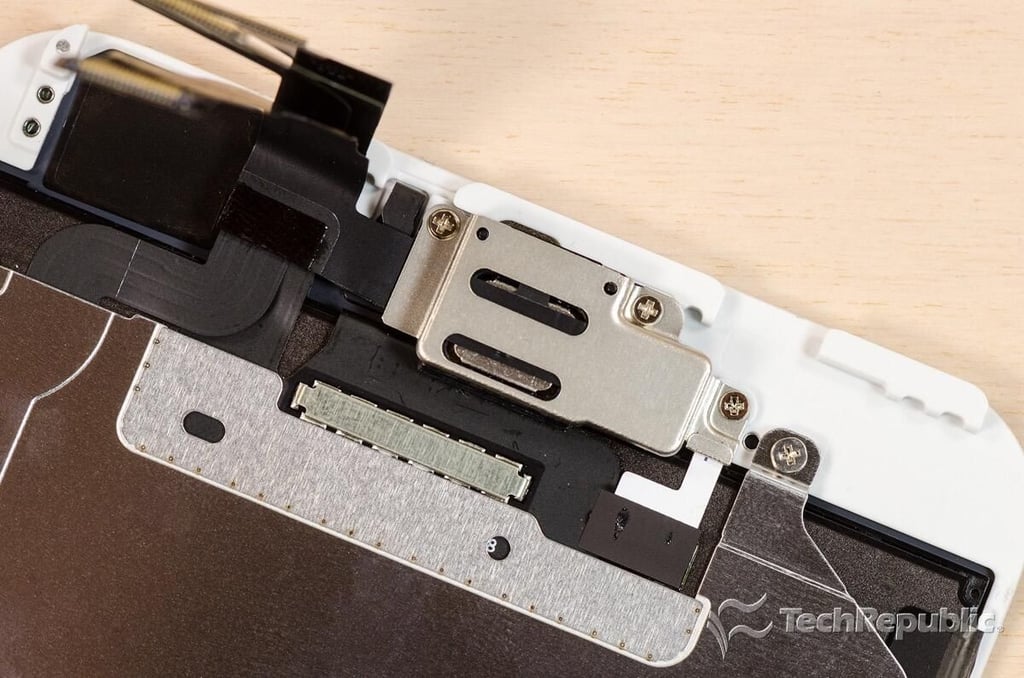

Cracking Open iPhone 6 Plus: FaceTime camera, earpiece speaker, and front-facing sensors

Bill Detwiler/TechRepublic

Cracking Open iPhone 6 Plus: FaceTime camera, earpiece speaker, and front-facing sensors

Bill Detwiler/TechRepublic
Cracking Open the Apple iPhone 6 Plus

Cracking Open iPhone 6 Plus: Hardware mounted to the aluminum body

Bill Detwiler/TechRepublic

Cracking Open iPhone 6 Plus: Hardware mounted to the aluminum body

Bill Detwiler/TechRepublic
Cracking Open the Apple iPhone 6 Plus

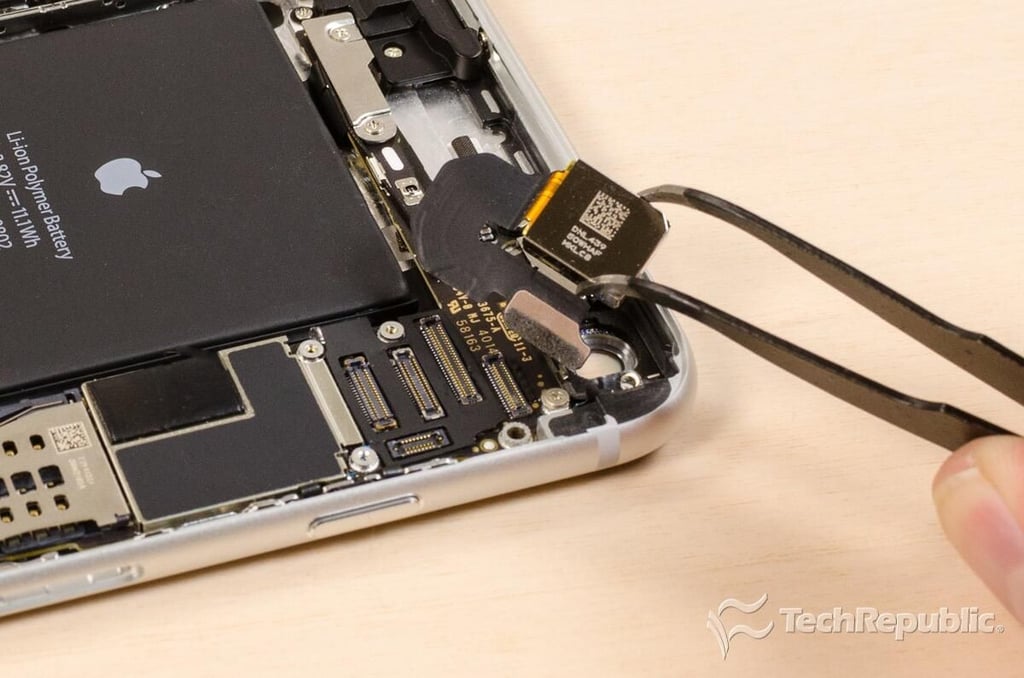

Cracking Open iPhone 6 Plus: Removing the iSight camera bracket screws

Bill Detwiler/TechRepublic

Cracking Open iPhone 6 Plus: Removing the iSight camera bracket screws

Bill Detwiler/TechRepublic
Cracking Open the Apple iPhone 6 Plus

Cracking Open iPhone 6 Plus:

Bill Detwiler/TechRepublic

Cracking Open iPhone 6 Plus:

Bill Detwiler/TechRepublic
Cracking Open the Apple iPhone 6 Plus

Cracking Open iPhone 6 Plus:

Bill Detwiler/TechRepublic

Cracking Open iPhone 6 Plus:

Bill Detwiler/TechRepublic
Cracking Open the Apple iPhone 6 Plus

Cracking Open iPhone 6 Plus: Removing the vibration mechanism

Bill Detwiler/TechRepublic

Cracking Open iPhone 6 Plus: Removing the vibration mechanism

Bill Detwiler/TechRepublic
Cracking Open the Apple iPhone 6 Plus

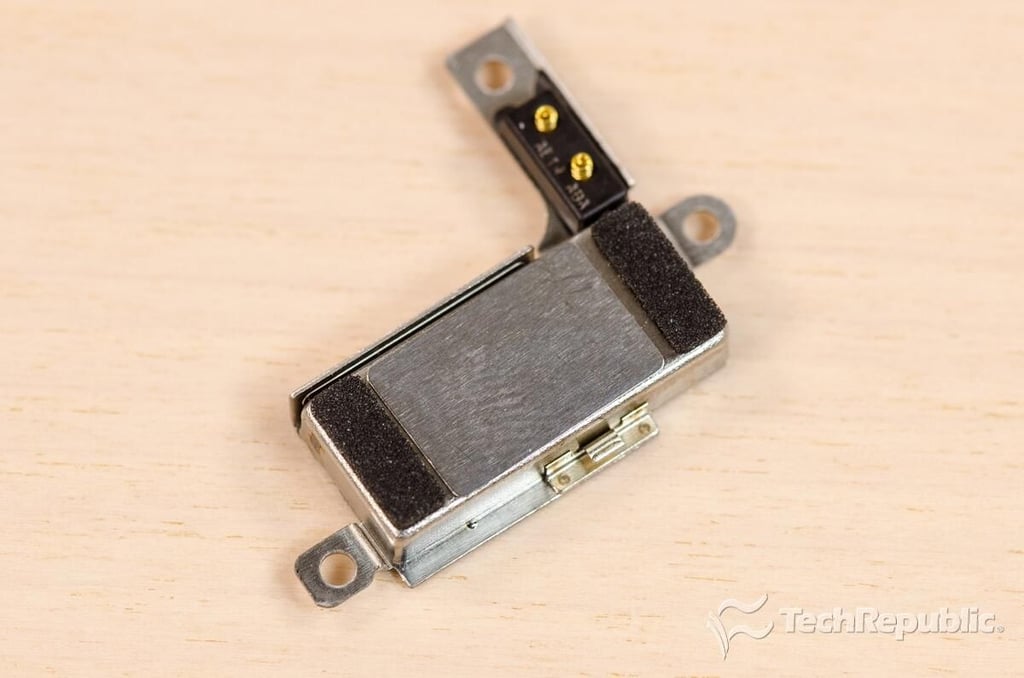

Cracking Open iPhone 6 Plus: Vibration mechanism

Bill Detwiler/TechRepublic

Cracking Open iPhone 6 Plus: Vibration mechanism

Bill Detwiler/TechRepublic
Cracking Open the Apple iPhone 6 Plus

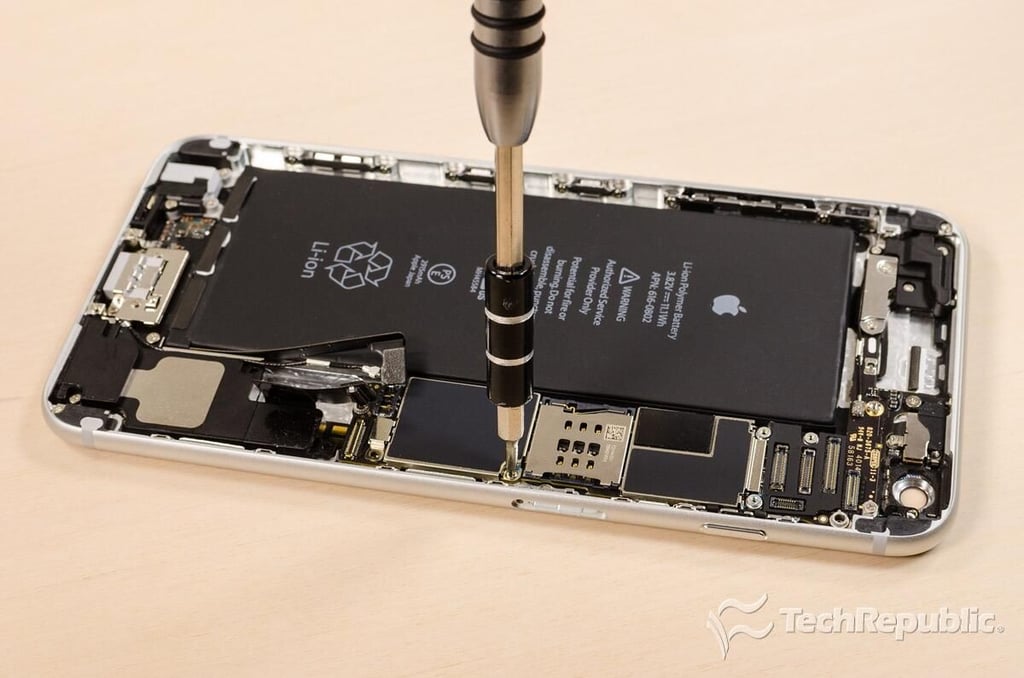

Cracking Open iPhone 6 Plus: Removing the system board screws

Bill Detwiler/TechRepublic

Cracking Open iPhone 6 Plus: Removing the system board screws

Bill Detwiler/TechRepublic
Cracking Open the Apple iPhone 6 Plus

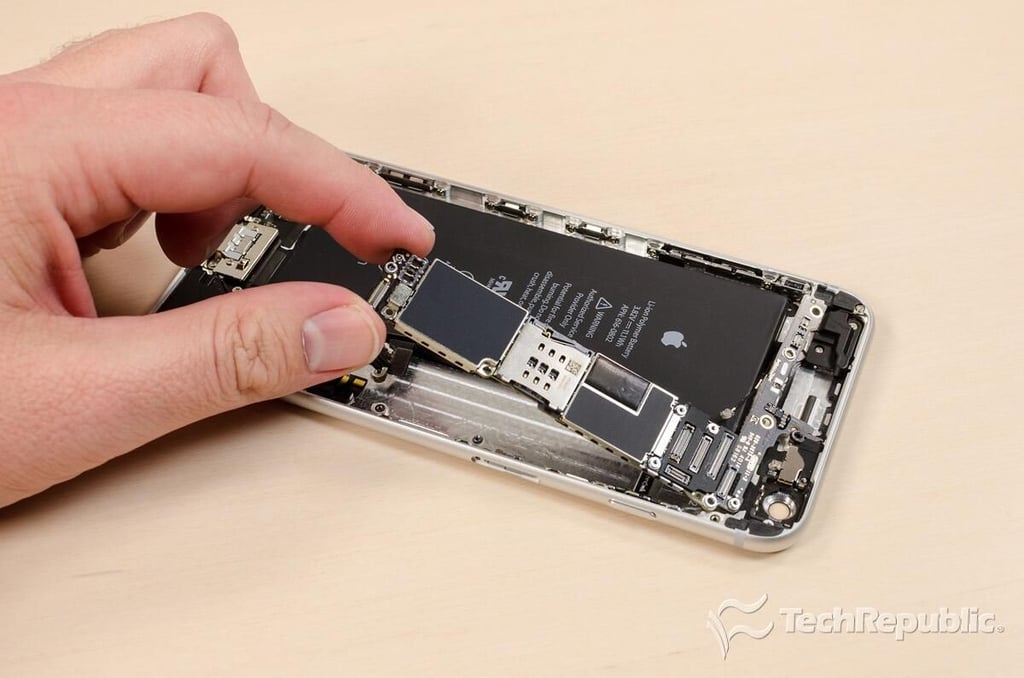

Cracking Open iPhone 6 Plus: Removing the system board

Bill Detwiler/TechRepublic

Cracking Open iPhone 6 Plus: Removing the system board

Bill Detwiler/TechRepublic
Cracking Open the Apple iPhone 6 Plus

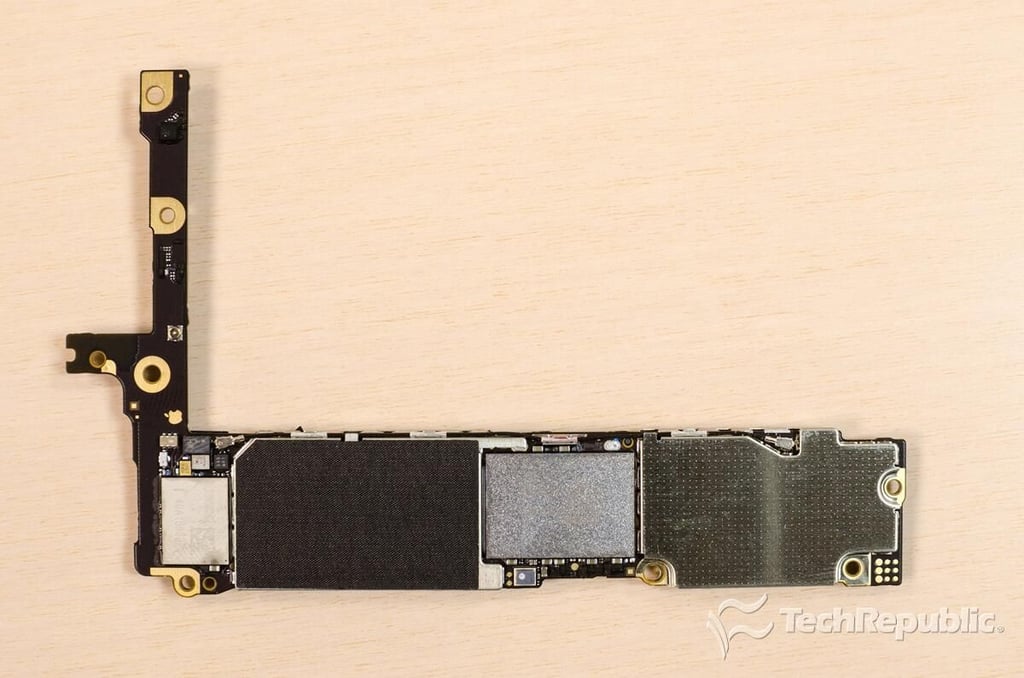

Cracking Open iPhone 6 Plus: System board - Front

Bill Detwiler/TechRepublic

Cracking Open iPhone 6 Plus: System board - Front

Bill Detwiler/TechRepublic
Cracking Open the Apple iPhone 6 Plus

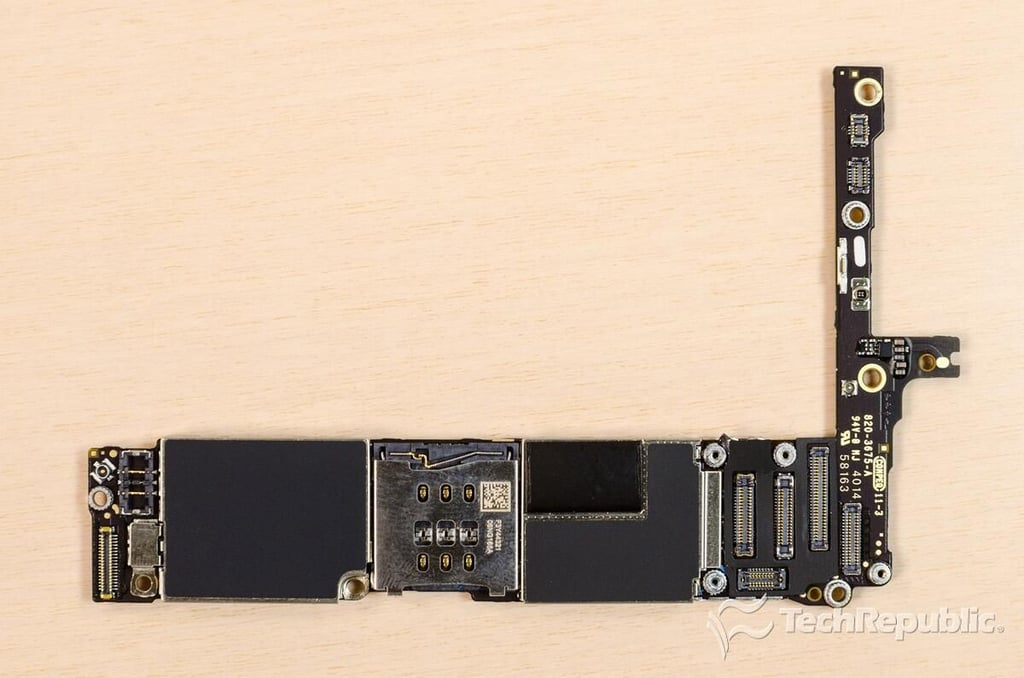

Cracking Open iPhone 6 Plus: System board - back

Bill Detwiler/TechRepublic

Cracking Open iPhone 6 Plus: System board - back

Bill Detwiler/TechRepublic
Cracking Open the Apple iPhone 6 Plus

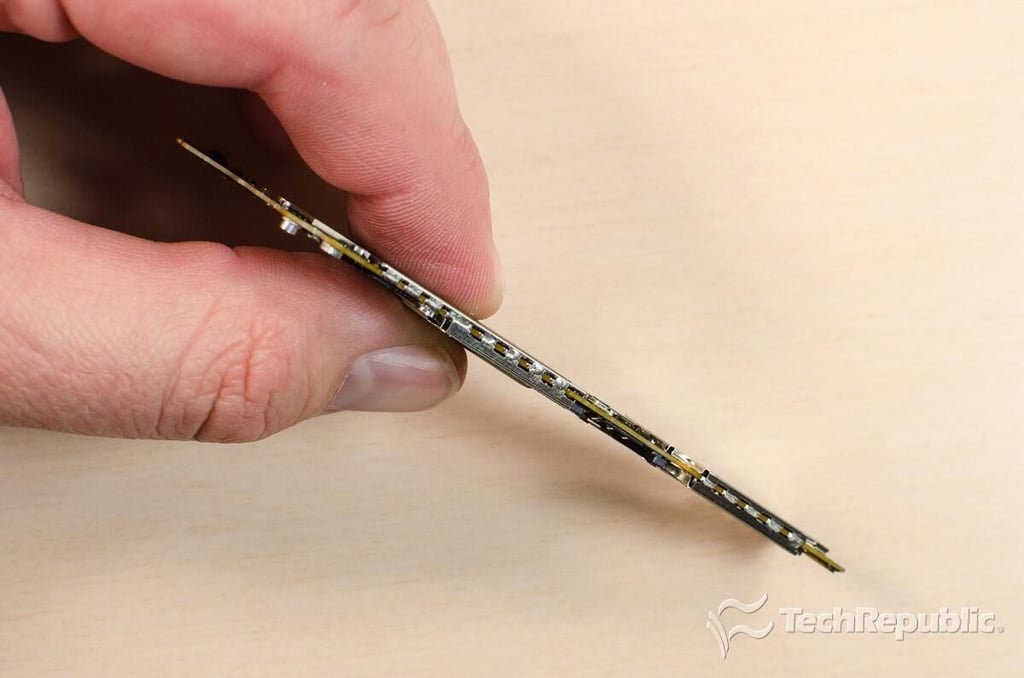

Cracking Open iPhone 6 Plus: Soldered logic board sheilds

Bill Detwiler/TechRepublic

Cracking Open iPhone 6 Plus: Soldered logic board sheilds

Bill Detwiler/TechRepublic
Cracking Open the Apple iPhone 6 Plus

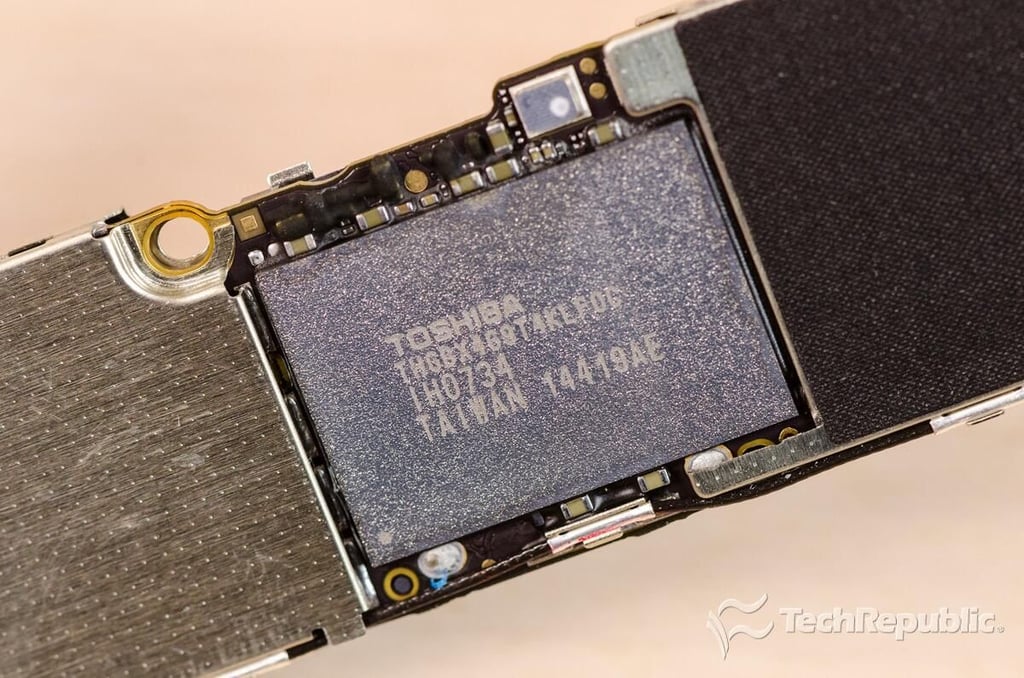

Cracking Open iPhone 6 Plus: Toshiba THGBX4G9T4KLF0C 64GB NAND Flash

Bill Detwiler/TechRepublic

Cracking Open iPhone 6 Plus: Toshiba THGBX4G9T4KLF0C 64GB NAND Flash

Bill Detwiler/TechRepublic
Cracking Open the Apple iPhone 6 Plus

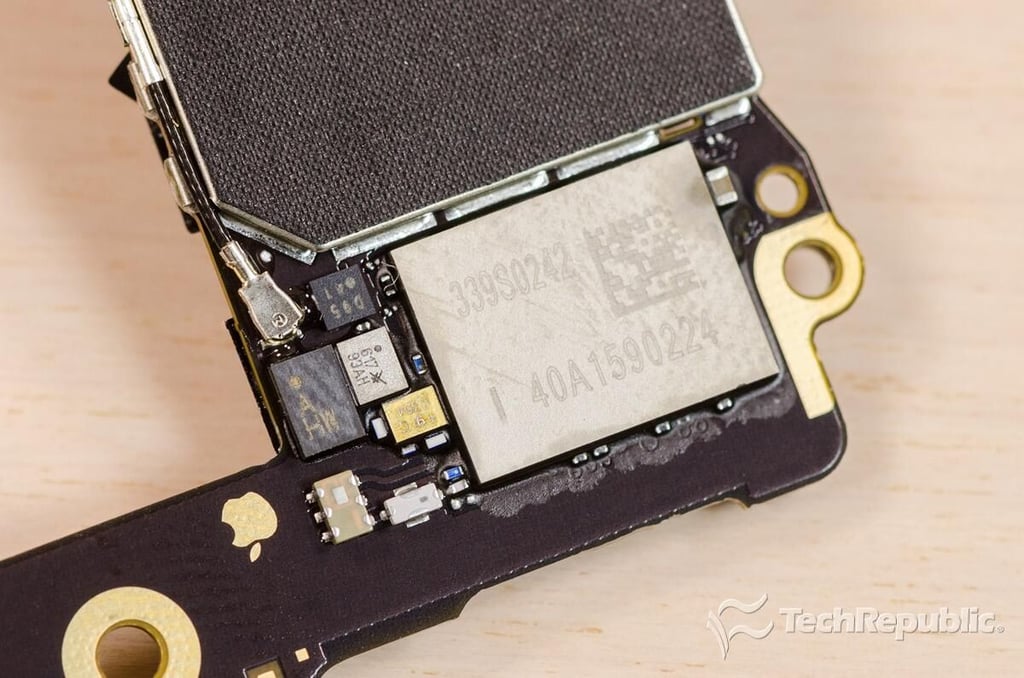

Cracking Open iPhone 6 Plus: Murata 339S0242 wireless IC

Bill Detwiler/TechRepublic

Cracking Open iPhone 6 Plus: Murata 339S0242 wireless IC

Bill Detwiler/TechRepublic
Cracking Open the Apple iPhone 6 Plus

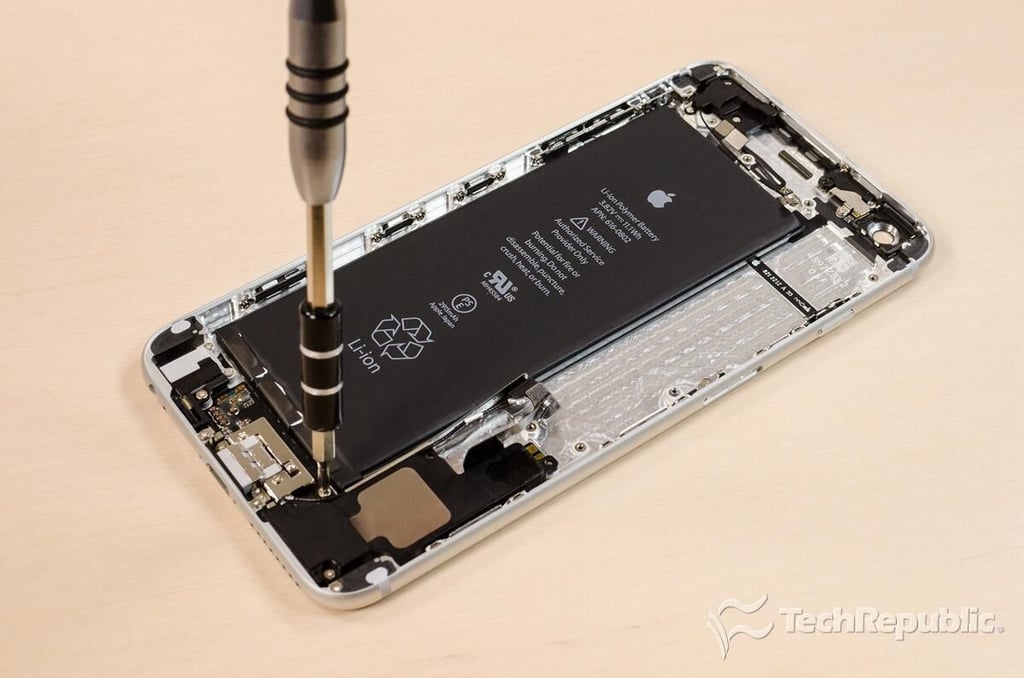

Cracking Open iPhone 6 Plus: Removing the speaker screws

Bill Detwiler/TechRepublic

Cracking Open iPhone 6 Plus: Removing the speaker screws

Bill Detwiler/TechRepublic
Cracking Open the Apple iPhone 6 Plus

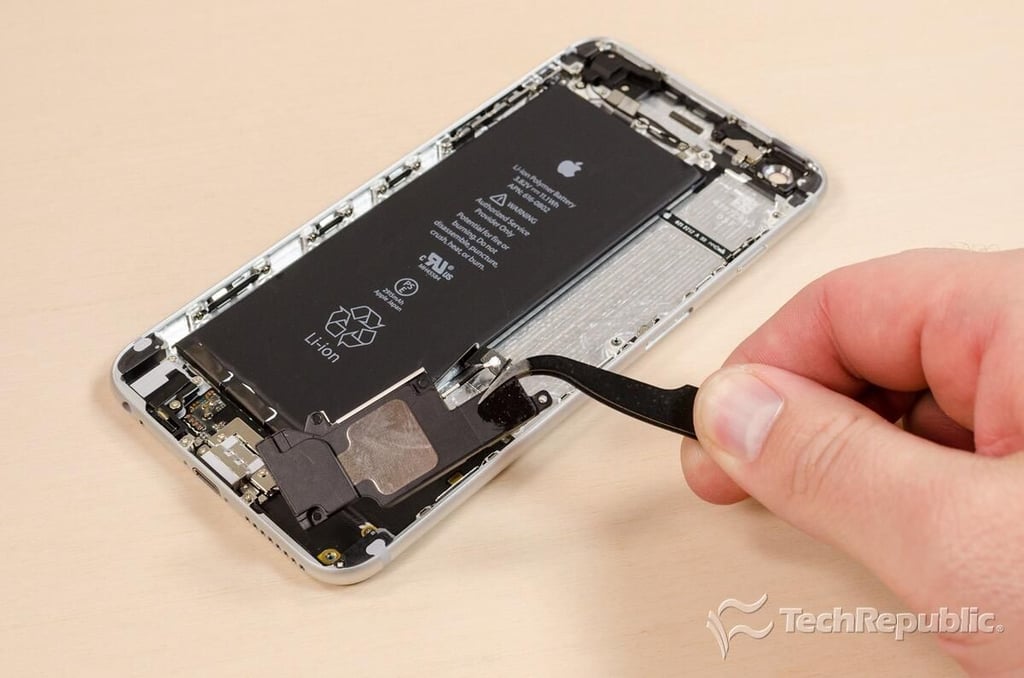

Cracking Open iPhone 6 Plus: Removing the external speaker

Bill Detwiler/TechRepublic

Cracking Open iPhone 6 Plus: Removing the external speaker

Bill Detwiler/TechRepublic
Cracking Open the Apple iPhone 6 Plus

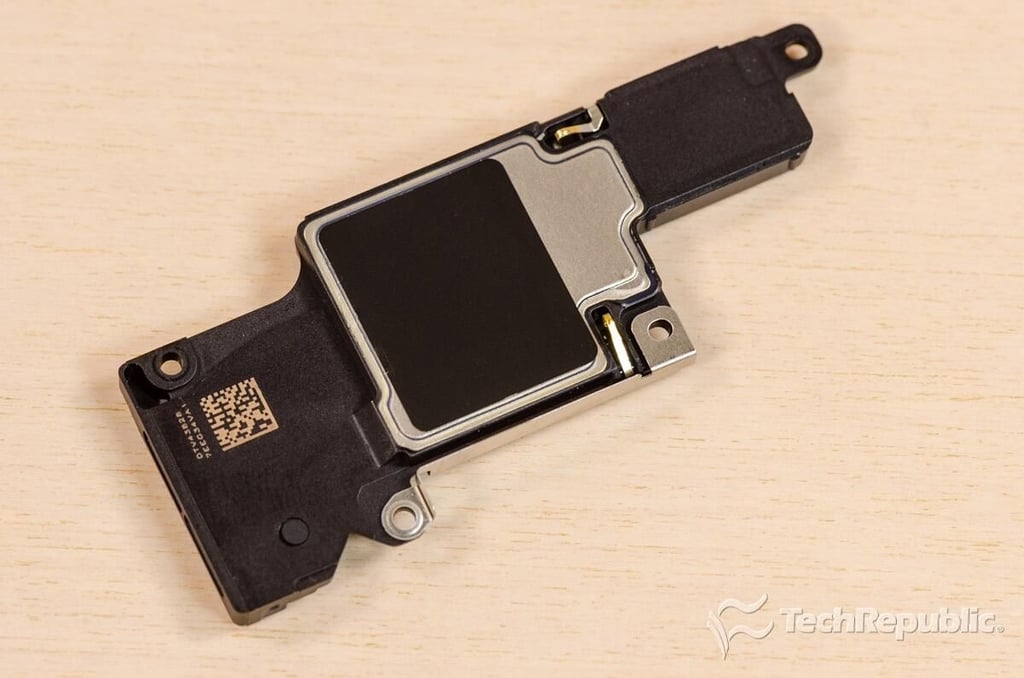

Cracking Open iPhone 6 Plus: External speaker - front

Bill Detwiler/TechRepublic

Cracking Open iPhone 6 Plus: External speaker - front

Bill Detwiler/TechRepublic
Cracking Open the Apple iPhone 6 Plus

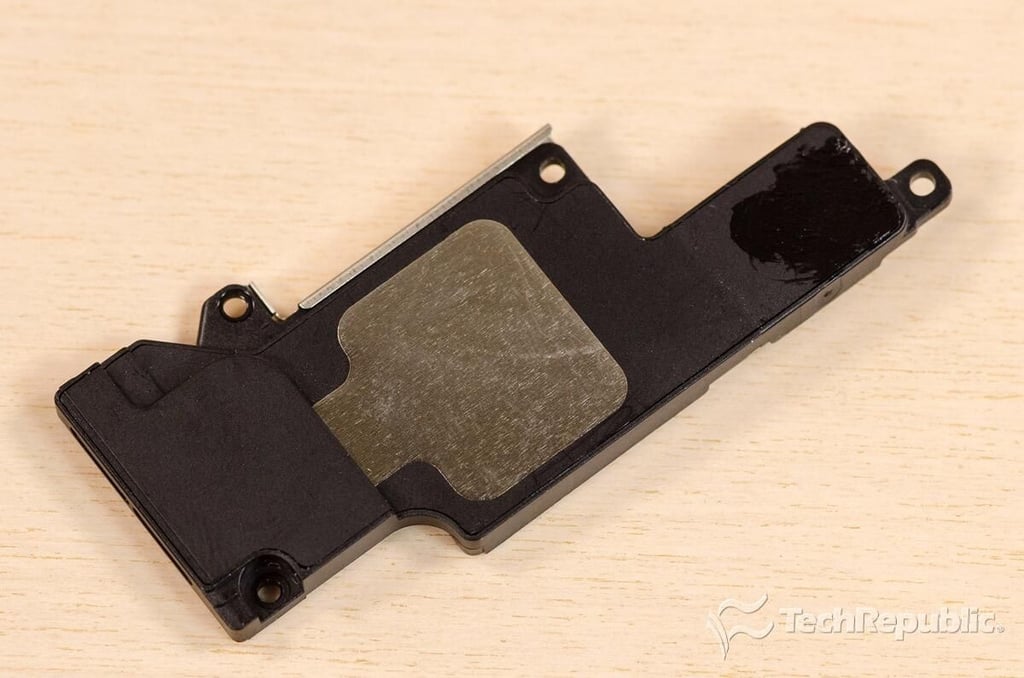

Cracking Open iPhone 6 Plus: External speaker - back

Bill Detwiler/TechRepublic

Cracking Open iPhone 6 Plus: External speaker - back

Bill Detwiler/TechRepublic
Cracking Open the Apple iPhone 6 Plus

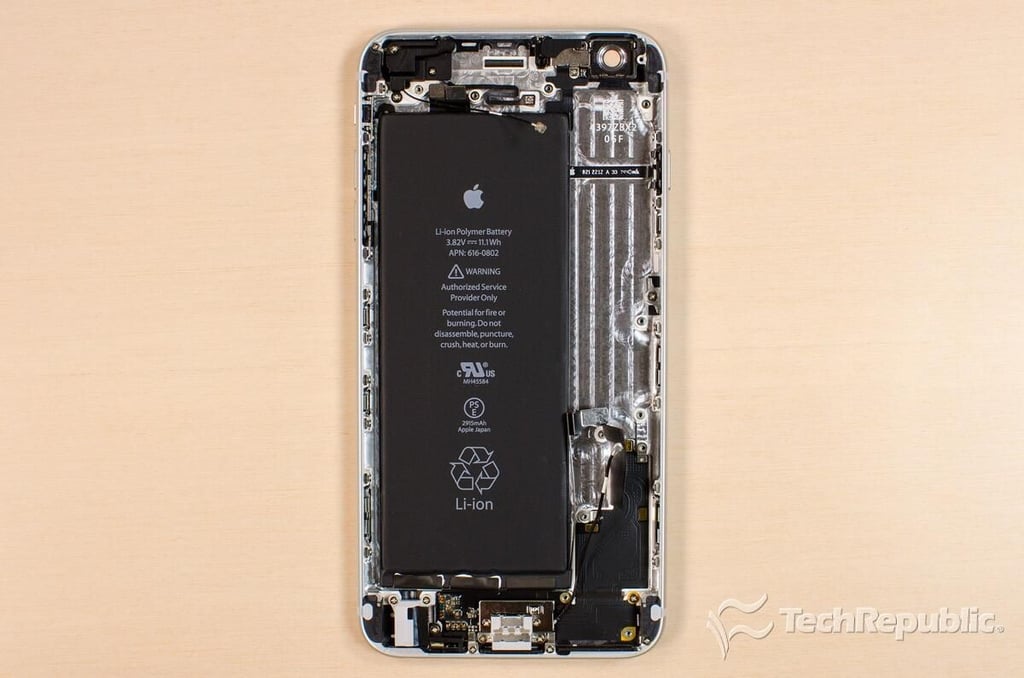

Cracking Open iPhone 6 Plus: Hardware attached to the aluminum body

Bill Detwiler/TechRepublic

Cracking Open iPhone 6 Plus: Hardware attached to the aluminum body

Bill Detwiler/TechRepublic
Cracking Open the Apple iPhone 6 Plus

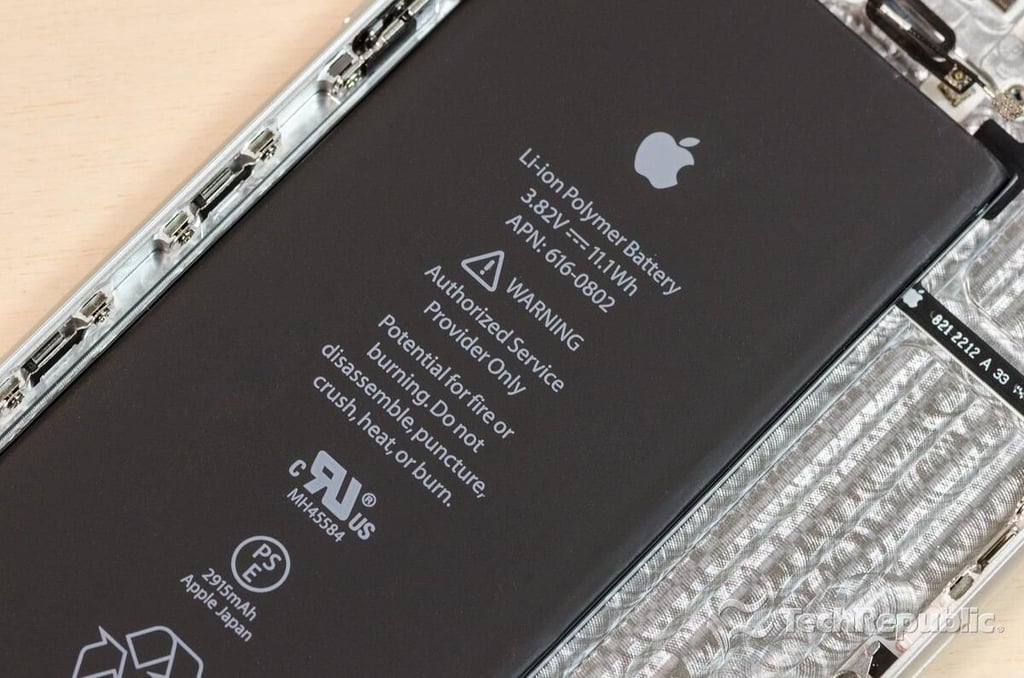

Cracking Open iPhone 6 Plus: 3.82V, 11.1Wh Li-ion battery

Bill Detwiler/TechRepublic

Cracking Open iPhone 6 Plus: 3.82V, 11.1Wh Li-ion battery

Bill Detwiler/TechRepublic
Cracking Open the Apple iPhone 6 Plus

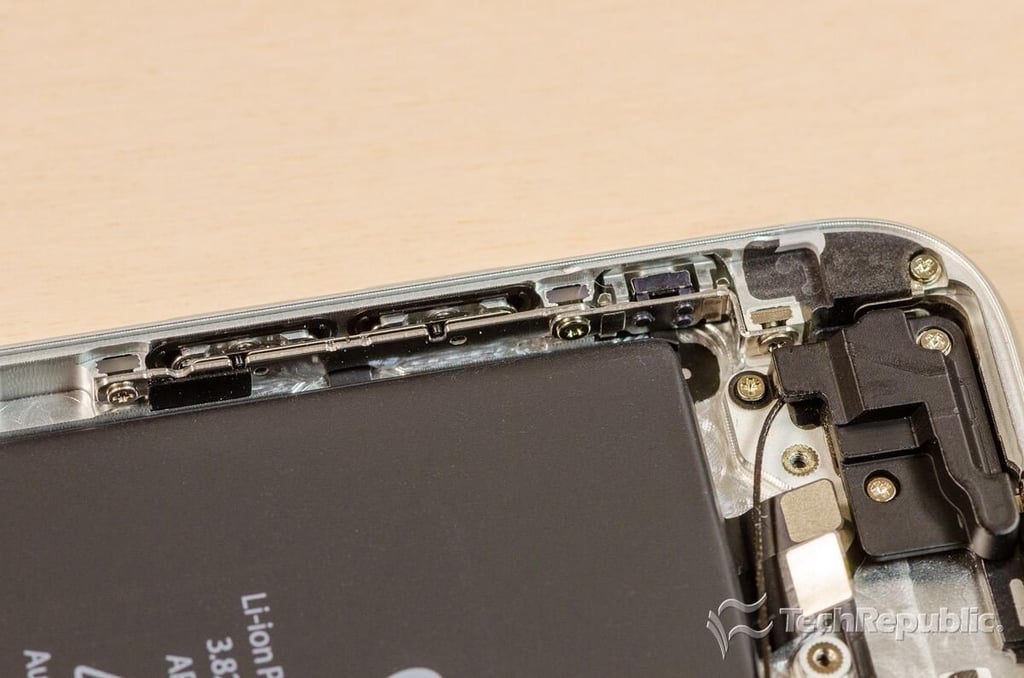

Cracking Open iPhone 6 Plus: Volume button contacts and ringer switch

Bill Detwiler/TechRepublic

Cracking Open iPhone 6 Plus: Volume button contacts and ringer switch

Bill Detwiler/TechRepublic
Cracking Open the Apple iPhone 6 Plus

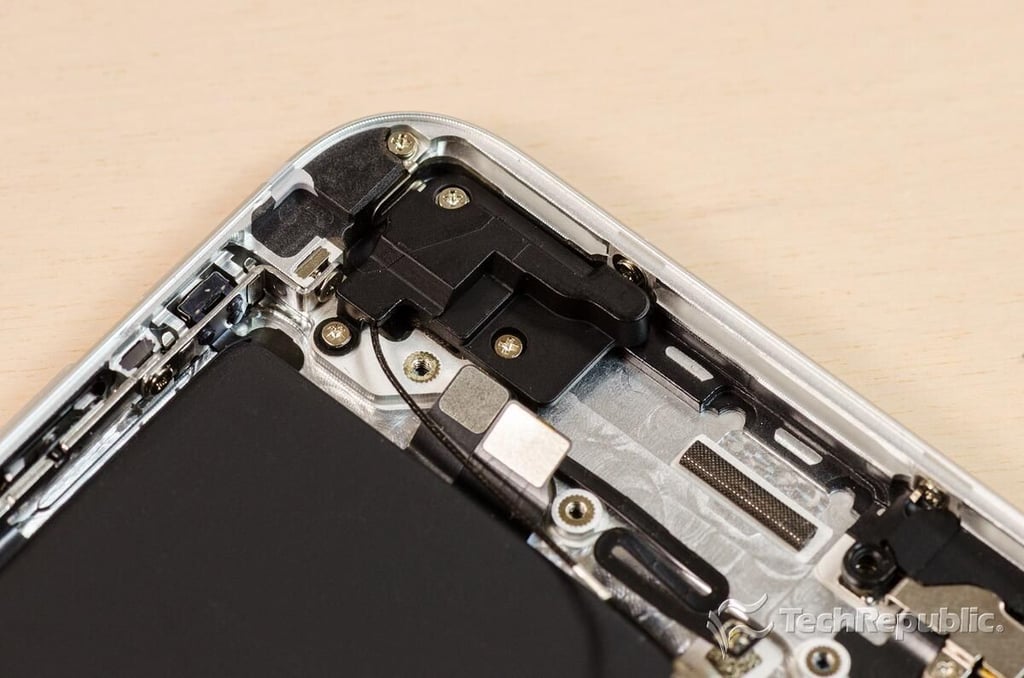

Cracking Open iPhone 6 Plus: Wireless antenna

Bill Detwiler/TechRepublic

Cracking Open iPhone 6 Plus: Wireless antenna

Bill Detwiler/TechRepublic
Cracking Open the Apple iPhone 6 Plus

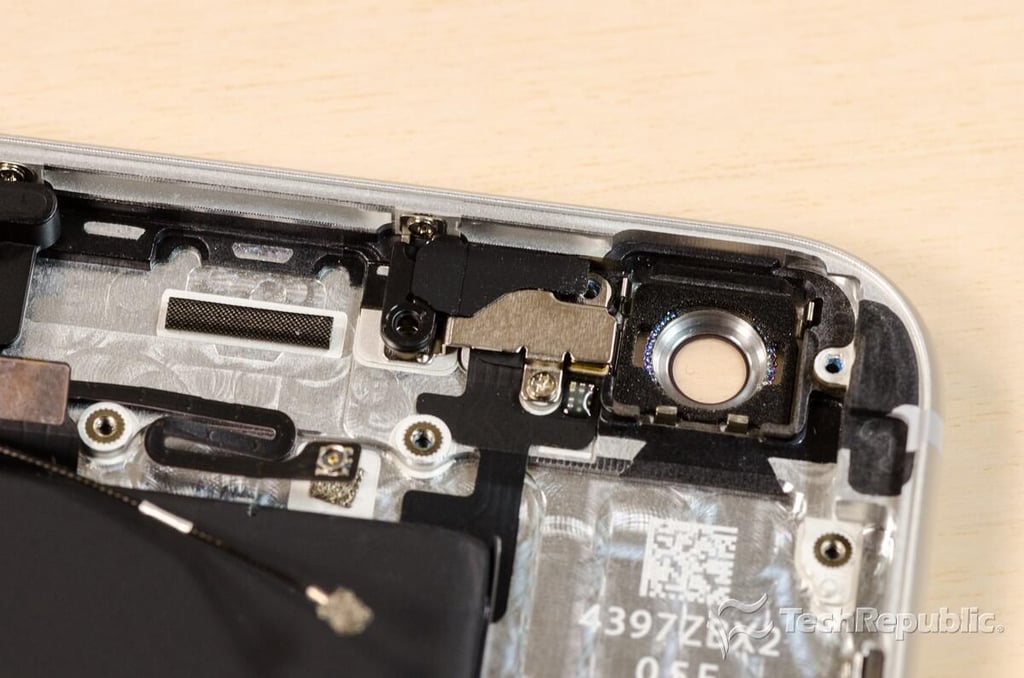

Cracking Open iPhone 6 Plus: Flash and rear-facing sensors

Bill Detwiler/TechRepublic

Cracking Open iPhone 6 Plus: Flash and rear-facing sensors

Bill Detwiler/TechRepublic
Cracking Open the Apple iPhone 6 Plus

Cracking Open iPhone 6 Plus: Sleep/wake button

Bill Detwiler/TechRepublic

Cracking Open iPhone 6 Plus: Sleep/wake button

Bill Detwiler/TechRepublic
Cracking Open the Apple iPhone 6 Plus

Cracking Open iPhone 6 Plus: Lightning connector and headphone jack

Bill Detwiler/TechRepublic

Cracking Open iPhone 6 Plus: Lightning connector and headphone jack

Bill Detwiler/TechRepublic
Cracking Open the Apple iPhone 6 Plus

Cracking Open iPhone 6 Plus: Final teardown

Bill Detwiler/TechRepublic

Cracking Open iPhone 6 Plus: Final teardown

Bill Detwiler/TechRepublic
  • Apple
  • Hardware
  • Account Information

    Share with Your Friends

    Cracking Open the Apple iPhone 6 Plus

    Your email has been sent

Share: Cracking Open the Apple iPhone 6 Plus
Image of Bill Detwiler
By Bill Detwiler
Bill Detwiler is the Editor for Technical Content and Ecosystem at Celonis. He is the former Editor in Chief of TechRepublic and previous host of TechRepublic's Dynamic Developer podcast and Cracking Open, CNET and TechRepublic's popular online show.
  • Account Information

    Contact Bill Detwiler

    Your message has been sent

  • |
  • See all of Bill's content

TechRepublic Premium

  • TechRepublic Premium

    Hardware inventory policy

    This policy describes guidelines your organization can follow to track, process and decommission IT equipment. From the policy: SUMMARY An organization’s IT hardware inventory constitutes a significant capital investment in order to perform company operations. Because hardware represents a critical asset and often holds organizational data, it is important for the company to track each ...

    Published:  January 23, 2023, 11:00 AM EST Modified:  January 24, 2023, 11:00 AM EST Read More See more TechRepublic Premium
  • TechRepublic Premium

    Malware response checklist

    Whether an infection is the result of a disgruntled employee, hardware vulnerability, software-based threat, social engineering penetration, robotic attack or human error, all organizations must be prepared to immediately respond effectively to such an issue if the corresponding damage is to be minimized. Because even the best protected networks become infected, all organizations must have ...

    Published:  January 22, 2023, 11:00 AM EST Modified:  January 23, 2023, 1:00 PM EST Read More See more TechRepublic Premium
  • TechRepublic Premium

    Checklist: Securing Windows 10 systems

    Every operating system should be appropriately secured, especially end user workstations which often contain or permit access to company data and upon which most employee job duties are based. To get the maximum security protection out of your Windows 10 deployments follow this checklist from TechRepublic Premium. Also included in this checklist: Security solutions Product ...

    Published:  January 22, 2023, 11:00 AM EST Modified:  January 23, 2023, 2:00 PM EST Read More See more TechRepublic Premium
  • TechRepublic Premium

    Cloud data storage policy

    Third-party cloud-based file storage applications such as Dropbox, OneDrive and Google Drive have all contributed to the success of business cloud data storage. These products have brought proven flexibility and ease of data access to users and businesses alike while ensuring security of confidential information. Cloud data storage offers many benefits to consumers and companies ...

    Published:  January 22, 2023, 11:00 AM EST Modified:  January 23, 2023, 3:00 PM EST Read More See more TechRepublic Premium

Services

  • About Us
  • Newsletters
  • RSS Feeds
  • Site Map
  • Site Help & Feedback
  • FAQ
  • Advertise
  • Do Not Sell My Information

Explore

  • Downloads
  • TechRepublic Forums
  • Meet the Team
  • TechRepublic Academy
  • TechRepublic Premium
  • Resource Library
  • Photos
  • Videos
  • TechRepublic
  • TechRepublic on Twitter
  • TechRepublic on Facebook
  • TechRepublic on LinkedIn
  • TechRepublic on Flipboard
© 2023 TechnologyAdvice. All rights reserved.
  • Privacy Policy
  • Terms of Use
  • Property of TechnologyAdvice
