Cracking Open the Apple TV 2012

By Bill Detwiler March 29, 2012, 6:46 AM PDT Bill Detwiler on Twitter billdetwiler

1
of 36

Cracking Open the Apple TV 2012

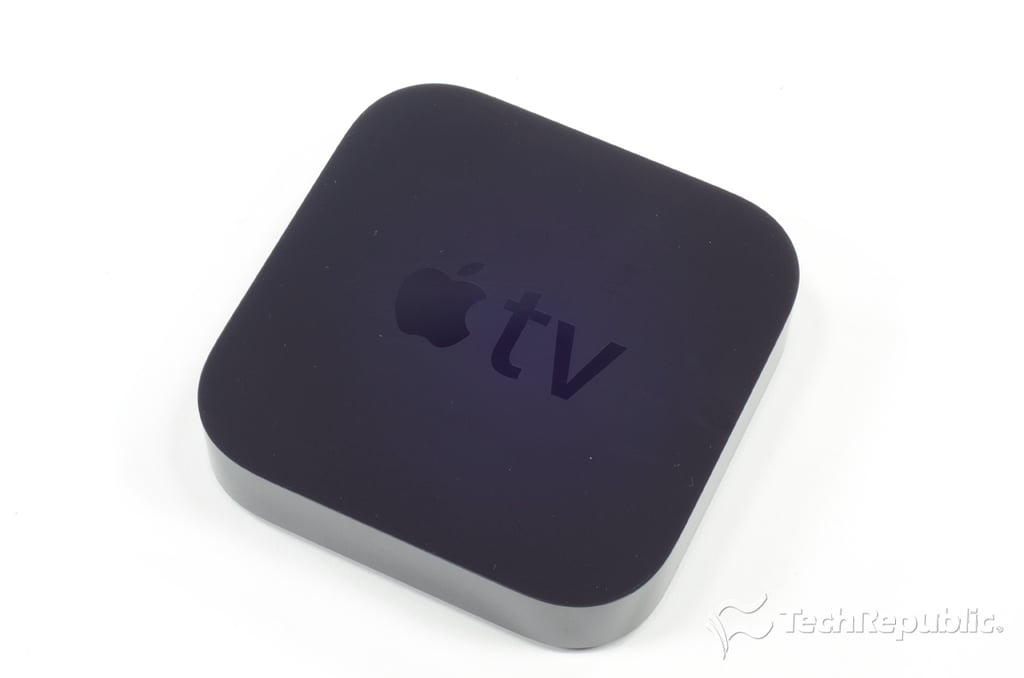

Apple TV 2012 teardown

Apple TV 2012 teardown

ntIts release may have been overshadowed by the 3rd generation iPad (launched at the same event), but the 2012 Apple TV should please fans of the Cupertino company’s streaming media player.
nt
ntI cracked open the 2nd generation Apple TV in 2010 and was curious to see the new chips inside the 2012 model. Follow along as I crack open the 2012 Apple TV.
nt
ntFor a detailed analysis of the teardown, check out my article and video, Apple TV 2012 Teardown: Upgraded processor, wireless chip.
nt
ntPhoto by: Bill Detwiler / TechRepublic
ntCaption by: Bill Detwiler

Cracking Open the Apple TV 2012

Cracking Open Apple TV 2012: Features and price

Cracking Open Apple TV 2012: Features and price

ntThe 2012 Apple TV has a revamped user interface and supports 1080p video, Wi-Fi 802.11a/b/g/n, iTunes, AirPlay, and Netflix. It lacks some streaming services, such as Hulu Plus, HBO Go, Amazon Instant, and Pandora. The 2012 Apple TV retails for $99 (US)
nt
ntPhoto by: Bill Detwiler / TechRepublic
ntCaption by: Bill Detwiler

Cracking Open the Apple TV 2012

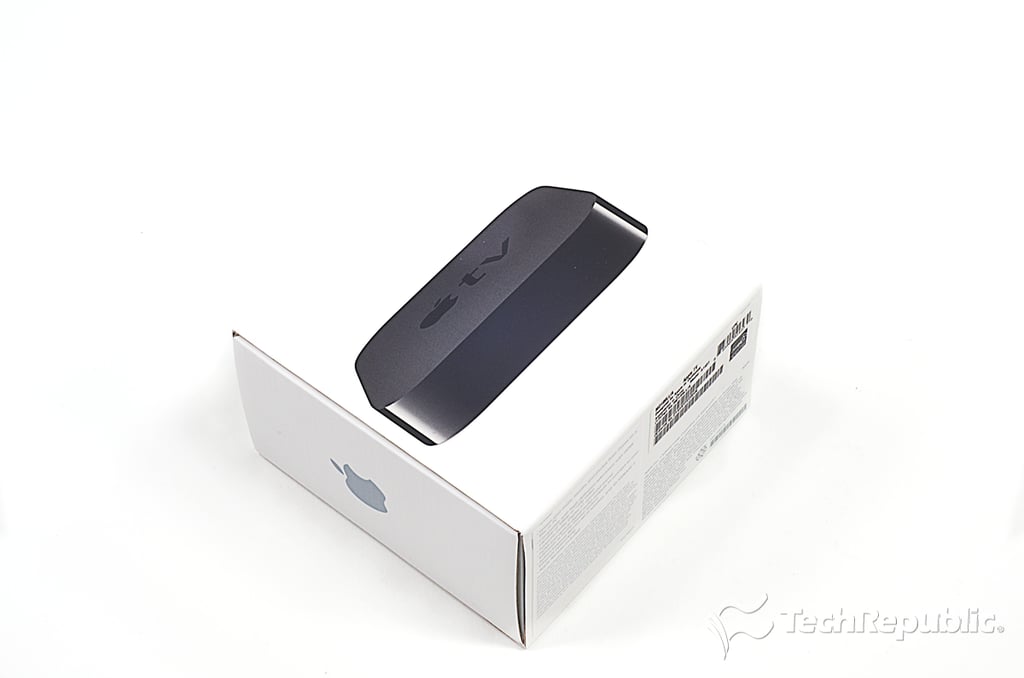

Cracking Open Apple TV 2012: Box contents

Cracking Open Apple TV 2012: Box contents

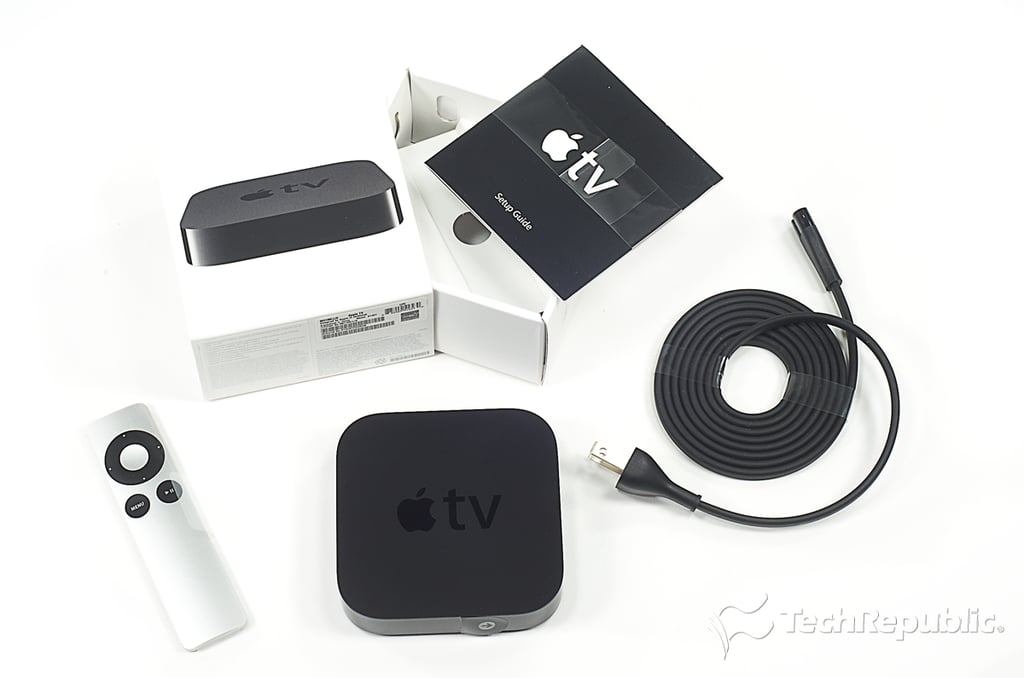

ntAlong with the actual Apple TV player, the box contains the Apple Remote, power cord, and product documentation.
nt
ntPhoto by: Bill Detwiler / TechRepublic
ntCaption by: Bill Detwiler

Cracking Open the Apple TV 2012

Cracking Open Apple TV 2012: Dimensions and weight

Cracking Open Apple TV 2012: Dimensions and weight

ntThe 2012 Apple TV weighs 0.6 pound and measures 3.9″ (wide) x 3.9″ (deep) x 0.9″ (high). Its overall design (both inside and out) is identical to the 2010 Apple TV.
nt
ntPhoto by: Bill Detwiler / TechRepublic
ntCaption by: Bill Detwiler

Cracking Open the Apple TV 2012

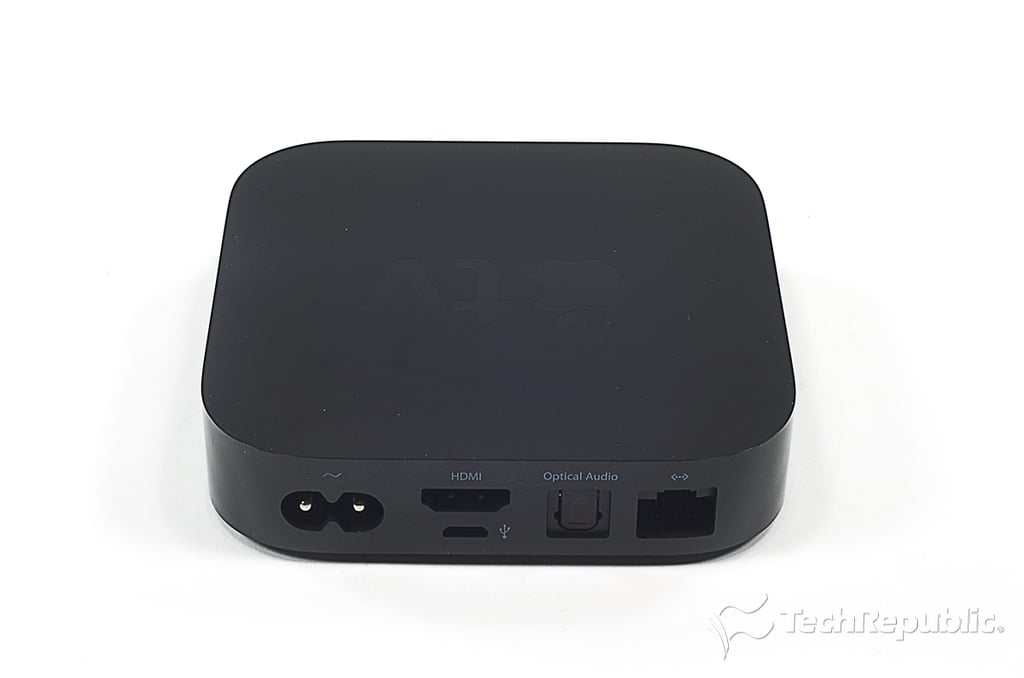

Cracking Open Apple TV 2012: Ports

Cracking Open Apple TV 2012: Ports

Cracking Open the Apple TV 2012

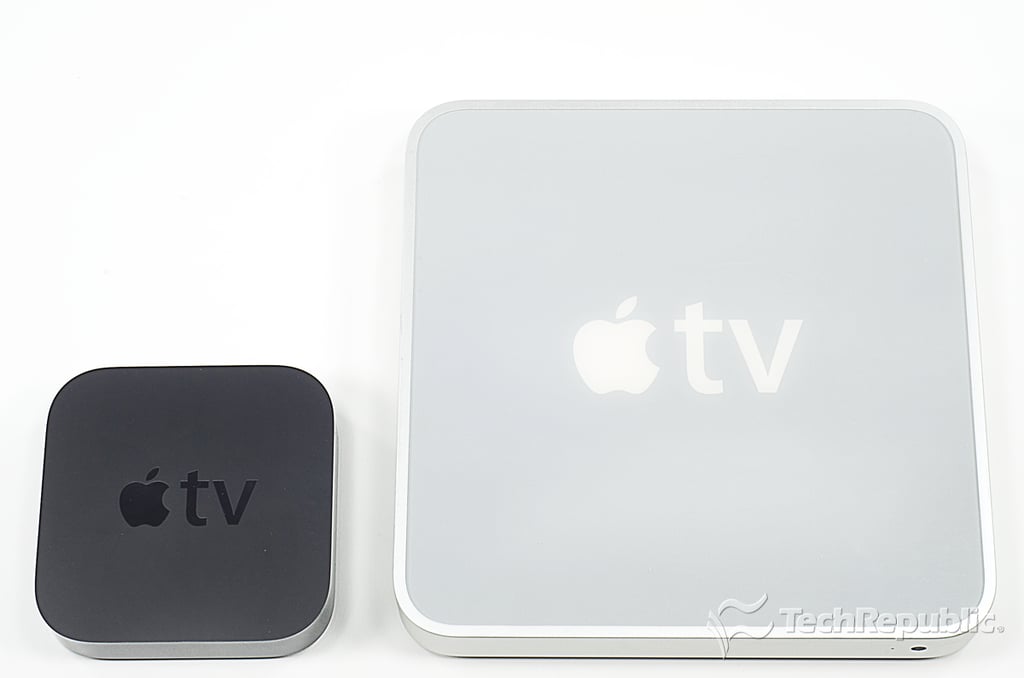

Cracking Open Apple TV 2012: 1st generation vs 3rd generation

Cracking Open Apple TV 2012: 1st generation vs 3rd generation

Cracking Open the Apple TV 2012

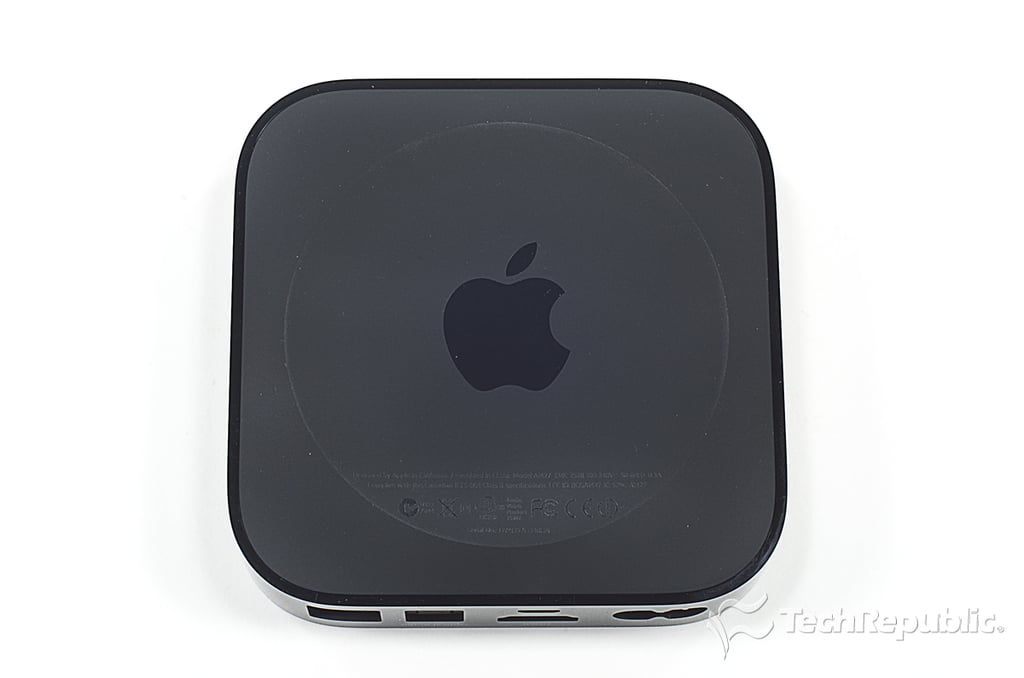

Cracking Open Apple TV 2012: Bottom

Cracking Open Apple TV 2012: Bottom

Cracking Open the Apple TV 2012

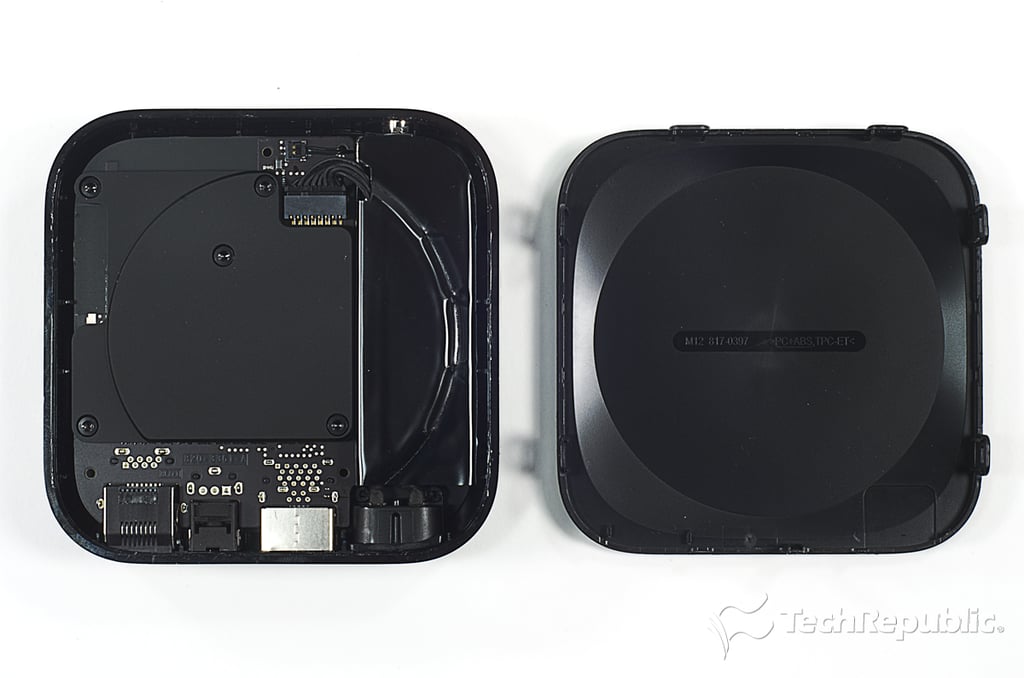

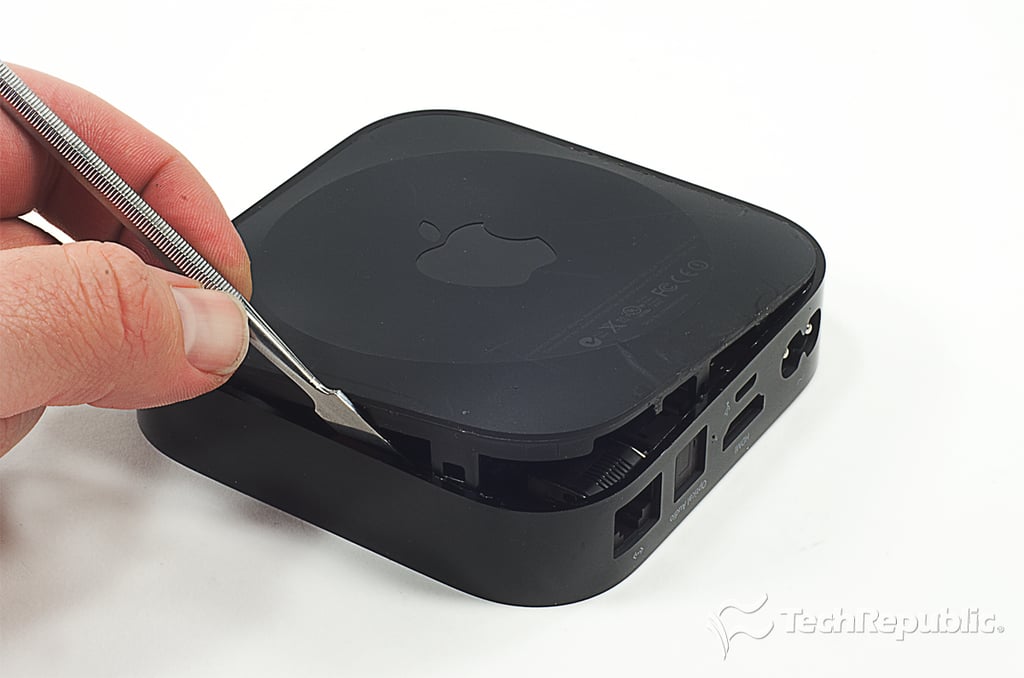

Cracking Open Apple TV 2012: Removing the bottom cover

Cracking Open Apple TV 2012: Removing the bottom cover

Cracking Open the Apple TV 2012

Cracking Open Apple TV 2012: Internal hardware

Cracking Open Apple TV 2012: Internal hardware

Cracking Open the Apple TV 2012

Cracking Open Apple TV 2012: Disconnecting the power supply from the motherboard

Cracking Open Apple TV 2012: Disconnecting the power supply from the motherboard

Cracking Open the Apple TV 2012

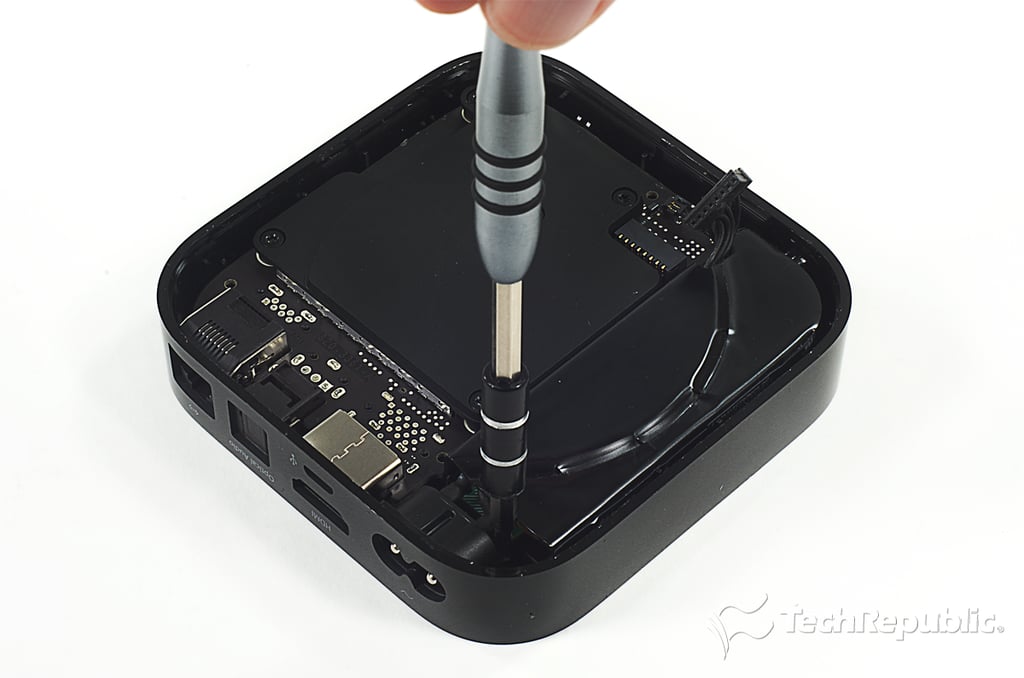

Cracking Open Apple TV 2012: Removing the power supply screws

Cracking Open Apple TV 2012: Removing the power supply screws

Cracking Open the Apple TV 2012

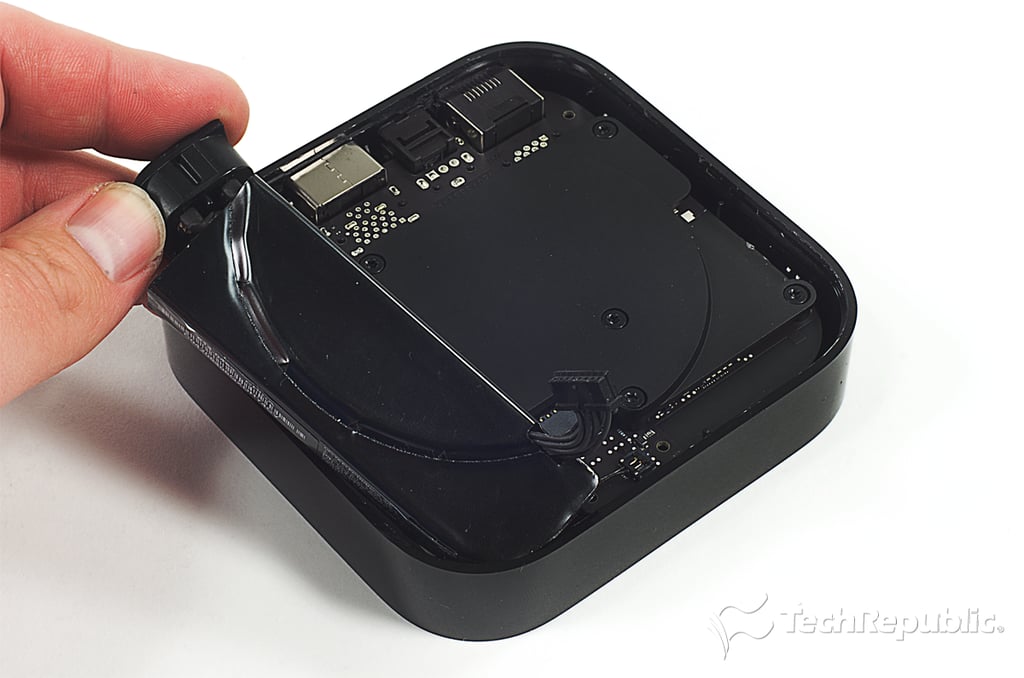

Cracking Open Apple TV 2012: Removing the power supply

Cracking Open Apple TV 2012: Removing the power supply

Cracking Open the Apple TV 2012

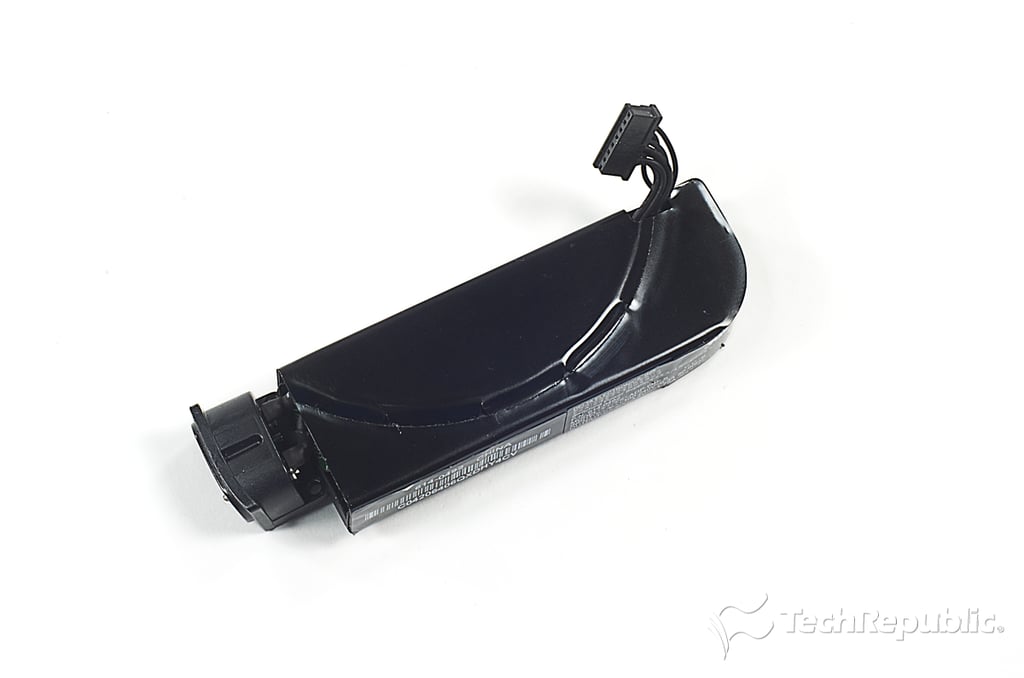

Cracking Open Apple TV 2012: Power supply

Cracking Open Apple TV 2012: Power supply

Cracking Open the Apple TV 2012

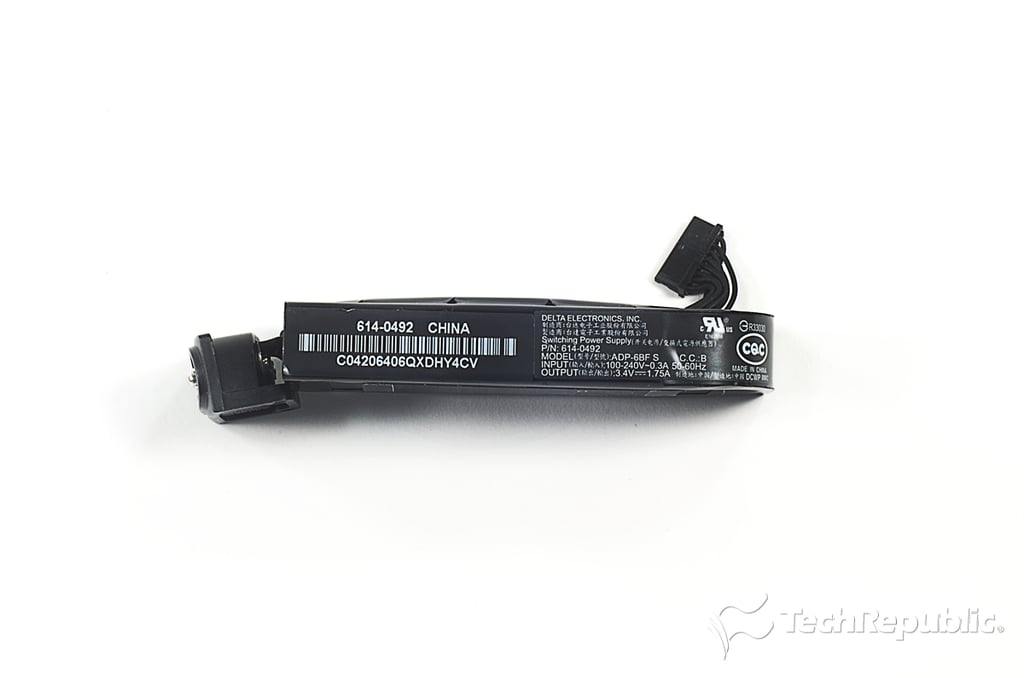

Cracking Open Apple TV 2012: 3.4V 1.75A Power supply - Delta 614-0492

Cracking Open Apple TV 2012: 3.4V 1.75A Power supply - Delta 614-0492

Cracking Open the Apple TV 2012

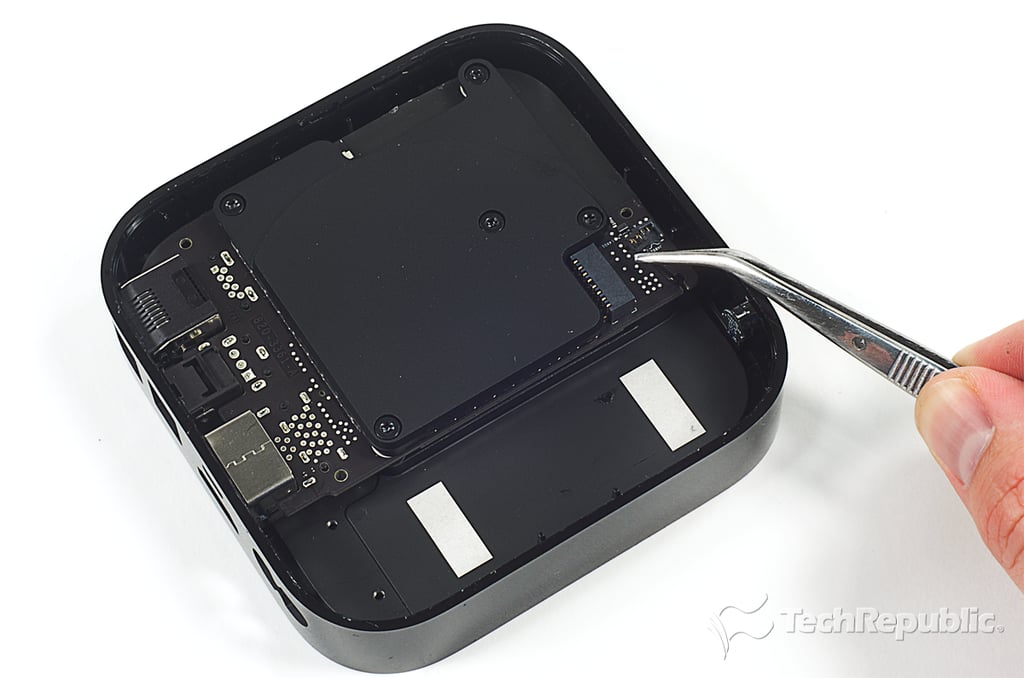

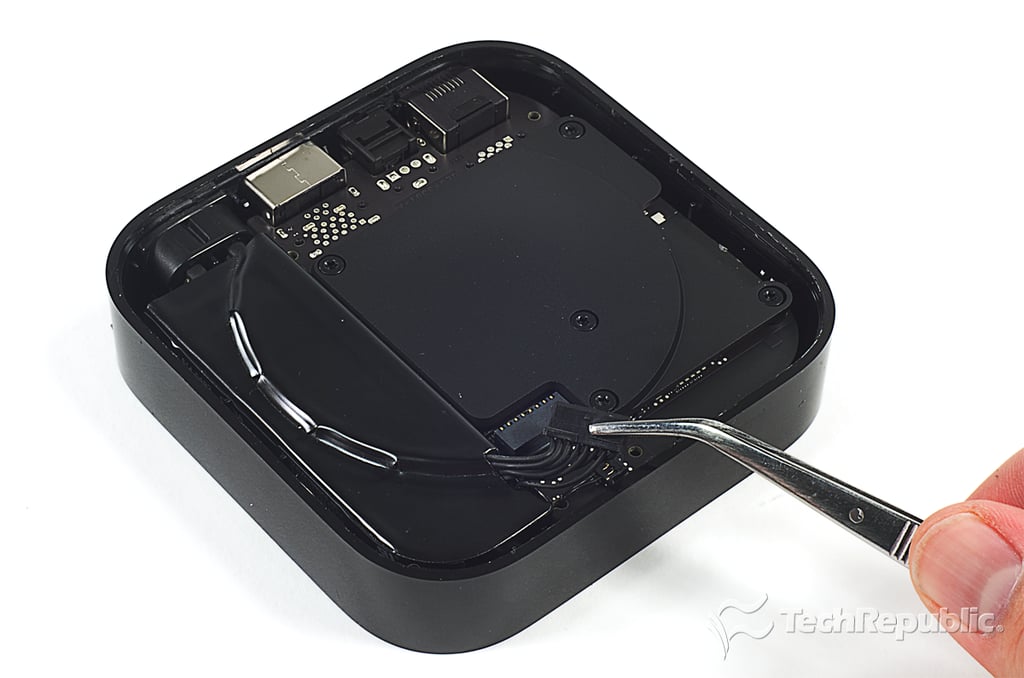

Cracking Open Apple TV 2012: Disconnecting the status LED from the motherboard

Cracking Open Apple TV 2012: Disconnecting the status LED from the motherboard

Cracking Open the Apple TV 2012

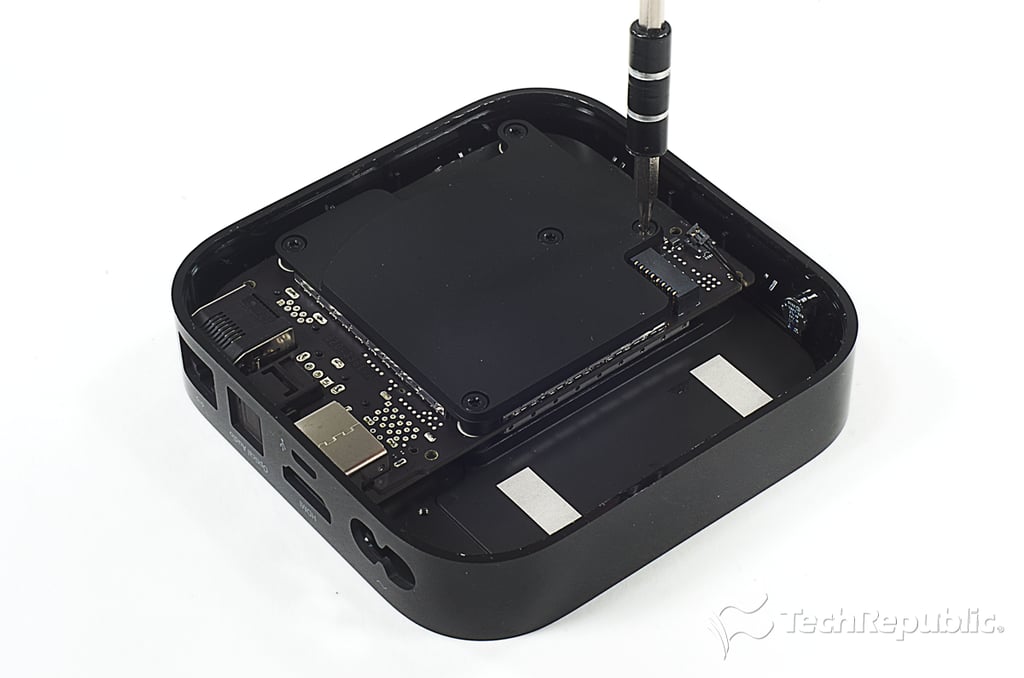

Cracking Open Apple TV 2012: Removing the motherboard and heatsink screws

Cracking Open Apple TV 2012: Removing the motherboard and heatsink screws

Cracking Open the Apple TV 2012

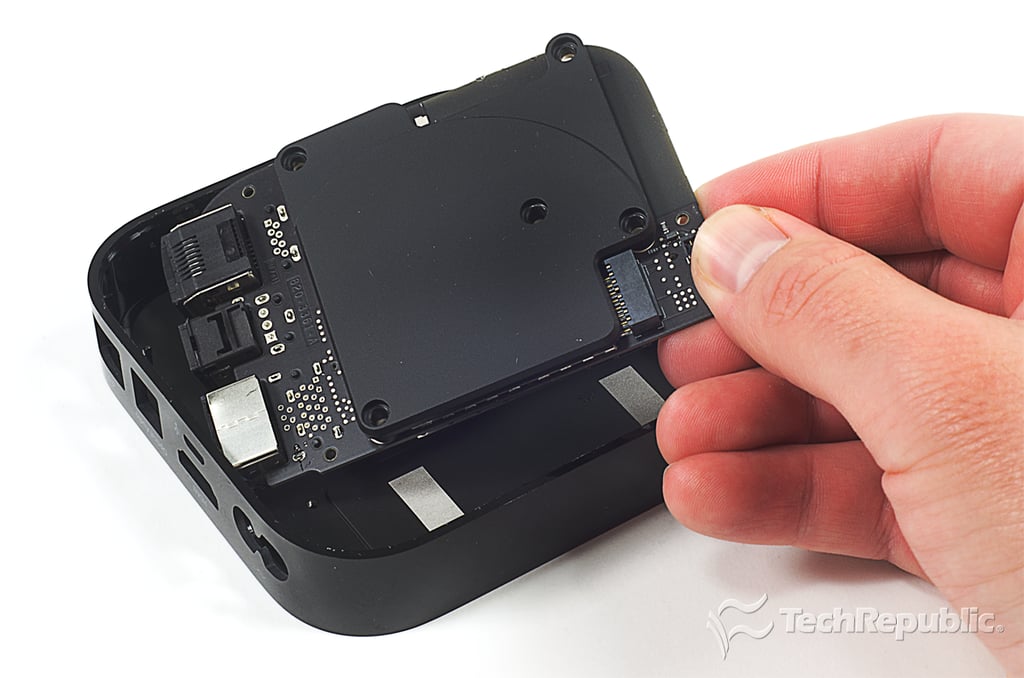

Cracking Open Apple TV 2012: Removing the motherboard and heatsink

Cracking Open Apple TV 2012: Removing the motherboard and heatsink

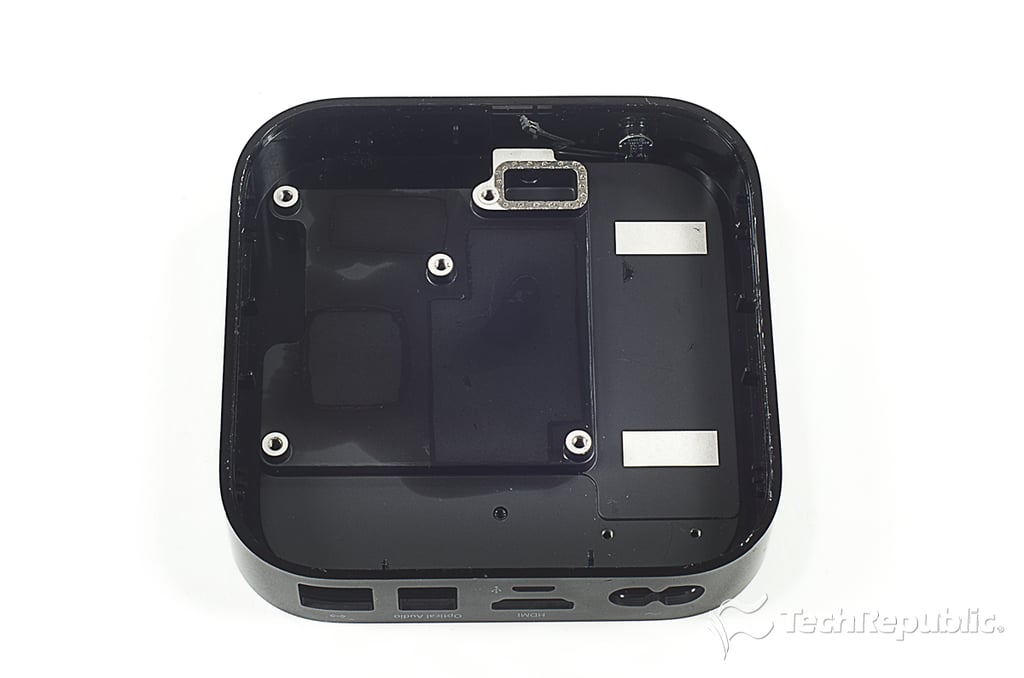

Cracking Open the Apple TV 2012

Cracking Open Apple TV 2012: Empty case with status LED still attached

Cracking Open Apple TV 2012: Empty case with status LED still attached

Cracking Open the Apple TV 2012

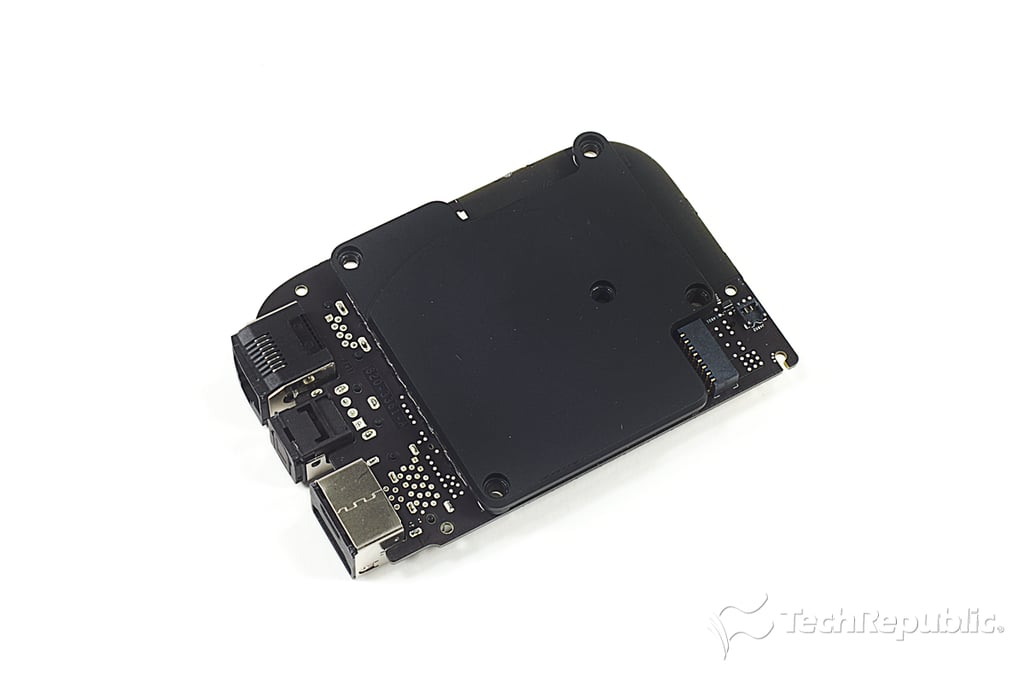

Cracking Open Apple TV 2012: Motherboard and heatsink

Cracking Open Apple TV 2012: Motherboard and heatsink

Cracking Open the Apple TV 2012

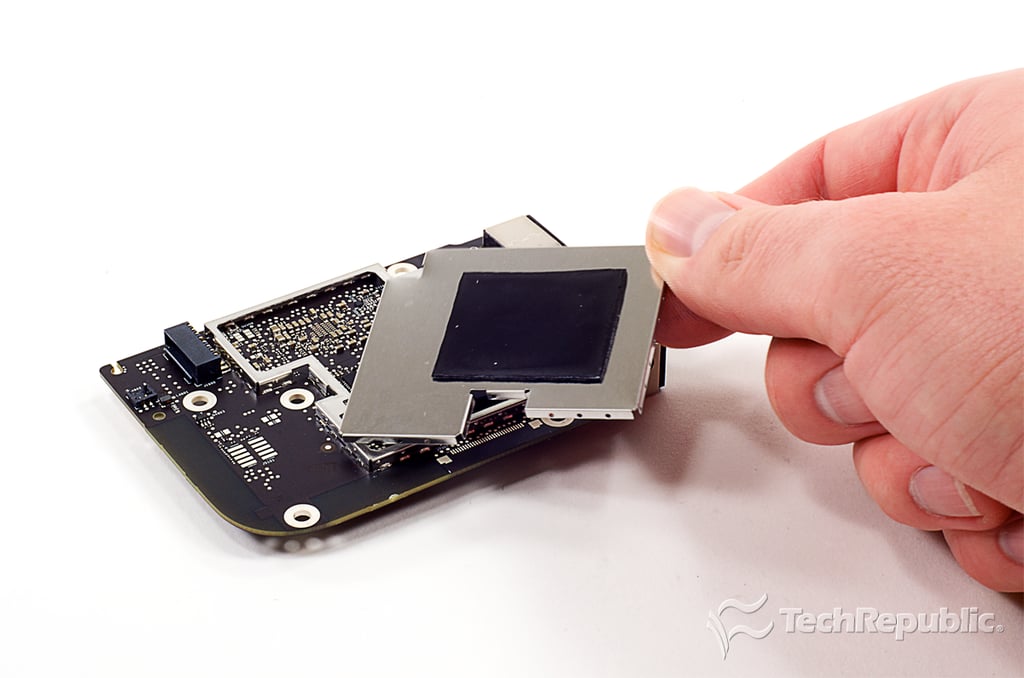

Cracking Open Apple TV 2012: Removing the heatsink

Cracking Open Apple TV 2012: Removing the heatsink

Cracking Open the Apple TV 2012

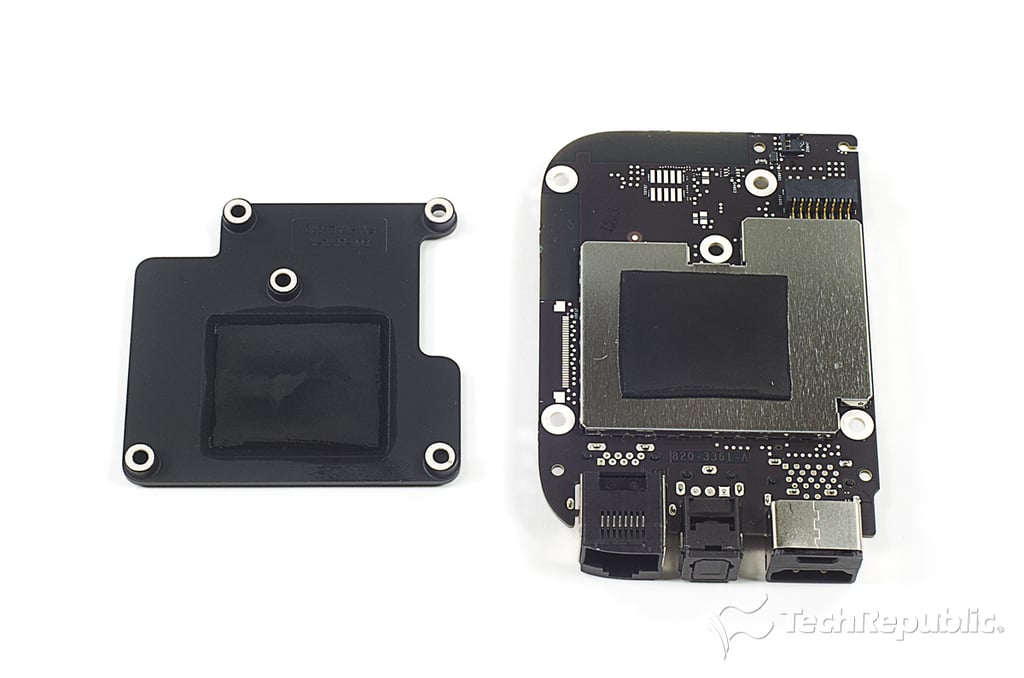

Cracking Open Apple TV 2012: Heatsink removed

Cracking Open Apple TV 2012: Heatsink removed

Cracking Open the Apple TV 2012

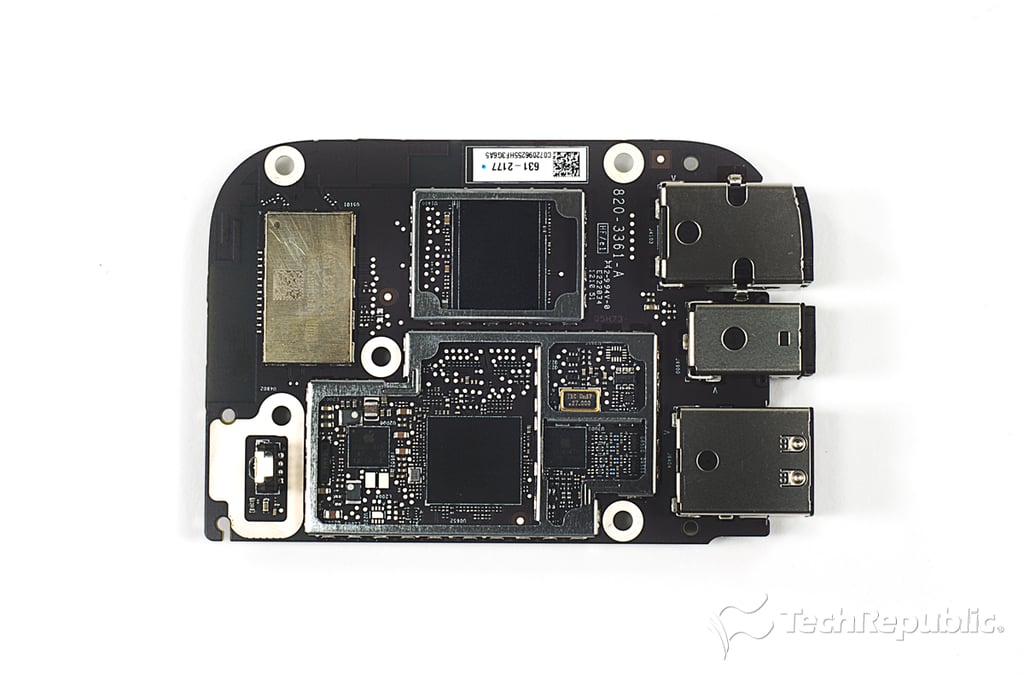

Cracking Open Apple TV 2012: Motherboard without heatsink

Cracking Open Apple TV 2012: Motherboard without heatsink

Cracking Open the Apple TV 2012

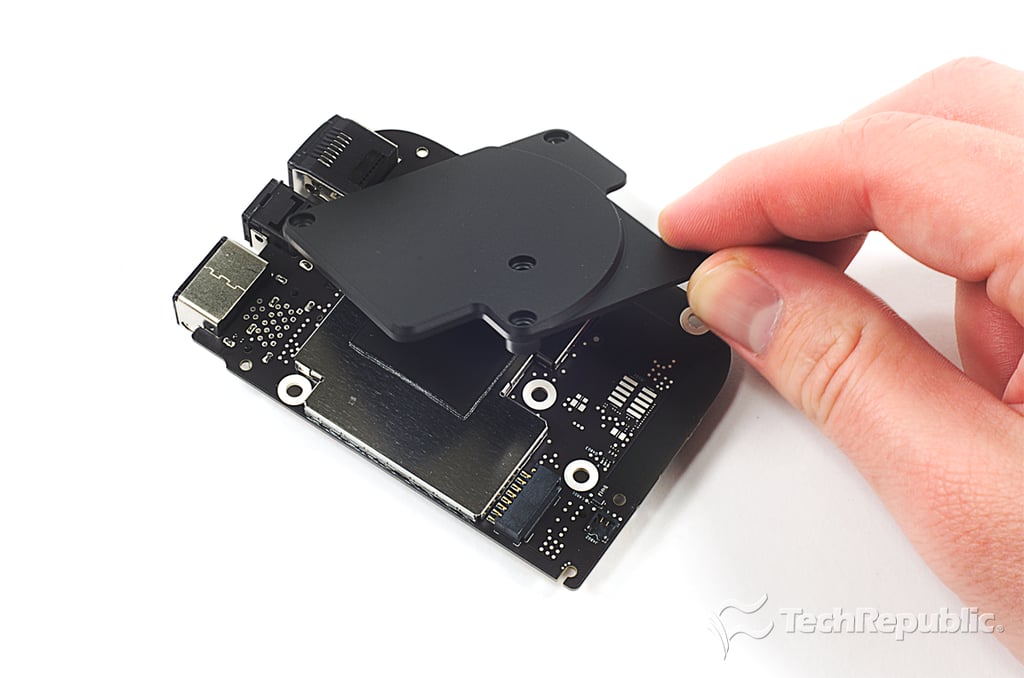

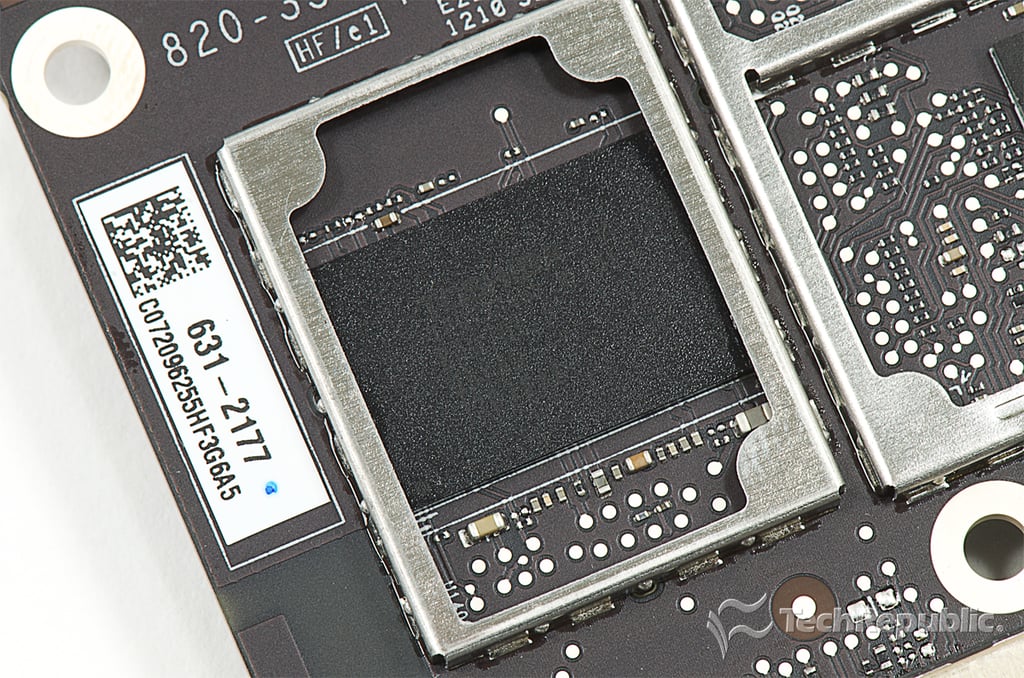

Cracking Open Apple TV 2012: Removing the EMI/RFI shields

Cracking Open Apple TV 2012: Removing the EMI/RFI shields

Cracking Open the Apple TV 2012

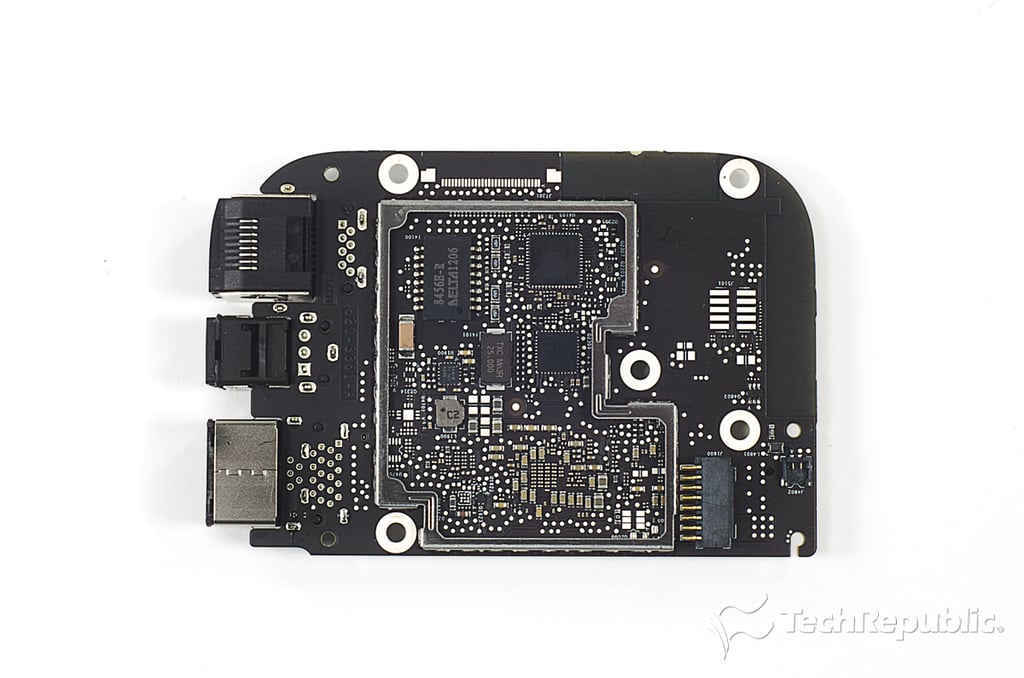

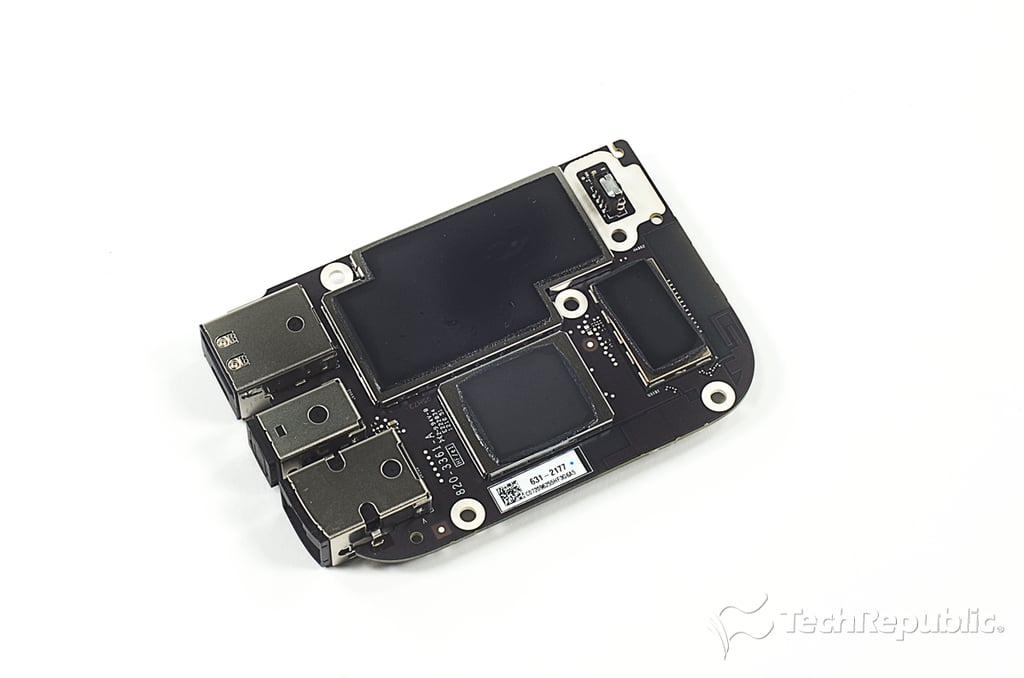

Cracking Open Apple TV 2012: Motherboard - Front

Cracking Open Apple TV 2012: Motherboard - Front

Cracking Open the Apple TV 2012

Cracking Open Apple TV 2012: Motherboard - Back

Cracking Open Apple TV 2012: Motherboard - Back

Cracking Open the Apple TV 2012

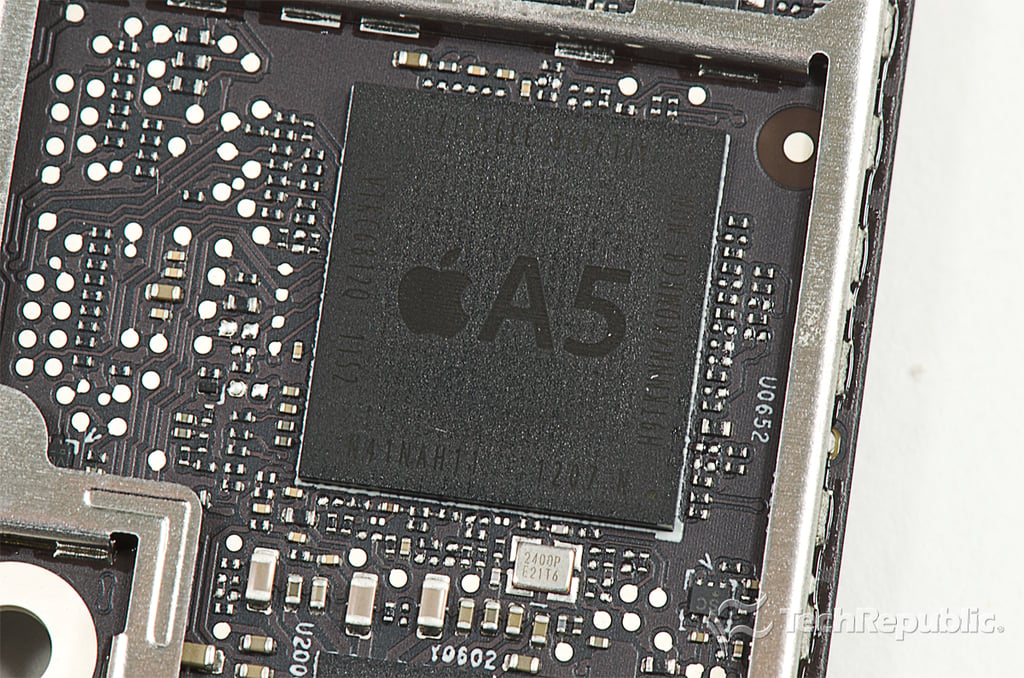

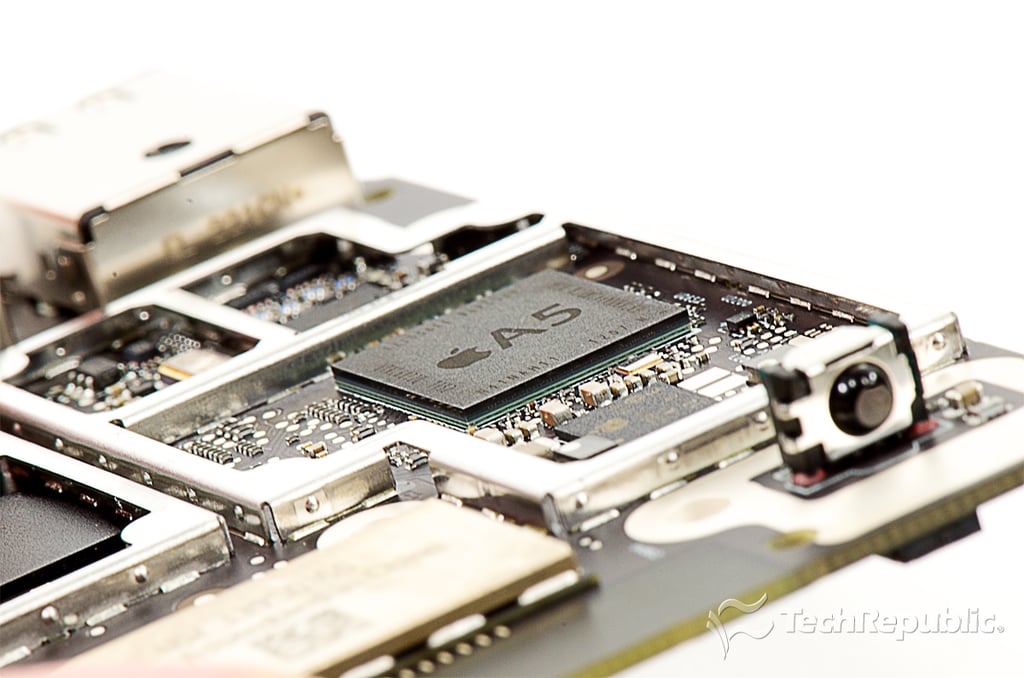

Cracking Open Apple TV 2012: A5 package-on-package (PoP) system-on-a-chip (SoC)

Cracking Open Apple TV 2012: A5 package-on-package (PoP) system-on-a-chip (SoC)

Cracking Open the Apple TV 2012

Cracking Open Apple TV 2012: Single-core application processor and DDR2 SDRAM chip sandwiched on top of each other

Cracking Open Apple TV 2012: Single-core application processor and DDR2 SDRAM chip sandwiched on top of each other

Cracking Open the Apple TV 2012

Cracking Open Apple TV 2012: 8GB Toshiba NAND Flash

Cracking Open Apple TV 2012: 8GB Toshiba NAND Flash

Cracking Open the Apple TV 2012

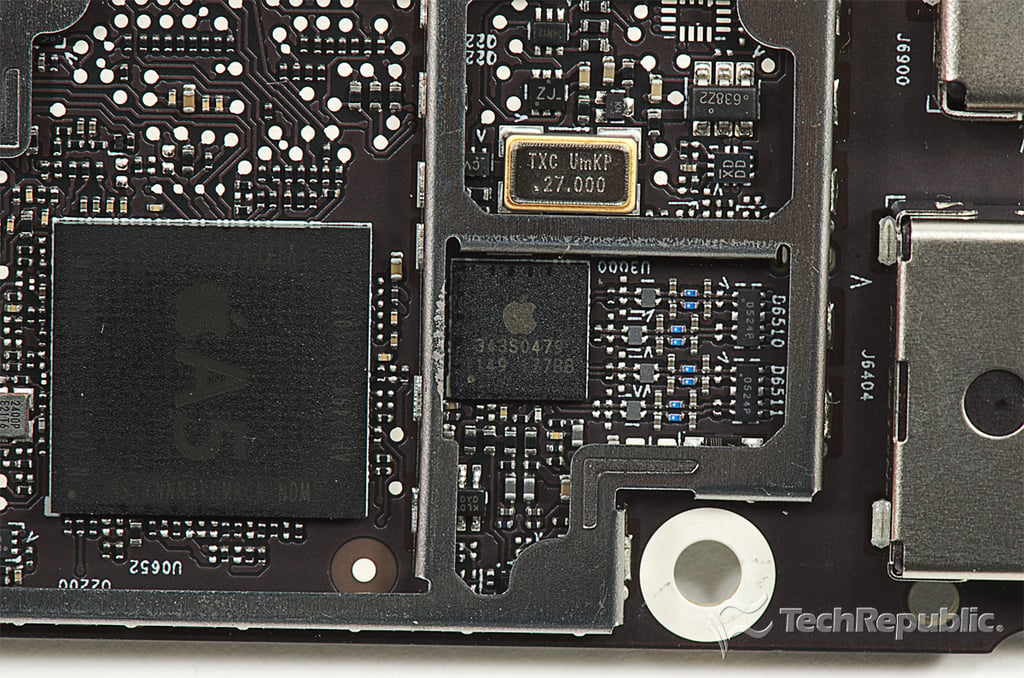

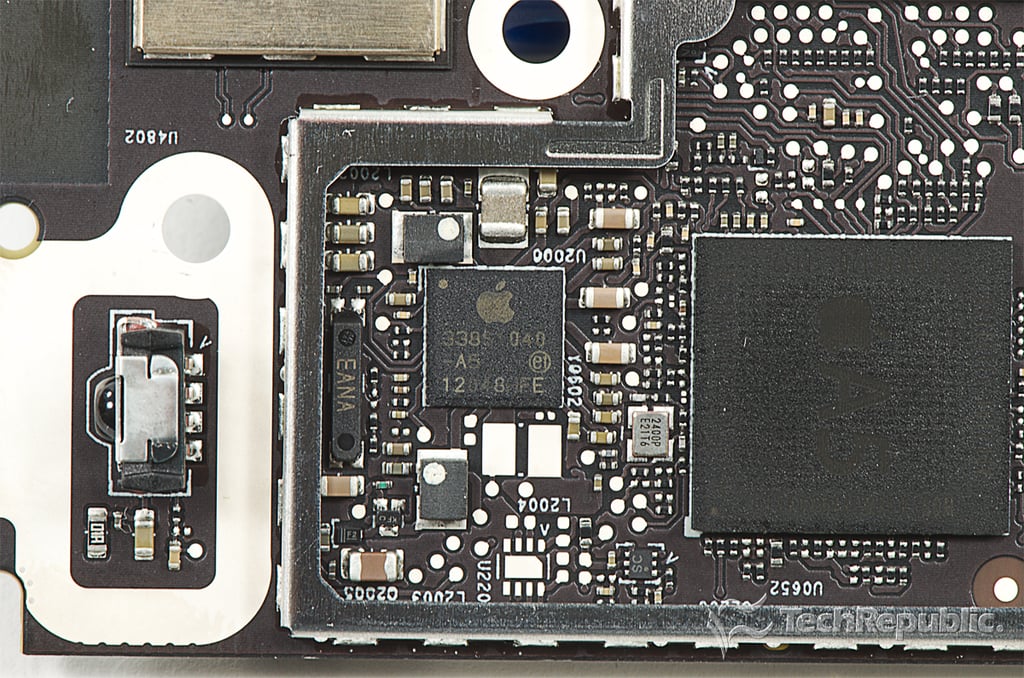

Cracking Open Apple TV 2012: Apple 343S0479

Cracking Open Apple TV 2012: Apple 343S0479

Cracking Open the Apple TV 2012

Cracking Open Apple TV 2012: Apple 338S1040

Cracking Open Apple TV 2012: Apple 338S1040

Cracking Open the Apple TV 2012

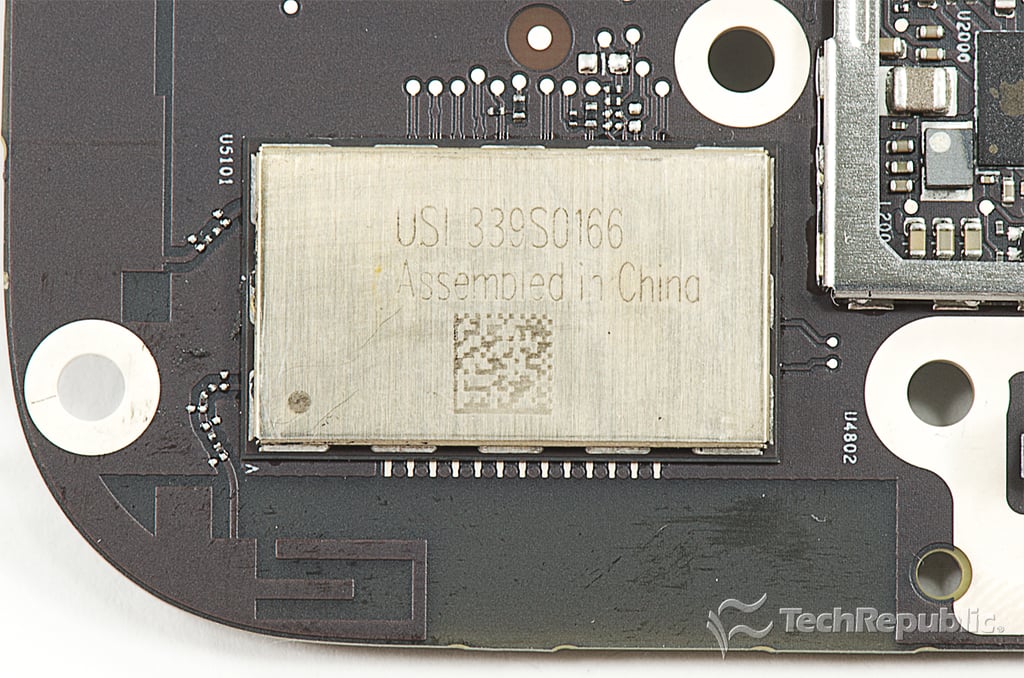

Cracking Open Apple TV 2012: Broadcom BCM4330 802.11a/b/g/n MAC/Baseband/Radio with Integrated Bluetooth 4.0+HS & FM Transceiver

Cracking Open Apple TV 2012: Broadcom BCM4330 802.11a/b/g/n MAC/Baseband/Radio with Integrated Bluetooth 4.0+HS & FM Transceiver

ntThanks to our friends at iFixit, I know that there’s a Broadcom BCM4330 under this shield, which is soldered to the motherboard.

Cracking Open the Apple TV 2012

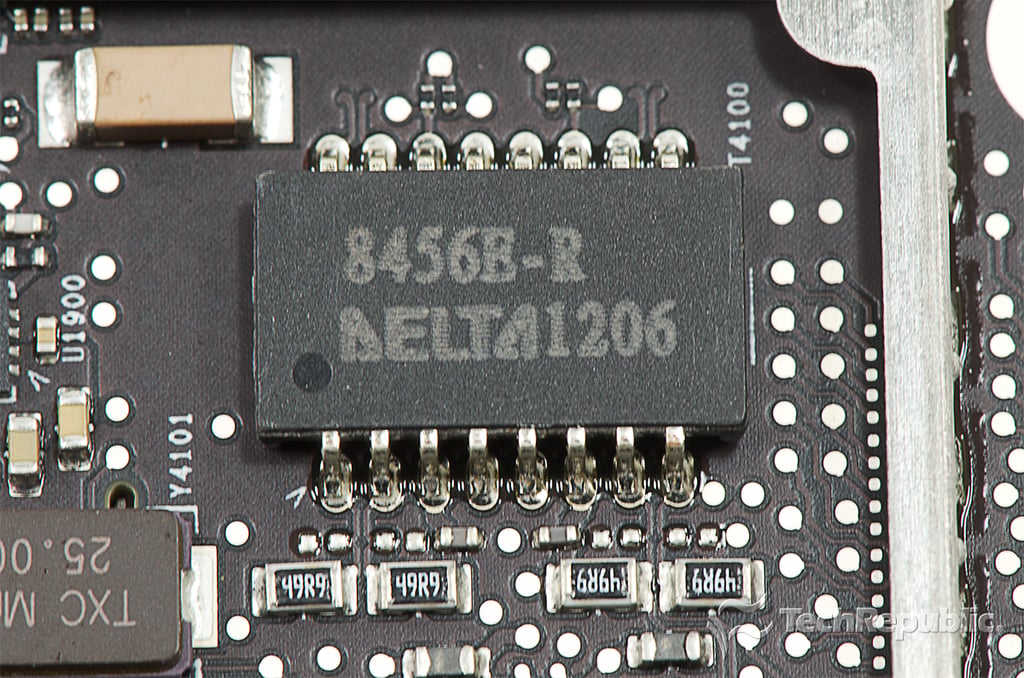

Cracking Open Apple TV 2012: Delta 8456B-R 1206

Cracking Open Apple TV 2012: Delta 8456B-R 1206

Cracking Open the Apple TV 2012

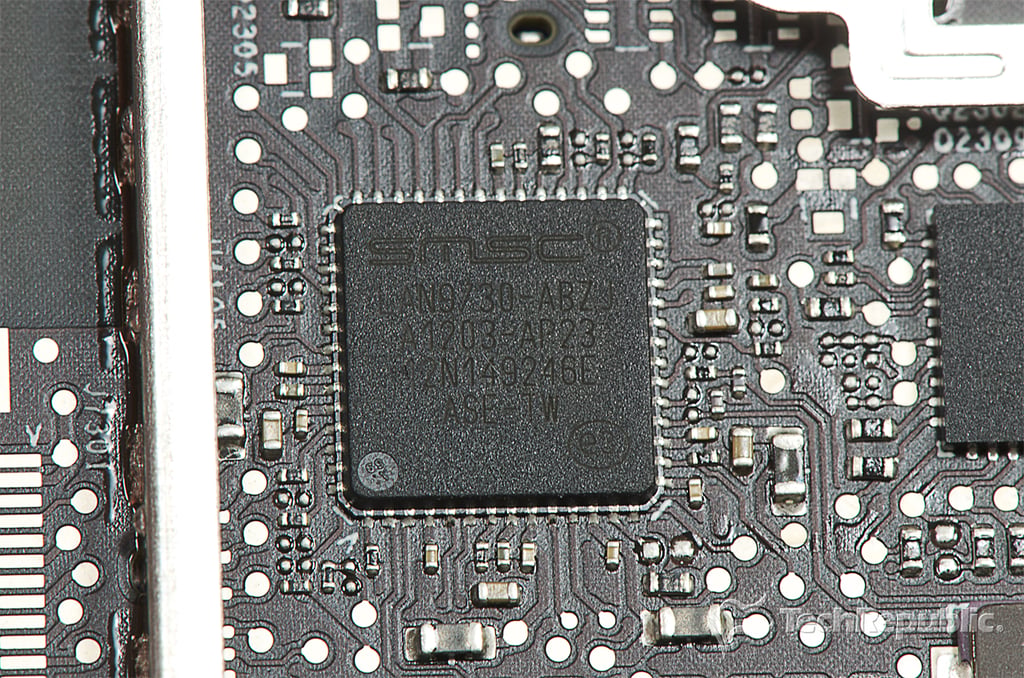

Cracking Open Apple TV 2012: SMSC LAN9730 Hi-Speed Inter-Chip (HSIC) USB 2.0 to 10/100 Ethernet Controller

Cracking Open Apple TV 2012: SMSC LAN9730 Hi-Speed Inter-Chip (HSIC) USB 2.0 to 10/100 Ethernet Controller

Cracking Open the Apple TV 2012

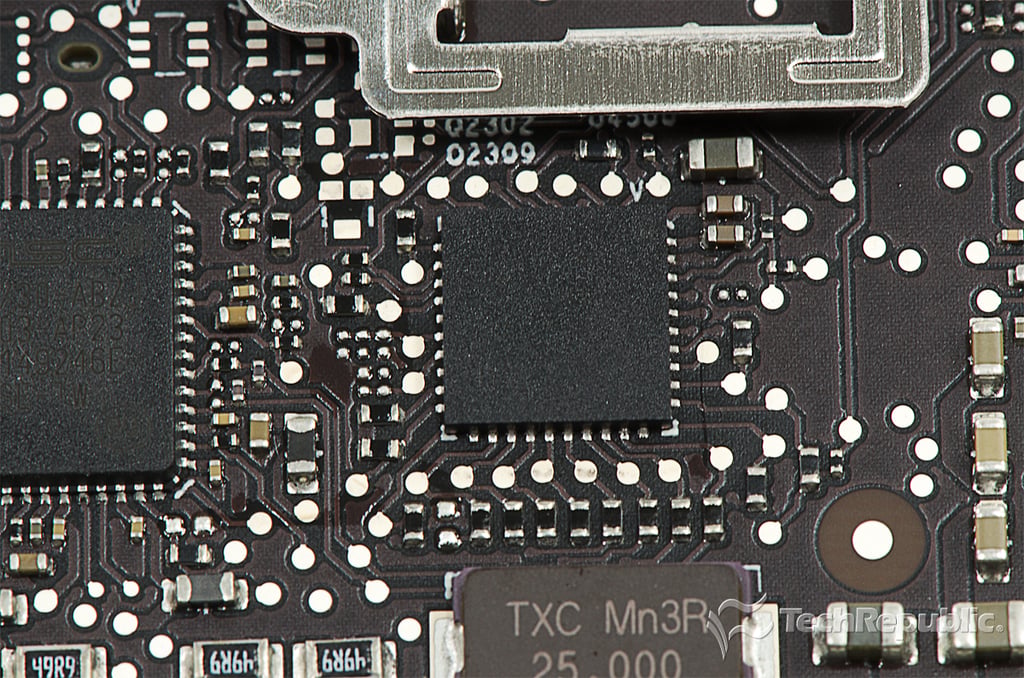

Cracking Open Apple TV 2012: Unknown chip

Cracking Open Apple TV 2012: Unknown chip

Cracking Open the Apple TV 2012

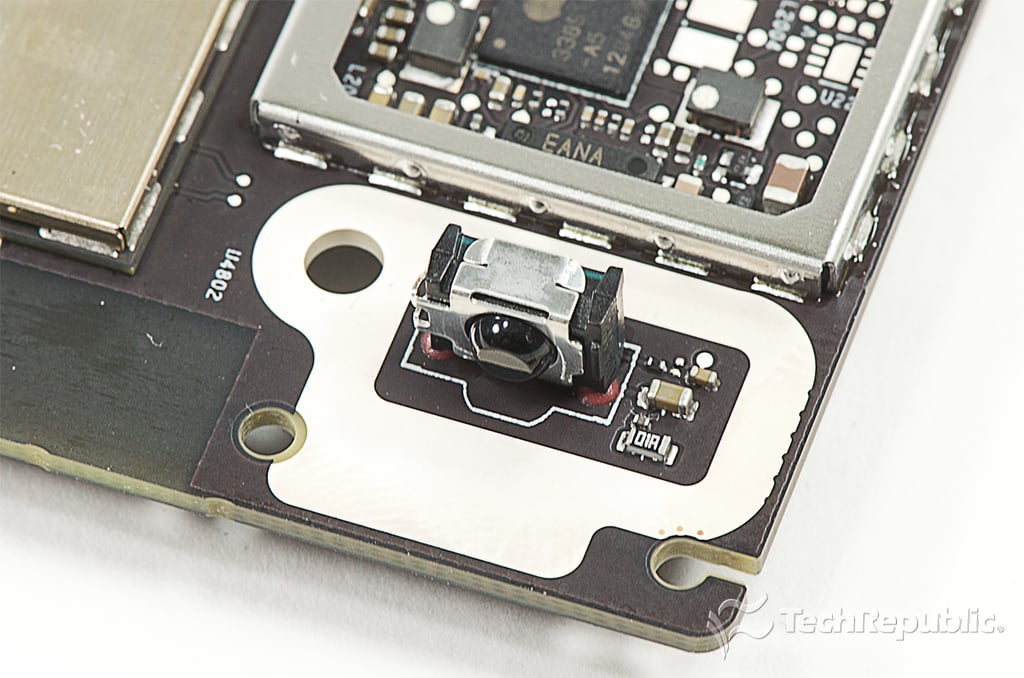

Cracking Open Apple TV 2012: Remote IR receiver

Cracking Open Apple TV 2012: Remote IR receiver

Cracking Open the Apple TV 2012

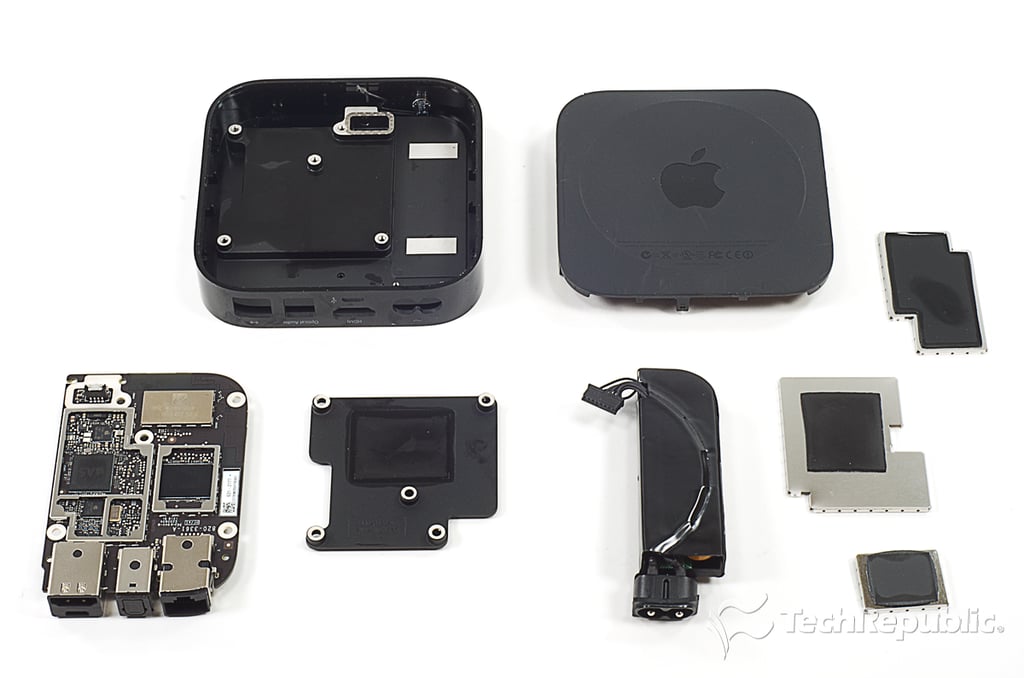

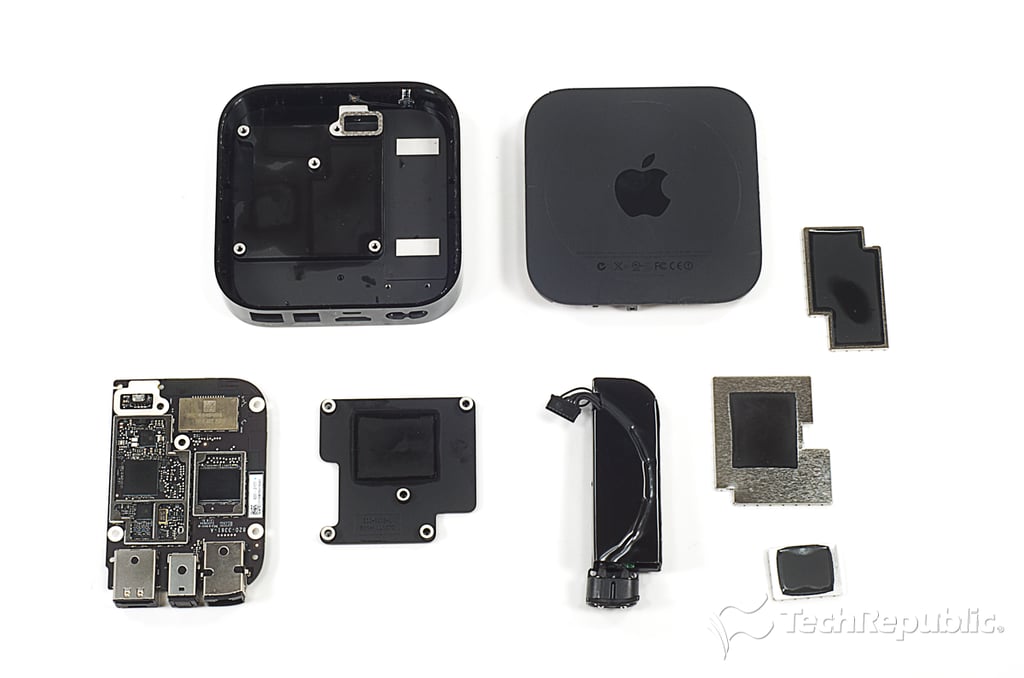

Cracking Open Apple TV 2012: Completely disassembled

Cracking Open Apple TV 2012: Completely disassembled
