Cracking Open the Asus Eee Pad Transformer TF101

By Bill Detwiler August 2, 2011, 1:36 AM PDT on Twitter billdetwiler

1
of 61

Cracking Open the Asus Eee Pad Transformer TF101

Asus Eee Pad Transformer TR101 Teardown:

Asus Eee Pad Transformer TR101 Teardown:

ntThe Eee Pad Transformer TF101 is Asus’ first 10-inch Android tablet. When released in April, 2011, it was one of the least expensive 10-inch tablets available.

n

ntFollow along as I crack open the Transformer TF101 for a look at the hardware inside.

n

ntFor  an in-depth analysis the Transformer’s hardware and my take on the internal design, check out my post, “Asus Eee Pad Transformer teardown: Convoluted, but 3G-ready internal design”.

n

ntPhoto by: Bill Detwiler / TechRepublic
ntCaption by: Bill Detwiler

Cracking Open the Asus Eee Pad Transformer TF101

Asus Eee Pad Transformer TR101 Teardown: Box

Asus Eee Pad Transformer TR101 Teardown: Box

ntAs of this writing, the Asus Eee Pad Transformer TF101 is available in 16GB ($399.99) and 32GB ($499.99) versions.

n

ntThe current versions only support Wi-Fi connectivity. Asus has said that it will launch a 3G version in the future, and there’s already a spot on the motherboard for a 3G card.
nt
ntPhoto by: Bill Detwiler / TechRepublic
ntCaption by: Bill Detwiler

Cracking Open the Asus Eee Pad Transformer TF101

Asus Eee Pad Transformer TR101 Teardown: Still in the wrapper

Asus Eee Pad Transformer TR101 Teardown: Still in the wrapper

ntThe Asus Eee Pad Transformer TF101 has a dual-core NVidia Tegra 2 1GHz processor, 1GB of RAM, a 10.1-inch touchscreen display (1280×800), a 1.2 MP front camera and 5.0 MP rear camera. It comes with Android 3.2 Honeycomb installed.
nt
ntPhoto by: Bill Detwiler / TechRepublic
ntCaption by: Bill Detwiler

Cracking Open the Asus Eee Pad Transformer TF101

Asus Eee Pad Transformer TR101 Teardown: Product documentation, power adapter, and docking cable

Asus Eee Pad Transformer TR101 Teardown: Product documentation, power adapter, and docking cable

ntUnder the Asus Eee Pad Transformer TF101 tablet are the product documentation, AC power adapter, and connector cable.

n

ntPhoto by: Bill Detwiler / TechRepublic
ntCaption by: Bill Detwiler

Cracking Open the Asus Eee Pad Transformer TF101

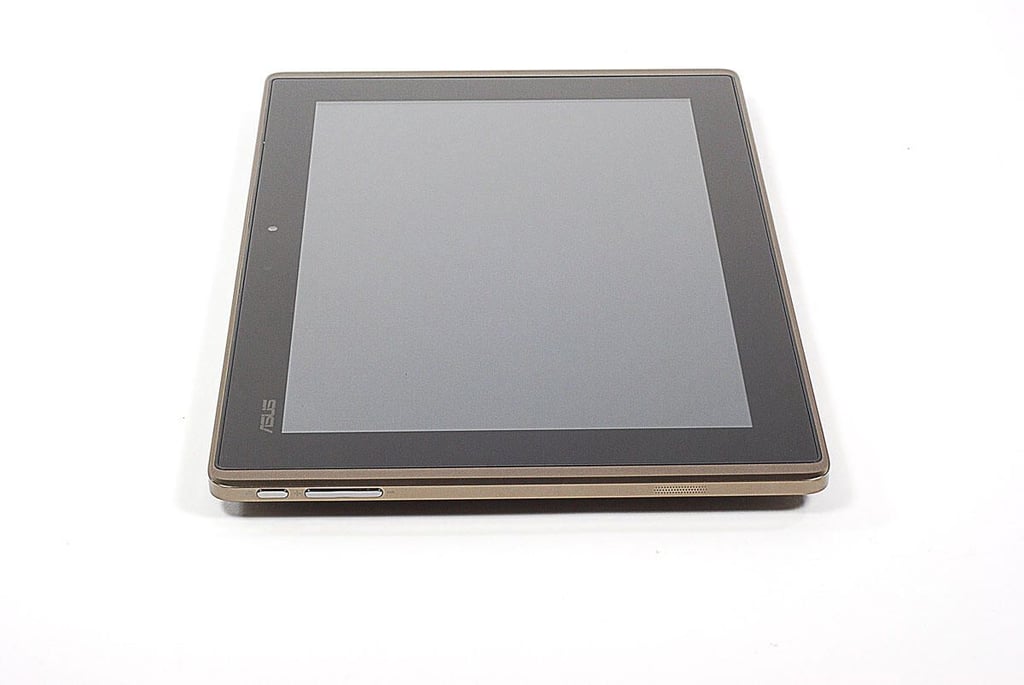

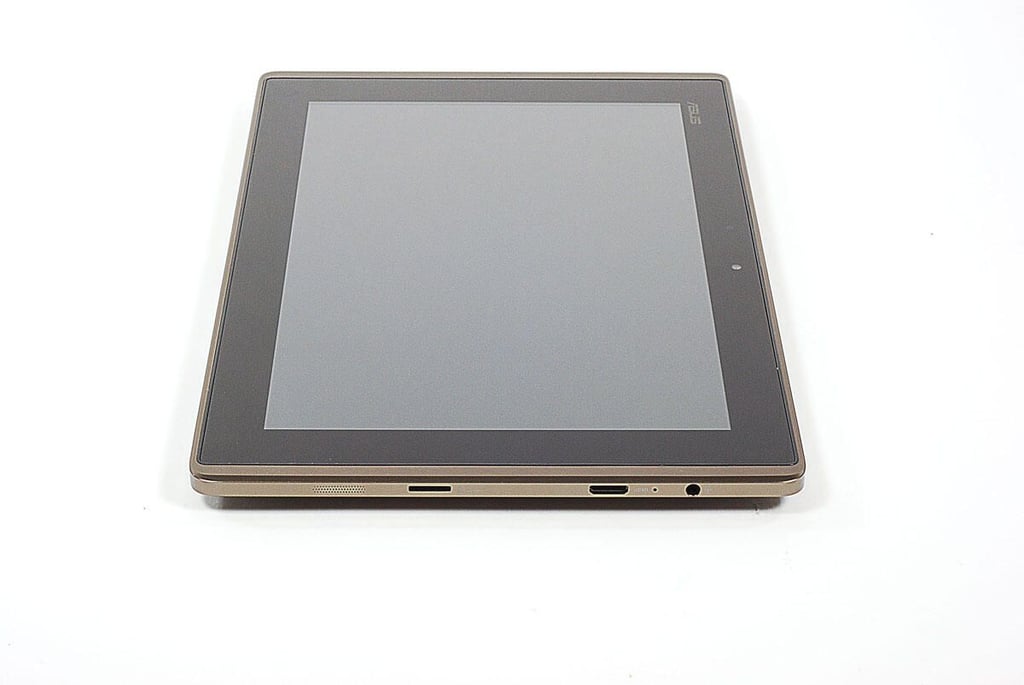

Asus Eee Pad Transformer TR101 Teardown: Front

Asus Eee Pad Transformer TR101 Teardown: Front

Cracking Open the Asus Eee Pad Transformer TF101

Asus Eee Pad Transformer TR101 Teardown: Back

Asus Eee Pad Transformer TR101 Teardown: Back

Cracking Open the Asus Eee Pad Transformer TF101

Asus Eee Pad Transformer TR101 Teardown: Connector port and keyboard connector ports

Asus Eee Pad Transformer TR101 Teardown: Connector port and keyboard connector ports

Cracking Open the Asus Eee Pad Transformer TF101

Asus Eee Pad Transformer TR101 Teardown: Power button, volume up/down button, and left speaker grill

Asus Eee Pad Transformer TR101 Teardown: Power button, volume up/down button, and left speaker grill

Cracking Open the Asus Eee Pad Transformer TF101

Asus Eee Pad Transformer TR101 Teardown: Right speaker grill, microSD Card slot, mini HDMI port, microphone, headphone/mic-in jack

Asus Eee Pad Transformer TR101 Teardown: Right speaker grill, microSD Card slot, mini HDMI port, microphone, headphone/mic-in jack

Cracking Open the Asus Eee Pad Transformer TF101

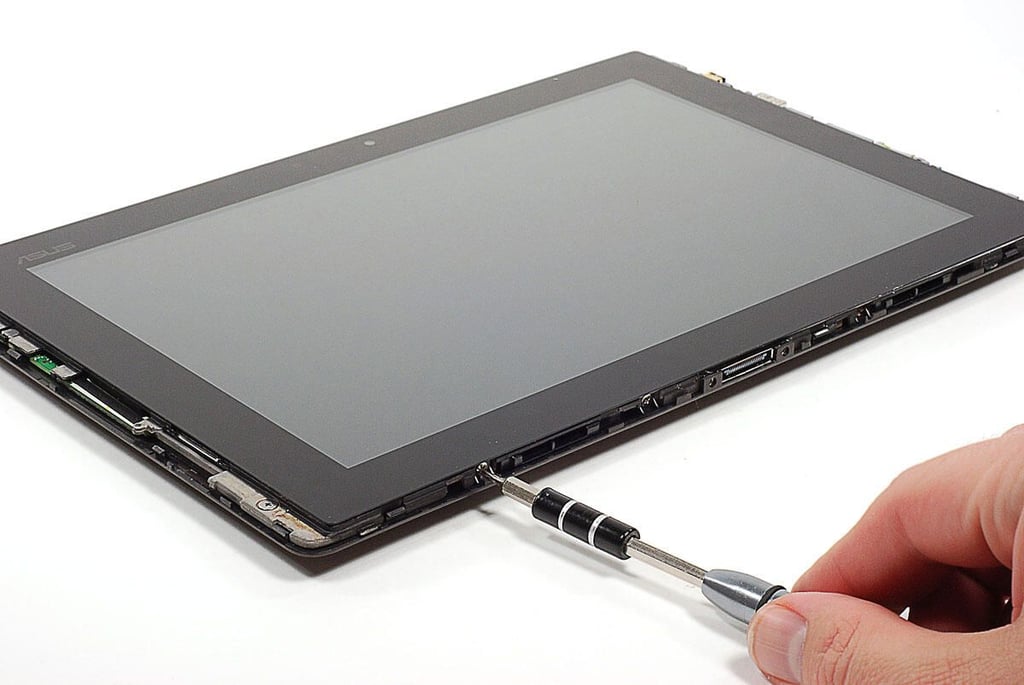

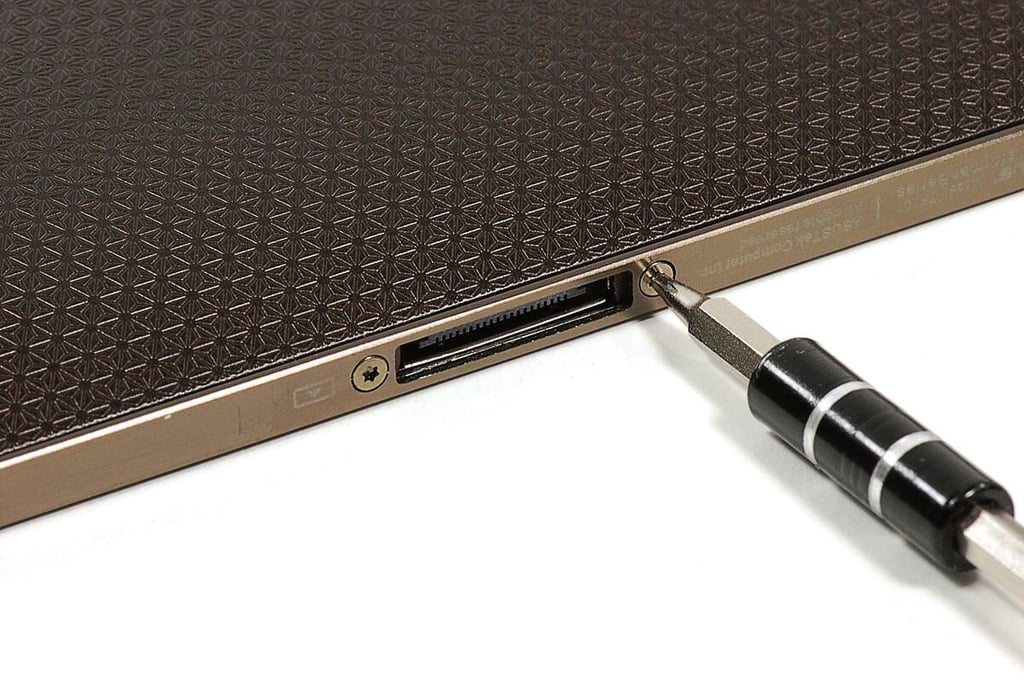

Asus Eee Pad Transformer TR101 Teardown: Removing the Torx T5 bezel screws

Asus Eee Pad Transformer TR101 Teardown: Removing the Torx T5 bezel screws

Cracking Open the Asus Eee Pad Transformer TF101

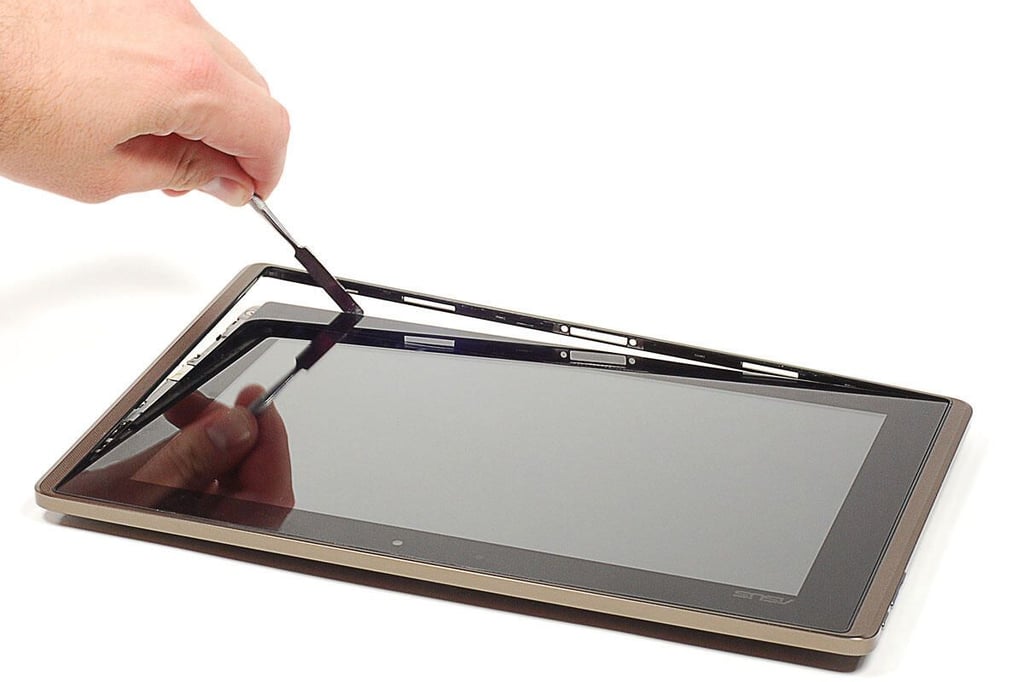

Asus Eee Pad Transformer TR101 Teardown: Removing the bezel

Asus Eee Pad Transformer TR101 Teardown: Removing the bezel

Cracking Open the Asus Eee Pad Transformer TF101

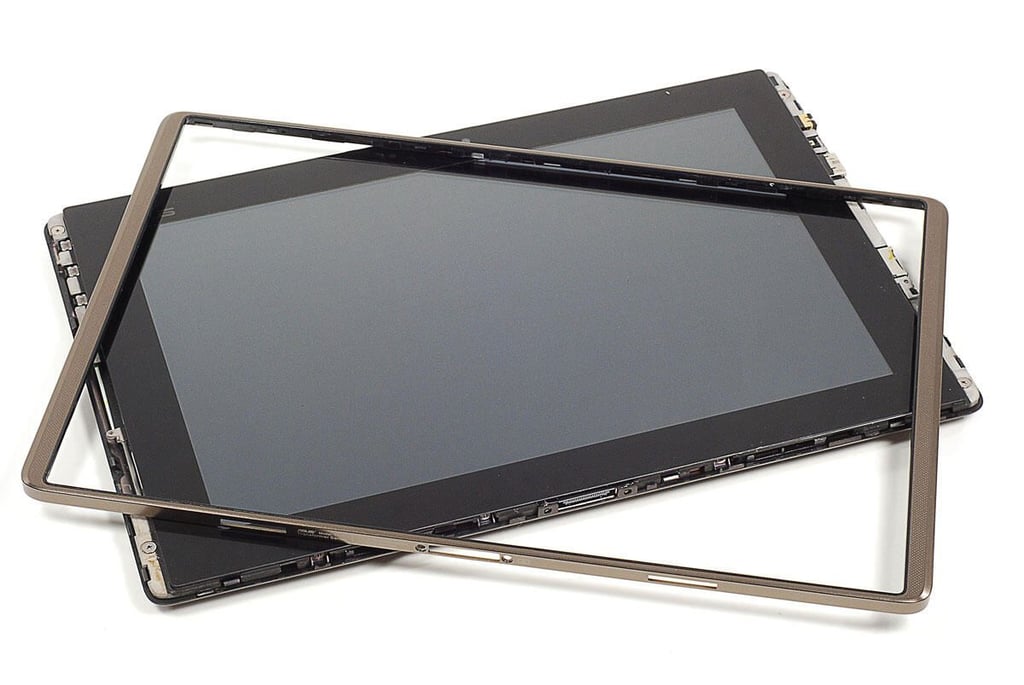

Asus Eee Pad Transformer TR101 Teardown: Metal bezel

Asus Eee Pad Transformer TR101 Teardown: Metal bezel

Cracking Open the Asus Eee Pad Transformer TF101

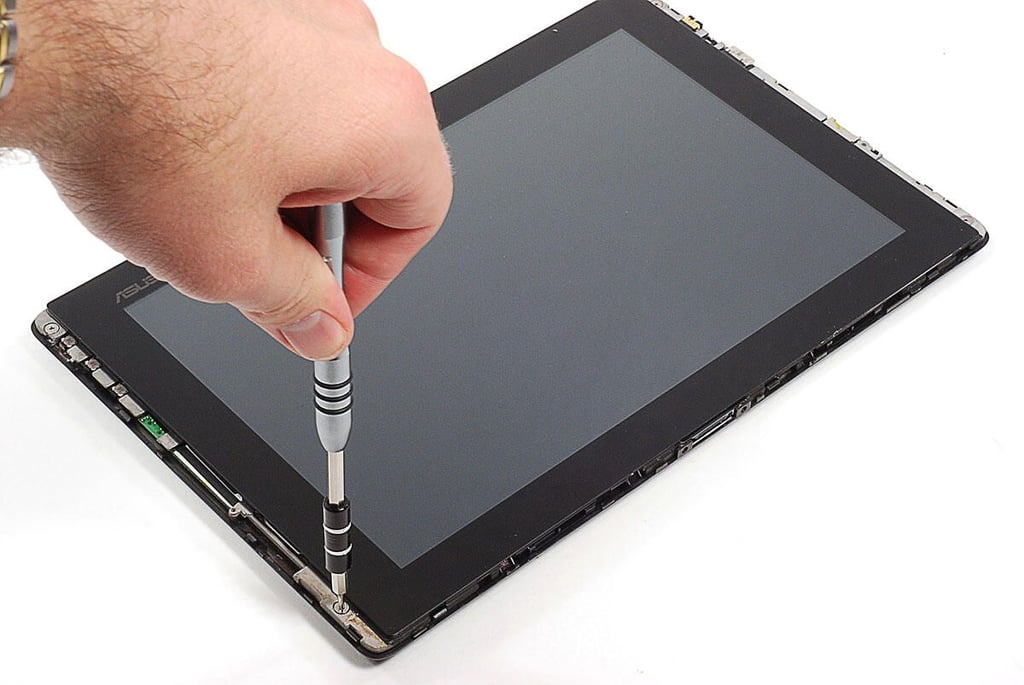

Asus Eee Pad Transformer TR101 Teardown: Removing the top set of Phillips #000 back cover screws

Asus Eee Pad Transformer TR101 Teardown: Removing the top set of Phillips #000 back cover screws

Cracking Open the Asus Eee Pad Transformer TF101

Asus Eee Pad Transformer TR101 Teardown: Removing the side set of Phillips #000 back cover screws

Asus Eee Pad Transformer TR101 Teardown: Removing the side set of Phillips #000 back cover screws

Cracking Open the Asus Eee Pad Transformer TF101

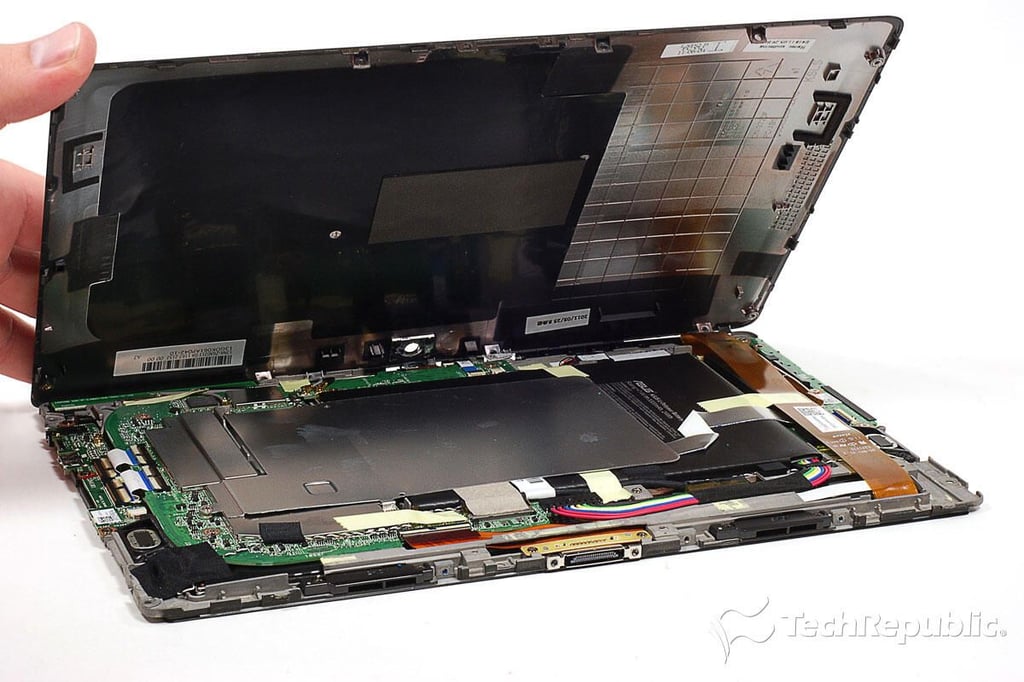

Asus Eee Pad Transformer TR101 Teardown: Removing the back cover

Asus Eee Pad Transformer TR101 Teardown: Removing the back cover

Cracking Open the Asus Eee Pad Transformer TF101

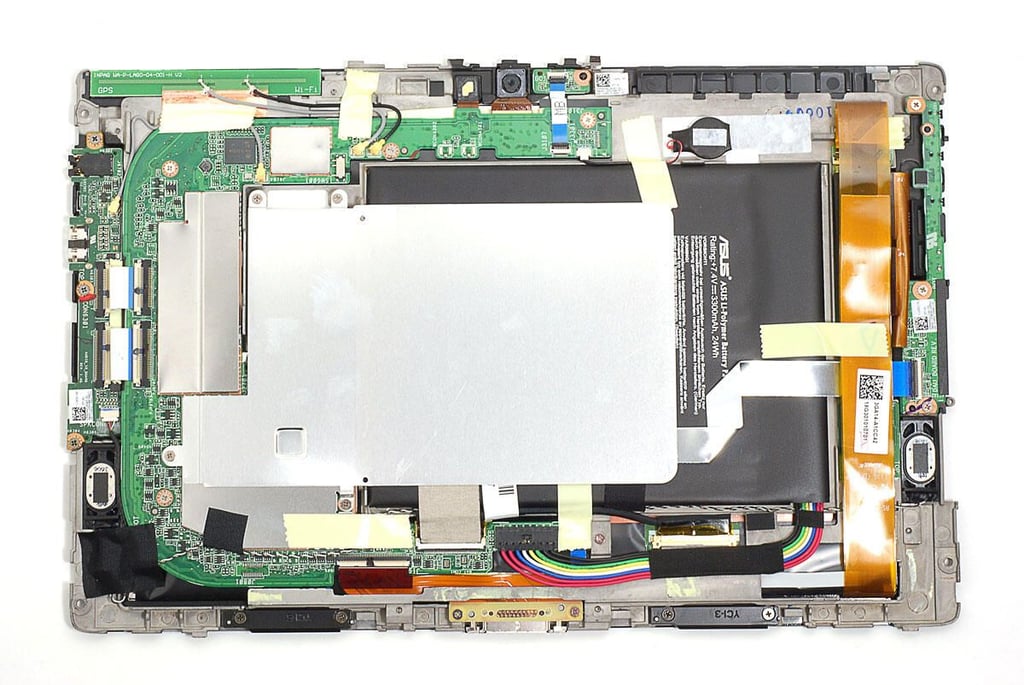

Asus Eee Pad Transformer TR101 Teardown: Back cover removed

Asus Eee Pad Transformer TR101 Teardown: Back cover removed

Cracking Open the Asus Eee Pad Transformer TF101

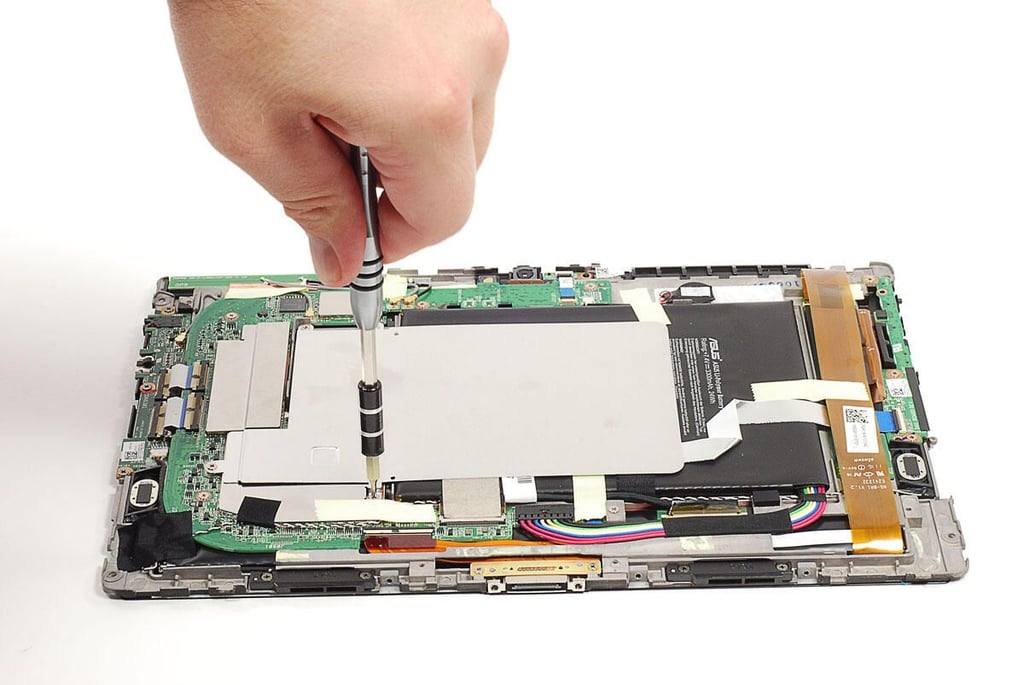

Asus Eee Pad Transformer TR101 Teardown: Removing large heatsink/shielding plate

Asus Eee Pad Transformer TR101 Teardown: Removing large heatsink/shielding plate

Cracking Open the Asus Eee Pad Transformer TF101

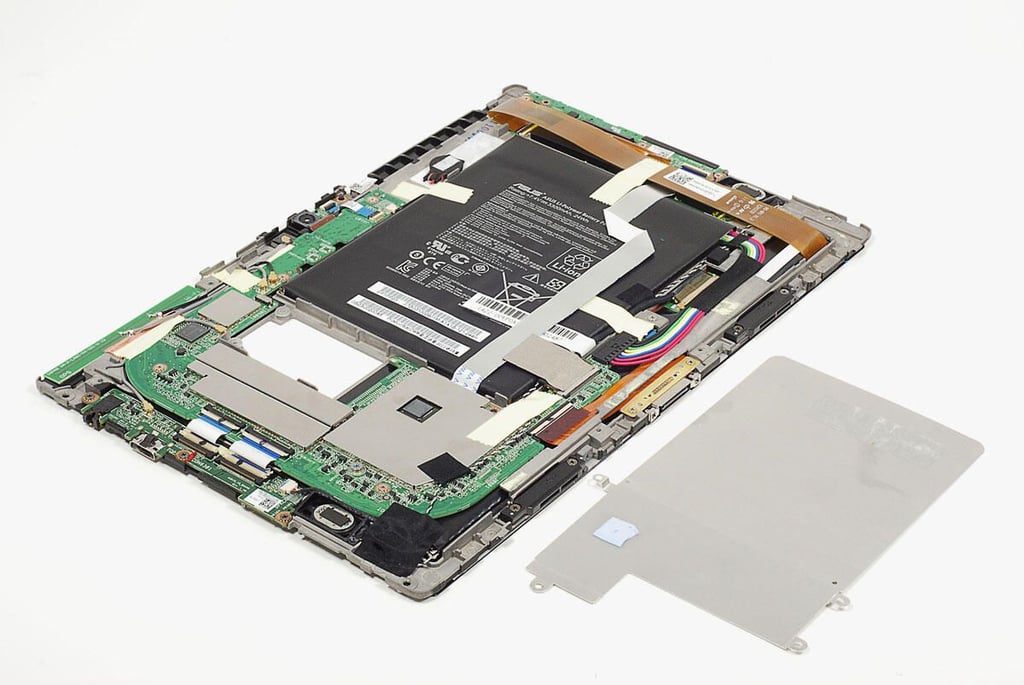

Asus Eee Pad Transformer TR101 Teardown: Heatsink/shielding plate removed

Asus Eee Pad Transformer TR101 Teardown: Heatsink/shielding plate removed

Cracking Open the Asus Eee Pad Transformer TF101

Asus Eee Pad Transformer TR101 Teardown: Internal hardware

Asus Eee Pad Transformer TR101 Teardown: Internal hardware

Cracking Open the Asus Eee Pad Transformer TF101

Asus Eee Pad Transformer TR101 Teardown: Removing the touchscreen PCB cushion

Asus Eee Pad Transformer TR101 Teardown: Removing the touchscreen PCB cushion

Cracking Open the Asus Eee Pad Transformer TF101

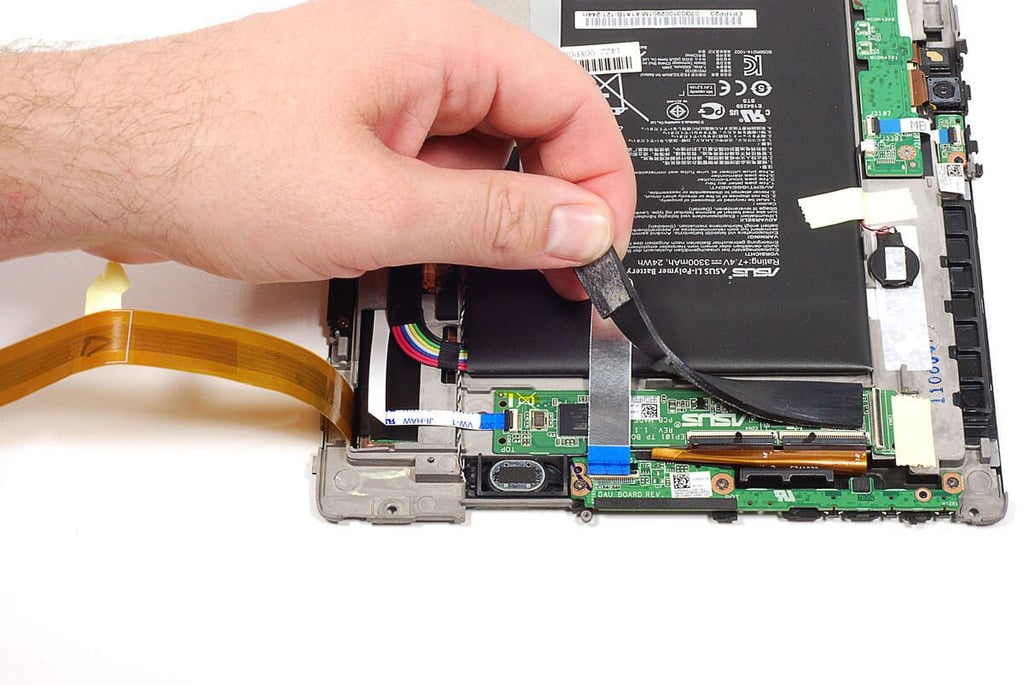

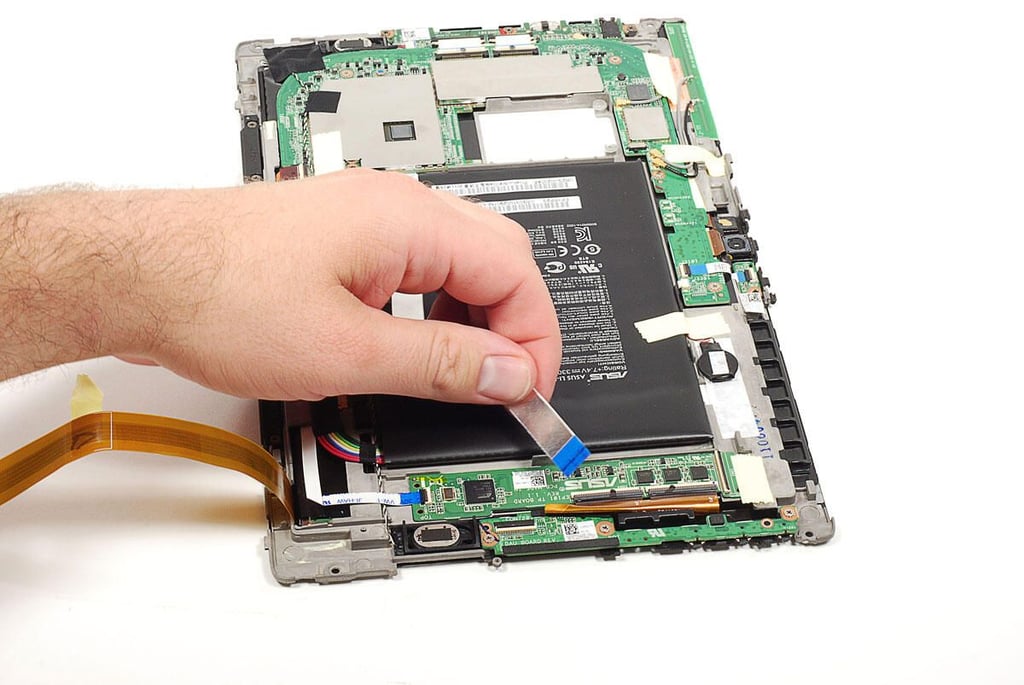

Asus Eee Pad Transformer TR101 Teardown: Disconnecting the touchscreen PCB to motherboard ribbon cable

Asus Eee Pad Transformer TR101 Teardown: Disconnecting the touchscreen PCB to motherboard ribbon cable

Cracking Open the Asus Eee Pad Transformer TF101

Asus Eee Pad Transformer TR101 Teardown: Removing the battery

Asus Eee Pad Transformer TR101 Teardown: Removing the battery

Cracking Open the Asus Eee Pad Transformer TF101

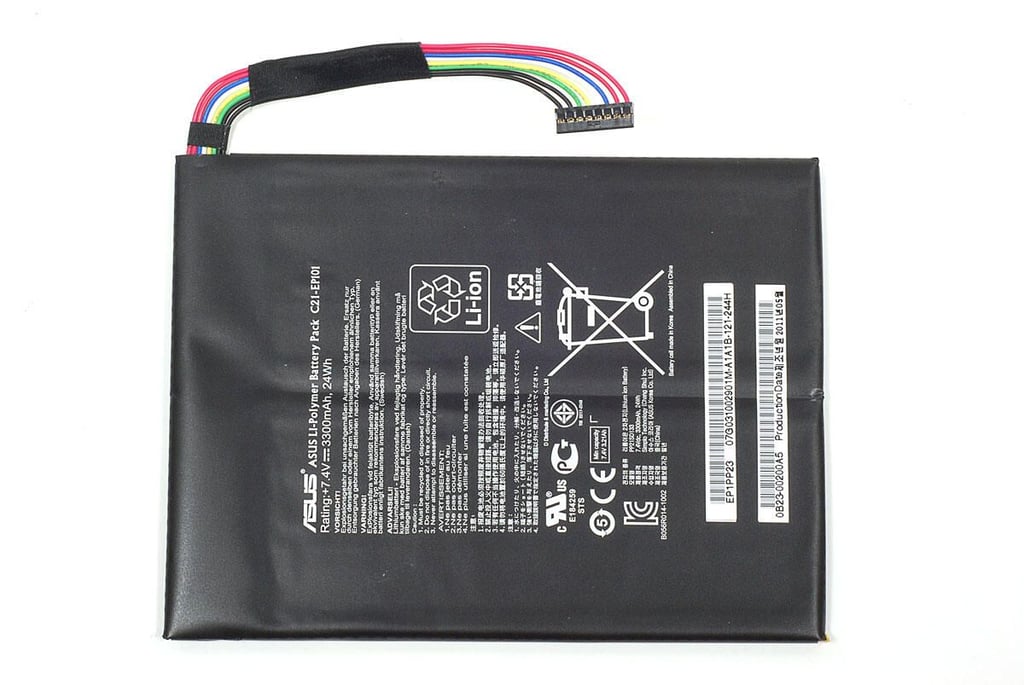

Asus Eee Pad Transformer TR101 Teardown: 3300 mAh, 24Wh Li-Polymer battery (C21-EP101)

Asus Eee Pad Transformer TR101 Teardown: 3300 mAh, 24Wh Li-Polymer battery (C21-EP101)

Cracking Open the Asus Eee Pad Transformer TF101

Asus Eee Pad Transformer TR101 Teardown: Removing the side connector port PCB

Asus Eee Pad Transformer TR101 Teardown: Removing the side connector port PCB

Cracking Open the Asus Eee Pad Transformer TF101

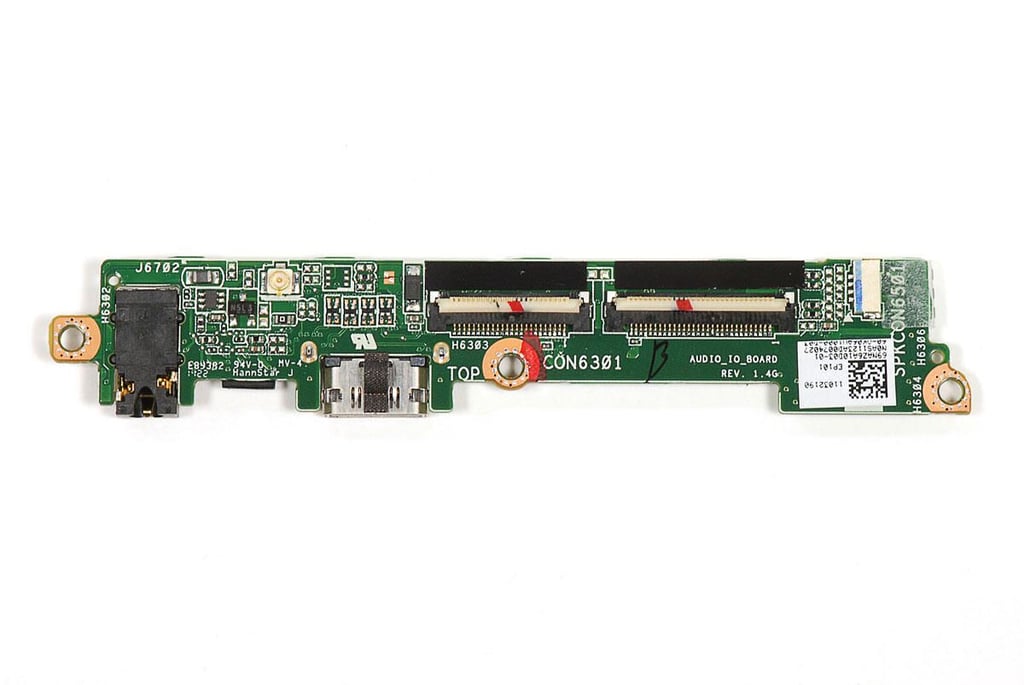

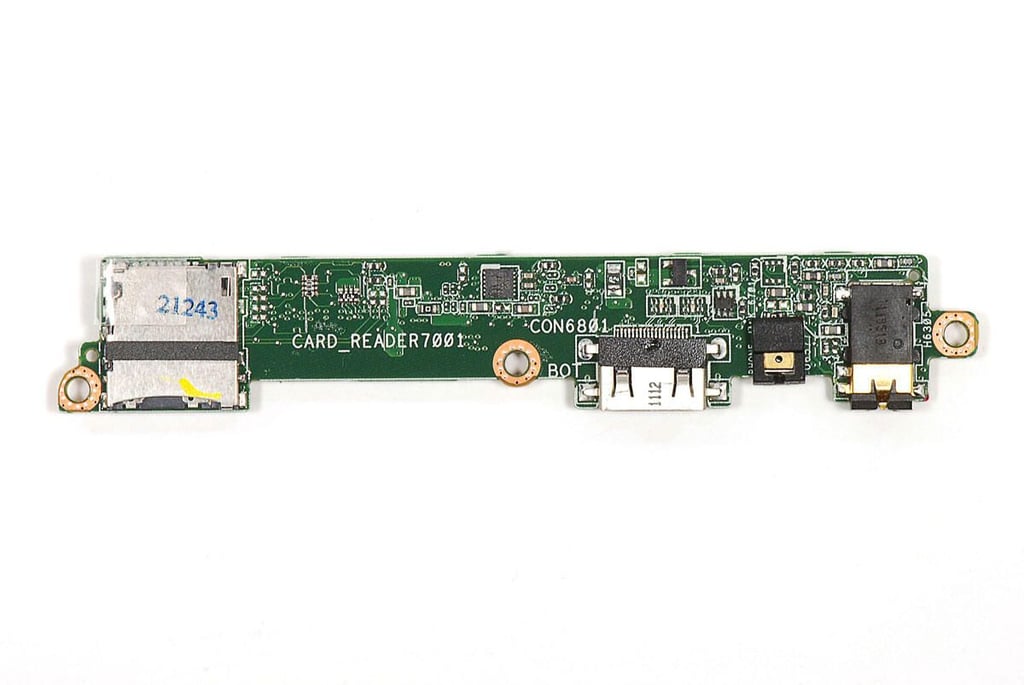

Asus Eee Pad Transformer TR101 Teardown: Headphone/mic-in jack, mini HDMI, and microSD Card slot PCB - Top

Asus Eee Pad Transformer TR101 Teardown: Headphone/mic-in jack, mini HDMI, and microSD Card slot PCB - Top

Cracking Open the Asus Eee Pad Transformer TF101

Asus Eee Pad Transformer TR101 Teardown: Headphone/mic-in jack, mini HDMI, and microSD Card slot PCB - Bottom

Asus Eee Pad Transformer TR101 Teardown: Headphone/mic-in jack, mini HDMI, and microSD Card slot PCB - Bottom

Cracking Open the Asus Eee Pad Transformer TF101

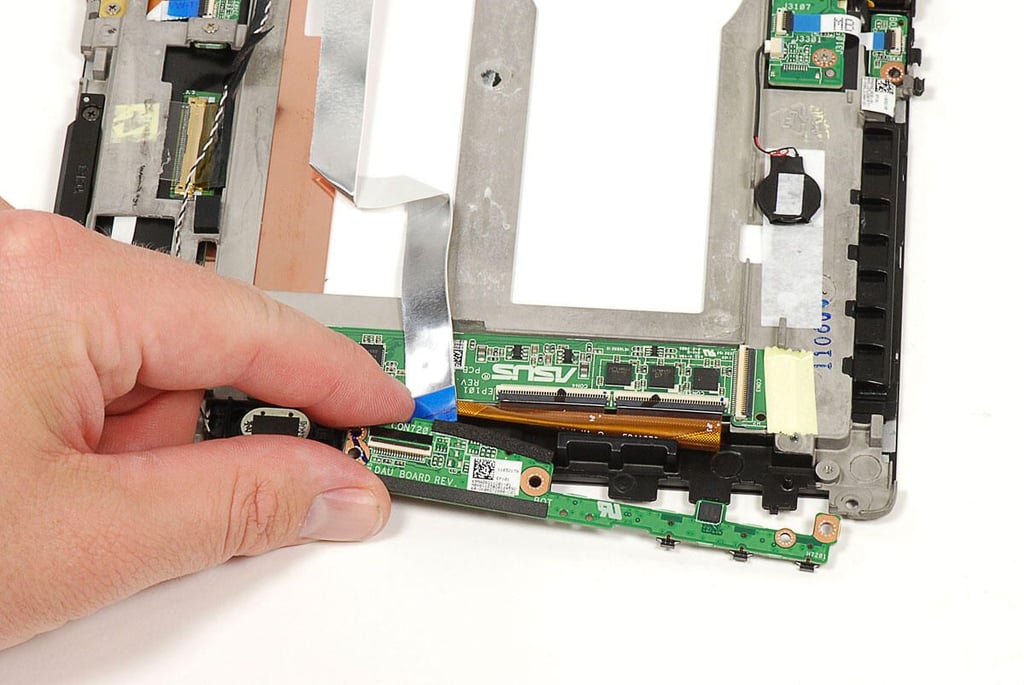

Asus Eee Pad Transformer TR101 Teardown: Removing the power and volume button PCB

Asus Eee Pad Transformer TR101 Teardown: Removing the power and volume button PCB

Cracking Open the Asus Eee Pad Transformer TF101

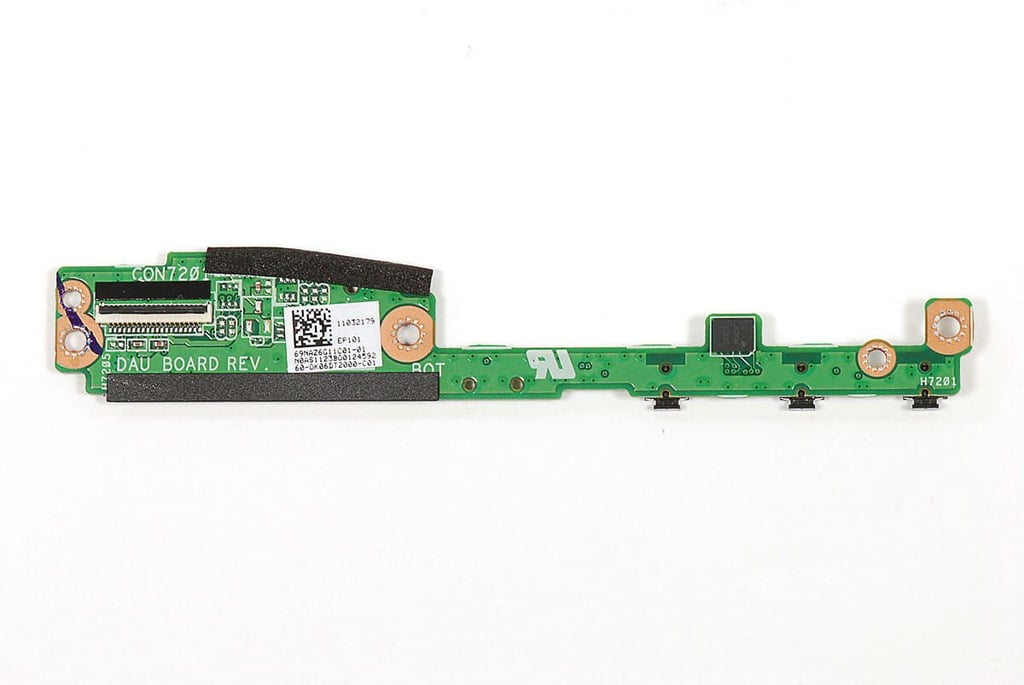

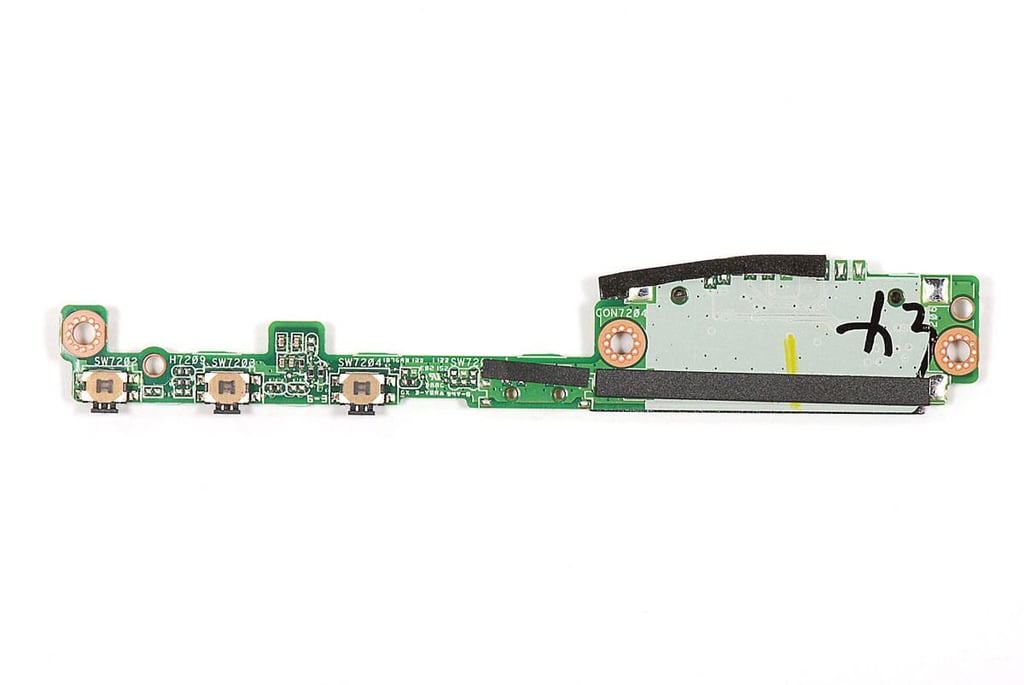

Asus Eee Pad Transformer TR101 Teardown: Power and volume button PCB - Top

Asus Eee Pad Transformer TR101 Teardown: Power and volume button PCB - Top

Cracking Open the Asus Eee Pad Transformer TF101

Asus Eee Pad Transformer TR101 Teardown: Power and volume button PCB - Bottom

Asus Eee Pad Transformer TR101 Teardown: Power and volume button PCB - Bottom

Cracking Open the Asus Eee Pad Transformer TF101

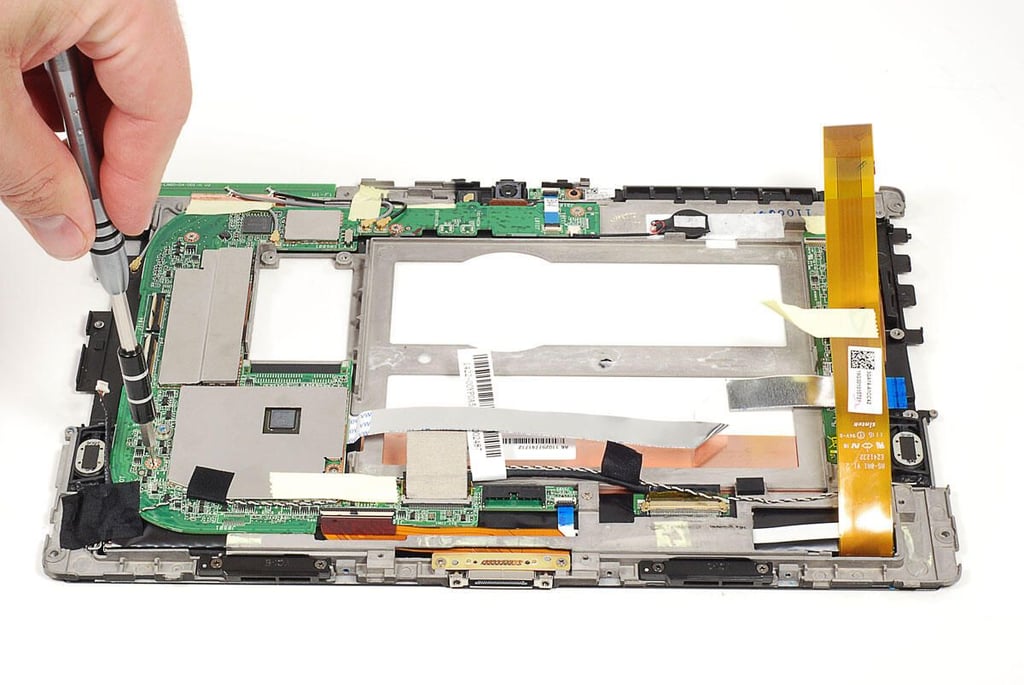

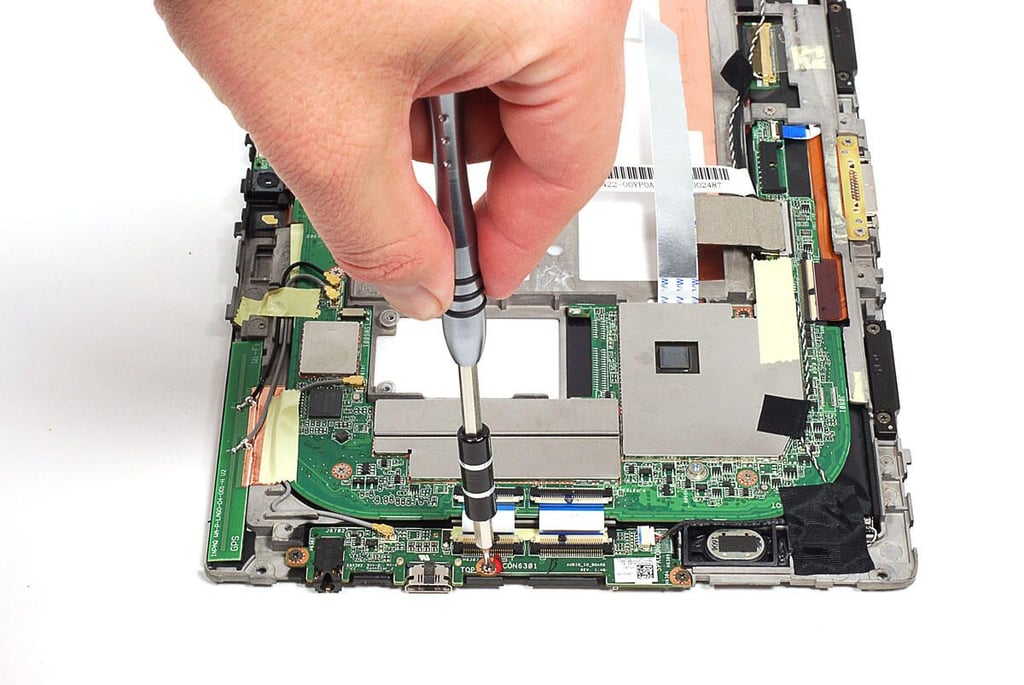

Asus Eee Pad Transformer TR101 Teardown: Removing the motherboard screws

Asus Eee Pad Transformer TR101 Teardown: Removing the motherboard screws

Cracking Open the Asus Eee Pad Transformer TF101

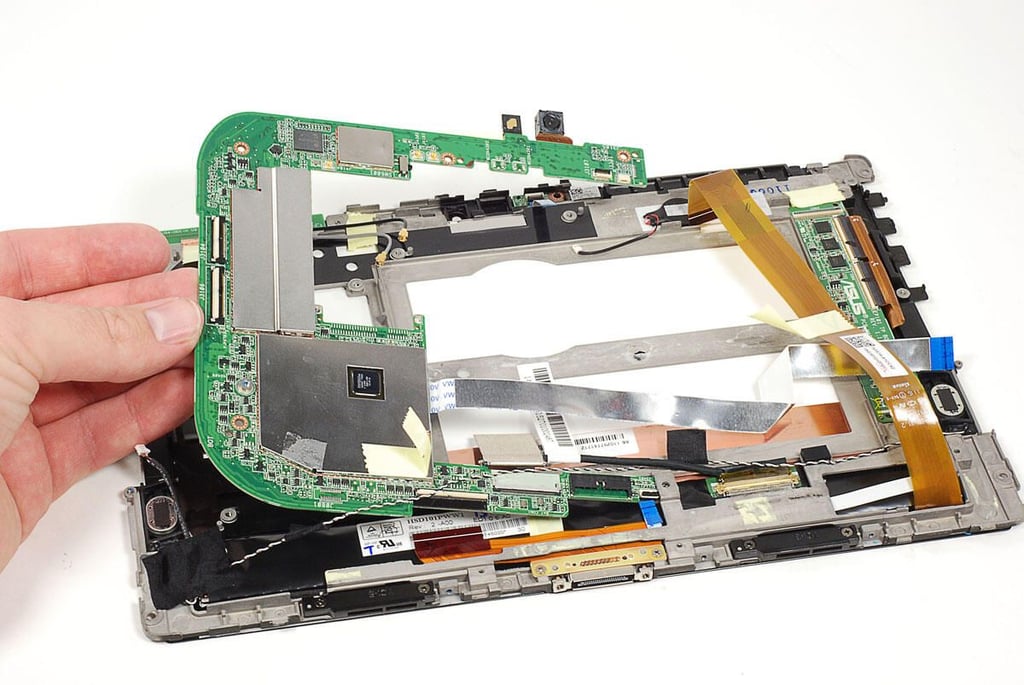

Asus Eee Pad Transformer TR101 Teardown: Removing the motherboard

Asus Eee Pad Transformer TR101 Teardown: Removing the motherboard

Cracking Open the Asus Eee Pad Transformer TF101

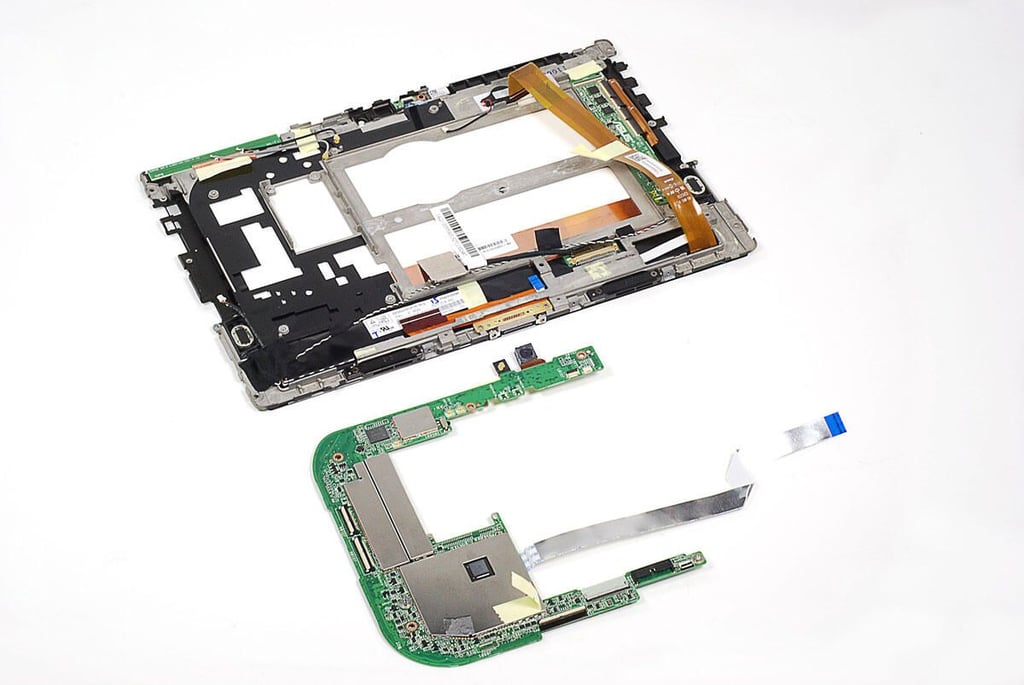

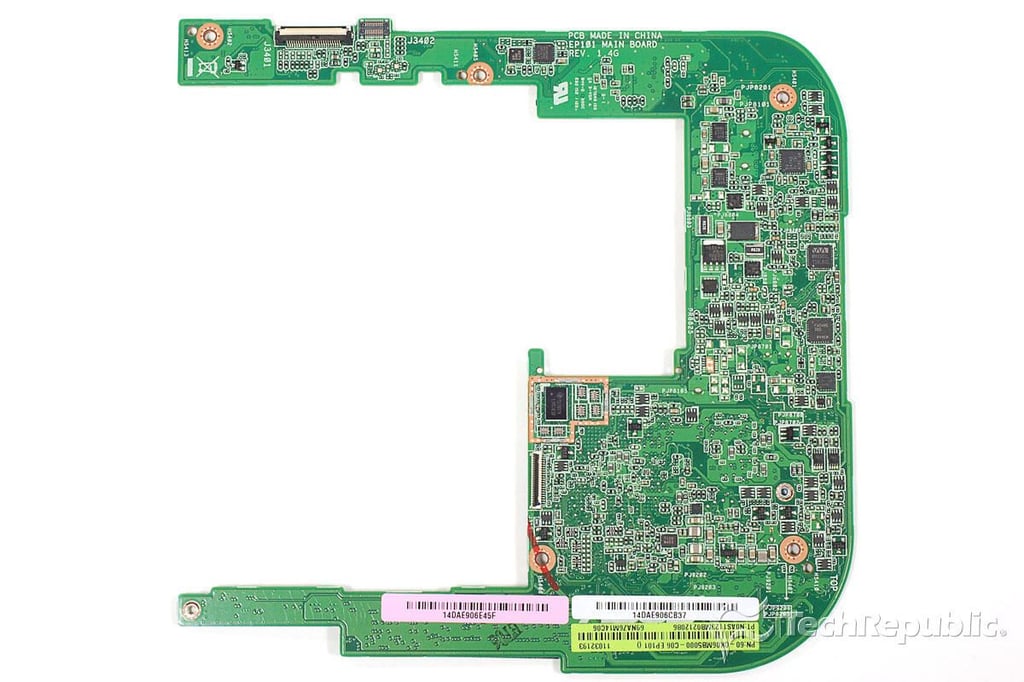

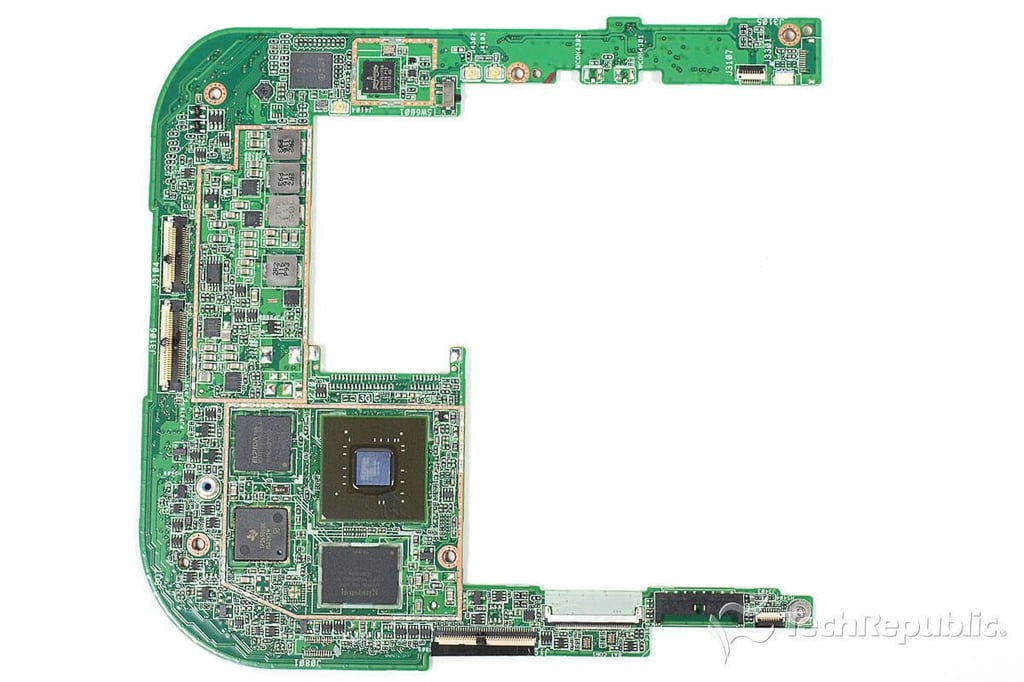

Asus Eee Pad Transformer TR101 Teardown: Front panel and motherboard

Asus Eee Pad Transformer TR101 Teardown: Front panel and motherboard

Cracking Open the Asus Eee Pad Transformer TF101

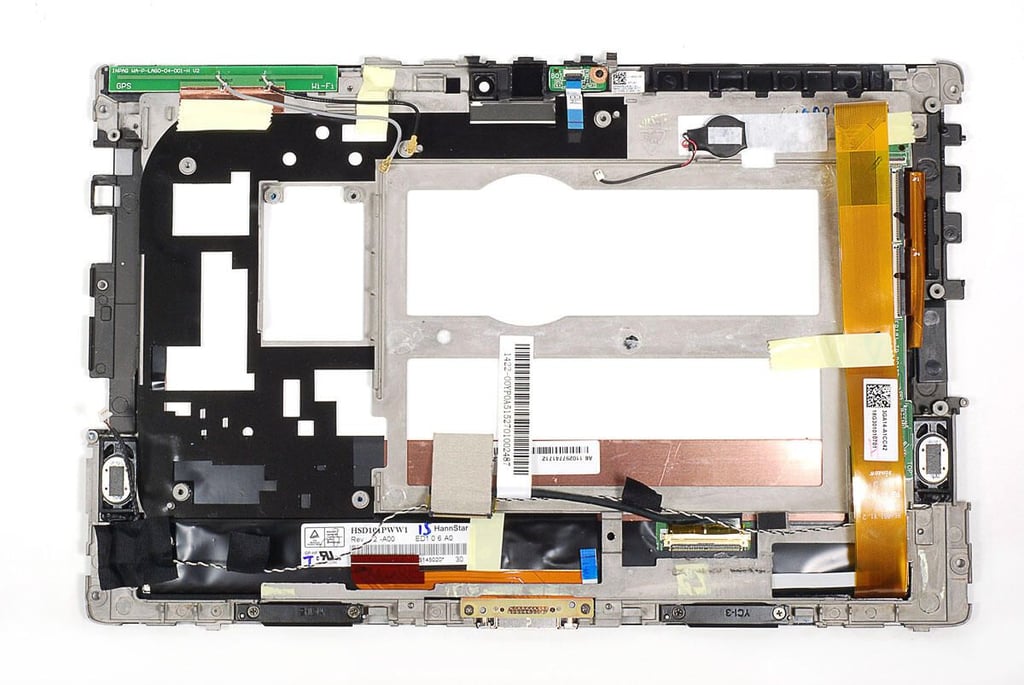

Asus Eee Pad Transformer TR101 Teardown: Front panel and display assembly

Asus Eee Pad Transformer TR101 Teardown: Front panel and display assembly

Cracking Open the Asus Eee Pad Transformer TF101

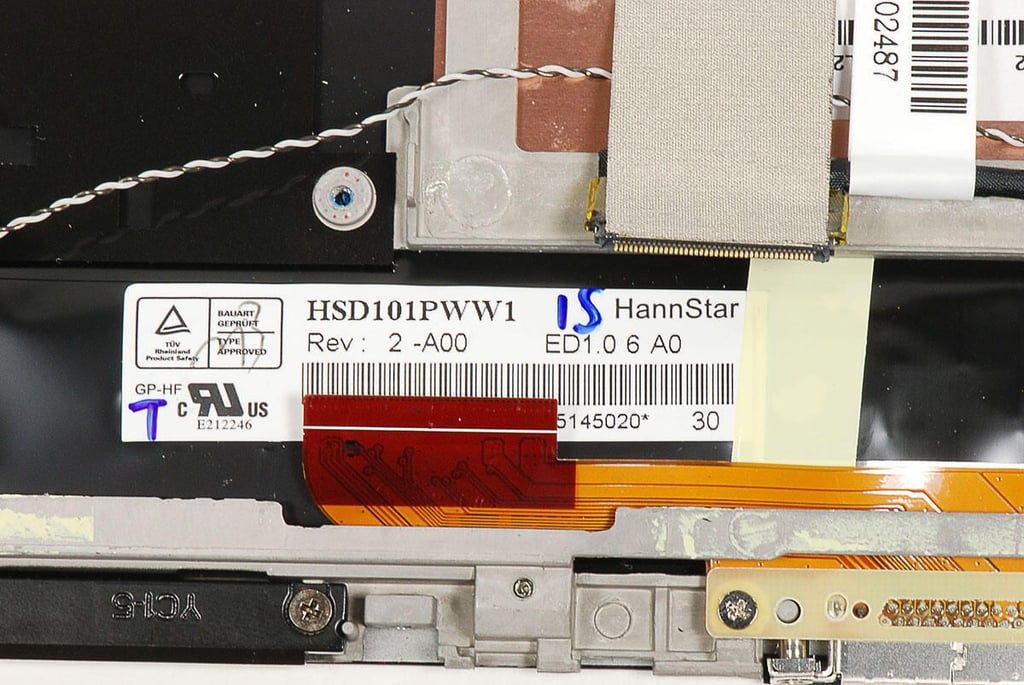

Asus Eee Pad Transformer TR101 Teardown: HannStar HSD101PWW1 LCD

Asus Eee Pad Transformer TR101 Teardown: HannStar HSD101PWW1 LCD

Cracking Open the Asus Eee Pad Transformer TF101

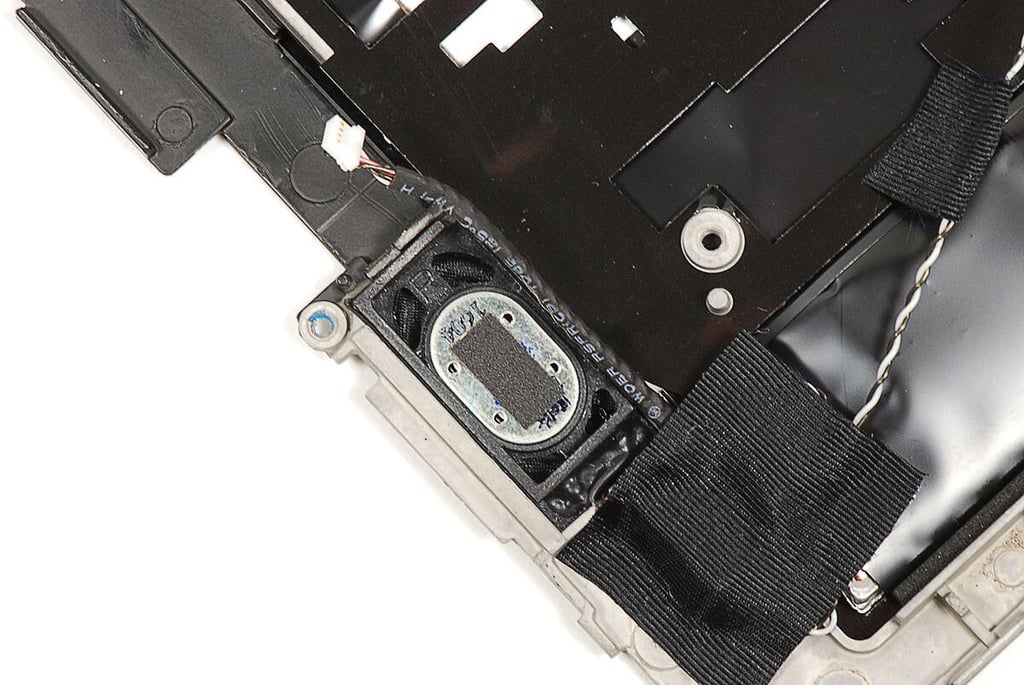

Asus Eee Pad Transformer TR101 Teardown: Right speaker

Asus Eee Pad Transformer TR101 Teardown: Right speaker

Cracking Open the Asus Eee Pad Transformer TF101

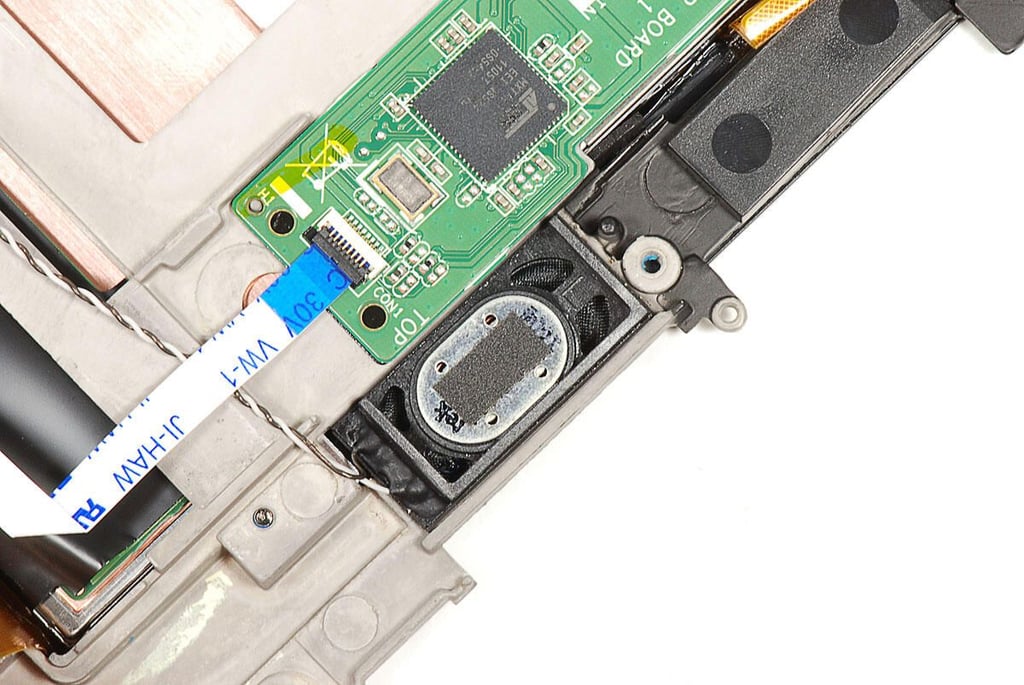

Asus Eee Pad Transformer TR101 Teardown: Left speaker

Asus Eee Pad Transformer TR101 Teardown: Left speaker

Cracking Open the Asus Eee Pad Transformer TF101

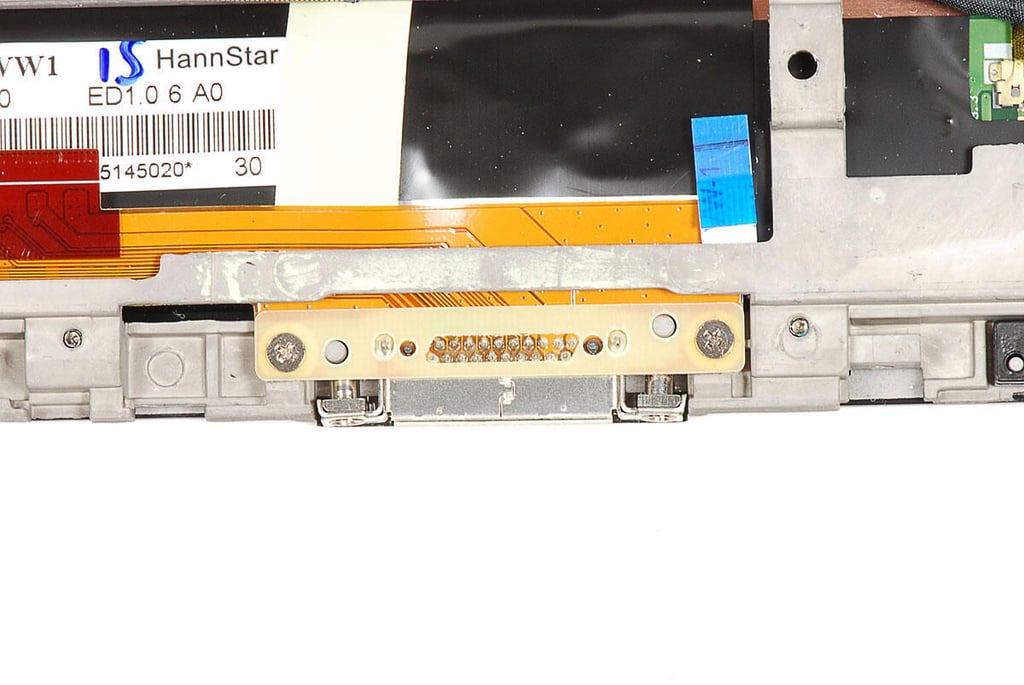

Asus Eee Pad Transformer TR101 Teardown: Docking connector

Asus Eee Pad Transformer TR101 Teardown: Docking connector

Cracking Open the Asus Eee Pad Transformer TF101

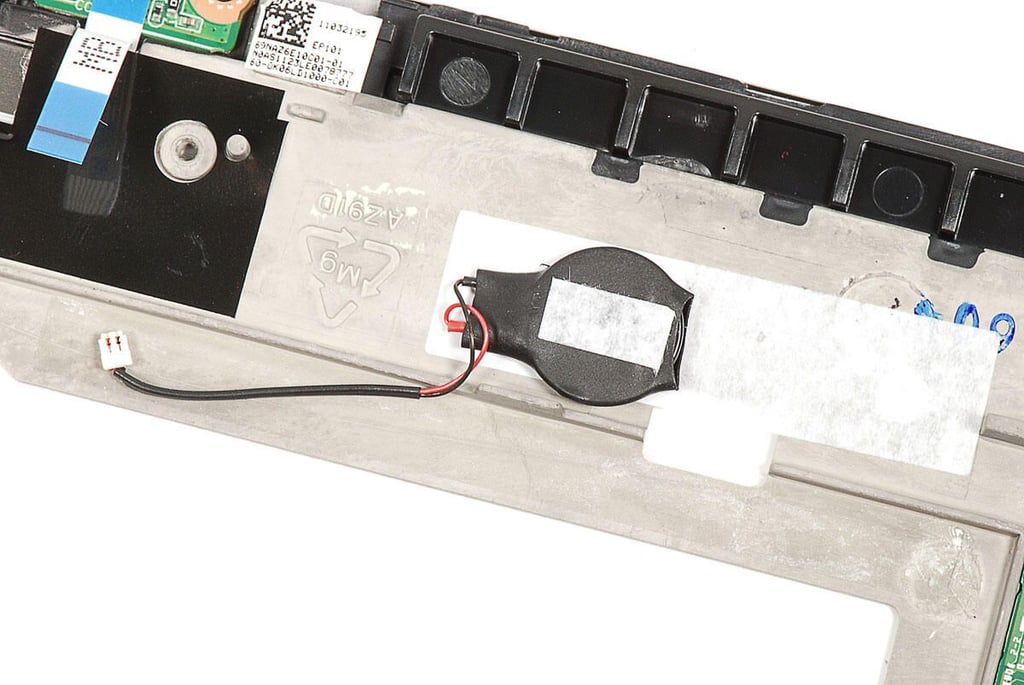

Asus Eee Pad Transformer TR101 Teardown: System battery

Asus Eee Pad Transformer TR101 Teardown: System battery

Cracking Open the Asus Eee Pad Transformer TF101

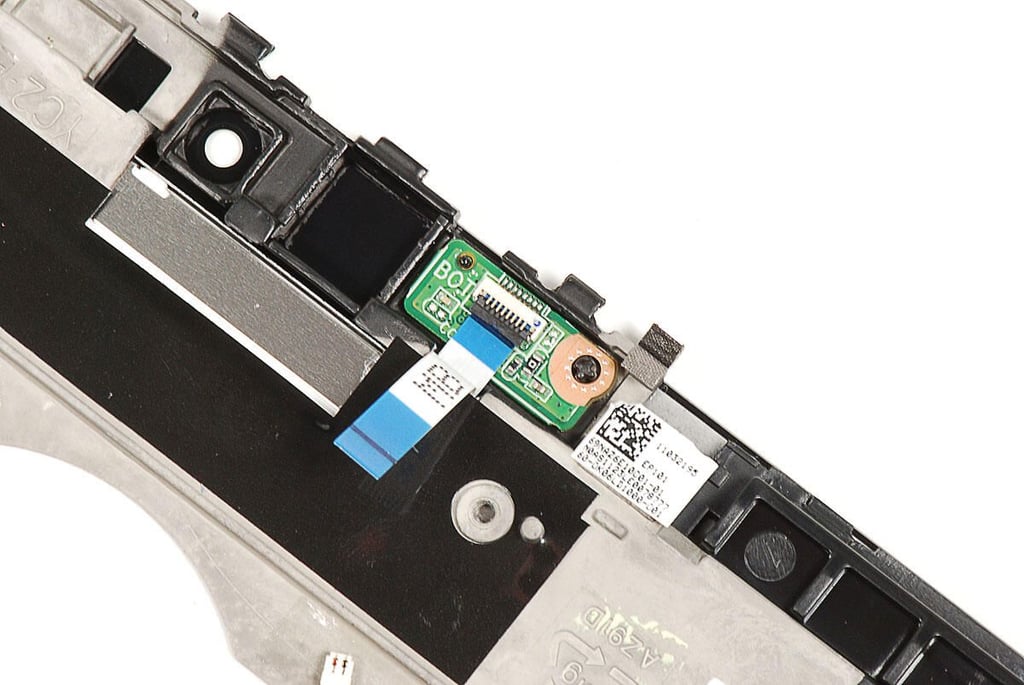

Asus Eee Pad Transformer TR101 Teardown: Ambient light sensor PCB

Asus Eee Pad Transformer TR101 Teardown: Ambient light sensor PCB

Cracking Open the Asus Eee Pad Transformer TF101

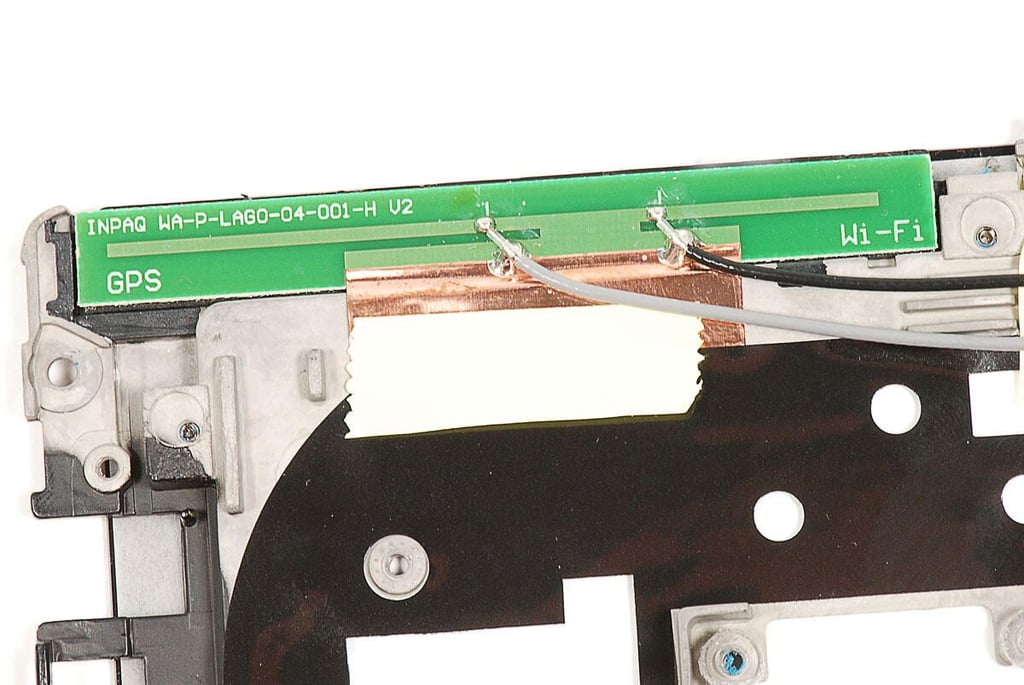

Asus Eee Pad Transformer TR101 Teardown: Antenna PCB

Asus Eee Pad Transformer TR101 Teardown: Antenna PCB

Cracking Open the Asus Eee Pad Transformer TF101

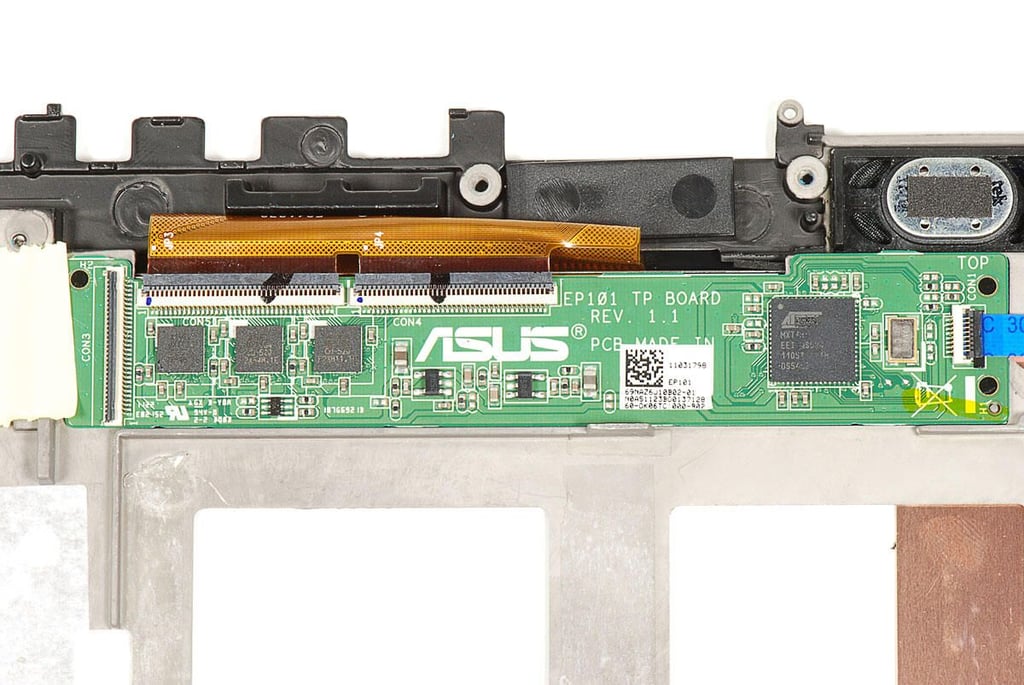

Asus Eee Pad Transformer TR101 Teardown: Touchscreen PCB

Asus Eee Pad Transformer TR101 Teardown: Touchscreen PCB

Cracking Open the Asus Eee Pad Transformer TF101

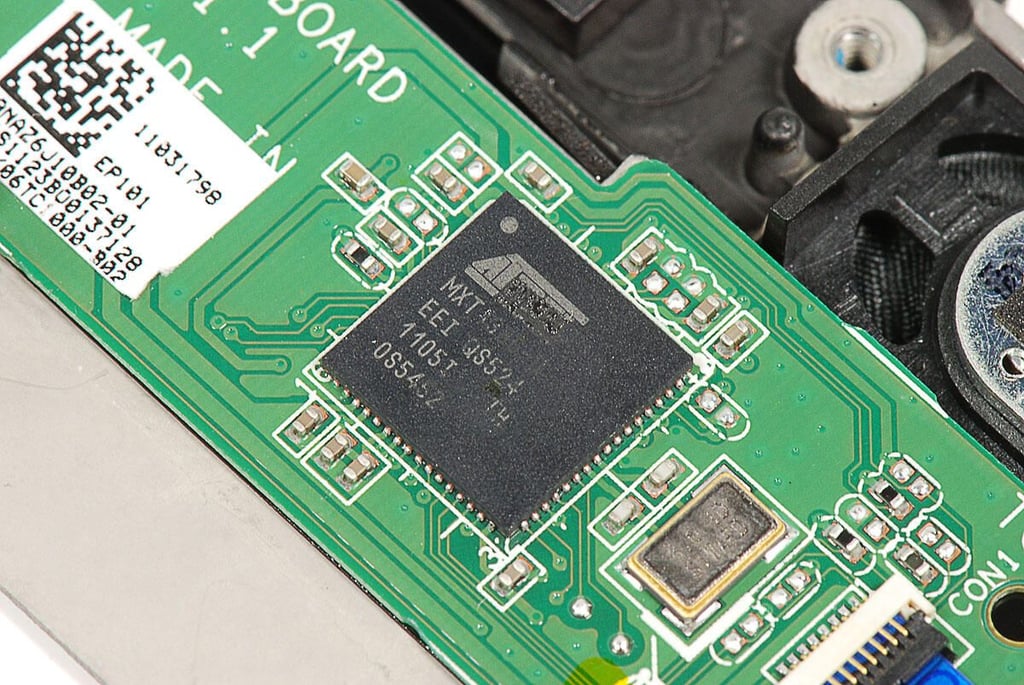

Asus Eee Pad Transformer TR101 Teardown: Atmel mXT1386 touchscreen controller

Asus Eee Pad Transformer TR101 Teardown: Atmel mXT1386 touchscreen controller

Cracking Open the Asus Eee Pad Transformer TF101

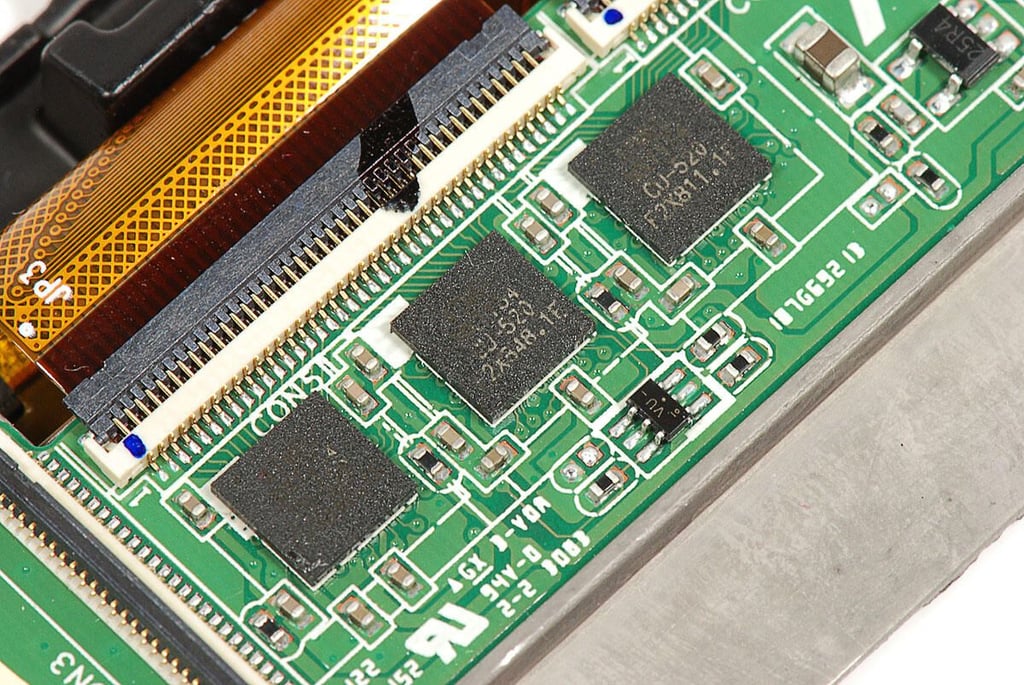

Asus Eee Pad Transformer TR101 Teardown: Atmel mXT154 touchcreen controllers (x3)

Asus Eee Pad Transformer TR101 Teardown: Atmel mXT154 touchcreen controllers (x3)

Cracking Open the Asus Eee Pad Transformer TF101

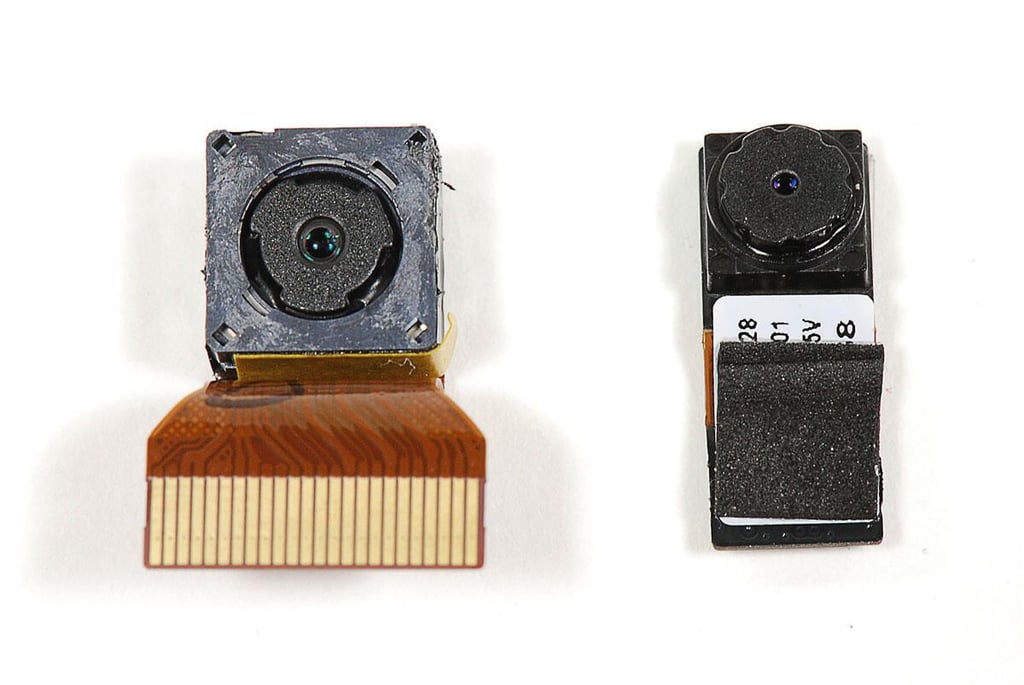

Asus Eee Pad Transformer TR101 Teardown: 1.2MP front-facing and 5.0MP rear-facing cameras

Asus Eee Pad Transformer TR101 Teardown: 1.2MP front-facing and 5.0MP rear-facing cameras

Cracking Open the Asus Eee Pad Transformer TF101

Asus Eee Pad Transformer TR101 Teardown:

Asus Eee Pad Transformer TR101 Teardown:

Cracking Open the Asus Eee Pad Transformer TF101

Asus Eee Pad Transformer TR101 Teardown:

Asus Eee Pad Transformer TR101 Teardown:

Cracking Open the Asus Eee Pad Transformer TF101

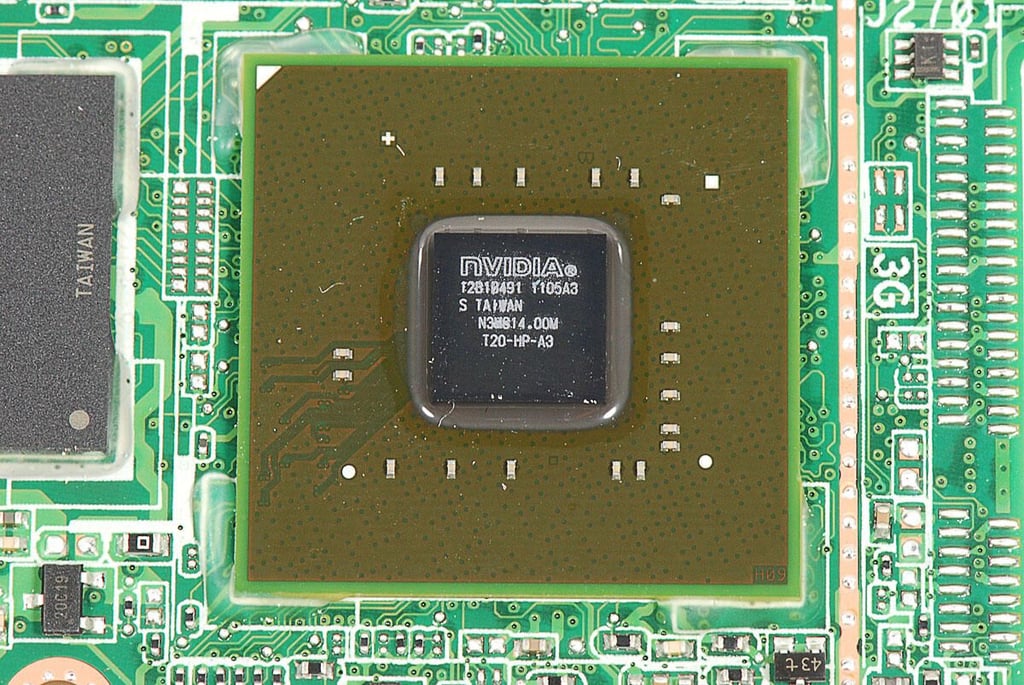

Asus Eee Pad Transformer TR101 Teardown: 1.0 GHz dual-core NVidia Tegra 2 application processor (12B1B491 1105A3)

Asus Eee Pad Transformer TR101 Teardown: 1.0 GHz dual-core NVidia Tegra 2 application processor (12B1B491 1105A3)

Cracking Open the Asus Eee Pad Transformer TF101

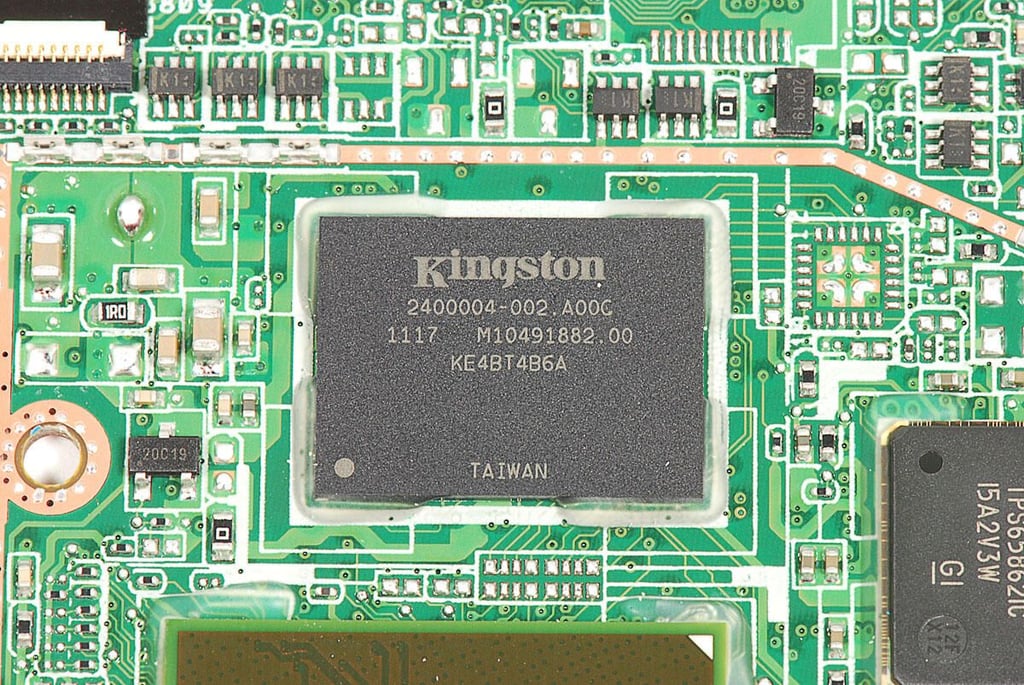

Asus Eee Pad Transformer TR101 Teardown: 16GB Kingston KE4BT4B6A NAND Flash

Asus Eee Pad Transformer TR101 Teardown: 16GB Kingston KE4BT4B6A NAND Flash

Cracking Open the Asus Eee Pad Transformer TF101

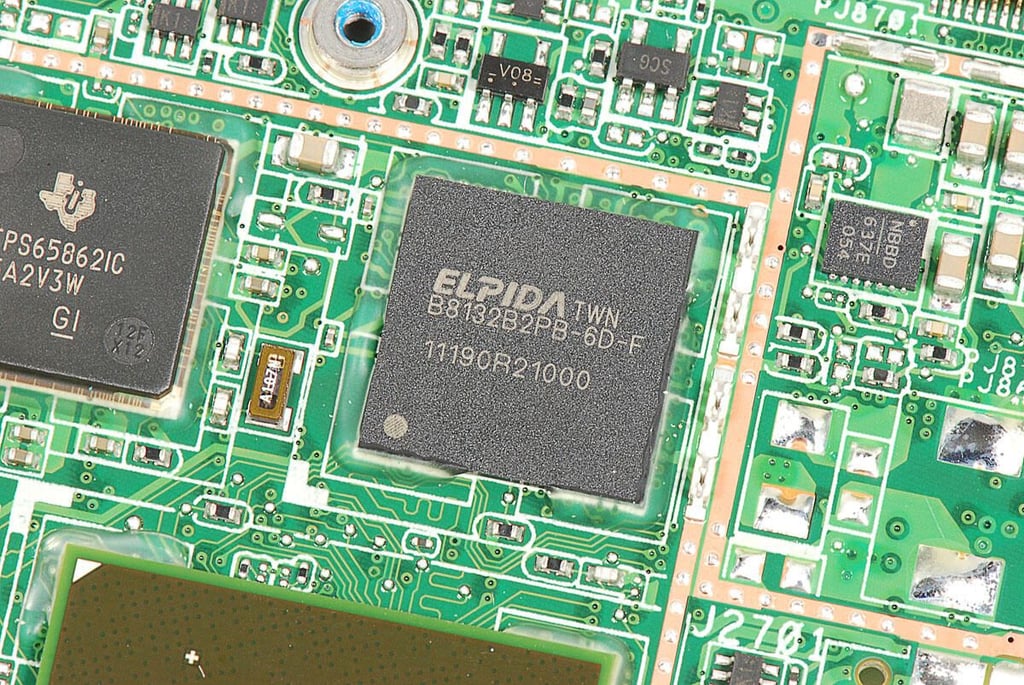

Asus Eee Pad Transformer TR101 Teardown: 1GB Elpida B8132B2PB-6D-F LPDDR2 DRAM

Asus Eee Pad Transformer TR101 Teardown: 1GB Elpida B8132B2PB-6D-F LPDDR2 DRAM

Cracking Open the Asus Eee Pad Transformer TF101

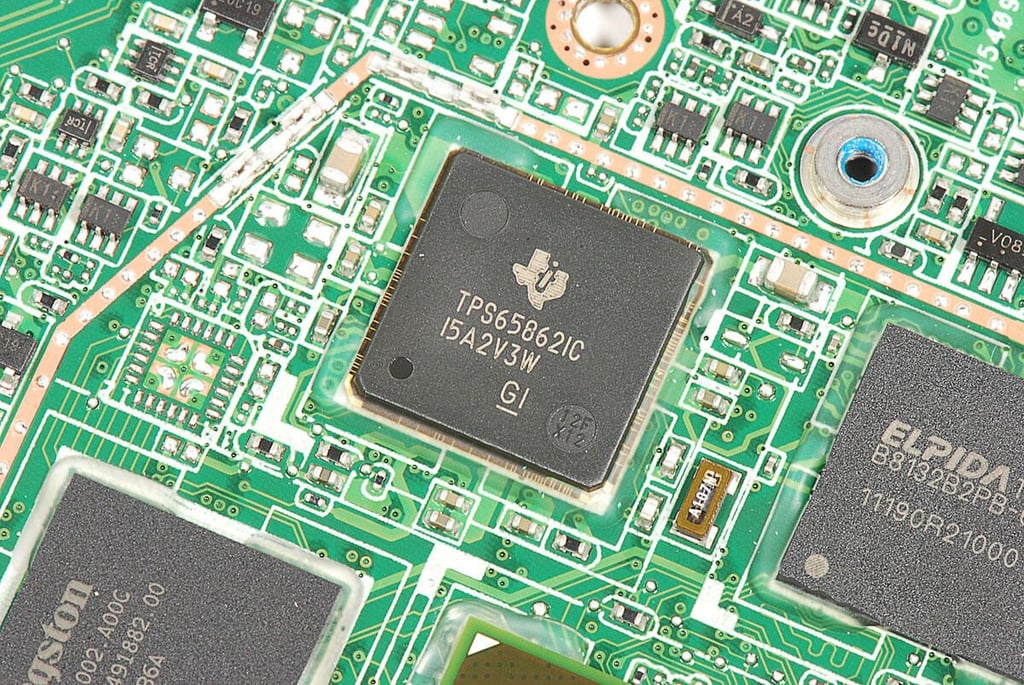

Asus Eee Pad Transformer TR101 Teardown: Texas Instruments TPS65862 power-management IC

Asus Eee Pad Transformer TR101 Teardown: Texas Instruments TPS65862 power-management IC

Cracking Open the Asus Eee Pad Transformer TF101

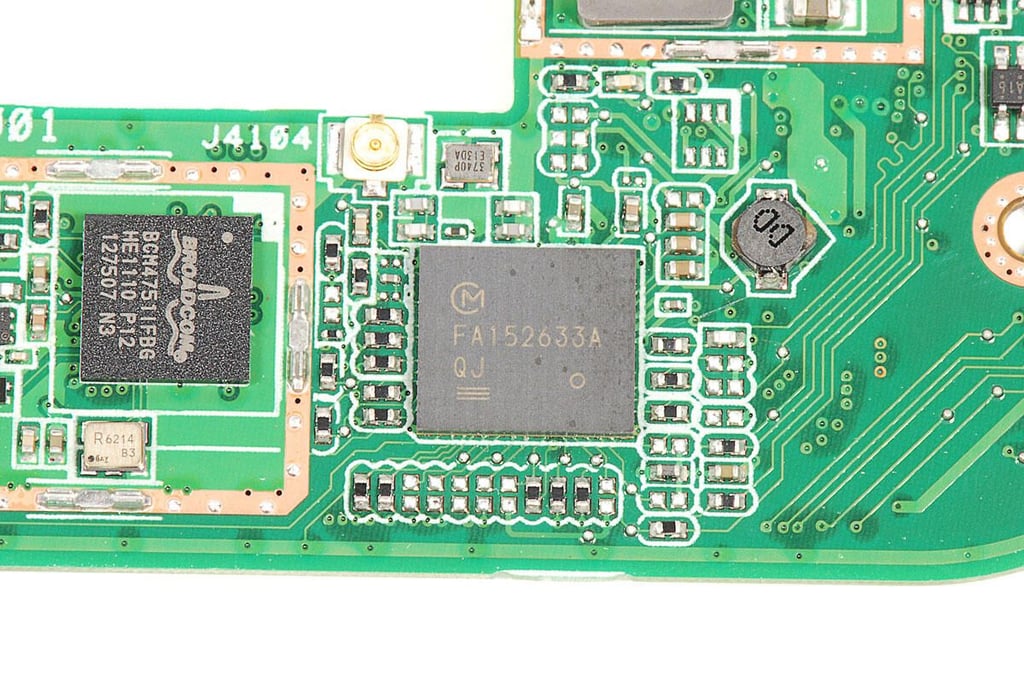

Asus Eee Pad Transformer TR101 Teardown: Murata FA152633A QJ

Asus Eee Pad Transformer TR101 Teardown: Murata FA152633A QJ

Cracking Open the Asus Eee Pad Transformer TF101

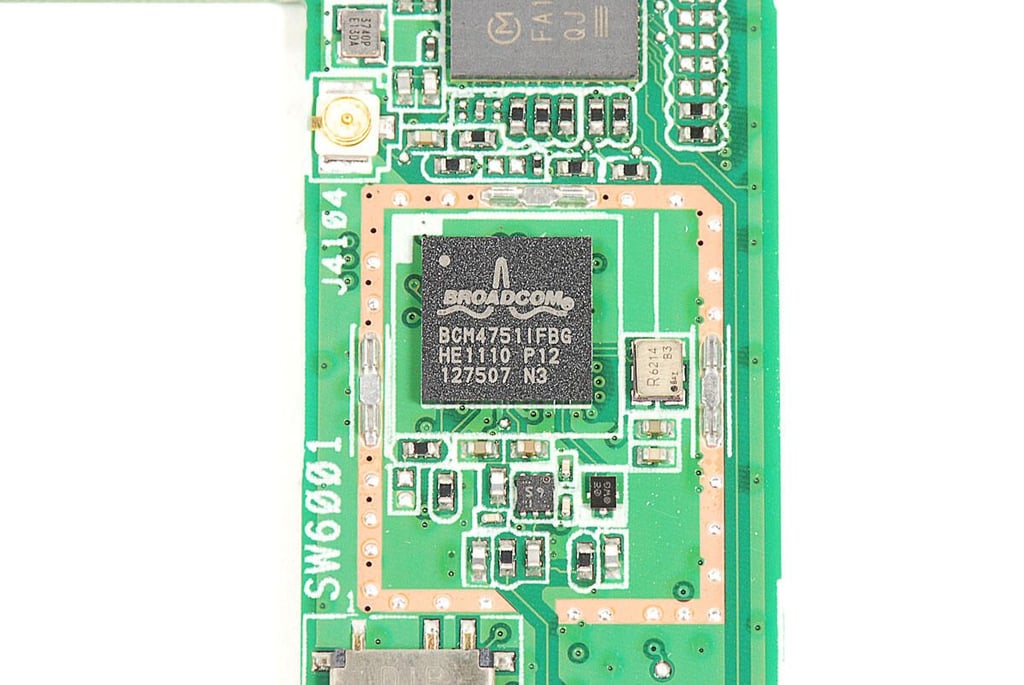

Asus Eee Pad Transformer TR101 Teardown: Broadcom BCM4751 Integrated Monolithic GPS Receiver

Asus Eee Pad Transformer TR101 Teardown: Broadcom BCM4751 Integrated Monolithic GPS Receiver

Cracking Open the Asus Eee Pad Transformer TF101

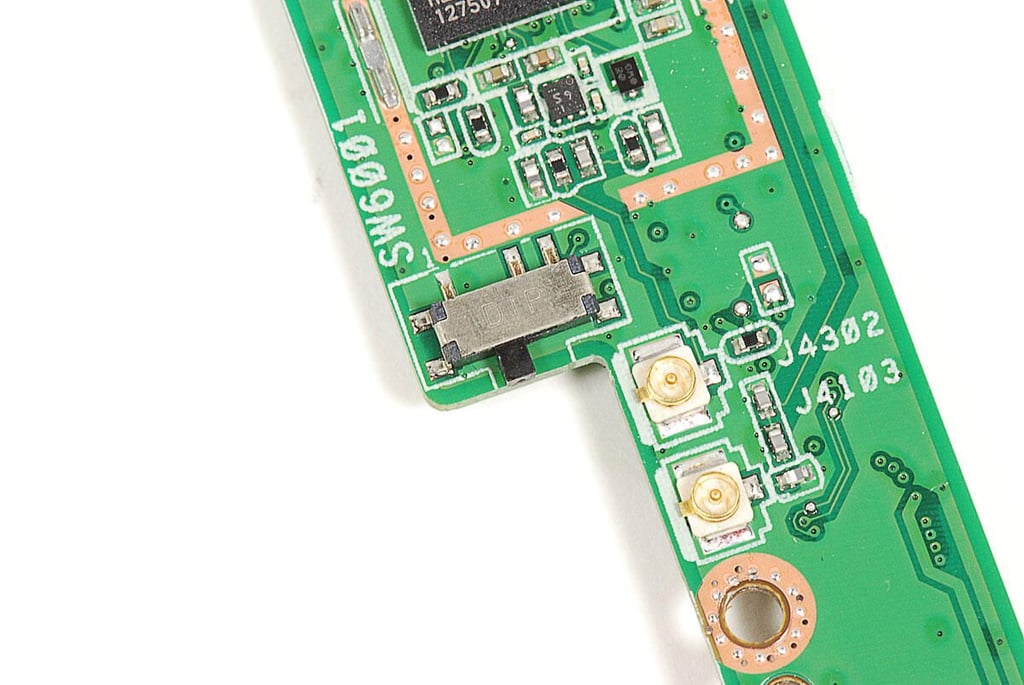

Asus Eee Pad Transformer TR101 Teardown: Dip switch

Asus Eee Pad Transformer TR101 Teardown: Dip switch

Cracking Open the Asus Eee Pad Transformer TF101

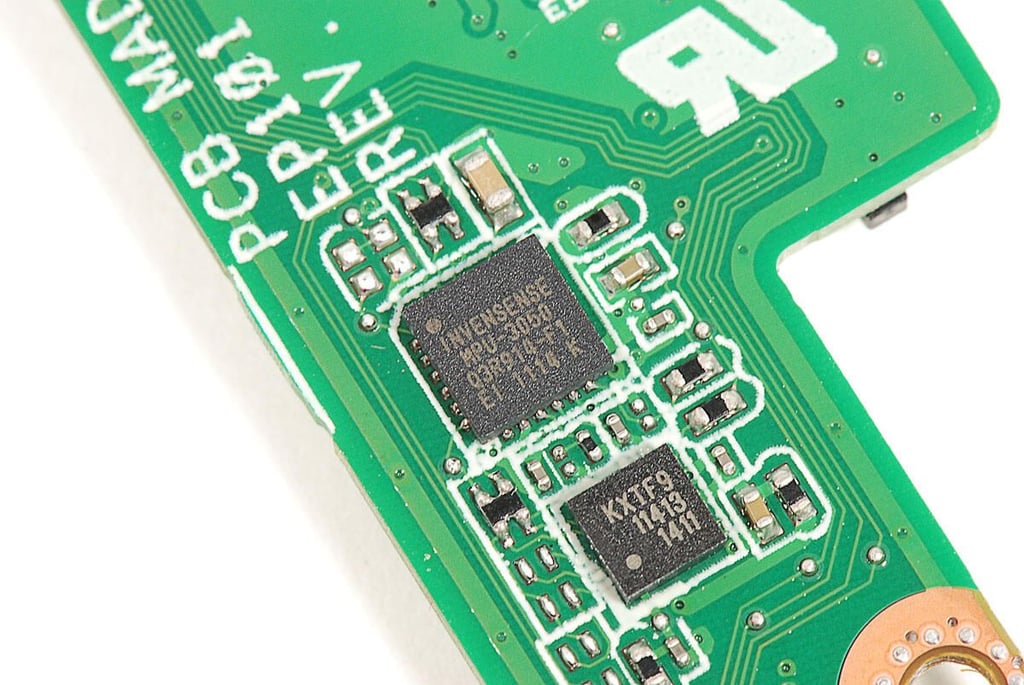

Asus Eee Pad Transformer TR101 Teardown: Invensense MPU-3050 Triple Axis Gyroscope with Embedded Digital Motion Processor

Asus Eee Pad Transformer TR101 Teardown: Invensense MPU-3050 Triple Axis Gyroscope with Embedded Digital Motion Processor

Cracking Open the Asus Eee Pad Transformer TF101

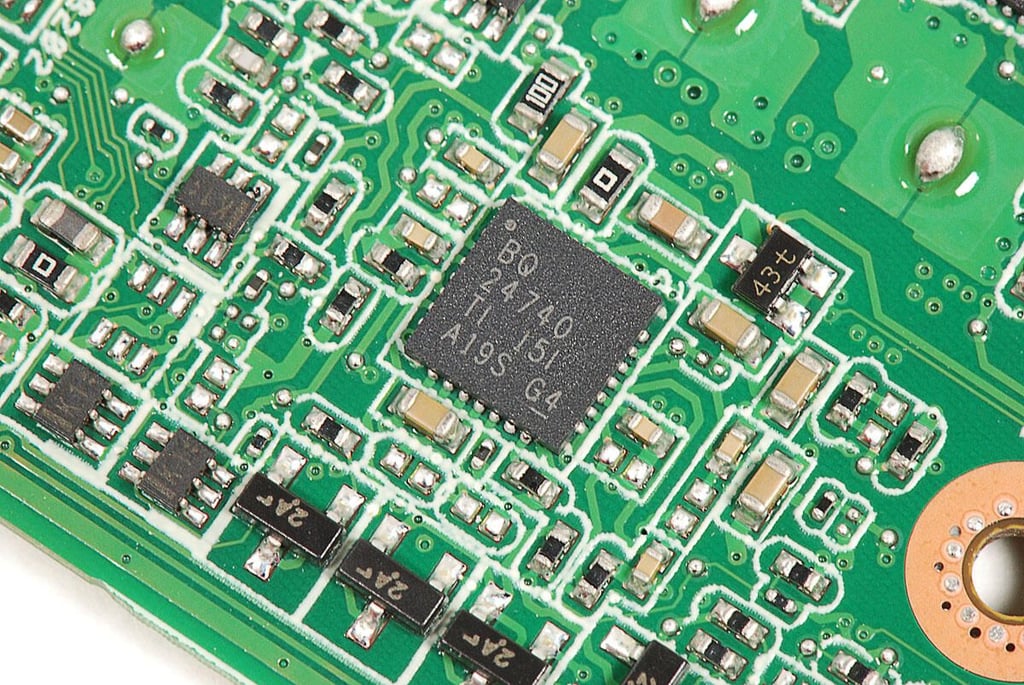

Asus Eee Pad Transformer TR101 Teardown: Texas Instruments TPS24720 2.5V to 18V Positive Voltage Power-Limiting Hot-Swap Controller

Asus Eee Pad Transformer TR101 Teardown: Texas Instruments TPS24720 2.5V to 18V Positive Voltage Power-Limiting Hot-Swap Controller

Cracking Open the Asus Eee Pad Transformer TF101

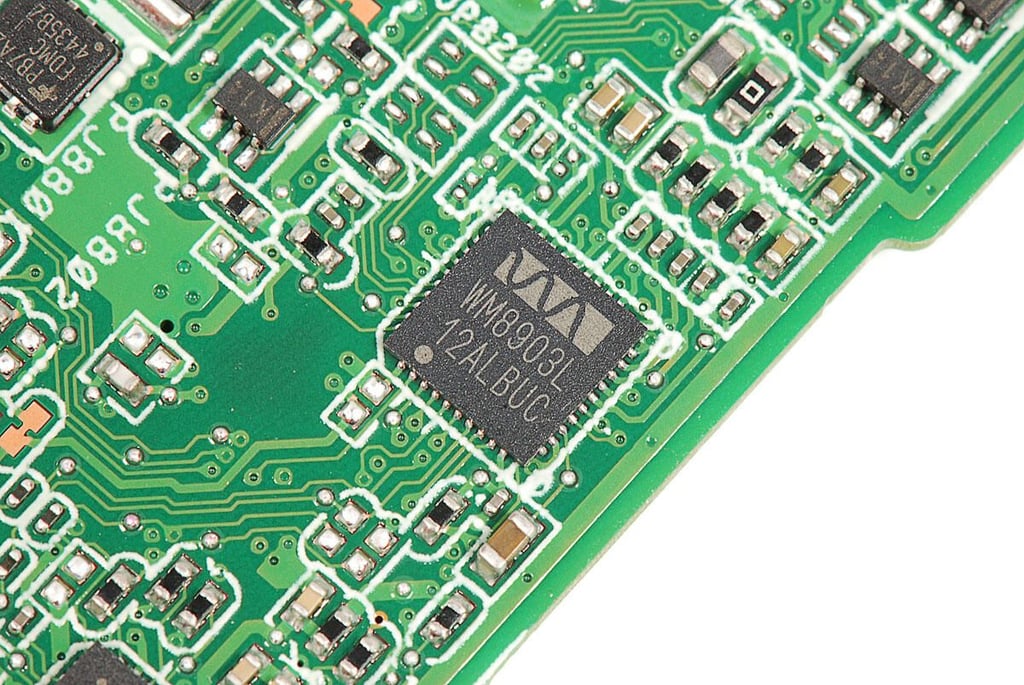

Asus Eee Pad Transformer TR101 Teardown: Wolfson WM8903 Ultra low power audio CODEC

Asus Eee Pad Transformer TR101 Teardown: Wolfson WM8903 Ultra low power audio CODEC

Cracking Open the Asus Eee Pad Transformer TF101

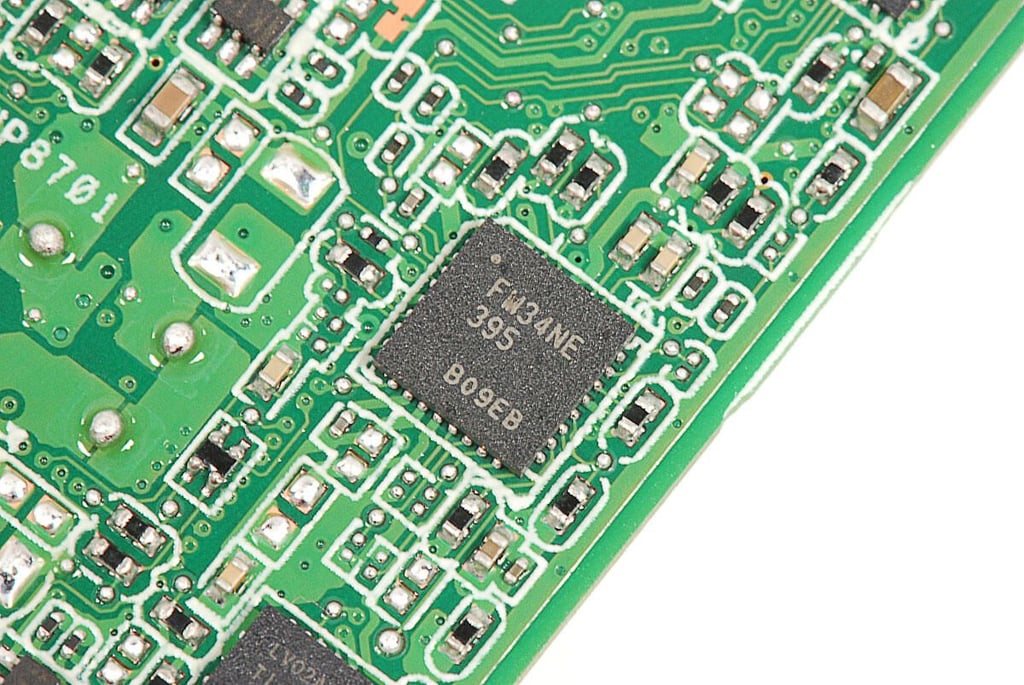

Asus Eee Pad Transformer TR101 Teardown: FM34NE 395 B09EB

Asus Eee Pad Transformer TR101 Teardown: FM34NE 395 B09EB

Cracking Open the Asus Eee Pad Transformer TF101

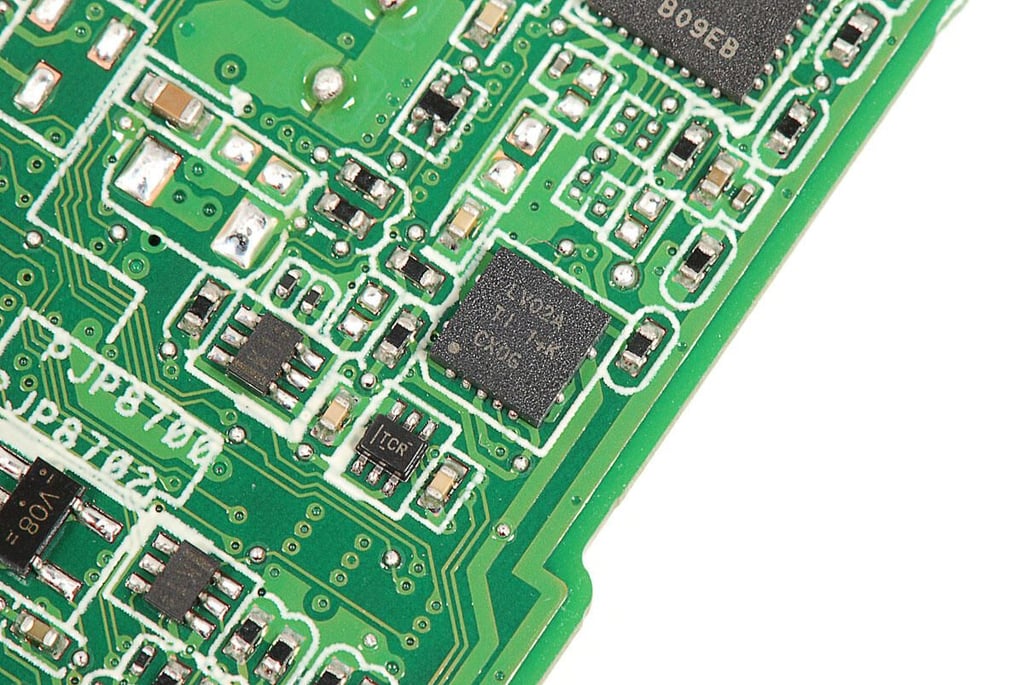

Asus Eee Pad Transformer TR101 Teardown: Texas Instruments LV02A

Asus Eee Pad Transformer TR101 Teardown: Texas Instruments LV02A

Cracking Open the Asus Eee Pad Transformer TF101

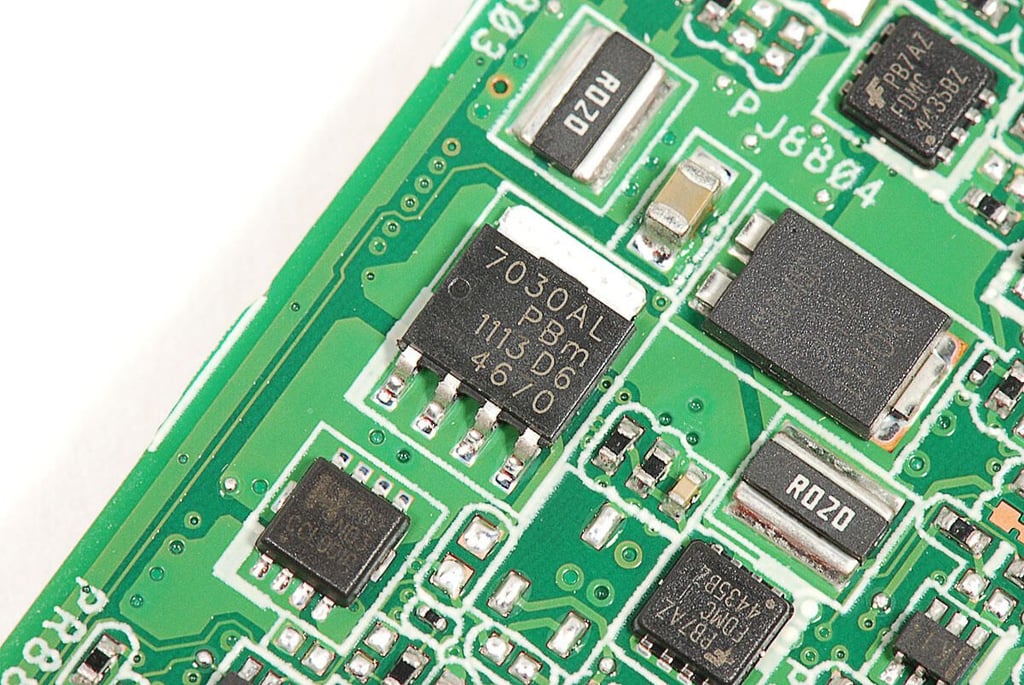

Asus Eee Pad Transformer TR101 Teardown: NXP PH7030AL N-channel TrenchMOS logic level FET

Asus Eee Pad Transformer TR101 Teardown: NXP PH7030AL N-channel TrenchMOS logic level FET

Cracking Open the Asus Eee Pad Transformer TF101

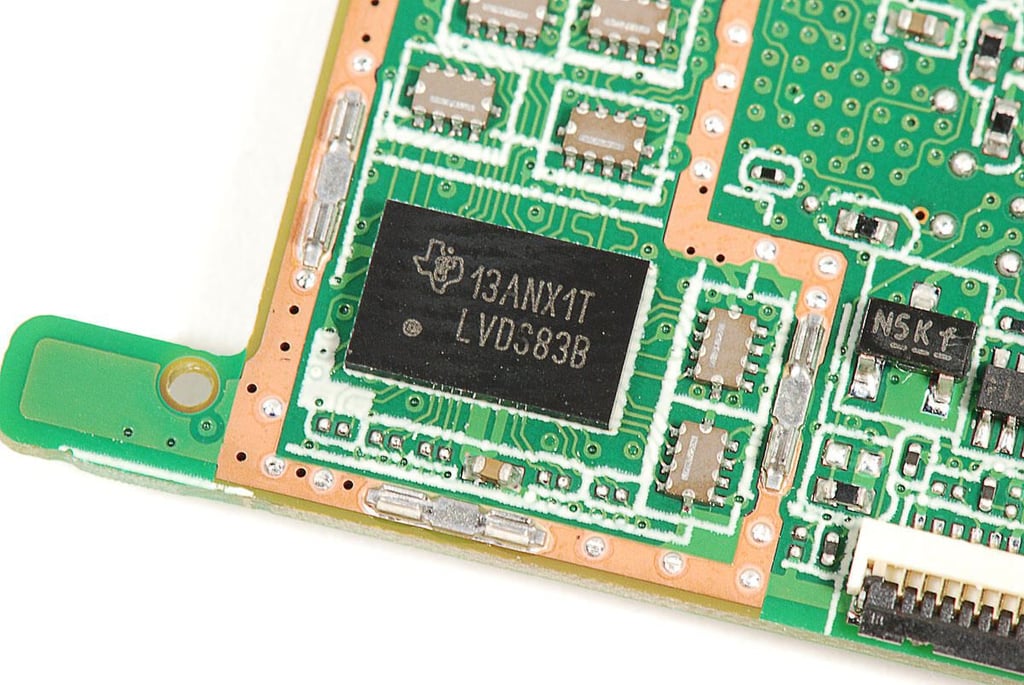

Asus Eee Pad Transformer TR101 Teardown: Texas Instruments LVDS83B power controller

Asus Eee Pad Transformer TR101 Teardown: Texas Instruments LVDS83B power controller

Cracking Open the Asus Eee Pad Transformer TF101

Asus Eee Pad Transformer TR101 Teardown: Completely disassembled

Asus Eee Pad Transformer TR101 Teardown: Completely disassembled

  • Android
  • Account Information

    Share with Your Friends

    Cracking Open the Asus Eee Pad Transformer TF101

    Your email has been sent

Share: Cracking Open the Asus Eee Pad Transformer TF101
Image of Bill Detwiler
By Bill Detwiler
Bill Detwiler is the Editor for Technical Content and Ecosystem at Celonis. He is the former Editor in Chief of TechRepublic and previous host of TechRepublic's Dynamic Developer podcast and Cracking Open, CNET and TechRepublic's popular online show.
  • Account Information

    Contact Bill Detwiler

    Your message has been sent

  • |
  • See all of Bill's content

TechRepublic Premium

  • TechRepublic Premium

    Hardware inventory policy

    This policy describes guidelines your organization can follow to track, process and decommission IT equipment. From the policy: SUMMARY An organization’s IT hardware inventory constitutes a significant capital investment in order to perform company operations. Because hardware represents a critical asset and often holds organizational data, it is important for the company to track each ...

    Published:  January 23, 2023, 11:00 AM EST Modified:  January 24, 2023, 11:00 AM EST Read More See more TechRepublic Premium
  • TechRepublic Premium

    Malware response checklist

    Whether an infection is the result of a disgruntled employee, hardware vulnerability, software-based threat, social engineering penetration, robotic attack or human error, all organizations must be prepared to immediately respond effectively to such an issue if the corresponding damage is to be minimized. Because even the best protected networks become infected, all organizations must have ...

    Published:  January 22, 2023, 11:00 AM EST Modified:  January 23, 2023, 1:00 PM EST Read More See more TechRepublic Premium
  • TechRepublic Premium

    Checklist: Securing Windows 10 systems

    Every operating system should be appropriately secured, especially end user workstations which often contain or permit access to company data and upon which most employee job duties are based. To get the maximum security protection out of your Windows 10 deployments follow this checklist from TechRepublic Premium. Also included in this checklist: Security solutions Product ...

    Published:  January 22, 2023, 11:00 AM EST Modified:  January 23, 2023, 2:00 PM EST Read More See more TechRepublic Premium
  • TechRepublic Premium

    Cloud data storage policy

    Third-party cloud-based file storage applications such as Dropbox, OneDrive and Google Drive have all contributed to the success of business cloud data storage. These products have brought proven flexibility and ease of data access to users and businesses alike while ensuring security of confidential information. Cloud data storage offers many benefits to consumers and companies ...

    Published:  January 22, 2023, 11:00 AM EST Modified:  January 23, 2023, 3:00 PM EST Read More See more TechRepublic Premium

Services

  • About Us
  • Manage Profile
  • Newsletters
  • RSS Feeds
  • Site Map
  • Site Help & Feedback
  • FAQ
  • Advertise
  • Do Not Sell My Information

Explore

  • Downloads
  • TechRepublic Forums
  • Meet the Team
  • TechRepublic Academy
  • TechRepublic Premium
  • Resource Library
  • Photos
  • Videos
  • TechRepublic
  • TechRepublic on Twitter
  • TechRepublic on Facebook
  • TechRepublic on LinkedIn
  • TechRepublic on Flipboard
© 2023 TechnologyAdvice. All rights reserved.
  • Privacy Policy
  • Terms of Use
  • Property of TechnologyAdvice
