Cracking Open the Classmate 2GoPC from CTL Corp
Image 1 of 27
It's not about fashion
It's not about fashion
The Classmate 2GoPC from CTL Corporation is an ultra-portable laptop computer designed to be used by students in elementary and secondary school. It is a rugged PC running Windows XP on a platform with 512MB RAM, 60GB hard drive, and an Intel Celeron M processor. We put the 2GoPC’s ruggedness to the test in this TechRepublic Cracking Open Photo Gallery.
Turn of the screw
Turn of the screw
The sturdy design of the 2GoPC that I noticed in the Geek Gift Guide review meant one thing to me when it came to cracking it open — lots of screws. Here are four screws hidden in the battery bay.
Leather skin
Leather skin
The leather-like covering on the outside helps with the 2GoPCs rugged feel. The skin is held in place by the wonder of Velcro.
Upgradeable
Upgradeable
Getting to the upgradeable parts of the 2GoPC is accomplished by removing these two screws (arrows) and pulling out the access panel.

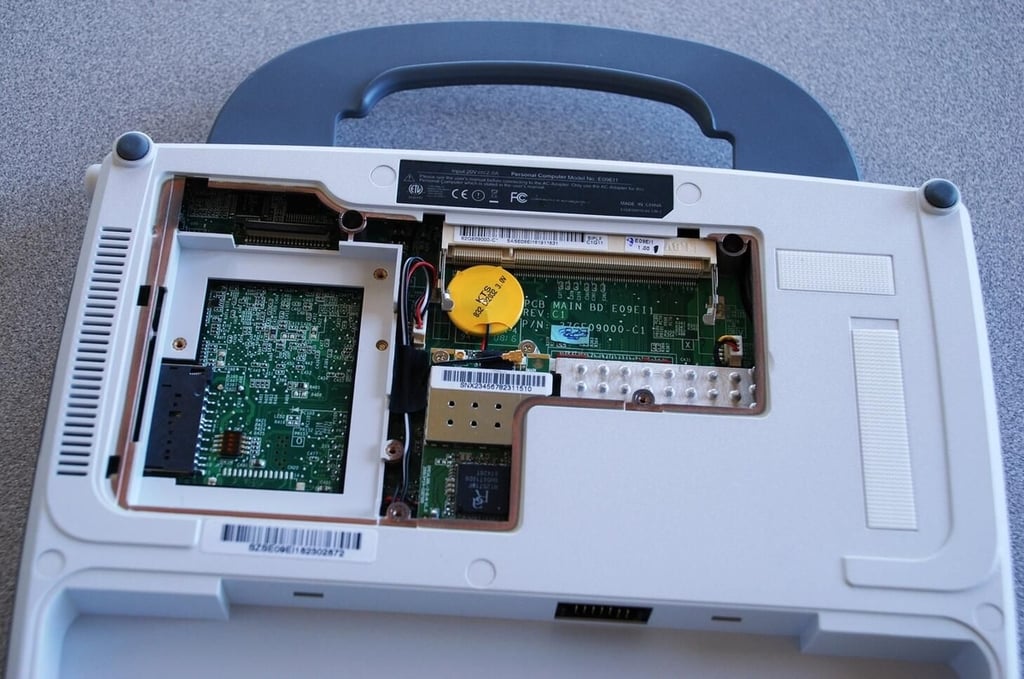

Internal parts
Internal parts

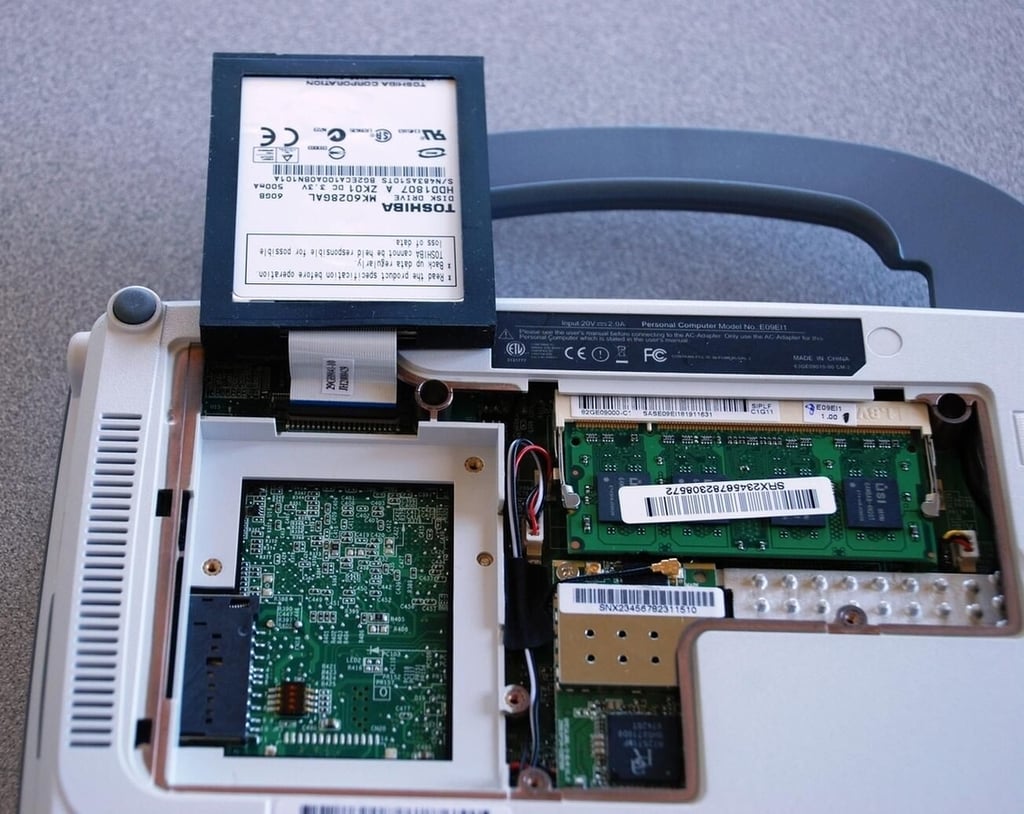

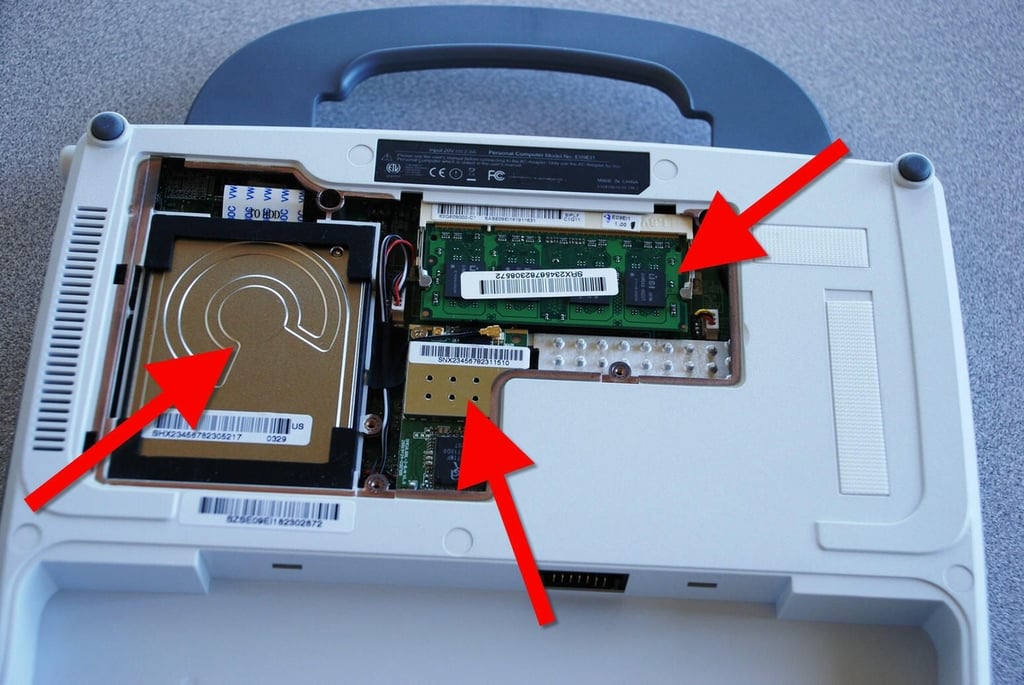

We have easy access to the most upgradeable and serviceable parts of the 2GoPC laptop: 60GB hard drive, 512MB RAM stick, and WiFi network card.
Oh great, ribbon cables
Oh great, ribbon cables
Of course there would be ribbon cables. My job cannot be an easy one.

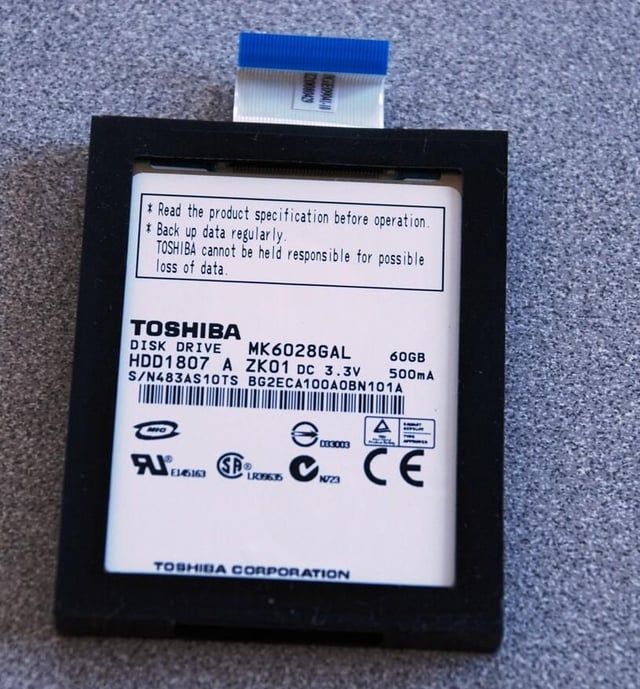

Toshiba
Toshiba
The hard drive is manufactured by Toshiba.
Room for more
Room for more
It appears there is enough room for another stick of RAM, that is, if you move the battery backup somewhere else in the case.

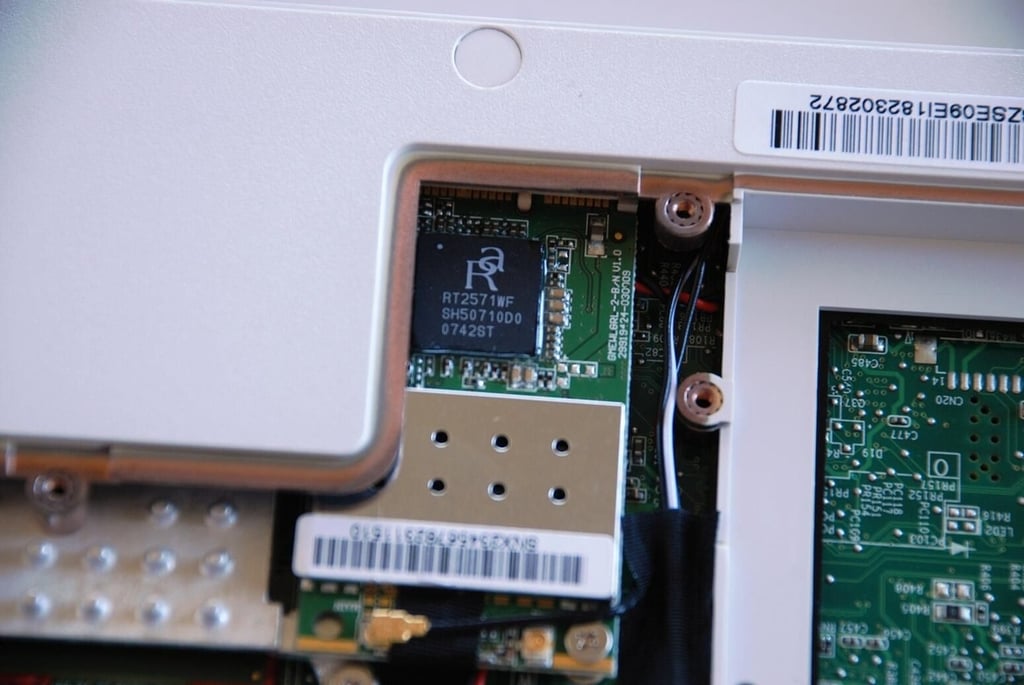

WiFi card
WiFi card
The next thing to remove is the WiFi card which is secured by a single screw.

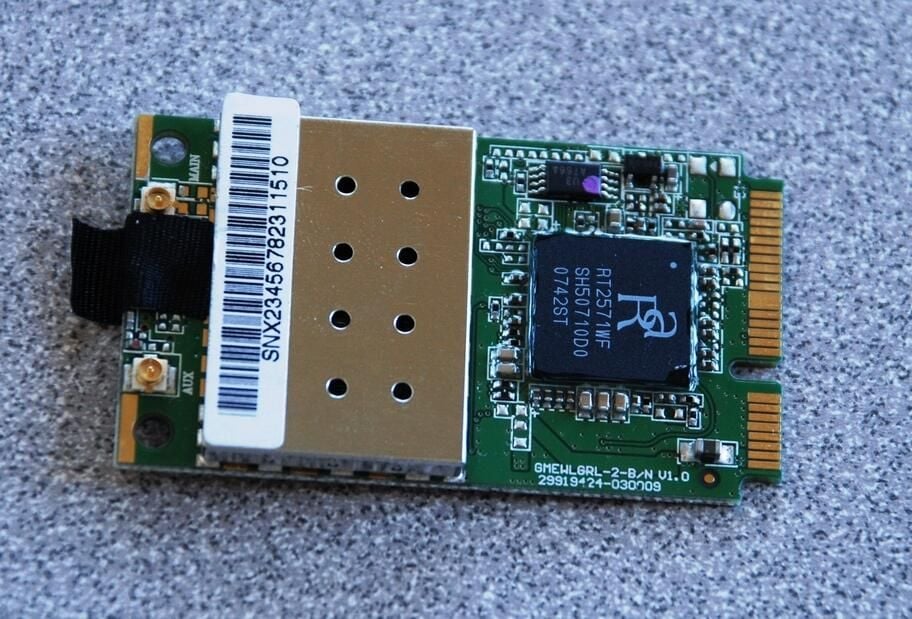

Ralink
Ralink
The WiFi chip is from Ralink.

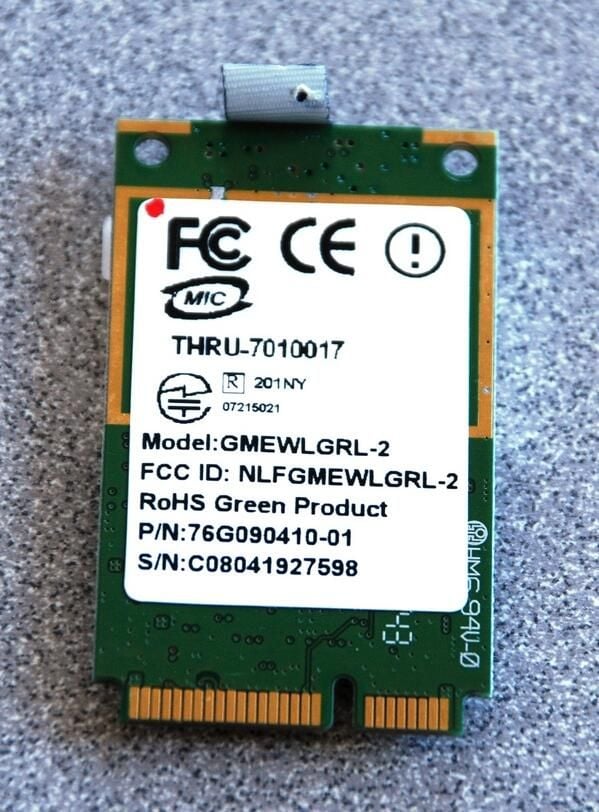

802.11g
802.11g
The Ralink WiFi card appears to be a standard 802.11g wireless NIC.
Now the fun begins
Now the fun begins

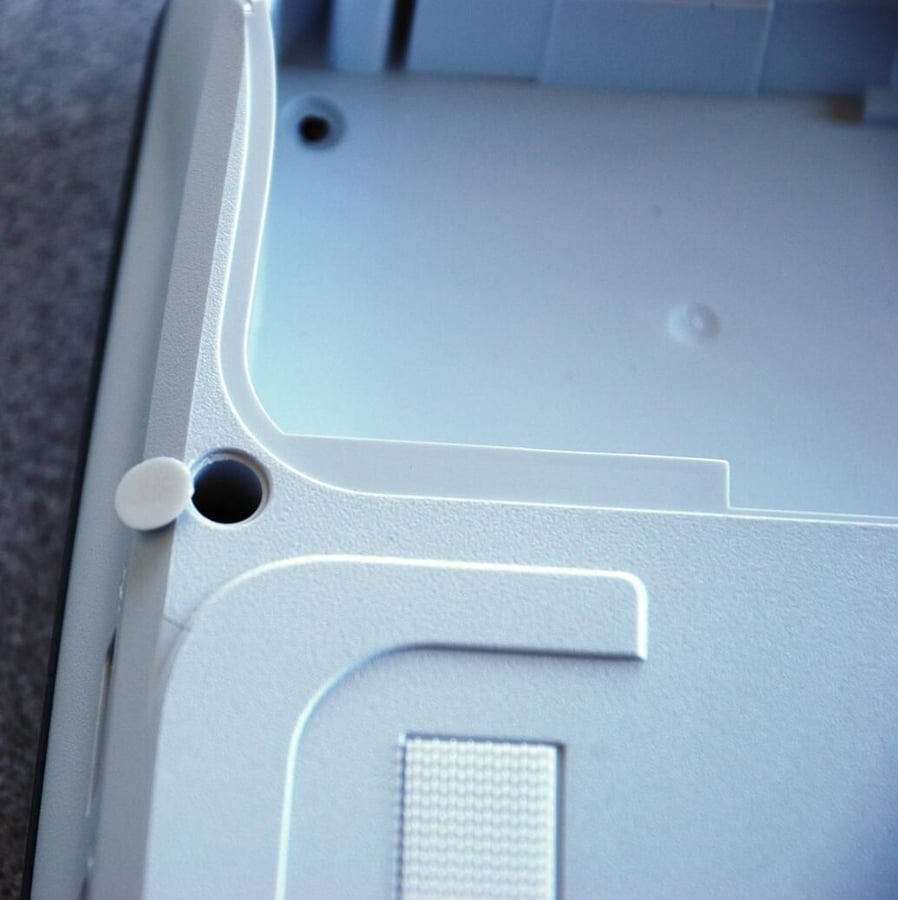

With the easy stuff out of the way, it is time to really get to the cracking open. Besides the numerous obvious screws that keep the 2GoPC case together, there are several hidden screws. For example, the screws located under these plastic hole covers.
I see you
I see you

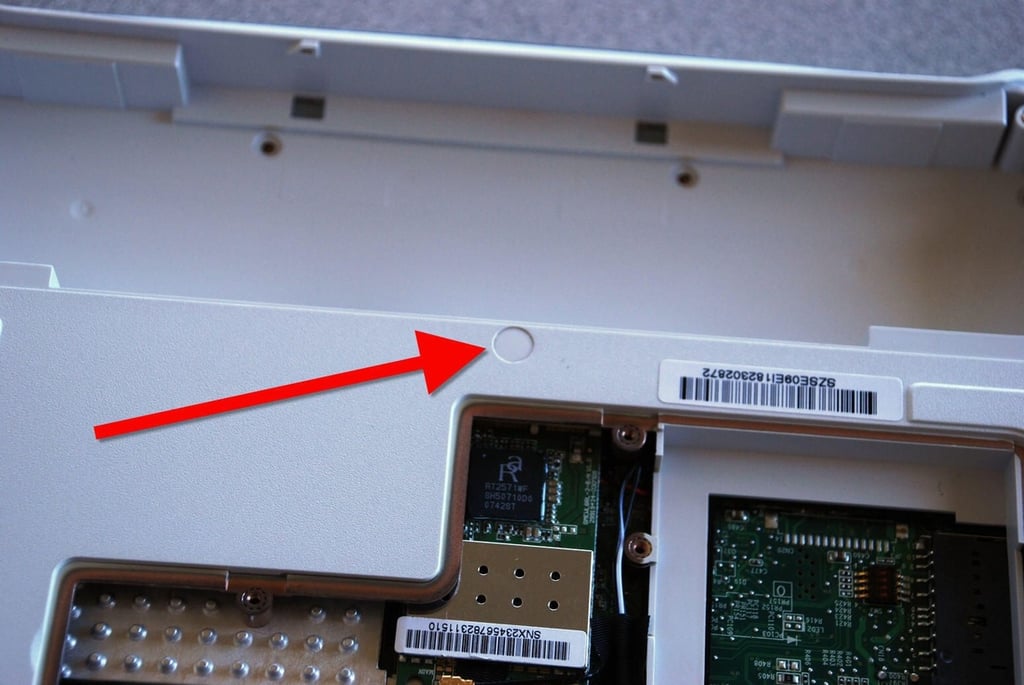

The plastic hole covers pop off easy if you use a small flat head screw driver.
More hidden screws
More hidden screws

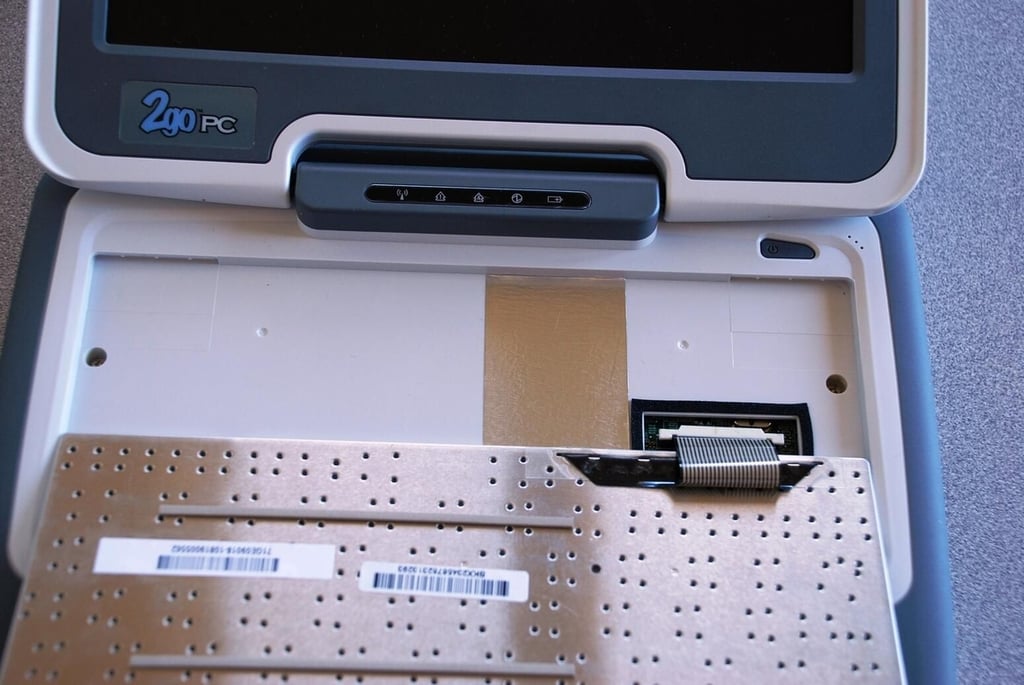

After finding the screws under the plastic hole covers and under the rubber feet, I still could not get the case to come a part. It was obvious that there were still some hidden screws to find.nnThe next step was to look under the keyboard — bingo!
Even more hidden screws
Even more hidden screws

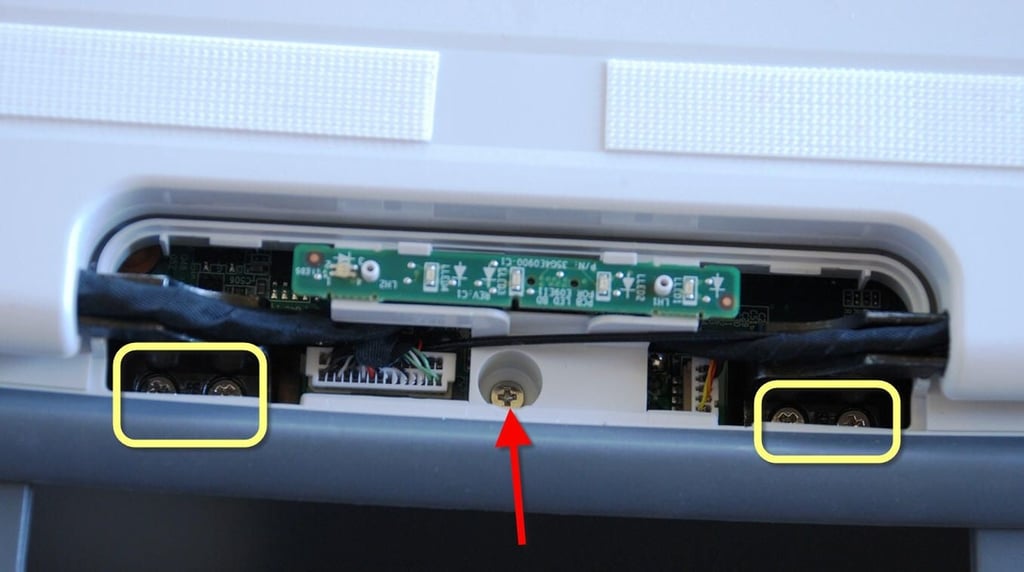

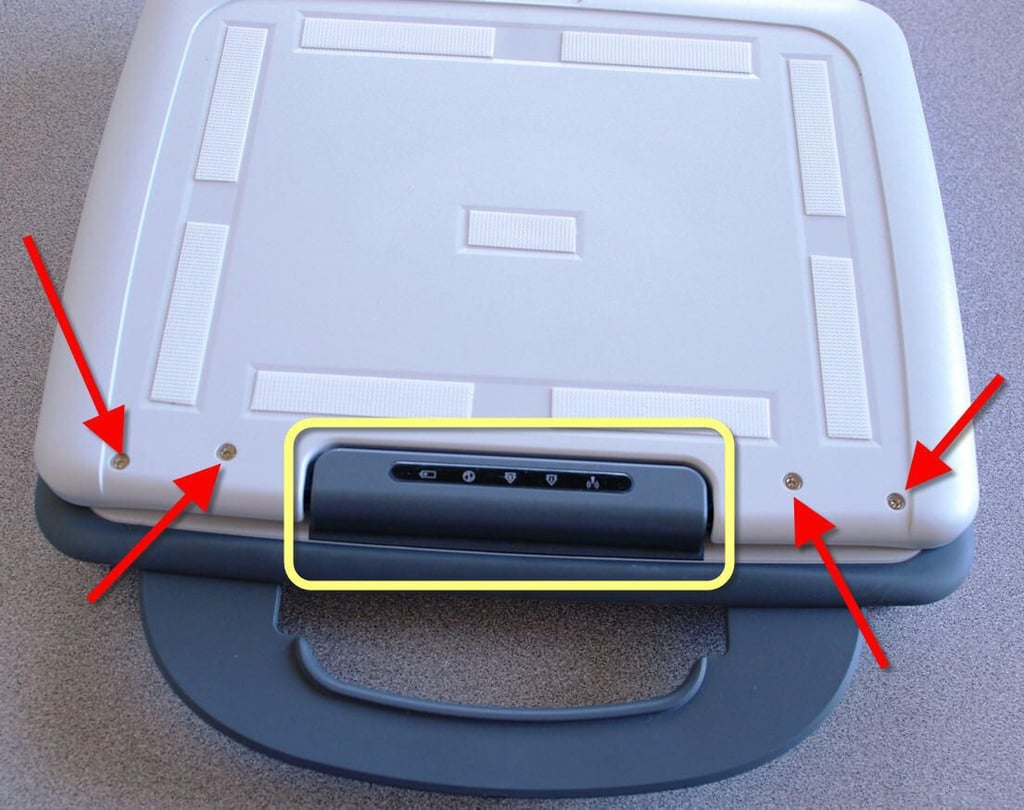

Even after finding the screws hidden under the keyboard, I was unable to open the case. There had to be more screws.nnI removed the four screws (red arrows) from on top of the lid of the laptop, where the LCD is housed but that did nothing. I didn’t think it would but I was getting desperate. nnThe next step was to remove the plastic part that housed the indicator lights. The hinge mechanism was hidden under there and was likely the last connection system I had to deal with to get into the case.
Jackpot
Jackpot
Ah, there they are. See, I told you the 2GoPC was built to last. Removing these five screws gave me access to the inside of the case.
Ribbon cables again
Ribbon cables again

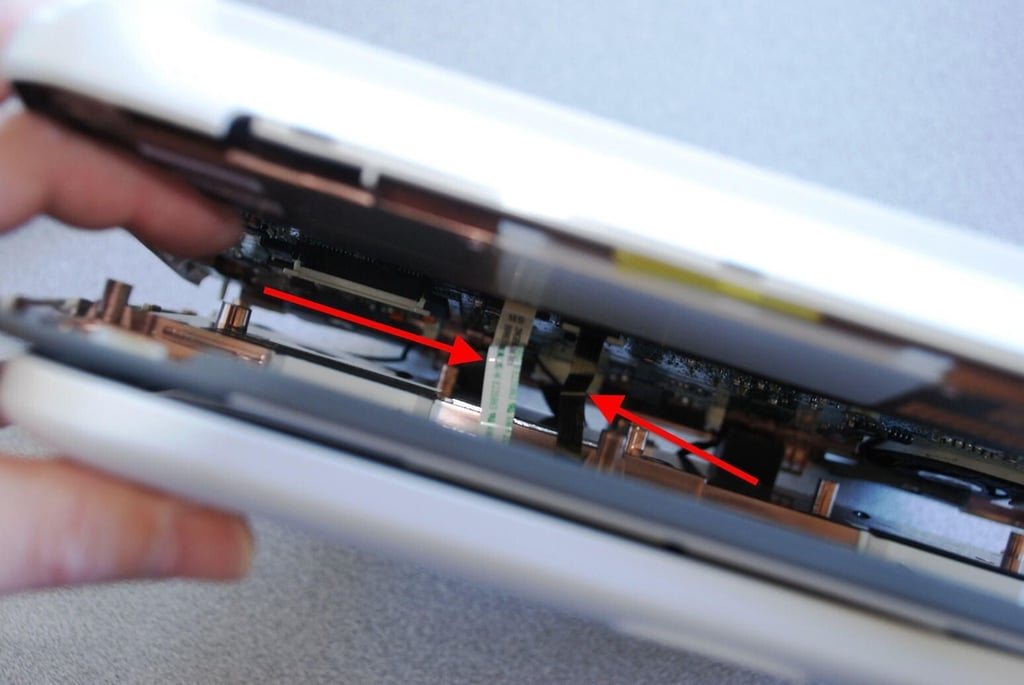

Hmm, this is a perplexing problem. There are two ribbon cables (red arrows) connecting the touch pad and the left and right buttons. I can see the gates that will release them, but I don’t see how I can get them back in the gates once I do. Oh, well, time is wasting – I’m in and hoping for the best.
Redemption
Redemption

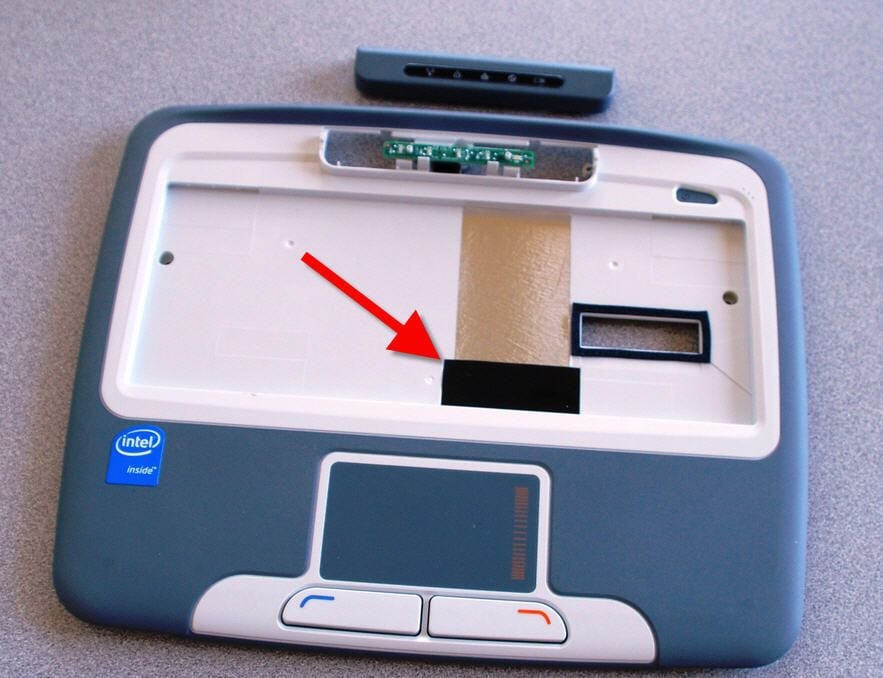

An epiphany! The red arrow marks a piece of tape and when the 2GoPC is put together the two gates to the touch pad and buttons will be revealed. Now I am certain I can get it all back together.
First look at the motherboard
First look at the motherboard
The main circuit board is now revealed. We can see several large chips on the board. These will be highlighted.

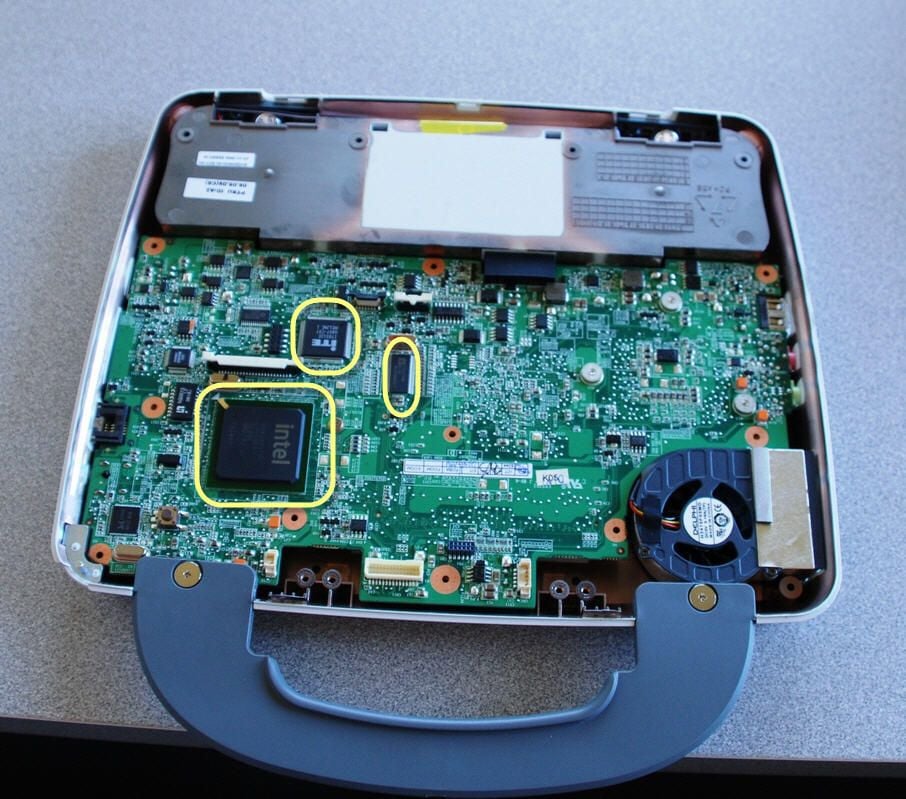

Intel plus
Intel plus

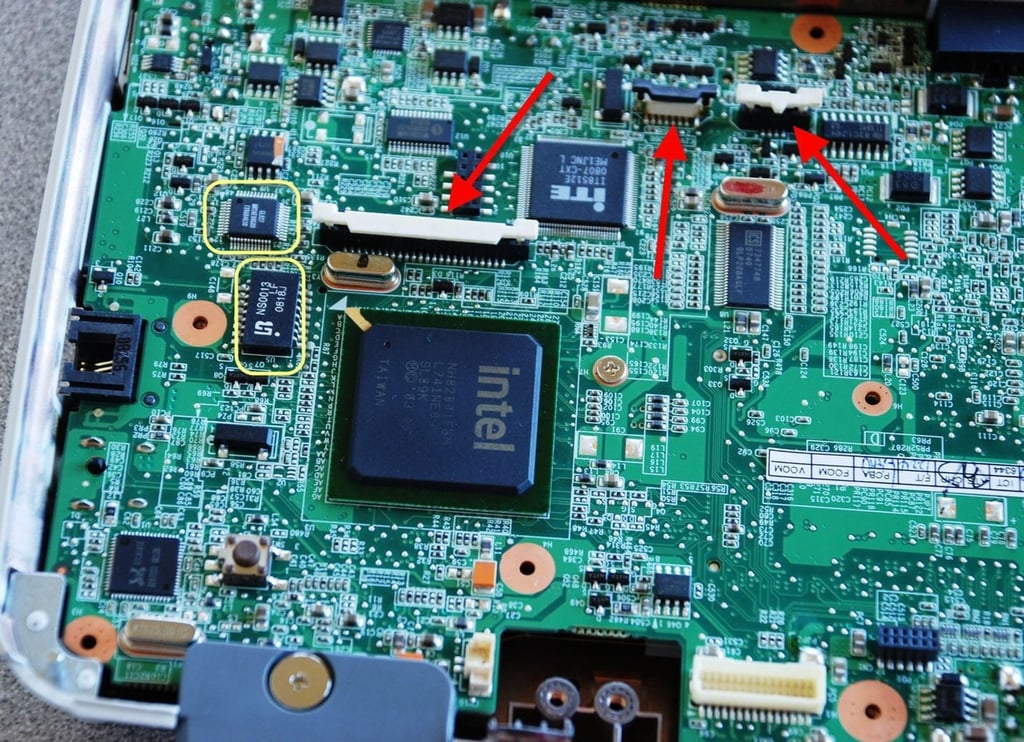

Besides the obvious Intel CPU there are also two smaller chips that we might want to take a look at.
Intel Celeron M Processor Ultra Low Voltage CPU
Intel Celeron M Processor Ultra Low Voltage CPU

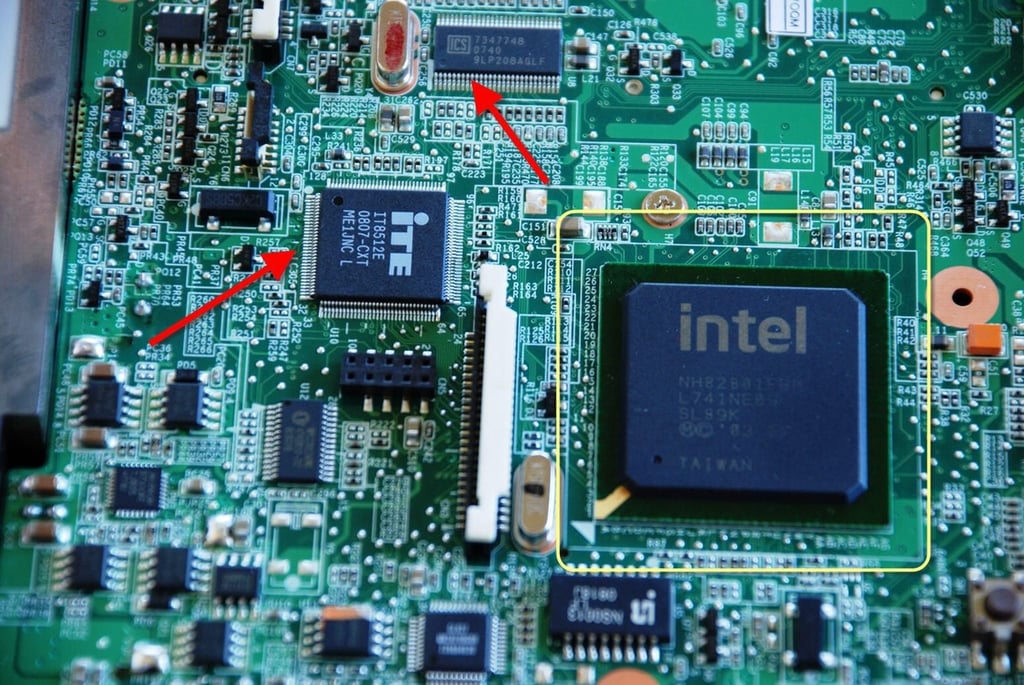

The CPU is the Intel Celeron M Processor with Ultra Low Voltage. The CPU operates a fairly pedestrian 900MHz.nnThe chip from Integrated Technology Express Inc. (ITE) is an embedded controller handling the keyboard and touch pad functions.nnThe Integrated Circuit Systems (ICS) handles the clock functions for the system.
Ribbon gates
Ribbon gates

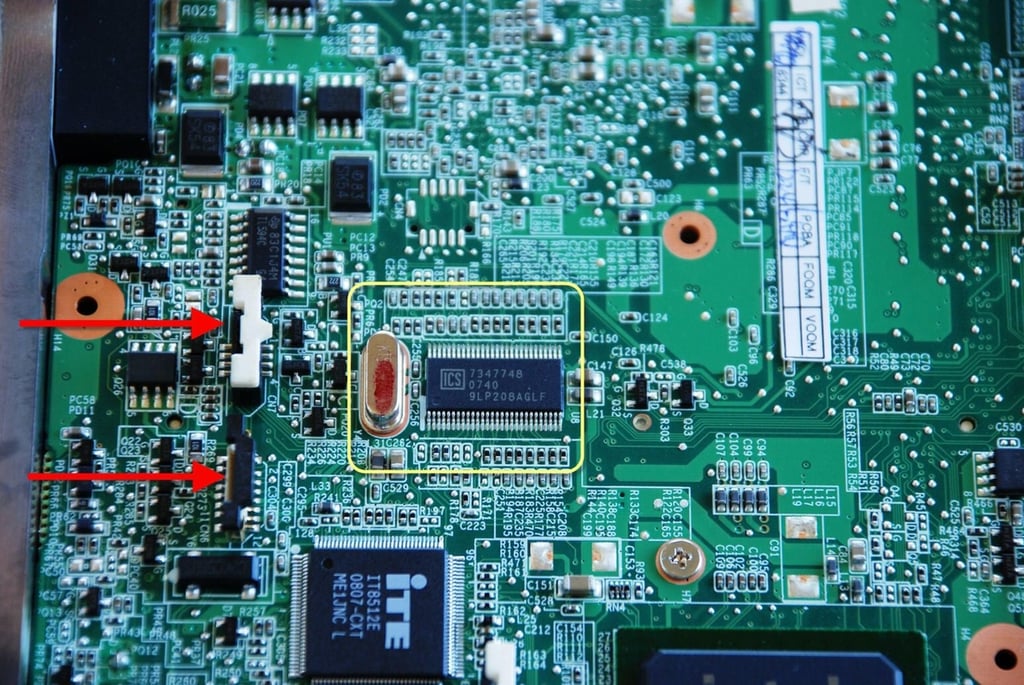

Besides another look at the ICS chip, you can get a good look at the two gate connectors for the touch pad and mouse buttons.

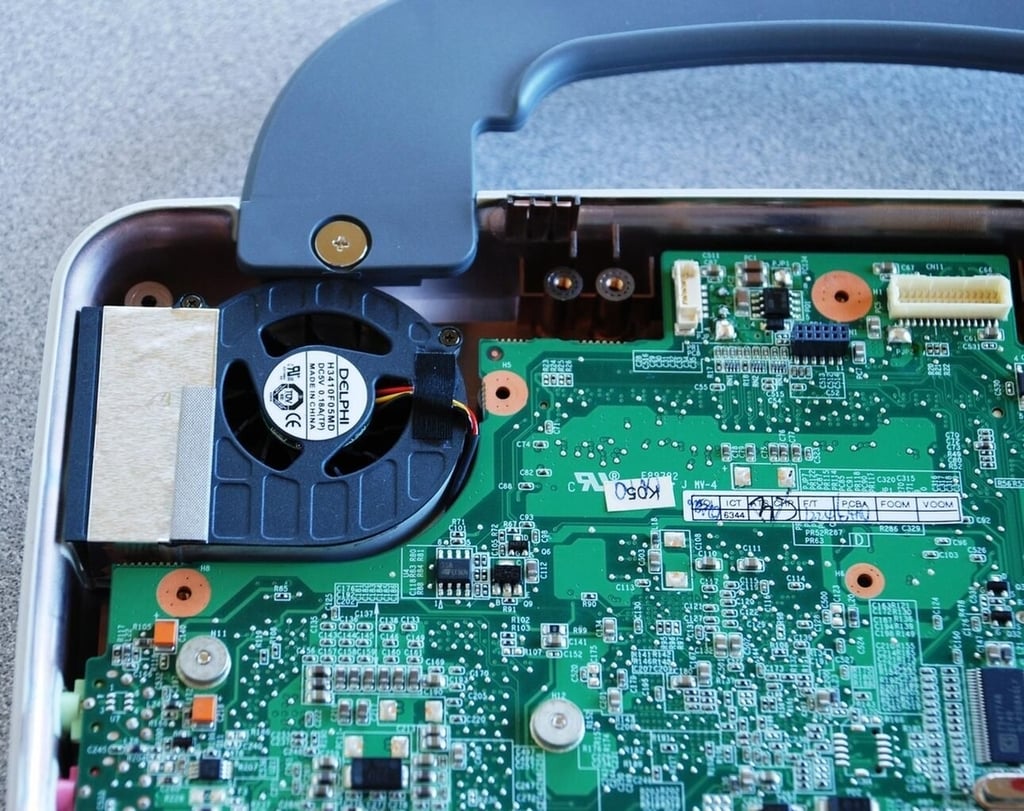

Heat dissipation
Heat dissipation
Oddly enough, the Celeron CPU has no direct heat dissipation. But something does judging by that fan.
The other side
The other side

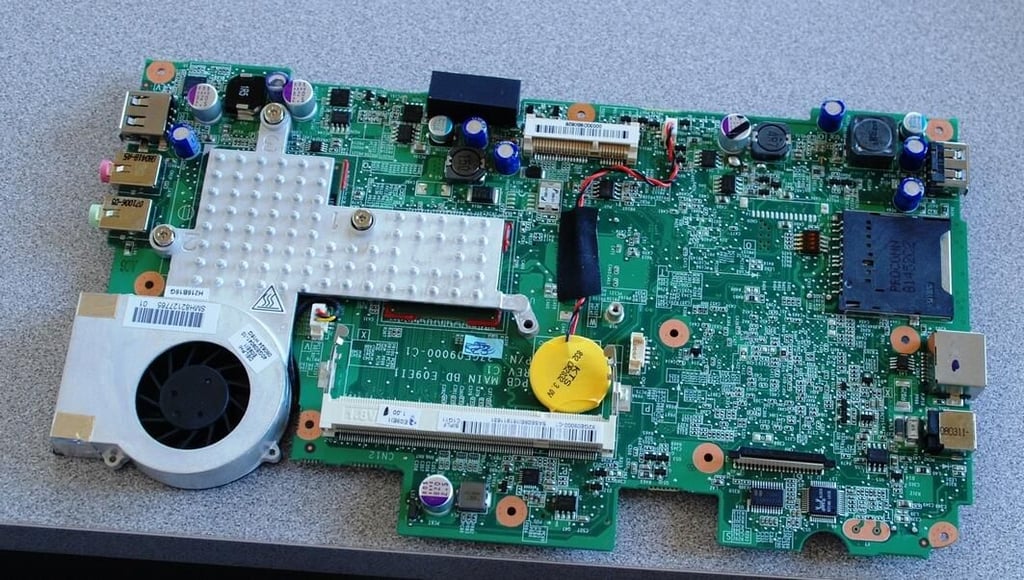

Taking the motherboard out of the case completely reveals the other side. We have seen part of this before through the back panel, but now we can see the whole thing.
Card reader
Card reader
The red arrow points to the 2-in-1 SD/MMC memory card reader.
Graphics One
Graphics One
The Intel 915GMS Chipset is made up of two chips. The first one is this big chip here.
Graphics Two
Graphics Two
The second part of the Intel 915GMS Chipset is this small chip. We have seen these chips in our other ultra portable laptops. They must run relatively hot because they are always underneath a considerable heat sink.
