Cracking Open the Dell Adamo

By Bill Detwiler April 10, 2009, 3:05 AM PDT on Twitter billdetwiler

1
of 68

Cracking Open the Dell Adamo

Take a look inside the Dell Adamo

Take a look inside the Dell Adamo

ntDell hopes to take a little air out of Apple’s sails with the Adamo. This upscale laptop packs a lot of tech into a stylish, ultrathin package. But, it’s going to cost you. Our $1,999 model includes a 1.2GHz Intel Core 2 Duo Processor, 2GB 800MHz DDR3 dual-channel memory, 128GB solid state drive, and 13.4-inch 16:9 WLED display.

n

ntnn

n

ntIn a special partnership with iFixit, TechRepublic brings you this gallery of the cracking open process. iFixit is a one-stop-shop for the parts, tools, and step-by-step guides needed to repair iPods, iPhones, Macs, and almost any Apple product. Follow along as iFixit engineers disassemble the Dell Adamo and expose the tech inside.

n

nt
ntPhoto by iFixit for TechRepublic.

Cracking Open the Dell Adamo

Adamo shipping box

Adamo shipping box



Photo and caption by iFixit for TechRepublic.

Cracking Open the Dell Adamo

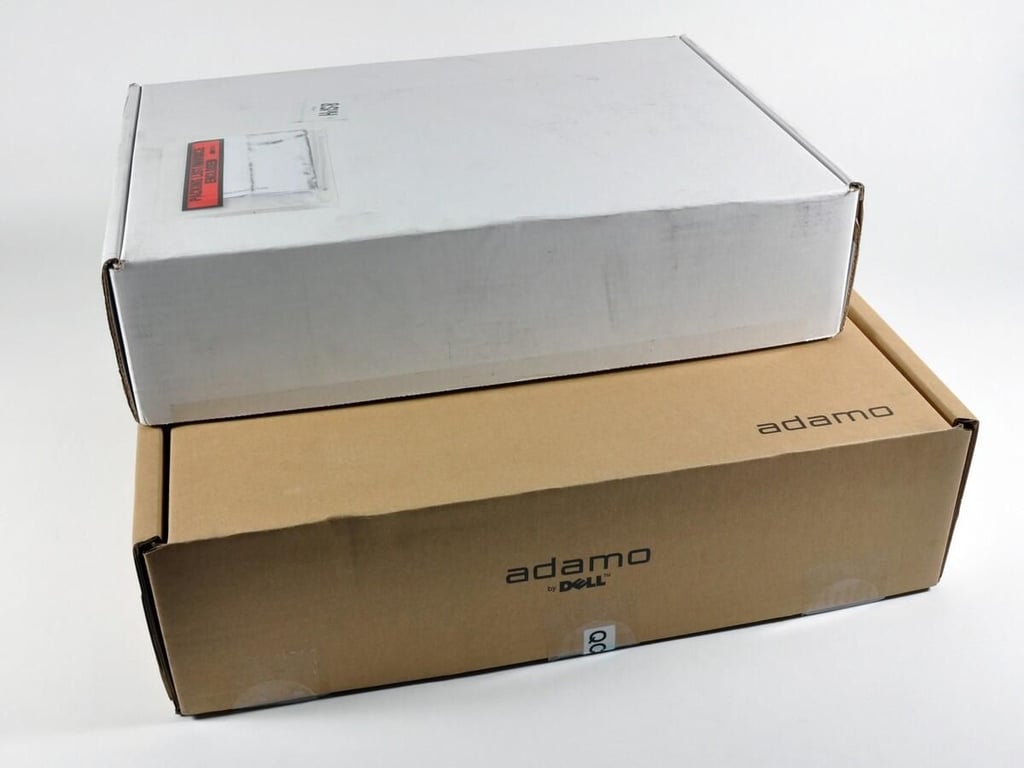

Shipping boxes for the Dell Adamo and Apple MacBook Air

Shipping boxes for the Dell Adamo and Apple MacBook Air

The shipping box is substantially larger than that of the MacBook Air (white box), but the two machines are nearly identical in size.

Photo and caption by iFixit for TechRepublic.

Cracking Open the Dell Adamo

Adamo packing material

Adamo packing material

Ladies and gentlemen, Adamo has left the box. Now we know why the the box was so large: the Adamo is encased in a “time-capsule” plastic casing, which in turn is protected during shipping via black plastic shipping caps.

Photo and caption by iFixit for TechRepublic.

Cracking Open the Dell Adamo

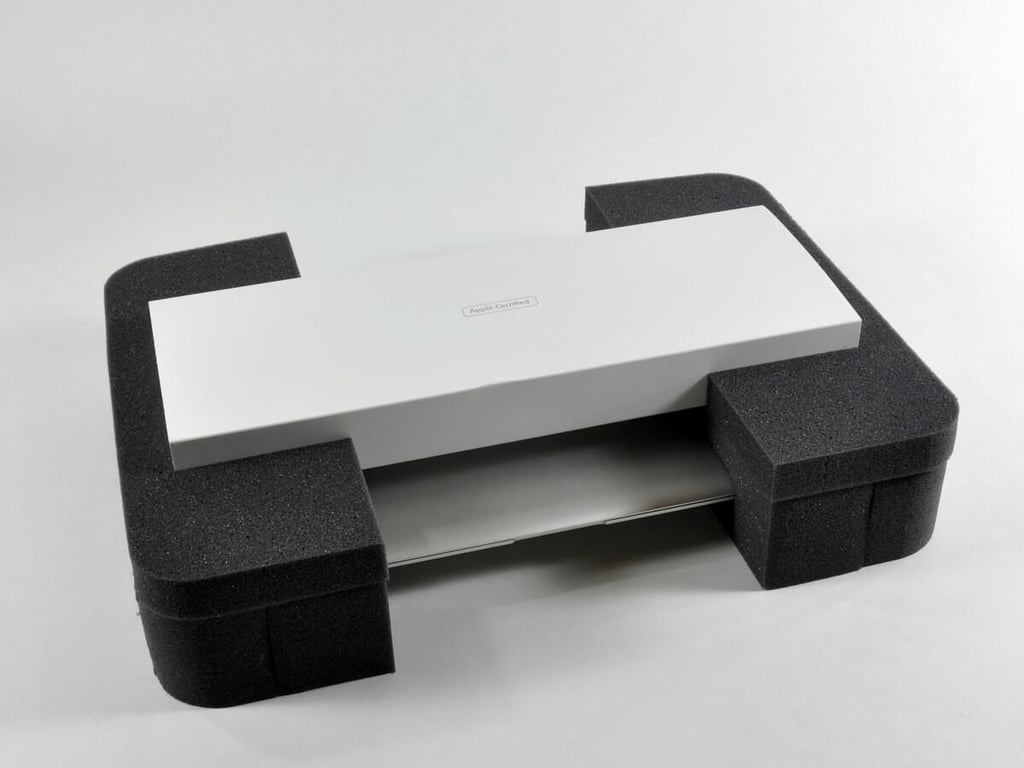

MacBook Air packing material

MacBook Air packing material

Apple’s MacBook Air packaging requires less effort to remove.

Photo and caption by iFixit for TechRepublic.

Cracking Open the Dell Adamo

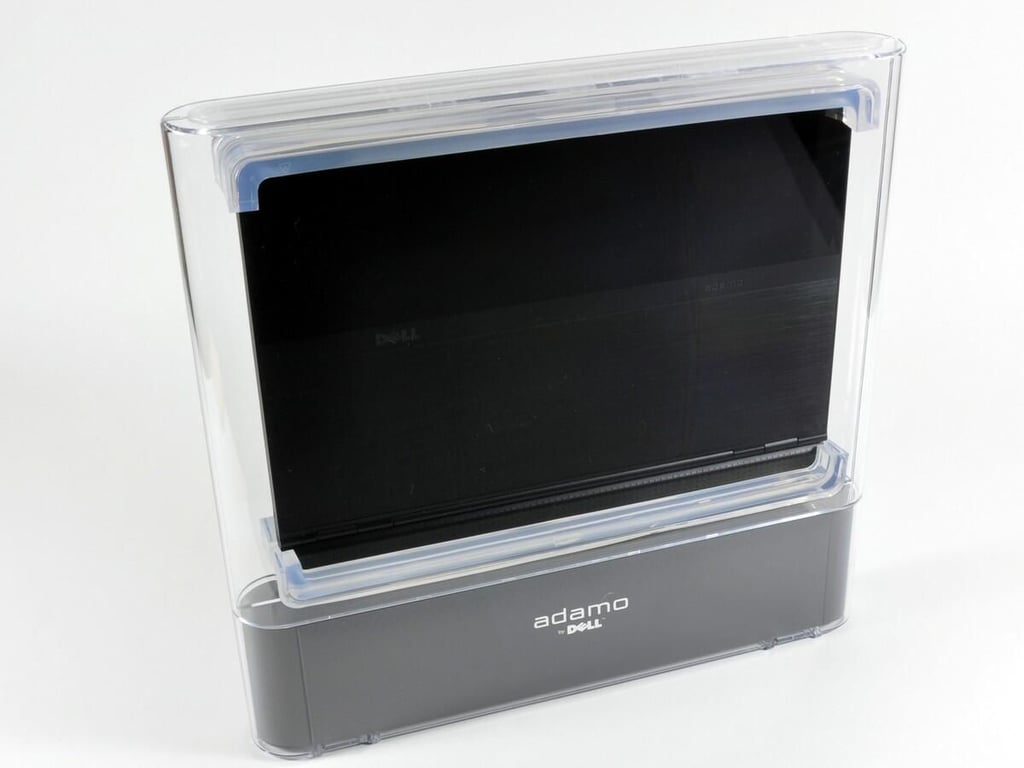

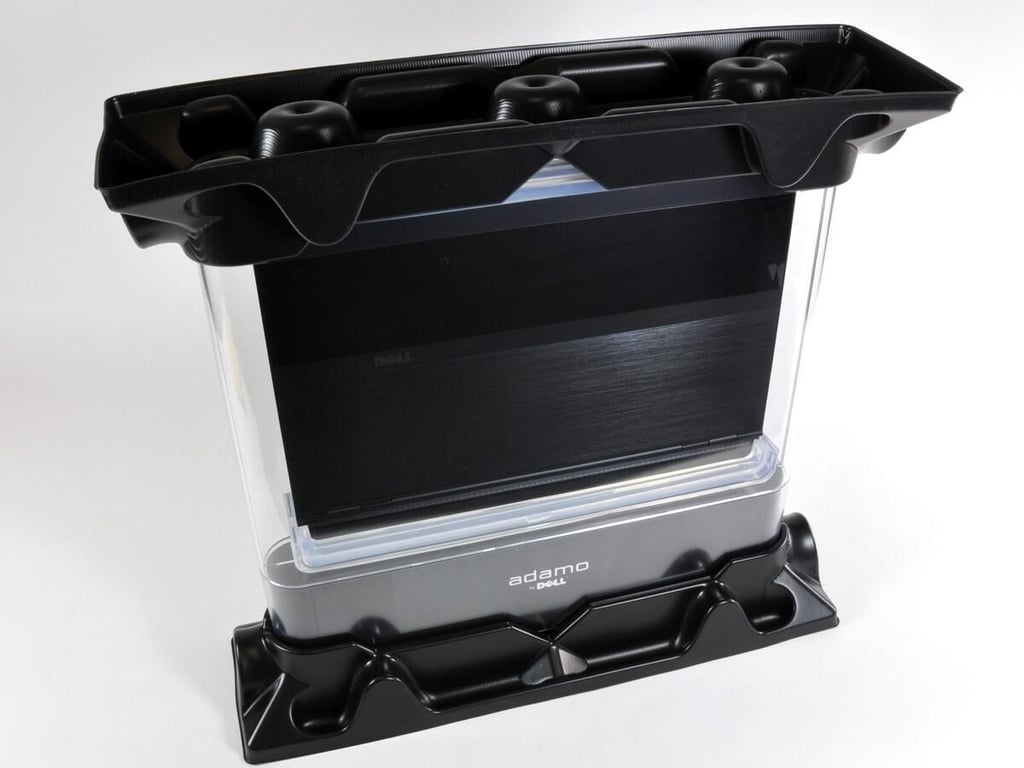

Adamo in its plastic packing case

Adamo in its plastic packing case



Photo and caption by iFixit for TechRepublic.

Cracking Open the Dell Adamo

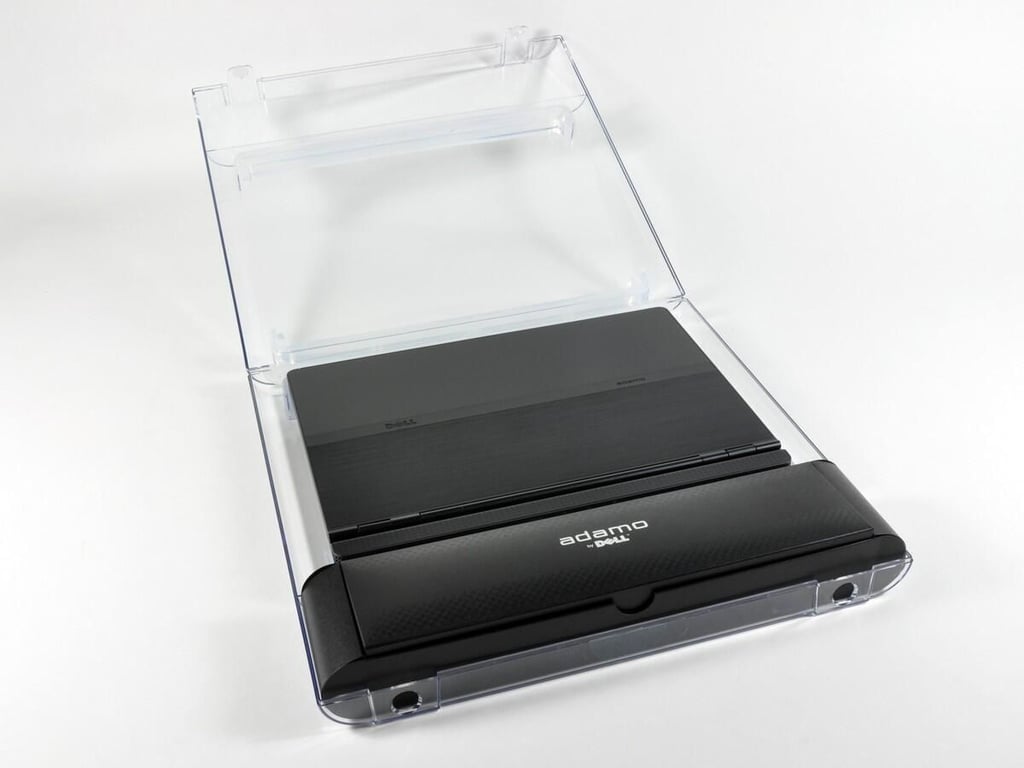

Opening the Adamo's plastic packing case

Opening the Adamo's plastic packing case

We were kind of expecting a high pressure hiss and a dense fog to roll out as the container automatically opened itself. Didn’t happen. There are two plastic tabs on the bottom of the case that had to be pushed quite firmly in order to release the Adamo from its clear sarcophagus. Lenin would be jealous.

Photo and caption by iFixit for TechRepublic.

Cracking Open the Dell Adamo

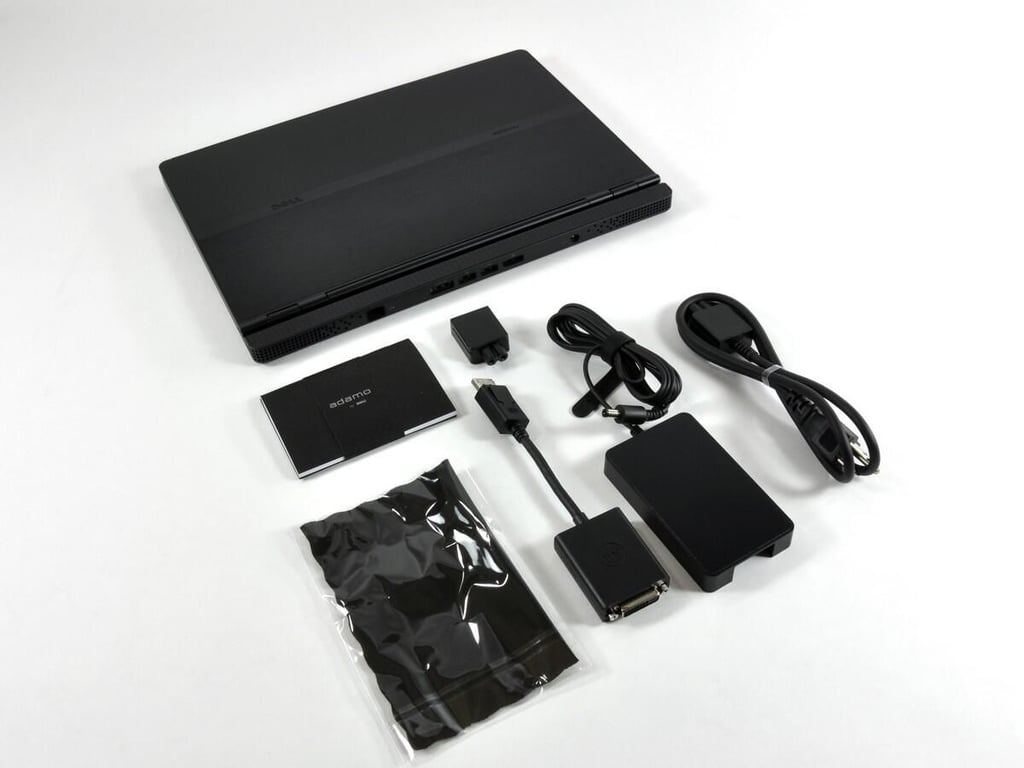

Adamo and matching "onyx" accessories

Adamo and matching "onyx" accessories

The Adamo and the accessories. All our accessories were black, matching nicely with our “onyx” Adamo. We assume (given the price tag) your accessories will be white if you purchase the “pearl” version.

Photo and caption by iFixit for TechRepublic.

Cracking Open the Dell Adamo

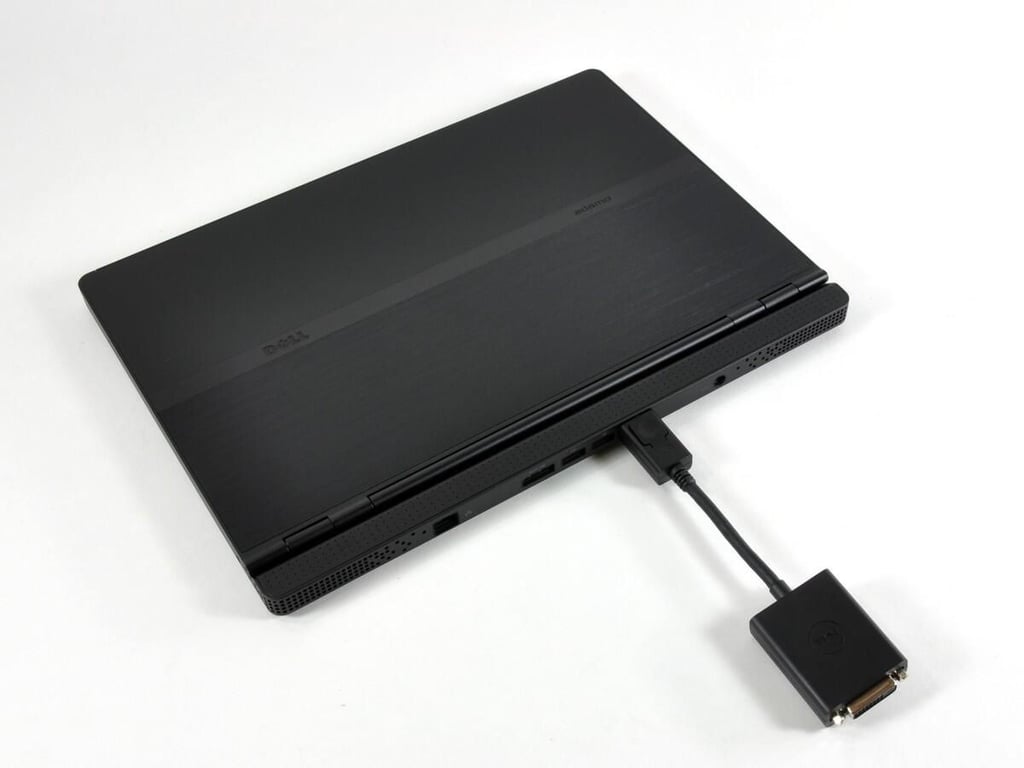

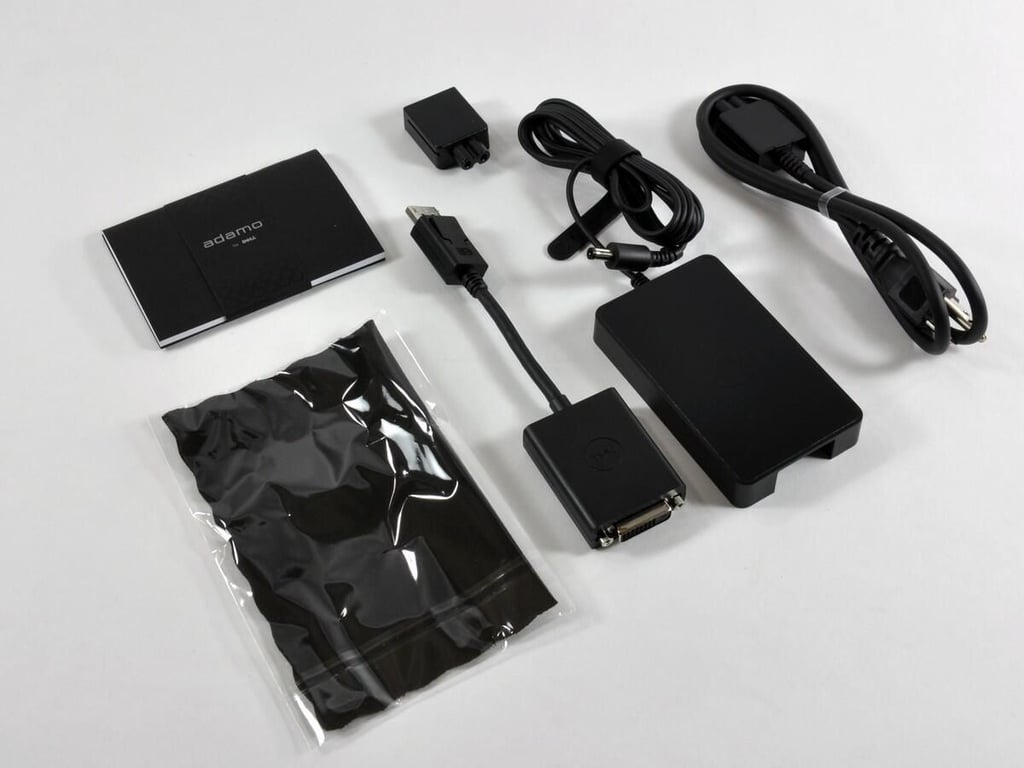

Power adapter, video adapter, and other accessories

Power adapter, video adapter, and other accessories

The AC adapter is 45 watts, just like the MacBook Air’s. The power brick design is elegant, but the actual plug isn’t nearly as slick as the Air’s MagSafe connector.

Photo and caption by iFixit for TechRepublic.

Cracking Open the Dell Adamo

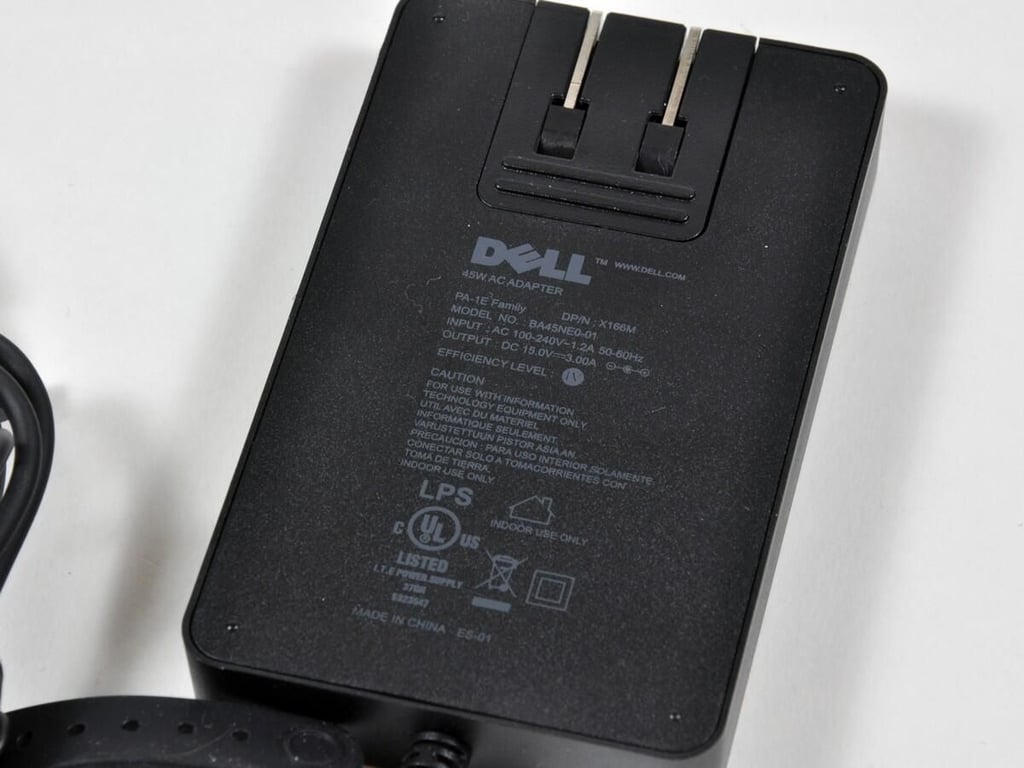

Adamo power adapter

Adamo power adapter

Photo by iFixit for TechRepublic.

Cracking Open the Dell Adamo

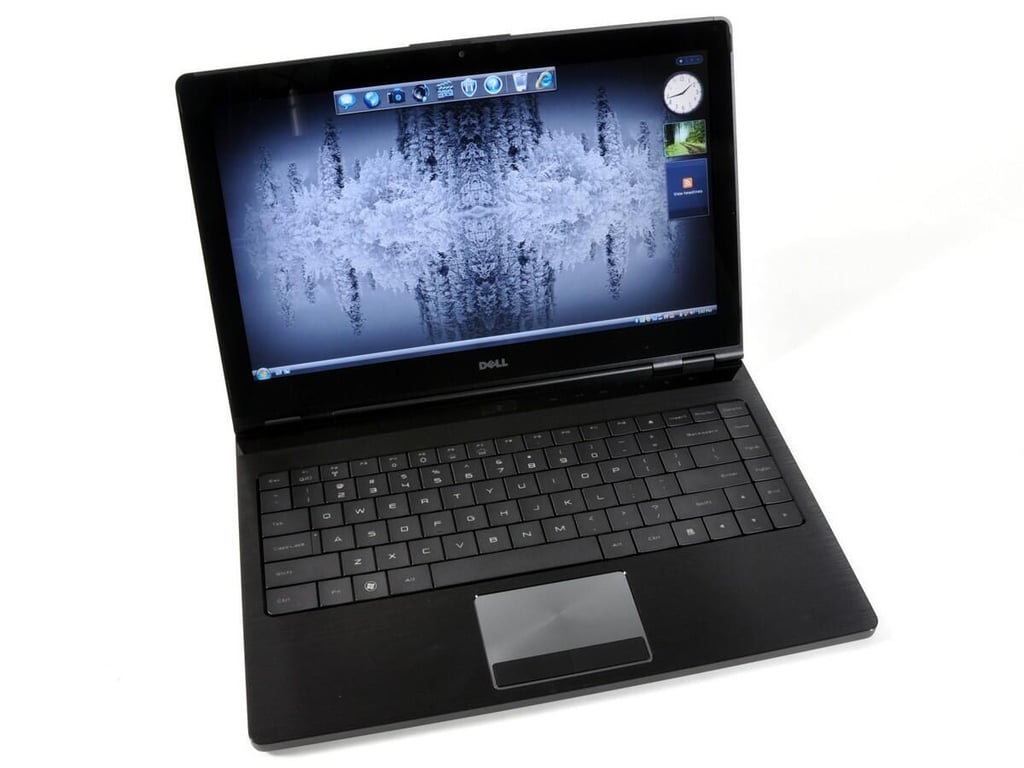

Adamo before the cracking open begins

Adamo before the cracking open begins

Photo by iFixit for TechRepublic.

Cracking Open the Dell Adamo

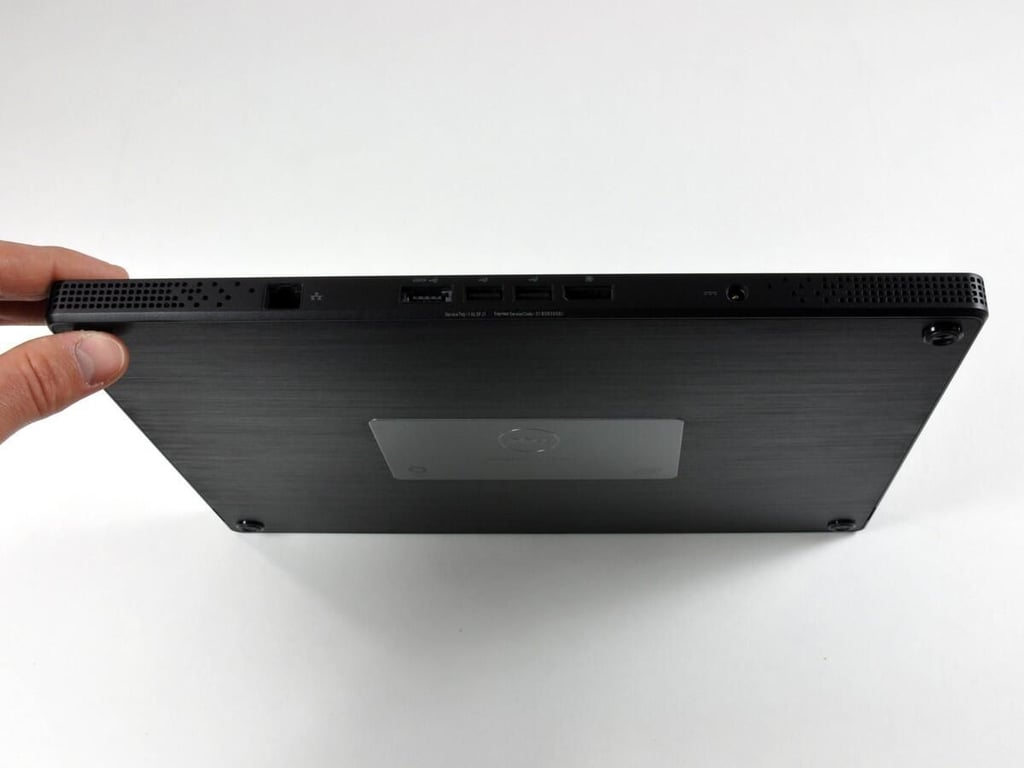

Rear ports

Rear ports

The rear ports of the Adamo, from left to right:
n * RJ45 Ethernet
n * eSATA USB
n * 2x USB
n * DisplayPort
n * AC Adapter


Photo and caption by iFixit for TechRepublic.

Cracking Open the Dell Adamo

Sim card slot and audio out/headphone jack

Sim card slot and audio out/headphone jack

The right side of the Adamo houses a SIM card slot and an audio out/headphone jack.

You get a total of six ports with your Adamo, double that of the MacBook Air. It’s a shame that they couldn’t just put a DVI display port on the computer itself, and instead chose to include a bulky adapter.

Photo and caption by iFixit for TechRepublic.

Cracking Open the Dell Adamo

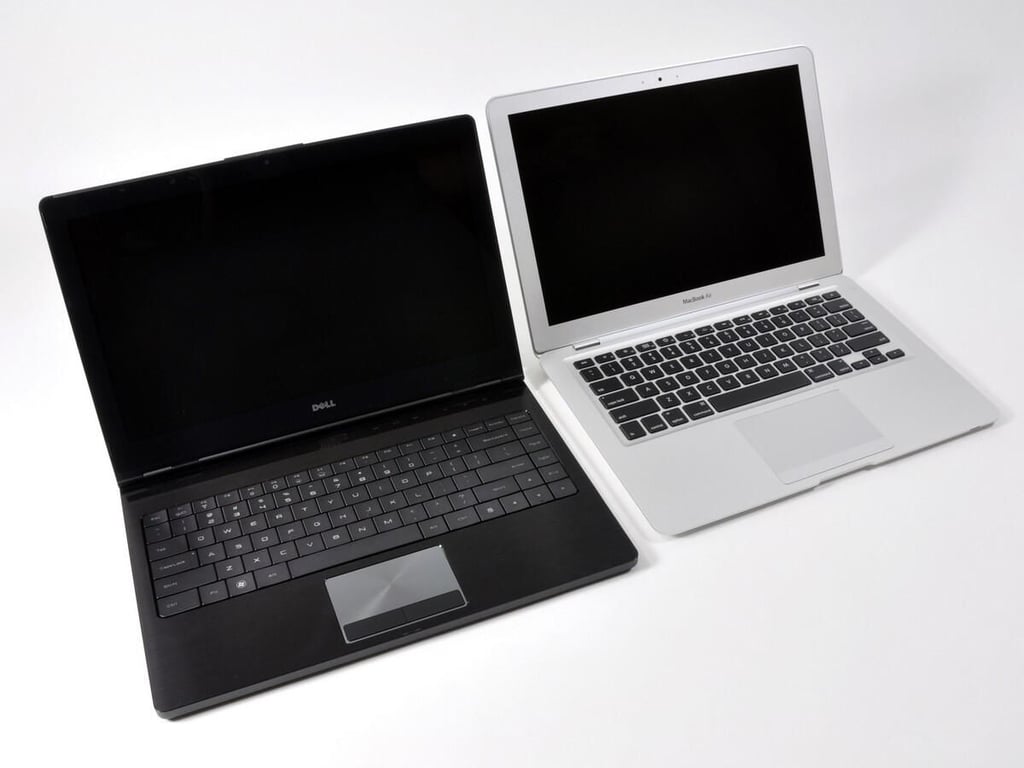

Adamo and MacBook Air side-by-side comparison

Adamo and MacBook Air side-by-side comparison

Adamo, meet Air. Now that you’re acquainted…
nThe Adamo’s dimensions, as compared to the MacBook Air:
n * Width: 0.23″ larger
n * Depth: 0.56″ larger
n * Height: 0.11″ thinner

Photo and caption by iFixit for TechRepublic.

Cracking Open the Dell Adamo

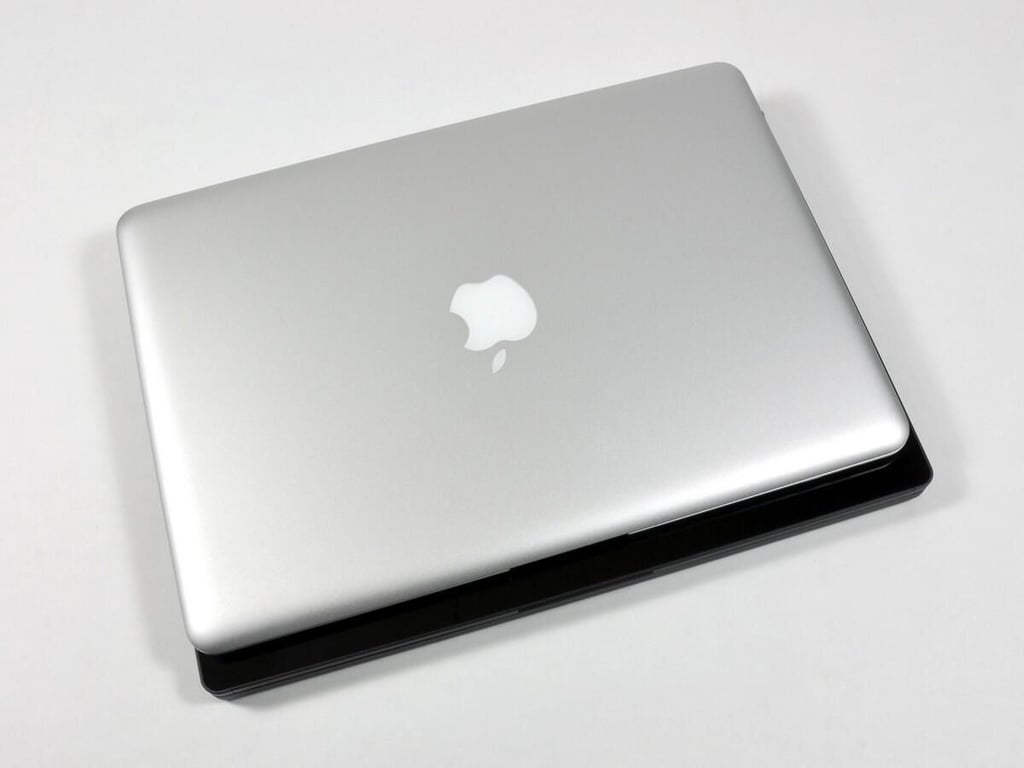

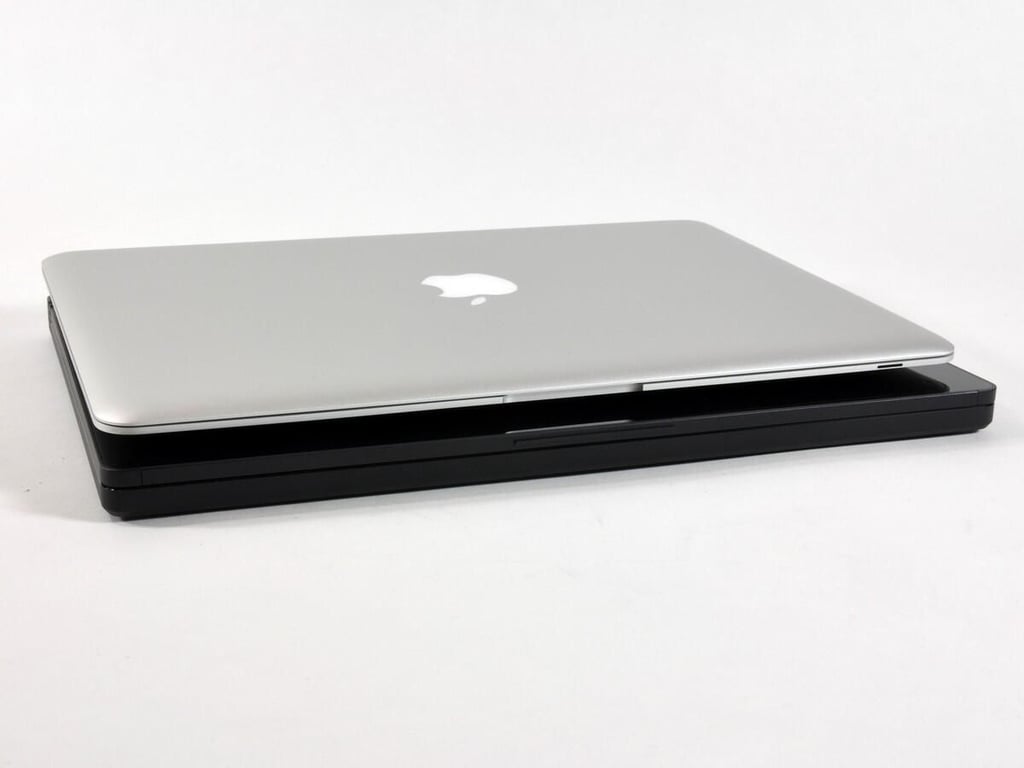

Adamo is wider and deeper

Adamo is wider and deeper

Photo and caption by iFixit for TechRepublic.

Cracking Open the Dell Adamo

Adamo is actually thinner than the MacBook Air

Adamo is actually thinner than the MacBook Air

It’s interesting how the Air plays tricks with height. It certainly looks thinner than the Adamo.

Photo and caption by iFixit for TechRepublic.

Cracking Open the Dell Adamo

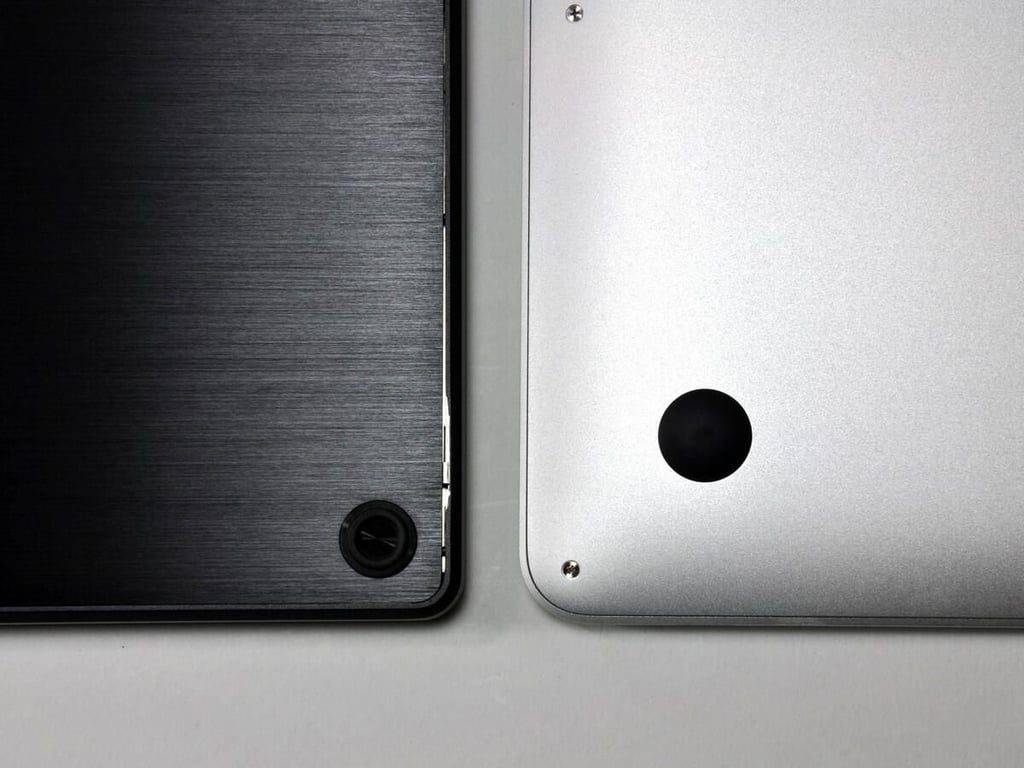

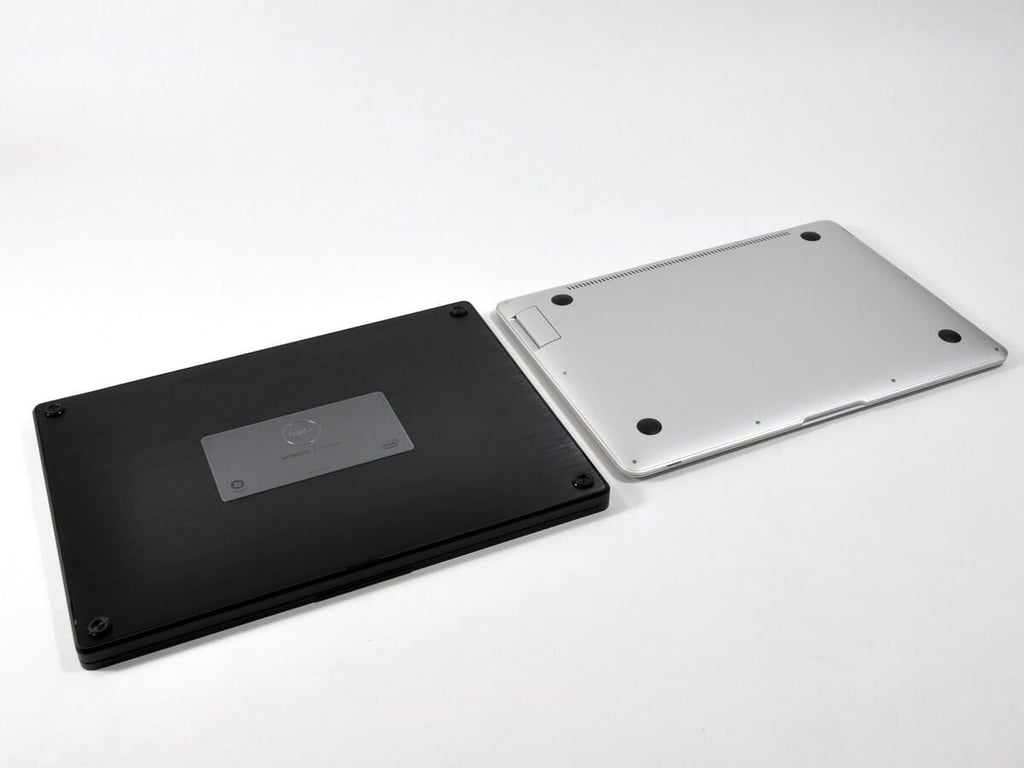

Adamo and MacBook Air undersides

Adamo and MacBook Air undersides

Both the Adamo and Air have very high torsional rigidity. This is largely due to their unibody constructions. It’s hard to say which is more rigid, but the Adamo is heavier so it feels more solid.

Photo and caption by iFixit for TechRepublic.

Cracking Open the Dell Adamo

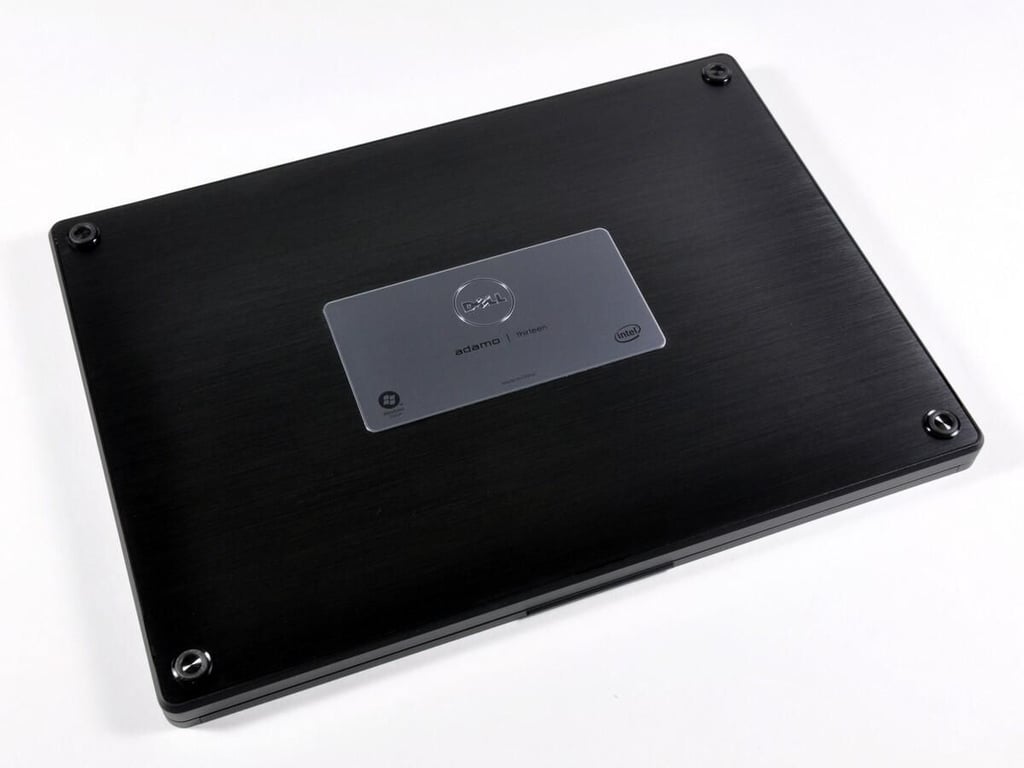

Adamo underside

Adamo underside

The Adamo’s elegance clearly beats the Air from this angle.

Photo and caption by iFixit for TechRepublic.

Cracking Open the Dell Adamo

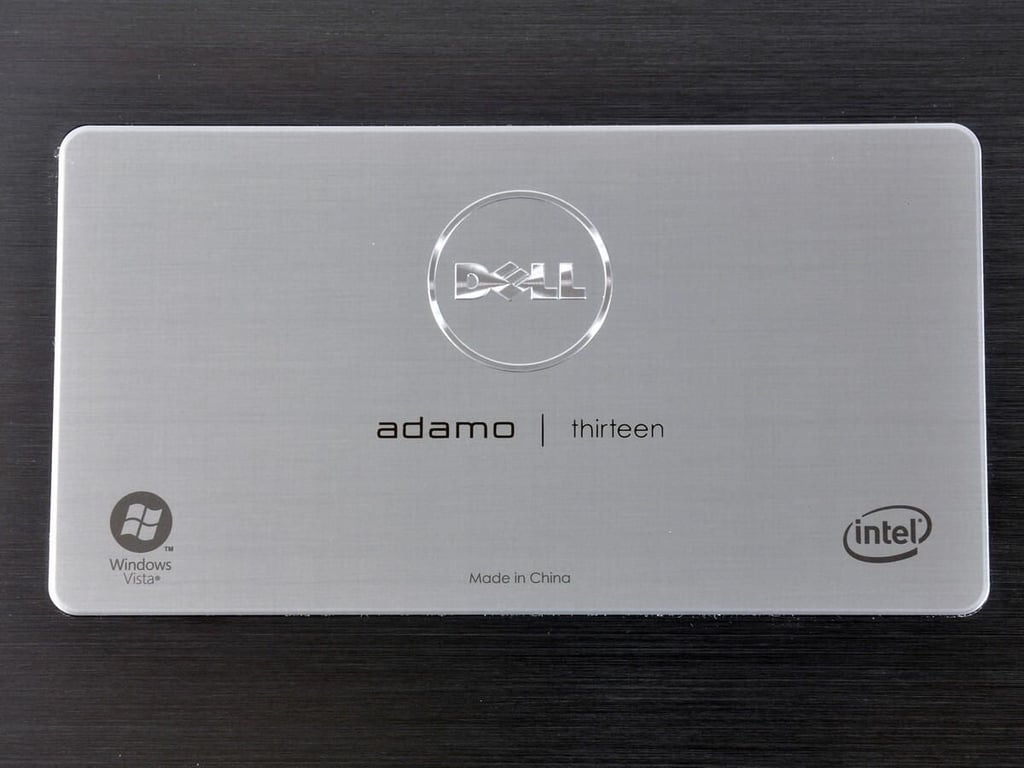

Painted on Intel and Windows logos

Painted on Intel and Windows logos

The Intel and Windows logos are not the typical stickers; they’re painted into the case.

Photo and caption by iFixit for TechRepublic.

Cracking Open the Dell Adamo

Adamo hidden case screws

Adamo hidden case screws

Unlike the Air, there are no visible screws on the bottom of the Adamo. However, the gaps between case bottom and frame are significantly larger than the Air’s.
nGetting inside may require some ingenuity…

Photo and caption by iFixit for TechRepublic.

Cracking Open the Dell Adamo

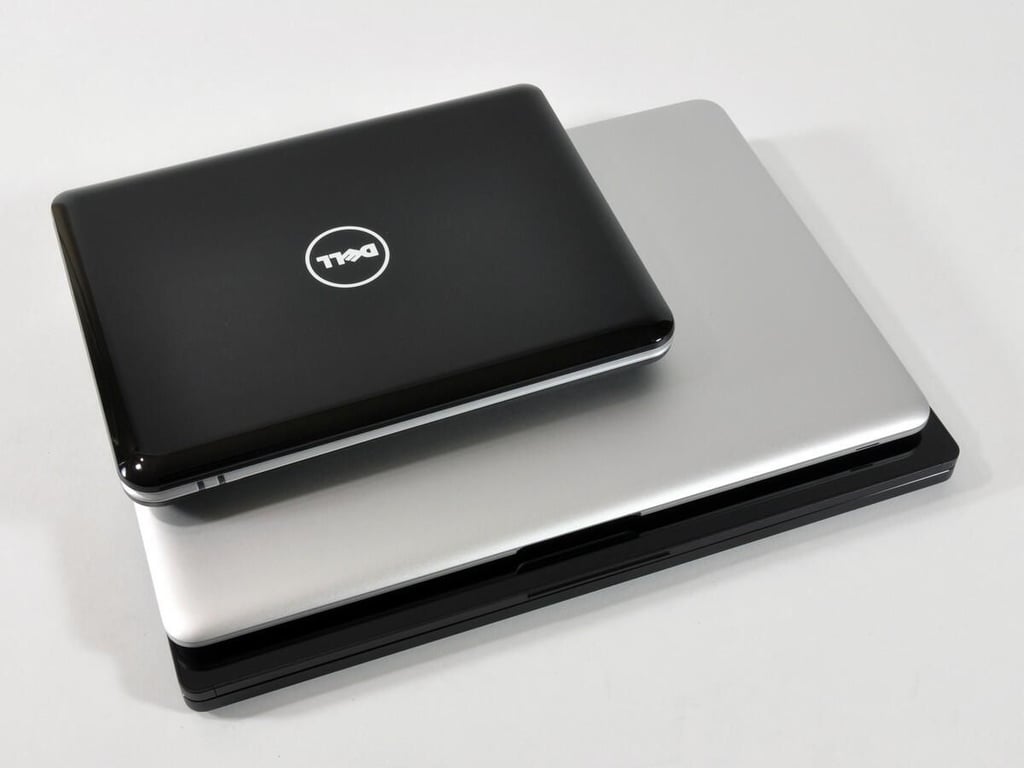

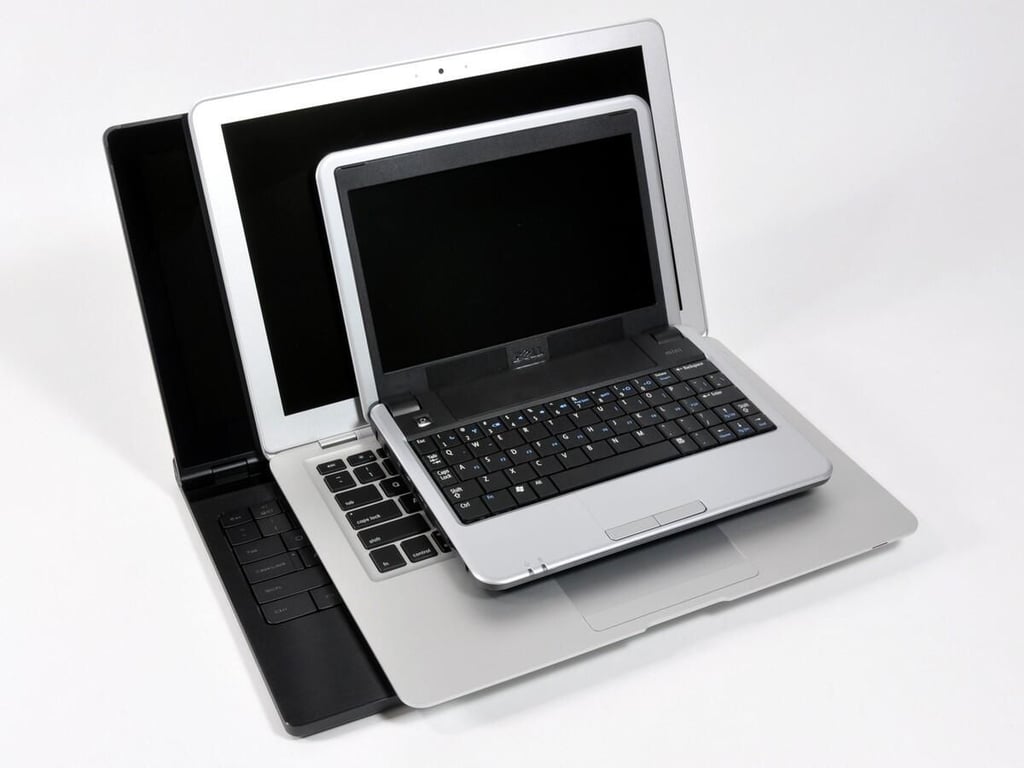

Adamo, MacBook Air, and the Dell Mini

Adamo, MacBook Air, and the Dell Mini

Photo by iFixit for TechRepublic.

Cracking Open the Dell Adamo

Adamo, MacBook Air, and Dell Mini

Adamo, MacBook Air, and Dell Mini

Photo by iFixit for TechRepublic.

Cracking Open the Dell Adamo

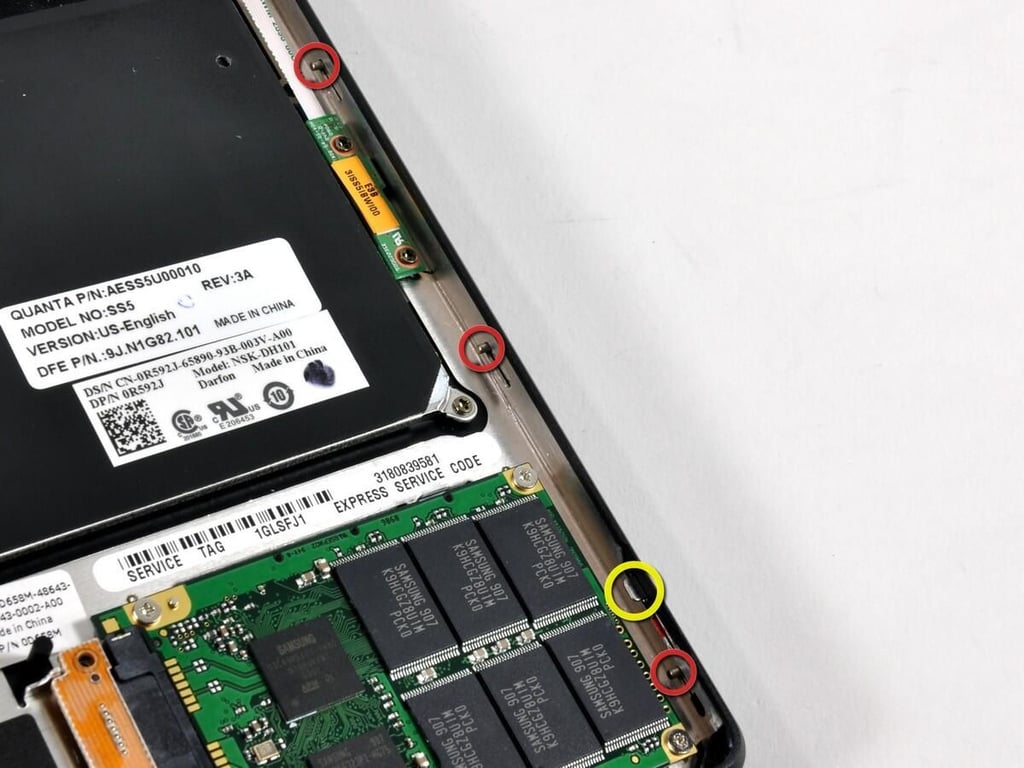

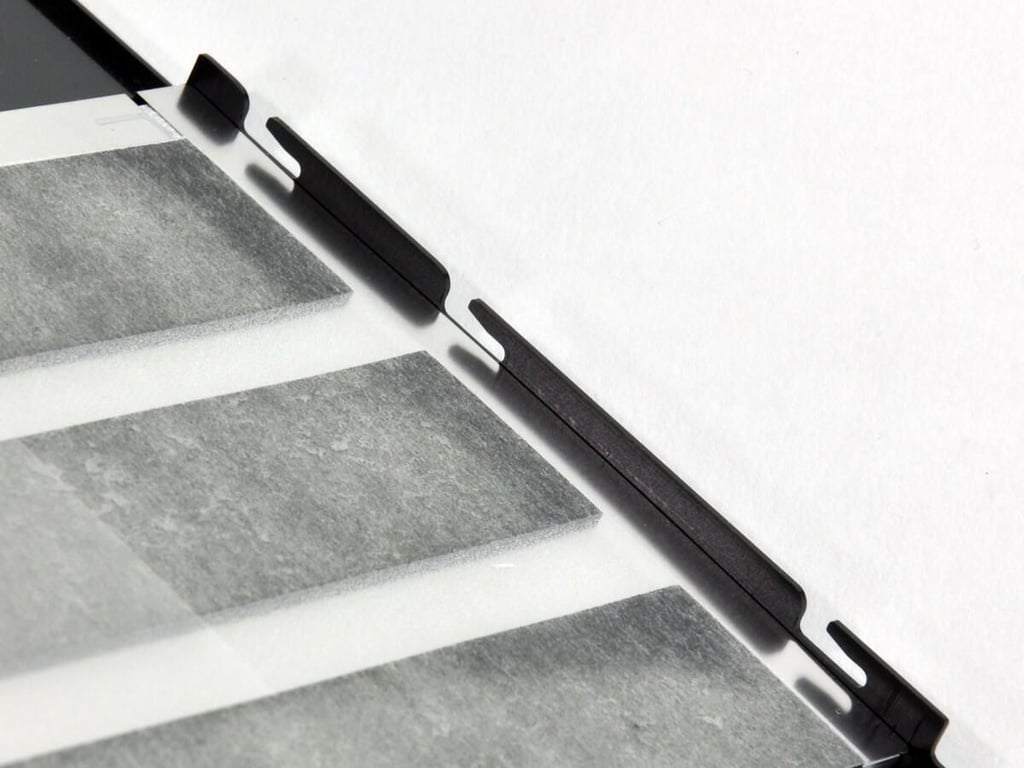

Bottom panel locking mechanism

Bottom panel locking mechanism

The Adamo uses a very slick locking system to hold the bottom panel in place.

The locking system utilizes three tracks of pins that span the inner left, right, and front edges of the computer. The pins lock into slots machined into the bottom panel, creating a very tight and secure connection.

Photo and caption by iFixit for TechRepublic.

Cracking Open the Dell Adamo

Gently slide the metal ear to the right

Gently slide the metal ear to the right

The bottom panel is removed by simply sliding the metal ear (shown in yellow) connected to each set of pins (shown in red) to the right using a thin metal spudger.

Photo and caption by iFixit for TechRepublic.

Cracking Open the Dell Adamo

Removing the battery cable

Removing the battery cable

The battery connects to the motherboard with an orange ribbon cable. This cable should be disconnected before entirely removing the bottom panel.

Photo and caption by iFixit for TechRepublic.

Cracking Open the Dell Adamo

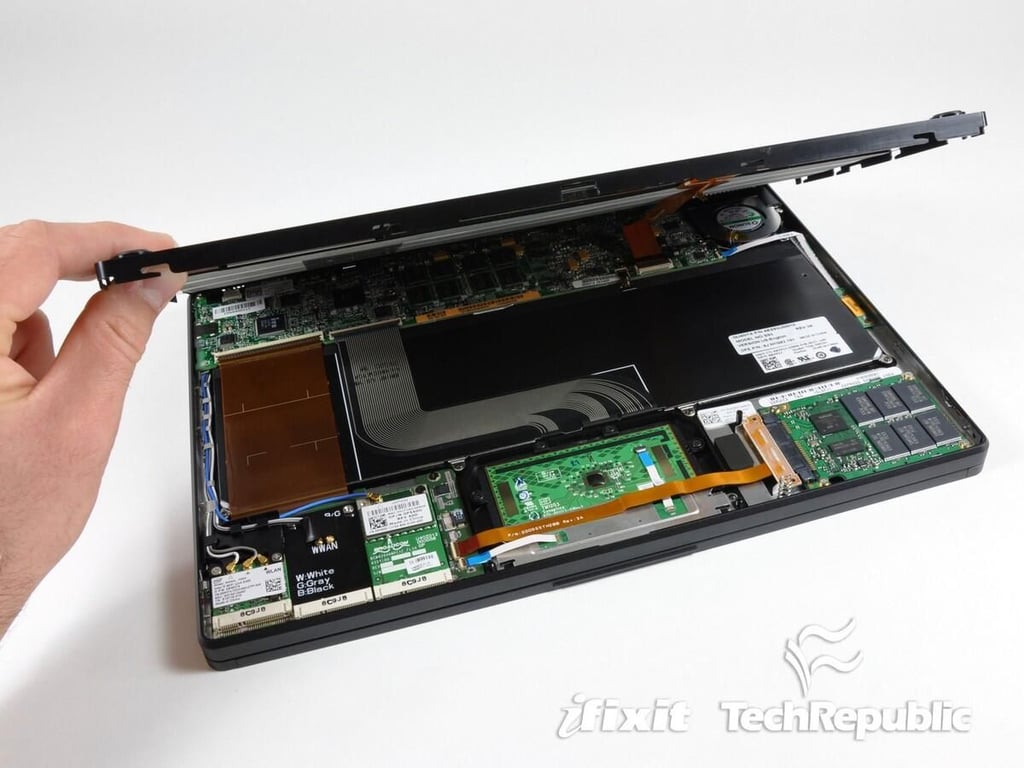

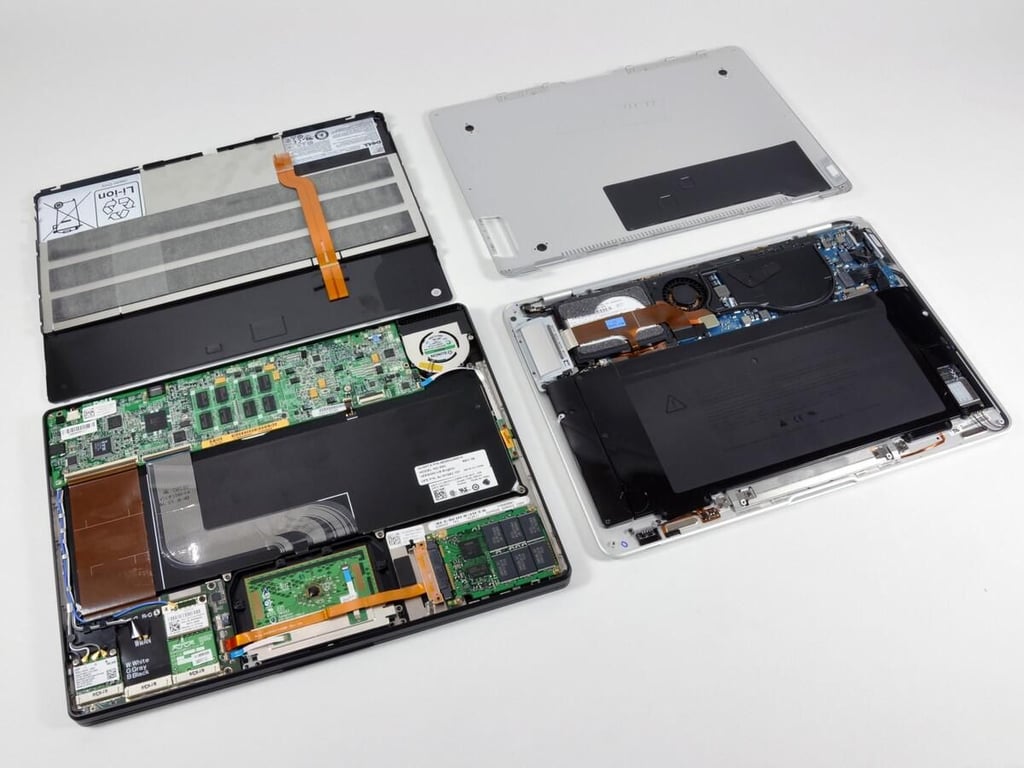

Adamo and Air with bottom panels removed

Adamo and Air with bottom panels removed

The Adamo and Air with bottom panels removed.
The MacBook Air we’re using in this guide is the original model (released over a year ago). Despite it’s age, the Air still packs a 1.6 GHz Core 2 Duo processor, 33-percent faster than our Adamo’s 1.2 GHz processor.
To its credit, the high-end Adamo does include 4 GB of built-in RAM, double that of the Air.
Dell labels a lot more parts than Apple. This definitely makes our job easier, even though it’s not quite as photogenic.


Photo and caption by iFixit for TechRepublic.

Cracking Open the Dell Adamo

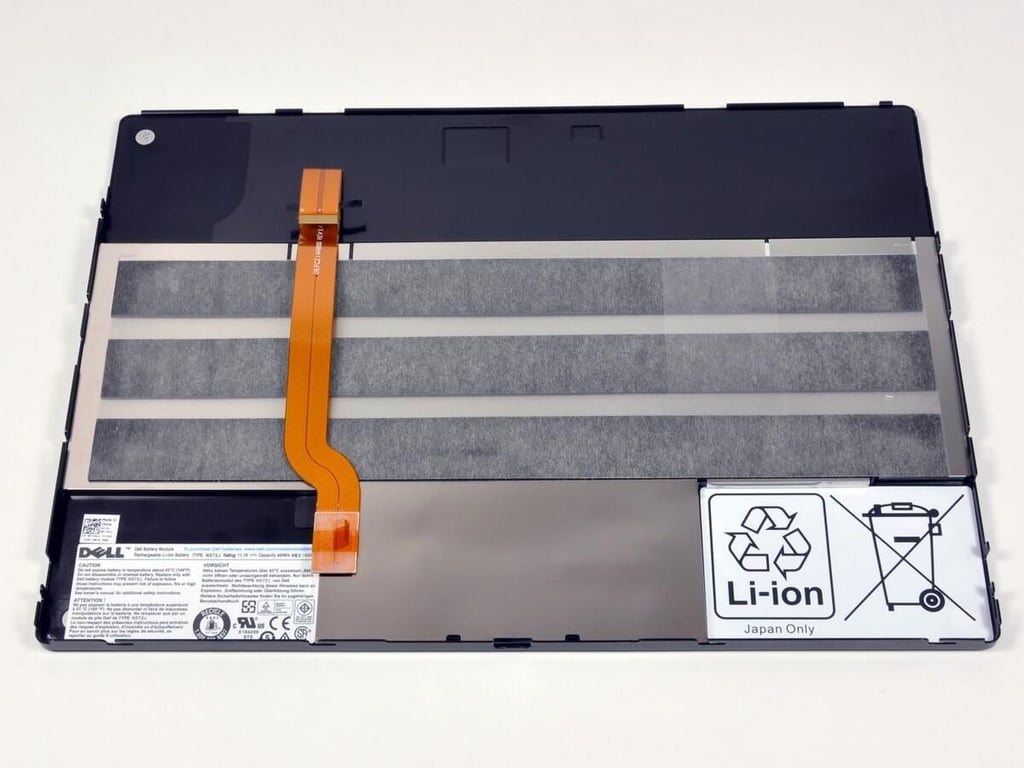

Bottom panel and battery

Bottom panel and battery

The bottom panel contains an integrated 6 cell Li-Polymer battery pack.

Photo and caption by iFixit for TechRepublic.

Cracking Open the Dell Adamo

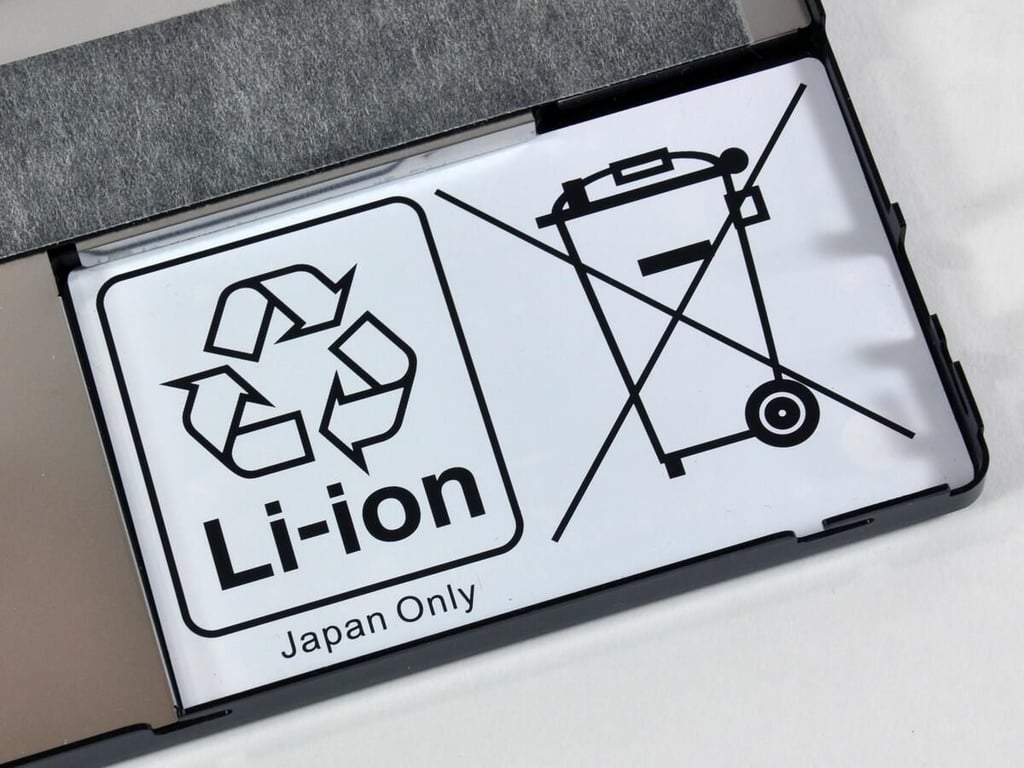

Recycle in Japan only?

Recycle in Japan only?

You can recycle the battery… in Japan.

Photo and caption by iFixit for TechRepublic.

Cracking Open the Dell Adamo

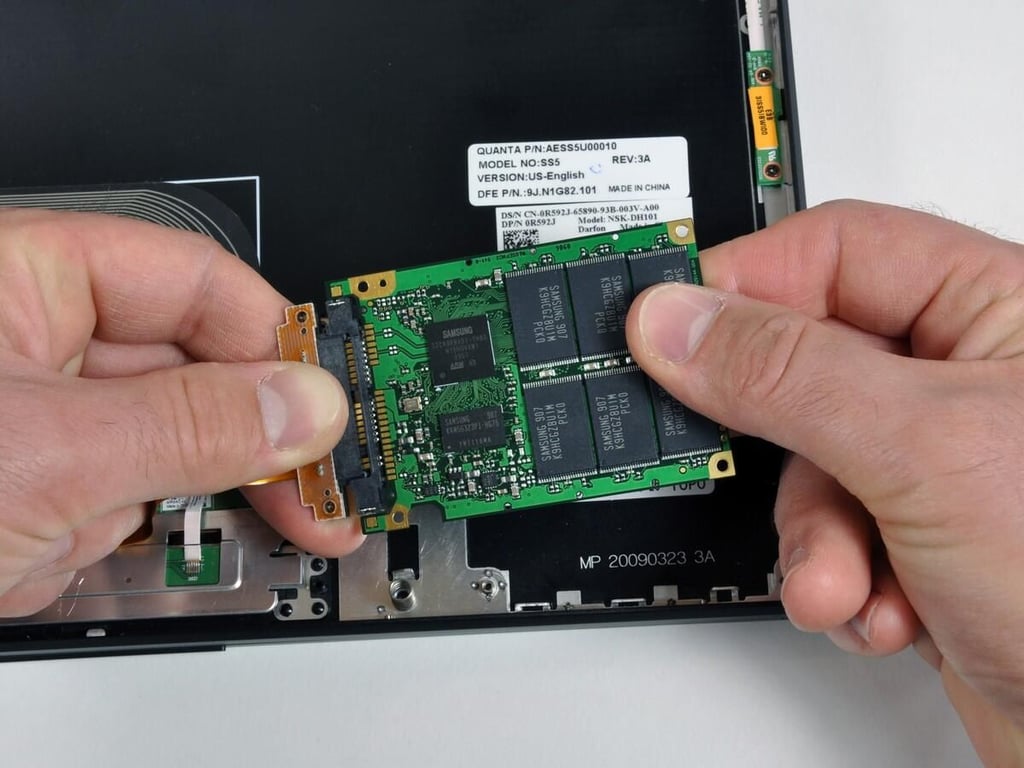

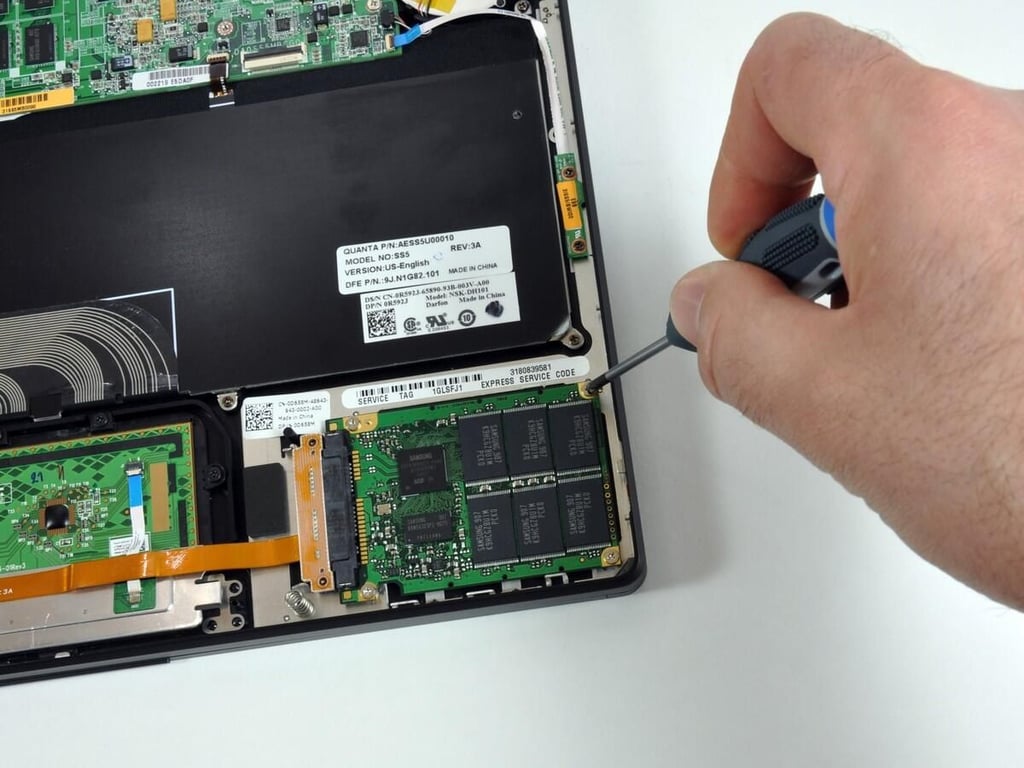

Removing the 128GB solid state drive

Removing the 128GB solid state drive

The drive is a Thin 128GB uSATA MLC. This particular drive utilizes 16 Samsung 64 gigabit multi-level cell (MLC) flash chips.

Photo and caption by iFixit for TechRepublic.

Cracking Open the Dell Adamo

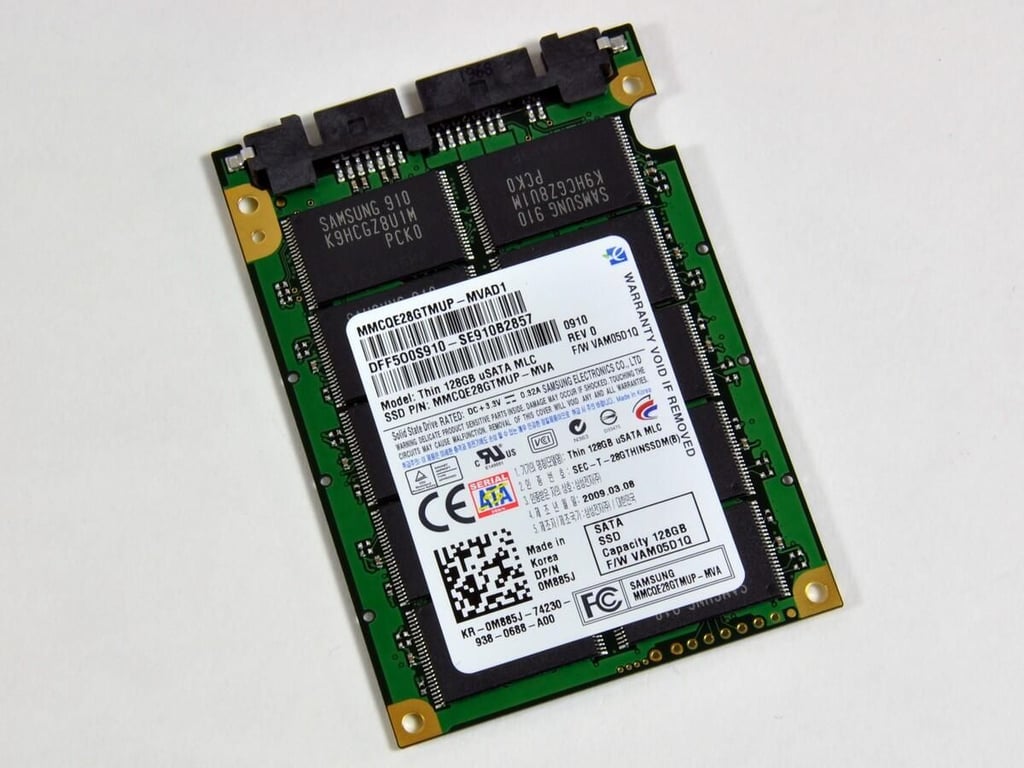

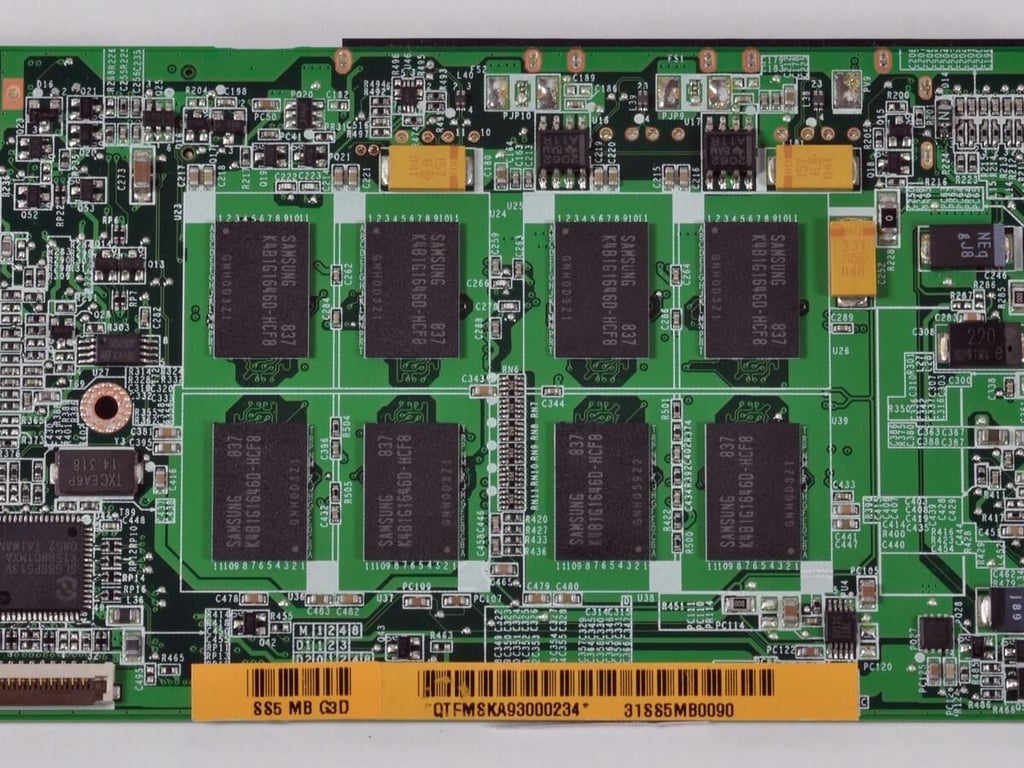

Samsung chips on the solid state drive

Samsung chips on the solid state drive

The drive is a Thin 128GB uSATA MLC. This particular drive utilizes 16 Samsung 64 gigabit multi-level cell (MLC) flash chips.

Photo and caption by iFixit for TechRepublic.

Cracking Open the Dell Adamo

128GB Solid state drive removed

128GB Solid state drive removed

The drive transmits data through a normal SATA connector. Impressively, the specs listed on the drive indicate a maximum power consumption of only 1.05 watts and an operating shock of 1500G!
The solid state drive’s thickest point is the 4mm SATA connector. The rest of the drive is a scant 2.9 mm.

Photo and caption by iFixit for TechRepublic.

Cracking Open the Dell Adamo

Ambient light sensor

Ambient light sensor

We believe this is an ambient light sensor to support the Adamo’s backlit keyboard. Dell has used light sensors in a few other recent notebooks.

Photo and caption by iFixit for TechRepublic.

Cracking Open the Dell Adamo

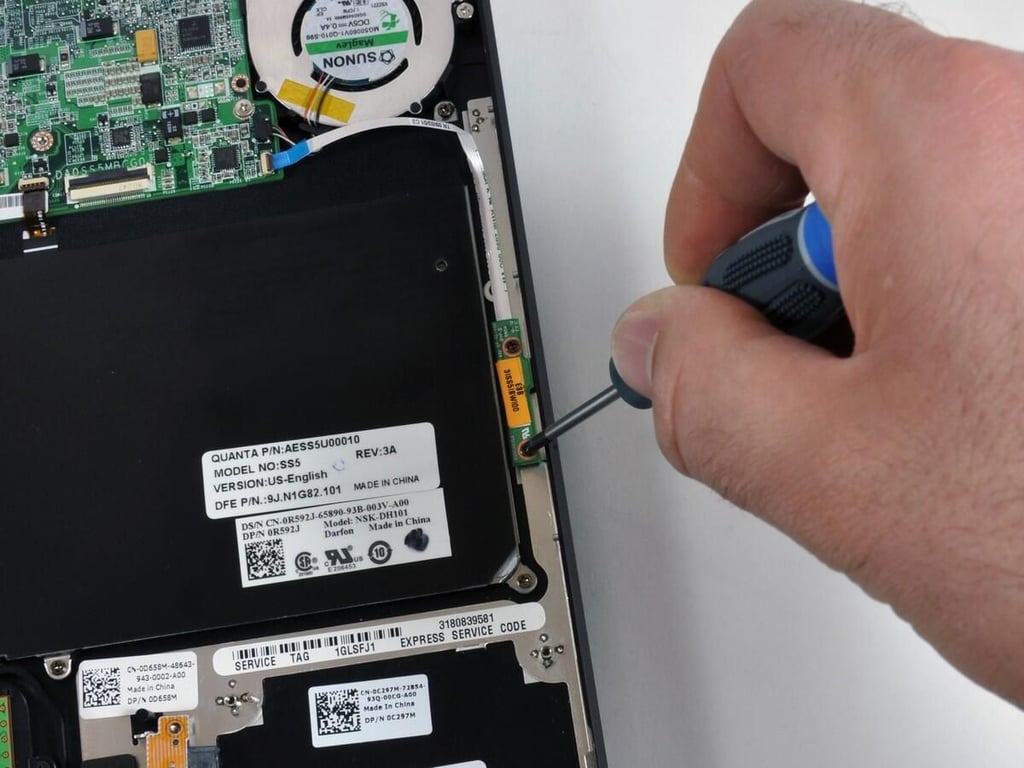

Removing the ambient light sensor

Removing the ambient light sensor

Photo and caption by iFixit for TechRepublic.

Cracking Open the Dell Adamo

Wireless cards

Wireless cards

The Adamo has no shortage of wireless connectivity possibilities. This machine was the low-end model, so we only received two of the three wireless types.

Photo and caption by iFixit for TechRepublic.

Cracking Open the Dell Adamo

WiMax option available

WiMax option available

The missing spot in the middle is for a WWAN WiMax 5530 HSPA Mini Card for AT&T. Even though our machine came without the card, it could be easily added in the future. The antennas are routed to the slot and ready to go!

Photo and caption by iFixit for TechRepublic.

Cracking Open the Dell Adamo

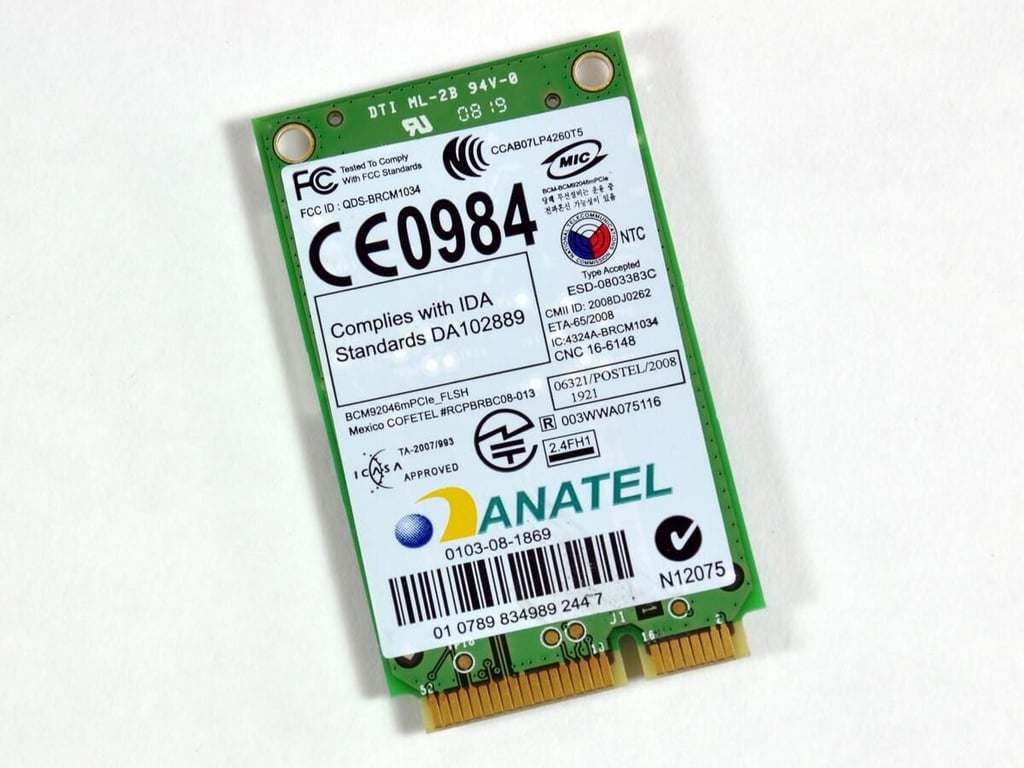

Anatel Bluetooh board

Anatel Bluetooh board

Surprisingly, the Bluetooth board is twice the size of the 802.11n card.

Photo and caption by iFixit for TechRepublic.

Cracking Open the Dell Adamo

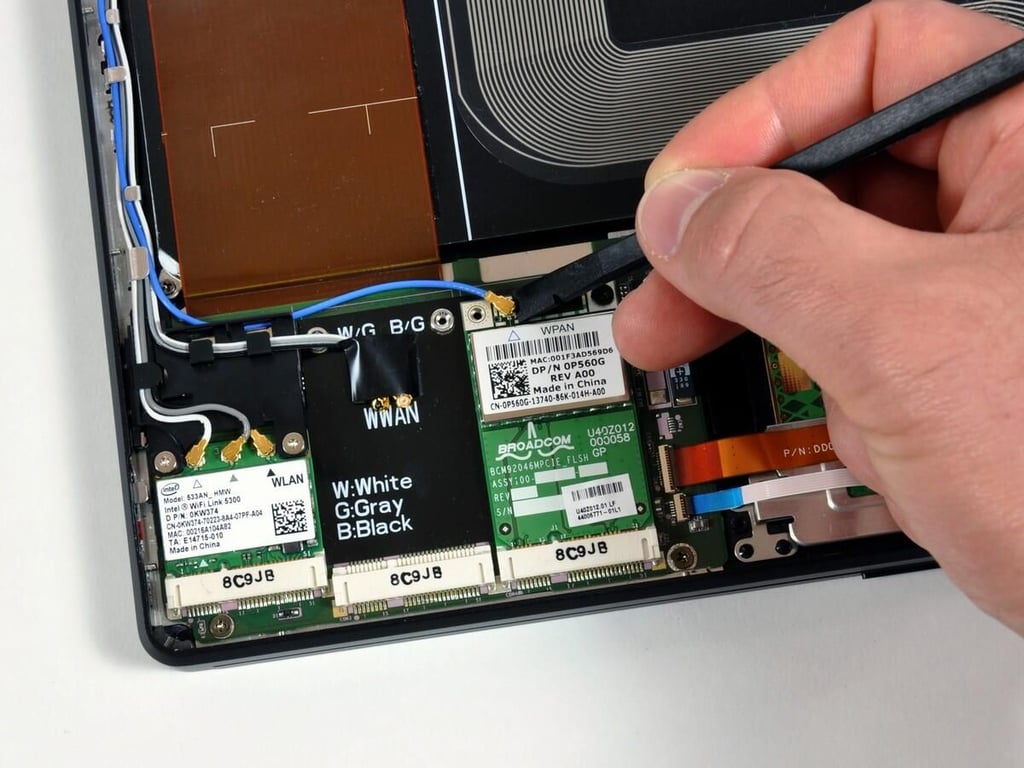

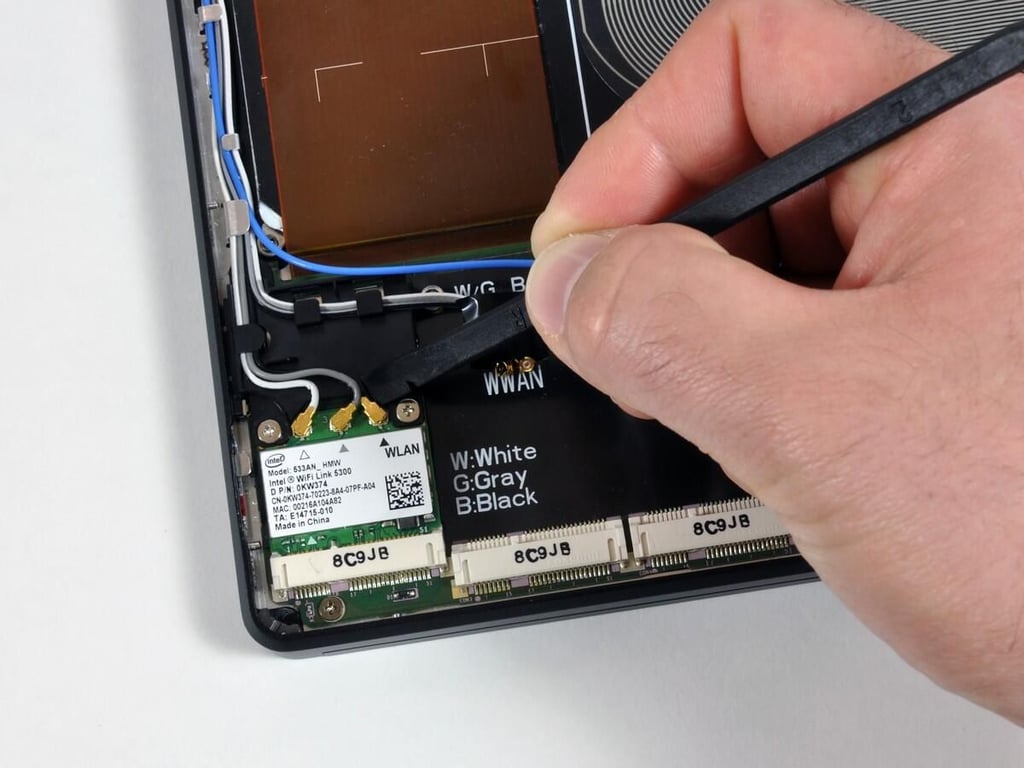

Disconnect the 802.11n wireless card's antenna cables

Disconnect the 802.11n wireless card's antenna cables

Using the spudger, disconnect the 802.11n card’s antenna cables.

Photo and caption by iFixit for TechRepublic.

Cracking Open the Dell Adamo

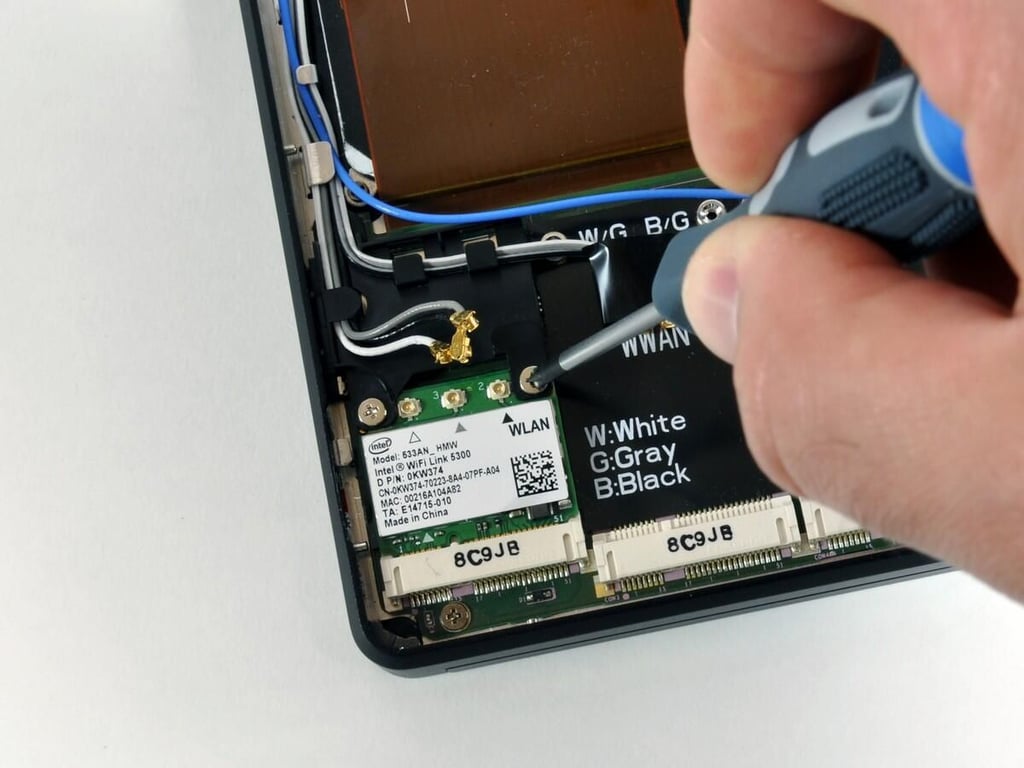

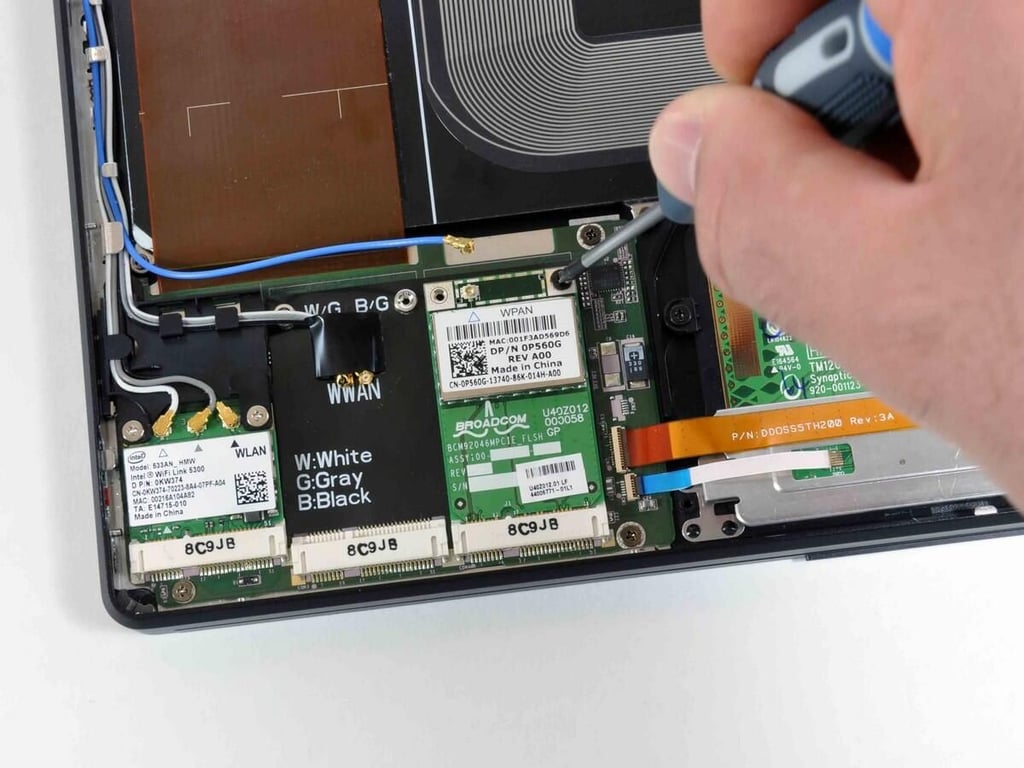

Remove the 802.11n card's screws

Remove the 802.11n card's screws

Next, remove the 802.11n card’s screws.Photo and caption by iFixit for TechRepublic.

Cracking Open the Dell Adamo

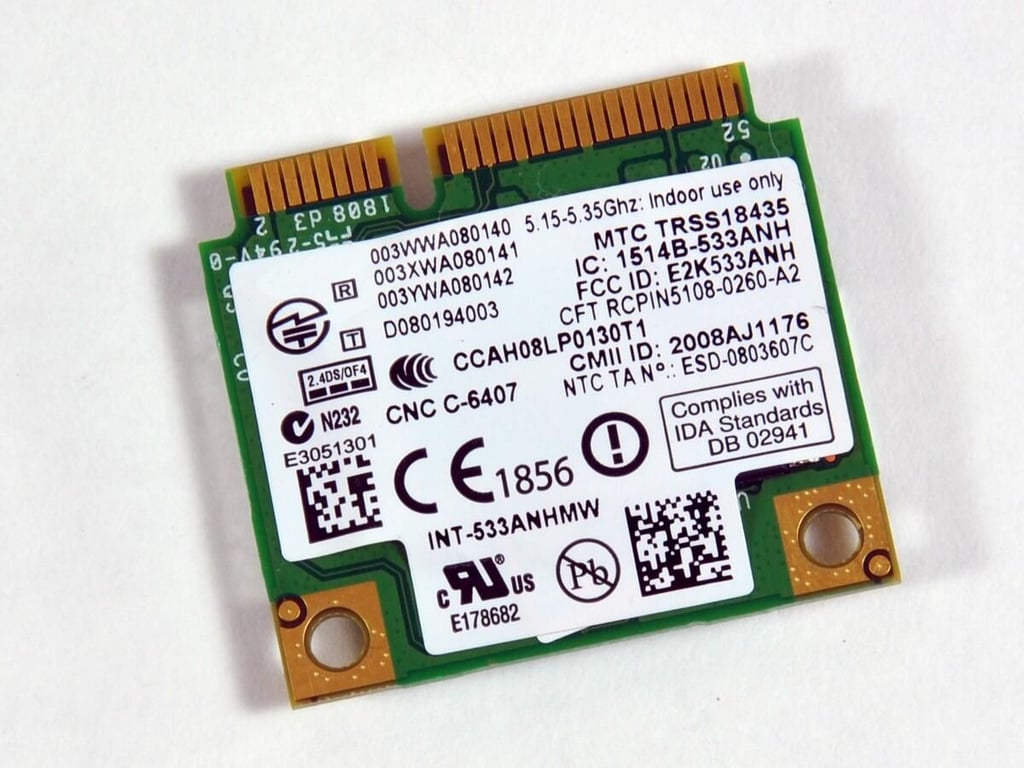

802.11n wireless card removed

802.11n wireless card removed

The printed user’s guide that came with our Adamo says the machine includes 803.11n Wireless LAN. We’re not sure if that’s a typo, or something new we don’t know about yet.

Photo and caption by iFixit for TechRepublic.

Cracking Open the Dell Adamo

Wireless card ribbon cable

Wireless card ribbon cable

The wireless cards are attached to the motherboard via a single wide ribbon cable.

Photo and caption by iFixit for TechRepublic.

Cracking Open the Dell Adamo

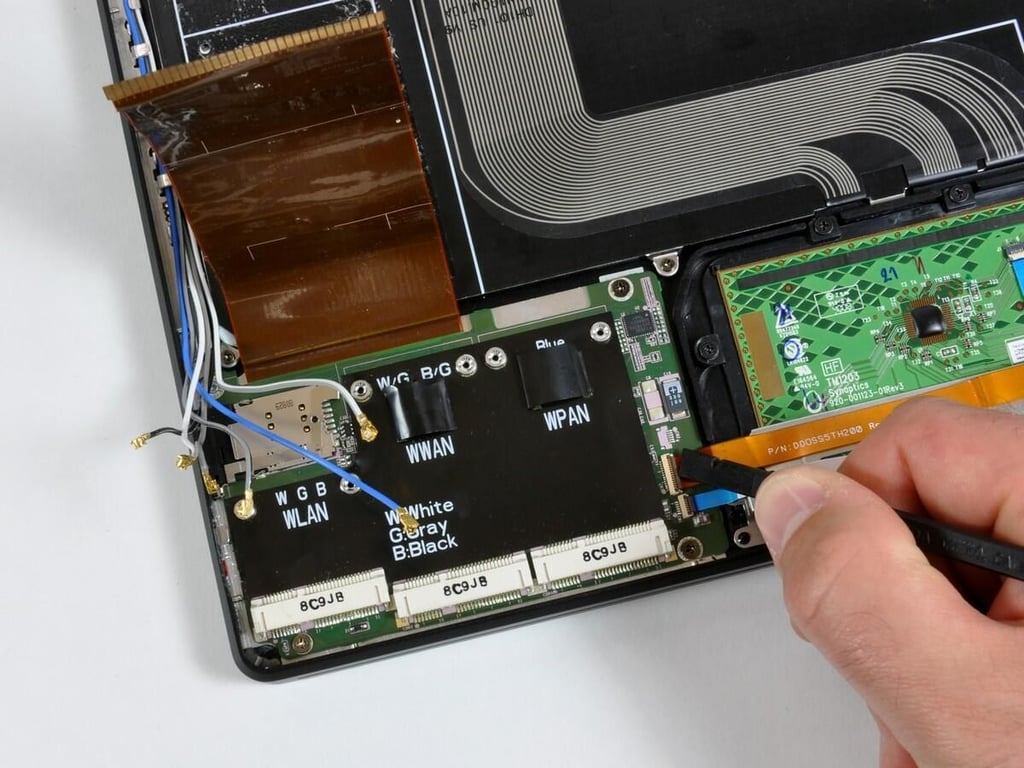

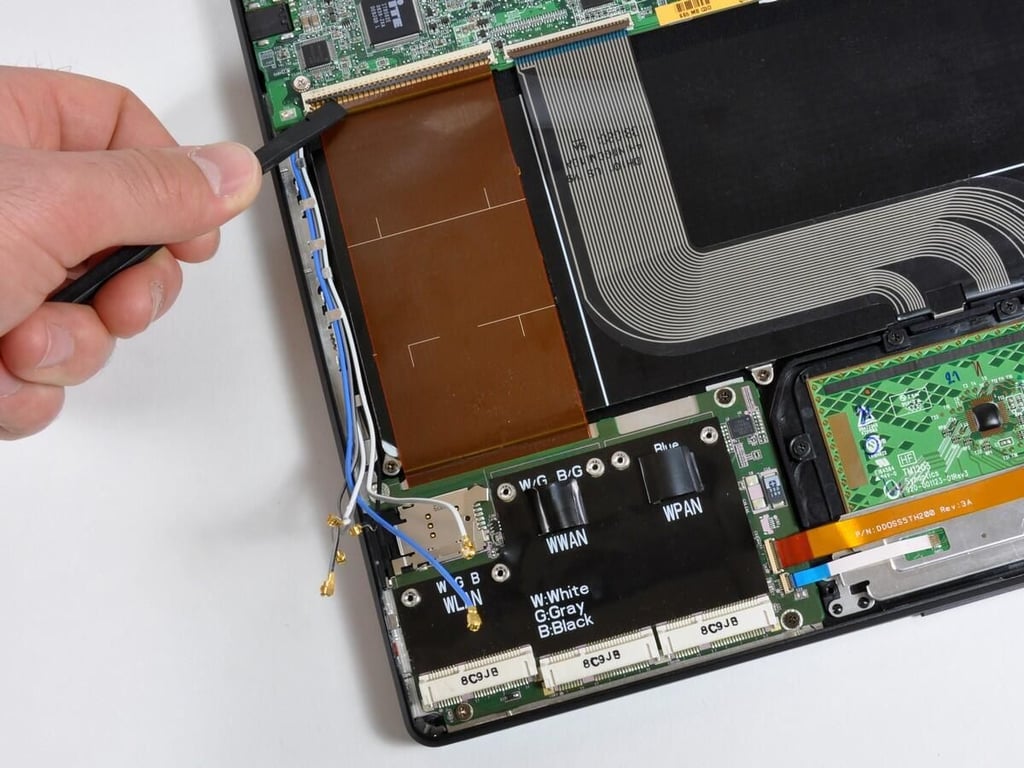

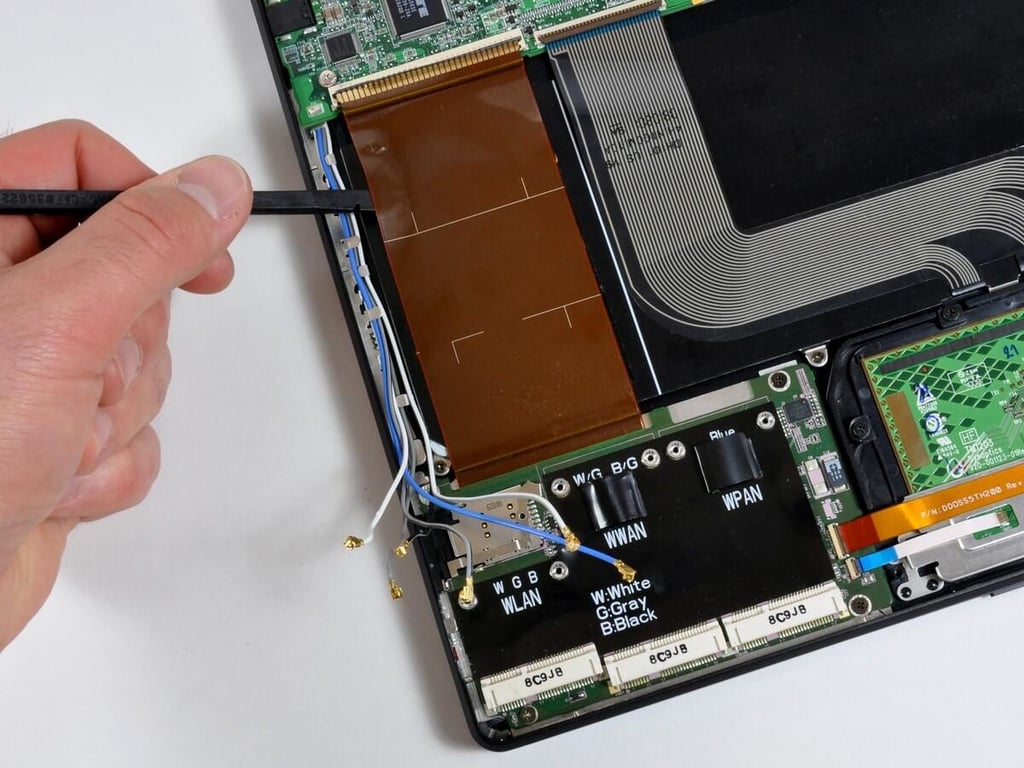

Gently disconnect and peel away the wireless card ribbon cable

Gently disconnect and peel away the wireless card ribbon cable

The ribbon cable is held securely in place with adhesive, and peeling it up requires some patience.

Photo and caption by iFixit for TechRepublic.

Cracking Open the Dell Adamo

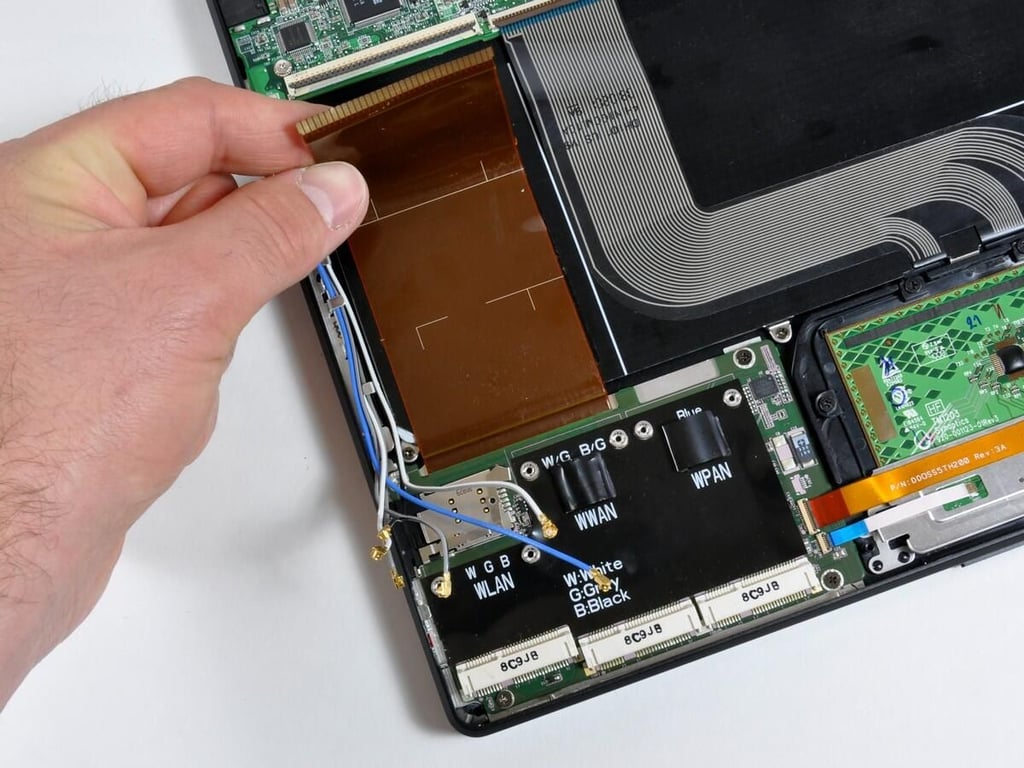

Peeling away the ribbon cable

Peeling away the ribbon cable



Photo and caption by iFixit for TechRepublic.

Cracking Open the Dell Adamo

Removing the wireless data board

Removing the wireless data board

Interestingly enough, the hard drive ribbon cable routes data through the wireless data board before finally reaching the motherboard. You’ll need to disconnect these cables.

Photo and caption by iFixit for TechRepublic.

Cracking Open the Dell Adamo

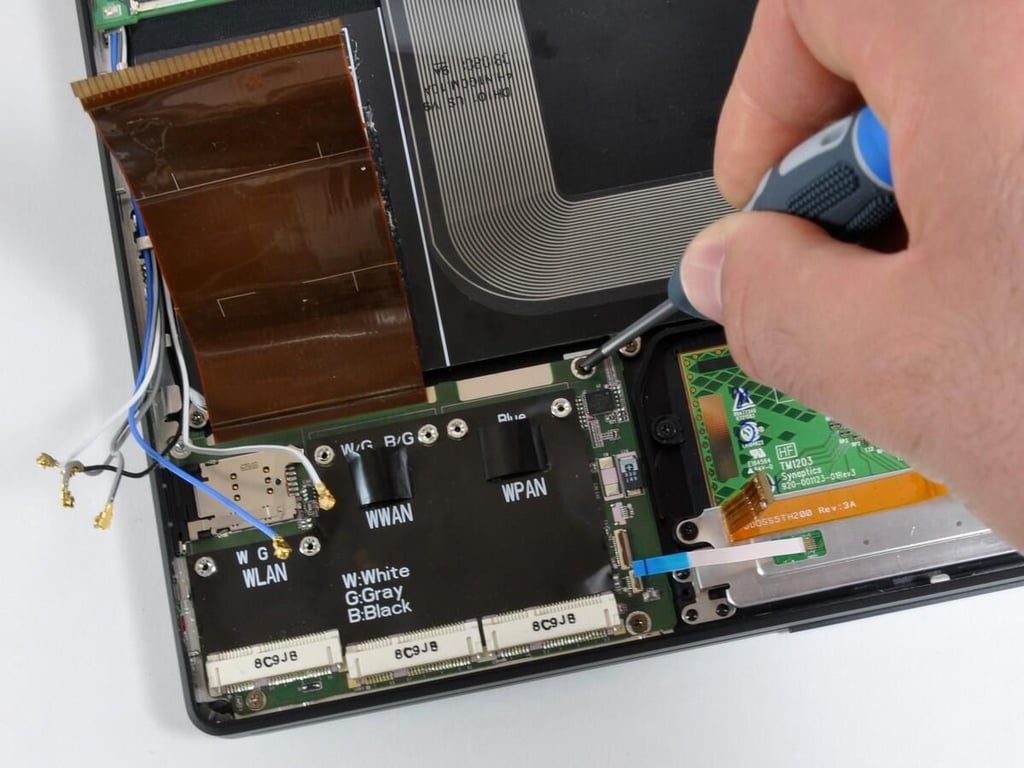

Removing the wireless data board's screws

Removing the wireless data board's screws

Remove the three screws that hold the wireless data board in place.

Photo and caption by iFixit for TechRepublic.

Cracking Open the Dell Adamo

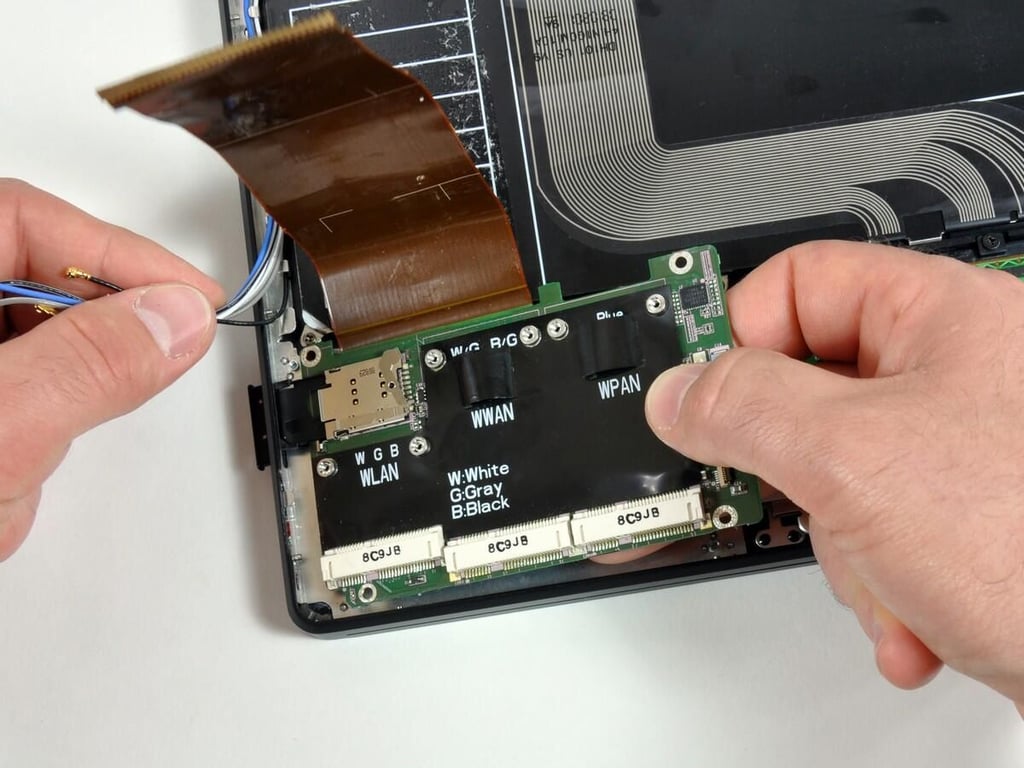

Lifting out the wireless data board

Lifting out the wireless data board

You can now lift the wireless data board away from the Adamo chassis.

Photo and caption by iFixit for TechRepublic.

Cracking Open the Dell Adamo

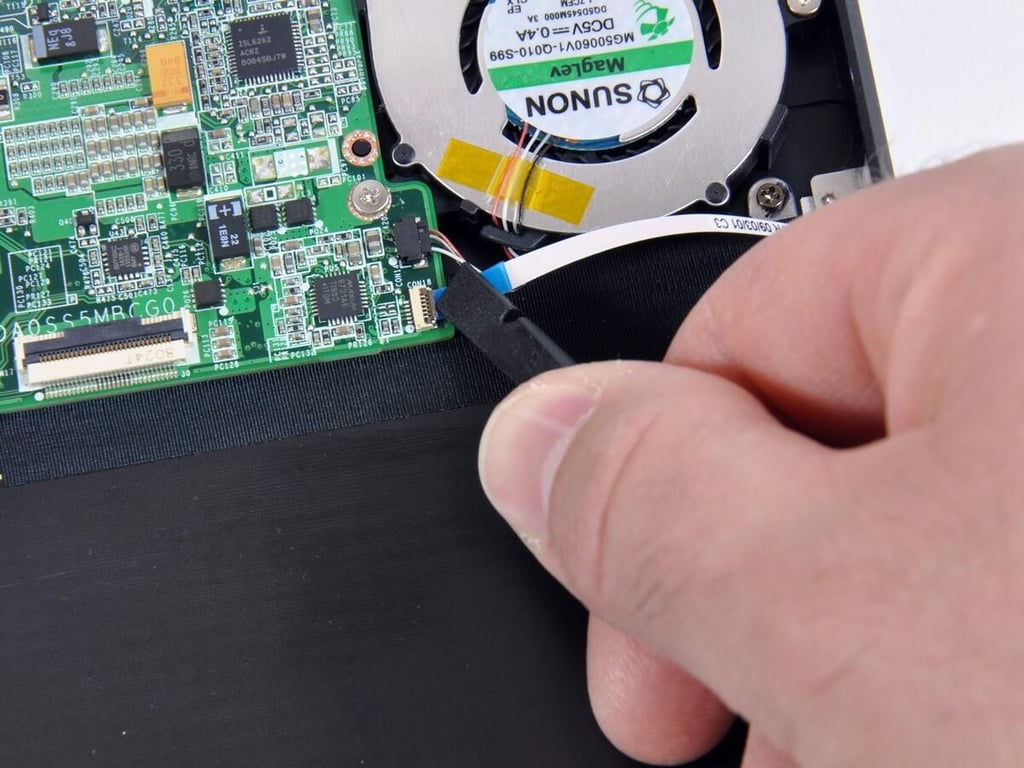

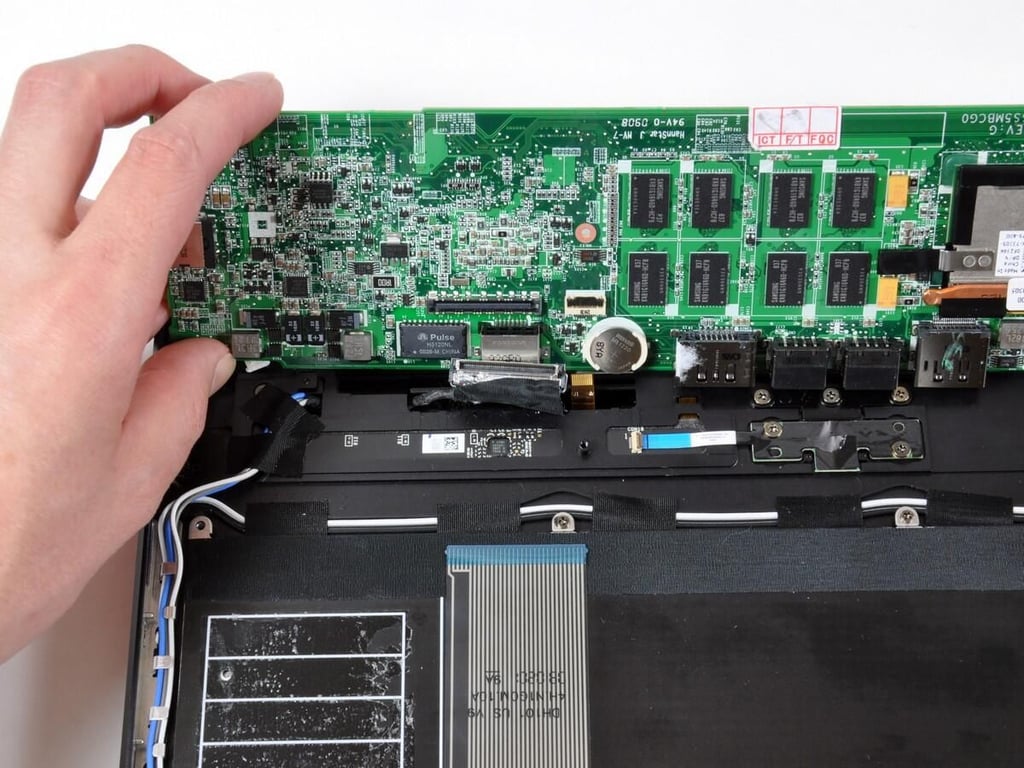

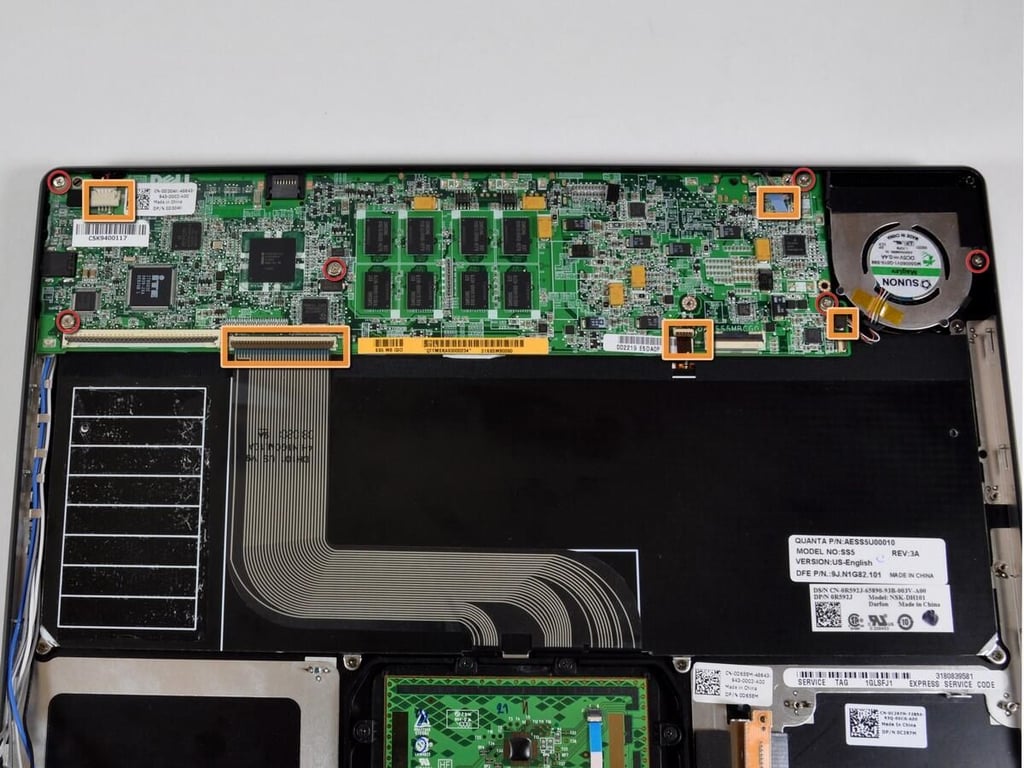

Disconnect the remaining, visible ribbon cables

Disconnect the remaining, visible ribbon cables

We disconnected several ribbon cables from the motherboard before proceeding.
Six Phillips screws hold the motherboard and its attached heat sink and fan in place.

Photo and caption by iFixit for TechRepublic.

Cracking Open the Dell Adamo

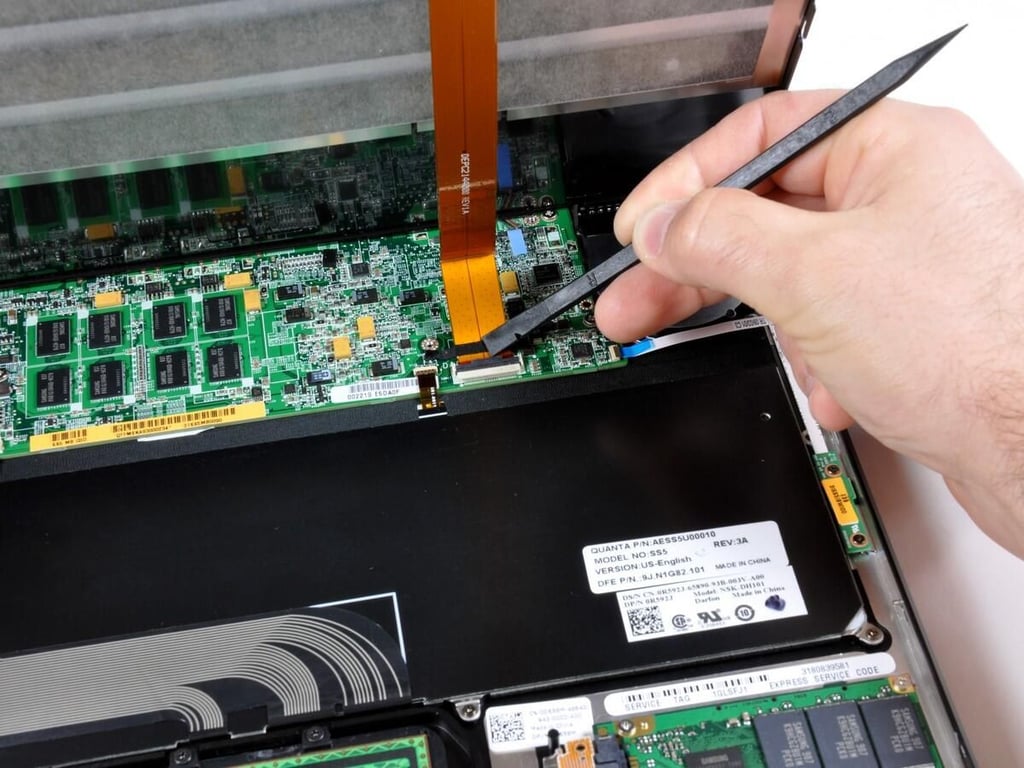

Disconnect the display data cable

Disconnect the display data cable

The display data cable connects to the bottom of the board, and must be disconnected before the motherboard is freed from the machine.

Photo and caption by iFixit for TechRepublic.

Cracking Open the Dell Adamo

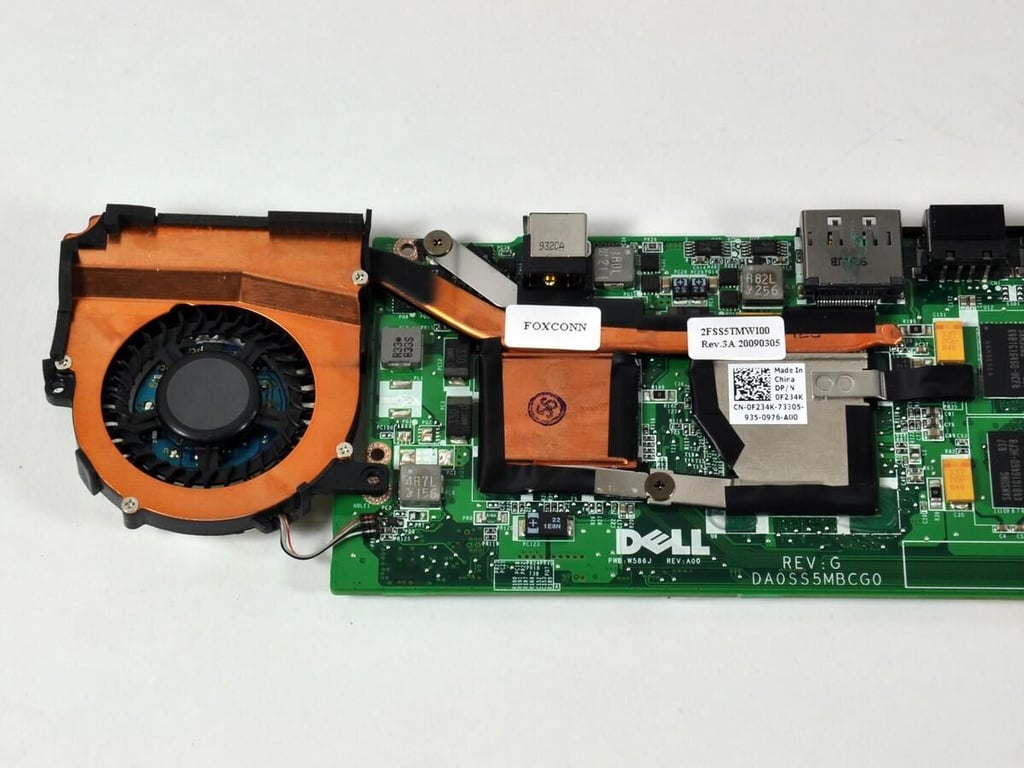

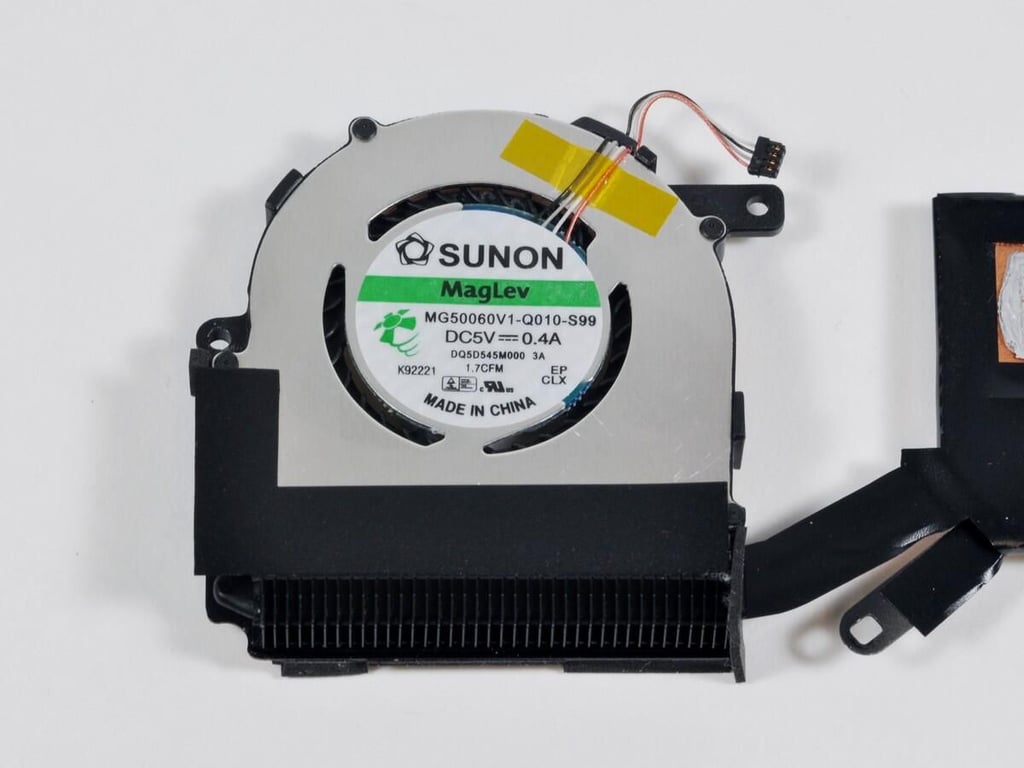

Heatsink on the motherboard

Heatsink on the motherboard

The heat sink is pretty tiny, but we assume a 1.2 GHz Core 2 Duo processor won’t get that hot.

Photo and caption by iFixit for TechRepublic.

Cracking Open the Dell Adamo

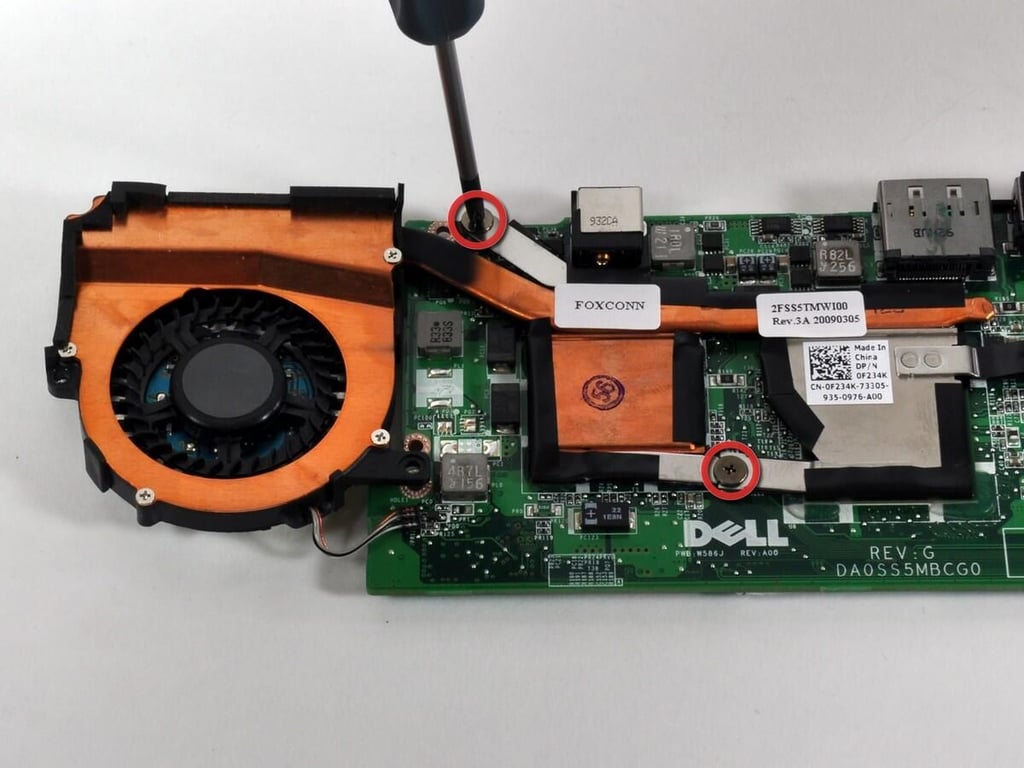

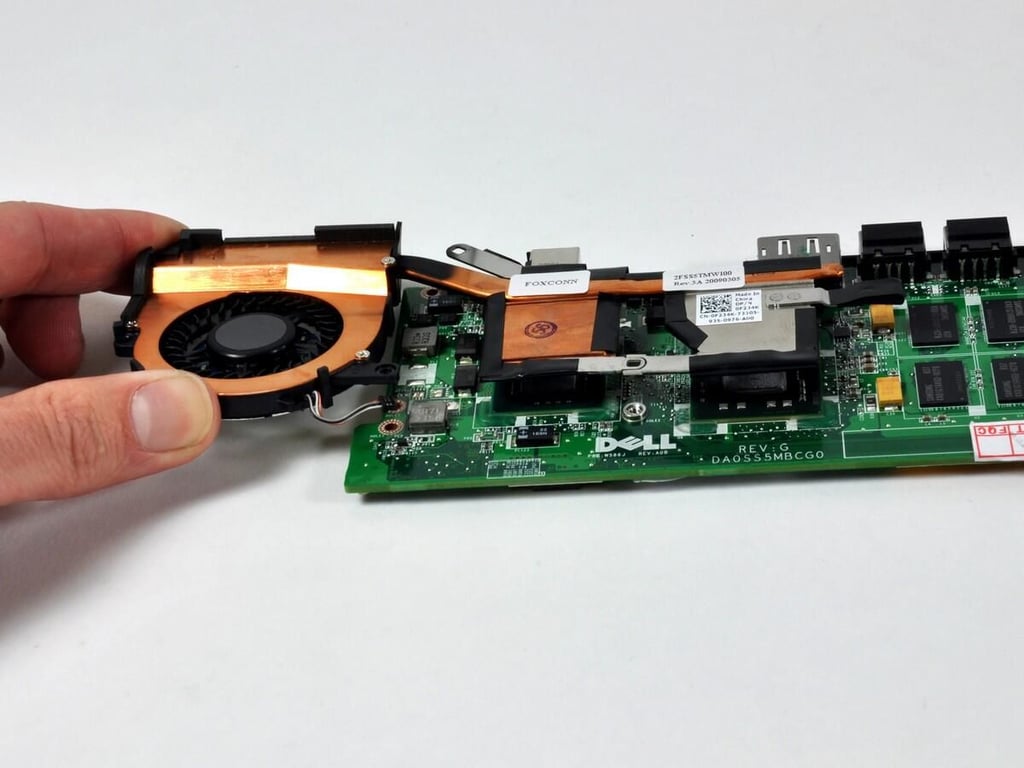

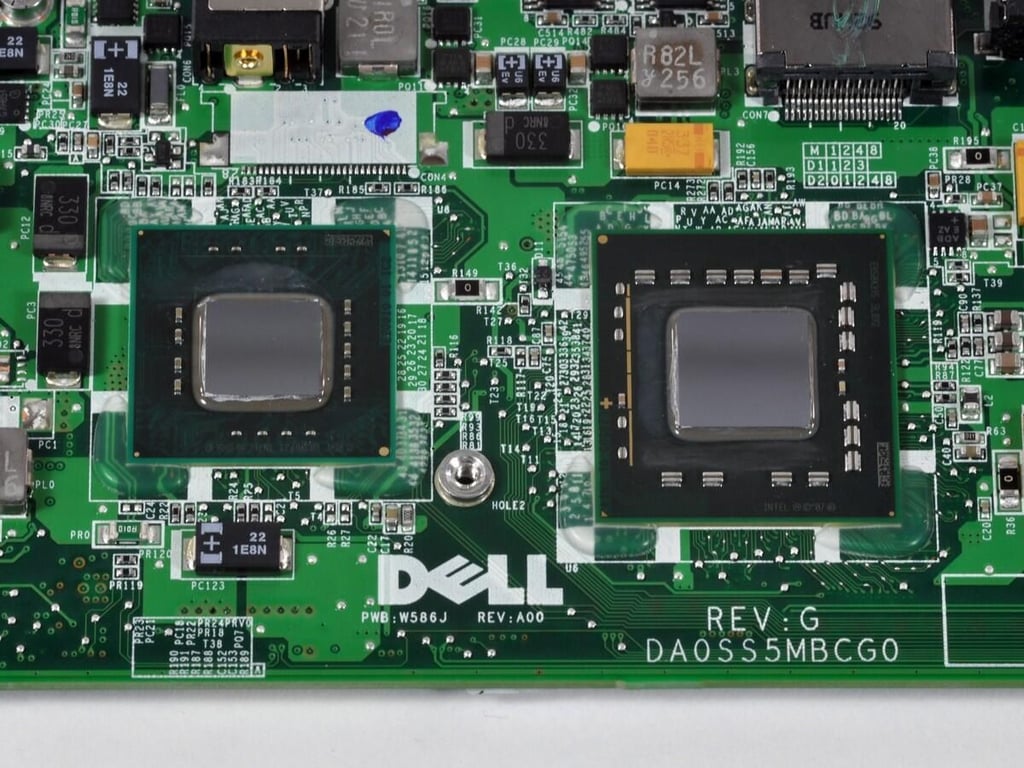

Removing the heatsink from the motherboard

Removing the heatsink from the motherboard



Photo and caption by iFixit for TechRepublic.

Cracking Open the Dell Adamo

Lifting the heatsink away

Lifting the heatsink away

We didn’t see any thermal sensors in the machine, but one or more might be integrated into the motherboard.

Photo and caption by iFixit for TechRepublic.

Cracking Open the Dell Adamo

2GB 800MHz DDR3 memory

2GB 800MHz DDR3 memory

Don’t plan on buying the low-end machine and upgrading your RAM later – it’s not going to happen.

Photo and caption by iFixit for TechRepublic.

Cracking Open the Dell Adamo

Ports are integrated into the motherboard

Ports are integrated into the motherboard

Unfortunately, all the ports are integrated into the motherboard. Repair will not be cheap. if something goes wrong.

Photo and caption by iFixit for TechRepublic.

Cracking Open the Dell Adamo

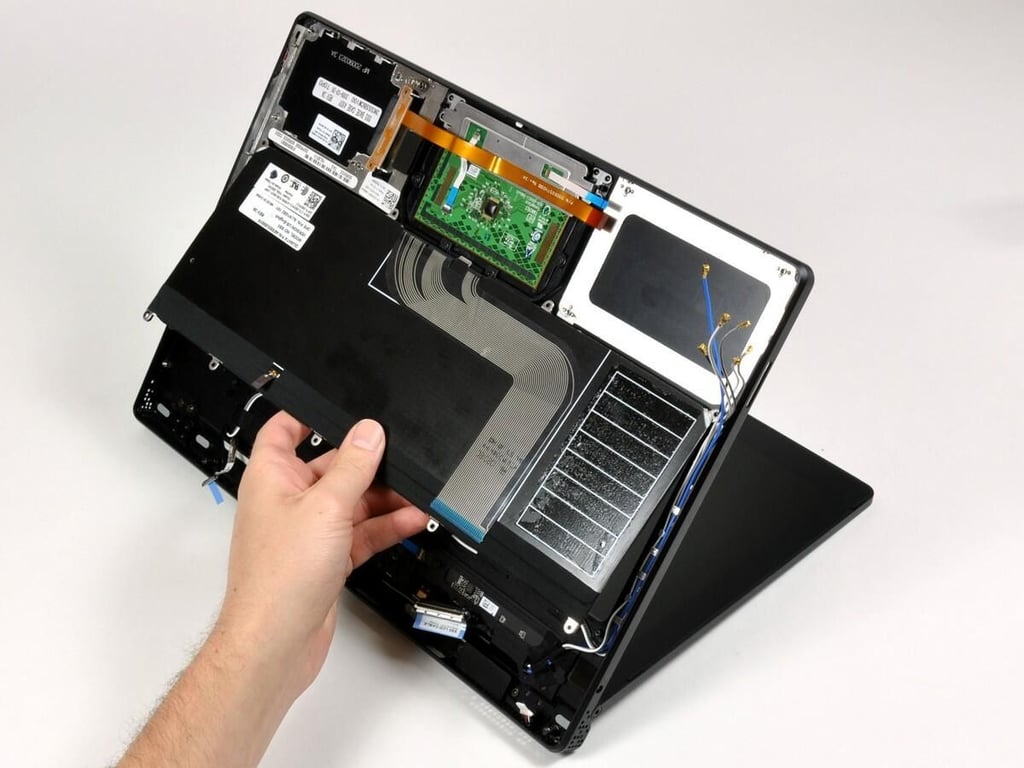

Lifting out the keyboard

Lifting out the keyboard

Photo and caption by iFixit for TechRepublic.

Cracking Open the Dell Adamo

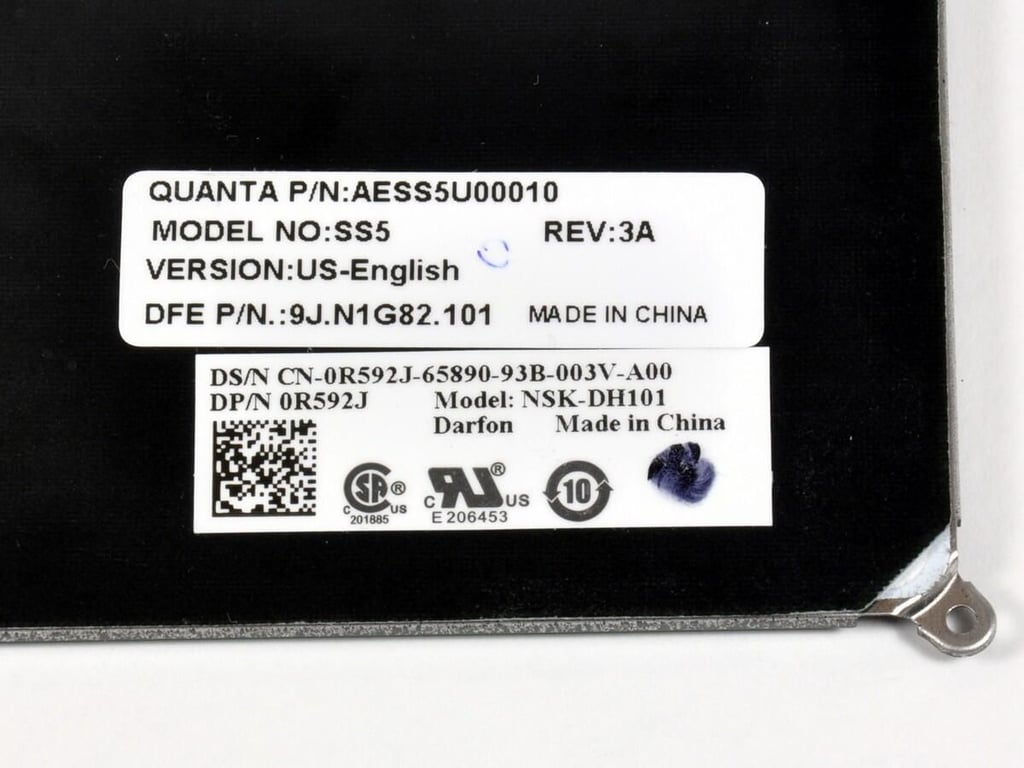

Quanta Computers label on keyboard

Quanta Computers label on keyboard

At least the keyboard (and probably the whole machine) is produced by Quanta Computers. They’re the world’s largest notebook manufacturer and make machines for both Apple and Dell.

Photo and caption by iFixit for TechRepublic.

Cracking Open the Dell Adamo

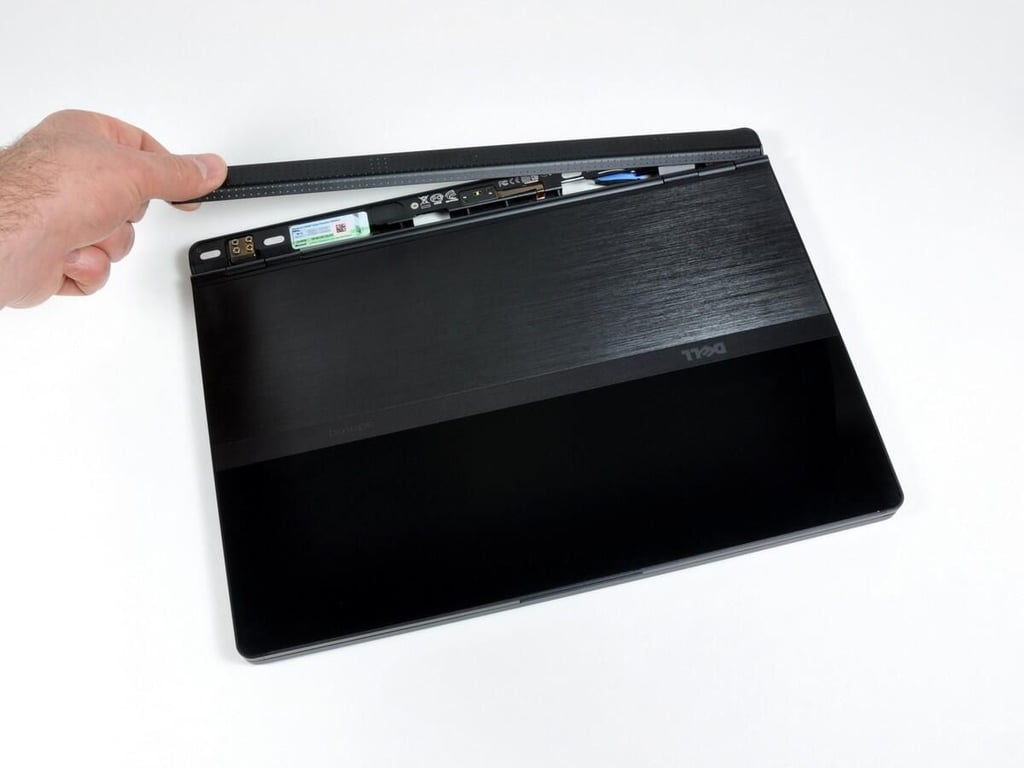

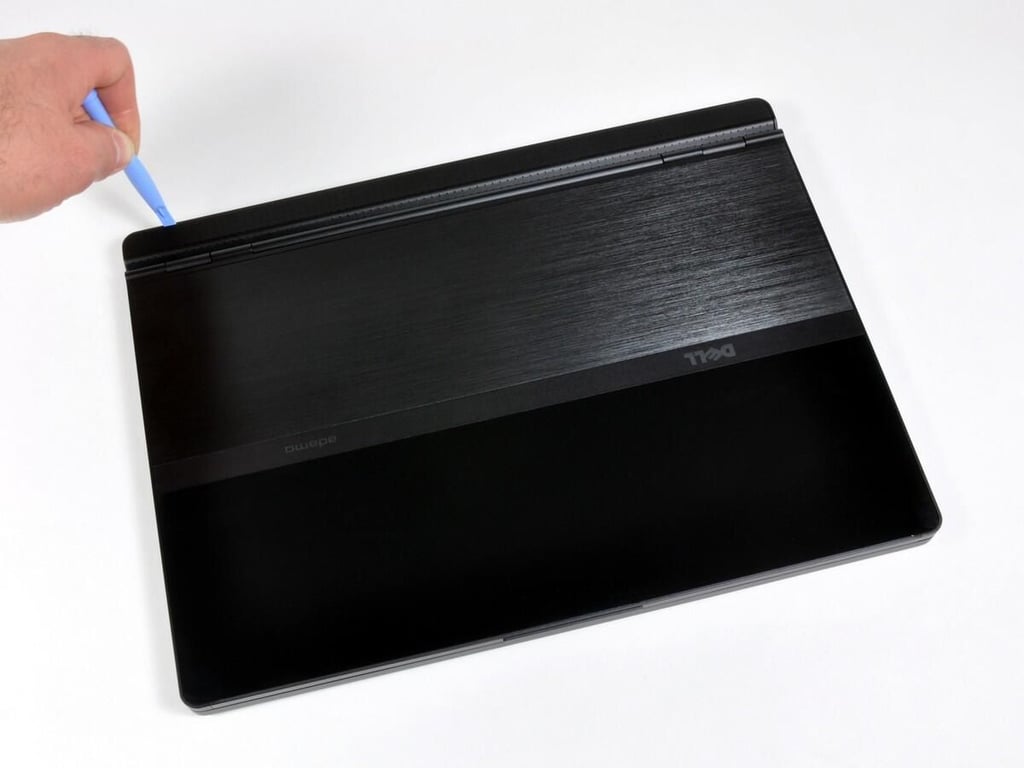

Removing the display assembly's hinge cover

Removing the display assembly's hinge cover

An iPod opening tool easily removes the magnetically-attached hinge cover.

Photo and caption by iFixit for TechRepublic.

Cracking Open the Dell Adamo

Windows product key hidden under hinge cover

Windows product key hidden under hinge cover

Dell hides your Windows product key under here. That’s certainly a smart move, since the sticker doesn’t exactly blend in with the Adamo’s black onyx finish.

Photo and caption by iFixit for TechRepublic.

Cracking Open the Dell Adamo

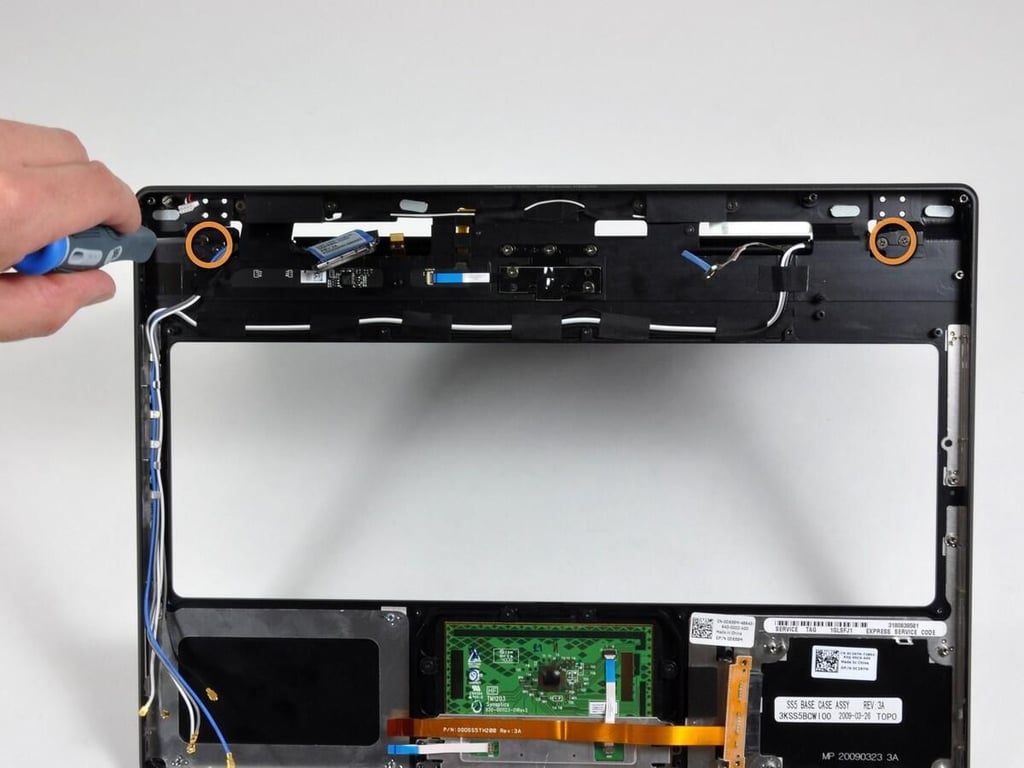

Removing more screws from the display assembly

Removing more screws from the display assembly

Four Phillips on the bottom, two on each side.

Photo and caption by iFixit for TechRepublic.

Cracking Open the Dell Adamo

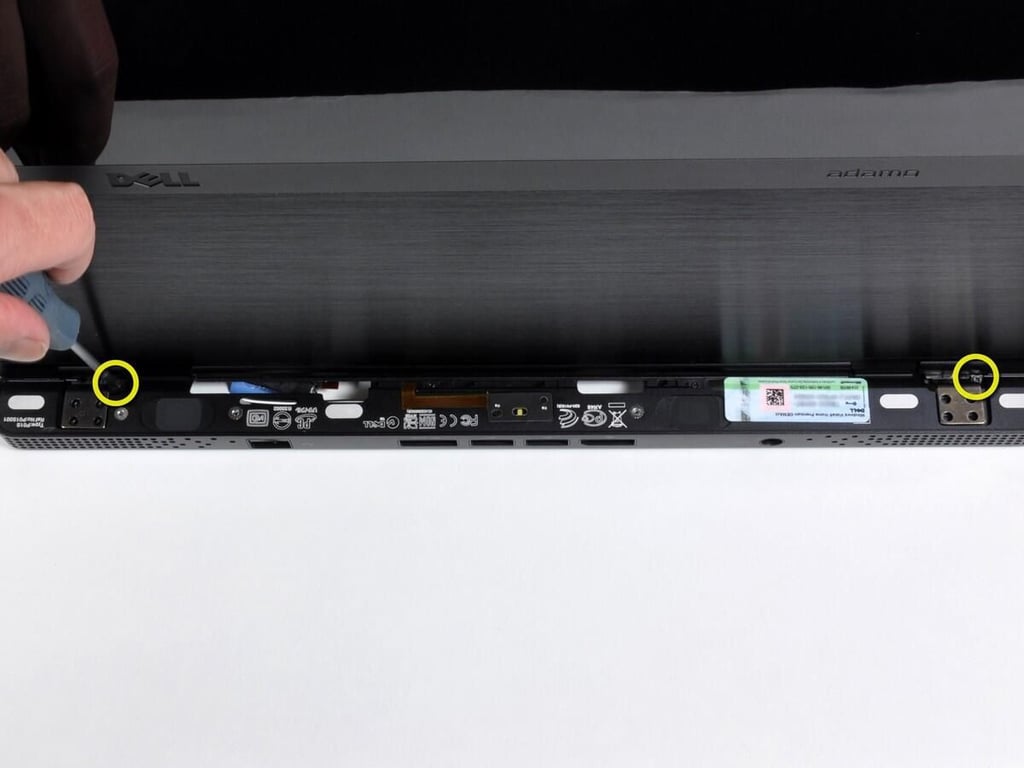

Removing the final two screws on the display assembly

Removing the final two screws on the display assembly

Two small Phillips on top, one on each side.

Photo and caption by iFixit for TechRepublic.

Cracking Open the Dell Adamo

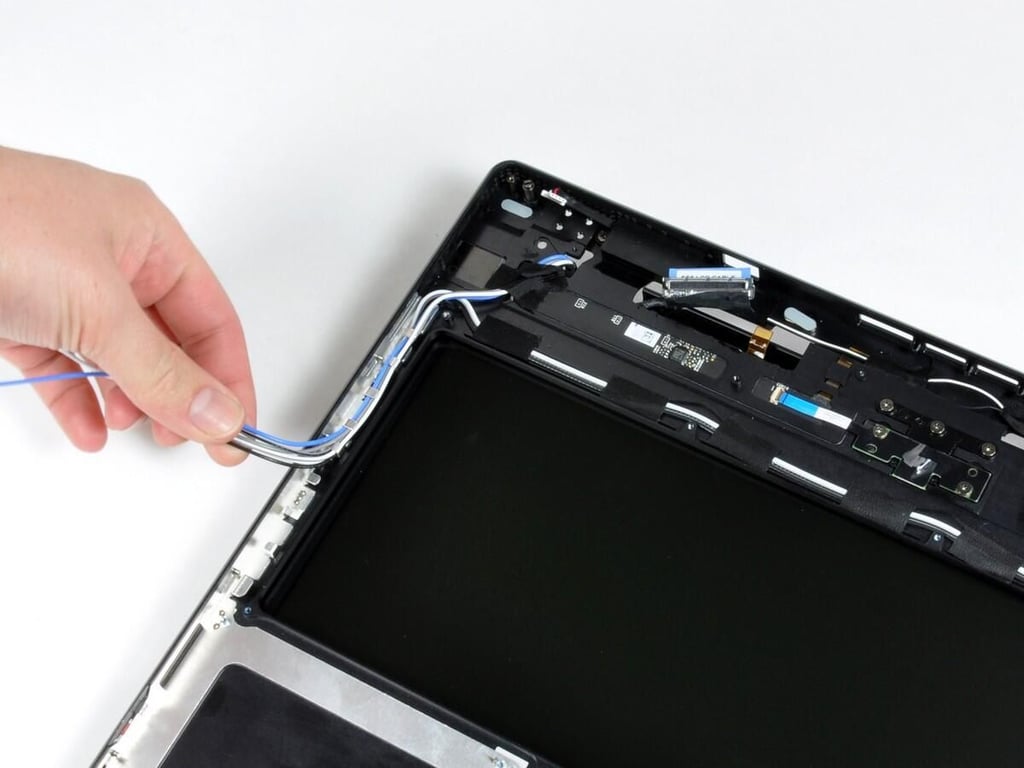

Removing the antenna cables from the display assembly

Removing the antenna cables from the display assembly

The display assembly is now unscrewed, but it’s not entirely free yet.
nA bundle of antenna cables needs to be derouted from the top case.
It’ll be interesting the see Adamo’s wireless range and performance. It’s challenging to have good wireless reception with an all-metal computer.

Photo and caption by iFixit for TechRepublic.

Cracking Open the Dell Adamo

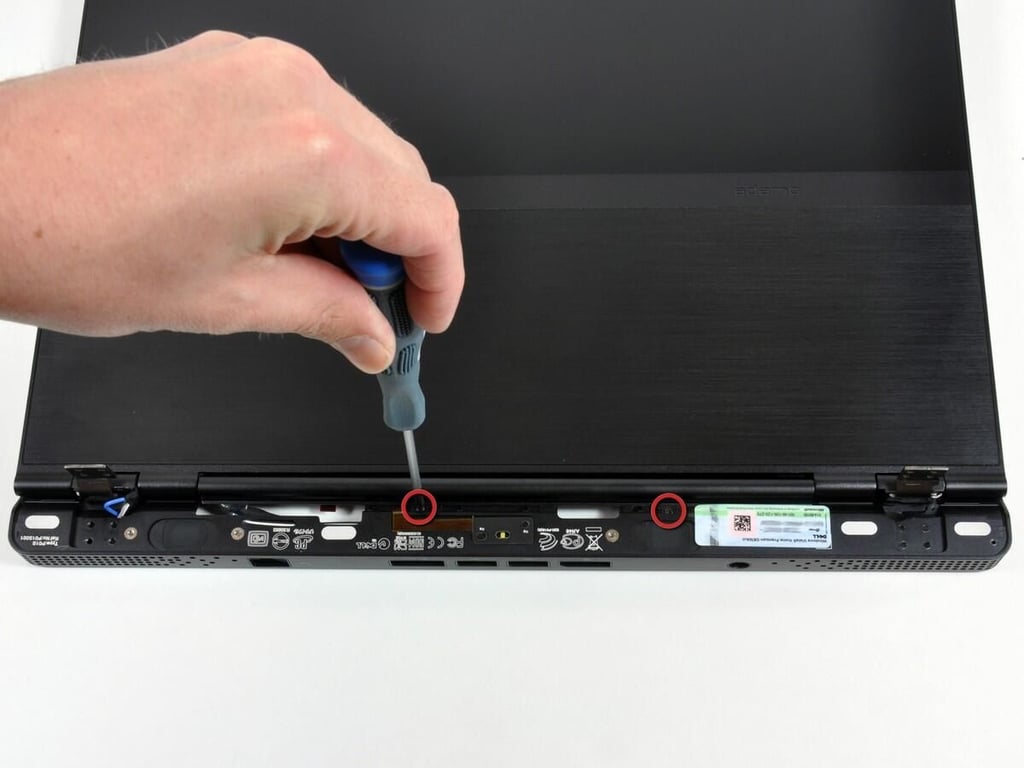

Removing the clutch cover

Removing the clutch cover

Two Phillips screws hold the clutch cover to the top case.

Photo and caption by iFixit for TechRepublic.

Cracking Open the Dell Adamo

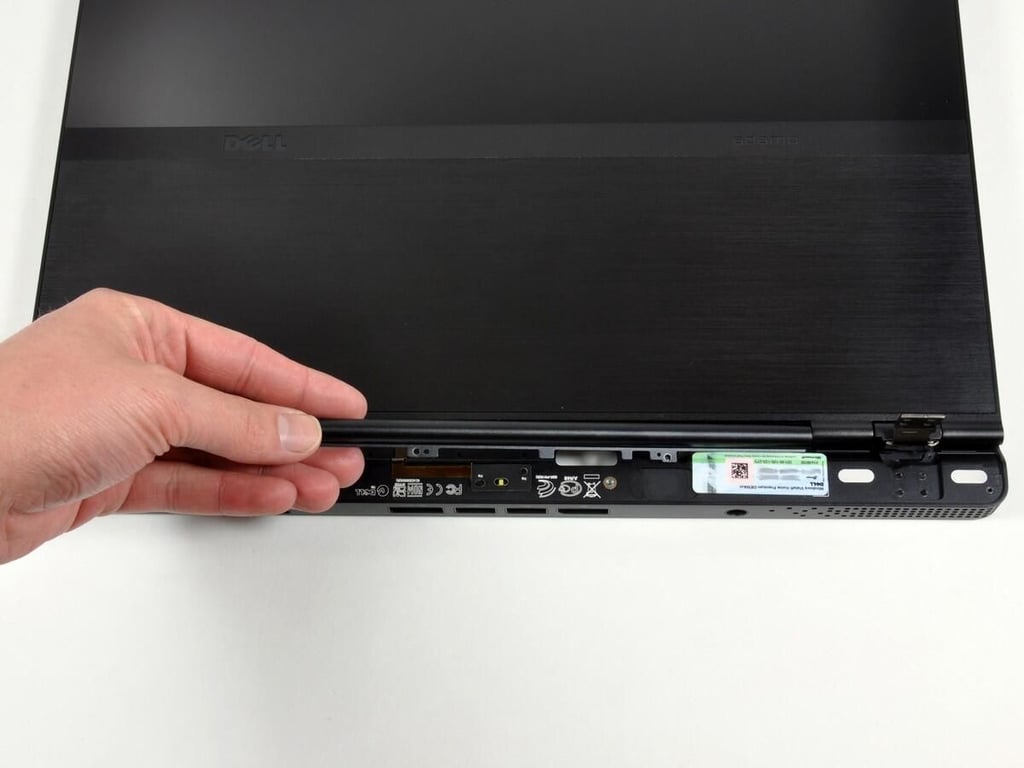

Lifting off the clutch cover

Lifting off the clutch cover

After removing the screws, the clutch cover simply lifts up.
nThe clutch cover is incredibly light. Dell definitely shaved every gram they could off this part.

Photo and caption by iFixit for TechRepublic.

Cracking Open the Dell Adamo

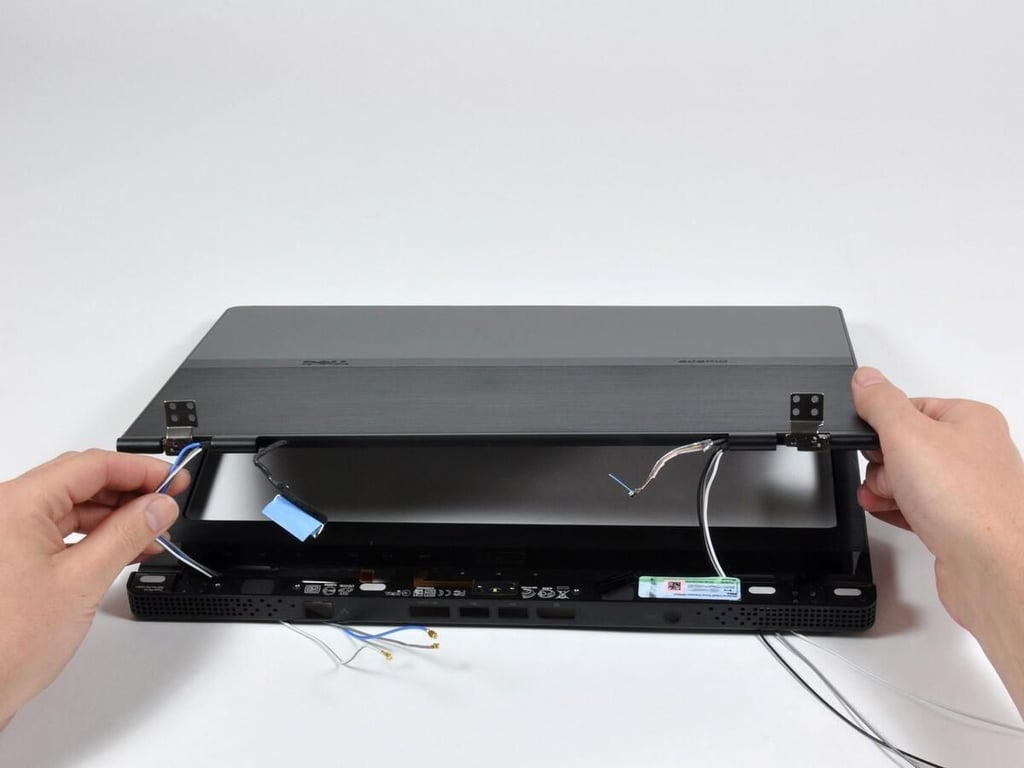

Separating the display from the display assembly

Separating the display from the display assembly

After lifting the clutch cover off, there’s plenty of room to thread the display cables through the top case and remove the display assembly.
nThe display uses a LED backlight, so no inverter is necessary. As shown on this step, the display data cable is on the left, and the camera data cable is on the right.

Photo and caption by iFixit for TechRepublic.

Cracking Open the Dell Adamo

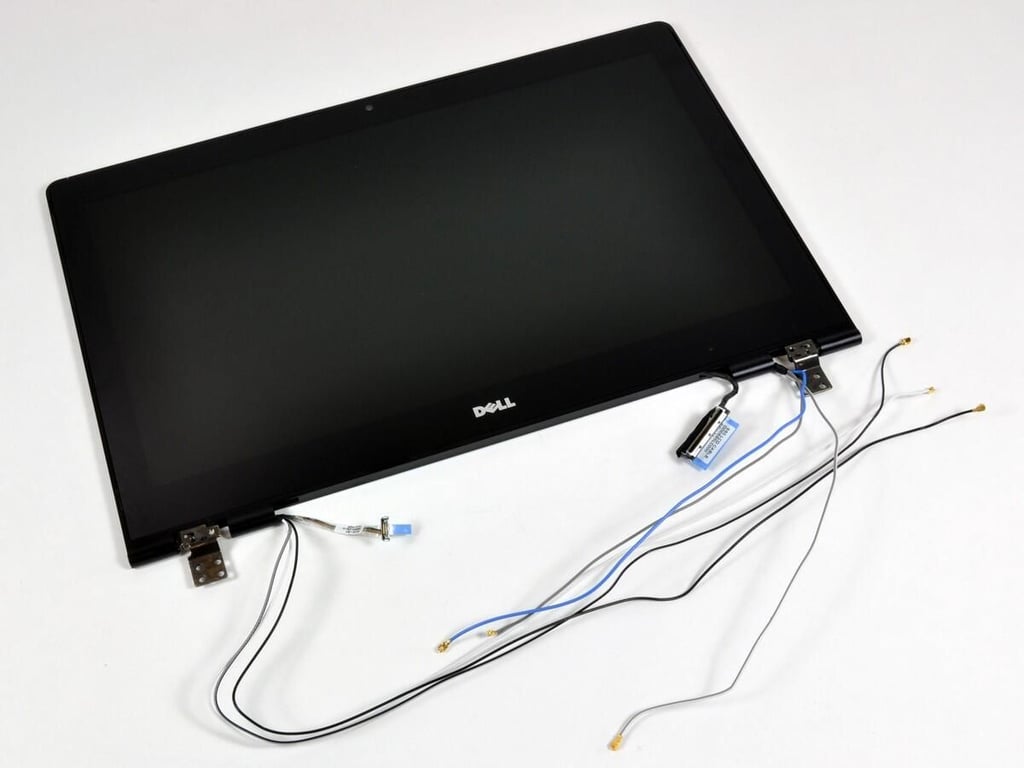

Adamo WLED display removed

Adamo WLED display removed

Free at last!
nIt’s a beautiful display, except for the mass of antenna wires. It would definitely be a prettier picture if we got out the scissors.
nThis display has a resolution of 1366×768. That’s slightly different than the 1280×800 resolution on the MacBook Air. You’ll get an extra 26,624 pixels if you choose the Adamo.
nThe manual lists the display’s maximum power consumption as only 3.6 watts!

Photo and caption by iFixit for TechRepublic.

Cracking Open the Dell Adamo

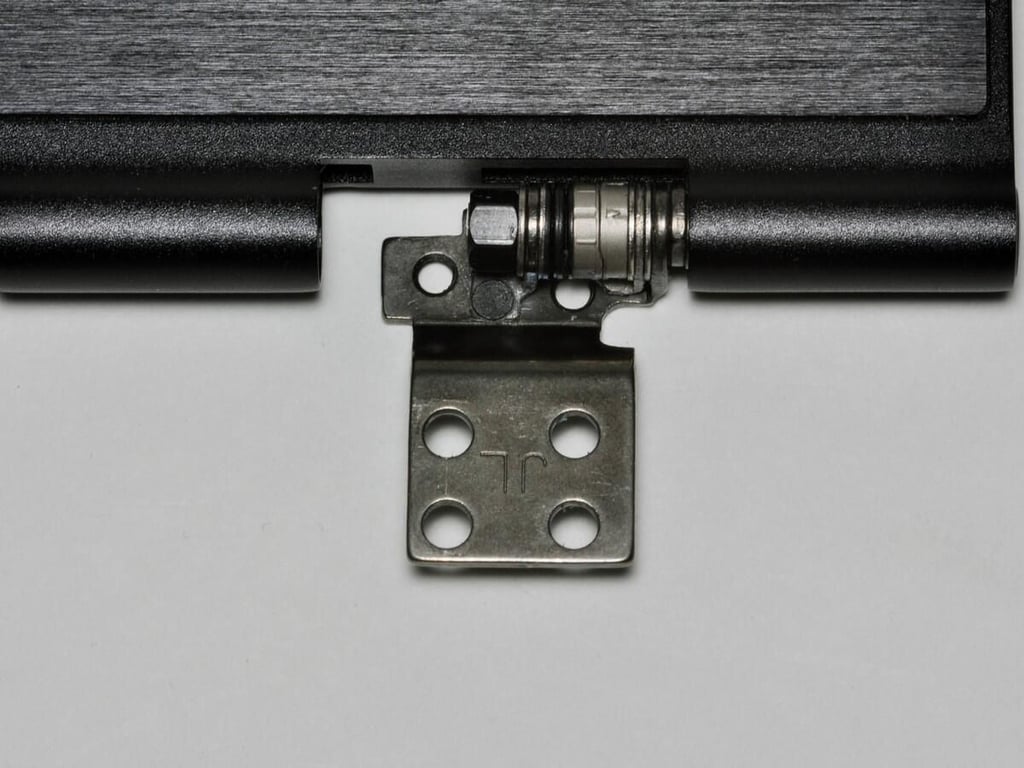

Display hinge

Display hinge

Photo and caption by iFixit for TechRepublic.

Cracking Open the Dell Adamo

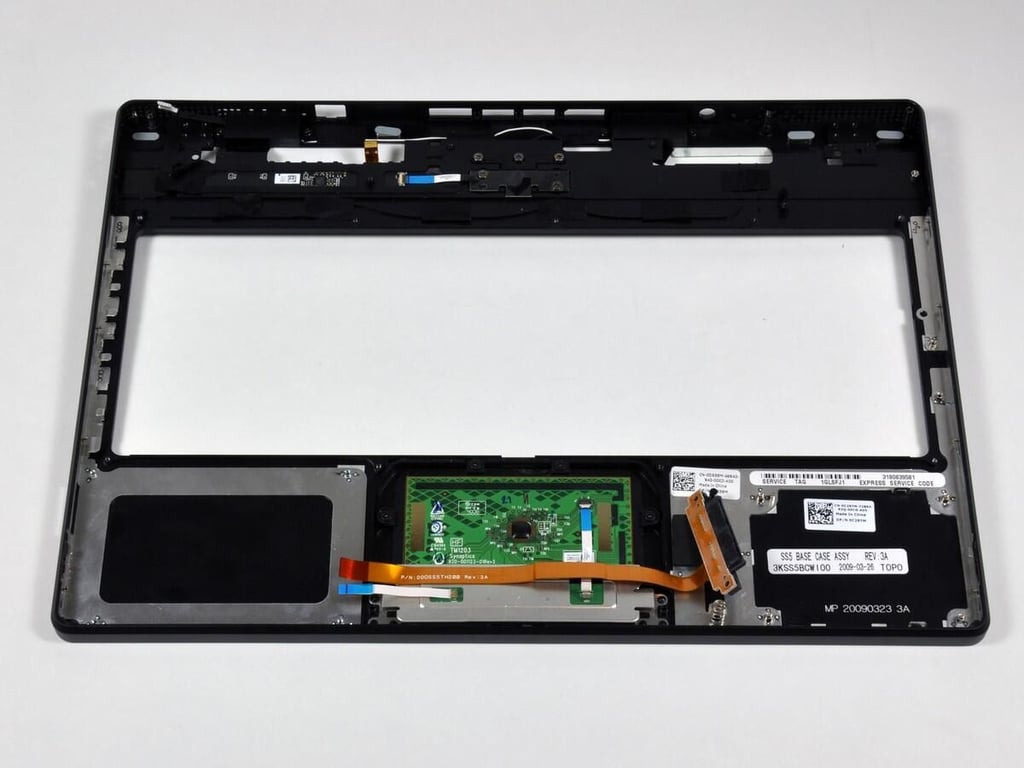

Top panel with keyboard removed

Top panel with keyboard removed

Photo and caption by iFixit for TechRepublic.

Cracking Open the Dell Adamo

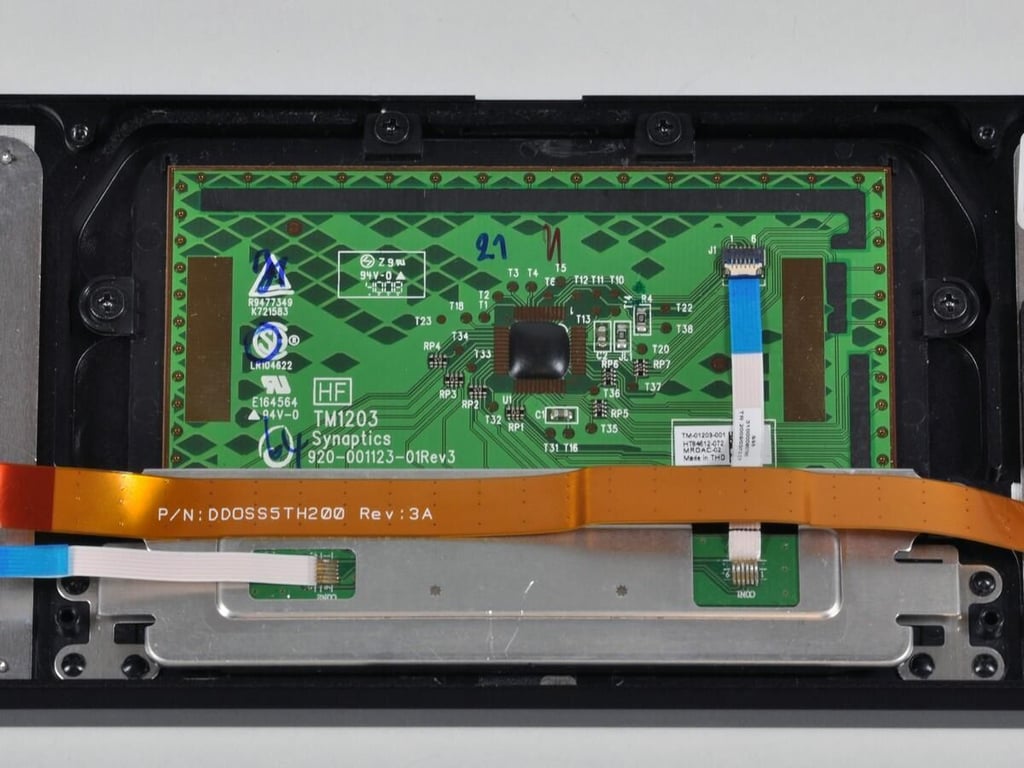

Synaptics pointing device

Synaptics pointing device

Photo and caption by iFixit for TechRepublic.

Cracking Open the Dell Adamo

Case fan

Case fan

Photo and caption by iFixit for TechRepublic.

Cracking Open the Dell Adamo

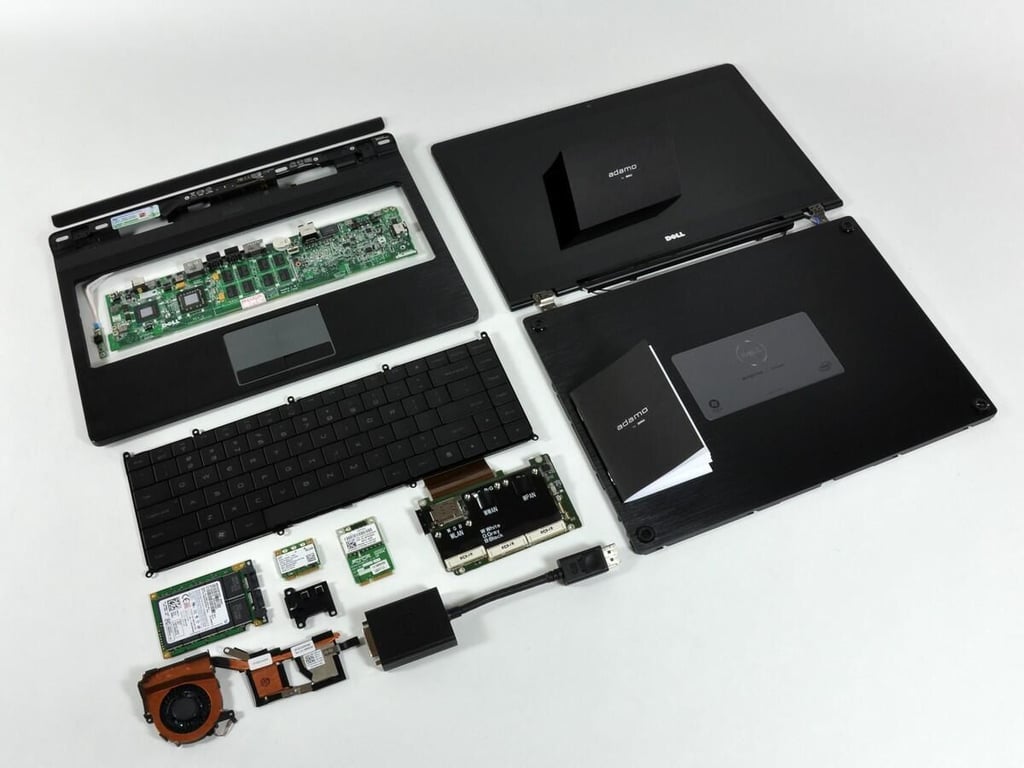

Dell Adamo completely disassembled

Dell Adamo completely disassembled

And here’s the whole Adamo enchilada…

Photo and caption by iFixit for TechRepublic.

  • Hardware
  • Account Information

    Share with Your Friends

    Cracking Open the Dell Adamo

    Your email has been sent

Share: Cracking Open the Dell Adamo
Image of Bill Detwiler
By Bill Detwiler
Bill Detwiler is the Editor for Technical Content and Ecosystem at Celonis. He is the former Editor in Chief of TechRepublic and previous host of TechRepublic's Dynamic Developer podcast and Cracking Open, CNET and TechRepublic's popular online show.
  • Account Information

    Contact Bill Detwiler

    Your message has been sent

  • |
  • See all of Bill's content

TechRepublic Premium

  • TechRepublic Premium

    Best of Confluent Current 2023: The State of Data Streaming

    TechRepublic Premium was at Confluent’s Current 2023 event, held in San Jose, California, September 26-27. Our coverage of the event comprises an analysis of data streaming, interviews, the role of stream governance and a look at Apache Flink. From the download: Confluent used the Current 2023 ‘next generation of Kafka Summit’ event in San Jose ...

    Downloads
    Provided By TechRepublic Premium Published:  Sep 2023 Modified:  Sep 2023 Read More
    Download Now
  • TechRepublic Premium

    Quick Glossary: Fintech

    Fintech is a fast changing landscape that constantly introduces cutting-edge ideas and developments. TechRepublic Premium presents this quick glossary of fintech terms and concepts to help you understand technological breakthroughs and make educated decisions. From the glossary: DECENTRALIZED FINANCE Often referred to as DeFi, this utilizes emerging technology to remove third parties and central financial ...

    Downloads
    Provided By TechRepublic Premium Published:  Sep 2023 Modified:  Sep 2023 Read More
    Download Now
  • TechRepublic Premium

    Anti-Money Laundering Policy

    Money laundering poses a detrimental impact on businesses and the economy as a whole. According to the United Nations Office on Drugs and Crimes, the amount of money laundered around the world in a single year is presumed to be 2–5% of global GDP, which is roughly $800 billion to $2 trillion. The purpose of ...

    Downloads
    Provided By TechRepublic Premium Published:  Sep 2023 Modified:  Sep 2023 Read More
    Download Now
  • TechRepublic Premium

    Hiring Kit: Video Game Audio Engineer

    Modern video games rely on a cornucopia of sounds to engage and engross players. Whether it is ambient sound to set the mood, music to invoke a feeling or dialog to tell the story, sound is vital to the immersive experience of a video game. The individual responsible for meshing all those disparate sounds together ...

    Provided By TechRepublic Premium Published:  Sep 2023 Modified:  Sep 2023 Read More
    Download Now

Services

  • About Us
  • Newsletters
  • RSS Feeds
  • Site Map
  • Site Help & Feedback
  • FAQ
  • Advertise
  • Do Not Sell My Information
  • Careers

Explore

  • Downloads
  • TechRepublic Forums
  • Meet the Team
  • TechRepublic Academy
  • TechRepublic Premium
  • Resource Library
  • Photos
  • Videos
  • TechRepublic
  • TechRepublic on Twitter
  • TechRepublic on Facebook
  • TechRepublic on LinkedIn
  • TechRepublic on Flipboard
© 2023 TechnologyAdvice. All rights reserved.
  • Privacy Policy
  • Terms of Use
  • Property of TechnologyAdvice
