Cracking Open the HTC Flyer

By Bill Detwiler July 5, 2011, 11:22 AM PDT on Twitter billdetwiler

1
of 71

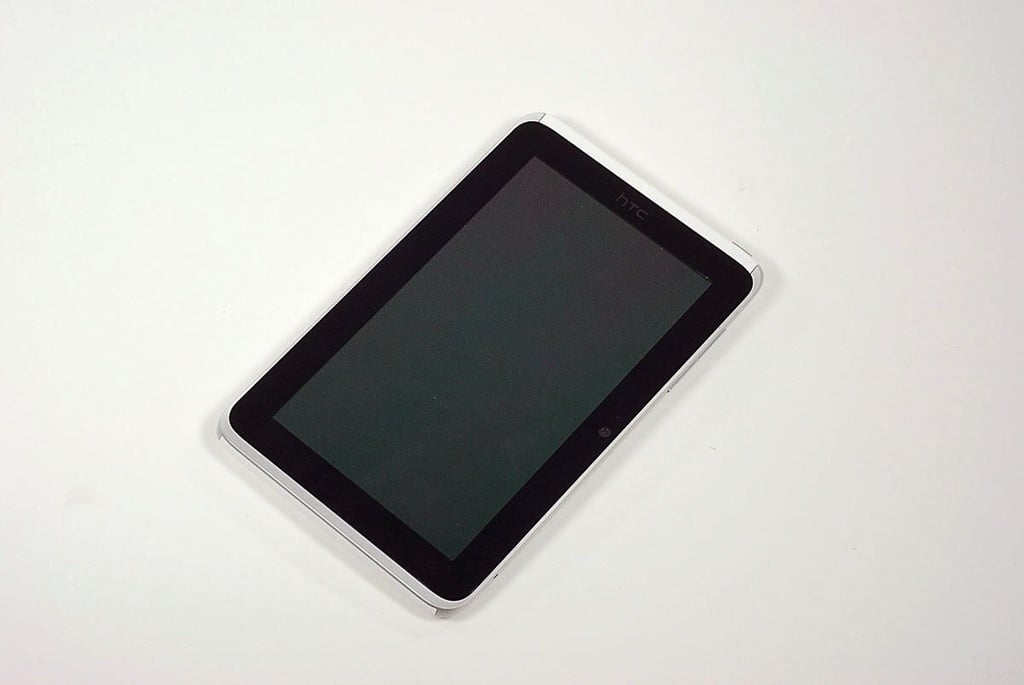

Cracking Open the HTC Flyer

HTC Flyer Teardown

HTC Flyer Teardown

ntThe HTC Flyer is the company’s first effort to grab a piece of the tablet market. We got our hands on the 7-inch, Android tablet and couldn’t resist cracking it open.

n

ntPhoto by: Bill Detwiler / TechRepublic
ntCaption by: Bill Detwiler

Cracking Open the HTC Flyer

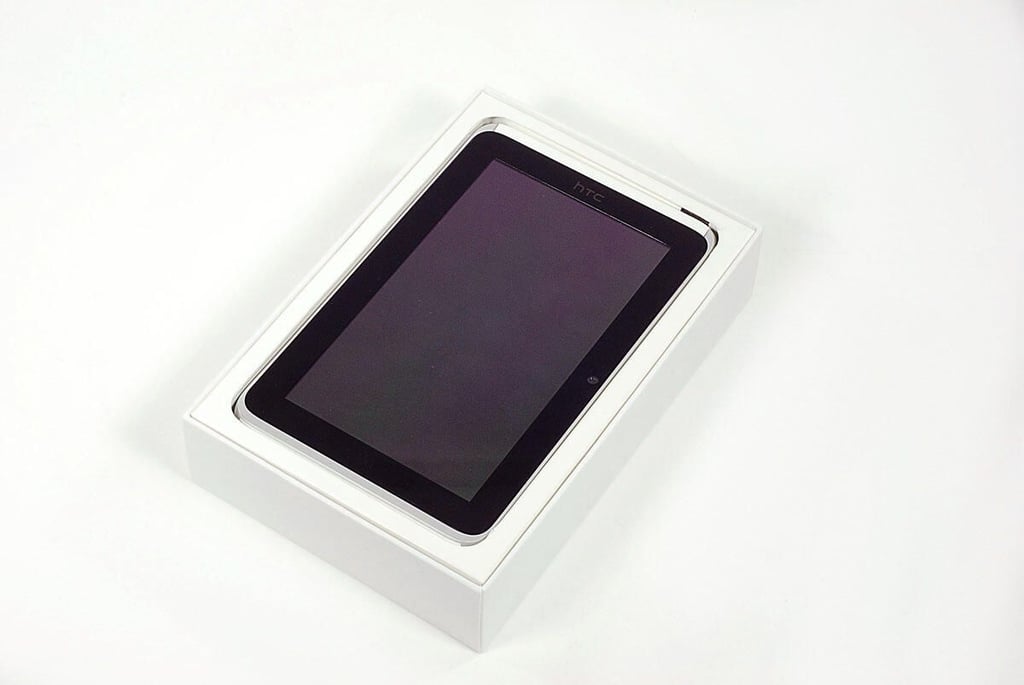

HTC Flyer Cracking Open: Box

HTC Flyer Cracking Open: Box

ntAs of this writing, the HTC Flyer is available for $499.99 (US) from Best Buy. The current version only supports Wi-Fi connectivity, but HTC plans to launch 3G models later this year.
nt
ntPhoto by: Bill Detwiler / TechRepublic
ntCaption by: Bill Detwiler

Cracking Open the HTC Flyer

HTC Flyer Cracking Open: In the box

HTC Flyer Cracking Open: In the box

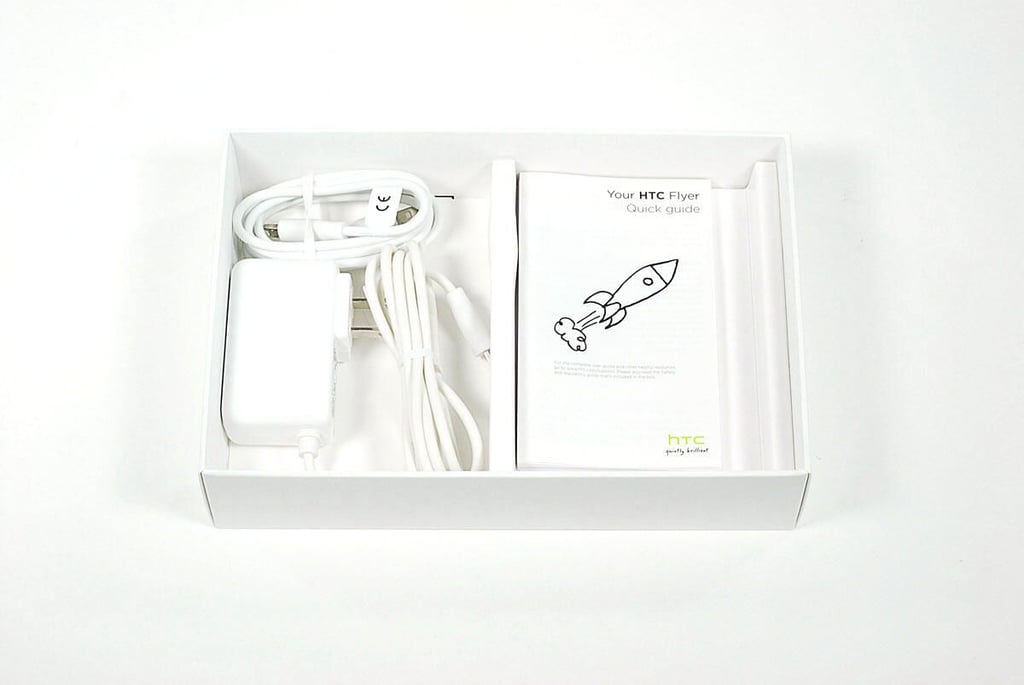

Cracking Open the HTC Flyer

HTC Flyer Cracking Open: Charger and USB cable included (but no HTC Scribe pen)

HTC Flyer Cracking Open: Charger and USB cable included (but no HTC Scribe pen)

Included with the HTC Flyer are a charger and USB cable. Unfortunately, the Flyer’s most interesting feature, HTC Scribe, requires the purchase of a separate pen.

Photo by: Bill Detwiler / TechRepublic
Caption by: Bill Detwiler

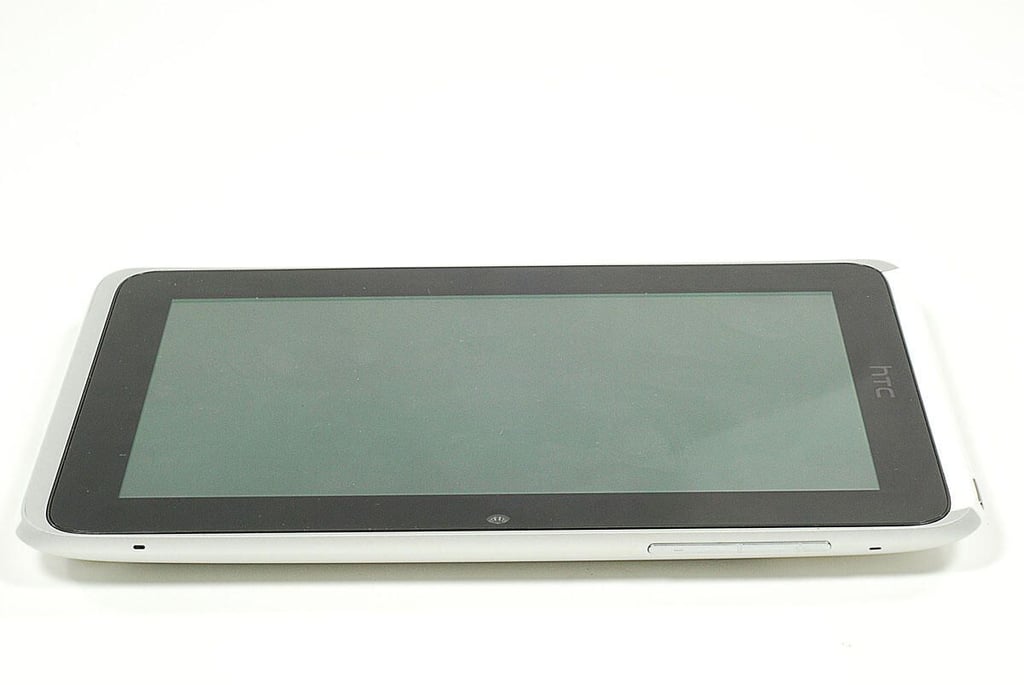

Cracking Open the HTC Flyer

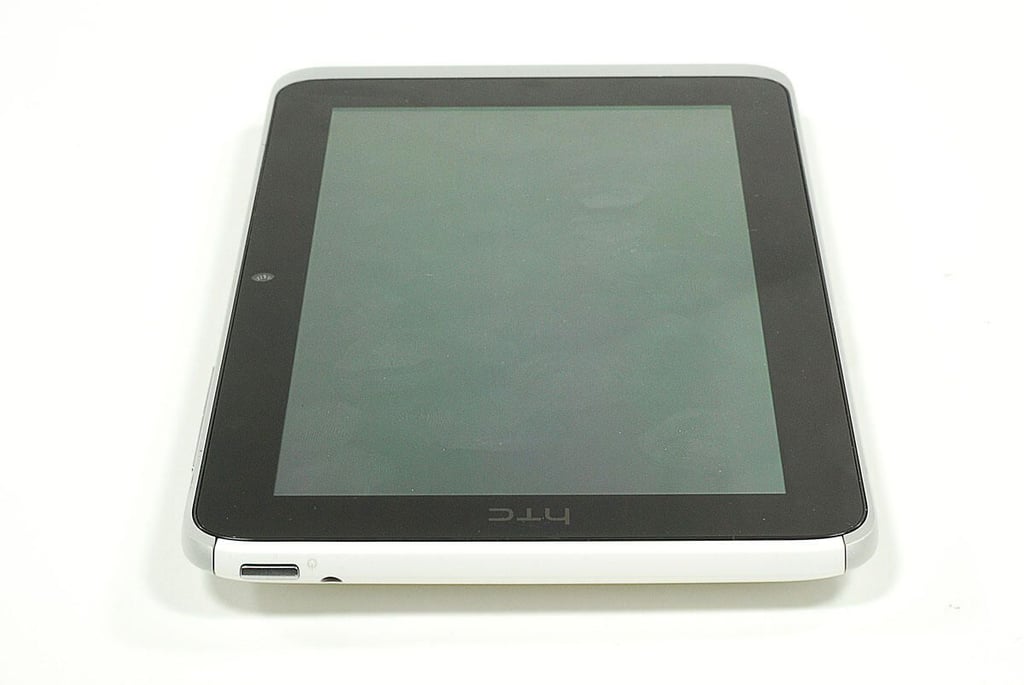

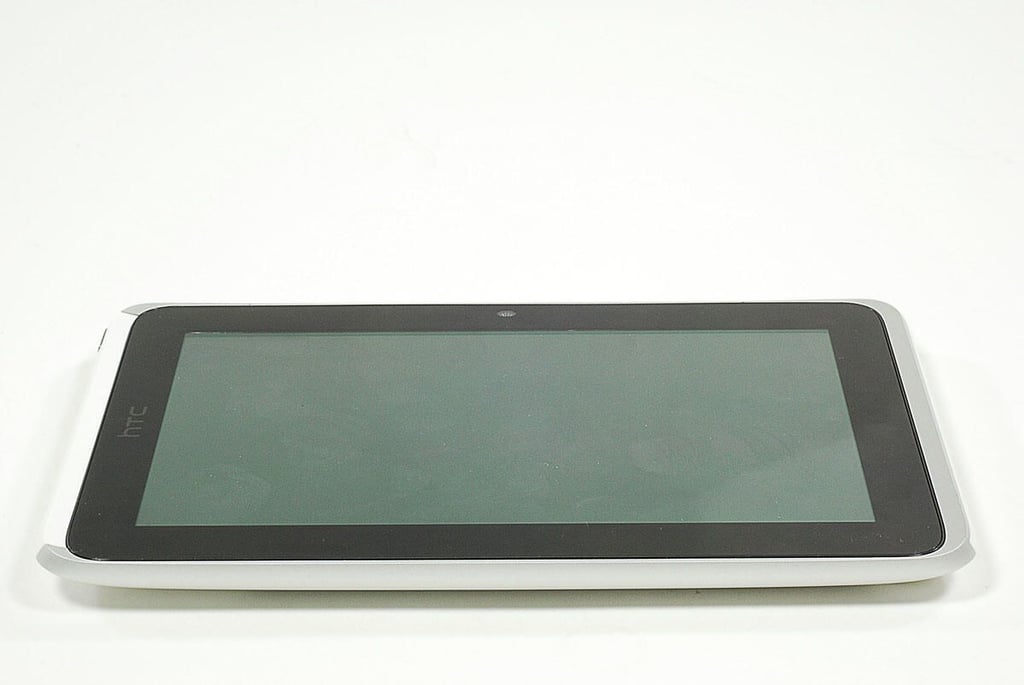

HTC Flyer Cracking Open: Front

HTC Flyer Cracking Open: Front

The HTC Flyer weighs just under a pound (14.82 ounces) and measures 7.7″ (H) x 4.8″ (W) x 0.52″ (D).

Photo by: Bill Detwiler / TechRepublic
Caption by: Bill Detwiler

Cracking Open the HTC Flyer

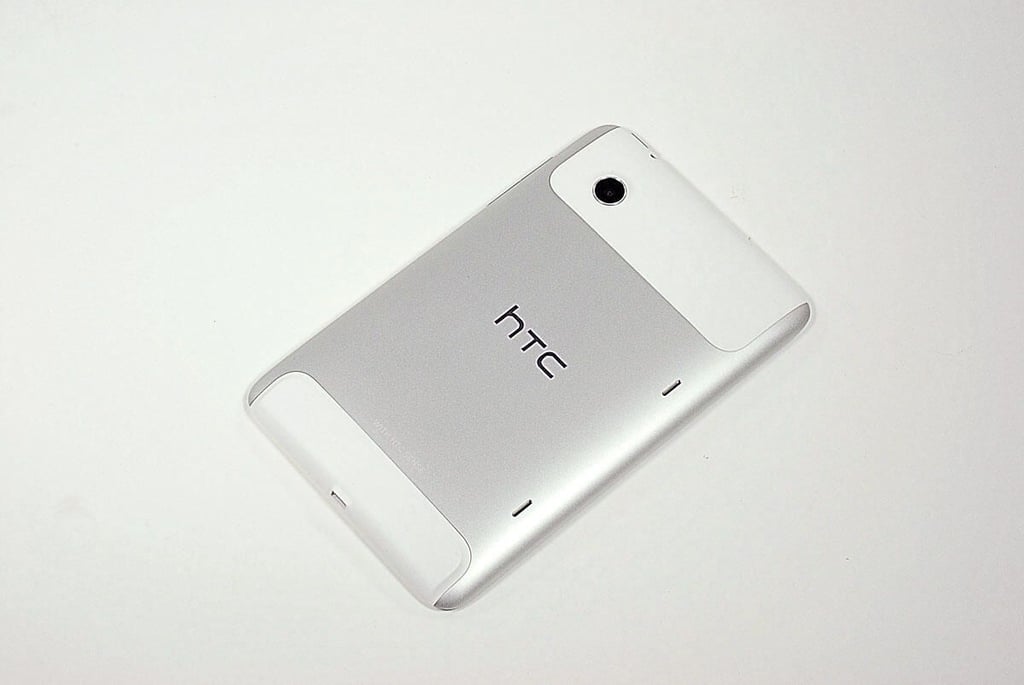

HTC Flyer Cracking Open: Back

HTC Flyer Cracking Open: Back

Cracking Open the HTC Flyer

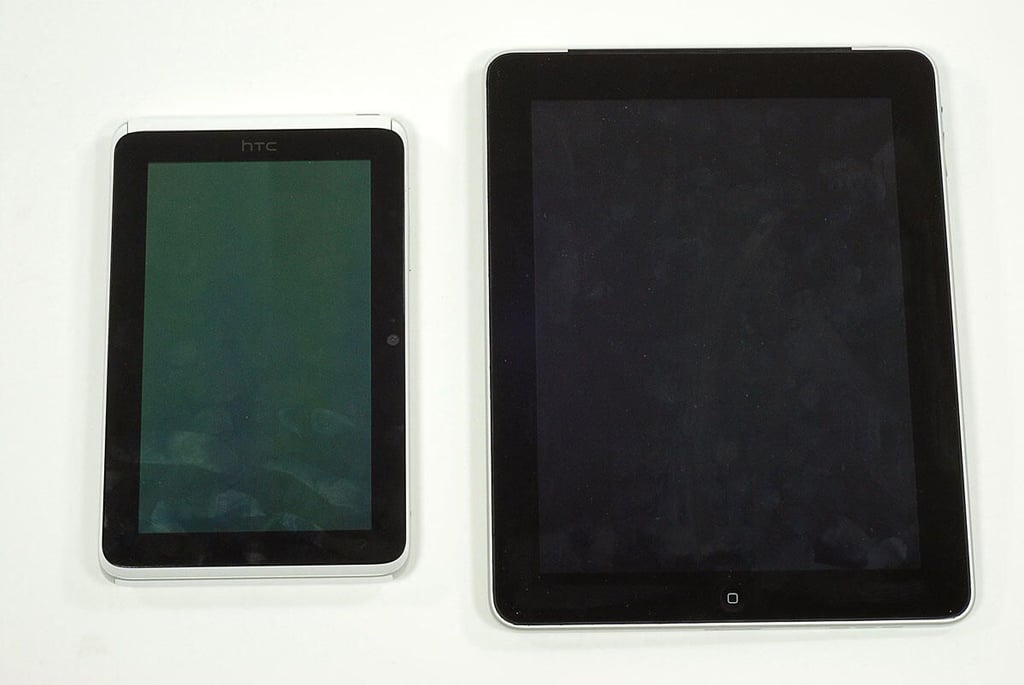

HTC Flyer Cracking Open: Flyer next to Apple iPad

HTC Flyer Cracking Open: Flyer next to Apple iPad

Cracking Open the HTC Flyer

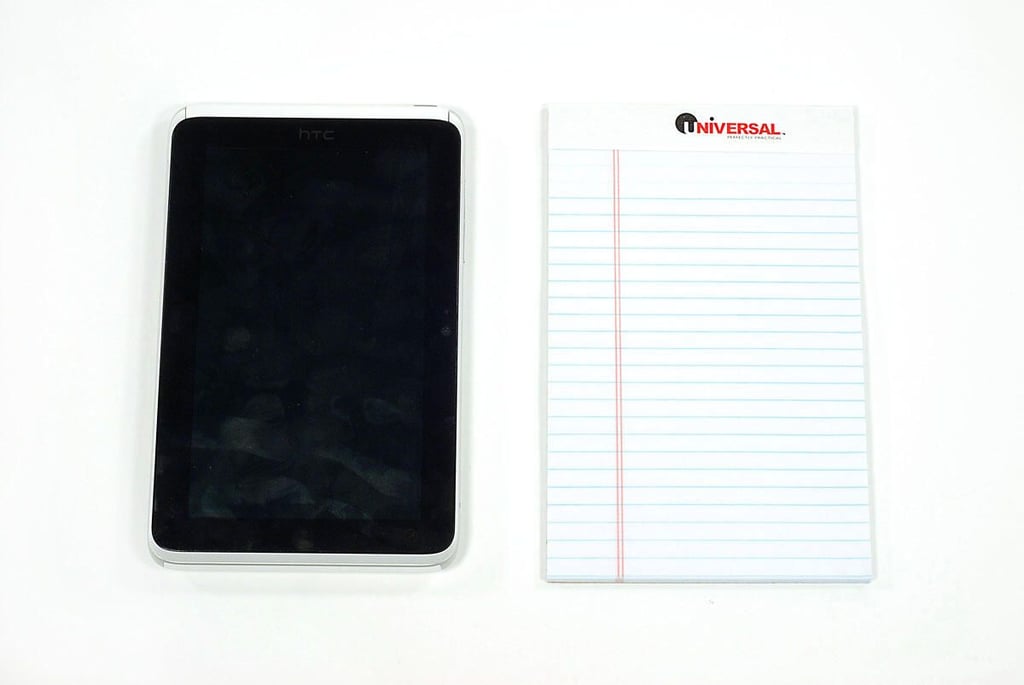

HTC Flyer Cracking Open: Flyer next to a small notepad

HTC Flyer Cracking Open: Flyer next to a small notepad

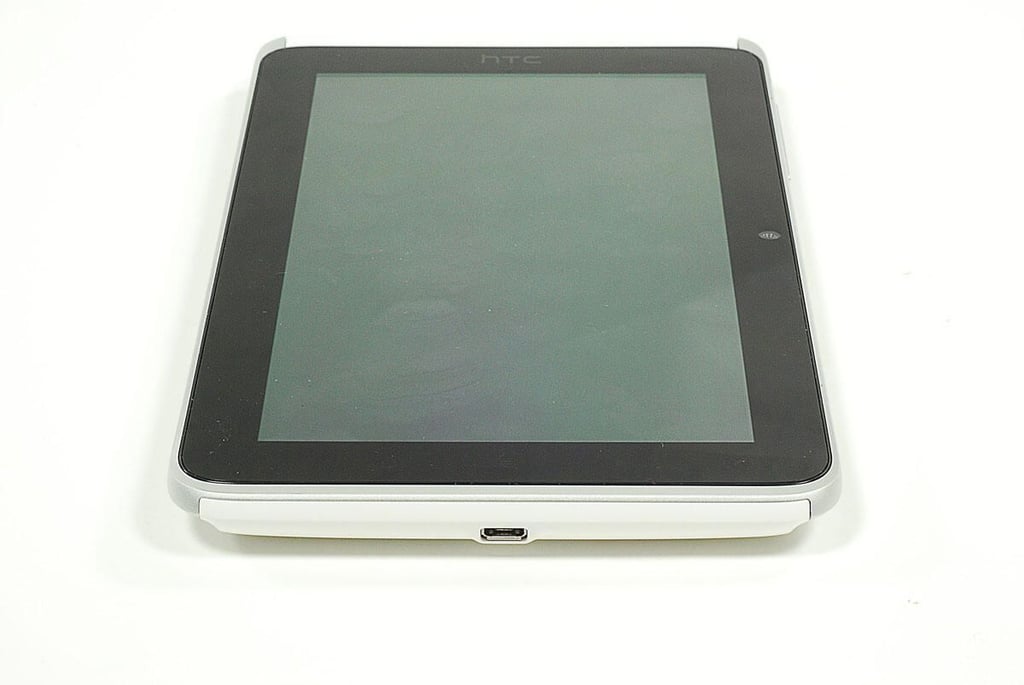

Cracking Open the HTC Flyer

HTC Flyer Cracking Open: microUSB port

HTC Flyer Cracking Open: microUSB port

Cracking Open the HTC Flyer

HTC Flyer Cracking Open: Power button and headset jack

HTC Flyer Cracking Open: Power button and headset jack

Cracking Open the HTC Flyer

HTC Flyer Cracking Open: Left edge

HTC Flyer Cracking Open: Left edge

Cracking Open the HTC Flyer

HTC Flyer Cracking Open: Volume button and built-in microphones

HTC Flyer Cracking Open: Volume button and built-in microphones

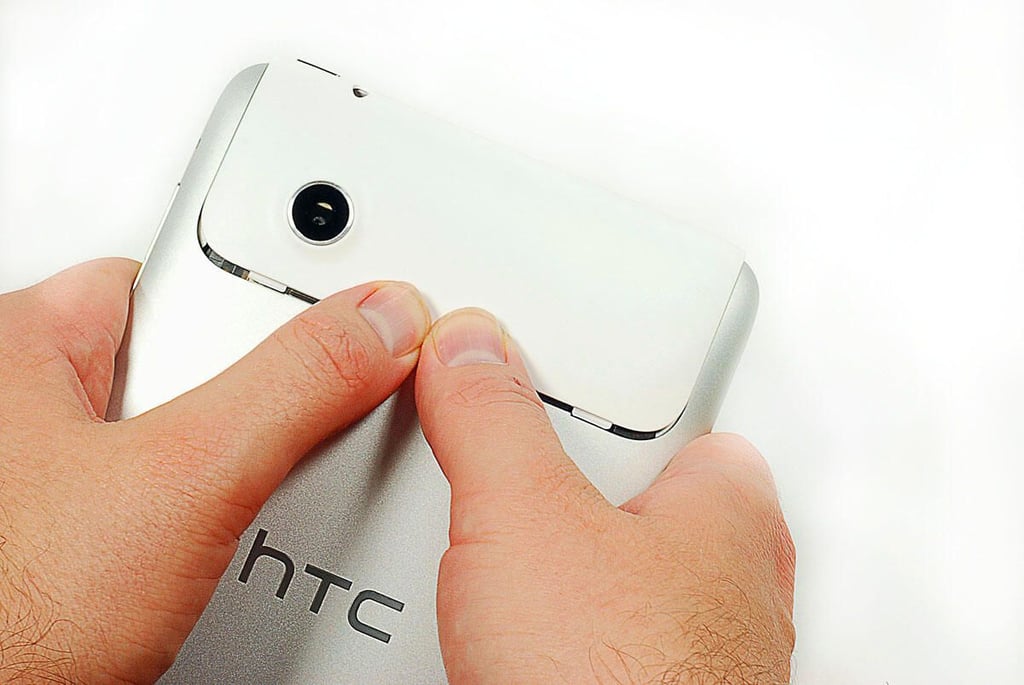

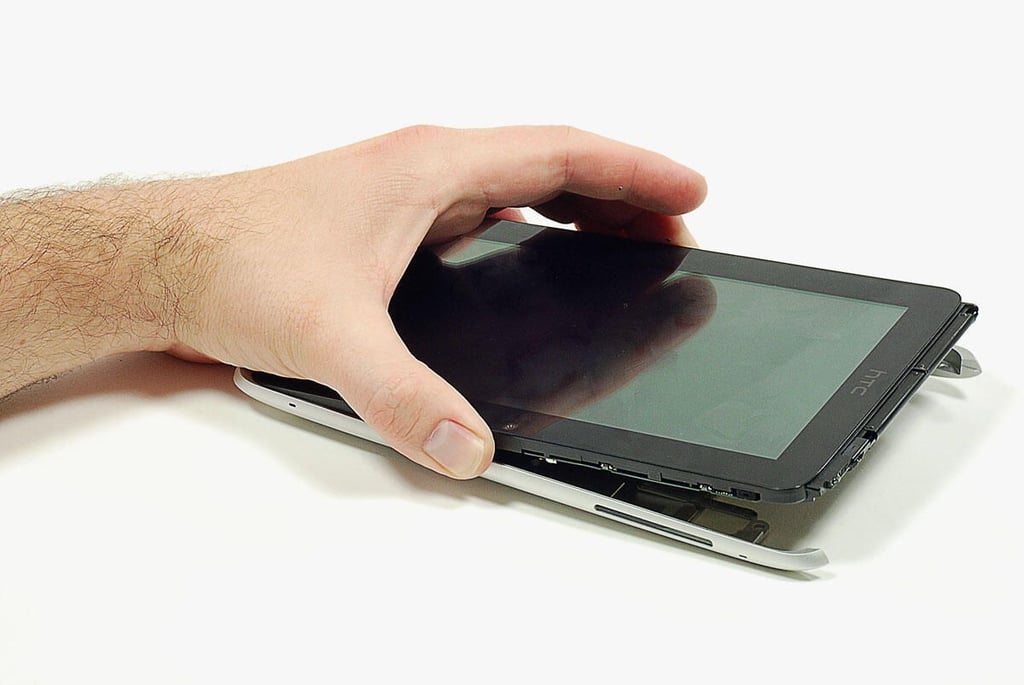

Cracking Open the HTC Flyer

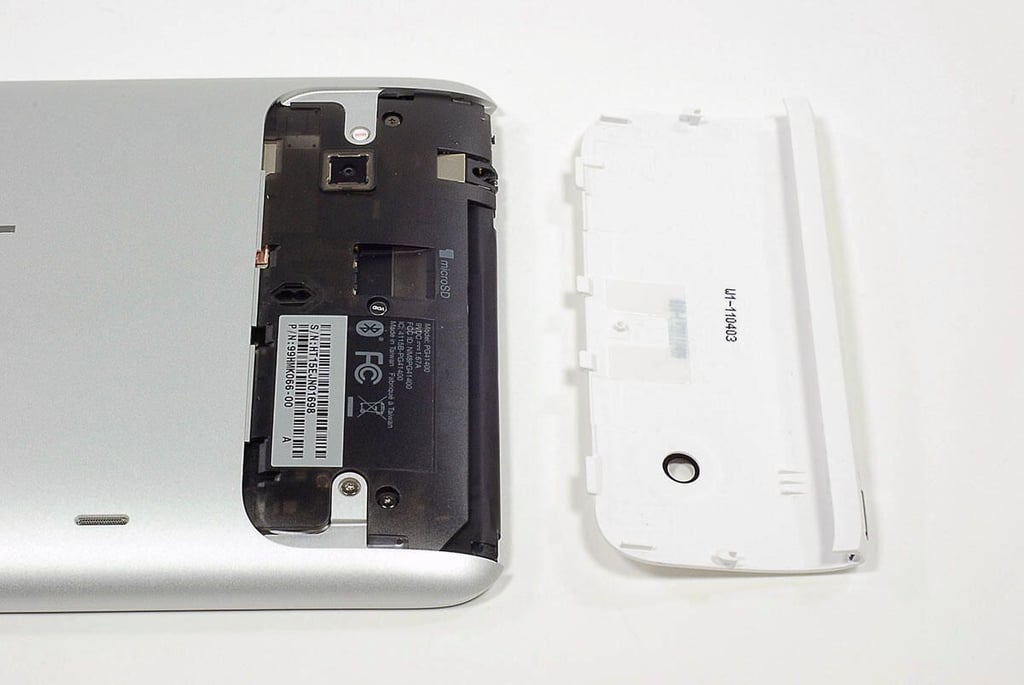

HTC Flyer Cracking Open: Removing the top cover

HTC Flyer Cracking Open: Removing the top cover

Cracking Open the HTC Flyer

HTC Flyer Cracking Open: Top cover removed

HTC Flyer Cracking Open: Top cover removed

Cracking Open the HTC Flyer

HTC Flyer Cracking Open: Removing the inner top cover screws

HTC Flyer Cracking Open: Removing the inner top cover screws

Cracking Open the HTC Flyer

HTC Flyer Cracking Open: Removing the inner top cover

HTC Flyer Cracking Open: Removing the inner top cover

Cracking Open the HTC Flyer

HTC Flyer Cracking Open: Inner top cover removed

HTC Flyer Cracking Open: Inner top cover removed

Cracking Open the HTC Flyer

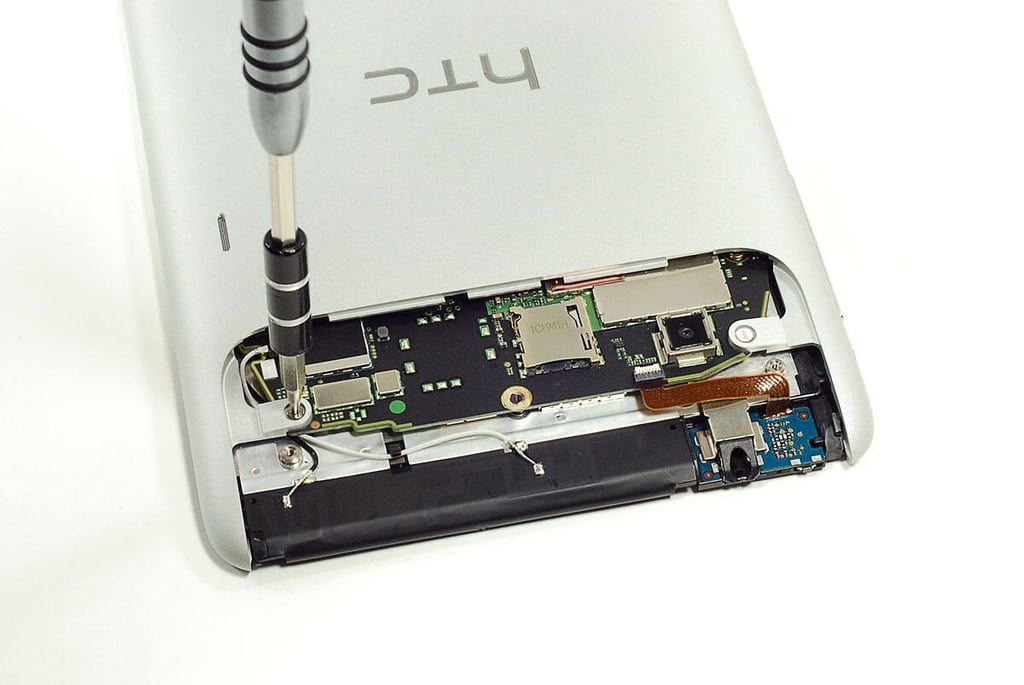

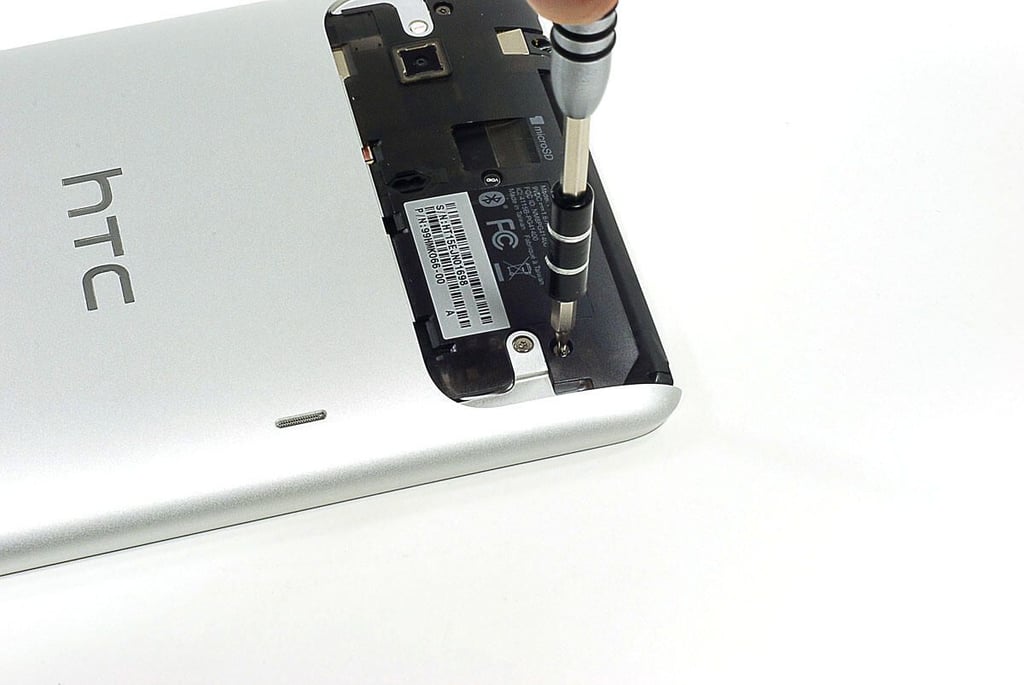

HTC Flyer Cracking Open: Removing the rear cover screws

HTC Flyer Cracking Open: Removing the rear cover screws

Cracking Open the HTC Flyer

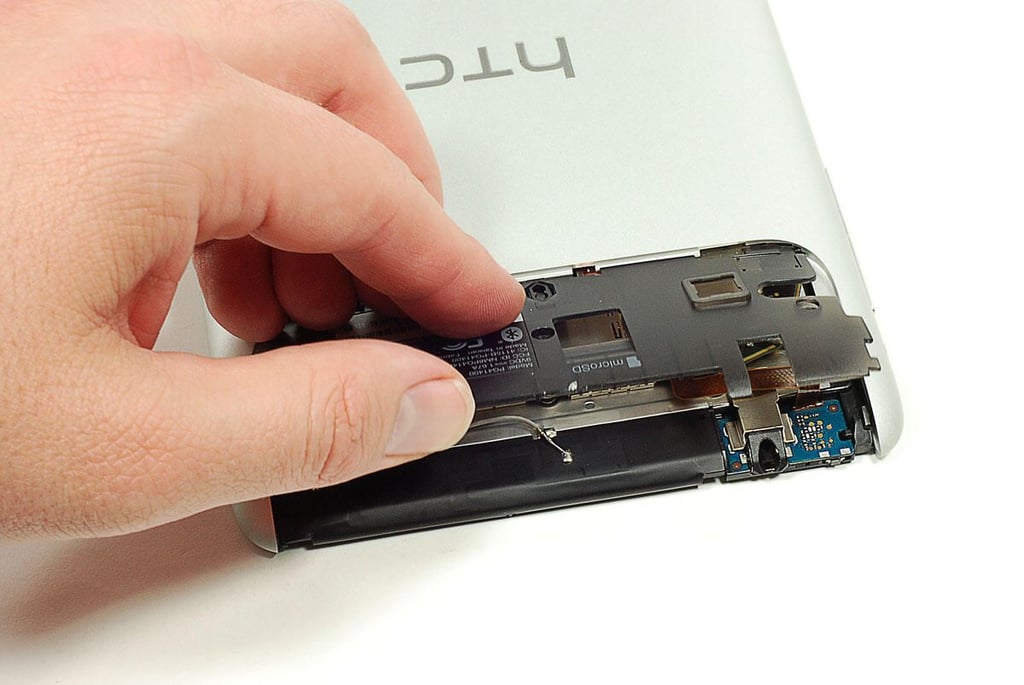

HTC Flyer Cracking Open: Lifting the front panel assembly away from the rear cover

HTC Flyer Cracking Open: Lifting the front panel assembly away from the rear cover

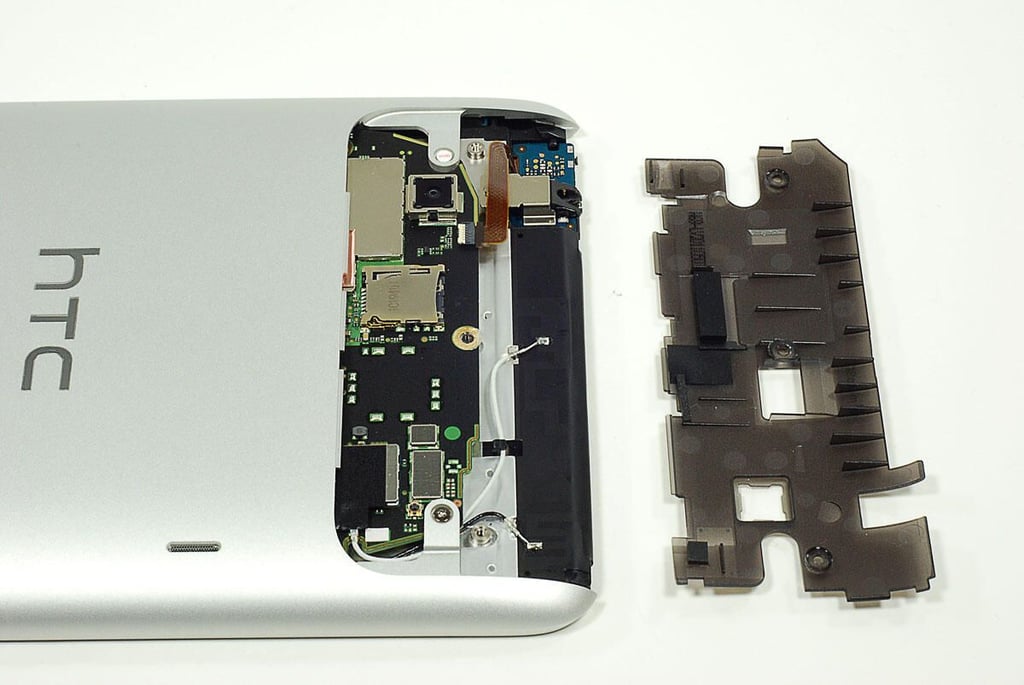

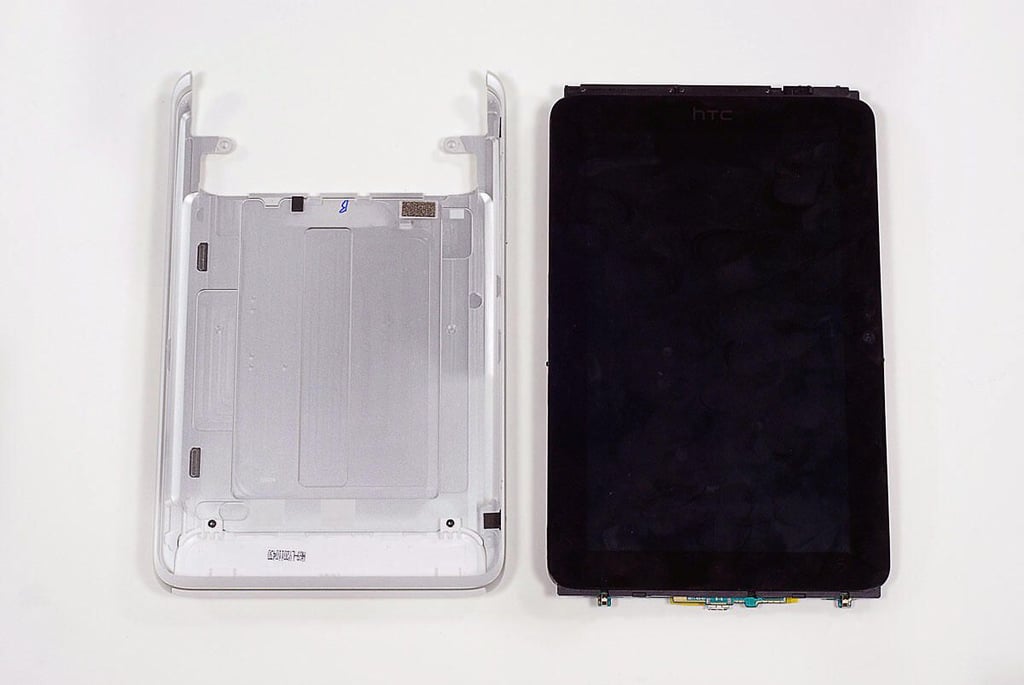

Cracking Open the HTC Flyer

HTC Flyer Cracking Open: Rear cover and front panel assembly

HTC Flyer Cracking Open: Rear cover and front panel assembly

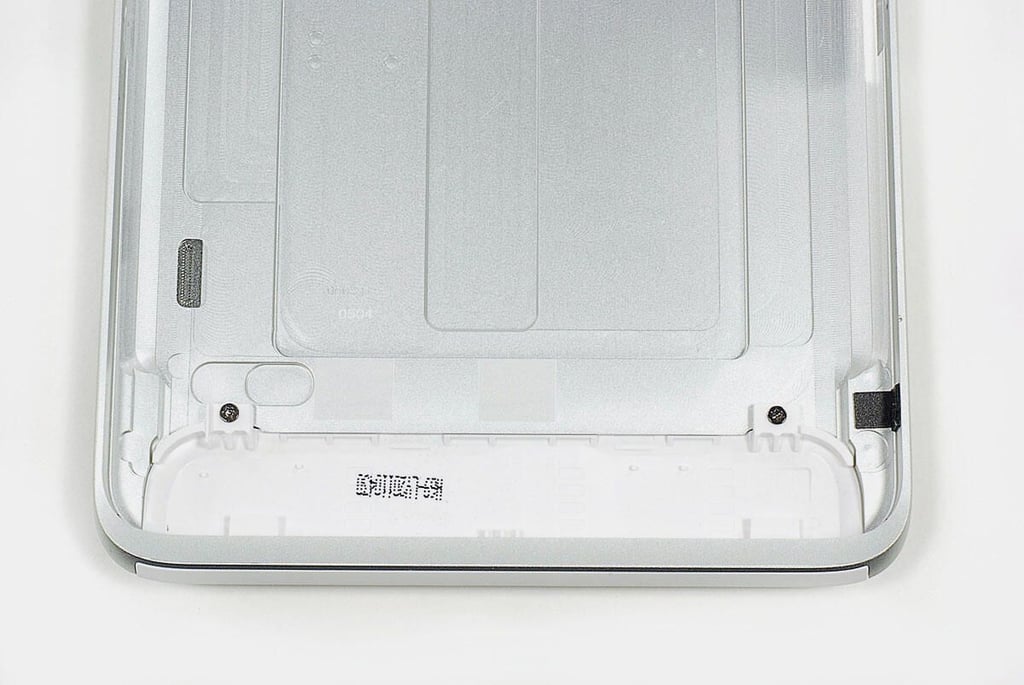

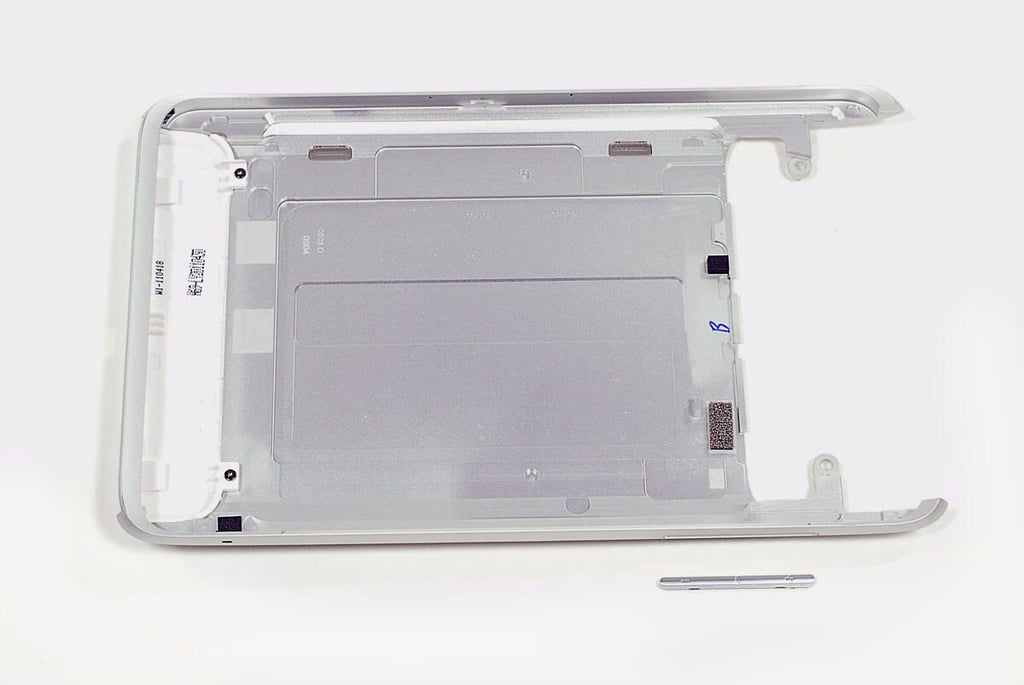

Cracking Open the HTC Flyer

HTC Flyer Cracking Open: Rear cover and volume button removed

HTC Flyer Cracking Open: Rear cover and volume button removed

Cracking Open the HTC Flyer

HTC Flyer Cracking Open: Rear cover RF window

HTC Flyer Cracking Open: Rear cover RF window

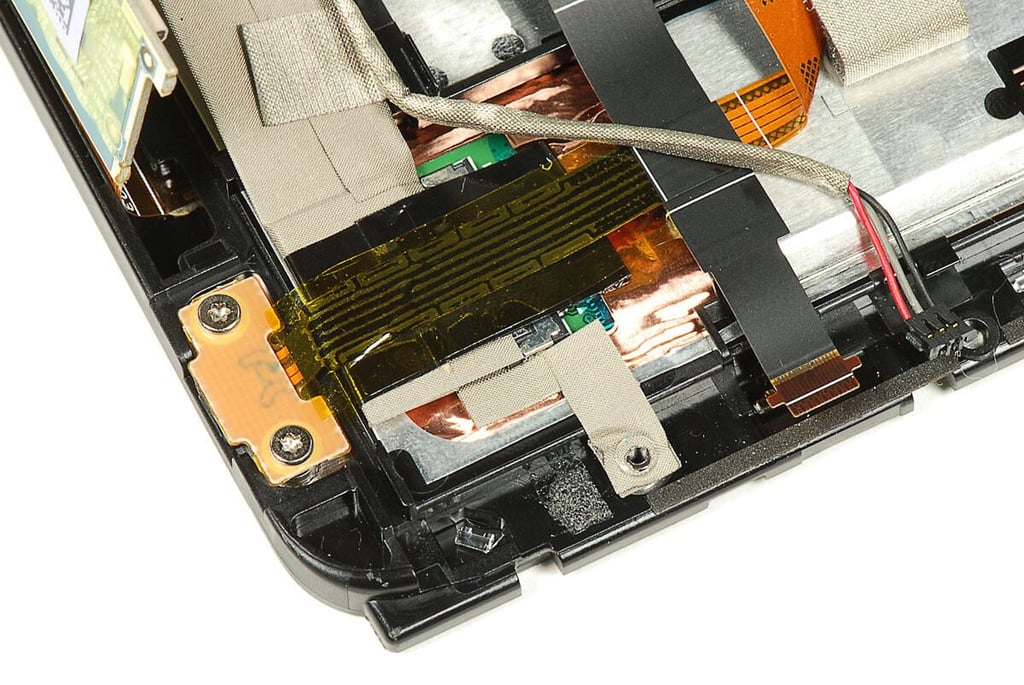

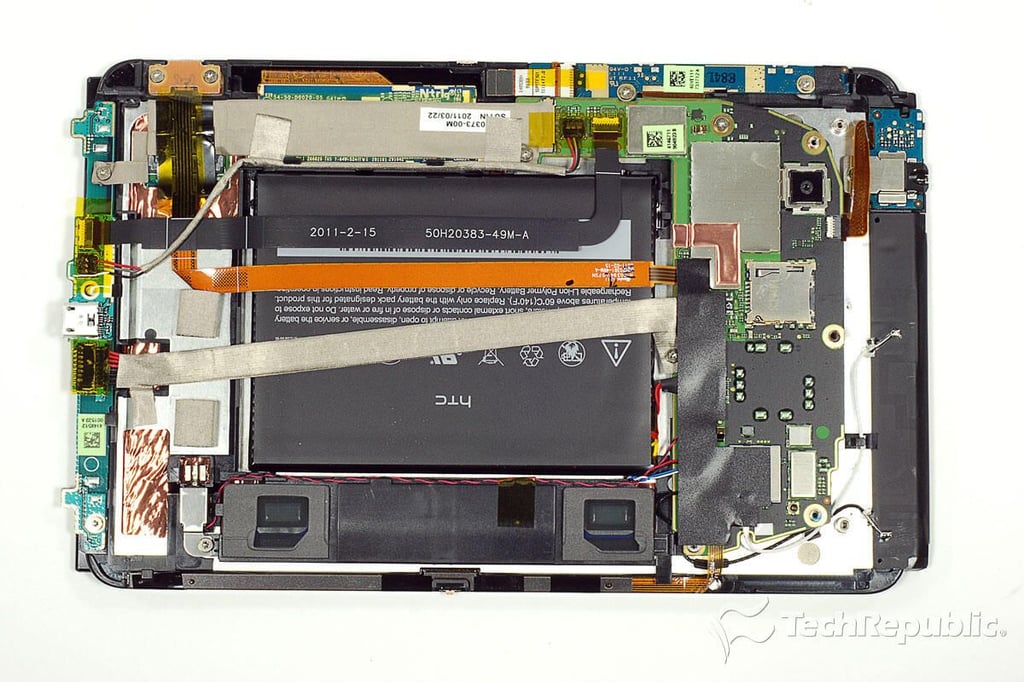

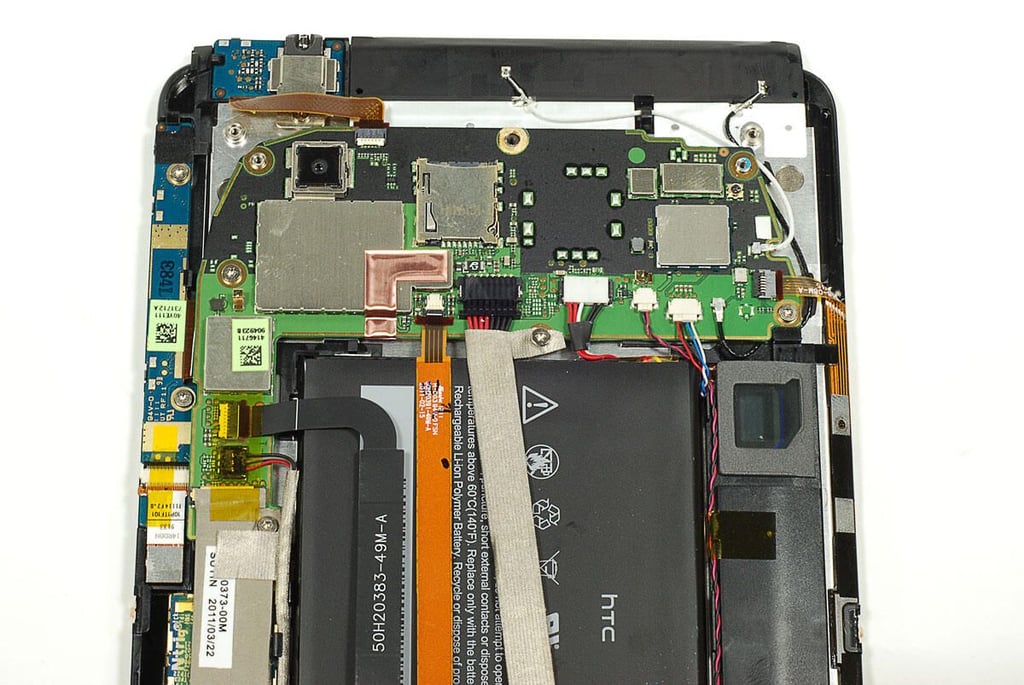

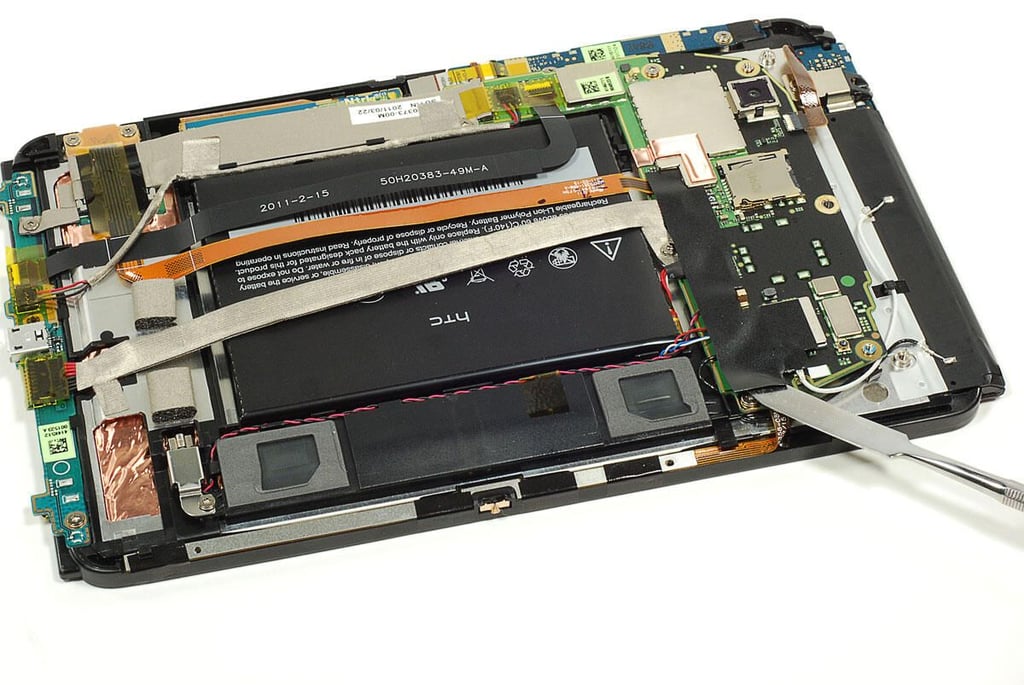

Cracking Open the HTC Flyer

HTC Flyer Cracking Open: Internal hardware

HTC Flyer Cracking Open: Internal hardware

Cracking Open the HTC Flyer

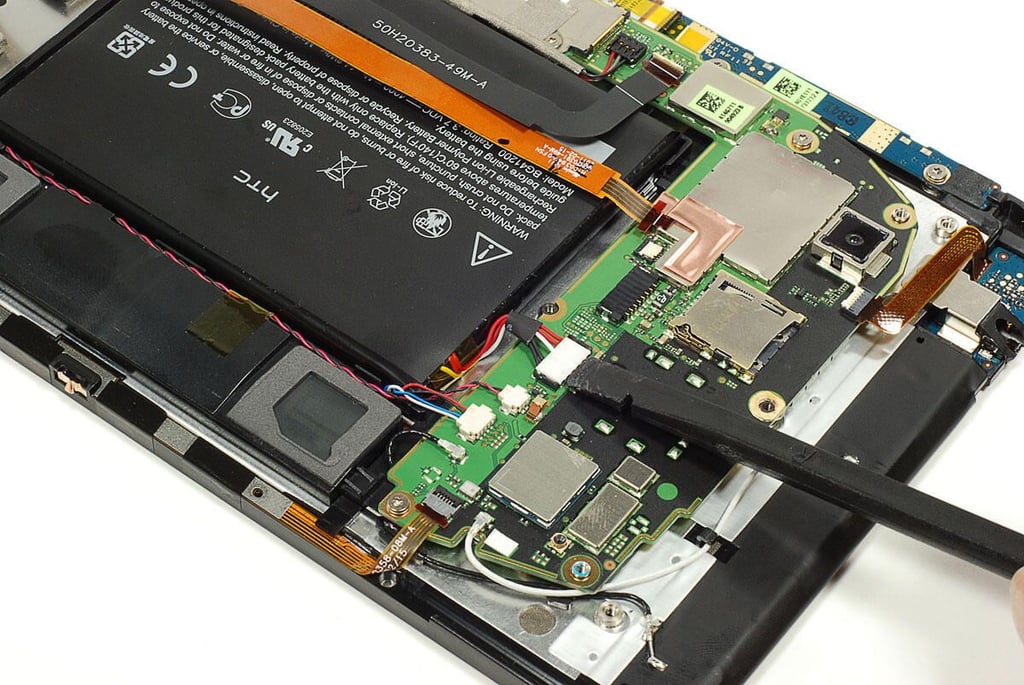

HTC Flyer Cracking Open: Removing the main PCB connector cover

HTC Flyer Cracking Open: Removing the main PCB connector cover

Cracking Open the HTC Flyer

HTC Flyer Cracking Open: Main PCB connectors

HTC Flyer Cracking Open: Main PCB connectors

Cracking Open the HTC Flyer

HTC Flyer Cracking Open: Removing a ribbon cable screw

HTC Flyer Cracking Open: Removing a ribbon cable screw

Cracking Open the HTC Flyer

HTC Flyer Cracking Open: Detaching the battery cable

HTC Flyer Cracking Open: Detaching the battery cable

Cracking Open the HTC Flyer

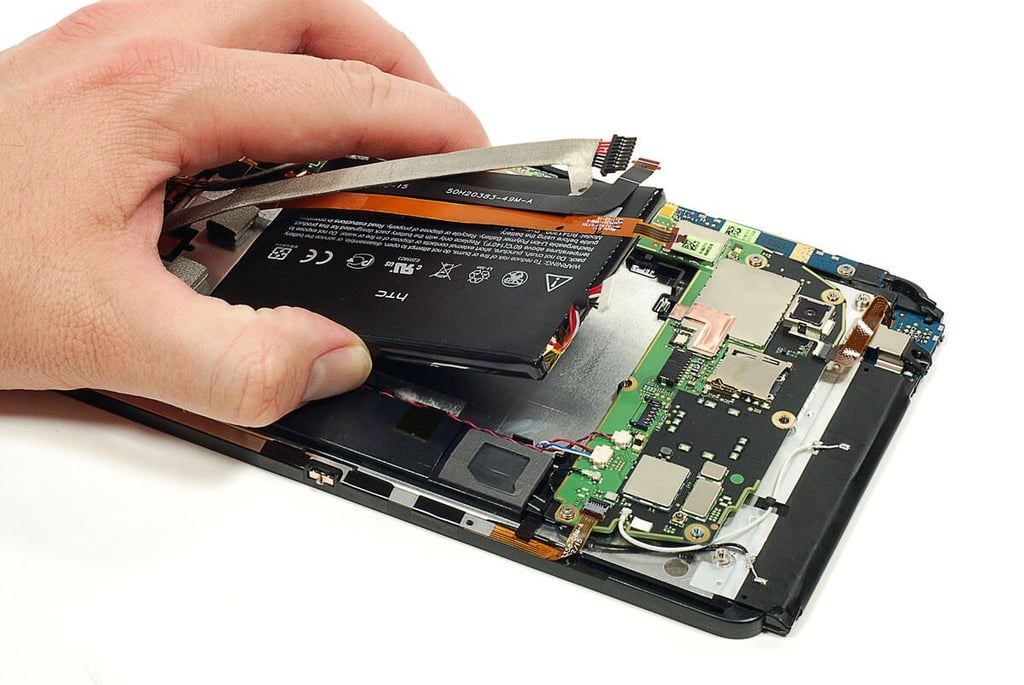

HTC Flyer Cracking Open: Removing the battery

HTC Flyer Cracking Open: Removing the battery

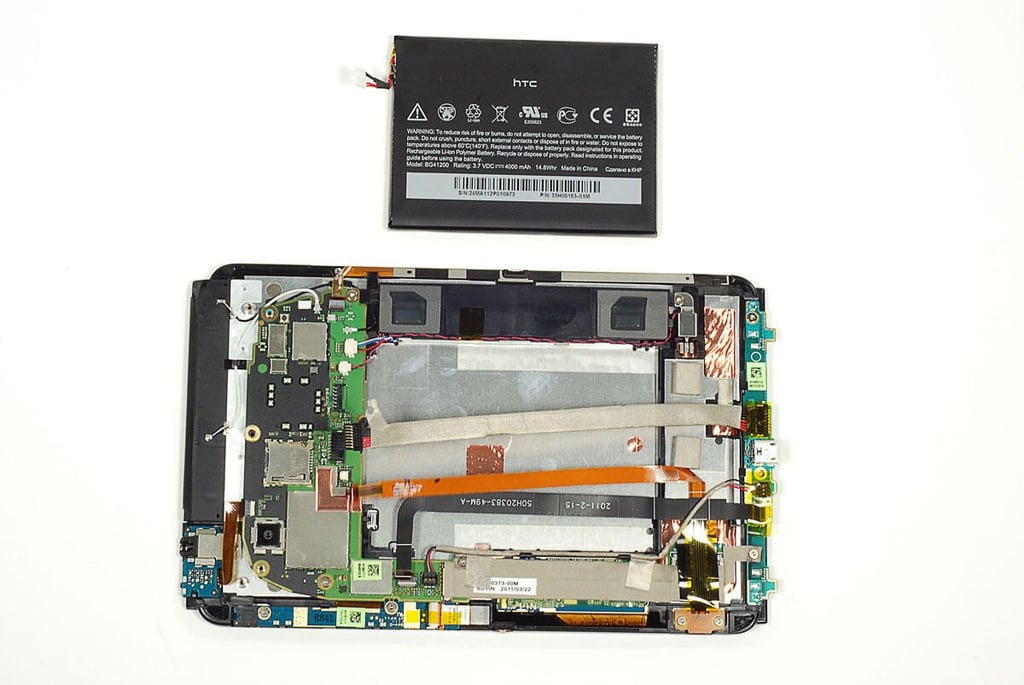

Cracking Open the HTC Flyer

HTC Flyer Cracking Open: Battery removed

HTC Flyer Cracking Open: Battery removed

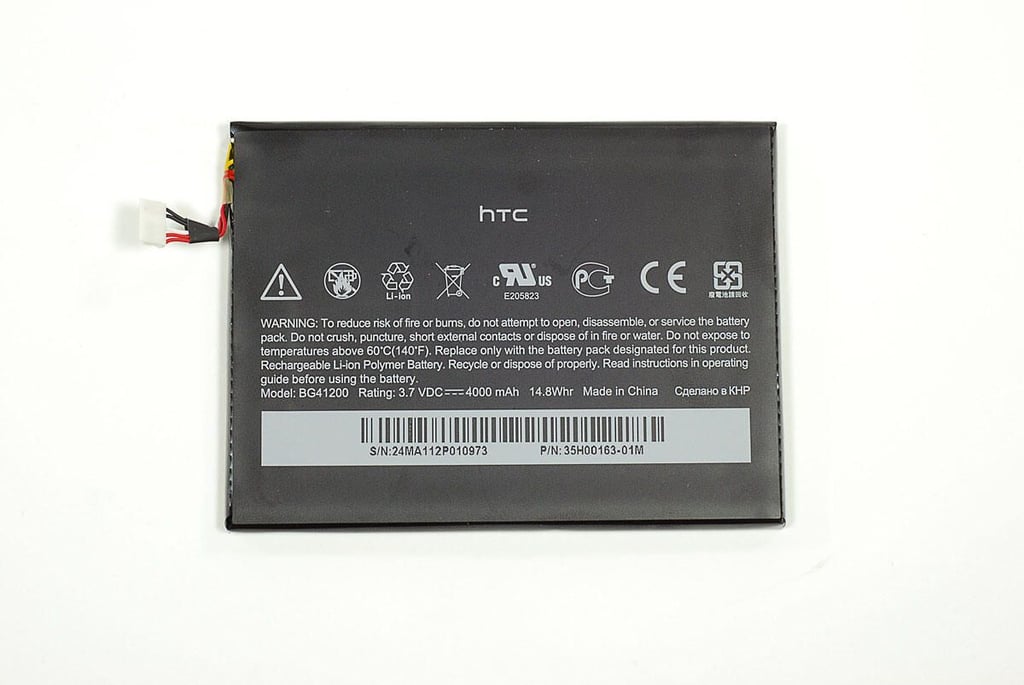

Cracking Open the HTC Flyer

HTC Flyer Cracking Open: 3.7V 4000mAh 14.8Whr Li-ion battery (Model: BG41200)

HTC Flyer Cracking Open: 3.7V 4000mAh 14.8Whr Li-ion battery (Model: BG41200)

Cracking Open the HTC Flyer

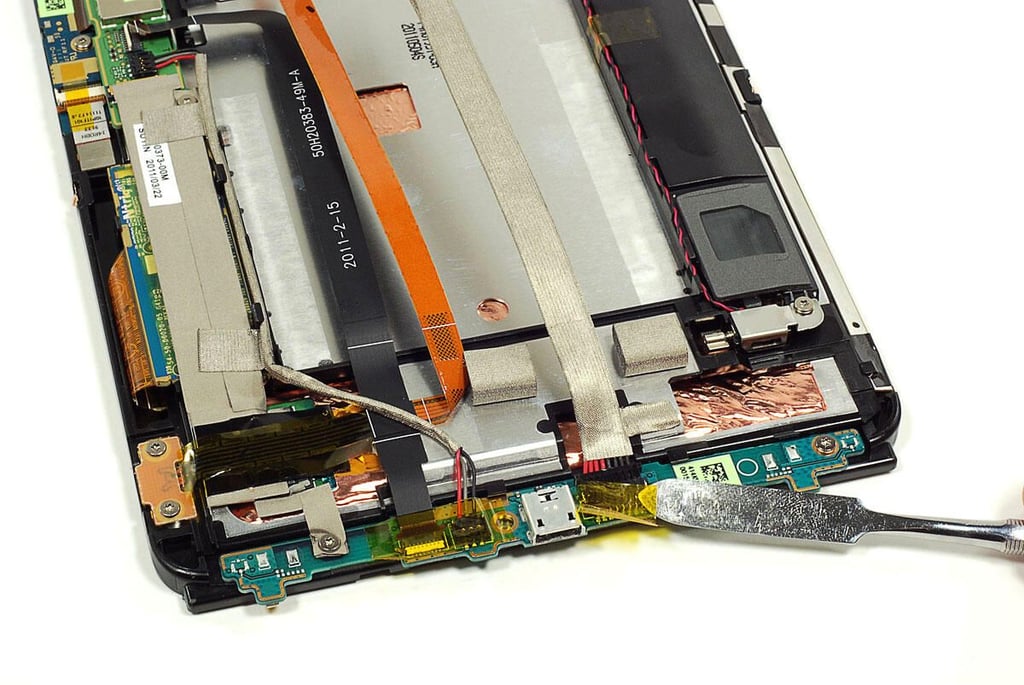

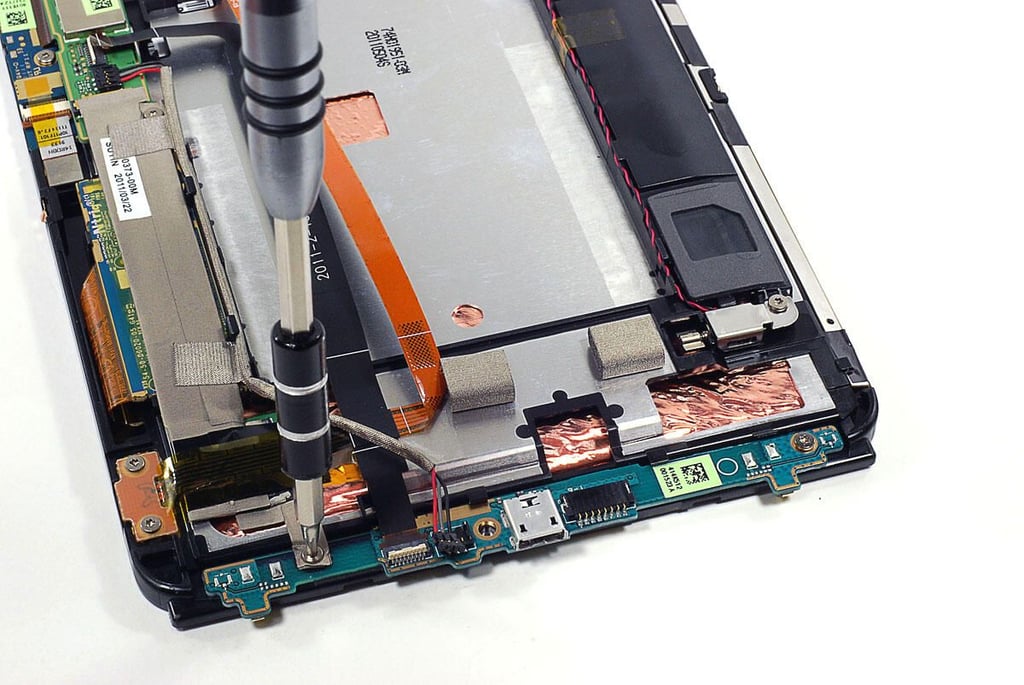

HTC Flyer Cracking Open: Disconnecting the microUSB port PCB cable connectors

HTC Flyer Cracking Open: Disconnecting the microUSB port PCB cable connectors

Cracking Open the HTC Flyer

HTC Flyer Cracking Open: Removing the microUSB port PCB screws

HTC Flyer Cracking Open: Removing the microUSB port PCB screws

Cracking Open the HTC Flyer

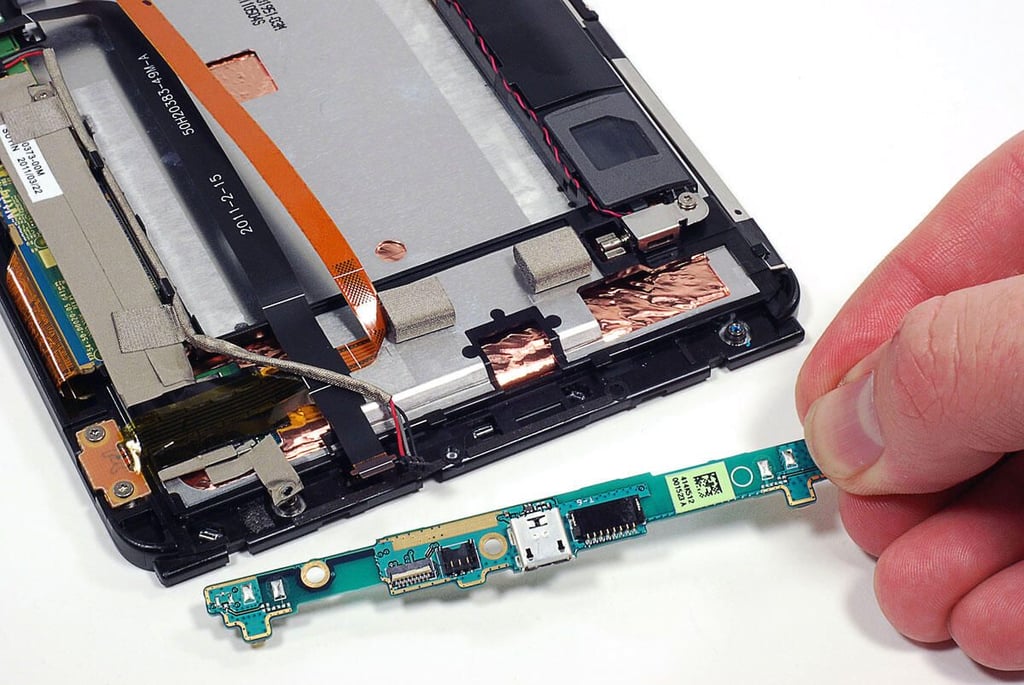

HTC Flyer Cracking Open: Removing the microUSB port PCB

HTC Flyer Cracking Open: Removing the microUSB port PCB

Cracking Open the HTC Flyer

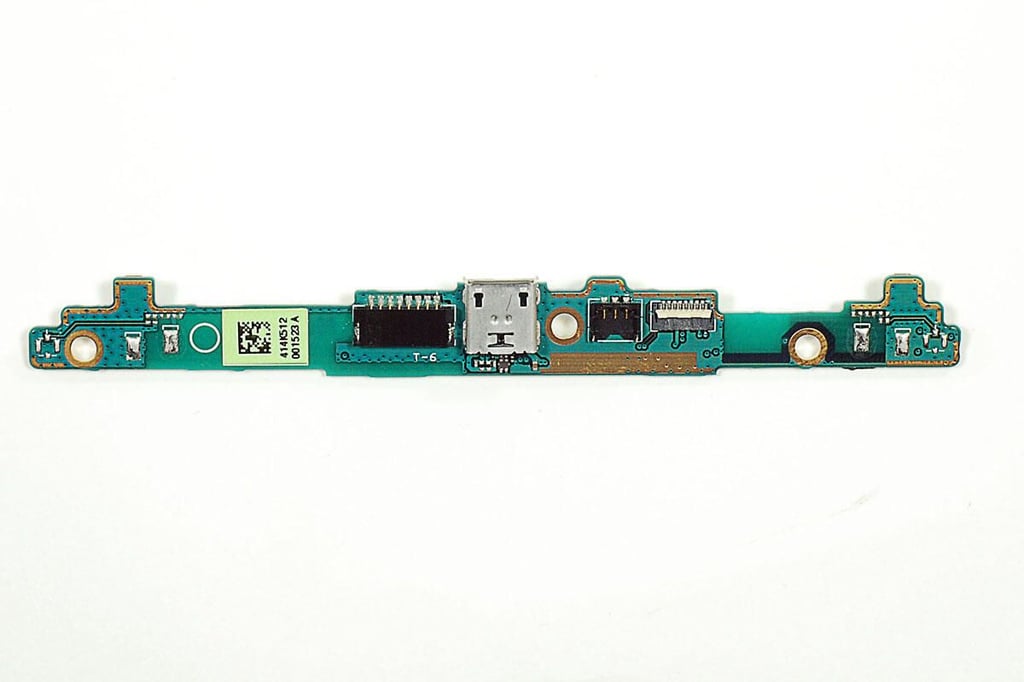

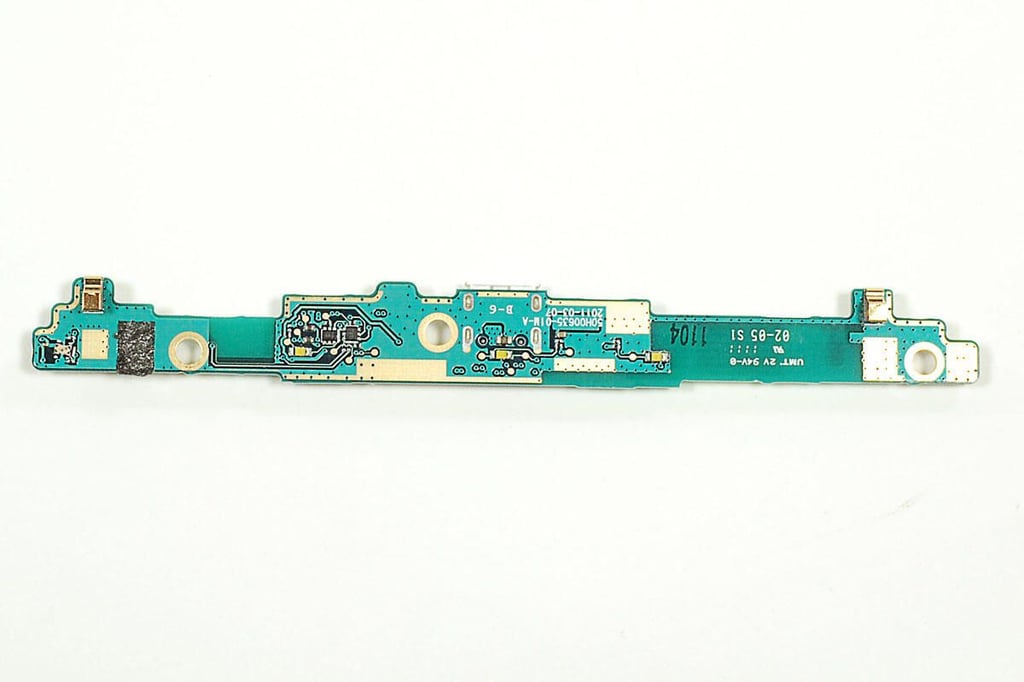

HTC Flyer Cracking Open: microUSB port PCB - Top

HTC Flyer Cracking Open: microUSB port PCB - Top

Cracking Open the HTC Flyer

HTC Flyer Cracking Open: microUSB port PCB - Bottom

HTC Flyer Cracking Open: microUSB port PCB - Bottom

Cracking Open the HTC Flyer

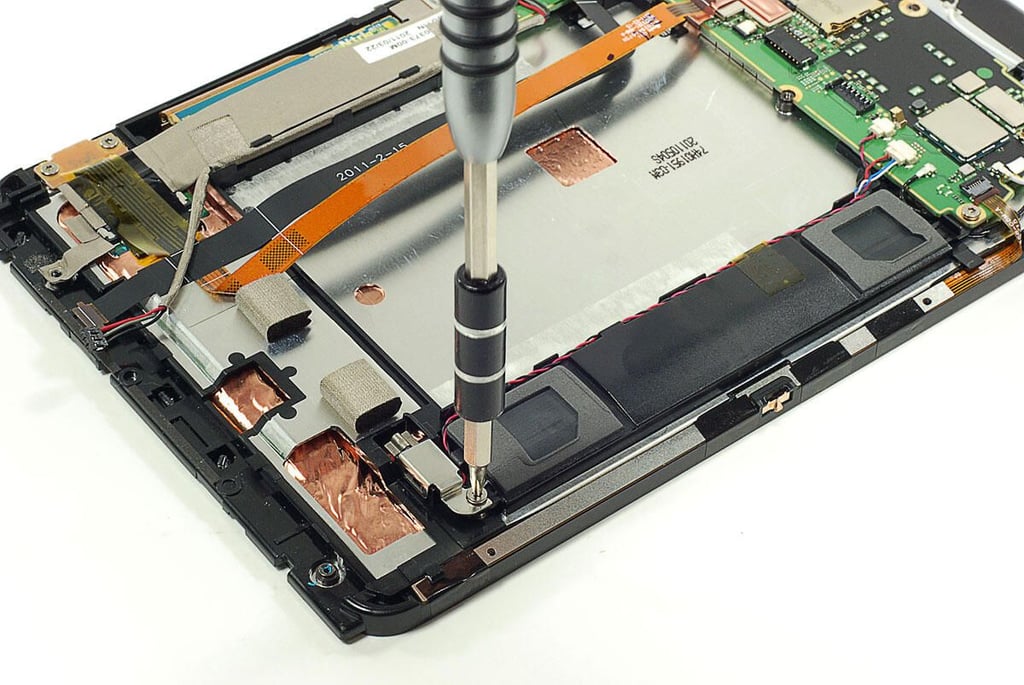

HTC Flyer Cracking Open: Removing the vibration motor cover screw

HTC Flyer Cracking Open: Removing the vibration motor cover screw

Cracking Open the HTC Flyer

HTC Flyer Cracking Open: Removing the virbation motor cover

HTC Flyer Cracking Open: Removing the virbation motor cover

Cracking Open the HTC Flyer

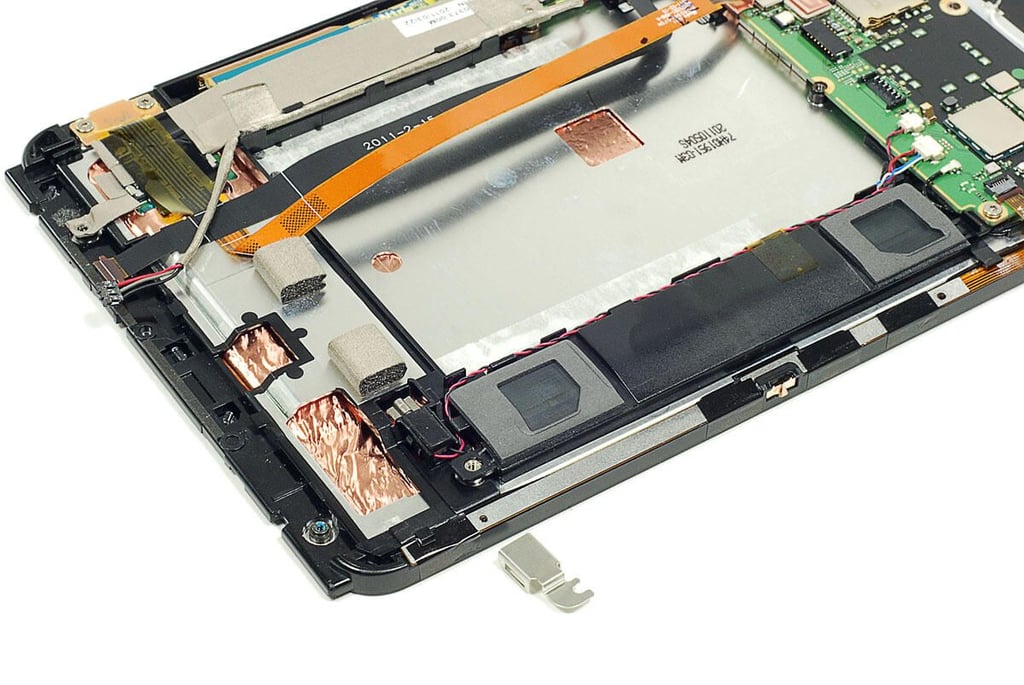

HTC Flyer Cracking Open: Vibration motor cover removed

HTC Flyer Cracking Open: Vibration motor cover removed

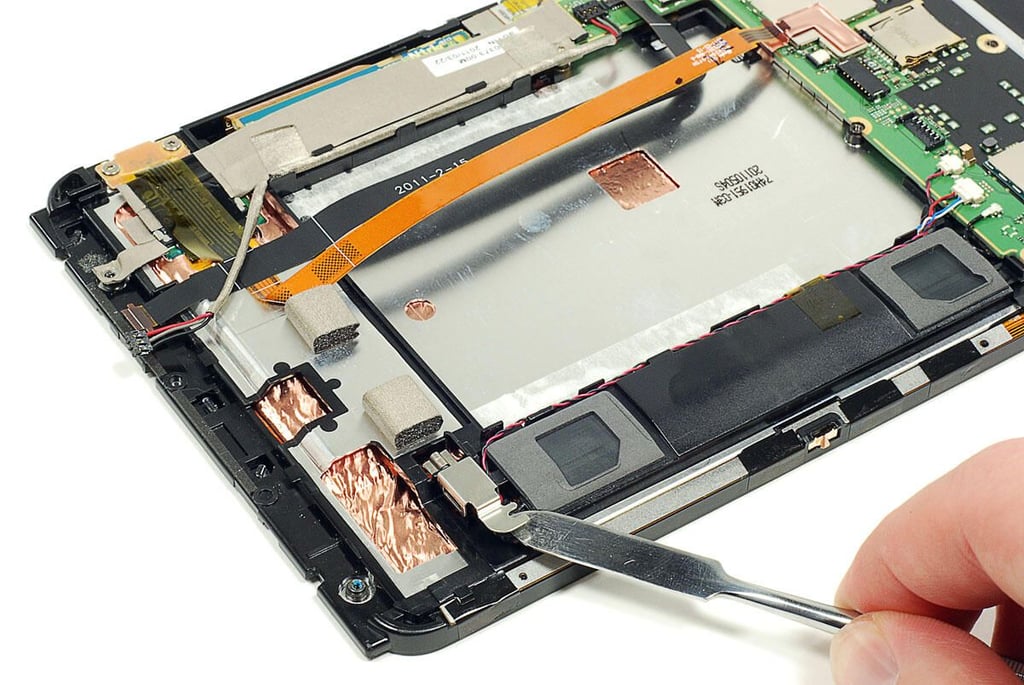

Cracking Open the HTC Flyer

HTC Flyer Cracking Open: Removing the speaker assembly screws

HTC Flyer Cracking Open: Removing the speaker assembly screws

Cracking Open the HTC Flyer

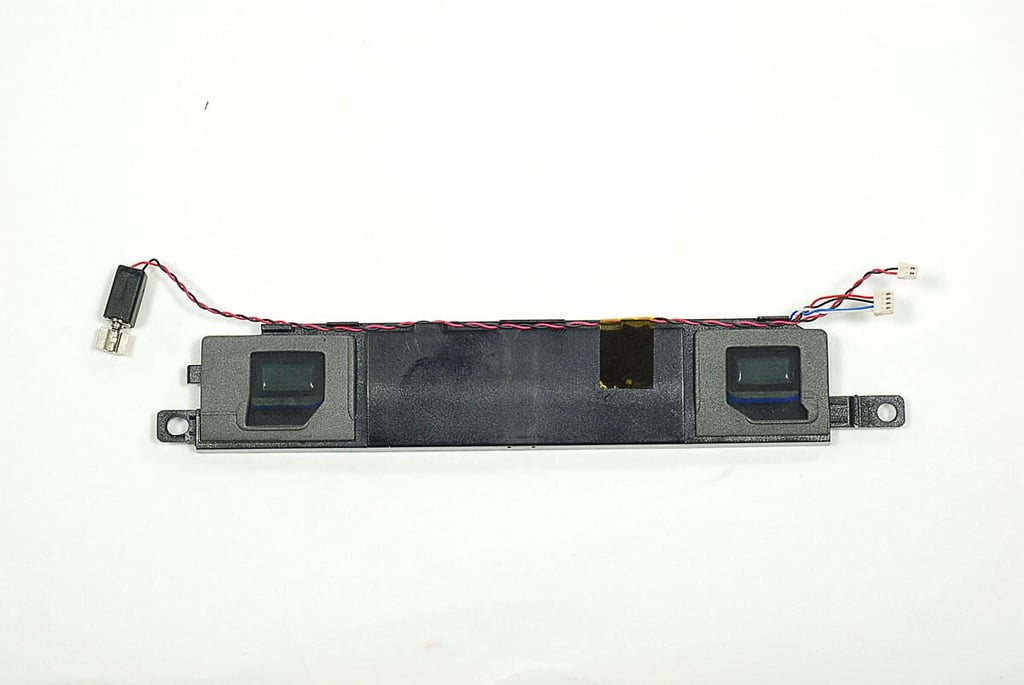

HTC Flyer Cracking Open: Vibration motor and speakers

HTC Flyer Cracking Open: Vibration motor and speakers

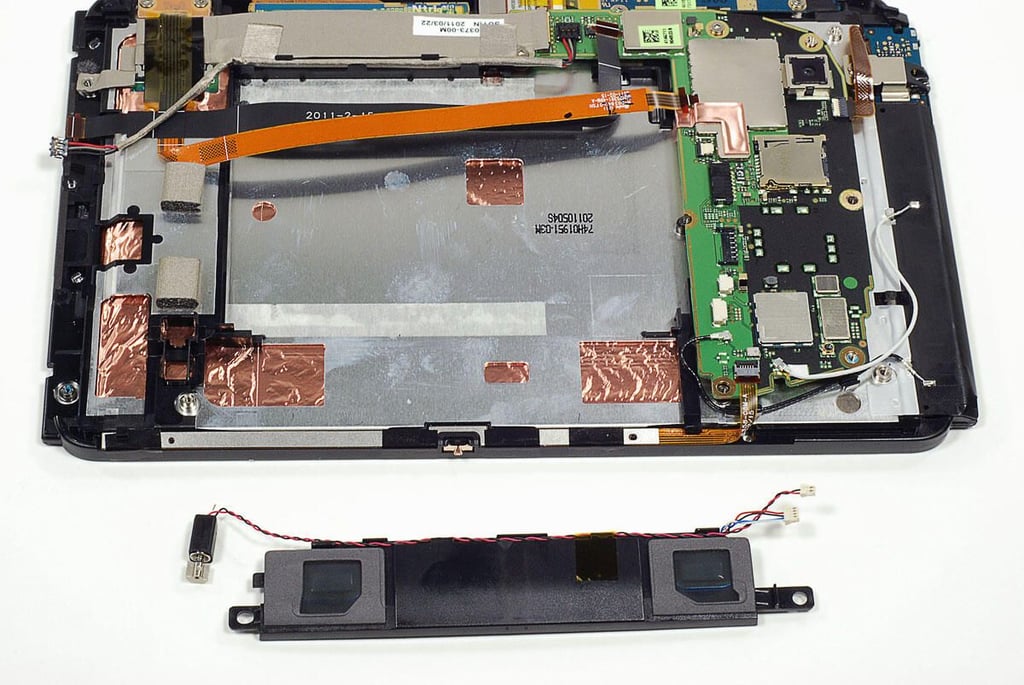

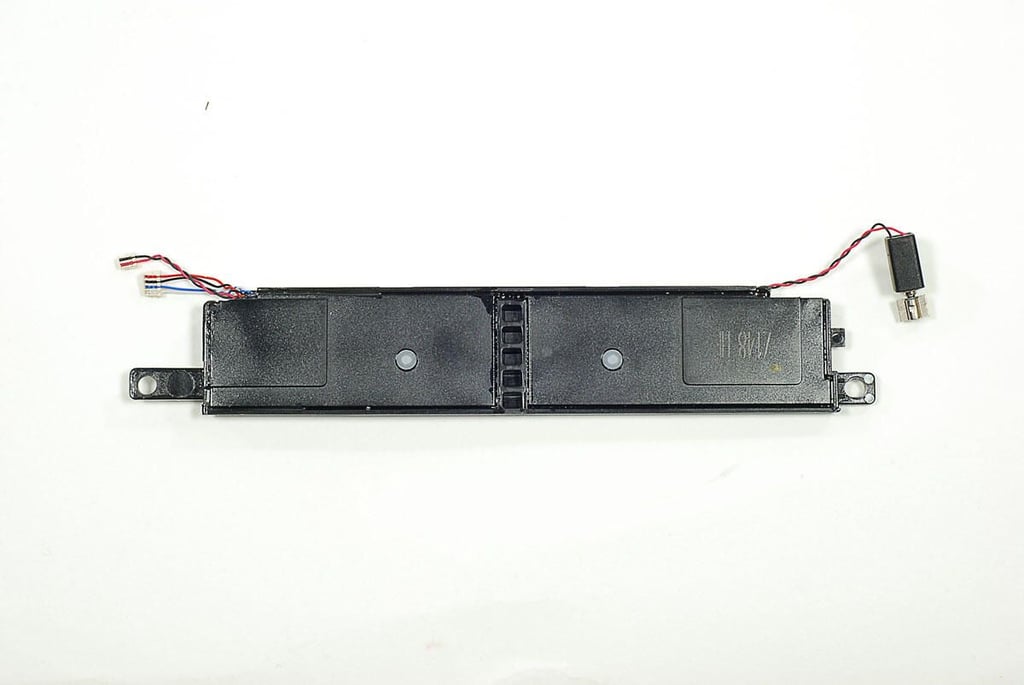

Cracking Open the HTC Flyer

HTC Flyer Cracking Open: Vibration motor and speakers - Top

HTC Flyer Cracking Open: Vibration motor and speakers - Top

Cracking Open the HTC Flyer

HTC Flyer Cracking Open: Vibration motor and speakers - Bottom

HTC Flyer Cracking Open: Vibration motor and speakers - Bottom

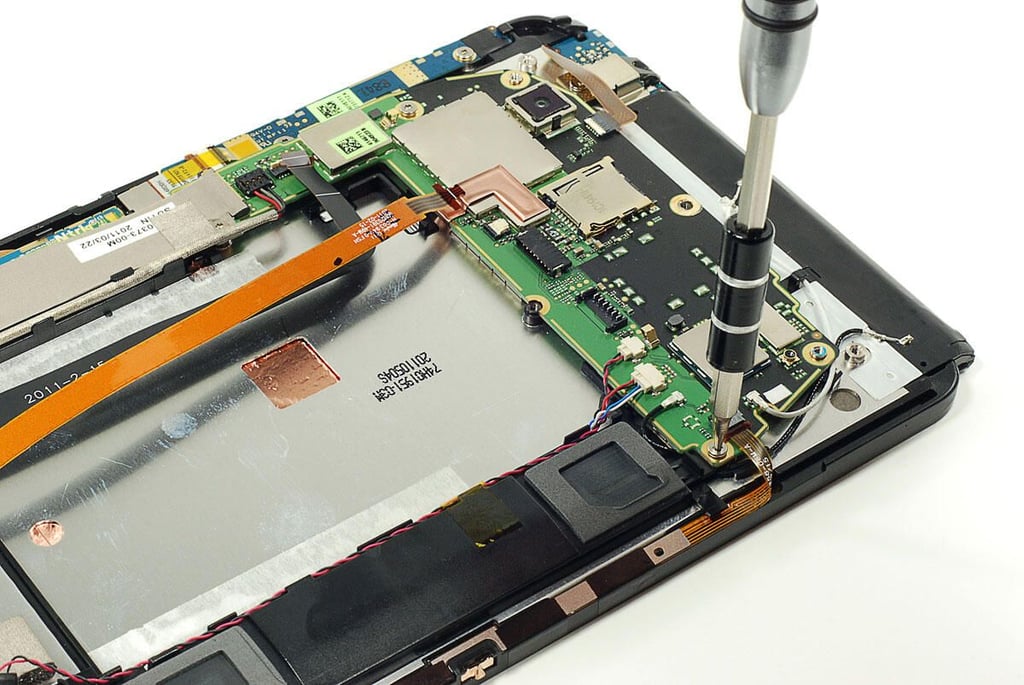

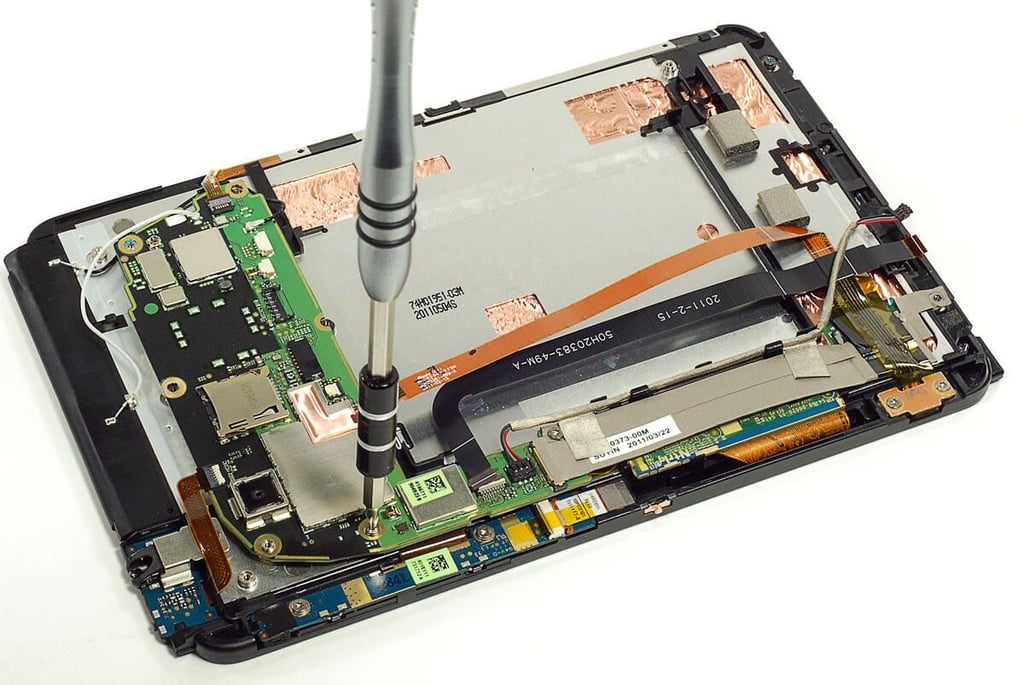

Cracking Open the HTC Flyer

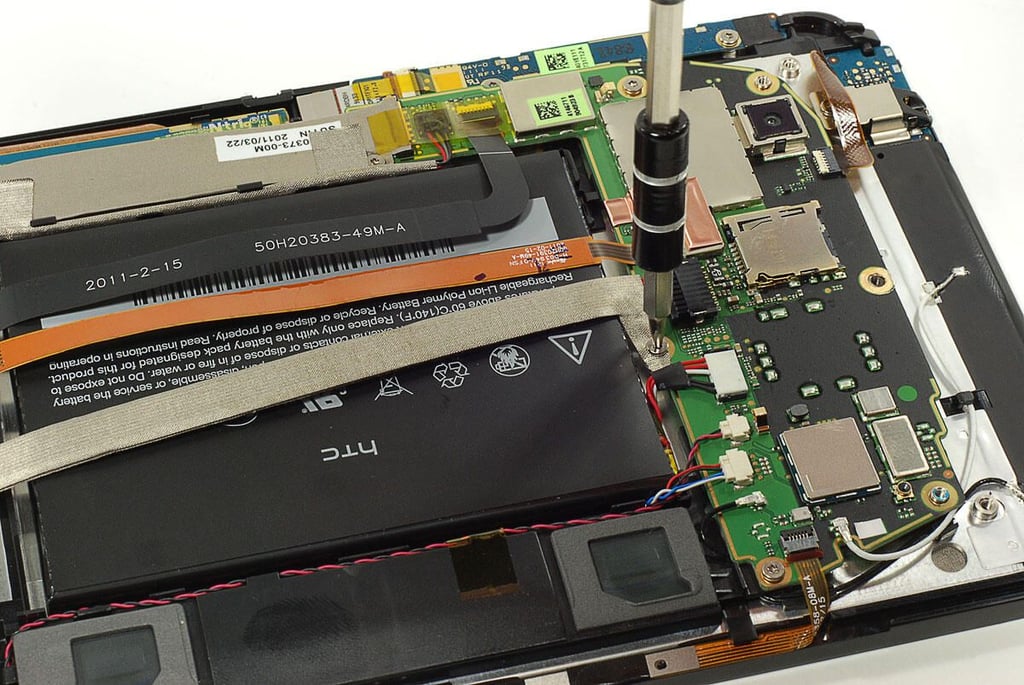

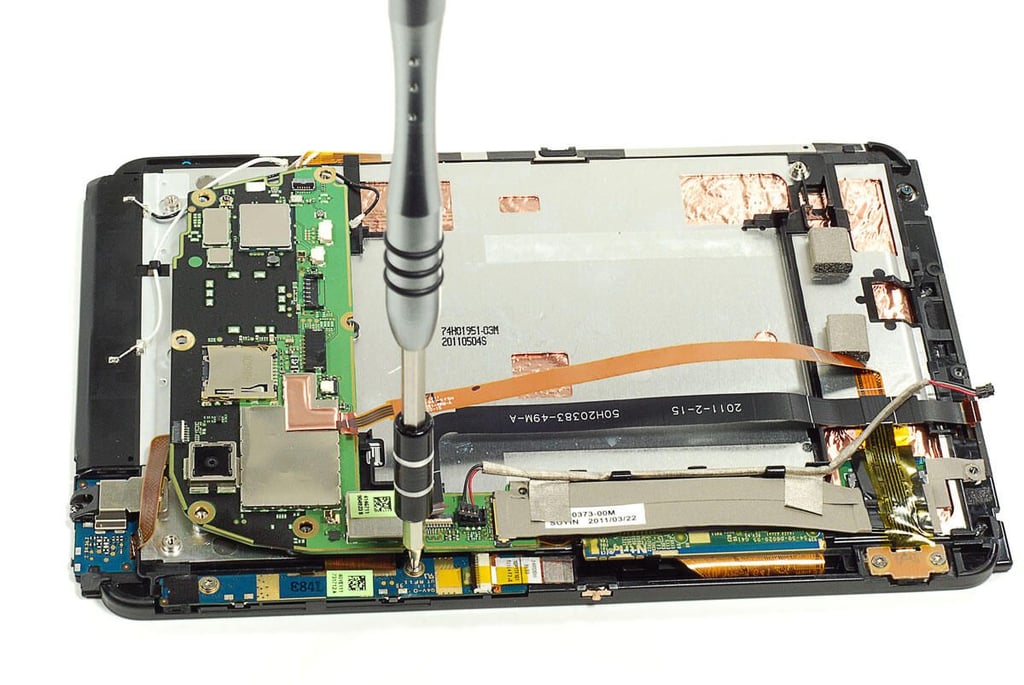

HTC Flyer Cracking Open: Removing the main PCB screws

HTC Flyer Cracking Open: Removing the main PCB screws

Cracking Open the HTC Flyer

HTC Flyer Cracking Open: Removing the volume button PCB screws

HTC Flyer Cracking Open: Removing the volume button PCB screws

Cracking Open the HTC Flyer

HTC Flyer Cracking Open: Connectors on the underside of the main PCB

HTC Flyer Cracking Open: Connectors on the underside of the main PCB

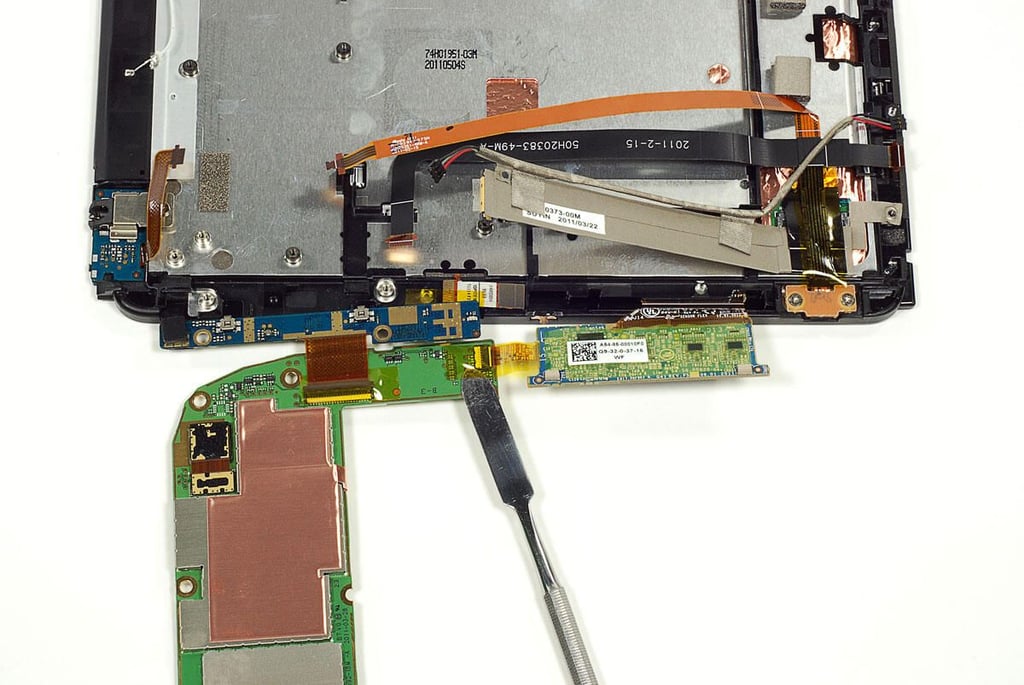

Cracking Open the HTC Flyer

HTC Flyer Cracking Open: Disconnecting the display controller PCB from the main PCB

HTC Flyer Cracking Open: Disconnecting the display controller PCB from the main PCB

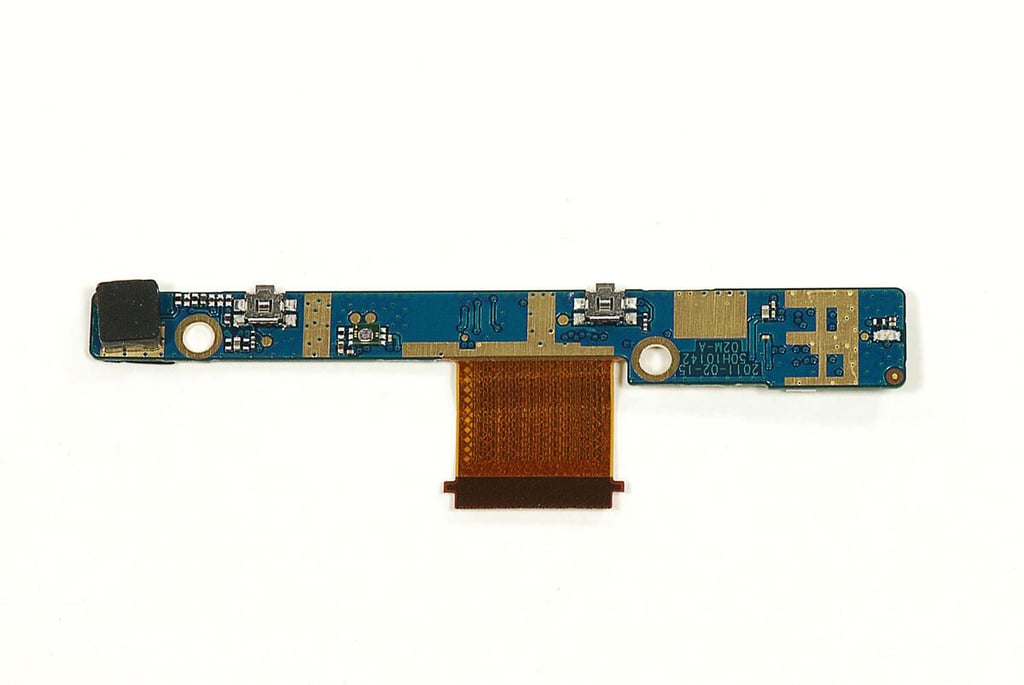

Cracking Open the HTC Flyer

HTC Flyer Cracking Open: Volume button PCB

HTC Flyer Cracking Open: Volume button PCB

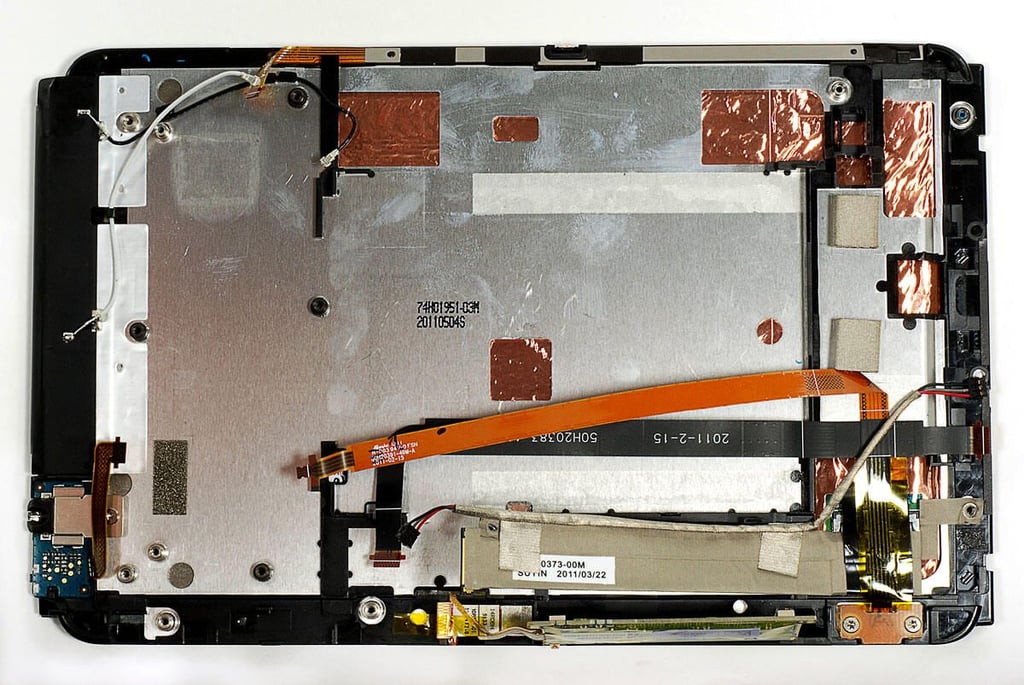

Cracking Open the HTC Flyer

HTC Flyer Cracking Open: Front panel assembly

HTC Flyer Cracking Open: Front panel assembly

Cracking Open the HTC Flyer

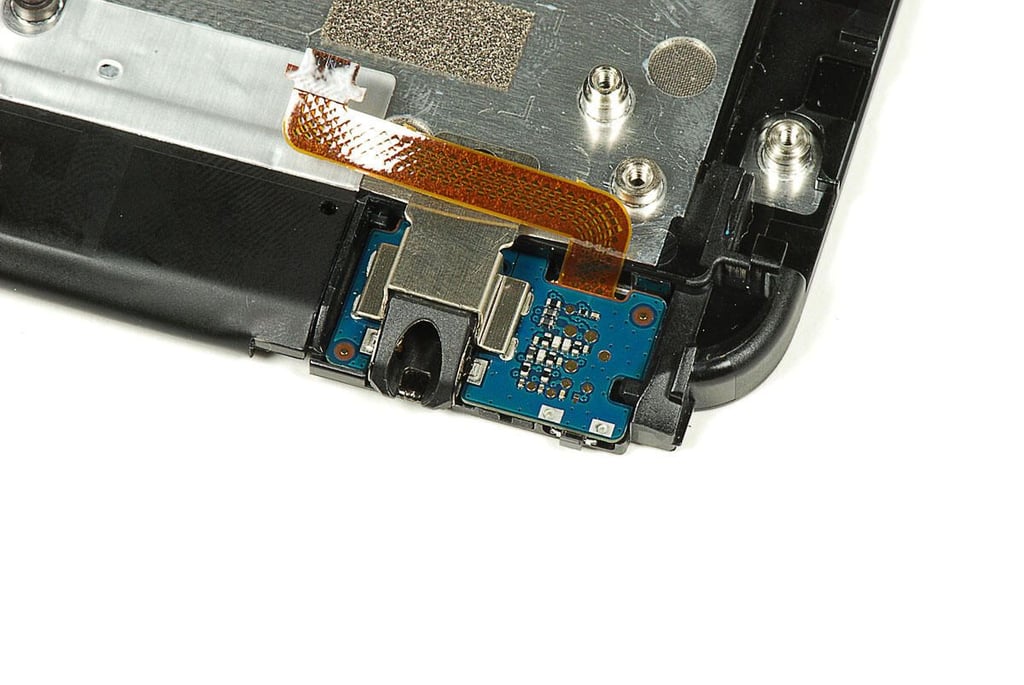

HTC Flyer Cracking Open: 3.5mm headset jack

HTC Flyer Cracking Open: 3.5mm headset jack

Cracking Open the HTC Flyer

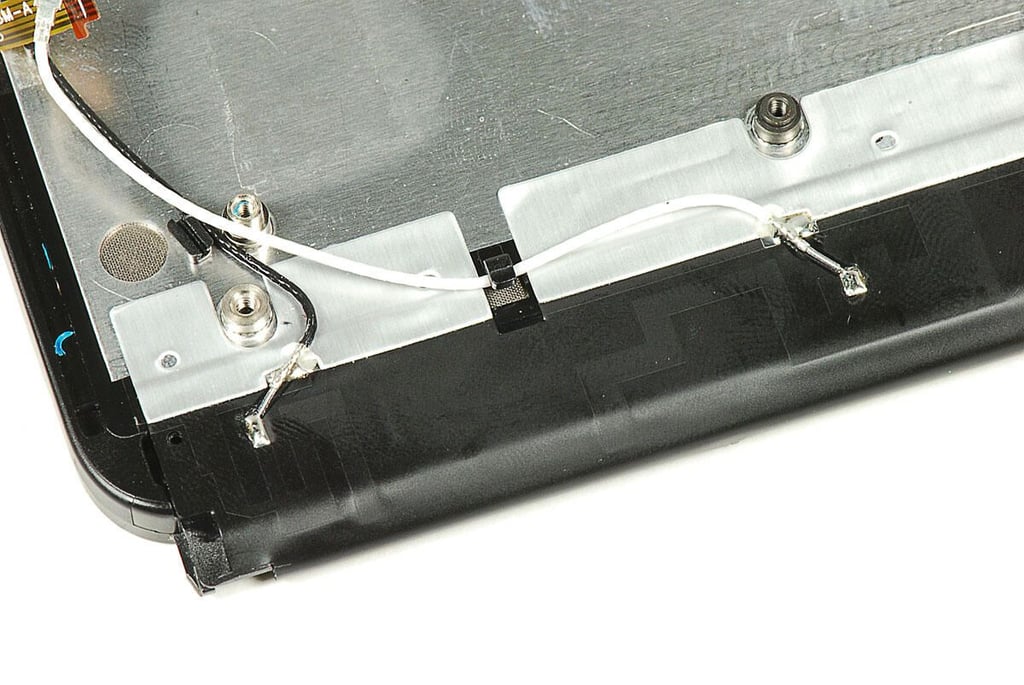

HTC Flyer Cracking Open: Wi-Fi antenna wires

HTC Flyer Cracking Open: Wi-Fi antenna wires

Cracking Open the HTC Flyer

HTC Flyer Cracking Open: One of the two built-in microphones

HTC Flyer Cracking Open: One of the two built-in microphones

Cracking Open the HTC Flyer

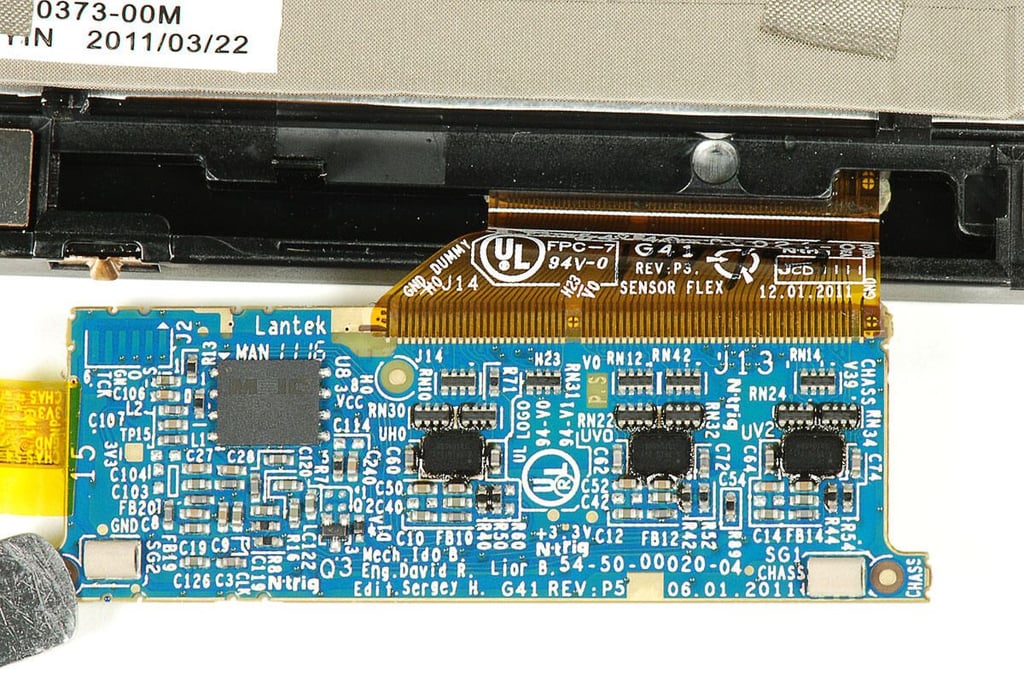

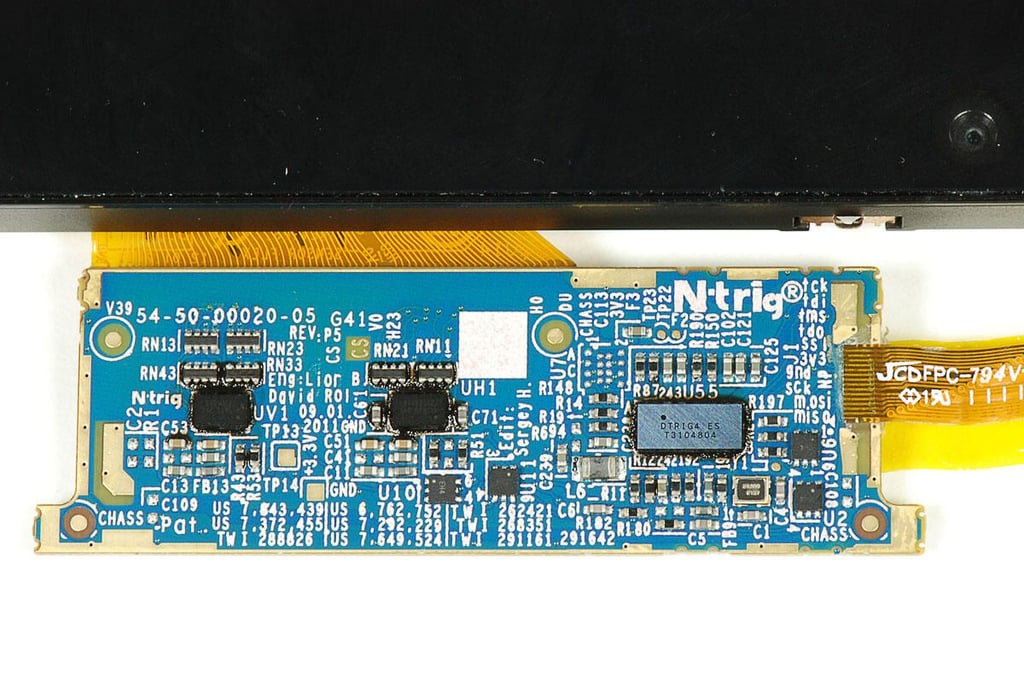

HTC Flyer Cracking Open: N-trig DuoSense PCB - Bottom

HTC Flyer Cracking Open: N-trig DuoSense PCB - Bottom

Cracking Open the HTC Flyer

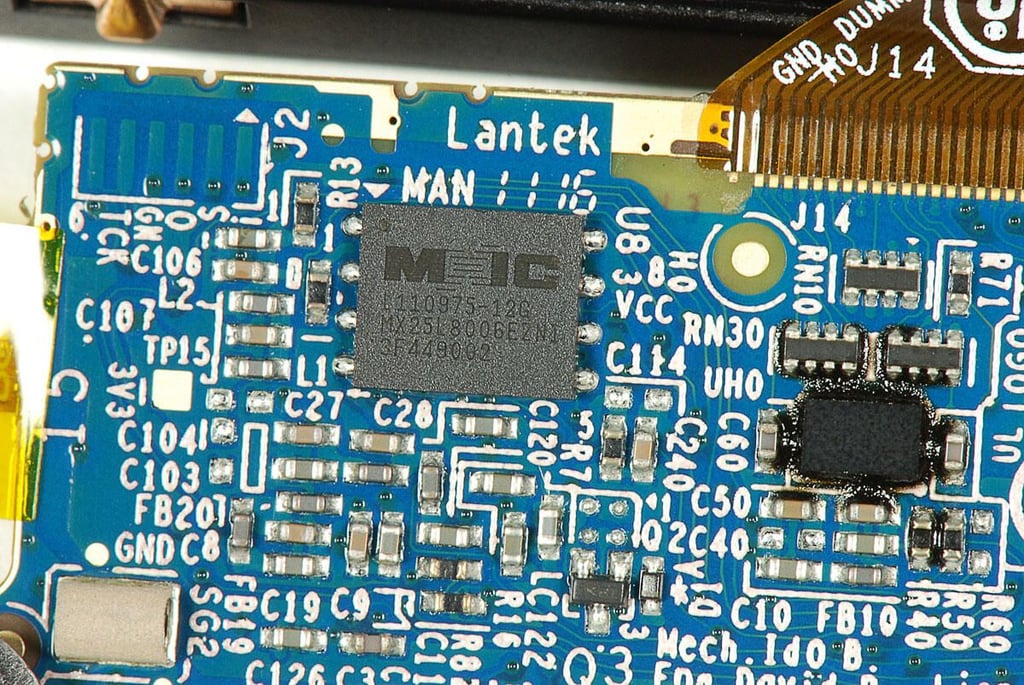

HTC Flyer Cracking Open: Macronix MX25L8006E Serial Flash memory chip

HTC Flyer Cracking Open: Macronix MX25L8006E Serial Flash memory chip

Cracking Open the HTC Flyer

HTC Flyer Cracking Open: N-trig DuoSense PCB - Top

HTC Flyer Cracking Open: N-trig DuoSense PCB - Top

Cracking Open the HTC Flyer

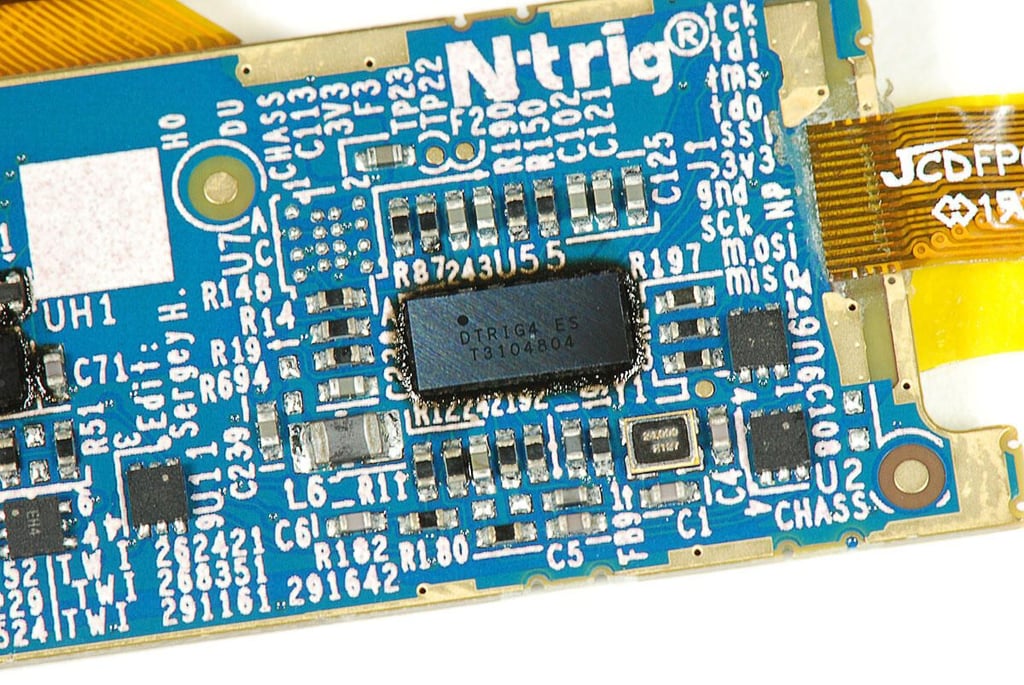

HTC Flyer Cracking Open: N-trig chip with markings DTRIG4 ES T3104804

HTC Flyer Cracking Open: N-trig chip with markings DTRIG4 ES T3104804

Cracking Open the HTC Flyer

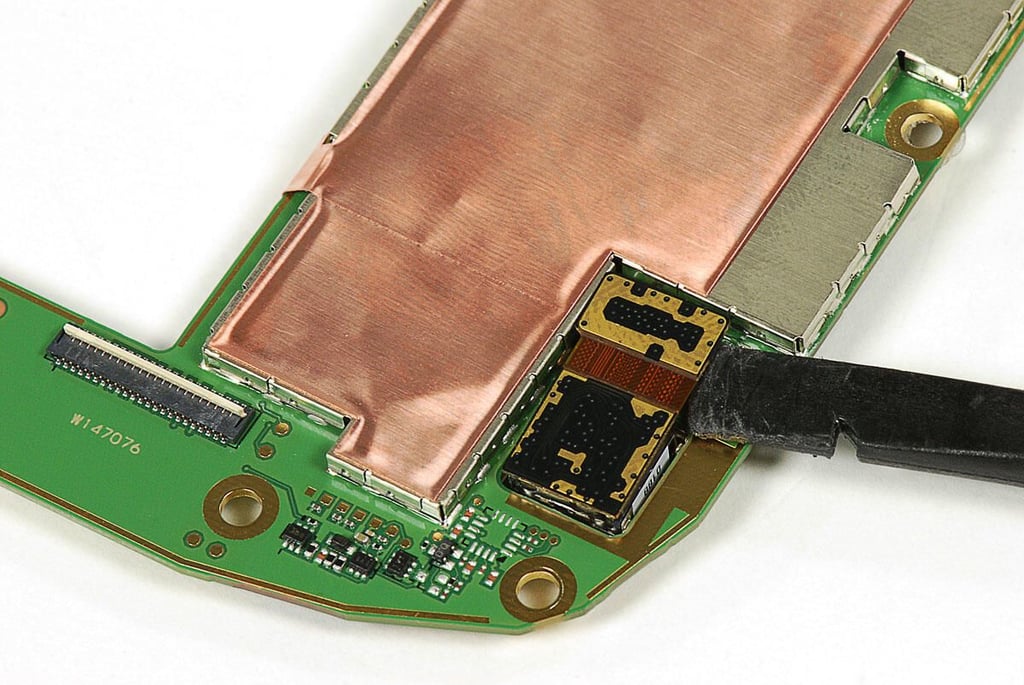

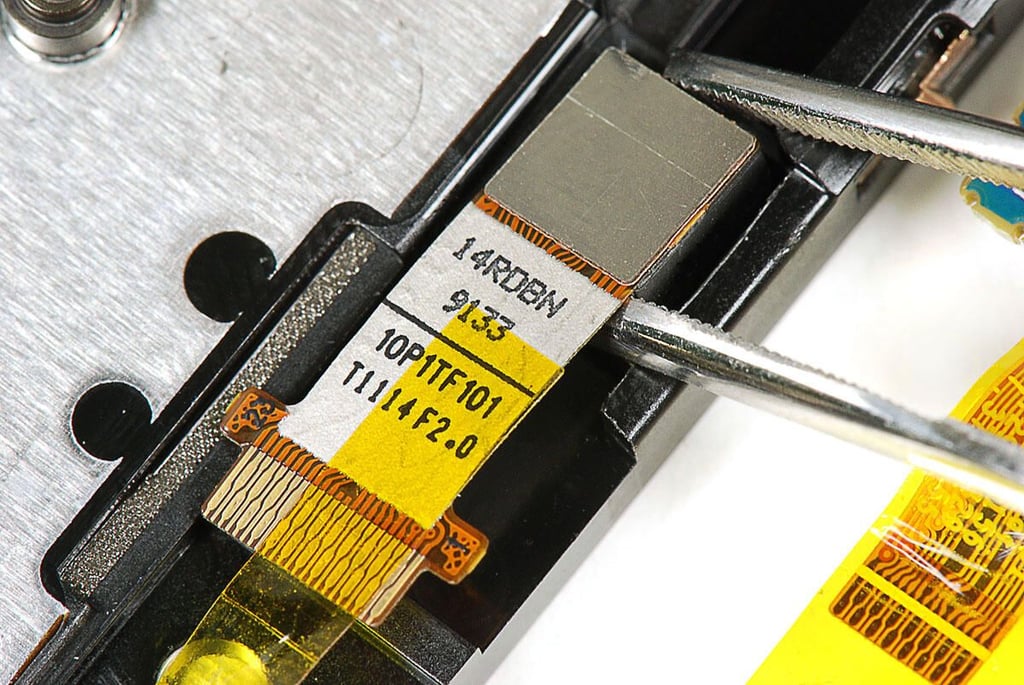

HTC Flyer Cracking Open: Removing the front-facing camera

HTC Flyer Cracking Open: Removing the front-facing camera

Cracking Open the HTC Flyer

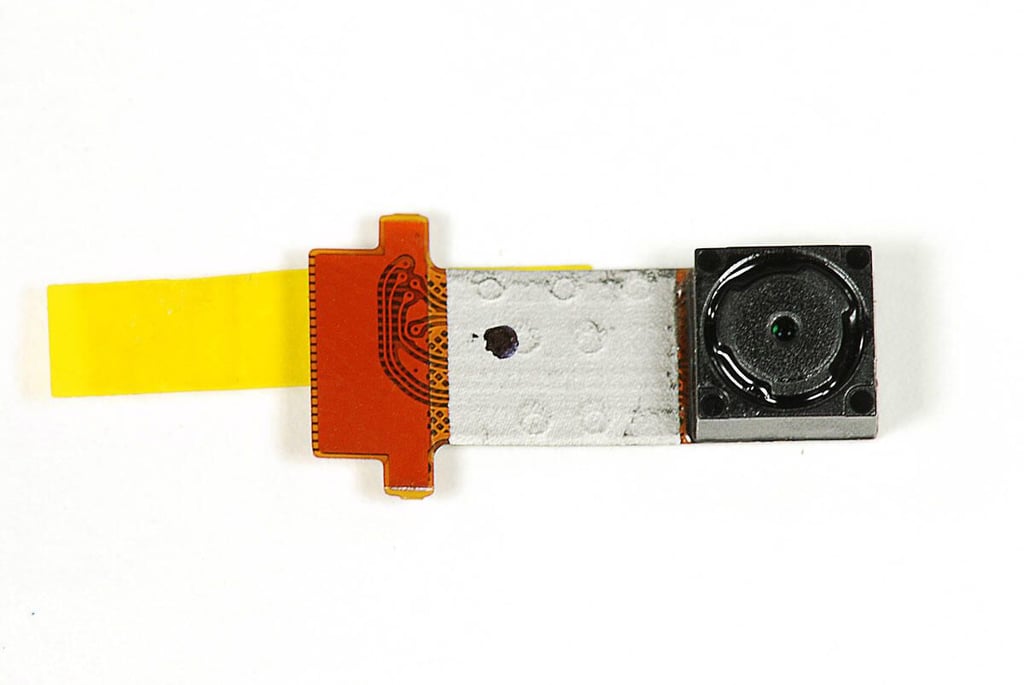

HTC Flyer Cracking Open: 1.3MP front-facing camera

HTC Flyer Cracking Open: 1.3MP front-facing camera

Cracking Open the HTC Flyer

HTC Flyer Cracking Open: Main PCB with shields - Front

HTC Flyer Cracking Open: Main PCB with shields - Front

Cracking Open the HTC Flyer

HTC Flyer Cracking Open: Main PCB with shields - Bottom

HTC Flyer Cracking Open: Main PCB with shields - Bottom

Cracking Open the HTC Flyer

HTC Flyer Cracking Open: Removing the rear-facing camera

HTC Flyer Cracking Open: Removing the rear-facing camera

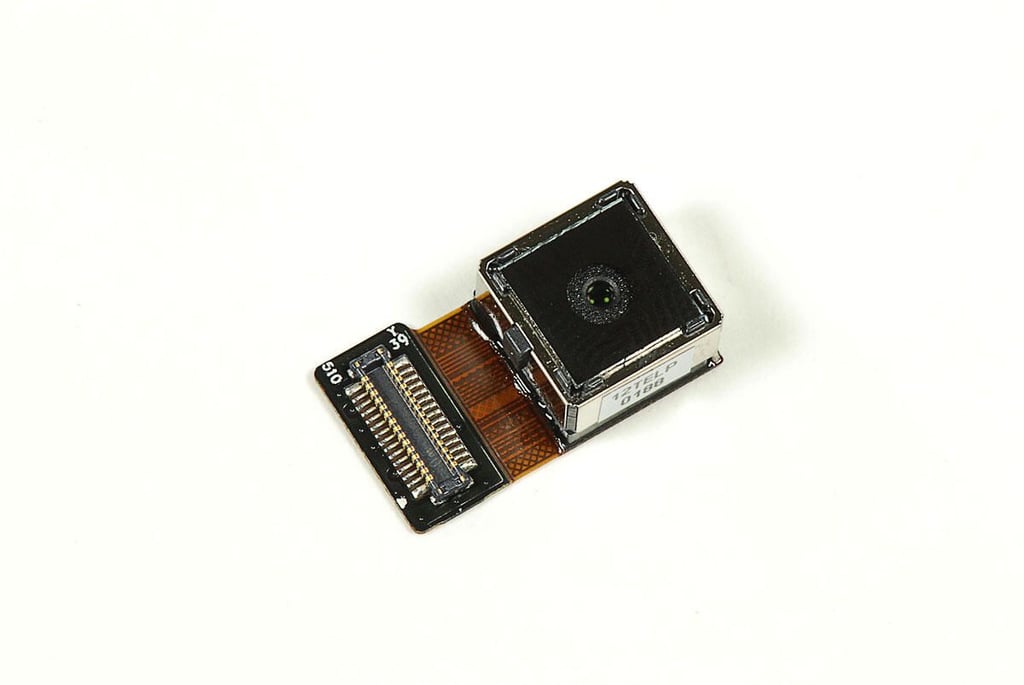

Cracking Open the HTC Flyer

HTC Flyer Cracking Open: 5MP rear-facing camera

HTC Flyer Cracking Open: 5MP rear-facing camera

Cracking Open the HTC Flyer

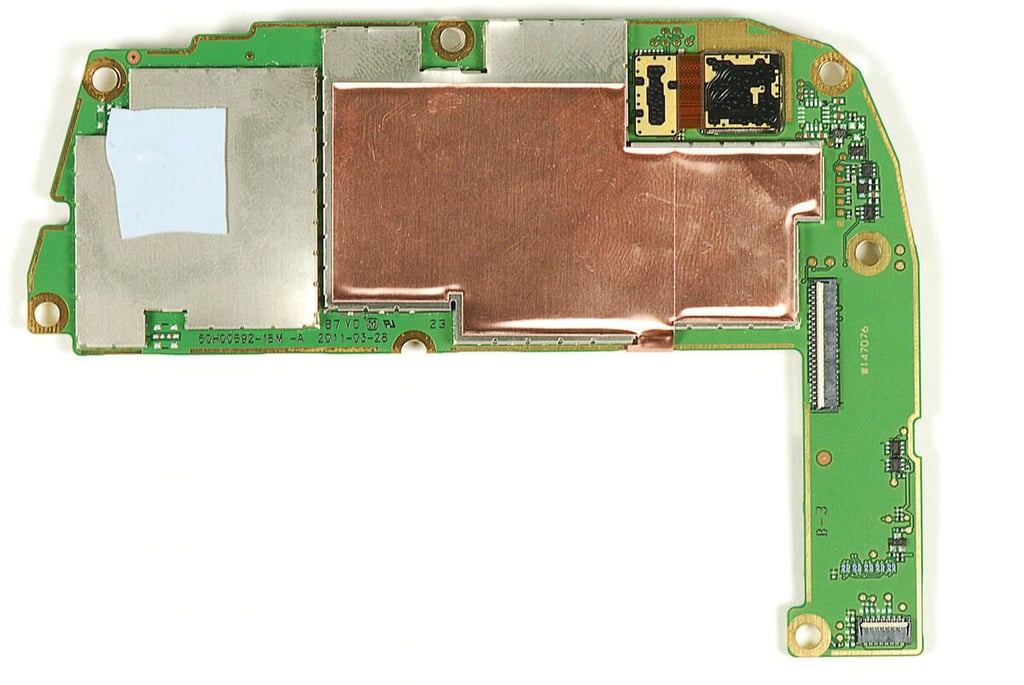

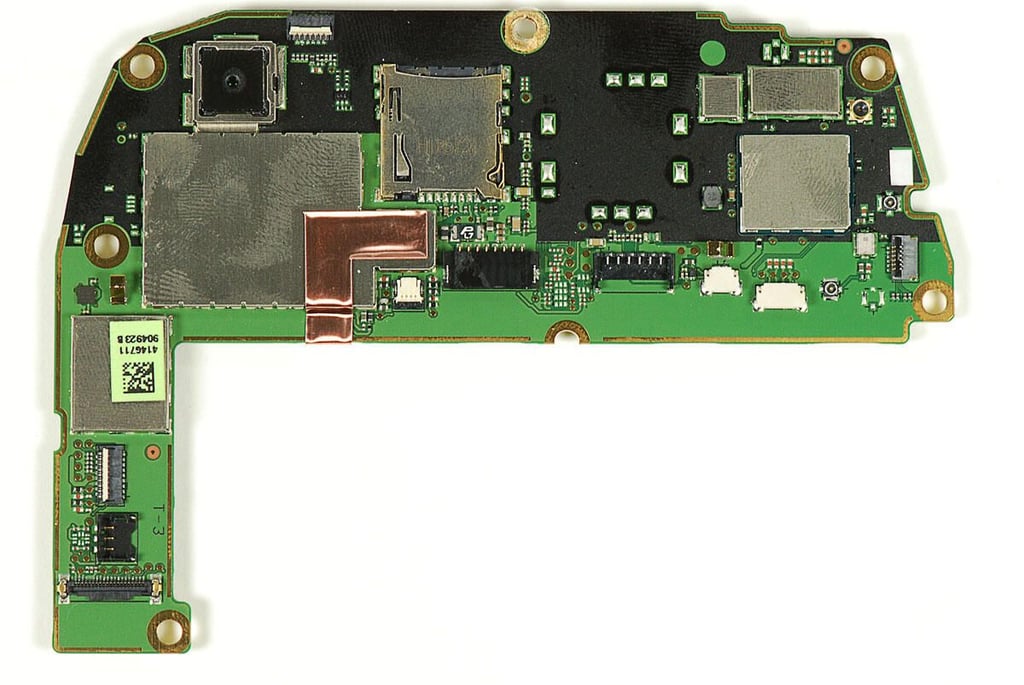

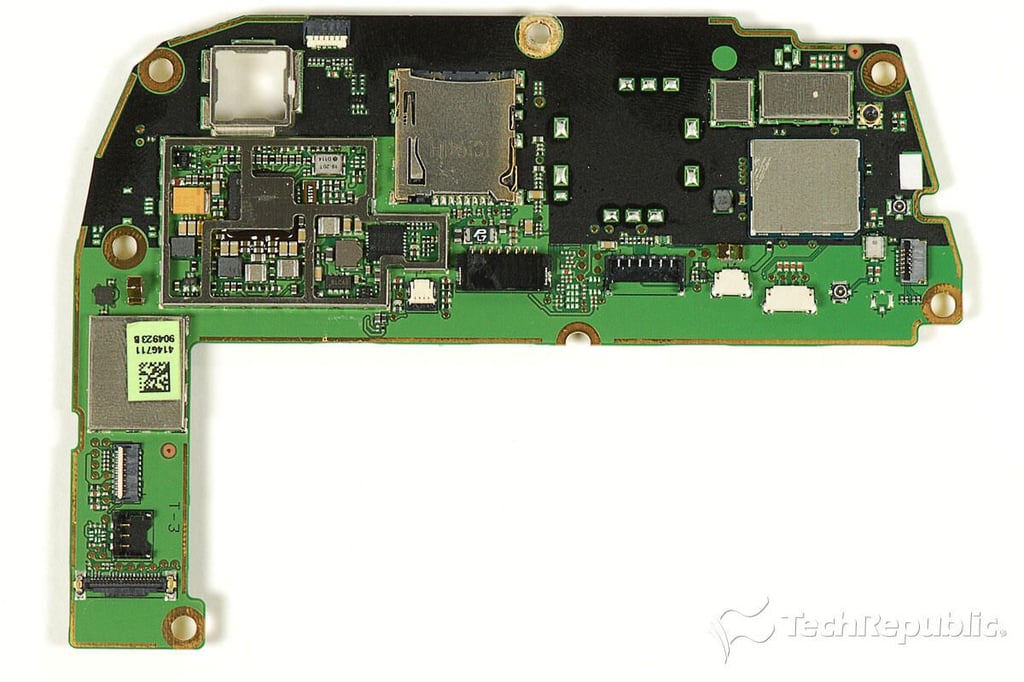

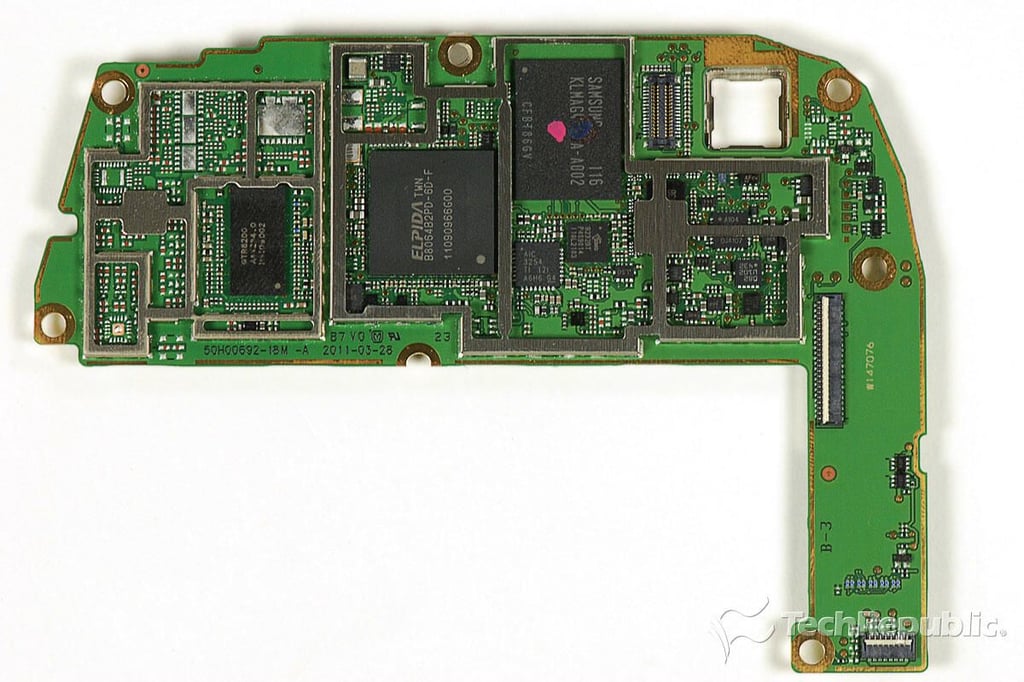

HTC Flyer Cracking Open: Main PCB - Top

HTC Flyer Cracking Open: Main PCB - Top

Cracking Open the HTC Flyer

HTC Flyer Cracking Open: Main PCB - Bottom

HTC Flyer Cracking Open: Main PCB - Bottom

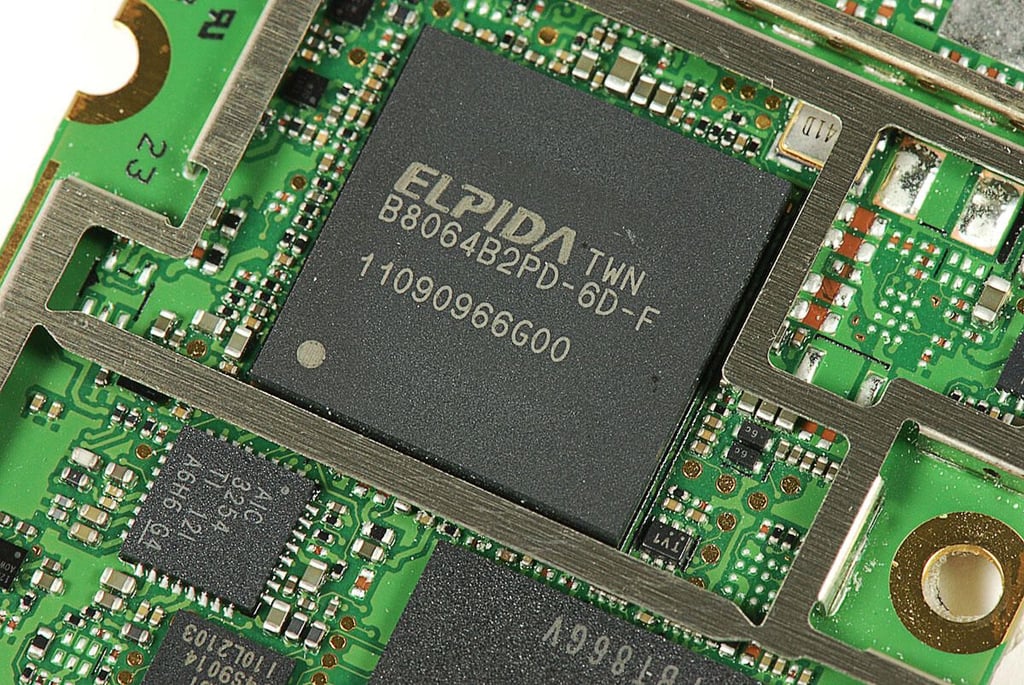

Cracking Open the HTC Flyer

HTC Flyer Cracking Open: Elpida B8064B2PB-6D-F DRAM

HTC Flyer Cracking Open: Elpida B8064B2PB-6D-F DRAM

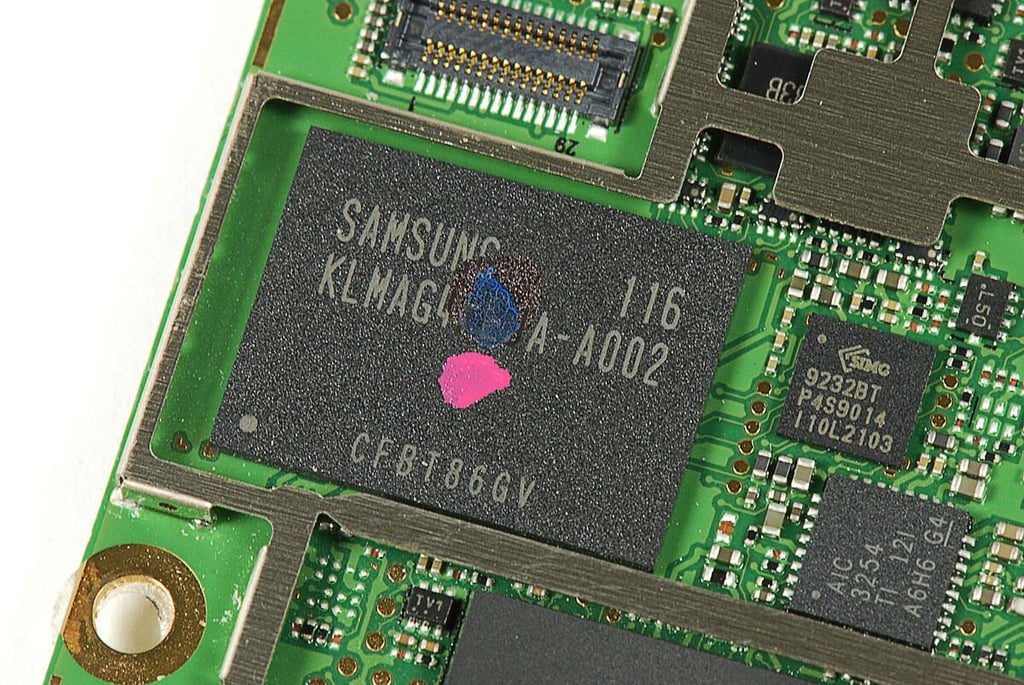

Cracking Open the HTC Flyer

HTC Flyer Cracking Open: Samsung KLMAG4FEUA-A002

HTC Flyer Cracking Open: Samsung KLMAG4FEUA-A002

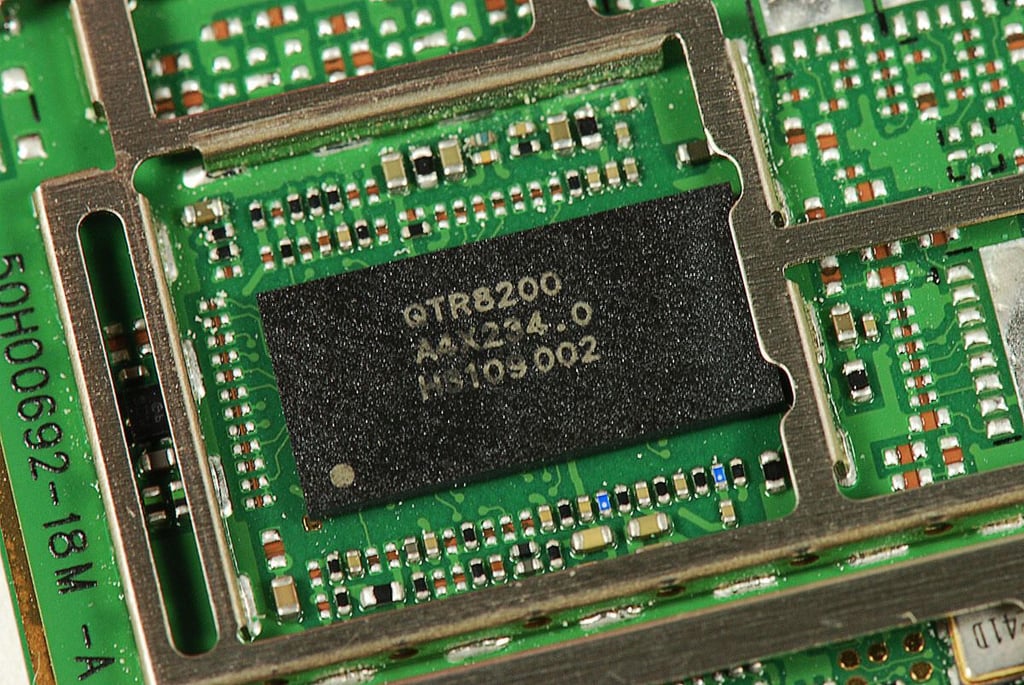

Cracking Open the HTC Flyer

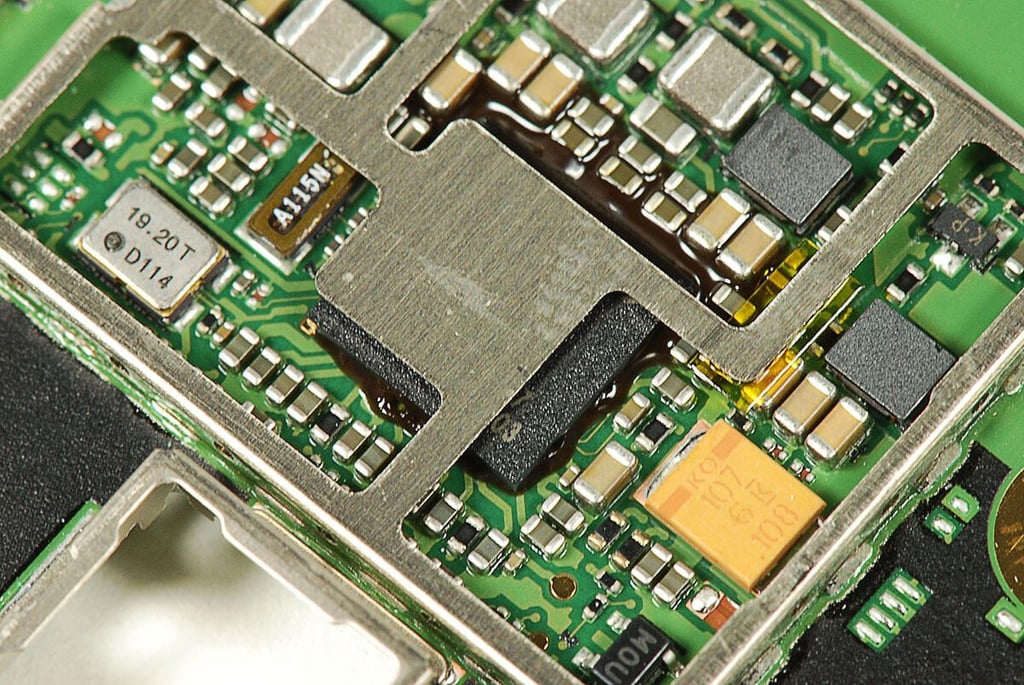

HTC Flyer Cracking Open: Qualcomm QTR8200 RF Transceiver

HTC Flyer Cracking Open: Qualcomm QTR8200 RF Transceiver

Cracking Open the HTC Flyer

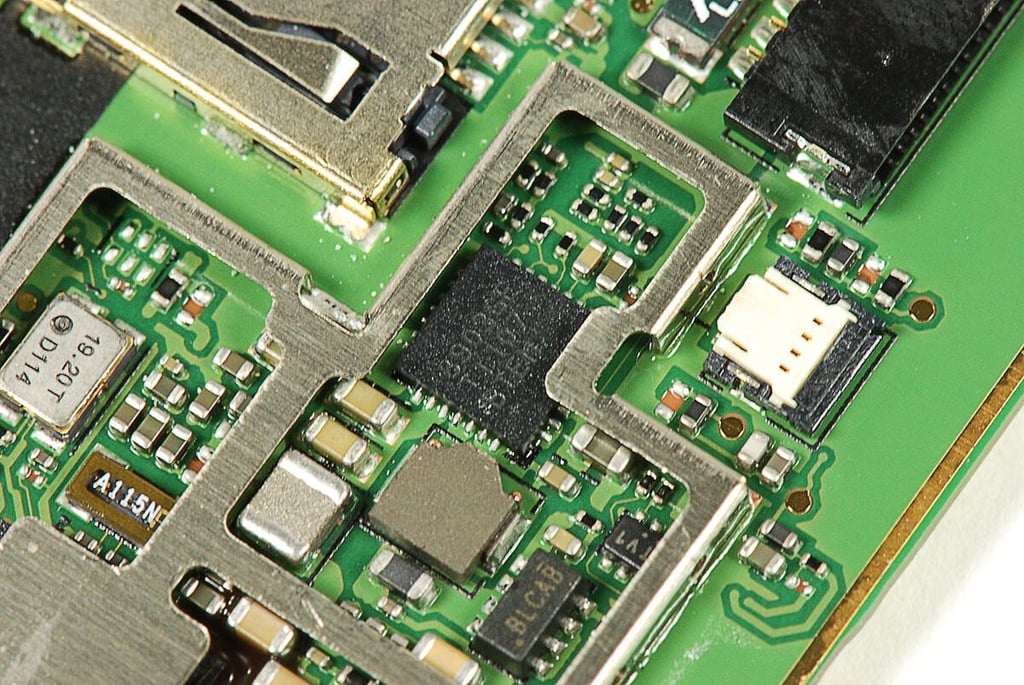

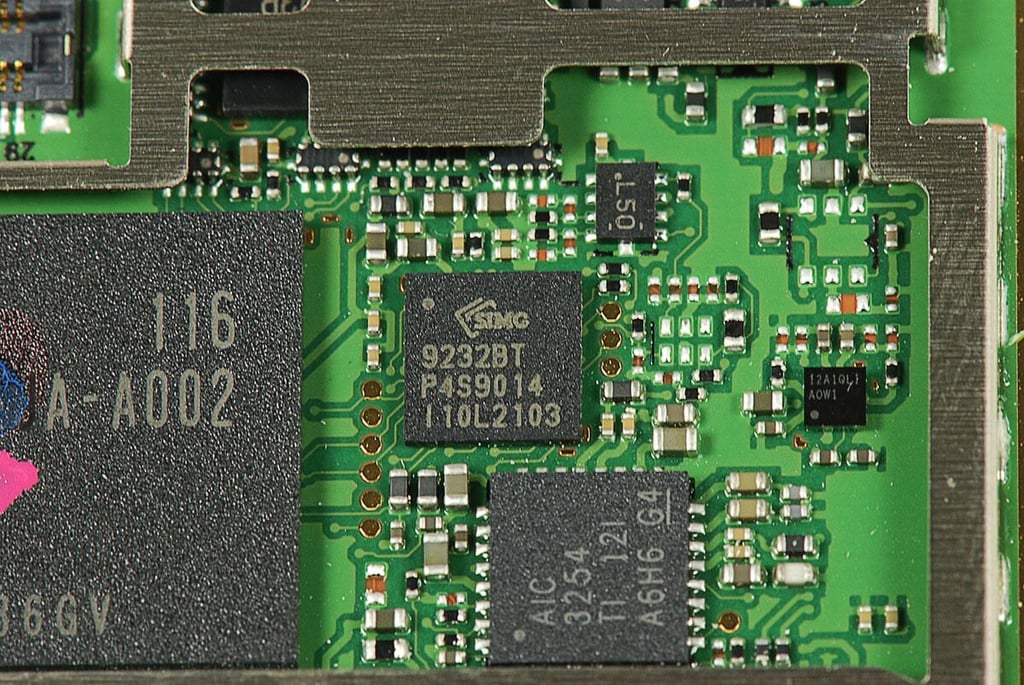

HTC Flyer Cracking Open: Silicon Image SiI9232 MHL Transmitter

HTC Flyer Cracking Open: Silicon Image SiI9232 MHL Transmitter

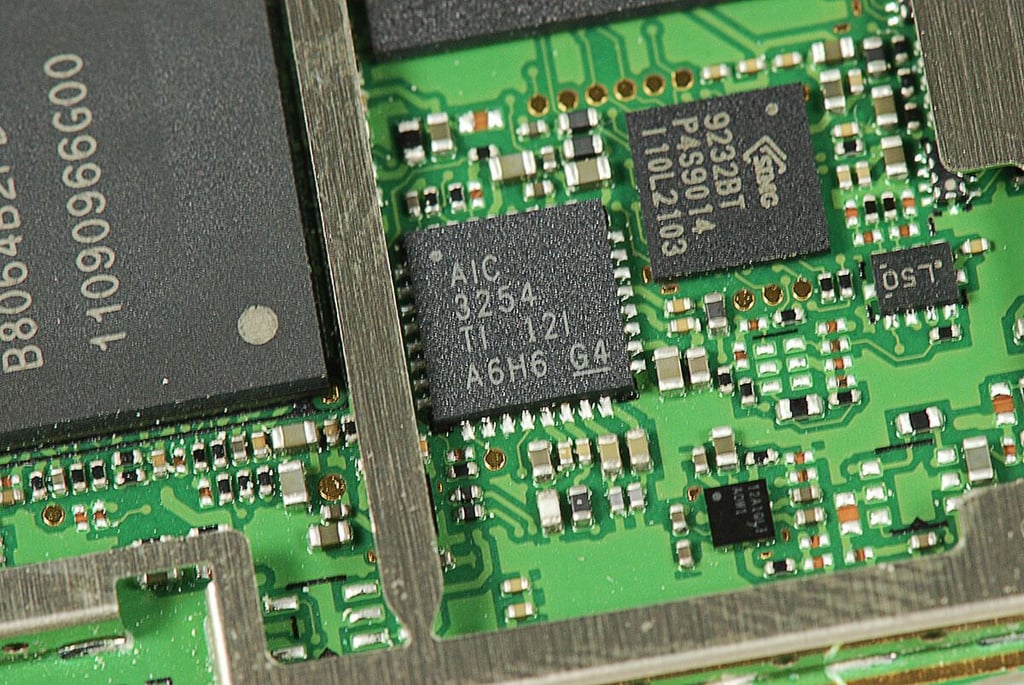

Cracking Open the HTC Flyer

HTC Flyer Cracking Open: Texas Instruments TLV320AIC3254 (AIC3254) Ultra Low Power Stereo Audio Codec With Embedded miniDSP

HTC Flyer Cracking Open: Texas Instruments TLV320AIC3254 (AIC3254) Ultra Low Power Stereo Audio Codec With Embedded miniDSP

Cracking Open the HTC Flyer

HTC Flyer Cracking Open: Chip 8903GE TI107 BTEM

HTC Flyer Cracking Open: Chip 8903GE TI107 BTEM

Cracking Open the HTC Flyer

HTC Flyer Cracking Open: Unknown chip

HTC Flyer Cracking Open: Unknown chip

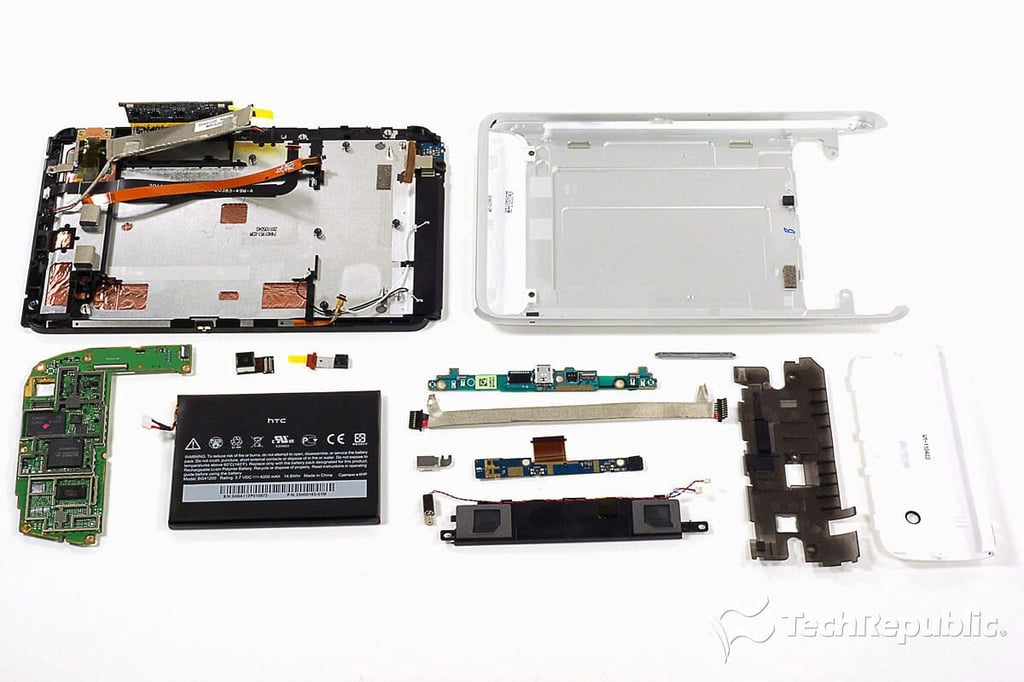

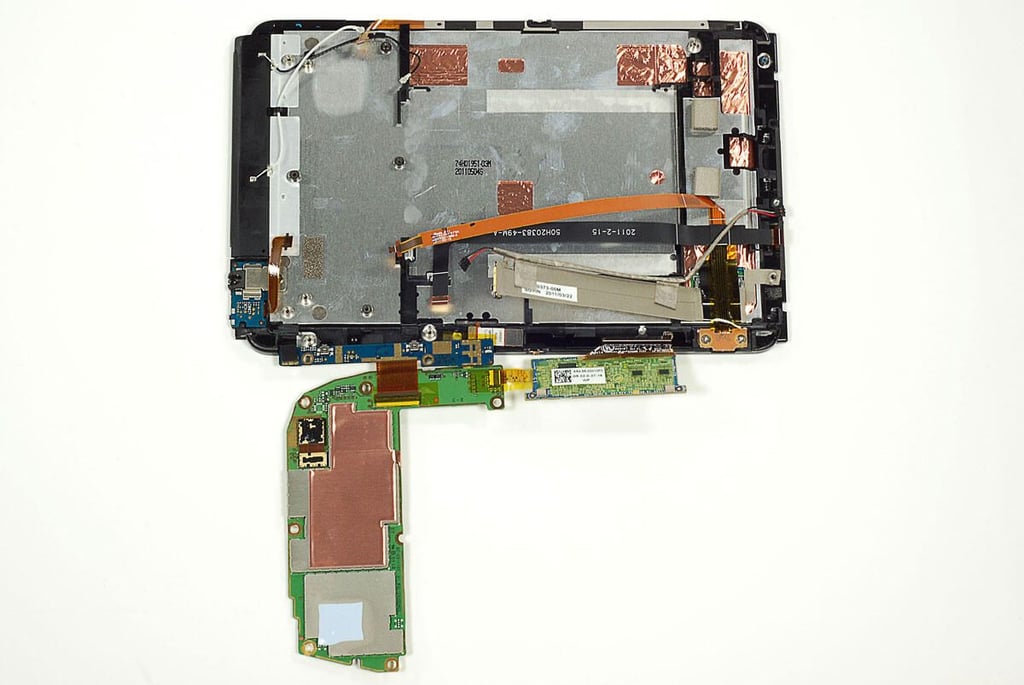

Cracking Open the HTC Flyer

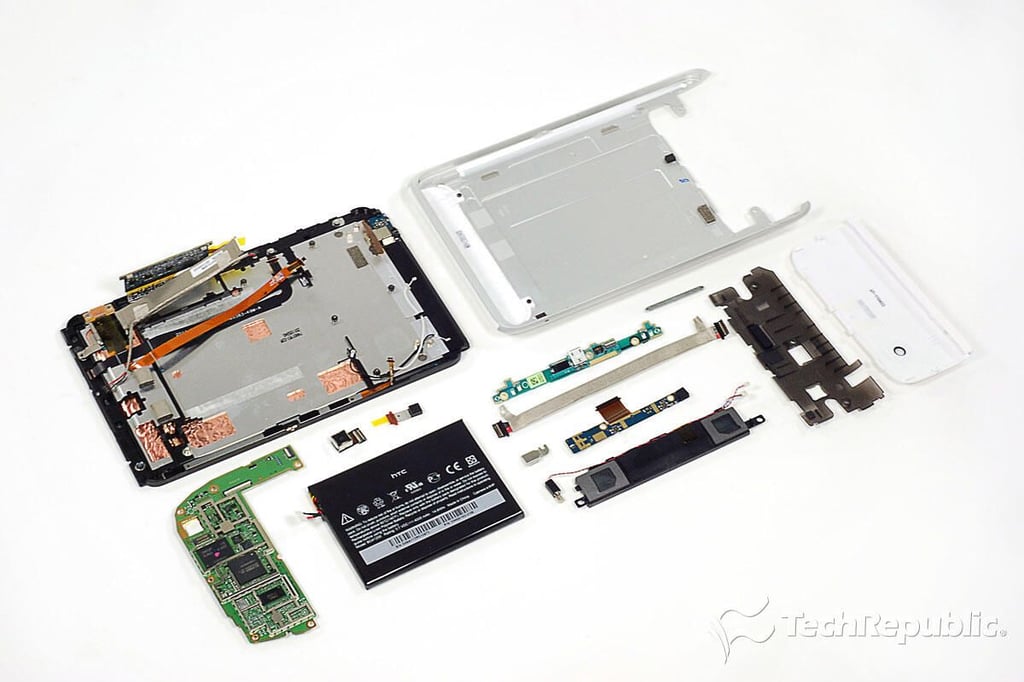

HTC Flyer Cracking Open: Completely Disassembled

HTC Flyer Cracking Open: Completely Disassembled

ntThe HTC Flyer has several nice tablet features (a touchscreen that supports both a digital pen and your finger, a 1.5GHz processor, and 16GB of storage), but its internal layout looks more like that of a smartphone than a built-from-the-ground-up tablet.
nt
ntPhoto by: Bill Detwiler / TechRepublic
ntCaption by: Bill Detwiler

  • Mobility
  • Account Information

    Share with Your Friends

    Cracking Open the HTC Flyer

    Your email has been sent

Share: Cracking Open the HTC Flyer
Image of Bill Detwiler
By Bill Detwiler
Bill Detwiler is the Editor for Technical Content and Ecosystem at Celonis. He is the former Editor in Chief of TechRepublic and previous host of TechRepublic's Dynamic Developer podcast and Cracking Open, CNET and TechRepublic's popular online show.
  • Account Information

    Contact Bill Detwiler

    Your message has been sent

  • |
  • See all of Bill's content

TechRepublic Premium

  • TechRepublic Premium

    OneDrive Cloud Usage Policy

    This OneDrive Cloud Usage Policy, courtesy of TechRepublic Premium, defines the practices and behaviors organization representatives must follow when using any Microsoft OneDrive cloud file storage account to execute organization services, process organization data, or access or store organization information. From the policy: No organization representative should ever install a personal OneDrive account on any ...

    Downloads
    Published:  October 1, 2023, 4:00 PM EDT Modified:  October 2, 2023, 9:00 AM EDT Read More See more TechRepublic Premium articles
  • TechRepublic Premium

    Hiring Kit: Video Game Designer

    One of the most common and most requested jobs listed by the video game industry is the job of video game designer. Depending on the company, the platform, the project and the company’s specific development process, the job of a video game designer can mean many different things. But at its base level, a game ...

    Published:  October 1, 2023, 4:00 PM EDT Modified:  October 2, 2023, 9:00 AM EDT Read More See more TechRepublic Premium articles
  • TechRepublic Premium

    Environmental Policy

    For businesses, sustainability means maintaining the ecological, economic and holistic well-being of present and future clients. This entails taking into account the demands and necessities of individuals and society without jeopardizing the growth or wellness of the generations that follow. As an accountable business entity, this policy from TechRepublic Premium defines the company’s commitment to ...

    Downloads
    Published:  October 1, 2023, 4:00 PM EDT Modified:  October 2, 2023, 8:58 AM EDT Read More See more TechRepublic Premium articles
  • TechRepublic Premium

    Best of Confluent Current 2023: The State of Data Streaming

    TechRepublic Premium was at Confluent’s Current 2023 event, held in San Jose, California, September 26-27. Our coverage of the event comprises an analysis of data streaming, interviews, the role of stream governance and a look at Apache Flink. From the download: Confluent used the Current 2023 ‘next generation of Kafka Summit’ event in San Jose ...

    Downloads
    Published:  September 27, 2023, 4:00 PM EDT Modified:  September 28, 2023, 1:00 PM EDT Read More See more TechRepublic Premium articles

Services

  • About Us
  • Newsletters
  • RSS Feeds
  • Site Map
  • Site Help & Feedback
  • FAQ
  • Advertise
  • Do Not Sell My Information
  • Careers

Explore

  • Downloads
  • TechRepublic Forums
  • Meet the Team
  • TechRepublic Academy
  • TechRepublic Premium
  • Resource Library
  • Photos
  • Videos
  • TechRepublic
  • TechRepublic on Twitter
  • TechRepublic on Facebook
  • TechRepublic on LinkedIn
  • TechRepublic on Flipboard
© 2023 TechnologyAdvice. All rights reserved.
  • Privacy Policy
  • Terms of Use
  • Property of TechnologyAdvice
