Cracking Open the HTC Titan II

By Bill Detwiler April 19, 2012, 6:07 AM PDT on Twitter billdetwiler

1
of 63

Cracking Open the HTC Titan II

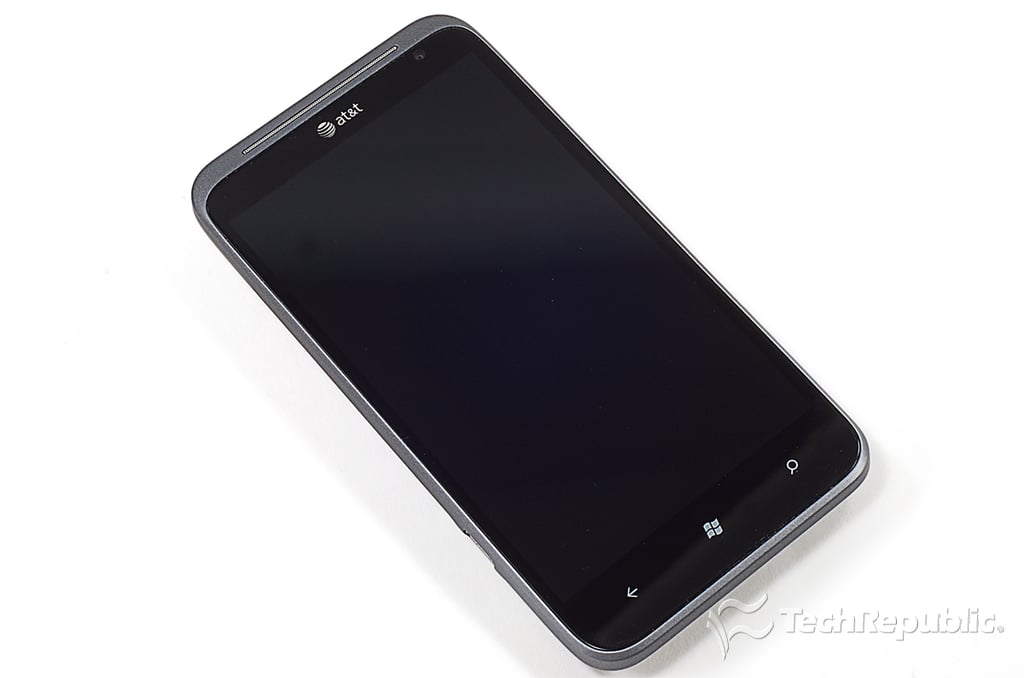

HTC Titan II teardown

HTC Titan II teardown

ntReleased in April 2012, the HTC Titan II is a solid Windows Phone 7.5 (Mango) handset. But, how does its hardware compare to the previous Titan (just a few months old) and Nokia’s flagship Windows Phone handset–the Lumia 900? Following along as I crack open the HTC Titan II for a look at the hardware inside.

n

ntFor a detailed analysis of the teardown, check out my article and video, Titan II teardown shows replaceable battery, similarities with Lumia 900.

n

ntPhoto by: Bill Detwiler / TechRepublic
ntCaption by: Bill Detwiler

Cracking Open the HTC Titan II

Cracking Open HTC Titan II: Pricing

Cracking Open HTC Titan II: Pricing

ntThe HTC Titan II retails for $199 (with a two-year contract) through AT&T. We purchased our test unit (sans contract) for $549 plus tax.
nt
ntPhoto by: Bill Detwiler / TechRepublic
ntCaption by: Bill Detwiler

Cracking Open the HTC Titan II

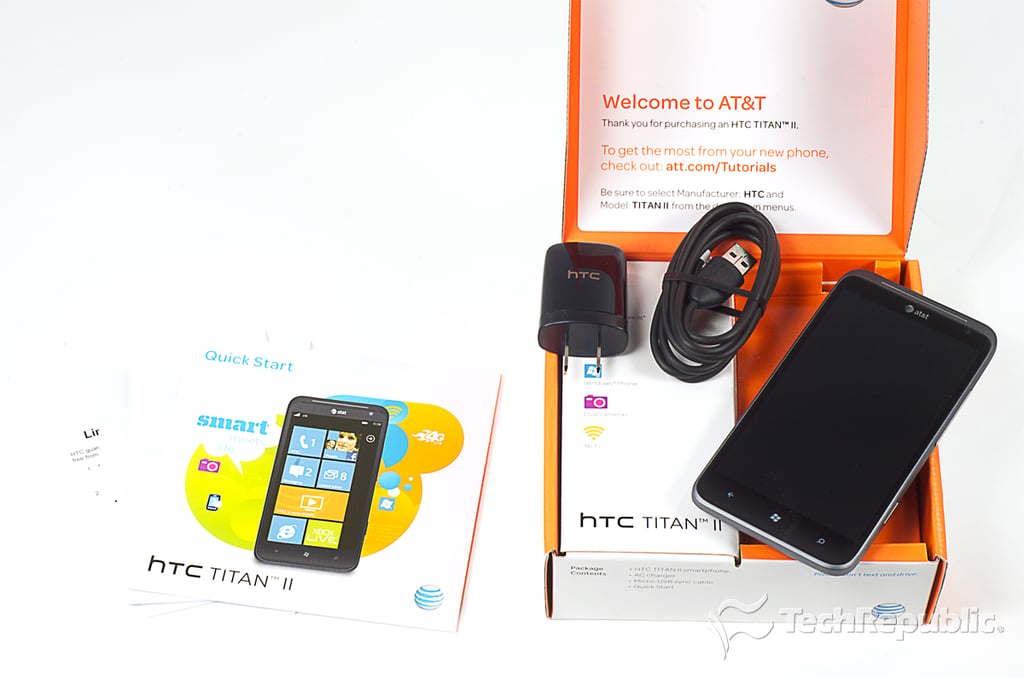

Cracking Open HTC Titan II: Box contents

Cracking Open HTC Titan II: Box contents

ntInside the Titan II’s box are the handset, USB cable, power adapter, and product documentation.

n

ntPhoto by: Bill Detwiler / TechRepublic
ntCaption by: Bill Detwiler

Cracking Open the HTC Titan II

Cracking Open HTC Titan II: Hardware specifications and dimensions

Cracking Open HTC Titan II: Hardware specifications and dimensions

ntThe Titan II has a single-core 1.5GHz Qualcomm Snapdragon S2 processor (QSD8055), 512 MB of RAM, 16GB of flash storage, a 7.7″ WVGA super LCD (800 x 480 resolution), 802.11 b/g/n WLAN and Bluetooth, a 16-megapixel rear-facing camera, and a 1.3MP front-facing camera. It measures measures 5.2″ (H) x 2.70″ (W) x 0.4″ (D) and weighs 6.1 ounces.
nt
ntPhoto by: Bill Detwiler / TechRepublic
ntCaption by: Bill Detwiler

Cracking Open the HTC Titan II

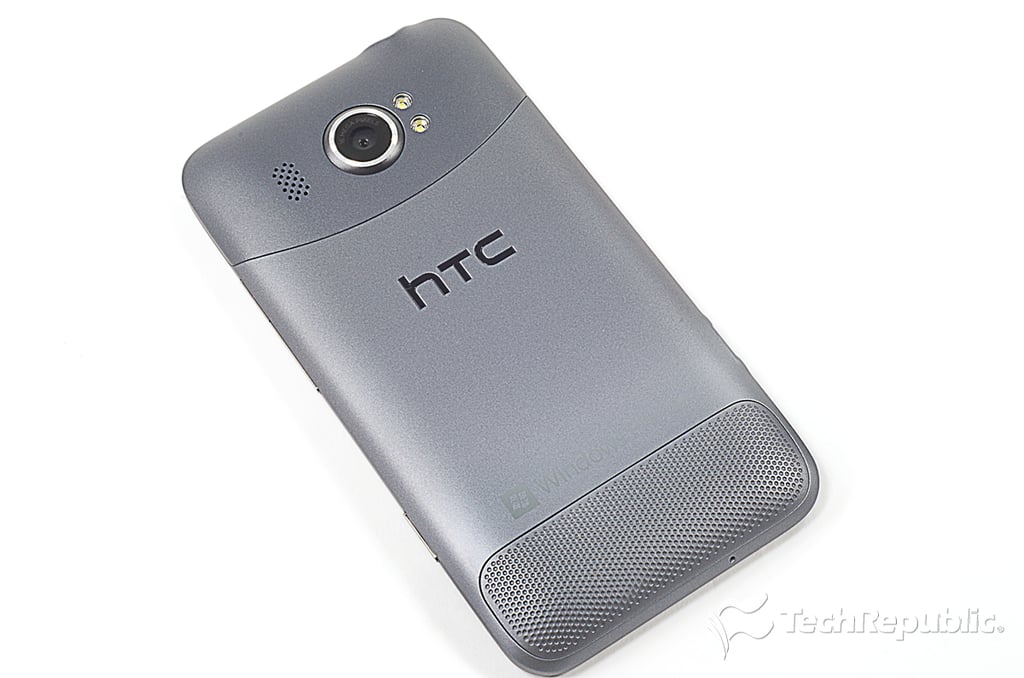

Cracking Open HTC Titan II: Back

Cracking Open HTC Titan II: Back

Cracking Open the HTC Titan II

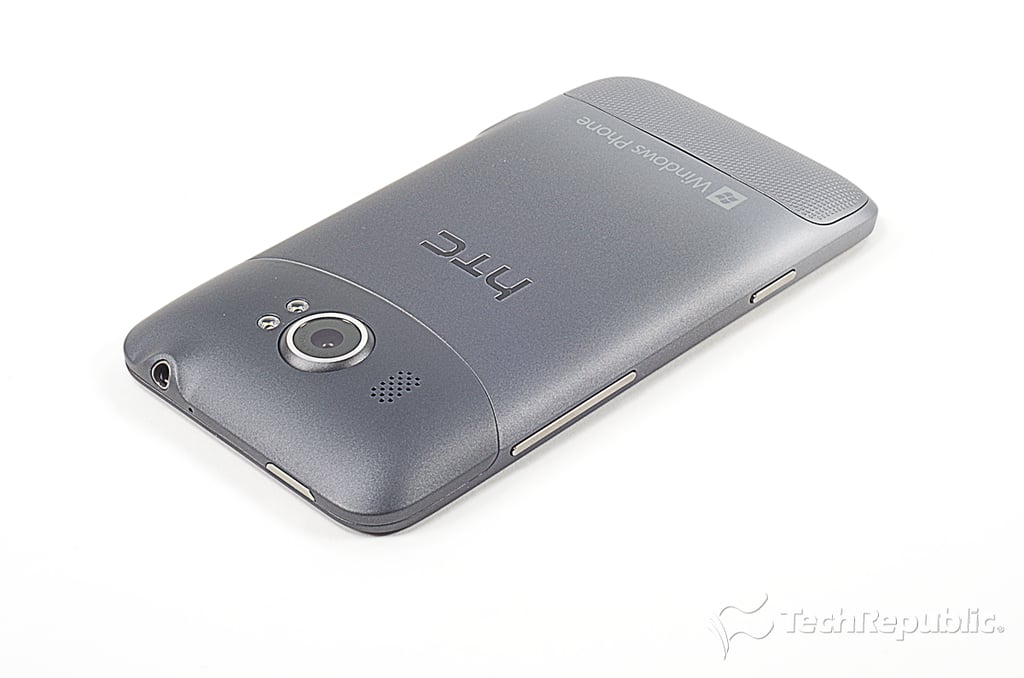

Cracking Open HTC Titan II: Headphone jack, speaker, camera, LED flash, power button, volume and camera button

Cracking Open HTC Titan II: Headphone jack, speaker, camera, LED flash, power button, volume and camera button

Cracking Open the HTC Titan II

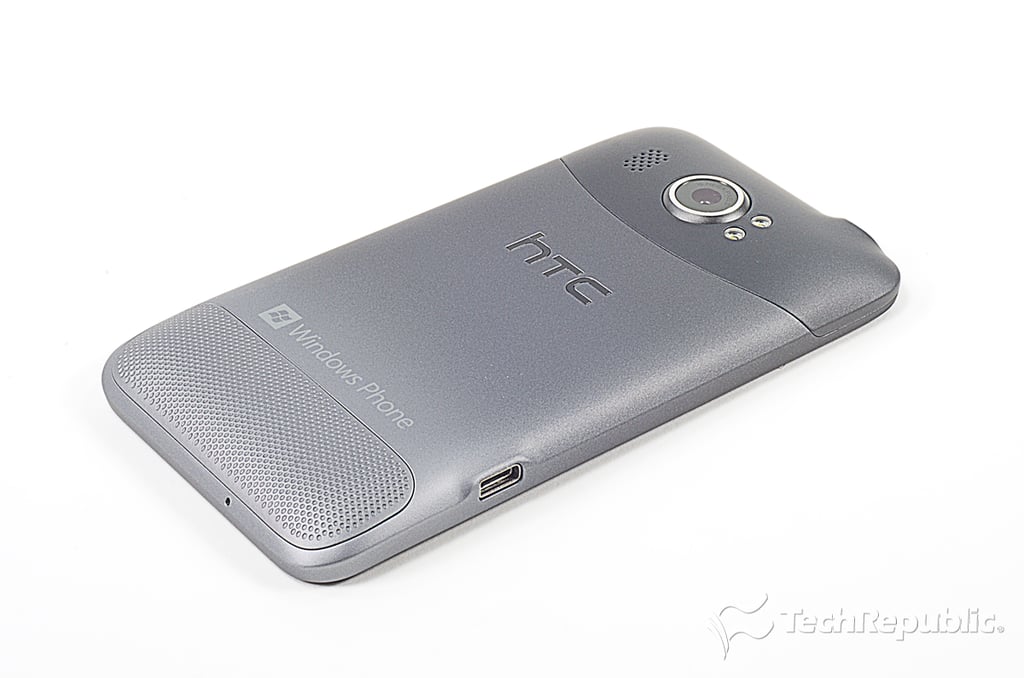

Cracking Open HTC Titan II: Microphone, bottom cover, USB connector

Cracking Open HTC Titan II: Microphone, bottom cover, USB connector

Cracking Open the HTC Titan II

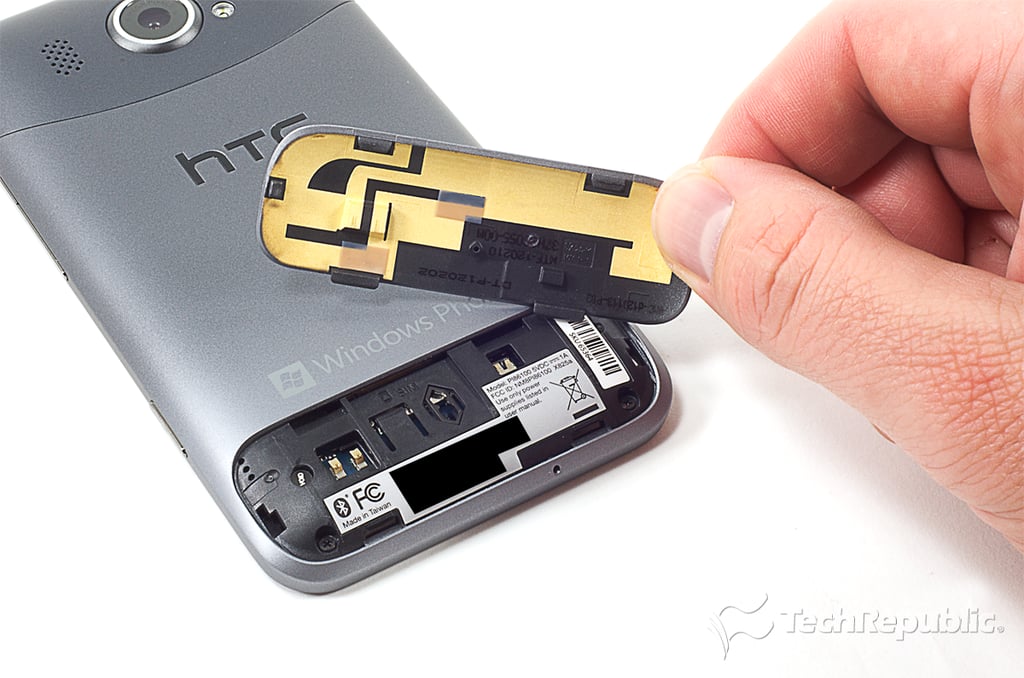

Cracking Open HTC Titan II: Removing the bottom cover

Cracking Open HTC Titan II: Removing the bottom cover

Cracking Open the HTC Titan II

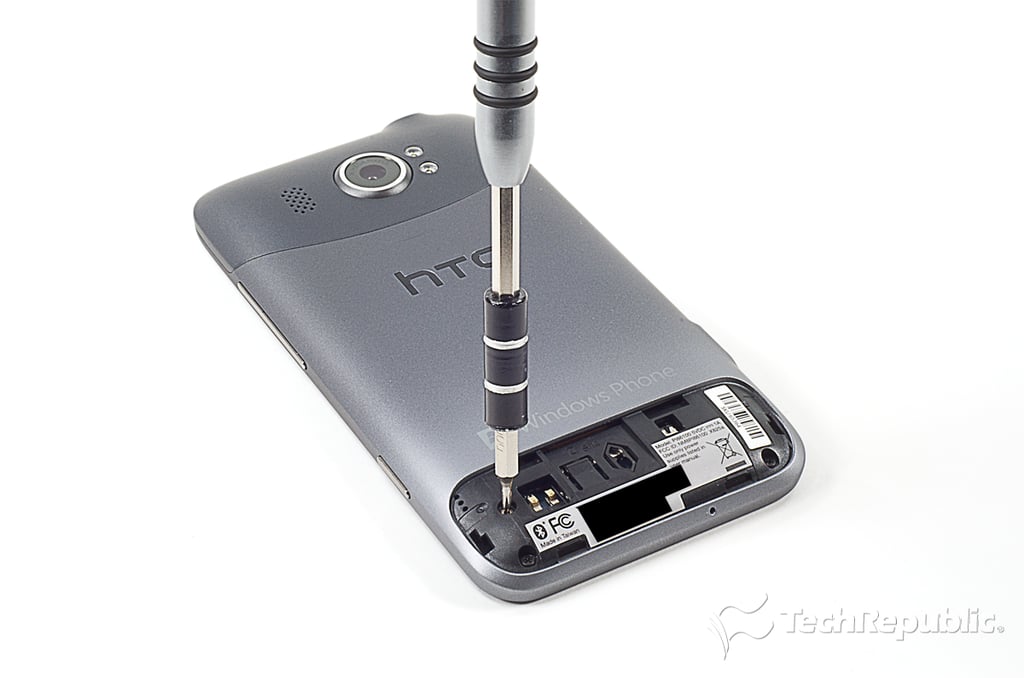

Cracking Open HTC Titan II: Removing the visible lower case screws

Cracking Open HTC Titan II: Removing the visible lower case screws

Cracking Open the HTC Titan II

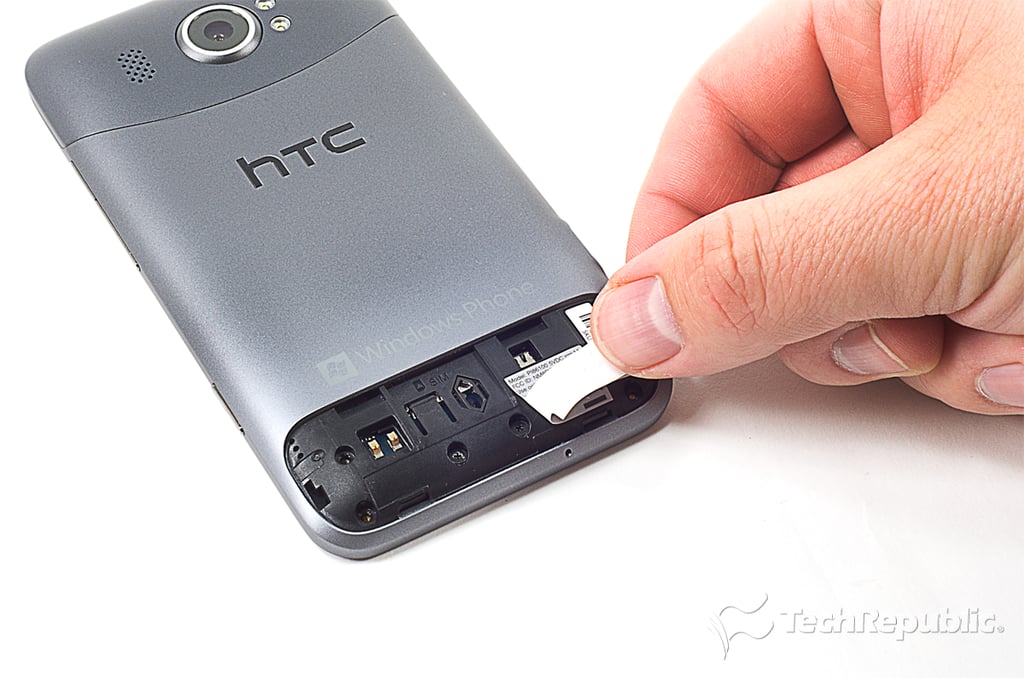

Cracking Open HTC Titan II: Uncovering two of the hidden case screws

Cracking Open HTC Titan II: Uncovering two of the hidden case screws

Cracking Open the HTC Titan II

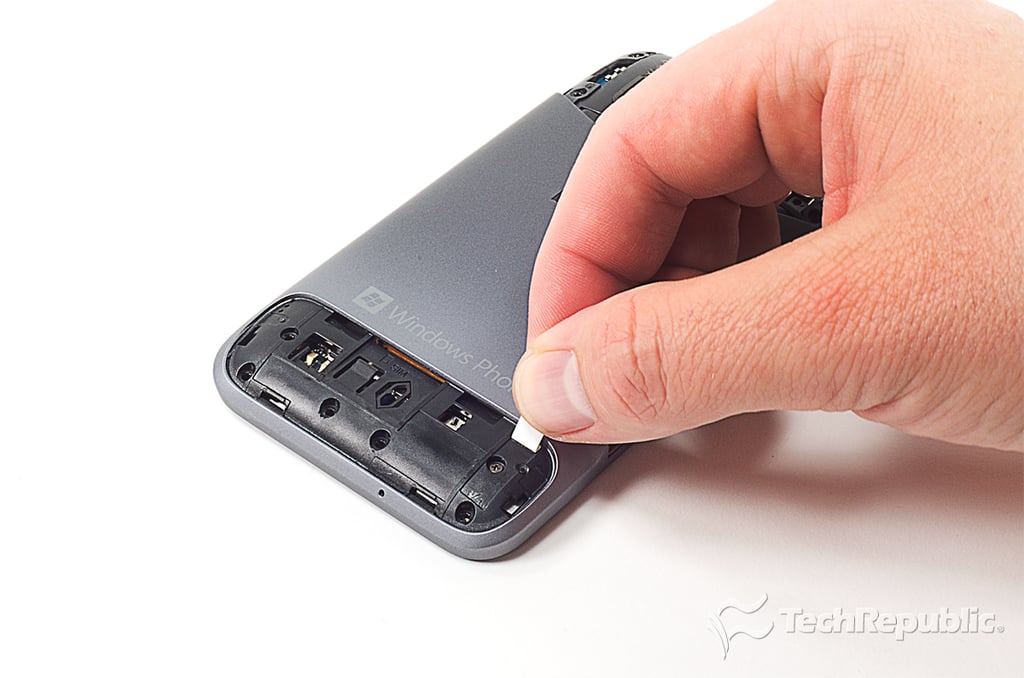

Cracking Open HTC Titan II: Uncovering the last hidden case screw

Cracking Open HTC Titan II: Uncovering the last hidden case screw

Cracking Open the HTC Titan II

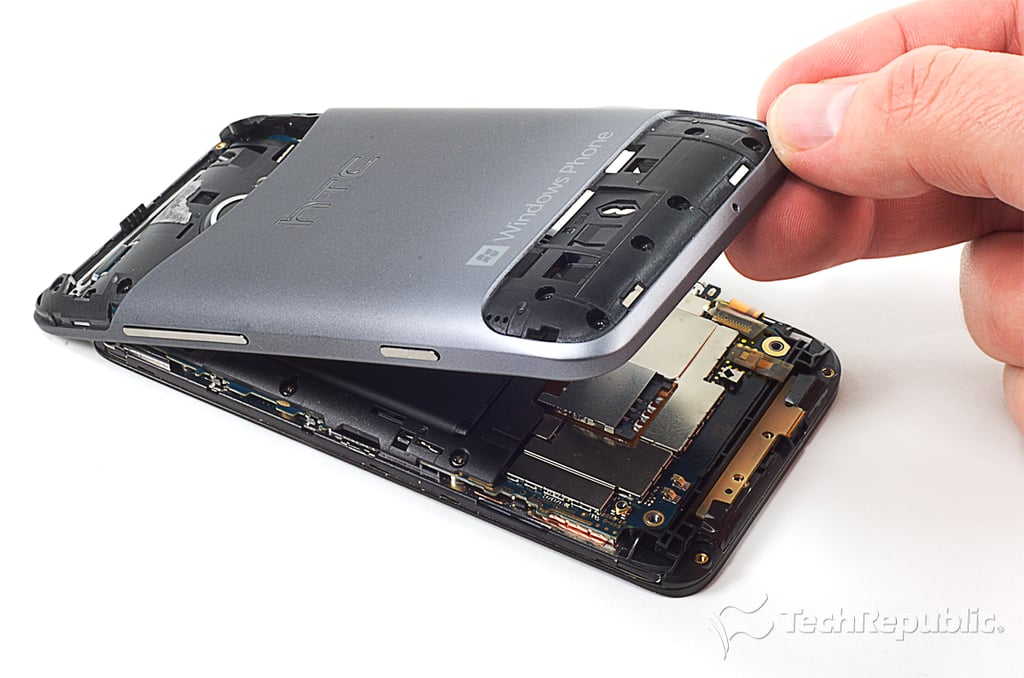

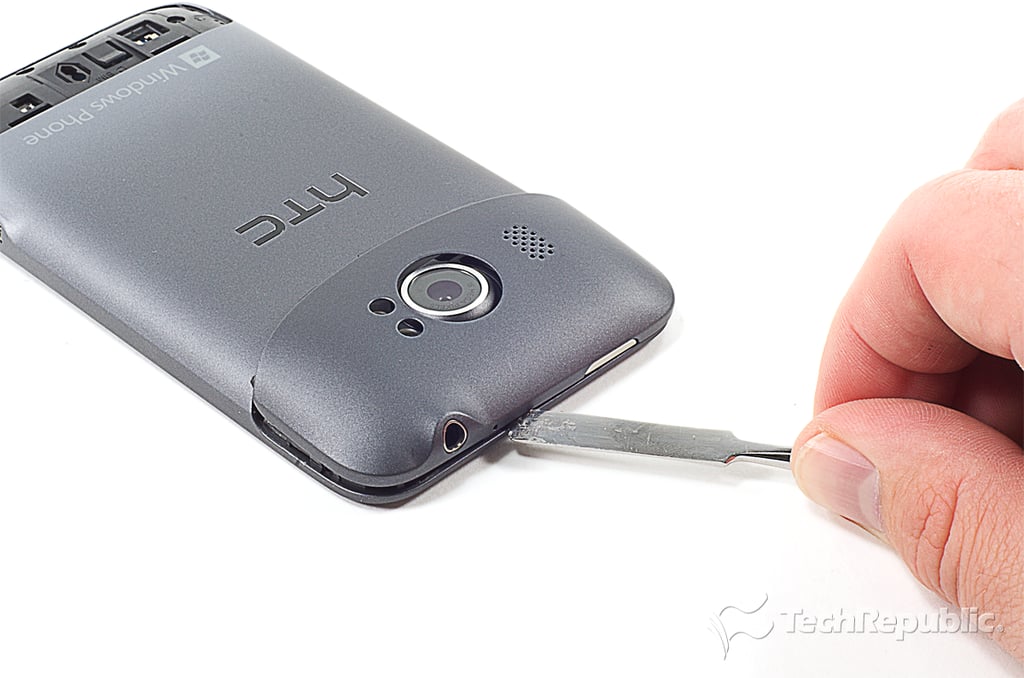

Cracking Open HTC Titan II: Removing the upper cover

Cracking Open HTC Titan II: Removing the upper cover

Cracking Open the HTC Titan II

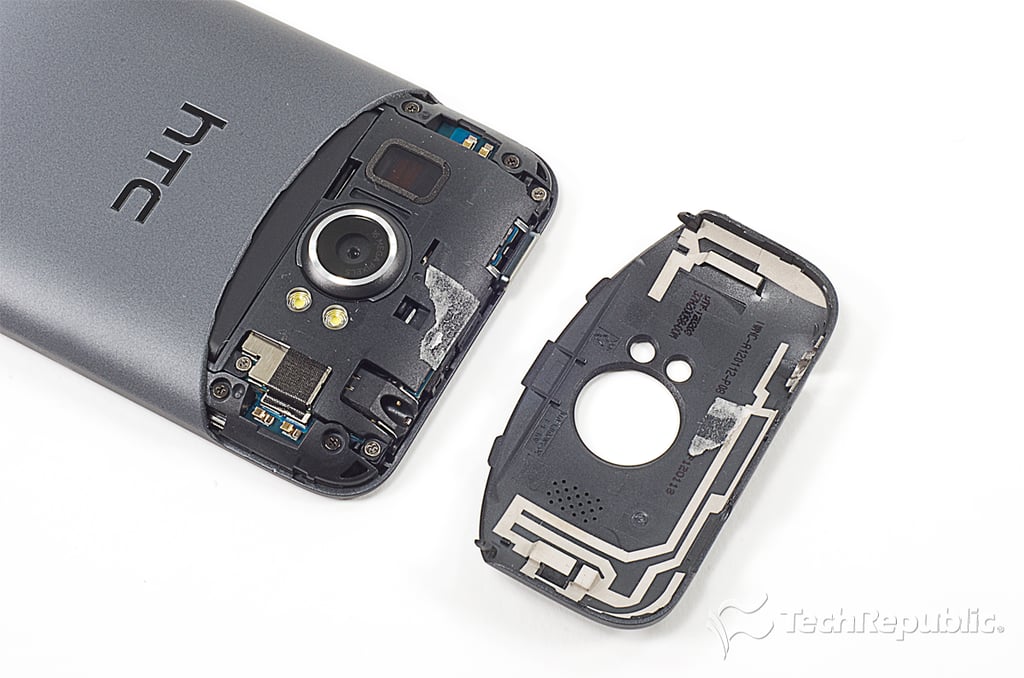

Cracking Open HTC Titan II: Upper cover removed

Cracking Open HTC Titan II: Upper cover removed

Cracking Open the HTC Titan II

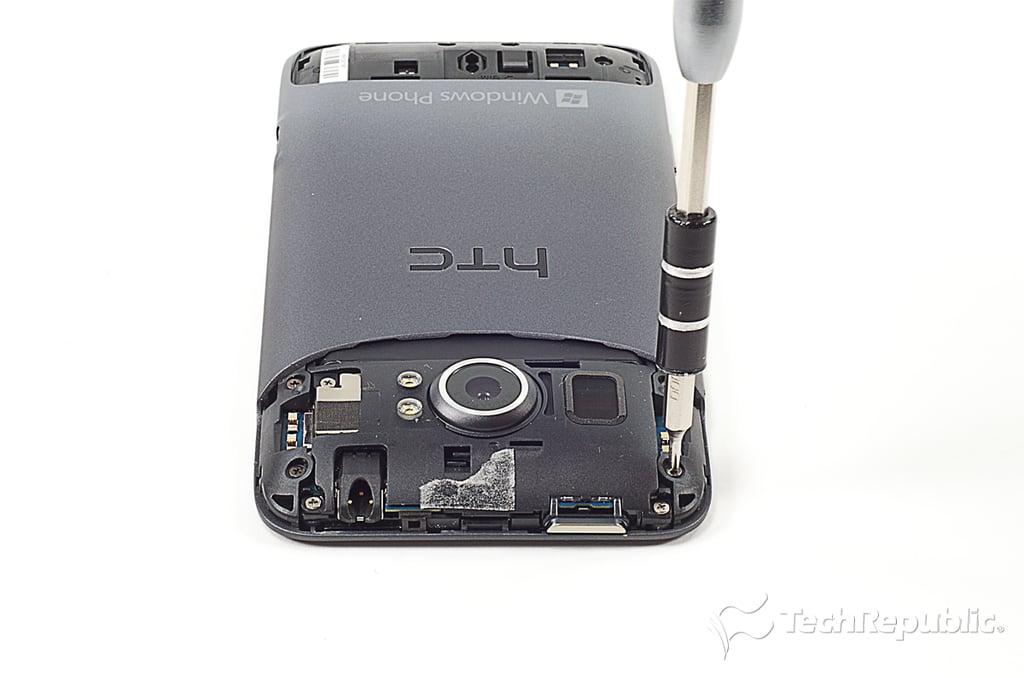

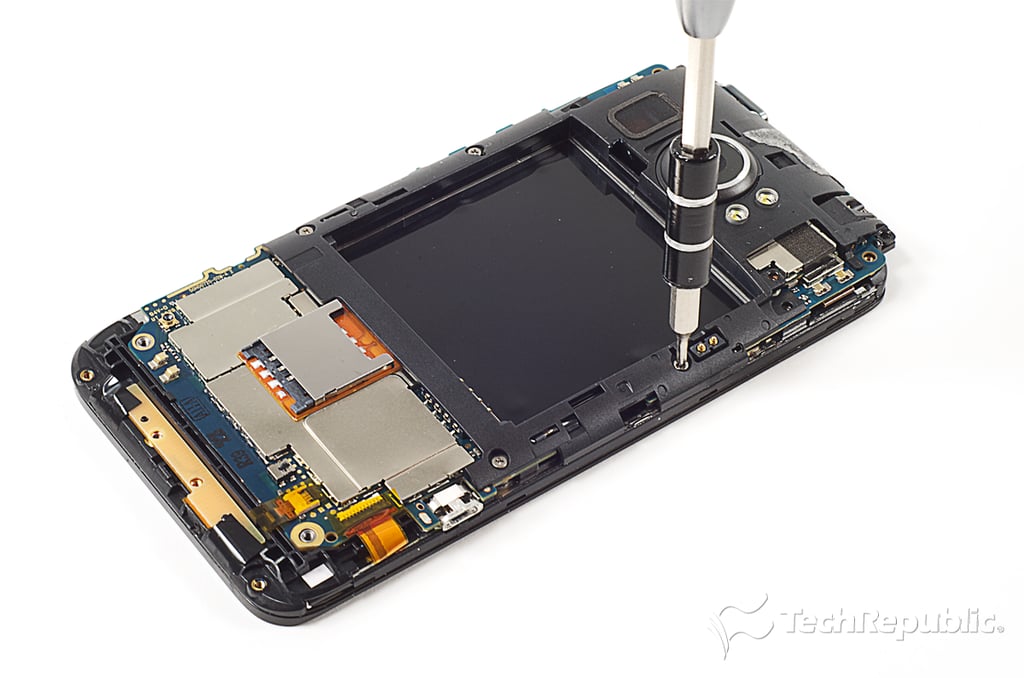

Cracking Open HTC Titan II: Removing the upper case screws

Cracking Open HTC Titan II: Removing the upper case screws

Cracking Open the HTC Titan II

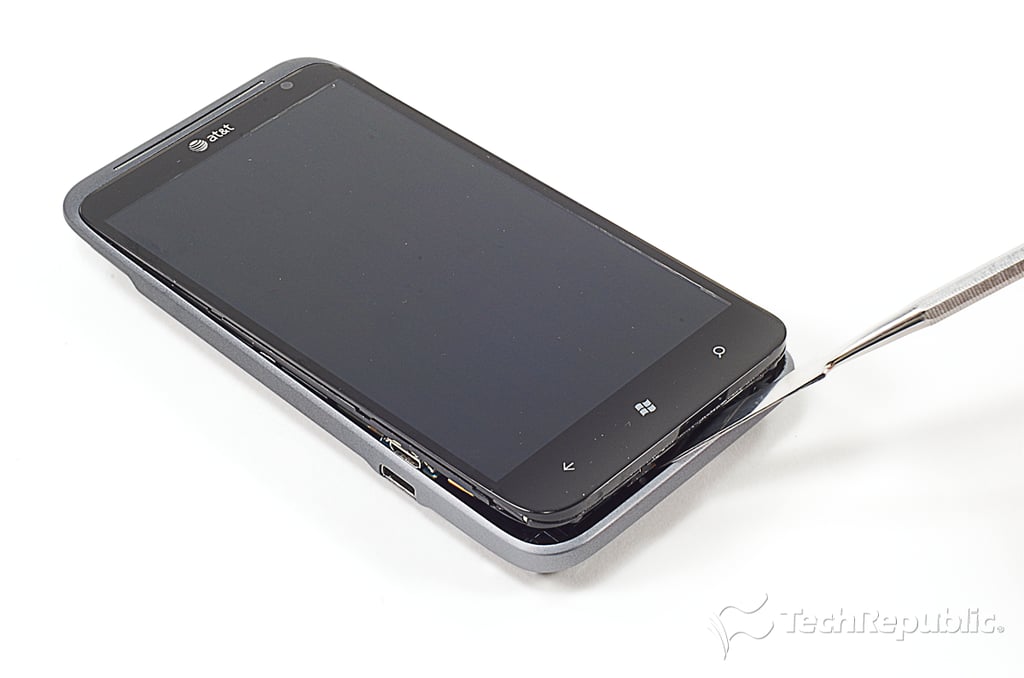

Cracking Open HTC Titan II: Separating the display assembly from the body

Cracking Open HTC Titan II: Separating the display assembly from the body

Cracking Open the HTC Titan II

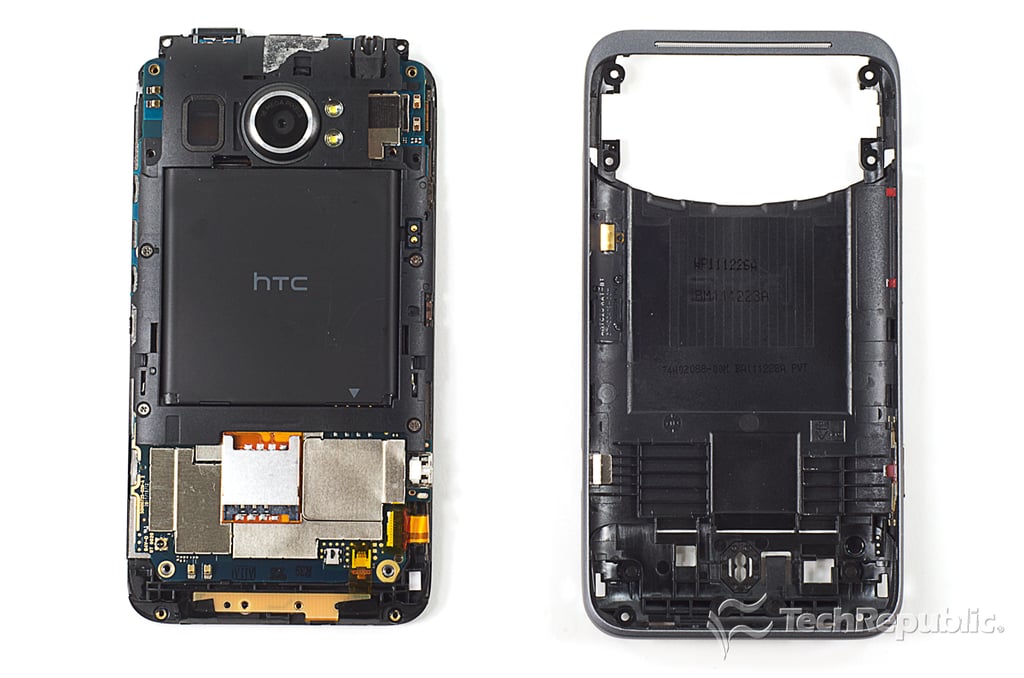

Cracking Open HTC Titan II: Removing the body

Cracking Open HTC Titan II: Removing the body

Cracking Open the HTC Titan II

Cracking Open HTC Titan II: Display assembly and body

Cracking Open HTC Titan II: Display assembly and body

Cracking Open the HTC Titan II

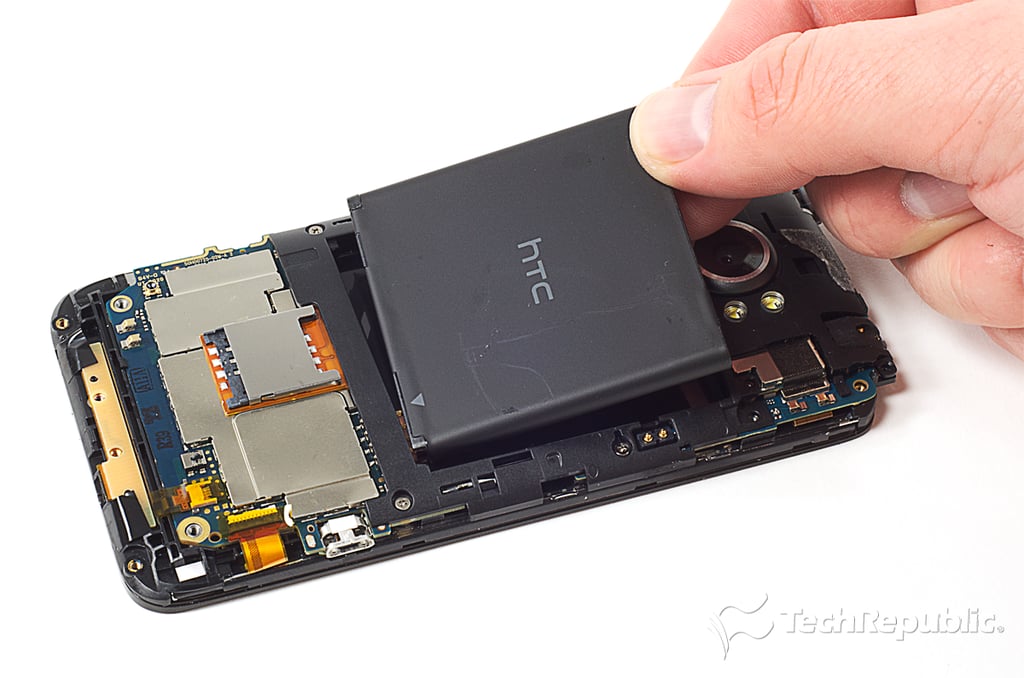

Cracking Open HTC Titan II: Removing the battery

Cracking Open HTC Titan II: Removing the battery

Cracking Open the HTC Titan II

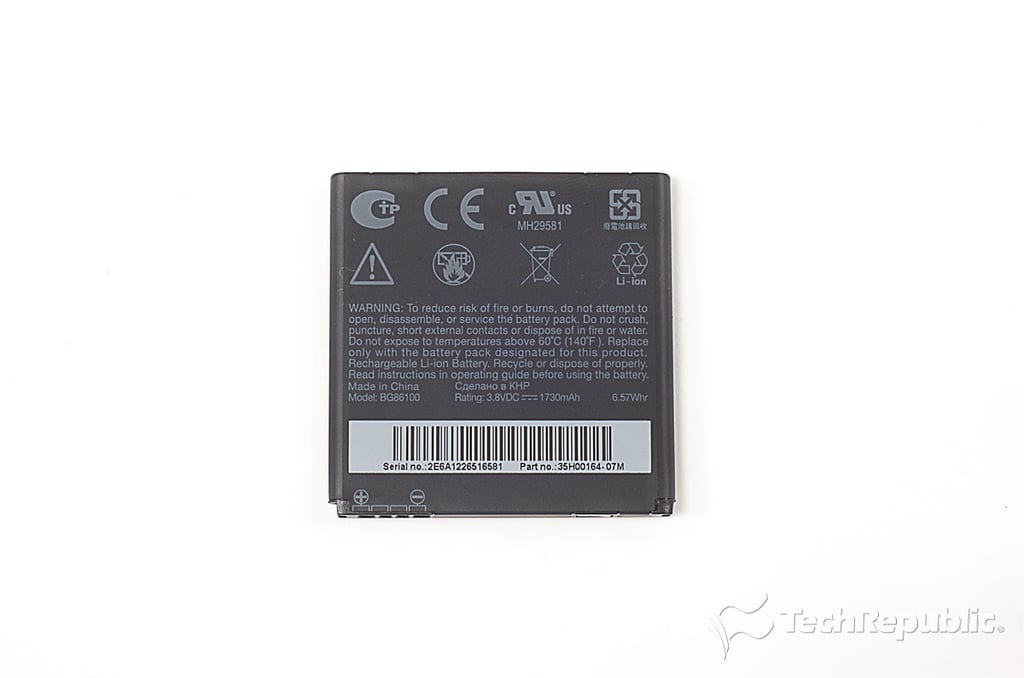

Cracking Open HTC Titan II: 3.7V, 1,730 mAh Li-Ion battery (BG86100)

Cracking Open HTC Titan II: 3.7V, 1,730 mAh Li-Ion battery (BG86100)

Cracking Open the HTC Titan II

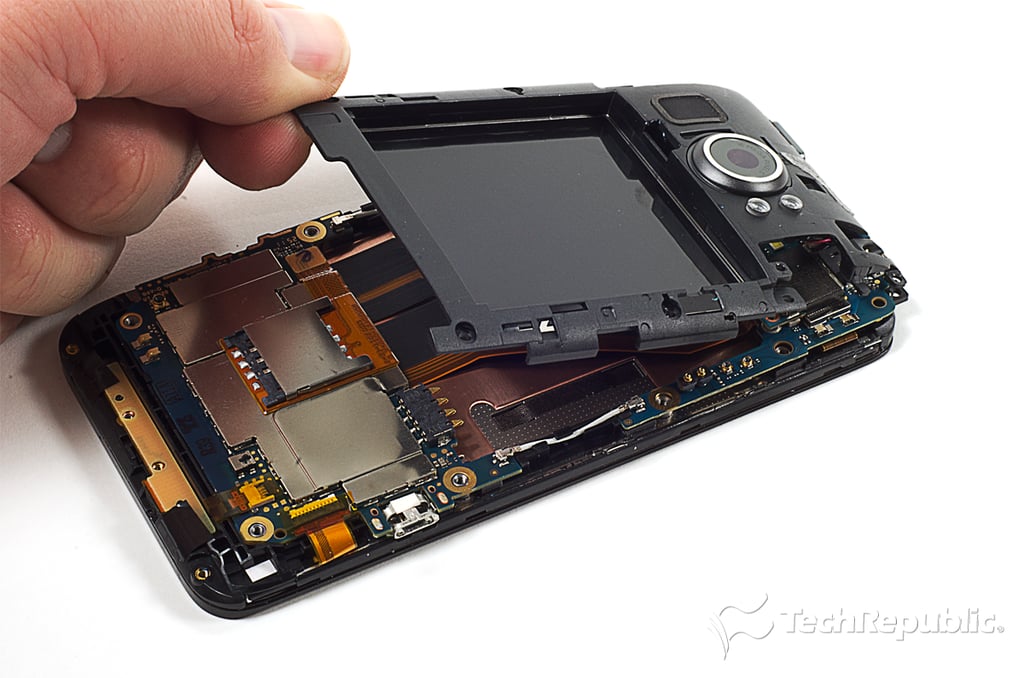

Cracking Open HTC Titan II: Removing the battery compartment and upper PCB cover screws

Cracking Open HTC Titan II: Removing the battery compartment and upper PCB cover screws

Cracking Open the HTC Titan II

Cracking Open HTC Titan II: Removing the battery compartment and upper PCB cover

Cracking Open HTC Titan II: Removing the battery compartment and upper PCB cover

Cracking Open the HTC Titan II

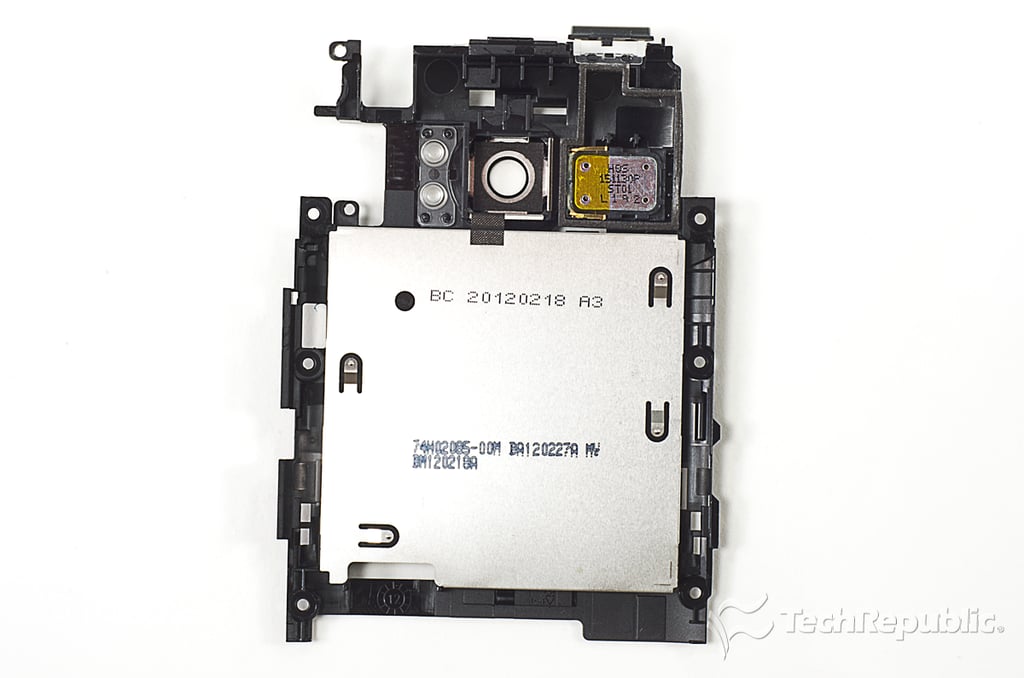

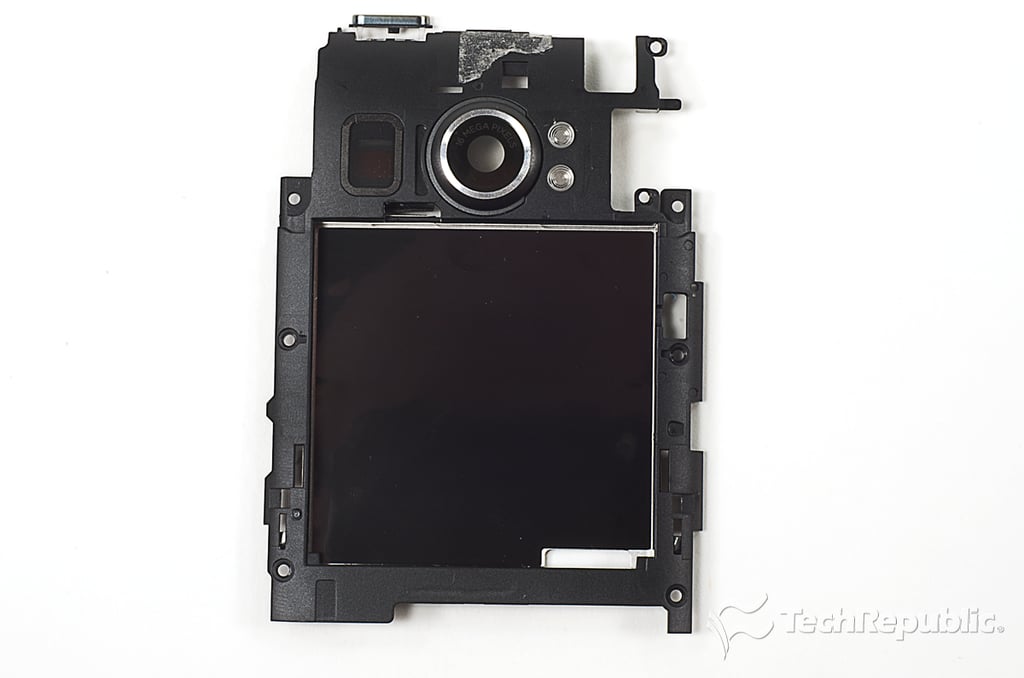

Cracking Open HTC Titan II: Battery compartment and upper PCB cover - Front

Cracking Open HTC Titan II: Battery compartment and upper PCB cover - Front

Cracking Open the HTC Titan II

Cracking Open HTC Titan II: Battery compartment and upper PCB cover - Back

Cracking Open HTC Titan II: Battery compartment and upper PCB cover - Back

Cracking Open the HTC Titan II

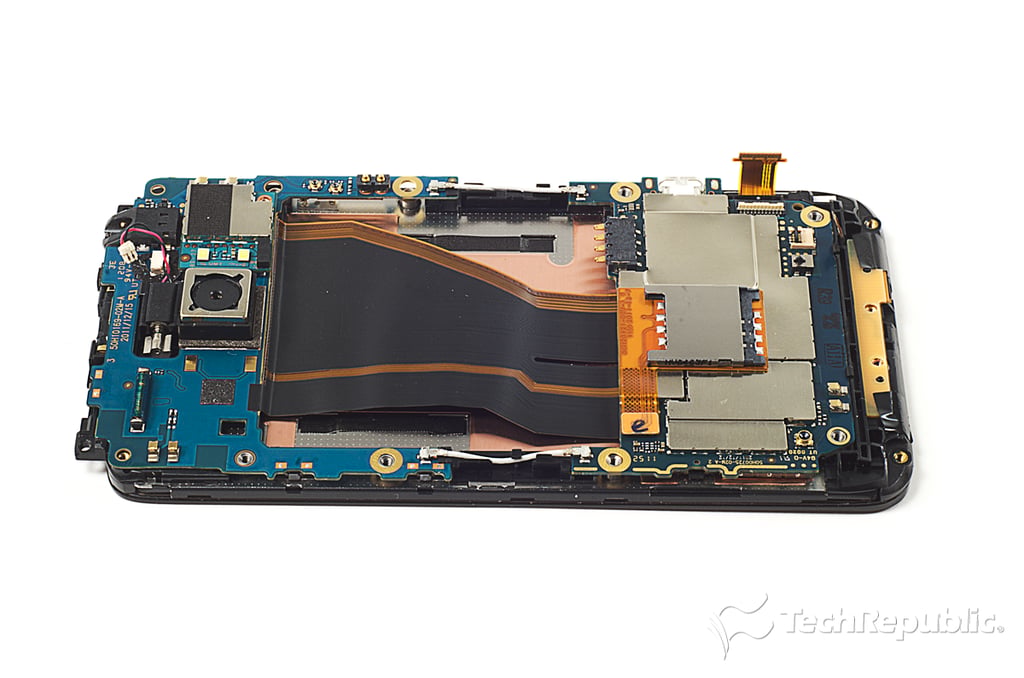

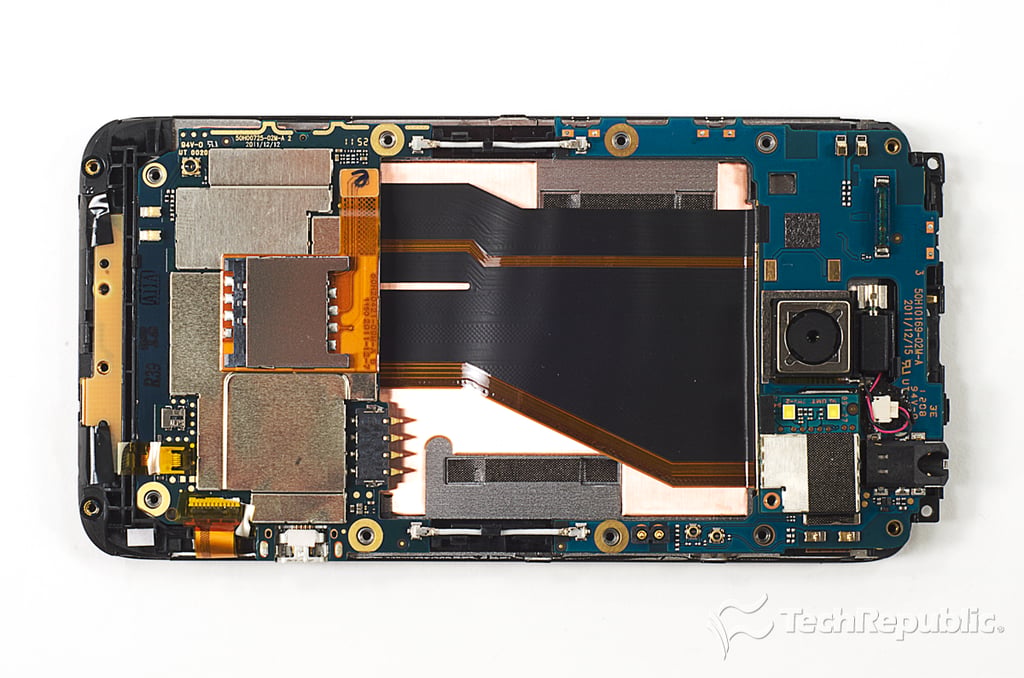

Cracking Open HTC Titan II: Internal hardware

Cracking Open HTC Titan II: Internal hardware

Cracking Open the HTC Titan II

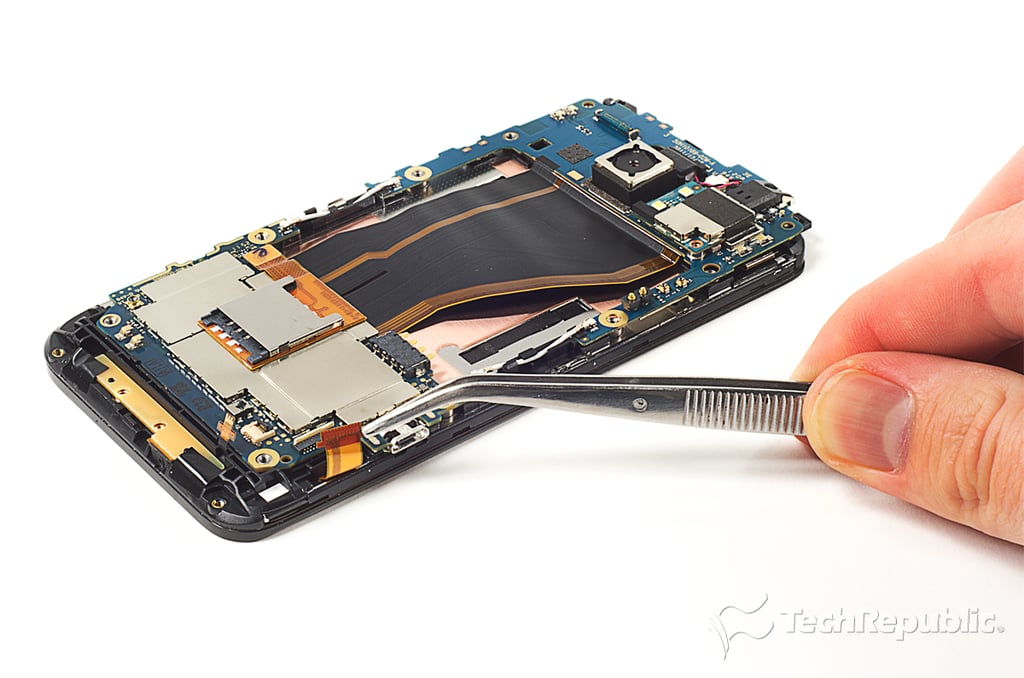

Cracking Open HTC Titan II: Disconnecting the PCB connectors

Cracking Open HTC Titan II: Disconnecting the PCB connectors

Cracking Open the HTC Titan II

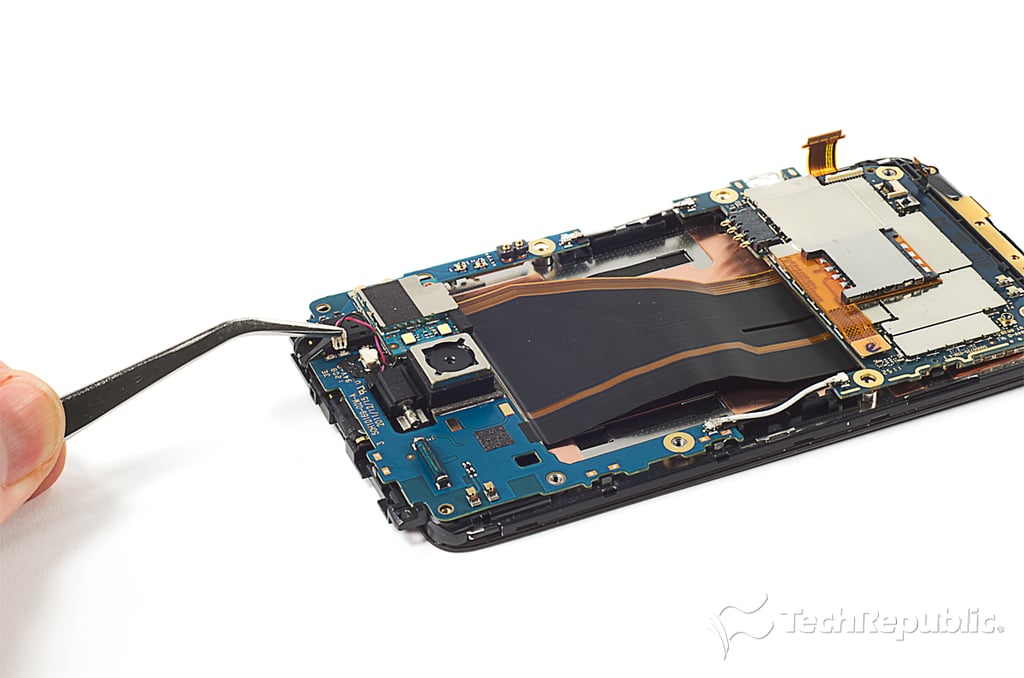

Cracking Open HTC Titan II: Disconnecting the vibration motor

Cracking Open HTC Titan II: Disconnecting the vibration motor

Cracking Open the HTC Titan II

Cracking Open HTC Titan II: Upper and lower motherboard connector

Cracking Open HTC Titan II: Upper and lower motherboard connector

Cracking Open the HTC Titan II

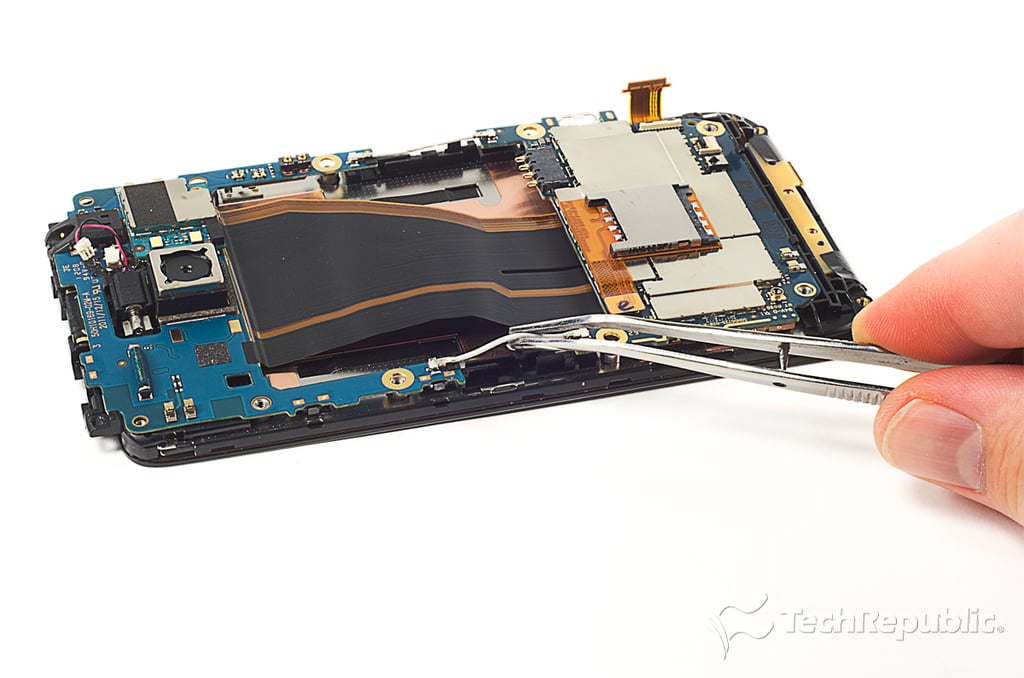

Cracking Open HTC Titan II: Lifting up the upper and lower PCB connector wire

Cracking Open HTC Titan II: Lifting up the upper and lower PCB connector wire

Cracking Open the HTC Titan II

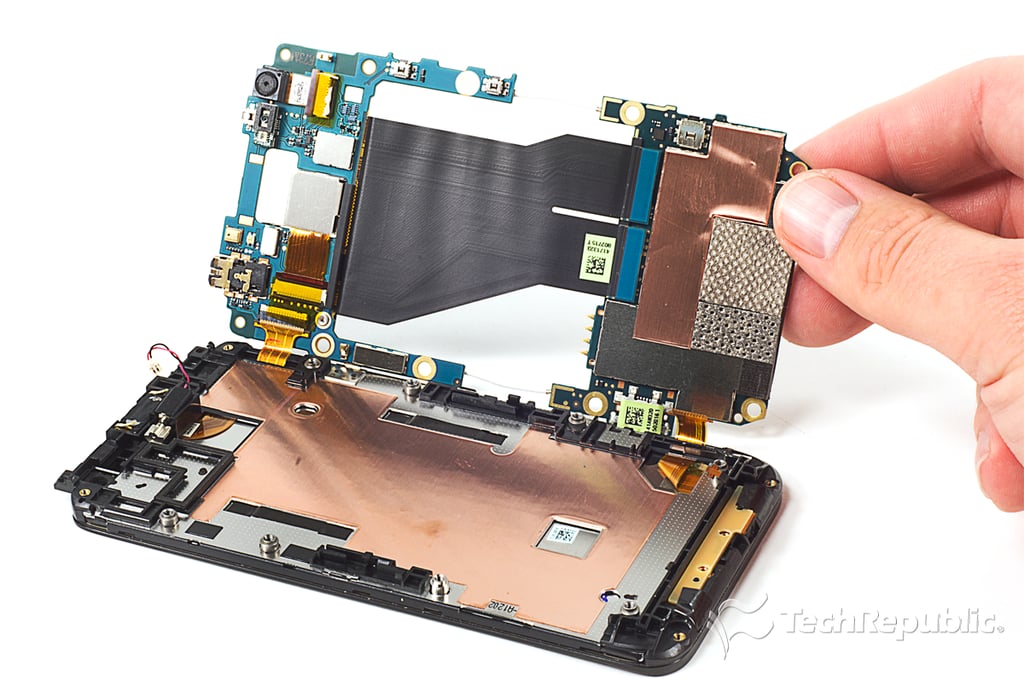

Cracking Open HTC Titan II: Removing the PCBs

Cracking Open HTC Titan II: Removing the PCBs

Cracking Open the HTC Titan II

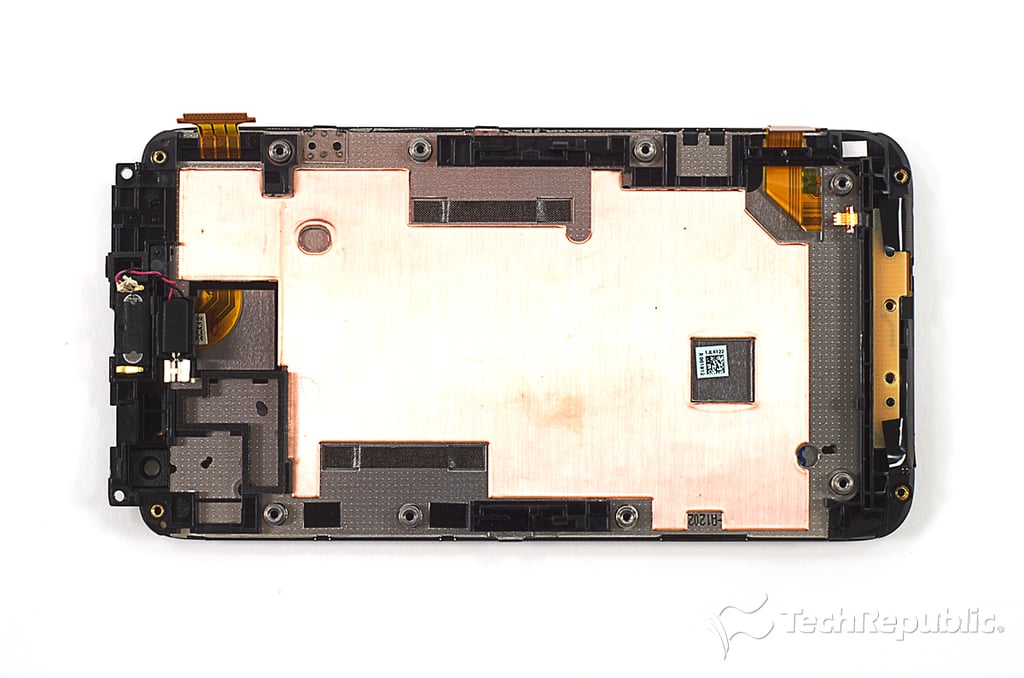

Cracking Open HTC Titan II: Display/front panel assembly

Cracking Open HTC Titan II: Display/front panel assembly

Cracking Open the HTC Titan II

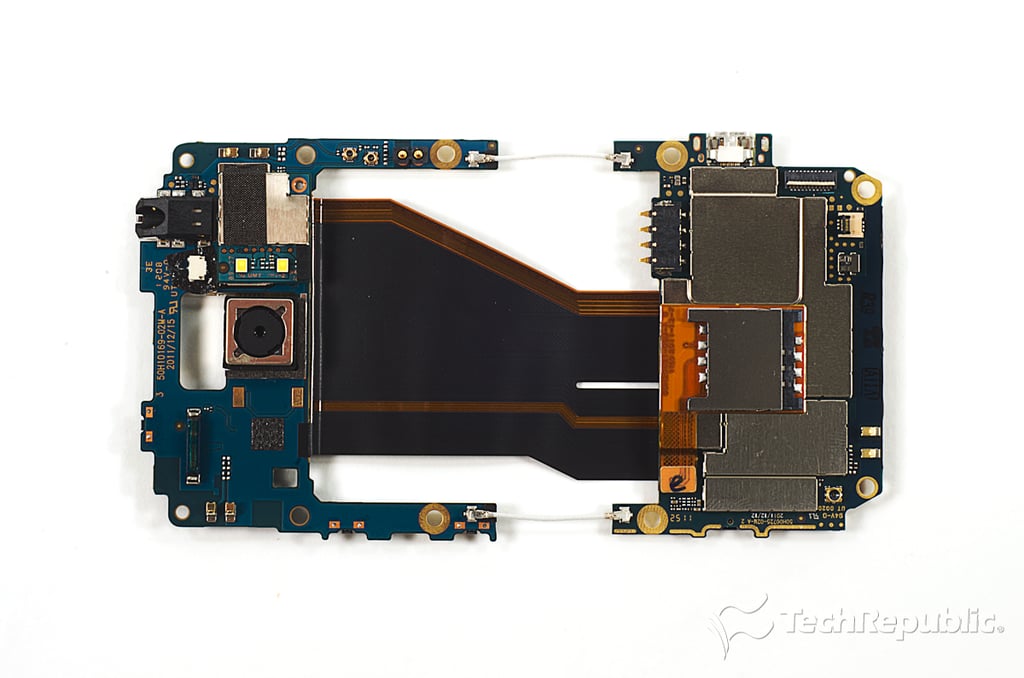

Cracking Open HTC Titan II: Upper and lower PCBs

Cracking Open HTC Titan II: Upper and lower PCBs

Cracking Open the HTC Titan II

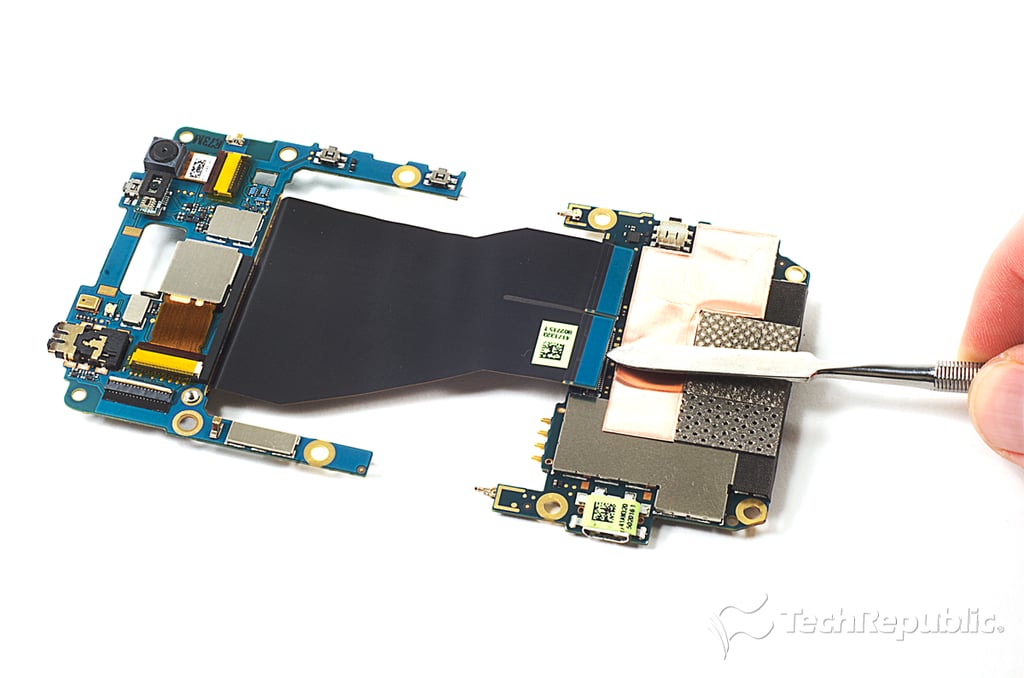

Cracking Open HTC Titan II: Disconnecting the upper and lower PCB connecting wires

Cracking Open HTC Titan II: Disconnecting the upper and lower PCB connecting wires

Cracking Open the HTC Titan II

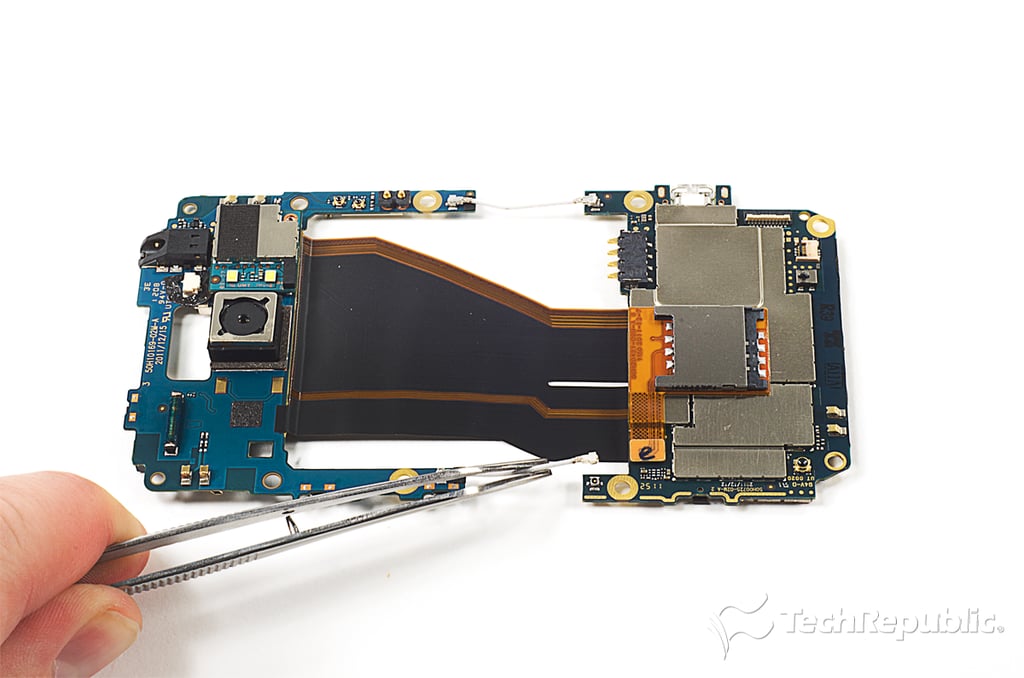

Cracking Open HTC Titan II: Disconnecting the upper and lower PCB ribbon cables

Cracking Open HTC Titan II: Disconnecting the upper and lower PCB ribbon cables

Cracking Open the HTC Titan II

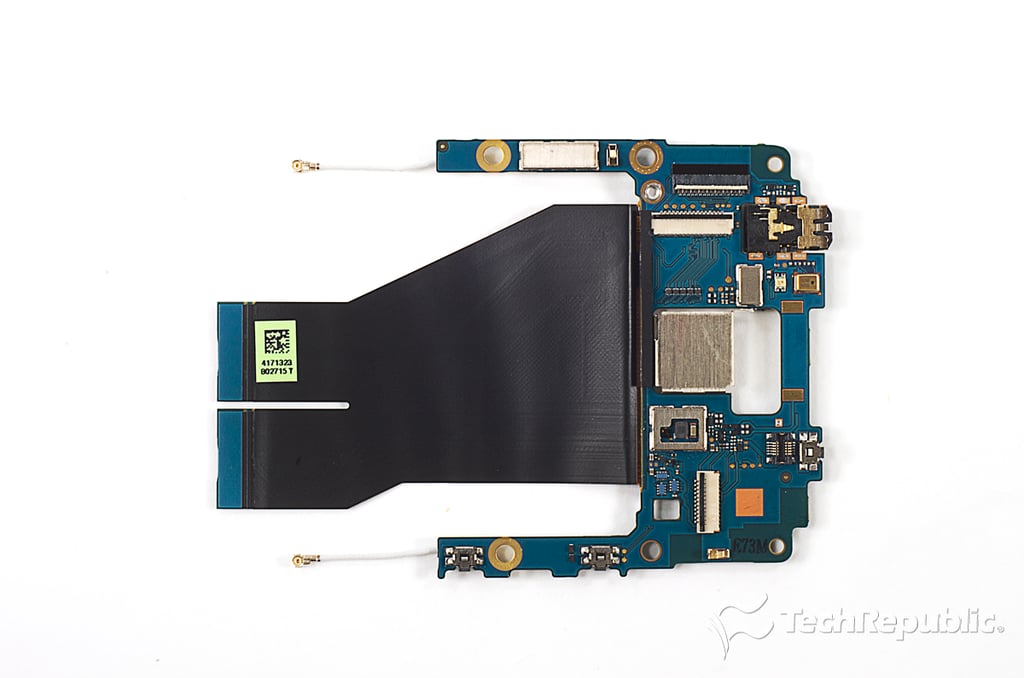

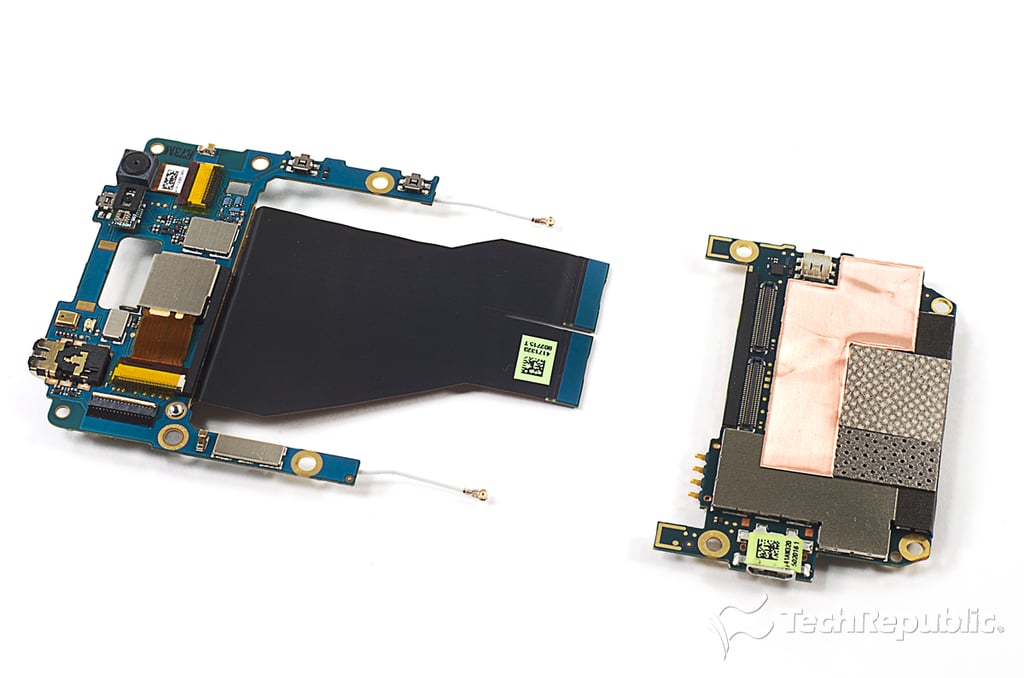

Cracking Open HTC Titan II: Upper and lower PCBs - Front

Cracking Open HTC Titan II: Upper and lower PCBs - Front

Cracking Open the HTC Titan II

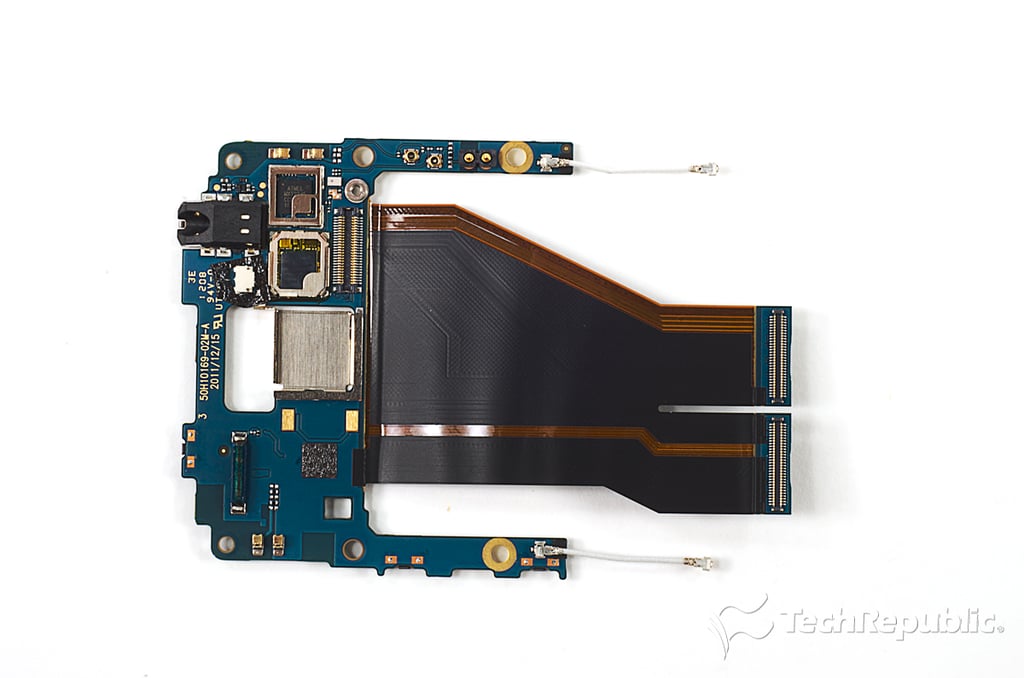

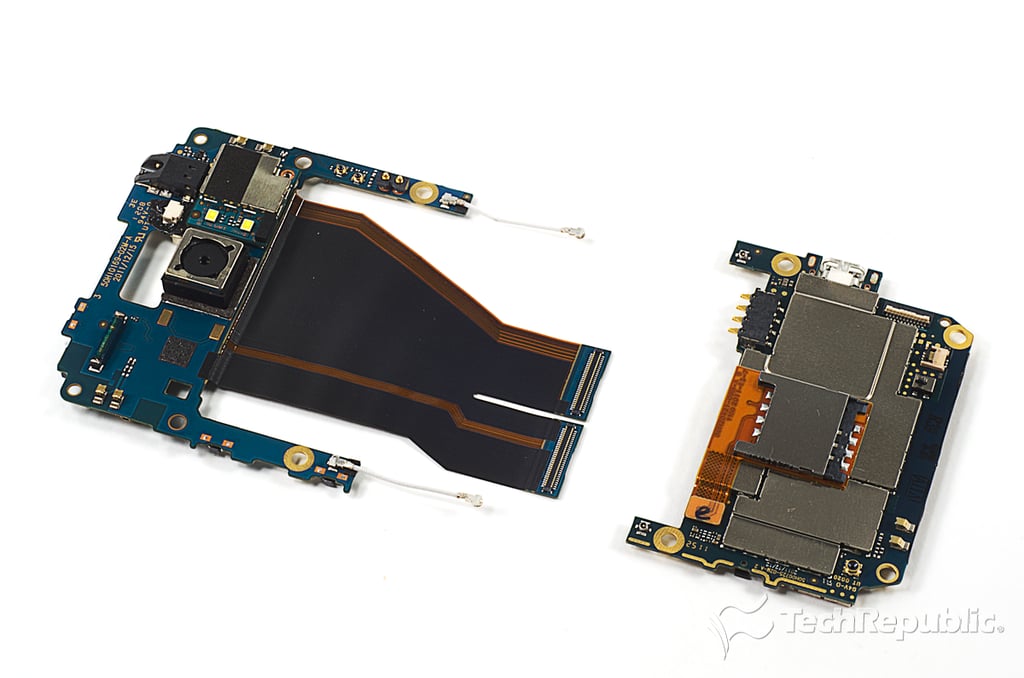

Cracking Open HTC Titan II: Upper and lower PCBs - Back

Cracking Open HTC Titan II: Upper and lower PCBs - Back

Cracking Open the HTC Titan II

Cracking Open HTC Titan II: Removing the front-facing camera

Cracking Open HTC Titan II: Removing the front-facing camera

Cracking Open the HTC Titan II

Cracking Open HTC Titan II: 1.3MP front-facing camera

Cracking Open HTC Titan II: 1.3MP front-facing camera

Cracking Open the HTC Titan II

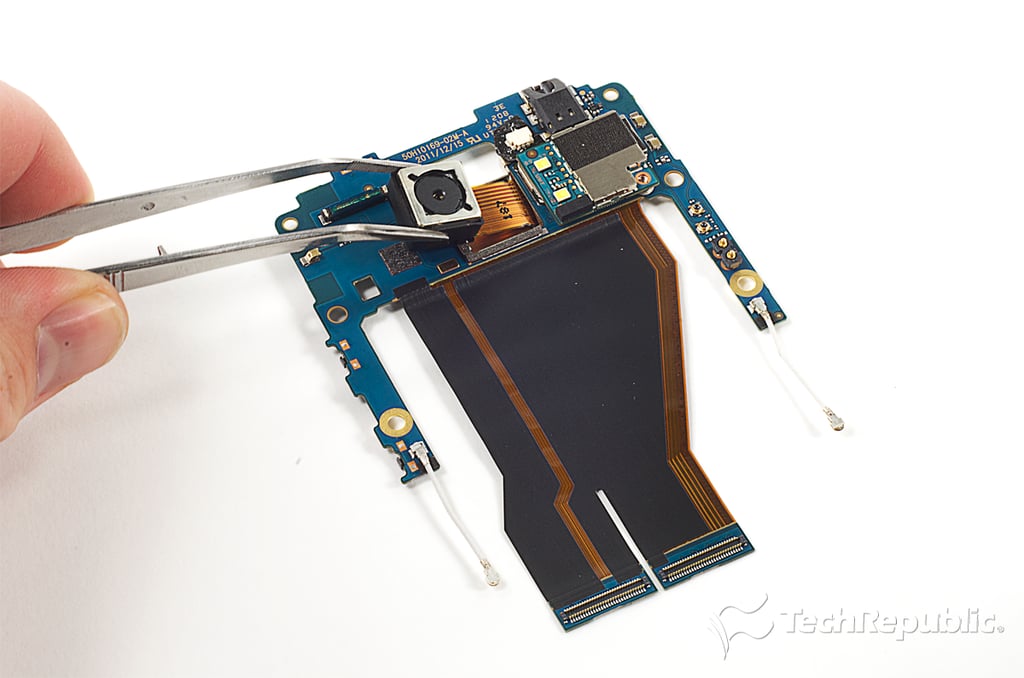

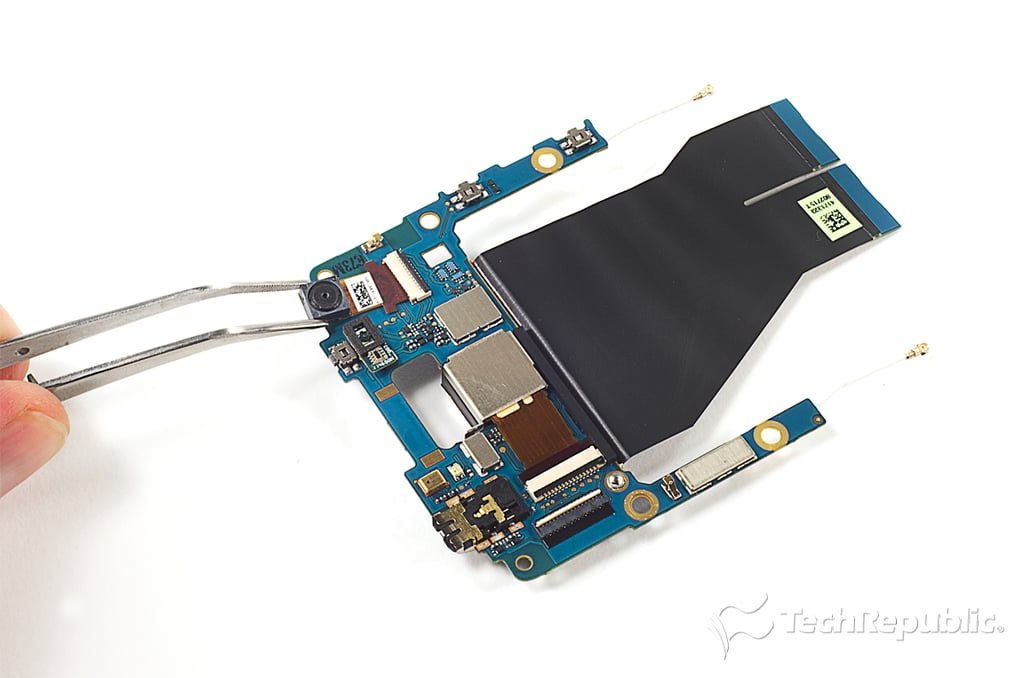

Cracking Open HTC Titan II: Removing the rear-facing camera

Cracking Open HTC Titan II: Removing the rear-facing camera

Cracking Open the HTC Titan II

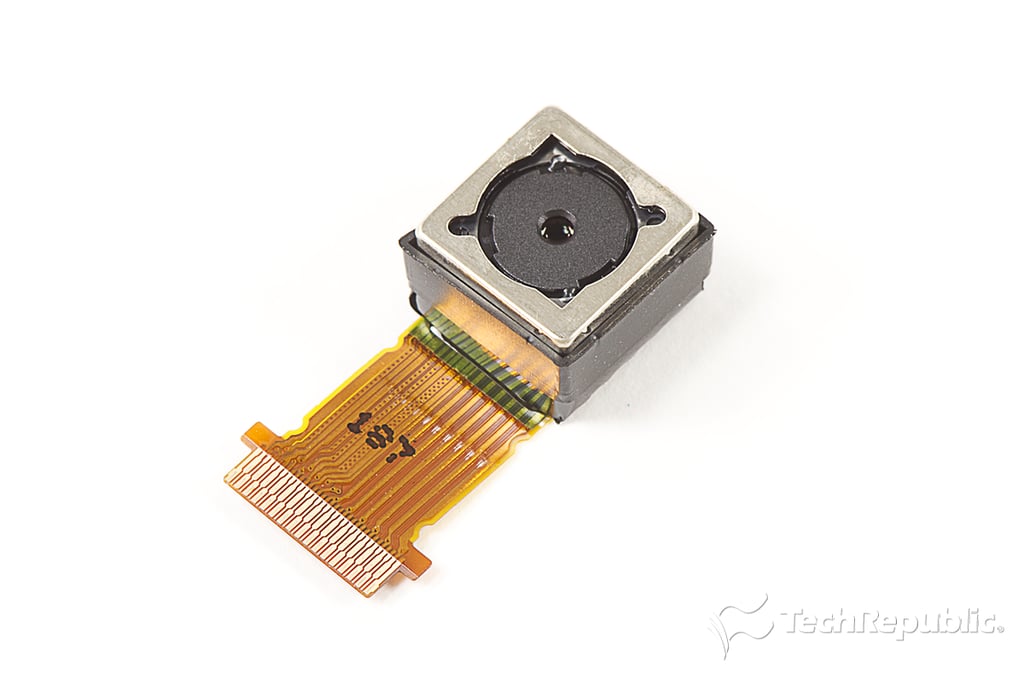

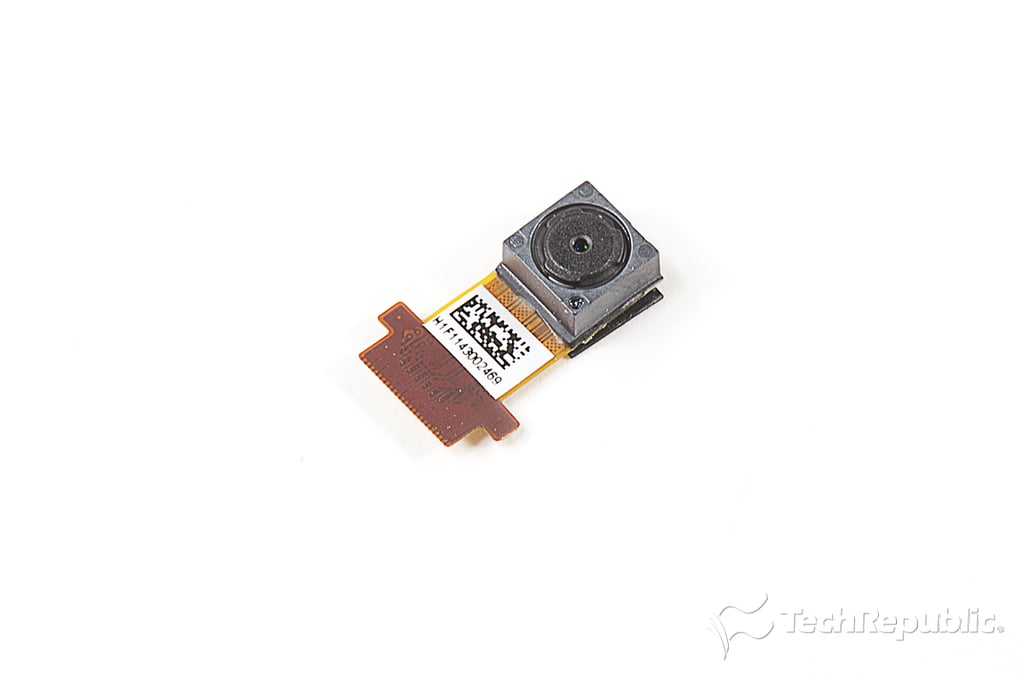

Cracking Open HTC Titan II: 16MP rear-facing camera

Cracking Open HTC Titan II: 16MP rear-facing camera

Cracking Open the HTC Titan II

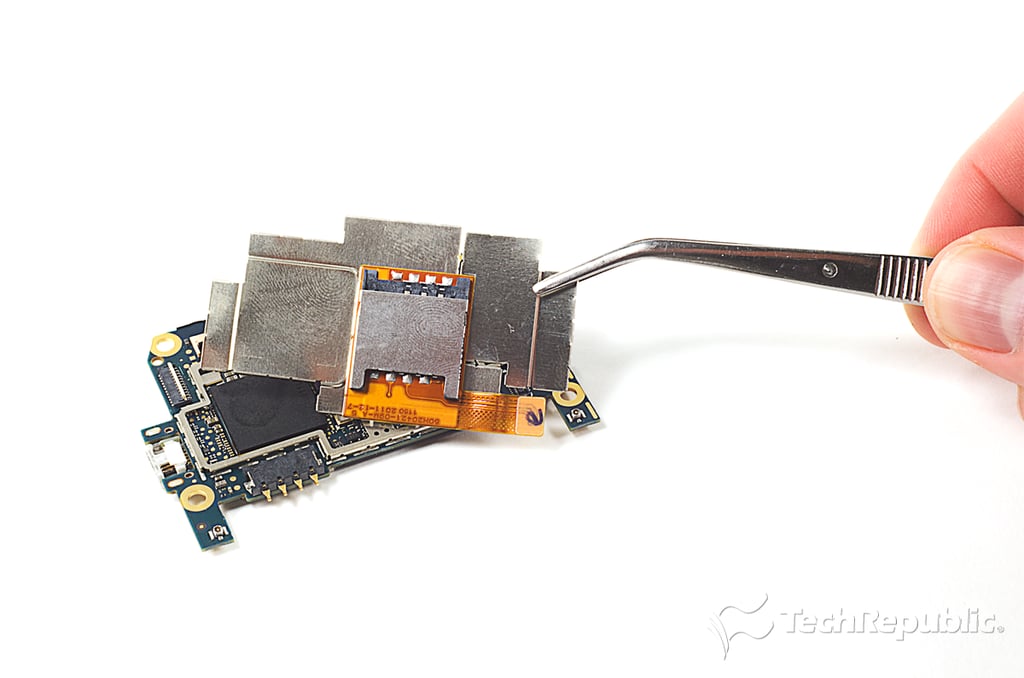

Cracking Open HTC Titan II: Removing the SIM card slot

Cracking Open HTC Titan II: Removing the SIM card slot

Cracking Open the HTC Titan II

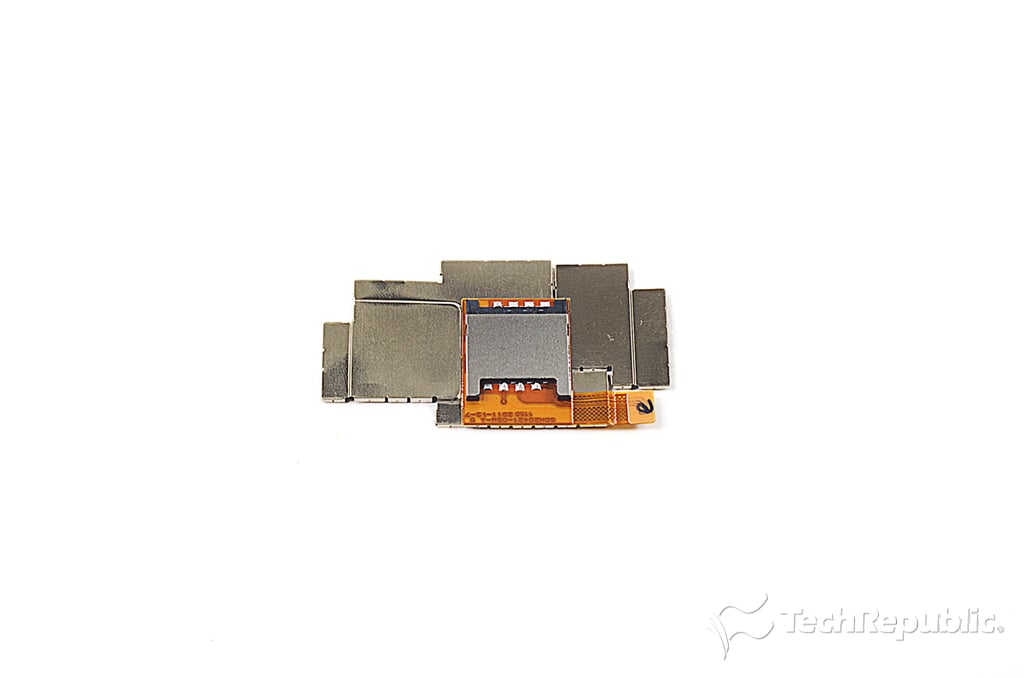

Cracking Open HTC Titan II: SIM card slot and attached metal shield

Cracking Open HTC Titan II: SIM card slot and attached metal shield

Cracking Open the HTC Titan II

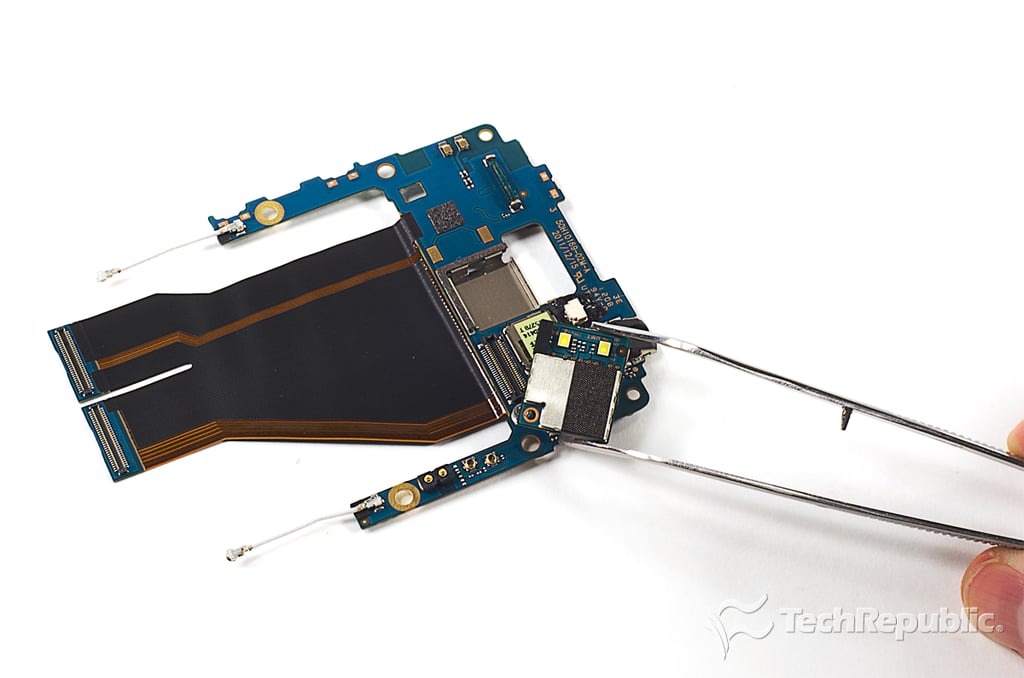

Cracking Open HTC Titan II: Removing the LED flash PCB

Cracking Open HTC Titan II: Removing the LED flash PCB

Cracking Open the HTC Titan II

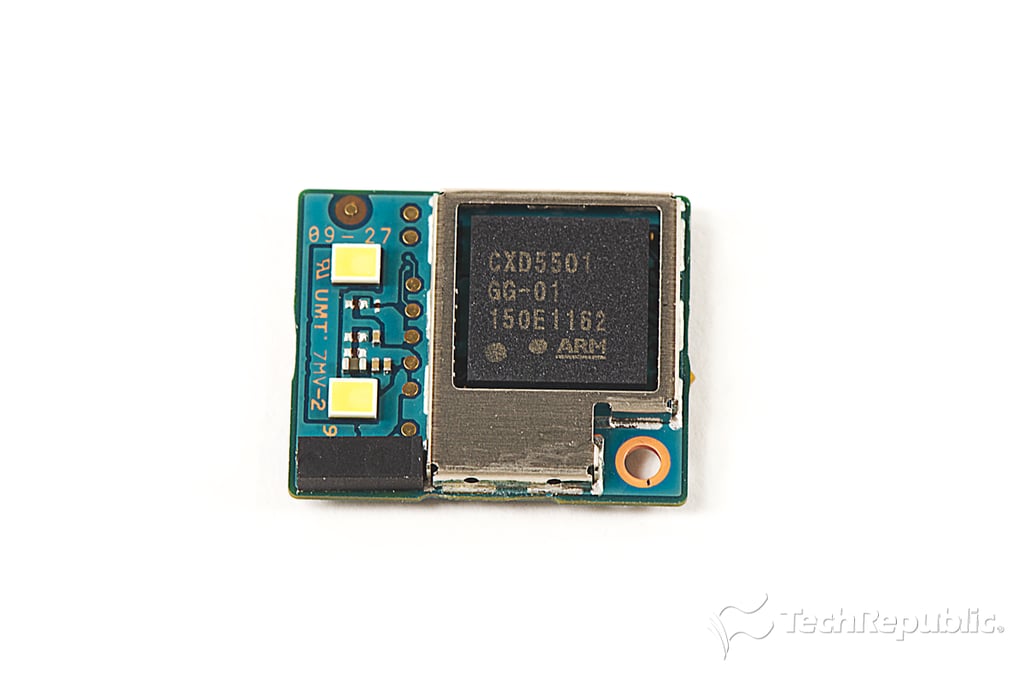

Cracking Open HTC Titan II: Unknown CXD5501GG-01 150E1162 (perhaps a Sony Semiconductor IC)

Cracking Open HTC Titan II: Unknown CXD5501GG-01 150E1162 (perhaps a Sony Semiconductor IC)

Cracking Open the HTC Titan II

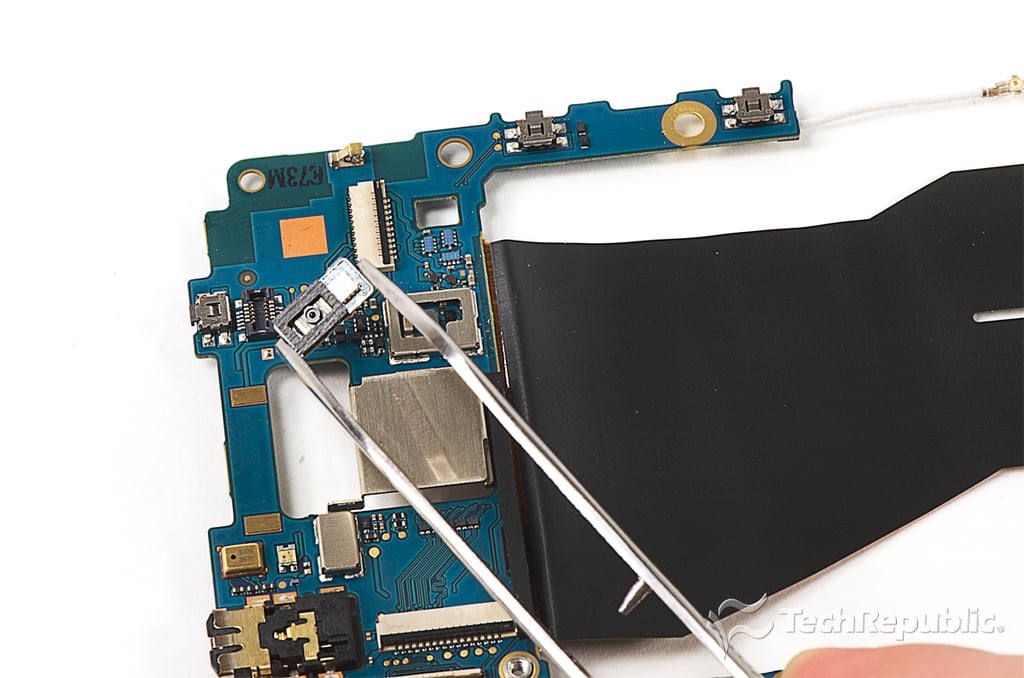

Cracking Open HTC Titan II: Removing the proximity sensor

Cracking Open HTC Titan II: Removing the proximity sensor

Cracking Open the HTC Titan II

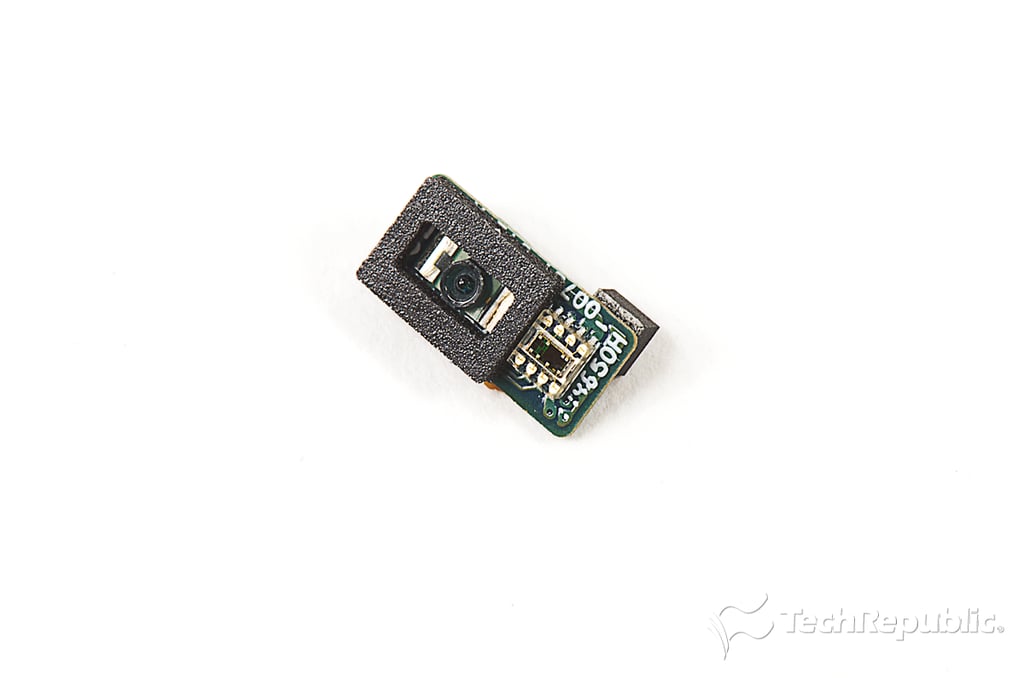

Cracking Open HTC Titan II: Proximity sensor

Cracking Open HTC Titan II: Proximity sensor

Cracking Open the HTC Titan II

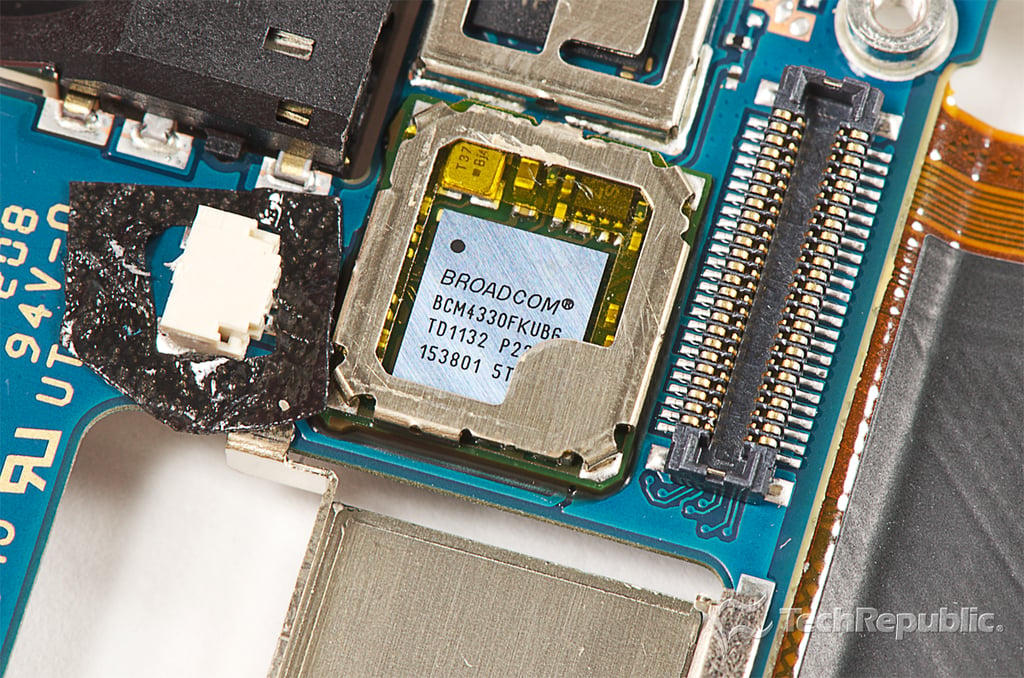

Cracking Open HTC Titan II: Broadcom BCM4330 802.11a/b/g/n MAC/Baseband/Radio with Integrated Bluetooth 4.0+HS & FM Transceiver (BCM4330FKUB6)

Cracking Open HTC Titan II: Broadcom BCM4330 802.11a/b/g/n MAC/Baseband/Radio with Integrated Bluetooth 4.0+HS & FM Transceiver (BCM4330FKUB6)

Cracking Open the HTC Titan II

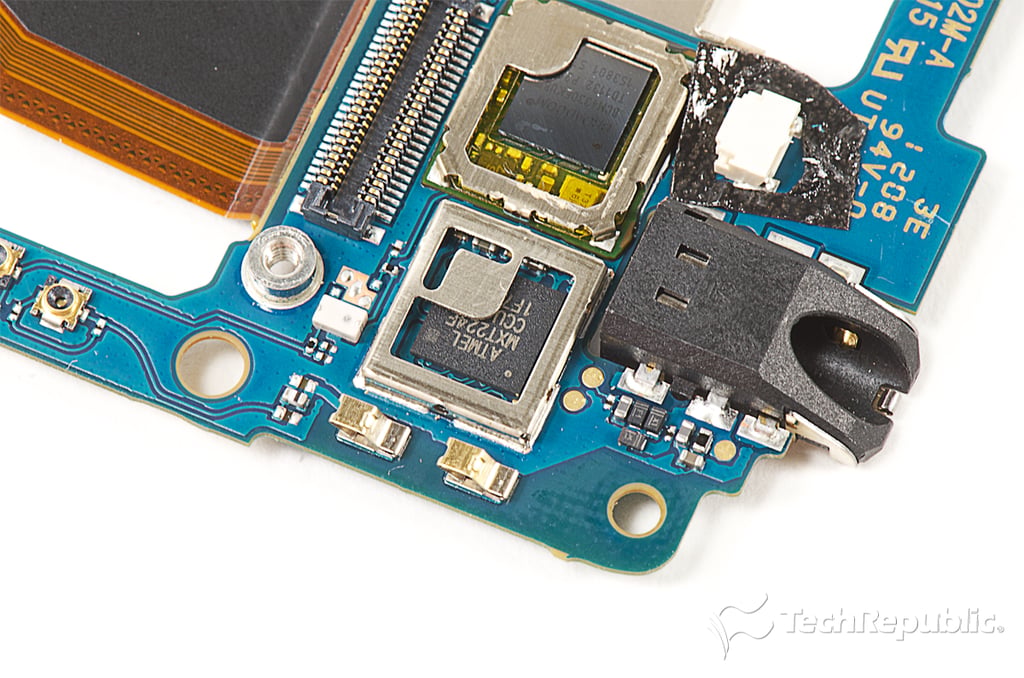

Cracking Open HTC Titan II: Atmel mXT224 touchscreen controller and 3.5mm headphone jack

Cracking Open HTC Titan II: Atmel mXT224 touchscreen controller and 3.5mm headphone jack

Cracking Open the HTC Titan II

Cracking Open HTC Titan II: Upper PCB - Front

Cracking Open HTC Titan II: Upper PCB - Front

Cracking Open the HTC Titan II

Cracking Open HTC Titan II: Upper PCB - Back

Cracking Open HTC Titan II: Upper PCB - Back

Cracking Open the HTC Titan II

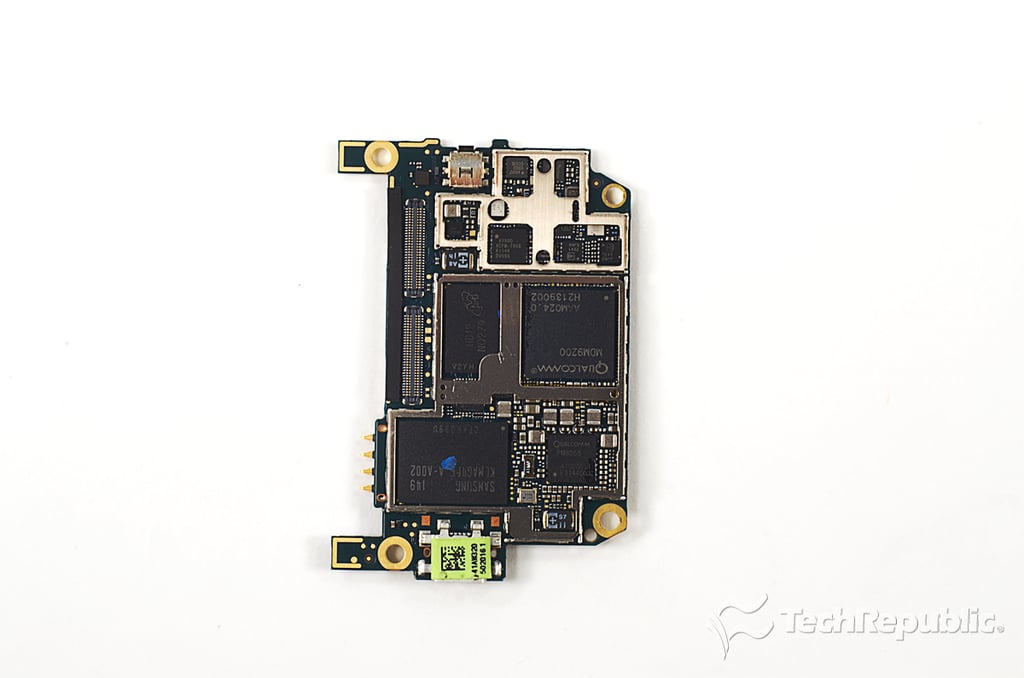

Cracking Open HTC Titan II: Lower PCB - Front

Cracking Open HTC Titan II: Lower PCB - Front

Cracking Open the HTC Titan II

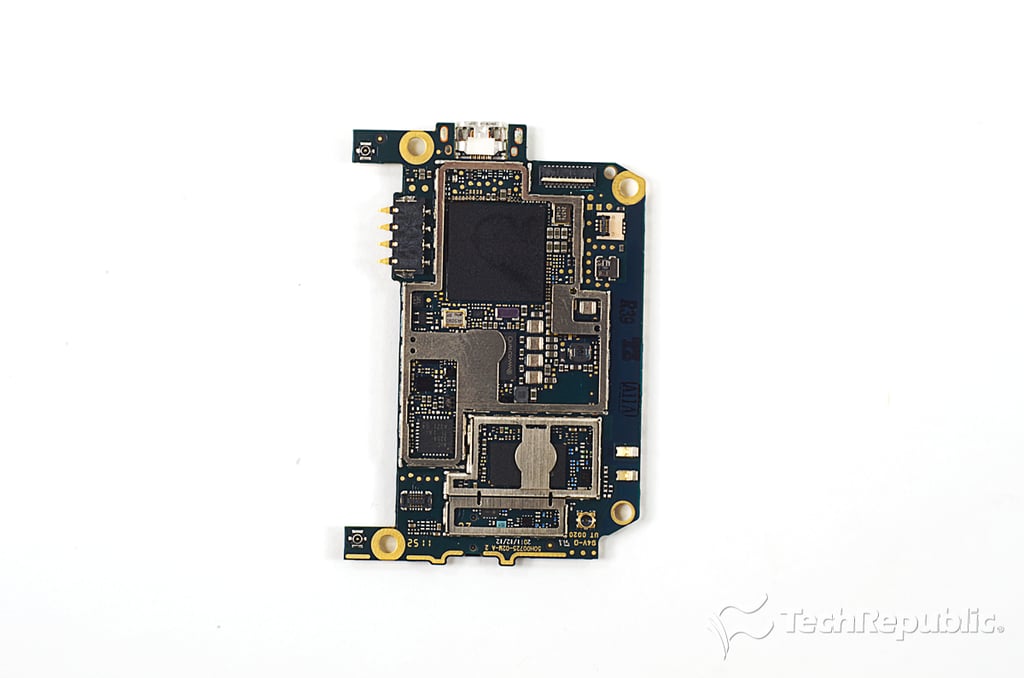

Cracking Open HTC Titan II: Lower PCB - Back

Cracking Open HTC Titan II: Lower PCB - Back

Cracking Open the HTC Titan II

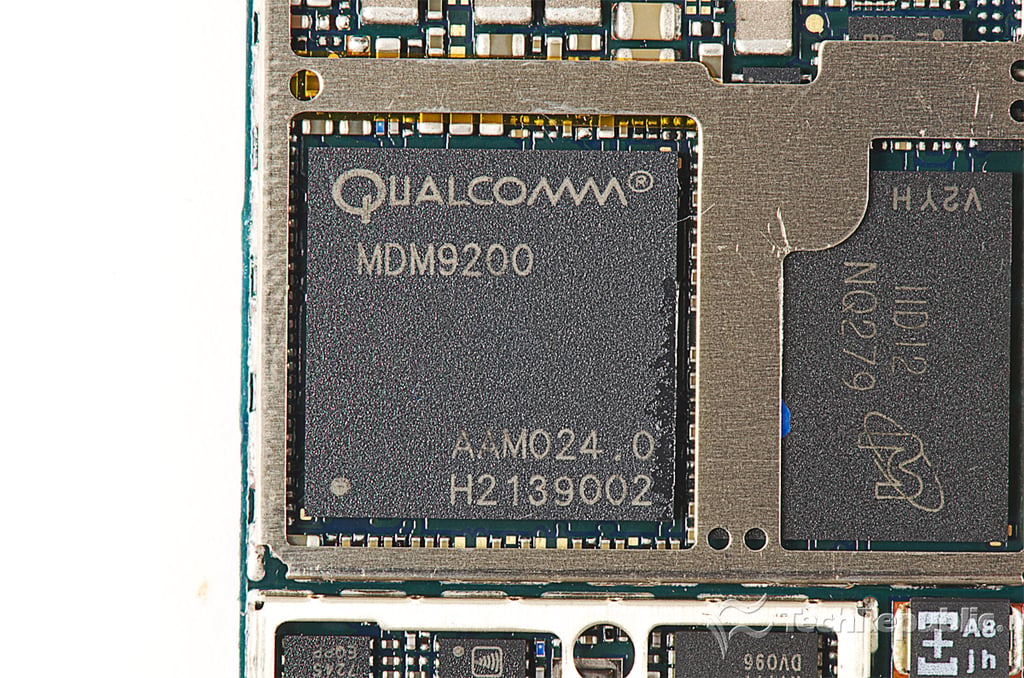

Cracking Open HTC Titan II: Qualcomm MDM9200 3G/4G wireless modem

Cracking Open HTC Titan II: Qualcomm MDM9200 3G/4G wireless modem

Cracking Open the HTC Titan II

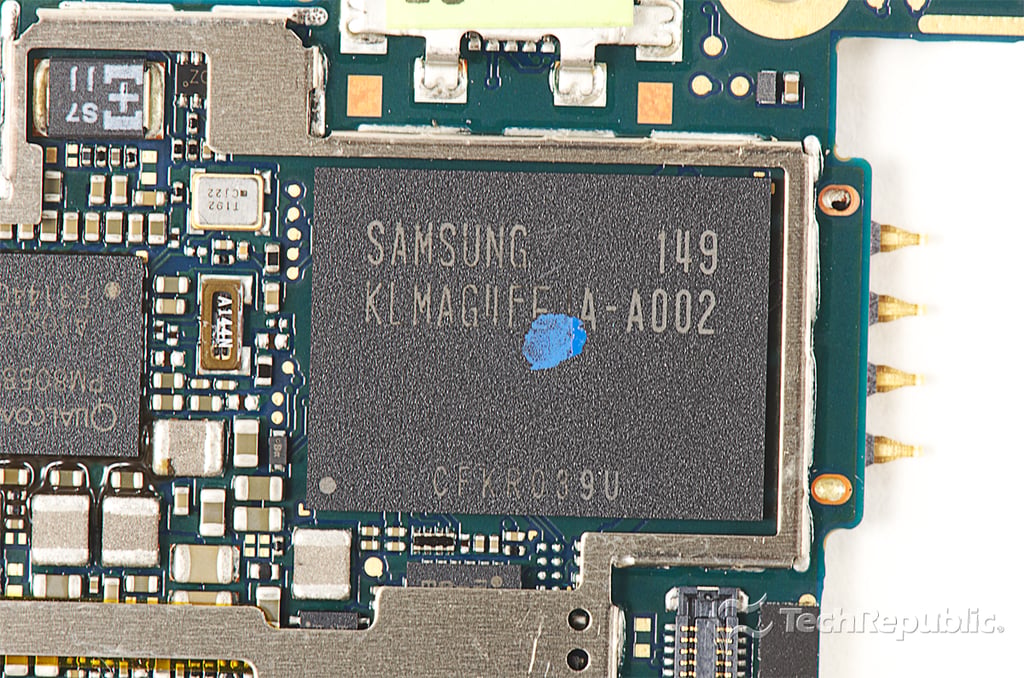

Cracking Open HTC Titan II: 16GB Samsung KLMAG4FEJA-A002 moviNAND chip

Cracking Open HTC Titan II: 16GB Samsung KLMAG4FEJA-A002 moviNAND chip

Cracking Open the HTC Titan II

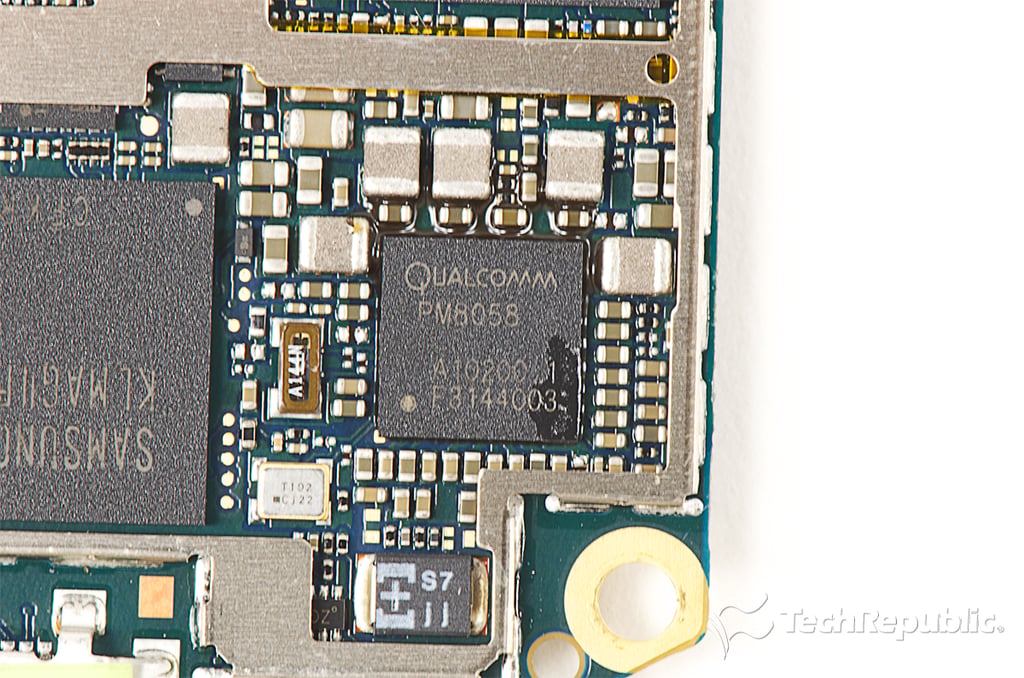

Cracking Open HTC Titan II: Qualcomm PM8058 power management IC

Cracking Open HTC Titan II: Qualcomm PM8058 power management IC

Cracking Open the HTC Titan II

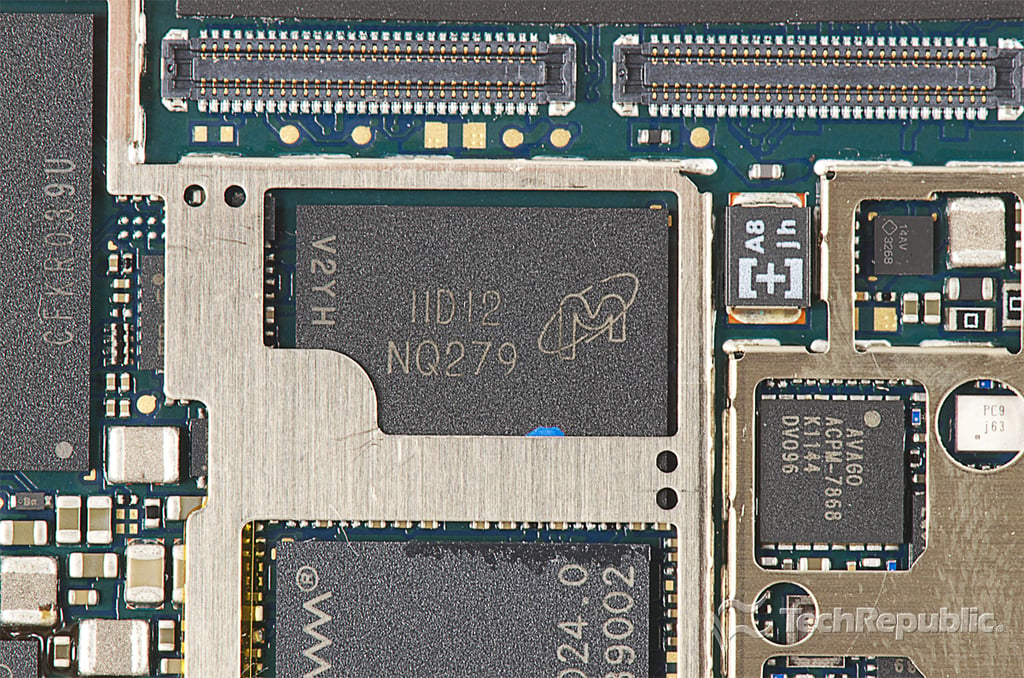

Cracking Open HTC Titan II: Micron 11D12 NQ279

Cracking Open HTC Titan II: Micron 11D12 NQ279

Cracking Open the HTC Titan II

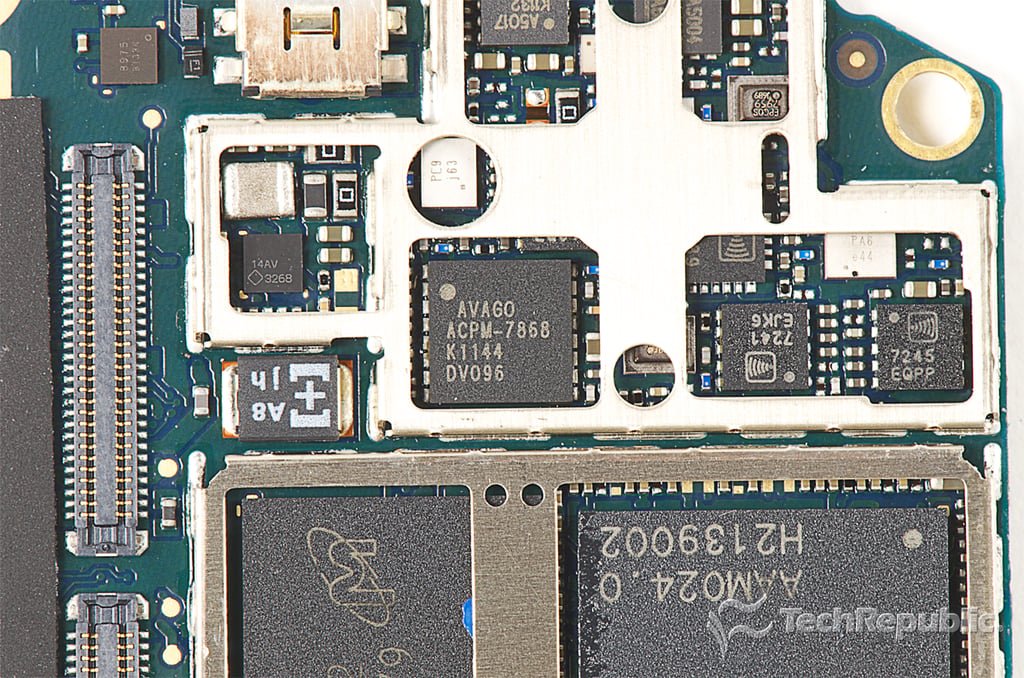

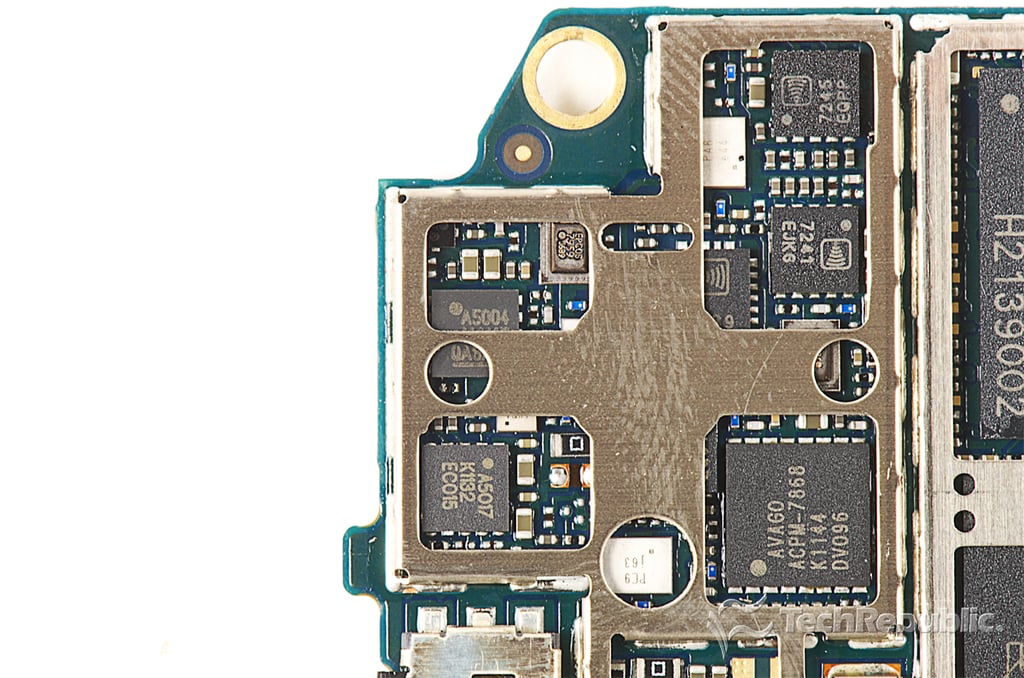

Cracking Open HTC Titan II: Avago ACPM-7868 Power Amplifier Module Linear Quad-Band GSM/EDGE

Cracking Open HTC Titan II: Avago ACPM-7868 Power Amplifier Module Linear Quad-Band GSM/EDGE

Cracking Open the HTC Titan II

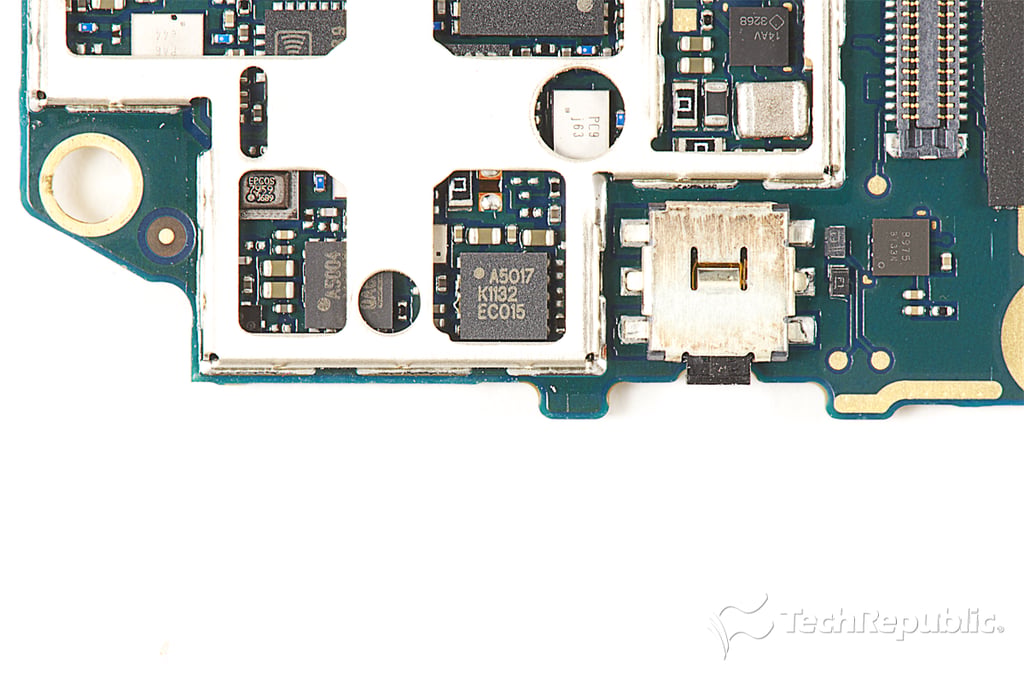

Cracking Open HTC Titan II: Unknown A5017 K1132 EC015

Cracking Open HTC Titan II: Unknown A5017 K1132 EC015

Cracking Open the HTC Titan II

Cracking Open HTC Titan II: Miscellaneous unknown ICs

Cracking Open HTC Titan II: Miscellaneous unknown ICs

Cracking Open the HTC Titan II

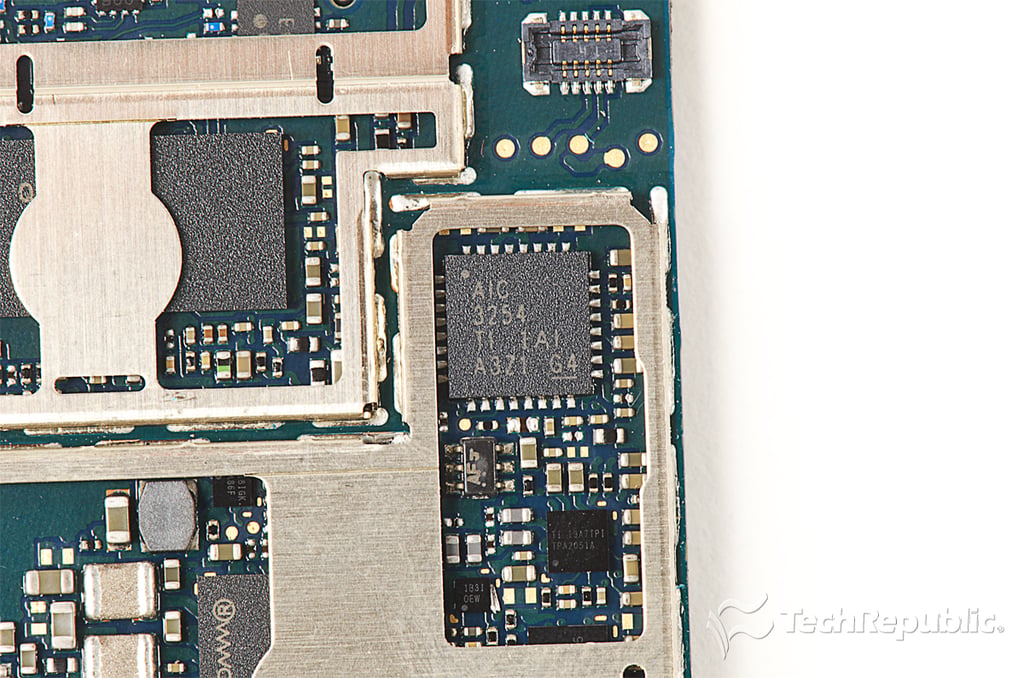

Cracking Open HTC Titan II: Texas Instruments TLV320AIC3254 Very Low-Power Stereo Audio CODEC with miniDSP and Power TuneTM Technology

Cracking Open HTC Titan II: Texas Instruments TLV320AIC3254 Very Low-Power Stereo Audio CODEC with miniDSP and Power TuneTM Technology

Cracking Open the HTC Titan II

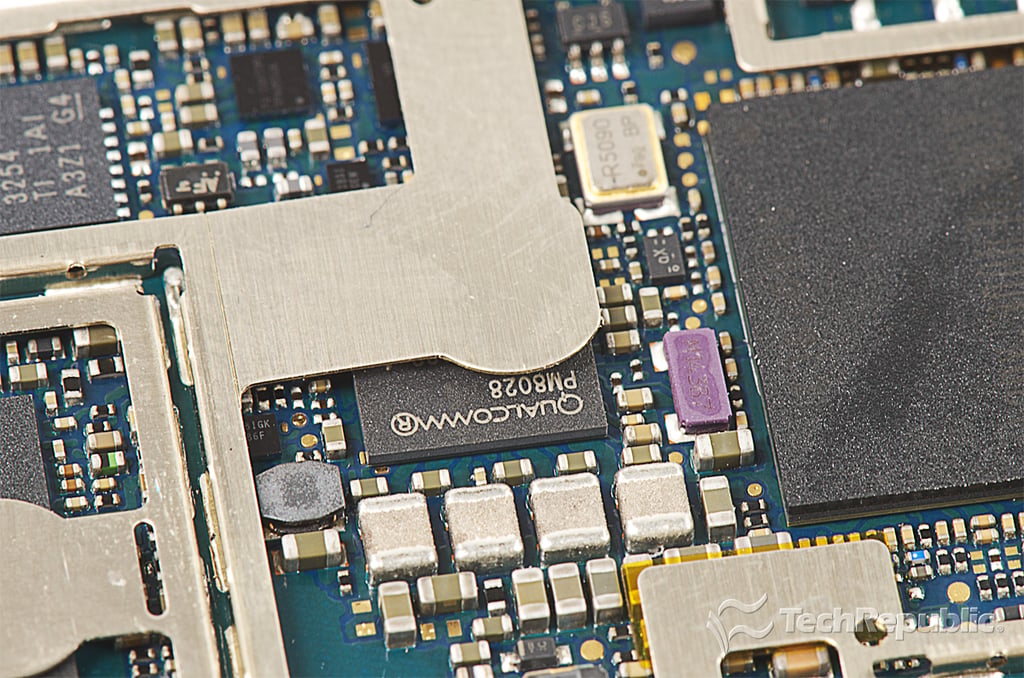

Cracking Open HTC Titan II: Qualcomm PM8028 power management IC

Cracking Open HTC Titan II: Qualcomm PM8028 power management IC

Cracking Open the HTC Titan II

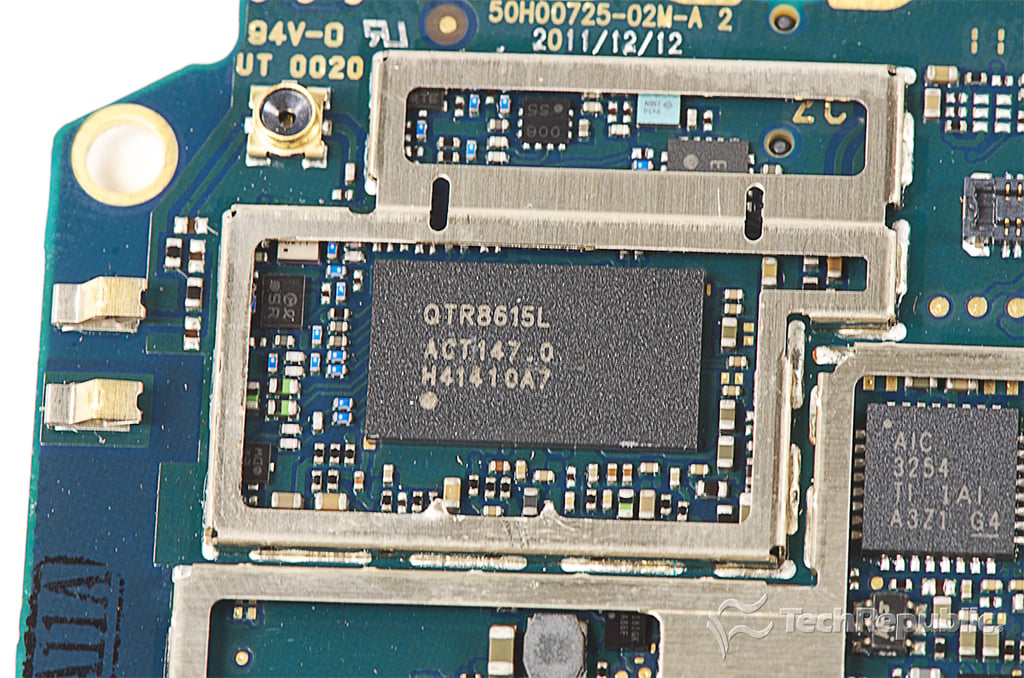

Cracking Open HTC Titan II: Qualcomm QTR8600 RF Transceiver (QTR8615L ACV147.0 H41470A7)

Cracking Open HTC Titan II: Qualcomm QTR8600 RF Transceiver (QTR8615L ACV147.0 H41470A7)

Cracking Open the HTC Titan II

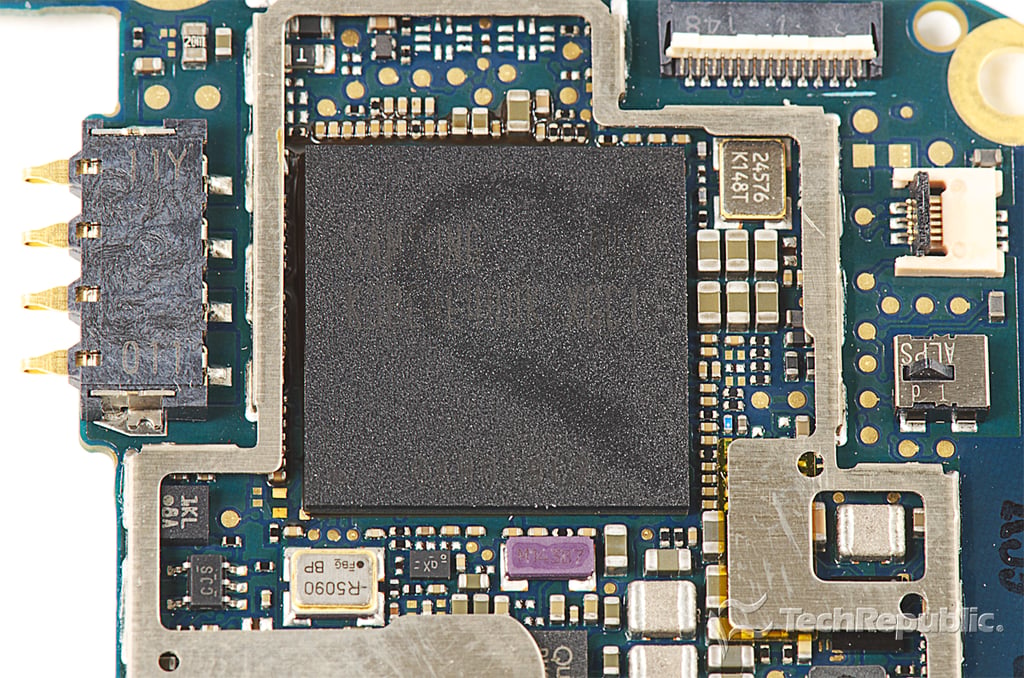

Cracking Open HTC Titan II: Samsung K3PE4E400K-XG(1) 4Gb LP DDR2 DRAM (512MB) and 1.5GHz single-core Qualcomm Snapdragon S2 processor (QSD8055)

Cracking Open HTC Titan II: Samsung K3PE4E400K-XG(1) 4Gb LP DDR2 DRAM (512MB) and 1.5GHz single-core Qualcomm Snapdragon S2 processor (QSD8055)

ntThe HTC Titan II’s 1.5GHz single-core Qualcomm Snapdragon S2 processor (QSD8055) is located under the Samsung K3PE4E400K-XG(1) 4Gb LP DDR2 DRAM (512MB).

n

ntPhoto by: Bill Detwiler / TechRepublic
ntCaption by: Bill Detwiler

Cracking Open the HTC Titan II

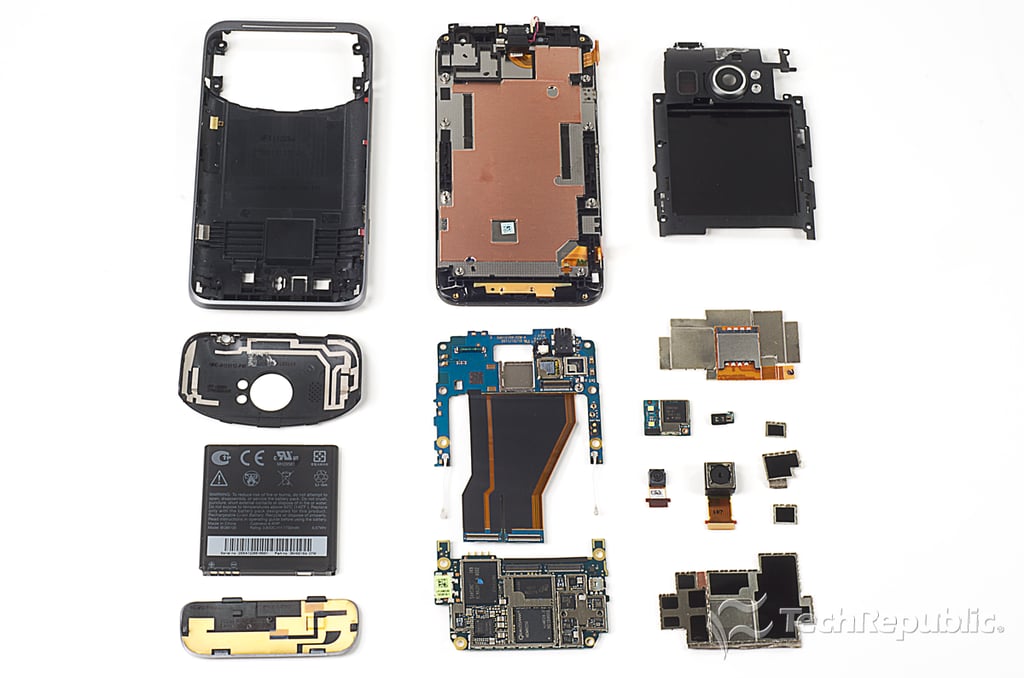

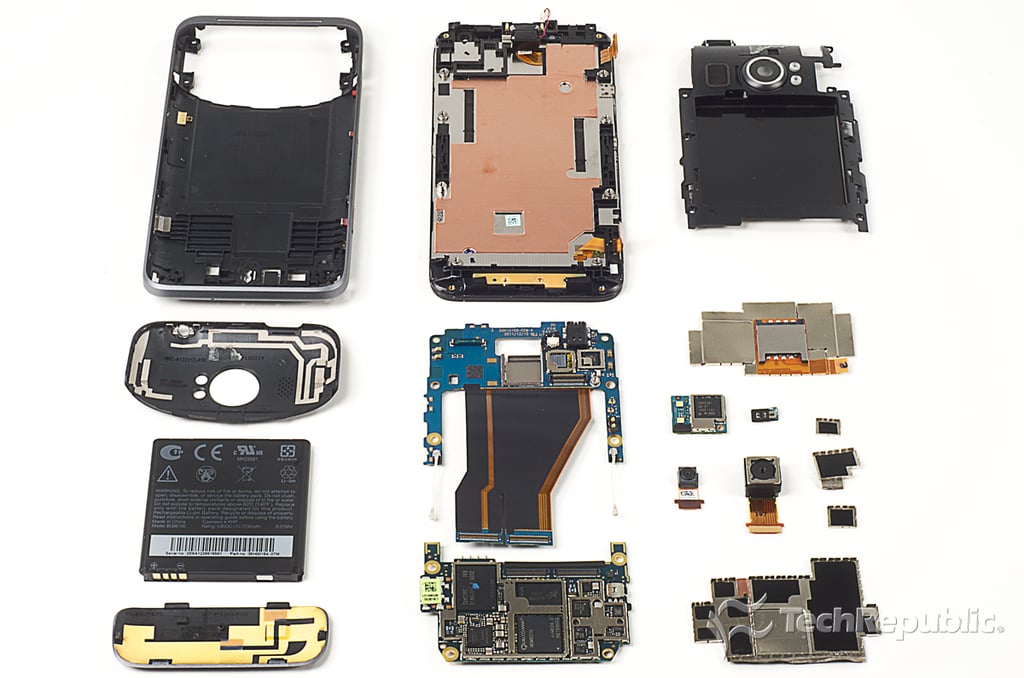

Cracking Open HTC Titan II: Completely disassembled

Cracking Open HTC Titan II: Completely disassembled

  • Mobility
  • Account Information

    Share with Your Friends

    Cracking Open the HTC Titan II

    Your email has been sent

Share: Cracking Open the HTC Titan II
Image of Bill Detwiler
By Bill Detwiler
Bill Detwiler is the Editor for Technical Content and Ecosystem at Celonis. He is the former Editor in Chief of TechRepublic and previous host of TechRepublic's Dynamic Developer podcast and Cracking Open, CNET and TechRepublic's popular online show.
  • Account Information

    Contact Bill Detwiler

    Your message has been sent

  • |
  • See all of Bill's content

Daily Tech Insider

If you can only read one tech story a day, this is it.

TechRepublic Premium

  • TechRepublic Premium

    Incident Reporting and Response Procedures Policy

    The purpose of the Incident Reporting and Response Procedures Policy from TechRepublic Premium is to establish a clear and efficient process for employees to report security breaches, device loss, or data exposure incidents involving personal devices used for work purposes. From the policy: CONFIDENTIAL REPORTING Employees are strongly encouraged to promptly report incidents, and they ...

    Downloads
    Provided By TechRepublic Premium Published:  Dec 2023 Modified:  Dec 2023 Read More
    Download Now
  • TechRepublic Premium

    Quick Glossary: Cryptocurrency

    Cryptocurrency is a popular technological worldwide trend. As with any investing avenue, the revenue one can make dealing in cryptocurrency can vary depending on the time put into the endeavors, market fluctuation, choice of investments, available capital, how loss averse you are, your short- and long-term strategies and other traditional investment factors. Be forewarned, scams ...

    Provided By TechRepublic Premium Published:  Dec 2023 Modified:  Dec 2023 Read More
    Download Now
  • TechRepublic Premium

    What Is Artificial General Intelligence?

    Artificial general intelligence, or AGI, is a hypothetical form of AI designed to perform human-level cognitive functions, such as the capacity to self-teach. AGI is regarded as very powerful since it can autonomously solve a wide variety of cognitive tasks, as opposed to weak or narrow AI systems that carry out only particular or specialized ...

    Downloads
    Provided By TechRepublic Premium Published:  Dec 2023 Modified:  Dec 2023 Read More
    Download Now
  • TechRepublic Premium

    Hiring Kit: Blockchain Engineer

    Moving well-beyond its cryptocurrency roots, blockchain technology has quickly become a sought-after component of application development in the modern business enterprise. Recruiting candidates with advanced software engineering experience and at least some familiarity with applied blockchain technology will take time and effort. This hiring kit from TechRepublic Premium provides a workable framework you can use ...

    Downloads
    Provided By TechRepublic Premium Published:  Dec 2023 Modified:  Dec 2023 Read More
    Download Now

Services

  • About Us
  • Newsletters
  • RSS Feeds
  • Site Map
  • Site Help & Feedback
  • FAQ
  • Advertise
  • Do Not Sell My Information
  • Careers

Explore

  • Downloads
  • TechRepublic Forums
  • Meet the Team
  • TechRepublic Academy
  • TechRepublic Premium
  • Resource Library
  • Photos
  • Videos
  • Editorial Policy
  • TechRepublic
  • TechRepublic on Twitter
  • TechRepublic on Facebook
  • TechRepublic on LinkedIn
  • TechRepublic on Flipboard
© 2023 TechnologyAdvice. All rights reserved.
  • Privacy Policy
  • Terms of Use
  • Property of TechnologyAdvice
CLOSE

Create a TechRepublic Account

Get the web's best business technology news, tutorials, reviews, trends, and analysis—in your inbox. Let's start with the basics.

Already registered? Sign In
Use Facebook
Use Linkedin

* - indicates required fields

CLOSE

Sign in to TechRepublic

Not a member? Create an account
Use Facebook
Use Linkedin

Lost your password? Request a new password

CLOSE

Reset Password

Please enter your email adress. You will receive an email message with instructions on how to reset your password.

Check your email for a password reset link. If you didn't receive an email don't forgot to check your spam folder, otherwise contact support.

Back to login
1 Finish Profile
2 Newsletter Preferences
CLOSE

Welcome. Tell us a little bit about you.

This will help us provide you with customized content.

No thanks, continue without
1 Finish Profile
2 Newsletter Preferences
CLOSE

Want to receive more TechRepublic news?

Newsletter Name
Subscribe
Daily Tech Insider
Daily Tech Insider AU
TechRepublic UK
TechRepublic News and Special Offers
TechRepublic News and Special Offers International
Executive Briefing
Innovation Insider
Project Management Insider
Microsoft Weekly
Cloud Insider
Data Insider
Developer Insider
TechRepublic Premium
Apple Weekly
Cybersecurity Insider
Google Weekly
Toggle All
No thanks, continue without

You're All Set

Thanks for signing up! Keep an eye out for a confirmation email from our team. To ensure any newsletters you subscribed to hit your inbox, make sure to add newsletters@nl.technologyadvice.com to your contacts list.

Back to Home Page
