Cracking Open the Motorola Droid Razr Maxx

By // February 23, 2012, 4:44 AM PST // billdetwiler

Image 1 of 44

  • Motorola Droid Razr Maxx Teardown

    In November 2011, Motorola attempted to recapture some of the original Razr flip phone's success and launched the first Razr-branded smartphone--the Droid Razr. Just three months later, the company released a follow-up Droid Razr with a significantly beefed-up battery. I cracked open the first Droid Razr and wanted to see what the new model had inside. Follow along as I crack open the Motorola Droid Razr Maxx.

    For a detailed analysis of the teardown, check out my article and video, Droid Razr Maxx Teardown: Impressive battery life in a sleek package.

    Photo by: Bill Detwiler / TechRepublic

    Caption by: Bill Detwiler

  • Cracking Open Droid Razr Maxx: Pricing

    The Motorola Droid Razr Maxx is available from Verizon for $299.99 (US) with a two-year contract. Verizon dropped the price of the original Droid Razr to $199.99.

    Photo by: Bill Detwiler / TechRepublic

    Caption by: Bill Detwiler

  • Cracking Open Droid Razr Maxx: Box contents

    Inside the Droid Razr Maxx's box, you'll find the device itself, a 16GB microSD card, a USB cable, a power adapter, and the product documentation.

    Photo by: Bill Detwiler / TechRepublic
    Caption by: Bill Detwiler

  • Cracking Open Droid Razr Maxx: Hardware specs

    Like the first Droid Razr, our Razr Maxx test unit has a 1.2GHz dual-core processor, 1GB of DDR2 RAM, 16GB of storage, 8MP rear-facing camera, 1.3MP front-facing camera, and 4.3" Super AMOLED display (960x540 pixels).

    It's essentially the same phone with a larger battery, which makes the phone slightly thicker and heavier. The Droid Razr Maxx measures 5.15" (H) x 2.71" (W) x 0.35" (D). It weighs 5.11 ounces.

    Photo by: Bill Detwiler / TechRepublic
    Caption by: Bill Detwiler

  • Cracking Open Droid Razr Maxx: Back

  • Cracking Open Droid Razr Maxx: 3.5mm headphone jack, Micro USB connector, Micro HDMI connector

  • Cracking Open Droid Razr Maxx: Power and volume buttons

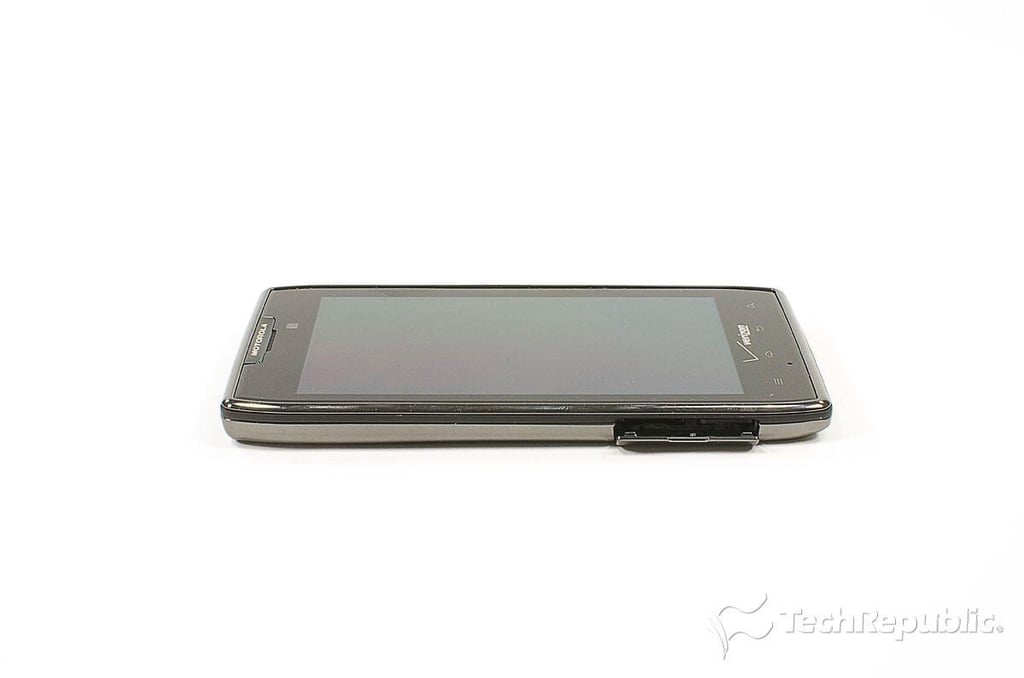

  • Cracking Open Droid Razr Maxx: SIM card and microSD card slots

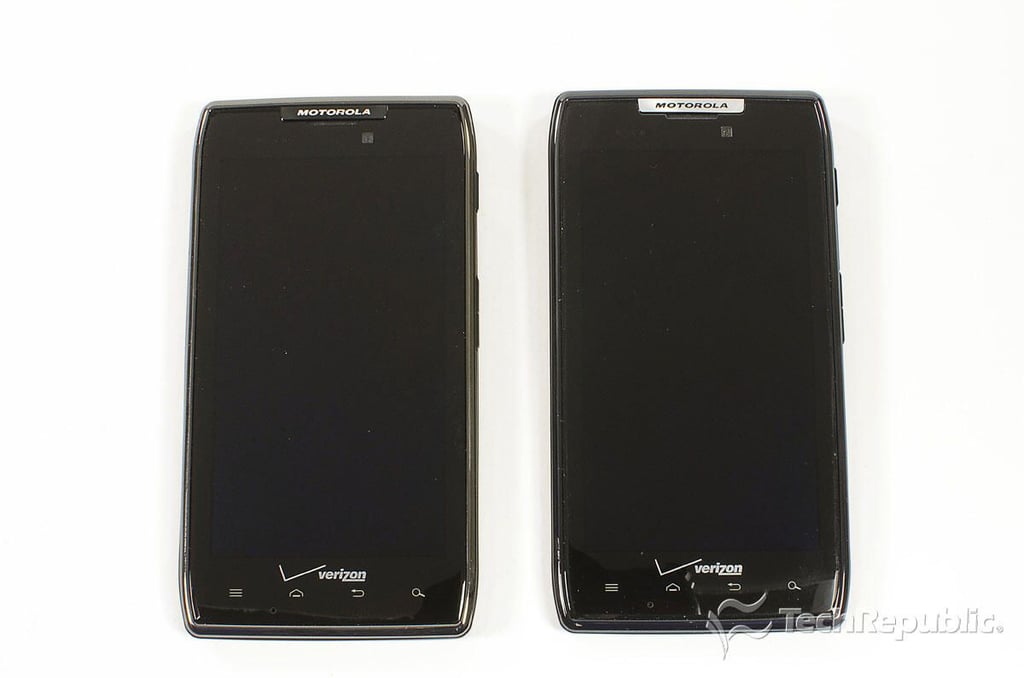

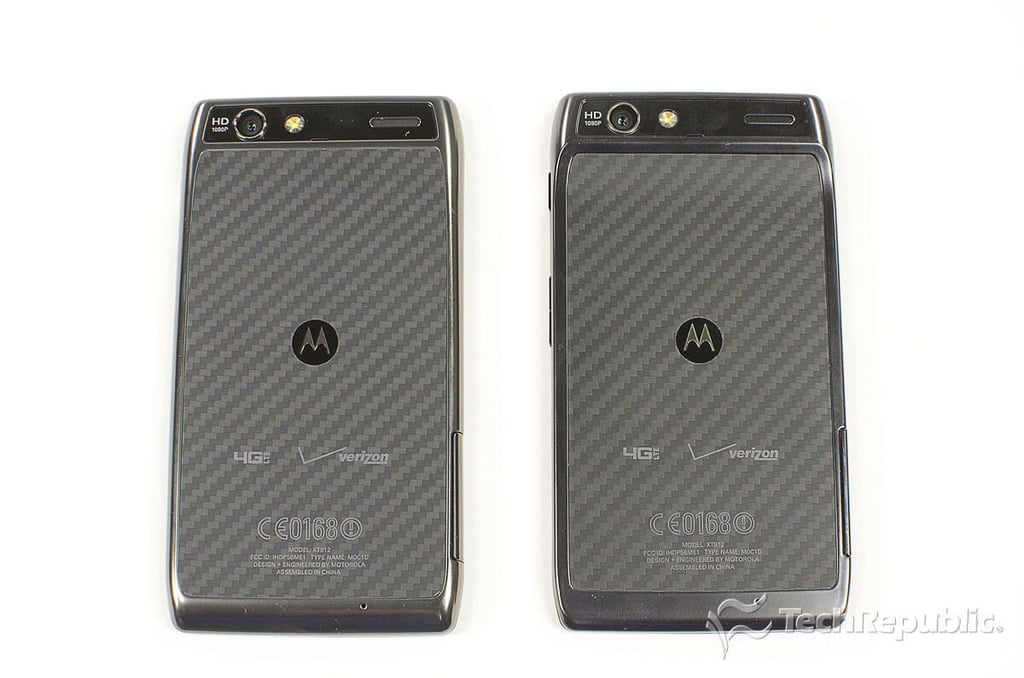

  • Cracking Open Droid Razr Maxx: Side-by-side with the Droid Razr

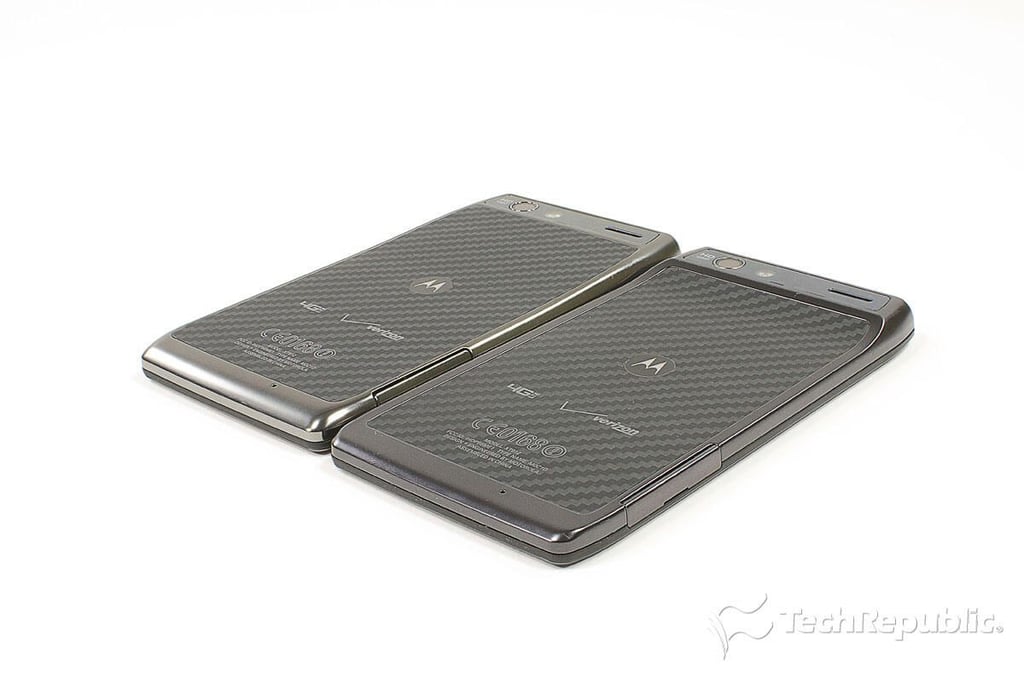

  • Cracking Open Droid Razr Maxx: Compared to the Droid Razr - Back

  • Cracking Open Droid Razr Maxx: Thicker and heavier than Droid Razr

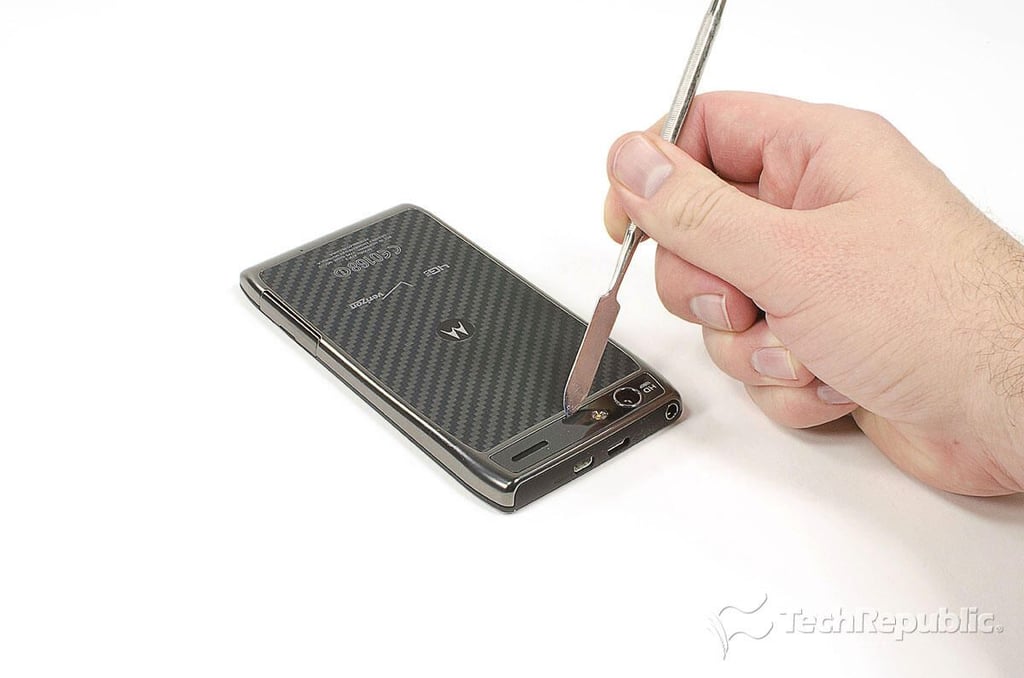

  • Cracking Open Droid Razr Maxx: Removing the exterior screw cover

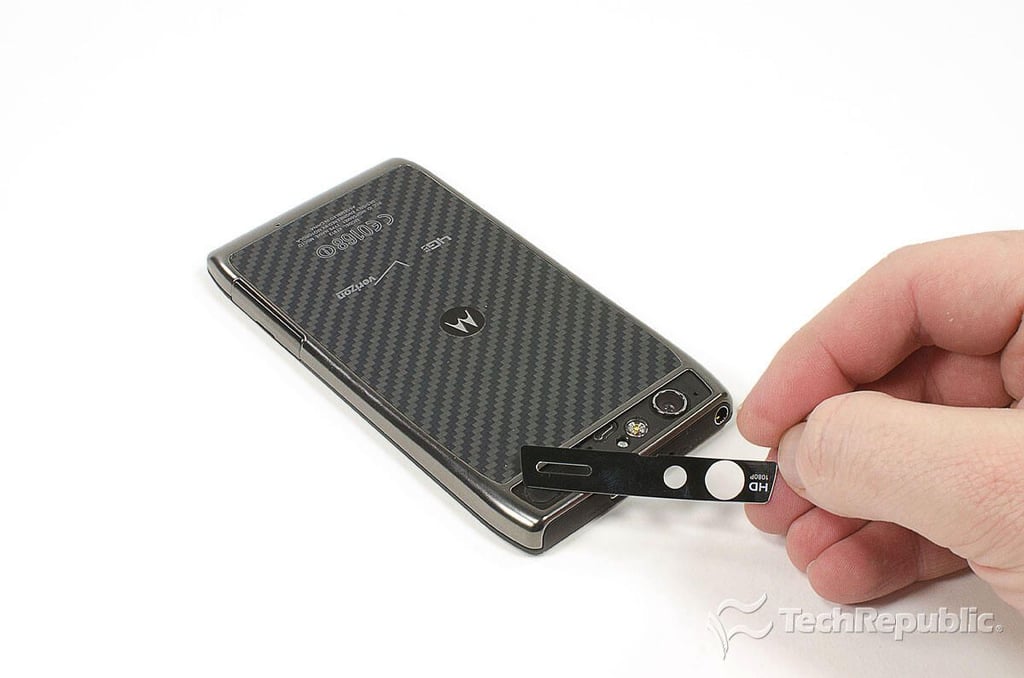

  • Cracking Open Droid Razr Maxx: Exterior screw cover

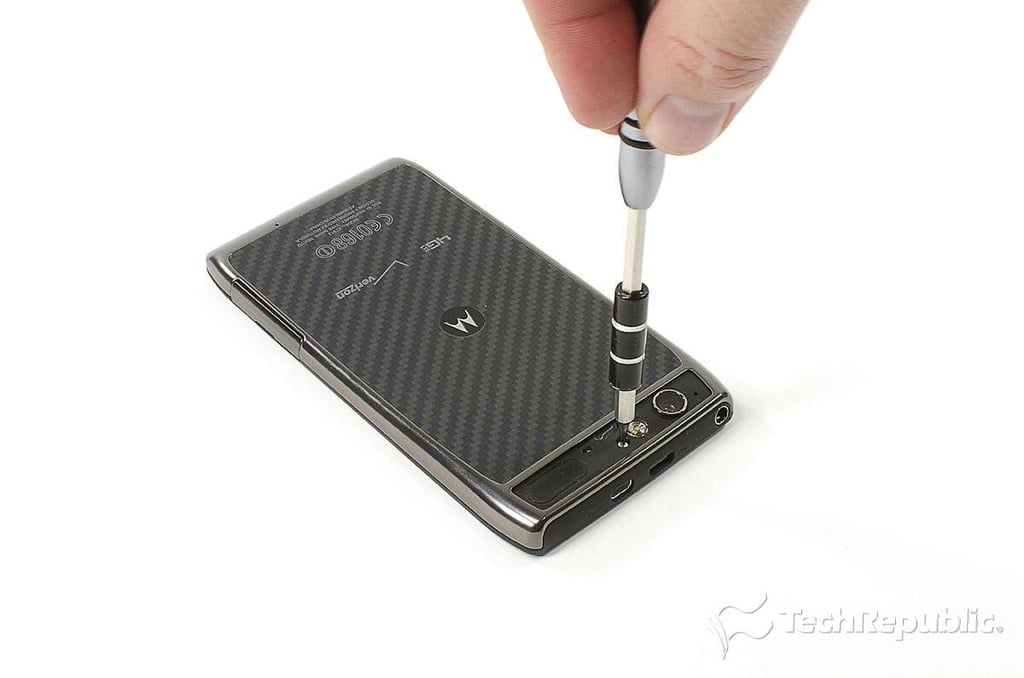

  • Cracking Open Droid Razr Maxx: Removing the back cover's external screw

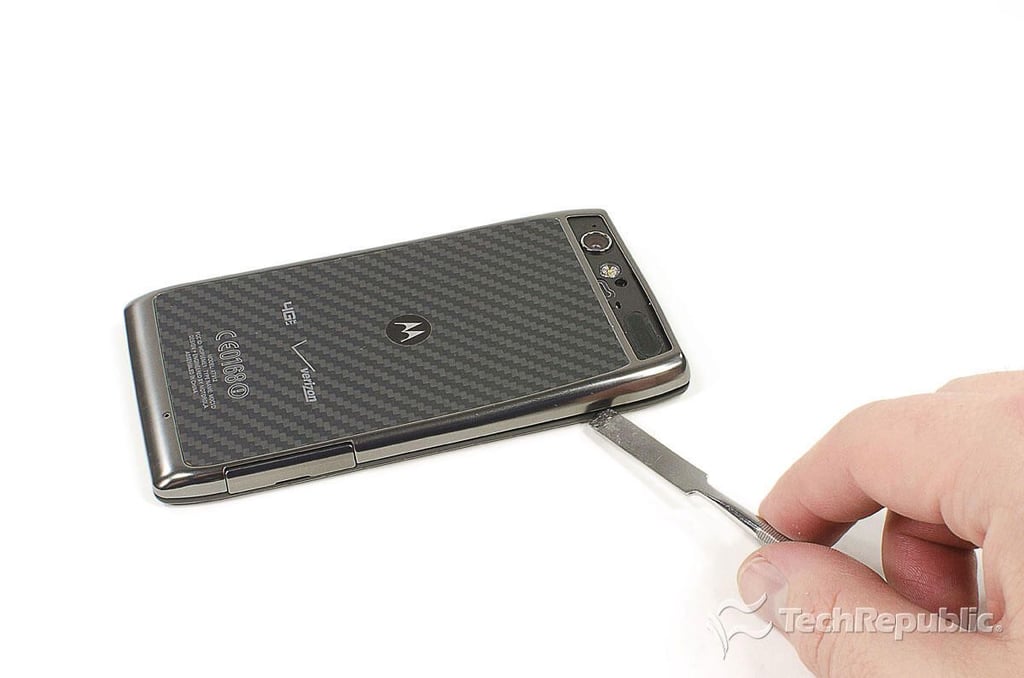

  • Cracking Open Droid Razr Maxx: Popping loose the back cover

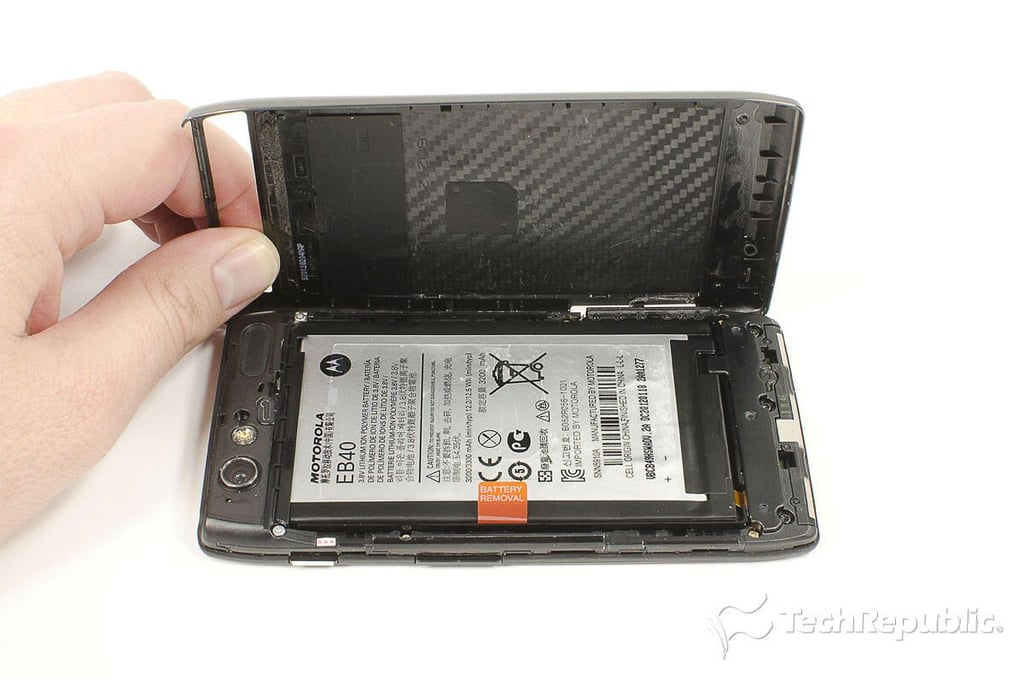

  • Cracking Open Droid Razr Maxx: Removing the back cover

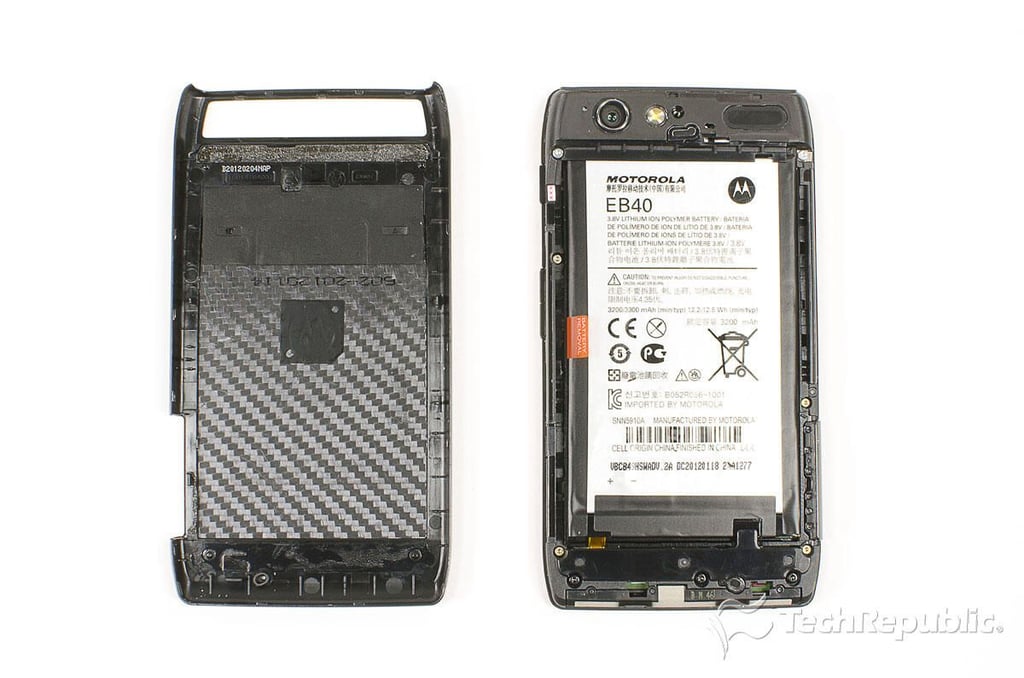

  • Cracking Open Droid Razr Maxx: Back cover removed

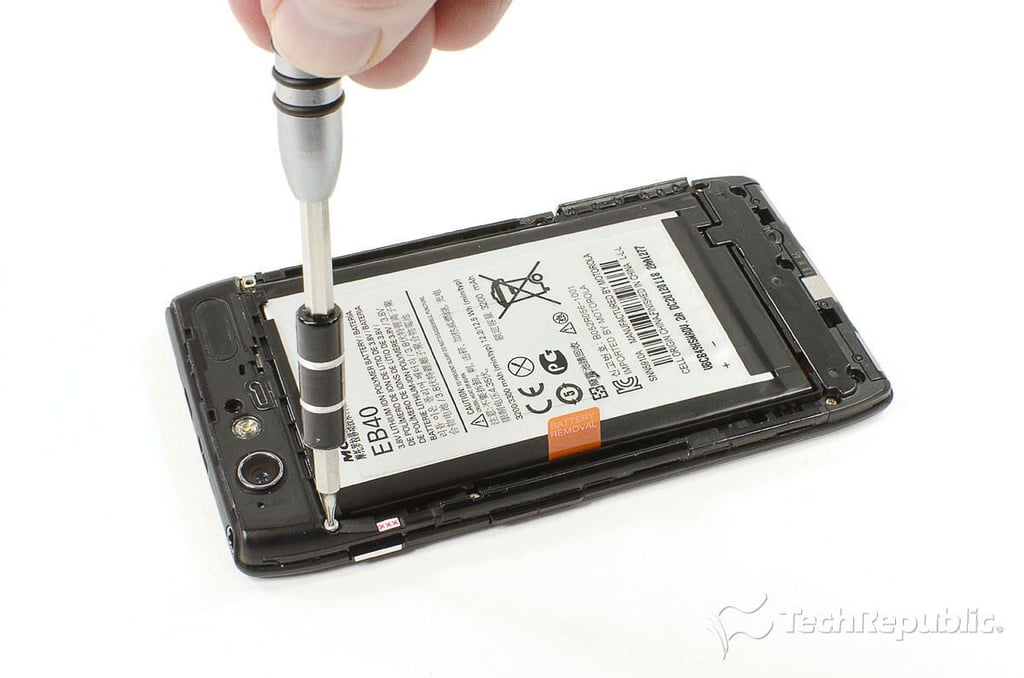

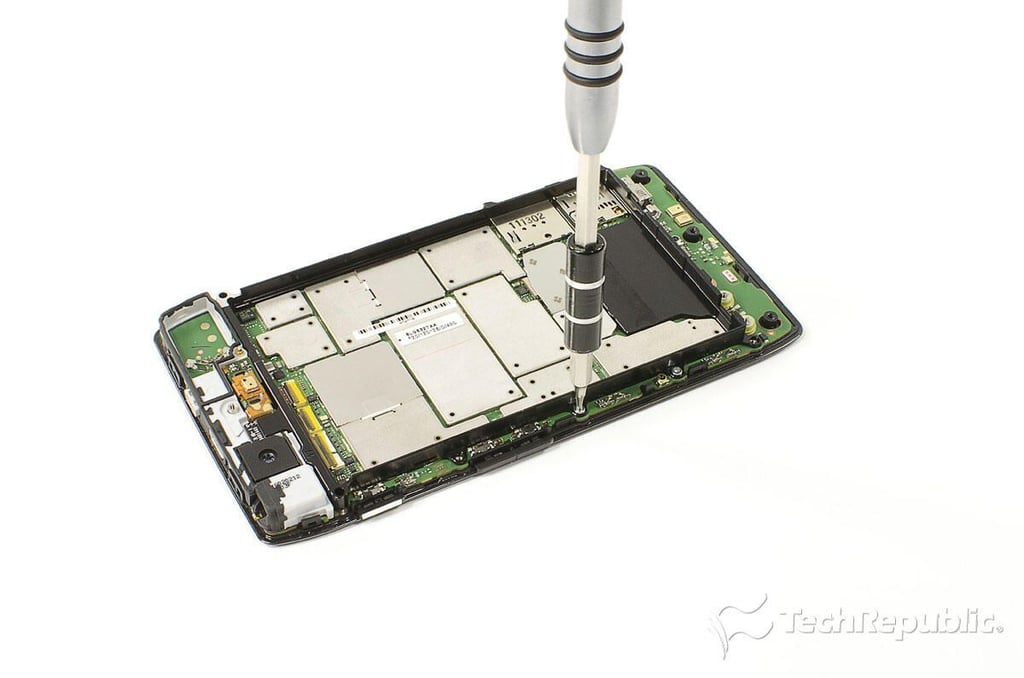

  • Cracking Open Droid Razr Maxx: Removing the internal screws

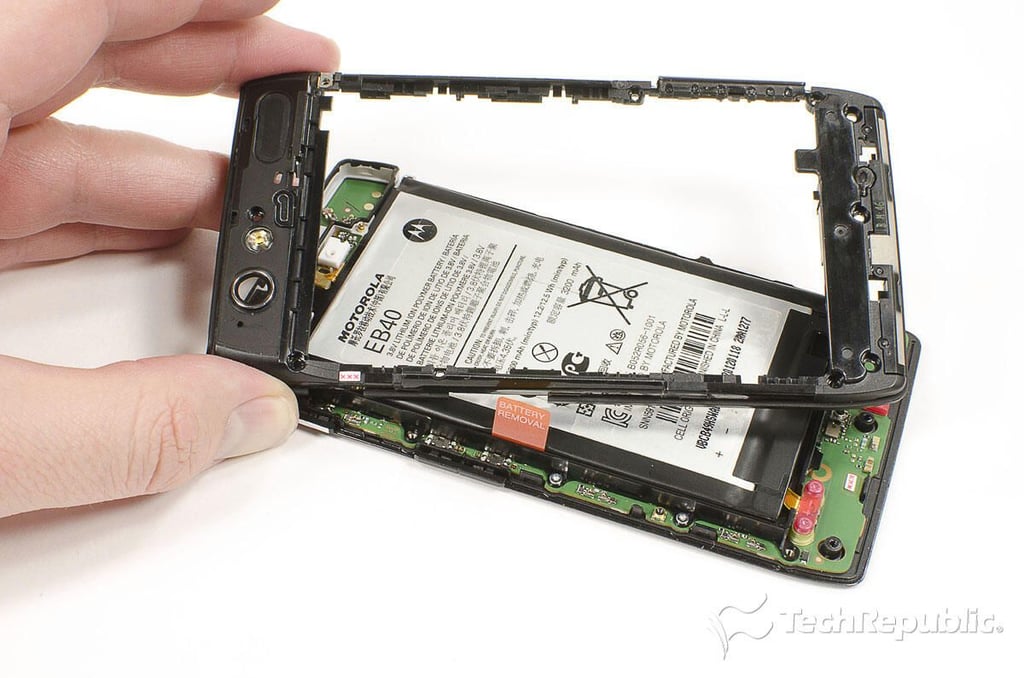

  • Cracking Open Droid Razr Maxx: Popping loose the outer cover

  • Cracking Open Droid Razr Maxx: Outer cover

  • Cracking Open Droid Razr Maxx: Internal hardware

  • Cracking Open Droid Razr Maxx: Removing the battery connector cover

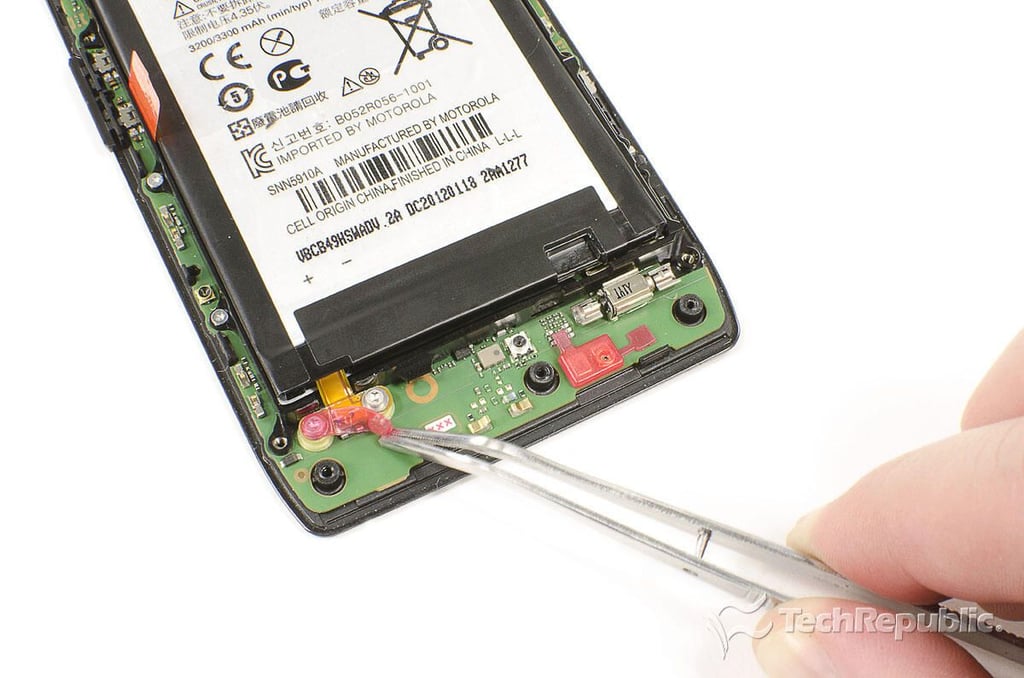

  • Cracking Open Droid Razr Maxx: Removing the battery connector screws

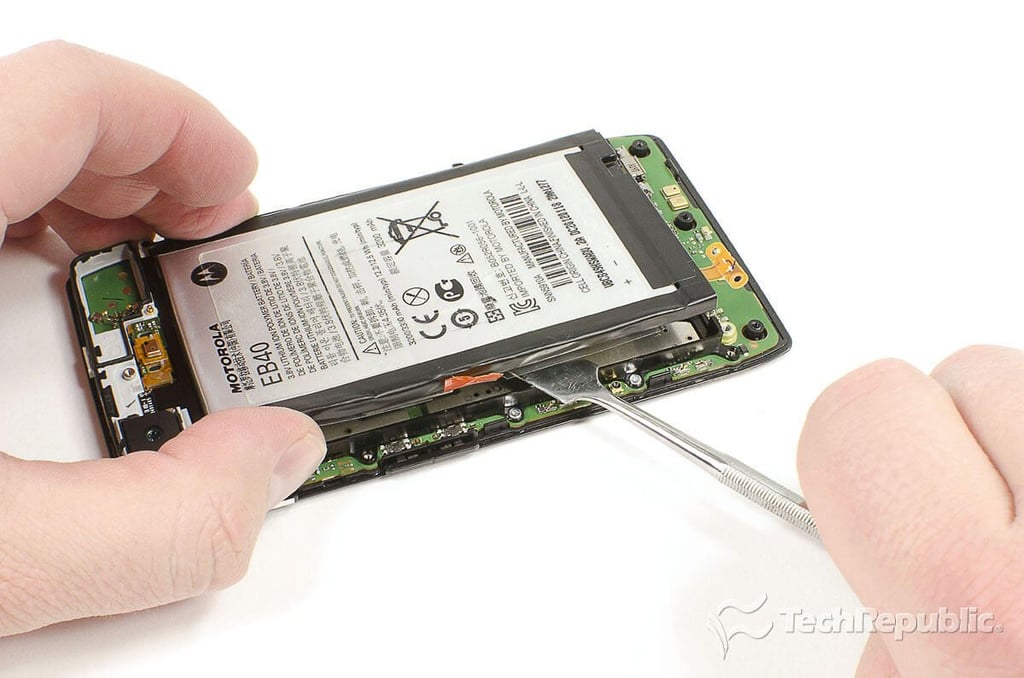

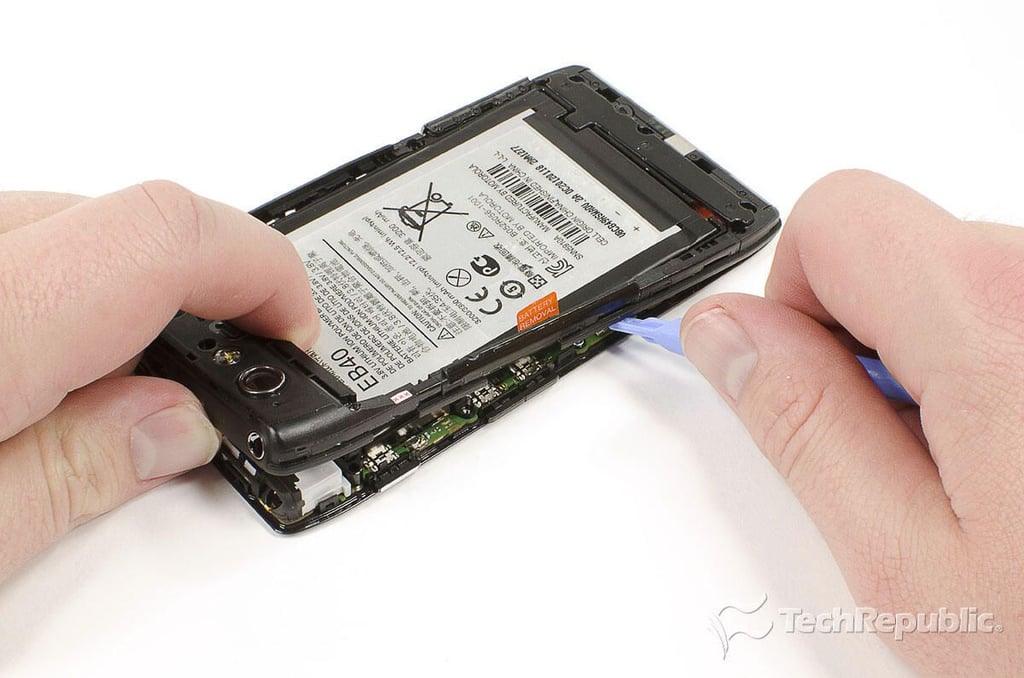

  • Cracking Open Droid Razr Maxx: Prying loose the battery

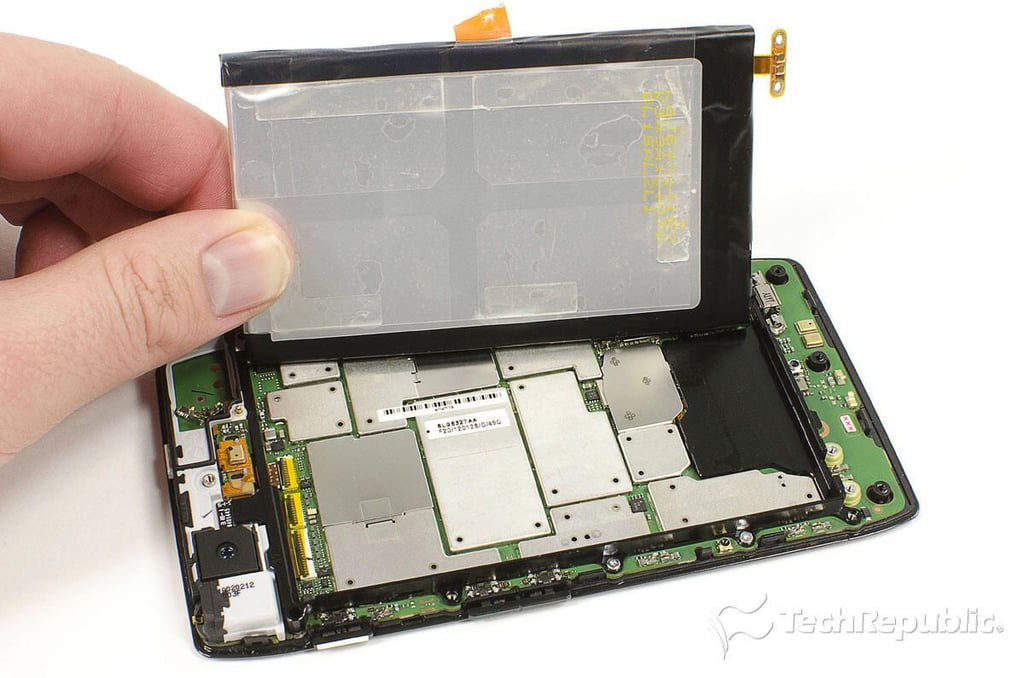

  • Cracking Open Droid Razr Maxx: Removing the battery

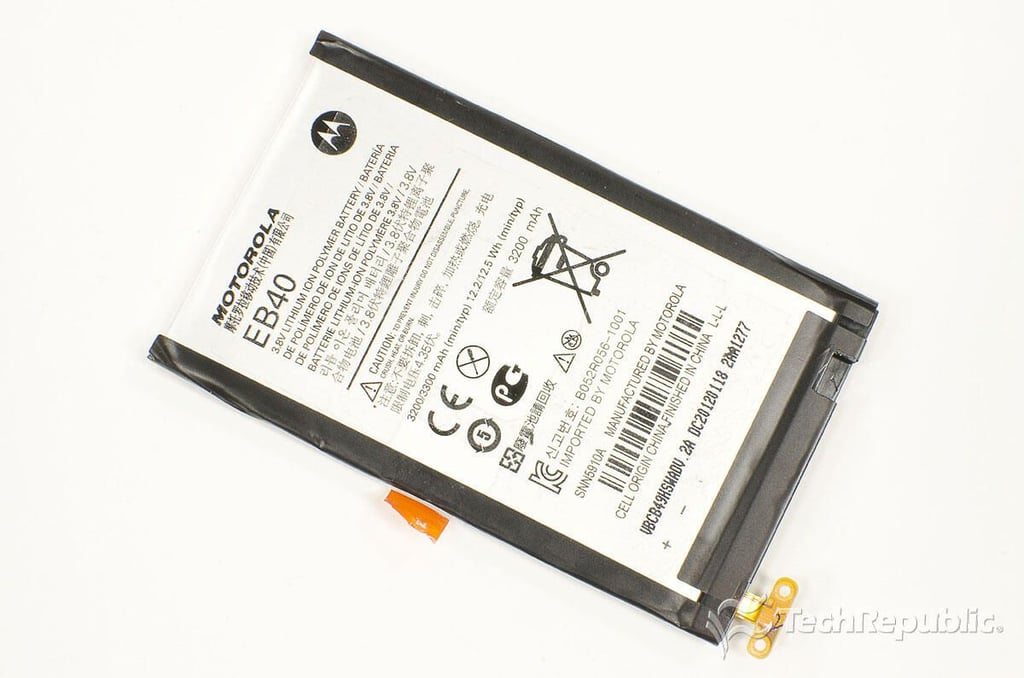

  • Cracking Open Droid Razr Maxx: 3.8V 3,200 / 3,300 mAh battery (SNN5910A))

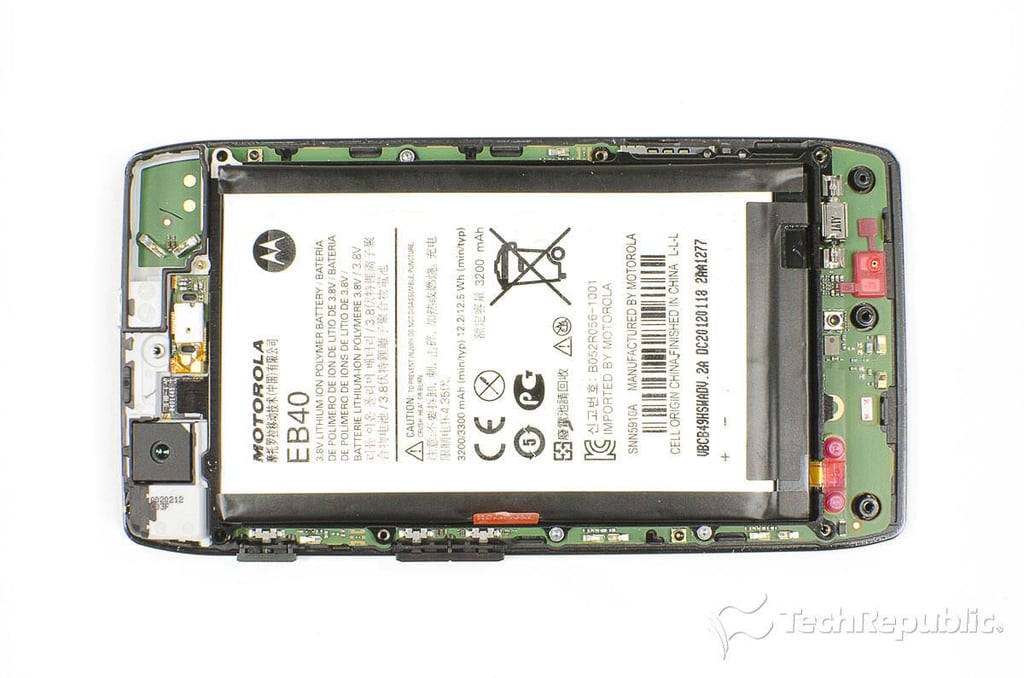

  • Cracking Open Droid Razr Maxx: Battery removed

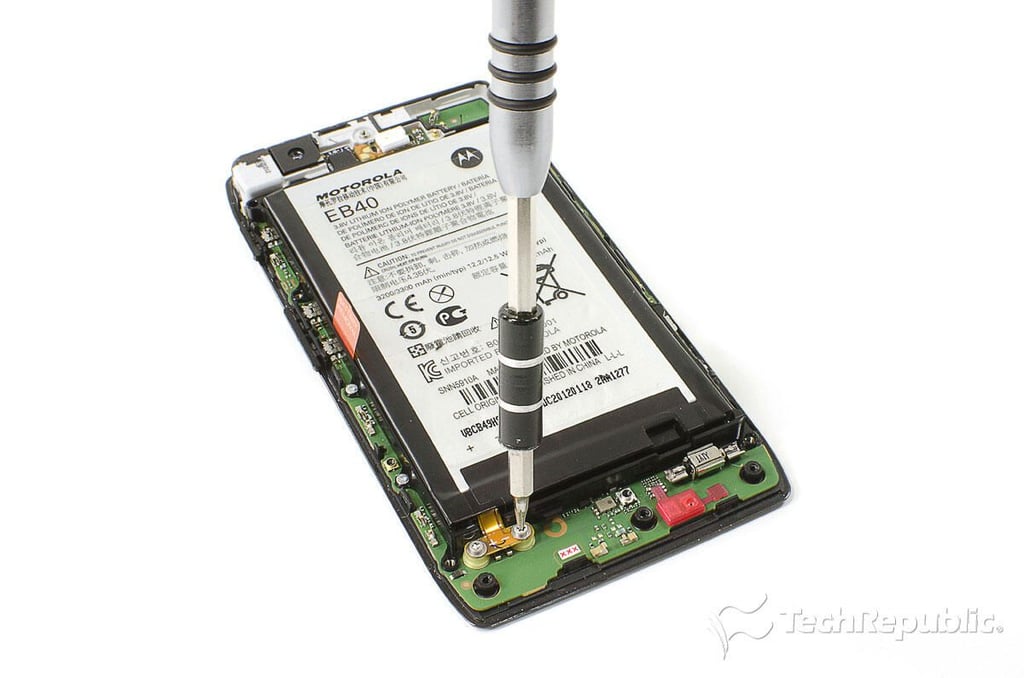

  • Cracking Open Droid Razr Maxx: Removing the battery frame screws

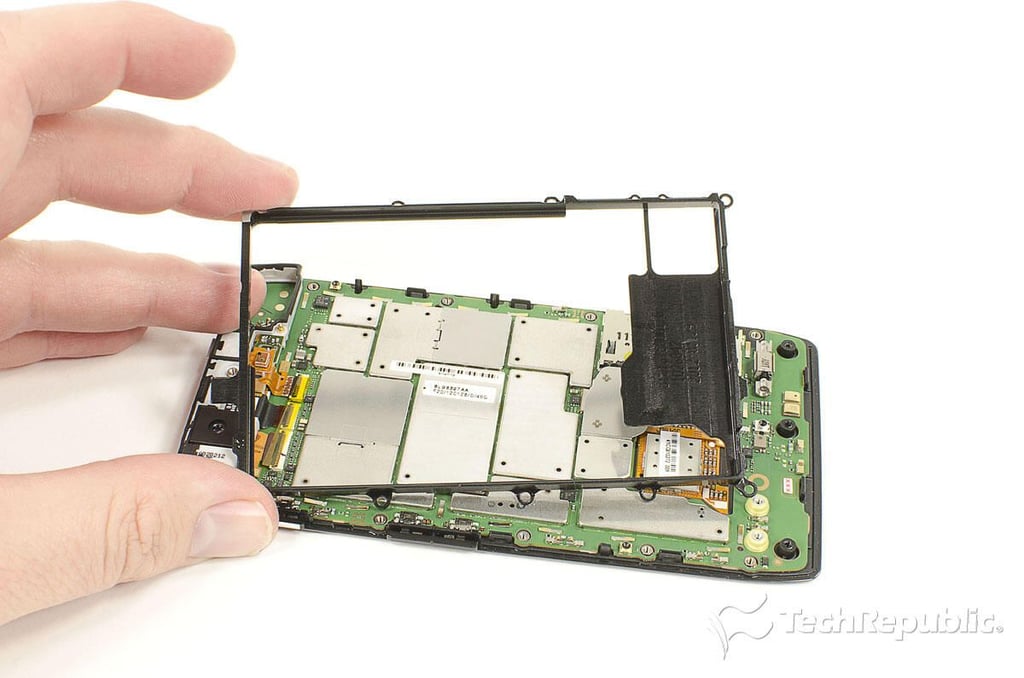

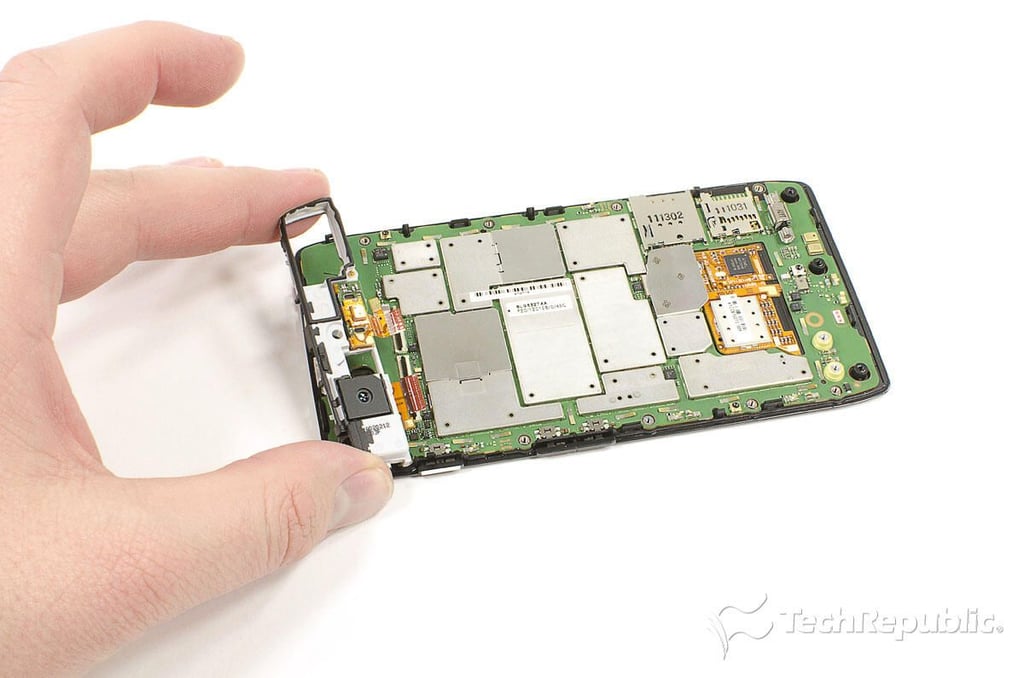

  • Cracking Open Droid Razr Maxx: Removing the battery frame

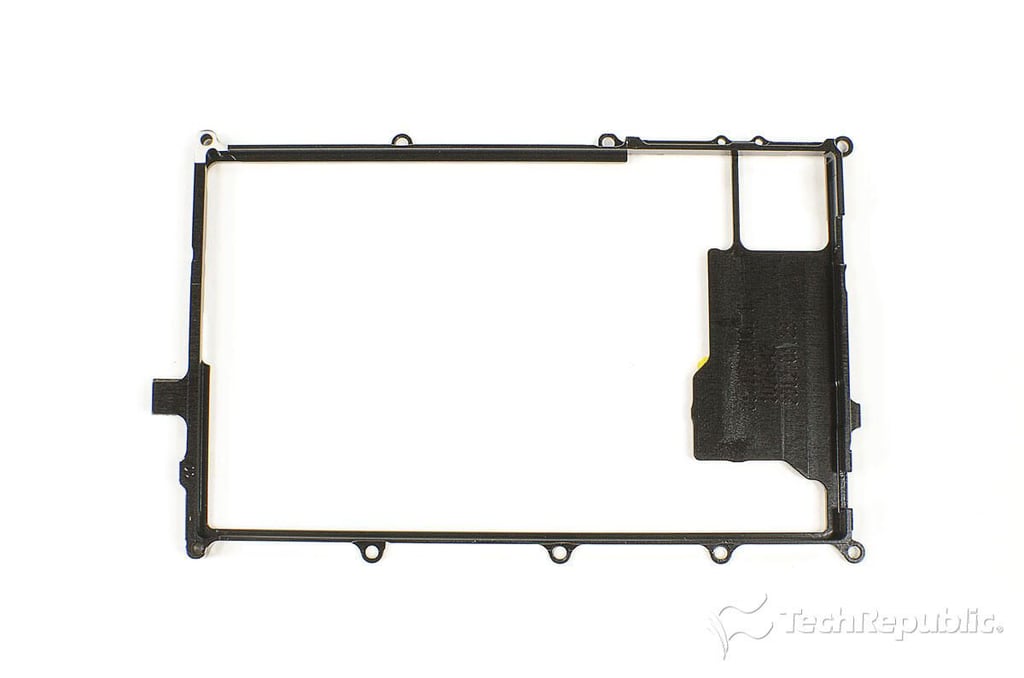

  • Cracking Open Droid Razr Maxx: Battery frame

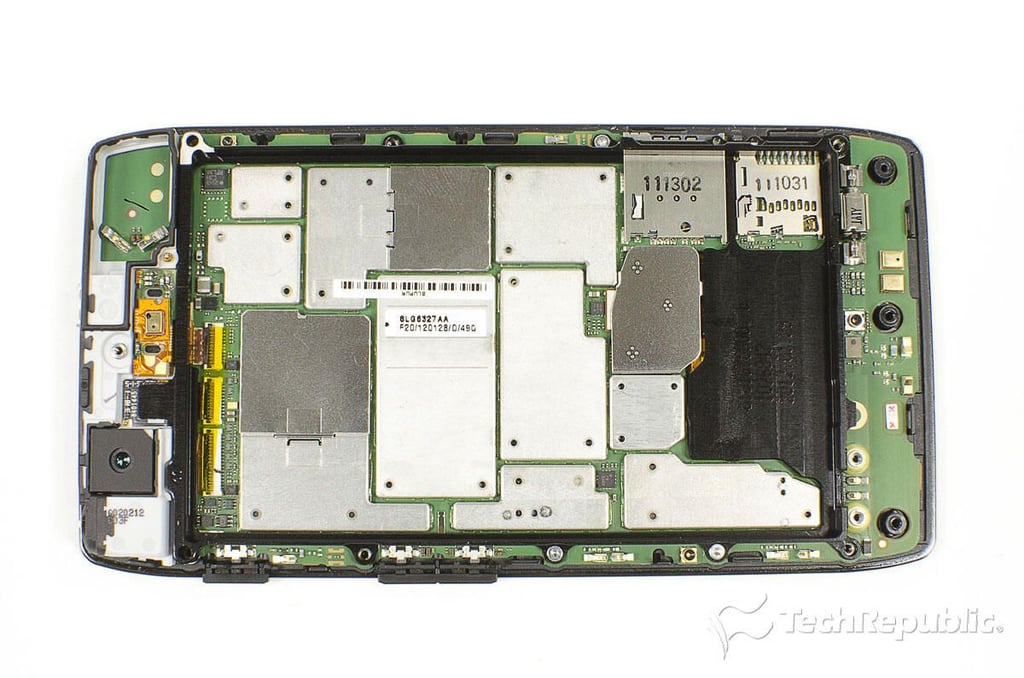

  • Cracking Open Droid Razr Maxx: Battery frame removed

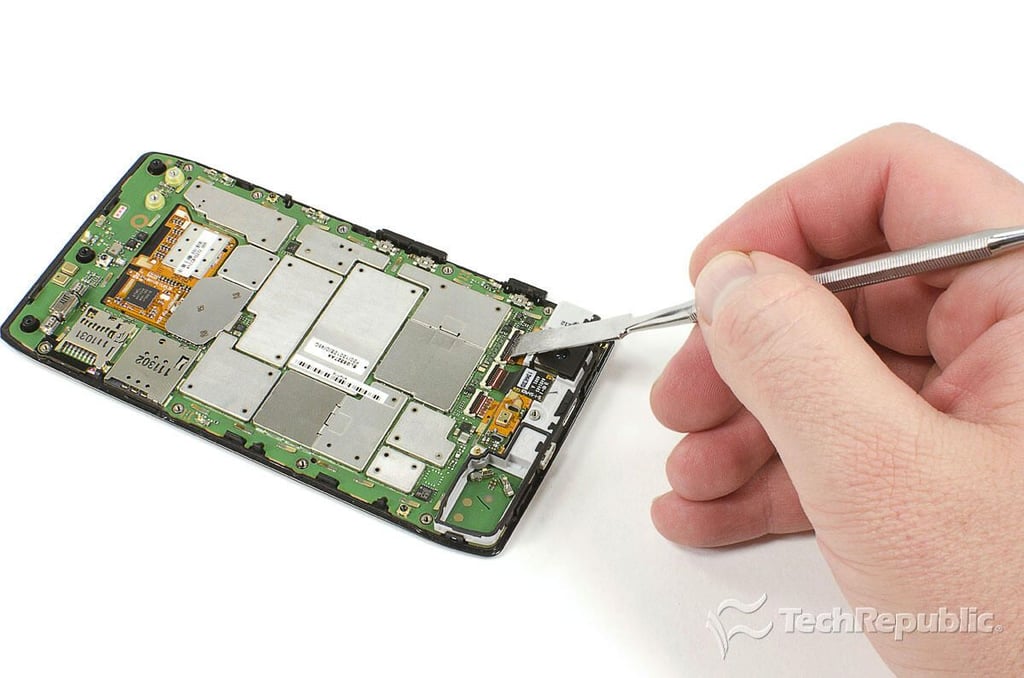

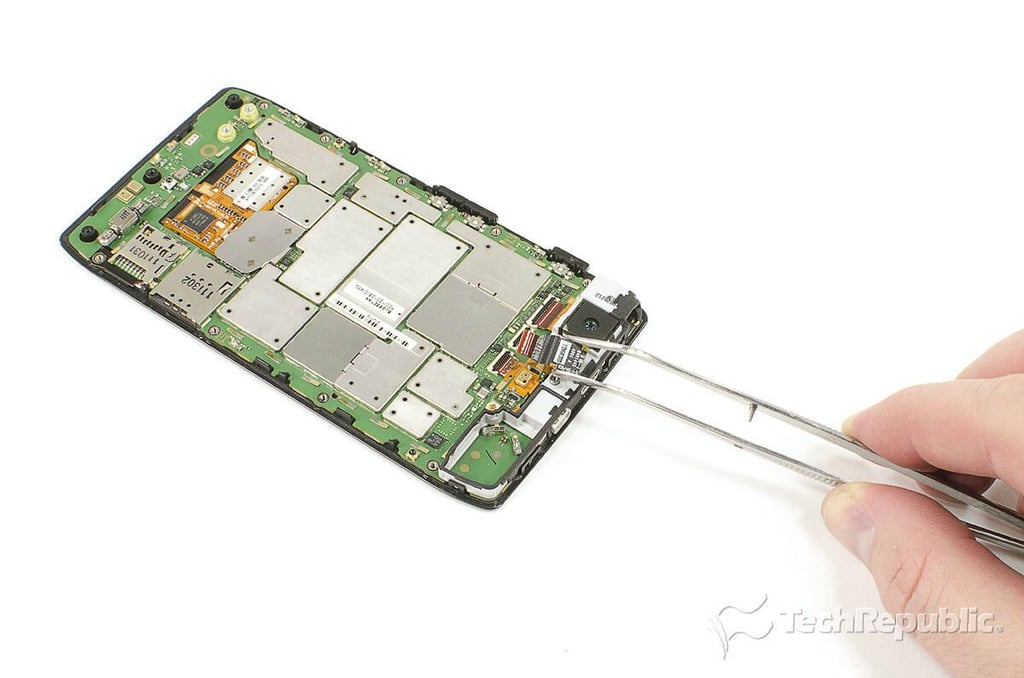

  • Cracking Open Droid Razr Maxx: Disconnecting the cameras and upper speaker/mic connections

  • Cracking Open Droid Razr Maxx: Removing the front-facing camera

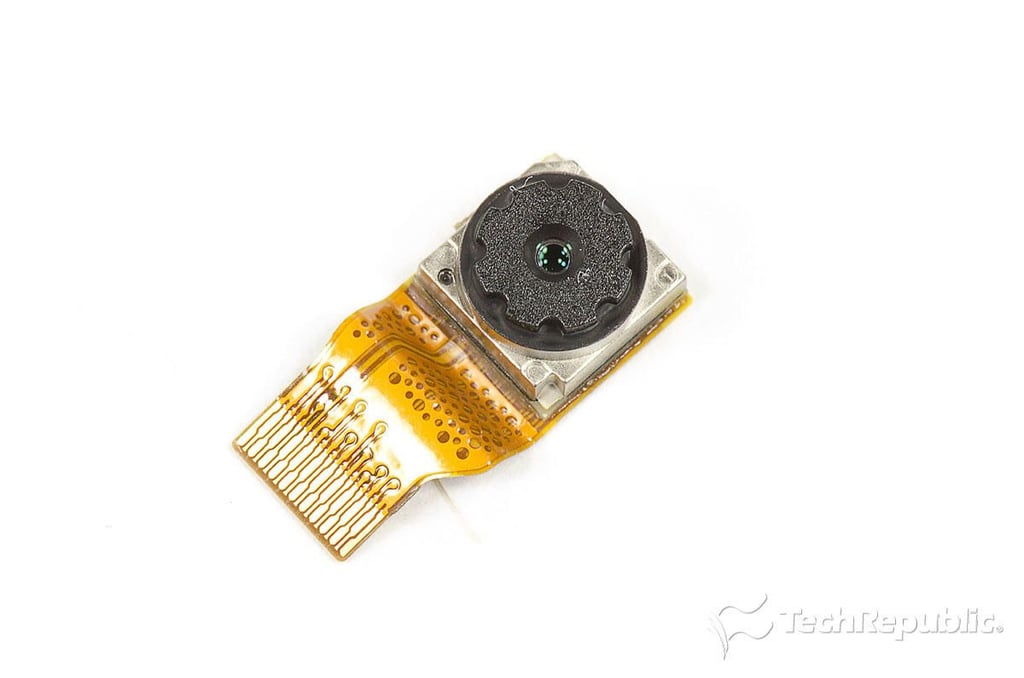

  • Cracking Open Droid Razr Maxx: 1.3MP front-facing camera

  • Cracking Open Droid Razr Maxx: Removing the camera/headphone/mic bracket

  • Cracking Open Droid Razr Maxx: Camera/headphone/mic bracket

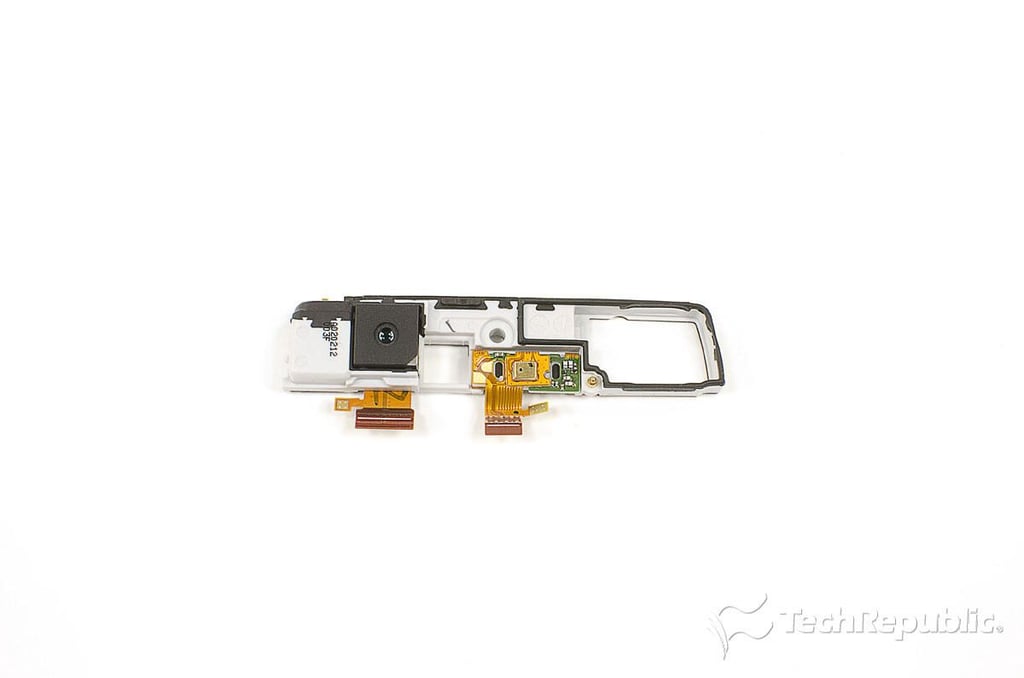

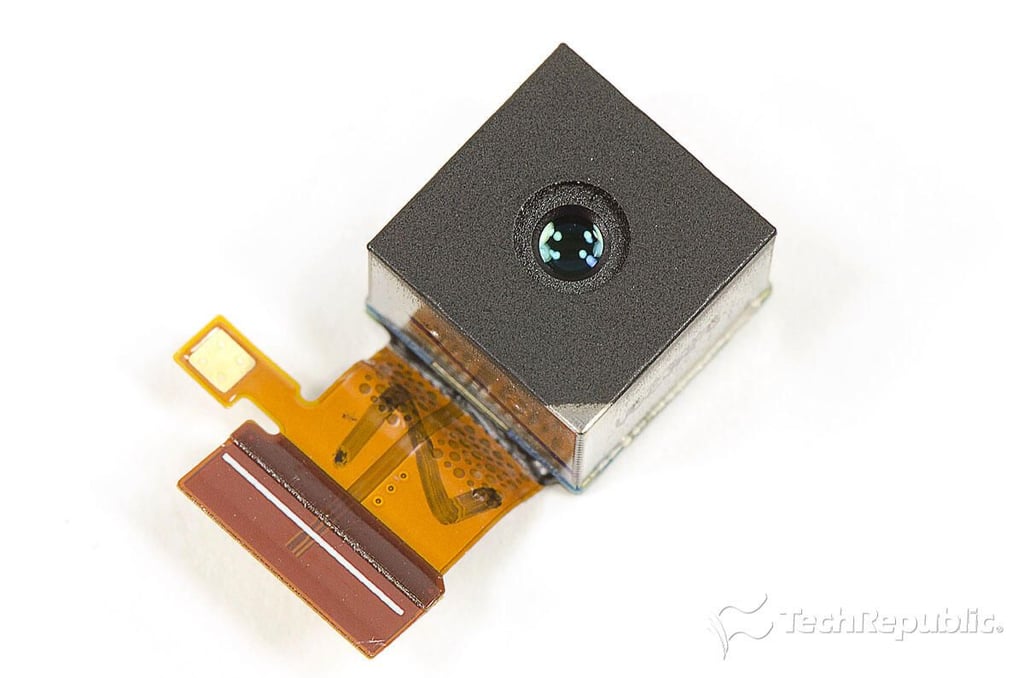

  • Cracking Open Droid Razr Maxx: 8MP rear-facing camera

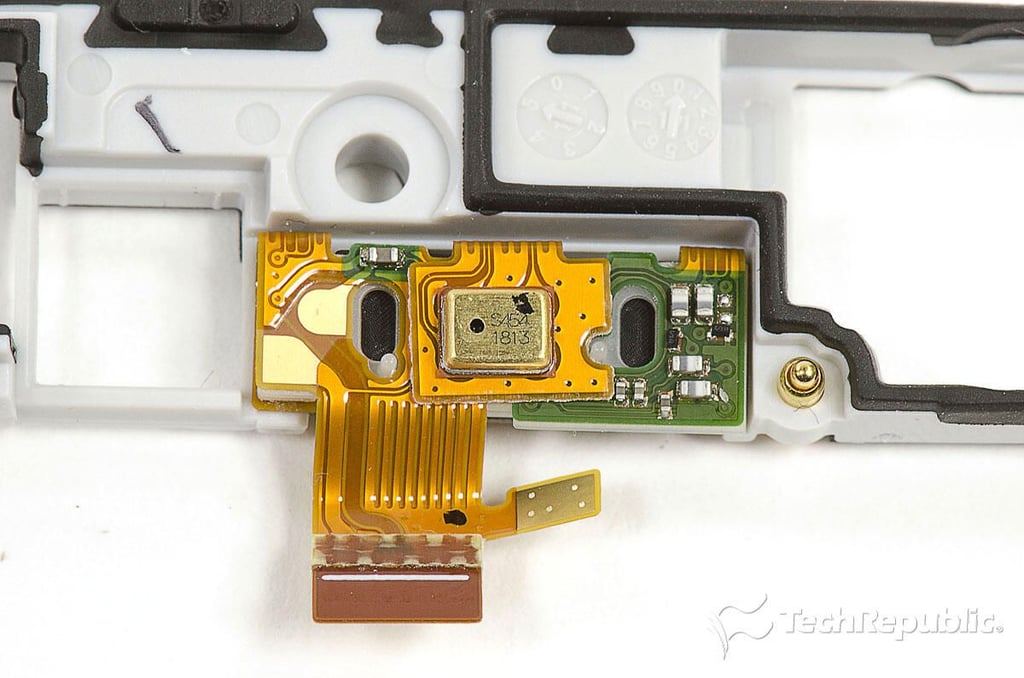

  • Cracking Open Droid Razr Maxx: Upper speaker/mic board

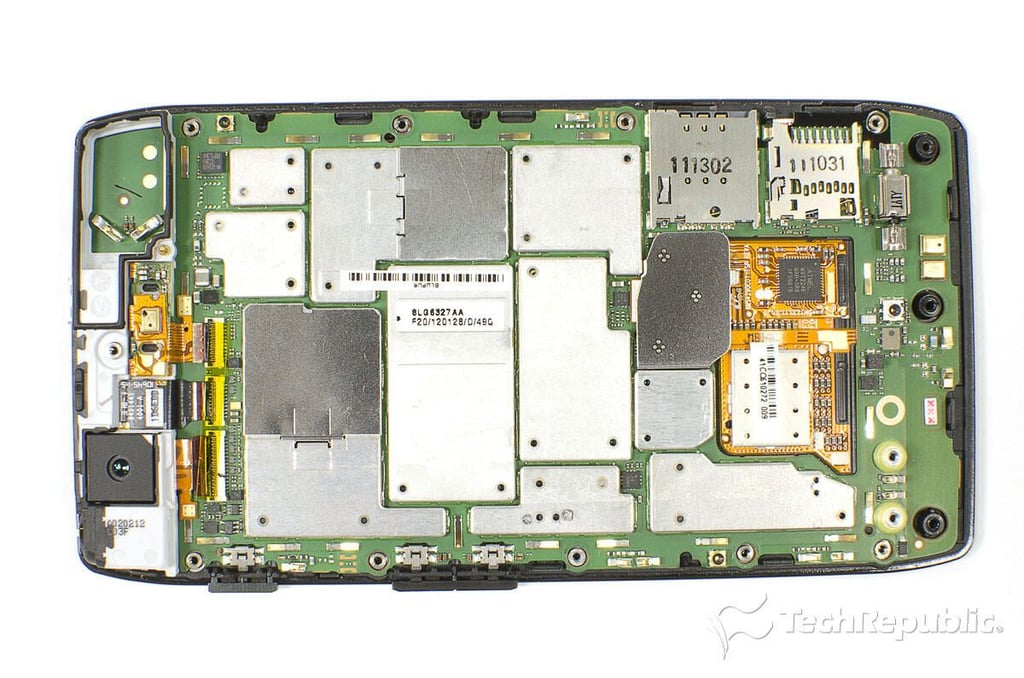

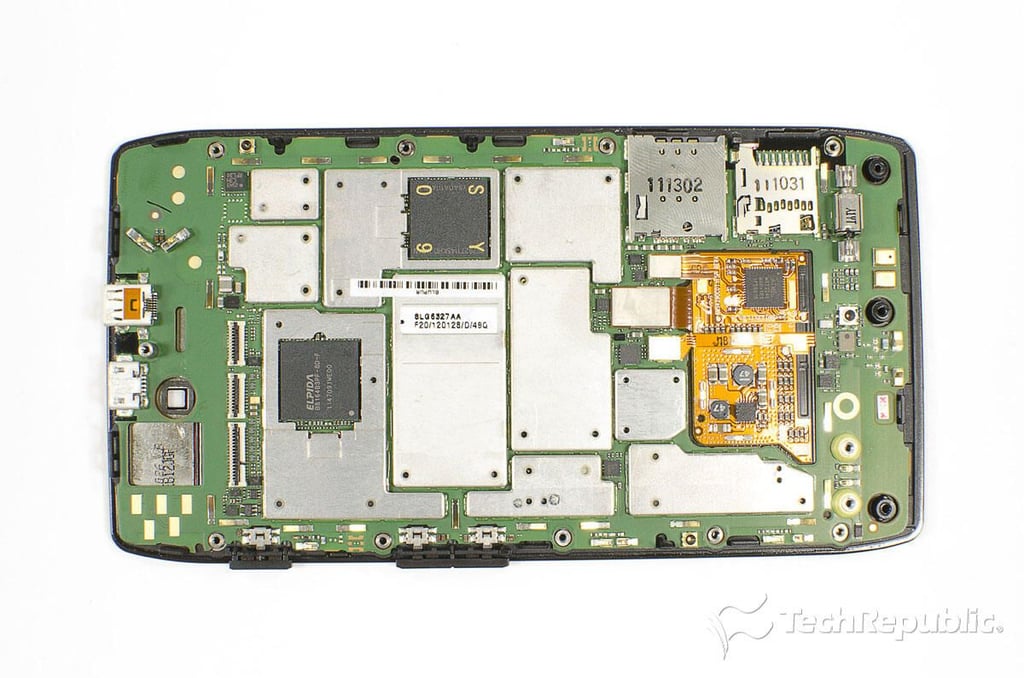

  • Cracking Open Droid Razr Maxx: Motherboard with EMI/RFI shields

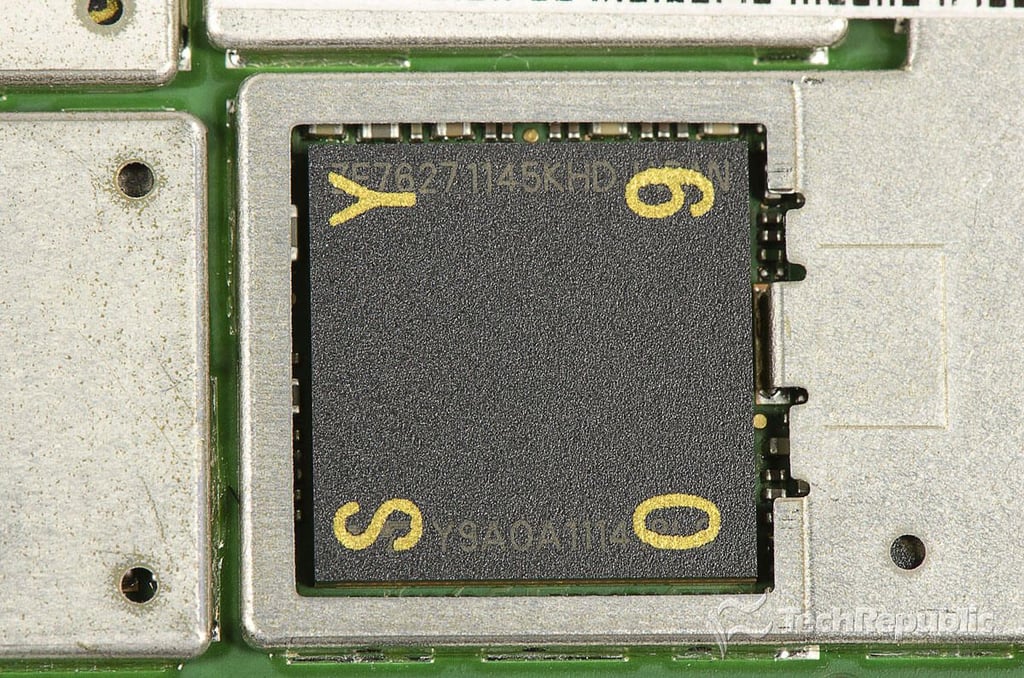

  • Cracking Open Droid Razr Maxx: Toshiba Y9A0A111308LA Memory Stack

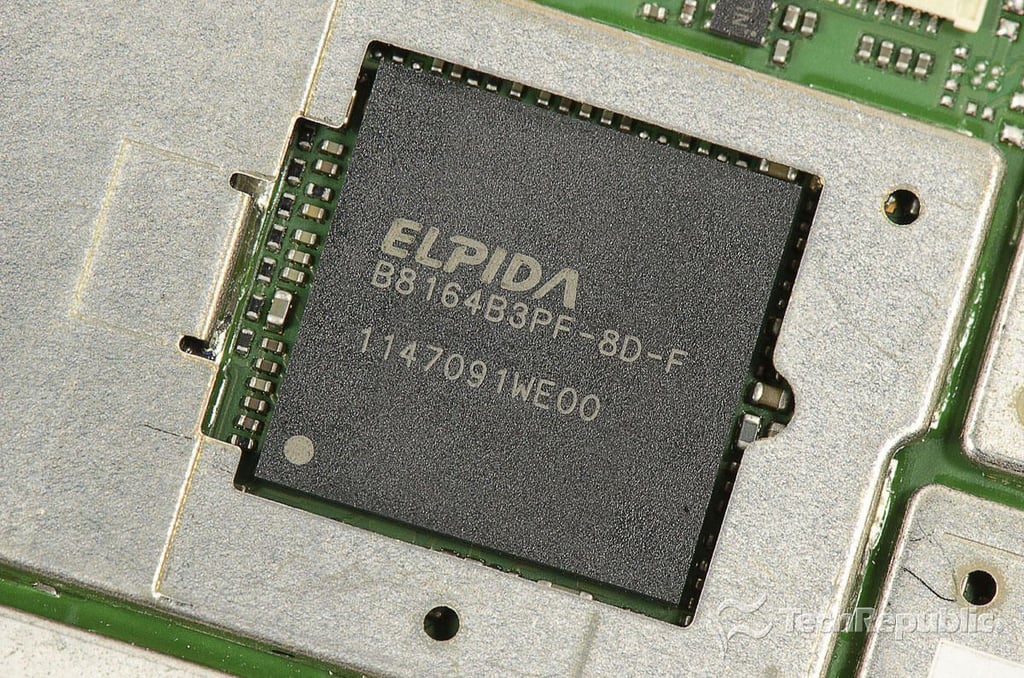

  • Cracking Open Droid Razr Maxx: Elpida B8164B3PF-8D-F DDR2 mobile SDRAM

  • Cracking Open Droid Razr Maxx: Atmel MXT224E touchscreen controller

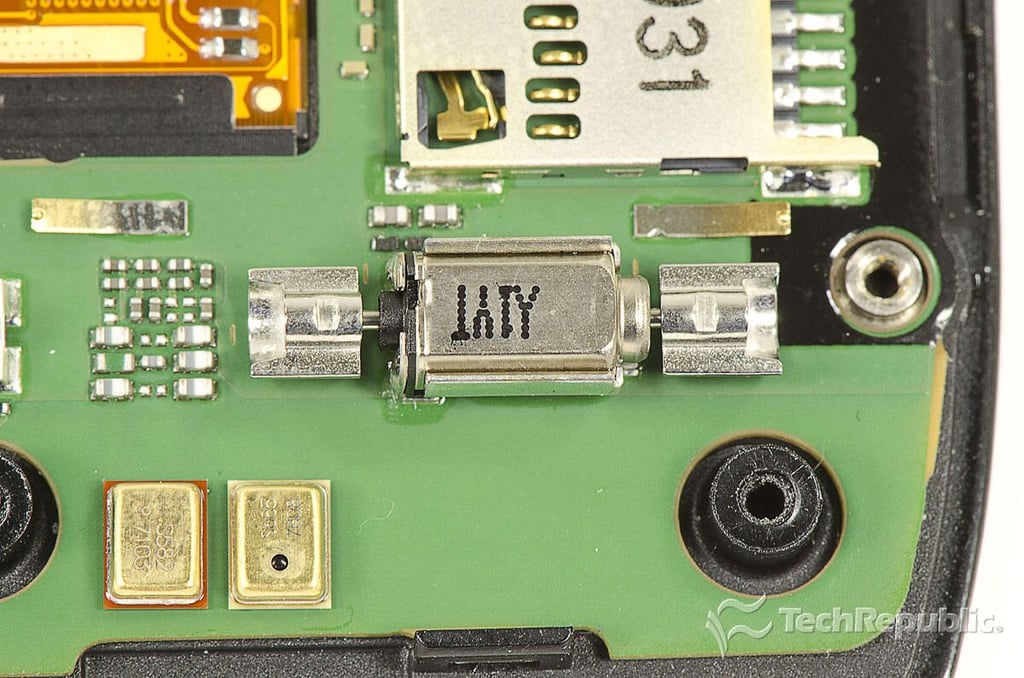

  • Cracking Open Droid Razr Maxx: Vibration motor

  • Cracking Open Droid Razr Maxx: Complete teardown
