Cracking open the Nintendo DS Lite

By Erik Eckel October 19, 2007, 10:11 AM PDT

1
of 56

Cracking open the Nintendo DS Lite

The Nintendo DS Lite Box

The Nintendo DS Lite Box

ntThey’re everywhere. Nintendo’s DS Lites are the favorite of everyone from kids to adults. With a wide range of games, an inviting interface and two screens for double the fun, Nintendo’s portable gaming system is gaining fans worldwide. Just what makes a DS Lite work? Take a look inside one of the hottest gaming platforms in this exclusive photo gallery.
nt
ntThe Nintendo DS Lite is packaged in a small, well-packed box.

n

ntnn

Cracking open the Nintendo DS Lite

The Nintendo DS Lite Box

The Nintendo DS Lite Box

Here a look at the back of the Nintendo DS Lite box.

Cracking open the Nintendo DS Lite

The Nintendo DS Lite Box

The Nintendo DS Lite Box

The DS lite gaming system, instructions, power adapter and an extra stylus are all packed tightly within Nintendo’s box.

Here you can make out the side of the power adapter (right) and instruction manual (left).

Cracking open the Nintendo DS Lite

The Nintendo DS Lite - What You Get

The Nintendo DS Lite - What You Get

Here’s everything packed inside the Nintendo DS Lite box.

Cracking open the Nintendo DS Lite

The DS Lite Stylus

The DS Lite Stylus

Here’s a close-up of the Nintendo DS Lite stylus.

Cracking open the Nintendo DS Lite

Nintendo DS Lite Power Adapter

Nintendo DS Lite Power Adapter

The DS Lite’s power adapter features a rotating plug that can be tucked inside the adapter’s plastic housing to better enable portability.

Or, in other words, you can tuck the adapter’s power plug inside itself to ensure it doesn’t snag other items when traveling.

Cracking open the Nintendo DS Lite

Nintendo DS Lite Power Adapter

Nintendo DS Lite Power Adapter

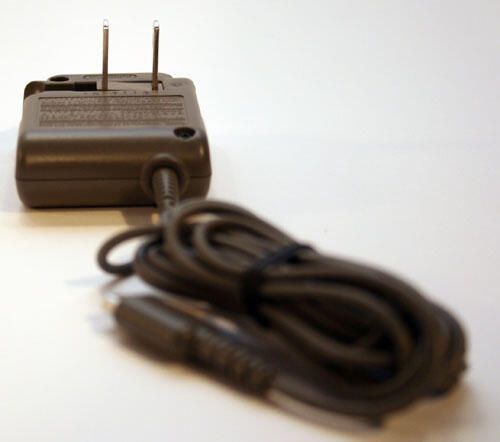

This is how the DS Lite’s power adapter looks when the power plug is extended.

Cracking open the Nintendo DS Lite

Nintendo DS Lite: Front View

Nintendo DS Lite: Front View

Here’s a look at the Nintendo DS Lite, as seen from the front with its lid closed.

The headphone/microphone port appears to the far right, while the Game Pak Slot Cover hides the port used for connecting Game Boy Advance Game Packs and other accessories. To the far left is the device’s sliding volume switch.

Cracking open the Nintendo DS Lite

Nintendo DS Lite: Rear View

Nintendo DS Lite: Rear View

Here’s a view of the Nintendo DS Lite’s backside, again with the lid closed.

The Left and Right control buttons appear toward the bottom left and right corners, while the unit’s power port sits to the right of the DS Game Card Slot (center).rnrnThe two square cutouts to the left of the game card slot enable connecting a wrist strap to the handheld device.

Cracking open the Nintendo DS Lite

Nintendo DS Lite: Bottom View

Nintendo DS Lite: Bottom View

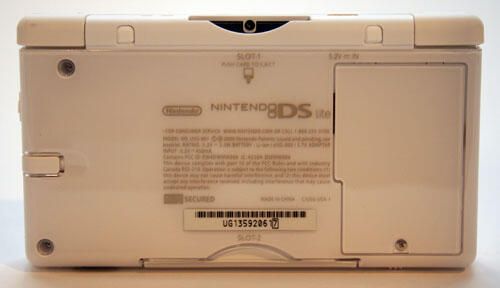

The Nintendo DS Lite, as seen from its undercarriage.

At the top corners appear the Left and Right control buttons. The large rectangular compartment to the right side holds the game’s battery.

To the left, you can see the base of the unit’s stylus.

Cracking open the Nintendo DS Lite

Nintendo DS Lite: Right-Side View

Nintendo DS Lite: Right-Side View

Viewing the DS Lite from the right-side, visible are the stylus and power switch.

Cracking open the Nintendo DS Lite

Dual-Screen Gaming Platform

Dual-Screen Gaming Platform

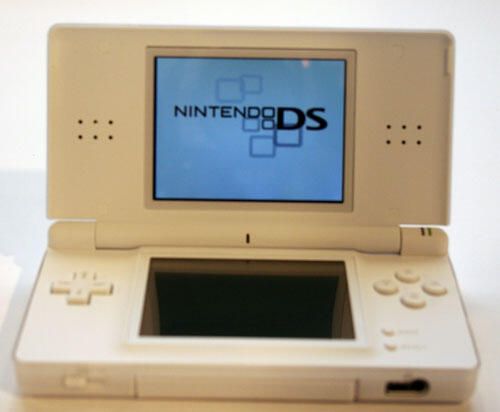

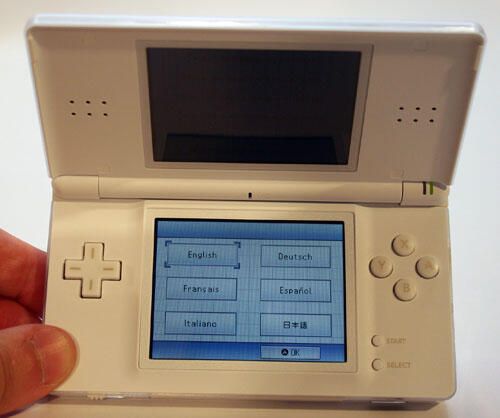

The Nintendo DS Lite revolutionized handheld gaming with the introduction of dual screens.

The top (lit) screen serves strictly as a display, while the second (lower) display is also touch sensitive and doubles as an input device.

Cracking open the Nintendo DS Lite

Touch Sensitive Display

Touch Sensitive Display

The Nintendo’s second display doubles as a touch-screen.

Cracking open the Nintendo DS Lite

Nintendo DS Lite Control Buttons

Nintendo DS Lite Control Buttons

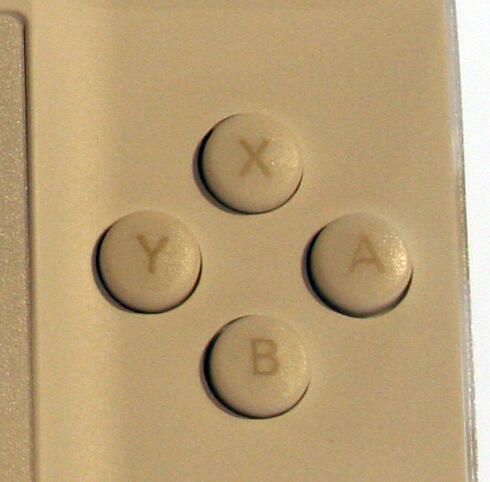

The DS Lite features several control buttons, including this four-button set.

Cracking open the Nintendo DS Lite

Nintendo DS Lite Joystick

Nintendo DS Lite Joystick

No good gaming system is complete without a joystick controller.

Cracking open the Nintendo DS Lite

DS Lite Stereo Speakers

DS Lite Stereo Speakers

The DS Lite features a pair of stereo speakers embedded within its top lid.

Cracking open the Nintendo DS Lite

Nintendo DS Lite Battery Cover

Nintendo DS Lite Battery Cover

The Nintendo’s battery is housed beneath this cover.

Cracking open the Nintendo DS Lite

Nintendo DS Lite Battery

Nintendo DS Lite Battery

The Nintendo is powered by a 3.7-volt rechargeable Lithium Ion battery. Nintendo warns against using any battery other than model number USG-003.

Cracking open the Nintendo DS Lite

Nintendo DS Lite Battery Compartment

Nintendo DS Lite Battery Compartment

The Nintendo DS Lite battery compartment, minus the battery.

Cracking open the Nintendo DS Lite

Nintendo DS Lite Battery

Nintendo DS Lite Battery

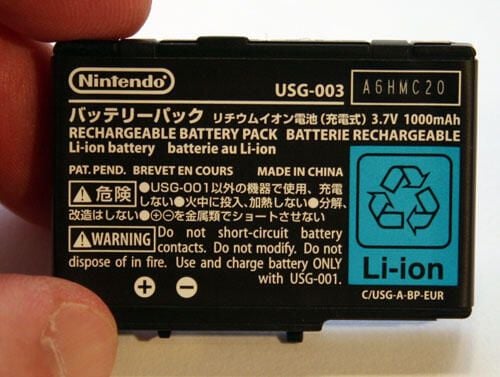

The official Nintendo rechargeable battery boasts model number USG-003. A Lithium Ion power cell, the battery can withstand numerous charging cycles and still provide high performance.

Cracking open the Nintendo DS Lite

Nintendo DS Lite Stylus

Nintendo DS Lite Stylus

The Nintendo DS Lite features an internal compartment for its companion stylus.

Cracking open the Nintendo DS Lite

Nintendo DS Lite - Stylus Holder

Nintendo DS Lite - Stylus Holder

The Nintendo DS Lite stylus compartment.

Cracking open the Nintendo DS Lite

Nintendo DS Lite Game Pak Slot Cover

Nintendo DS Lite Game Pak Slot Cover

This protective cover conceals the DS Lite’s Game Pak slot.

Cracking open the Nintendo DS Lite

Nintendo DS Lite Game Pak Slot

Nintendo DS Lite Game Pak Slot

Simply pulling the Game Pak Slot Cover reveals this compartment. The slot enables the DS Lite to accept and play Game Boy Advance Game Paks. The port also accepts DS Lite accessories.

Cracking open the Nintendo DS Lite

Nintendo DS Lite Volume Switch

Nintendo DS Lite Volume Switch

The Nintendo DS Lite sliding volume switch is found on the game’s front left side.

Cracking open the Nintendo DS Lite

Nintendo DS Lite Power Port

Nintendo DS Lite Power Port

Nintendo’s power adapter plugs into the DS Lite here. In this picture you can also see the Left control button (top left).

Cracking open the Nintendo DS Lite

Nintendo DS Lite Power Indicator LED

Nintendo DS Lite Power Indicator LED

LEDs within these slots indicate when the unit is powered on. They also display battery status (green changes to red when battery power is low).

Rapidly blinking LEDs, meanwhile, indicate a wireless game is being played. Slow blinking, on the other hand, indicates the DS Lite is operating in Sleep mode.

Cracking open the Nintendo DS Lite

Nintendo DS Lite Microphone

Nintendo DS Lite Microphone

The DS Lite’s microphone is located behind the top center slot shown here.

Cracking open the Nintendo DS Lite

Opening The DS Lite

Opening The DS Lite

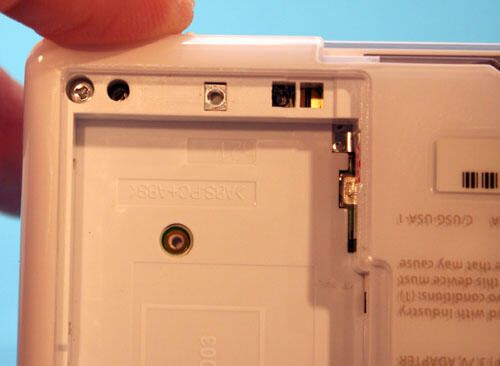

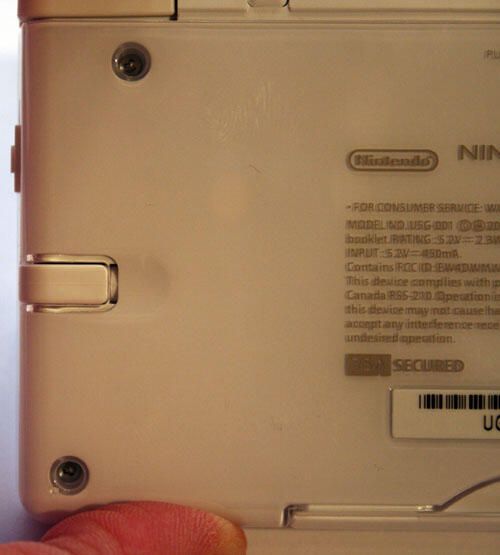

These Philip head screws, found within the battery compartment, must also be removed before the Nintendo can be opened.

Cracking open the Nintendo DS Lite

Opening The DS Lite

Opening The DS Lite

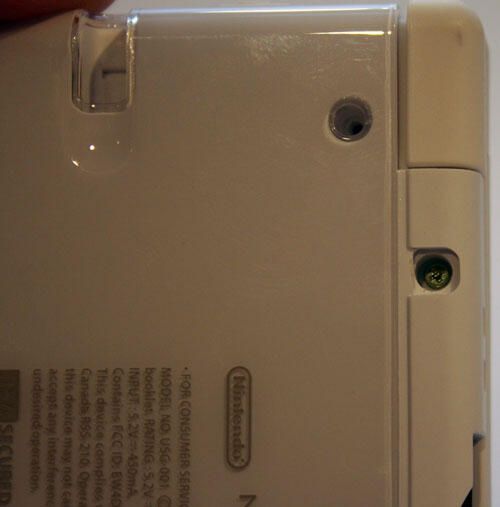

Once the screws are removed that secure the DS Lite’s components, disassembly is fairly easy.

Cracking open the Nintendo DS Lite

Opening The DS Lite

Opening The DS Lite

Once you loosen screws, remove them completely from the recesses that hold them. Otherwise, a slight margin of thread may contact the receiving side and prevent disassembly.

Cracking open the Nintendo DS Lite

DS Lite Bottom Casing

DS Lite Bottom Casing

Once the screws are removed, and the components are gently separated, the DS Lite’s bottom casing (shown here) pulls easily away from the rest of the assembly.

Cracking open the Nintendo DS Lite

Control Button

Control Button

Here’s a closer look at one of the DS Lite’s control buttons (as well as its retaining pin and spring). In case you’re curious, this is the Right control button from the DS Lite.

Cracking open the Nintendo DS Lite

Nintendo DS Lite Circuit Board

Nintendo DS Lite Circuit Board

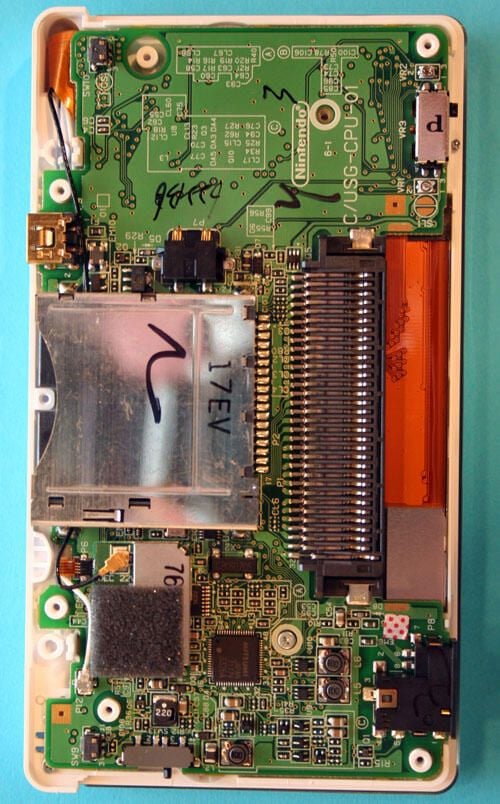

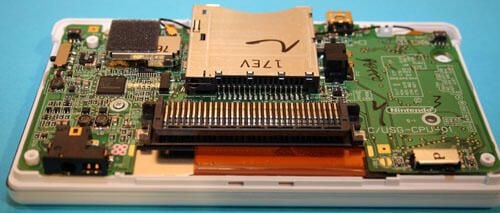

With the bottom plastic casing removed, the DS Lite’s circuit board is clearly visible.

To the center-right is the Game Pak port that accepts accessories and Game Boy Advance Pak games. To the center-left is the compartment that holds DS Lite game chips.

Beneath the DS Lite game chip compartment is the DS Lite’s CPU. However, one must use a soldering iron to disconnect the game port from the circuit board).

Cracking open the Nintendo DS Lite

Nintendo DS Lite Circuit Board

Nintendo DS Lite Circuit Board

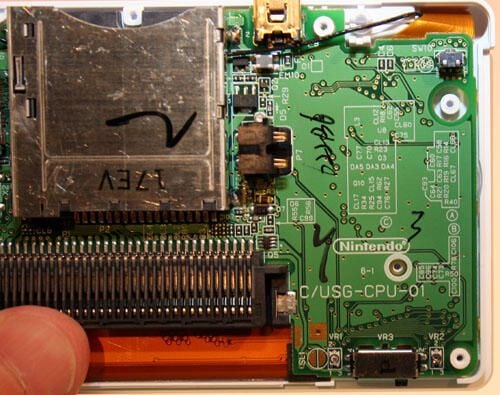

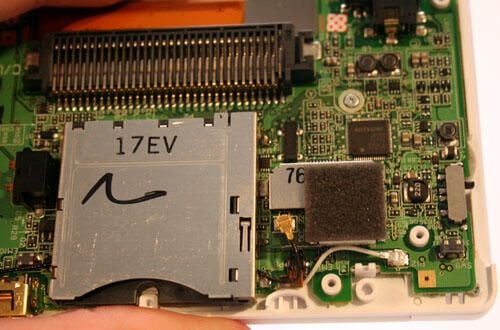

Here’s a different look at Nintendo’s DS Lite circuit board.rnrnToward the bottom right you can see an empty circle where another Philips head screw used to be located. That screw must be removed to enable continued disassembly of the unit.

Also visible to the very bottom right is the switch that powers the DS Lite’s volume control.

Cracking open the Nintendo DS Lite

Nintendo DS Lite Circuit Board

Nintendo DS Lite Circuit Board

The Nintendo DS Lite circuit board, as viewed from the front.

Cracking open the Nintendo DS Lite

Nintendo DS Lite Circuit Board

Nintendo DS Lite Circuit Board

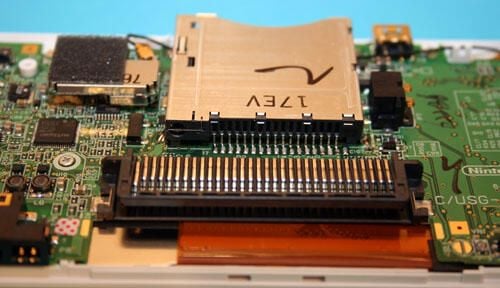

Here’s a closer look at the DS Lite’s Game Pak Slot, as seen when viewing the circuit board.

Cracking open the Nintendo DS Lite

Nintendo DS Lite Wiring

Nintendo DS Lite Wiring

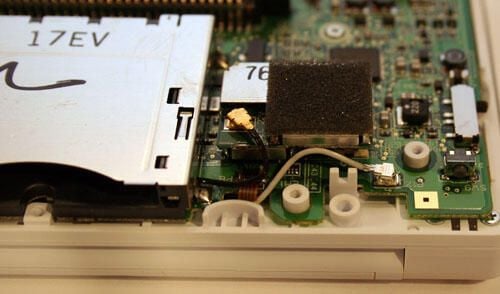

The black cable, seen here almost in the center of the image, connects the DS Lite’s wireless antenna.

The white cable, located toward the bottom right of this image, connects the DS Lite’s microphone to the circuit board.

Further disassembly of the device requires that both these wires be disconnected.

Cracking open the Nintendo DS Lite

Nintendo DS Lite - Cable Removal

Nintendo DS Lite - Cable Removal

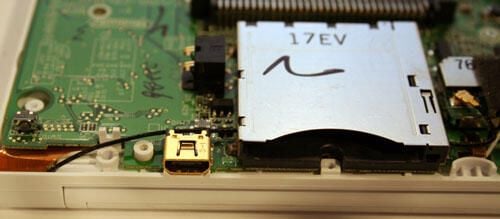

Once the DS Lite’s black wireless antenna cable is removed, it must be un-threaded from beneath the DS Lite game port.

Also visible in this image is the power adapter port (appearing in gold toward the bottom left).

Cracking open the Nintendo DS Lite

Nintendo DS Lite Game Port

Nintendo DS Lite Game Port

Here’s a closer view of the DS Lite game port (marked with the letters 17EV).

Cracking open the Nintendo DS Lite

Nintendo DS Lite LCD Removal

Nintendo DS Lite LCD Removal

With all retaining screws removed, the DS Lite’s touch-sensitive display screen can begin to be separated from the rest of the DS Lite’s components.

Cracking open the Nintendo DS Lite

Nintendo DS Lite LCD Removal

Nintendo DS Lite LCD Removal

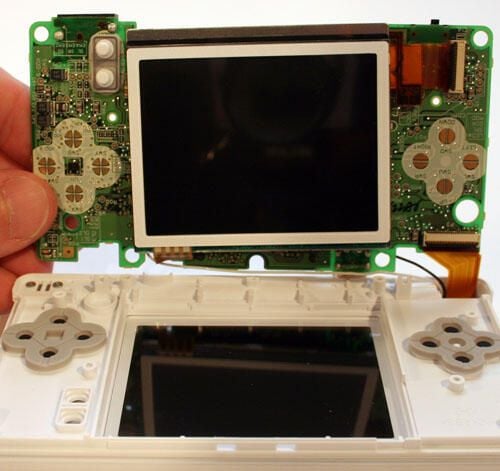

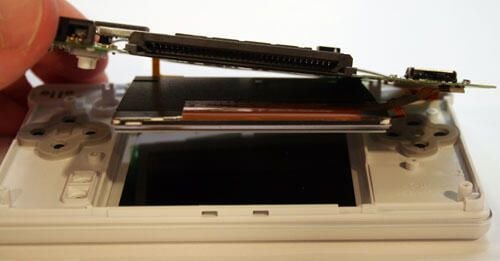

When the Nintendo’s circuit board is separated from the DS Lite’s plastic overlay, the touch-sensitive LCD pulls away with the circuit board.

Cracking open the Nintendo DS Lite

Nintendo DS Lite LCD Ribbon Cables

Nintendo DS Lite LCD Ribbon Cables

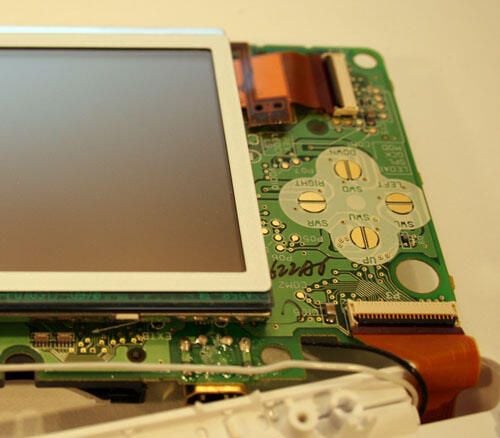

Two ribbon cables connect the touch-sensitive LCD screen to the Nintendo circuit board.

One of the ribbon cables can be seen in the top left corner. The second is not shown in this image.

Instead, the second ribbon cable (bottom right) shown in this image connects the circuit board to the unit’s second display screen.

Cracking open the Nintendo DS Lite

Ribbon Cable Close Up

Ribbon Cable Close Up

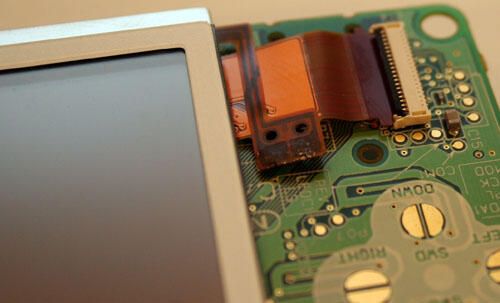

Here’s a closer view of one of the two ribbon cables that connect the touch-sensitive display to the Nintendo circuit board.

Cracking open the Nintendo DS Lite

DS Lite Control Buttons

DS Lite Control Buttons

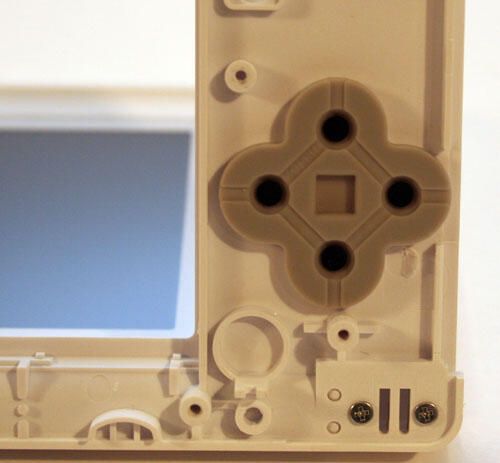

This rubberized pad, which accommodates two separate switches) helps the Start and Select buttons (found on the bottom half of the DS Lite) properly relay activation (when depressed) to the circuit board.

Cracking open the Nintendo DS Lite

Nintendo DS Lite Touch Screen

Nintendo DS Lite Touch Screen

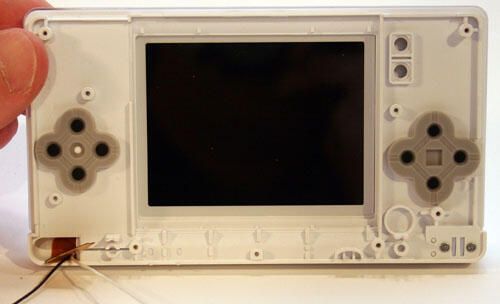

This image shows the Nintendo DS Lite’s touch-sensitive screen, with a ribbon cable outstretched to the right, once it’s been removed from the circuit board.

Cracking open the Nintendo DS Lite

The Nintendo DS Lite Circuit Board

The Nintendo DS Lite Circuit Board

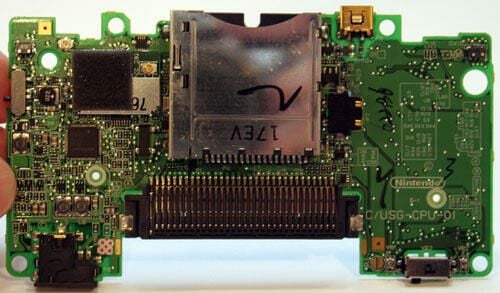

Here’s the Nintendo DS Lite circuit board by itself (once it’s been disconnected from all cables and removed from the DS Lite.

Cracking open the Nintendo DS Lite

Inside The DS Lite

Inside The DS Lite

Here’s an internal view of the backside of the DS Lite’s bottom plastic shell.

To the top right you can see two squares (with circles inside) that accommodate the Start and Select buttons. The baseball-diamond shaped rubberized pads below it (on the right side) accommodates the DS Lite’s A, B, X and Y control buttons.

The baseball-diamond-shaped rubberized pad to the left, meanwhile, accommodates the device’s joystick controls.

Cracking open the Nintendo DS Lite

Joystick Pad

Joystick Pad

Here’s a closer look at the joystick pad’s backside.

Cracking open the Nintendo DS Lite

Nintendo DS Lite Plastic Casing

Nintendo DS Lite Plastic Casing

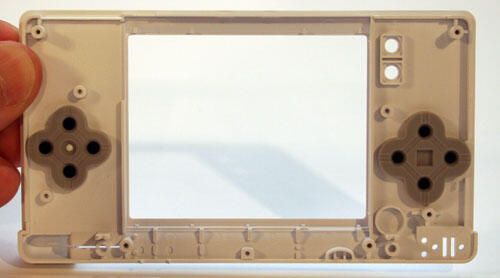

This is how the DS Lite’s mid-level plastic casing looks with the LCD removed. This piece connects snug-like down inside the DS Lite’s bottom plastic shell, thereby holding control buttons and LCD tightly together.

Cracking open the Nintendo DS Lite

Nintendo DS Lite Second Screen

Nintendo DS Lite Second Screen

The DS Lite’s top-half shell holds the gaming platform’s stereo speakers, the non-touch-sensitive LCD and a microphone.

Cracking open the Nintendo DS Lite

DS Lite Top Half Disassembly

DS Lite Top Half Disassembly

Before disassembling the DS Lite’s top-half shell, you must first remove the decorative rubber plugs to reveal Philips head screws. Once those screws are removed, the lid can be gently pried apart.

Also, in this image you can clearly see the casing’s stereo speaker perforations. These six holes appear on each side of the LCD, better enabling sound to reach the user.

Cracking open the Nintendo DS Lite

Inside The DS Lite's Top Casing

Inside The DS Lite's Top Casing

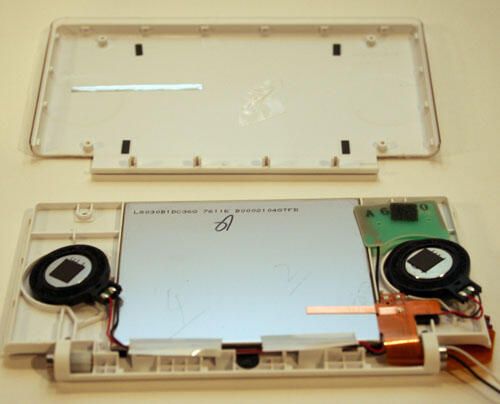

With screws removed, the DS Lite’s lid can be separated. Once its pieces are completely disconnected, you can remove the lid (shown on top). Removing the lid reveals the LCD and speakers, as shown here.

Cracking open the Nintendo DS Lite

Nintendo DS Lite Stereo Speakers

Nintendo DS Lite Stereo Speakers

Here’s a closer look at one of the DS Lite’s speakers.

Cracking open the Nintendo DS Lite

Nintendo DS Lite LCD

Nintendo DS Lite LCD

Once the lid is opened, the DS Lite’s second LCD screen falls easily away from the rest of the unit.

Cracking open the Nintendo DS Lite

The Nintendo DS Lite Disassembled

The Nintendo DS Lite Disassembled

Here are all the components that compose the Nintendo DS Lite, as well as the other items included with each unit.

  • After Hours
  • Account Information

    Share with Your Friends

    Cracking open the Nintendo DS Lite

    Your email has been sent

Share: Cracking open the Nintendo DS Lite
Image of Erik Eckel
By Erik Eckel
Erik Eckel is a managing partner at Louisville Geek and president of Eckel Media Corp. He previously served as Executive Editor at TechRepublic. He received Microsoft Engineer accreditation from Sullivan University and earned his Bachelor's Degree in
  • Account Information

    Contact Erik Eckel

    Your message has been sent

  • |
  • See all of Erik's content

Daily Tech Insider

If you can only read one tech story a day, this is it.

TechRepublic TechRepublic
  • TechRepublic on Facebook
  • TechRepublic on X
  • TechRepublic on LinkedIn
  • TechRepublic on YouTube
  • TechRepublic on Pinterest
  • TechRepublic RSS
Services
  • About Us
  • Newsletters
  • RSS Feeds
  • Site Map
  • Site Help & Feedback
  • FAQ
  • Advertise
  • Do Not Sell My Information
  • Careers
Explore
  • Downloads
  • TechRepublic Forums
  • Meet the Team
  • TechRepublic Academy
  • TechRepublic Premium
  • Resource Library
  • Photos
  • Videos
  • Editorial Policy
  • Legal Terms
  • Privacy Policy
© 2025 TechnologyAdvice. All rights reserved.
CLOSE

Create a TechRepublic Account

Get the web's best business technology news, tutorials, reviews, trends, and analysis—in your inbox. Let's start with the basics.

Already registered? Sign In
Use Facebook
Use Linkedin

* - indicates required fields

CLOSE

Sign in to TechRepublic

Not a member? Create an account
Use Facebook
Use Linkedin

Lost your password? Request a new password

CLOSE

Reset Password

Please enter your email adress. You will receive an email message with instructions on how to reset your password.

Check your email for a password reset link. If you didn't receive an email don't forgot to check your spam folder, otherwise contact support.

Back to login
1 Finish Profile
2 Newsletter Preferences
CLOSE

Welcome. Tell us a little bit about you.

This will help us provide you with customized content.

No thanks, continue without
1 Finish Profile
2 Newsletter Preferences
CLOSE

Want to receive more TechRepublic news?

Newsletter Name
Subscribe
Daily Tech Insider
Daily Tech Insider AU
TechRepublic UK
TechRepublic News and Special Offers
TechRepublic News and Special Offers International
Executive Briefing
Innovation Insider
Project Management Insider
Microsoft Weekly
Cloud Insider
Data Insider
Developer Insider
TechRepublic Premium
Apple Weekly
Cybersecurity Insider
Google Weekly
Toggle All
No thanks, continue without

You're All Set

Thanks for signing up! Keep an eye out for a confirmation email from our team. To ensure any newsletters you subscribed to hit your inbox, make sure to add [email protected] to your contacts list.

Back to Home Page
×
