Cracking Open the Nintendo DSi

By Mark W. Kaelin April 16, 2009, 12:27 AM PDT

1
of 24

Cracking Open the Nintendo DSi

Understated on the outside

Understated on the outside

The Nintendo DSI is the latest hand-held game console. The DSi is a marvel of engineering and features a built-in camera.n

The DSi emphasizes interactivity and offers game modes that involve the manipulation of images and sounds. Of course, you can play games and you can play those games with friends wirelessly.

nWith the help of iFixit, TechRepublic presents this Cracking Open Photo Gallery of the DSi.

The original iFixit Teardown Gallery can be found here.

Image courtesy of Nintendo

Cracking Open the Nintendo DSi

Contents

Contents

Its here! Its here! Whoopee!n
nContents of the box:n

    n

  • Nintendo DSi
  • n

  • Operation Manual
  • n

  • Quick Start Guide
  • n

  • AC Adapter
  • n

  • Extra Stylus
  • n

Image by iFixit used by TechRepublic with permission.

Cracking Open the Nintendo DSi

Hat club

Hat club

An invitation from Mario’s hat to join Club Nintendo.

Image by iFixit used by TechRepublic with permission.

Cracking Open the Nintendo DSi

Side by side 1

Side by side 1

    n

  • A side by side comparison of the Nintendo DS Lite (left) and the Nintendo DSi (right).
  • n

  • The DSi has a new skin: a matte-black (almost dark gray) color that feels much rougher than the DS Lite. The roughness allows for better grip of the system, as well as improved scratch resistance.
  • n

Image by iFixit used by TechRepublic with permission.

Cracking Open the Nintendo DSi

Side by side 2

Side by side 2

    n

  • The DSi is 3 mm thinner than the DS Lite, while its length and width increase by 4 mm and 1 mm, respectively.
  • n

  • The DSi comes with 3.25″ LCD panels, a full 0.25″ larger than the previous model’s 3″ panels.
  • n

Image by iFixit used by TechRepublic with permission.

Cracking Open the Nintendo DSi

Let the cracking begin

Let the cracking begin

Two Phillips screws prevent access to the battery. They are easily dealt with using our custom-made screwdriver.

Image by iFixit used by TechRepublic with permission.

Cracking Open the Nintendo DSi

Spudger time

Spudger time

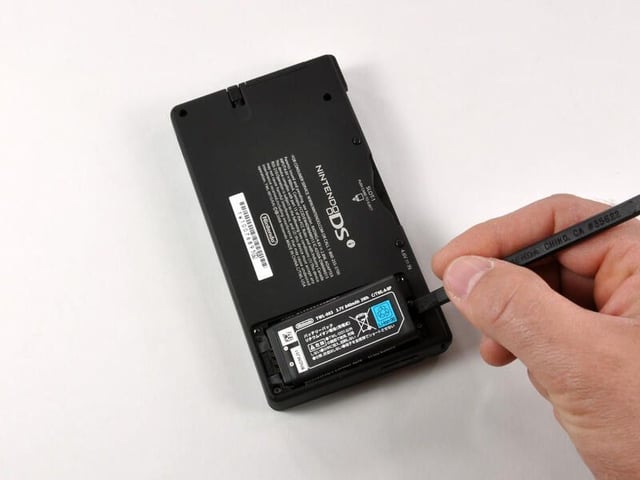

A quick flick of the spudger (or fingernail) dislocates the battery from its housing.

Image by iFixit used by TechRepublic with permission.

Cracking Open the Nintendo DSi

Gaining access

Gaining access

There are a total of seven screws that hold the lower case of the DSi together:n

    n

  • Three are immediately visible without removing any plug or cover.
  • n

  • Two plugs near the top of the unit have to be removed to reveal two screws.
  • n

  • Removal of the battery compartment reveals two additional screws that need to be removed.
  • n

Image by iFixit used by TechRepublic with permission.

Cracking Open the Nintendo DSi

And we are in

And we are in

And just like that, the case comes open.
nAn orange connector joins the cases together. Care should be taken when opening the DSi to ensure this connector is not damaged in the process.

Image by iFixit used by TechRepublic with permission.

Cracking Open the Nintendo DSi

Inside comparison

Inside comparison

A comparison between the old and the new. There are definite differences between the DS Lite (left) and DSi (right).

Image by iFixit used by TechRepublic with permission.

Cracking Open the Nintendo DSi

Delving deeper

Delving deeper

Removing the battery PCB is a pretty straightforward procedure:n

    n

  • Disconnect three connectors.
  • n

  • Unscrew five Phillips screws.
  • n

Image by iFixit used by TechRepublic with permission.

Cracking Open the Nintendo DSi

WiFi board 1

WiFi board 1

The Wi-Fi board is held in place via one large connector. A quick wedge-and-twist action of the spudger releases it from the main board.

Image by iFixit used by TechRepublic with permission.

Cracking Open the Nintendo DSi

WiFi board 2

WiFi board 2

Another flick of the spudger removes the Wi-Fi board’s connector wire.

Image by iFixit used by TechRepublic with permission.

Cracking Open the Nintendo DSi

Main board 1

Main board 1

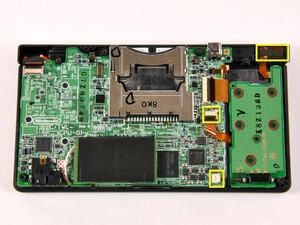

Six connectors need to be disconnected prior to removal: five on the visible side, and one on the other side.

Image by iFixit used by TechRepublic with permission.

Cracking Open the Nintendo DSi

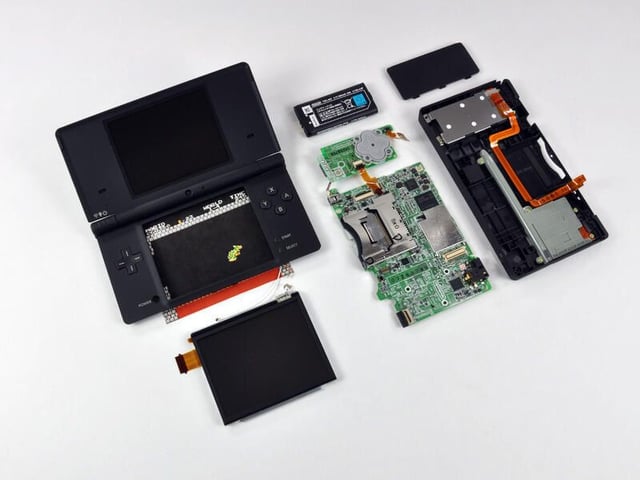

About 1/2 way there

About 1/2 way there

We are done with the first level of the disassembly.

Image by iFixit used by TechRepublic with permission.

Cracking Open the Nintendo DSi

Display 1

Display 1

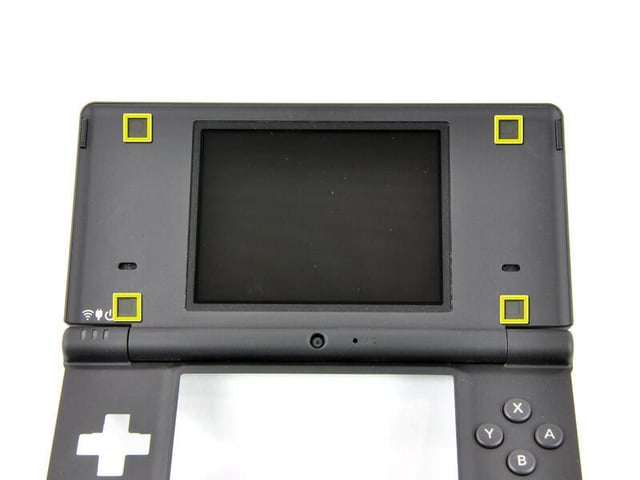

Four black plastic covers need to be removed to reveal the Phillips screws underneath.

Image by iFixit used by TechRepublic with permission.

Cracking Open the Nintendo DSi

Display 2

Display 2

Removing the four Phillips screws allows access to the top display.

Image by iFixit used by TechRepublic with permission.

Cracking Open the Nintendo DSi

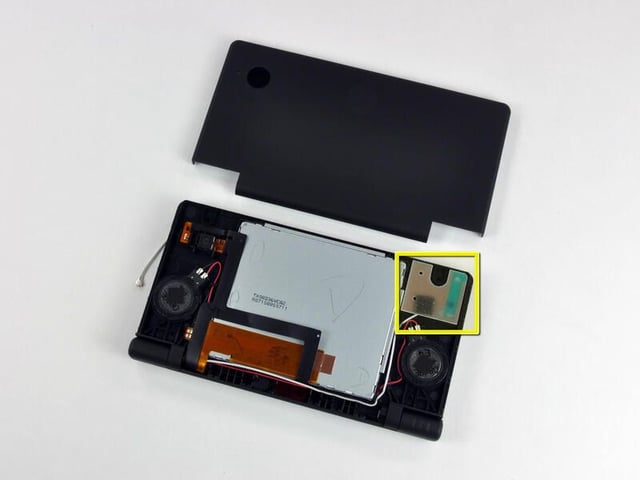

The upper half with outer case removed

The upper half with outer case removed

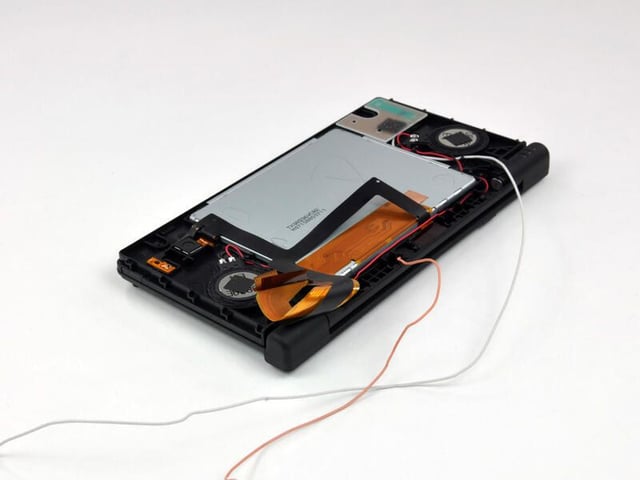

The antenna board for Wireless LAN is mounted in the upper right corner of the chasis.

nThe ribbon cables for the top display and cameras are coiled and routed through the hinge between case halves. We’ll go ahead and add that to the list of parts we want to watch a robot assemble.

Image by iFixit used by TechRepublic with permission.

Cracking Open the Nintendo DSi

Microphone

Microphone

The thin orange wire seen in the second photo is for the microphone. Little DJs everywhere will drool over a new feature allowing users to distort the pitch and speed of music during playback.

Image by iFixit used by TechRepublic with permission.

Cracking Open the Nintendo DSi

Candid camera

Candid camera

The DSi has two VGA CMOS digital cameras (0.3 megapixels); one on the internal hinge pointed towards the user and the other in the outer shell.

Image by iFixit used by TechRepublic with permission.

Cracking Open the Nintendo DSi

Integrated SD/SDHC

Integrated SD/SDHC

The DSi has an integrated SD/SDHC expansion slot. You can now use a normal SD card for the playback of AAC audio files and external storage of pictures or downloaded software. Can anyone say homebrew apps?

Image by iFixit used by TechRepublic with permission.

Cracking Open the Nintendo DSi

The logic board

The logic board

Lots of chips in a small area.

Image by iFixit used by TechRepublic with permission.

Cracking Open the Nintendo DSi

Flip side

Flip side

The other side of the logic board.

Image by iFixit used by TechRepublic with permission.

Cracking Open the Nintendo DSi

Chips

Chips

Chips of interest, left to right:n

    n

  • Samsung 1st generation MoviNAND KMAPF0000M: 256 MB NAND Flash and MMC controller. The integrated MMC controller allows the CPU to offload the complex work of directly talking to the flash memory.
  • n

  • 82DBS08164D-70L: Fujitsu Ltd 128-bit FCRAM (fast-cycle RAM) chip.
  • n

  • Nintendo’s custom ARM CPU. Our CPU was manufactured in September of 2008.
  • n

Image by iFixit used by TechRepublic with permission.
