Cracking Open the Samsung Galaxy S II (Sprint Epic 4G Touch)

By Bill Detwiler September 27, 2011, 2:49 AM PDT on Twitter billdetwiler

1
of 57

Cracking Open the Samsung Galaxy S II (Sprint Epic 4G Touch)

Samsung Galaxy S II (Sprint Epic 4G Touch) teardown

Samsung Galaxy S II (Sprint Epic 4G Touch) teardown

ntIn September 2011, Samsung launched the followup to its popular Galaxy S smartphone.
nt
ntLast year, I cracked open AT&T’s version of the Galaxy S (the Captivate), and was excited to get my hands on the second-generation Galaxy phone. Follow along as I go inside the Sprint version of the Samsung Galaxy S II.
nt
ntFor a more in-depth review of the Galaxy S II’s internal hardware, check out my article, “Samsung Galaxy S II (Sprint Epic 4G Touch) Teardown: Samsung Exynos processor and no NFC.”
nt
ntPhoto by: Bill Detwiler / TechRepublic
ntCaption by: Bill Detwiler

Cracking Open the Samsung Galaxy S II (Sprint Epic 4G Touch)

Samsung Galaxy S II (Sprint Epic 4G Touch): Box

Samsung Galaxy S II (Sprint Epic 4G Touch): Box

ntAs of this writing, the Samsung Galaxy S II is available (in the US) from Sprint (as the Epic 4G Touch) for $199.99 (US) with a two-year contract. I bought our Galaxy S II test device (sans contract) from a local Best Buy location for $699.99 (plus tax). The Galaxy S II will makes its way to AT&T on October 2 and T-Mobile on October 12.
nt
ntPhoto by: Bill Detwiler / TechRepublic
ntCaption by: Bill Detwiler

Cracking Open the Samsung Galaxy S II (Sprint Epic 4G Touch)

Samsung Galaxy S II (Sprint Epic 4G Touch): Hardware specs

Samsung Galaxy S II (Sprint Epic 4G Touch): Hardware specs

Our the Galaxy S II has a 1.2GHz dual-core processor, 1GB RAM, 16GB of storage, 8MP rear-facing camera, 2MP front-facing camera, and 4.52″ Super AMOLED Plus display (800×480 pixels).

Photo by: Bill Detwiler / TechRepublic

Caption by: Bill Detwiler

Cracking Open the Samsung Galaxy S II (Sprint Epic 4G Touch)

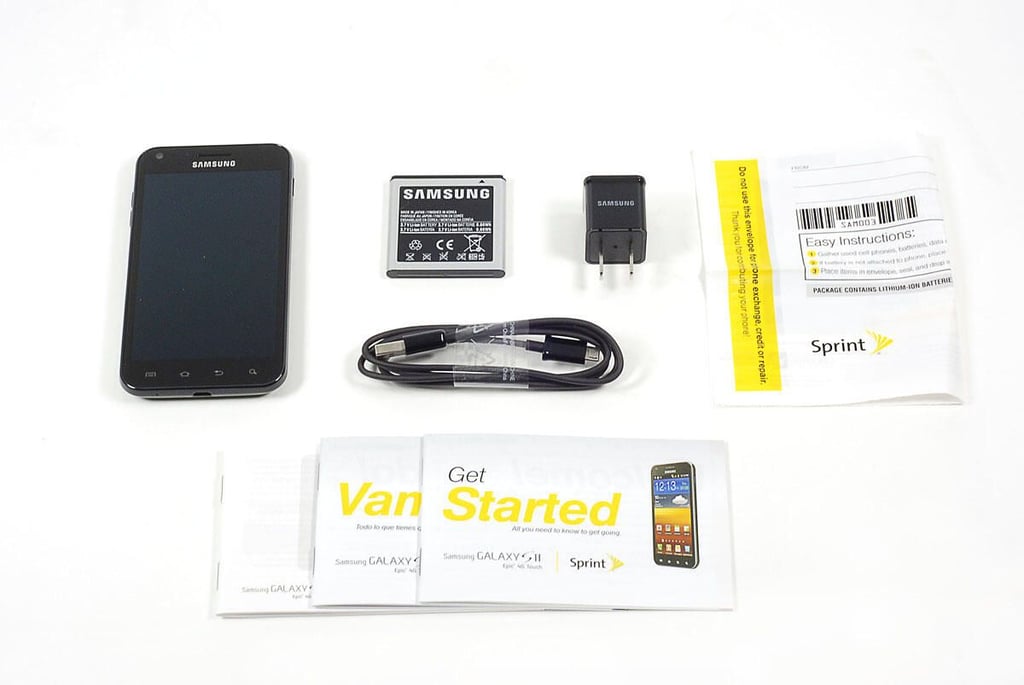

Samsung Galaxy S II (Sprint Epic 4G Touch): Box contents

Samsung Galaxy S II (Sprint Epic 4G Touch): Box contents

ntInside the Galaxy S II’s box, you’ll find the device itself (includes removable back panel and battery), USB cable, power adapter, and product documentation. There also prepaid plastic envelope that you can use to recycle your old phone.
nt
ntPhoto by: Bill Detwiler / TechRepublic
ntCaption by: Bill Detwiler

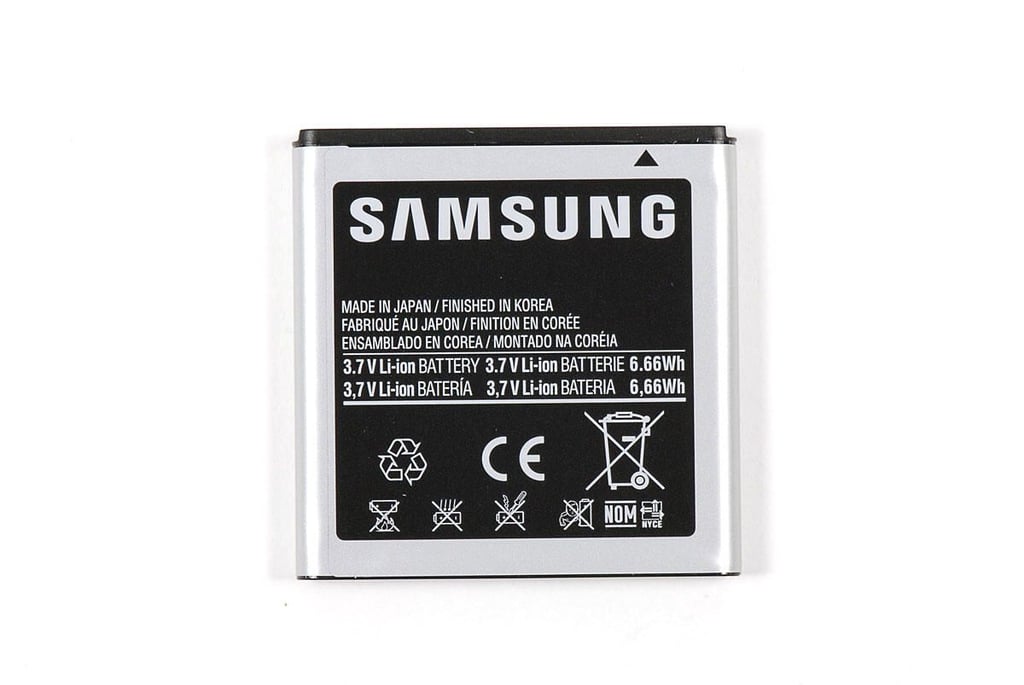

Cracking Open the Samsung Galaxy S II (Sprint Epic 4G Touch)

Samsung Galaxy S II (Sprint Epic 4G Touch): 3.7V, 1,800 mAh battery

Samsung Galaxy S II (Sprint Epic 4G Touch): 3.7V, 1,800 mAh battery

Cracking Open the Samsung Galaxy S II (Sprint Epic 4G Touch)

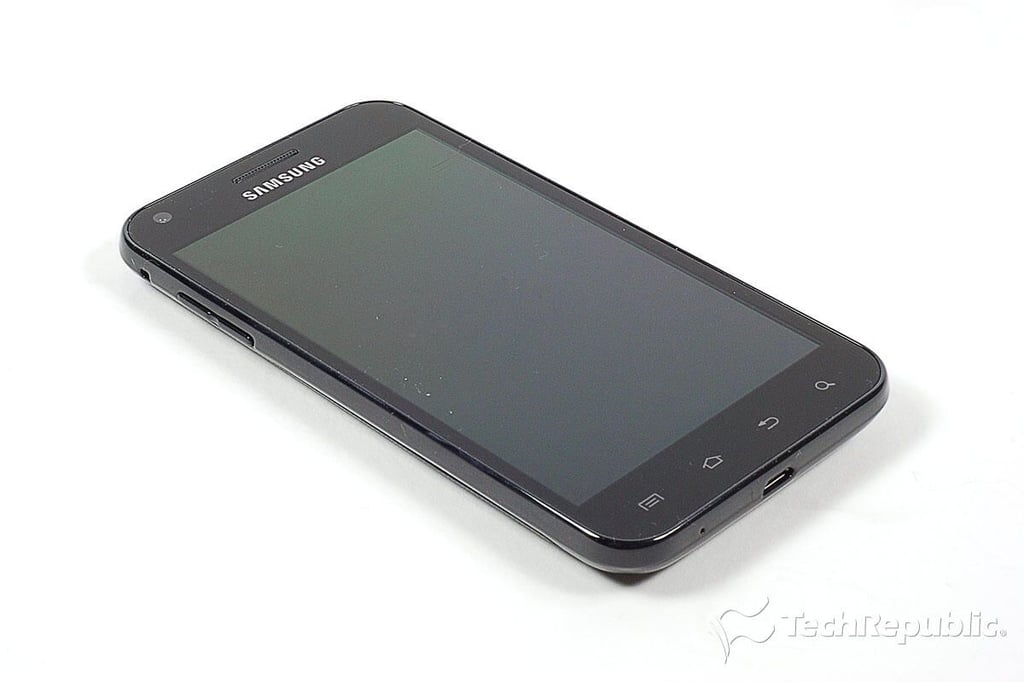

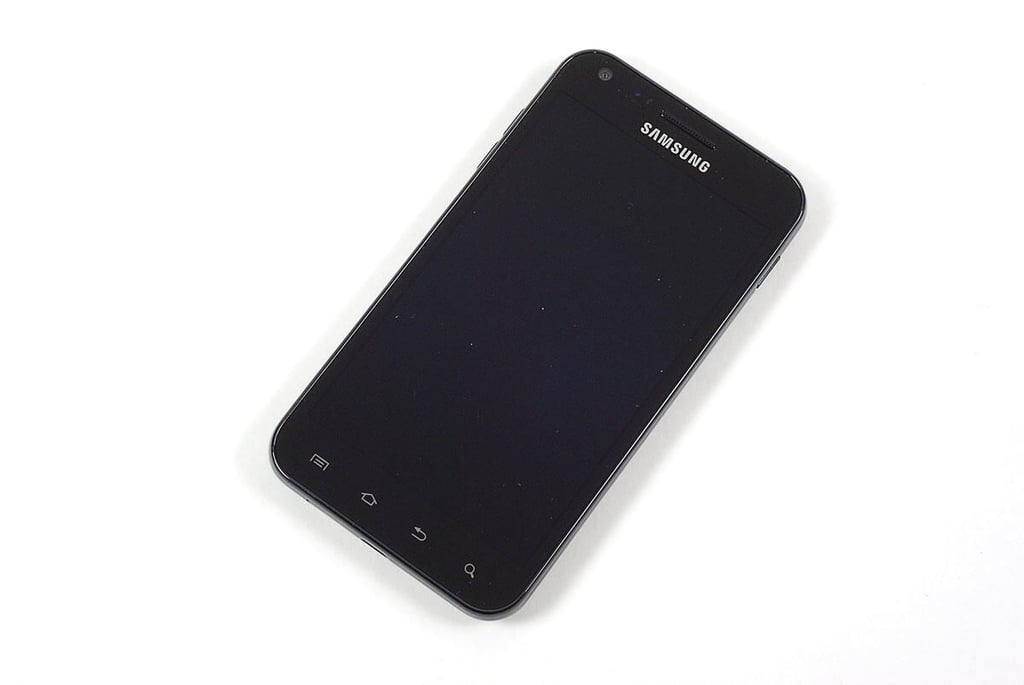

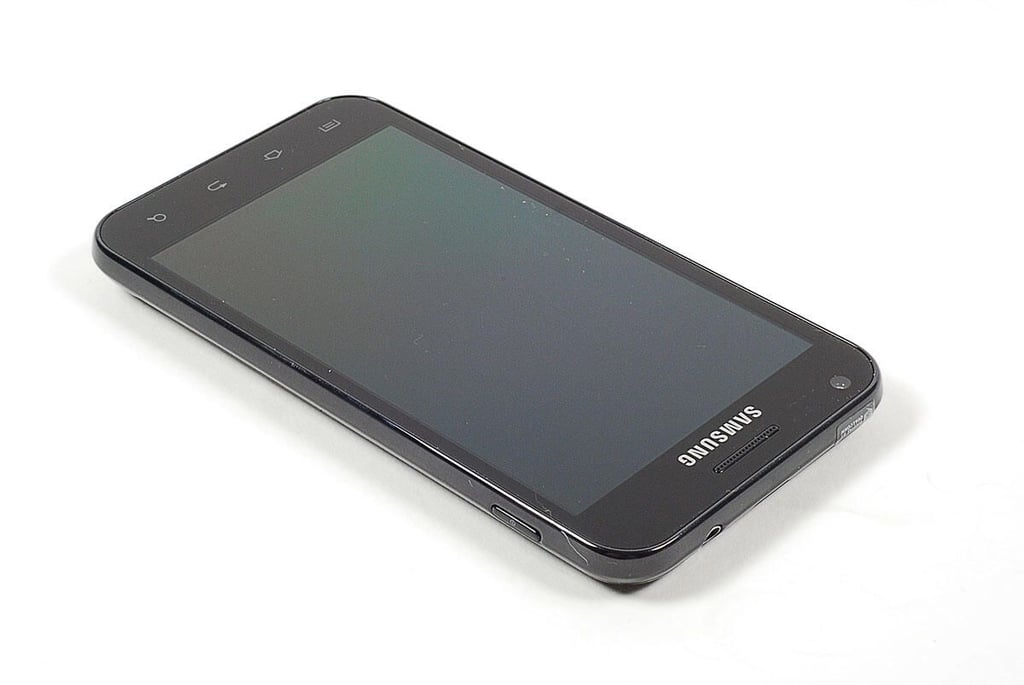

Samsung Galaxy S II (Sprint Epic 4G Touch): Front

Samsung Galaxy S II (Sprint Epic 4G Touch): Front

ntThe Galaxy S II measures 5.1″ (H) x 2.7″ (W) x 0.38″ (D). It weighs 4.6 ounces.
nt
ntPhoto by: Bill Detwiler / TechRepublic
ntCaption by: Bill Detwiler

Cracking Open the Samsung Galaxy S II (Sprint Epic 4G Touch)

Samsung Galaxy S II (Sprint Epic 4G Touch): Back

Samsung Galaxy S II (Sprint Epic 4G Touch): Back

Cracking Open the Samsung Galaxy S II (Sprint Epic 4G Touch)

Samsung Galaxy S II (Sprint Epic 4G Touch): Left and bottom edges

Samsung Galaxy S II (Sprint Epic 4G Touch): Left and bottom edges

Cracking Open the Samsung Galaxy S II (Sprint Epic 4G Touch)

Samsung Galaxy S II (Sprint Epic 4G Touch): Top and right edges

Samsung Galaxy S II (Sprint Epic 4G Touch): Top and right edges

Cracking Open the Samsung Galaxy S II (Sprint Epic 4G Touch)

Samsung Galaxy S II (Sprint Epic 4G Touch): Removing the battery compartment cover

Samsung Galaxy S II (Sprint Epic 4G Touch): Removing the battery compartment cover

Cracking Open the Samsung Galaxy S II (Sprint Epic 4G Touch)

Samsung Galaxy S II (Sprint Epic 4G Touch): Battery compartment cover removed

Samsung Galaxy S II (Sprint Epic 4G Touch): Battery compartment cover removed

Cracking Open the Samsung Galaxy S II (Sprint Epic 4G Touch)

Samsung Galaxy S II (Sprint Epic 4G Touch): Removing the back cover screws

Samsung Galaxy S II (Sprint Epic 4G Touch): Removing the back cover screws

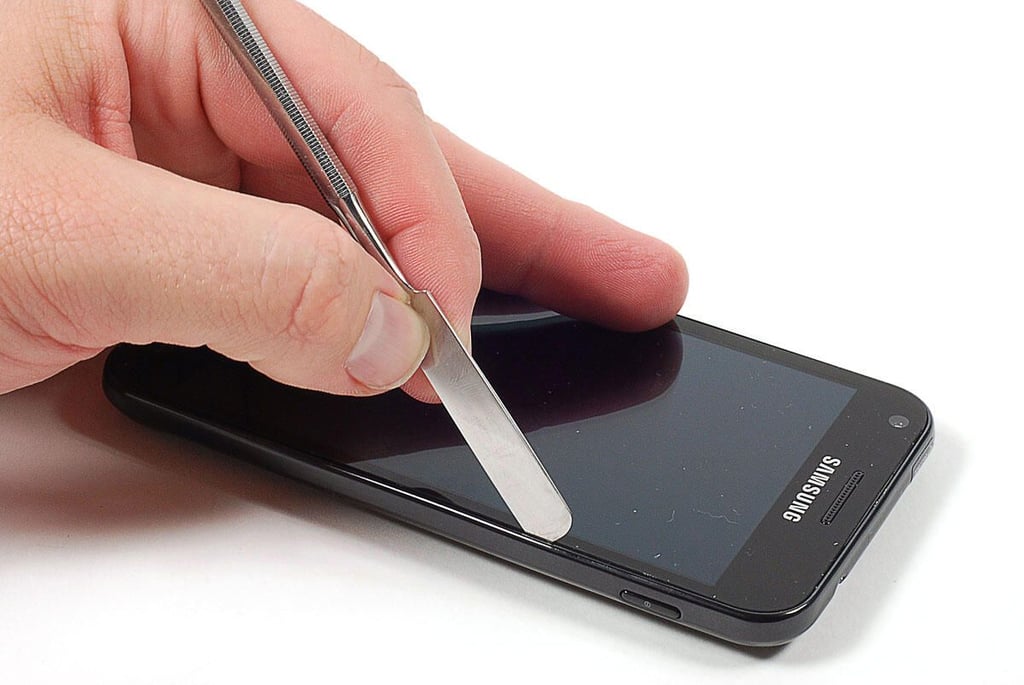

Cracking Open the Samsung Galaxy S II (Sprint Epic 4G Touch)

Samsung Galaxy S II (Sprint Epic 4G Touch): Separating the front panel assembly from the case

Samsung Galaxy S II (Sprint Epic 4G Touch): Separating the front panel assembly from the case

Cracking Open the Samsung Galaxy S II (Sprint Epic 4G Touch)

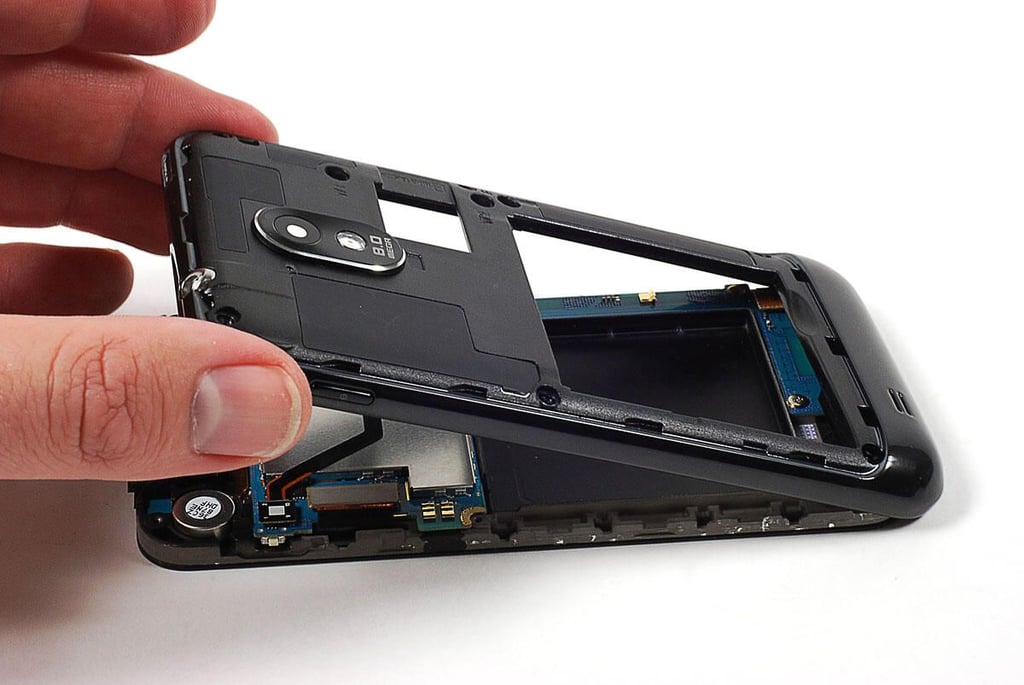

Samsung Galaxy S II (Sprint Epic 4G Touch): Removing the back cover

Samsung Galaxy S II (Sprint Epic 4G Touch): Removing the back cover

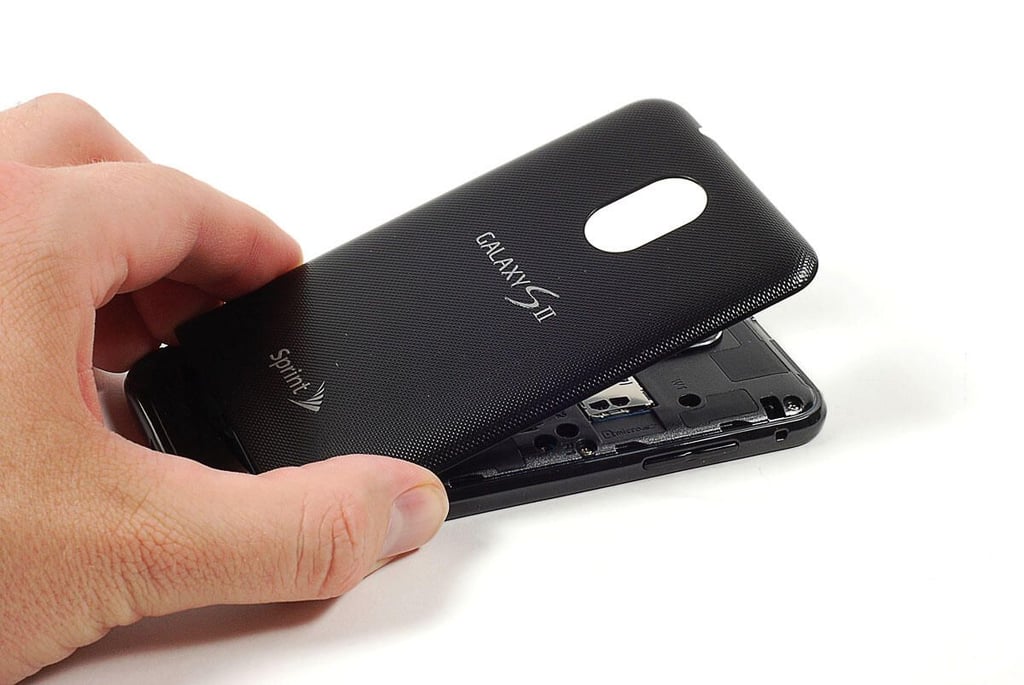

Cracking Open the Samsung Galaxy S II (Sprint Epic 4G Touch)

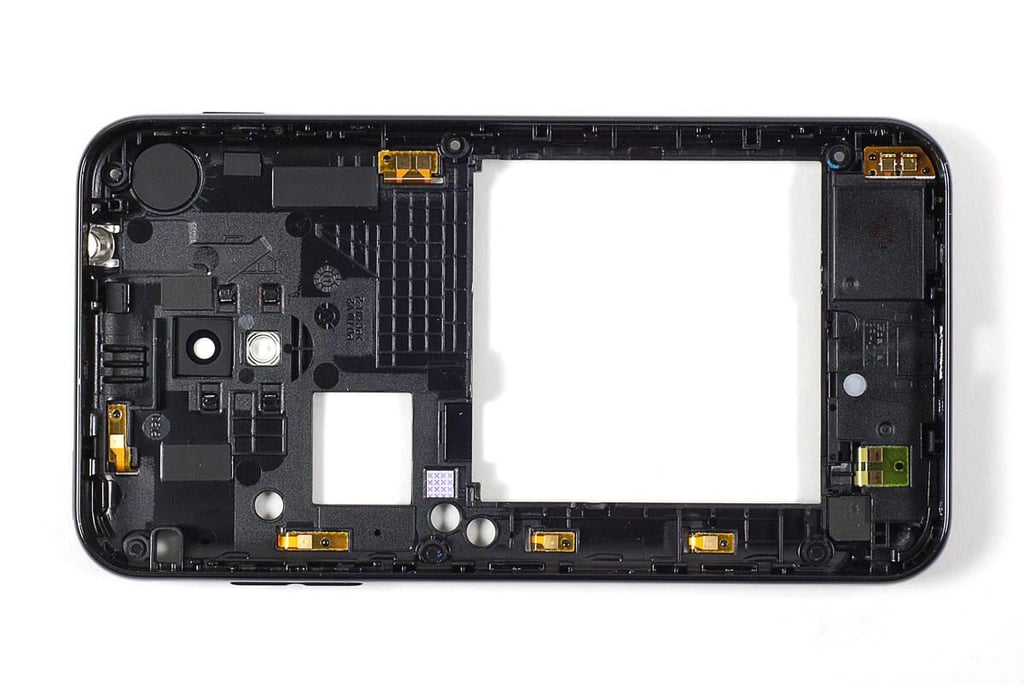

Samsung Galaxy S II (Sprint Epic 4G Touch): Back cover

Samsung Galaxy S II (Sprint Epic 4G Touch): Back cover

Cracking Open the Samsung Galaxy S II (Sprint Epic 4G Touch)

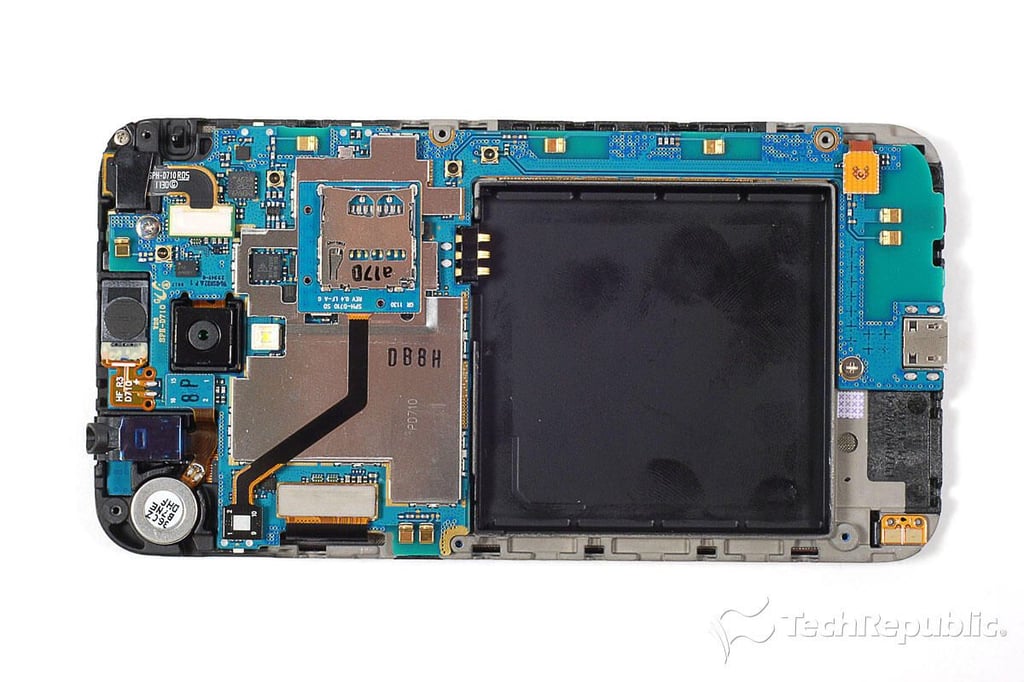

Samsung Galaxy S II (Sprint Epic 4G Touch): Internal hardware

Samsung Galaxy S II (Sprint Epic 4G Touch): Internal hardware

Cracking Open the Samsung Galaxy S II (Sprint Epic 4G Touch)

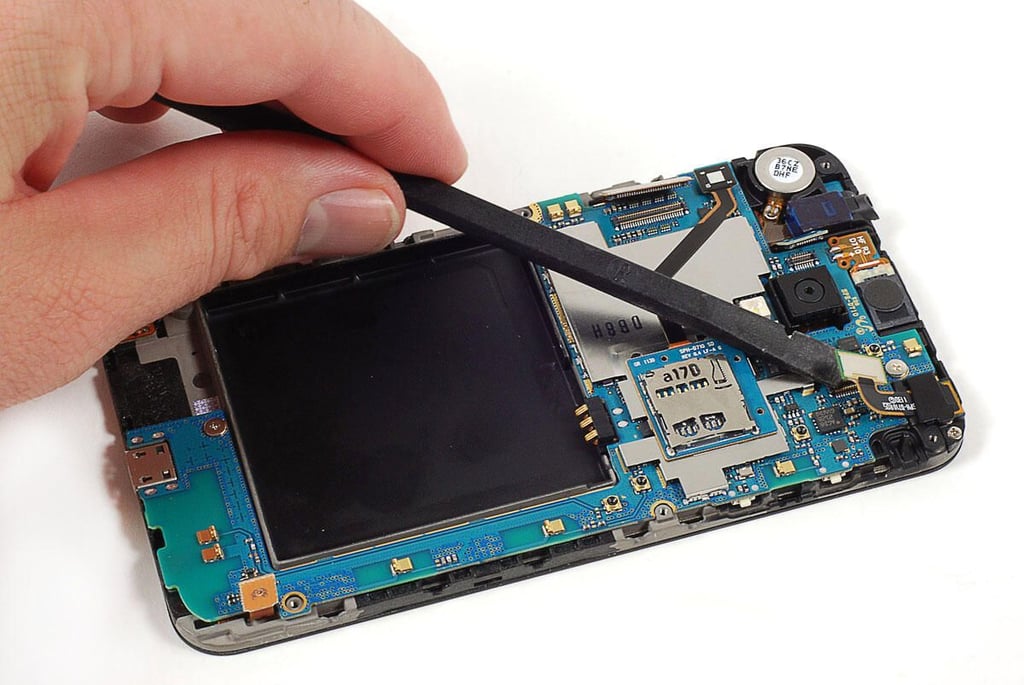

Samsung Galaxy S II (Sprint Epic 4G Touch): Detaching the motherboard connectors

Samsung Galaxy S II (Sprint Epic 4G Touch): Detaching the motherboard connectors

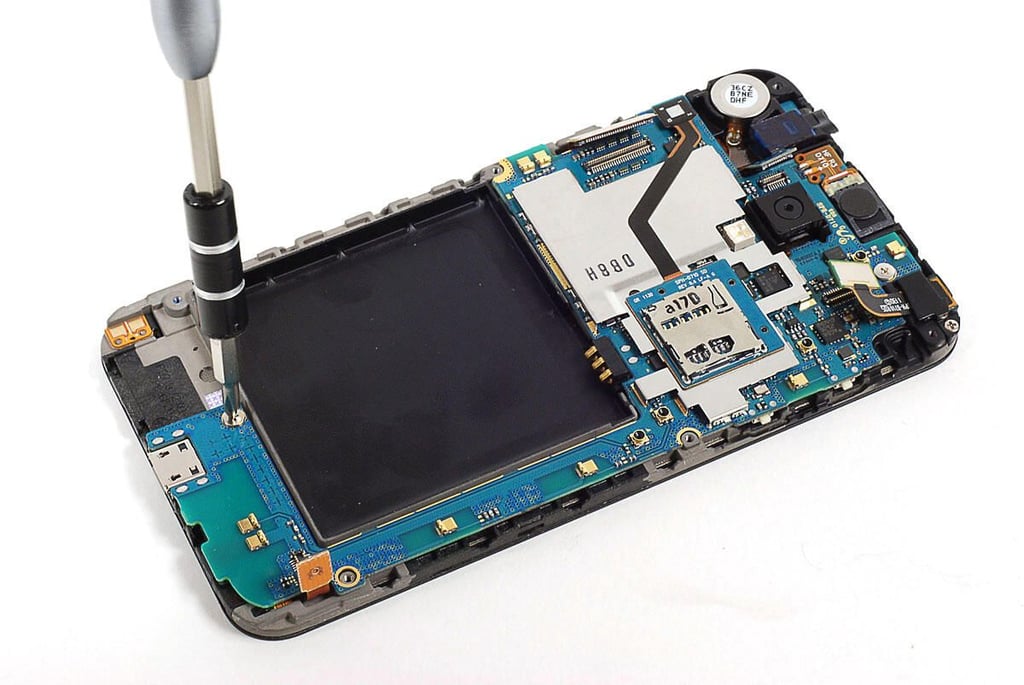

Cracking Open the Samsung Galaxy S II (Sprint Epic 4G Touch)

Samsung Galaxy S II (Sprint Epic 4G Touch): Remvoing the motherboard screws

Samsung Galaxy S II (Sprint Epic 4G Touch): Remvoing the motherboard screws

Cracking Open the Samsung Galaxy S II (Sprint Epic 4G Touch)

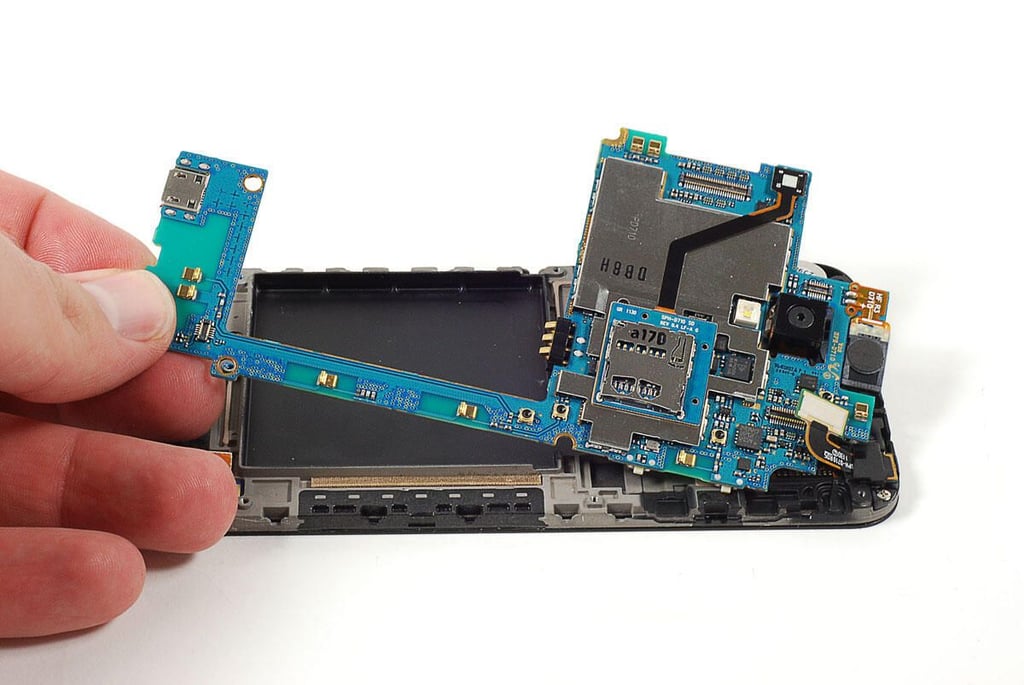

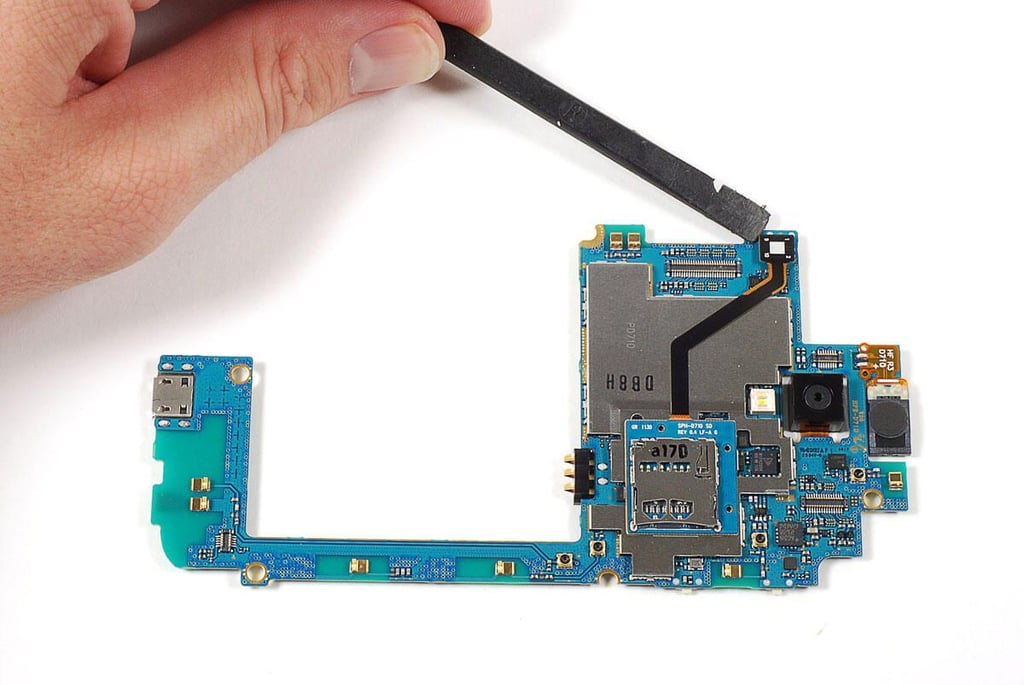

Samsung Galaxy S II (Sprint Epic 4G Touch): Removing the motherboad

Samsung Galaxy S II (Sprint Epic 4G Touch): Removing the motherboad

Cracking Open the Samsung Galaxy S II (Sprint Epic 4G Touch)

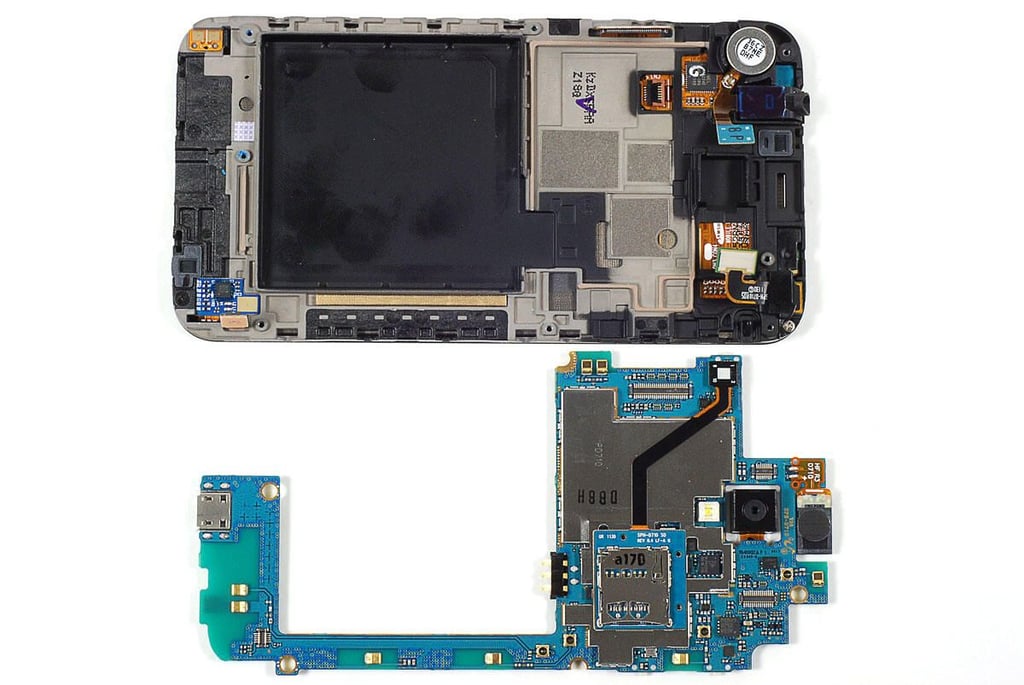

Samsung Galaxy S II (Sprint Epic 4G Touch): Motherboard and front panel assembly

Samsung Galaxy S II (Sprint Epic 4G Touch): Motherboard and front panel assembly

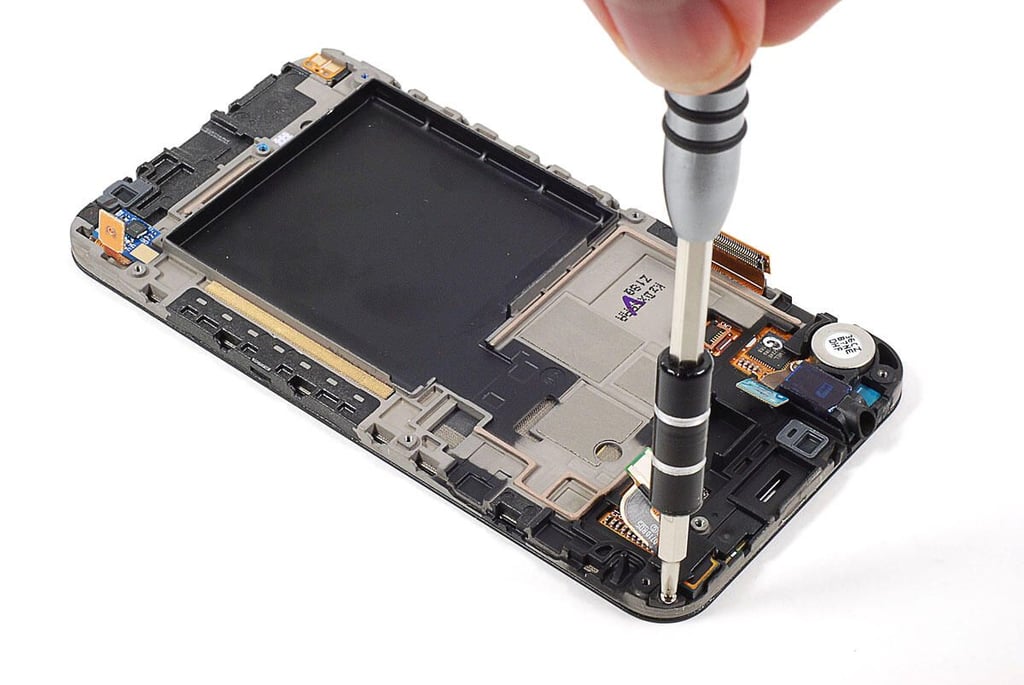

Cracking Open the Samsung Galaxy S II (Sprint Epic 4G Touch)

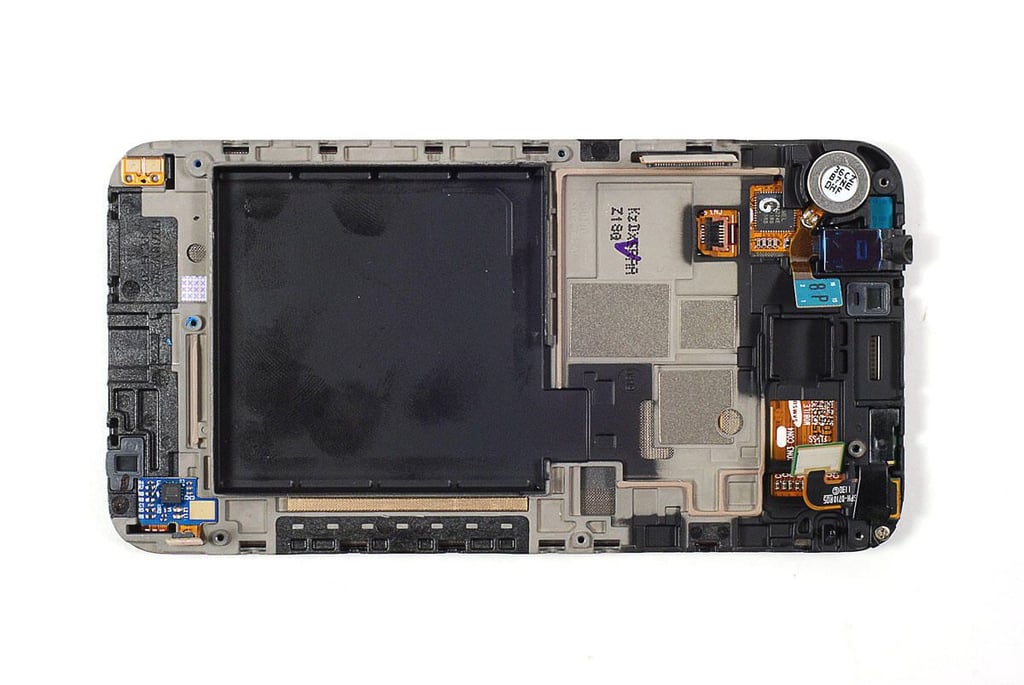

Samsung Galaxy S II (Sprint Epic 4G Touch): Front panel assembly

Samsung Galaxy S II (Sprint Epic 4G Touch): Front panel assembly

Cracking Open the Samsung Galaxy S II (Sprint Epic 4G Touch)

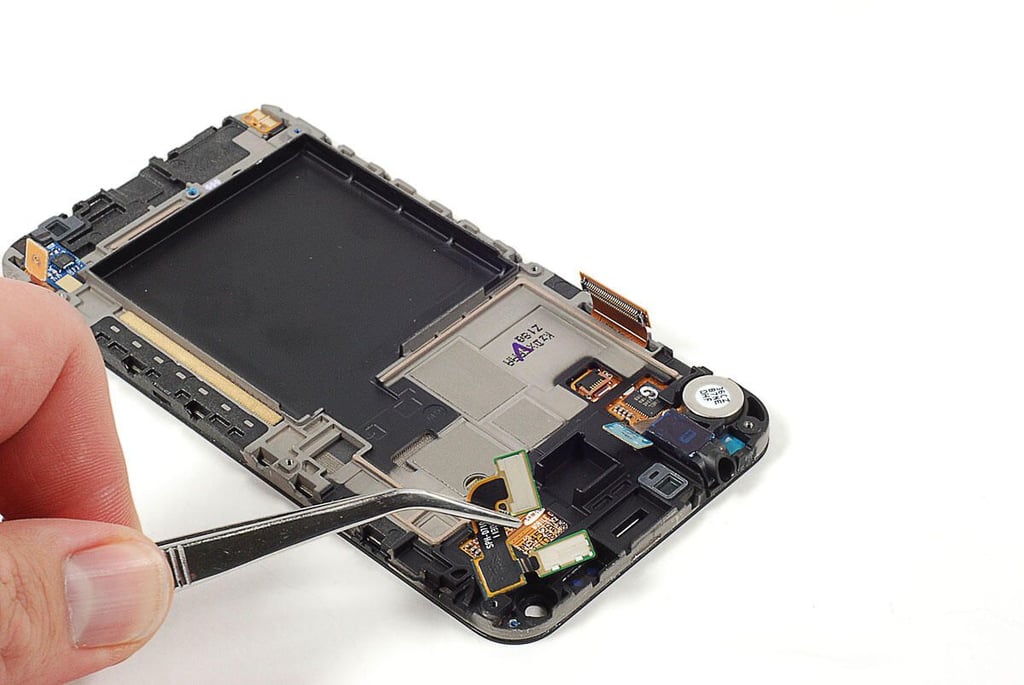

Samsung Galaxy S II (Sprint Epic 4G Touch): Remvoing the front camera bracket

Samsung Galaxy S II (Sprint Epic 4G Touch): Remvoing the front camera bracket

Cracking Open the Samsung Galaxy S II (Sprint Epic 4G Touch)

Samsung Galaxy S II (Sprint Epic 4G Touch): Removing the front camera, ambient light sensor, and proximity sensor assembly

Samsung Galaxy S II (Sprint Epic 4G Touch): Removing the front camera, ambient light sensor, and proximity sensor assembly

Cracking Open the Samsung Galaxy S II (Sprint Epic 4G Touch)

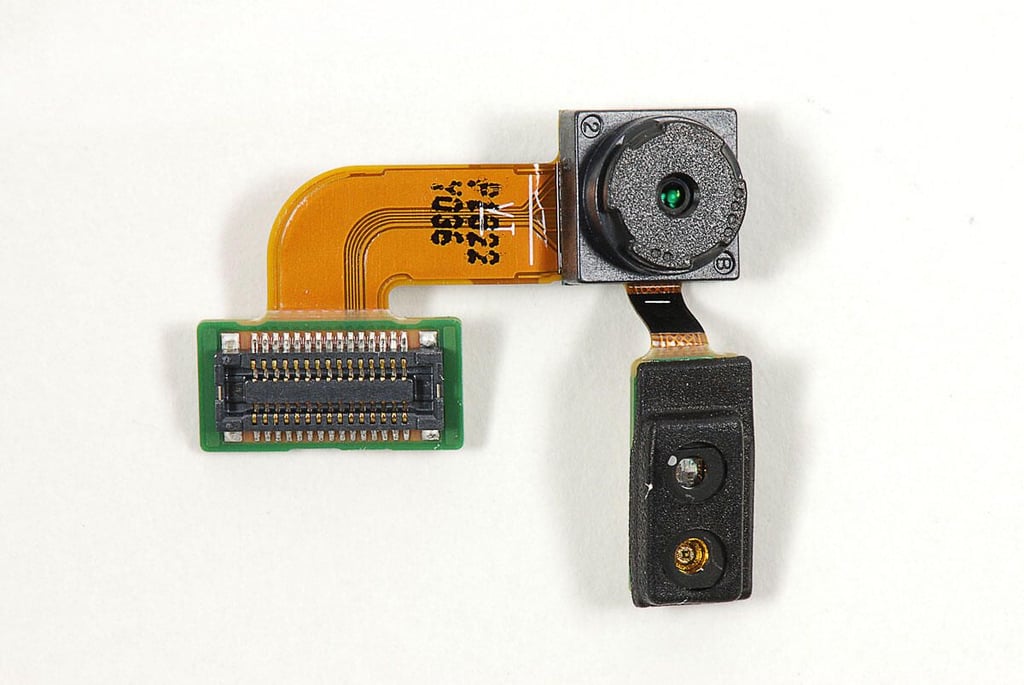

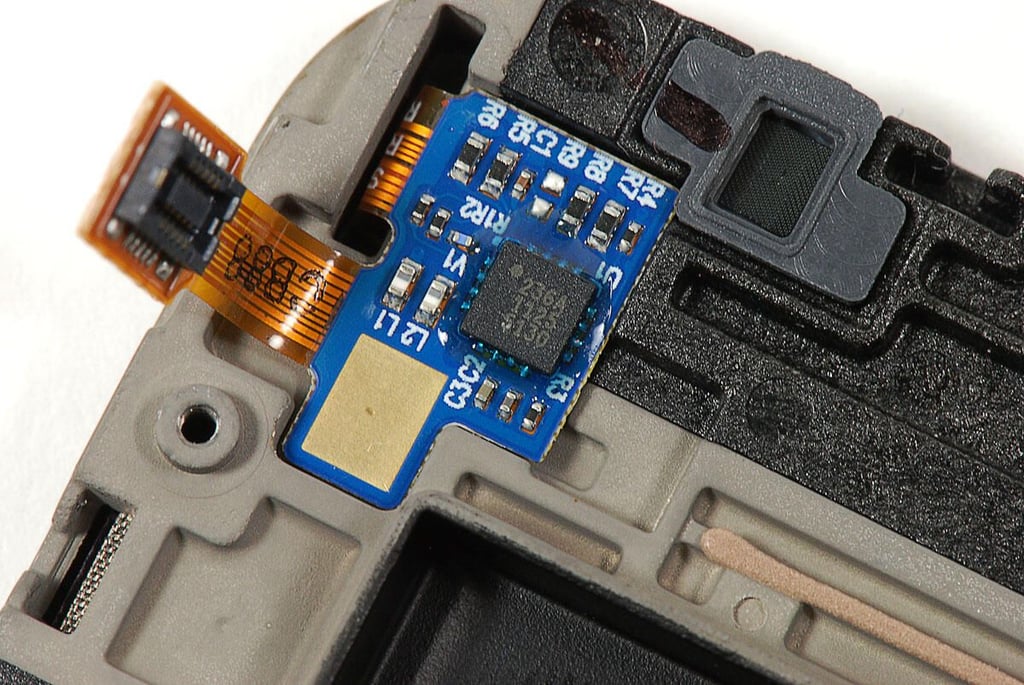

Samsung Galaxy S II (Sprint Epic 4G Touch): Front camera, ambient light sensor, and proximity sensor assembly

Samsung Galaxy S II (Sprint Epic 4G Touch): Front camera, ambient light sensor, and proximity sensor assembly

Cracking Open the Samsung Galaxy S II (Sprint Epic 4G Touch)

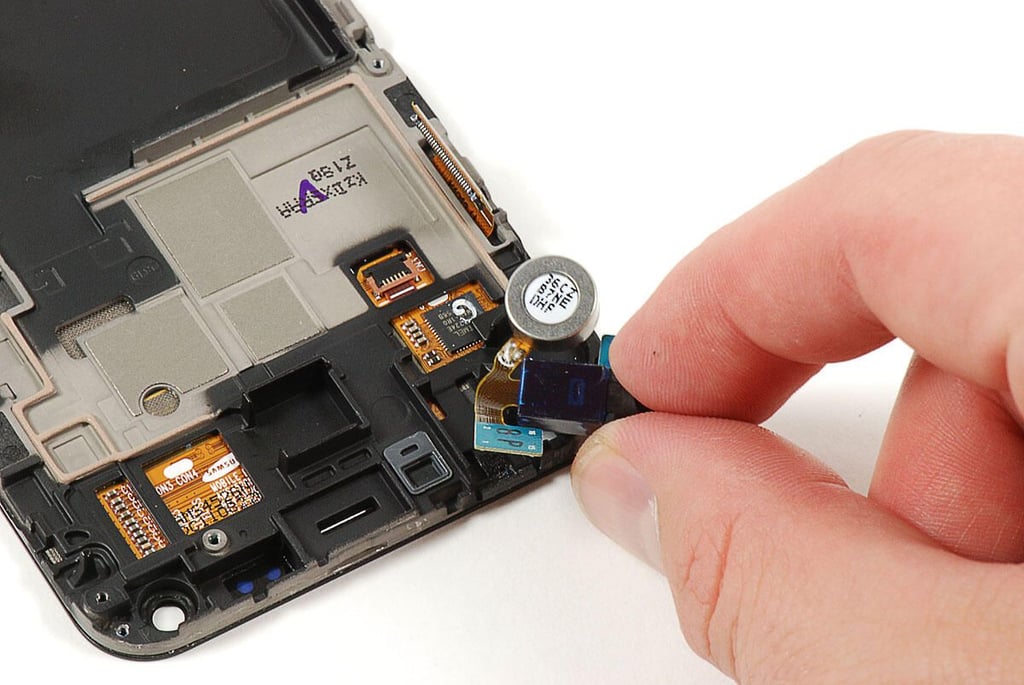

Samsung Galaxy S II (Sprint Epic 4G Touch): Removing the 3.5mm headphone jack and vibration motor

Samsung Galaxy S II (Sprint Epic 4G Touch): Removing the 3.5mm headphone jack and vibration motor

Cracking Open the Samsung Galaxy S II (Sprint Epic 4G Touch)

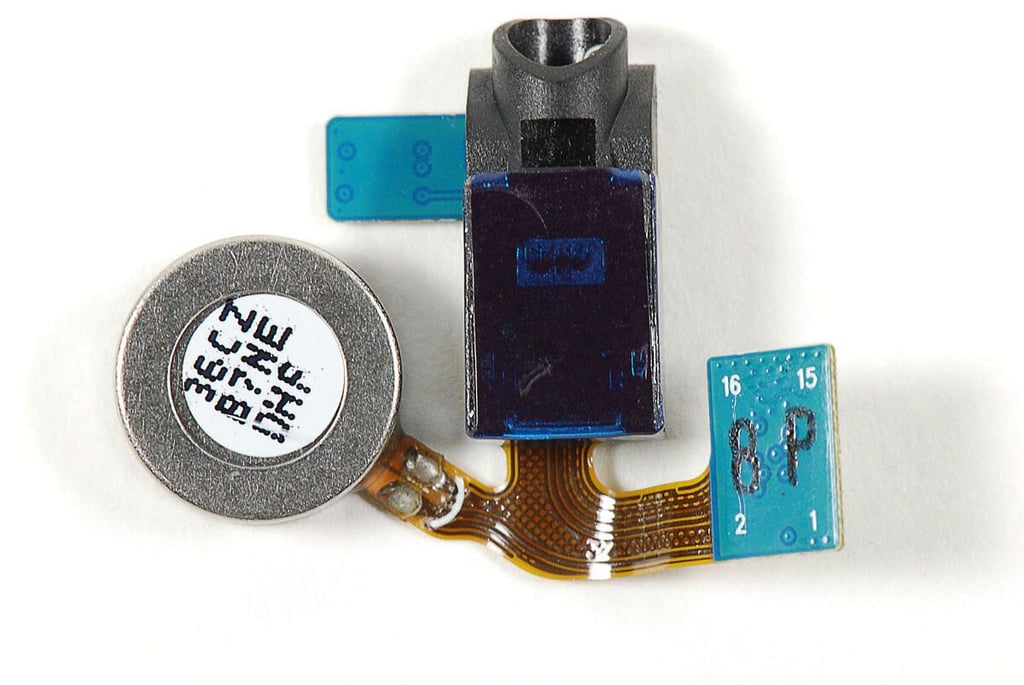

Samsung Galaxy S II (Sprint Epic 4G Touch): 3.5mm headphone jack and vibration motor

Samsung Galaxy S II (Sprint Epic 4G Touch): 3.5mm headphone jack and vibration motor

Cracking Open the Samsung Galaxy S II (Sprint Epic 4G Touch)

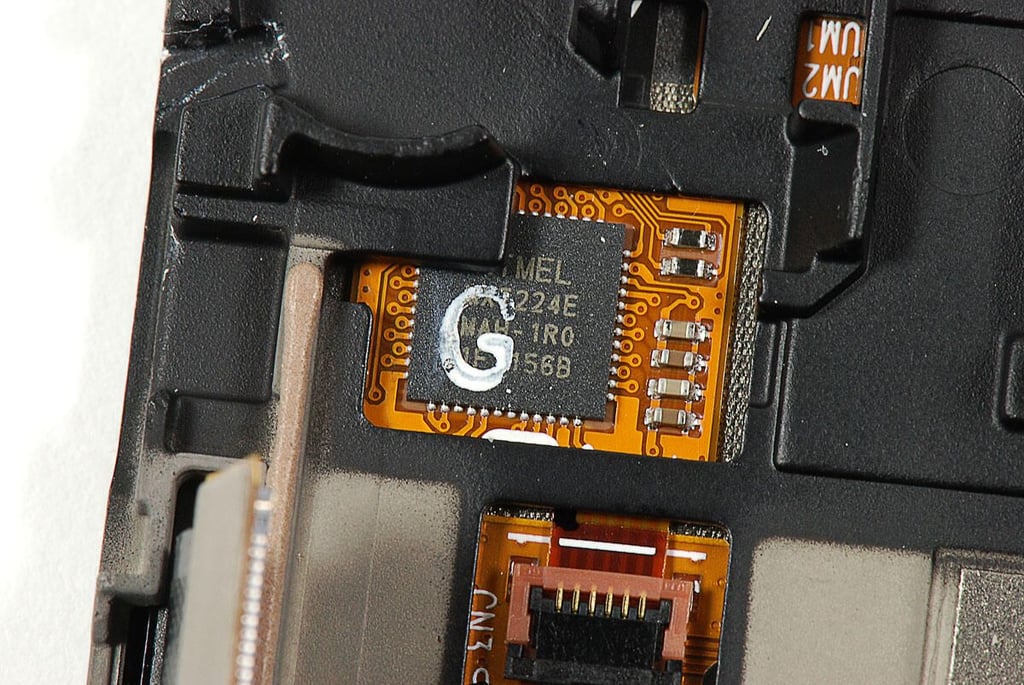

Samsung Galaxy S II (Sprint Epic 4G Touch): Atmel maXTouch mXT224E mutual capacitance touchscreen controller

Samsung Galaxy S II (Sprint Epic 4G Touch): Atmel maXTouch mXT224E mutual capacitance touchscreen controller

Cracking Open the Samsung Galaxy S II (Sprint Epic 4G Touch)

Samsung Galaxy S II (Sprint Epic 4G Touch): 236A 1125 5130

Samsung Galaxy S II (Sprint Epic 4G Touch): 236A 1125 5130

Cracking Open the Samsung Galaxy S II (Sprint Epic 4G Touch)

Samsung Galaxy S II (Sprint Epic 4G Touch): Disconnecting the microSD card slot from the motherboard

Samsung Galaxy S II (Sprint Epic 4G Touch): Disconnecting the microSD card slot from the motherboard

Cracking Open the Samsung Galaxy S II (Sprint Epic 4G Touch)

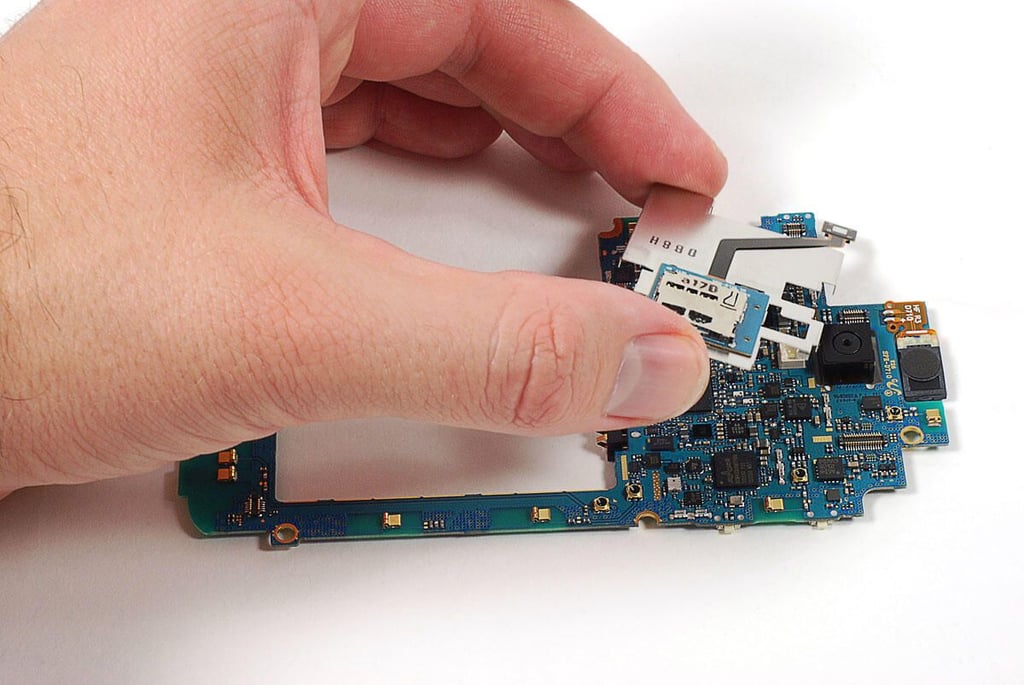

Samsung Galaxy S II (Sprint Epic 4G Touch): Removing the EMI shield and miroSD card slot

Samsung Galaxy S II (Sprint Epic 4G Touch): Removing the EMI shield and miroSD card slot

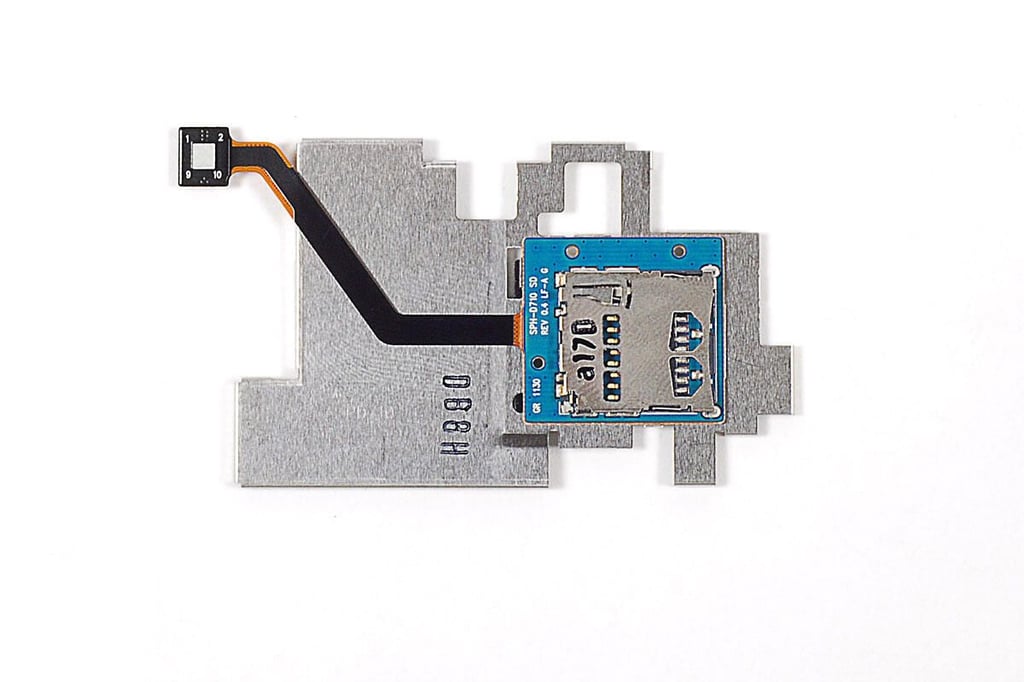

Cracking Open the Samsung Galaxy S II (Sprint Epic 4G Touch)

Samsung Galaxy S II (Sprint Epic 4G Touch): EMI shield and microSD card slot

Samsung Galaxy S II (Sprint Epic 4G Touch): EMI shield and microSD card slot

Cracking Open the Samsung Galaxy S II (Sprint Epic 4G Touch)

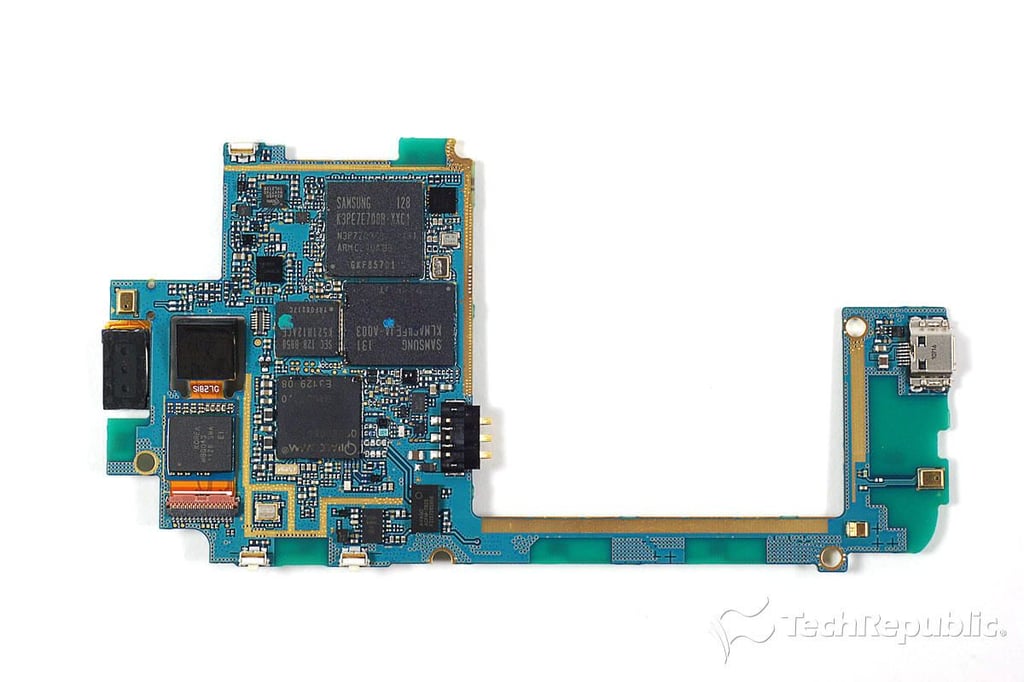

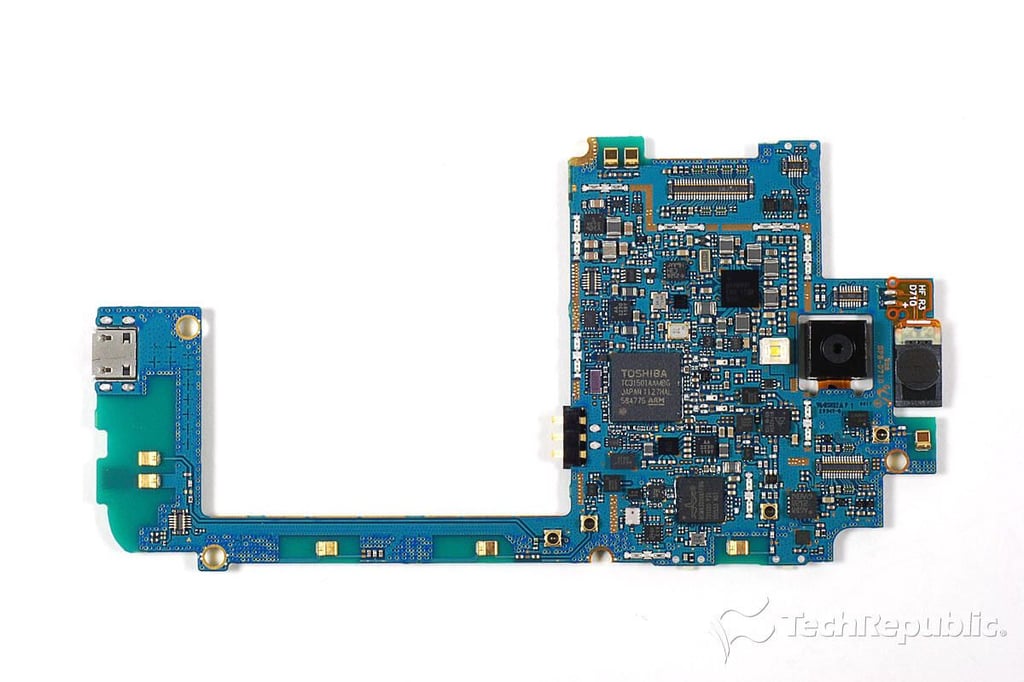

Samsung Galaxy S II (Sprint Epic 4G Touch): Motherboard - Bottom

Samsung Galaxy S II (Sprint Epic 4G Touch): Motherboard - Bottom

Cracking Open the Samsung Galaxy S II (Sprint Epic 4G Touch)

Samsung Galaxy S II (Sprint Epic 4G Touch): Motherboard - Top

Samsung Galaxy S II (Sprint Epic 4G Touch): Motherboard - Top

Cracking Open the Samsung Galaxy S II (Sprint Epic 4G Touch)

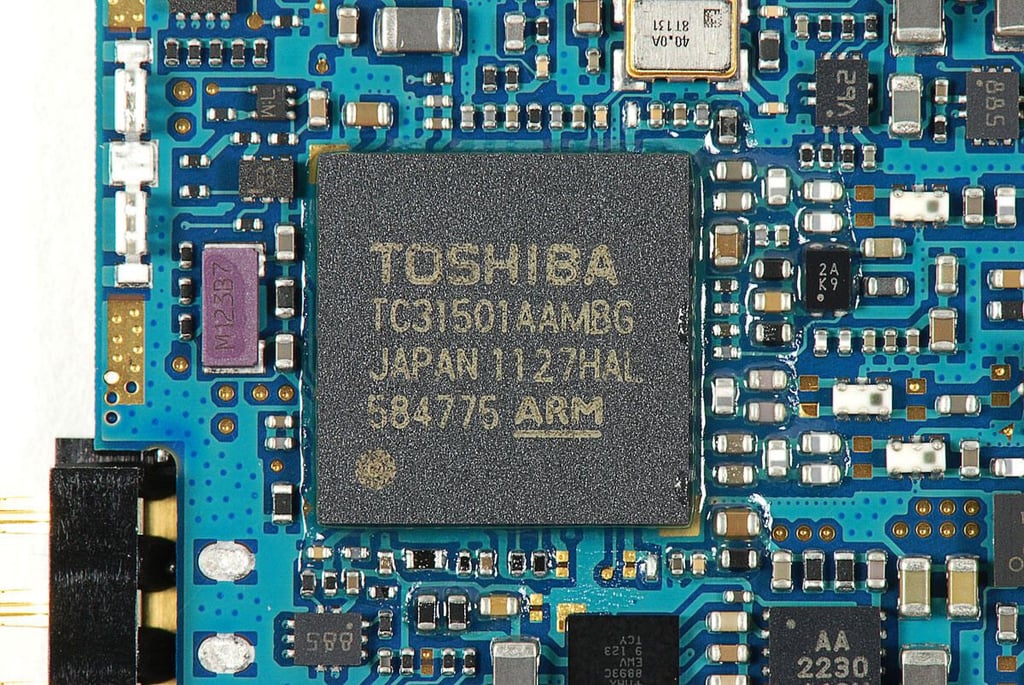

Samsung Galaxy S II (Sprint Epic 4G Touch): Toshiba TC31501AAMBG WiMax chip

Samsung Galaxy S II (Sprint Epic 4G Touch): Toshiba TC31501AAMBG WiMax chip

Cracking Open the Samsung Galaxy S II (Sprint Epic 4G Touch)

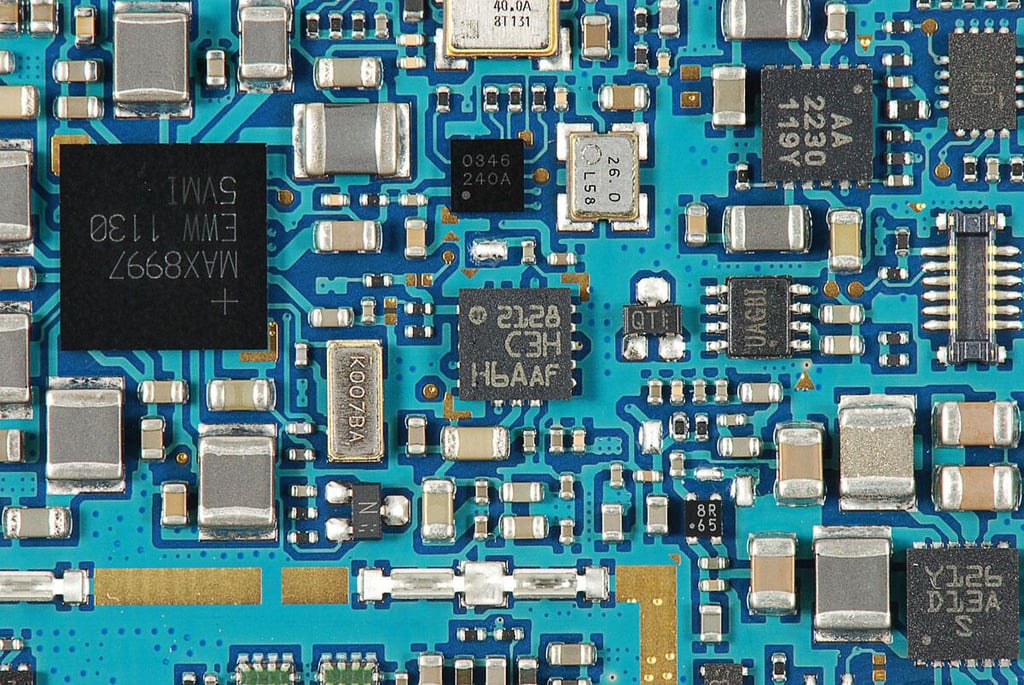

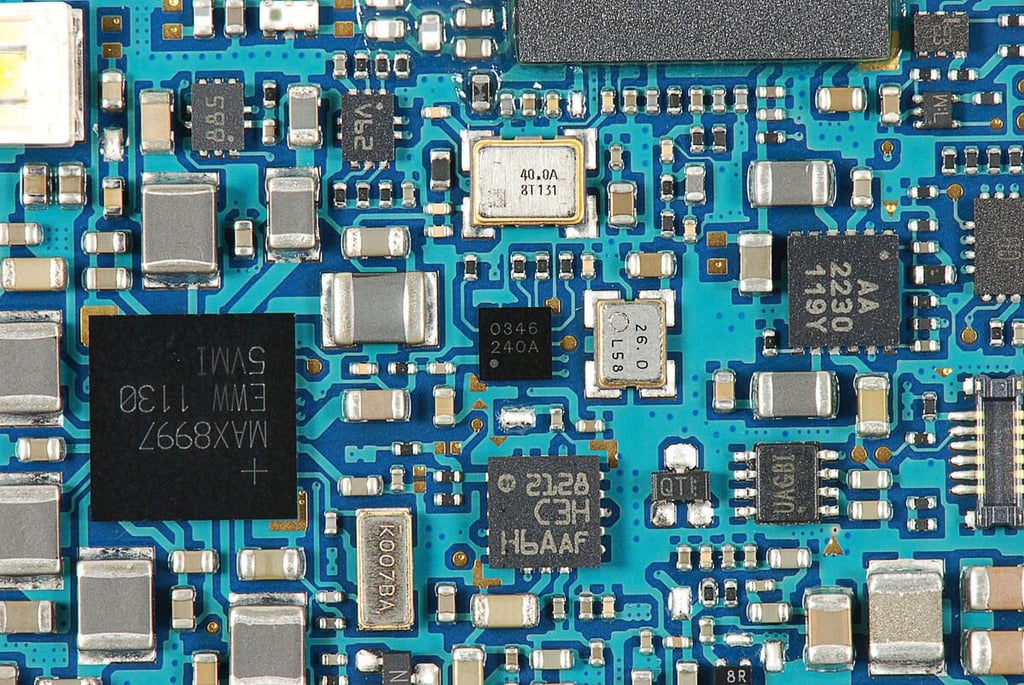

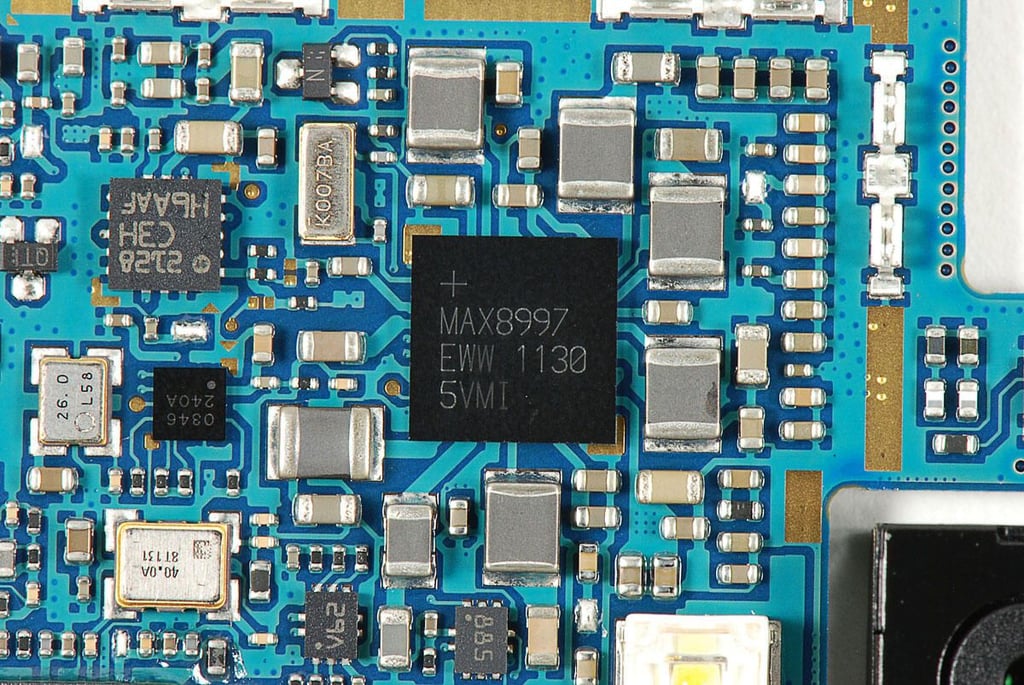

Samsung Galaxy S II (Sprint Epic 4G Touch): Maxim MAX8997 power-management IC for Samsung's Exynos 4210

Samsung Galaxy S II (Sprint Epic 4G Touch): Maxim MAX8997 power-management IC for Samsung's Exynos 4210

Cracking Open the Samsung Galaxy S II (Sprint Epic 4G Touch)

Samsung Galaxy S II (Sprint Epic 4G Touch): 2128 C3H H6AAF

Samsung Galaxy S II (Sprint Epic 4G Touch): 2128 C3H H6AAF

Cracking Open the Samsung Galaxy S II (Sprint Epic 4G Touch)

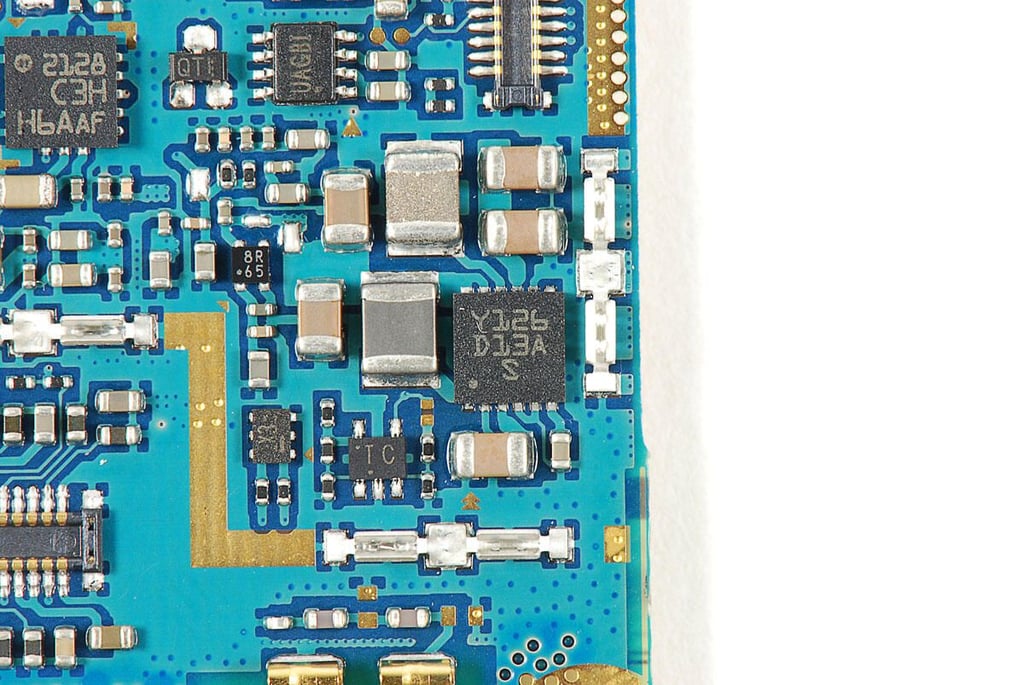

Samsung Galaxy S II (Sprint Epic 4G Touch): Y126 D13A S

Samsung Galaxy S II (Sprint Epic 4G Touch): Y126 D13A S

Cracking Open the Samsung Galaxy S II (Sprint Epic 4G Touch)

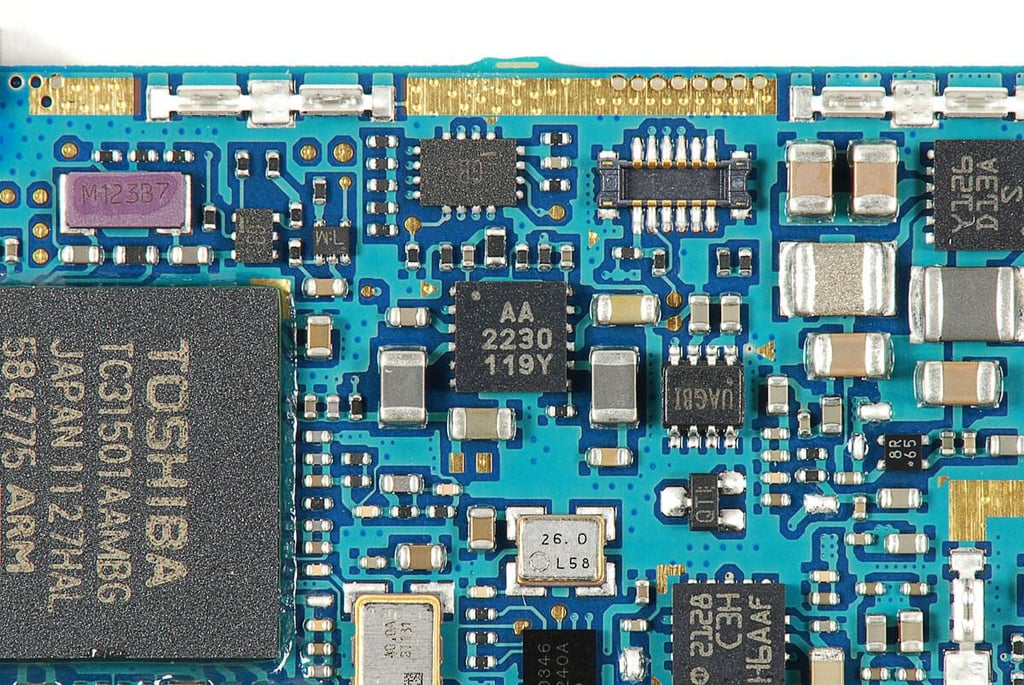

Samsung Galaxy S II (Sprint Epic 4G Touch): AA 2230 119Y

Samsung Galaxy S II (Sprint Epic 4G Touch): AA 2230 119Y

Cracking Open the Samsung Galaxy S II (Sprint Epic 4G Touch)

Samsung Galaxy S II (Sprint Epic 4G Touch): 0346 240A

Samsung Galaxy S II (Sprint Epic 4G Touch): 0346 240A

Cracking Open the Samsung Galaxy S II (Sprint Epic 4G Touch)

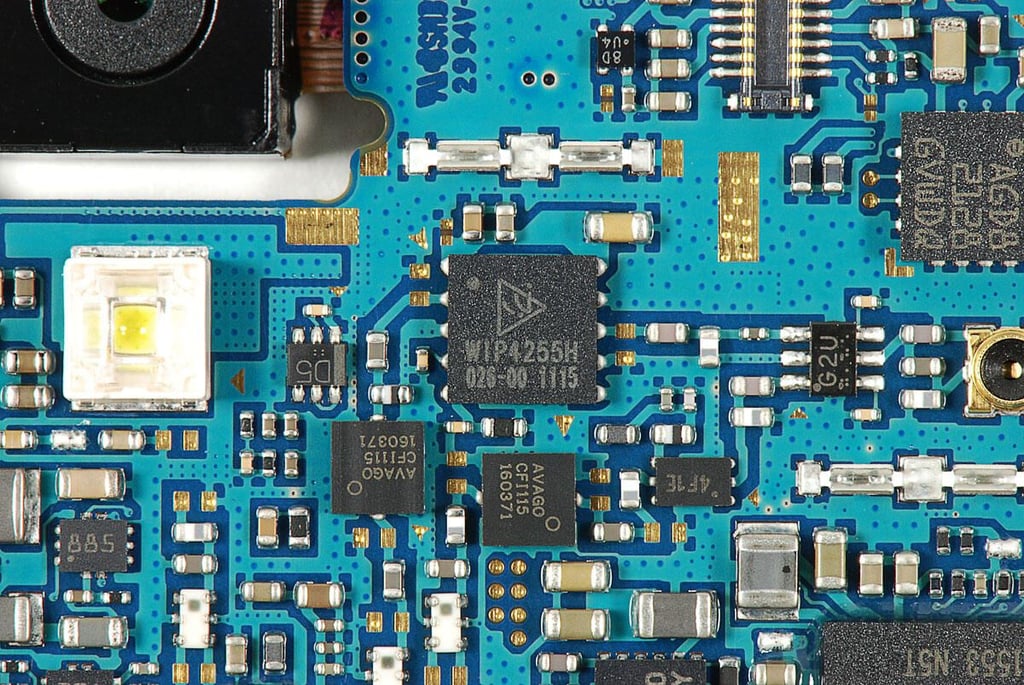

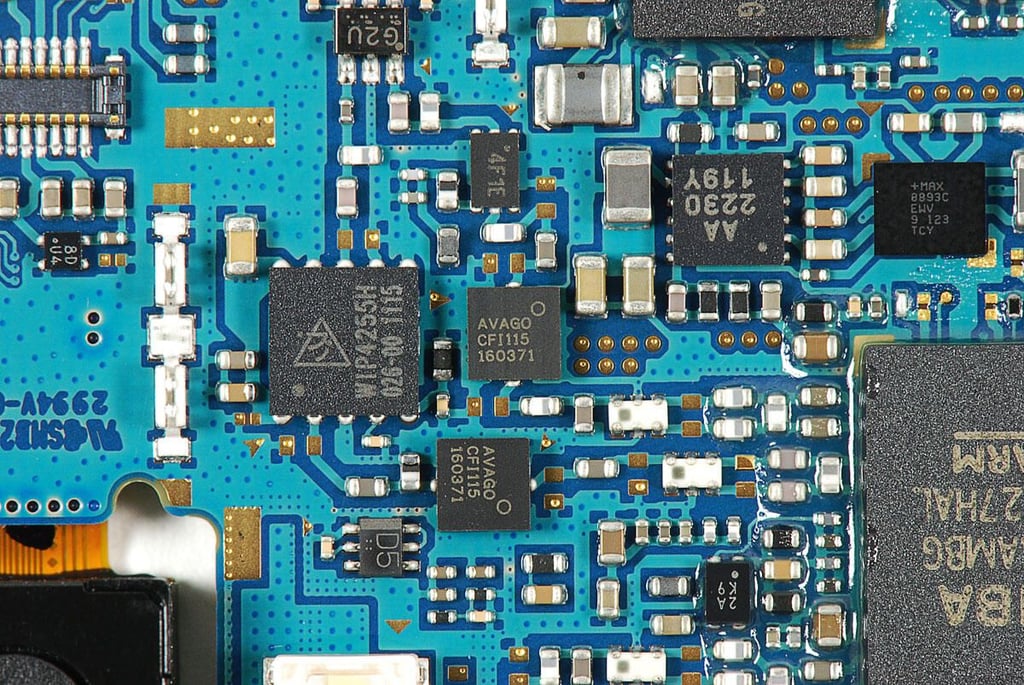

Samsung Galaxy S II (Sprint Epic 4G Touch): WIP4255H 026-00 1115

Samsung Galaxy S II (Sprint Epic 4G Touch): WIP4255H 026-00 1115

Cracking Open the Samsung Galaxy S II (Sprint Epic 4G Touch)

Samsung Galaxy S II (Sprint Epic 4G Touch): Avago CFI115 160371

Samsung Galaxy S II (Sprint Epic 4G Touch): Avago CFI115 160371

Cracking Open the Samsung Galaxy S II (Sprint Epic 4G Touch)

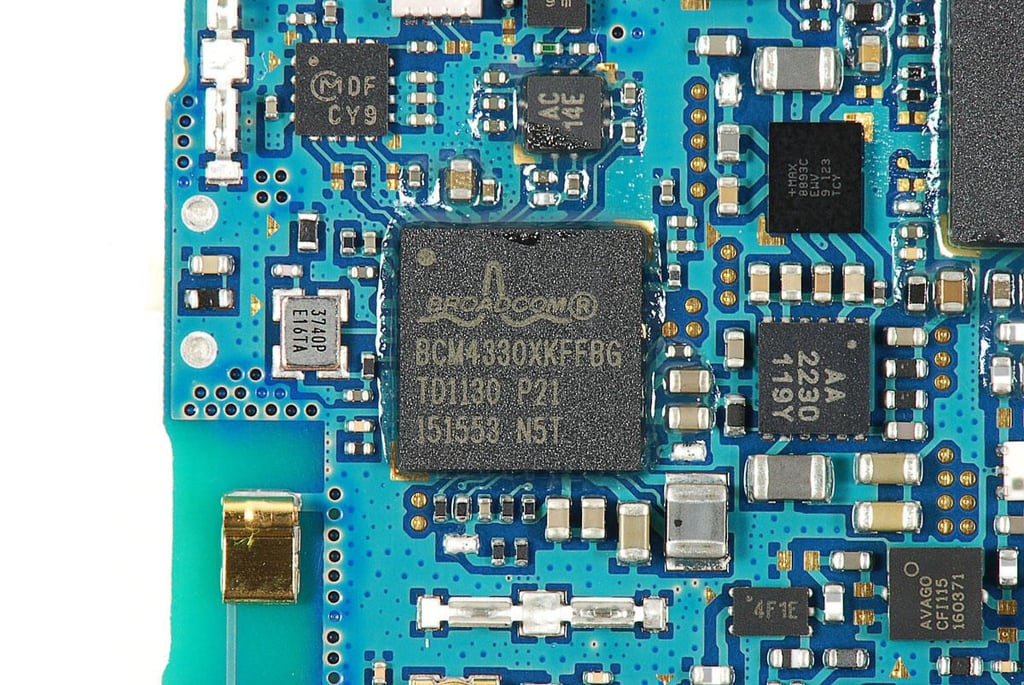

Samsung Galaxy S II (Sprint Epic 4G Touch): Broadcom BCM4330 802.11a/b/g/n MAC/Baseband/Radio with Integrated Bluetooth 4.0+HS and FM Transceiver

Samsung Galaxy S II (Sprint Epic 4G Touch): Broadcom BCM4330 802.11a/b/g/n MAC/Baseband/Radio with Integrated Bluetooth 4.0+HS and FM Transceiver

Cracking Open the Samsung Galaxy S II (Sprint Epic 4G Touch)

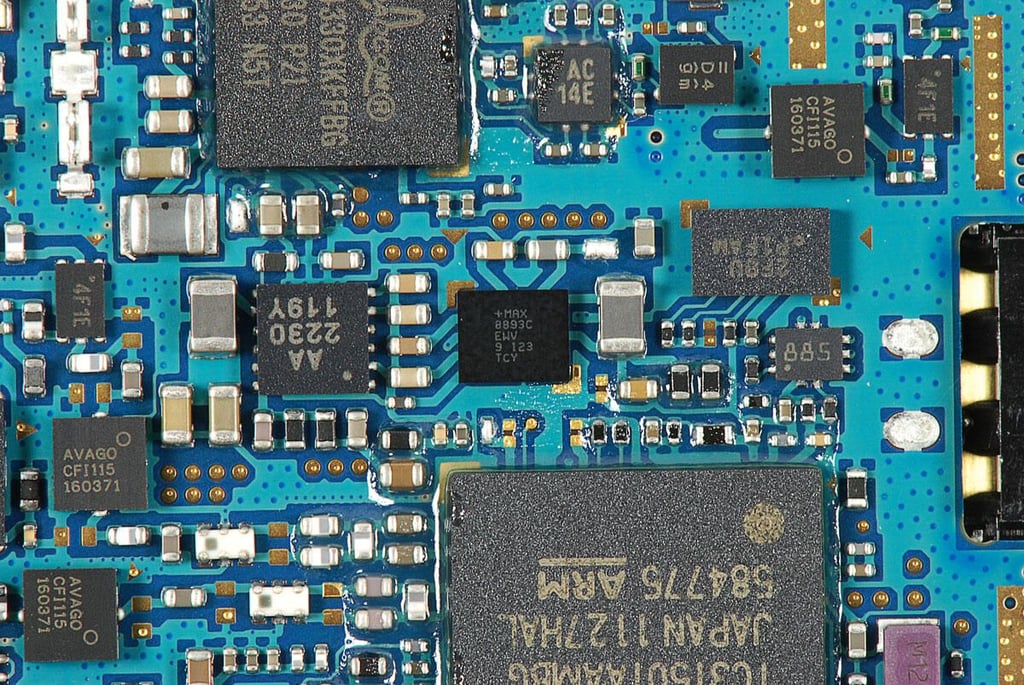

Samsung Galaxy S II (Sprint Epic 4G Touch): Maxim 8893C power-management IC

Samsung Galaxy S II (Sprint Epic 4G Touch): Maxim 8893C power-management IC

Cracking Open the Samsung Galaxy S II (Sprint Epic 4G Touch)

Samsung Galaxy S II (Sprint Epic 4G Touch): 8MP rear-facing camera

Samsung Galaxy S II (Sprint Epic 4G Touch): 8MP rear-facing camera

Cracking Open the Samsung Galaxy S II (Sprint Epic 4G Touch)

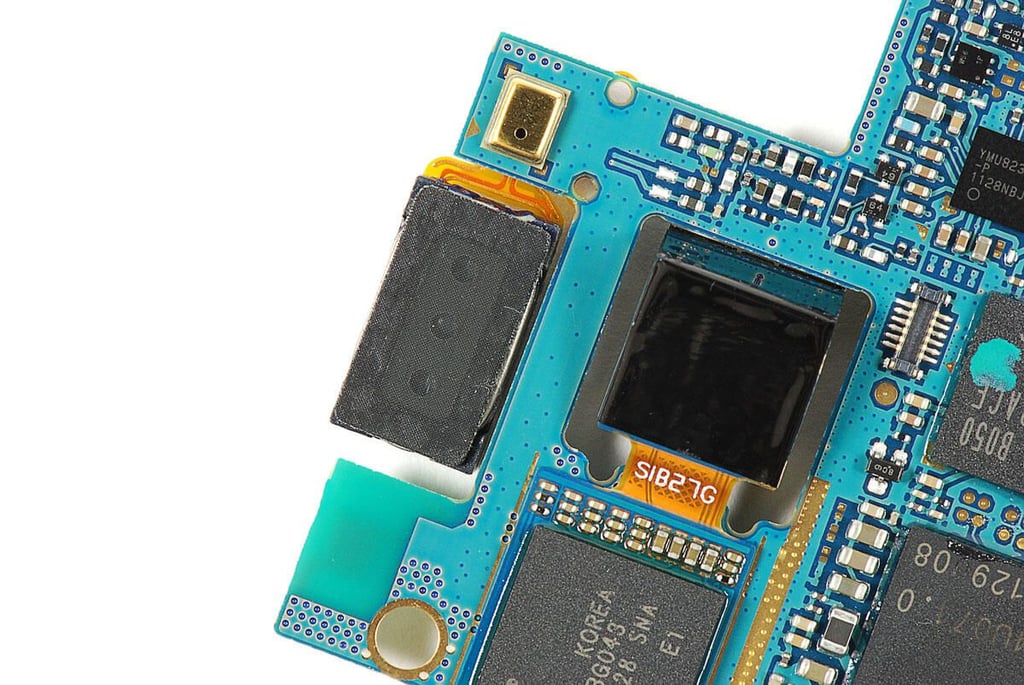

Samsung Galaxy S II (Sprint Epic 4G Touch): Front speaker

Samsung Galaxy S II (Sprint Epic 4G Touch): Front speaker

Cracking Open the Samsung Galaxy S II (Sprint Epic 4G Touch)

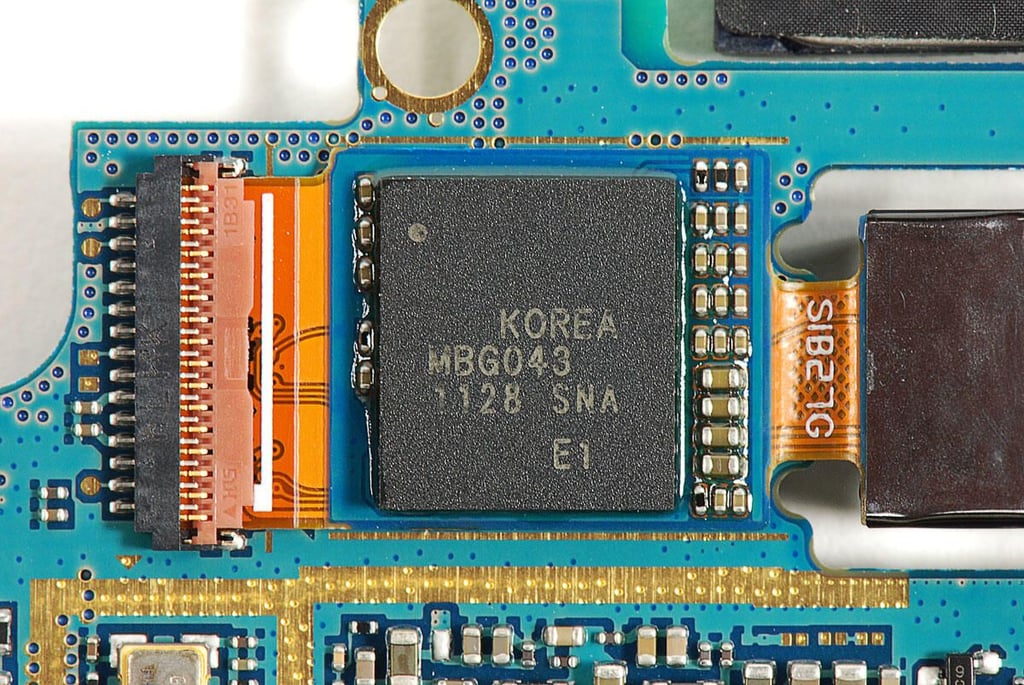

Samsung Galaxy S II (Sprint Epic 4G Touch): KOREA MBG043 1128 SNA E1 (8MP camera chip)

Samsung Galaxy S II (Sprint Epic 4G Touch): KOREA MBG043 1128 SNA E1 (8MP camera chip)

Cracking Open the Samsung Galaxy S II (Sprint Epic 4G Touch)

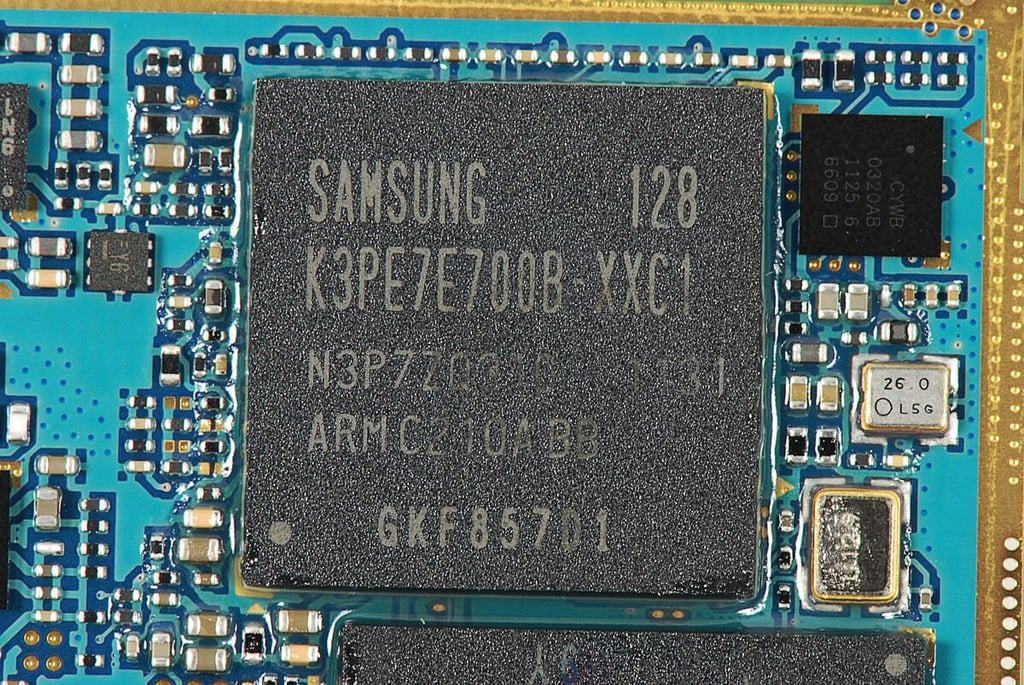

Samsung Galaxy S II (Sprint Epic 4G Touch): Samsung K3PE7E700B-XXC1 DRAM module mounted on top of the 1.2 GHz dual-core processor

Samsung Galaxy S II (Sprint Epic 4G Touch): Samsung K3PE7E700B-XXC1 DRAM module mounted on top of the 1.2 GHz dual-core processor

Cracking Open the Samsung Galaxy S II (Sprint Epic 4G Touch)

Samsung Galaxy S II (Sprint Epic 4G Touch): Samsung KLMAG4FEJA-A003 16GB flash storage chip

Samsung Galaxy S II (Sprint Epic 4G Touch): Samsung KLMAG4FEJA-A003 16GB flash storage chip

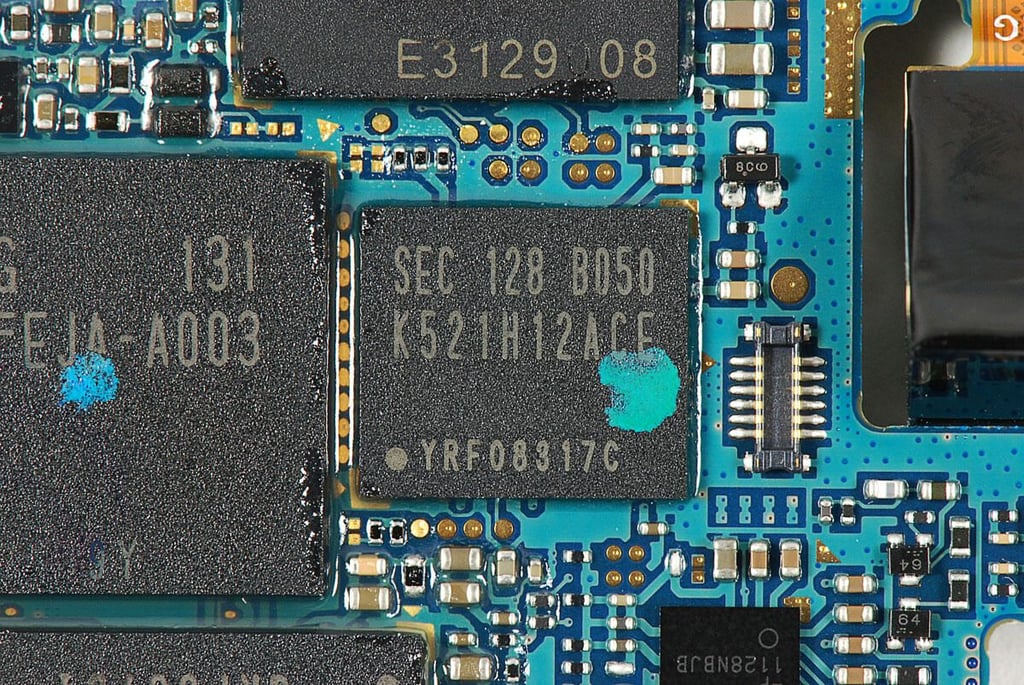

Cracking Open the Samsung Galaxy S II (Sprint Epic 4G Touch)

Samsung Galaxy S II (Sprint Epic 4G Touch): Samsung K521H12ACE

Samsung Galaxy S II (Sprint Epic 4G Touch): Samsung K521H12ACE

Cracking Open the Samsung Galaxy S II (Sprint Epic 4G Touch)

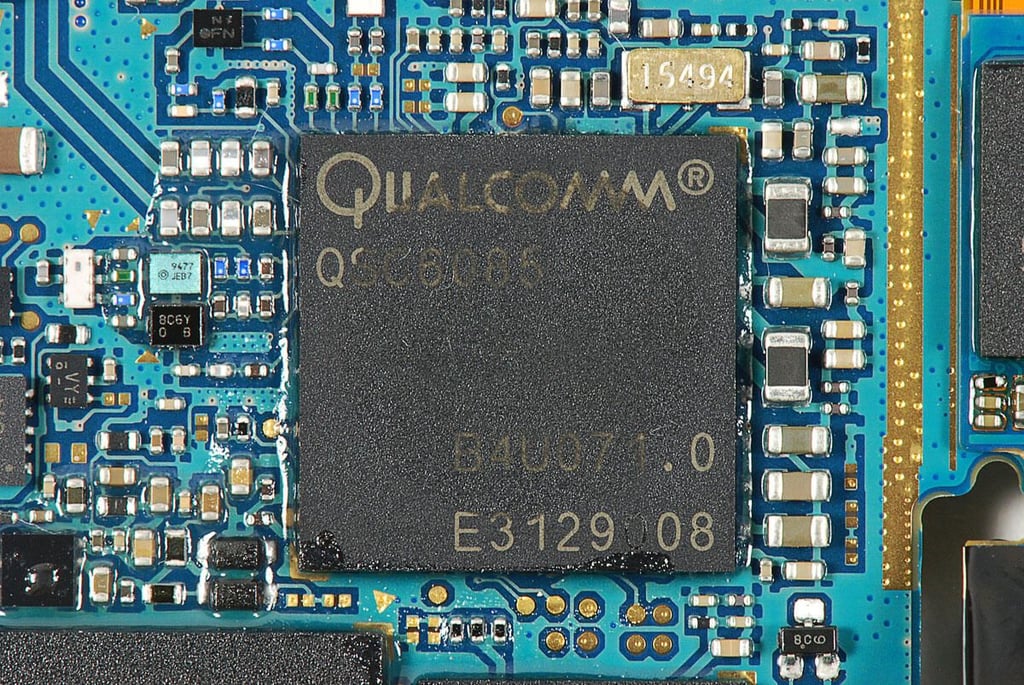

Samsung Galaxy S II (Sprint Epic 4G Touch): Qualcomm QSC8085 CDMA processor

Samsung Galaxy S II (Sprint Epic 4G Touch): Qualcomm QSC8085 CDMA processor

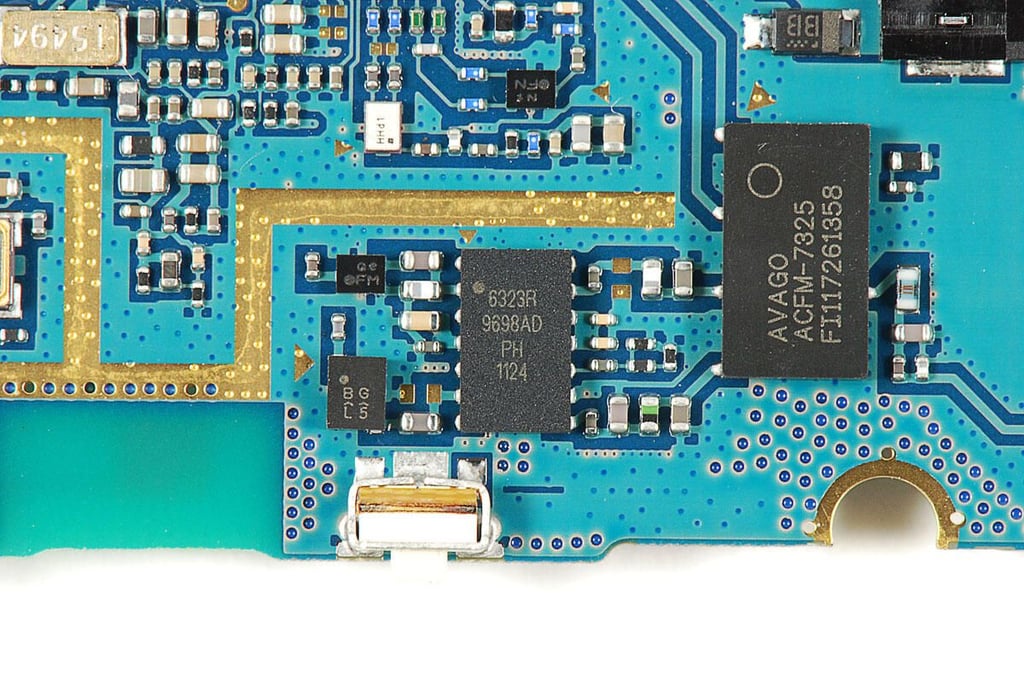

Cracking Open the Samsung Galaxy S II (Sprint Epic 4G Touch)

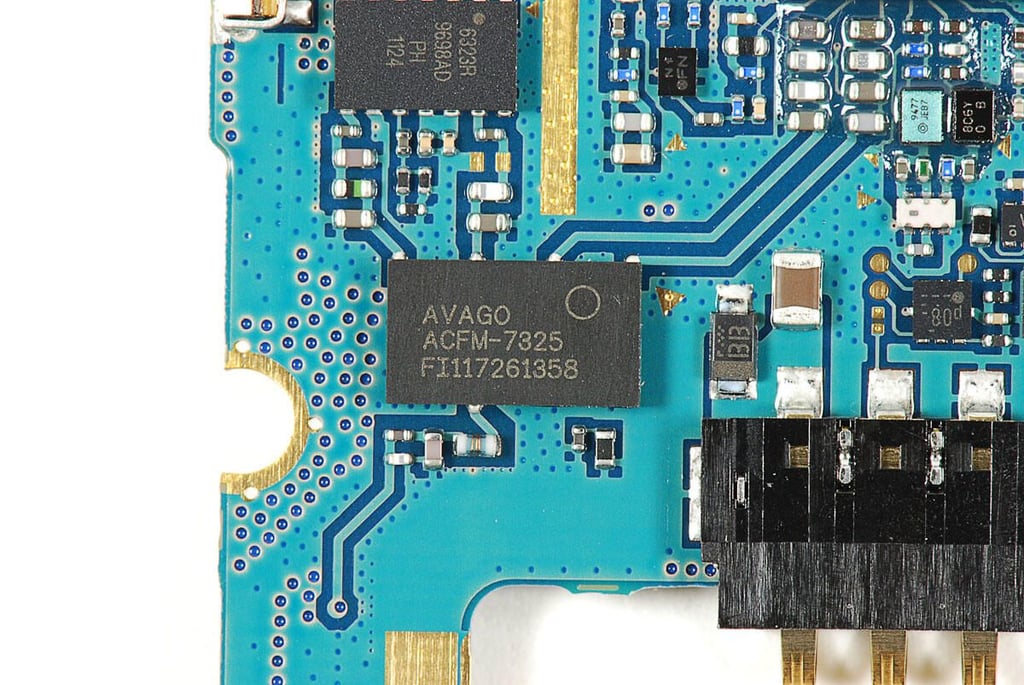

Samsung Galaxy S II (Sprint Epic 4G Touch): Avago ACFM-7325 Band Class 14 PCS / Band Class 10 Cellular Band Quadplexer

Samsung Galaxy S II (Sprint Epic 4G Touch): Avago ACFM-7325 Band Class 14 PCS / Band Class 10 Cellular Band Quadplexer

Cracking Open the Samsung Galaxy S II (Sprint Epic 4G Touch)

Samsung Galaxy S II (Sprint Epic 4G Touch): 6323R 9698AD 1124

Samsung Galaxy S II (Sprint Epic 4G Touch): 6323R 9698AD 1124

Cracking Open the Samsung Galaxy S II (Sprint Epic 4G Touch)

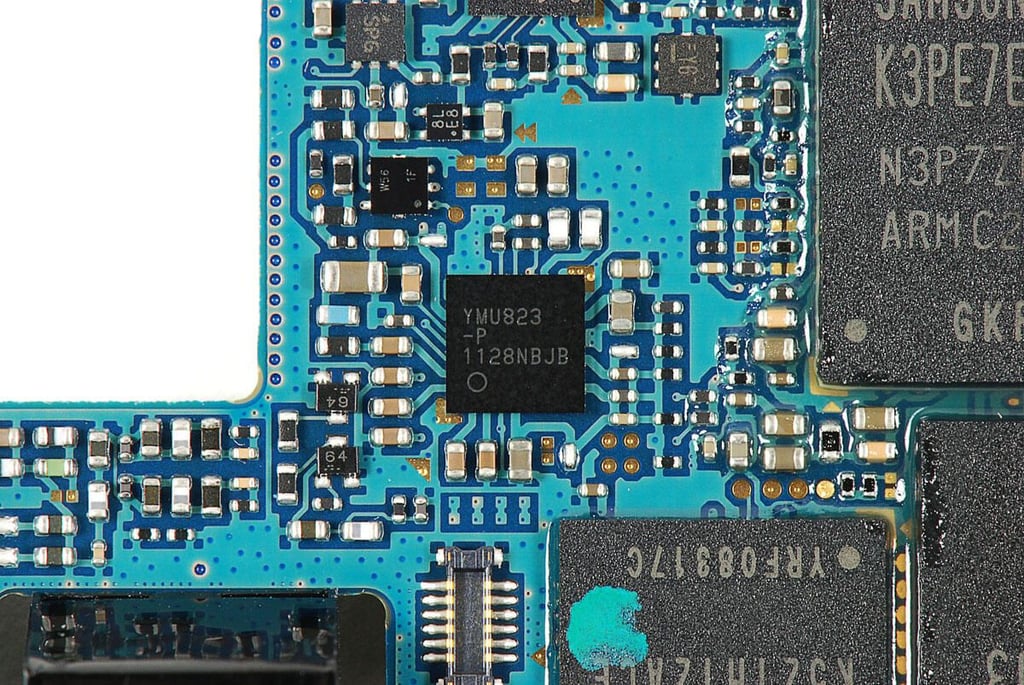

Samsung Galaxy S II (Sprint Epic 4G Touch): Yamaha YMU823-P 1128NBJB audio codec

Samsung Galaxy S II (Sprint Epic 4G Touch): Yamaha YMU823-P 1128NBJB audio codec

Cracking Open the Samsung Galaxy S II (Sprint Epic 4G Touch)

Samsung Galaxy S II (Sprint Epic 4G Touch): Silicon Image 9244 MHL transmitter for HD video and audio

Samsung Galaxy S II (Sprint Epic 4G Touch): Silicon Image 9244 MHL transmitter for HD video and audio

Cracking Open the Samsung Galaxy S II (Sprint Epic 4G Touch)

Samsung Galaxy S II (Sprint Epic 4G Touch): CYWB 0320AB 1125 6 6609

Samsung Galaxy S II (Sprint Epic 4G Touch): CYWB 0320AB 1125 6 6609

Cracking Open the Samsung Galaxy S II (Sprint Epic 4G Touch)

Samsung Galaxy S II (Sprint Epic 4G Touch): microUSB port

Samsung Galaxy S II (Sprint Epic 4G Touch): microUSB port

Cracking Open the Samsung Galaxy S II (Sprint Epic 4G Touch)

Samsung Galaxy S II (Sprint Epic 4G Touch): Complete teardown

Samsung Galaxy S II (Sprint Epic 4G Touch): Complete teardown

ntThe Samsung Galaxy S II (Sprint Epic 4G Touch) was relatively easy to disassemble. It uses standard Phillips screws and the internal components are easily accessible. Unfortunately, the display and front panel (digitizer) are fused together, making replacing one or the other difficult.

n

ntFor a more in-depth review of the Galaxy S II’s internal hardware, check out my article, “Samsung Galaxy S II (Sprint Epic 4G Touch) Teardown: Samsung Exynos processor and no NFC.”

  • Mobility
  • Account Information

    Share with Your Friends

    Cracking Open the Samsung Galaxy S II (Sprint Epic 4G Touch)

    Your email has been sent

Share: Cracking Open the Samsung Galaxy S II (Sprint Epic 4G Touch)
Image of Bill Detwiler
By Bill Detwiler
Bill Detwiler is the Editor for Technical Content and Ecosystem at Celonis. He is the former Editor in Chief of TechRepublic and previous host of TechRepublic's Dynamic Developer podcast and Cracking Open, CNET and TechRepublic's popular online show.
  • Account Information

    Contact Bill Detwiler

    Your message has been sent

  • |
  • See all of Bill's content

TechRepublic Premium

  • TechRepublic Premium

    Best of Confluent Current 2023: The State of Data Streaming

    TechRepublic Premium was at Confluent’s Current 2023 event, held in San Jose, California, September 26-27. Our coverage of the event comprises an analysis of data streaming, interviews, the role of stream governance and a look at Apache Flink. From the download: Confluent used the Current 2023 ‘next generation of Kafka Summit’ event in San Jose ...

    Downloads
    Published:  September 27, 2023, 4:00 PM EDT Modified:  September 28, 2023, 1:00 PM EDT Read More See more TechRepublic Premium articles
  • TechRepublic Premium

    Quick Glossary: Fintech

    Fintech is a fast changing landscape that constantly introduces cutting-edge ideas and developments. TechRepublic Premium presents this quick glossary of fintech terms and concepts to help you understand technological breakthroughs and make educated decisions. From the glossary: DECENTRALIZED FINANCE Often referred to as DeFi, this utilizes emerging technology to remove third parties and central financial ...

    Downloads
    Published:  September 27, 2023, 4:00 PM EDT Modified:  September 28, 2023, 8:52 AM EDT Read More See more TechRepublic Premium articles
  • TechRepublic Premium

    Anti-Money Laundering Policy

    Money laundering poses a detrimental impact on businesses and the economy as a whole. According to the United Nations Office on Drugs and Crimes, the amount of money laundered around the world in a single year is presumed to be 2–5% of global GDP, which is roughly $800 billion to $2 trillion. The purpose of ...

    Downloads
    Published:  September 27, 2023, 4:00 PM EDT Modified:  September 28, 2023, 9:14 AM EDT Read More See more TechRepublic Premium articles
  • TechRepublic Premium

    Hiring Kit: Video Game Audio Engineer

    Modern video games rely on a cornucopia of sounds to engage and engross players. Whether it is ambient sound to set the mood, music to invoke a feeling or dialog to tell the story, sound is vital to the immersive experience of a video game. The individual responsible for meshing all those disparate sounds together ...

    Published:  September 27, 2023, 4:00 PM EDT Modified:  September 28, 2023, 10:00 AM EDT Read More See more TechRepublic Premium articles

Services

  • About Us
  • Newsletters
  • RSS Feeds
  • Site Map
  • Site Help & Feedback
  • FAQ
  • Advertise
  • Do Not Sell My Information
  • Careers

Explore

  • Downloads
  • TechRepublic Forums
  • Meet the Team
  • TechRepublic Academy
  • TechRepublic Premium
  • Resource Library
  • Photos
  • Videos
  • TechRepublic
  • TechRepublic on Twitter
  • TechRepublic on Facebook
  • TechRepublic on LinkedIn
  • TechRepublic on Flipboard
© 2023 TechnologyAdvice. All rights reserved.
  • Privacy Policy
  • Terms of Use
  • Property of TechnologyAdvice
