Cracking open the SMC NAS TigerStore storage device

By Mark W. Kaelin July 19, 2007, 3:41 AM PDT

1
of 12

Cracking open the SMC NAS TigerStore storage device

SMC TigerStore NAS teardown

SMC TigerStore NAS teardown

ntNAS storage is quickly becoming a common component of small business networks as well as the home office. Not too far behind will come the day where many home networks will have a NAS device for serving media files.

n

ntIt is with this prospect in mind that manufacturers like SMC are marketing what can be considered consumer-friendly NAS devices. To understand what goes into such a device, TechRepublic has cracked open the SMC NAS TigerStore and is sharing what was found with you in this gallery.

n

ntnn

Cracking open the SMC NAS TigerStore storage device

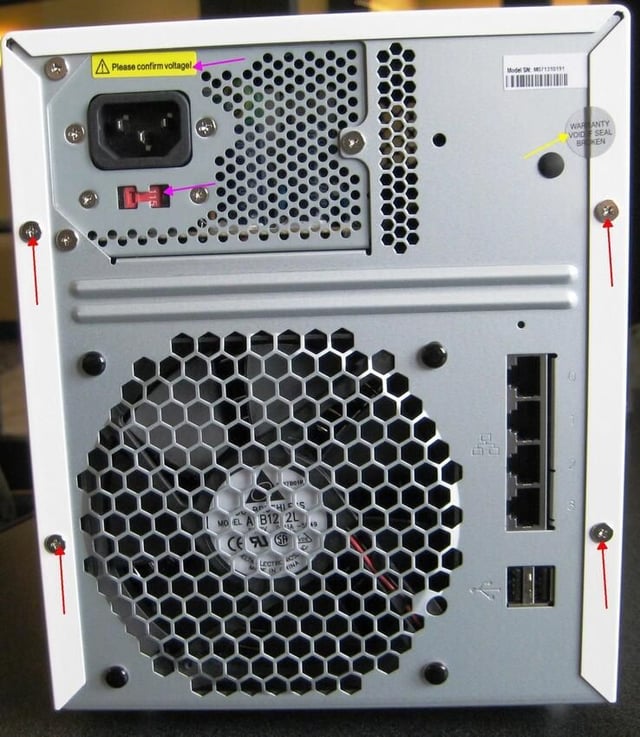

Just four screws (or so it appears)

Just four screws (or so it appears)

Opening the SMC TigerStore seemed to be easy enough; four screws (Red arrows) held the case cover in place. However, the screws proved to be particularly difficult to loosen. The robotic machine that tightened these screws was wound a little tight it appears.

I eventually had to resort to pliers to get one screw removed, but I did get it opened.

They yellow arrow points to the ominous warning about voiding the warranty. And the magenta arrows point to the power switch and the warning to confirm voltage. Normally, you would assume that the switch is set to the right spot, but this device was not.

Cracking open the SMC NAS TigerStore storage device

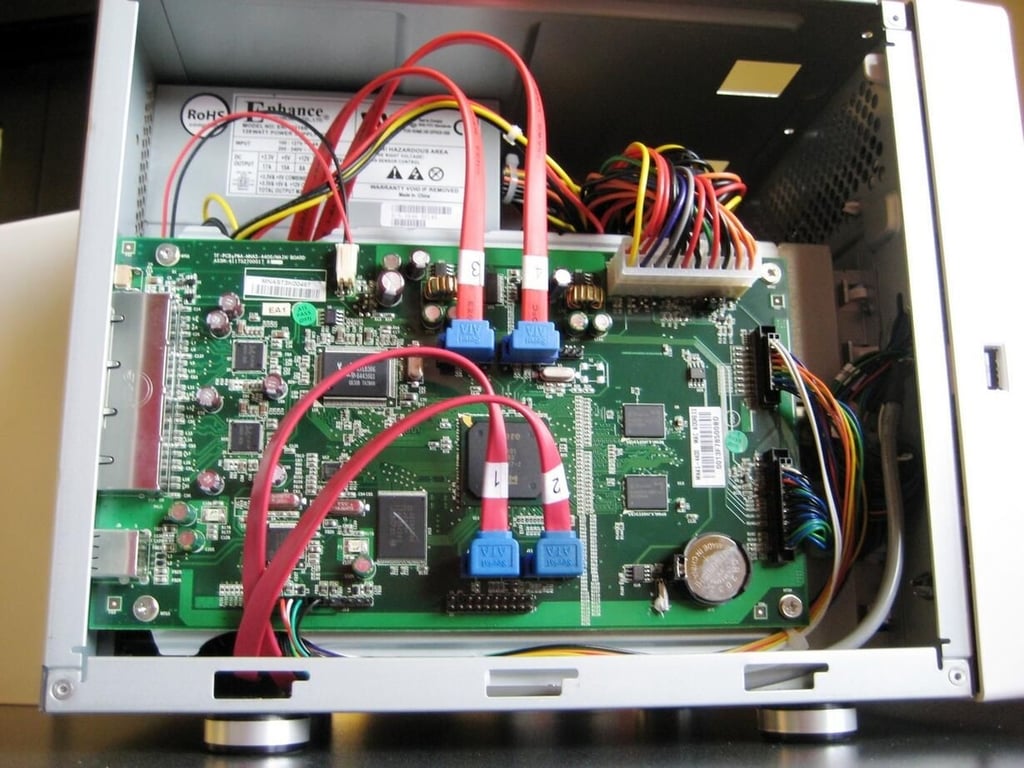

The first look at the inside

The first look at the inside

Once the case cover was removed, a circuit board was revealed.

Cracking open the SMC NAS TigerStore storage device

Move in closer

Move in closer

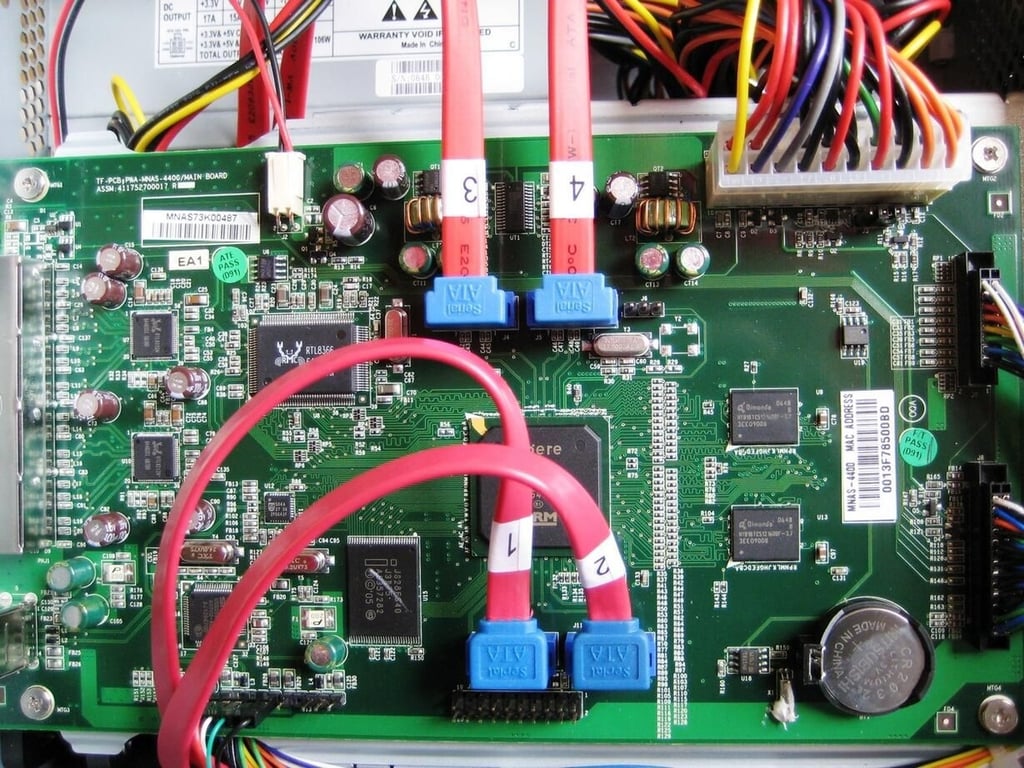

The circuit board inside the device (motherboard?) obviously has the serial device controllers and several other more mysterious pieces.

Cracking open the SMC NAS TigerStore storage device

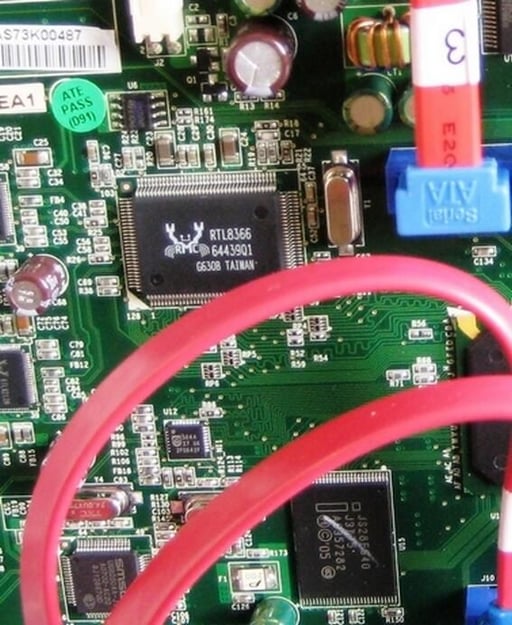

Remote management control

Remote management control

The remote management control chips (RMC) are what allow you to control the NAS device remotely with a PC and a browser via the Gigabit Ethernet ports.

Cracking open the SMC NAS TigerStore storage device

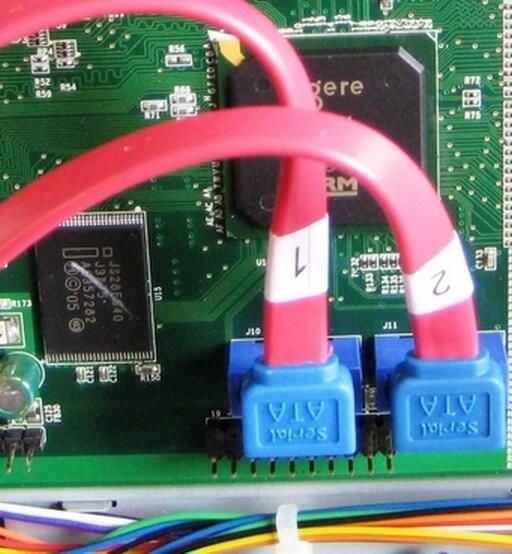

Linux and Samba

Linux and Samba

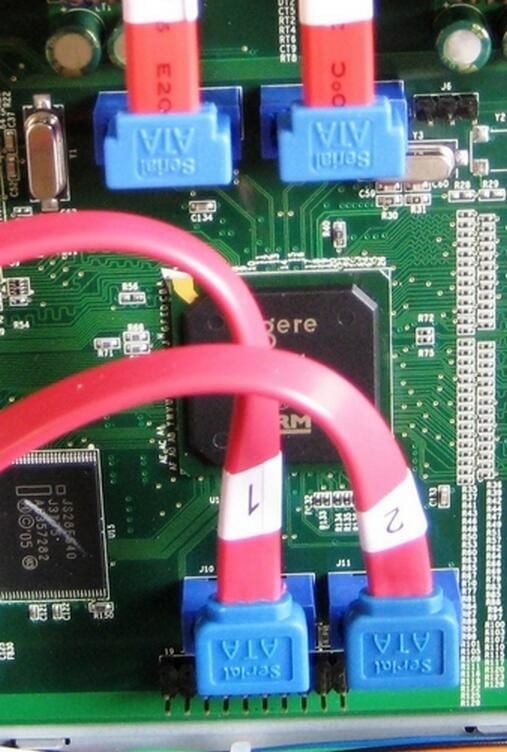

Behind the serial hard drive cables is an ARM chip form Agere.

Cracking open the SMC NAS TigerStore storage device

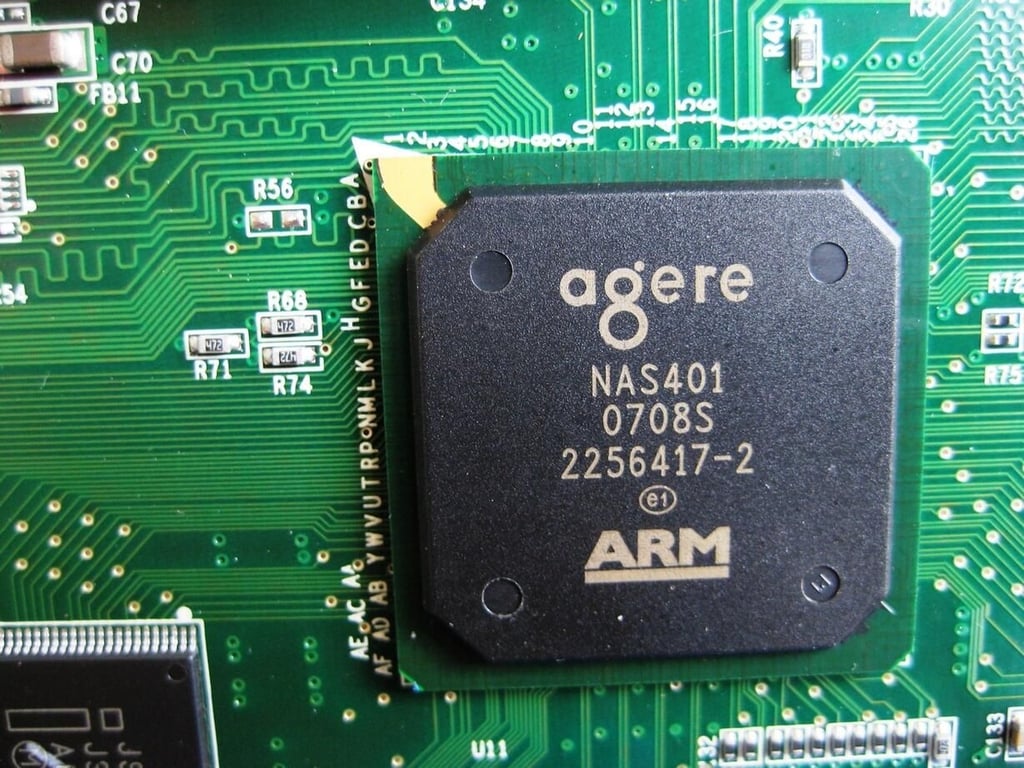

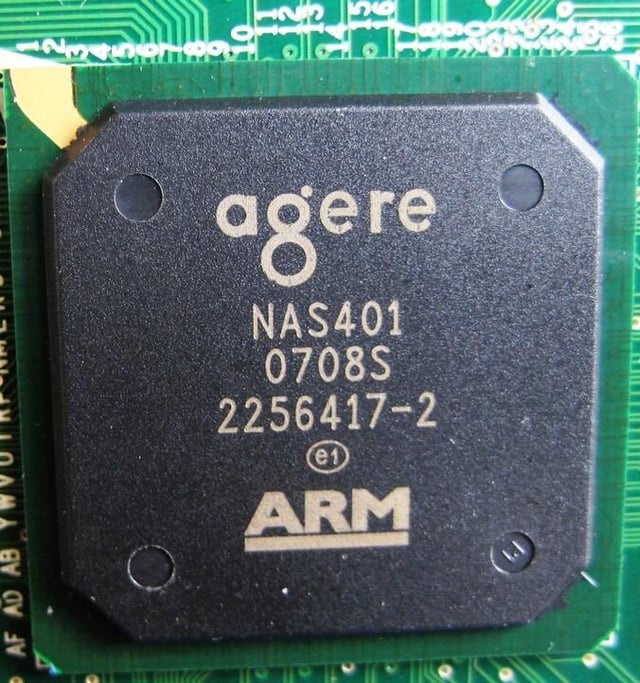

A closer look at the ARM chip

A closer look at the ARM chip

The Agere ARM chip contains the UNIX and Samba software the device uses for serving files.

Agere recently merged with LSI and these chips are likely to take their logo in the future.

Cracking open the SMC NAS TigerStore storage device

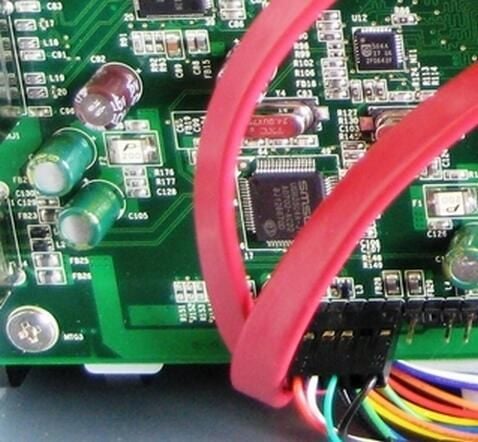

USB control

USB control

Behind the red cables is the SMCS chip that controls the USB ports on the NAS device.

Cracking open the SMC NAS TigerStore storage device

RAID control

RAID control

The chip residing behind the red cables here would appear to be the RAID controllers.

Cracking open the SMC NAS TigerStore storage device

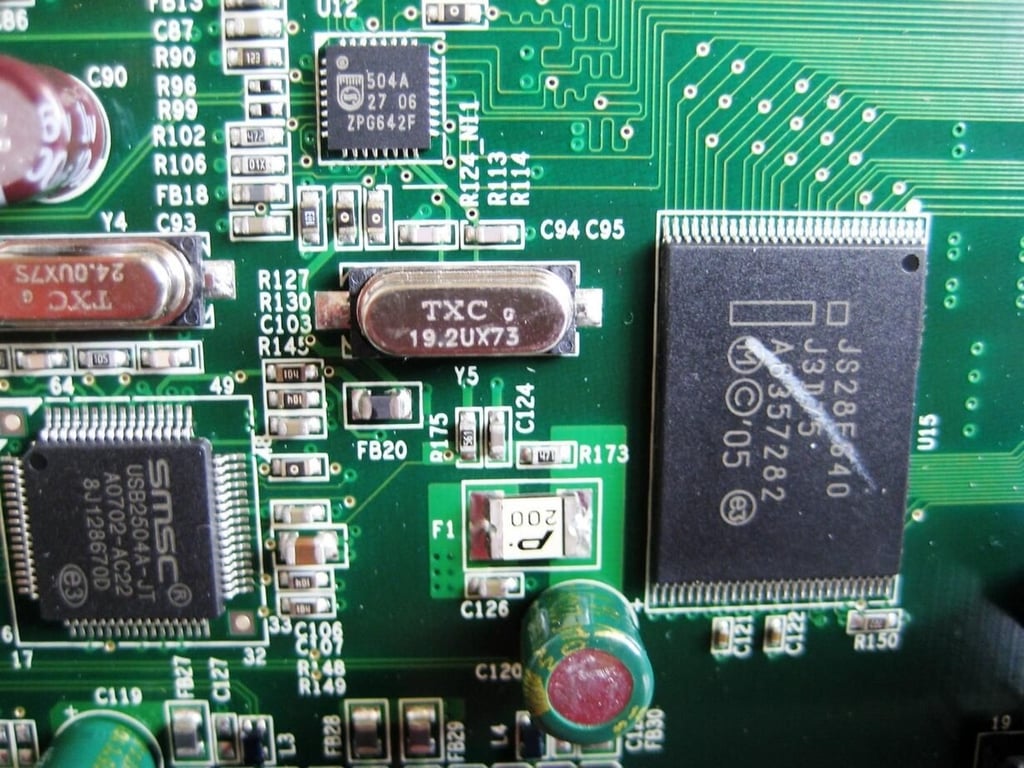

A closer look at the USB controller and the RAID controller.

A closer look at the USB controller and the RAID controller.

With the red cables pulled back you can get a good look at the USB and RAID controller.

Cracking open the SMC NAS TigerStore storage device

Behind the controller board

Behind the controller board

Behind the controller board there is not much to see. This circuit board manages the hot-swappable hard drive connections.

Cracking open the SMC NAS TigerStore storage device

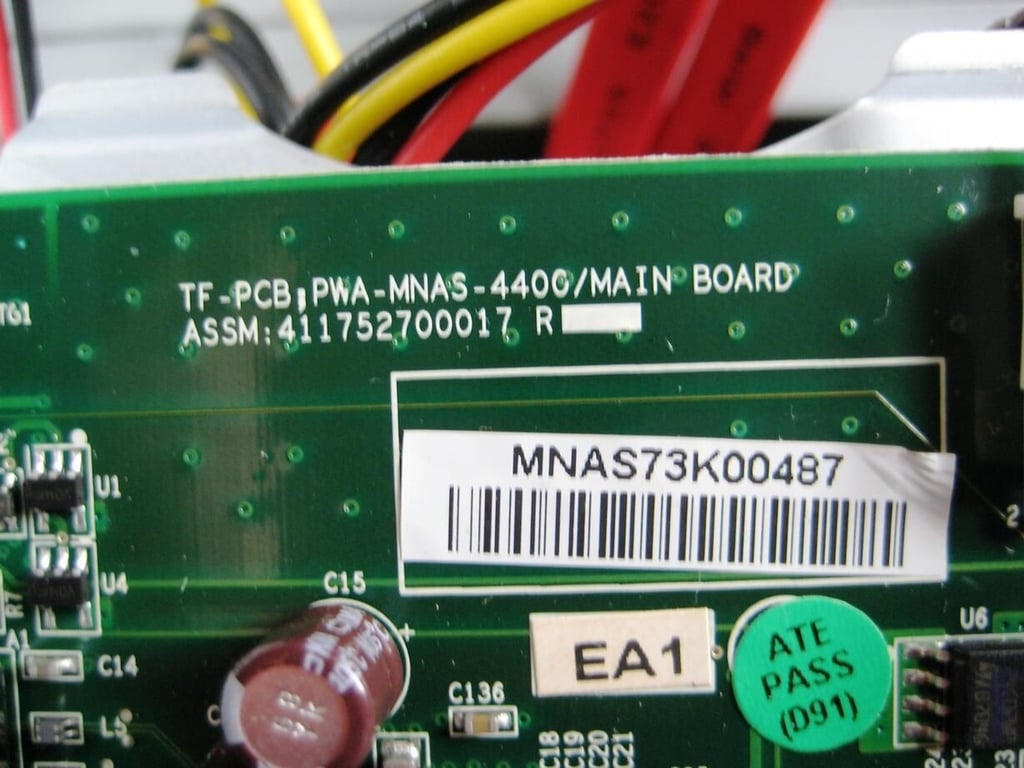

Board identification

Board identification

The serial and identification numbers for this particular board.

The SMC TigerStore NAS device seems to be very well made and solid. I wouldn’t mind having one on my home network. TechRepublic is going to put this device to work in our test lab we like it so much.
