After Hours

Cracking Open The Xbox 360 Elite

By Erik Eckel December 15, 2007, 4:18 AM PST

1
of 50

Cracking Open The Xbox 360 Elite

The Xbox 360 Elite

The Xbox 360 Elite

The Xbox 360 Elite includes two games and ships in this box. The Xbox 360 Elite is Microsoft’s premier entry in its Xbox 360 console line that also includes the original Xbox 360 and the Xbox 360 Arcade models.

Cracking Open The Xbox 360 Elite

Marvels Ultimate Alliance

Marvels Ultimate Alliance

Activision’s game Marvel Ultimate Alliance is included with the Xbox 360 Elite console, which also includes a massive 120GB hard drive, wireless controller and component video and HDMI cables.

Cracking Open The Xbox 360 Elite

Microsoft Forza2 Motorsport

Microsoft Forza2 Motorsport

In addition to including the Marvel Ultimate Alliance game, the Xbox 360 Elite ships with Microsoft’s Forza2 Motorsport title.

Cracking Open The Xbox 360 Elite

Xbox 360 Elite Wireless Controller

Xbox 360 Elite Wireless Controller

One wireless controller is included with the Xbox 360 Elite console.

Cracking Open The Xbox 360 Elite

Xbox 360 Wireless Controller

Xbox 360 Wireless Controller

Here’s a look at the Xbox 360 wireless controller from its front.

Cracking Open The Xbox 360 Elite

Xbox 360 Wireless Controller

Xbox 360 Wireless Controller

The Xbox 360 Elite wireless controller’s undercarriage. Two AA batteries tuck inside the middle compartment.

Cracking Open The Xbox 360 Elite

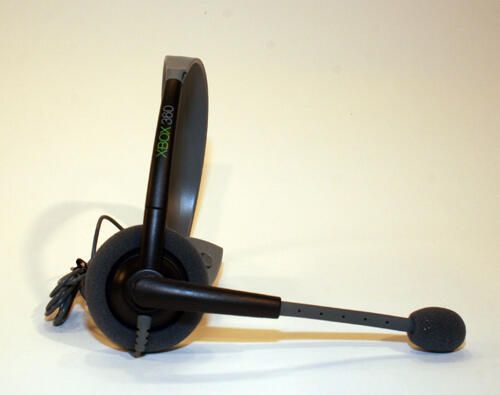

Xbox 360 Elite Headset

Xbox 360 Elite Headset

The Xbox 360 Elite also includes this wired headset.

Cracking Open The Xbox 360 Elite

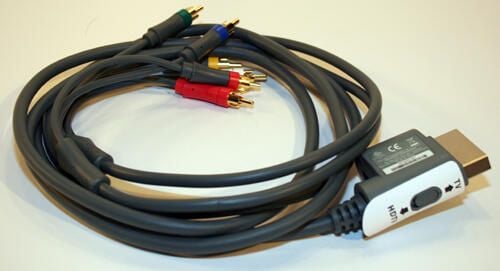

Xbox 360 Elite HD Cable

Xbox 360 Elite HD Cable

This HD-Component Video cable enables viewing Xbox 360 play in HD.

Cracking Open The Xbox 360 Elite

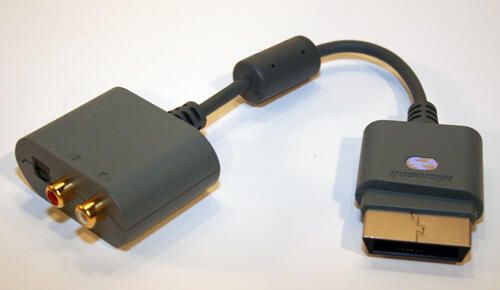

Optical/RCA Adapter

Optical/RCA Adapter

Included with the Xbox 360 Elite is this optical/RCA adapter, which enables enhanced sound in non-HDMI stereo systems.

Cracking Open The Xbox 360 Elite

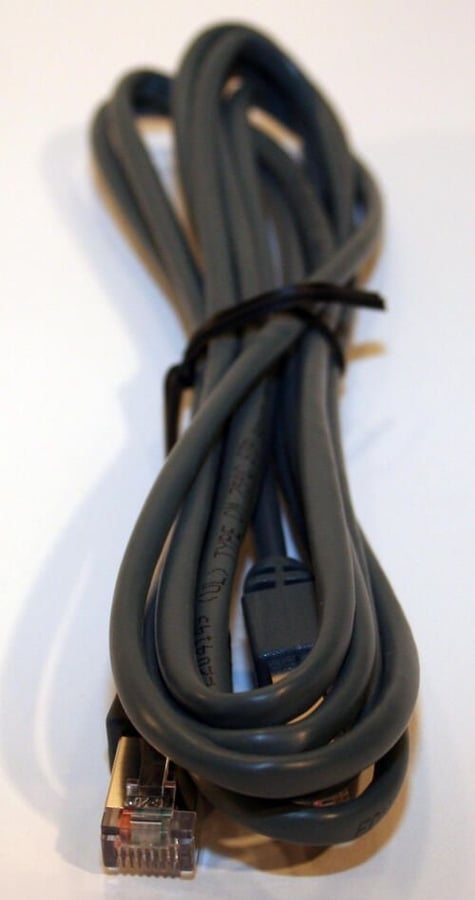

Network Cable

Network Cable

The Xbox 360 Elite console includes a category 5 network cable.

Cracking Open The Xbox 360 Elite

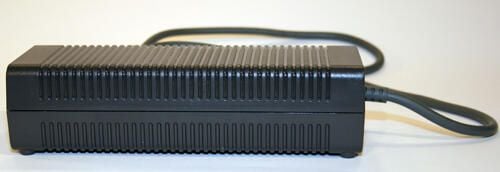

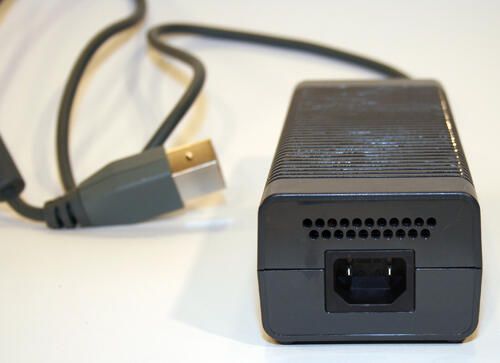

Xbox 360 Power Block

Xbox 360 Power Block

Microsoft engineers struggled to eliminate heat in the popular game console. In order to reduce temperature levels, the console’s power supply actually sits outside the console itself in this brick.

Cracking Open The Xbox 360 Elite

Xbox 360 Power Block

Xbox 360 Power Block

Another view of the Xbox 360 Elite power brick.

Cracking Open The Xbox 360 Elite

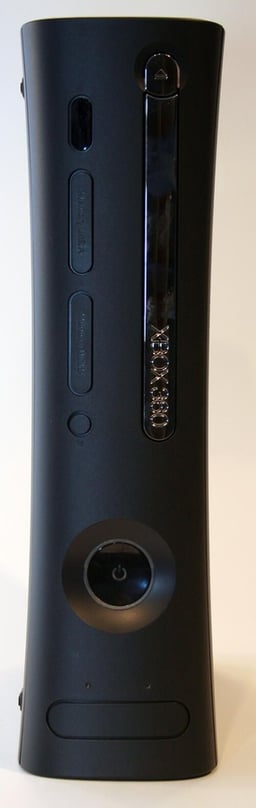

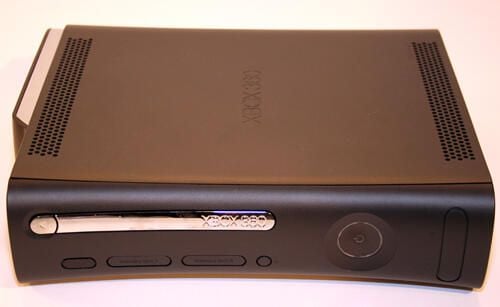

The Xbox 360 Elite

The Xbox 360 Elite

The Xbox 360 Elite looks very similar to previous Xbox consoles, except it’s black.

Cracking Open The Xbox 360 Elite

Microsoft Xbox 360 Elite

Microsoft Xbox 360 Elite

Here’s another look at the Xbox 360 Elite, which like other 360 models, can stand on-end or flat.

Cracking Open The Xbox 360 Elite

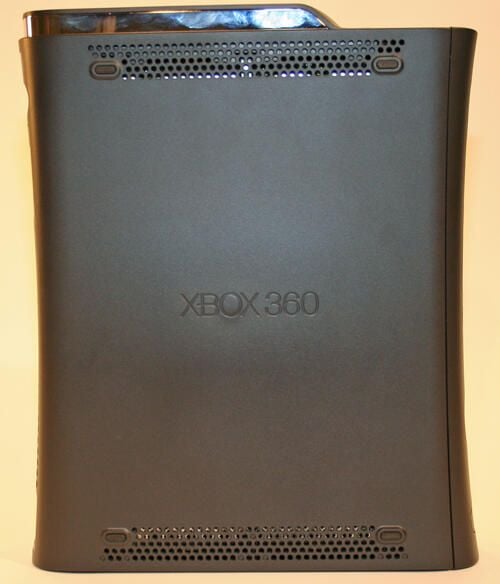

Xbox 360 Elite Side View

Xbox 360 Elite Side View

Here’s a side view of the Xbox 360 Elite. Note the functional cut outs at top and bottom that help encourage air flow through the console.

Cracking Open The Xbox 360 Elite

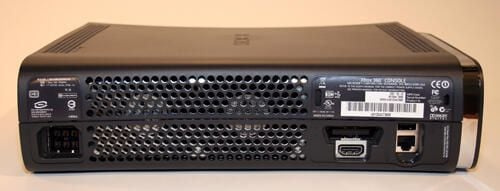

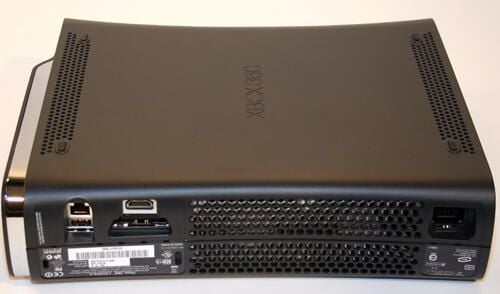

Xbox 360 Elite Rear View

Xbox 360 Elite Rear View

A look at the Xbox 360 Elite from behind.

Cracking Open The Xbox 360 Elite

Xbox 360 Elite Rear View

Xbox 360 Elite Rear View

The Xbox 360 Elite boasts a pair of large fans that can be seen here behind the console’s black plastic case.

Cracking Open The Xbox 360 Elite

Xbox 360 Elite Cooling Fans

Xbox 360 Elite Cooling Fans

Here’s a close up look at the two cooling fans at the rear of the Xbox 360 Elite.

Cracking Open The Xbox 360 Elite

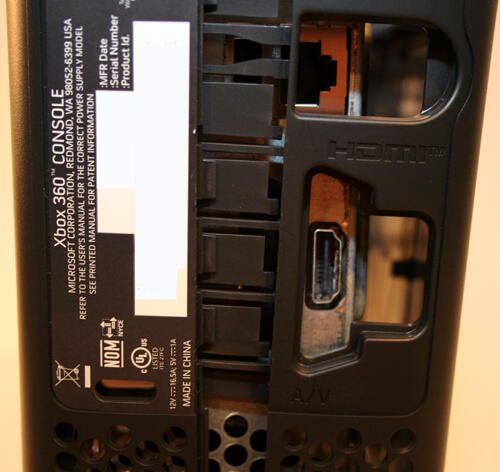

Xbox 360 Elite Inputs

Xbox 360 Elite Inputs

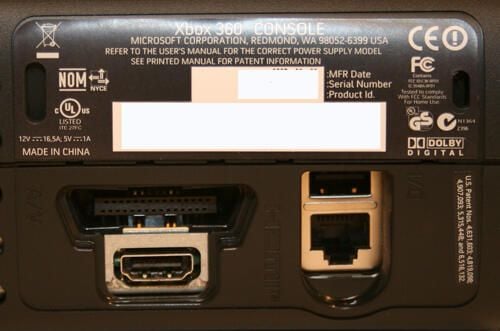

The Xbox 360 Elite boasts a full complement of input ports. In this image you can see the HDMI port (lower left), proprietary audio/video (top left), a USB input (top right) and a standard Ethernet jack (bottom right).

Cracking Open The Xbox 360 Elite

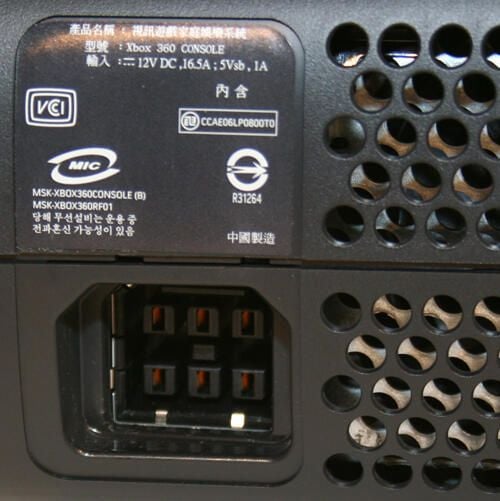

Xbox 360 Proprietary Power Port

Xbox 360 Proprietary Power Port

Here is the port where the Xbox 360 Elite’s power supply plugs in to the console.

Cracking Open The Xbox 360 Elite

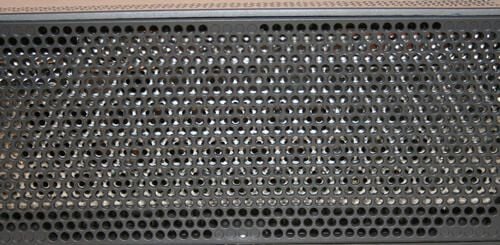

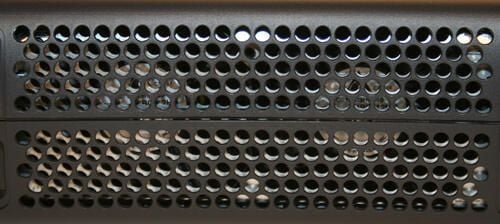

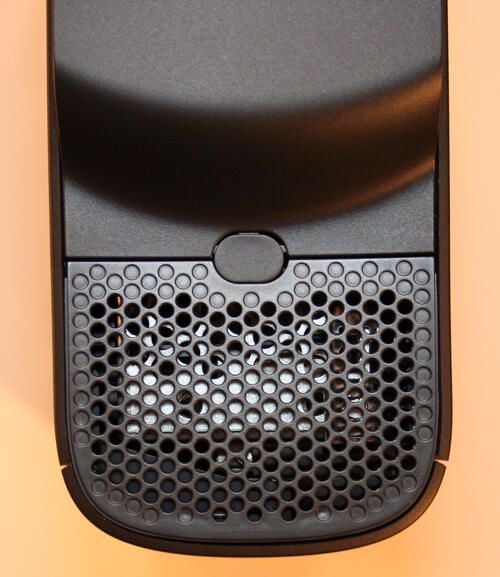

Xbox 360 Perforated Mesh

Xbox 360 Perforated Mesh

Here’s a close up look at the Xbox 360 Elite’s perforated mesh case.

Cracking Open The Xbox 360 Elite

Hard Drive Release Button

Hard Drive Release Button

Depressing this push button, which is found on top the Xbox 360 Elite, releases the 120GB hard disk enclosure.

Cracking Open The Xbox 360 Elite

Disassembling The Xbox 360 Elite

Disassembling The Xbox 360 Elite

To disassemble the Xbox 360 Elite (which is likely to void your console’s warranty), slip a small flat head screwdriver into the slot found at the base of the Xbox. Then, slowly and carefully remove the bottom perforated base.

Cracking Open The Xbox 360 Elite

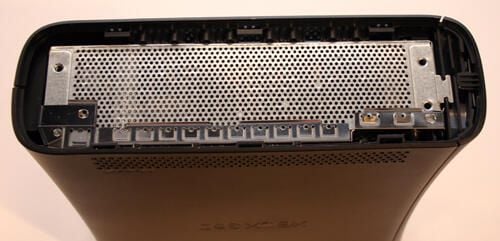

Xbox 360 Elite Bottom View

Xbox 360 Elite Bottom View

Removing the Xbox 360 Elite’s bottom perforated panel reveals the actual console’s chassis.

Cracking Open The Xbox 360 Elite

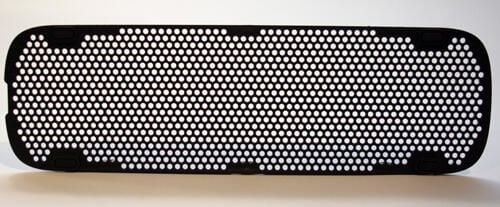

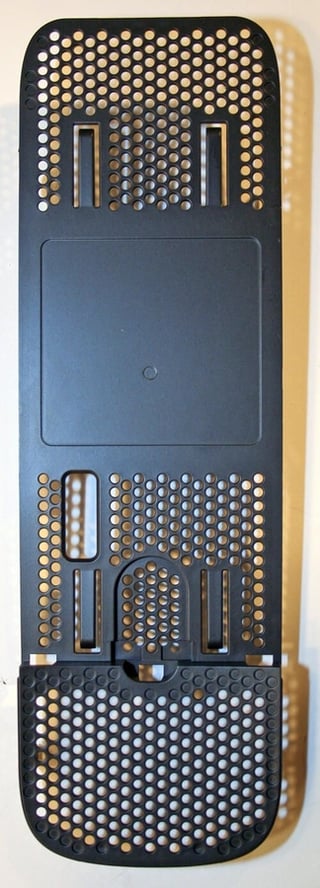

Xbox 360 Bottom Plate

Xbox 360 Bottom Plate

This is the Xbox 360 Elite’s plastic perforated bottom plate once removed from the console itself.

Cracking Open The Xbox 360 Elite

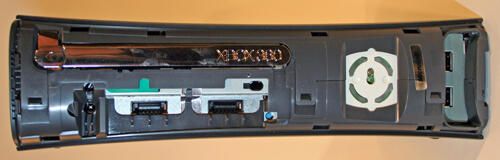

Xbox 360 Elite Front Face

Xbox 360 Elite Front Face

Carefully peeling away the front decorative plate reveals three interlocking clips that secure the case’s two halves together.

Cracking Open The Xbox 360 Elite

The Xbox 360 Elite's Front Cover

The Xbox 360 Elite's Front Cover

Here’s the Xbox 360 Elite’s front cover by itself.

Cracking Open The Xbox 360 Elite

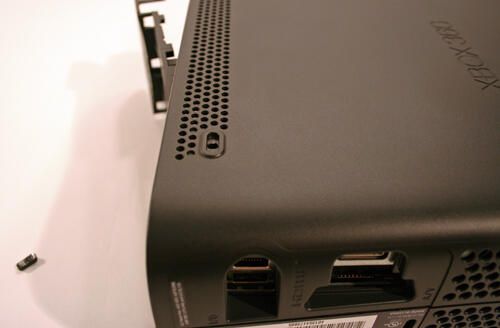

Removing The Top Panel

Removing The Top Panel

Inserting a small screwdriver in the hole hidden by one of the console’s rubber feet helps free the console’s perforated top.

Cracking Open The Xbox 360 Elite

Xbox 360 Elite's Perforated Top

Xbox 360 Elite's Perforated Top

Here’s the Xbox 360 Elite’s perforated top (removed from the console). Much like the perforated bottom plastic case, the only differences are some spacing adjustments and a cutout to accommodate the hard disk enclosure’s connection to the main console circuitry.

Cracking Open The Xbox 360 Elite

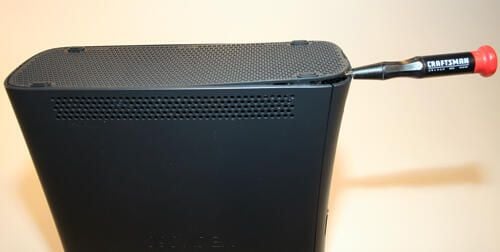

Xbox 360 Case Separation

Xbox 360 Case Separation

When separating the Xbox 360 Elite’s casing, disassembly requires inserting a flat head screwdriver (or other similar object) gingerly between the plastic casing’s two locking halves to ease removal. In this image numerous locking clips can be seen.

Cracking Open The Xbox 360 Elite

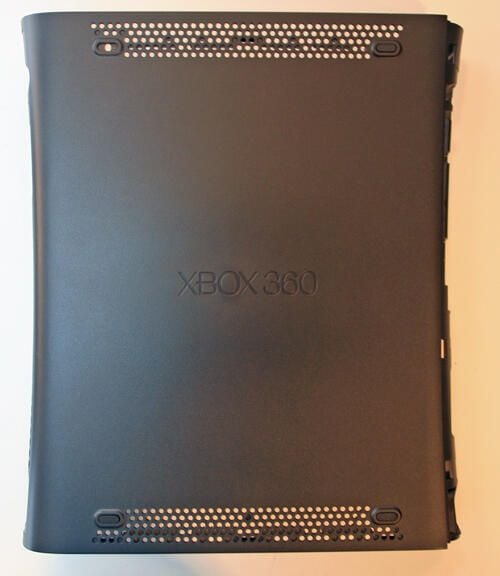

Xbox 360 Elite Bottom Case

Xbox 360 Elite Bottom Case

Here’s the bottom casing removed from the Xbox 360 Elite.

Cracking Open The Xbox 360 Elite

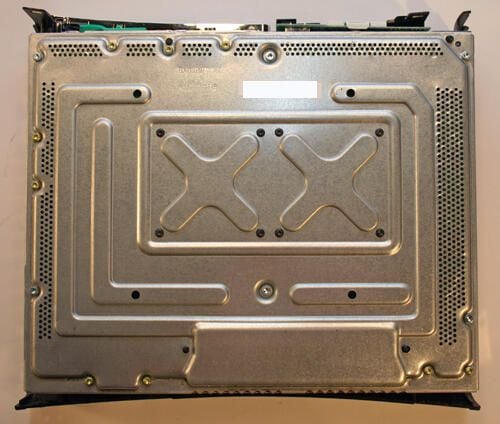

Xbox 360 Bottom Chassis

Xbox 360 Bottom Chassis

With the bottom plastic casing removed, the Xbox 360 Elite’s chassis becomes visible.

Cracking Open The Xbox 360 Elite

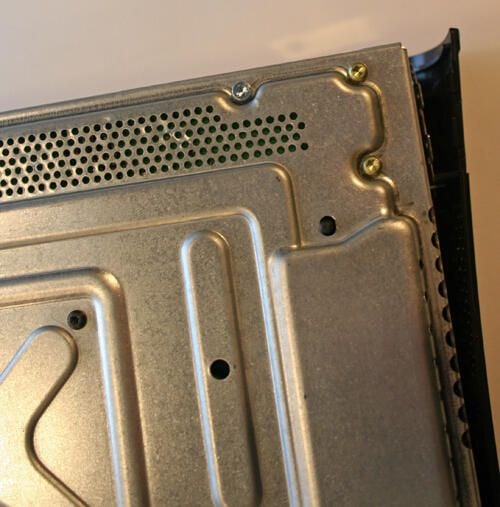

Xbox 360 Elite Disassembly

Xbox 360 Elite Disassembly

Six torx screws (like the silver one toward the top center) must be removed to proceed with the Xbox 360 Elite’s disassembly.

Cracking Open The Xbox 360 Elite

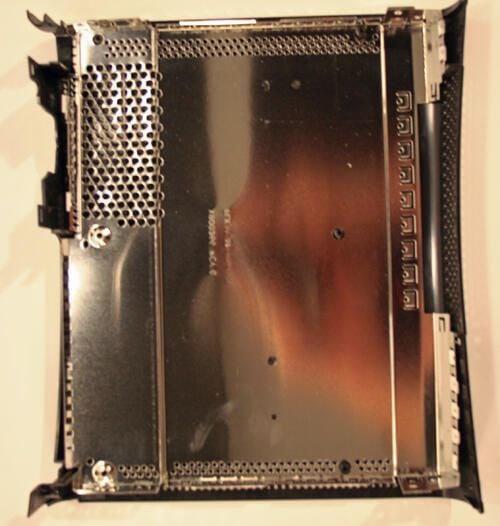

Xbox 360 Elite Heat Shield

Xbox 360 Elite Heat Shield

The entire inside bottom of the Xbox 360 Elite case is lined with a metal sheeth to enable heat dissipation.

Cracking Open The Xbox 360 Elite

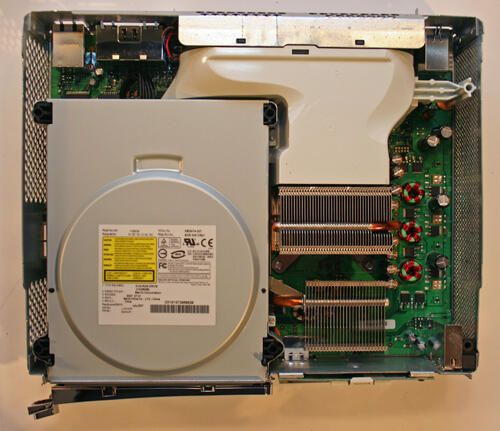

Inside the Xbox 360 Elite

Inside the Xbox 360 Elite

With the cover removed, the Xbox 360 Elite’s DVD drive is clearly visible to the bottom left.

Meanwhile, the unit’s two large fans sit at the back, while a large gray plastic air tunnel (or shroud) helps cool the console’s high-performance graphics chip. Note the second heat sink that’s been added to the unit at the bottom right; this heat sink was not present in the first generation consoles.

Cracking Open The Xbox 360 Elite

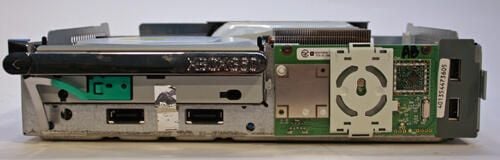

Xbox 360 Elite Console

Xbox 360 Elite Console

Here’s the Xbox 360 console chassis completely removed from its black plastic casing.

Two USB ports can be seen at the far right, while two proprietary memory ports can be seen beneath the silver DVD tray toward the unit’s left side.rnrnThe green circuit board to the right, meanwhile, powers the unit’s RF capabilities.

Cracking Open The Xbox 360 Elite

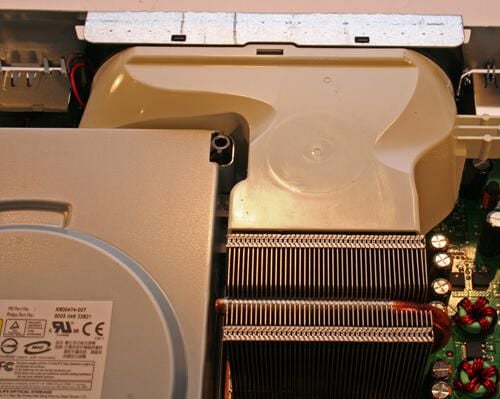

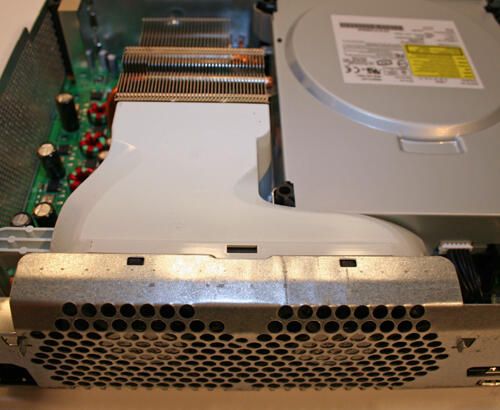

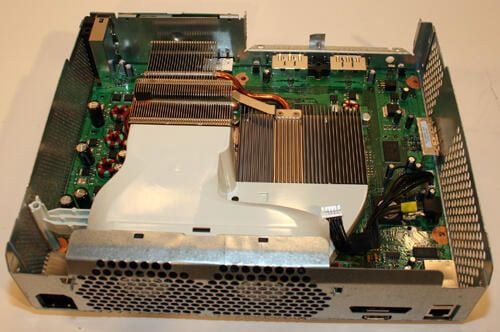

Xbox 360 Elite Air Ducting

Xbox 360 Elite Air Ducting

Heat dissipation is critical to the Xbox 360 Elite’s performance. Engineers worked with the first generation 360 consoles to route significant volumes of air around the unit’s ATI Xenos graphics engine and triple-core IBM-designed PowerPC CPU using this ductwork (that connects to the console’s two rear-mounted fans).

The heat sink shown here cools the unit’s IBM-designed, IBM-manufactured CPU.

Cracking Open The Xbox 360 Elite

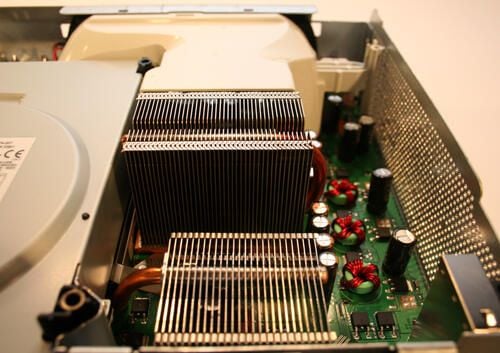

New Second Heat Sink

New Second Heat Sink

The Xbox 360 Elite boasts a second heat sink.

The heat sink seen here in the foreground was added to the Xbox 360 Elite to assist in eliminating overheating issues experienced with the first generation of 360 models.

You can view the original Xbox 360 heat sink configuration in a previous TechRepublic Photo Gallery.

Cracking Open The Xbox 360 Elite

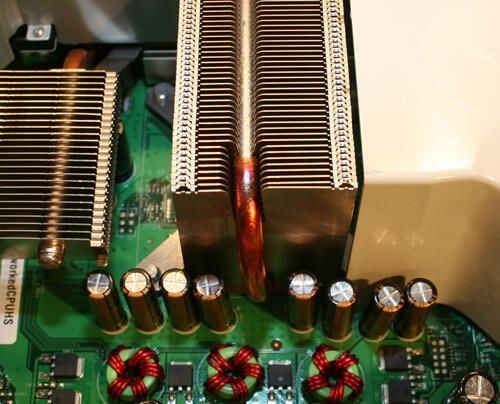

Closer Look At The CPU Heat Sink

Closer Look At The CPU Heat Sink

Here’s a closer look at the piping that helps the CPU’s heat sink lower operating temperatures (with assistance from the unit’s two fans and air shroud).

To the left you can make out a second heat sink not present in original Xbox 360 models. This additional heat sink provides greater cooling capacity for the ATI graphics processing unit.

Cracking Open The Xbox 360 Elite

Xbox 360 Elite Fans

Xbox 360 Elite Fans

Here’s a closer look at the air shroud that connects to the unit’s two rear-mounted cooling fans.

Cracking Open The Xbox 360 Elite

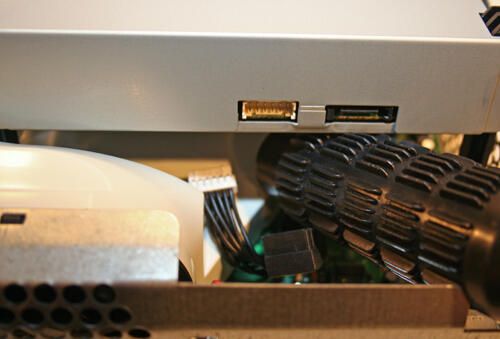

Removing The DVD Drive

Removing The DVD Drive

Before removing the Xbox 360 Elite’s DVD drive, the power (black) and data (white) cables must be carefully removed from the rear of the device. Once the cables are unplugged, the drive can be lifted clear of the chassis and motherboard assembly.

Cracking Open The Xbox 360 Elite

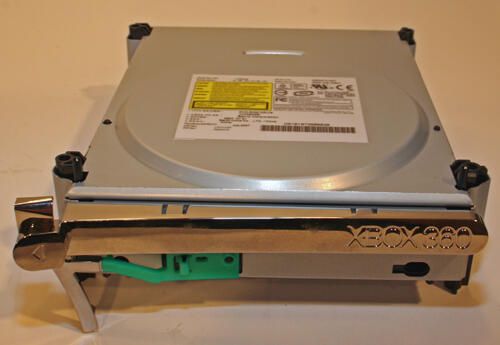

Xbox 360 Elite DVD Drive

Xbox 360 Elite DVD Drive

The Xbox 360 Elite’s DVD drive is manufactured by Ben-Q.

Cracking Open The Xbox 360 Elite

Graphics Cooling Heat Sink

Graphics Cooling Heat Sink

With the Ben-Q DVD drive removed, the ATI graphics chip-cooling heat sink is clearly visible on the Microsoft motherboard.

Cracking Open The Xbox 360 Elite

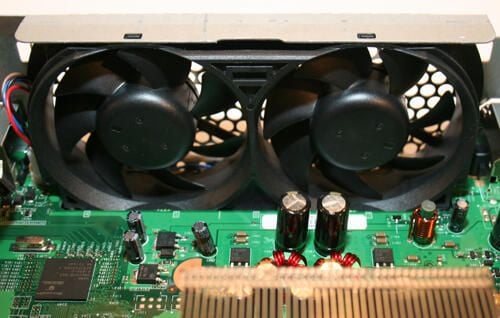

Twin-Molded Cooling Fans

Twin-Molded Cooling Fans

Here’s a closer look at the twin-molded cooling fans that lower operating temperatures inside the Xbox 360 Elite.

Cracking Open The Xbox 360 Elite

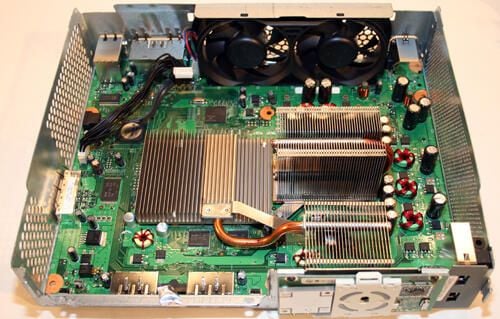

The Xbox 360 Elite Motherboard

The Xbox 360 Elite Motherboard

Inside the Xbox 360 Elite chassis, the Microsoft motherboard (complete with CPU- and GPU-cooling heat sinks) is clearly visible now.

In addition to a third heat sink, the new Elite model boasts additional epoxy securing the triple-core CPU to the motherboard. Rumor has it that the additional bonding material prevents the chip from working loose from the main board when temperatures climb high.rnrnThe CPU sits below the larger raised heat sink to the right, while the GPU sits below the wider and lower heat sink to the left.

Cracking Open The Xbox 360 Elite

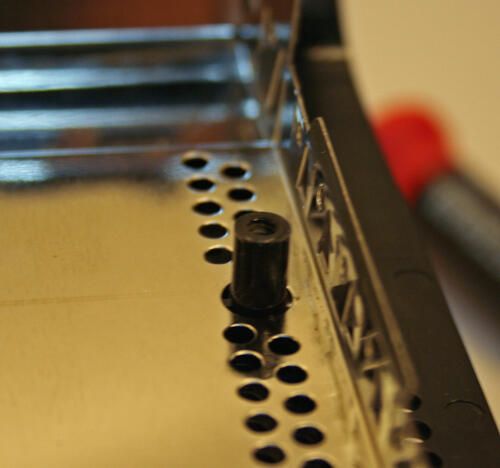

Mounting Pins

Mounting Pins

These mounting pins, found inside the Xbox plastic cover, help the six torx screws secure the cover’s two halves together.

Cracking Open The Xbox 360 Elite

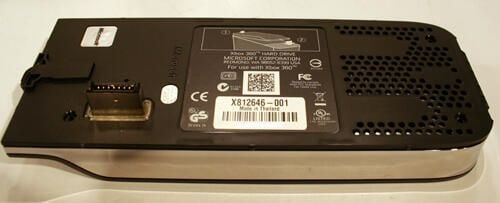

Xbox 360 Elite Hard Disk Enclosure

Xbox 360 Elite Hard Disk Enclosure

Here’s another look at the Xbox 360’s hard disk enclosure. Normally the enclosure sits atop the Xbox 360 Elite’s case.

Cracking Open The Xbox 360 Elite

Xbox 360 Elite Hard Disk Enclosure

Xbox 360 Elite Hard Disk Enclosure

Cracking open the hard disk enclosure requires removing the silver Microsoft sticker shown here (in order to access a fourth screw required to open the case). Once removed, the sticker leaves a tell-tale pattern behind, thereby revealing the user has accessed the hard disk and voiding the unit’s warranty.

Cracking Open The Xbox 360 Elite

Xbox 360 Elite Hard Disk

Xbox 360 Elite Hard Disk

Microsoft engineers designed this SATA mounting bracket to connect the Xbox 360 Elite’s laptop-sized hard disk.

Cracking Open The Xbox 360 Elite

The Xbox 360 Elite Package

The Xbox 360 Elite Package

Here are all the pieces that come with the Xbox 360 Elite, Microsoft’s premier console.
