Customize data transfers with DTS and SQL Server

By Bill Detwiler September 13, 2006, 4:24 AM PDT Bill Detwiler on Twitter billdetwiler

1
of 8

Customize data transfers with DTS and SQL Server

DTS Designer

DTS Designer

DTS is a set of related tools that enable you to manipulate or transform data from various sources. To create a DTS package, you can use the DTS wizards to move data. You can also use the more advanced DTS Designer, which lets you create a multitude of packages and workflows. You can connect to a data store, create tasks that allow you to FTP data, and create your own tasks using a scripting language. Adding DTS to your repertoire will bring a whole new dimension to your skill set.

In this screenshot gallery, Stephen Warren shows you how to customize data transfers with SQL Server and DTS.

To access the DTS Designer, open Enterprise Manager from the Start Menu, right-click on Data Transformation Services, and choose New Package.

Click each image for a full size version.

Customize data transfers with DTS and SQL Server

Task options

Task options

There are 17 task options to choose from.

Customize data transfers with DTS and SQL Server

Create a new package

Create a new package

Let’s create a package that will do the following:

  • Query our sample pubs database for a list of authors and their year-to-date sales
  • Save the results to an Excel spreadsheet

First, open the DTS Designer and add the Microsoft OLE DB Provider For SQL Server connection. Specify the pubs database and the authentication method.

Customize data transfers with DTS and SQL Server

Connection Properties

Connection Properties

Next, choose Microsoft Excel 97-2000 and specify the Excel document.

Customize data transfers with DTS and SQL Server

Select the connections

Select the connections

Once you have created your source and destination, hold down the [Ctrl] key and select both the OLE DB and the Excel connections. Then, choose the Transform Data Task.

Customize data transfers with DTS and SQL Server

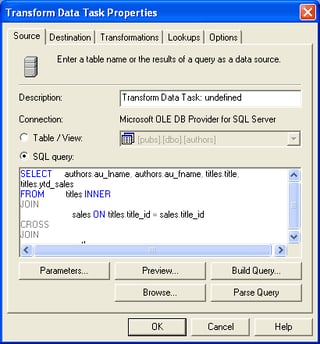

Build the query

Build the query

The DTS Designer will present the Transform Data Task Properties dialog box, where you can build your query.

Customize data transfers with DTS and SQL Server

Data Transformation Services

Data Transformation Services

You can choose the Destination tab to view your table and the Transformations tab to define the transformation between your source database and your destination database. When you are finished, click OK and save your package by clicking the Save button on the toolbar. Enter the name and location of the package and click OK. Now you are ready to view your packages and test them. To do this, open Enterprise Manager and expand Data Transformation Services. Choose Local Packages, and right-click and execute the package.

Customize data transfers with DTS and SQL Server

Adding e-mail notification

Adding e-mail notification

You can take this example one step further by adding a Send Mail task so that every time you run the package, it sends the YTD spreadsheet to the appropriate managers.
