IBM takes quantum computing to the next level
Image 1 of 6
ntIBM brings quantum computing to the next level by relying on quantum bits (qubits) which are the basic units that carry data in quantum computing. Qubits can potentially work on millions of computations at once – far outperforming a PC. For more read Larry Dignan’s blog.
n

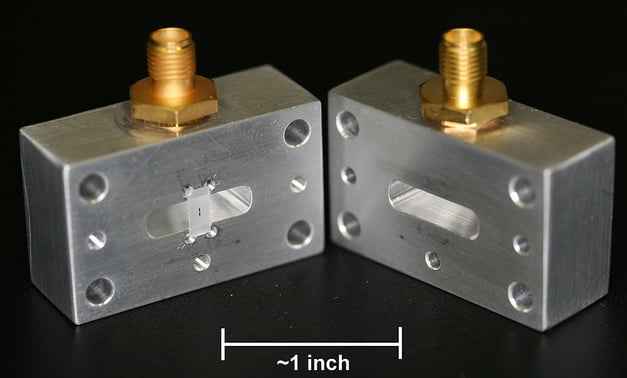

ntThis is a 3D supercomputing qubit device.
ntwhich is suspended in the center of the cavity on a small Sapphire chip. A qubit is about 1mm in length.
n
ntCredit: IBM
ntHere’s the side view of the 3D qubit device.
n
ntCredit: IBM

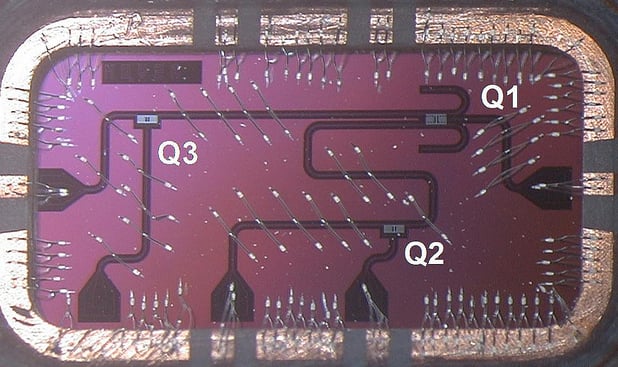

ntThis Silicon chip housing a total of three qubits. The chip is back-mounted on a PC board and connects to I/O coaxial lines via wire bonds (scale: 8mm x 4mm). A larger assembly of such qubits and resonators are envisioned to be used for a scalable architecture.
n
ntCredit: IBM

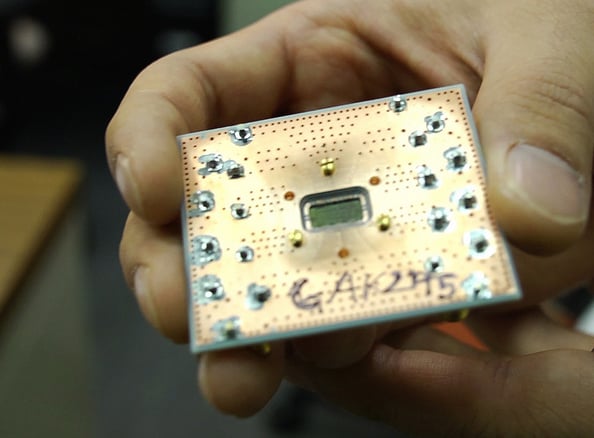

ntHere’s a wider view of the Silicon chip housing a total of three qubits. The chip is back-mounted on a PC board and connects to I/O coaxial lines via wire bonds (scale: 8mm x 4mm). A larger assembly of such qubits and resonators are envisioned to be used for a scalable architecture.
n
ntCredit: IBM

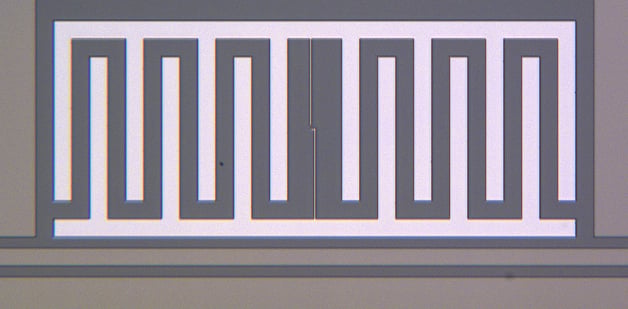

ntHere’s a magnified qubit.
n
ntCredit: IBM

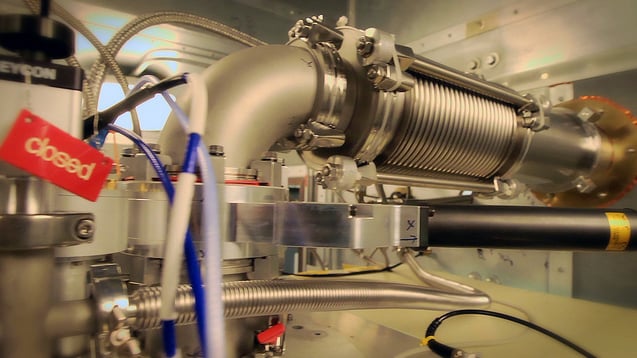

nt IBM needs a dilution refrigerator to keep the temperature down to 15 to 20 millikelvin so that the quantum states stay very pure and helps put them into their ground states before any experiments are done. IBM keeps the qubits this cold to cut down on “thermal noise.”
n
ntCredit: IBM
