The Palm Treo line of devices has been quite popular for years, but the Palm faithful have been asking for WiFi for a couple of years without success. The new Palm Treo 800w from Sprint is the first Treo to sport WiFi and GPS, thanks in part to the Windows Mobile 6.1 Professional operating system it runs on.
The CD and guides removed from the box
The CD and guides removed from the box
The Basics Guide is actually quite helpful at describing all the major features and functionality on the Treo 800w.
Here is the Treo 800w and battery
Here is the Treo 800w and battery
The Treo is nestled below all of the guides and is adjacent to the battery.

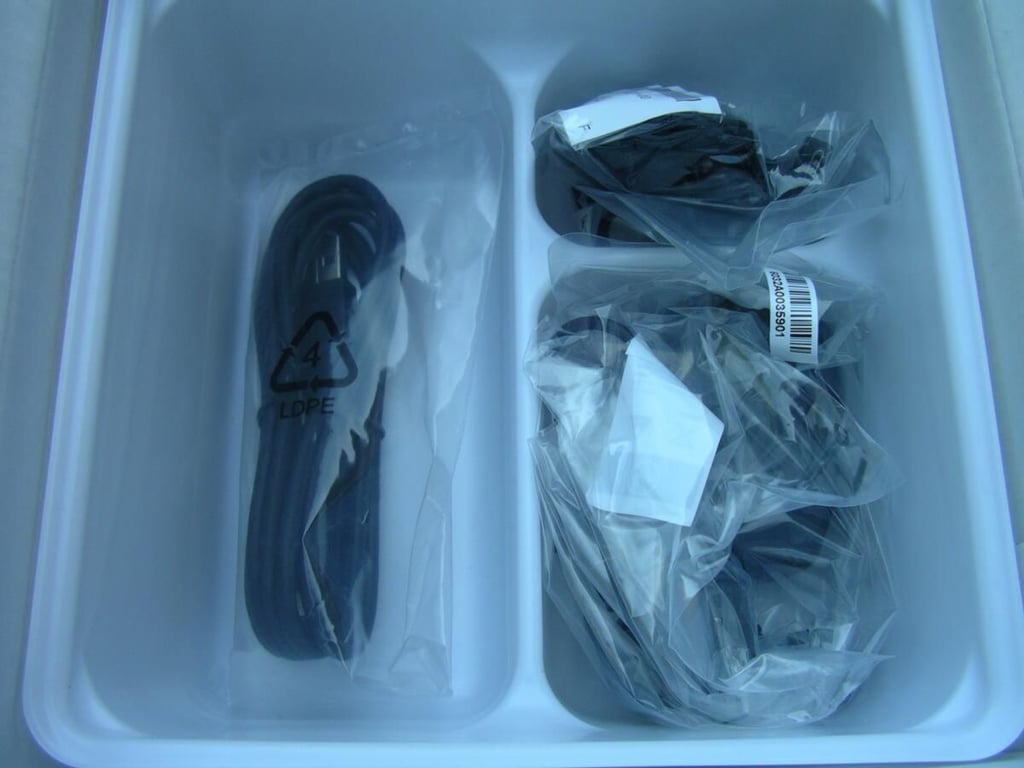

Cables in the bottom of the box
Cables in the bottom of the box
There area a couple of cables and a headset in the bottom of the box.

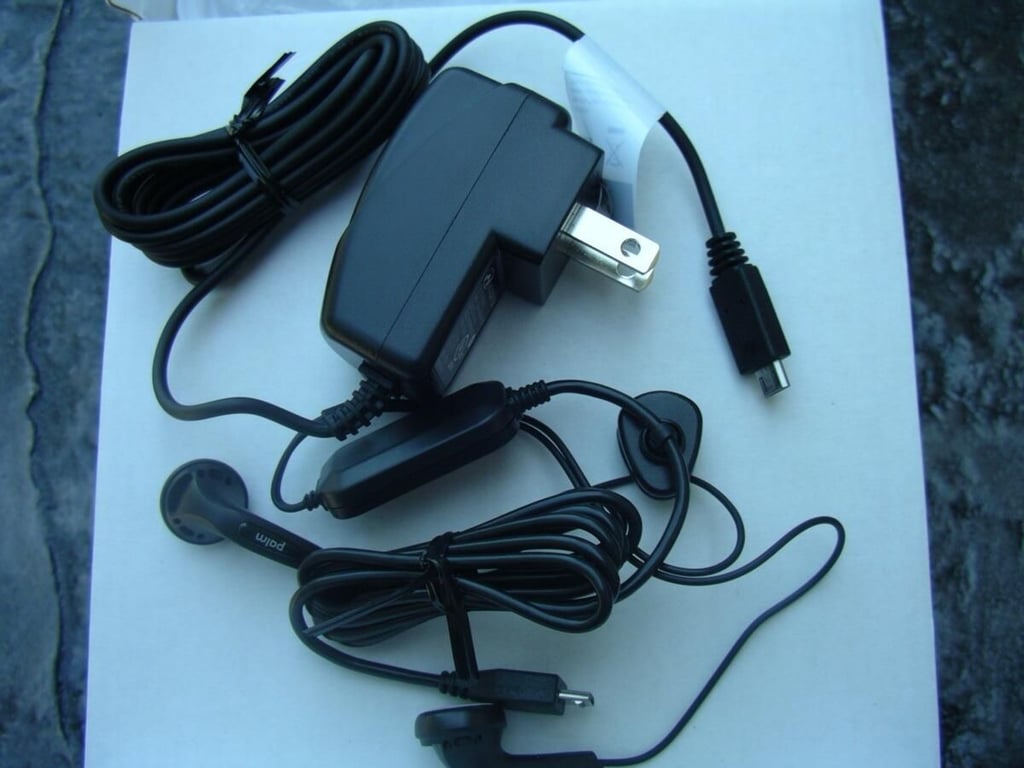

Travel charger and headset
Travel charger and headset
The box contains a rather compact travel charger, USB to micro USB cable, and a wired stereo headset.

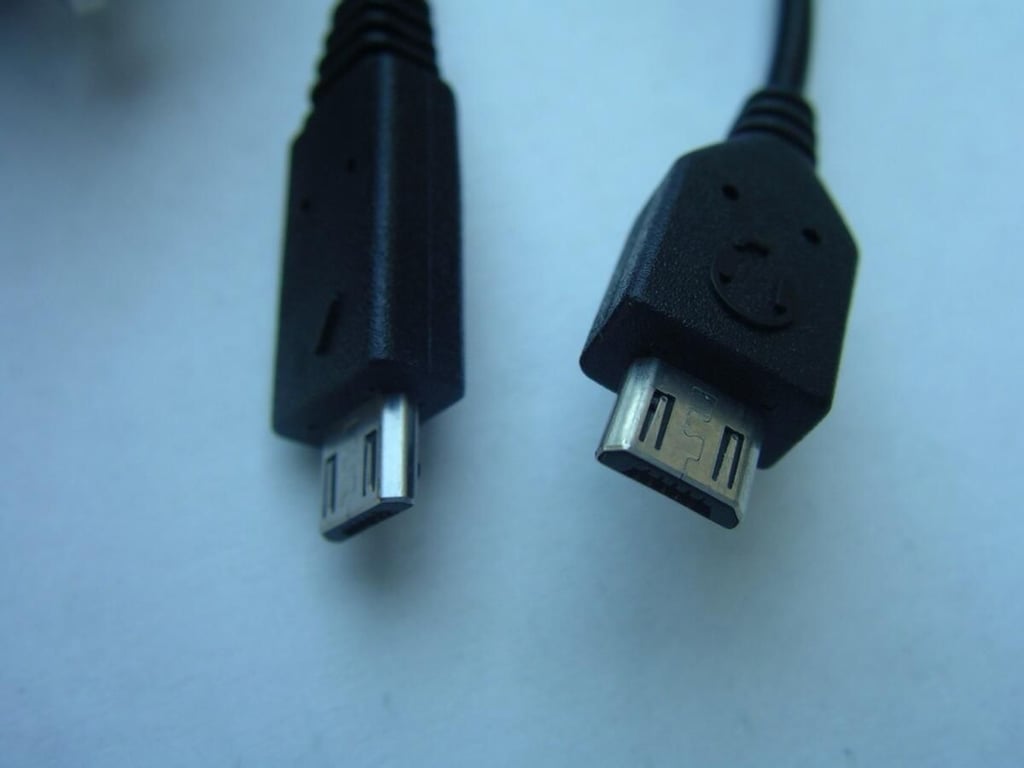

Notice the ends of these cables
Notice the ends of these cables
The Treo 800w standardizes on the micro USB form factor for syncing, charging, and headsets.

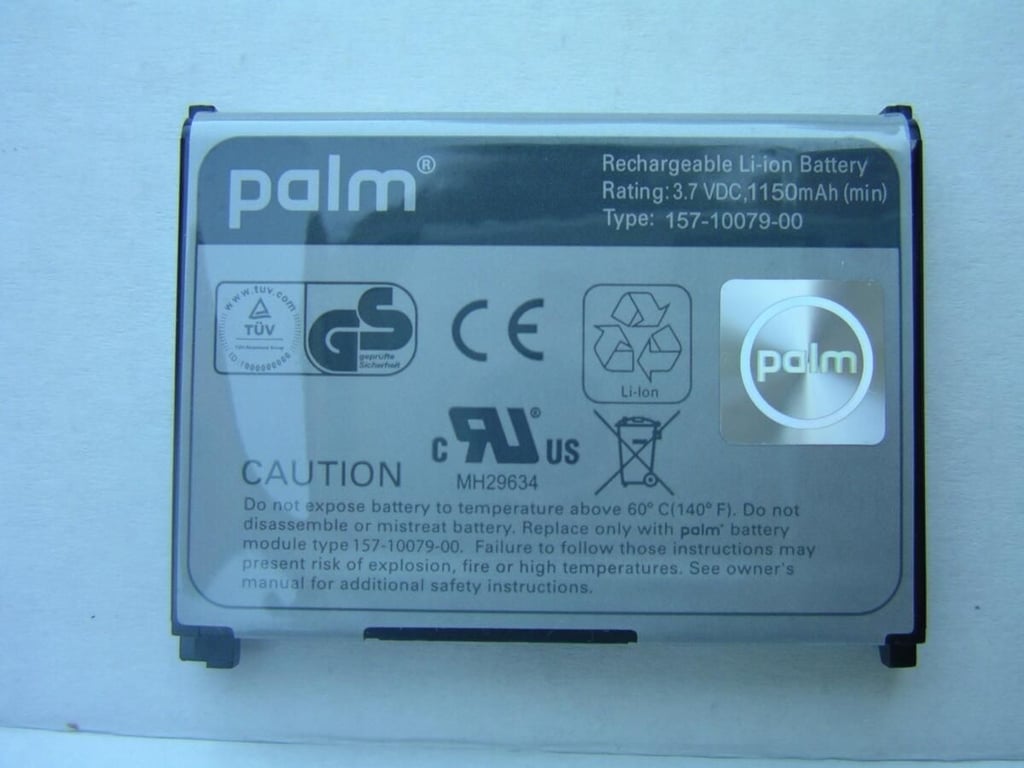

1150 mAh capacity battery
1150 mAh capacity battery
I think this battery capacity may be a bit low for a device with all of these wireless radios. Then again, Windows Mobile 6.1 improves on the battery consumption in the devices.

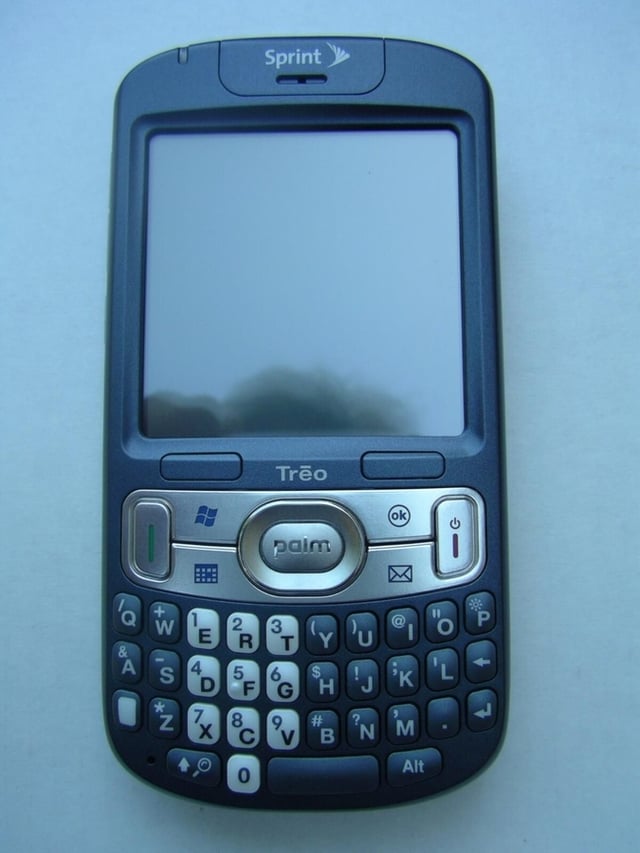

Palm Treo 800w
Palm Treo 800w
The Treo 800w has a very nice dark slate blue color with silver and white highlights that make it look very professional.

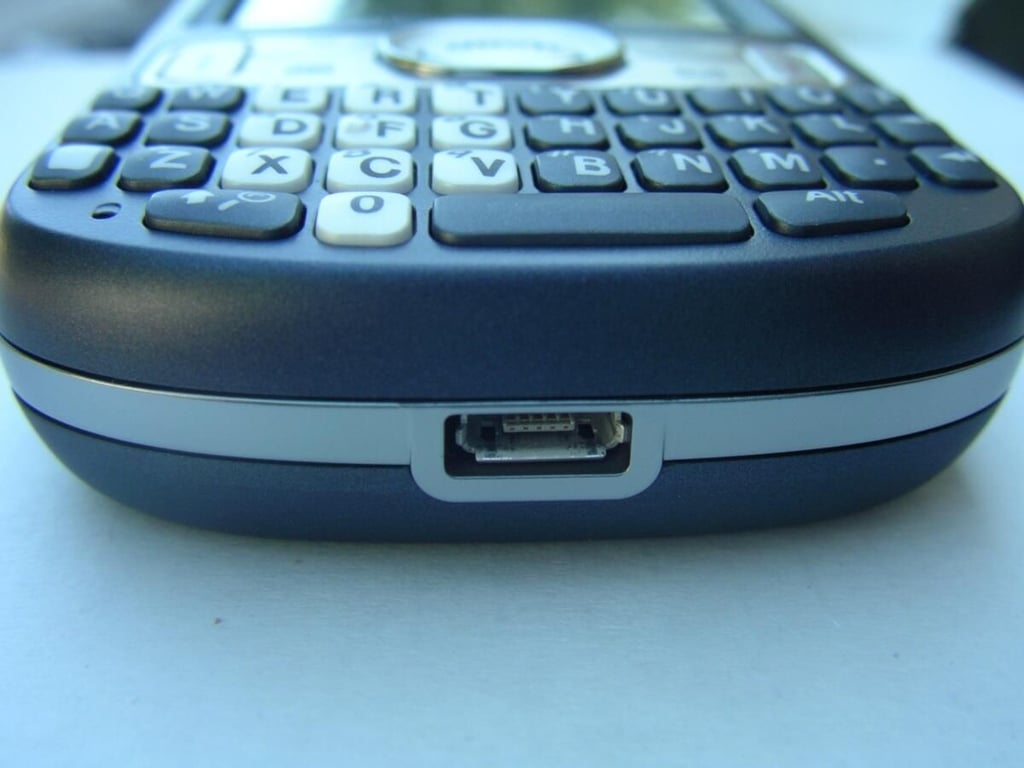

Micro USB port
Micro USB port
The micro USB port is the only thing found on the bottom of the Palm Treo 800w.

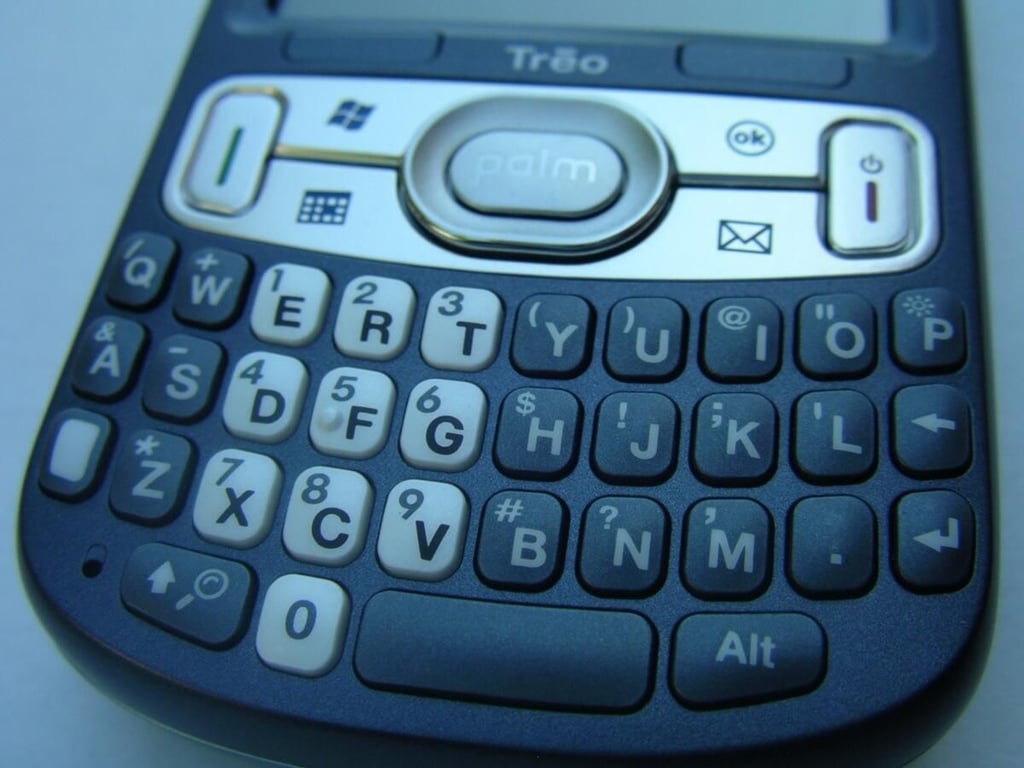

Treo 800w keyboard
Treo 800w keyboard
The keys are well spaced and arranged for quick text entry.

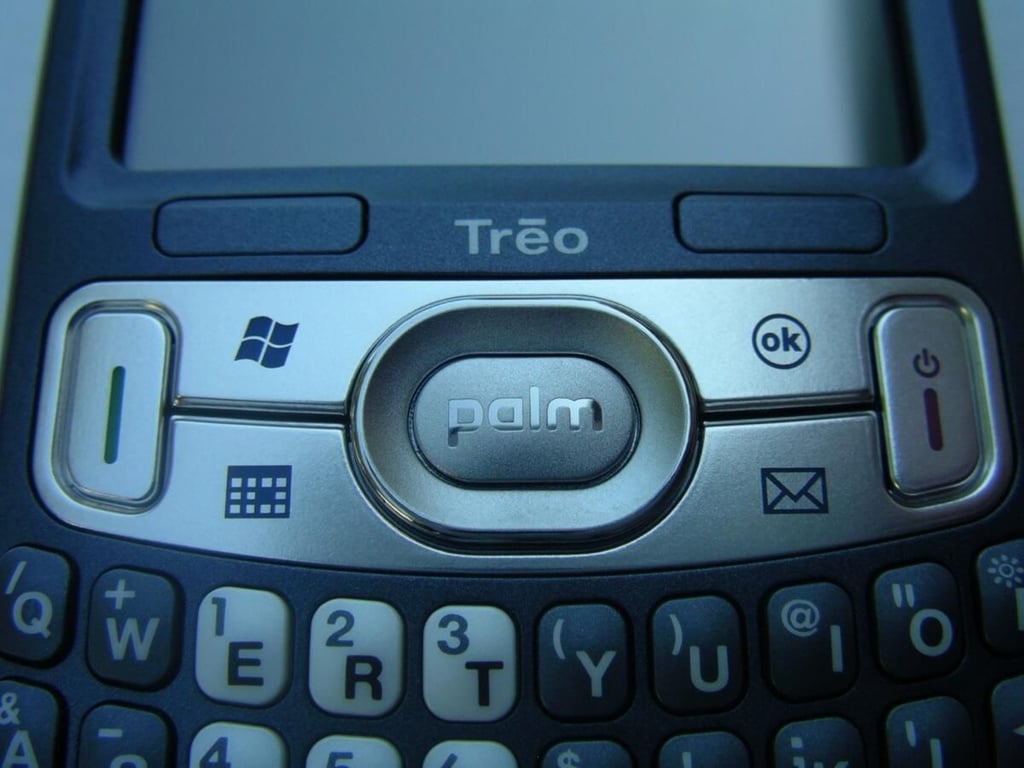

Hardware buttons above the keyboard
Hardware buttons above the keyboard
There are several buttons above the keyboard and you can customize most of them to launch the applications you want to have a shortcut to.

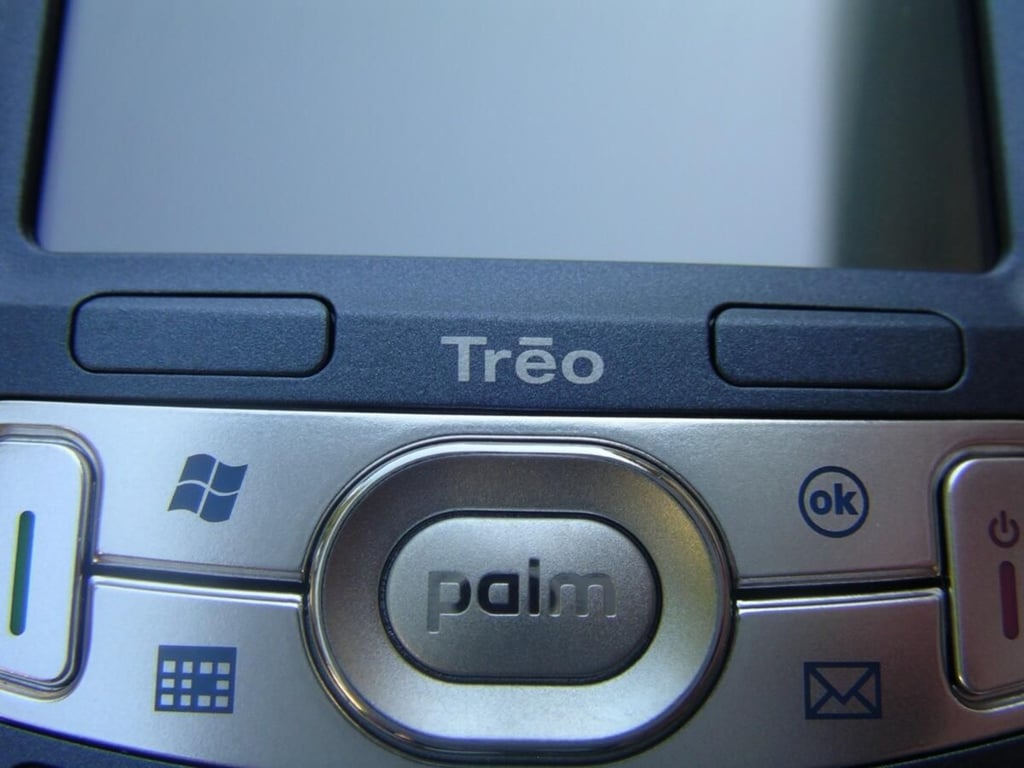

Left and right soft keys
Left and right soft keys
Palm did a good job of integrated the two soft keys on the device where they are hidden a bit just under the display. I like their placement and found them very useful, but also not glaring.

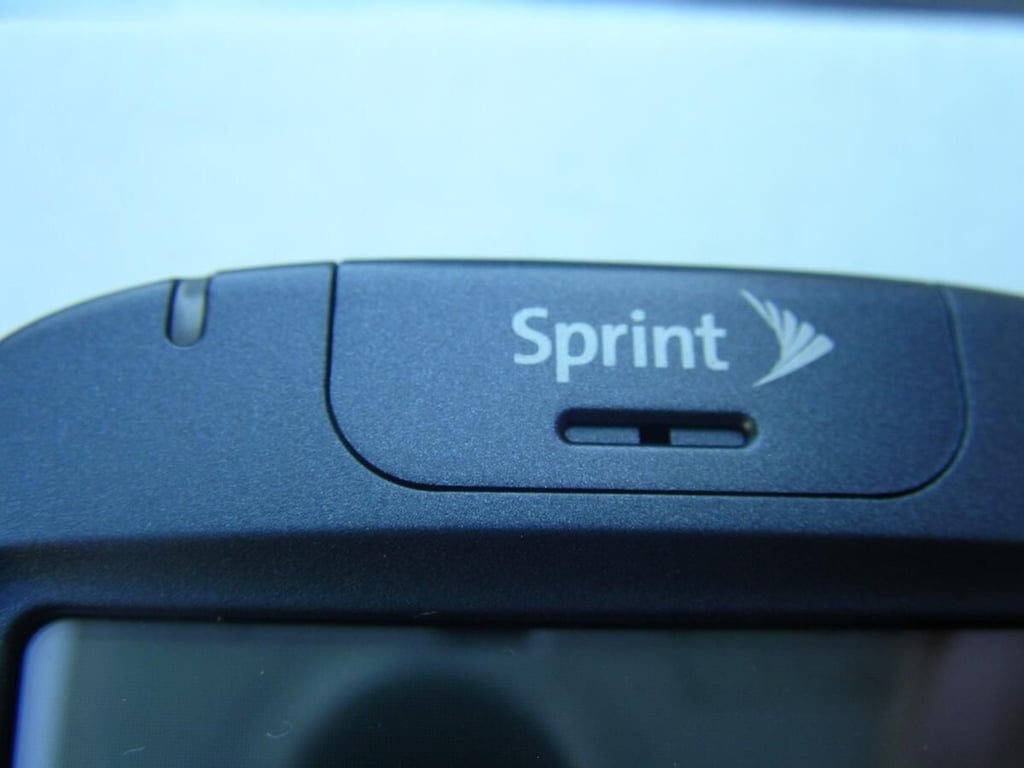

Above the display
Above the display
The indicator light and phone speaker can be found above the display on the front.

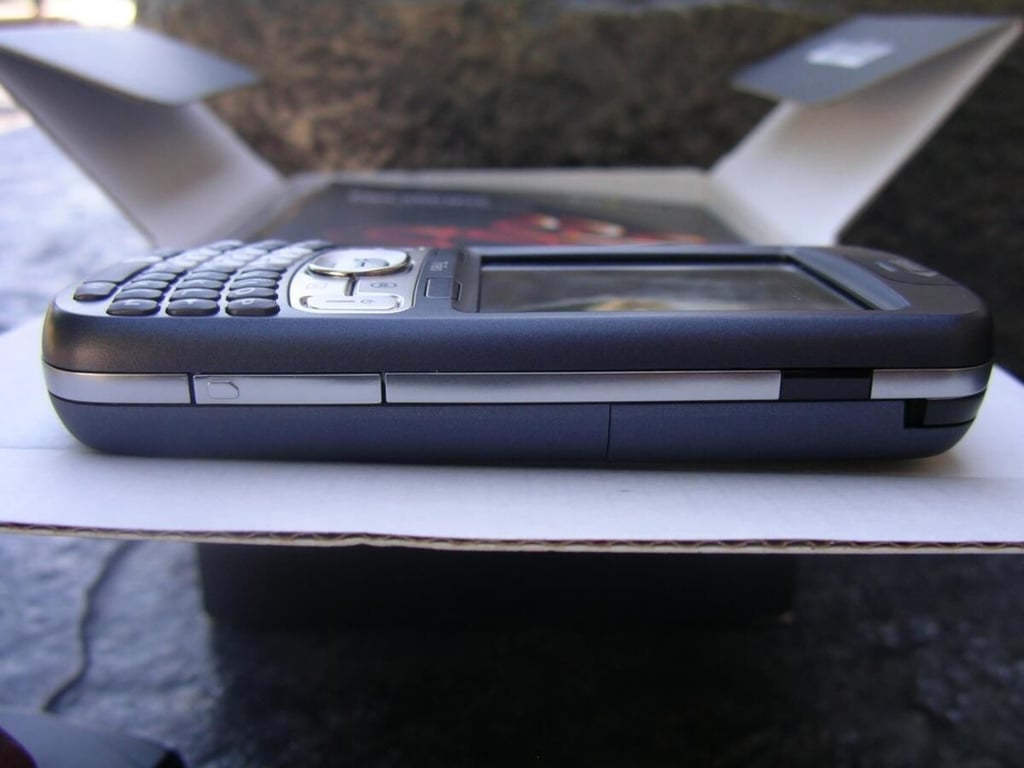

Right side of the Treo 800w
Right side of the Treo 800w
This full side shot gives you a look at the right side of the Treo 800w.

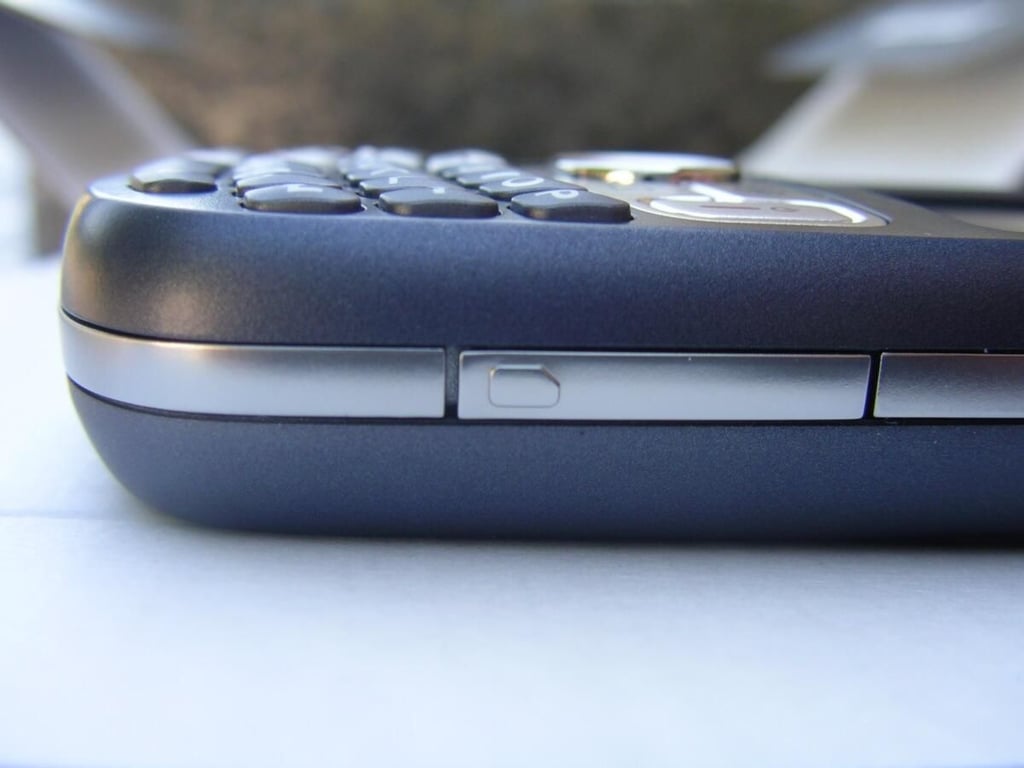

MicroSD cover
MicroSD cover
Below this silver cover is the microSD expansion card slot that supports the HC cards up to a current 8GB capacity.

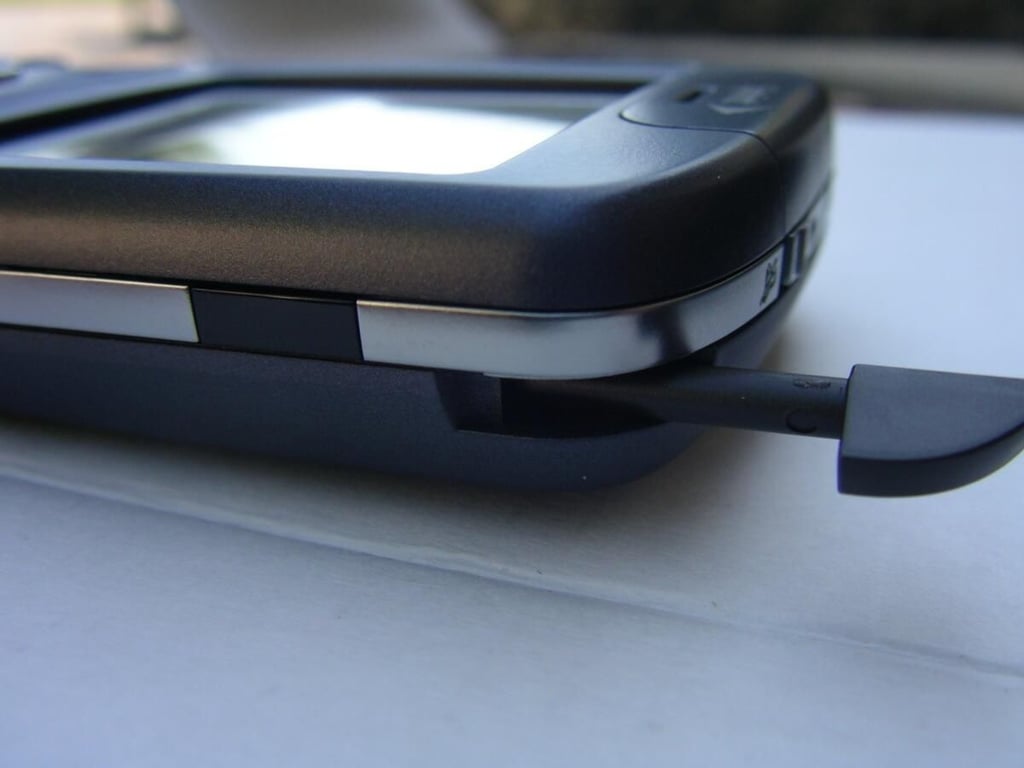

Upper right side and stylus
Upper right side and stylus
An infrared port is along the upper right side with the small opening for you to grab the stylus above that.
Top view with stylus extended
Top view with stylus extended
The stylus can be seen on the left of this photo with a couple of buttons on the top of the Treo 800w.

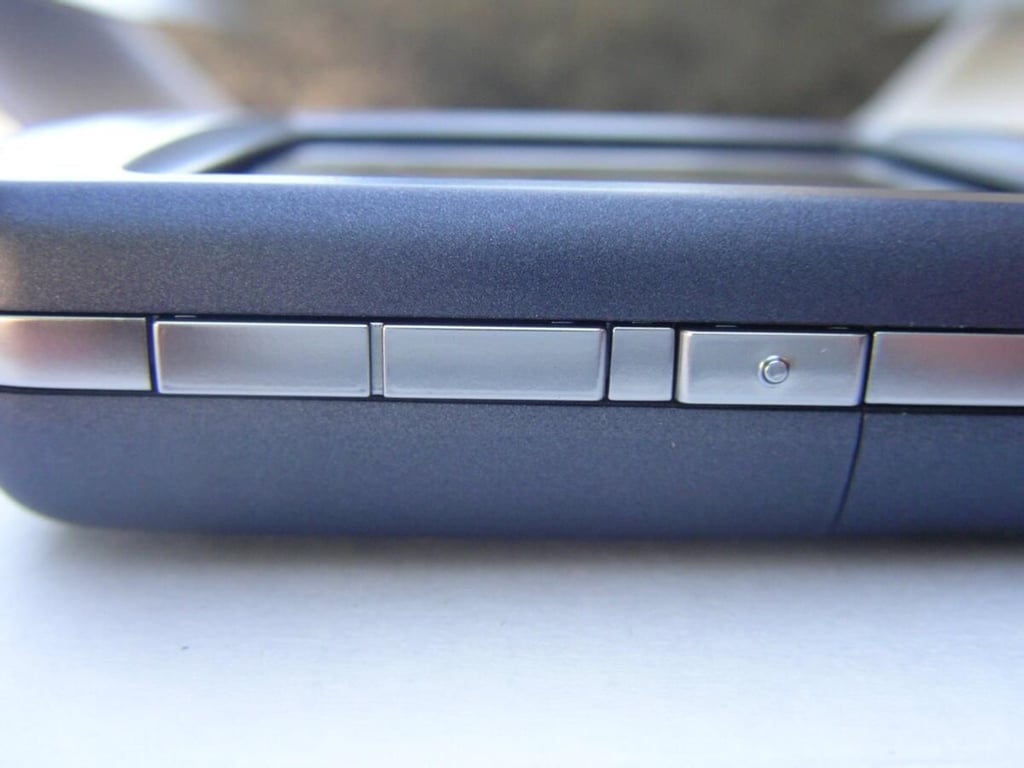

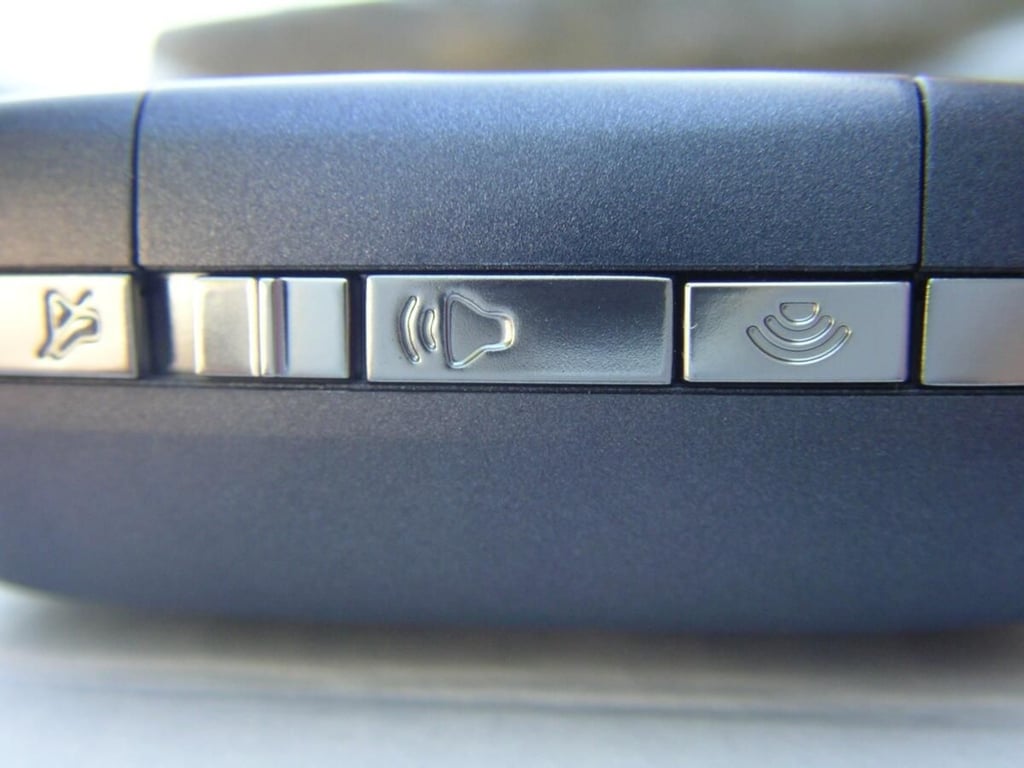

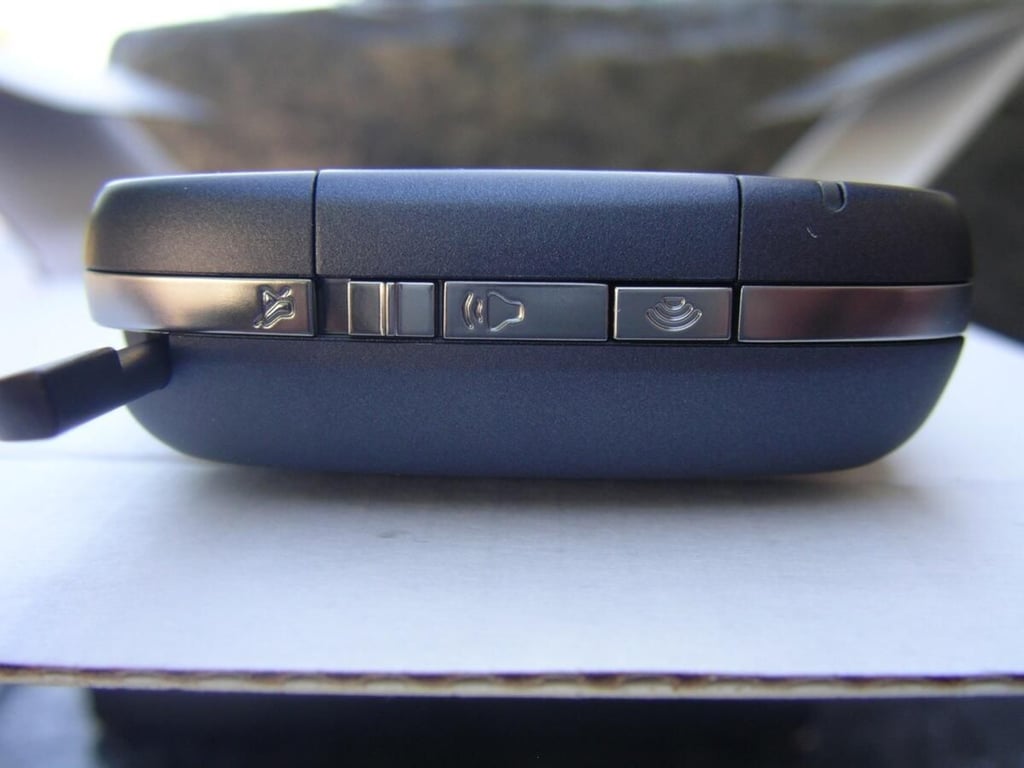

New top button
New top button
The traditional Treo ringer slider is present on the top. There is also the new one touch WiFi button that you can use to turn on and off the WiFi radio.
Left side of the Treo 800w
Left side of the Treo 800w
The volume rocker and a customizable hardware button are found on the upper left side of the device.

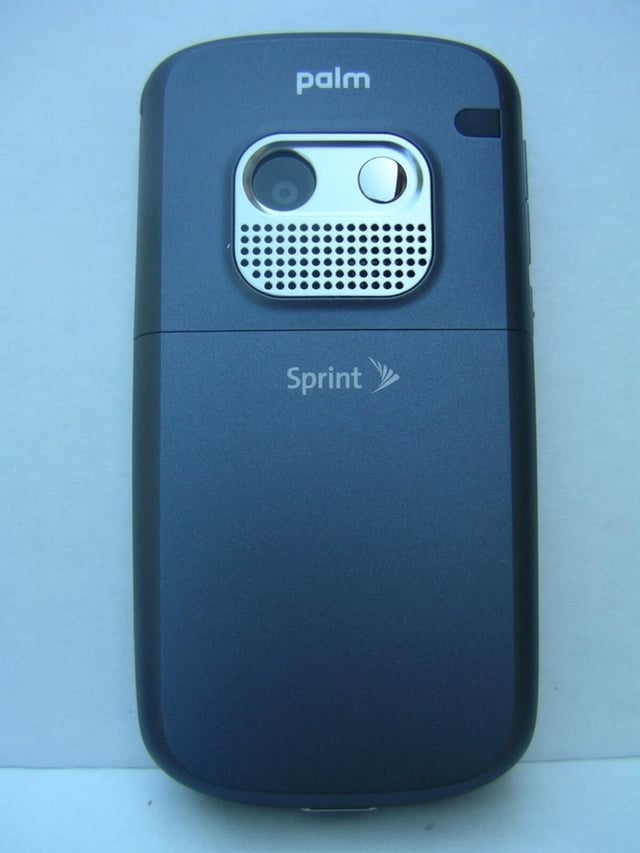

Back of the Treo 800w
Back of the Treo 800w
The camera and speaker grill are prominently shown on the back of the Treo 800w.

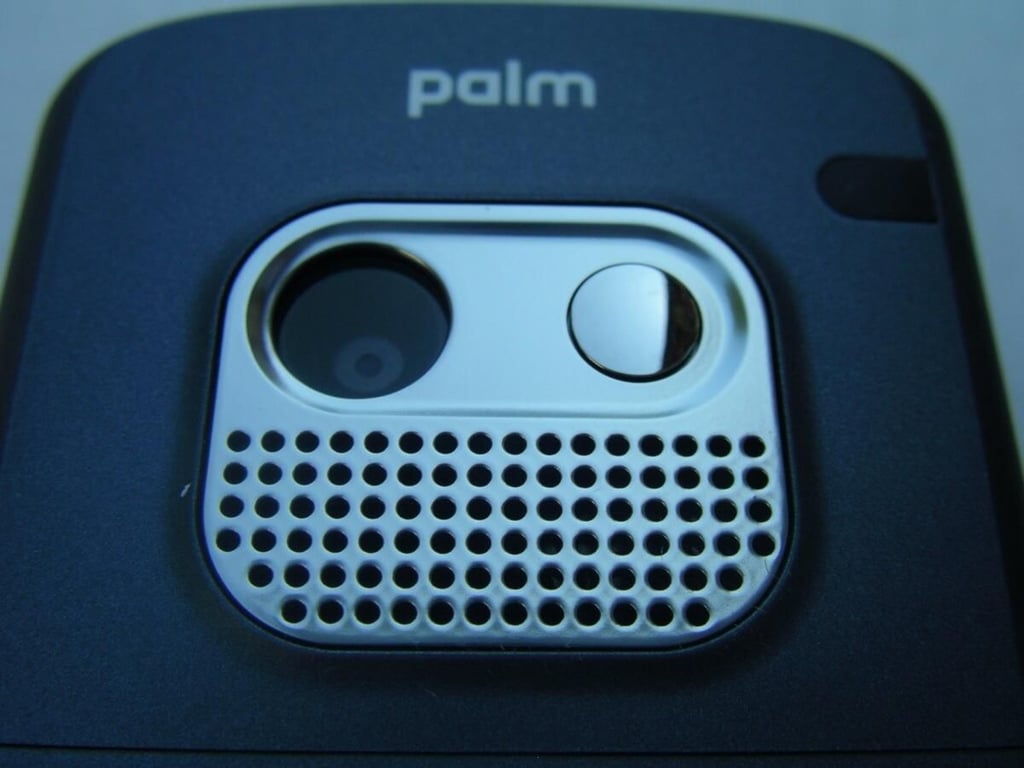

Close-up of the camera
Close-up of the camera
A 2 megapixel camera with a self-portrait mirror can be found on the back.

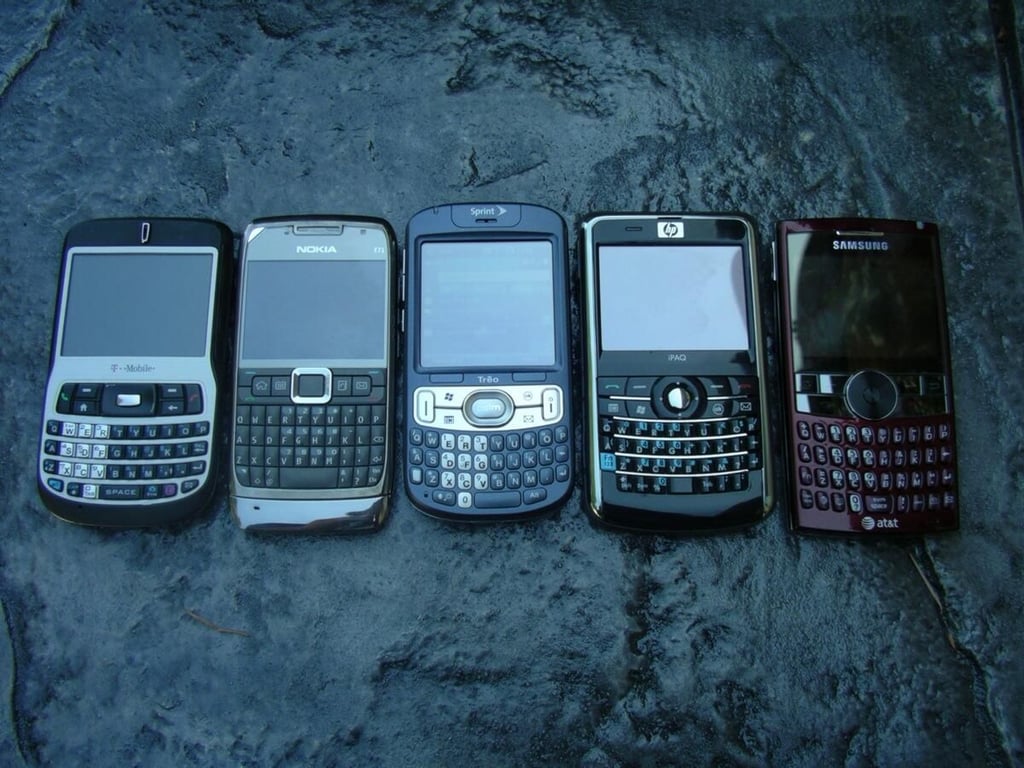

Five QWERTY devices
Five QWERTY devices
The T-Mobile Dash, Nokia E71, Treo 800w, HP iPAQ 910, and Samsung Blackjack II all sport QWERTY keyboards in this shot.

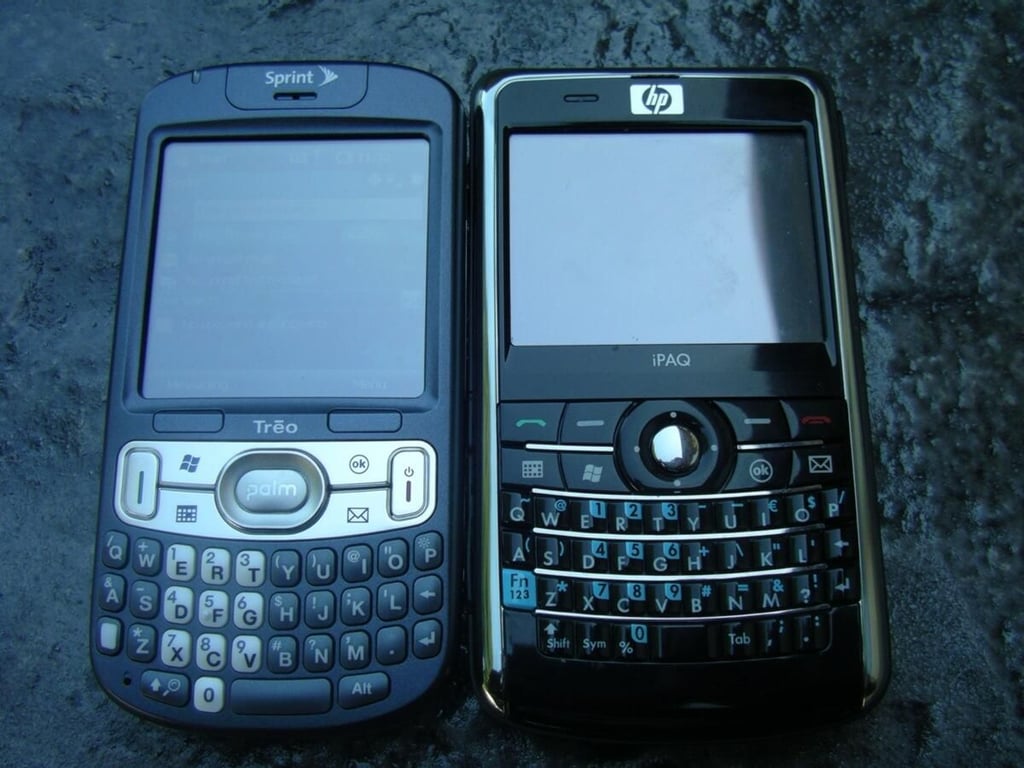

Two touch screen devices
Two touch screen devices
The Treo 800w and HP iPAQ 910 are both Windows Mobile 6.1 Professional (touch screen) devices with QWERTY keyboards.

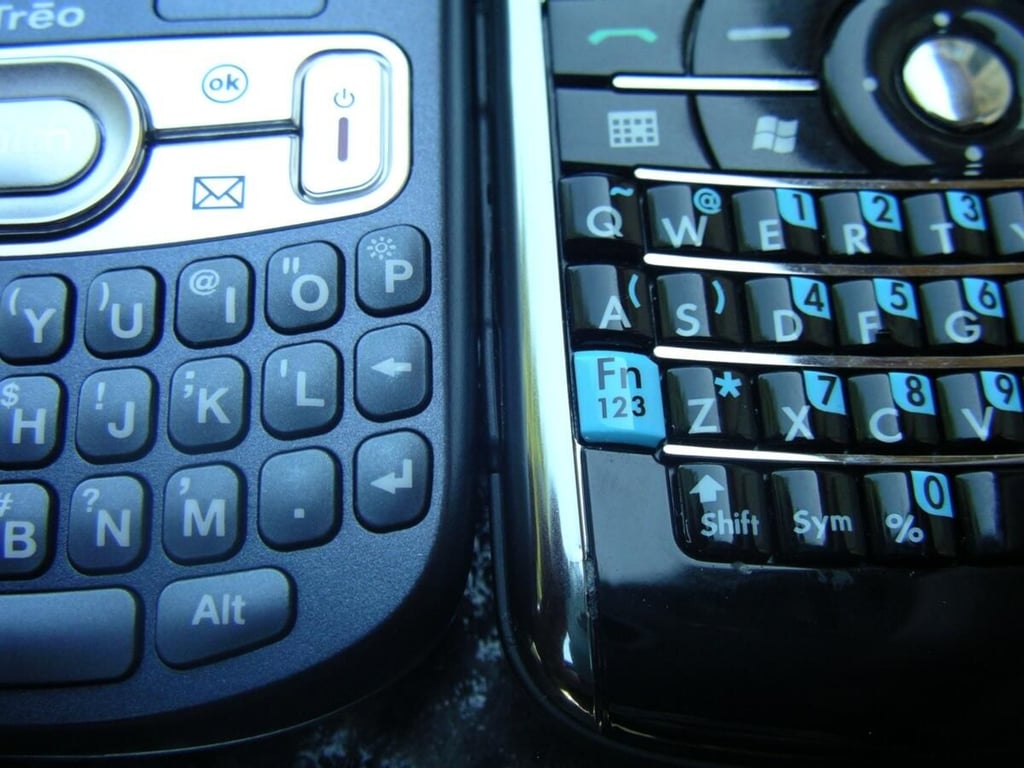

Different keyboard designs
Different keyboard designs
There are different keyboards that appeal to different user needs and desires. The Treo 800w keys are spaced further apart.

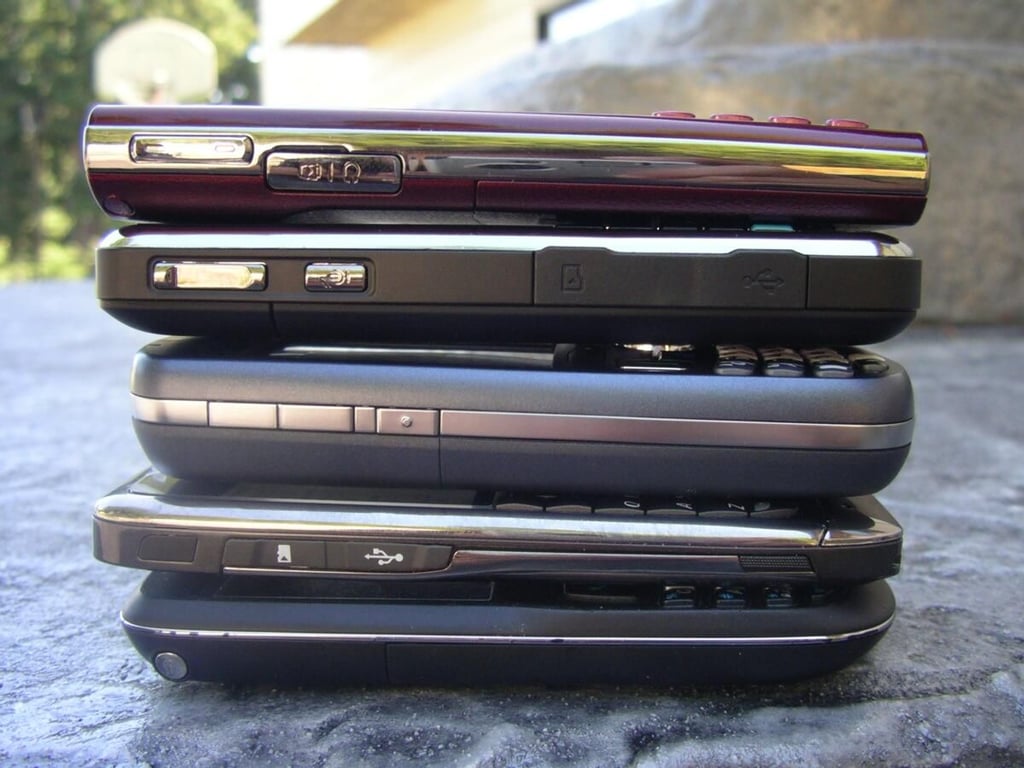

Five device stacked up
Five device stacked up
From top to bottom are the Blackjack II, iPAQ 910, Treo 800w, Nokia E71, and T-Mobile Dash. You can see that the Treo is the thickest of the bunch.

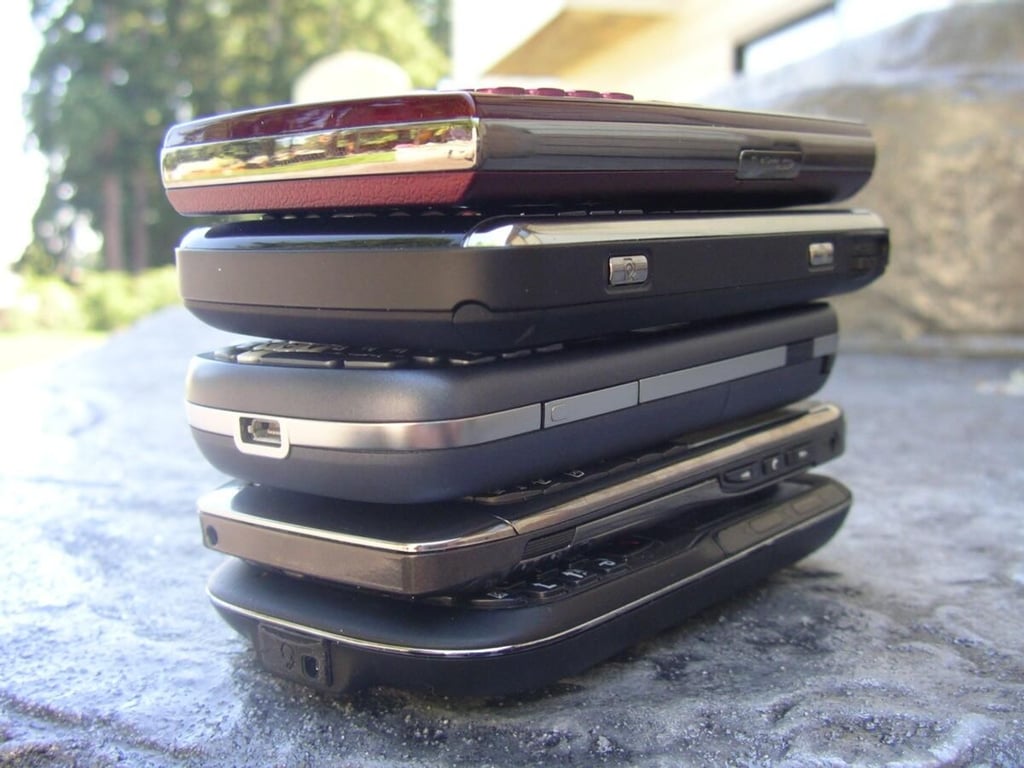

Bottom stacked view
Bottom stacked view
Here is another view of those same 5 devices with the bottom showing.

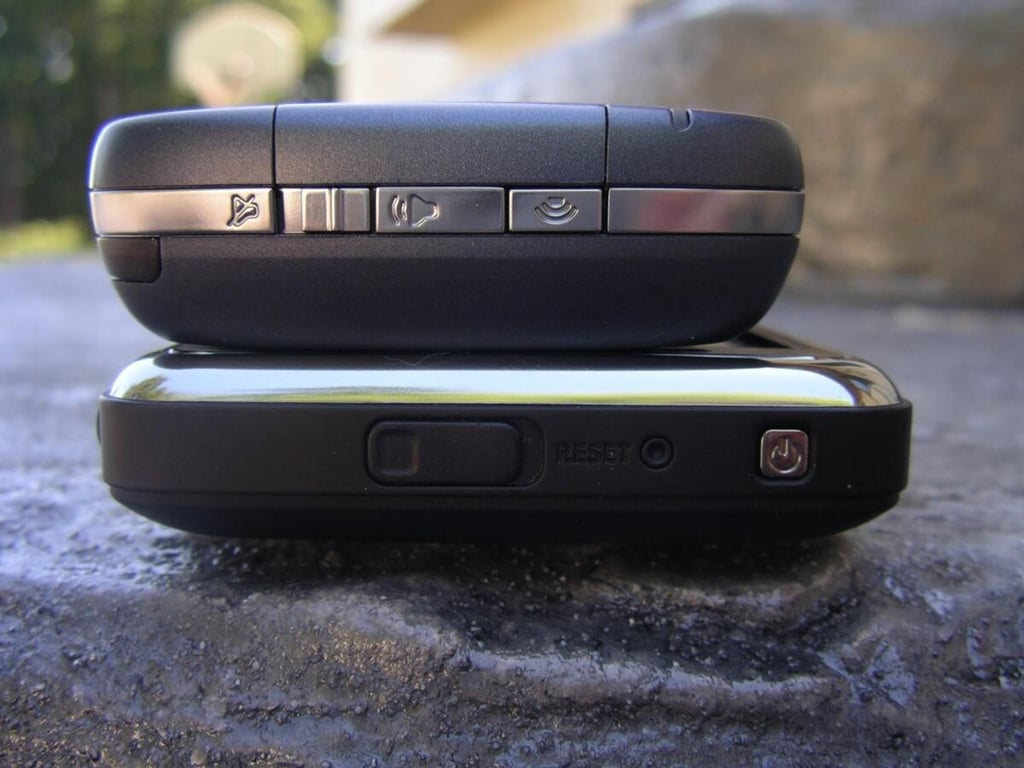

Palm Treo 800w on HP iPAQ 910
Palm Treo 800w on HP iPAQ 910
These two are both touch screen devices, while the other three in the photos are non-touch screen devices with the expectation they would be of slimmer form factor.

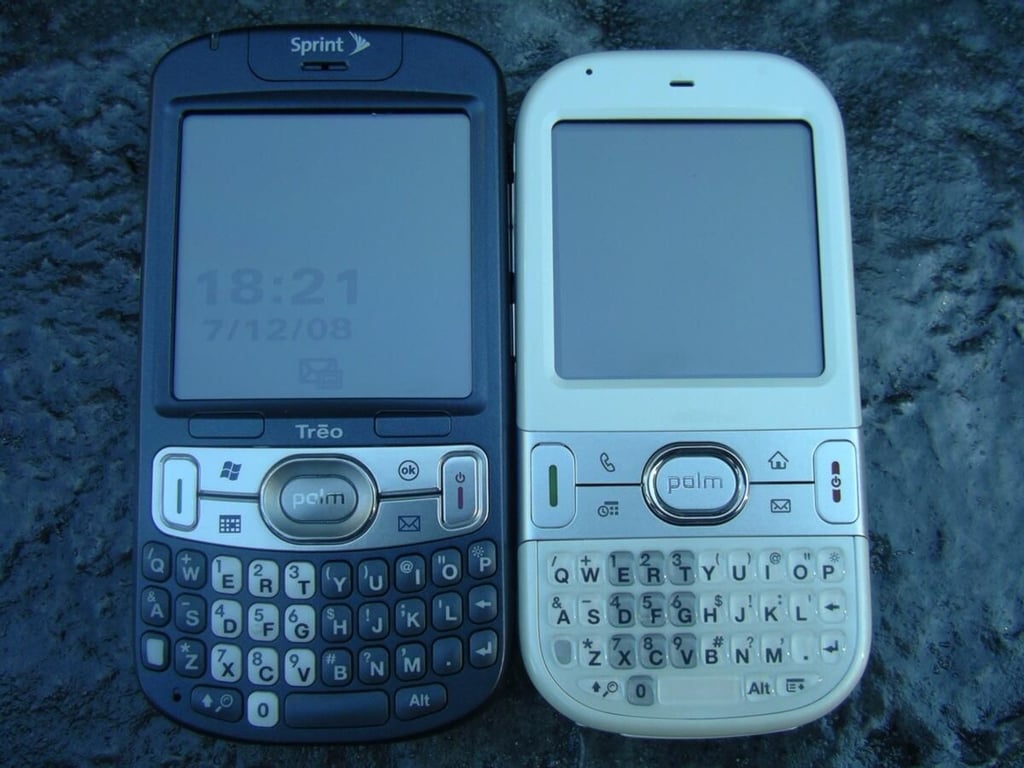

Treo 800w and Palm Centro
Treo 800w and Palm Centro
You can see the curved design is similar between these two Palm branded devices.

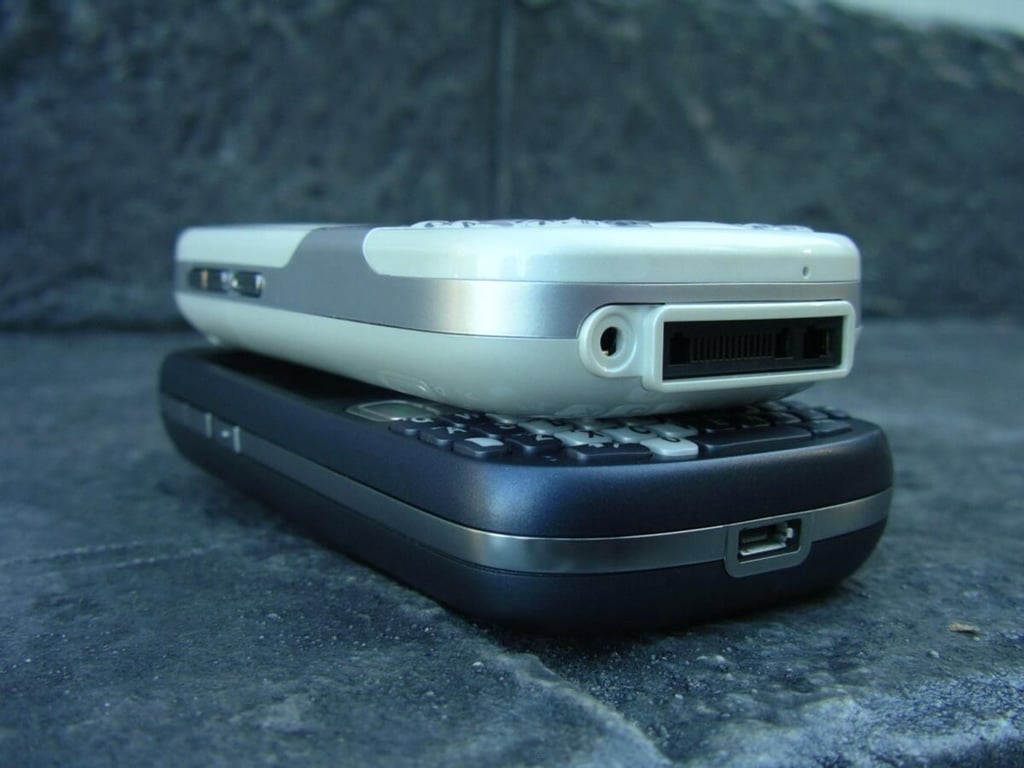

Centro on the Treo 800w
Centro on the Treo 800w
This unlocked Centro rests on the Treo 800w.

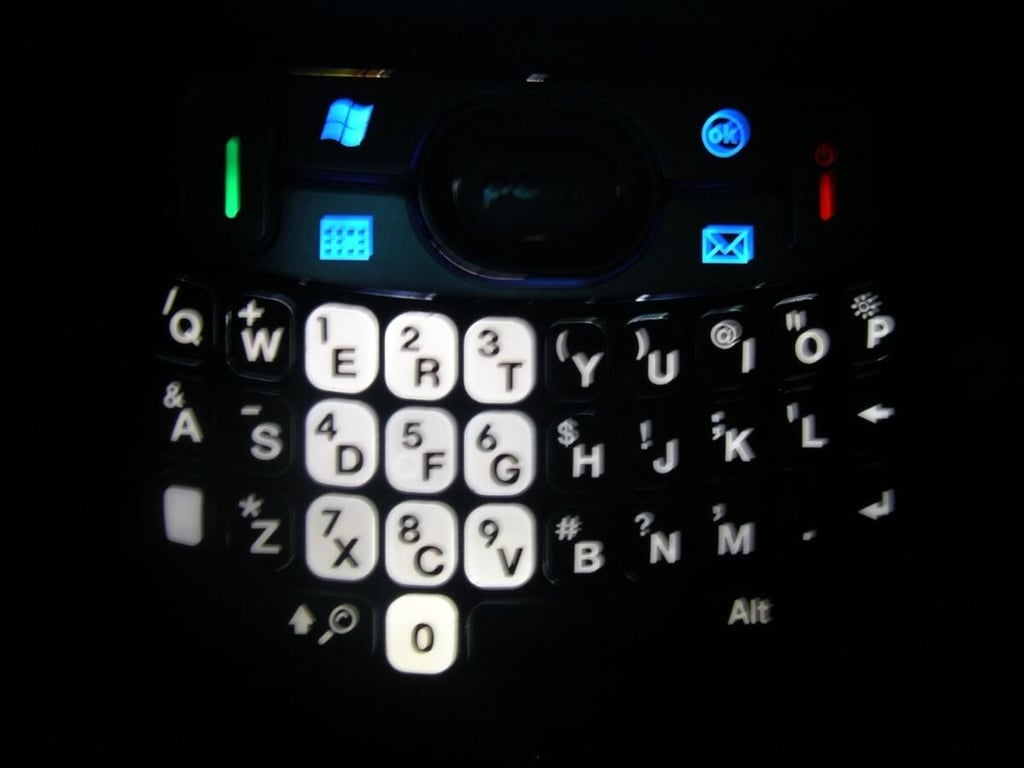

Bright backlight on the Treo 800w
Bright backlight on the Treo 800w
You will have no problems seeing the keys on the Treo 800w in low light conditions.

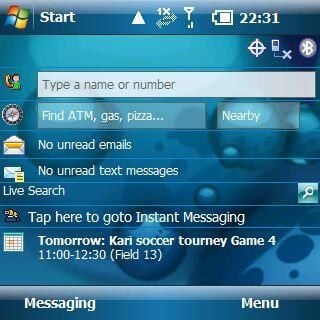

Treo 800w Today screen
Treo 800w Today screen
The 320×320 display lets you see lots of information without the annoying side scroll bars seen often on the 240×240 Treo models.

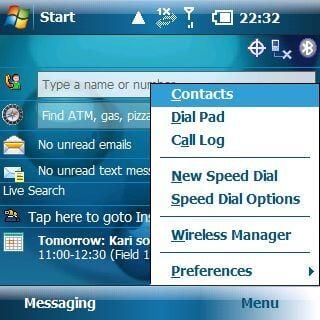

Treo 800w right soft key menu
Treo 800w right soft key menu
Palm included a special Menu key on the bottom right of the Today screen to allow quick access to common tasks conducted by the user.

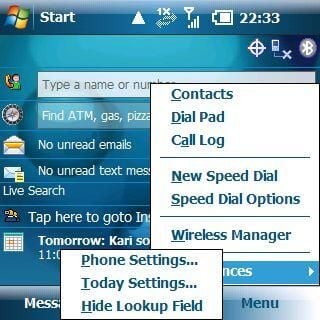

Preferences in the new menu
Preferences in the new menu
You can access your preferences using the new right soft key menu option on the Today screen.

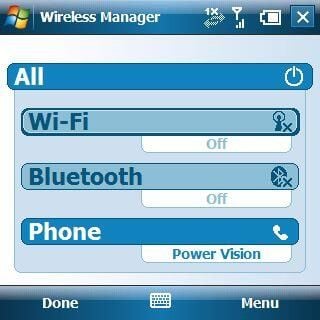

Wireless connection manager
Wireless connection manager
It sure is nice to finally see WiFi on a Palm device.

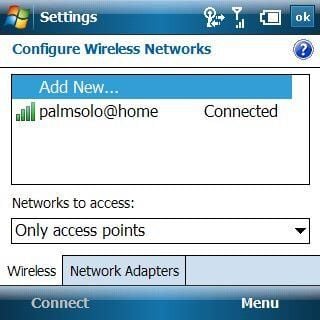

Standard Windows Mobile WiFi utility
Standard Windows Mobile WiFi utility
This is the standard Windows Mobile 6.1 wireless utility that shows connection status.

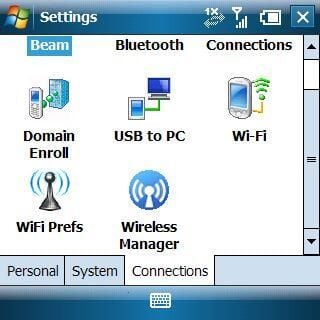

Palm WiFi Preferences utility
Palm WiFi Preferences utility
As you can see on the Settings>Connection tab Palm includes a Preferences utility on the Treo 800w.

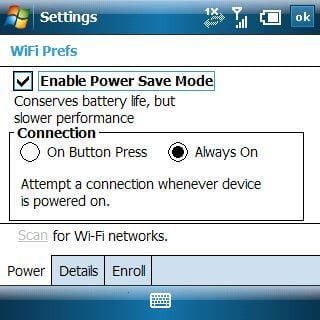

A look at the WiFi Preferences
A look at the WiFi Preferences
Here you can see where Palm lets you manage your WiFi settings to conserve battery life, which is a concern given the battery is only 1150 mAh.

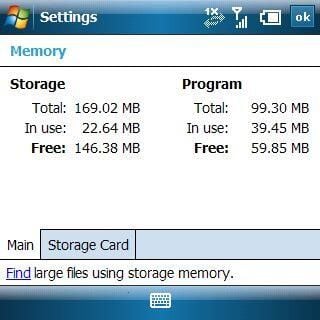

Plenty of memory here
Plenty of memory here
Palm gives you a healthy amount of both flash ROM and program RAM so there should be no concerns with memory on this device. You have almost 170MB to store applications on the device with a microSD card slot as well.

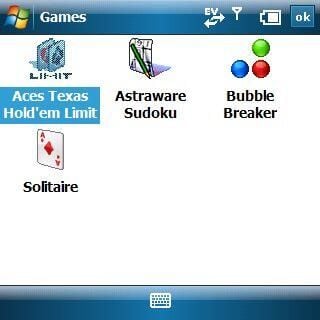

Couple of free games for you too
Couple of free games for you too
Palm also includes Astraware Sudoku and Texas Hold’em so you can enjoy games on your Treo 800w.

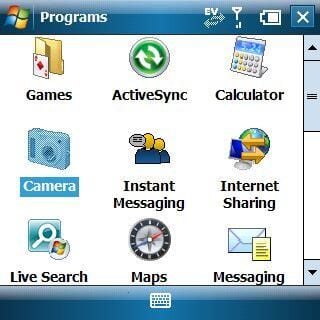

View of the Programs menu
View of the Programs menu
This screenshots shows you a few applications that are included on the device.

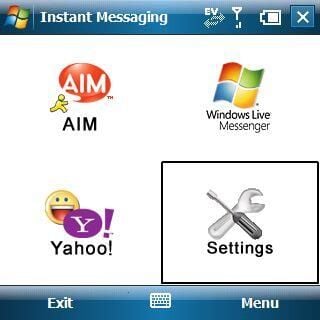

Sprint IM application
Sprint IM application
You can access three different IM clients with the Sprint IM application loaded on the Treo 800w. I understand the IM application uses data and not text messaging too.

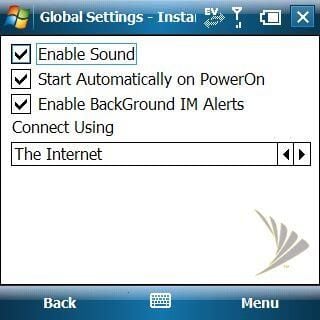

Global settings display
Global settings display
You can check out some of the global settings available to you on the Treo 800w.

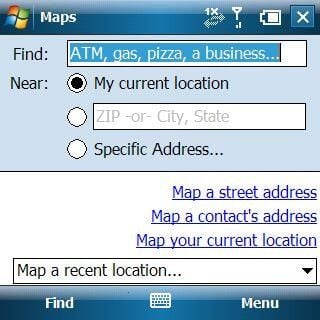

Maps utility settings
Maps utility settings
These settings control the Maps utility that can be used directly from the Today screen.

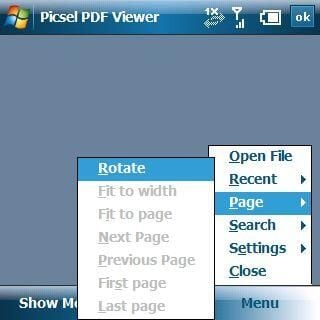

Picsel PDF viewer
Picsel PDF viewer
This PDF viewer application works very well, even with such a small display.

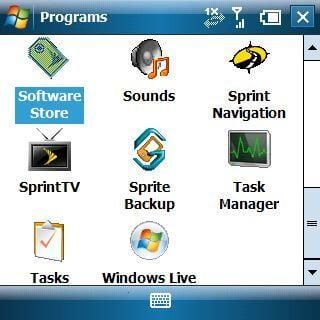

More programs on the Treo 800w
More programs on the Treo 800w
Here you can see some of the Sprint programs and a shortcut to the Sprint application store.

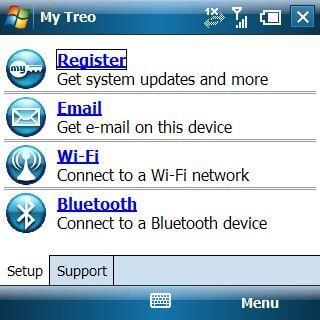

My Treo utility
My Treo utility
This My Treo utility is found in your Start menu by default and lets you quickly customize a few aspects of your device.

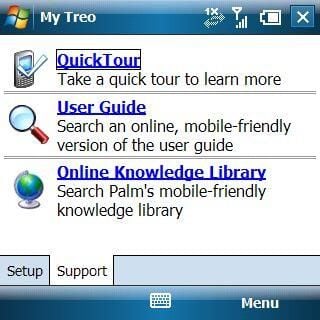

My Treo support tab
My Treo support tab
There are two tabs in the My Treo utility and this shot shows the Support tab.

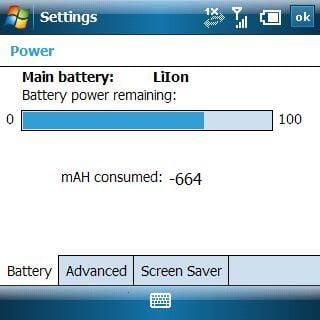

Battery status utility
Battery status utility
This is the first time I have seen an actual value assigned for battery that was used on the device.
