The Gigabyte P35t-DQ6 comes with the newest Intel P35 “3-Series” chipset and it comes in an unusually large box. This motherboard has a street price starting at $180 and the 3-Series chipset has very good energy efficiency.rn
rnSee George Ou’s full report. rn
rnClick on image to enlarge.
The newest Intel P35 chipset supports all current socket 775 CPUs as well as the upcoming Intel “Penryn” 45nm processors.rn
rnClick on image to enlarge.
Key features of the Gigabyte P35t-DQ6 are the 6-port SATA-300 Intel ICH9R RAID controller with eSATA expander, DDR2 as well as DDR3 memory support, 2 additional SATA-300 ports, , floppy, PATA UDMA-100, 2 IEEE 1394a, 8-channel audio, 4 USB 2.0 connectors with 8-ports, Gigabit Ethernet.rn
rnClick on image to enlarge.
The Gigabyte P35t-DQ6 box within the box.
Another box within a box to further protect the Gigabyte P35t-DQ6 motherboard. No packaging expense is spared for this mid- to high-end motherboard with a street price starting at $180.rn
rnClick on image to enlarge.

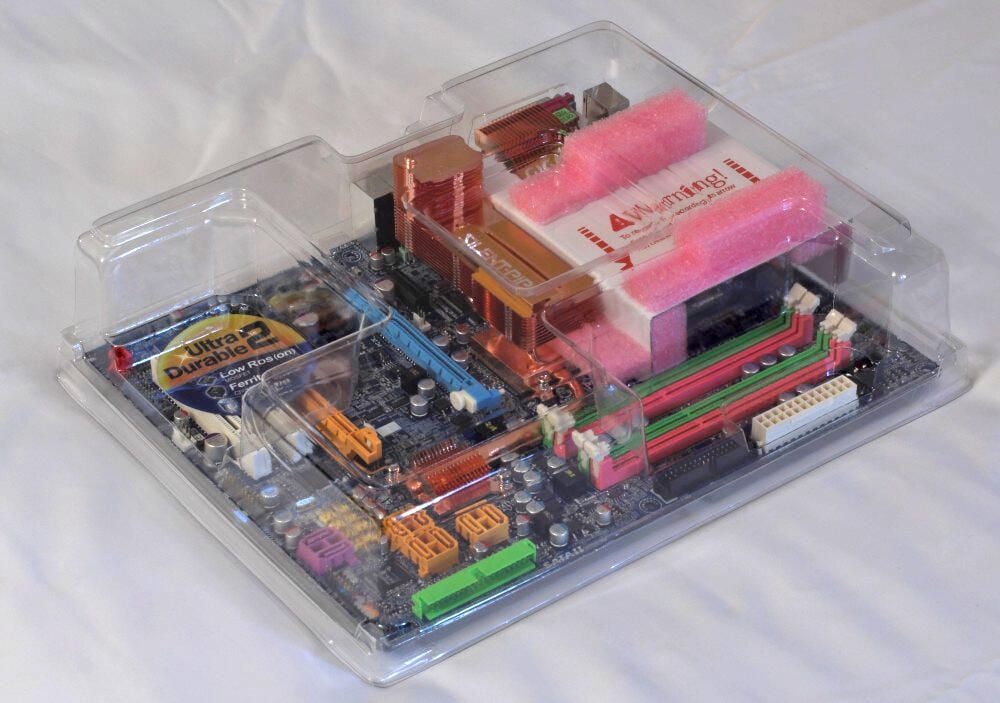

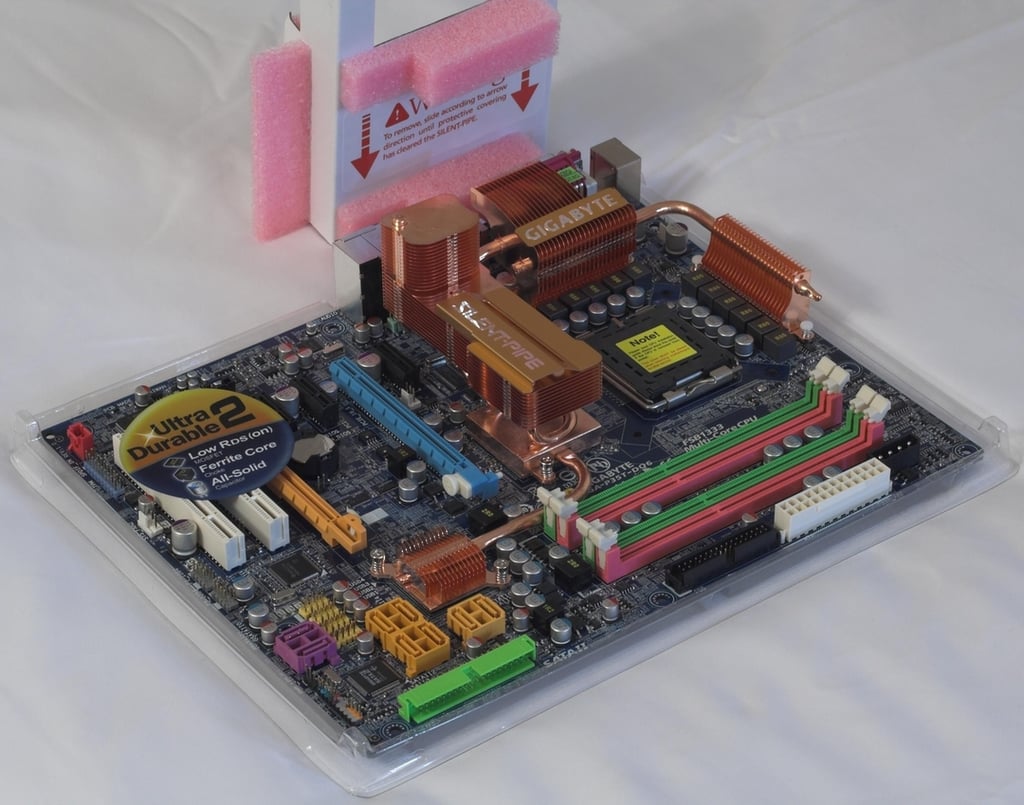

After removing the plastic cover and the paper/foam protector for the exotic heat pipes and fins, we can see some serious cooling capability for the north- and south-bridge chipsets. This allows for some hardcore overclocking because the chipset can stay cool while the motherboard clock speed is raised. The 3-series chipset motherboards all use passive chipset cooling whereas some older chipsets permitted noisy and unreliable fans.rn
rnClick on image to enlarge.

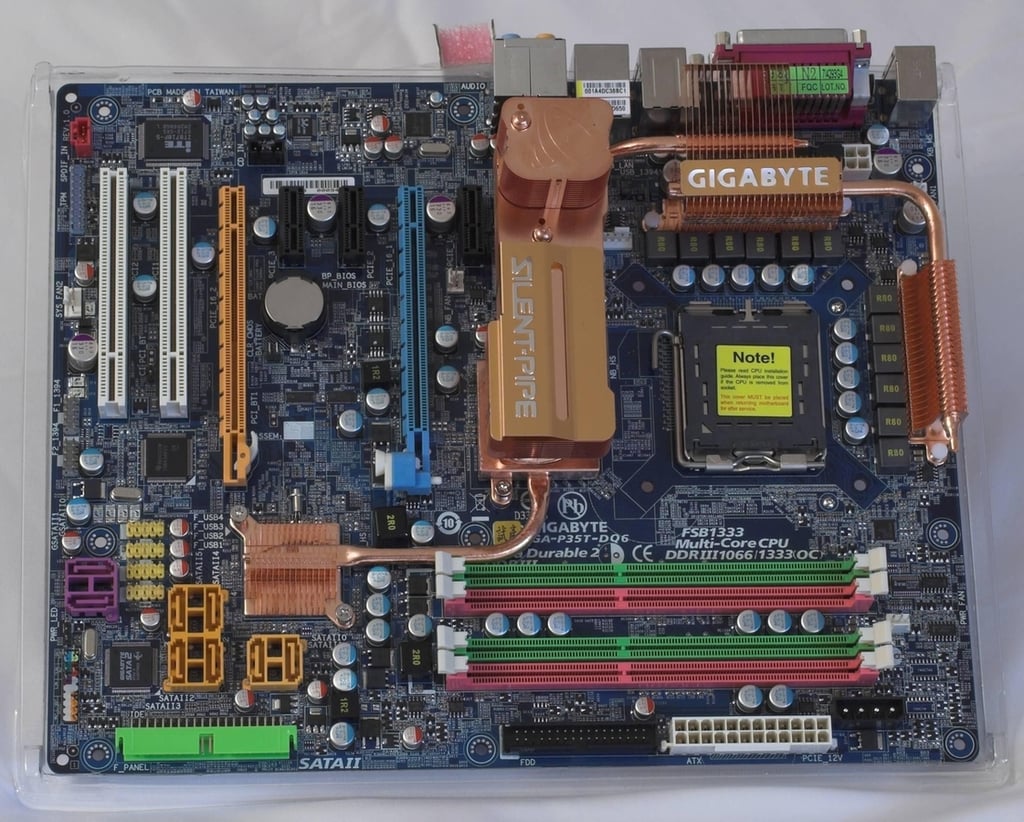

This is a detailed top view of the Gigabyte P35t-DQ6.rn
rnClick on image to enlarge.

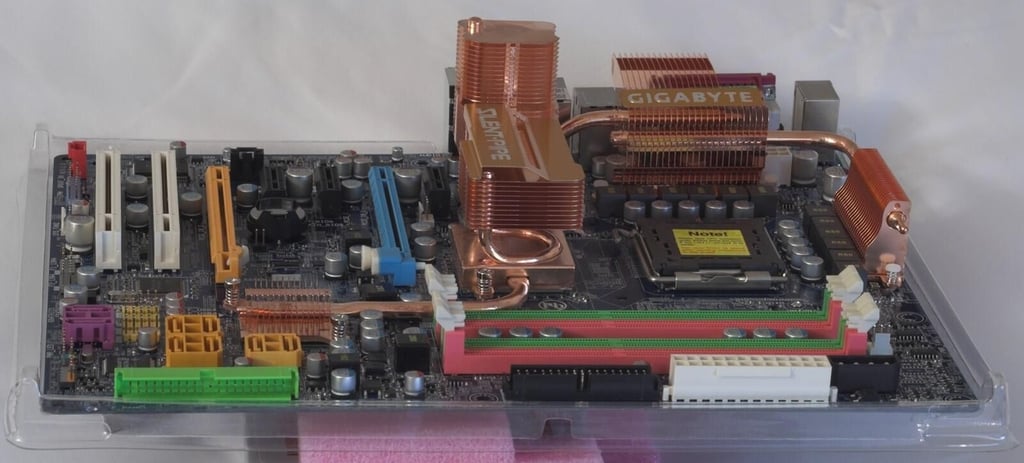

This is a profile view of the Gigabyte P35t-DQ6 for a better look at the heat pipes.rn
rnClick on image to enlarge.

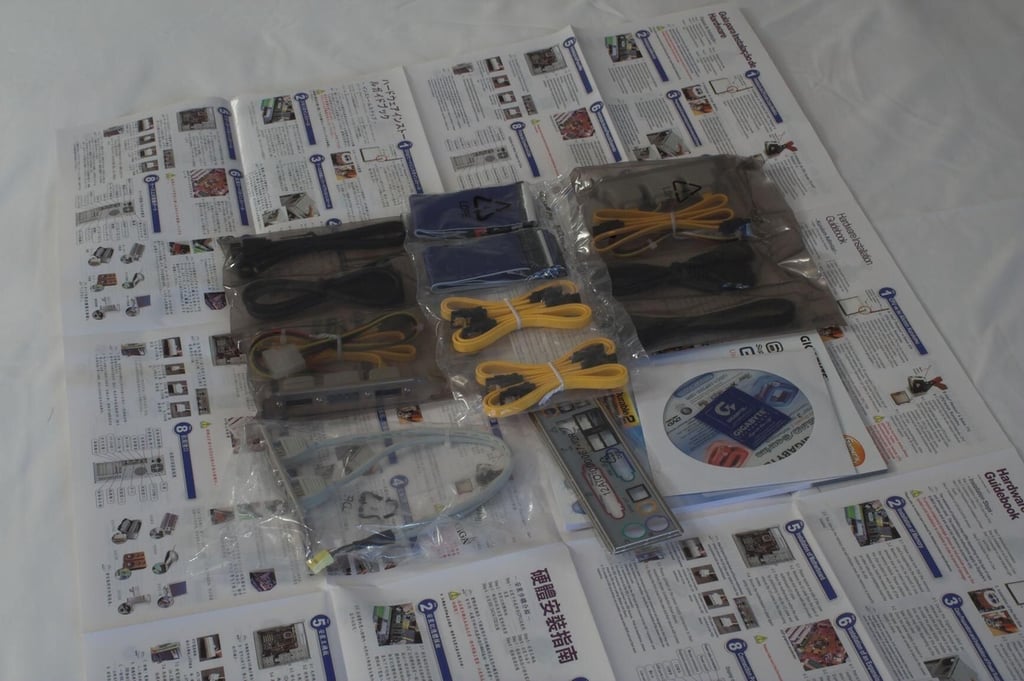

There’s another box within the box for the Gigabyte P35t-DQ6 containing lots of cables, manuals and quick start guides. There is a 2-port eSATA with a Molex power connector for fast external storage.rn
rnClick on image to enlarge.
This is the newest Gigabyte GA-G33M-DS2R Micro-ATX motherboard based on the newest Intel G33 “3-series” chipset. It comes in a more conventional small box and has a street price starting at around $134 and the 3-Series chipset has very good energy efficiency.rn
rnClick on image to enlarge.

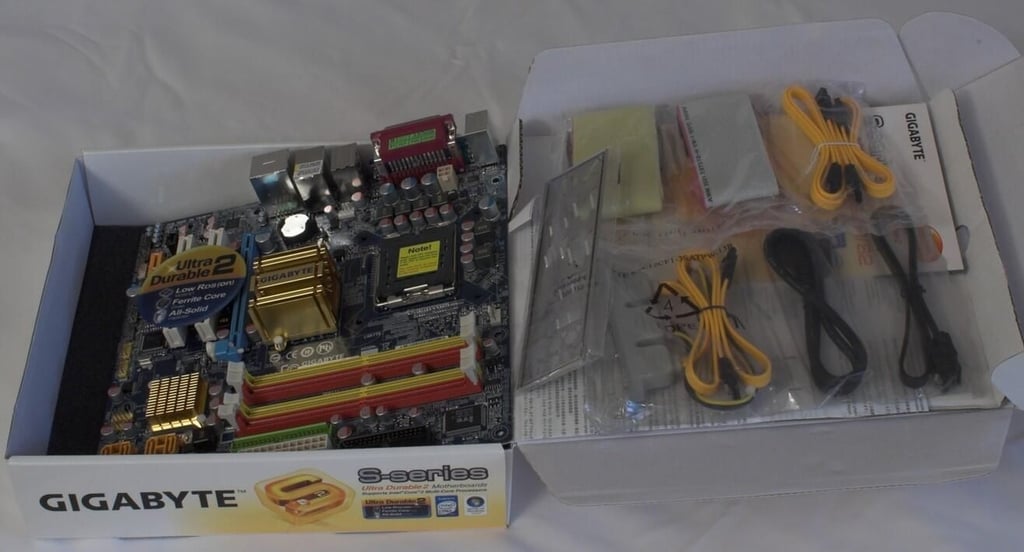

This is the contents of the Gigabyte GA-G33M-DS2R. It also has an Intel ICH9R 6-port RAID controller and a 2-port eSATA with a Molex power connector for fast external storage.rn

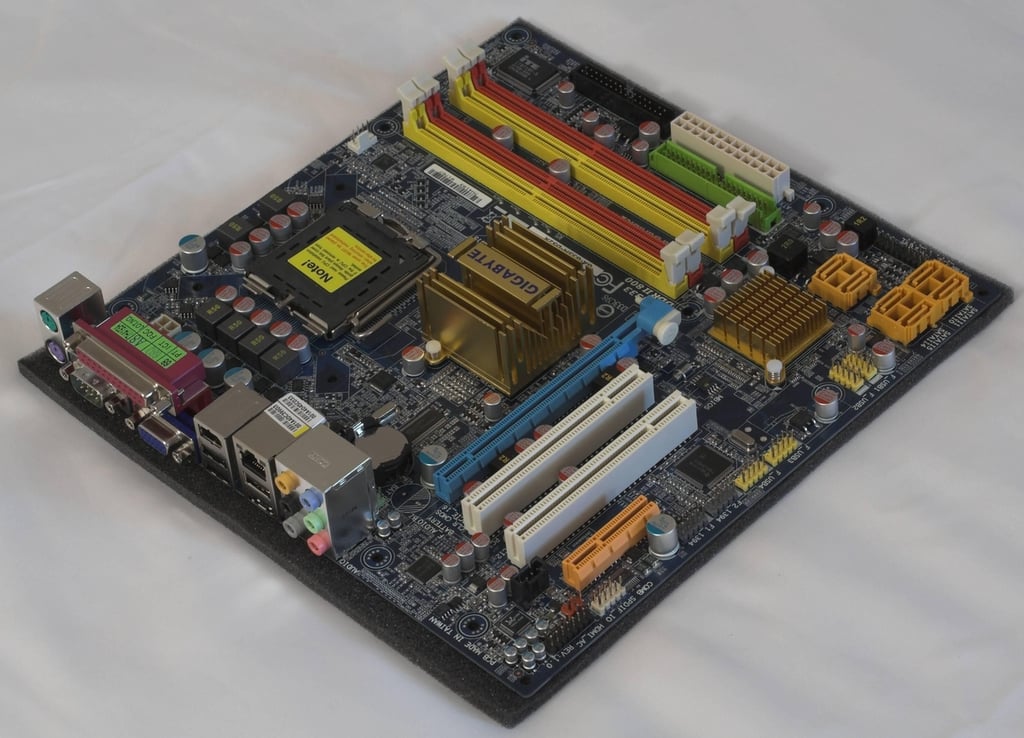

This is a detailed view of the Gigabyte GA-G33M-DS2R. It has an integrated Intel GMA 3100 graphics controller, 6-port SATA-300 Intel ICH9R RAID controller with eSATA expander, DDR2 (no DDR3) support, floppy, PATA UDMA-100, 2 IEEE 1394a, 8-channel audio, 4 USB 2.0 connectors with 8-ports, and Gigabit Ethernet.rn
rnClick on image to enlarge.
Not forgetting about AMD, this is an MSI K9AGM2 Micro-ATX motherboard based on the AMD (ATI) 690G motherboard with integrated HDMI graphics. Street price for this motherboard is a mere $73 and it even comes with an HDMI video output port making it an extremely attractive Media Center PC. It only has 4 SATA-300 ports unlike the 6 ports on the Intel G965 and G33 motherboards and it’s missing RAID Level 5 functionality as well as an eSATA expander so its storage capability (especially when you’re storing video) is a little lacking. However it may be good enough for many people and the 690G motherboard is substantially cheaper than the Intel-based boards.rn
rnClick on image to enlarge.

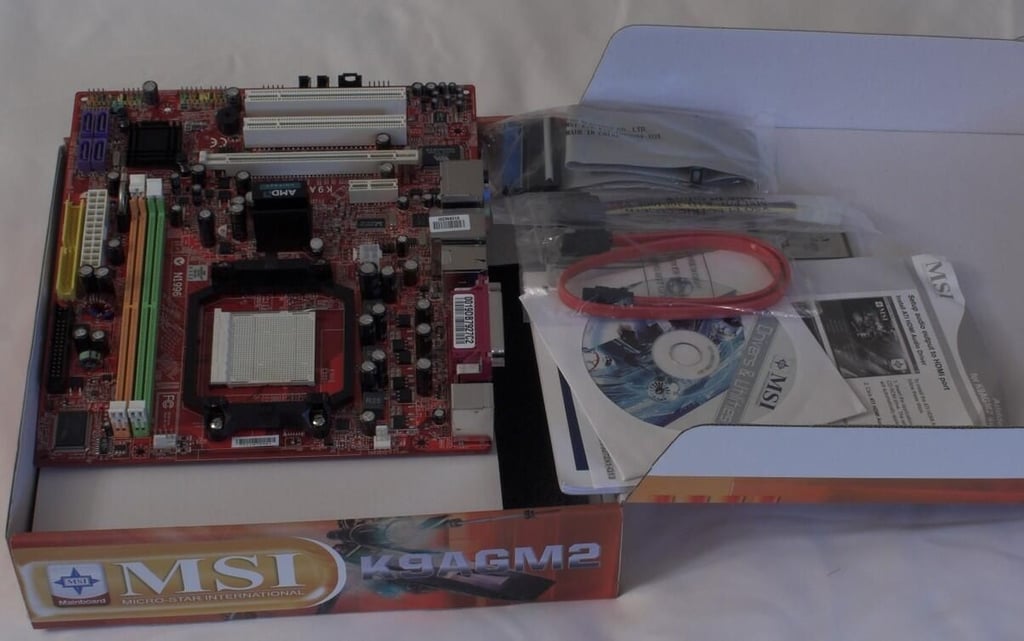

This shows the contents of the MSI K9AGM2 motherboard. It comes with a minimum set of cables but it’s more than reasonable for such an inexpensive motherboard.rn
rnClick on image to enlarge.

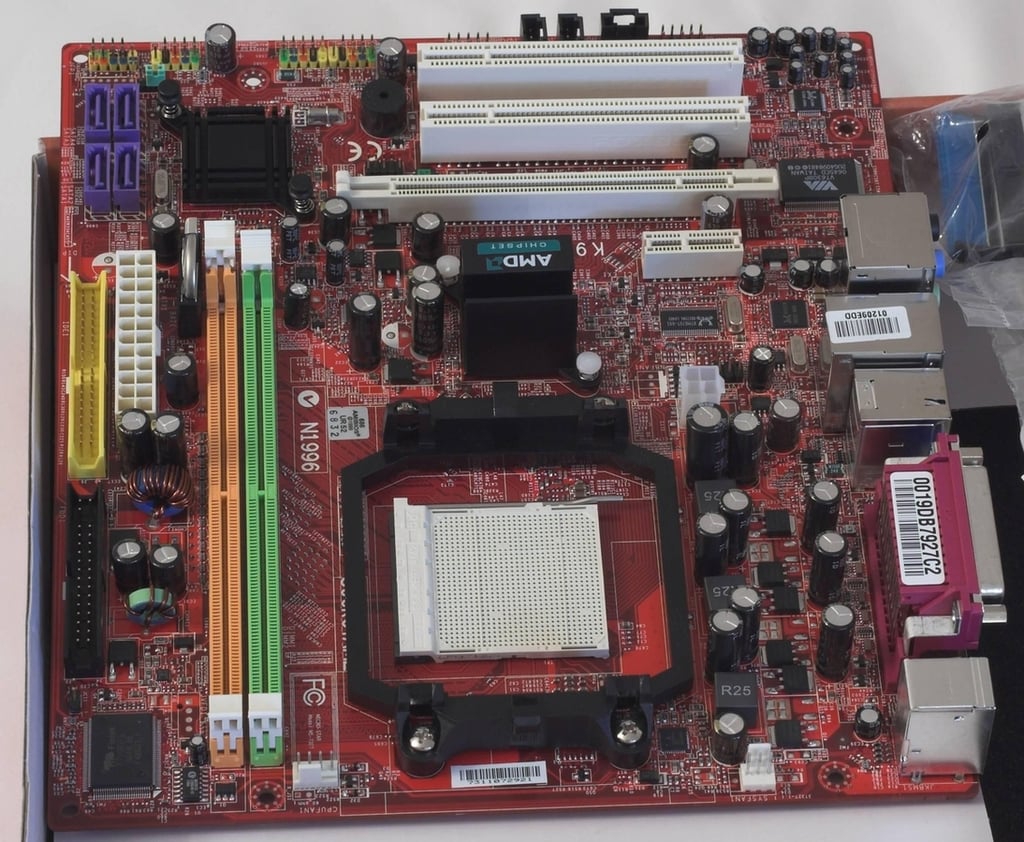

Here’s a close-up view of the MSI K9AGM2. It has an integrated ATI Radeon Xpress 1250 graphics chipset with VGA and HDMI out, 1 PATA UDMA connector, 4 SATA-300 ports, Gigabit Ethernet, 8 channel audio, 4 USB 2.0 ports, and one IEEE 1394a firewire port.rn
