Hardware

PC Mods: Making a Steampunk Mini ITX Laptop

By Jack Wallen March 23, 2008, 10:54 PM PDT

1
of 23

PC Mods: Making a Steampunk Mini ITX Laptop

My first original computer

My first original computer

This design comes out of frustration and I hope one day we will see a case that takes the idea from mine and allows people to bolt together their own laptop in a weekend and not have to spend days in the shed annoying the neighbors with my angle grinder and learning how to weld aluminum like I did. There are ‘bare bones’ kits from some manufacturers, but to get a similar spec to mine, you are still expected to pay around 1500 to 2000 pounds, or worse!

© Torquil Harkness, JoverWeb

PC Mods: Making a Steampunk Mini ITX Laptop

Mini-itx to laptop

Mini-itx to laptop

To have a laptop designed around mini-itx components would be great for most people, and we do not all want a laptop that we can fit in an envelope, but rather a unit that we can use all around the house for a decent price.

© Torquil Harkness, JoverWeb

PC Mods: Making a Steampunk Mini ITX Laptop

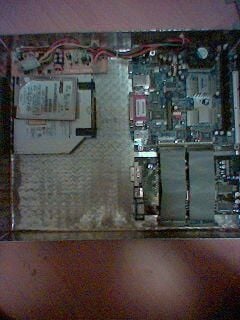

Creative measuring

Creative measuring

I first got all my components together, measured them and checked the layout in a cardboard box, left it on the kitchen table for a few weeks and generally annoyed my girlfriend.

© Torquil Harkness, JoverWeb

PC Mods: Making a Steampunk Mini ITX Laptop

Gaining access to 12 volts

Gaining access to 12 volts

You can see, the battery under the DVD drive I had it lying around for ages and was originally purchased as an ‘external laptop UPS’, however I lost all of the connectors and had to crack it open to access the 12v circuit. I would not recommend this, but rather keep all the adapters and just wire it in parallel to your charging circuit.

© Torquil Harkness, JoverWeb

PC Mods: Making a Steampunk Mini ITX Laptop

Morex PSU

Morex PSU

The Morex cubid PSU which I took from an old case I got from mini-ITX.

© Torquil Harkness, JoverWeb

PC Mods: Making a Steampunk Mini ITX Laptop

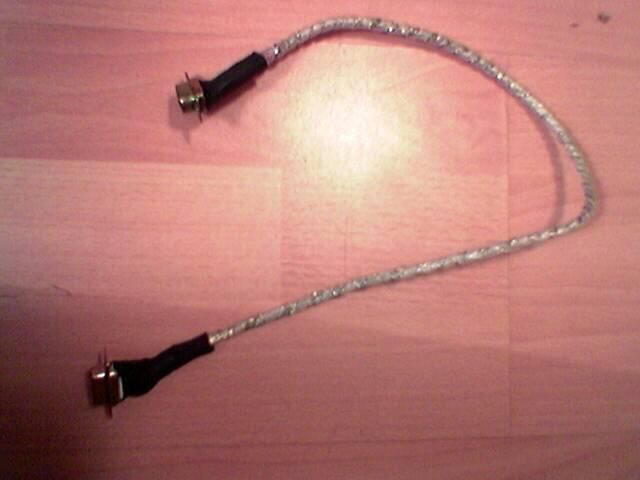

Handmade VGA cable

Handmade VGA cable

I made my own VGA cable as all the monitor cables I had seen were too bulky, this left lots of soldier blobs rolling round the floor for ages as the vacuum cleaner refused to pick them up!

© Torquil Harkness, JoverWeb

PC Mods: Making a Steampunk Mini ITX Laptop

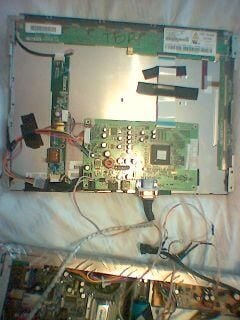

Stripped monitor

Stripped monitor

With the monitor stripped I played around and made sure it all worked.

© Torquil Harkness, JoverWeb

PC Mods: Making a Steampunk Mini ITX Laptop

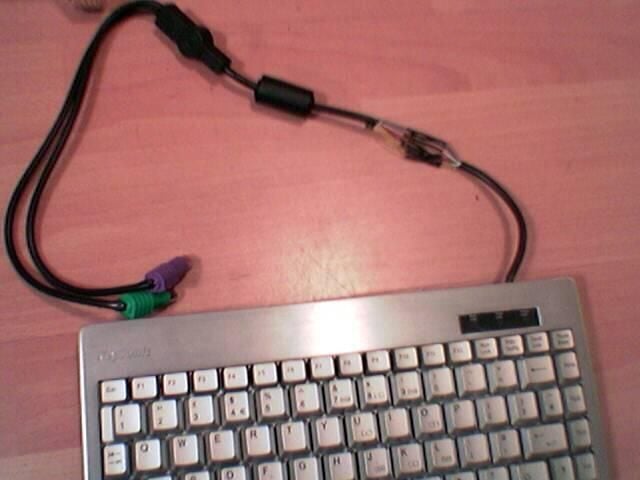

Keyboard

Keyboard

This was the keyboard that I bought; it came with a mouse integrated, a little more expensive than the USB wireless version; however I prefer a PS2 connection as it always works. The aluminium was important as I feel if I made it totally of ally, then it would reduce heat build up, much better than a steel case. I chopped about half a meter of cable out and re-soldiered the wires.

© Torquil Harkness, JoverWeb

PC Mods: Making a Steampunk Mini ITX Laptop

Keyboard cutout

Keyboard cutout

The same layout with the keyboard cut-out to allow components to fit. This was later cut away altogether, and the components taped to the underside.

© Torquil Harkness, JoverWeb

PC Mods: Making a Steampunk Mini ITX Laptop

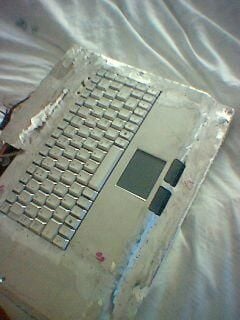

Taking shape

Taking shape

Once I had welded the surrounds on to the keyboard, I measured it on the case, trimmed it and bent it to shape.

© Torquil Harkness, JoverWeb

PC Mods: Making a Steampunk Mini ITX Laptop

Power and reset buttons

Power and reset buttons

© Torquil Harkness, JoverWeb

PC Mods: Making a Steampunk Mini ITX Laptop

Welding

Welding

Here is the PC case, halfway through the welding process.

© Torquil Harkness, JoverWeb

PC Mods: Making a Steampunk Mini ITX Laptop

USB wireless

USB wireless

The USB wireless, it was moved in to the monitor section and a plastic back screwed over it, to improve reception. But in this picture you can see it here slipped down the side of the main board.

© Torquil Harkness, JoverWeb

PC Mods: Making a Steampunk Mini ITX Laptop

USB wireless moved

USB wireless moved

In this picture you can see it here slipped down the side of the mainboard.

© Torquil Harkness, JoverWeb

PC Mods: Making a Steampunk Mini ITX Laptop

A new layout

A new layout

A larger view of the new layout

© Torquil Harkness, JoverWeb

PC Mods: Making a Steampunk Mini ITX Laptop

A view of it closed

A view of it closed

With the plastic cover in place. The hinges were quite a bit of work and are all hand made from sheet mild-steel and some stainless nut and bolts, welded together.

© Torquil Harkness, JoverWeb

PC Mods: Making a Steampunk Mini ITX Laptop

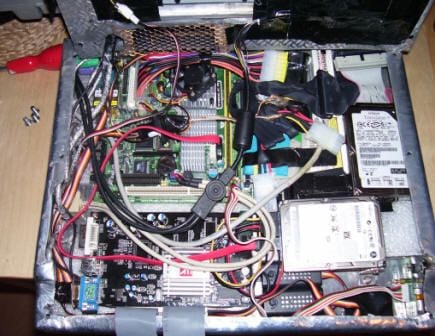

Cables and wires?

Cables and wires?

The layout as it is now, although I have tidied the wires up somewhat.

© Torquil Harkness, JoverWeb

PC Mods: Making a Steampunk Mini ITX Laptop

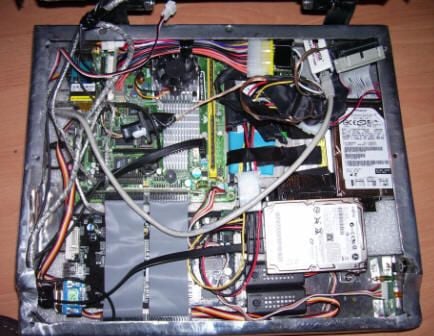

Another view of the new internal layout

Another view of the new internal layout

You can see the fan controllers at the front, and the new Pico power supply which saves me so much room. The keyboard has been removed and it is prior to the network RJ45 socket being screwed in place.

© Torquil Harkness, JoverWeb

PC Mods: Making a Steampunk Mini ITX Laptop

Speakers

Speakers

You can see the speakers which I took from the monitor I dismantled and the plug and socket which is the 12v supply to the monitor.

© Torquil Harkness, JoverWeb

PC Mods: Making a Steampunk Mini ITX Laptop

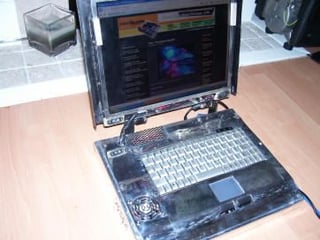

Final shots

Final shots

Complete ITX Laptop from one angle.

© Torquil Harkness, JoverWeb

PC Mods: Making a Steampunk Mini ITX Laptop

Another view

Image: Erin Carson/TechRepublic

Another view

Complete ITX Laptop from a different angle.

© Torquil Harkness, JoverWeb

Image: Erin Carson/TechRepublic
PC Mods: Making a Steampunk Mini ITX Laptop

Yet another view

Yet another view

Yet another view of the final product.

© Torquil Harkness, JoverWeb

PC Mods: Making a Steampunk Mini ITX Laptop

A new keyboard and speakers

A new keyboard and speakers

After it was complete, a new keyboard and speakers were added to enhance the look.

© Torquil Harkness, JoverWeb
