Photos: SC07 supercomputing

By // November 13, 2007, 1:02 AM PST

Image 1 of 25

  • IBM, Intel Sun Microsystems, and Super Micro have their wares on display at the SC07 supercomputing conference.

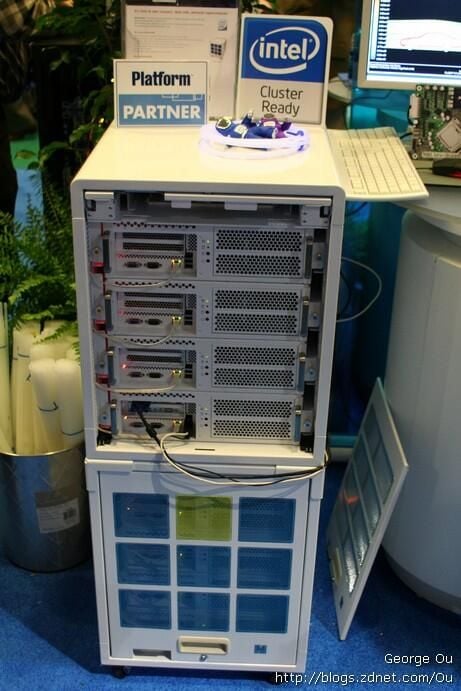

    The BoxClusterML is four X38 based systems clustered in a box
    from HPC Systems    .

    See George Ou's Real World IT blog.

  • Intel tech shows Intel "Cluster Ready" process using the newly launched "Stoakley" 5400 series platform.

    See George Ou's Real World IT blog.

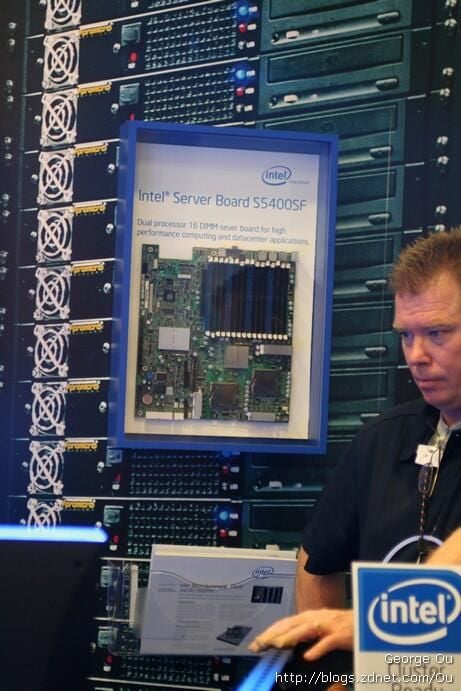

  • Intel branded 5400 series motherboard with 16 FBDIMM slots.

    See George Ou's Real World IT blog.

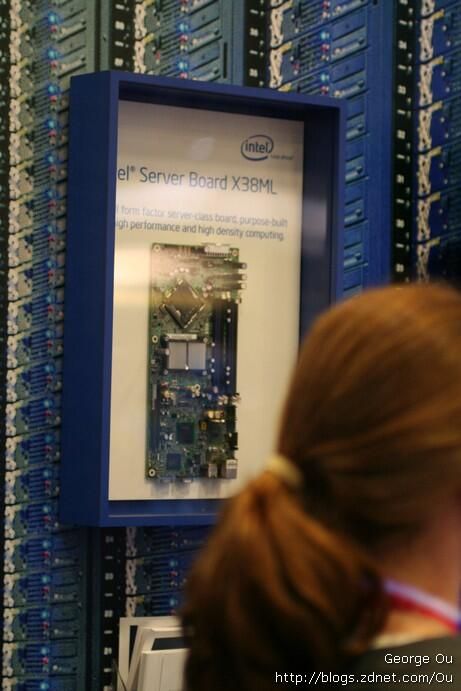

  • Small form factor X38 based motherboard used in high-density blade solutions.

    See George Ou's Real World IT blog.

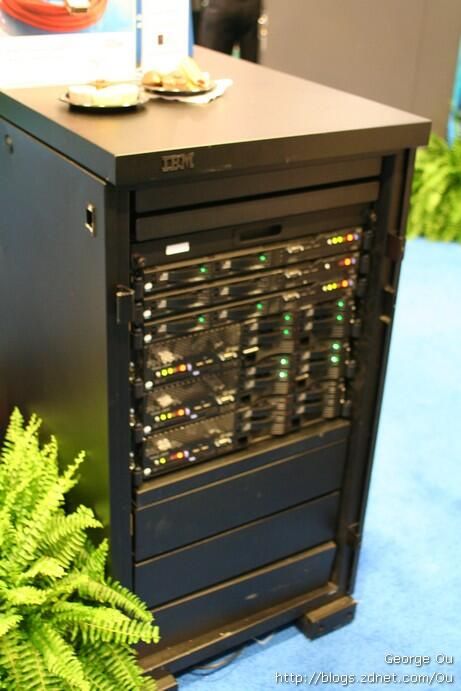

  • IBM servers based on the new Intel 5400 series "Stoakley" platform featuring 20 gbps InfiniBand DDR interconnects using the new PCI-Express generation 2 bus.

    See George Ou's Real World IT blog.

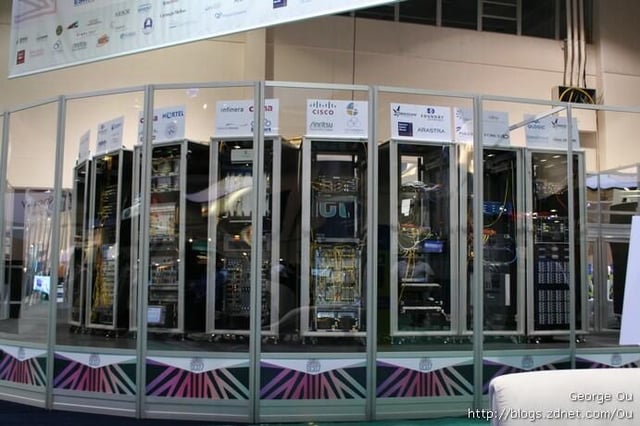

  • Equipment powering the SC07 conference.

    See George Ou's Real World IT blog.

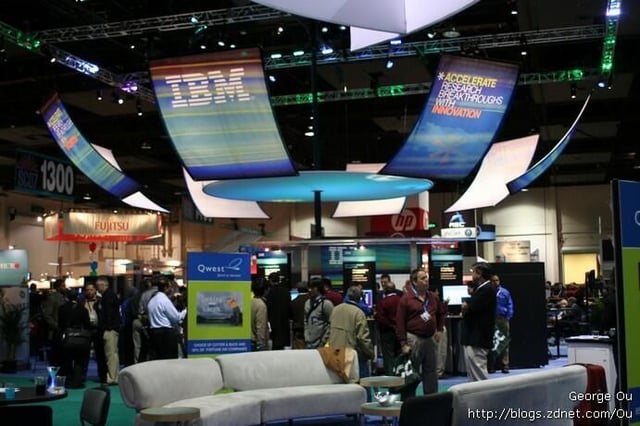

  • IBM's booth at SC07.

    See George Ou's Real World IT blog.

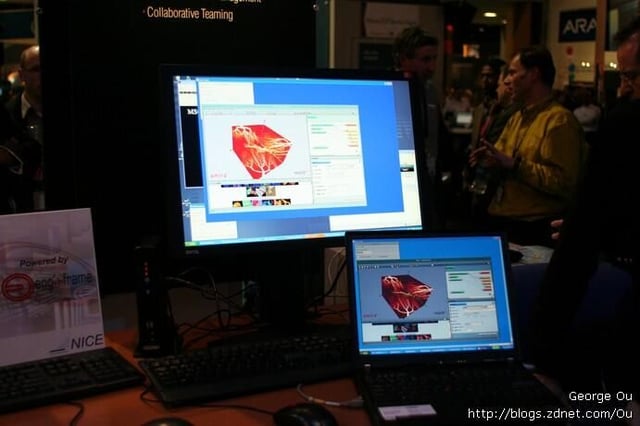

  • IBM remote desktop solution.

    See George Ou's Real World IT blog.

  • IBM's 32-core System p 575 Power6 4.7 GHz liquid-cooled supercomputer rack.

    See George Ou's Real World IT blog.

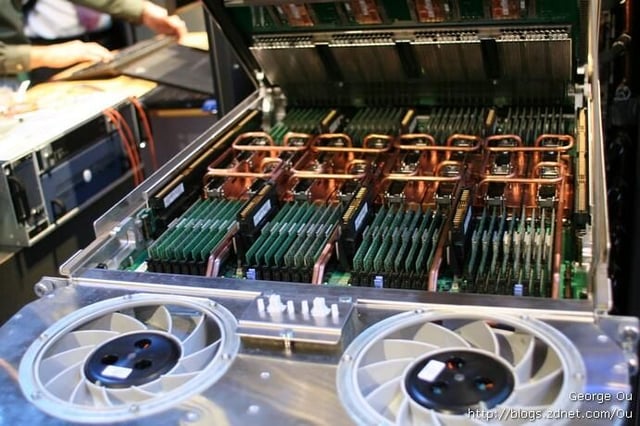

  • Close-up view of IBM's 32-core System p 575 Power6 4.7 GHz.

    See George Ou's Real World IT blog.

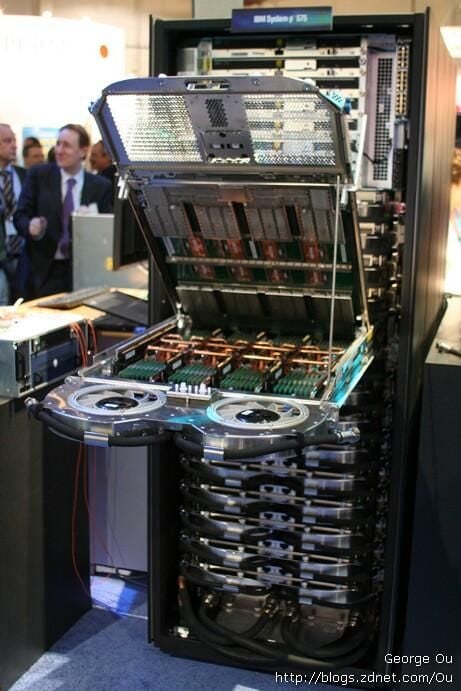

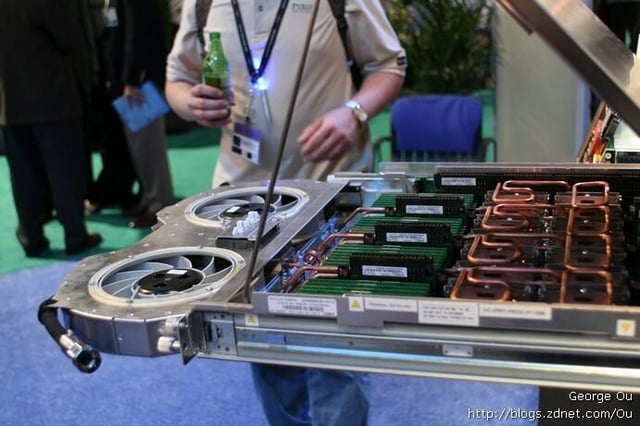

  • You can see the water hose connector on the lower left.  Cold water enters the system; warm water leaves the system carrying heat away from the 16 Power6 processors.

    See George Ou's Real World IT blog.

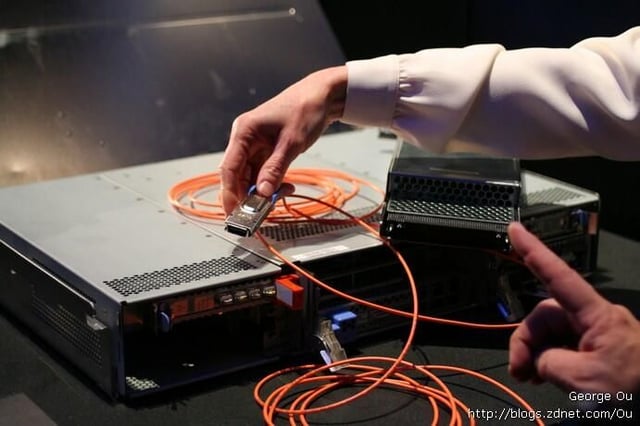

  • This is the back of IBM's 32-core System p 575 Power6 4.7 GHz server.

    See George Ou's Real World IT blog.

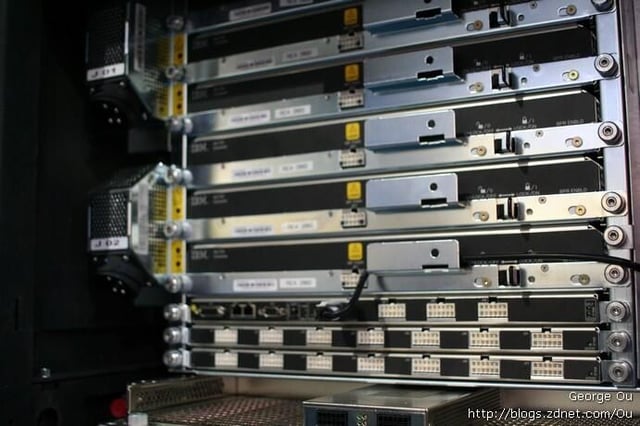

  • The power distribution system for IBM's 32-core System p 575 Power6 4.7 GHz server.  Two large AC connectors can be seen on the left, DC is distributed to the individual 2U servers.

    See George Ou's Real World IT blog.

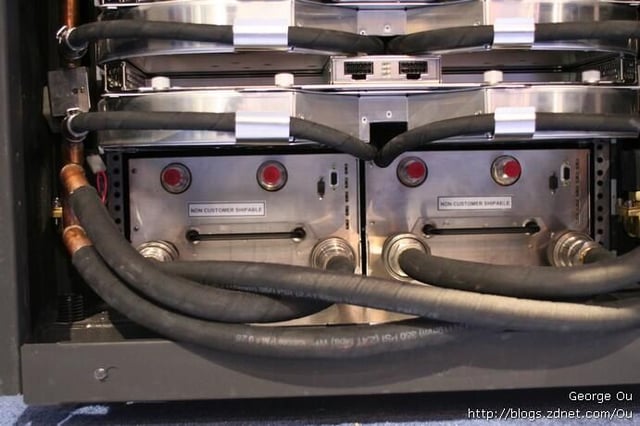

  • This is the water pump on the bottom of the rack for IBM's 32-core System p 575 Power6 4.7 GHz server.

    See George Ou's Real World IT blog.

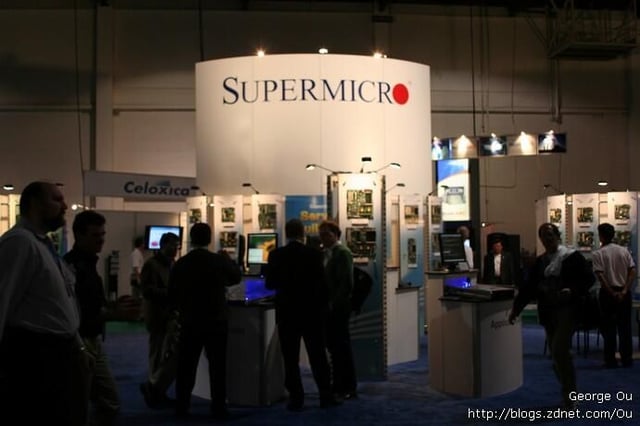

  • This is the Super Micro Computer booth.  Super Micro is one of the leading white-box server vendors.

    See George Ou's Real World IT blog.

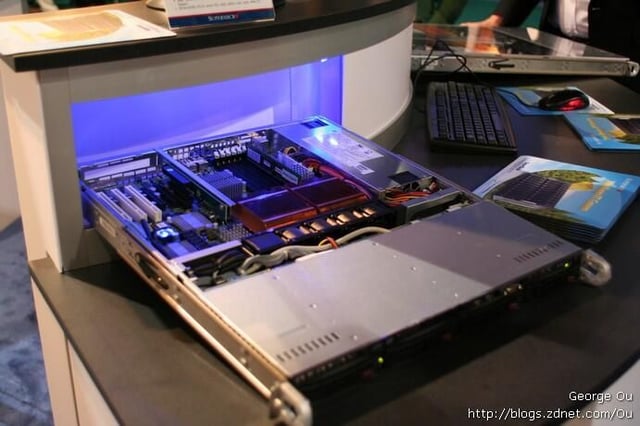

  • This is a 1U Super Micro server built on the "Cranberry Lake" platform with the "San Clemente" chipset.  It was launched yesterday but was overshadowed by the "Stoakley" platform 5400 series chipset and 45nm CPU launch.  What's unique about this Intel based server is that it doesn't use FBDIMMs so it has the highest performance/watt metric of any dual-processor x86 server on the market when using 3 GHz 80W 5400 series "Harpertown" CPUs.  The limitation is that it only has 6 registered DDR2-667 DIMM slots (compared to 16 fully-buffered DDR2-800 DIMM slots on the 5400 series) and it lacks the PCI-Express generation 2 bus slots which isn't a problem in many applications.

    See George Ou's Real World IT blog.

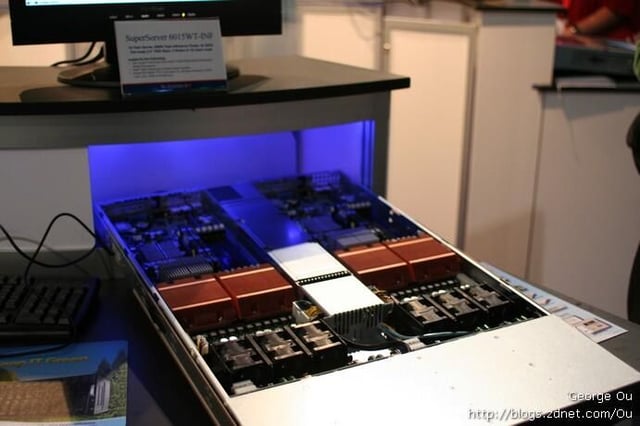

  • Super Micro's 6015WT-INF is a unique 2-in-1 1U server with two dual-processor motherboards sharing a single chassis and power supply.  It is one of Super Micro's best sellers and it's based on two small form factor 5400 series dual-processor motherboards.  This 1U system can pack 16 45-nm Intel 5400 series CPU cores and a total of 16 fully buffered DDR2-800 DIMMs.

    See George Ou's Real World IT blog.

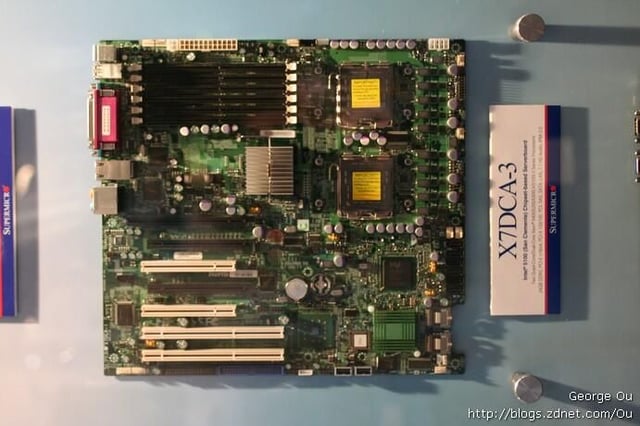

  • This is a "San Clemente" chipset motherboard from Super Micro.

    See George Ou's Real World IT blog.

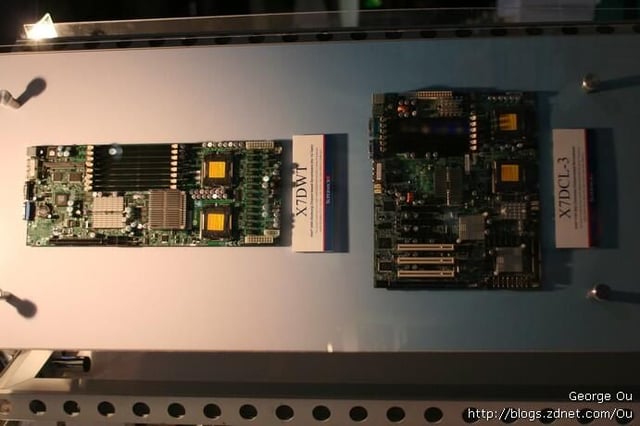

  • On the left is the small form factor Super Micro X7DWT 5400 series "Seaburg" chipset motherboard used in the "Stoakley" platform.  On the right is the Super Micro X7DCL-3 "San Clemente" chipset motherboard.

    See George Ou's Real World IT blog.

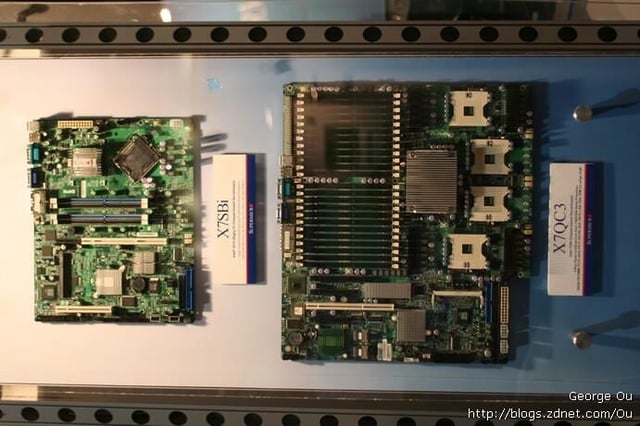

  • On the left is the Super Micro X7SBi 3210 "Bigby-P" chipset motherboard which is very similar in architecture to Intel's X38 chipset.  It is a single processor platform that uses 3000 series entry-level server chips which are essentially desktop processors.  On the right is the opposite end of the spectrum with the Super Micro X7QC3 quad-processor 7300 series chipset.

    See George Ou's Real World IT blog.

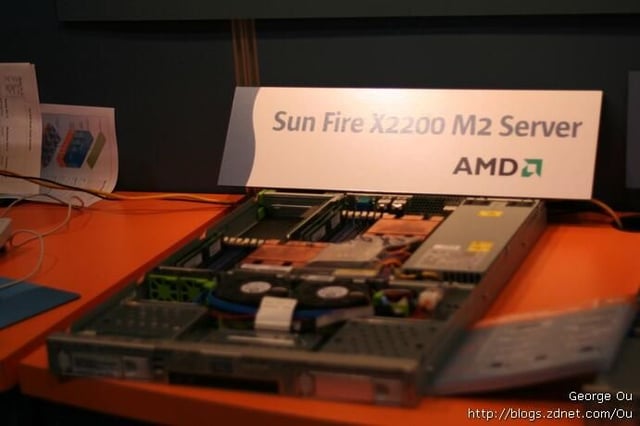

  • Sun Microsystems Sun Fire X2200 M2 Server based on dual-processor AMD system.

    See George Ou's Real World IT blog.

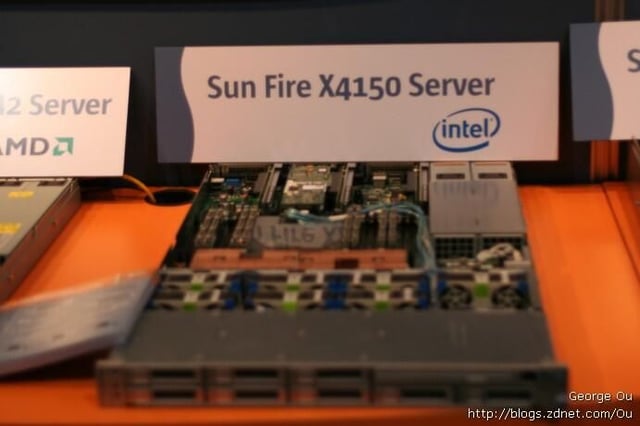

  • Sun Microsystems Sun Fire X4150 Server based on the Intel dual-processor 5300 series "Bensley" platform launched in September.  A 5400 series version is in the works.

    See George Ou's Real World IT blog.

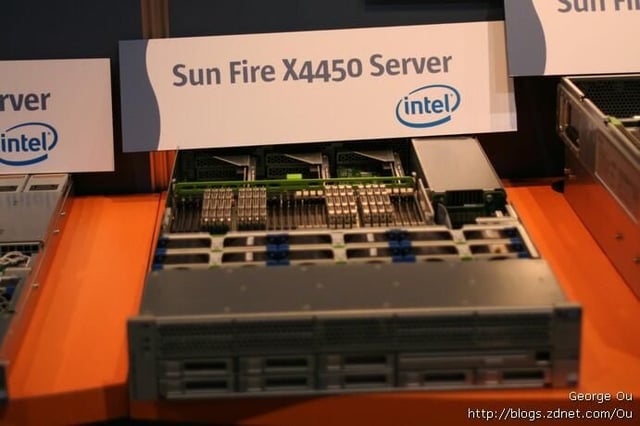

  • Sun Microsystems Sun Fire X4450 Server based on the Intel multi-processor 7300 series "Caneland" platform launched in September.

    See George Ou's Real World IT blog.

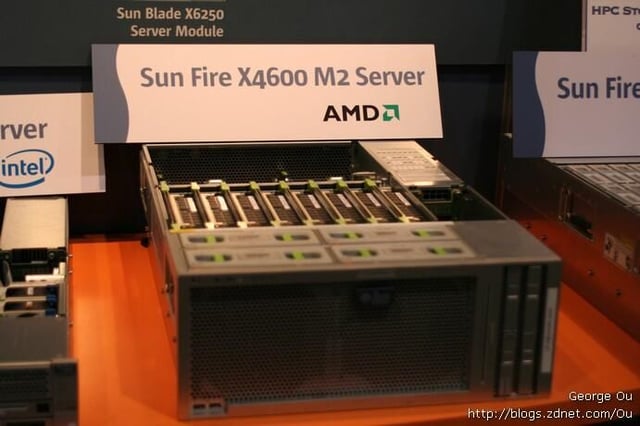

  • Sun Microsystems Sun Fire X4600 M2 Server based on an eight-processor AMD Socket F system.

    See George Ou's Real World IT blog.

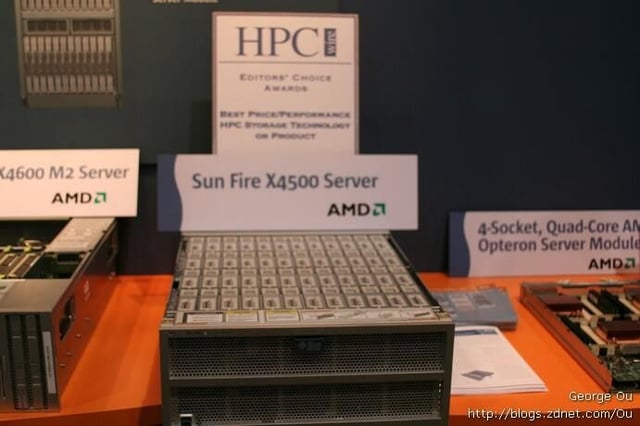

  • Sun Microsystems Sun Fire X400 Storage Server based on an dual-processor AMD Socket F system.  This massive storage server has 48 top-loaded SATA drives using six 8-port SAS controllers.

    See George Ou's Real World IT blog.
