Repair Logitech MOMO Racing Force Feedback Wheel pedals
Image 1 of 7
Repaired Logitech MOMO Racing Force Feedback Wheel pedals
Repaired Logitech MOMO Racing Force Feedback Wheel pedals
When the pedals for his Logitech MOMO Racing Force Feedback Wheel broke, Webshots member speedysteve7 replaced the worn bearings with heavy duty substitutes.
© Webshots – speedysteve7

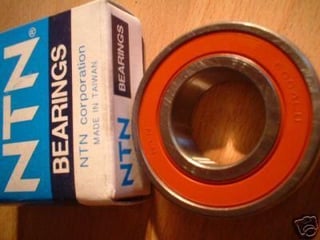

20mm internal diameter replacement bearings
20mm internal diameter replacement bearings
Speedysteve7 bought these 20mm internal diameter bearings from eBay for u00a30.99p per pair. They are smooth and reliable and fit snugly on the pedal spindles. 40mm external diameter bearings were too large to fit straight in.
© Webshots – speedysteve7

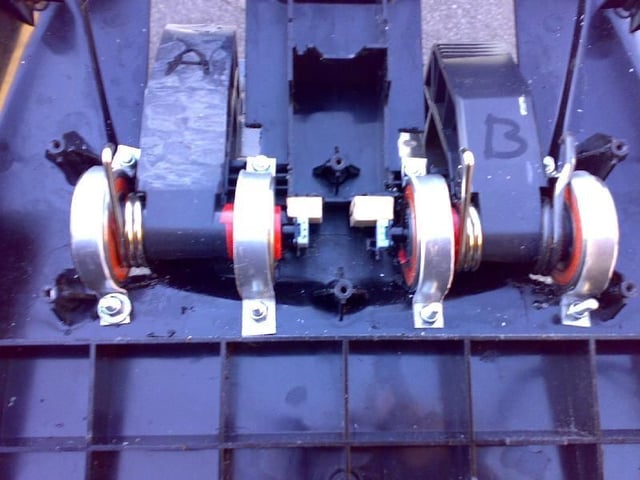

Pedals fitted with the new bearings
Pedals fitted with the new bearings
Speedysteve7 reused the original springs.
© Webshots – speedysteve7
Top plate
Top plate
There is very little bearing shell material, which contributes to wear.
© Webshots – speedysteve7

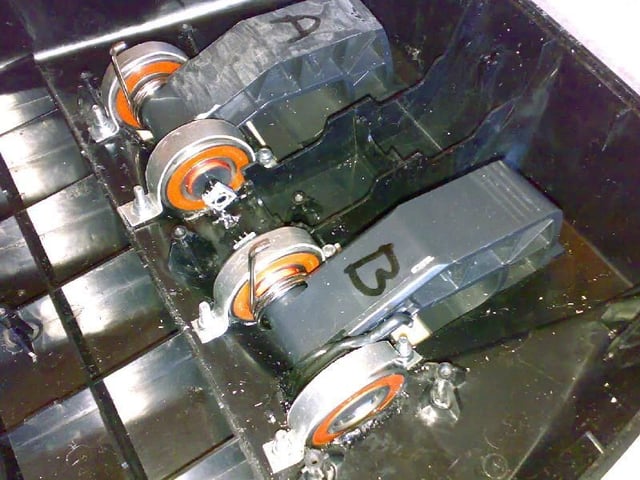

Bearings clamped in place
Bearings clamped in place
The left pedal has been ground down to allow it to travel fully. With some hacking out of Logitech’s injection molded plastic, there’s room to seat the bearings. These were epoxied and then strapped firmly in place.
© Webshots – speedysteve7
All-important potentiometers glued in place
All-important potentiometers glued in place
© Webshots – speedysteve7

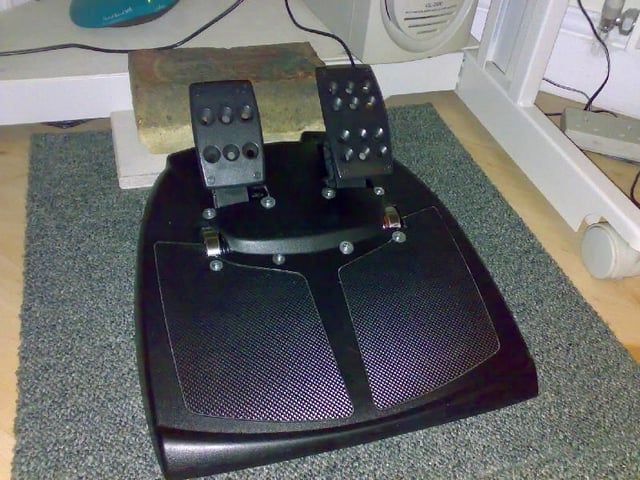

Repaired unit
Repaired unit
Note the 8 visible M5 bolts that hold the bearing retainers. Pedal operation is very smooth and sensitivity is vastly improved. Speedysteve7 expects this will give him even even shorter lap times.
© Webshots – speedysteve7
