Spotlight: LEGO Mindstorms NXT 2.0 programmable robotic toy

By Wally Bahny October 18, 2010, 8:42 AM PDT

1
of 35

Spotlight: LEGO Mindstorms NXT 2.0 programmable robotic toy

LEGO Mindstorms NXT 2.0: The box

LEGO Mindstorms NXT 2.0: The box

LEGO Mindstorms NXT 2.0 is a programmable robotic toy that retails for $279.99. It is equipped with a microprocessor module, three motors, and four sensors that can be used to build robotic models of vehicles, animals, machines, humanoids, or whatever you can imagine.

The cover of the LEGO Mindstorms NXT 2.0 box highlights the kit’s features as well as the four models included with the software.

Read my Geek Gifts 2010 review of LEGO Mindstorms NXT 2.0.

Photo of LEGO Mindstorms NXT 2.0 by Wally Bahny for TechRepublic

Spotlight: LEGO Mindstorms NXT 2.0 programmable robotic toy

LEGO Mindstorms NXT 2.0: The inside box cover

LEGO Mindstorms NXT 2.0: The inside box cover

Inside the box cover, the processor module, motors, and sensors are described, as well as the basic three steps to construction: Build, Program, and Go.

Photo of LEGO Mindstorms NXT 2.0 by Wally Bahny for TechRepublic

Spotlight: LEGO Mindstorms NXT 2.0 programmable robotic toy

LEGO Mindstorms NXT 2.0: Another view of the box

LEGO Mindstorms NXT 2.0: Another view of the box

The facing surface of the last screen on the box outlines more features of the software, including its intuitive drag-and-drop programming language based on LabVIEW. You also see a picture of all of the included 619 parts and pieces.

Photo of LEGO Mindstorms NXT 2.0 by Wally Bahny for TechRepublic

Spotlight: LEGO Mindstorms NXT 2.0 programmable robotic toy

LEGO Mindstorms NXT 2.0: The back of the box

LEGO Mindstorms NXT 2.0: The back of the box

The back of the box provides more details about the four models and features of the software, and references the vast collection of user-created and LEGO-created models available on the Mindstorms website.

Photo of LEGO Mindstorms NXT 2.0 by Wally Bahny for TechRepublic

Spotlight: LEGO Mindstorms NXT 2.0 programmable robotic toy

LEGO Mindstorms NXT 2.0: Box's contents

LEGO Mindstorms NXT 2.0: Box's contents

This is a photo of the box’s contents. In addition to the bags of LEGO pieces and the other assorted parts, there are also two boxes.

Photo of LEGO Mindstorms NXT 2.0 by Wally Bahny for TechRepublic

Spotlight: LEGO Mindstorms NXT 2.0 programmable robotic toy

LEGO Mindstorms NXT 2.0: Inside the box

LEGO Mindstorms NXT 2.0: Inside the box

The larger box contains all of the sensors and motors and the cabling required to connect them to the microprocessor brick. These have been specially packed in a cardboard cut-out, which likely helped protect them during shipping and handling.

Photo of LEGO Mindstorms NXT 2.0 by Wally Bahny for TechRepublic

Spotlight: LEGO Mindstorms NXT 2.0 programmable robotic toy

LEGO Mindstorms NXT 2.0: Microprocessor

LEGO Mindstorms NXT 2.0: Microprocessor

The smaller box contains the microprocessor brick, which is the brains of the Mindstorms kit.

Photo of LEGO Mindstorms NXT 2.0 by Wally Bahny for TechRepublic

Spotlight: LEGO Mindstorms NXT 2.0 programmable robotic toy

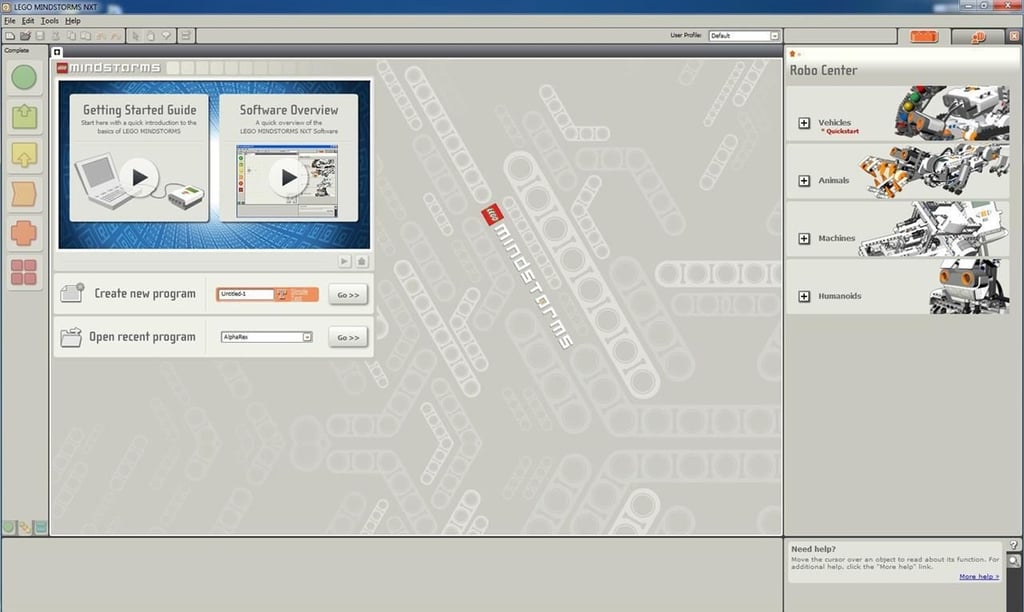

LEGO Mindstorms NXT 2.0 software

LEGO Mindstorms NXT 2.0 software

After installing and running the software, this screen is displayed. The large pane in the center contains a guides to help you get started with the software. This will become the design area after creating a new program or opening an existing one. On the left are the controls grouped by function. The controls can be dragged into the design area. On the right are the existing four projects grouped by category, which can be expanded by the downloadable ones. This area contains the build and the programming instructions. The larger left pane at the bottom is where the programming tiles are configured, and the smaller right pane shows some rollover help. There is also a Remote Control feature accessible from the menus at the top that allows control of a simple model, such as the Driving Base, via the arrow keys and space bar.

Screenshot of LEGO Mindstorms NXT 2.0 software by Wally Bahny for TechRepublic

Spotlight: LEGO Mindstorms NXT 2.0 programmable robotic toy

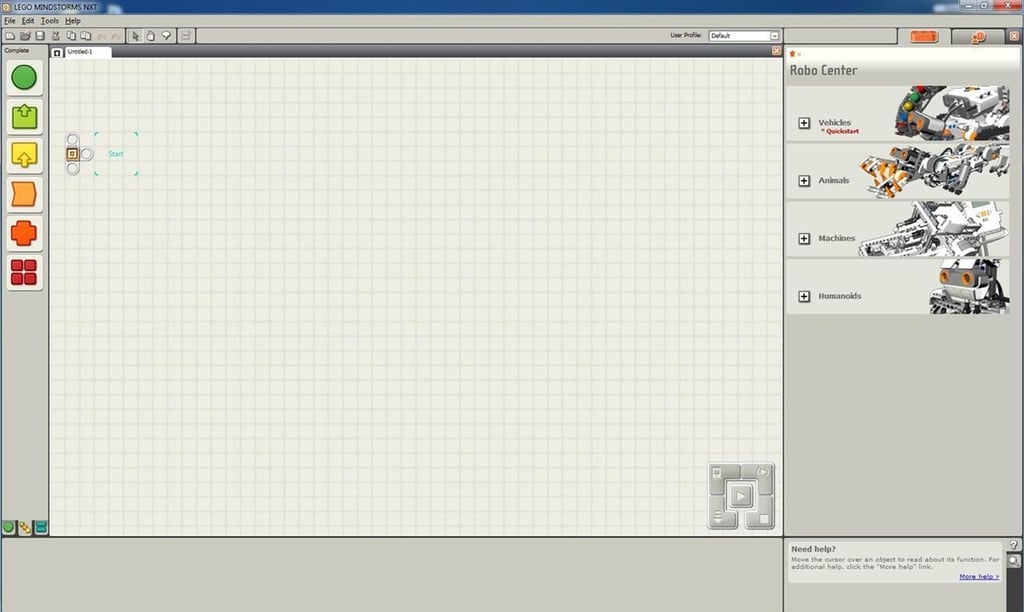

LEGO Mindstorms NXT 2.0: Blank work area

LEGO Mindstorms NXT 2.0: Blank work area

This is a new, blank work area. Programming tiles can be dragged and dropped, beginning with the area labeled Start.

Screenshot of LEGO Mindstorms NXT 2.0 software by Wally Bahny for TechRepublic

Spotlight: LEGO Mindstorms NXT 2.0 programmable robotic toy

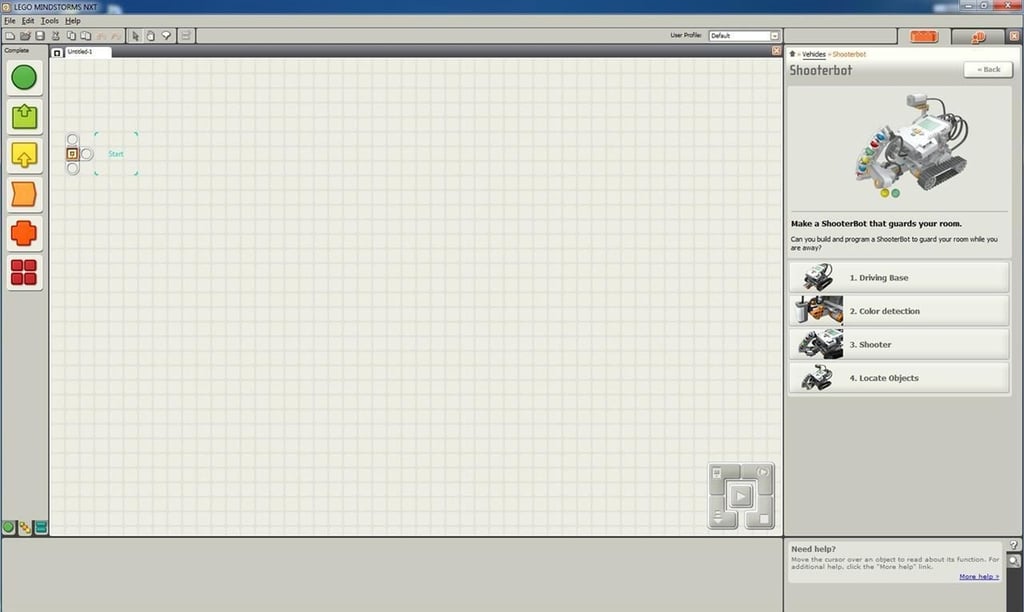

LEGO Mindstorms NXT 2.0: Shooterbot, step one

LEGO Mindstorms NXT 2.0: Shooterbot, step one

Projects are broken out into smaller build steps. The Shooterbot begins with the Driving Base (which is also the quick start project), adds color detection, adds the clip and ball shooter, and adds the ability to detect an object before shooting at it.

Screenshot of LEGO Mindstorms NXT 2.0 software by Wally Bahny for TechRepublic

Spotlight: LEGO Mindstorms NXT 2.0 programmable robotic toy

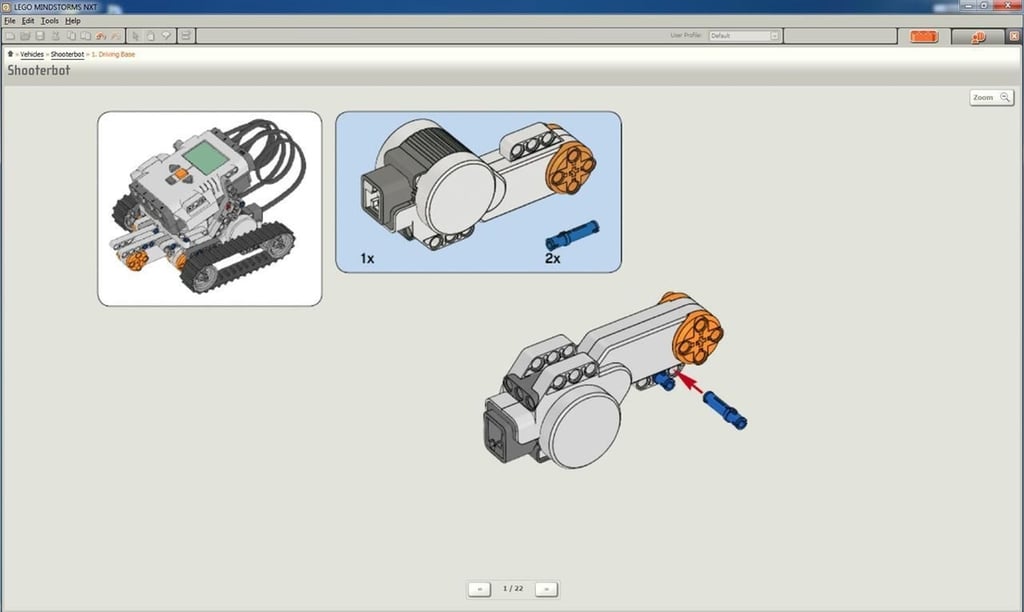

LEGO Mindstorms NXT 2.0: Expand option

LEGO Mindstorms NXT 2.0: Expand option

Accessing the build instructions within any project phase will give the option of expanding the build steps to fill the entire screen. Since some of the LEGO pieces are small, this is essential in determining which pieces are needed and where they are placed.

Screenshot of LEGO Minstorms NXT 2.0 software by Wally Bahny for TechRepublic

Spotlight: LEGO Mindstorms NXT 2.0 programmable robotic toy

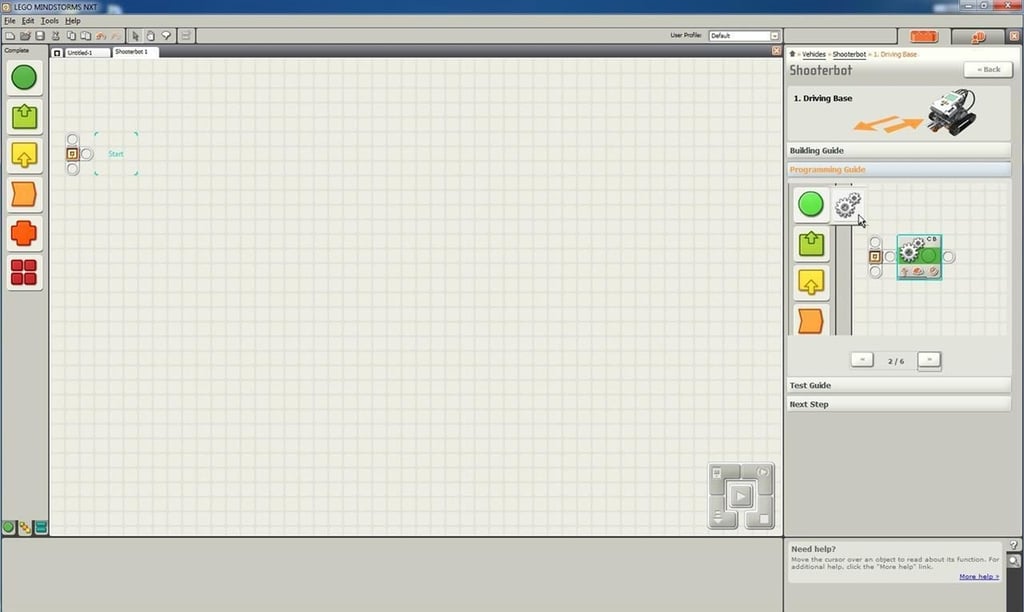

LEGO Mindstorms NXT 2.0: Load programs from memory

LEGO Mindstorms NXT 2.0: Load programs from memory

After building each project phase, it’s time to program the model. Step-by-step programming instructions are included. It is possible to bypass the programming instructions and have the software load the programs for the included models from memory; there is a button in the top left on the first programming instruction pane to perform this action.

Screenshot of LEGO Mindstorms NXT 2.0 software by Wally Bahny for TechRepublic

Spotlight: LEGO Mindstorms NXT 2.0 programmable robotic toy

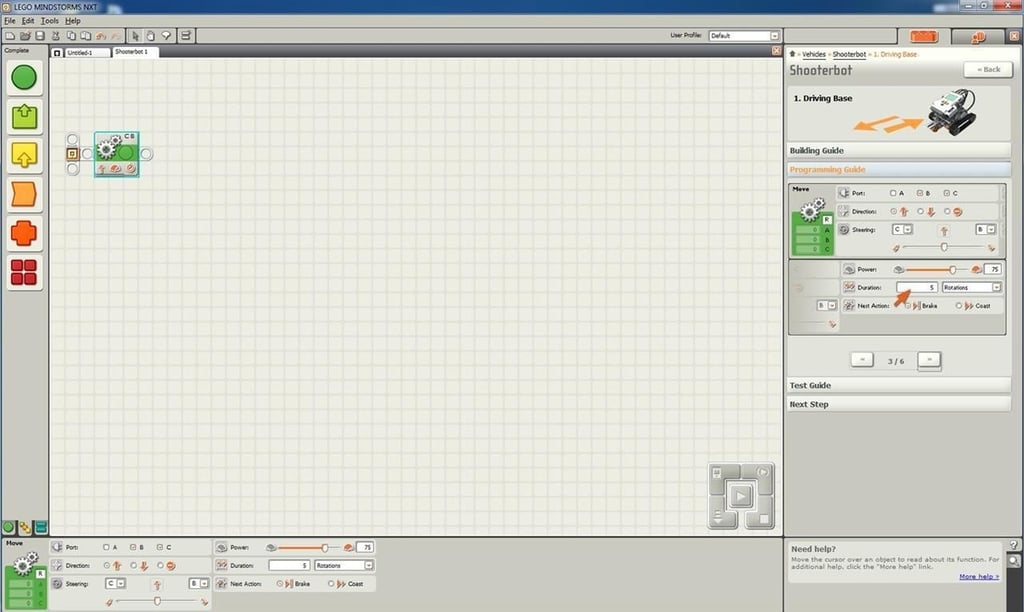

LEGO Mindstorms NXT 2.0: How to configure tiles

LEGO Mindstorms NXT 2.0: How to configure tiles

In addition to telling you where to place the programming tile, the software also tells you how to configure each tile to perform as LEGO intended.

Screenshot of LEGO Mindstorms NXT 2.0 software by Wally Bahny for TechRepublic

Spotlight: LEGO Mindstorms NXT 2.0 programmable robotic toy

LEGO Mindstorms NXT 2.0: Shooterbot, phase one

LEGO Mindstorms NXT 2.0: Shooterbot, phase one

The first model to build is the quick start Driving Base. This model takes less than 30 minutes to build, and it can be used for a variety of vehicle-based projects available on the Mindstorms website as well as your own creations.

Photo of LEGO Mindstorms NXT 2.0 by Wally Bahny for TechRepublic

Spotlight: LEGO Mindstorms NXT 2.0 programmable robotic toy

LEGO Mindstorms NXT 2.0: Shooterbot, phase two

LEGO Mindstorms NXT 2.0: Shooterbot, phase two

The next phase in the Shooterbot project is to teach Mindstorms to detect a specific color — in this case red — on the ground, turn around, and head back the other way. Adding the color sensor on the front is a simple enough process. Following the programming steps was equally simple and yields a fairly accurate color detector bot.

Photo of LEGO Mindstorms NXT 2.0 by Wally Bahny for TechRepublic

Spotlight: LEGO Mindstorms NXT 2.0 programmable robotic toy

LEGO Mindstorms NXT 2.0: Shooterbot, phase three

LEGO Mindstorms NXT 2.0: Shooterbot, phase three

The third phase has the user move the color sensor up to the top of the Driving Base and convert its use to a lamp.

Photo of LEGO Mindstorms NXT 2.0 by Wally Bahny for TechRepublic

Spotlight: LEGO Mindstorms NXT 2.0 programmable robotic toy

LEGO Mindstorms NXT 2.0: Shooterbot

LEGO Mindstorms NXT 2.0: Shooterbot

The third phase continues with the addition of the clip and shooting mechanism.

Photo of LEGO Mindstorms NXT 2.0 by Wally Bahny for TechRepublic

Spotlight: LEGO Mindstorms NXT 2.0 programmable robotic toy

LEGO Mindstorms NXT 2.0: Shooterbot, program phase three

LEGO Mindstorms NXT 2.0: Shooterbot, program phase three

Finally, we program phase three. Each item below corresponds to a programming tile.

  1. We add an infinite loop — this will not stop until the dark gray button is pressed on the programming brick.
  2. We tell Mindstorms to turn the green light on.
  3. We tell motors C and B to spin forward a certain amount of time (in degrees, rotations, or seconds).
  4. We change the light to red.
  5. Wait a half second.
  6. Spin the A motor, which is the firing mechanism.
  7. Turn the light to blue.
  8. Spin motors C and B backward this time.
  9. Spin motors C and B in such a way that makes the model turn right.
  10. Screenshot of LEGO Mindstorms NXT 2.0 software by Wally Bahny for TechRepublic

Spotlight: LEGO Mindstorms NXT 2.0 programmable robotic toy

LEGO Mindstorms NXT 2.0: Final step for Shooterbot

LEGO Mindstorms NXT 2.0: Final step for Shooterbot

The last addition to the Shooterbot requires the addition of the Ultrasonic sensor, which is attached next to the ball clip. This slide shows the programming required to make the Shooterbot detect a nearby object, change the lamp to blue, warn that it will fire, change the lamp to red, and then fire two balls in quick succession.

Watch a short video of the Shooterbot in action.

Screenshot of LEGO Mindstorms NXT 2.0 software by Wally Bahny for TechRepublic

Spotlight: LEGO Mindstorms NXT 2.0 programmable robotic toy

LEGO Mindstorms NXT 2.0: Robogator

LEGO Mindstorms NXT 2.0: Robogator

Robogator is the next project included on the CD-ROM. This is a picture of the Robogator at the end of the first phase of construction. This bot is able to detect a nearby object and then start snapping its jaws.

Photo of LEGO Mindstorms NXT 2.0 by Wally Bahny for TechRepublic

Spotlight: LEGO Mindstorms NXT 2.0 programmable robotic toy

LEGO Mindstorms: Robogator, phase two

LEGO Mindstorms: Robogator, phase two

The next phase is the powered back legs. Although the legs have not been attached to the body of the Robogator yet, this is a great up-close shot of the leg construction.

Photo of LEGO Mindstorms NXT 2.0 by Wally Bahny for TechRepublic

Spotlight: LEGO Mindstorms NXT 2.0 programmable robotic toy

LEGO Mindstorms NXT 2.0: Attach Robogator's legs

LEGO Mindstorms NXT 2.0: Attach Robogator's legs

The last step in that phase is attaching the legs to the body as shown.

Photo of LEGO Mindstorms NXT 2.0 by Wally Bahny for TechRepublic

Spotlight: LEGO Mindstorms NXT 2.0 programmable robotic toy

LEGO Mindstorms NXT 2.0: Robogator with tail, touch sensors

LEGO Mindstorms NXT 2.0: Robogator with tail, touch sensors

The final Robogator with a tail and touch sensors to detect where the legs are rotationally.

Photo of LEGO Mindstorms NXT 2.0 by Wally Bahny for TechRepublic

Spotlight: LEGO Mindstorms NXT 2.0 programmable robotic toy

LEGO Mindstorms NXT 2.0: Programming the Robogator

LEGO Mindstorms NXT 2.0: Programming the Robogator

This slide contains most of the programming for the Robogator. Here you can see two independent programming paths: one for the legs and one for the jaws. The legs are programmed to start in their “normal position” by rotating until they find it, if necessary. Then, the Robogator waits until an object is within a certain distance from its “eyes.” Once it “sees” an object, it lunges a couple of times and then “runs,” alternating each leg. The jaws are also programmed to detect a nearby object and then begin snapping, which will continue until the object moves away.

Watch a short video of the Robogator in action.

Screenshot of LEGO Mindstorms NXT 2.0 software by Wally Bahny for TechRepublic

Spotlight: LEGO Mindstorms NXT 2.0 programmable robotic toy

LEGO Mindstorms NXT 2.0: Color Sorter, phase one

LEGO Mindstorms NXT 2.0: Color Sorter, phase one

The first construction phase of the next model, the Color Sorter, dumps one ball at a time out of the holding area; this is accomplished by a gear and piston shaft visible near the center of the photo. The piston rises, pushing the holding area up at an angle and allowing a ball to roll onto the output chute.

Photo of LEGO Mindstorms NXT 2.0 by Wally Bahny for TechRepublic

Spotlight: LEGO Mindstorms NXT 2.0 programmable robotic toy

LEGO Mindstorms NXT 2.0: Color Sorter, phase two

LEGO Mindstorms NXT 2.0: Color Sorter, phase two

The next phase adds the Color sensor, which enables the Sorter to announce which color ball it will drop.

Photo of LEGO Mindstorms NXT 2.0 by Wally Bahny for TechRepublic

Spotlight: LEGO Mindstorms NXT 2.0 programmable robotic toy

LEGO Mindstorms NXT 2.0: Color Sorter

LEGO Mindstorms NXT 2.0: Color Sorter

This is one of the two final phases of the Color Sorter. In this model, the ball color is announced as it passes under the Color sensor. The Sorter knows which bin to put each color in and rotates the bins accordingly using the motor nearest the camera, which is attached to a drive shaft that passes underneath the machine and up into the bins.

Photo of LEGO Mindstorms NXT 2.0 by Wally Bahny for TechRepublic

Spotlight: LEGO Mindstorms NXT 2.0 programmable robotic toy

LEGO Mindstorms: Color Sorter code

LEGO Mindstorms: Color Sorter code

This is a large segment of the Color Sorter version 1 code. In this code, motor C (the one powering the holding area) is turned to make a ball fall under the Color sensor. Depending on the color, the bins are rotated (motor B) until the appropriate bin is underneath the output chute, at which time the ball is dropped. This is repeated indefinitely until the user presses the gray button.

Screenshot of LEGO Mindstorms NXT 2.0 software by Wally Bahny for TechRepublic

Spotlight: LEGO Mindstorms NXT 2.0 programmable robotic toy

LEGO Mindstorms NXT 2.0: Second Color Sorter

LEGO Mindstorms NXT 2.0: Second Color Sorter

The second of the two Color Sorter models, this one is more of a “Color Catapult.” Instead of placing the balls into bins, this model launches them in different directions, depending on the color of the ball.

Photo of LEGO Mindstorms NXT 2.0 by Wally Bahny for TechRepublic

Spotlight: LEGO Mindstorms NXT 2.0 programmable robotic toy

LEGO Mindstorms NXT 2.0: Second Color Sorter code

LEGO Mindstorms NXT 2.0: Second Color Sorter code

This code is slightly different than the first version. In this code, the color is not announced until the ball is in the catapult, at which time it is rotated to a certain angle and fired.

Watch a short video of the Color Sorter in action.

Screenshot of LEGO Mindstorms NXT 2.0 software by Wally Bahny for TechRepublic

Spotlight: LEGO Mindstorms NXT 2.0 programmable robotic toy

LEGO Mindstorms NXT 2.0: Alpha Rex, phase one

LEGO Mindstorms NXT 2.0: Alpha Rex, phase one

Alpha Rex is the fourth model included on the CD-ROM. In this initial phase, the robot is already able to walk using specially constructed legs and feet that change their angle against the floor at the same time they move forward and backward, which create footsteps.

Photo of LEGO Mindstorms NXT 2.0 by Wally Bahny for TechRepublic

Spotlight: LEGO Mindstorms NXT 2.0 programmable robotic toy

LEGO Mindstorms NXT 2.0: Alpha Rex, phase two

LEGO Mindstorms NXT 2.0: Alpha Rex, phase two

Phase two of Alpha Rex adds arms, complete with grabber hands and shoulder pads. The tendon-like pieces running from the neck to the shoulders, as well as from the shoulders to the forearms, enable the hands to automatically open and close. A motor strapped to the robot’s back powers the side-to-side movement with a rotating arm that can be seen next to the robot’s left shoulder.

Photo of LEGO Mindstorms NXT 2.0 by Wally Bahny for TechRepublic

Spotlight: LEGO Mindstorms NXT 2.0 programmable robotic toy

LEGO Mindstorms NXT 2.0: Alpha Rex's head

LEGO Mindstorms NXT 2.0: Alpha Rex's head

Next comes the Alpha Rex’s head. With the built-in “eyes,” this makes Alpha Rex look almost human. The Ultrasonic sensor allows Rex to react to objects in front of it.

Photo of LEGO Mindstorms NXT 2.0 by Wally Bahny for TechRepublic

Spotlight: LEGO Mindstorms NXT 2.0 programmable robotic toy

LEGO Mindstorms NXT 2.0: Alpha Rex, final phase

LEGO Mindstorms NXT 2.0: Alpha Rex, final phase

Finally, we add the Color sensor on its right hand, which enables it to detect which color ball is placed in his hand when he asks for it.

Photo of LEGO Mindstorms NXT 2.0 by Wally Bahny for TechRepublic

Spotlight: LEGO Mindstorms NXT 2.0 programmable robotic toy

LEGO Mindstorms NXT 2.0: Alpha Rex code

LEGO Mindstorms NXT 2.0: Alpha Rex code

This is a very small segment of code that sets up Alpha Rex’s movement and reactions. In this segment, you can see the two sound tiles separated by a 0.5 second wait tile. This is where it says “Green Please” and then waits for a ball to be placed in its hands. Depending on the color, Alpha Rex will either drop the ball where he stands (red, yellow, or blue) or walk forward several steps before dropping the ball (green). Watch a short video of the Alpha Rex in action.

Read my Geek Gifts 2010 review of LEGO Mindstorms NXT 2.0.

Screenshot of LEGO Mindstorms NXT 2.0 software by Wally Bahny for TechRepublic

  • Innovation
  • Account Information

    Share with Your Friends

    Spotlight: LEGO Mindstorms NXT 2.0 programmable robotic toy

    Your email has been sent

Share: Spotlight: LEGO Mindstorms NXT 2.0 programmable robotic toy
Image of Wally Bahny
By Wally Bahny
  • Account Information

    Contact Wally Bahny

    Your message has been sent

  • |
  • See all of Wally's content

TechRepublic Premium

  • TechRepublic Premium

    Enterprise IoT calculator: TCO and ROI

    Internet of Things devices serve a number of useful applications, such as environmental, asset or inventory monitoring/control, security functions, fitness devices and smartwatches. There is an array of IoT functions for both consumer and business purposes, but determining the total cost of ownership and the return on your enterprise investment in a widespread or large-scale ...

    Downloads
    Provided By TechRepublic Premium Published:  Jun 2023 Modified:  Jun 2023 Read More
    Download Now
  • TechRepublic Premium

    Employee political activity policy

    No matter where in the world an enterprise operates, politics is going to play a major role in the lives of its employees. Depending on the country and the current political situation, it’s possible for affiliations, candidates and political parties to become a driving passion in your workforce. While an actively engaged workforce taking interest ...

    Downloads
    Provided By TechRepublic Premium Published:  Jun 2023 Modified:  Jun 2023 Read More
    Download Now
  • TechRepublic Premium

    Diversity and inclusion policy

    The importance of diversity and inclusion in any given organization cannot be overstated. It establishes a level playing field, brings together people with different backgrounds, perspectives, traditions and ideas and enriches company culture by ensuring fairness and tolerance. This helps build a more effective and collaborative workforce which enables the business to run in a ...

    Downloads
    Provided By TechRepublic Premium Published:  Jun 2023 Modified:  Jun 2023 Read More
    Download Now
  • TechRepublic Premium

    Development lifecycle policy

    Software development is a complex process that involves a specific series of steps (known as the development lifecycle) to transform a concept into a deliverable product. The steps involved with creating the finished product must be carefully adhered to yield the best results, reduce inefficiencies and maximize customer satisfaction. The purpose of this policy from ...

    Downloads
    Provided By TechRepublic Premium Published:  Jun 2023 Modified:  Jun 2023 Read More
    Download Now

Services

  • About Us
  • Newsletters
  • RSS Feeds
  • Site Map
  • Site Help & Feedback
  • FAQ
  • Advertise
  • Do Not Sell My Information

Explore

  • Downloads
  • TechRepublic Forums
  • Meet the Team
  • TechRepublic Academy
  • TechRepublic Premium
  • Resource Library
  • Photos
  • Videos
  • TechRepublic
  • TechRepublic on Twitter
  • TechRepublic on Facebook
  • TechRepublic on LinkedIn
  • TechRepublic on Flipboard
© 2023 TechnologyAdvice. All rights reserved.
  • Privacy Policy
  • Terms of Use
  • Property of TechnologyAdvice
