Spotlight: SonicWALL TZ 100 router
Image 1 of 9
The SonicWALL TZ 100
The SonicWALL TZ 100
SonicWALL’s TZ 100 Internet Security Appliance sells for $295, list price. The devices offers optional unified threat management (UTM), with subscriptions available for combating viruses, spyware, intrusions, spam and more. A wireless model is also available.
For a full review of the SonicWALL TZ 100 router, check out the TechRepublic Product Spotlight Blog.
Image created by Erik Eckel for TechRepublic.

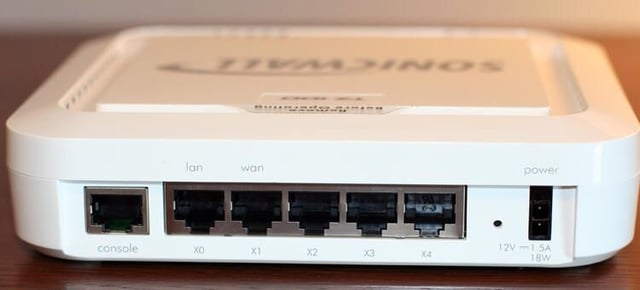

SonicWALL TZ 100 Rear View
SonicWALL TZ 100 Rear View
The SonicWALL TZ 100 includes an integrated four-port 10/100 switch. Other ports are available for WAN and console connectivity.
For a full review of the SonicWALL TZ 100 router, check out the TechRepublic Product Spotlight Blog.
Image created by Erik Eckel for TechRepublic.

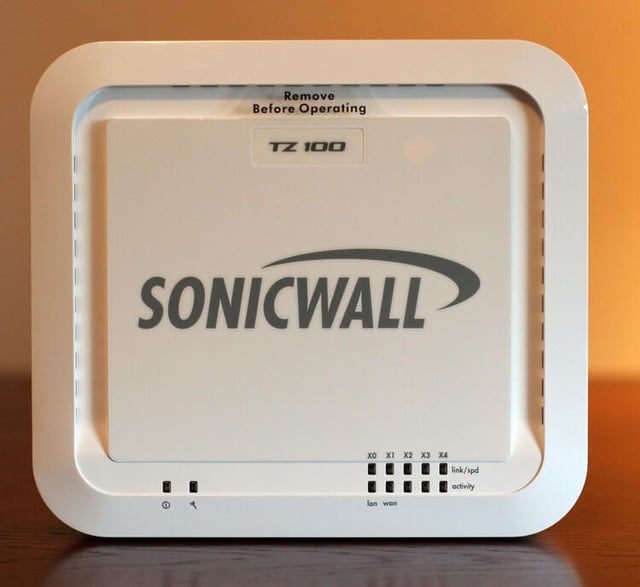

SonicWALL TZ 100 Top View
SonicWALL TZ 100 Top View
The SonicWALL TZ 100 includes power, diagnostic mode and port status LEDs. The unit’s design is simple and straightforward, with few flare or design touches. Don’t let the plastic casing fool you, though. The TZ 100’s value comes from the powerful router and firewall functionality packed inside.
For a full review of the SonicWALL TZ 100 router, check out the TechRepublic Product Spotlight Blog.
Image created by Erik Eckel for TechRepublic.

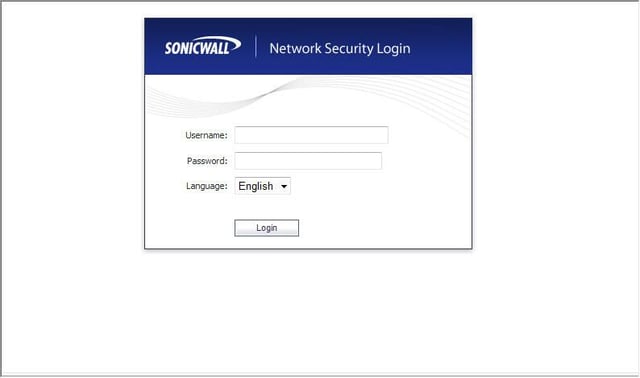

SonicWALL Enhanced OS Login Screen
SonicWALL Enhanced OS Login Screen
When logging in to the TZ 100’s local IP address, administrators are presented with this SonicWALL Enhanced OS login screen.
For a full review of the SonicWALL TZ 100 router, check out the TechRepublic Product Spotlight Blog.
Image created by Erik Eckel for TechRepublic.

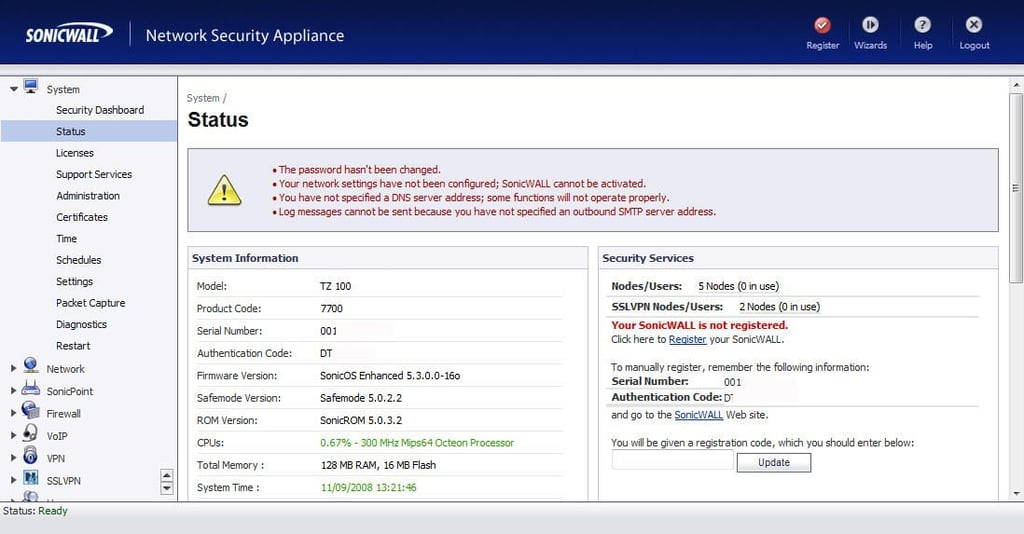

TZ 100 System Status Display
TZ 100 System Status Display
The TZ 100’s System Status window, shown here, displays critical information about the security appliance’s configuration. In addition to listing the firmware and ROM versions and SSL node use, the screen lists real-time CPU use.
For a full review of the SonicWALL TZ 100 router, check out the TechRepublic Product Spotlight Blog.
Image created by Erik Eckel for TechRepublic.

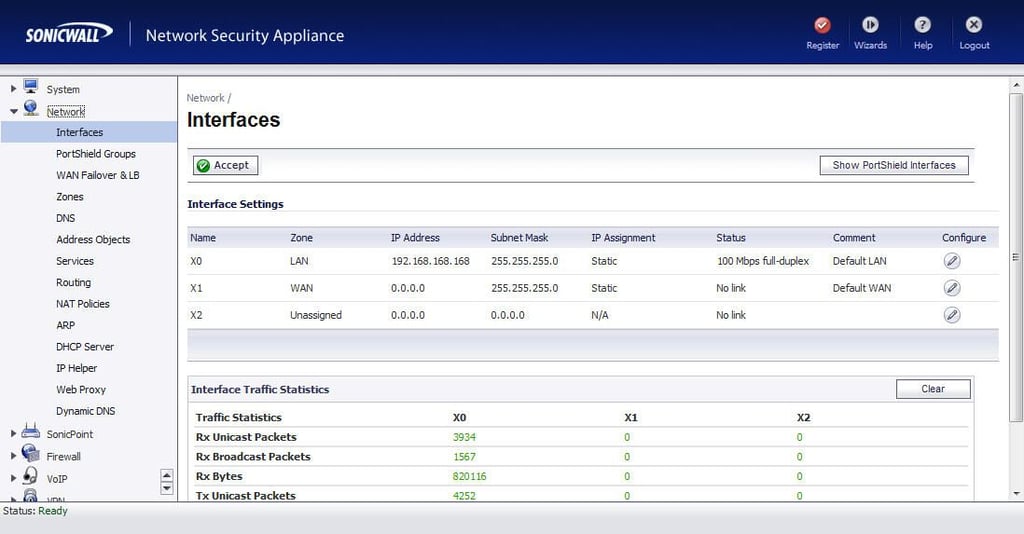

TZ 100 Interface Window
TZ 100 Interface Window
The SonicWALL Enhanced OS Network Interfaces window lists the zones, IP addresses, accompanying subnet masks and more for each port with an active network connection.
For a full review of the SonicWALL TZ 100 router, check out the TechRepublic Product Spotlight Blog.
Image created by Erik Eckel for TechRepublic.
Firewall Access Rules
Firewall Access Rules
To modify Firewall Access Rules, such as is required when wanting to open custom ports, administrators can use built in wizards or modify access rules manually by clicking the appropriate arrow within this window. For example, administrators needing to confirm or modify specific firewall port settings can click the WAN->LAN arrow to review those settings.
For a full review of the SonicWALL TZ 100 router, check out the TechRepublic Product Spotlight Blog.
Image created by Erik Eckel for TechRepublic.
Security Services
Security Services
Administrators manage the TZ 100’s subscription services using the router’s Security Services console. Here you can see the Manage/Synchronize Licenses window, which technicians can use to reduce antivirus traffic over ISDN connections and more.
For a full review of the SonicWALL TZ 100 router, check out the TechRepublic Product Spotlight Blog.
Image created by Erik Eckel for TechRepublic.
SonicWALL Enhanced OS Logging
SonicWALL Enhanced OS Logging
The enhanced SonicWALL OS provides complete logging and reporting functionality. Within the Log console, administrators can review events logged to the SonicWALL’s log files. Here you can see basic events listed within the log files, including the administrative logon required to collect the screenshots for this image gallery.
For a full review of the SonicWALL TZ 100 router, check out the TechRepublic Product Spotlight Blog.
Image created by Erik Eckel for TechRepublic.
