Xbox Anatomy

  • Xbox cover removed

    Xbox cover removed

    \n\tWith the top cover removed you can see the DVD drive and the hard drive.

    \n

    \n\t\n\n
    \n\t
    \n\t\u00a9 Webshots – jordija

    &copy Webshots - <a href="http://community.webshots.com/user/jordija" target="_blank">jordija</a>

  • Xbox motherboard and power supply

    © Webshots – jordija

  • Xbox controller ports

    © Webshots – jordija

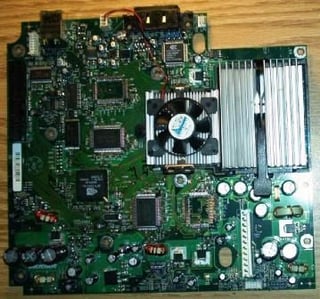

  • Xbox motherboard

    This motherboard has been removed from the Xbox.

    © Webshots – jordija

  • Xbox daughter board

    © Webshots – jordija

  • Xbox power supply

    © Webshots – jordija

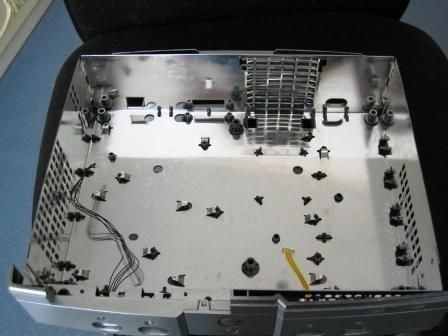

  • Empty Xbox case

    The bare Xbox case.

    © Webshots – jordija

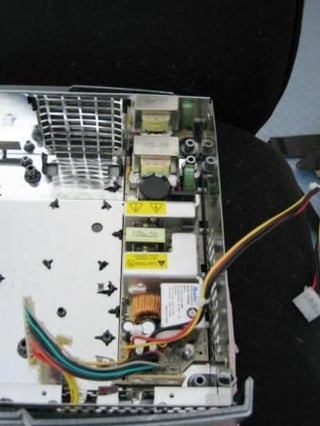

  • Xbox Case and power supply

    This image shows the Xbox with only the power supply installed on the right side–looking at the Xbox from the front.

    © Webshots – jordija

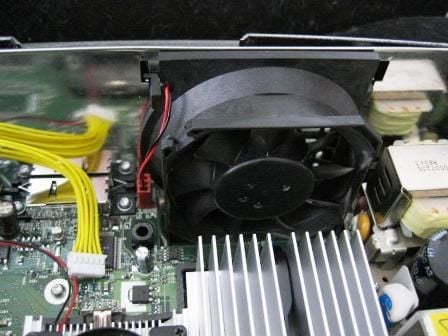

  • Xbox cooling fan

    The Xbox cooling fan mounted in the rear next to the heatsinks.

    © Webshots – jordija

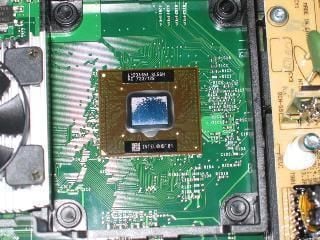

  • Xbox CPU

    The Xbox’s 733 MHz Intel chip

    © Webshots – jordija

  • Xbox DVD and hard drive

    This Xbox DVD and hard rive have been removed from the box. You also see a Logitech wireless controller base station in the bottom right corner.The Xbox’s 733 MHz Intel chip

    © Webshots – jordija

  • Xbox controller

    From the underside of this disassembled Xbox controller you can see the triggers and the rumblers–black cylinders connected with wire at the top.

    © Webshots – jordija
