Extreme home network

By Bill Detwiler November 17, 2005, 1:43 AM PST billdetwiler

1
of 25

Overview

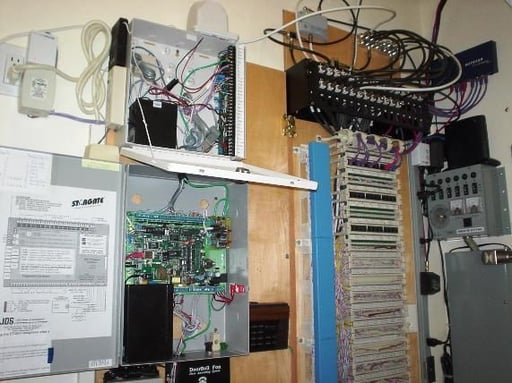

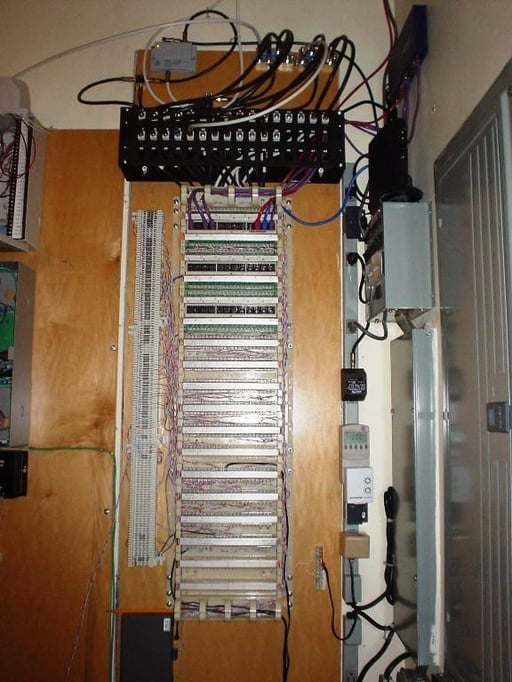

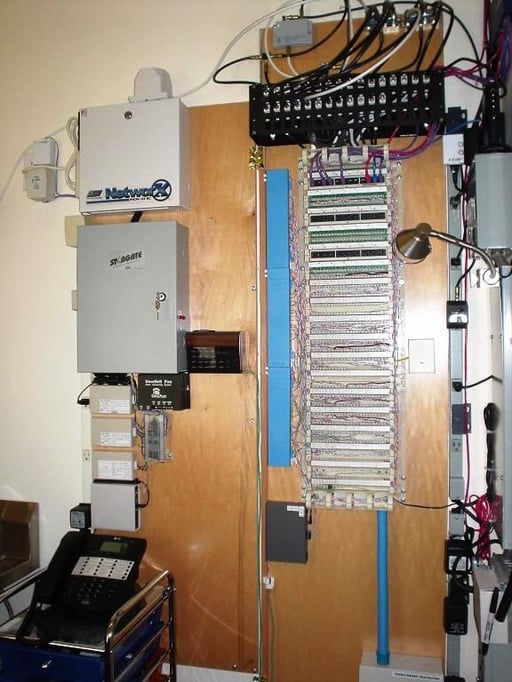

This photo shows the Stargate, Caddx and all the associated wiring for telephone, video and data system.

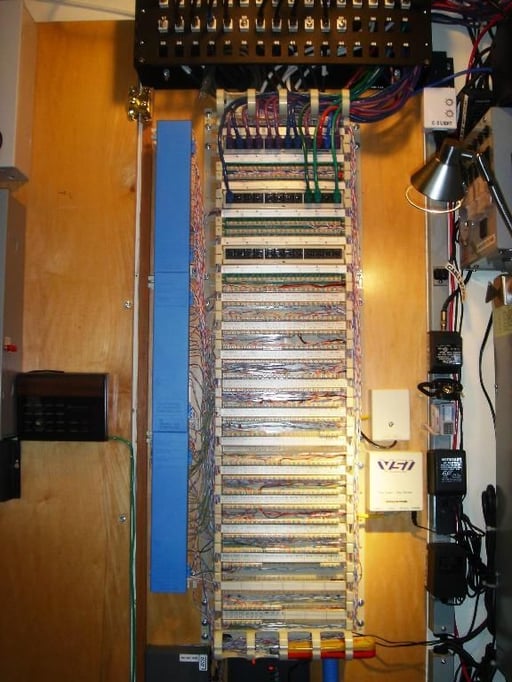

Front of the wiring panel

Interior view of Stargate & Caddx

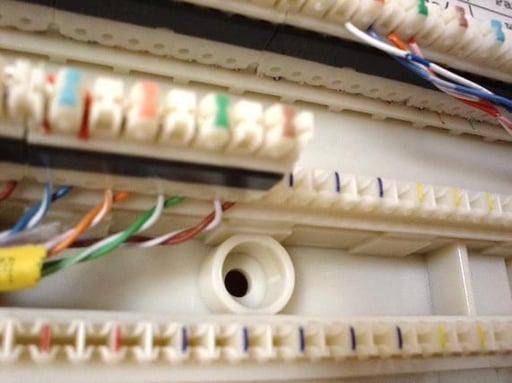

110 Detail

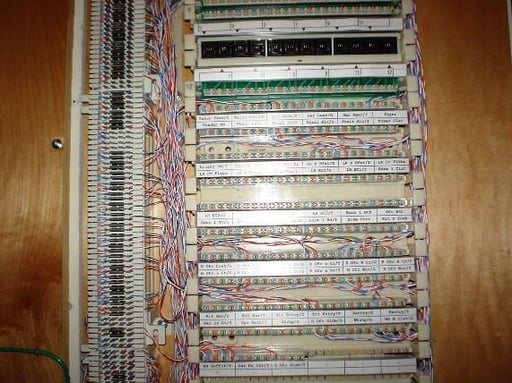

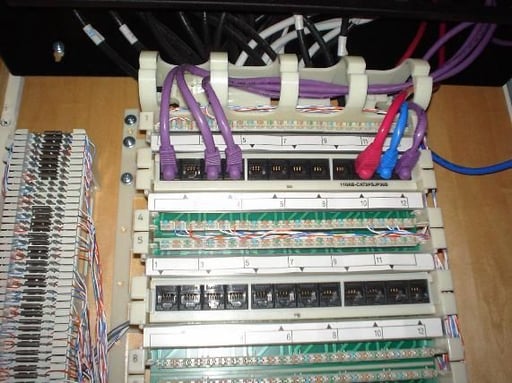

110 Full

110 Blocks-video patch

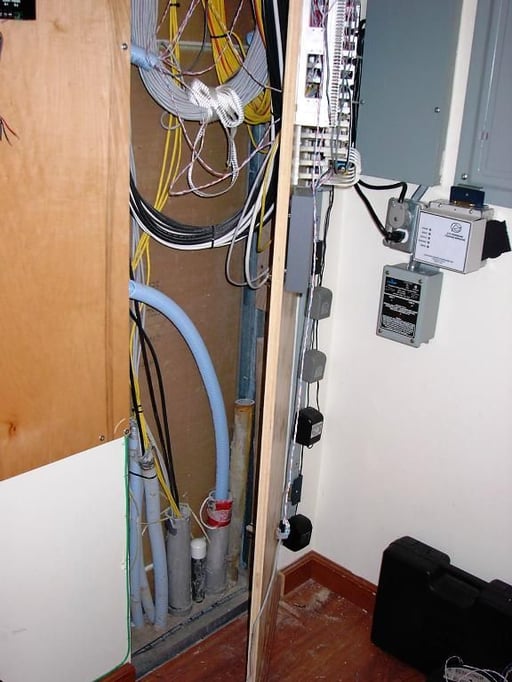

Open stud bay

Stud bay conduits

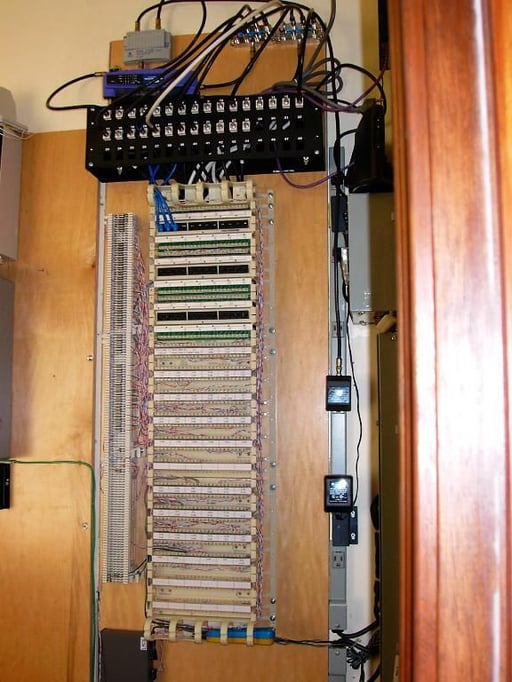

Main Distribution Frame (MDF) fed from stud bay behind

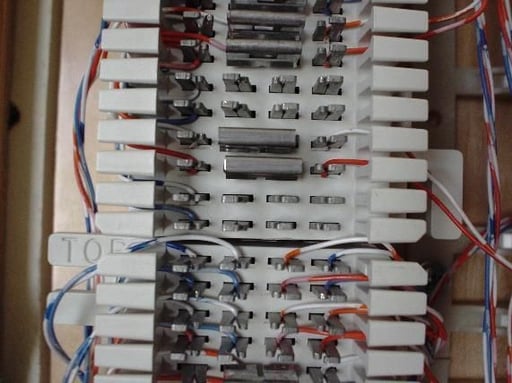

66 Block

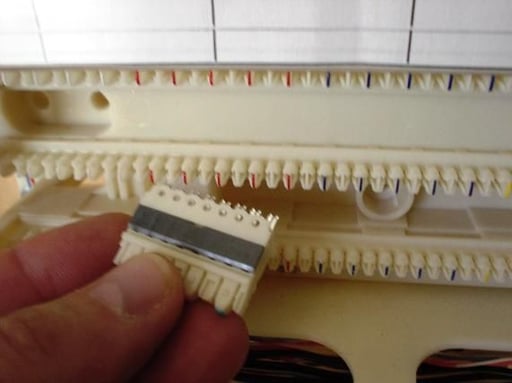

C4 clip

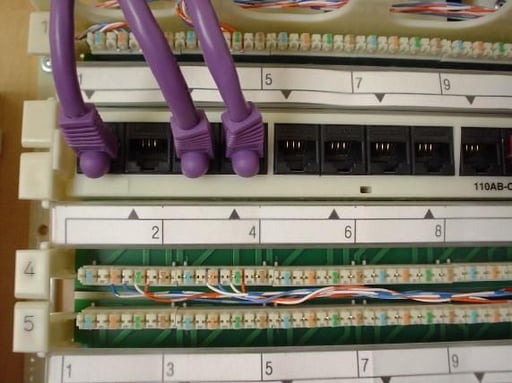

110 Patch cable

110 Punch

Patch detail

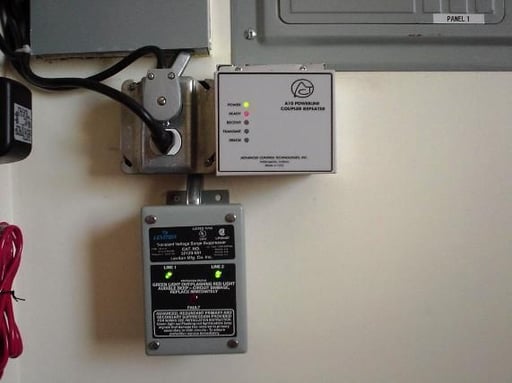

ACT CR234 signal repeater and Leviton surge protector

ACT CR234 X10/A10 Signal Repeater and Leviton 32120 Whole House Surge Protector installed at service panel.

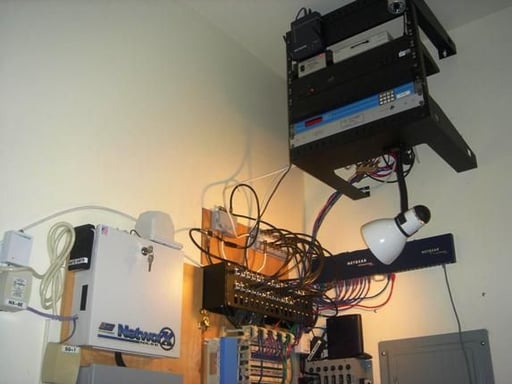

Video equipment rack

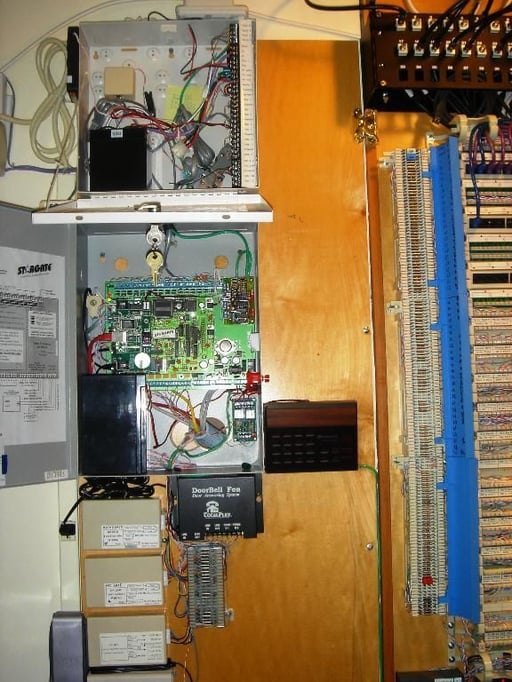

“Open Hood” view of Stargate SG1 and Caddx panel

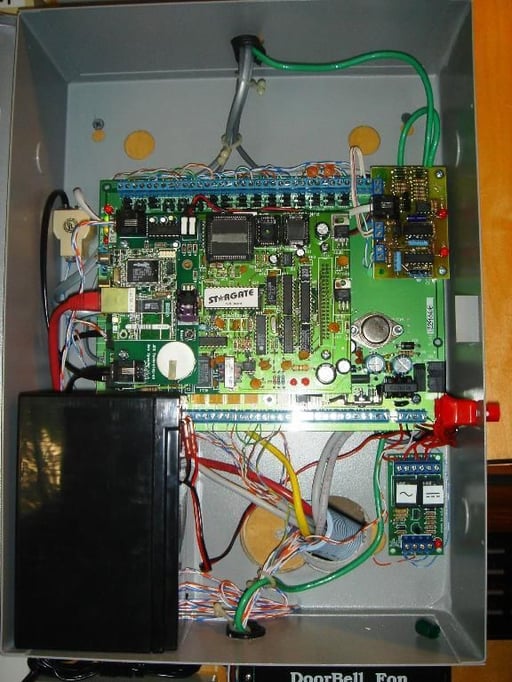

Under the hood close-up of the Stargate SG1

Video, LAN and power

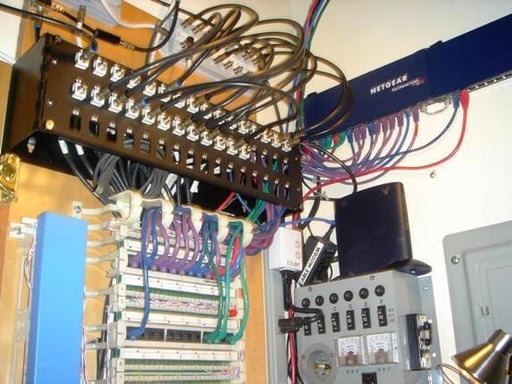

Video patch panel (above), LAN patch panel (below) fed by Netgear switch (upper right) and generator transfer panel (lower right)

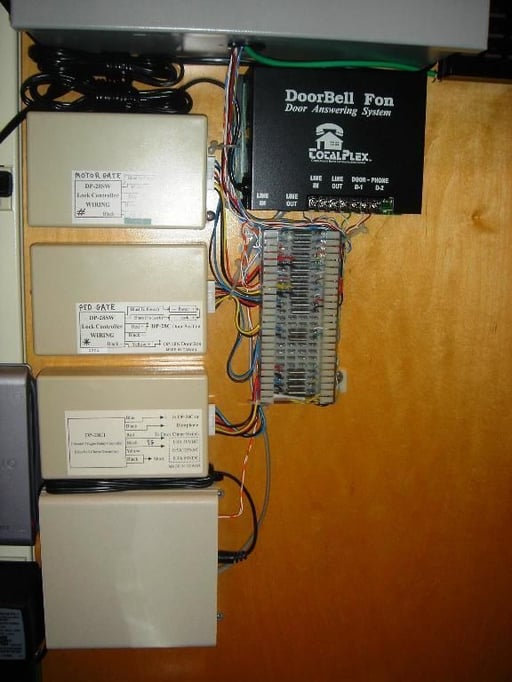

DoorBell Fon and modules including Viking Ring Booster at bottom

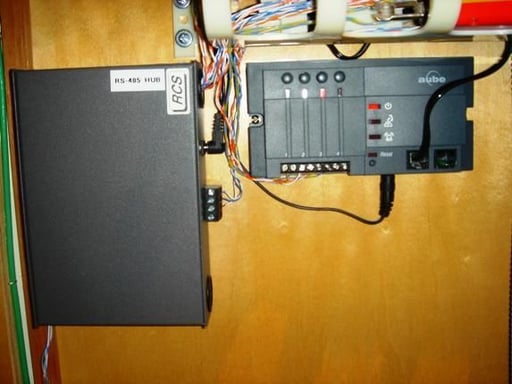

RS-485 hub (left) and Aube Telephone Controller (right) used to remotely reset SG1, cable router and cable modem

Power supply

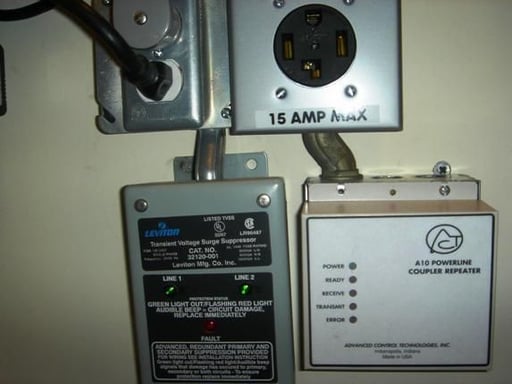

220 volt test socket (upper right), ACT Repeater (lower right) and Leviton Whole House Surge Protector (lower left)

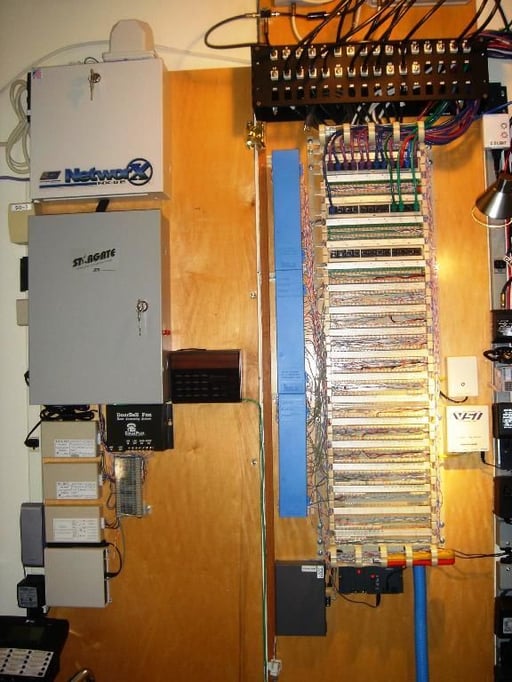

The whole enchilada

WebX on TimeCommander+ (1 of 2)

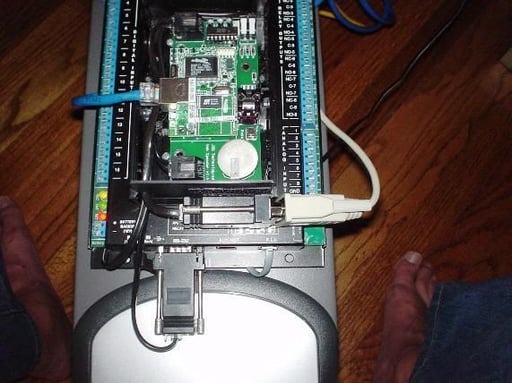

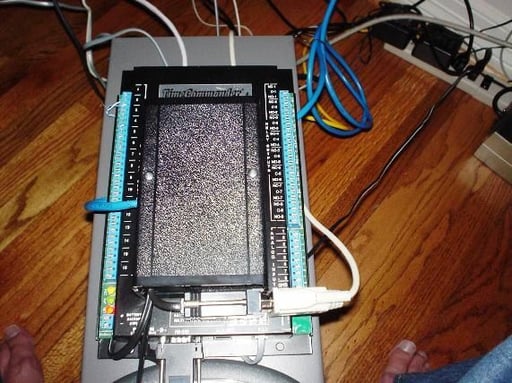

WebX mounted to top of TC+ with Velcro strips–cover removed for detail

WebX on TimeCommander+ (2 of 2)

Access cables and upload port by removing two cover screws and lifting off cover.
